DFI BT968 User Manual

Download

Page 1

BT968

COM Express Compact Module

User’s Manual

A30600407

www.dﬁ .comChapter 1 Introduction

Page 2

Copyright

FCC and DOC Statement on Class B

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

COM Express Specification Reference

PICMG® COM Express ModuleTM Base Specification. http://www.picmg.org/

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

www.dﬁ .comChapter 1 Introduction

Page 3

Trademarks ........................................................................................................2

FCC and DOC Statement on Class B .....................................................2

About this Manual ..........................................................................................4

Chapter 4 - BIOS Setup ............................................................... 32

Overview ..................................................................................................... 32

AMI BIOS Setup Utility .............................................................................33

Main ......................................................................................................... 33

Advanced .................................................................................................. 33

Chipset ..................................................................................................... 40

Security .................................................................................................... 45

Boot ......................................................................................................... 45

Save & Exit ...............................................................................................46

Updating the BIOS ....................................................................................46

Notice: BIOS SPI ROM .............................................................................47

Warranty ..............................................................................................................4

Static Electricity Precautions ......................................................................4

Safety Measures ..............................................................................................4

About the Package .........................................................................................5

Chapter 1 - Introduction .............................................................................6

Specifications ................................................................................................6

Features ........................................................................................................7

Chapter 2 - Concept .......................................................................8

COM Express Module Standards ..............................................................8

Specification Comparison Table ...............................................................9

Chapter 3 - Hardware Installation ...............................................10

Board Layout ...............................................................................................10

Block Diagram .............................................................................................10

Mechanical Diagram ..................................................................................11

System Memory ..........................................................................................12

Installing the DIMM Module ....................................................................... 13

Connectors ...................................................................................................14

CPU Fan Connector.................................................................................... 14

COM Express Connectors ........................................................................... 14

COM Express Connectors Signal Discription .................................................17

Standby Power LED ................................................................................... 25

Cooling Option ............................................................................................25

Installing BT968 onto a Carrier Board .................................................26

Installing the COM Express Debug Card .............................................29

Chapter 5 - Supported Software ...........................................................48

Chapter 6 - GPIO Programming Guide...............................................61

Appendix A - nLite and AHCI Installation Guide ...........................62

nLite ...............................................................................................................62

AHCI ..............................................................................................................66

Appendix B - Watchdog Sample Code ................................................68

Appendix C - System Error Message ...................................................69

Appendix D - Troubleshooting ................................................................70

www.dﬁ .comChapter 1 Introduction

Page 4

About this Manual

Static Electricity Precautions

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

www.dﬁ .comChapter 1 Introduction

Page 5

About the Package

The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

• One BT968 board

• One DVD

• One QR (Quick Reference)

Optional Items

• COM331-B carrier board kit

• COM101-BAT carrier board kit

• Heat sink

• Heat spreader with heat sink and fan The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance with the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components. If you are installing the system board in a new system, you will need at least the following

internal components.

• Storage devices such as hard disk drive, CD-ROM, etc. You will also need external system peripherals you intend to use which will normally include at

least a keyboard, a mouse and a video display monitor.

www.dﬁ .comChapter 1 Introduction

Page 6

Chapter 1 - Introduction Specifications

Chapter 1

Processor

System Memory

Graphics

Audio Serial ATA

LAN

eMMC* (optional)

Trusted Platform Module - TPM* (optional)

• Intel® AtomTM/Intel® Celeron® processors

- E45: Intel

- E26: Intel

- J00: Intel

- N07: Intel

AtomTM E3845, Quad Core, 2M Cache, 1.91GHz, 10W

AtomTM E3826, Dual Core, 1M Cache, 1.46GHz, 7W

Celeron® J1900, Quad Core, 2M Cache, up to 2.42GHz, 10W

Celeron® N2807, Dual Core, 1M Cache, up to 2.16GHz, 4.3W (The following speciﬁ cations will be available upon request. Please contact your sales representative for more information.)

- E27: Intel

- E25: Intel

- E15: Intel

- N30: Intel

AtomTM E3827, Dual Core, 1M Cache, 1.75GHz, 8W

AtomTM E3825, Dual Core, 1M Cache, 1.33GHz, 6W

AtomTM E3815, Single Core, 0.5M Cache, 1.46GHz, 5W

Celeron® N2930, Quad Core, 2M Cache, up to 2.16GHz, 7.5W

• BGA 1170 packaging technology

• 22nm process technology

• Two 204-pin DDR3L SODIMM sockets (-E45/-E27/-E26/-J00/-N30)

- up to 8GB system memory

- dual channel memory interface One 204-pin DDR3L SODIMM socket (-E25/-E15/-N07)

- up to 4GB system memory

- single channel memory interface

• Supports DDR3L 1333MHz (-E45/-E27/-J00/-N30/-N07) Supports DDR3L 1066MHz (-E26/-E25/-E15)

• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3L DRAM technologies are supported for x8 and x16 devices, unbuffered, non-ECC

• Intel® HD Graphics

• Supports VGA, DDI, LVDS (default) or DDI* interfaces

• Supports 2 display interfaces at the same time

• VGA: 24-bit, resolution up to 2560x1600 @60Hz

• LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @60Hz

• Digital Display Interface: HDMI, DVI and DP

• HDMI, DVI: resolution up to 1920x1080 @60Hz

• DP: resolution up to 2560x1600 @ 60Hz

• Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 3.2, H.264,

MPEG2, MVC, VC-1, WMV9 and VP8

• Supports High Deﬁ nition Audio interface

• Supports 2 Serial ATA interfaces

• SATA 2.0 with data transfer rate up to 3Gb/s

• Integrated Advanced Host Controller Interface (AHCI) controller

• Intel® I210AT Gigabit Ethernet Controller

• Integrated 10/100/1000 transceiver

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Supports 4GB, 8GB, 16GB and 32GB eMMC onboard

• Provides a Trusted PC for secure transactions

• Provides software license protection, enforcement and password protection

Expansion Interfaces

Watchdog

• Supports 1 USB 3.0 port

• Supports 8 USB 2.0 ports

- 4 integrated USB 2.0 ports

- 1 USB HSIC for 4 USB 2.0 Ports

• Supports 3 PCIe x1 (default); or 1 PCIe x4 (PCIe port 3, by default, is shared with the onboard LAN)*

• Supports LPC interface

• Supports I

• Supports SMBus interface

• Suppotrs 2 serial interfaces (TX/RX)

• Supports 8-bit Digital I/O

C interface

• Watchdog timeout programmable via software from 1 to 255 seconds

Timer Damage Free

Intelligence

BIOS

Power

• Monitors CPU temperature

• Monitors Vcore/Vgfx/VDDR/1V0/VBAT voltages

• Monitors CPU/system fan speed

• Watchdog timer function

• AMI BIOS

- 64Mbit SPI BIOS

• 16W with E3845 at 1.91GHz and 2x 4GB DDR3L SODIMM

Consumption OS Support

Temperature

Humidity Power Input

PCB

• Windows 7 Ultimate x86 & SP1 (32-bit)

• Windows 7 Ultimate x64 & SP1 (64-bit)

• Windows 8 Enterprise x86 (32-bit)

• Windows 8 Enterprise x64 (64-bit)

• Windows 8.1 Enterprise x86 (32-bit)

• Windows 8.1 Enterprise x64 (64-bit)

• Operating

- Atom: 0

- Celeron: 0

• Storage: -40

C to 60oC, -20oC to 70oC, -40oC to 85oC

C to 60oC

C to 85oC

• 5% to 90%

• 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)

• Dimensions

- COM Express

- 95mm (3.74") x 95mm (3.74")

• Compliance

- PICMG COM Express

Compact

R2.1, Type 6

Note:

*Optional and is not supported in standard model. Please contact your sales representative for more information.

www.dﬁ .comChapter 1 Introduction

Page 7

Chapter 1

Features

• Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

• DDR3L

DDR3L is a higher performance DDR3 SDRAM interface providing less voltage and higher speed successor. DDR3L SDRAM modules support 1066/1333MHz for DDR modules. DDR3L delivers increased system bandwidth and improved performance to provide its higher bandwidth and its increase in performance at a lower power.

• Graphics

The integrated Intel® HD graphics engine delivers an excellent blend of graphics performance and features to meet business needs. It provides excellent video and 3D graphics with outstanding graphics responsiveness. These enhancements deliver the performance and compatibility needed for today’s and tomorrow’s business applications. Supports VGA, DDI, LVDS (default) or DDI (optional) interfaces for up to 2 display outputs at the same time.

• Serial ATA

Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of up to 3Gb/s (SATA 2.0), it improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s.

• Gigabit LAN

The Intel® WGI210AT Gigabit LAN controller supports up to 1Gbps data transmission.

• USB

The system board supports the new USB 3.0. It is capable of running at a maximum transmission speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s) and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces power consumption, and is backward compatible with USB 2.0. It is a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

www.dﬁ .comChapter 1 Introduction

Page 8

Chapter 2 - Concept COM Express Module Standards

The figure below indicates the dimensions of the different types of COM Express modules. BT968 is a COM Express Compact. The dimension is 95mm x 95mm.

Common for all Form Factors Extended only Basic only Compact only Compact and Basic only Mini only

Chapter 2

106.00

Extended

91.00

18.00

6.00

0.00

4.00

0.00

16.50

Mini

74.20

80.00

91.00

BasicCompact

70.00

51.00

4.00

121.00

151.00

www.dﬁ .comChapter 2 Concept

Page 9

Chapter 2

)

ANA

)

Specification Comparison Table

The table below shows the COM Express standard specifications and the corresponding specifications supported on the BT968 module.

Connector Feature

A-B A-B A-B A-B A-B A-B A-B A-B

A-B A-B

A-B A-B A-B A-B A-B A-B A-B A-B A-B A-B

A-B A-B

A-B A-B A-B A-B A-B

PCI Express Lanes 0 - 5 1 / 6 3 (4 for BOM Opt. LVDS Channel LVDS Channel B 0 / 1 1 eDP on LVDS CH A pins 0 / 1 0 VGA Port 0 / 1 1

V-Out N DDI 0 N Serial Ports 1 - 2 0 / 2 2 CAN interface on SER1 0 / 1 0 SATA / SAS Ports 1 / 4 2 AC’97 / HDA Digital Interface 0 / 1 1 USB 2.0 Ports 4 / 8 8 USB Clien USB 3.0 Ports N LAN Port 0 1 / 1 1 Express Card Support 1 / 2 2 LPC Bus 1 / 1 1 SPI 1 / 2 1

SDIO(muxed on GPIO General Pur SMBus 1 / 1 1 I2C 1 / 1 1 Watchdog Timer 0 / 1 1 Speaker Ou External BIOS ROM Support0 / 2 1 Reset Functions 1 / 1 1

COM Express Module Base Specification Type 6

(No IDE or PCI, add DDI+ USB3)

Max

Min

System I/O

0 / 1 1

0 / 1 0

System Management

0 / 1 0

ose I/O 8 / 8 8

1 / 1 1

DFI BT968 Type 6

Note:

• 5 Indicates 12V-tolerant features on former VCC_12V signals.

• 6 Cells in the connected columns spanning rows provide a rough approximation of

features sharing connector pins.

COM Express Module Base

Connector Feature

A-B A-B Thermal Protection 0 / 1 A-B Battery Low Alarm 0 / 1 A-B Suspend/Wake Signals 0 / 3 A-B Power Button Support 1 / 1 A-B Power Good 1 / 1 A-B VCC_5V_SBY Contacts 4 / 4

A-B

A-B A-B Trusted Platform Modules 0 / 1

A-B A-B VCC_12V Contacts 12 / 12

Sleep Input 0 / 1 Lid Input 0 / 1 Fan Control Signals 0 / 2

Specification Type 6

(No IDE or PCI, add DDI+ USB3) Min

Power Management

Max

Power

DFI BT968 Type 6

1 1 3 1 1 4 1 1 2 1

Module Pin-out - Required and Optional Features C-D Connector. PICMG® COM.0Revision 2.1

Connector Feature

C-D

PCI Express Lanes 16 - 31 0 / 16 PCI Express Graphics (PEG) 0 / 1 Muxed SDVO Channels 1 - 2 NA PCI Express Lanes 6 - 15 0 / 2 PCI Bus - 32 Bit NA PATA Port NA LAN Ports 1 - 2 NA DDIs 1 - 3 0 / 3

COM Express Module Base Specification Type 6

(No IDE or PCI, add DDI+ USB3)

Max

Min

System I/O

DFI BT968 Type 6

0 0 N 0 N N N 2 (DDI 2 option with onboard LVDS)

C-D

USB 3.0 Ports 0 / 4

C-D VCC_12V Contacts 12 / 12

Power

www.dﬁ .comChapter 2 Concept

Page 10

Chapter 3 - Hardware Installation

SATA 2.0 2x

USB 3.0 Port 1

)

VGA

PCIe GEN

2 (3

x4)

HD A

udio

LPC Bus

SLP/LID

USB 2.0 4x

(

Bus

TCA6408A

Board Layout

Chapter 3

Block Diagram

Intel I210AT

DDR3L_1 SODIMM

Intel

BGA 1170

SMSC USB4604

Top View

DDR3L_2 SODIMM

NXP PTN3460

SPI Flash BIOS

Standby Power LED

eMMC

(optional)

ITE

IT8528E

CPU Fan

Serial Port 0,1

8-bit DIO

A / B

USB 2.0 4x

SLP/LID

WDT

Embedded

Fan PWM/

TACH_IN

C Bus

Controller

EEPROM

TCA6408A

SMBus

USB4604

SATA 2.0 2x

PCIe GEN2 (3 x1 or 1 x4)

LAN

Intel® GLAN

I210AT

VGA

LPC Bus

IT8518E

HD Audio

USB 2.0 4x

x1 or

TPM 1.2

SLB9635

(optional)

USB HSIC

PCIe x1

LVDS Ports (Dual Channel)

Atom E3800 Series

/Celeron

eDP to LVDS

(PTN3460)

Default eDP (DDI) Port

DDI

Port 1

1:2 DP S/W

PI3VDP612A

IMVP7

DDI Port 0 (to BTB DDI Port1)

DDR3L Memory

DDR3

1066/1333MHz

Dual Channel

eMMC

Slot 2x

USB 3.0 Port 1

eMMC

(Optional)

DDI Port1

(to BTB DDI Port 2)

(co-lay with PTN3460)

C / D

SPI Bus

SPI Flash

D110

C110 B110

A110

COM Express connector

C1 B1

Bottom View

www.dﬁ .comChapter 3 Hardware Installation

Page 11

Mechanical Diagram

Chapter 3

53.00

BT968 Module with Heat Sink

95.00

20.00

55.00

95.00

Fan

Heat sink

Heatspreader

Module PCB

91.00

4.00

0.00

BT968 Module

91.00

4.00

95.00

91.00

Top View

4.00

80.00

11.00 22.00

Standoff

Side View of the Module with Heat Sink and Carrier Board

2.00

Bottom View

18.00

6.00

0.00

74.20

16.50

www.dﬁ .comChapter 3 Hardware Installation

Page 12

Important:

Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in boards, and other components. Perform installation procedures at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

System Memory

The system board is equipped with one or two 204-pin SODIMM sockets that support DDR3L memory modules depending on the CPU processor supported.

• Two 204-pin DDR3L SODIMM sockets (-E45/-E27/-E26/-J00/-N30)

- up to 8GB system memory

- dual channel memory interface One 204-pin DDR3L SODIMM socket (-E25/-E15/-N07)

- up to 4GB system memory

- single channel memory interface

Important:

When the Standby Power LED lights red, it indicates that there is power on the board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the board and components.

DDR3L_1

Chapter 3

DDR3L_2

Bottom View

Note:

When installing one DDR3L SODIMM only, make sure to install it on the socket (SODIMM 1) that is located on the top side of the module.

Standby

Power LED

Top View

www.dﬁ .comChapter 3 Hardware Installation

Page 13

Chapter 3

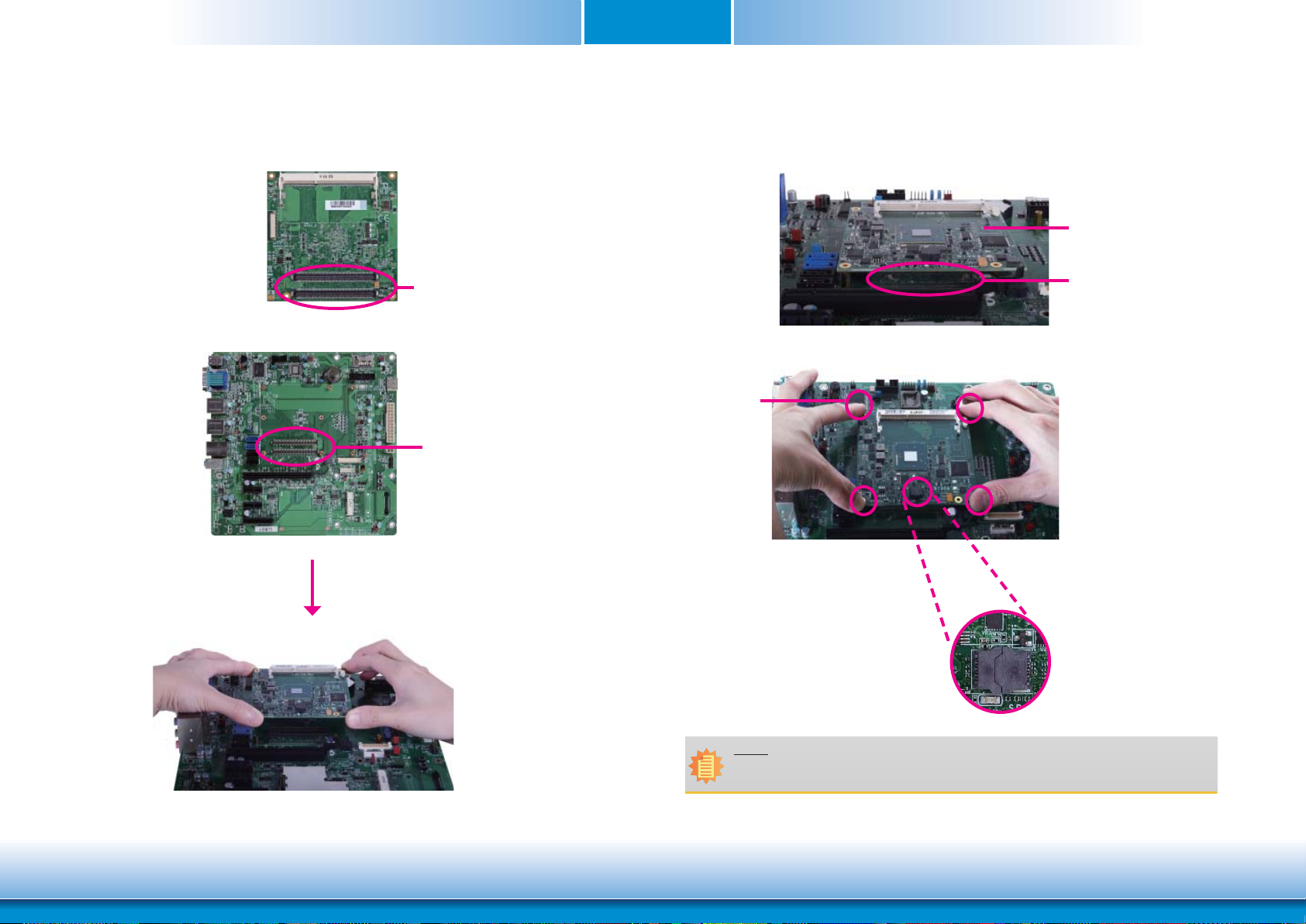

Installing the DIMM Module

Note:

The system board used in the following illustrations may not resemble the actual one. These illustrations are for reference only.

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the SODIMM socket on the system board.

4. Note the key on the socket. The key ensures the module can be plugged into the socket in only one direction.

5. Grasping the module by its edges, align the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

6. Push down the module until the clips at each end of the socket lock into position. You will

hear a distinctive “click”, indicating the module is correctly locked into position.

ClipClip

www.dﬁ .comChapter 3 Hardware Installation

Page 14

Chapter 3

Connectors

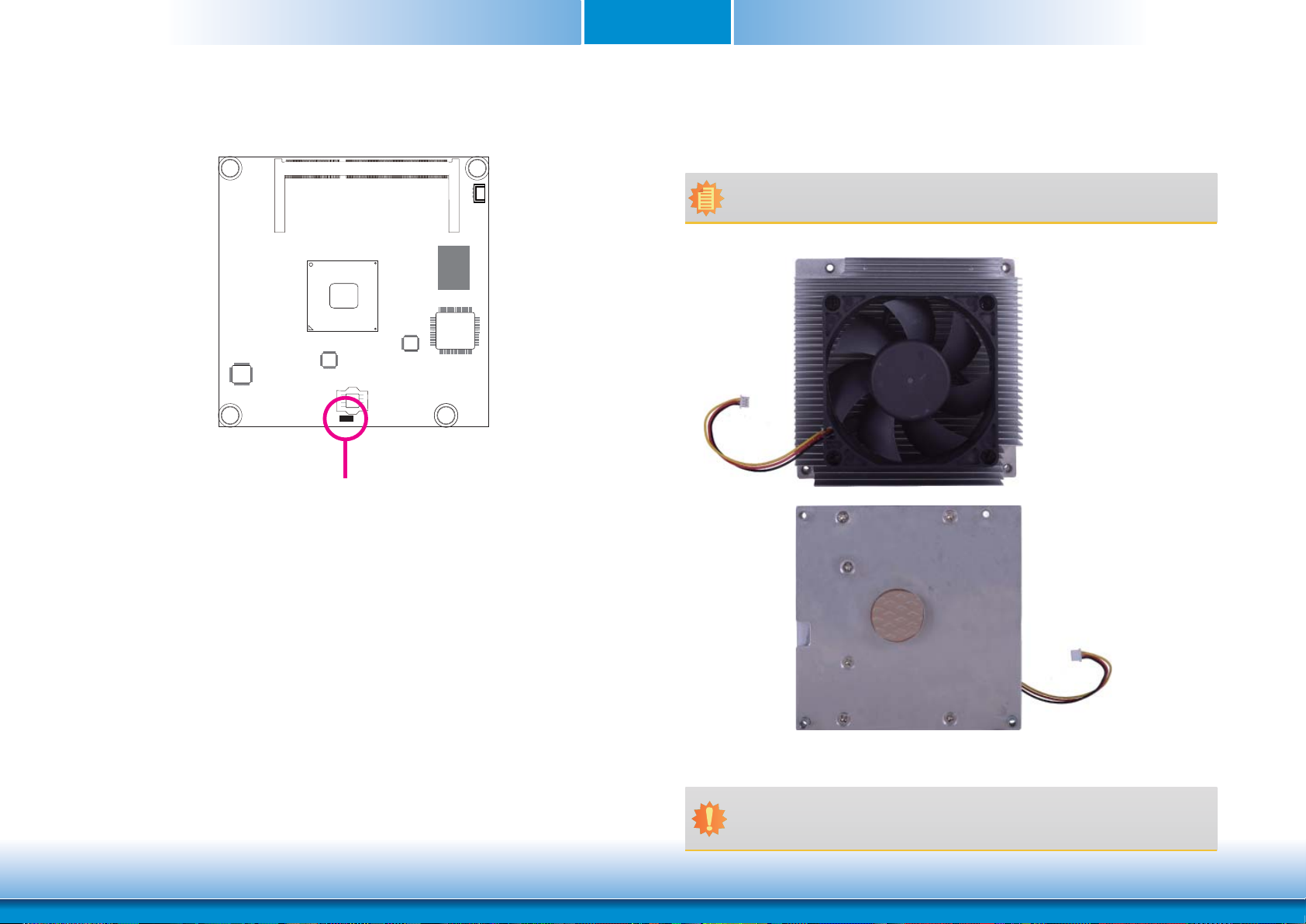

CPU Fan Connector

3 1

Connect the CPU fan’s cable connector to the CPU fan connector on the board. The cooling fan will provide adequate airflow throughout the chassis to prevent overheating the CPU and board components.

BIOS Setting

“Module Board H/W Monitor” submenu in the Advanced menu of the BIOS will display the current speed of the cooling fan. Refer to chapter 4 of the manual for more information.

Ground +12V Sense

COM Express Connectors

The COM Express connectors are used to interface the BT968 COM Express board to a carrier board. Connect the COM Express connectors (located on the solder side of the board) to the COM Express connectors on the carrier board.

Refer to the “Installing BT968 onto a Carrier Board” section for more information.

COM Express Connectors

Refer to the following pages for the pin functions of these connectors.

www.dﬁ .comChapter 3 Hardware Installation

Page 15

COM Express Connectors

Chapter 3

Row A Row B

A1 GND (FIXED) B1 GND (FIXED) A2 GBE0_MDI3- B2 GBE0_ACT# A3 GBE0_MDI3+ B3 LPC_FRAME# A4 GBE0_LINK100# B4 LPC_AD0 A5 GBE0_LINK1000# B5 LPC_AD1 A6 GBE0_MDI2- B6 LPC_AD2 A7 GBE0_MDI2+ B7 LPC_AD3 A8 GBE0_LINK# B8 LPC_DRQ0# (NA) A9 GBE0_MDI1- B9 LPC_DRQ1# (NA) A10 GBE0_MDI1+ B10 LPC_CLK A11 GND (FIXED) B11 GND (FIXED) A12 GBE0_MDI0- B12 PWRBTN# A13 GBE0_MDI0+ B13 SMB_CK A14 GBE0_CTREF B14 SMB_DAT A15 SUS_S3# B15 SMB_ALERT# A16 SATA0_TX+ B16 SATA1_TX+ A17 SATA0_TX- B17 SATA1_TXA18 SUS_S4# B18 SUS_STAT# A19 SATA0_RX+ B19 SATA1_RX+ A20 SATA0_RX- B20 SATA1_RXA21 GND (FIXED) B21 GND (FIXED) A22 SATA2_TX+ (NA) B22 SATA3_TX+ (NA) A23 SATA2_TX- (NA) B23 SATA3_TX- (NA) A24 SUS_S5# B24 PWR_OK A25 SATA2_RX+ (NA) B25 SATA3_RX+ (NA) A26 SATA2_RX- (NA) B26 SATA3_RX- (NA) A27 BATLOW# B27 WDT A28 (S)ATA_ACT# B28 NA A29 AC/HDA_SYNC B29 AC/HDA _SDIN1 A30 AC/HDA _RST# B30 AC/HDA _SDIN0

Row A Row B

A31 GND (FIXED) B31 GND (FIXED) A32 AC/HDA _BITCLK B32 SPKR A33 AC/HDA _SDOUT B33 I2C_CK A34 BIOS_DIS0# B34 I2C_DAT A35 THRMTRIP# B35 THRM#

A36 USB6- B36 USB7-

A37 USB6+ B37 USB7+

A38 USB_6_7_OC# B38 USB_4_5_OC# A39 USB4- B39 USB5-

A40 USB4+ B40 USB5+ A41 GND (FIXED) B41 GND (FIXED) A42 USB2- B42 USB3A43 USB2+ B43 USB3+ A44 USB_2_3_OC# B44 USB_0_1_OC# A45 USB0- B45 USB1A46 USB0+ B46 USB1+ A47 VCC_RTC B47 EXCD1_PERST# A48 EXCD0_PERST# B48 EXCD1_CPPE# A49 EXCD0_CPPE# B49 SYS_RESET# A50 LPC_SERIRQ B50 CB_RESET# A51 GND (FIXED) B51 GND (FIXED) A52 PCIE_TX5+(NA) B52 PCIE_RX5+(NA) A53 PCIE_TX5-(NA) B53 PCIE_RX5-(NA) A54 GPI0 B54 GPO1 A55 PCIE_TX4+(NA) B55 PCIE_RX4+(NA)

Row A Row B

A56 PCIE_TX4-(NA) B56 PCIE_RX4- (NA) A57 GND B57 GPO2 A58 PCIE_TX3+ B58 PCIE_RX3+ A59 PCIE_TX3- B59 PCIE_RX3A60 GND (FIXED) B60 GND (FIXED) A61 PCIE_TX2+ B61 PCIE_RX2+ A62 PCIE_TX2- B62 PCIE_RX2- A63 GPI1 B63 GPO3 A64 PCIE_TX1+ B64 PCIE_RX1+ A65 PCIE_TX1- B65 PCIE_RX1A66 GND B66 WAKE0# A67 GPI2 B67 WAKE1# A68 PCIE_TX0+ B68 PCIE_RX0+ A69 PCIE_TX0- B69 PCIE_RX0- A70 GND(FIXED) B70 GND (FIXED) A71 LVDS_A0+ B71 LVDS_B0+ A72 LVDS_A0- B72 LVDS_B0- A73 LVDS_A1+ B73 LVDS_B1+ A74 LVDS_A1- B74 LVDS_B1- A75 LVDS_A2+ B75 LVDS_B2+ A76 LVDS_A2- B76 LVDS_B2- A77 LVDS_VDD_EN B77 LVDS_B3+ A78 LVDS_A3+ B78 LVDS_B3- A79 LVDS_A3- B79 LVDS_BKLT_EN A80 GND (FIXED) B80 GND (FIXED) A81 LVDS_A_CK+ B81 LVDS_B_CK+ A82 LVDS_A_CK- B82 LVDS_B_CKA83 LVDS_I2C_CK B83 LVDS_BKLT_CTRL A84 LVDS_I2C_DAT B84 VCC_5V_SBY A85 GPI3 B85 VCC_5V_SBY

Row A Row B

A86 RSVD B86 VCC_5V_SBY A87 RSVD B87 VCC_5V_SBY A88 PCIE0_CK_REF+ B88 BIOS_DIS1# A89 PCIE0_CK_REF- B89 VGA_RED A90 GND (FIXED) B90 GND (FIXED)

A91 SPI_POWER B91 VGA_GRN

A92 SPI_MISO B92 VGA_BLU

A93 GPO0 B93 VGA_HSYNC A94 SPI_CLK B94 VGA_VSYNC

A95 SPI_MOSI B95 VGA_I2C_CK A96 TPM_PP B96 VGA_I2C_DAT A97 NC B97 SPI_CS# A98 SER0_TX B98 RSVD A99 SER0_RX B99 RSVD A100 GND (FIXED) B100 GND (FIXED) A101 SER1_TX B101 FAN_PWMOUT A102 SER1_RX B102 FAN_TACHIN A103 LID# B103 SLEEP# A104 VCC_12V B104 VCC_12V A105 VCC_12V B105 VCC_12V A106 VCC_12V B106 VCC_12V A107 VCC_12V B107 VCC_12V A108 VCC_12V B108 VCC_12V A109 VCC_12V B109 VCC_12V A110 GND (FIXED) B110 GND (FIXED)

www.dﬁ .comChapter 3 Hardware Installation

Page 16

Chapter 3

Row C Row D

C1 GND (FIXED) D1 GND (FIXED) C2 GND D2 GND C3 USB_SSRX0- D3 USB_SSTX1C4 USB_SSRX0+ D4 USB_SSTX1+ C5 GND D5 GND C6 NA D6 NA C7 NA D7 NA C8 GND D8 GND C9 NA D9 NA C10 NA D10 NA C11 GND (FIXED) D11 GND (FIXED) C12 NA D12 NA C13 NA D13 NA C14 GND D14 GND C15 DDI1_PAIR6+ (NA) D15 DDI1_CTRLCLK_AUX+ C16 DDI1_PAIR6- (NA) D16 DDI1_CTRLDATA_AUXC17 RSVD D17 RSVD C18 RSVD D18 RSVD C19 PCIE_RX6+ (NA) D19 PCIE_TX6+ (NA) C20 PCIE_RX6- (NA) D20 PCIE_TX6- (NA) C21 GND (FIXED) D21 GND (FIXED) C22 PCIE_RX7+ (NA) D22 PCIE_TX7+ (NA) C23 PCIE_RX7- (NA) D23 PCIE_TX7- (NA) C24 DDI1_HPD D24 RSVD C25 DDI1_PAIR4+ (NA) D25 RSVD C26 DDI1_PAIR4- (NA) D26 DDI1_PAIR0+ C27 RSVD D27 DDI1_PAIR0C28 RSVD D28 RSVD C29 DDI1_PAIR5+ (NA) D29 DDI1_PAIR1+ C30 DDI1_PAIR5- (NA) D30 DDI1_PAIR1-

Row C Row D

C31 GND (FIXED) D31 GND (FIXED) C32 DDI2_CTRLCLK_AUX+ D32 DDI1_PAIR2+ C33 DDI2_CTRLDATA_AUX- D33 DDI1_PAIR2C34 DDI2_DDC_AUX_SEL D34 DDI1_DDC_AUX_SEL C35 RSVD D35 RSVD

DDI3_CTRLCLK_AUX+

C36

(NA) DDI3_CTRLDATA_AUX-

C37

(NA) DDI2_DDC_AUX_SEL

C38

(NA) C39 DDI3_PAIR0+ (NA) D39 DDI2_PAIR0+ C40 DDI3_PAIR0- (NA) D40 DDI2_PAIR0C41 GND (FIXED) D41 GND (FIXED) C42 DDI3_PAIR1+ (NA) D42 DDI2_PAIR1+ C43 DDI3_PAIR1- (NA) D43 DDI2_PAIR1C44 DDI3_HPD (NA) D44 DDI2_HPD C45 RSVD D45 RSVD C46 DDI3_PAIR2+ (NA) D46 DDI2_PAIR2+ C47 DDI3_PAIR2- (NA) D47 DDI2_PAIR2C48 RSVD D48 RSVD C49 DDI3_PAIR3+ (NA) D49 DDI2_PAIR3+ C50 DDI3_PAIR3- (NA) D50 DDI2_PAIR3C51 GND (FIXED) D51 GND (FIXED) C52 PEG_RX0+ (NA) D52 PEG_TX0+ (NA) C53 PEG_RX0- (NA) D53 PEG_TX0- (NA) C54 TYPE0# (NC) D54 PEG_LANE_RV# (NA) C55 PEG_RX1+ (NA) D55 PEG_TX1+ (NA)

D36 DDI1_PAIR3+

D37 DDI1_PAIR3-

D38 RSVD

Row C Row D

C56 PEG_RX1- (NA) D56 PEG_TX1- (NA) C57 TYPE1# (NC) D57 TYPE2# (GND) C58 PEG_RX2+ (NA) D58 PEG_TX2+ (NA) C59 PEG_RX2- D59 PEG_TX2- (NA) C60 GND (FIXED) D60 GND (FIXED) C61 PEG_RX3+ (NA) D61 PEG_TX3+ (NA) C62 PEG_RX3- (NA) D62 PEG_TX3- (NA) C63 RSVD D63 RSVD C64 RSVD D64 RSVD C65 PEG_RX4+ (NA) D65 PEG_TX4+ (NA) C66 PEG_RX4- (NA) D66 PEG_TX4- (NA) C67 NC D67 GND C68 PEG_RX5+ (NA) D68 PEG_TX5+ (NA) C69 PEG_RX5- (NA) D69 PEG_TX5- (NA) C70 GND (FIXED) D70 GND (FIXED) C71 PEG_RX6+ (NA) D71 PEG_TX6+ (NA) C72 PEG_RX6- (NA) D72 PEG_TX6- (NA) C73 GND D73 GND C74 PEG_RX7+ (NA) D74 PEG_TX7+ (NA) C75 PEG_RX7- (NA) D75 PEG_TX7- (NA) C76 GND D76 GND C77 RSVD D77 RSVD C78 PEG_RX8+ (NA) D78 PEG_TX8+ (NA) C79 PEG_RX8- (NA) D79 PEG_TX8- (NA) C80 GND (FIXED) D80 GND (FIXED) C81 PEG_RX9+ (NA) D81 PEG_TX9+ (NA) C82 PEG_RX9- (NA) D82 PEG_TX9- (NA) C83 RSVD D83 RSVD C84 GND D84 GND C85 PEG_RX10+ (NA) D85 PEG_TX10+ (NA)

Row C Row D

C86 PEG_RX10- (NA) D86 PEG_TX10- (NA) C87 GND D87 GND C88 PEG_RX11+ (NA) D88 PEG_TX11+ (NA) C89 PEG_RX11- (NA) D89 PEG_TX11- (NA) C90 GND (FIXED) D90 GND (FIXED)

C91 PEG_RX12+ (NA) D91 PEG_TX12+ (NA)

C92 PEG_RX12- (NA) D92 PEG_TX12- (NA)

C93 GND D93 GND C94 PEG_RX13+ (NA) D94 PEG_TX13+ (NA)

C95 PEG_RX13- (NA) D95 PEG_TX13- (NA) C96 GND D96 GND C97 RSVD D97 RSVD C98 PEG_RX14+ (NA) D98 PEG_TX14+ (NA) C99 PEG_RX14- (NA) D99 PEG_TX14- (NA) C100 GND (FIXED) D100 GND (FIXED) C101 PEG_RX15+ (NA) D101 PEG_TX15+ (NA) C102 PEG_RX15- (NA) D102 PEG_TX15- (NA) C103 GND D103 GND C104 VCC_12V D104 VCC_12V C105 VCC_12V D105 VCC_12V C106 VCC_12V D106 VCC_12V C107 VCC_12V D107 VCC_12V C108 VCC_12V D108 VCC_12V C109 VCC_12V D109 VCC_12V C110 GND (FIXED) D110 GND (FIXED)

www.dﬁ .comChapter 3 Hardware Installation

Page 17

Chapter 3

COM Express Connectors Signal Description

Pin Types I Input to the Module O Output from the Module I/O Bi-directional input / output signal OD Open drain output

C97/HDA Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description AC/HAD_RST# A30 O CMOS 3.3V Suspend/3.3V Connect to CODEC pin 11 RESET# Reset output to CODEC, active low. AC/HDA_SYNC A29 O CMOS 3.3V/3.3V Connect to CODEC pin 10 SYNC Sample-synchronization signal to the CODEC(s). AC/HDA_BITCLK A32 I/O CMOS 3.3V/3.3V Connect to CODEC pin 6 BIT_CLK Serial data clock generated by the external CODEC(s). AC/HDA_SDOUT A33 O CMOS 3.3V/3.3V Connect to CODEC pin 5 SDATA_OUT Serial TDM data output to the CODEC. AC/HDA_SDIN2 B28 I/O CMOS 3.3V Suspend/3.3V HDA_SDIN2 NA NC AC/HDA_SDIN1 B29 I/O CMOS 3.3V Suspend/3.3V Connect 33 ƻ in series to CODEC1 pin 8 SDATA_IN AC/HDA_SDIN0 B30 I/O CMOS 3.3V Suspend/3.3V Connect 33 ƻ in series to CODEC0 pin 8 SDATA_IN

Gigabit Ethernet Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description GBE0_MDI0+ A13 I/O Analog 3.3V max Suspend GBE0_MDI0- A12 I/O Analog 3.3V max Suspend GBE0_MDI1+ A10 I/O Analog 3.3V max Suspend GBE0_MDI1- A9 I/O Analog 3.3V max Suspend GBE0_MDI2+ A7 I/O Analog 3.3V max Suspend GBE0_MDI2- A6 I/O Analog 3.3V max Suspend GBE0_MDI3+ A3 I/O Analog 3.3V max Suspend GBE0_MDI3GBE0_ACT# B2 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150 ȟ to 3.3VSB Gigabit Ethernet Controller 0 activity indicator, active low. GBE0_LINK# A8 OD CMOS 3.3V Suspend/3.3V NC Gigabit Ethernet Controller 0 link indicator, active low. GBE0_LINK100# A4 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150ȟ to 3.3VSB Gigabit Ethernet Controller 0 1000 Mbit / sec link indicator, active low. GBE0_LINK1000# A5 OD CMOS 3.3V Suspend/3.3V Connect to LED and recommend current limit resistor 150ȟ to 3.3VSB Gigabit Ethernet Controller 0 1000 Mbit / sec link indicator, active low.

SATA Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description SATA0_TX+ A16 O SATA AC coupled on Module AC Coupling capacitor SATA0_TX- A17 O SATA AC coupled on Module AC Coupling capacitor SATA0_RX+ A19 I SATA AC coupled on Module AC Coupling capacitor SATA0_RX- A20 I SATA AC coupled on Module AC Coupling capacitor SATA1_TX+ B16 O SATA AC coupled on Module AC Coupling capacitor SATA1_TX- B17 O SATA AC coupled on Module AC Coupling capacitor SATA1_RX+ B19 I SATA AC coupled on Module AC Coupling capacitor SATA1_RX- B20 I SATA AC coupled on Module AC Coupling capacitor SATA2_TX+ A22 O SATA AC coupled on Module AC Coupling capacitor SATA2_TX- A23 O SATA AC coupled on Module NA SATA2_RX+ A25 I SATA AC coupled on Module NA SATA2_RX- A26 I SATA AC coupled on Module NA SATA3_TX+ B22 O SATA AC coupled on Module NA SATA3_TX- B23 O SATA AC coupled on Module NA SATA3_RX+ B25 I SATA AC coupled on Module NA SATA3_RX- B26 I SATA AC coupled on Module NA ATA_ACT# A28 I/O CMOS 3.3V / 3.3V PU 47K to 3.3V Connect to LED and recommend current limit resistor 220ƻ to 3.3V ATA (parallel and serial) or SAS activity indicator, active low.

PCI Express Lanes Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description PCIE_TX0+ A68 AC Coupling capacitor PCIE_TX0- A69 AC Coupling capacitor PCIE_RX0+ B68 PCIE_RX0- B69 PCIE_TX1+ A64 AC Coupling capacitor PCIE_TX1- A65 AC Coupling capacitor PCIE_RX1+ B64 PCIE_RX1- B65 PCIE_TX2+ A61 AC Coupling capacitor PCIE_TX2- A62 AC Coupling capacitor PCIE_RX2+ B61 PCIE_RX2- B62 PCIE_TX3+ A58 AC Coupling capacitor PCIE_TX3- A59 AC Coupling capacitor PCIE_RX3+ B58 PCIE_RX3- B59 PCIE_TX4+ A55 NA PCIE_TX4- A56 NA

O Analog3.3V max Suspend

O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 0

I PCIE AC coupled off Module PCI Express Differential Receive Pairs 0

O PCIE

I PCIE AC coupled off Module

O PCIE AC coupled on Module PCI Express Differential Transmit Pairs 2

I PCIE AC coupled off Module

O PCIE AC coupled on Module

I PCIE AC coupled off Module

O PCIE AC coupled on Module

AC coupled on Module PCI Express Differential Transmit Pairs 1

Connect to Magnetics Module MDI0+/-

Connect to Magnetics Module MDI1+/-

Connect to Magnetics Module MDI2+/-

Connect to Magnetics Module MDI3+/-

Connect to SATA0 Conn TX pin

Connect to SATA0 Conn RX pin Serial ATA or SAS Channel 0 receive differential pair.

Connect to SATA1 Conn TX pin

Connect to SATA1 Conn RX pin Serial ATA or SAS Channel 1 receive differential pair.

NA (No support)

NA (No support) NA (No support)

Connect to PCIE device or slot

Device - Connect AC Coupling cap 0.1uF Slot - Connect to PCIE Conn pin

Connect to PCIE device or slot

Device - Connect AC Coupling cap 0.1uF Slot - Connect to PCIE Conn pin

Connect to PCIE device or slot

Device - Connect AC Coupling cap 0.1uF Slot - Connect to PCIE Conn pin

Connect to PCIE device or slot (This Port is BOM Option with On board LAN)

Device - Connect AC Coupling cap 0.1uF (This Port is BOM Option with On board LAN) Slot - Connect to PCIE Conn pin

NA (No support)

Serial TDM data inputs from up to 3 CODECs.

Gigabit Ethernet Controller 0: Media Dependent Interface Differential Pairs 0,1,2,3. The MDI can operate in 1000, 100 and 10 Mbit / sec modes. Some pairs are unused in some modes, per the following: 1000BASE-T 100BASE-TX 10BASE-T MDI[0]+/- B1_DA+/- TX+/- TX+/ MDI[1]+/- B1_DB+/- RX+/- RX+/ MDI[2]+/- B1_DC+/ MDI[3]+/- B1_DD+/-

Serial ATA or SAS Channel 0 transmit differential pair.

Serial ATA or SAS Channel 1 transmit differential pair.

NA (No support)

PCI Express Differential Receive Pairs 1

PCI Express Differential Receive Pairs 2

PCI Express Differential Transmit Pairs 3 (This Port is BOM Option with On board LAN)

PCI Express Differential Receive Pairs 3 (This Port is BOM Option with On board LAN)

NA (No support)

www.dﬁ .comChapter 3 Hardware Installation

Page 18

Chapter 3

PCI Express Lanes Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description PCIE_RX4+ B55 PCIE_RX4- B56 PCIE_TX5+ A52 NA PCIE_TX5- A53 NA PCIE_RX5+ B52 PCIE_RX5- B53 PCIE_TX6+ D19 NA PCIE_TX6- D20 NA PCIE_RX6+ C19 PCIE_RX6- C20 PCIE_TX7+ D22 NA PCIE_TX7- D23 NA PCIE_RX7+ C22 NA PCIE_RX7- C23 NA PCIE0_CK_REF+ A88 PCIE0_CK_REF- A89

PEG Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description PEG_TX0+ D52 NA ==> (ALL PEG) PEG_TX0- D53 NA ==> (ALL PEG) PEG_RX0+ C52 PEG_RX0- C53 PEG_TX1+ D55 NA ==> (ALL PEG) PEG_TX1- D56 NA ==> (ALL PEG) PEG_RX1+ C55 PEG_RX1- C56 PEG_TX2+ D58 NA ==> (ALL PEG) PEG_TX2- D59 NA ==> (ALL PEG) PEG_RX2+ C58 PEG_RX2- C59 PEG_TX3+ D61 NA ==> (ALL PEG) PEG_TX3- D62 NA ==> (ALL PEG) PEG_RX3+ C61 PEG_RX3- C62 PEG_TX4+ D65 NA ==> (ALL PEG) PEG_TX4- D66 NA ==> (ALL PEG) PEG_RX4+ C65 PEG_RX4- C66 PEG_TX5+ D68 NA ==> (ALL PEG) PEG_TX5- D69 NA ==> (ALL PEG) PEG_RX5+ C68 PEG_RX5- C69 PEG_TX6+ D71 NA ==> (ALL PEG) PEG_TX6- D72 NA ==> (ALL PEG) PEG_RX6+ C71 PEG_RX6- C72 PEG_TX7+ D74 NA ==> (ALL PEG) PEG_TX7- D75 NA ==> (ALL PEG) PEG_RX7+ C74 PEG_RX7- C75 PEG_TX8+ D78 NA ==> (ALL PEG) PEG_TX8- D79 NA ==> (ALL PEG) PEG_RX8+ C78 PEG_RX8- C79 PEG_TX9+ D81 NA ==> (ALL PEG) PEG_TX9- D82 NA ==> (ALL PEG) PEG_RX9+ C81 PEG_RX9- C82 PEG_TX10+ D85 NA ==> (ALL PEG) PEG_TX10- D86 NA ==> (ALL PEG) PEG_RX10+ C85 PEG_RX10- C86 PEG_TX11+ D88 NA ==> (ALL PEG) PEG_TX11- D89 NA ==> (ALL PEG) PEG_RX11+ C88 PEG_RX11- C89 PEG_TX12+ D91 NA ==> (ALL PEG) PEG_TX12- D92 NA ==> (ALL PEG) PEG_RX12+ C91 PEG_RX12- C92

I PCIE AC coupled off Module NA (No support)

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module NA (No support)

O PCIE AC coupled on Module

I PCIE AC coupled off Module

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module

O PCIE PCIE Connect to PCIE device, PCIe CLK Buffer or slot

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module NA (No support)

O PCIE AC coupled on Module NA (No support)

I PCIE

O PCIE AC coupled on Module

I PCIE AC coupled off Module NA (No support)

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module NA (No support)

O PCIE AC coupled on Module

I PCIE AC coupled off Module

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module NA (No support)

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module NA (No support)

O PCIE

I PCIE AC coupled off Module NA (No support)

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module NA (No support)

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module NA (No support)

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module NA (No support)

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module NA (No support)NA (No support)

AC coupled off Module NA (No support)

AC coupled on Module NA (No support)

NA (No support)

NA (No support) Reference clock output for all PCI Express and PCI Express Graphics

lanes.

NA (No support)

NA (No support)NA (No support)

www.dﬁ .comChapter 3 Hardware Installation

Page 19

Chapter 3

(

)

(

))

(

))

(

))

(

))

(

))

(

))

(

))

PEG Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description PEG_TX13+ D94 NA ==> (ALL PEG) PEG_TX13- D95 NA ==> (ALL PEG) PEG_RX13+ C94 PEG_RX13- C95 PEG_TX14+ D98 NA ==> (ALL PEG) PEG_TX14- D99 NA ==> (ALL PEG) PEG_RX14+ C98 PEG_RX14- C99 PEG_TX15+ D101 NA ==> (ALL PEG) PEG_TX15- D102 NA ==> (ALL PEG) PEG_RX15+ C101 PEG_RX15- C102 PEG_LANE_RV# D54 I CMO

ExpressCard Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description EXCD0_CPPE# A49 EXCD1_CPPE# B48 EXCD0_PERST# A48 EXCD1_PERST# B47

DDI Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description DDI1_PAIR0+/SDVO1_RED+ D26 Connect AC Coupling Capacitors 0.1uF to Device DDI1_PAIR0DDI1_PAIR1+/SDVO1_GRN+ D29 Connect AC Coupling Capacitors 0.1uF to Device DDI1_PAIR1-/SDVO1_GRN- D30 Connect AC Coupling Capacitors 0.1uF to Device DDI1_PAIR2+/SDVO1_BLU+ D32 Connect AC Coupling Capacitors 0.1uF to Device DDI1_PAIR2-/SDVO1_BLU- D33 Connect AC Coupling Capacitors 0.1uF to Device DDI1_PAIR3+/SDVO1_CK+ D36 Connect AC Coupling Capacitors 0.1uF to Device DDI1_PAIR3-/SDVO1_CK- D37 Connect AC Coupling Capacitors 0.1uF to Device

DDI1_PAIR4+/SDVO1_INT+ C25 DDI1_PAIR4-/SDVO1_INT- C26 NA (No support) NA (No support)

DDI1_PAIR5+/SDVO1_TVCLKIN+ C29 NA (No support) NA (No support) DDI1_PAIR5-/SDVO1_TVCLKIN- C30 NA (No support) NA (No support) DDI1_PAIR6+/SDVO1_FLDSTALL+ C15 NA (No support) NA (No support) DDI1_PAIR6-/SDVO1_FLDSTALL- C16

DDI1_CTRLCLK_AUX+/SDVO1_CTRLCLK D15

DDI1_CTRLCLK_AUX-/SDVO1_CTRLDATA D16

DDI1_HPD C24 I CMOS 3.3V / 3.3V PD 100K PD 1M and Connect to device Hot Plug Detect DDI Hot-Plug Detect

DDI1_DDC_AUX_SEL D34 I CMOS 3.3V / 3.3V PD 1M

DDI2_PAIR0+ D39

DDI2_PAIR0- D40 DDI2_PAIR1+ D42 DDI2_PAIR1- D43 DDI2_PAIR2+ D46 DDI2_PAIR2- D47 DDI2_PAIR3+ D49 DDI2_PAIR3- D50

SDVO1_RED- D27 Connect AC Coupling Capacitors 0.1uF to Device

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module NA (No support)

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module

O PCIE AC coupled on Module NA (No support)

I PCIE AC coupled off Module NA (No support)

I CMOS 3.3V /3.3V

O CMOS 3.3V /3.3V PCI ExpressCard: reset, active low, one per card

O PCIE

O PCIE AC coupled off Module DDI 1 Pair 1 differential pairs/Serial Digital Video B green output differential pair

O PCIE

O PCIE AC coupled off Module DDI 1 Pair 3 differential pairs/Serial Digital Video B clock output differential pair.

I PCIE

I PCIE AC coupled off Module

I PCIE

I/O PCIE AC coupled on Module

I/O OD CMOS 3.3V / 3.3V

I/O PCIE AC coupled on Module

I/O OD CMOS 3.3V / 3.3V

O PCIE AC coupled off Module

3.3V / 3.3V

AC coupled off Module DDI 1 Pair 0 differential pairs/Serial Digital Video B red output differential pair

AC coupled off Module DDI 1 Pair 2 differential pairs/Serial Digital Video B blue output differential pair

AC coupled off Module

PD 100K to GND

(S/W IC between Rpu/PCH)

PU 2.2K to 3.3V, PD 100K to GND

(S/W IC between Rpu/Rpd resistor)

PU 100K to 3.3V

(S/W IC between Rpu/PCH)

PU 2.2K to 3.3V/PU 100K to 3.3V

(S/W IC between 2.2K/100K resistor)

NA (No support)

NA (No support) NA

No support

NA (No support) NA (No support)

NA (No support) NA (No support) Connect to DP AUX+ DP AUX+ function if DDI1_DDC_AUX_SEL is no connect

Connect to HDMI/DVI I2C CTRLCLK HDMI/DVI I2C CTRLCLK if DDI1_DDC_AUX_SEL is pulled high

Connect to DP AUX- DP AUX- function if DDI1_DDC_AUX_SEL is no connect

Connect to HDMI/DVI I2C CTRLDATA HDMI/DVI I2C CTRLDATA if DDI1_DDC_AUX_SEL is pulled high

PU 100K to 3.3V for DDC(HDMI/DVI)

Connect AC Coupling Capacitors 0.1uF to Device (This Port is BIOS Option with On board LVDS (DP to LVDS)) Connect AC Cou

This Port is BIOS Option with On board LVDS (DP to LVDS

Connect AC Cou

This Port is BIOS Option with On board LVDS (DP to LVDS

Connect AC Cou

This Port is BIOS Option with On board LVDS (DP to LVDS

Connect AC Cou

This Port is BIOS Option with On board LVDS (DP to LVDS

Connect AC Cou

This Port is BIOS Option with On board LVDS (DP to LVDS

Connect AC Cou

This Port is BIOS Option with On board LVDS (DP to LVDS

Connect AC Cou

This Port is BIOS Option with On board LVDS (DP to LVDS

ling Capacitors 0.1uF to Device ling Capacitors 0.1uF to Device ling Capacitors 0.1uF to Device ling Capacitors 0.1uF to Device ling Capacitors 0.1uF to Device ling Capacitors 0.1uF to Device ling Capacitors 0.1uF to Device

NA (No support)

NA (No support

PCI ExpressCard: PCI Express capable card request, active low, one per card

Selects the function of DDI1_CTRLCLK_AUX+ and DDI1_CTRLDATA_AUX-. DDI[n]_DDC_AUX_SEL shall be pulled to 3.3V on the Carrier with a 100K Ohm resistor to configure the DDI[n]_AUX pair as the DDC channel. Carrier DDI[n]_DDC_AUX_SEL should be connected to pin 13 of the DisplayPort

DDI 2 Pair 0 differential pairs (This Port is BIOS Option with On board LVDS (DP to LVDS))

DDI 2 Pair 1 differential pairs (This Port is BIOS Option with On board LVDS (DP to LVDS))

DDI 2 Pair 2 differential pairs (This Port is BIOS Option with On board LVDS (DP to LVDS))

DDI 2 Pair 3 differential pairs (This Port is BIOS Option with On board LVDS (DP to LVDS))

www.dﬁ .comChapter 3 Hardware Installation

Page 20

Chapter 3

DDI Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description

I/O PCIE AC coupled on Module

DDI2_CTRLCLK_AUX+ C32

DDI2_CTRLCLK_AUX- C33

DDI2_HPD D44 I CMOS 3.3V / 3.3V PD 100K PD 1M and Connect to device Hot Plug Detect DDI Hot-Plug Detect

DDI2_DDC_AUX_SEL C34 I CMOS 3.3V / 3.3V PD 1M to GND

DDI3_PAIR0+ C39 NA NA (No support) NA (No support) DDI3_PAIR0- C40 NA NA (No support) NA (No support) DDI3_PAIR1+ C42 NA NA (No support) NA (No support) DDI3_PAIR1- C43 NA NA (No support) NA (No support) DDI3_PAIR2+ C4 NA NA (No support) NA (No support) DDI3_PAIR2- C47 NA NA (No support) NA (No support) DDI3_PAIR3+ C49 NA NA (No support) NA (No support) DDI3_PAIR3- C50 NA NA (No support) NA (No support)

DDI3_CTRLCLK_AUX+ C36

DDI3_CTRLCLK_AUX- C37

DDI3_HPD C44 I CMOS 3.3V / 3.3V NA (No support) NA (No support)

DDI3_DDC_AUX_SEL C38 I CMOS 3.3V / 3.3V NA

I/O OD CMOS 3.3V / 3.3V

I/O PCIE AC coupled on Module

I/O OD CMOS 3.3V / 3.3V

O PCIE AC coupled off Module

O PCIE

O PCIE AC coupled off Module

I/O PCIE AC coupled on Module NA

I/O OD CMOS 3.3V / 3.3V NA

I/O PCIE AC coupled on Module NA

I/O OD CMOS 3.3V / 3.3V NA

AC coupled off Module

PD 100K to GND

(S/W IC between Rpu/PCH)

PU 2.2K to 3.3V, PD 100K to GND

(S/W IC between Rpu/Rpd resistor)

PU 100K to 3.3V

(S/W IC between Rpu/PCH)

PU 2.2K to 3.3V/PU 100K to 3.3V

(S/W IC between 2.2K/100K resistor)

Connect to DP AUX+ DP AUX+ function if DDI2_DDC_AUX_SEL is no connect

Connect to HDMI/DVI I2C CTRLCLK HDMI/DVI I2C CTRLCLK if DDI2_DDC_AUX_SEL is pulled high

Connect to DP AUX- DP AUX- function if DDI2_DDC_AUX_SEL is no connect

Connect to HDMI/DVI I2C CTRLDATA HDMI/DVI I2C CTRLDATA if DDI2_DDC_AUX_SEL is pulled high

PU 100K to 3.3V for DDC(HDMI/DVI)

NA (No support) NA (No support)

Selects the function of DDI2_CTRLCLK_AUX+ and DDI2_CTRLDATA_AUX-. DDI[n]_DDC_AUX_SEL shall be pulled to 3.3V on the Carrier with a 100K Ohm resistor to configure the DDI[n]_AUX pair as the DDC channel. Carrier DDI[n]_DDC_AUX_SEL should be connected to pin 13 of the DisplayPort

USB Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description USB0+ A46 USB0- A45 USB1+ B46 USB1- B45 USB2+ A43 USB2- A42 USB3+ B43 USB3- B42 USB4+ A40 USB4- A39 USB5+ B40 USB5- B39 USB6+ A37 USB6- A36 USB7+ B37

USB7- B36

I/O USB 3.3V Suspend/3.3V

I/O USB

I/O USB 3.3V Suspend/3.3V

3.3V Suspend/3.3V

Connect 90ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector Connect 90ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector Connect 90ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector Connect 90ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector Connect 90ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector Connect 90ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector Connect 90ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector

Connect 90ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector

USB differential pairs 0

USB differential pairs 1

USB differential pairs 2

USB differential pairs 3

USB differential pairs 4

USB differential pairs 5

USB differential pairs 6

USB differential pairs 7, USB7 may be configured as a USB client or as a host, or both, at the Module designer's discretion.(CR901-B default set as a host)

www.dﬁ .comChapter 3 Hardware Installation

Page 21

Chapter 3

USB Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description

USB_0_1_OC# B44 I CMOS 3.3V Suspend/3.3V PU 10k to 3.3VSB Connect to Overcurrent of USB Power Switch

USB_2_3_OC# A44 I CMOS 3.3V Suspend/3.3V PU 10k to 3.3VSB Connect to Overcurrent of USB Power Switch

USB_4_5_OC# B38 I CMOS 3.3V Suspend/3.3V PU 10k to 3.3VSB Connect to Overcurrent of USB Power Switch

USB_6_7_OC# A38 I CMOS 3.3V Suspend/3.3V PU 10k to 3.3VSB Connect to Overcurrent of USB Power Switch

LVDS Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description LVDS_A0+ A71 LVDS_A0- A72 LVDS_A1+ A73 LVDS_A1- A74 LVDS_A2+ A75 LVDS_A2- A76 LVDS_A3+ A78 LVDS_A3- A79 LVDS_A_CK+ A81 LVDS_A_CK- A82 LVDS_B0+ B71 LVDS_B0- B72 LVDS_B1+ B73 LVDS_B1- B74 LVDS_B2+ B75 LVDS_B2- B76 LVDS_B3+ B77 LVDS_B3- B78 LVDS_B_CK+ B81 LVDS_B_CK- B82 LVDS_VDD_EN A77 O CMOS 3.3V / 3.3V Connect to enable control of LVDS panel power circuit LVDS panel power enable LVDS_BKLT_EN B79 O CMOS 3.3V / 3.3V Connect to enable control of LVDS panel backlight power circuit. LVDS panel backlight enable LVDS_BKLT_CTRL B83 O CMOS 3.3V / 3.3V Connect to brightness control of LVDS panel backlight power circuit. LVDS panel backlight brightness control LVDS_I2C_CK A83 I/O OD CMOS 3.3V / 3.3V PU 2.2K to 3.3V Connect to DDC clock of LVDS panel I2C clock output for LVDS display use LVDS_I2C_DAT A84 I/O OD CMOS 3.3V / 3.3V PU 2.2K to 3.3V Connect to DDC data of LVDS panel I2C data line for LVDS display use

LPC Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description LPC_AD0 B4 LPC_AD1 B5 LPC_AD2 B6 LPC_AD3 B7 LPC_FRAME# B3 O CMOS 3.3V / 3.3V LPC frame indicates the start of an LPC cycle LPC_DRQ0# B8 LPC_DRQ1# B9 LPC_SERIRQ A50 I/O CMOS 3.3V / 3.3V LPC serial interrupt LPC_CLK B10 O CMOS 3.3V / 3.3V LPC clock output - 33MHz nominal

O LVDS LVDS

O LVDS

O LVDS LVDS

I/O CMOS 3.3V / 3.3V

I CMOS

LVDS

3.3V / 3.3V NA (No support)

Connect to LVDS connector LVDS Channel A differential pairs

Connect to LVDS connector

Connect to LPC device

USB over-current sense, USB channels 0 and 1. A pull-up for this line shall be present on the Module. An open drain driver from a USB current monitor on the Carrier Board may drive this line low. Do not pull this line high on the Carrier Board. USB over-current sense, USB channels 2 and 3. A pull-up for this line shall be present on the Module. An open drain driver from a USB current monitor on the Carrier Board may drive this line low. Do not

ull this line high on the Carrier Board. USB over-current sense, USB channels 4 and 5. A pull-up for this line shall be present on the Module. An open drain driver from a USB current monitor on the Carrier Board may drive this line low. Do not pull this line high on the Carrier Board. USB over-current sense, USB channels 6 and 7. A pull-up for this line shall be present on the Module. An open drain driver from a USB current monitor on the Carrier Board may drive this line low. Do not pull this line high on the Carrier Board.

Ther LVDS flat panel differential pairs (LVDS_A[0:3]+/-, LVDS_B[0:3]+/-. LVDS_A_CK+/-, LVDS_B_CK+/-) shall have 100ƻ terminations across the pairs at the destination. These terminations may be on the Carrier Board if the Carrier Board implements a LVDS deserializer on-board

LVDS Channel A differential clockO LVDS LVDS

LVDS Channel B differential pairs Ther LVDS flat panel differential pairs (LVDS_A[0:3]+/-, LVDS_B[0:3]+/-. LVDS_A_CK+/-, LVDS_B_CK+/-) shall have 100ƻ terminations across the pairs at the destination. These terminations may be on the Carrier Board if the Carrier Board implements a LVDS deserializer on-board

LVDS Channel B differential clock

LPC multiplexed address, command and data bus

www.dﬁ .comChapter 3 Hardware Installation

Page 22

Chapter 3

ȟ ȟ ȟ

(

)

(

)

(

)

(

)

(

)

SPI Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description SPI_CS# B97 O CMOS 3.3V Suspend/3.3V SPI_MISO A92 I CMOS 3.3V Suspend/3.3V Connect a series resistor 33 SPI_MOSI A95 O CMOS 3.3V Suspend/3.3V Connect a series resistor 33 SPI_CLK A94 O CMOS 3.3V Suspend/3.3V Connect a series resistor 33

SPI_POWER A91 O 3.3V Suspend/3.3V

BIOS_DIS0# A34

I CMOS

BIOS_DIS1# B88

GA Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description VGA_RED B89 O Analog Analog PD 150R PD 150R,connect to VGA connector with EMI filter & ESD protect component. Red for monitor. Analog output VGA_GRN B91 O Analog Analog PD 150R PD 150R,connect to VGA connector with EMI filter & ESD protect component. Green for monitor. Analog output VGA_BLU B92 O Analog Analog PD 150R PD 150R,connect to VGA connector with EMI filter & ESD protect component. Blue for monitor. Analog output VGA_HSYNC B93 O CMOS 3.3V / 3.3V Connect to VGA connector with a3.3V Buffer IC to isolate PCH & Display Device Horizontal sync output to VGA monitor VGA_VSYNC B94 O CMOS 3.3V / 3.3V Connect to VGA connector with a 33V Buffer IC to isolate PCH & Display Device Vertical sync output to VGA monitor VGA_I2C_CK B95 I/O OD CMOS 3.3V / 3.3V PD 2.2K to 3.3V Connect to VGA connector with a 3.3V to 5V Level shift circuit. DDC clock line (I2C port dedicated to identify VGA monitor capabilities) VGA_I2C_DAT B96 I/O OD CMOS 3.3V / 3.3V PD 2.2K to 3.3V Connect to VGA connector with a 3.3V to 5V Level shift circuit. DDC data line.

Serial Interface Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description SER0_TX A98 O CMOS 3.3V/5V PD 4.7K

SER0_RX A99 I CMOS 3.3V/5V PU 47K to 3.3V SER1_TX A101 O CMOS 3.3V/5V PD 4.7K SER1_RX A102 I CMOS 3.3V/5V PU 47K to 3.3V

Miscellaneous Signal Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description I2C_CK B33 I/O OD CMOS 3.3V Suspend/3.3V PU 2.2K to 3.3VSB General purpose I2C port clock output I2C_DAT B34 I/O OD CMOS 3.3V Suspend/3.3V PU 2.2K to 3.3VSB General purpose I2C port data I/O line

SPKR B32 O CMOS 3.3V / 3.3V

WDT B27 O CMOS 3.3V / 3.3V Output indicating that a watchdog time-out event has occurred. FAN_PWNOUT B101 O OD CMOS 3.3V / 3.3V

FAN_TACHIN B102 I OD CMOS 3.3V / 3.3V

TPM_PP A96 I CMOS 3.3V / 3.3V PD 10K

Connect a series resistor 33

to Carrier Board SPI Device CS# pin to Carrier Board SPI Device SO pin Data in to Module from Carrier SPI

to Carrier Board SPI Device SI pin Data out from Module to Carrier SPI to Carrier Board SPI Device SCK pin Clock from Module to Carrier SPI

Chip select for Carrier Board SPI - may be sourced from chipset SPI0 or SPI1

Power supply for Carrier Board SPI – sourced from Module – nominally

3.3V. The Module shall provide a minimum of 100mA on SPI_POWER. Carriers shall use less than 100mA of SPI_POWER. SPI_POWER shall only be used to power SPI devices on the Carrier Selection straps to determine the BIOS boot device. The Carrier should only float these or pull them low, please refer to COM Express Module Base Specification Revision 2.1 for strapping options of BIOS disable signals.

Chipset

BIOS

BIOS DIS1#

1 1 0

General purpose serial port 0 transmitter

Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V

General purpose serial port 0 receiver

Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V

General purpose serial port 1 transmitter

Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V

General purpose serial port 1 receiver

Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V

Output for audio enunciator - the "speaker" in PC-AT systems. This port provides the PC beep signal and is mostly intended for debugging purposes.

Fan s

eed control. Uses the Pulse Width Modulation (PWM) technique to control the fan's RPM.

Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V

Fan tachometer input for a fan with a two pulse output.

(Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V)

Trusted Platform Module (TPM) Physical Presence pin. Active high. TPM chip has an internal pull down. This signal is used to indicate Physical Presence to the TPM.

DIS0#

SPI CS1# Destination

Module

Carrier

(Default)

Chipset SPI CS0# Destination

Carrier SPI_CS#

ModuleModule SPI0/SPI1

High High

ModuleModule

SPI0

SPI1

Module

(Default)

SPI Descriptor

Module Module CarrierCarrier

Module (Default)

Bios Entry

Carrier FWH

SPI0/SPI1

SPI0/SPI1 (Default)

Ref Line

0 1 2

www.dﬁ .comChapter 3 Hardware Installation

Page 23

Chapter 3

(

)

Power and System Management Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description

PWRBTN# B12 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3VSB

SYS_RESET# B49 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3VSB

CB_RESET# B50 O CMOS 3.3V Suspend/3.3V PD 100K

PWR_OK B24 I CMOS 3.3V / 3.3V

SUS_STAT# B18 O CMOS 3.3V Suspend/3.3V Indicates imminent suspend operation; used to notify LPC devices.

SUS_S3# A15 O CMOS 3.3V Suspend/3.3V

SUS_S4# A18 O CMOS 3.3V Suspend/3.3V Indicates system is in Suspend to Disk state. Active low output. SUS_S5# A24 O CMOS 3.3V Suspend/3.3V Indicates system is in Soft Off state. WAKE0# B66 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3VSB PCI Express wake up signal.

WAKE1# B67 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3VSB

BATLOW# A27 I CMOS 3.3V Suspend/ 3.3V

LID# A103 I OD CMOS 3.3V Suspend/12V PU 10K to 3.3VSB

SLEEP# B103 I OD CMOS 3.3V Suspend/12V PU 10K to 3.3VSB

THRM# B35 I CMOS 3.3V / 3.3V PU 10K to 3.3V Input from off-Module temp sensor indicating an over-temp situation. THRMTRIP# A35 O CMOS 3.3V / 3.3V PU 10K to 3.3V Active low output indicating that the CPU has entered thermal shutdown. SMB_CK B13 I/O OD CMOS 3.3V Suspend/3.3V PU 2.2K to 3.3VSB System Management Bus bidirectional clock line.

SMB_DAT B14 I/O OD CMOS 3.3V Suspend/3.3V PU 2.2K to 3.3VSB System Management Bus bidirectional data line. SMB_ALERT# B15 I CMOS 3.3V Suspend/3.3V

GPIO Signals Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description GPO0 A93 GPO1 B54 GPO2 B57 GPO3 B63 GPI0 A54 GPI1 A63 GPI2 A67 GPI3 A85

O CMOS

I CMOS 3.3V / 3.3V

3.3V / 3.3V

A falling edge creates a power button event. Power button events can be used to bring a system out of S5 soft off and other suspend states, as well as powering the system down.

Reset button input. Active low request for Module to reset and reboot. May be falling edge sensitive. For situations when SYS_RESET# is not able to reestablish control of the system, PWR_OK or a power cycle may be used.

Reset output from Module to Carrier Board. Active low. Issued by Module chipset and may result from a low SYS_RESET# input, a low PWR_OK input, a VCC_12V power input that falls below the minimum specification, a watchdog timeout, or may be initiated by the Module software.

Power OK from main power supply. A high value indicates that the power is good. This signal can be used to hold off Module startup to allow Carrier based FPGAs or other configurable devices time to be programmed.

Indicates system is in Suspend to RAM state. Active low output. An inverted copy of SUS_S3# on the Carrier Board may be used to enable the non-standby power on a typical ATX supply.

General purpose wake up signal. May be used to implement wake-up on PS2 keyboard or mouse activity.

Indicates that external battery is low. This port provides a battery-low signal to the Module for orderly transitioning to power saving or power cut-off ACPI modes.

LID switch. Low active signal used by the ACPI operating system for a LID switch.

Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V

Sleep button. Low active signal used by the ACPI operating system to bring the system to sleep state or to wake it up again.

(Recommend add Protecting Logic Level Signals on Pins Reclaimed from VCC_12V)

System Management Bus Alert – active low input can be used to generate an SMI# (System Management Interrupt) or to wake the system.

General purpose output pins.

Upon a hardware reset, these outputs should be low.

General purpose input pins.

Pulled high internally on the Module.

www.dﬁ .comChapter 3 Hardware Installation

Page 24

Chapter 3

Power and GND Signal Description

Signal Pin# Module Pin Type Pwr Rail /Tolerance BT968 Carrier Board Description

VCC_12V

VCC_5V_SBY B84~B87 Power

VCC_RTC A47 Power Real-time clock circuit-power input. Nominally +3.0V.

GND

104~A109 B104~B109 C104~C109 D104~D109

A1, A11, A21, A31, A41, A51, A57, A60, A66, A70, A80, A90, A100, A110, B1, B11, B21 ,B31, B41, B51, B60, B70, B80, B90, B100, B110, C1, C2, C5, C8, C11, C14, C21, C31, C41, C51, C60, C70, C73, C76, C80, C84, C87, C90, C93, C96, C100, C103, C110, D1, D2, D5, D8, D11, D14, D21, D31, D51, D60, D67, D70, D73, D76, D80, D84, D87, D90, D93, D96, D100, D103, D110

Power Primary power input: +12V nominal. All available VCC_12V pins on the connector(s) shall be used.

Standby power input: +5.0V nominal. If VCC5_SBY is used, all available VCC_5V_SBY pins on the connector(s) shall be used. Only used for standby and suspend functions. May be left unconnected if these functions are not used in the system design.

Power

Ground - DC power and signal and AC signal return path. All available GND connector pins shall be used and tied to Carrier Board GND plane.

www.dﬁ .comChapter 3 Hardware Installation

Page 25

Chapter 3

Standby Power LED

Standby

Power LED

This LED will light when the system is in the standby mode.

Cooling Option

Heat Sink with Cooling Fan

Note:

The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.

Top View of the Heat Sink

• “1” denotes the location of the thermal pad designed to contact the corresponding components that are on BT968.

Important:

Remove the plastic covering from the thermal pad prior to mounting the heat sink onto BT968.

Bottom View of the Heat Sink

www.dﬁ .comChapter 3 Hardware Installation

Page 26

Chapter 3

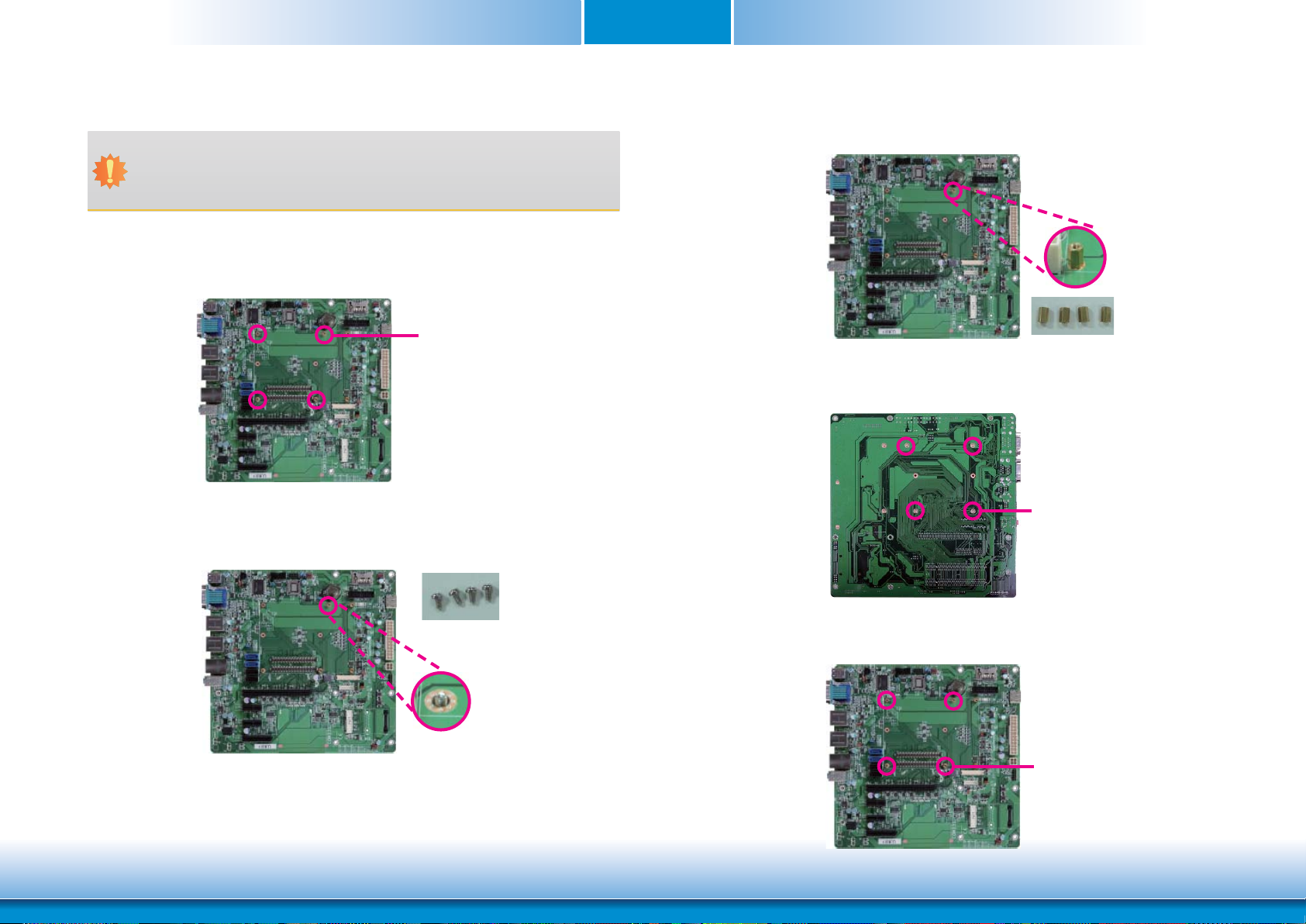

Installing BT968 onto a Carrier Board

Important:

The carrier board (COM331-B) used in this section is for reference purpose only and may not resemble your carrier board. These illustrations are mainly to guide you on how to install BT968 onto the carrier board of your choice.

• To download COM331-B datasheet and manual

1. Now install the module and heatsink assembly onto the carrier board. The photo below shows the locations of the mounting holes on the carrier board.

2. Insert the provided mounting screws into the mounting holes - from the bottom through the top of the carrier board.

Mounting hole

3. While supporting the mounting screw at the bottom, from the top side of the board, fasten a bolt into the screw.

Bolts

4. The photo below shows the solder side of the board with the screws already fixed in place.

Mounting screw

Mounting screws

5. The photo below shows the component side of the board with the bolts already fixed in place.

Bolts

www.dﬁ .comChapter 3 Hardware Installation

Page 27

Chapter 3

6. Grasping BT968 by its edges, position it on top of the carrier board with its mounting holes aligned with the bolts on the carrier board. This will also align the COM Express connectors of the two boards to each other.

COM Express connectors on BT968

COM Express connectors on the carrier board

7. Press BT968 down firmly until it is completely seated on the COM Express connectors of the carrier board.

BT968

COM Express connectors on the carrier board

Pressing points

BIOS ROM socket

Note:

The illustrations above show the pressing points of the module onto the carrier board. Be careful when pressing the module, it may damage the socket.

www.dﬁ .comChapter 3 Hardware Installation

Page 28

Chapter 3

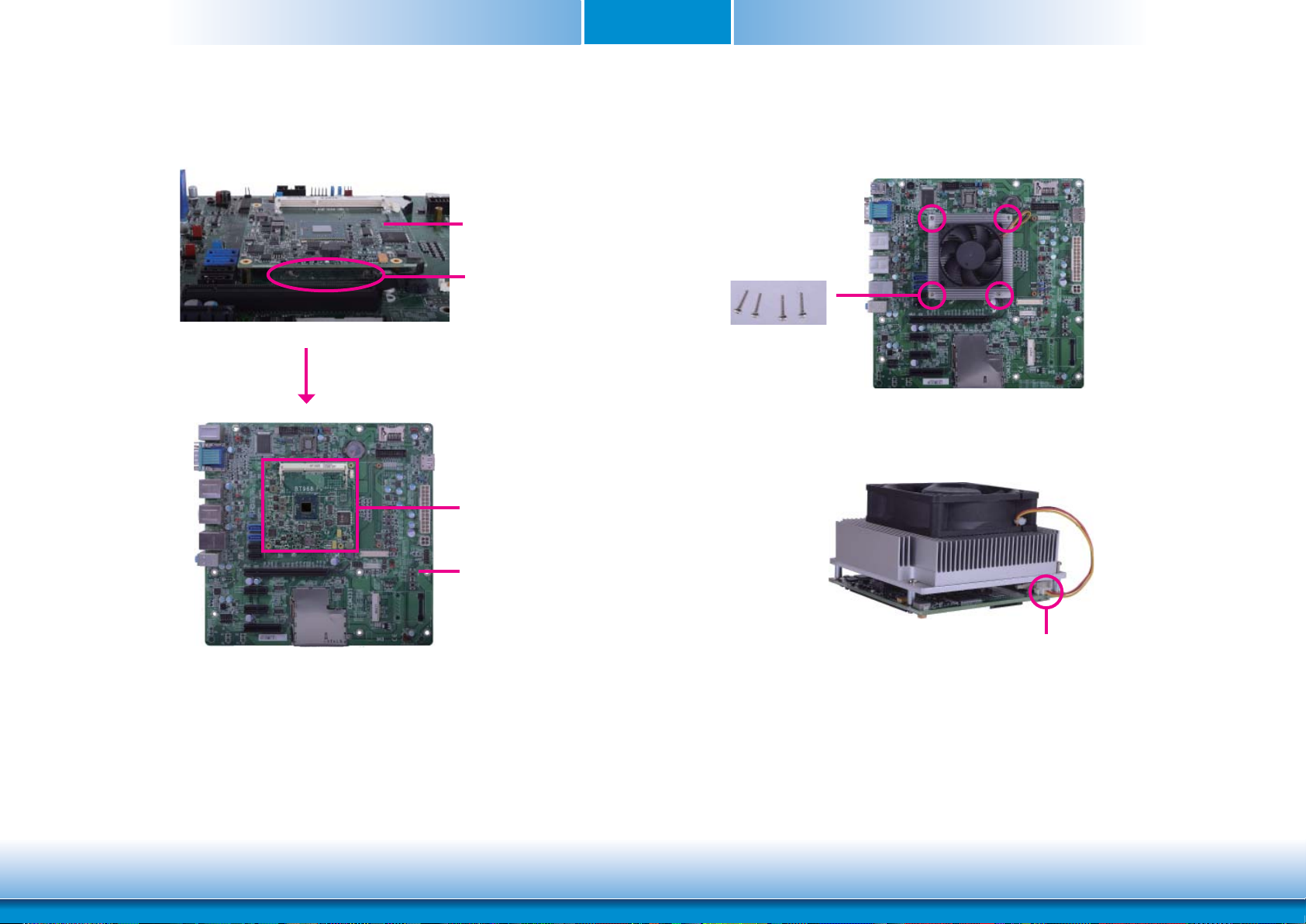

8. Verify that the module is firmly seated onto the COM Express connectors of the carrier board.

BT968

The module is completely seated on the carrier board

BT968

9. Use the provided mounting screws to secure BT968 with heat sink to the carrier board and then connect the cooling fan’s cable to the fan connector on BT968. The photo below shows the locations of the long mounting screws.

Long screws

10. And then connect the cooling fan’s cable to the fan connector on BT968.

Carrier board

Fan connector

www.dﬁ .comChapter 3 Hardware Installation

Page 29

Chapter 3

Installing the COM Express Debug Card

Note:

The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.

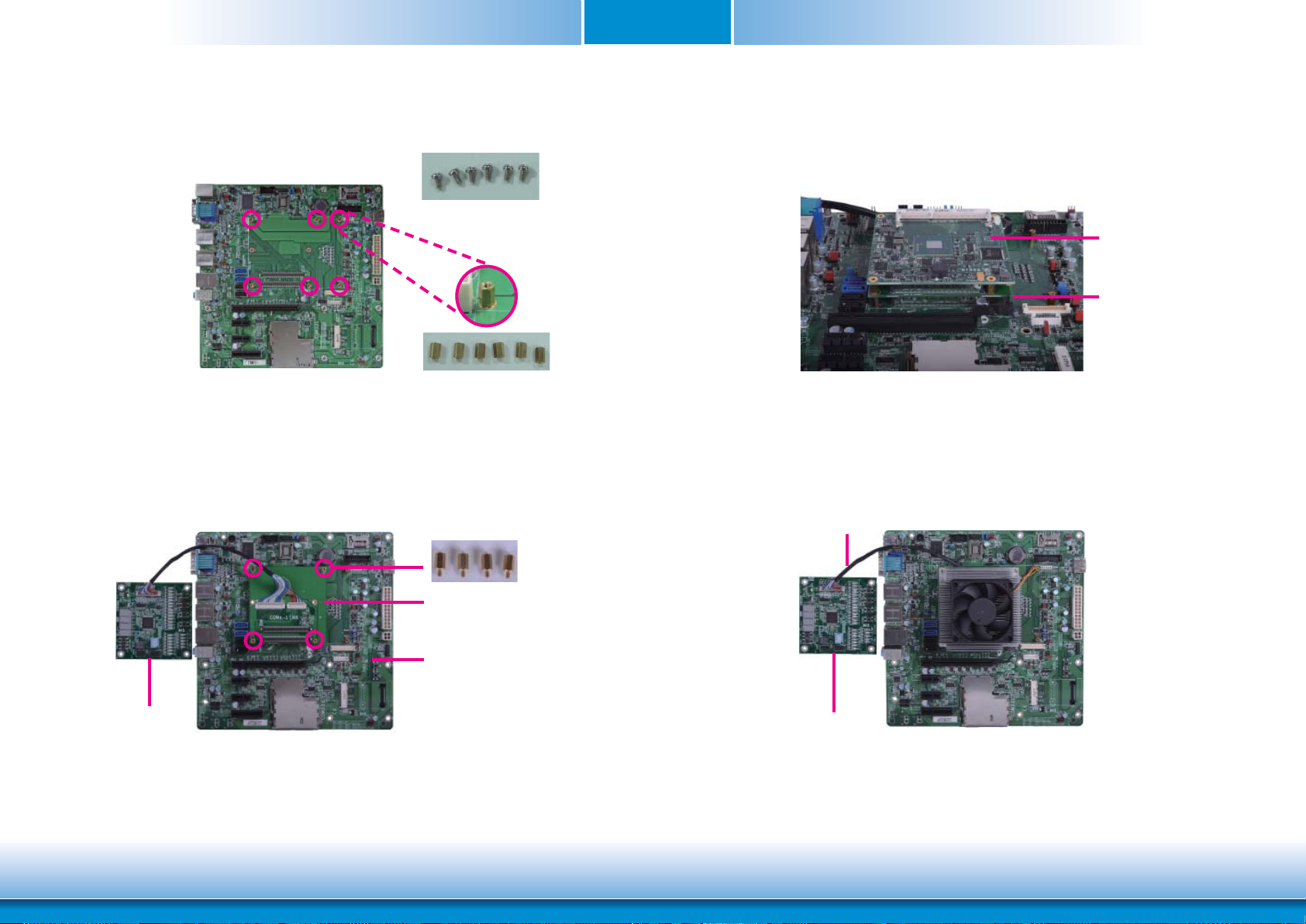

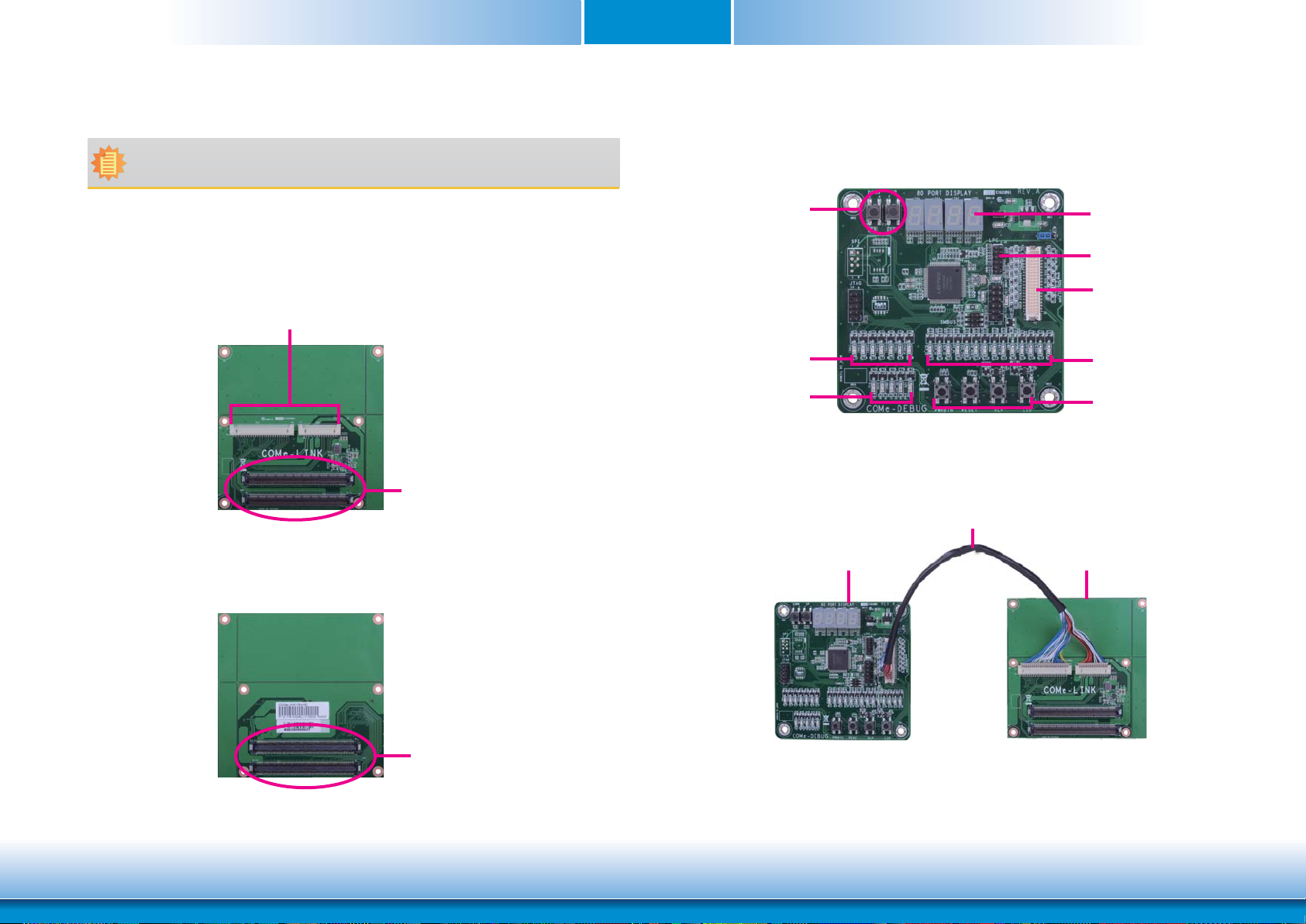

1. COMe-LINK1 is the COM Express debug card designed for COM Express Compact modules to debug and display signals and codes of COM Express modules.

COMe-LINK1

COMe-DEBUG Connector

COM Express Connectors

Top view

2. Connect the COMe-DEBUG card to COMe-LINK1 via a cable.

COMe-DEBUG

Code Review

Control

COM Express

Type Display

COM Express

Power Display

Cable

COMe-DEBUG COMe-LINK1

80 Port Display

LPC COMe-LINK1/2

Connector

COM Express Signal Display

Power/Reset/ Sleep/LID control

Bottom view

COM Express Connectors

www.dﬁ .comChapter 3 Hardware Installation

Page 30

Chapter 3

3. Fasten bolts with mounting screws through mounting holes to be fixed in place.

Mounting screws

Bolts

4. Use the provided bolts to fix the COMe-LINK1 debug card onto the carrier board.

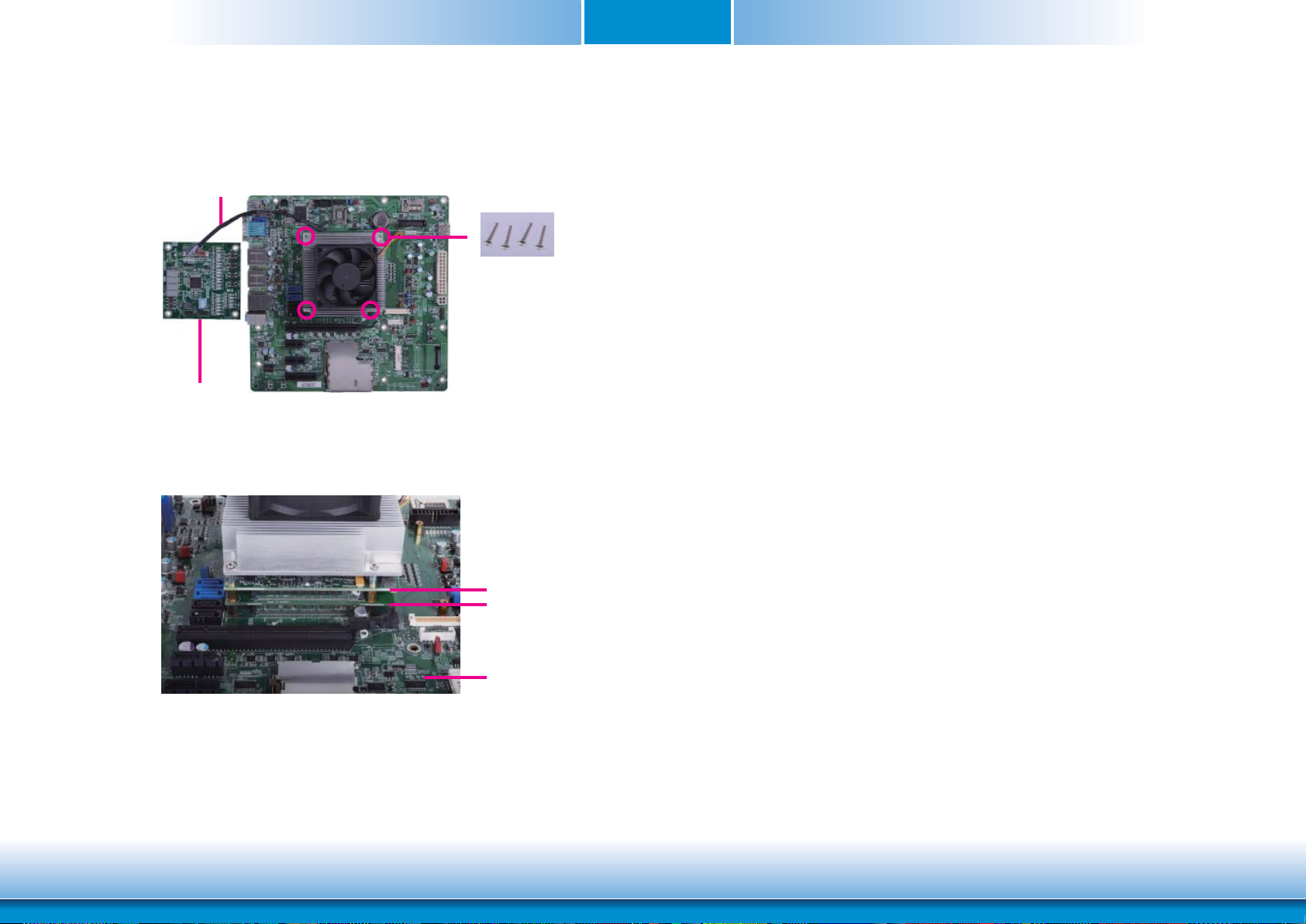

5. Grasp BT968 by its edges to press it down on the top of the COMe-LINK1 debug card.

BT968

COMe-LINK1

6. Then, grasp the heat sink by its edges and position it down firmly on the top of the BT968.

Cable

COMe-DEBUG

Bolts

COMe-LINK1

Carrier Board

COMe-DEBUG

www.dﬁ .comChapter 3 Hardware Installation

Page 31

7. Use the long mounting screws to secure the heat sink on the top of the BT968 and the COMe-LINK1 debug card and connect the cooling fan’s cable to the fan connector on BT968. The photo below shows the locations of long mounting screws.

Cable

COMe-DEBUG

Long screws

Chapter 3

BT968 COMe-LINK1

Carrier Board

Side View of the Module, Debug Card and Carrier Board

www.dﬁ .comChapter 3 Hardware Installation

Page 32

Chapter 4

Chapter 4 - BIOS Setup Overview

The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a configuration change has been made such as a hard drive replaced or a device added.

It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconfigure the BIOS settings.

Note:

The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.

Legends

KEYs Function

Right and Left Arrows Moves the highlight left or right to select a

menu.

Up and Down Arrows Moves the highlight up or down between

submenus or ﬁ elds.

<Esc> Exits to the BIOS setup utility

+ (plus key) Scrolls forward through the values or

options of the hightlighted ﬁ eld.

- (minus key) Scolls backward through the values or options of the hightlighted ﬁ eld.

<F1> Displays general help <F2> Displays previous values

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering the BIOS Setup Utility

The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen.

The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

<F3> Optimized defaults <F4> Saves and reset the setup program. <Enter> Press <Enter> to enter the highlighted

submenu

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When ““ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

www.dﬁ .comChapter 4 BIOS Setup

Page 33

Chapter 4

AMI BIOS Setup Utility Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced

Main

BIOS Information BIOS Vendor Project Version Build Date and Time

EC Version

System Date

System Time

Access Level

Security Boot

American Megatrends BT968 0.11 x64 05/27/2014 13:44:47

2014.04.10 v1.5

[Tue 06/10/2014]

[16:13:30]

Administraor

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.

Save & ExitChipset

Set the Date. Use Tab to switch between Date elements.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Important:

Setting incorrect field values may cause the system to malfunction.

Main

OS Selection [Windows 7]



PC Health Status



WatchDog Conﬁ guration



CPU Conﬁ guration



SATA Conﬁ guration



Network Stack Conﬁ guration



CSM Conﬁ guration



Trusted Computing



USB Conﬁ guration



Security Conﬁ guration



Intel(R) I210 Gigabit Network Connection - 00:01:29:26......

OS Selection

Advanced

Save & ExitChipset Security Boot

OS Selection

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to

23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Select the OS support: Windows 7 or Windows 8.X.

www.dﬁ .comChapter 4 BIOS Setup

Page 34

Chapter 4

PC Health Status

This section only displays the hardware health monitor.

Advanced

System Hardware Monitor CPU FAN Speed

System FAN Speed VCore VBAT V_SM VGFX

1.0v

: 0 RPM : 0 RPM : +0.850 V : +3.378 V : +1.353 V : +0.947 V : +0.997 V

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

WatchDog Configuration

This field is used to enable or disable the Watchdog timer function.

Advanced

Enable/Disable IT8518

WatchDog1 function

[Disabled]

WatchDog Timer.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

When enabled, it will display the following infomation:

Advanced

Set WatchDog1 Timer WatchDog1 function

WatchDog1 Timer

[Enabled]

(Sec).

 Select Screen

 Select Item

Enter: Select

+/-: Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

www.dﬁ .comChapter 4 BIOS Setup

Page 35

Chapter 4

CPU Configuration

This section is used to configure the CPU. It will also display the detection of CPU information.

Advanced

CPU Conﬁ guration Intel(R) Atom(TM) CPU E3845 @ 1.91GHz

CPU Signature Microcode Patch CPU Speed 64-bit Processor Cores Intel VT-x Technology

L1 Data Cache L1 Code Cache L2 Cache

Intel Virtualization Technology

30673 31e 1918 MHz Supported 4 Supported

24 KB x4 32 KB x4 1024 KB x2

[Enabled]

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Intel Virtualization Technology

When this field is set to enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

SATA Configuration

This section is used to configure the settings of SATA device.

Advanced

SATA Conﬁ guration

Serial-ATA (SATA)

SATA Mode

Serial-ATA Port 0 Serial-ATA Port 1

SATA Port0 Not Present

SATA Port1 Not Present

[Enabled]

[AHCI Mode]

[Enabled] [Enabled]

Serial ATA Port 0 and 1

This field is used to enable or disable the Serial ATA port 0 and 1.

Enable/Disable Serial

ATA

 Select Screen

 Select Item

Enter: Select

+/-: Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

www.dﬁ .comChapter 4 BIOS Setup

Page 36

Chapter 4

Network Stack

This section is used to enable or disable UEFI network stack.

Advanced

Network Stack

[Disabled]

Enable/Disable UEFI network stack.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

When Network Stack is set to enabled, it will display the following information:

Advanced

Network Stack

Ipv4 PXE Support

Ipv6 PXE Support PXE boot wait time

[Enabled]

[Enabled] [Enabled] 0

Enable/Disable UEFI network stack.

Ipv4 PXE Support

When enabled, Ipv4 PXE boot supports. When disabled, Ipv4 PXE boot option will not be created.

Ipv6 PXE Support

When enabled, Ipv6 PXE boot supports. When disabled, Ipv6 PXE boot option will not be created.

PXE boot wait time

Enter the wait time value to abort the PXE boot.

 

Enter: +/-: F1: F2: F3: F4: ESC:

Select Screen Select Item Select Change Opt. General Help Previous Values Optimized Defaults Save & Reset Exit

www.dﬁ .comChapter 4 BIOS Setup

Page 37

Chapter 4

CSM Configuration

This section configures the CSM settings.

Advanced

Compatibility Support Module Conﬁ guration

CSM Support

CSM16 Module Version

Boot option ﬁ lter

Option ROM execution order

Network Storage Video Other PCI devices

[Enabled]

07.71

[UEFI and Legacy]

[Do not launch] [Legacy only] [Legacy only] [UEFI only]

CSM Support

This field is used to enable or disable the CSM support.

Boot option filter

This option controls Legacy/UEFI ROMs priority.

Network

Enable/Disable CSM support

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Trusted Computing

This section configures settings relevant to Trusted Computing innovations.

Advanced

Conﬁ guration

Security Device Support

Current Status Information SUPPORT TURNED OFF

[Disable]

Enables or Disables

BIOS support for security

device. O.S. will not show

Security Device. TCG

EFI protocol and INT1A

interface will not be

available.

 Select Screen

 Select Item

Enter: Select

+/-: Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Security Device Support

Enables or Disables the BIOS support for the security device. O.S. will not show the security device. TCG EFI protocol and TNT1A interface will not be available.

This field controls the execution of UEFI and Legacy PXE OpROM.

Storage

This field controls the execution of UEFI and Legacy Storage OpROM.

Video

This field controls the execution of UEFI and Legacy Video OpROM.

Other PCI devices

This field determines OpROM execution policy for devices other than network, storage or video.

www.dﬁ .comChapter 4 BIOS Setup

Page 38

Chapter 4

USB Configuration

This section is used to configure parameters of the USB device.

Advanced

USB Conﬁ guration USB Module Version USB Devices:

1 Keyboard, 1 Hub

Legacy USB Support

XHCI Hand-off EHCI Hand-off USB Mass Storage Driver Support

8.11.01

[Enabled]

[Enabled] [Disabled] [Enabled]

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Legacy USB Support

Enabled

Enable legacy USB. Auto

Disable support for legacy when no USB devices are connected. Disabled

Keep USB devices available only for EFI applications.

XHCI Hand-off

This is a workaround for OSes without the XHCI hand-off support. The change of XHCI ownership should be claimed by the EHCI driver.

EHCI Hand-off

This is a workaround for OSes without the EHCI hand-off support. The change of EHCI ownership should be claimed by the EHCI driver.

Important:

When installing Windows 7, only native USB 2.0 devices (USB port 0 to USB port 3) can operate under DOS mode. Please refer to the following tables for more infomation on the type of USB ports.

Table 1. OS Selection

Operation Environment

DOS Windows 7 Windows 8.x Linux

for Customers OS Selection

in the BIOS

Windows 8.x Windows 7 Windows 8.x Windows 8.x

Advanced Menu

Available USB ports

All

Table 2. The Type of USB Ports

Model Name BT968 USB 3.0 USB 0 USB 1 USB 2 USB 3 USB 4 USB 5 USB 6 USB 7

Native Native Native Native

Native HSIC port 0 HSIC port 1 HSIC port 2 HSIC port 3

When installing Windows 7 ﬁ rst time, only native USB 2.0 ports can work. Please refer to the USB type in table 2 below.

All All

USB Mass Storage Driver Support

Enable or disable the support of the USB Mass Storage Driver.

www.dﬁ .comChapter 4 BIOS Setup

Page 39

Chapter 4

Security Configuration

This section configures the setting relevant to the Intel(R) Anti-Theft Technology.

Advanced

Intel(R) TXE Conﬁ guration TXE FW Version

TXE HMRFPO

01.01.00.1089

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Intel(R) I210 Gigabit Network Connection - 00:01:29:26...

This section is used to configure the parameters of Gigabit Ethernet device.

Advanced

Conﬁ gure Boot Protocol,

PORT CONFIGURATION MENU



NIC Conﬁ guration

Blink LEDs

PORT CONFIGURATION INFORMATION UEFI Driver: Adapter PBA: Chip Type: PCI Device ID Bus: Device: Function:

Link Status MAC Address

Virtual MAC Address

Intel(R) PRO/1000 5.5.19 001300-000 Intel i210 1533 04:00:00

[Disconnected]

00:01:29:26:DB:FD

Wake on LAN, Link Speed, and VLAN.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Blink LEDs

Identify the physical network port by blinking the associated LED.

Link Status

This field indicates the link status of the network device.

Virtual MAC Address

This field indicates programmatically assignable MAC address for the network port.

www.dﬁ .comChapter 4 BIOS Setup

Page 40

Chapter 4

NIC Configuration

This field is used to configure the network device.

Advanced

Speciﬁ es the port speed

Link Speed

Wake on LAN

[Auto Negotiated]

[Enabled]

used for the selected

boot protocol.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Link Speed

Specify the port speed which is used for the selected boot protocol.

Wake on LAN

Enables the server to be powered on using an in-band magic packet.

Chipset

The section configures the relevant functions of chipset.

Advanced

Main



North Bridge



South Bridge

Chipset

Security Boot

Save & Exit

North Bridge Parameters

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

www.dﬁ .comChapter 4 BIOS Setup

Page 41

Chapter 4

North Bridge

This section configures the North bridge parameters.

Chipset



Intel IGD Conﬁ guration



LCD Control



Memory Conﬁ guration

Conﬁ g Intel IGD Settings.

 Select Screen

 Select Item

Enter: Select

+/-: Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Intel IGD Configuration

Chipset

GOP Information Intel(R) GOP Driver



Integrated Graphics

[N/A]

[Enabled]

Enable: Enable Integrated Graphics Device (IGD) when selected as the Primary Video Adaptor. Disable: Always disable IGD.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Integrated Graphics

Enable or disable the integrated graphics device (IGD). When enabled, the integrated graphics device is selected as the primary video adaptor.

www.dﬁ .comChapter 4 BIOS Setup

Page 42

Chapter 4

LCD Control

Chipset

LCD Control

Primary IGFX Boot Display

Secondary IGFX Boot Display LCD Panel Type LVDS Support DDI Display Selection

[CRT]

[LVDS] [Type 3 1024x768...] [Enabled] [LVDS Display]

Select the Video Device

which will be activated

during POST. This has no

effect if external graphics

present.

Secondary boot display

selection will appear

based on your selection.

VGA modes will be sup-

ported only on primary

display.



Select Screen



Select Item

Enter:

Select

+/-:

Change Opt.

F1:

General Help

F2:

Previous Values

F3:

Optimized Defaults

F4:

Save & Reset

ESC:

Exit

Primary IGFX Boot Display

Select the Video Device which will be activated during POST. This has no effect if the external graphics presents. The selection of secondary boot display will appear based on your selection. VGA modes will be supported only on primary display.

Secondary IGFX Boot Display

Select the secondary display device: CRT, LVDS, DDI-1 or DDI-2. LVDS is the default setting.

LCD Panel Type

Select the LCD panel used by Internal Graphics Device by selecting the appropriate setup item. Please refer to the screen shown below.

Chipset

18 Bit 18 Bit 18 Bit 36 Bit 36 Bit 36 Bit 36 Bit 18 Bit 36 Bit 36 Bit 36 Bit 24 Bit 48 Bit 36 Bit 48 Bit 48 Bit

Select LCD panel used by Internal Graphics Device by selecting the appropriate setup item.



Select Screen



Select Item

Enter:

Select

+/-:

Change Opt.

F1:

General Help

F2:

Previous Values

F3:

Optimized Defaults

F4:

Save & Reset

ESC:

Exit

LCD Control

Primary IGFX Boot Display Secondary IGFX Boot Display

LCD Panel Type

LVDS Support DDI Display Selection

[CRT]

LCD Panel Type VBIOS Default Type 1

640x480

Type 2

800x600

Type 3

1024x768

Type 4

1280x1024

Type 5

1400x1050 (108MHz)

Type 6

1400x1050 (122MHz)

Type 7

1600x1200

Type 8

1366x768

Type 9

1680x1050

Type 10

1920x1200

Type 11

1440x900

Type 12

1024x768

Type 13

1280x1024

Type 14

1280x800

Type 15

1920x1080

Type 16

2048x1536

LVDS Support

Enable or disable the onboard LVDS function.

DDI Display Selection

The item is related to BTB I/F DDI2 port.

Note:

The default setting of DDI2 port is LVDS display. You can switch the setting to DDI display (DP/HDMI/DVI) via the BIOS configuration. When selecting DDI2 display, the Digital Display Audio function will not be supported. If you have the request for DDI2 Display Audio function on DP or HDMI device, please contact your sales representative for more information on the customized BIOS. Disable the LVDS support fully in the customized BIOS setting and the DDI display will work functionally.

www.dﬁ .comChapter 4 BIOS Setup

Page 43

Chapter 4

Memory Configuration

This section pnly displays the parameters of memory configuration.

Chipset

Memory Information Total Memory

Memory Slot1 Memory Slot2

4096 MB (LPDDR3) 4096 MB (LPDDR3)

Not Present



Select Screen



Select Item

Enter:

Select

+/-:

Change Opt.

F1:

General Help

F2:

Previous Values

F3:

Optimized Defaults

F4:

Save & Reset

ESC:

Exit

South Bridge

This field is used to configure the parameters of the South Bridge.

Chipset



Azalia HD Audio



PCI Express Conﬁ guration

Restore AC Power Loss Intel(R) I210 Controller

[Power Off] [Enabled]

Restore AC Power Loss

Power Off

When power returns after an AC power failure, the system’s power is off. You must

press the Power button to power-on the system.

Power On

When power returns after an AC power failure, the system will automatically poweron.

Azalia HD Audio Options

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Last State

When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Intel(R) I210 Controller

Enable the Intel(R) I210 ethernet controller.

www.dﬁ .comChapter 4 BIOS Setup

Page 44

Chapter 4

Azalia HD Audio

This section configues Azalia HD Audio options.

Chipset

Audio Conﬁ guration

Audio Controller

Azalia HDMI Codec

DP/HDMI Port B



[Enabled]

[Enabled] [Enabled]

Audio Controller

This item controls the detection of the Azalia device.

Disabled

Azalia will be unconditionally disabled.

Enabled

Azalia will be unconditionally enabled.

Auto

Azalia will be enabled automatically.

Control Detection of the Azalia device. Disabled = Azalia will be unconditionally disabled. Enabled = Azalia will be unconditionally enabled. Auto = Azalia will be enabled if present disabled otherwise.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

PCI Express Configuration

This section configues settings relevant to PCI Express devices.

Chipset

PCI Express Conﬁ guration

PCI Express Port 0

Speed

PCI Express Port 1 Speed

PCI Express Port 2 Speed

PCI Express Port 3



Speed

[Enabled]

[Auto] [Enabled]

[Auto]

Enable or Disable the PCI Express Port 0 in the Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

PCI Express Port 0-3

Enable or disable the PCI Express port in the chipset.

Speed

Select the speed for the PCI Express devices. The options are Auto, Gen1 or Gen2.

Azalia HDMI Codec

Enable or disable the internal HDMI codec for Azalia.

DP/HDMI Port B

Enable or disable the DP/HDMI Port B.

www.dﬁ .comChapter 4 BIOS Setup

Page 45

Chapter 4

Security

Main

Password Description If ONLY the Administrator’s password is set,

then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Set the administrator password.

User Password

Set the user password.

Advanced

BootSecurity

Save & ExitChipset

Set Administrator

Password.

 Select Screen

 Select Item

Enter: Select

+/-: Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Boot

Main

Boot Conﬁ guration

Setup Prompt Timeout

Bootup NumLock State

Boot Option Priorities

Boot Option #1

Advanced

Security

Boot

Save & ExitChipset

[On]

[UEFI: Built-in EFT...]

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indeﬁ nite waiting.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit

Setup Prompt Timeout

Select the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Boot Option #1

Set the order of the system boot.

www.dﬁ .comChapter 4 BIOS Setup

Page 46

Chapter 4

Save & Exit

Main

Save Changes and Reset

Discard Changes and Reset Restore Defaults

Boot Override

UEFI: Built-in EFI Shell

Save Changes and Reset

To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system after saving all changes made

Discard Changes and Reset

To discard the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system setup without saving any changes.

Advanced

Chipset

BootSecurity Save & Exit

Reset the system after

saving the changes.

 Select Screen

 Select Item

Enter: Select

+/-: Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Updating the BIOS

To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS.EXE. Please contact technical support or your sales representative for the files.

To execute the utility, type: A:> AFUDOS BIOS_File_Name /b /p /n then press <Enter>.

C:\AFU\AFUDOS>afudos ﬁ lename /B /P /N

+--------------------------------------------------------------------------------------------------------+

| |

+--------------------------------------------------------------------------------------------------------+

Reading ﬁ le ..............................

Erasing ﬂ ash .............................

Writing ﬂ ash .............................

Verifying ﬂ ash ..........................

Erasing BootBlock ....................

Writing BootBlock ....................

Verifying BootBlock .................

C:\AFU\AFUDOS>

AMI Firmware Update Utility(APTIO) v2.25

done done done done done done done

After finishing BIOS update, please turn off the AC power. Wait about 10 seconds and then turn on the AC power again.

| |

Restore Defaults

To restore and load the optimized default values, select this field and then press <Enter>. A dialog box will appear. Select Yes to restore the default values of all the setup options.

www.dﬁ .comChapter 4 BIOS Setup

Page 47

Chapter 4

Notice: BIOS SPI ROM

1. The Intel® Management Engine has already been integrated into this system board. Due to the safety concerns, the BIOS (SPI ROM) chip cannot be removed from this system board and used on another system board of the same model.

2. The BIOS (SPI ROM) on this system board must be the original equipment from the factory and cannot be used to replace one which has been utilized on other system boards.

3. If you do not follow the methods above, the Intel updated and will cease to be effective.

Note:

a. You can take advantage of flash tools to update the default configuration of the BIOS (SPI ROM) to the latest version anytime. b. When the BIOS IC needs to be replaced, you have to populate it properly onto the

system board after the EEPROM programmer has been burned and follow the technical person's instructions to confirm that the MAC address should be burned or not.

Management Engine will not be

www.dﬁ .comChapter 4 BIOS Setup

Page 48

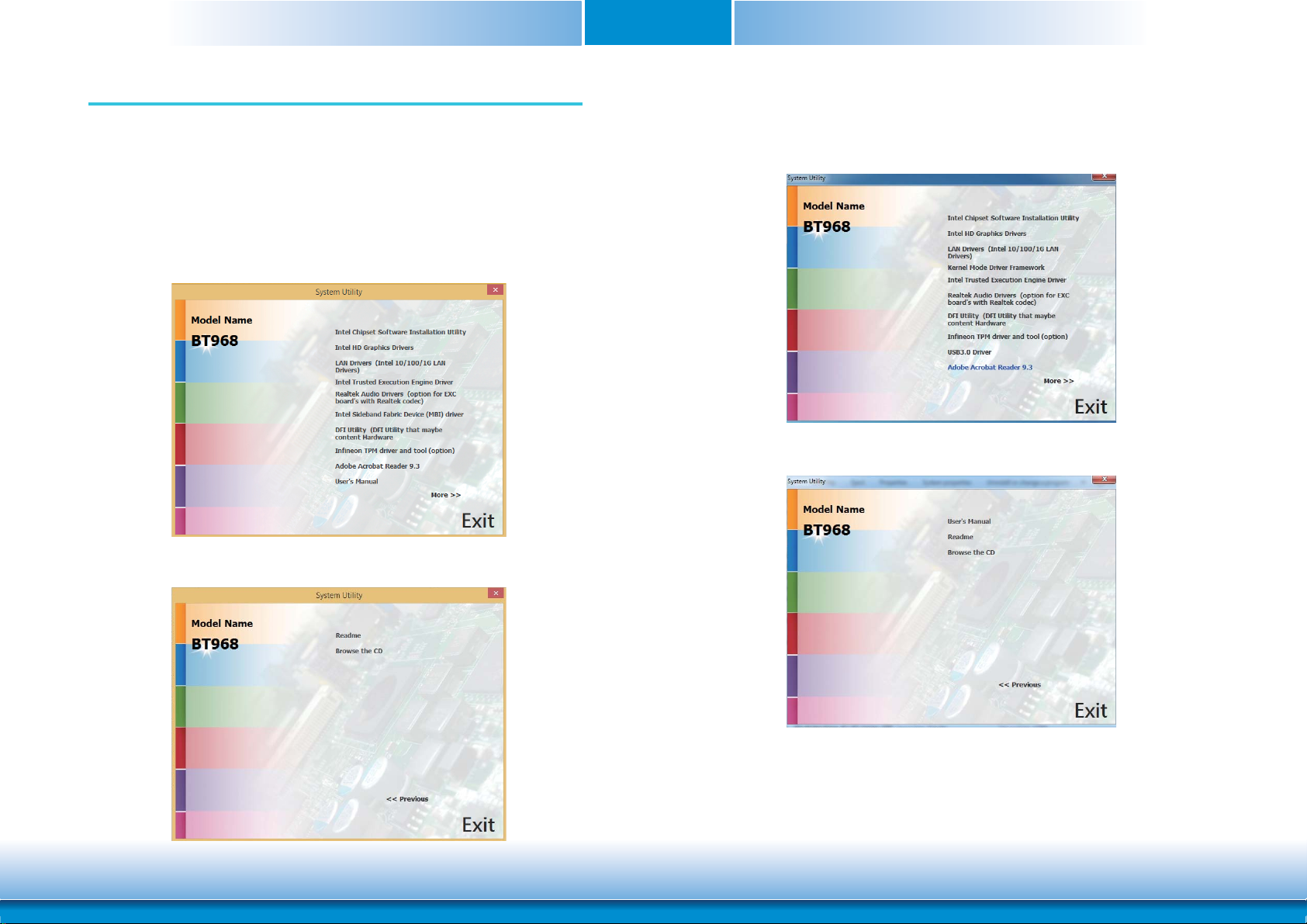

Chapter 5 - Supported Software

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.

For Windows 8.x

Chapter 5

For Windows 7

www.dﬁ .comChapter 5 Supported Software

Page 49

Chapter 5

Intel Chipset Software Installation Utility

The Intel Chipset Device Software is used for updating Windows chipset can be recognized and configured properly in the system.

To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.

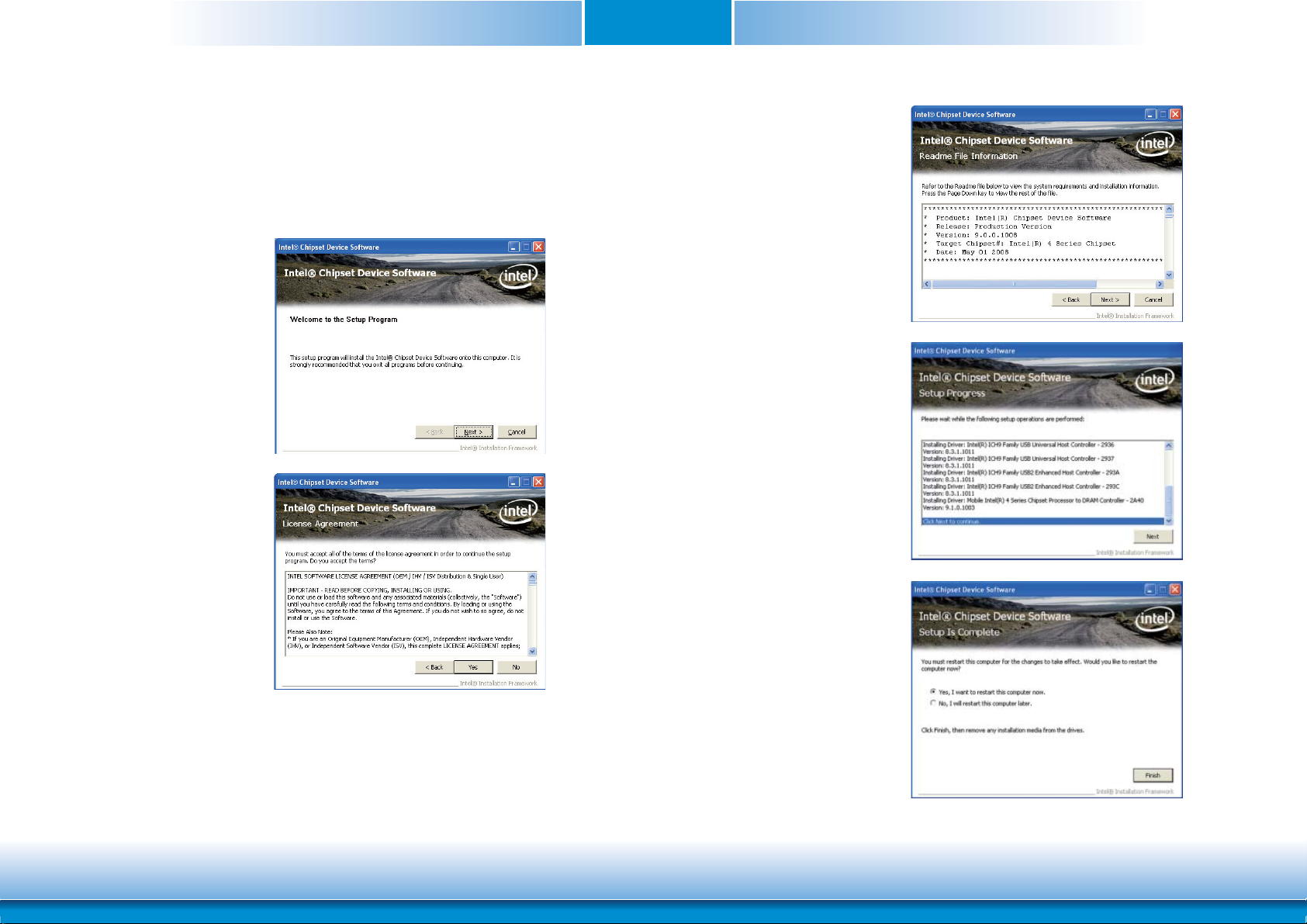

1. Setup is ready to install the utility. Click Next.

2. Read the license agreement then click Yes.

INF files so that the Intel

3. Go through the readme document for more installation tips then click Next.

4. After all setup operations are

done, click Next.

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

www.dﬁ .comChapter 5 Supported Software

Page 50

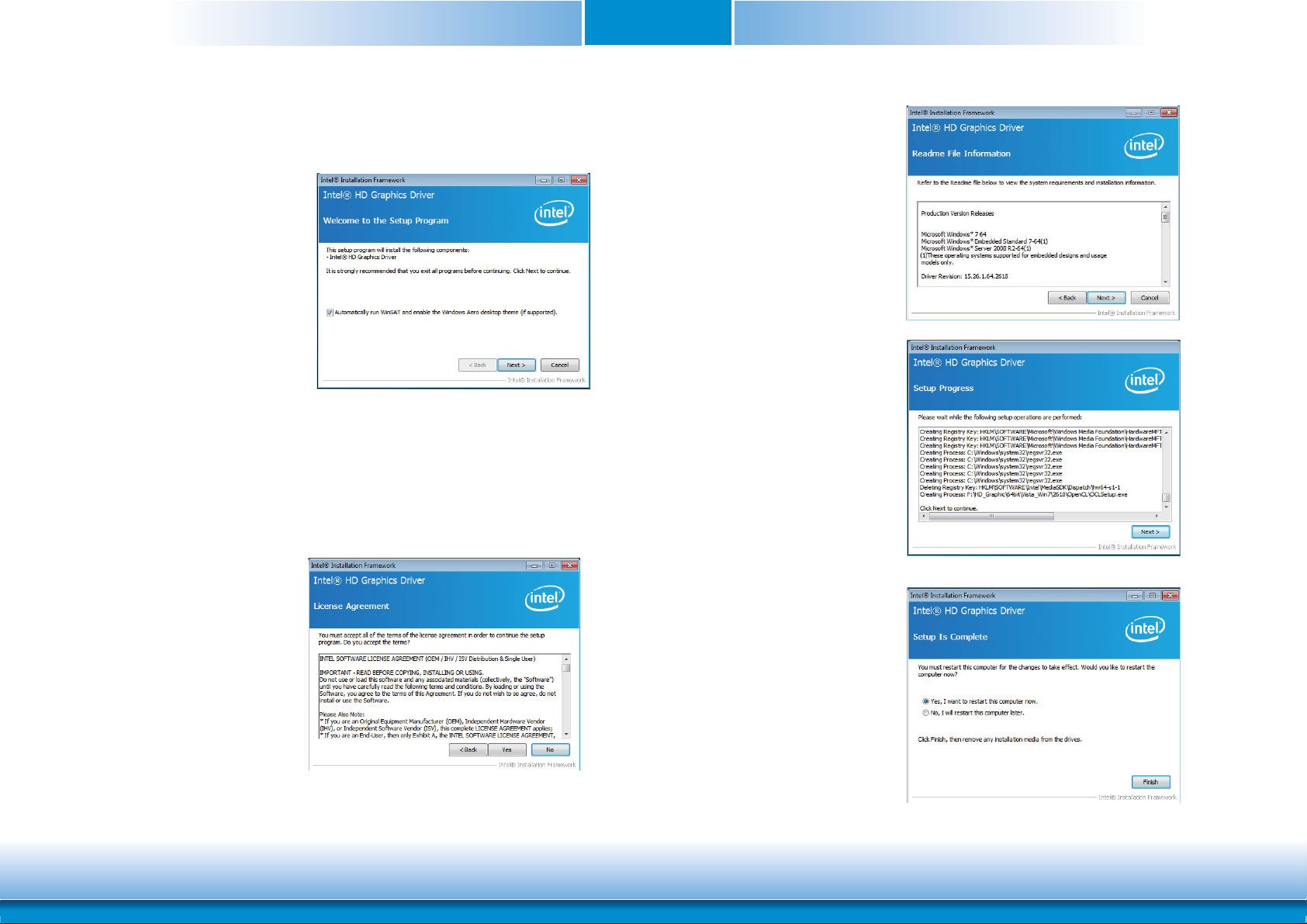

Chapter 5

Intel HD Graphics Drivers

To install the driver, click “Intel HD Graphics Drivers” on the main menu.

1. Setup is now ready to install the graphics driver. Click Next.

By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows 7/ Windows 8 desktop appears. The “blank screen” period is the time Windows is testing the graphics performance.

We recommend that you skip this process by disabling this function then click Next.

3. Go through the readme document for system requirements and installation tips then click Next.

4. Setup is now installing the driver. Click Next to continue

2. Read the license agreement then click Yes.

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

www.dﬁ .comChapter 5 Supported Software

Page 51

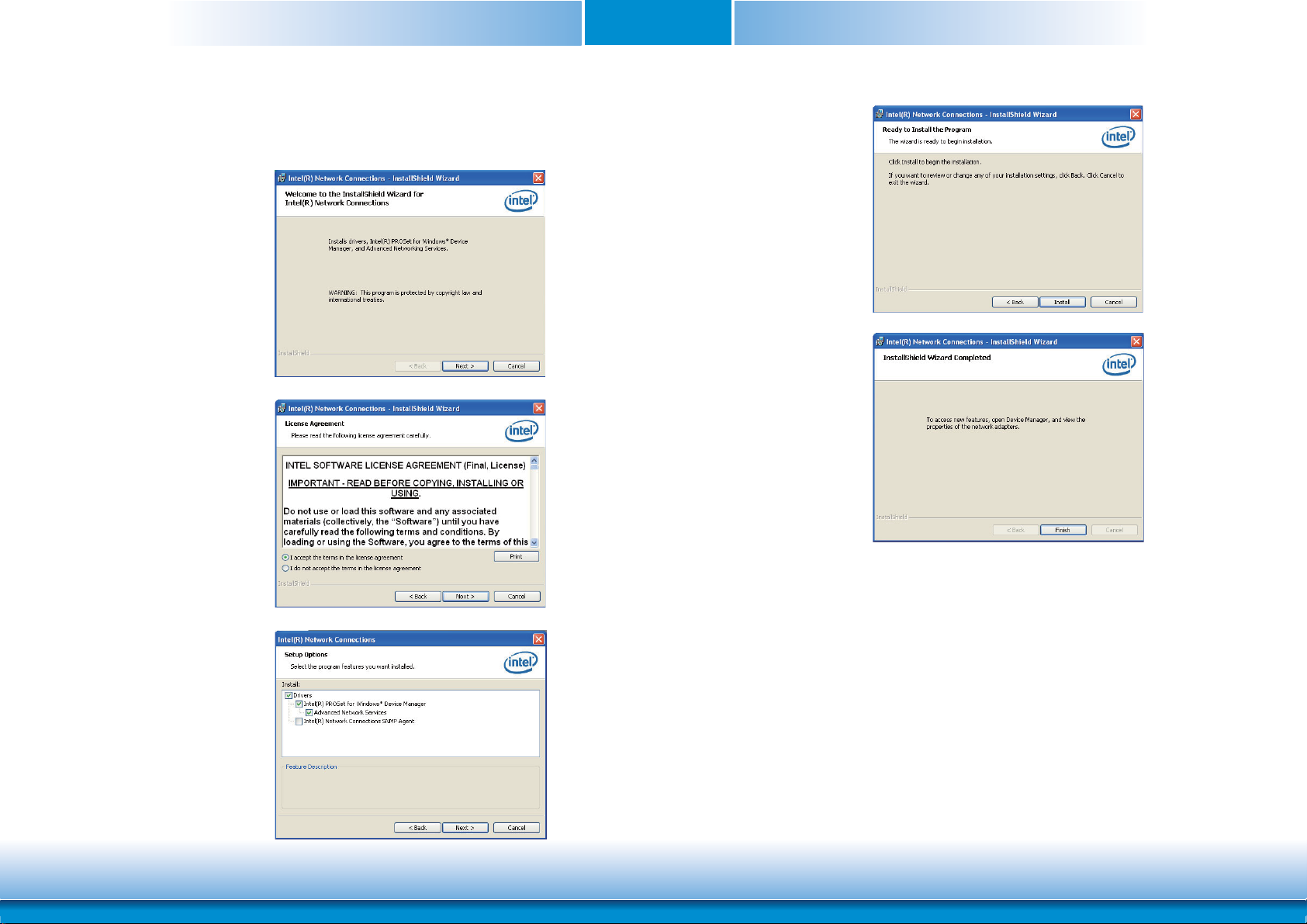

Chapter 5

Intel LAN Drivers

To install the driver, click “Intel LAN Drivers” on the main menu.

1. Setup is ready to install the driver. Click Next.

2. Click “I accept the terms in the license agreement” then click “Next”.

4. Click Install to begin the installation.

5. After completing installation, click Finish.

3. Select the program featuers you want installed then click Next.

www.dﬁ .comChapter 5 Supported Software

Page 52

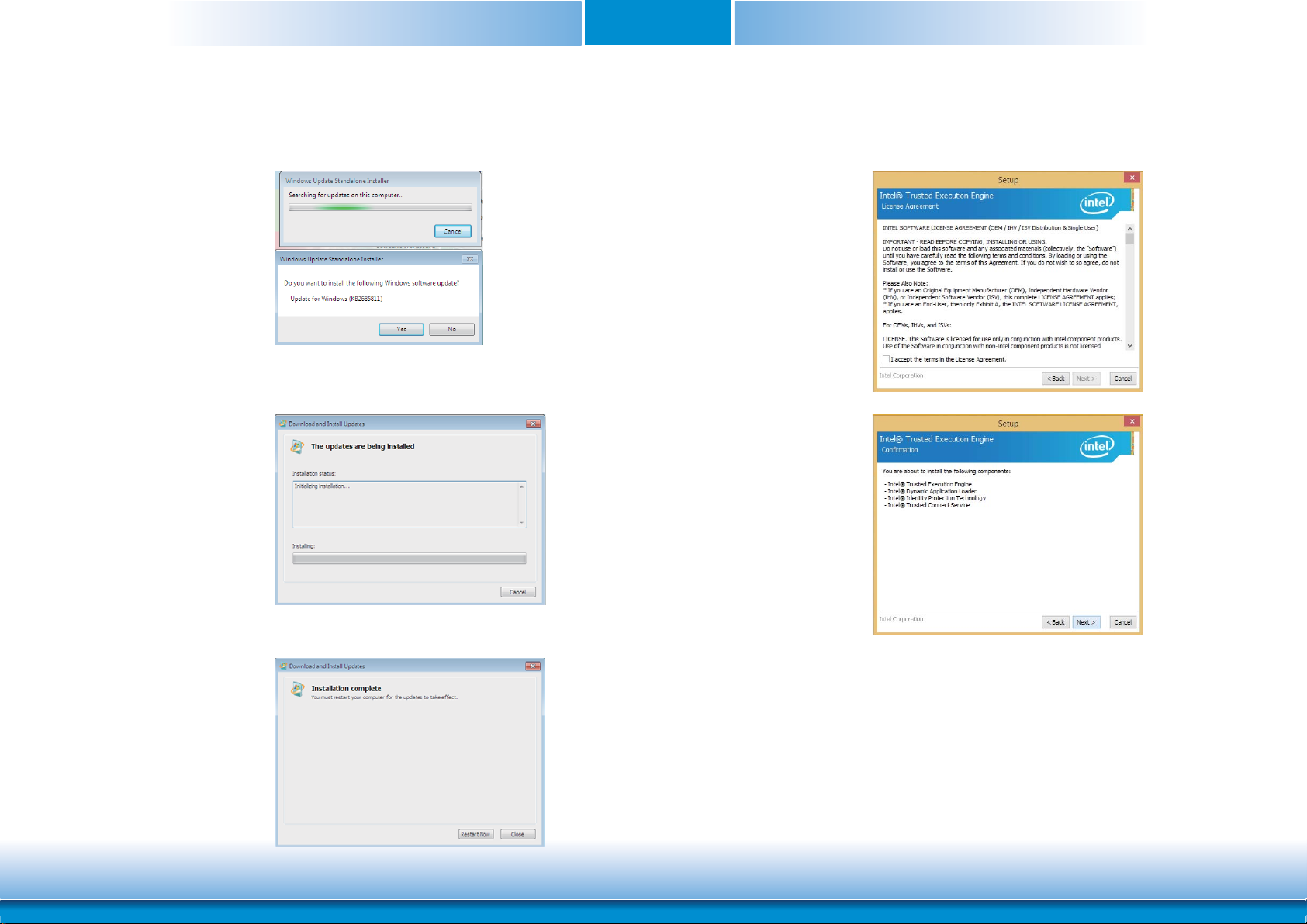

Chapter 5

Kernel Mode Driver Framework (For Windows 7 only)

To install the driver, click “Kernel Mode Driver Framework” on the main menu.

1. Click “Yes“ to install the update.

2. The update is installed now.

Intel Trusted Execution Engine Driver

To install the driver, click “Intel Trusted Execution Engine Driver” on the main menu.

1. Tick “I accept the terms in the License Agreement“ and then click “Next.”

2. The step shows the components which will be installed. Then, Click Next.

3. Click “Restart Now“ to restart your computer when the installation is complete.

www.dﬁ .comChapter 5 Supported Software

Page 53

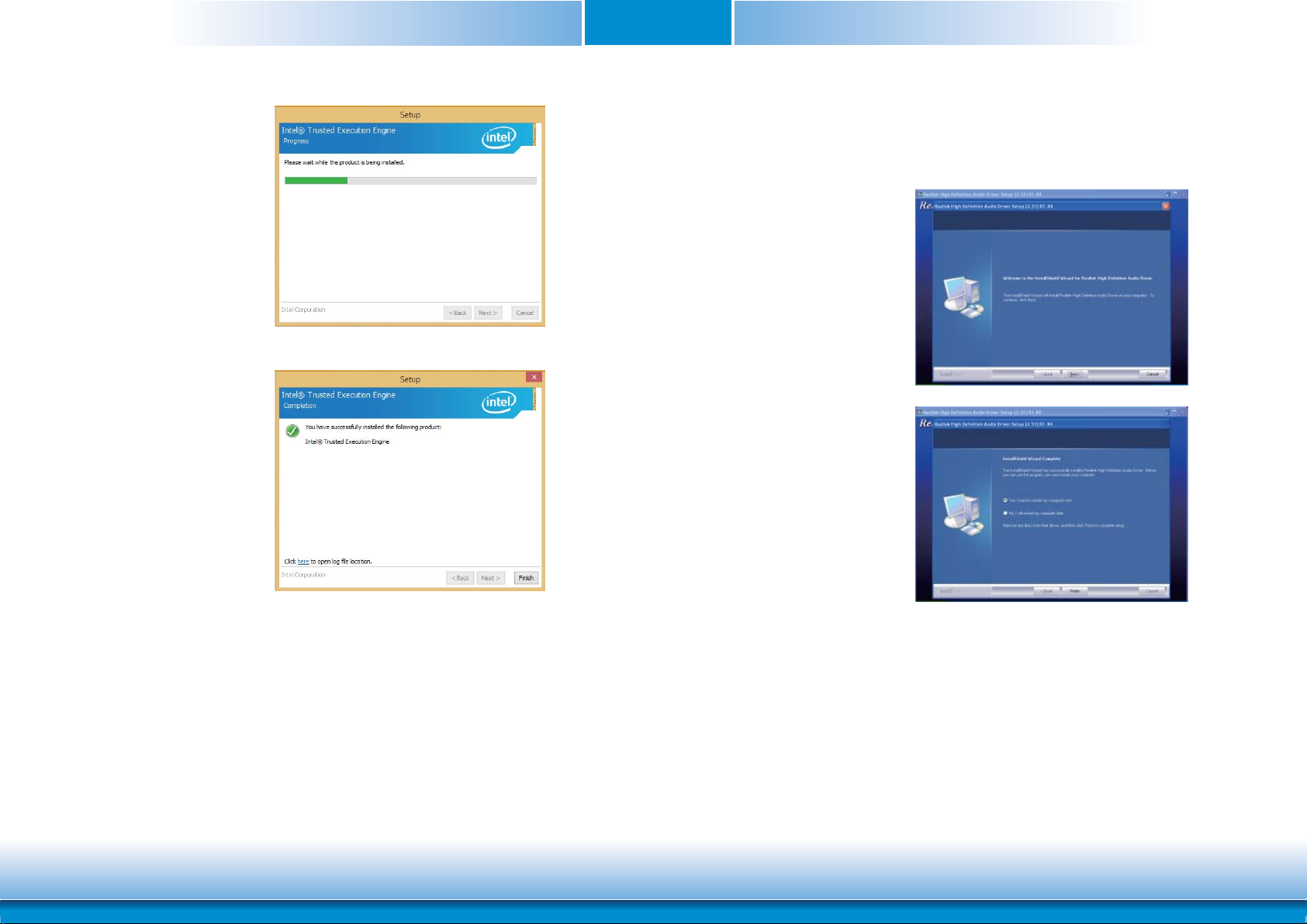

Chapter 5

3. The step displays the installing status in the progress.

4. Click “Finish“ when the installation is complete.

Realtek Audio Drivers

To install the driver, click “Realtek Audio Drivers” on the main menu.

1. Setup is now ready to install the audio driver. Click Next.

2. Follow the remainder of the steps on the screen; clicking “Next” each time you finish a step.

3. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

www.dﬁ .comChapter 5 Supported Software

Page 54

Chapter 5

Intel Sideband Fabric Device (MBI) Driver (For Windows 8 only)

To install the driver, click “Intel Sideband Fabric Device (MBI) Driver” on the main menu.

1. The setup program will be installed. Click “Next“ to continue.

2. Click “Yes“ to accept the License Agreement.

3. The step performs setup operations. Click “Next“ to continue.

4. Click “Finish“ to restart the computer when the setup is completely installed.

www.dﬁ .comChapter 5 Supported Software

Page 55

Chapter 5

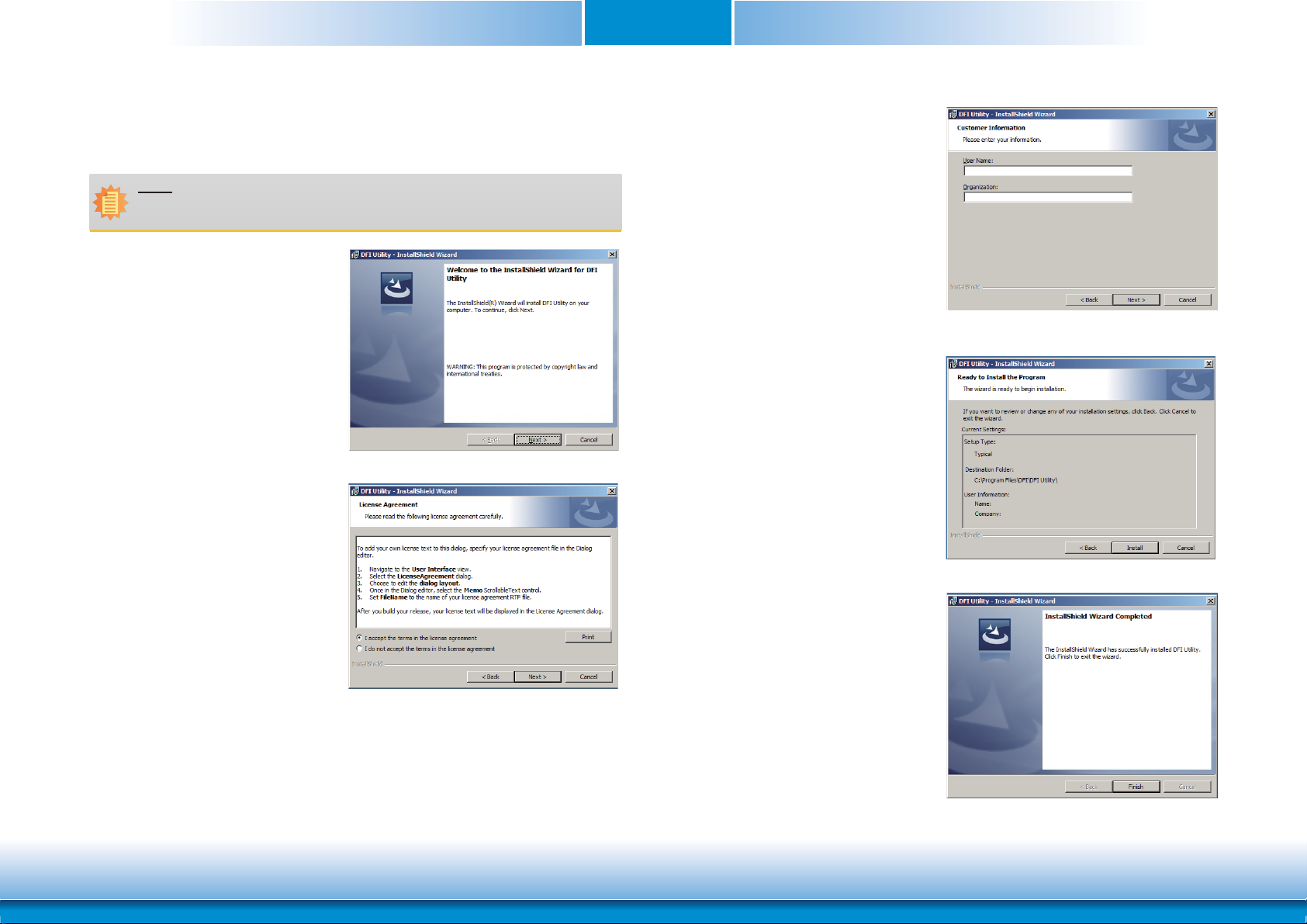

DFI Utility

DFI Utility provides information about the board, HW Health, Watchdog, DIO, and Backlight. To access the utility, click “DFI Utility” on the main menu.

Note:

If you are using Windows 7, you need to access the operating system as an administrator to be able to install the utility.

1. Setup is ready to install the DFI Utility drifer. Click Next.

2. Click “I accept the terms in the license agreement” and then click Next

3. Enter “User Name” and “Organization” information and then click Next

4. Click Install to begin the installation.

5. After completing installation, click Finish.

www.dﬁ .comChapter 5 Supported Software

Page 56

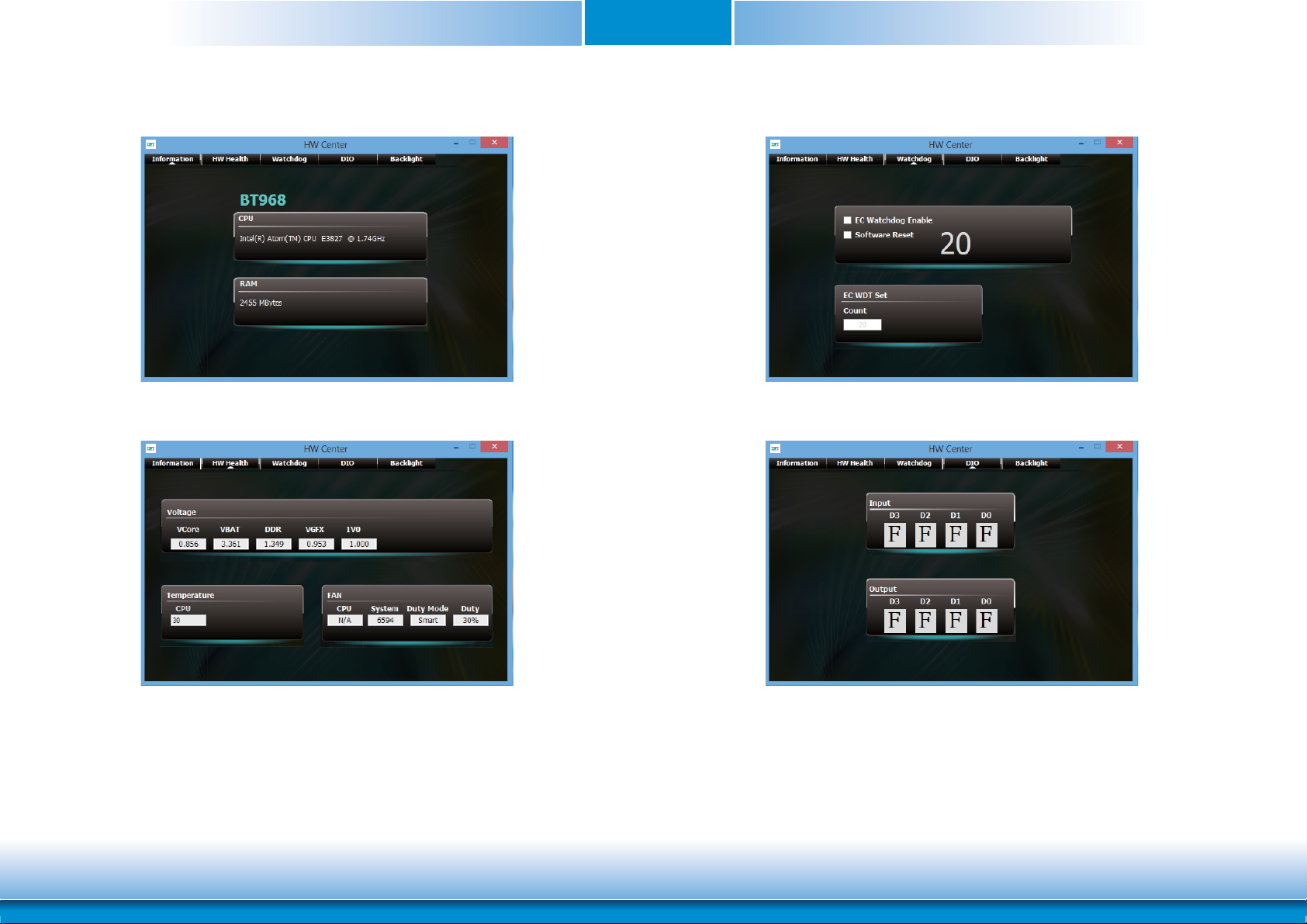

The DFI Utility icon will appear on the desktop. Double-click the icon to open the utility.

Chapter 5

Information

HW Health

WatchDog

DIO

www.dﬁ .comChapter 5 Supported Software

Page 57

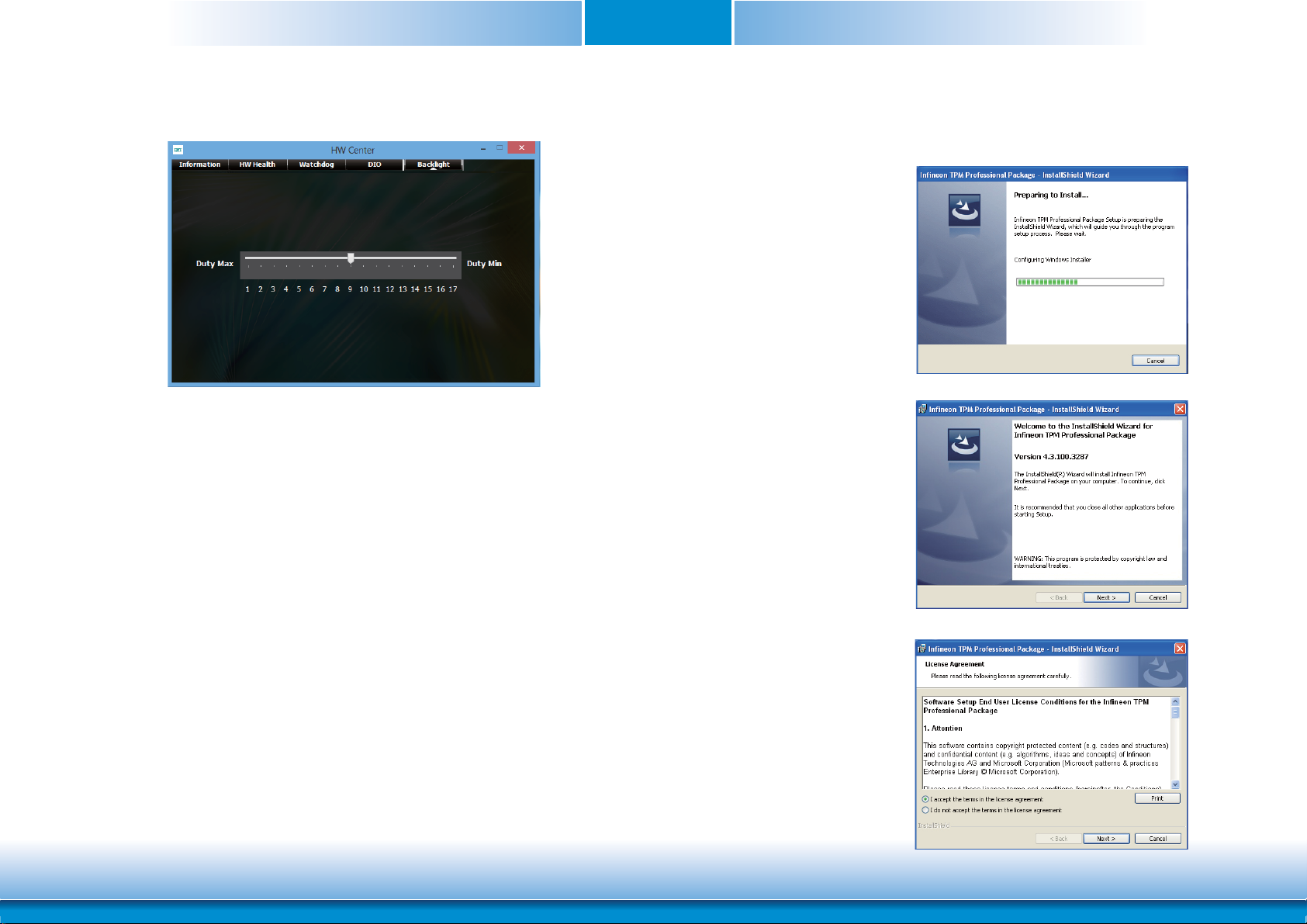

Chapter 5

Infineon TPM Driver and Tool (option)

To install the driver, click “Infineon TPM driver and tool (option)” on the main menu.

1. The setup program is preparing

to install the driver.

Backlight

2. The setup program is now ready

to install the utility. Click Next.

3. Click “I accept the terms in the

license agreement” and then click “Next”.

www.dﬁ .comChapter 5 Supported Software

Page 58

Chapter 5

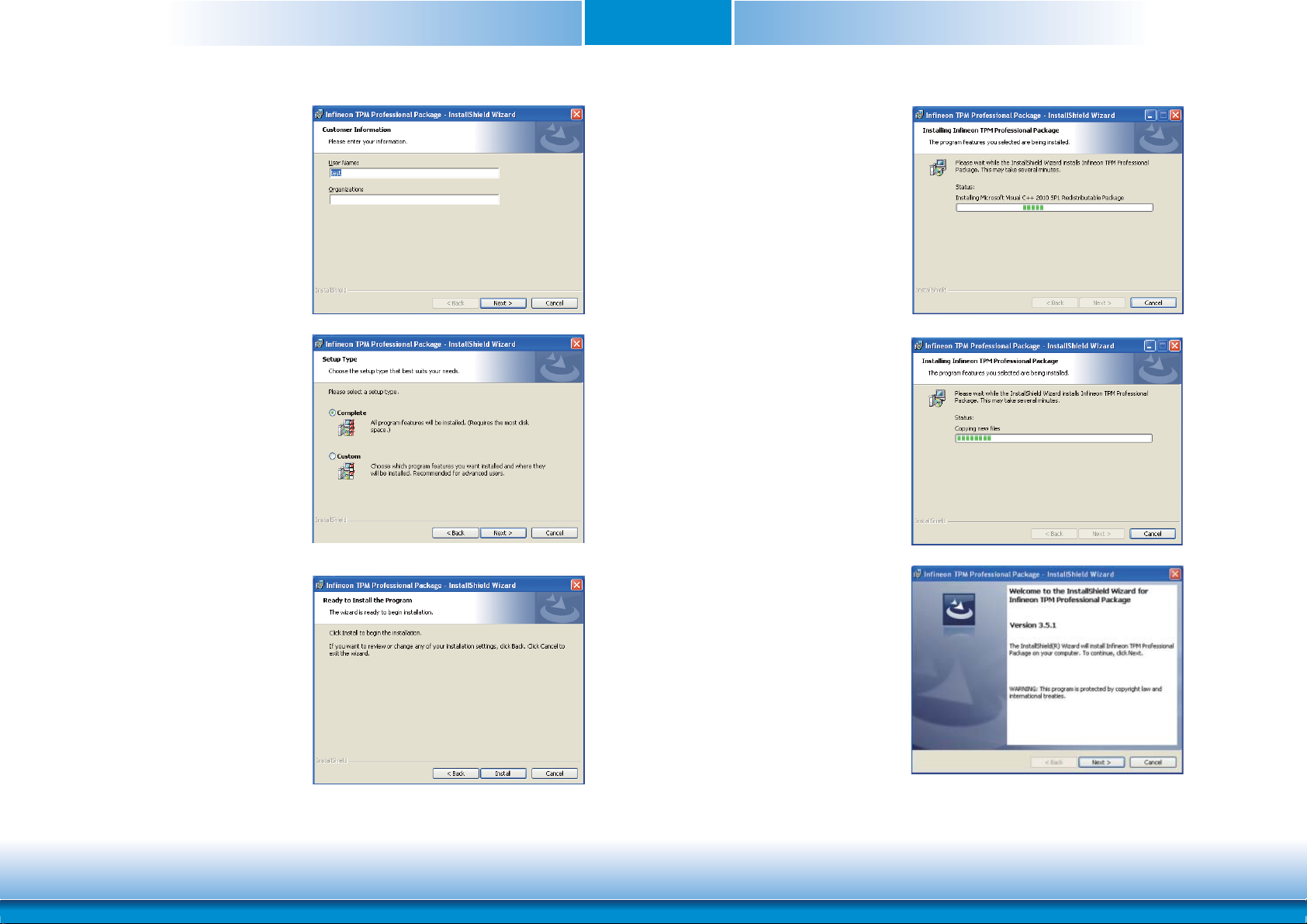

4. Enter the necessary information and then click Next.

5. Select a setup type and then click Next.

7. TPM requires installing the Microsoft Visual C++ package prior to installing the utility. Click Install.

8. The setup program is currently installing the Microsoft Visual C++ package.

6. Click Install.

9. Click Finish.

www.dﬁ .comChapter 5 Supported Software

Page 59

Chapter 5

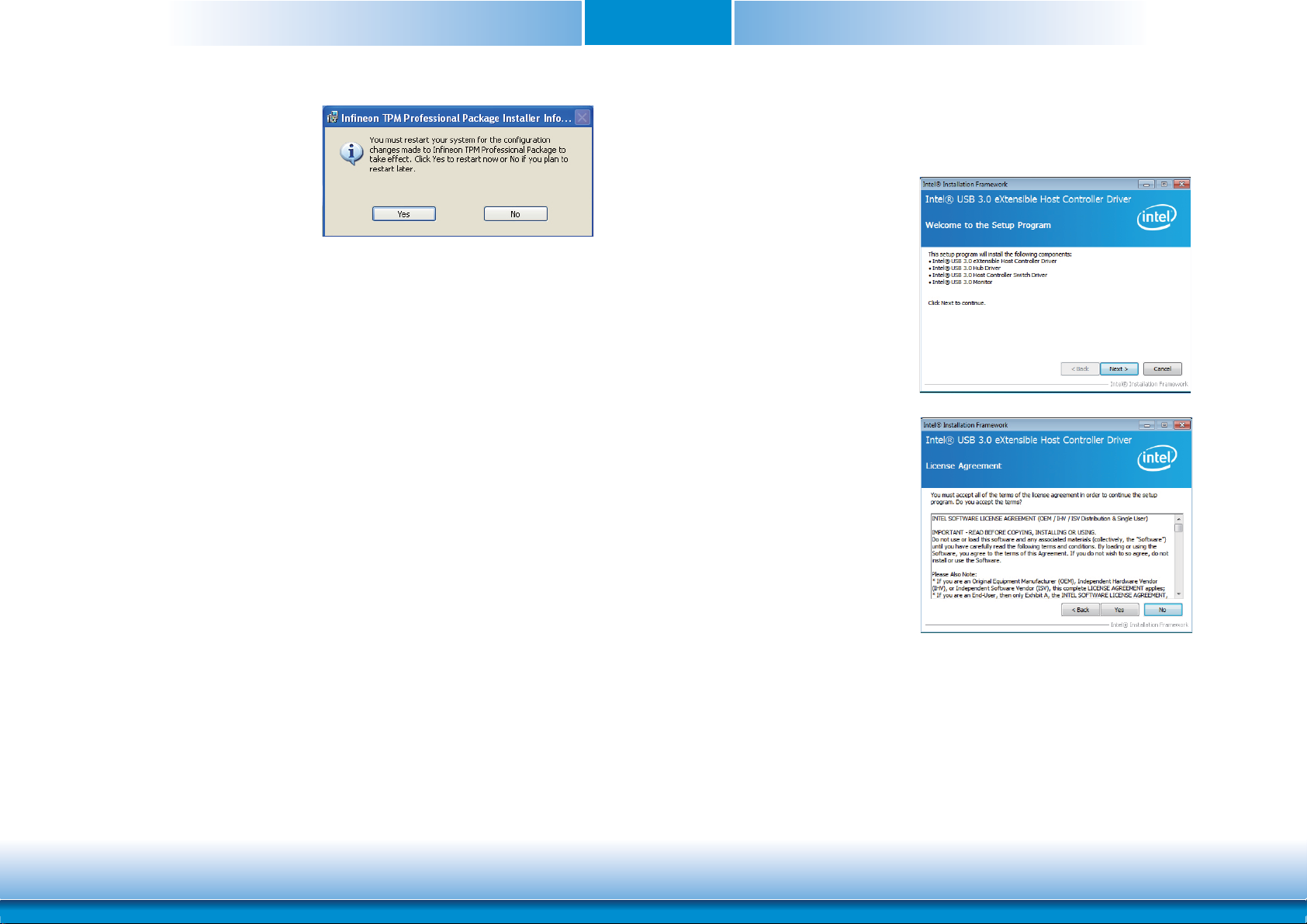

10. Click “Yes“ to restart your system.

Intel USB 3.0 Drivers (For Windows 7 Only)

To install the driver, click “Intel USB 3.0 Driver” on the main menu.

1. Setup is ready to install the driver.

Click Next.

2. Read the license agreement then

click Yes.

www.dﬁ .comChapter 5 Supported Software

Page 60

Chapter 5

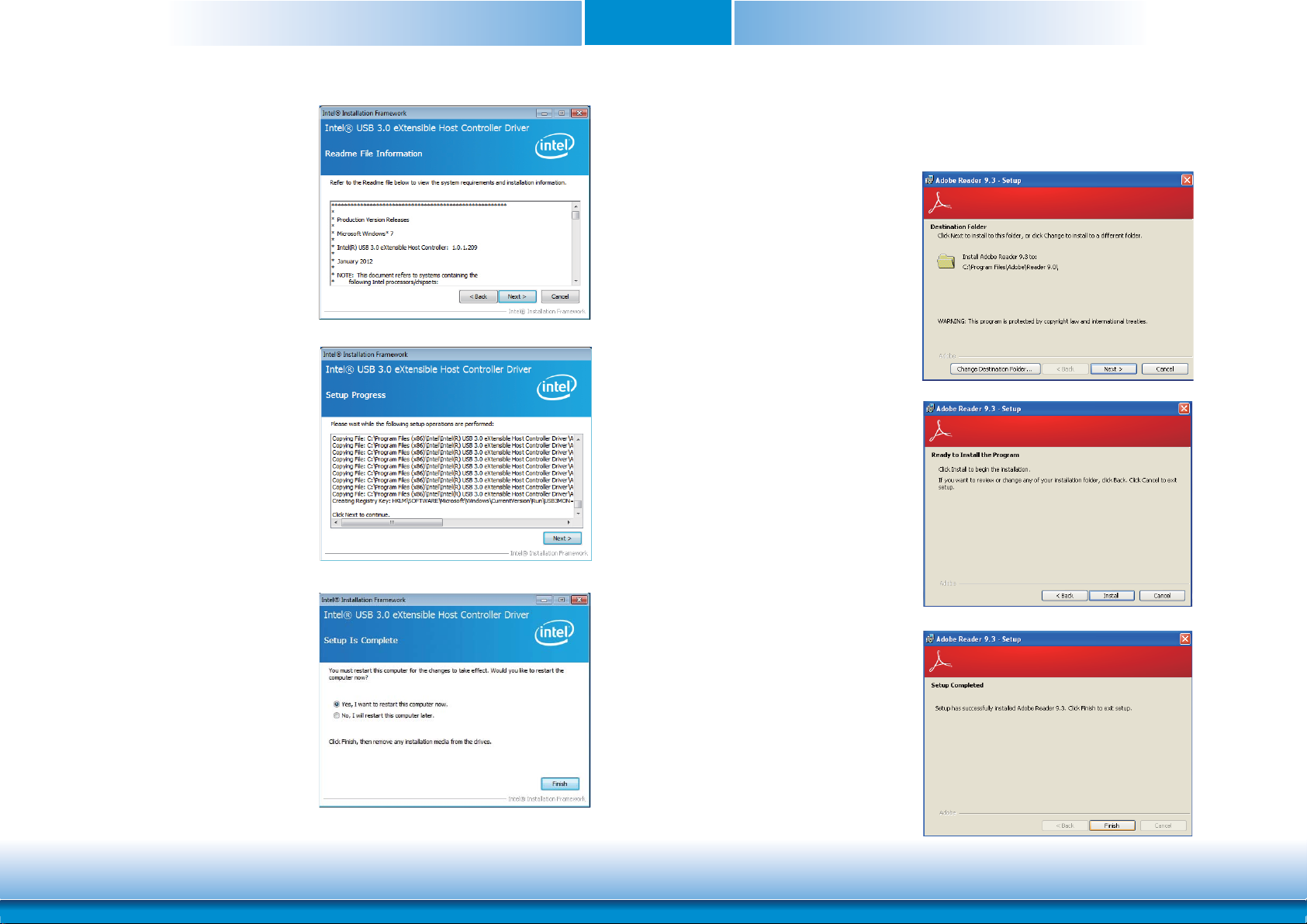

3. Go through the readme document for more installation tips then click Next.

4. Setup is currently installing the driver. After installation has completed, click Next.

Adobe Acrobat Reader 9.3

To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.

1. Click Next to install or click Change Destination Folder to select another folder.

2. Click Install to begin installation.

5. After completing installation, click Finish.

3. Click Finish to exit installation.

www.dﬁ .comChapter 5 Supported Software

Page 61

Chapter 6 - GPIO Programming Guide Function Description

Get_EC_Data (unsigned char ucData): Read a Byte data from EC. Write_EC_Data (unsigned char ucData, unsigned char Data): Write a Byte data to EC.

Sample Code

GPIO Input Process

EC_DIO_Read_Input() { BYTE Data;

//Pin0-3 Input Mode Data = Get_EC_Data(0xBA); Data |= 0x80; Write_EC_Data(0xBA, Data); while(((Get_EC_Data(0xBA) >> 7)&0x01)) { Data = Get_EC_Data(0xBA); }

Chapter 6

Return Data ; }

GPIO Output Process

EC_DIO_Write_Output(unsigned char udata) { //Pin4-7 Output Mode udata <<= 4; udata |= 0x01; Write_EC_Data(0xBB, udata);

return 0; EC_DIO_Read_Output()

{ BYTE Data;

//Pin4-7 Output Mode Write_EC_Data(0xBB, 0x02); Delay; Data = Get_EC_Data(0xBB); Data >>= 4; Return Data ; }

www.dﬁ .comChapter 6 GPIO Programming Guide

Page 62

Appendix A

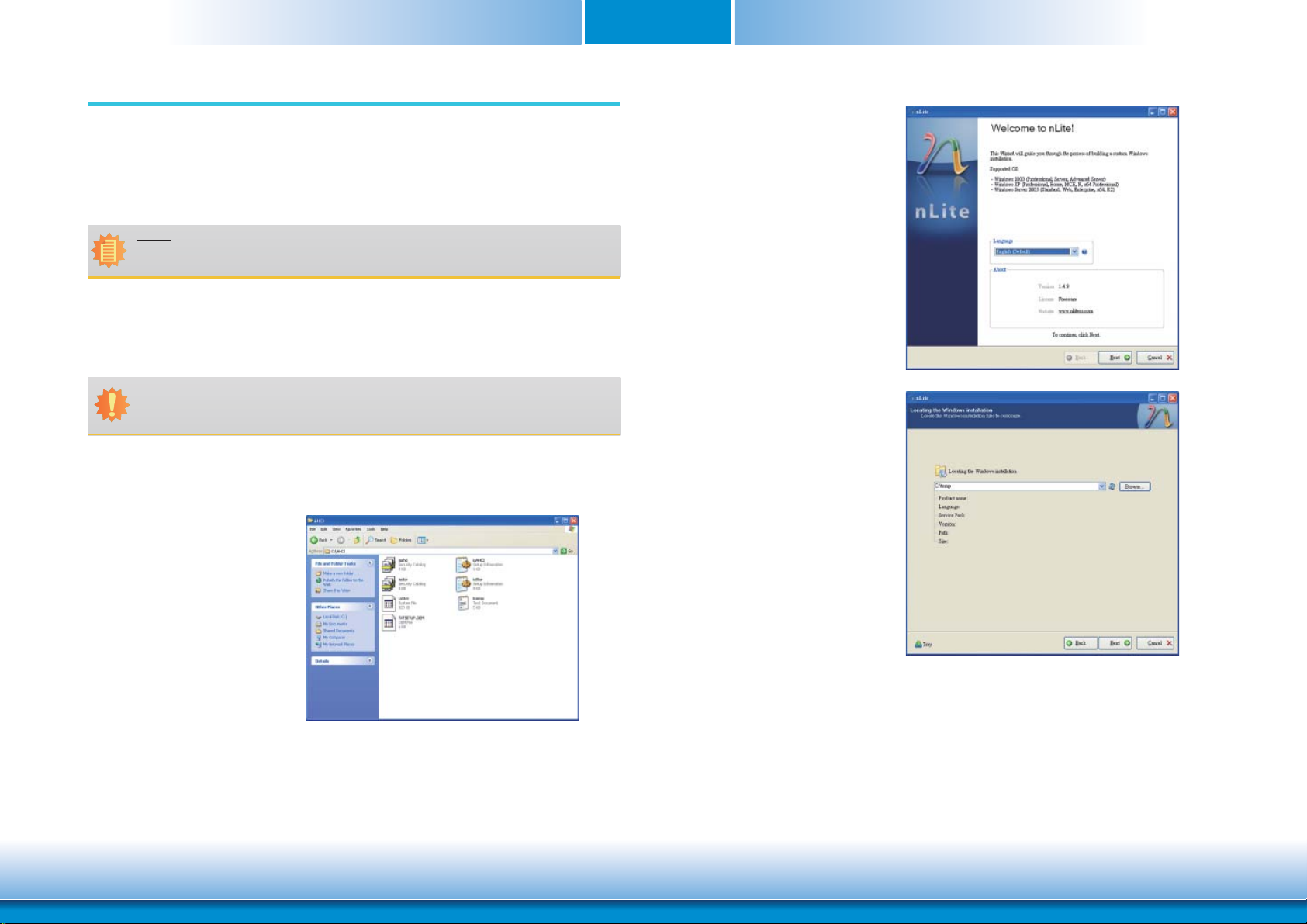

Appendix A - NLITE and AHCI Installation Guide

nLite

nLite is an application program that allows you to customize your XP installation disc by integrating the RAID/AHCI drivers into the disc. By using nLite, the F6 function key usually required during installation is no longer needed.

Note:

The installation steps below are based on nLite version 1.4.9. Installation procedures may slightly vary if you’re using another version of the program.

1. Download the program from nLite’s offical website.

http://www.nliteos.com/download.html

2. Install nLite.

4. Insert the XP installation disc into an optical drive.

5. Launch nLite. The Welcome screen will appear. Click Next.

Important:

Due to it’s coding with Visual.Net, you may need to first install .NET Framework prior to installing nLite.

3. Download relevant RAID/AHCI driver files from Intel’s website. The drivers you choose will depend on the operating system and chipset used by your computer.

The downloaded driver files should include iaahci.cat, iaAHCI.inf, iastor.cat, iaStor. inf, IaStor.sys, license.txt and TXTSETUP.OEM.

6. Click Next to temporarily save the Windows installation files to the designated default folder.

If you want to save them in another folder, click Browse, select the folder and then click Next.

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

Page 63

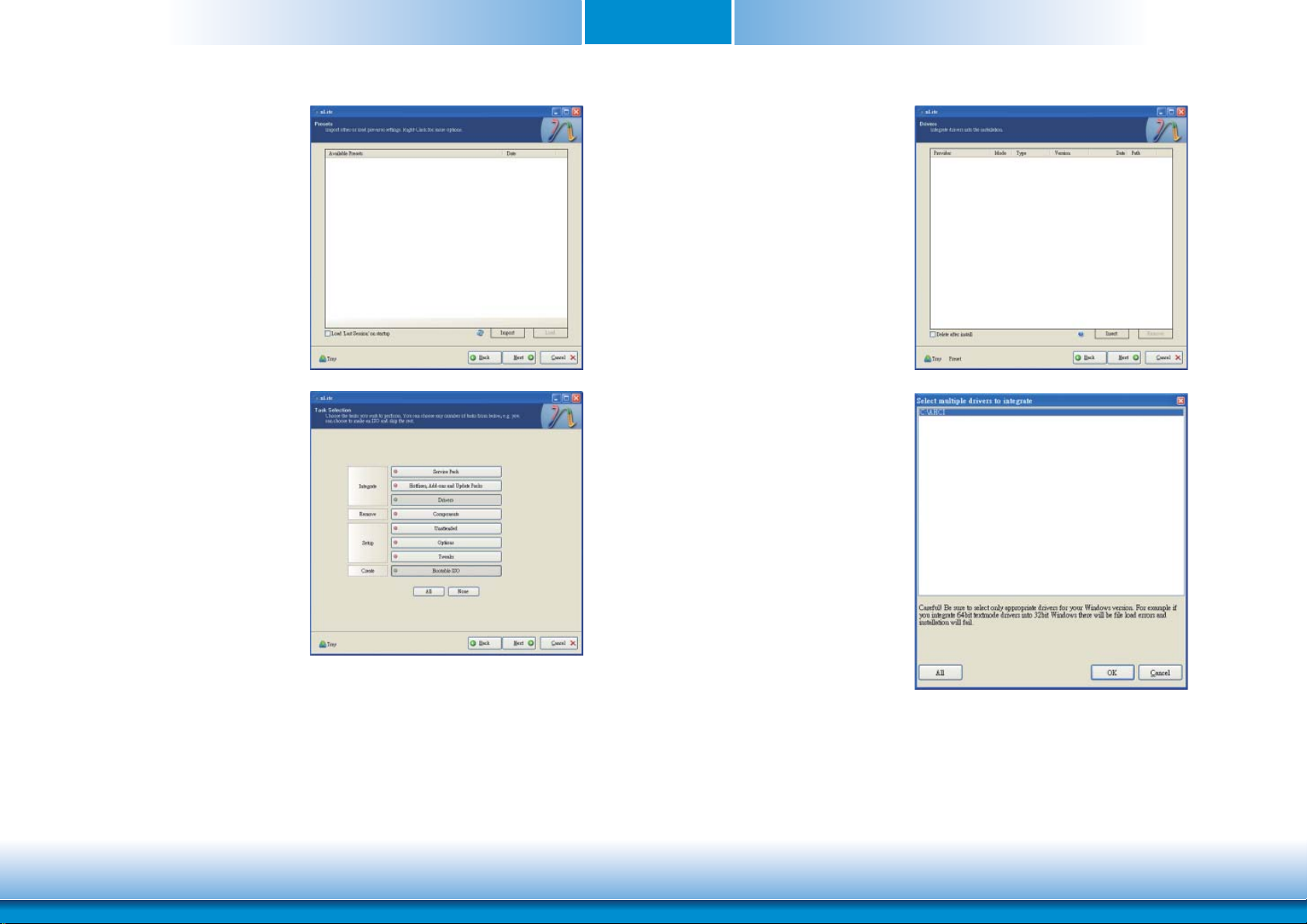

Appendix A

7. Click Next.

8. In the Task Selection dialog box, click Drivers and Bootable ISO. Click Next.

9. Click Insert and then select Multiple driver folder to select the drivers you will integrate. Click Next.

10. Select only the drivers ap-

propriate for the Windows version that you are using and then click OK.

Integrating 64-bit drivers into 32-bit Windows or vice versa will cause file load errors and failed installation.

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

Page 64

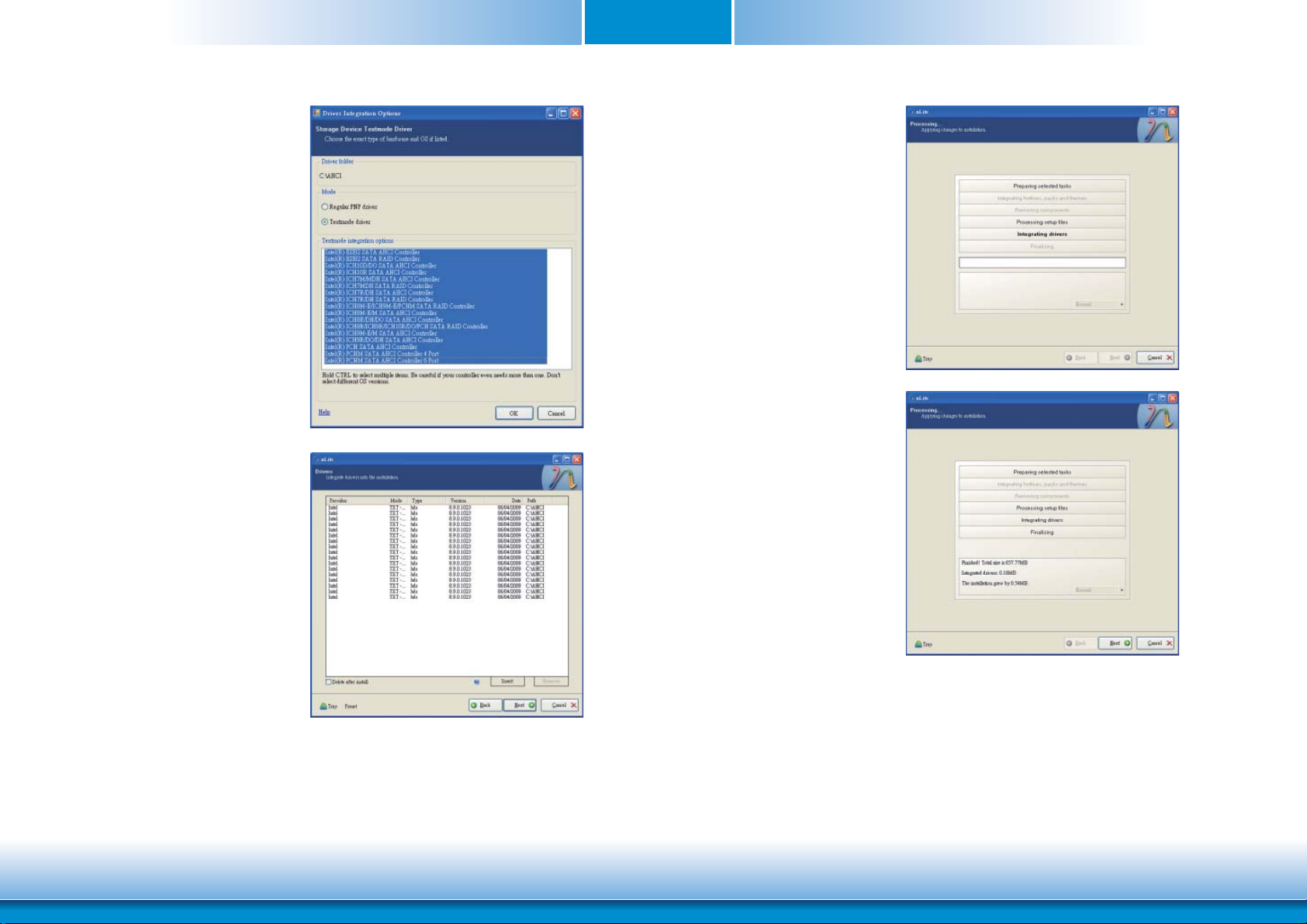

Appendix A

11. If you are uncertain of the southbridge chip used on your motherboard, select all RAID/AHCI controllers and then click OK

12. Click Next.

13. The program is currently integrating the drivers and applying changes to the installation.

14. When the program is finished applying the changes, click Next.

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

Page 65

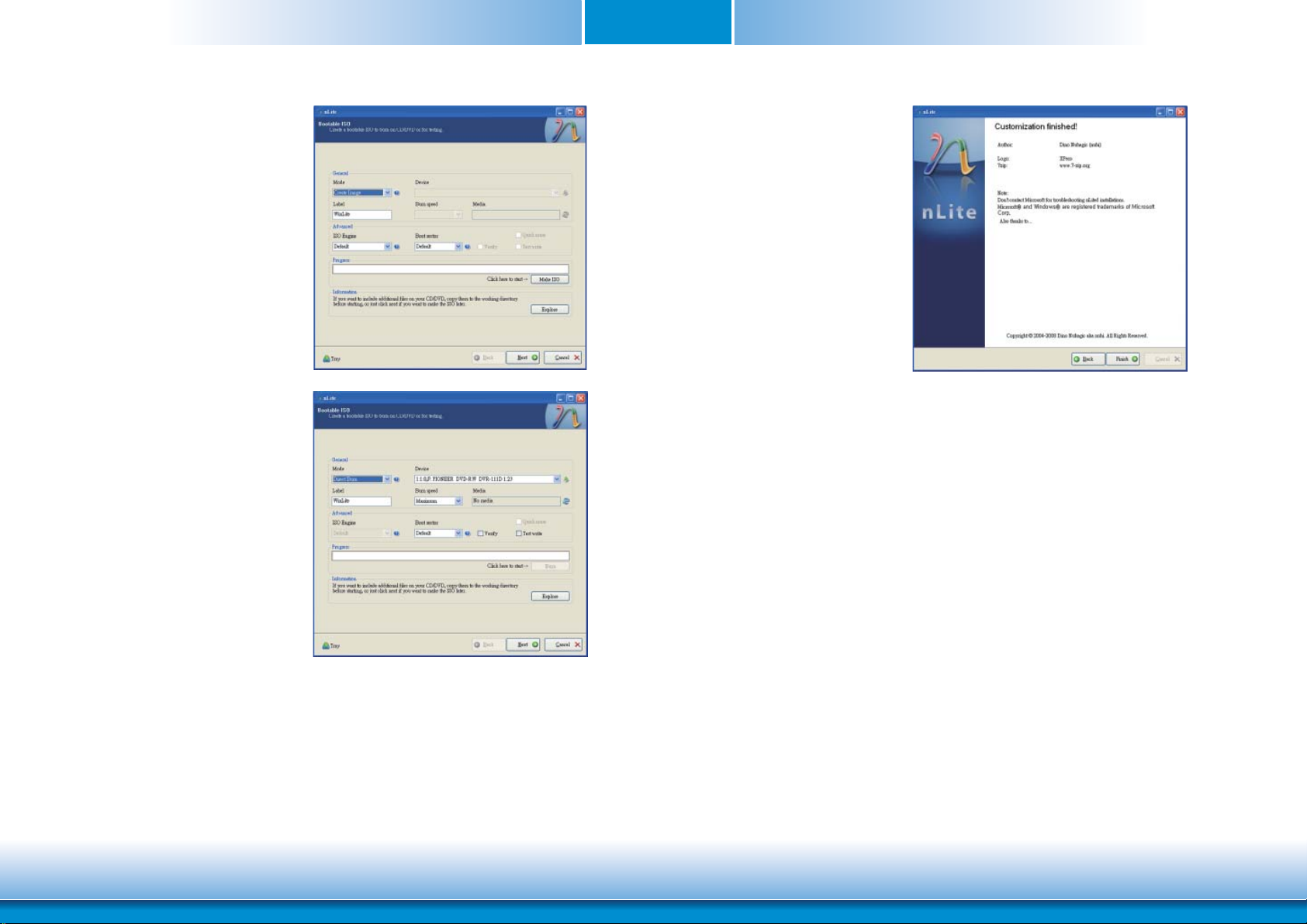

Appendix A

15. To create an image, select the Create Image mode under the General section and then click Next.

16. Or you can choose to burn it directly to a disc by selecting the Direct Burn mode under the General section.

Select the optical device and all other necessary settings and then click Next

17. You have finished customizing the Windows XP installation disc. Click Finish.

Enter the BIOS utility to configure the SATA controller to RAID/AHCI. You can now install Windows XP.

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

Page 66

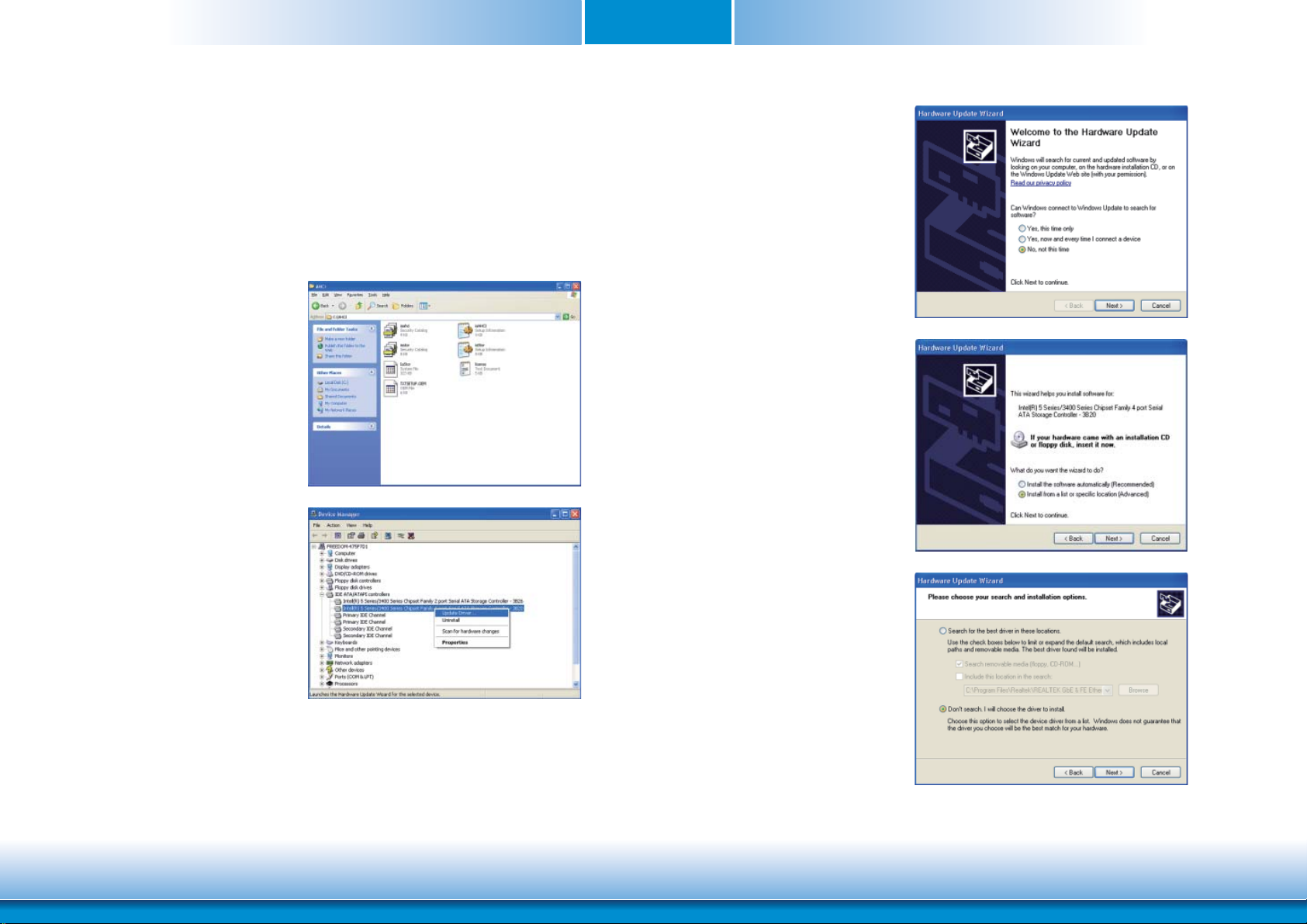

Appendix A

AHCI

The installation steps below will guide you in configuring your SATA drive to AHCI mode.

1. Enter the BIOS utility and configure the SATA controller to IDE mode.

2. Install Windows XP but do not press F6.

3. Download relevant RAID/AHCI driver files supported by the motherboard chipset from Intel’s website.

Transfer the downloaded driver files to C:\AHCI.

4. Open Device Manager and right click on one of the Intel Serial ATA Storage Controllers, then select Update Driver.

If the controller you selected did not work, try selecting another one.

5. In the Hardware Update Wizard dialog box, select “No, not this time” then click Next.

6. Select “Install from a list or specific location (Advanced)” and then click Next.

7. Select “Don’t search. I will choose

the driver to install” and then click

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

Page 67

Appendix A

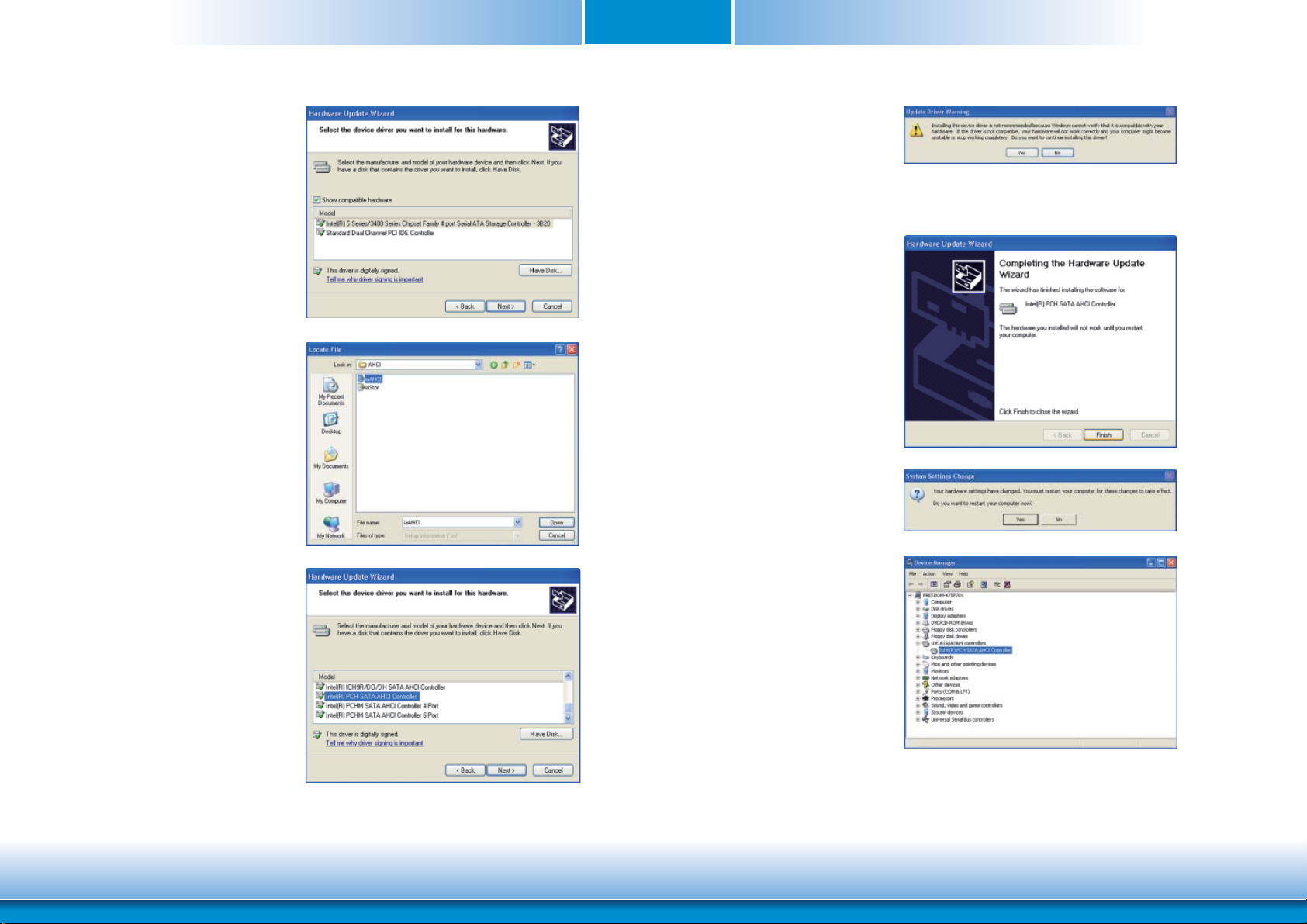

8. Click “Have Disk”.

9. Select C:\AHCI\iaAHCI.inf and then click Open.

11. A warning message appeared because the selected SATA controller did not match your hardware device.

Ignore the warning and click Yes to proceed.

12. Click Finish.

13. The system’s settings have

been changed. Windows XP requires that you restart the computer. Click Yes.

10. Select the appropriate AHCI Controller of your hardware device and then click Next.

14. Enter the BIOS utility and modify the SATA controller from IDE to AHCI. By doing so, Windows will work normally with the SATA controller that is in AHCI mode.

www.dﬁ .comAppendix A NLITE and AHCI Installation Guide

Page 68

Appendix B - Watchdog Sample Code

Appendix B

#include <stdio.h> //-------------------------------------------------------------#deﬁ ne EC_EnablePort 0x66 #deﬁ ne EC_DataPort 0x62 //-------------------------------------------------------------void WriteEC(char,int); void SetWDTime(int,int); int GetWDTime(void); //-------------------------------------------------------------main() { unsigned int countdown; unsigned int input,count_h,count_l;

printf("Input WD Time: "); scanf("%d",&input); printf("\n"); count_h=input>>8; count_l=input&0x00FF; SetWDTime(count_h,count_l);

while(1) { countdown = GetWDTime(); delay(100); printf("\rTime Remaining: %d ",countdown); } } //-------------------------------------------------------------void SetWDTime(int count_H,int count_L) { //Set Count WriteEC(0xB5,count_H); //High Byte WriteEC(0xB6,count_L); //Low Byte //Enable Watch Dog Timer WriteEC(0xB4,0x01); } //--------------------------------------------------------------

int GetWDTime(void) { int sum,data_h,data_l; //Select EC Read Type outportb(EC_EnablePort,0x80); delay(5); //Get Remaining Count High Byte outportb(EC_DataPort,0xF4); delay(5); data_h=inportb(EC_DataPort); delay(5); //Select EC Read Type outportb(EC_EnablePort,0x80); delay(5); //Get Remaining Count Low Byte outportb(EC_DataPort,0xF5); delay(5); data_l=inportb(EC_DataPort); delay(5);

data_h<<=8; data_h&=0xFF00; sum=data_h|data_l; return sum; } //-------------------------------------------------------------void WriteEC(char EC_Addr, int data) { //Select EC Write Type outportb(EC_EnablePort,0x81); delay(5); outportb(EC_DataPort,EC_Addr); delay(5); outportb(EC_DataPort,data); delay(5); } //--------------------------------------------------------------

www.dﬁ .comAppendix B Watchdog Sample Code

Page 69

Appendix C

Appendix C - System Error Message

When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter Setup to correct the error.

Error Messages

One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIOSes:

CMOS BATTERY HAS FAILED

The CMOS battery is no longer functional. It should be replaced.

Important:

Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.

CMOS CHECKSUM ERROR Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error

may have been caused by a weak battery. Check the battery and replace if necessary.

DISPLAY SWITCH IS SET INCORRECTLY

The display switch on the motherboard can be set to either monochrome or color. This indicates the switch is set to a different setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.

www.dﬁ .comAppendix C System Error Message

Page 70

Appendix D - Troubleshooting

Appendix D

The picture seems to be constantly moving.

Troubleshooting Checklist

This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.

Some of the most common things to check when you encounter problems while using your system are listed below.

1. The power switch of each peripheral device is turned on.

2. All cables and power cords are tightly connected.

3. The electrical outlet to which your peripheral devices are connected is working. Test the outlet by plugging in a lamp or other electrical device.

4. The monitor is turned on.

5. The display’s brightness and contrast controls are adjusted properly.

6. All add-in boards in the expansion slots are seated securely.

7. Any add-in board you have installed is designed for your system and is set up correctly.

Monitor/Display

If the display screen remains dark after the system is turned on:

1. Make sure that the monitor’s power switch is on.

2. Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet.

1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync.

2. Move away any objects, such as another monitor or fan, that may be creating a magnetic

field around the display.

3. Make sure your video card’s output frequencies are supported by this monitor.

The screen seems to be constantly wavering.

1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off.

Fluorescent lights adjacent to the monitor may also cause screen wavering.

Power Supply

When the computer is turned on, nothing happens.

1. Check that one end of the AC power cord is plugged into a live outlet and the other end

properly plugged into the back of the system.

2. Make sure that the voltage selection switch on the back panel is set for the correct type of

voltage you are using.

3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if

necessary.

3. Check that the video input cable is properly attached to the monitor and the system’s display adapter.

4. Adjust the brightness of the display by turning the monitor’s brightness control knob

www.dﬁ .comAppendix D Troubleshooting

Page 71

Appendix D

Hard Drive

Hard disk failure.

1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.

2. If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the second hard drive is configured as Slave. The master hard drive must have an active/bootable partition.

Excessively long formatting period.

If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem. However, if your hard drive has a large capacity, it will take a longer time to format.

Serial Port

The serial device (modem, printer) doesn’t output anything or is outputting garbled

characters.

1. Make sure that the serial device’s power is turned on and that the device is on-line.

2. Verify that the device is plugged into the correct serial port on the rear of the computer.

3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.

4. Make sure the COM settings and I/O address are configured correctly.

System Board

1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is

loose, power off the system, re-install the card and power up the system.

2. Check the jumper settings to ensure that the jumpers are properly set.

3. Verify that all memory modules are seated securely into the memory sockets.

4. Make sure the memory modules are in the correct locations.

5. If the board fails to function, place the board on a flat surface and seat all socketed compo-

nents. Gently press each component into the socket.

6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.

Keyboard

Nothing happens when a key on the keyboard was pressed.

1. Make sure the keyboard is properly connected.

2. Make sure there are no objects resting on the keyboard and that no keys are pressed during the booting process.

www.dﬁ .comAppendix D Troubleshooting

DFI BT968 User Manual

Copyright

FCC and DOC Statement on Class B

Trademarks

Table of Contents

About this Manual

Static Electricity Precautions

Warranty

Safety Measures

About the Package

Before Using the System Board

Features

www.dﬁ .comChapter 2 Concept

Specification Comparison Table

Chapter 3 - Hardware Installation

Board Layout

Block Diagram

Mechanical Diagram

System Memory

Connectors

COM Express Connectors Signal Description

Standby Power LED

Cooling Option

Installing BT968 onto a Carrier Board

Installing the COM Express Debug Card

Updating the BIOS

Notice: BIOS SPI ROM

Chapter 5 - Supported Software

Appendix A - NLITE and AHCI Installation Guide

Appendix B - Watchdog Sample Code

Appendix C - System Error Message

Appendix D - Troubleshooting
