DFI BT700 User Manual

Page 1
www.d .comChapter 1 Introduction
1
BT700
Qseven Board User’s Manual
A31430532
Page 2
www.dfi .comChapter 1 Introduction
2
This publication contains information that is protected by copyright. No part of it may be re­produced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifi­cally disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this docu­ment. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.
Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.
© 2015. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.
Qseven Specification Reference
http://www.qseven-standard.org/
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason­able protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour­aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli­ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
Page 3
www.dfi .comChapter 1 Introduction
3
Table of Contents
Copyright .............................................................................................................2
Trademarks ........................................................................................................2
FCC and DOC Statement on Class B ..................................................... 2
About this Manual ..........................................................................................4
Warranty ............................................................................................................4
Static Electricity Precautions ......................................................................4
Safety Measures ..............................................................................................4
About the Package .........................................................................................5
Chapter 1 - Introduction .............................................................................6
Specifications ................................................................................................6
Features ..........................................................................................................7
Chapter 2 - Hardware Installation ................................................ 8
Board Layout .................................................................................................8
Block Diagram ............................................................................................... 8
Mechanical Diagram ....................................................................................9
System Memory .......................................................................................... 10
Cooling Option ............................................................................................10
MXM Connector ..........................................................................................11
MXM Connector Signal Description .......................................................13
Installing BT700 onto a Carrier Board .................................................18
Chapter 3 - BIOS Setup ............................................................... 19
Overview ..................................................................................................... 19
AMI BIOS Setup Utility .............................................................................20
Main ..........................................................................................................20
Advanced ...................................................................................................20
Chipset ......................................................................................................27
Security ...................................................................................................... 32
Boot...........................................................................................................32
Save & Exit ................................................................................................33
Updating the BIOS ....................................................................................33
Notice: BIOS SPI ROM .............................................................................34
Chapter 4 - Supported Software .......................................................... 35
Appendix A - System Error Message ................................................... 50
Appendix B - Troubleshooting ................................................................51
Page 4
www.dfi .comChapter 1 Introduction
4
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, in­sert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product, in­ability to use the product, unauthorized replacement or alteration of components and prod­uct specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal­lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum­stances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in han­dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con­nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic­ing. After installation or servicing, cover the system chassis before plugging the power cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com­ponents. Perform the upgrade instruction procedures described at an ESD worksta­tion only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chas­sis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.
Page 5
www.dfi .comChapter 1 Introduction
5
About the Package
The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.
• One BT700 board
• One DVD
• One QR (Quick Reference)
• One Heat sink
Optional Items
• Q7X-151 carrier board kit
• Heat spreader
• Heat spreader with heat sink
• bracket The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.
Page 6
www.dfi .comChapter 1 Introduction
6
Expansion Interfaces
• Supports 1 USB 3.0 port and 1 USB HSIC for 2 USB 2.0 (default); or 4 USB 2.0 ports* (BOM option)
• Supports 4 USB 2.0 ports
• Supports 3 PCIe x1 (default); or 1 PCIe x4 (PCIe port 3, by default, is shared with the onboard LAN)*
• Supports LPC interface
• Supports I
2
C interface
• Supports SMBus interface
• Suppotrs 1 UART interface (TX/RX/CTS/RTS)
Damage Free Intelligence
• Monitors CPU temperature
• Monitors system fan speed
• Monitors Vcore/VGFX/VSM voltages
• Watchdog timer function
BIOS
• AMI BIOS
- 64Mbit SPI BIOS
Power
• Input: VCC_RTC, 5V standby, 5V
Power Consumption
• BT700-T44-E45: 12.72W with E3845 at 1.91GHz and 4GB DDR3L memory down
OS Support
• Windows 7 Ultimate x86 & SP1 (32-bit)
• Windows 7 Ultimate x64 & SP1 (64-bit)
• Windows 8 Enterprise x86 (32-bit)
• Windows 8 Enterprise x64 (64-bit)
• Windows 8.1 Enterprise x86 (32-bit)
• Windows 8.1 Enterprise x64 (64-bit)
Temperature
• Operating : 0
o
C to 60oC - Atom (Fanless)
: -20
o
C to 70oC - Atom (Fanless with air fl ow)
: -40
o
C to 85oC - Atom (Fanless with air fl ow)
• Storage: -40
o
C to 85oC
Humidity
• 5% to 90%
PCB
• Dimensions
- Qseven form factor
- 70mm (2.76") x 70mm (2.76")
• Compliance
- Qseven specifi cation revision 2.0
Chapter 1 - Introduction
Specifications
Processor
• Intel® AtomTM processors
- E45: Intel
®
AtomTM E3845, Quad Core, 2M Cache, 1.91GHz, 10W
- E26: Intel
®
AtomTM E3826, Dual Core, 1M Cache, 1.46GHz, 7W
- E15: Intel
®
AtomTM E3815, Single Core, 0.5M Cache, 1.46GHz, 5W
• BGA 1170 packaging technology
• 22nm process technology
System Memory
• 2GB/4GB DDR3L memory down
• Supports DDR3L 1333MHz (-E45) Supports DDR3L 1066MHz (-E26/-E15)
• Supports single channel memory interface
Graphics
• Intel® HD Graphics
• Supports LVDS and DDI interfaces
• LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @60Hz
• Digital Display Interfaces: HDMI, DVI and DP
• HDMI, DVI: resolution up to 1920x1080 @60Hz
• DP: resolution up to 2560x1600 @60Hz
• Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
Audio
• Supports High Defi nition Audio interface
LAN
• Intel® I210AT/IT Gigabit Ethernet Controller
- Intel
®
I210IT supports wide temperature (-40oC to 85oC)
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Serial ATA
• Supports 2 Serial ATA interfaces
• SATA 2.0 with data transfer rate up to 3Gb/s
• Integrated Advanced Host Controller Interface (AHCI) controller
eMMC* (optional)
• Supports 4GB, 8GB, 16GB and 32GB eMMC onboard
• Supports Windows 8.1 only
SD Interface
• Supports 1 SD interface
• Supports SDIO specifi cation Ver. 3.0, HC Standard specifi cation Ver. 3.0, physical layer specifi cation Ver. 3.0, security specifi cation Ver. 1.01
Trusted Platform Module - TPM* (optional)
• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and password protection
Watchdog Timer
• Watchdog timeout programmable via software from 1 to 255 seconds
Chapter 1
Note:
*Optional and is not supported in standard model. Please contact your sales represen­tative for more information.
Page 7
www.dfi .comChapter 1 Introduction
7
Features
DDR3L
DDR3L is a higher performance DDR3 SDRAM interface providing less voltage and higher speed successor. DDR3L supporting 1066MHz
(-E26/-E15) or 1333MHz (-E45) delivers increased
system bandwidth and improved performance to provide its higher bandwidth and its increase in performance at a lower power than DDR3 and DDR2.
Graphics
The integrated Intel® HD graphics engine delivers an excellent blend of graphics performance and features to meet business needs. It provides excellent video and 3D graphics with out­standing graphics responsiveness. These enhancements deliver the performance and compat­ibility needed for today’s and tomorrow’s business applications. Supports HDMI, DVI and DP interfaces for display outputs.
Serial ATA
Serial ATA is a storage interface that is compliant with SATA 2.0a specification. With speed of up to 3Gb/s (SATA 2.0), it improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s.
Gigabit LAN
The Intel
®
I210AT/IT Gigabit Ethernet Controller supports up to 1Gbps data transmission.
Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.
Chapter 1
Specification Comparison Table
The table below shows the Qseven standard specifications and the corresponding specifications supported on the BT700 module.
System I/O Interface
ARM/RISC Based Minimum Configuration
X86 Based Minimum Configuration
Maximum Configuration
DFI BT700 Configuration
PCI Express Lanes 0 1 (x1 link) 4
3+1(shared with Ethernet
)
Serial ATA channels0022
USB 2.0 ports 3 4 8
6+2(shared with 1 USB 3.0 port) - BOM option
USB 3.0
p
orts 0 0 2 1
LVDS channel
s
embedded Display Por
t
0 0 Dual Channel 24bits Dual Channel 24bits
Dis
play
Port, TMDS 0 0 1 1
Hi
g
h Definition
A
udio/AC'97/I2
S
0011
Ethernet 10/100 Mbit
/Gig
abit
0 0 1 (Gigabit Ethernet) 1
UART 0 0 1 1 Low Pin Count bus 0 0 1 1 Secure Di
g
ital I/O 8-bi
t
for SD/MMC cards
0011
S
y
stem Management0111
I
2
C Bus
1111 SPI Bus 0 0 1 1 CAN Bus 0 0 1 0 Watchdo
g
Trigger 1 1 1 1 Power Button 1 1 1 1 Power Good 1 1 1 1 Reset Button 1 1 1 1 LID Button 0 0 1 1 Slee
p
Button 0 0 1 1 Suspend To RAM (S3 mode
)
0011
Wake 0 0 1 1 Batter
y
low alarm 0 0 1 1 Thermal control 0 0 1 1 FAN control 0 0 1 1
Page 8
www.dfi .comChapter 2 Hardware Installation
8
Chapter 2
Chapter 2 - Hardware Installation Board Layout
Top View
Bottom View
Block Diagram
PCIe x1
2GB/4GB DDR3L
memory down
Atom E3800
Series
AMXM Golden Finger
HDA
LPC
PCIe x1 3x
SM Bus
SD
UART
I
2
C Bus
HDA
LPC
PCI
e x1 3x
SM Bus
SD
UARTIC Bus
GbE
SPI Flash
64Mbit
eMMC
Switch
SATA 2.0 2x
GLAN
I210
PCIe x1 (Opt.)
USB 2.0 4x
USB 2.0 4x
eDP
LVDS
PTN3460
USB
HSIC
USB
HSIC
USB 3.0 1x
USB 2.0 2x
USB 2.0 2x (Opt. share with USB 3.0)
DDI
DDI
eMMC
(optional)
USB 3.0 1x
DDR3 1333MHz
Single Channel
DDR3L
DDR3L
DDR3L DDR3L
SPI Flash BIOS
E3800 Series
Intel Atom
NXP PTN3460
IDT P9145
DDR3L
DDR3L
DDR3L
DDR3L
Intel
WGI210AT
SMSC
USB4604
Page 9
www.dfi .comChapter 2 Hardware Installation
9
Chapter 2
Mechanical Diagram
BT700 Module with thermal solution
Side View of the Module with thermal solution and Carrier Board
BT700 Module
20.00
70.00
1.20
6.00
14.00
64.90
20.00
Module PCB
Heatsink
Bottom Vie
w
Top View
0.00
0.00
56.50
64.90
70.00
3.95
2.99
11.52
66.05
66.99
70.00
56.50
0.00
0.00
11.53
Page 10
www.dfi .comChapter 2 Hardware Installation
10
Chapter 2
System Memory
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com­ponents. Perform the upgrade instruction procedures described at an ESD worksta­tion only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chas­sis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

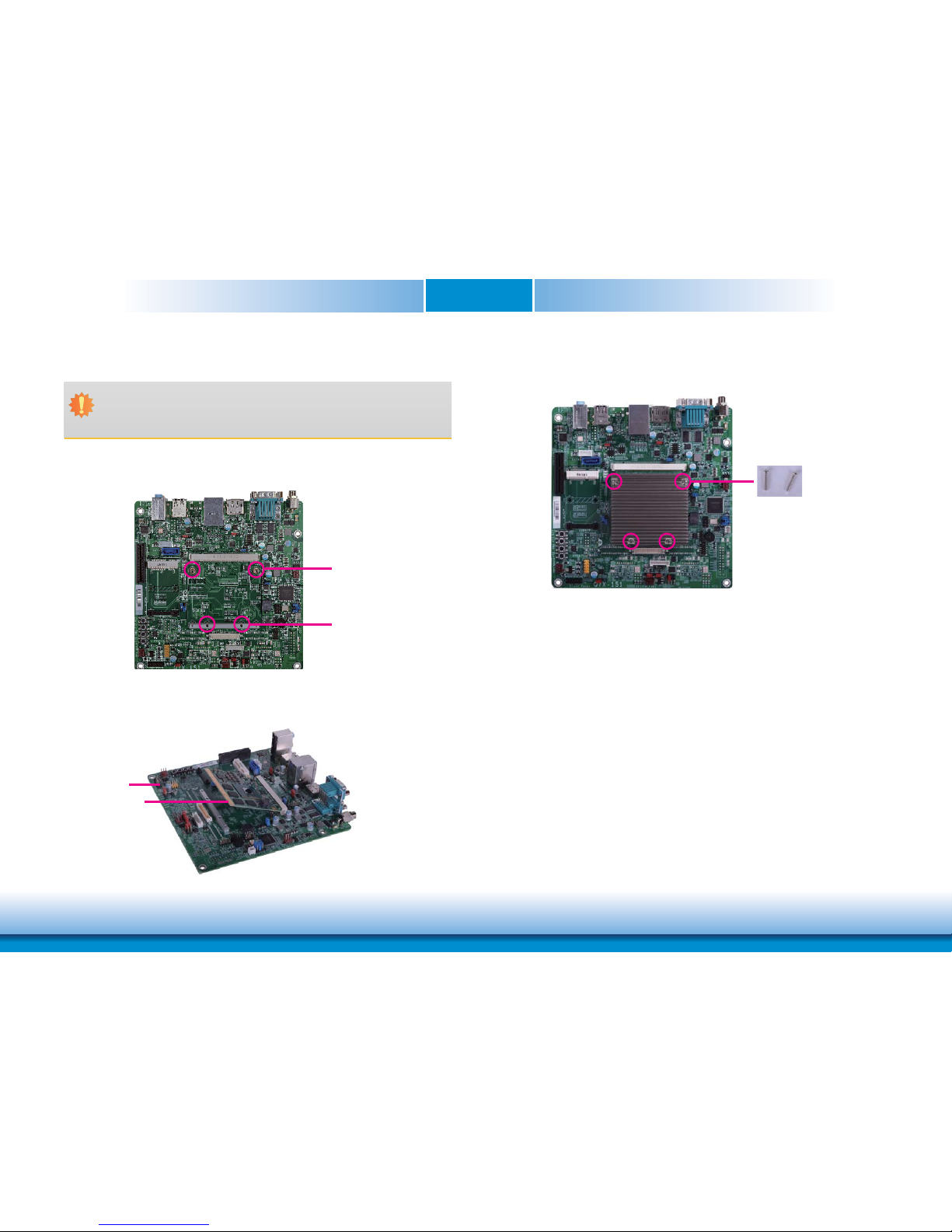

Cooling Option
Heat Spreader with Heat Sink
• “1” and “2“ denote the locations of the thermal pads designed to contact the corresponding components that are on BT700.
• Remove the plastic covering from the thermal pads prior to mounting the heat sink onto BT700.
Top View of the Heat Sink
Bottom View of the Heat Sink
1
2
The system board is equipped with eight 2GB/4GB DDR3L onboard memory inerfaces.
• Supports DDR3L 1333MHz (-E45/-E27/-J00/-N30/-N07) Supports DDR3L 1066MHz (-E26/-E25/-E15)
• Supports single channel memory interface
DDR3L
DDR3L
Top View
Bottom View
Page 11
www.dfi .comChapter 2 Hardware Installation
11
Chapter 2
MXM Connector
The MXM connector is used to interface with the carrier board. Insert BT700 to the MXM con­nector on the carrier board. Refer to the following pages for the pin functions of this connec­tor.
Refer to “Installing BT700 onto a Carrier Board” section for more information.
MXM Connector
Page 12
www.dfi .comChapter 2 Hardware Installation
12
Chapter 2
Pin Q7 R2.0 Signal BT700 Signal Pin Q7 R2.0 Signal BT700 Signal
1 GND GND 2 GND GND 3 GBE_MDI3- GBE_MDI3- 4 GBE_MDI2- GBE_MDI2- 5 GBE_MDI3+ GBE_MDI3+ 6 GBE_MDI2+ GBE_MDI2+ 7 GBE_LINK100# GBE_LINK100# 8 GBE_LINK1000# GBE_LINK1000#
9 GBE_MDI1- GBE_MDI1- 10 GBE_MDI0- GBE_MDI0- 11 GBE_MDI1+ GBE_MDI1+ 12 GBE_MDI0+ GBE_MDI0+ 13 GBE_LINK# NC 14 GBE_ACT# GBE_ACT# 15 GBE_CTREF NC 16 SUS_S5# SUS_S4# 17 WAKE# WAKE# 18 SUS_S3# SUS_S3# 19 SUS_STAT# SUS_STAT# 20 PWRBTN# PWRBTN# 21 SLP_BTN# SLP_BTN# 22 LID_BTN# LID_BTN# 23 GND GND 24 GND GND
KEY KEY KEY KEY 25 GND GND 26 PWGIN PWGIN 27 BATLOW# BATLOW# 28 RSTBTN# RSTBTN# 29 SATA0_TX+ SATA0_TX+ 30 SATA1_TX+ SATA1_TX+ 31 SATA0_TX- SATA0_TX- 32 SATA1_TX- SATA1_TX- 33 SATA_ACT# SATA_ACT# 34 GND GND 35 SATA0_RX+ SATA0_RX+ 36 SATA1_RX+ SATA1_RX+ 37 SATA0_RX- SATA0_RX- 38 SATA1_RX- SATA1_RX- 39 GND GND 40 GND GND 41 BIOS_DISABLE# / BOOT_ALT# BIOS_DISABLE# 42 SDIO_CLK# SDIO_CLK# 43 SDIO_CD# SDIO_CD# 44 SDIO_LED NC 45 SDIO_CMD SDIO_CMD 46 SDIO_WP SDIO_WP 47 SDIO_PWR# SDIO_PWR# 48 SDIO_DAT1 SDIO_DAT1 49 SDIO_DAT0 SDIO_DAT0 50 SDIO_DAT3 SDIO_DAT3 51 SDIO_DAT2 SDIO_DAT2 52 SDIO_DAT5 NC 53 SDIO_DAT4 NC 54 SDIO_DAT7 NC 55 SDIO_DAT6 NC 56 RSVD NC 57 GND GND 58 GND GND 59 HDA_SYNC / I2S_WS HDA_SYNC 60 SMB_CLK / GP1_I2C_CLK SMB_CLK 61 HDA_RST# / I2S_RST# HDA_RST# 62 SMB_DAT / GP1_I2C_DAT SMB_DAT 63 HDA_BITCLK / I2S_CLK HDA_BITCLK 64 SMB_ALERT# SMB_ALERT# 65 HDA_SDI / I2S_SDI HDA_SDI 66 GP0_I2C_CLK GP0_I2C_CLK 67 HDA_SDO / I2S_SDO HDA_SDO 68 GP0_I2C_DAT GP0_I2C_DAT 69 THRM# THRM# 70 WDTRIG# WDTRIG# 71 THRMTRIP# THRMTRIP# 72 WDOUT WDOUT 73 GND GND 74 GND GND 75 USB_P7- / USB_SSTX0- USB_SSTX0- 76 USB_P6- / USB_SSRX0- USB_SSRX0- 77 USB_P7+ / USB_SSTX0+ USB_SSTX0+ 78 USB_P6+ / USB_SSRX0+ USB_SSRX0+ 79 USB_6_7_OC# USB_6_7_OC# 80 USB_4_5_OC# USB_4_5_OC# 81 USB_P5- / USB_SSTX1-
USB_P5- 82 USB_P4- / USB_SSRX1- USB_P4-
83 USB_P5+ / USB_SSTX1+ USB_P5+ 84 USB_P4+ / USB_SSRX1+ USB_P4+ 85 USB_2_3_OC# USB_2_3_OC# 86 USB_0_1_OC# USB_0_1_OC# 87 USB_P3- USB_P3- 88 USB_P2- USB_P2- 89 USB_P3+ USB_P3+ 90 USB_P2+ USB_P2+ 91 USB_CC NC 92 USB_ID NC 93 USB_P1- USB_P1- 94 USB_P0- USB_P0- 95 USB_P1+ USB_P1+ 96 USB_P0+ USB_P0+ 97 GND GND 98 GND GND 99 eDP0_TX0+ / LVDS_A0+
LVDS_A0+ 100 eDP1_TX0+ / LVDS_B0+ LVDS_B0+
101 eDP0_TX0- / LVDS_A0- LVDS_A0- 102 eDP1_TX0- / LVDS_B0- LVDS_B0- 103 eDP0_TX1+ / LVDS_A1+ LVDS_A1+ 104 eDP1_TX1+ / LVDS_B1+ LVDS_B1+ 105 eDP0_TX1- / LVDS_A1- LVDS_A1- 106 eDP1_TX1- / LVDS_B1- LVDS_B1- 107 eDP0_TX2+ / LVDS_A2+ LVDS_A2+ 108 eDP1_TX2+ / LVDS_B2+ LVDS_B2+ 109 eDP0_TX2- / LVDS_A2- LVDS_A2- 110 eDP1_TX2- / LVDS_B2- LVDS_B2- 111 LVDS_PPEN LVDS_PPEN 112 LVDS_BLEN LVDS_BLEN 113 eDP0_TX3+ / LVDS_A3+ LVDS_A3+ 114 eDP1_TX3+ / LVDS_B3+ LVDS_B3+ 115 eDP0_TX3- / LVDS_A3- LVDS_A3- 116 eDP1_TX3- / LVDS_B3- LVDS_B3-
117 GND GND 118 GND GND 119 eDP0_AUX+ / LVDS_A_CLK+ LVDS_A_CLK+ 120 eDP1_AUX+ / LVDS_B_CLK+ LVDS_B_CLK+ 121 eDP0_AUX- / LVDS_A_CLK- LVDS_A_CLK- 122 eDP1_AUX- / LVDS_B_CLK- LVDS_B_CLK- 123 LVDS_BLT_CTRL /GP_PWM_OUT0 LVDS_BLT_CTRL 124 GP_1-Wire_Bus GP_1-Wire_Bus 125 GP2_I2C_DAT / LVDS_DID_DAT LVDS_DID_DAT 126 eDP0_HPD# / LVDS_BLC_DAT NC 127 GP2_I2C_CLK / LVDS_DID_CLK LVDS_DID_CLK 128 eDP1_HPD# / LVDS_BLC_CLK NC 129 CAN0_TX NC 130 CAN0_RX NC 131 DP_LANE3+ / TMDS_CLK+ DP_LANE3+ 132 RSVD (Differential Pair) NC 133 DP_LANE3- / TMDS_CLK- DP_LANE3- 134 RSVD (Differential Pair) NC 135 GND GND 136 GND GND 137 DP_LANE1+ / TMDS_LANE1+ DP_LANE1+ 138 DP_AUX+ DP_AUX+ 139 DP_LANE1- / TMDS_LANE1- DP_LANE1- 140 DP_AUX- DP_AUX- 141 GND GND 142 GND GND 143 DP_LANE2+ / TMDS_LANE0+ DP_LANE2+ 144 RSVD (Differential Pair) NC 145 DP_LANE2- / TMDS_LANE0- DP_LANE2- 146 RSVD (Differential Pair) NC 147 GND GND 148 GND GND 149 DP_LANE0+ / TMDS_LANE2+ DP_LANE0+ 150 HDMI_CTRL_DAT HDMI_CTRL_DAT 151 DP_LANE0- / TMDS_LANE2- DP_LANE0- 152 HDMI_CTRL_CLK HDMI_CTRL_CLK 153 DP_HDMI_HPD# DP_HDMI_HPD# 154 RSVD NC 155 PCIE_CLK_REF+ PCIE_CLK_REF+ 156 PCIE_WAKE# PCIE_WAKE# 157 PCIE_CLK_REF- PCIE_CLK_REF- 158 PCIE_RST# PCIE_RST# 159 GND GND 160 GND GND 161 PCIE3_TX+ NC 162 PCIE3_RX+ NC 163 PCIE3_TX- NC 164 PCIE3_RX- NC 165 GND GND 166 GND GND 167 PCIE2_TX+
PCIE2_TX+ 168 PCIE2_RX+ PCIE2_RX+
169 PCIE2_TX- PCIE2_TX- 170 PCIE2_RX- PCIE2_RX- 171 UART0_TX UART0_TX 172 UART0_RTS# UART0_RTS# 173 PCIE1_TX+ PCIE1_TX+ 174 PCIE1_RX+ PCIE1_RX+ 175 PCIE1_TX- PCIE1_TX- 176 PCIE1_RX- PCIE1_RX- 177 UART0_RX UART0_RX 178 UART0_CTS# UART0_CTS# 179 PCIE0_TX+ PCIE0_TX+ 180 PCIE0_RX+ PCIE0_RX+ 181 PCIE0_TX- PCIE0_TX- 182 PCIE0_RX-
PCIE0_RX-
183 GND GND 184 GND GND 185 LPC_AD0 / GPIO0 LPC_AD0 186 LPC_AD1 / GPIO1 LPC_AD1 187 LPC_AD2 / GPIO2 LPC_AD2 188 LPC_AD3 / GPIO3 LPC_AD3 189 LPC_CLK / GPIO4 LPC_CLK 190 LPC_FRAME# / GPIO5 LPC_FRAME# 191 SERIRQ / GPIO6 SERIRQ 192 LPC_LDRQ# / GPIO7 NC 193 VCC_RTC VCC_RTC 194 SPKR / GP_PWM_OUT2 SPKR 195 FAN_TACHOIN / GP_TIMER_IN FAN_TACHOIN 196 FAN_PWMOUT / GP_PWM_OUT1 FAN_PWMOUT 197 GND GND 198 GND GND 199 SPI_MOSI SPI_MOSI 200 SPI_CS0# SPI_CS0# 201 SPI_MISO SPI_MISO 202 SPI_CS1# NC 203 SPI_SCK SPI_SCK 204 MFG_NC4 NC 205 VCC_5V_SB VCC_5V_SB 206 VCC_5V_SB VCC_5V_SB 207 MFG_NC0 NC 208 MFG_NC2 UART1_RX 209 MFG_NC1 UART1_TX 210 MFG_NC3 NC 211 VCC VCC 212 VCC VCC 213 VCC VCC 214 VCC VCC 215 VCC VCC 216 VCC VCC 217 VCC VCC
218 VCC VCC 219 VCC VCC 220 VCC VCC 221 VCC VCC 222 VCC VCC 223 VCC VCC 224 VCC VCC 225 VCC VCC 226 VCC VCC 227 VCC VCC 228 VCC VCC 229 VCC VCC 230 VCC VCC
Pin Q7 R2.0 Signal BT700 Signal Pin Q7 R2.0 Signal BT700 Signal
Page 13
www.dfi .comChapter 2 Hardware Installation
13
Chapter 2
MXM Connector Signal Description
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
PCIE0_RX+ 180 PCIE0_RX- 182 PCIE0_TX+
179
AC Coupling capacitor
PCIE0_TX-
181
AC Coupling capacitor PCIE1_RX+ 174 PCIE1_RX- 176 PCIE1_TX+
173
AC Coupling capacitor PCIE1_TX-
175
AC Coupling capacitor PCIE2_RX+ 168 PCIE2_RX- 170 PCIE2_TX+
167
AC Coupling capacitor PCIE2_TX-
169
AC Coupling capacitor PCIE3_RX+ 162 PCIE3_RX- 164 PCIE3_TX+
161
AC Coupling capacitor PCIE3_TX-
163
AC Coupling capacitor PCIE_CLK_REF+ 155 PCIE_CLK_REF- 157 PCIE_WAKE# 156 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3V Suspend PCI Express Wake Event: Sideband wake signal asserted by components requesting wakeup. PCIE_RST# 158 O CMOS 3.3V/3.3V Reset Signal for external devices.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
UART0_TX 171 O CMOS 3.3V/3.3V Connect to UART device Serial Data Transmitter UART0_RX 177 I CMOS 3.3V/3.3V Connect to UART device Serial Data Reciever UART0_CTS# 178 I CMOS 3.3V/3.3V Connect to UART device Handshake signal, ready to send data UART0_RTS# 172 O CMOS 3.3V/3.3V Connect to UART device Handshake signal, ready to receive data
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
GBE_MDI0+ 12 GBE_MDI0- 10 GBE_MDI1+ 11 GBE_MDI1- 9 GBE_MDI2+ 6 GBE_MDI2- 4 GBE_MDI3+ 5 GBE_MDI3- 3
GBE_CTREF 15 REF NC
Reference voltage for carrier board Ethernet channel 0 magnetics center tap. The reference voltage is determined by the requirements of the module's PHY and may be as low as 0V and as high as 3.3V. The reference voltage output should be current limited on the module. In a case in which the reference is shorted to ground, the current must be limited to 250mA
or less. GBE_LINK# 13 O CMOS 3.3V PP 3.3V/3.3V NC Ethernet controller 0 link indicator, active low. GBE_LINK100# 7 O CMOS 3.3V PP 3.3V/3.3V Ethernet controller 0 100Mbit/sec link indicator, active low. GBE_LINK1000# 8 O CMOS 3.3V PP 3.3V/3.3V Ethernet controller 0 1000Mbit/sec link indicator, active low. GBE_ACT# 14 O CMOS 3.3V PP 3.3V/3.3V Ethernet controller 0 activity indicator, active low.
Connect to PCIE device or slot
Connect to PCIE device or slot
Connect to PCIE device or slot
Connect to PCIE device or slot (This Port is BOM Option with On board LAN)
Device - Connect AC Coupling cap 0.1uF (This Port is BOM Option with On board LAN) Slot - Connect to PCIE Conn pin
Device - Connect AC Coupling cap 0.1uF Slot - Connect to PCIE Conn pin
Device - Connect AC Coupling cap 0.1uF Slot
- Connect to PCIE Conn pin
Connect to Magnetics Module MDI2+/-
Connect to Magnetics Module MDI3+/-
Device - Connect AC Coupling cap 0.1uF Slot - Connect to PCIE Conn pin
Connect to PCIE device, PCIe CLK Buffer or slot
PCIE
PCIE
GB_LAN
GB_LAN
GB_LAN
GB_LAN
I/O GB_LAN Media Dependent Interface (MDI) differential pair 2. The MDI can operate in 1000, 100, and 10Mbit/sec modes.This signal pair is used for all modes.
O PCIE PCIE PCI Express Reference Clock for Lanes 0 to 3.
UART Interface Signals
Gigabit Ethernet Signals
I/O GB_LAN Media Dependent Interface (MDI) differential pair 0. The MDI can operate in 1000, 100, and 10Mbit/sec modes.This signal pair is used for all modes.
I/O GB_LAN Media Dependent Interface (MDI) differential pair 1. The MDI can operate in 1000, 100, and 10Mbit/sec modes.This signal pair is used for all modes.
Connect to Magnetics Module MDI0+/-
Connect to Magnetics Module MDI1+/-
Pin Types I Input Pin O Output Pin I/O Bi-directional input / output Pin OD Open drain OC Open Collector PP Push Pull NC Not Connected
PCI Express Interface Signals Descriptions
I PCIE
I PCIE
I PCIE
O PCIE
O PCIE
O PCIE
PCI Express channel 0, Receive Input differential pair.
PCI Express channel 0, Transmit Output differential pair.
PCI Express channel 1, Receive Input differential pair.
PCI Express channel 1, Transmit Output differential pair.
PCI Express channel 2, Receive Input differential pair.
PCI Express channel 2, Transmit Output differential pair.
PCI Express channel 3, Receive Input differential pair.(This Port is BOM Option with On board LAN)
PCI Express channel 3, Transmit Output differential pair.(This Port is BOM Option with On board LAN)
I PCIE
O PCIE
PCIE
PCIE
PCIE
PCIE
PCIE
PCIE
I/O GB_LAN Media Dependent Interface (MDI) differential pair 3. The MDI can operate in 1000, 100, and 10Mbit/sec modes.This signal pair is used for all modes.
Page 14
www.dfi .comChapter 2 Hardware Installation
14
Chapter 2
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
SATA0_RX+ 35 AC Coupling capacitor SATA0_RX- 37 AC Coupling capacitor SATA0_TX+ 29 AC Coupling capacitor SATA0_TX- 31 AC Coupling capacitor SATA1_RX+ 36 AC Coupling capacitor SATA1_RX- 38 AC Coupling capacitor SATA1_TX+ 30 AC Coupling capacitor SATA1_TX- 32 AC Coupling capacitor SATA_ACT# 33 O OC 3.3V 3.3V/3.3V Serial ATA Led. Open collector output pin driven during SATA command activity.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
USB_P0+ 96 USB_P0- 94 USB_P1+ 95 USB_P1- 93 USB_P2+ 90 USB_P2- 88 USB_P3+ 89 USB_P3- 87 USB_P4+ USB_SSRX1+
84
USB_P4­USB_SSRX1-
82
USB_P5+ USB_SSTX1+
83
USB_P5­USB_SSTX1-
81
USB_P6+ USB_SSRX0+
78
USB_P6­USB_SSRX0-
76
USB_P7+ USB_SSTX0+
77 AC Coupling capacitor
USB_P7­USB_SSTX0-
75 AC Coupling capacitor
USB_0_1_OC# 86 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3V Suspend Connect to Overcurrent of USB Power Switch Over current detect input 1. This pin is used to monitor the USB power over current of the USB Ports 0 and 1. USB_2_3_OC# 85 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3V Suspend Connect to Overcurrent of USB Power Switch Over current detect input 2. This pin is used to monitor the USB power over current of the USB Ports 2 and 3. USB_4_5_OC# 80 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3V Suspend Connect to Overcurrent of USB Power Switch Over current detect input 3. This pin is used to monitor the USB power over current of the USB Ports 4 and 5. USB_6_7_OC# 79 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3V Suspend Connect to Overcurrent of USB Power Switch Over current detect input 4. This pin is used to monitor the USB power over current of the USB Ports 6 and 7.
USB_ID 92 I CMOS 3.3V Suspend/3.3V NC
USB ID pin.Configures the mode of the USB Port 1. If the signal is detected as being 'high active' the BIOS will automatically configure USB Port 1 as USB Client and
enable USB Client support. This signal should be driven as OC signal by external circuitry.
USB_CC 91 I CMOS 3.3V Suspend/3.3V NC
USB Client Connect pin.If USB Port 1 is configured for client mode then an externally connected USB host should set this signal to high-active in order to properly make
the connection with the module's internal USB client controller.
If the external USB host is disconnected, this signal should be set to low-active in order to inform the USB client controller that the external host has been
disconnected.
A level shifter/protection circuitry should be implemented on the carrier board for this signal.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
SDIO_CD# 43 I/O CMOS 3.3V/3.3V Connect to SD Card SDIO Card Detect. This signal indicates when a SDIO/MMC card is present. SDIO_CLK 42 O CMOS 3.3V/3.3V Connect to SD Card SDIO Clock. With each cycle of this signal a one-bit transfer on the command and each data line occurs. This signal has maximum frequency of 48 MHz.
SDIO_CMD 45 I/O OD/PP CMOS 3.3V/3.3V Connect to SD Card
SDIO Command/Response. This signal is used for card initialization and for command transfers. During initialization mode this signal is open drain. During command
transfer this signal is in push-pull mode. SDIO_LED 44 O CMOS 3.3V/3.3V NC SDIO LED. Used to drive an external LED to indicate when transfers occur on the bus. SDIO_WP 46 I/O CMOS 3.3V/3.3V Connect to SD Card SDIO Write Protect. This signal denotes the state of the write-protect tab on SD cards. SDIO_PWR# 47 O CMOS 3.3V/3.3V SDIO Power Enable. This signal is used to enable the power being supplied to a SD/MMC card device. SDIO_DAT0-7 48-55 I/O PP CMOS 3.3V/3.3V SDIO_DAT4-7 NC Connect to SD Card SDIO Data lines. These signals operate in push-pull mode
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
HDA_RST# I2S_RST#
61 O CMOS 3.3V/3.3V Connect to CODEC
HD Audio/AC'97 Codec Reset.
Multiplexed with I2S Codec Reset. HDA_SYNC I2S_WS
59 O CMOS 3.3V/3.3V Connect to CODEC
Serial Bus Synchronization.
Multiplexed with I2S Word Select from Codec. HDA_BCLK I2S_CLK
63 O CMOS 3.3V/3.3V Connect to CODEC
HD Audio/AC'97 24 MHz Serial Bit Clock from Codec.
Multiplexed with I2S Serial Data Clock from Codec. HDA_SDO I2S_SDO
67 O CMOS 3.3V/3.3V Connect to CODEC
HD Audio/AC'97 Serial Data Output to Codec.
Multiplexed with I2S Serial Data Output from Codec. HDA_SDIN I2S_SDI
65 I CMOS 3.3V/3.3V Connect to CODEC
HD Audio/AC'97 Serial Data input to Codec.
Multiplexed with I2S Serial Data Input from Codec.
Connect 90 ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector Connect 90 ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector
USB
USB
USB
USB Interface Signals
Universal Serial Bus Port 0 differential pair.I/O USB
Universal Serial Bus Port 2 differential pair.
Serial ATA Interface Signals
I SATA
O SATA
I SATA
SATA
SATA
SATA
SATA
Connect to SATA0 Conn TX pin
Universal Serial Bus Port 5 differential pair.
Multiplexed with transmit signal differential pairs for the Superspeed USB data path.
Universal Serial Bus Port 6 differential pair.
Multiplexed with receive signal differential pairs for the Superspeed USB data path.
USB
USB
USB
USB
USB
O SATA
Serial ATA channel 0, Receive Input differential pair.
Serial ATA channel 1, Receive Input differential pair.
Serial ATA channel 0, Transmit Output differential pair.
Serial ATA channel 1, Transmit Output differential pair.
Connect to SATA0 Conn RX pin
Connect to SATA1 Conn TX pin
Connect to SATA1 Conn RX pin
Connect 90 ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector Connect 90 ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector
Connect 90 ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector
Connect 90 ಳ @100MHz Common Choke in series and ESD suppressors to GND to USB connector
Connect Common Choke in series and ESD suppressors to GND to USB connector(This Port is BOM Option with USB_P6 / USB_P7)
Universal Serial Bus Port 3 differential pair.
Universal Serial Bus Port 7 differential pair.
Multiplexed with transmit signal differential pairs for the Superspeed USB data path.
I/O USB
I/O USB
I/O USB
I/O USB I USB
SDIO Interface Signals
High Definition Audio Signals/AC'97
I/O USB O USB
I/O USB I USB
I/O USB O USB
Universal Serial Bus Port 1 differential pair.This port may be optionally used as USB client port.
Universal Serial Bus Port 4 differential pair.
Multiplexed with receive signal differential pairs for the Superspeed USB data path.
Page 15
www.dfi .comChapter 2 Hardware Installation
15
Chapter 2
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
LVDS_PPEN 111 O CMOS 3.3V/3.3V
Connect to enable control of LVDS panel power circuit
Controls panel power enable. LVDS_BLEN 112 O CMOS 3.3V/3.3V
Connect to enable control of LVDS panel backlight power circuit.
Controls panel Backlight enable. LVDS_BLT_CTRL/GP_PWM_OUT0 123 O CMOS 3.3V/3.3V
Connect to brightness control of LVDS panel backlight power circuit.
Primary functionality is to control the panel backlight brightness via pulse width modulation (PWM).
When not in use for this primary purpose it can be used as General Purpose PWM Output. LVDS_A0+ eDP0_TX0+
99
LVDS_A0­eDP0_TX0-
101
LVDS_A1+ eDP0_TX1+
103
LVDS_A1­eDP0_TX1-
105
LVDS_A2+ eDP0_TX2+
107
LVDS_A2­eDP0_TX2-
109
LVDS_A3+ eDP0_TX3+
113
LVDS_A3­eDP0_TX3-
115
LVDS_A_CLK+ eDP0_AUX+
119
LVDS_A_CLK­eDP0_AUX-
121
LVDS_B0+ eDP1_TX0+
100
LVDS_B0­eDP1_TX0-
102
LVDS_B1+ eDP1_TX1+
104
LVDS_B1­eDP1_TX1-
106
LVDS_B2+ eDP1_TX2+
108
LVDS_B2­eDP1_TX2-
110
LVDS_B3+ eDP1_TX3+
114
LVDS_B3­eDP1_TX3-
112
LVDS_B_CLK+ eDP1_AUX+
120
LVDS_B_CLK­eDP1_AUX-
122
LVDS_DID_CLK/GP_I2C_CLK 127 I/O OD CMOS 3.3V/3.3V PU 2.2K to 3.3V
Connect to DDC clock of LVDS panel
Primary functionality is DisplayID DDC clock line used for LVDS flat panel detection. If primary functionality is not used it can be as General Purpose I²C bus clock line. LVDS_DID_DAT/GP_I2C_DAT 125 I/O OD CMOS 3.3V/3.3V PU 2.2K to 3.3V
Connect to DDC clock of LVDS panel
Primary functionality DisplayID DDC data line used for LVDS flat panel detection. If primary functionality is not used it can be as General Purpose I²C bus data line. LVDS_BLC_CLK/eDP1_HPD# 128 I/O OD CMOS 3.3V/3.3V NC Control clock signal for external SSC clock chip. If the primary functionality is not used, it can be used as an embedded DisplayPort secondary Hotplug detection. LVDS_BLC_DAT/eDP0_HPD# 126 I/O OD CMOS 3.3V/3.3V NC Control data signal for external SSC clock chip. If the primary functionality is not used, it can be used as an embedded DisplayPort primary Hotplug detection.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
DP_LANE3- 133 Connect AC Coupling Capacitors 0.1uF to Device DP_LANE3+ 131 Connect AC Coupling Capacitors 0.1uF to Device DP_LANE2- 145 Connect AC Coupling Capacitors 0.1uF to Device DP_LANE2+ 143 Connect AC Coupling Capacitors 0.1uF to Device DP_LANE1- 139 Connect AC Coupling Capacitors 0.1uF to Device DP_LANE1+ 137 Connect AC Coupling Capacitors 0.1uF to Device DP_LANE0- 151 Connect AC Coupling Capacitors 0.1uF to Device DP_LANE0+ 149
Connect AC Coupling Capacitors 0.1uF to Device DP_AUX- 140 Connect AC Coupling Capacitors 0.1uF to Device, PU 100K to 3.3V DP_AUX+ 138 Connect AC Coupling Capacitors 0.1uF to Device, PD 100K to GND DP_HDMI_HPD# 153 I CMOS 3.3V/3.3V PU 10K to 3.3V Hot plug detection signal that serves as an interrupt request.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
TMDS_CLK- 133 Connect AC Coupling Capacitors 0.1uF to Device TMDS_CLK+ 131 Connect AC Coupling Capacitors 0.1uF to Device TMDS_LANE0- 145 Connect AC Coupling Capacitors 0.1uF to Device TMDS_LANE0+ 143 Connect AC Coupling Capacitors 0.1uF to Device TMDS_LANE1- 139 Connect AC Coupling Capacitors 0.1uF to Device TMDS_LANE1+ 137 Connect AC Coupling Capacitors 0.1uF to Device TMDS_LANE2- 151 Connect AC Coupling Capacitors 0.1uF to Device TMDS_LANE2+ 149 Connect AC Coupling Capacitors 0.1uF to Device
HDMI_CTRL_CLK 152 I/O OD CMOS 3.3V/3.3V PU 2.2K to 3.3V
DDC based control signal (clock) for HDMI device. Note: Level shifters must be implemented on the carrier board for this signal in order to be compliant with the HDMI Specification.
HDMI_CTRL_DAT 150 I/O OD CMOS 3.3V/3.3V PU 2.2K to 3.3V
DDC based control signal (data) for HDMI device. Note: Level shifters must be implemented on the carrier board for this signal in order to be compliant with the HDMI Specification
DP_HDMI_HPD# 153 I CMOS 3.3V/3.3V PU 10K to 3.3V Hot plug detection signal that serves as an interrupt request.
AC coupled off Module
AC coupled off Module
AC coupled off Module
AC coupled off Module
AC coupled off Module
AC coupled off Module
AC coupled off Module
Connect to LVDS connector
Connect to LVDS connector
Connect to LVDS connector
Connect to LVDS connector
Connect to LVDS connector
Connect to LVDS connector
Connect to LVDS connector
AC coupled off Module
AC coupled off Module
HDMI Interface Signals
O TMDS
O TMDS
O TMDS
O TMDS
TMDS differential pair clock lines.
TMDS differential pair lines lane 0.
TMDS differential pair lines lane 1.
DP
DP
DP
DP
DP
LVDS secondary channel differential pair 3. Display Port secondary channel differential pair 3.
O LVDS
LVDS secondary channel differential pair clock lines. Display Port secondary auxiliary channel.
LVDS primary channel differential pair 3. Display Port primary channel differential pair 3.
O LVDS
LVDS primary channel differential pair clock lines. Display Port primary auxiliary channel.
O LVDS
LVDS secondary channel differential pair 0. Display Port secondary channel differential pair 0.
O LVDS
LVDS secondary channel differential pair 1. Display Port secondary channel differential pair 1.
O LVDS
LVDS secondary channel differential pair 2. Display Port secondary channel differential pair 2.
O LVDS
LVDS
LVDS
LVDS
LVDS
O PCIE DisplayPort differential pair lines lane 1.
O PCIE DisplayPort differential pair lines lane 0.
O PCIE DisplayPort differential pair lines lane 3.
O PCIE DisplayPort differential pair lines lane 2.
DisplayPort Interface Signals
O LVDS
O LVDS
LVDS Flat Panel Signals
LVDS primary channel differential pair 0. Display Port primary channel differential pair 0.
O LVDS
TMDS differential pair lines lane 2.
TMDS
TMDS
TMDS
TMDS
I/O PCIE Auxiliary channel used for link management and device control. Differential pair lines.
O LVDS
LVDS primary channel differential pair 1. Display Port primary channel differential pair 1.
LVDS primary channel differential pair 2. Display Port primary channel differential pair 2.
LVDS
LVDS
LVDS
Connect to LVDS connector
Connect to LVDS connector
Connect to LVDS connector
LVDS
LVDS
LVDS
Page 16
www.dfi .comChapter 2 Hardware Installation
16
Chapter 2
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
LPC_AD[0..3] GPIO[0..3]
185-188 I/O CMOS 3.3V/3.3V Connect to LPC device
Multiplexed Command, Address and Data.
General purpose input/output [0..3] LPC_FRAME# GPIO5
190 I/O CMOS 3.3V/3.3V Connect to LPC device
LPC frame indicates the start of a new cycle or the termination of a broken cycle.
General purpose input/output 5. LPC_LDRQ# GPIO7
192 I/O CMOS 3.3V/3.3V NC
LPC DMA request.
General purpose input/output 7. LPC_CLK GPIO4
189 I/O CMOS 3.3V/3.3V Connect to LPC device
LPC clock.
General purpose input/output 4. SERIRQ GPIO6
191 I/O CMOS 3.3V/3.3V Connect to LPC device
Serialized Interrupt.
General purpose input/output 6.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
SPI_MOSI 199 O CMOS 3.3V/3.3V Connect a series resistor to Carrier Board SPI Device SI pin Master serial output/Slave serial input signal. SPI serial output data from Qseven module to the SPI device. SPI_MISO 201 I CMOS 3.3V/3.3V Connect a series resistor to Carrier Board SPI Device SO pin Master serial input/Slave serial output signal. SPI serial input data from the SPI device to Qseven module. SPI_SCK 203 O CMOS 3.3V/3.3V Connect a series resistor to Carrier Board SPI Device SCK pin SPI clock output. SPI_CS0# 200 O CMOS 3.3V/3.3V Connect a series resistor to Carrier Board SPI Device CS# pin SPI chip select 0 output. SPI_CS1# 202 O CMOS 3.3V/3.3V NC SPI Chip Select 1 signal is used as the second chip select when two devices are used. Do not use when only one SPI device is used.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
CAN0_TX 129 O CMOS 3.3V/3.3V NC
CAN (Controller Area Network) TX output for CAN Bus channel 0.
In order to connect a CAN controller device to the Qseven module's CAN bus it is necessary to add transceiver hardware to the carrier board. CAN0_RX 130 I CMOS 3.3V/3.3V NC
RX input for CAN Bus channel 0. In order to connect a CAN controller device to the Qseven module's CAN bus it is necessary to add transceiver hardware to the carrier
board.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
PWGIN 26 I CMOS 5V/5V PU 10K to 5V High active input for the Qseven® module indicates that all power rails located on the carrier board are ready for use. PWRBTN# 20 I CMOS 3.3V Standby PU 10K to 3.3V Suspend Power Button: Low active power button input. This signal is triggered on the falling edge.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
RSTBTN# 28 I CMOS 3.3V/3.3V PU 10K to 3.3V Reset button input. This input may be driven active low by an external circuitry to reset the Qseven module. BATLOW# 27 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3V Suspend
Battery low input. This signal may be driven active low by external circuitry to signal that the system battery is low or may be used to signal some other external
battery management event. WAKE# 17 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3V Suspend External system wake event. This may be driven active low by external circuitry to signal an external wake-up event. SUS_STAT# 19 O CMOS 3.3V Suspend/3.3V PU 10K to 3.3V Suspend Suspend Status: indicates that the system will be entering a low power state soon.
SUS_S3# 18 O CMOS 3.3V Suspend/3.3V
S3 State: This signal shuts off power to all runtime system components that are not maintained during S3 (Suspend to Ram), S4 or S5 states.
The signal SUS_S3# is necessary in order to support the optional S3 cold power state. SUS_S5# 16 O CMOS 3.3V Suspend/3.3V S5 State: This signal indicates S4 or S5 (Soft Off) state.
SLP_BTN# 21 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3V Suspend
Sleep button. Low active signal used by the ACPI operating system to transition the system into sleep state or to wake it up again. This signal is triggered on falling
edge.
LID_BTN# 22 I CMOS 3.3V Suspend/3.3V PU 10K to 3.3V Suspend
LID button. Low active signal used by the ACPI operating system to detect a LID switch and to bring system into sleep state or to wake it up again.
Open/Close state may be software configurable.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
WDTRIG# 70 I CMOS 3.3V/3.3V PU 10K to 3.3V Watchdog trigger signal. This signal restarts the watchdog timer of the Qseven module on the falling edge of a low active pulse. WDOUT 72 O CMOS 3.3V/3.3V PU 10K to 3.3V Watchdog event indicator. High active output used for signaling a missing watchdog trigger. Will be deasserted by software, system reset or a system power down. GP0_I2C_CLK 66 I/O OD CMOS 3.3V/3.3V PU 2.2K to 3.3V General Purpose I²C bus #0 clock line. GP0_I2C_DAT 68 I/O OD CMOS 3.3V/3.3V PU 2.2K to 3.3V General Purpose I²C bus #0 data line. SMB_CLK GP1_I2C_CLK
60 I/O OD CMOS 3.3V Suspend/3.3V PU 2.2K to 3.3V Suspend
Clock line of System Management Bus.
Multiplexed with General Purpose I²C bus #1 clock line. SMB_DAT GP1_I2C_DAT
62 I/O OD CMOS 3.3V Suspend/3.3V PU 2.2K to 3.3V Suspend
Data line of System Management Bus.
Multiplexed with General Purpose I²C bus #1 data line. SMB_ALERT# 64 I/O OD CMOS 3.3V Suspend/3.3V PU 10K to 3.3V Suspend System Management Bus Alert input. This signal may be driven low by SMB devices to signal an event on the SM Bus.
SPKR/GP_PWM_OUT2 194 O CMOS 3.3V/3.3V
Primary functionality is output for audio enunciator, the“speaker” in PC AT systems. When not in use for this primary purpose it can be used as General Purpose PWM
Output.
BIOS_DISABLE#/BOOT_ALT# 41 I CMOS 3.3V/3.3V PU 10K to 3.3V
Module BIOS disable input signal. Pull low to disable module's on-board BIOS.
Allows off-module BIOS implementations. This signal can also be used to disable standard boot firmware flash device and enable an alternative boot firmware source, for
example a boot loader. RSVD 56,154,132,134,144,146 NC NC Do not connect GP_1-Wire_Bus 124 I/O CMOS 3.3V/3.3V General Purpose 1-Wire bus interface. Can be used for consumer electronics control bus (CEC) of HDMI
Power Management Signals
Miscellaneous Signals
LPC Interface Signals
SPI Interface Signals
CAN Bus Interface Signals
Power Control Signals
Page 17
www.dfi .comChapter 2 Hardware Installation
17
Chapter 2
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
MFG_NC0 207 N.A N.A NC
This pin is reserved for manufacturing and debugging purposes.
May be used as JTAG_TCK signal for boundary scan purposes during production or as a vendor specific control signal. When used as a vendor specific control signal the
multiplexer must be controlled by the MFG_NC4 signal.
MFG_NC1 209 N.A N.A
This pin is reserved for manufacturing and debugging purposes.
May be used as JTAG_TDO signal for boundary scan purposes during production. May also be used, via a multiplexer, as a UART_TX signal to connect a simple UART for
firmware and boot loader implementations. In this case the multiplexer must be controlled by the MFG_NC4 signal.
MFG_NC2 208 N.A N.A
This pin is reserved for manufacturing and debugging purposes.
May be used as JTAG_TDI signal for boundary scan purposes during production. May also be used, via a multiplexer, as a UART_RX signal to connect a simple UART for
firmware and boot loader implementations. In this case the multiplexer must be controlled by the MFG_NC4 signal.
MFG_NC3 210 N.A N.A NC
This pin is reserved for manufacturing and debugging purposes.
May be used as JTAG_TMS signal for boundary scan purposes during production. May also be used, via a multiplexer, as vendor specific BOOT signal for firmware and
boot loader implementations. In this case the multiplexer must be controlled by the MFG_NC4 signal.
MFG_NC4 204 N.A N.A NC
This pin is reserved for manufacturing and debugging purposes.
May be used as JTAG_TRST# signal for boundary scan purposes during production. May also be used as control signal for a multiplexer circuit on the module enabling
secondary function for MFG_NC0..3 ( JTAG / UART ).
When MFG_NC4 is high active it is being used for JTAG purposes.
When MFG_NC4 is low active it is being used for UART purposes.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
THRM# 69 I CMOS 3.3V/3.3V PU 10K to 3.3V Thermal Alarm active low signal generated by the external hardware to indicate an over temperature situation. This signal can be used to initiate thermal throttling. THRMTRIP# 71 O CMOS 3.3V/3.3V PU 10K to 3.3V Thermal Trip indicates an overheating condition of the processor. If 'THRMTRIP#' goes active the system immediately transitions to the S5 State (Soft Off).
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
FAN_PWMOUT/GP_PWM_OUT1 196 O OC CMOS 3.3V/3.3V
Primary functionality is fan speed control. Uses the Pulse Width Modulation (PWM) technique to control the Fan's RPM based on the CPU's die temperature.
When not in use for this primary purpose it can be used as General Purpose PWM Output. FAN_TACHOIN/GP_TIMER_IN 195 I CMOS 3.3V/3.3V PU 10K to 3.3V Primary functionality is fan tachometer input. When not in use for this primary purpose it can be used as General Purpose Timer Input.
Signal Pin# Pin Type Pwr Rail /Tolerance BT700 Carrier Board Description
VCC 211-230 Power Power Supply +5VDC ±5% VCC_5V_SB 205-206 Power Standby Power Supply +5VDC ±5%
VCC_RTC 193 Power
3 V backup cell input. VCC_RTC should be connected to a 3V backup cell for RTC operation and storage register non-volatility in the absence of system power.
(VCC_RTC = 2.4 - 3.3 V).
GND
1-2, 23-25, 34, 39-40, 57-58, 73-74, 97-98, 117-118, 135-136, 141-142, 147-148, 159-160, 165-166, 183-184, 197-198
Power Ground Power Ground.
Manufacturing Signals
Thermal Management Signals
Fan Control Implementation
Input Power Pins
Page 18
www.dfi .comChapter 2 Hardware Installation
18
Chapter 2
Installing BT700 onto a Carrier Board
1. The photo below shows the locations of the mounting holes and the bolts already fixed in place.
2. Grasping BT700 by its edges, insert it into the carrier board, and you will hear a distinctive ”click” indicating BT700 is correctly locked into position.
Mounting hole
BT700
Carrier board
Standoff Bolts
3. Press down BT700 and put on the heat sink on top of BT700 with its mounting holes and bolts aligned on the carrier board. Use the mounting screws to fix BT700 and heat sink in place.
Short screws
Important:
The carrier board used in this section is for reference purpose only and may not resemble your carrier board. These illustrations are mainly to guide you on how to install BT700 onto the carrier board of your choice.
Page 19
www.dfi .comChapter 3 BIOS Setup
19
Chapter 3
Chapter 3 - BIOS Setup
KEYs Function
Right and Left Arrows Moves the highlight left or right to select a
menu.
Up and Down Arrows Moves the highlight up or down between
submenus or fi elds. <Esc> Exits to the BIOS setup utility + (plus key) Scrolls forward through the values or
options of the hightlighted fi eld.
- (minus key) Scolls backward through the values or
options of the hightlighted fi eld. <F1> Displays general help <F2> Displays previous values <F3> Optimized defaults <F4> Saves and reset the setup program. <Enter> Press <Enter> to enter the highlighted
submenu
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.
Submenu
When ““ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.
Legends
Overview
The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a configuration change has been made such as a hard drive replaced or a device added.
It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconfigure the BIOS settings.
Default Configuration
Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.
Entering the BIOS Setup Utility
The BIOS Setup Utility can only be operated from the keyboard and all commands are key­board commands. The commands are available at the right side of each setup screen.
The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.
Note:
The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.
Page 20
www.dfi .comChapter 3 BIOS Setup
20
Chapter 3
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sun­day to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to
23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
AMI BIOS Setup Utility Main
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Set the Date. Use Tab to switch between Date elements.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Save & ExitChipset
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
BIOS Information BIOS Vendor Project Version Build Date and Time
System Date
System Time
Access Level
American Megatrends OACCT 0.11 x64 10/02/2014 15:04:50
[Wed 15/10/2014] [00:27:35]
Administraor
Advanced
Security Boot
Main
OS Selection
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
OS Selection [Windows 7]
PC Health Status
CPU Con guration
SATA Con guration
LPSS & SCC Con guration
Network Stack Con guration
CSM Con guration
Trusted Computing
USB Con guration
Security Con guration
Intel(R) I210 Gigabit Network Connection - 00:A0:C9:00:......
Save & ExitChipset Security Boot
Main
Advanced
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Advanced
The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
Important:
Setting incorrect field values may cause the system to malfunction.
OS Selection
Select the OS support: Windows 7 or Windows 8.X.
Page 21
www.dfi .comChapter 3 BIOS Setup
21
Chapter 3
PC Health Status
This section only displays the hardware health monitor.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
System Hardware Monitor CPU Temperature
FAN1 Speed
3.3V V_SM VCORE VGFX
Advanced
: +39C
: 6585 RPM : +3.324 V : +1.364 V : +0.926 V : +1.006 V
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
CPU Configuration
This section is used to configure the CPU. It will also display the detection of CPU information.
Active Processor Cores
Number of cores to enable in each processor package.
Intel Virtualization Technology
When this field is set to enabled, the VMM can utilize the additional hardware capa­bilities provided by Vanderpool Technology.
EIST
This field is used to enable or disable the Intel Enhanced SpeedStep Technology.
Number of cores to enable in each processor package.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Advanced
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
30679 901 1918 MHz Supported 4 Supported
24 KB x4 32 KB x4 1024 KB x2
[All]
[Enabled] [Enabled]
CPU Confi guration Intel(R) Atom(TM) CPU E3845 @ 1.91GHz
CPU Signature Microcode Patch CPU Speed 64-bit Processor Cores Intel VT-x Technology
L1 Data Cache L1 Code Cache L2 Cache
Active Processor Cores
Intel Virtualization Technology EIST
Page 22
www.dfi .comChapter 3 BIOS Setup
22
Chapter 3
SATA Configuration
This section is used to configure the settings of SATA device.
Enable/Disable Serial ATA
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
SATA Confi guration
Serial-ATA (SATA)
Serial-ATA Port 0 Serial-ATA Port 1
SATA Port0 Not Present
SATA Port1 Not Present
Advanced
Serial ATA Port 0 and 1
This field is used to enable or disable the Serial ATA port 0 and 1.
[Enabled]
[Enabled] [Enabled]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
LPSS & SCC Configuration
This section is used to configure the LPSS & SCC settings.
LPSS I2C #1 Support Enable/Disable
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
LPSS Confi guration
LPSS I2C #1 Support
LPSS HSUART #1 Support LPSS HSUART #2 Support LPSS SPI Support
Advanced
LPSS I2C #1 Support
Enable or disable the support of the LPSS I2C device.
LPSS HSUART #1/#2 Support
Enable or disable the support of the LPSS HSUART device.
LPSS SPI Support
Enable or disable the support of the LPSS SPI device.
[Enabled]
[Enabled] [Enabled] [Enabled]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Page 23
www.dfi .comChapter 3 BIOS Setup
23
Chapter 3
Enable/Disable UEFI network stack.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Network Stack
Advanced
[Disabled]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Network Stack Configuration
This section is used to enable or disable UEFI network stack.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Network Stack
Ipv4 PXE Support
Ipv6 PXE Support PXE boot wait time
Advanced
[Enabled]
[Enabled] [Enabled] 0
Enable/Disable UEFI network stack.
 
Enter: +/-: F1: F2: F3: F4: ESC:
Select Screen Select Item Select Change Opt. General Help Previous Values Optimized Defaults Save & Reset Exit
When Network Stack is set to enabled, it will display the following information:
Ipv4 PXE Support
When enabled, Ipv4 PXE boot supports. When disabled, Ipv4 PXE boot option will not be created.
Ipv6 PXE Support
When enabled, Ipv6 PXE boot supports. When disabled, Ipv6 PXE boot option will not be created.
PXE boot wait time
Enter the value of wait time to press <Esc> key to abort the PXE boot.
Page 24
www.dfi .comChapter 3 BIOS Setup
24
Chapter 3
CSM Configuration
This section configures the CSM settings.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Compatibility Support Module Confi guration
CSM Support
CSM16 Module Version
Boot option fi lter
Option ROM execution order
Network Storage Video Other PCI devices
Advanced
[Enabled]
07.71
[UEFI and Legacy]
[Do not launch] [Legacy only] [Legacy only] [UEFI only]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Enable/Disable CSM support
CSM Support
This field is used to enable or disable the CSM support.
Boot option filter
This option controls Legacy/UEFI ROMs priority.
Network
This field controls the execution of UEFI and Legacy PXE OpROM.
Storage
This field controls the execution of UEFI and Legacy Storage OpROM.
Video
This field controls the execution of UEFI and Legacy Video OpROM.
Other PCI devices
This field determines OpROM execution policy for devices other than network, storage or video.
Security Device Support
This field is used to enable or disable BIOS supporting for the security device. O.S will not show the security device. TCG EFI protocol and INT1A interface will not be available.
Trusted Computing
This section configures settings relevant to Trusted Computing innovations.
Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Confi guration
Security Device Support
Current Status Information No Security Device Found
Advanced
[Disable]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Page 25
www.dfi .comChapter 3 BIOS Setup
25
Chapter 3
USB Configuration
This section is used to configure parameters of the USB device.
Legacy USB Support
Enabled
Enable legacy USB. Auto
Disable support for legacy when no USB devices are connected. Disabled
Keep USB devices available only for EFI applications.
USB Mass Storage Driver Support
Enable or disable the support of the USB Mass Storage Driver.
Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242 Copyright (C) 2013 American Megatrends, Inc.
USB Confi guration USB Module Version USB Devices:
1 Keyboard, 1 Mouse, 1 Hub
Legacy USB Support
USB Mass Storage Driver Support
Advanced
8.11.01
[Enabled]
[Enabled]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Important:
When installing Windows 7, only native USB 2.0 devices (USB port 0 to USB port 3) can operate under DOS mode. Please refer to the following tables for more infomation on the type of USB ports.
Operation Environment for Customers
DOS Windows 7 Windows 8.x Linux
OS Selection in the BIOS Advanced Menu
Windows 8.x Windows 7 Windows 8.x Windows 8.x
Available USB ports
All
When installing Windows 7 fi rst time, only native USB 2.0 ports can work. Please refer to the USB type in table 2 below.
All All
Table 1. OS Selection
Model Name BT700 USB 3.0
Native
(share with USB 2.0 port 6 and 7)*
USB 0
Native
USB 1
Native
USB 2
Native
USB 3
Native
USB 4
HSIC port 0
USB 5
HSIC port 1
USB 6
HSIC port 2
(share with USB 3.0)*
USB 7
HSIC port 3
(share with USB 3.0)*
Table 2. The Type of USB Ports
Note:
*Optional and is not supported in standard model. Please contact your sales represen­tative for more information.
Page 26
www.dfi .comChapter 3 BIOS Setup
26
Chapter 3
Intel(R) I210 Gigabit Network Connection - 00:A0:C9:00:...
This section is used to configure the parameters of Gigabit Ethernet device.
Confi gure Boot Protocol, Wake on LAN, Link Speed, and VLAN.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
PORT CONFIGURATION MENU

NIC Confi guration
Blink LEDs
PORT CONFIGURATION INFORMATION UEFI Driver: Adapter PBA: Chip Type: PCI Device ID Bus: Device: Function:
Link Status
MAC Address Virtual MAC Address
Advanced
0
Intel(R) PRO/1000 5.5.19 000300-000 Intel i210 1533 04:00:00
[Disconnected]
00:A0:C9:00:00:00
00:A0:C9:00:00:00
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Blink LEDs
Identify the physical network port by blinking the associated LED.
Link Status
This field indicates the link status of the network device.
Virtual MAC Address
This field indicates programmatically assignable MAC address for the network port.
Security Configuration
This section only displays the setting relevant to the Intel(R) Anti-Theft Technology.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Intel(R) TXE Confi guration TXE FW Version
Advanced
01.01.00.1089
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Page 27
www.dfi .comChapter 3 BIOS Setup
27
Chapter 3
Chipset
The section configures the relevant functions of chipset.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

North Bridge

South Bridge
Save & Exit
Advanced
Security Boot
Main
Chipset
North Bridge Parameters
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
NIC Configuration
This field is used to configure the network device.
Specifi es the port speed used for the selected boot protocol.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Link Speed
Wake on LAN
Advanced
[Auto Negotiated]
[Enabled]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Link Speed
Specify the port speed which is used for the selected boot protocol.
Wake on LAN
Enables the server to be powered on using an in-band magic packet.
Page 28
www.dfi .comChapter 3 BIOS Setup
28
Chapter 3
Intel IGD Configuration
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
GOP Information Intel(R) GOP Driver
Chipset
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
[N/A]
North Bridge
This section configures the North bridge parameters.
Confi g Intel IGD Settings.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Intel IGD Confi guration
LCD Control

Memory Confi guration
Chipset
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Page 29
www.dfi .comChapter 3 BIOS Setup
29
Chapter 3
LCD Panel Type
Select the LCD panel used by Internal Graphics Device by selecting the appropriate setup item. Please refer to the screen shown below.
LVDS Support Enable or disable the onboard LVDS function.
Select LCD panel used by Internal Graphics Device by selecting the appropriate setup item.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
LCD Control
Primary IGFX Boot Display Secondary IGFX Boot Display
LCD Panel Type
LVDS Support
[DDI]
Chipset
 
Enter: +/-: F1: F2: F3: F4: ESC:
Select Screen Select Item Select Change Opt. General Help Previous Values Optimized Defaults Save & Reset Exit
LCD Panel Type VBIOS Default Type 1 Type 2 Type 3 Type 4 Type 5 Type 6 Type 7 Type 8 Type 9 Type 10 Type 11 Type 12 Type 13 Type 14 Type 15 Type 16
640x480 800x600 1024x768 1280x1024 1400x1050 (108MHz) 1400x1050 (122MHz) 1600x1200 1366x768 1680x1050 1920x1200 1440x900 1024x768 1280x1024 1280x800 1920x1080 2048x1536
18 Bit 18 Bit 18 Bit 36 Bit 36 Bit 36 Bit 36 Bit 18 Bit 36 Bit 36 Bit 36 Bit 24 Bit 48 Bit 36 Bit 48 Bit 48 Bit
LCD Control
Select the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be sup­ported only on primary display.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
LCD Control
Primary IGFX Boot Display
Secondary IGFX Boot Display LCD Panel Type LVDS Support
[DDI]
[LVDS] [Type 3 1024x768...] [Enabled]
Chipset
 
Enter: +/-: F1: F2: F3: F4: ESC:
Select Screen Select Item Select Change Opt. General Help Previous Values Optimized Defaults Save & Reset Exit
Primary IGFX Boot Display
Select the Video Device which will be activated during POST. This has no effect if the external graphics presents. The selection of secondary boot display will appear based on your selection. VGA modes will be supported only on primary display.
Secondary IGFX Boot Display
Select the secondary display device: DDI-0 or DDI-1. DDI-0 is the default setting.
Page 30
www.dfi .comChapter 3 BIOS Setup
30
Chapter 3
Azalia HD Audio Options
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Chipset
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
South Bridge
This field is used to configure the parameters of the South Bridge.

Azalia HD Audio

PCI Express Confi guration Restore AC Power Loss Intel(R) I210 Controller SPI Interface Selection
[Power On] [Enabled] [PCU_SPI]
Restore AC Power Loss
Power Off
When power returns after an AC power failure, the system’s power is off. You must
press the Power button to power-on the system.
Power On
When power returns after an AC power failure, the system will automatically power­on.
Last State
When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.
Intel(R) I210 Controller
Enable the Intel(R) I210 ethernet controller.
SPI Interface Selection
The option is PCU_SPI or SIO_SPI.
Memory Configuration
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Memory Information Total Memory
Memory
2048 MB (LPDDR3) 2048 MB (LPDDR3)
Chipset
 
Enter: +/-: F1: F2: F3: F4: ESC:
Select Screen Select Item Select Change Opt. General Help Previous Values Optimized Defaults Save & Reset Exit
Page 31
www.dfi .comChapter 3 BIOS Setup
31
Chapter 3
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
PCI Express Confi guration
PCI Express Port 0
Speed
PCI Express Port 1 Speed
PCI Express Port 2 Speed
PCI Express Port 3 Speed
[Enabled]
[Auto] [Enabled]
[Auto] [Enabled]
[Auto] [Enabled]
[Auto]
Chipset
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
PCI Express Configuration
This section configues settings relevant to PCI Express devices.
Enable or Disable the PCI Express Port 0 in the Chipset
PCI Express Port 0-3
Enable or disable the PCI Express port in the chipset.
Speed
Select the speed for the PCI Express devices. The options are Auto, Gen1 or Gen2.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Audio Confi guration
Audio Controller
Azalia HDMI Codec
DP/HDMI Port B
[Enabled]
[Enabled] [Enabled]
Chipset
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Azalia HD Audio
This section configues Azalia HD Audio options.
Control Detection of the Azalia device. Disabled = Azalia will be uncondition­ally disabled. Enabled = Azalia will be uncondition­ally enabled. Auto = Azalia will be enabled if present disabled otherwise.
Audio Controller
This item controls the detection of the Azalia device.
Disabled
Azalia will be unconditionally disabled.
Enabled
Azalia will be unconditionally enabled.
Auto
Azalia will be enabled automatically.
Azalia HDMI Codec
Enable or disable the internal HDMI codec for Azalia.
DP/HDMI Port B
Enable or disable the DP/HDMI Port B.
Page 32
www.dfi .comChapter 3 BIOS Setup
32
Chapter 3
Boot
Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefi nite waiting.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Boot Confi guration
Setup Prompt Timeout
Bootup NumLock State
Boot Option Priorities
Save & ExitChipset
Advanced
Security
Main
Boot
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
1
[On]
Setup Prompt Timeout
Select the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.
Bootup NumLock State
This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Security
Administrator Password
Set the administrator password.
User Password
Set the user password.
Set Administrator Password.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Password Description If ONLY the Administrator’s password is set,
then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20
Administrator Password
User Password
Save & ExitChipset
Advanced
Main
BootSecurity
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Page 33
www.dfi .comChapter 3 BIOS Setup
33
Chapter 3
Updating the BIOS
To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS.EXE. Please contact technical support or your sales representative for the files.
To execute the utility, type: A:> AFUDOS BIOS_File_Name /b /p /n then press <Enter>.
C:\AFU\AFUDOS>afudos fi lename /B /P /N
+--------------------------------------------------------------------------------------------------------+
AMI Firmware Update Utility(APTIO) v2.25
Copyright (C)2008 American Megatrends Inc. All Rights Reserved.
+--------------------------------------------------------------------------------------------------------+
| |
| |
Reading fi le ..............................
Erasing fl ash .............................
Writing fl ash .............................
Verifying fl ash ..........................
Erasing BootBlock ....................
Writing BootBlock ....................
Verifying BootBlock .................
C:\AFU\AFUDOS>
done done done done done done done
After finishing BIOS update, please turn off the AC power. Wait about 10 seconds and then turn on the AC power again.
Save & Exit
Reset the system after saving the changes.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Save Changes and Reset
Discard Changes and Reset Restore Defaults
Boot Override
Chipset
Advanced
Main
BootSecurity Save & Exit
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
Save Changes and Reset
To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system after saving all changes made
.
Discard Changes and Reset
To discard the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system setup without saving any changes.
Restore Defaults
To restore and load the optimized default values, select this field and then press <Enter>. A dialog box will appear. Select Yes to restore the default values of all the setup options.
Page 34
www.dfi .comChapter 3 BIOS Setup
34
Chapter 3
Notice: BIOS SPI ROM
1. The Intel® Management Engine has already been integrated into this system board. Due to the safety concerns, the BIOS (SPI ROM) chip cannot be removed from this system board and used on another system board of the same model.
2. The BIOS (SPI ROM) on this system board must be the original equipment from the factory and cannot be used to replace one which has been utilized on other system boards.
3. If you do not follow the methods above, the Intel
®
Management Engine will not be
updated and will cease to be effective.
Note:
a. You can take advantage of flash tools to update the default configuration of the BIOS (SPI ROM) to the latest version anytime. b. When the BIOS IC needs to be replaced, you have to populate it properly onto the
system board after the EEPROM programmer has been burned and follow the technical person's instructions to confirm that the MAC address should be burned or not.
Page 35
www.dfi .comChapter 4 Supported Software
35
Chapter 4

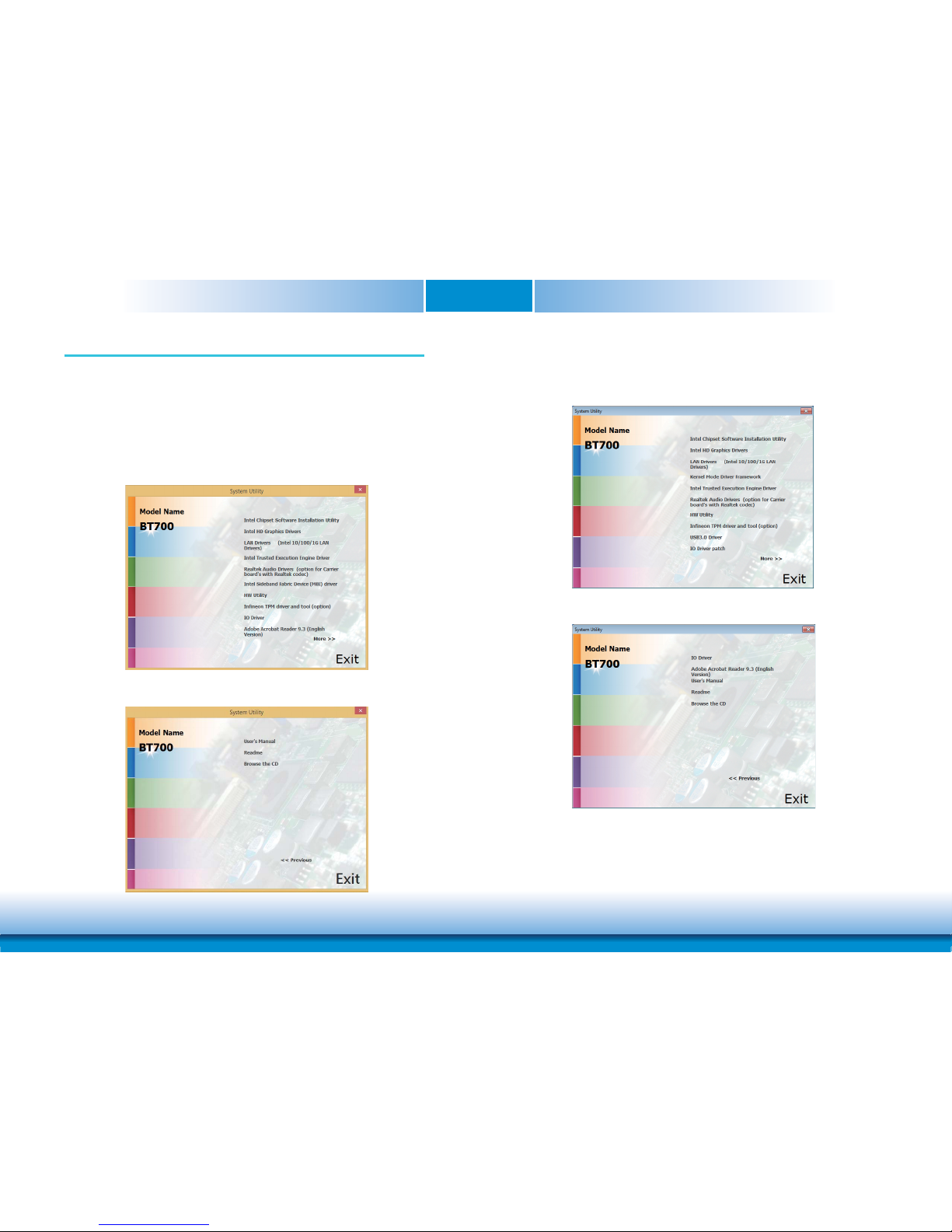

Chapter 4 - Supported Software
The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.
Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.
For Windows 8.x
For Windows 7
Page 36
www.dfi .comChapter 4 Supported Software
36
Chapter 4

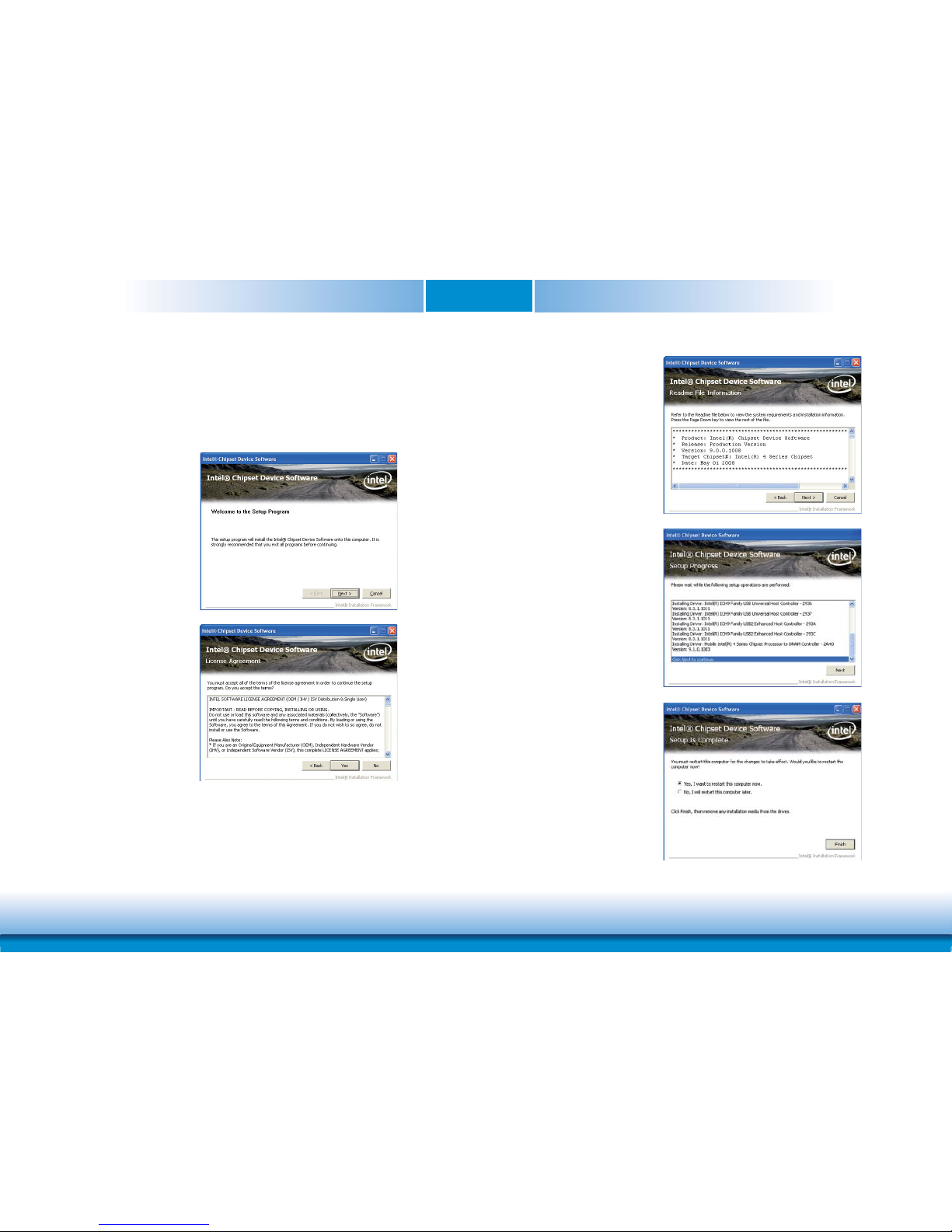

Intel Chipset Software Installation Utility
The Intel Chipset Device Software is used for updating Windows
®
INF files so that the Intel
chipset can be recognized and configured properly in the system. To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.
1. Setup is ready to install the utility. Click Next.
2. Read the license agreement then click Yes.
4. After all setup operations are done, click Next.
3. Go through the readme docu-
ment for more installation tips then click Next.
5. Click “Yes, I want to restart this
computer now” then click Finish.
Restarting the system will allow the new software installation to take effect.
Page 37
www.dfi .comChapter 4 Supported Software
37
Chapter 4

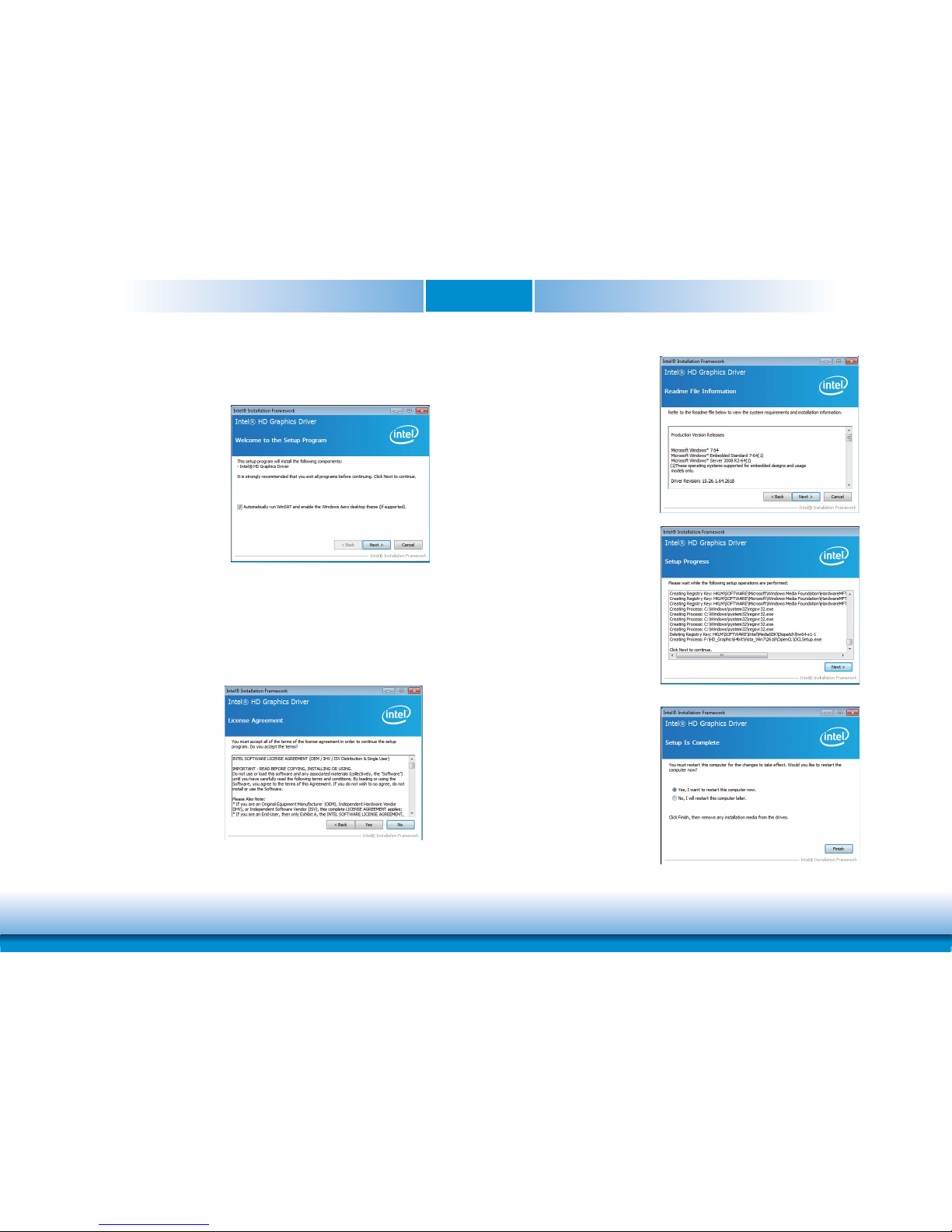

Intel HD Graphics Drivers
To install the driver, click “Intel HD Graphics Drivers” on the main menu.
1. Setup is now ready to install the graphics driver. Click Next.
By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows 7/ Windows 8 desktop appears. The “blank screen” period is the time Windows is testing the graphics performance.
We recommend that you skip this process by disabling this function then click Next.
2. Read the license agreement then click Yes.
4. Setup is now installing the driver. Click Next to continue
.
3. Go through the readme docu­ment for system requirements and installation tips then click Next.
5. Click “Yes, I want to restart this computer now” then click Finish.
Restarting the system will allow the new software installation to take effect.
Page 38
www.dfi .comChapter 4 Supported Software
38
Chapter 4

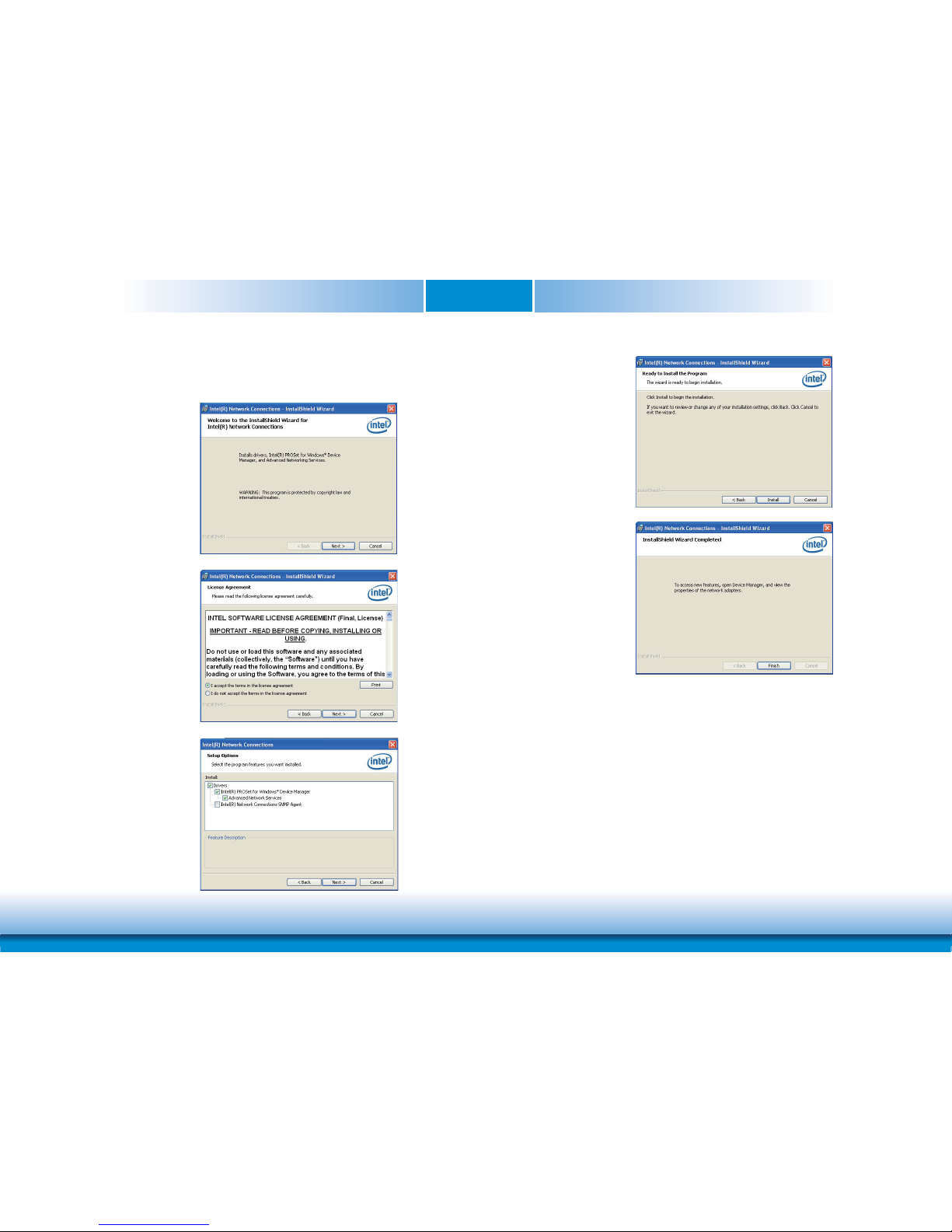

Intel LAN Drivers
To install the driver, click “Intel LAN Drivers” on the main menu.
1. Setup is ready to install the driver. Click Next.
2. Click “I accept the terms in the license agreement” then click “Next”.
3. Select the program featuers you want installed then click Next.
4. Click Install to begin the installation.
5. After completing installa­tion, click Finish.
Page 39
www.dfi .comChapter 4 Supported Software
39
Chapter 4

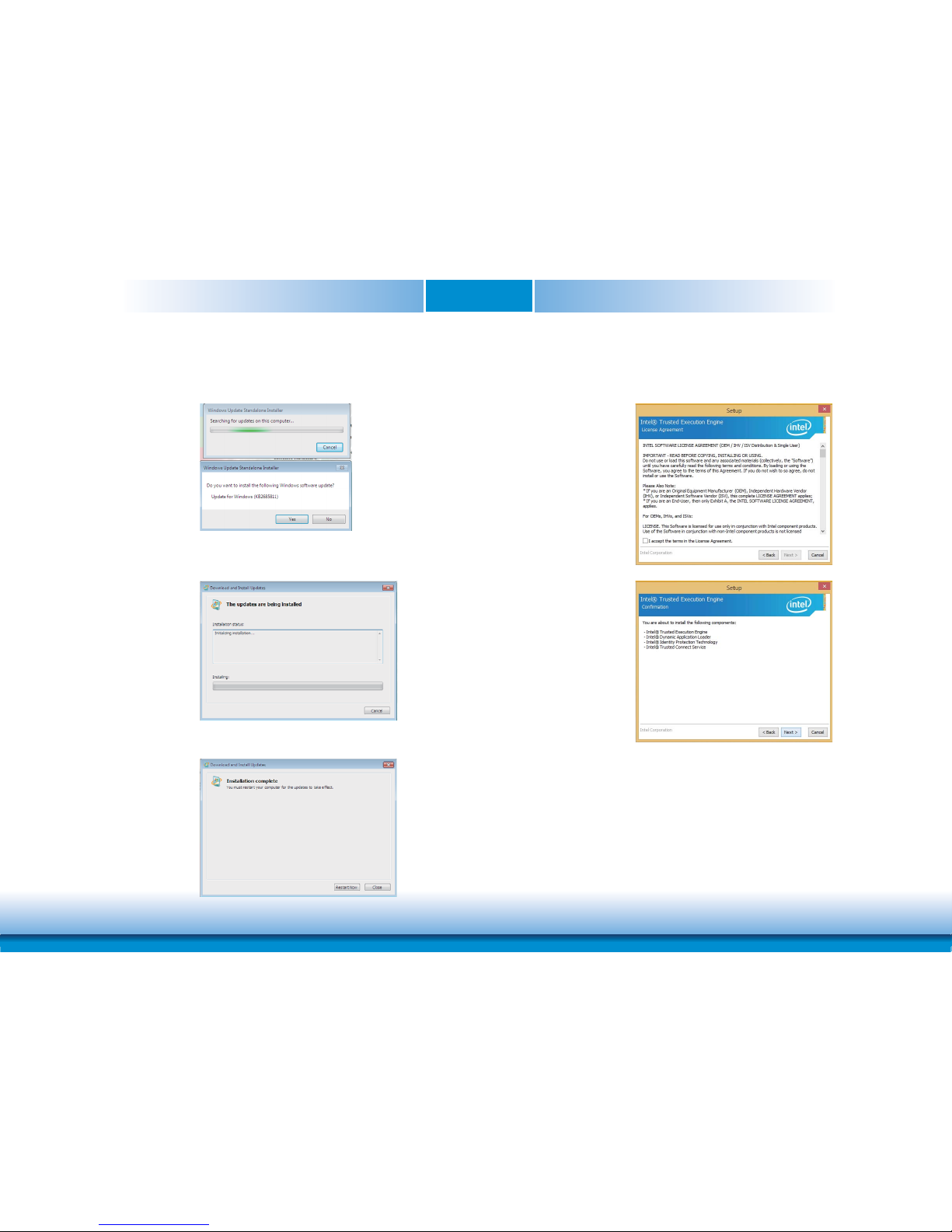

1. Click “Yes“ to install the update.
2. The update is installed now.
3. Click “Restart Now“ to
restart your computer when the installation is complete.
Intel Trusted Execution Engine Driver
To install the driver, click “Intel Trusted Execution Engine Driver” on the main menu.
1. Tick “I accept the terms in the License Agreement“ and then click “Next.”
2. The step shows the components which will be installed. Then, Click Next.
Kernel Mode Driver Framework (For Windows 7 only)
To install the driver, click “Kernel Mode Driver Framework” on the main menu.
Page 40
www.dfi .comChapter 4 Supported Software
40
Chapter 4

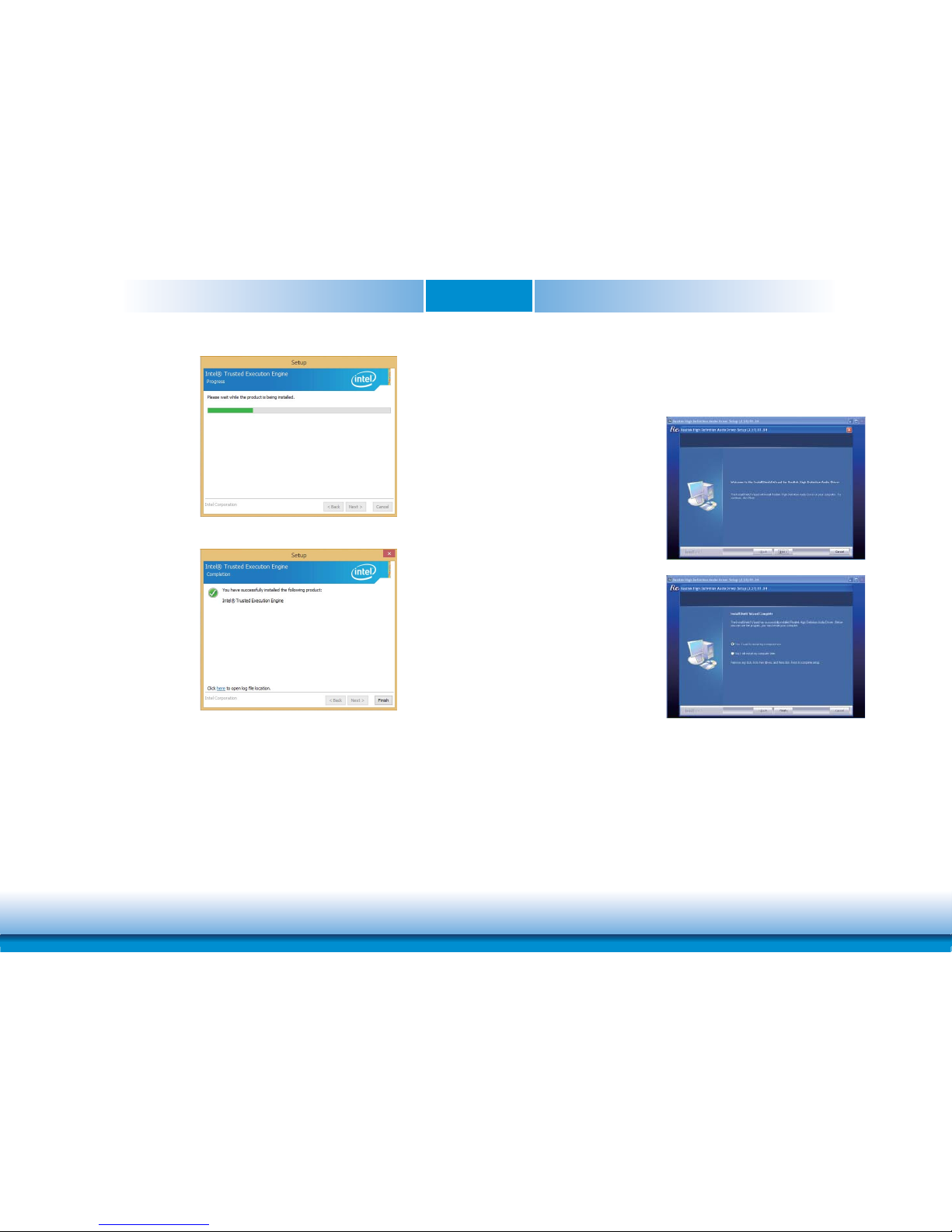

3. The step displays the installing status in the progress.
4. Click “Finish“ when the installation is complete.
1. Setup is now ready to install the audio driver. Click Next.
2. Follow the remainder of the steps on the screen; clicking “Next” each time you finish a step.
3. Click “Yes, I want to restart my computer now” then click Finish.
Restarting the system will allow the new software installation to take effect.
Realtek Audio Drivers
To install the driver, click “Realtek Audio Drivers” on the main menu.
Page 41
www.dfi .comChapter 4 Supported Software
41
Chapter 4

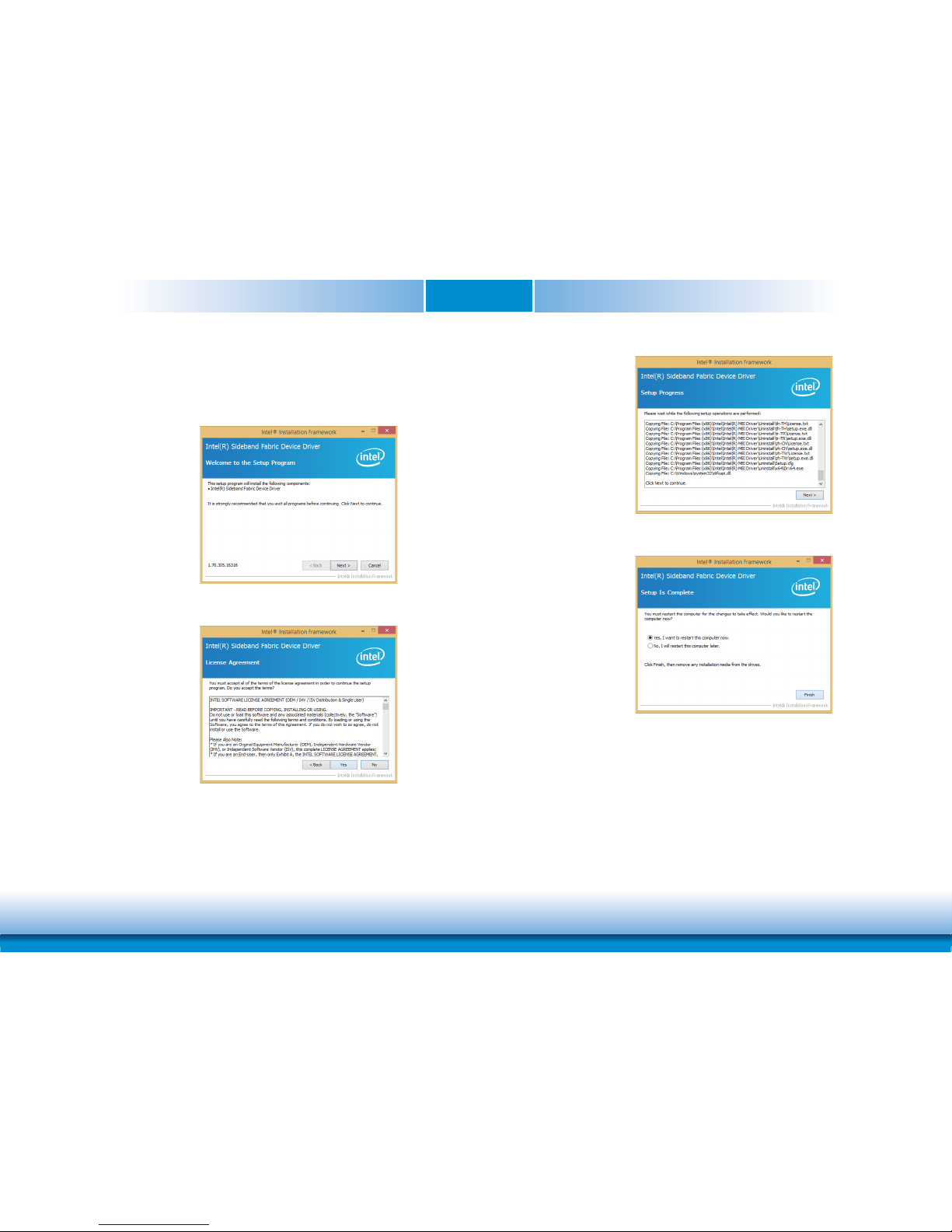

Intel Sideband Fabric Device (MBI) Driver (For Windows 8 only)
To install the driver, click “Intel Sideband Fabric Device (MBI) Driver” on the main menu.
1. The setup program will be installed. Click “Next“ to continue.
2. Click “Yes“ to accept the License Agreement.
3. The step performs setup operations. Click “Next“ to continue.
4. Click “Finish“ to restart the computer when the setup is completely installed.
Page 42
www.dfi .comChapter 4 Supported Software
42
Chapter 4

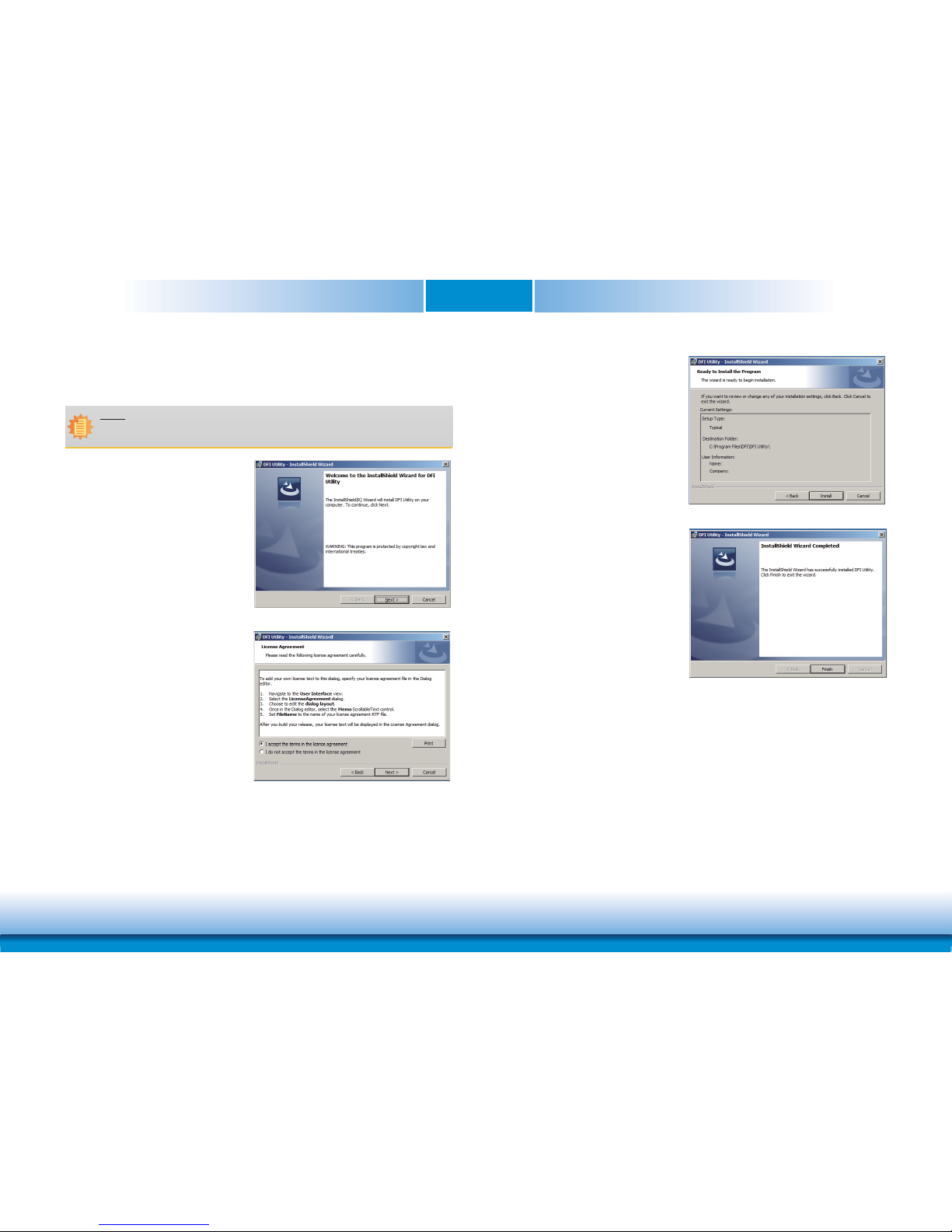

DFI Utility
DFI Utility provides information about the board, HW Health, Watchdog, DIO, and Backlight. To access the utility, click “DFI Utility” on the main menu.
2. Click “I accept the terms in the license agreement” and then click Next
.
1. Setup is ready to install the DFI Utility drifer. Click Next.
Note:
If you are using Windows 7, you need to access the operating system as an administrator to be able to install the utility.
3. Click Install to begin the installation.
4. After completing installation, click Finish.
Page 43
www.dfi .comChapter 4 Supported Software
43
Chapter 4

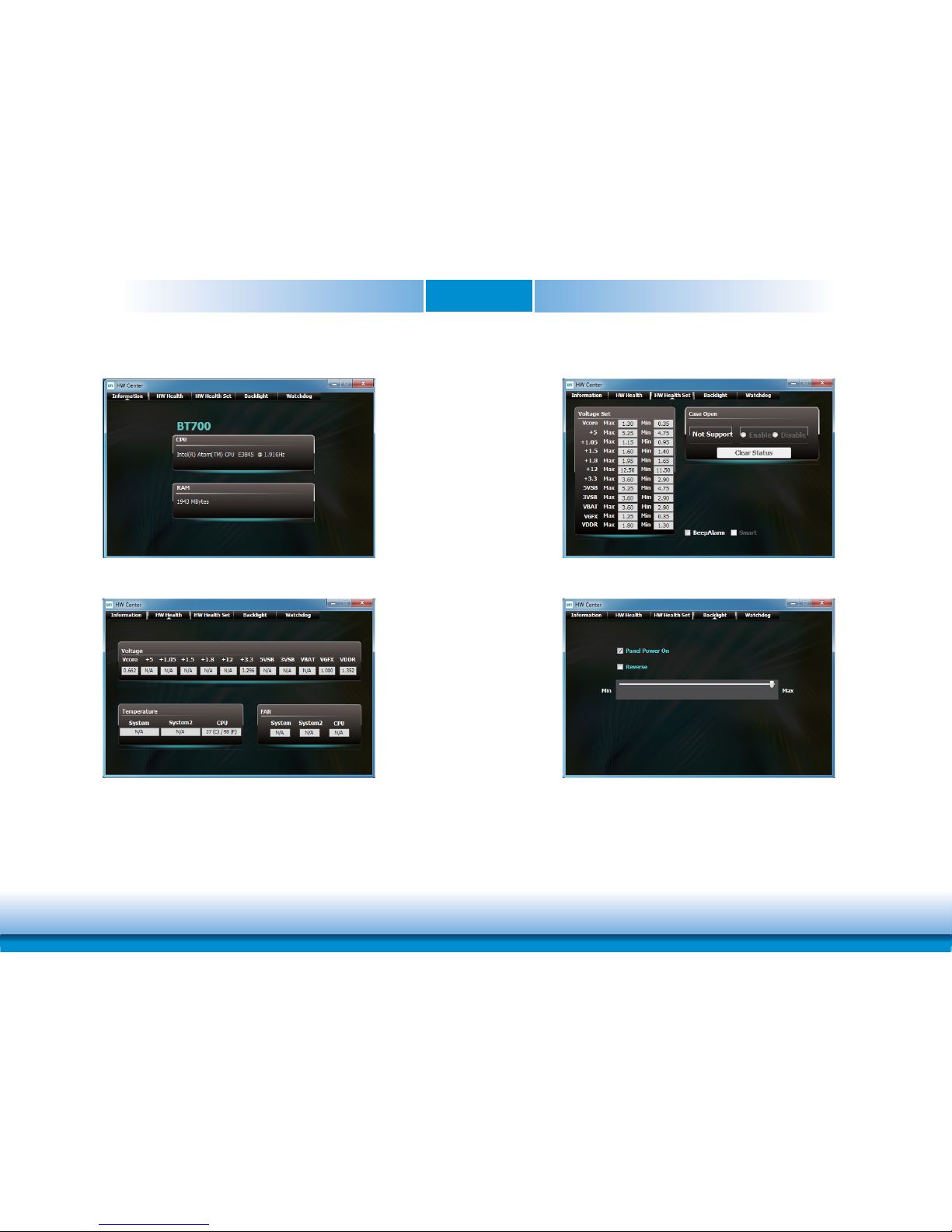

The DFI Utility icon will appear on the desktop. Double-click the icon to open the utility.
Information
HW Health
HW Health Set
Backlight
Page 44
www.dfi .comChapter 4 Supported Software
44
Chapter 4

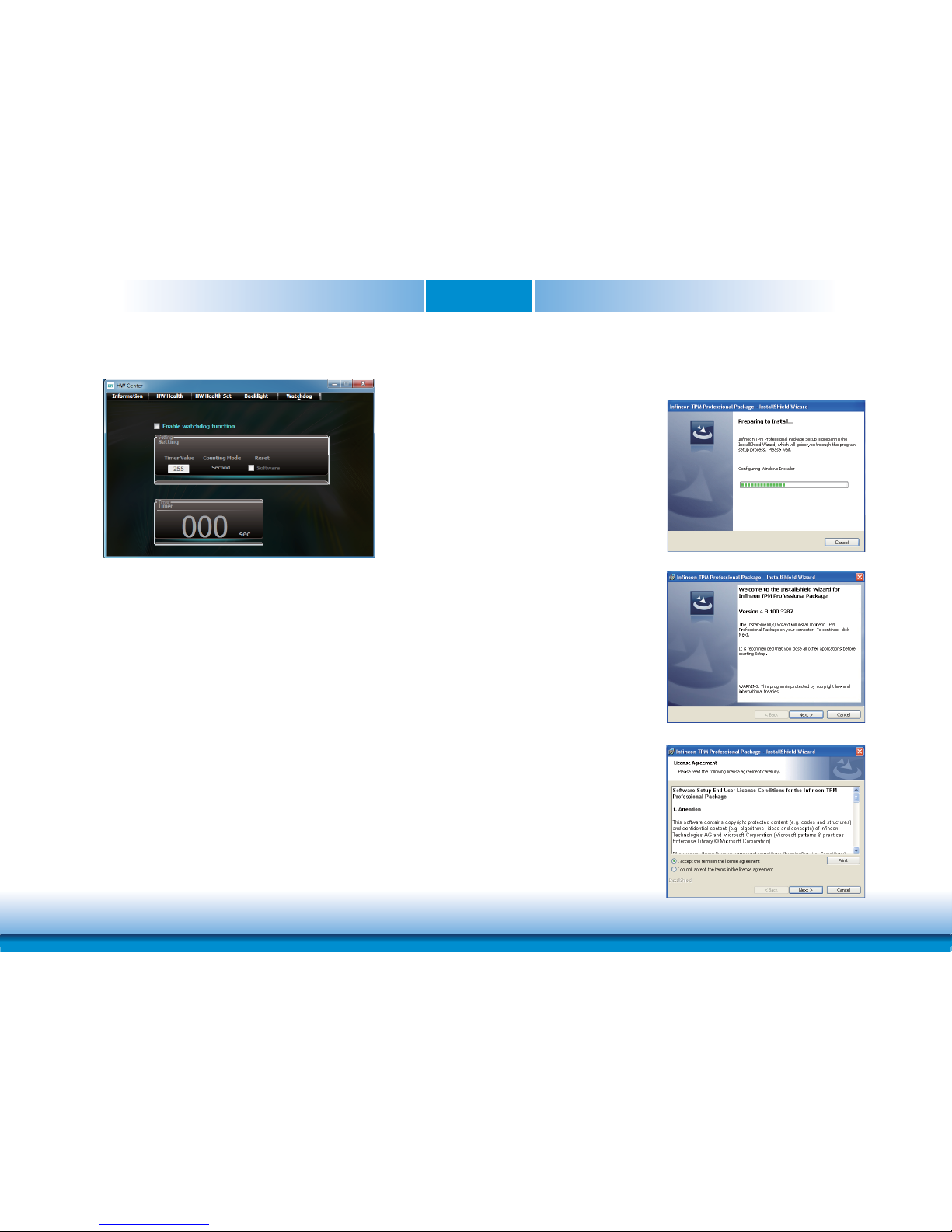

WatchDog
Infineon TPM Driver and Tool (option)
To install the driver, click “Infineon TPM driver and tool (option)” on the main menu.
1. The setup program is preparing
to install the driver.
2. The setup program is now ready
to install the utility. Click Next.
3. Click “I accept the terms in the
license agreement” and then click “Next”.
Page 45
www.dfi .comChapter 4 Supported Software
45
Chapter 4

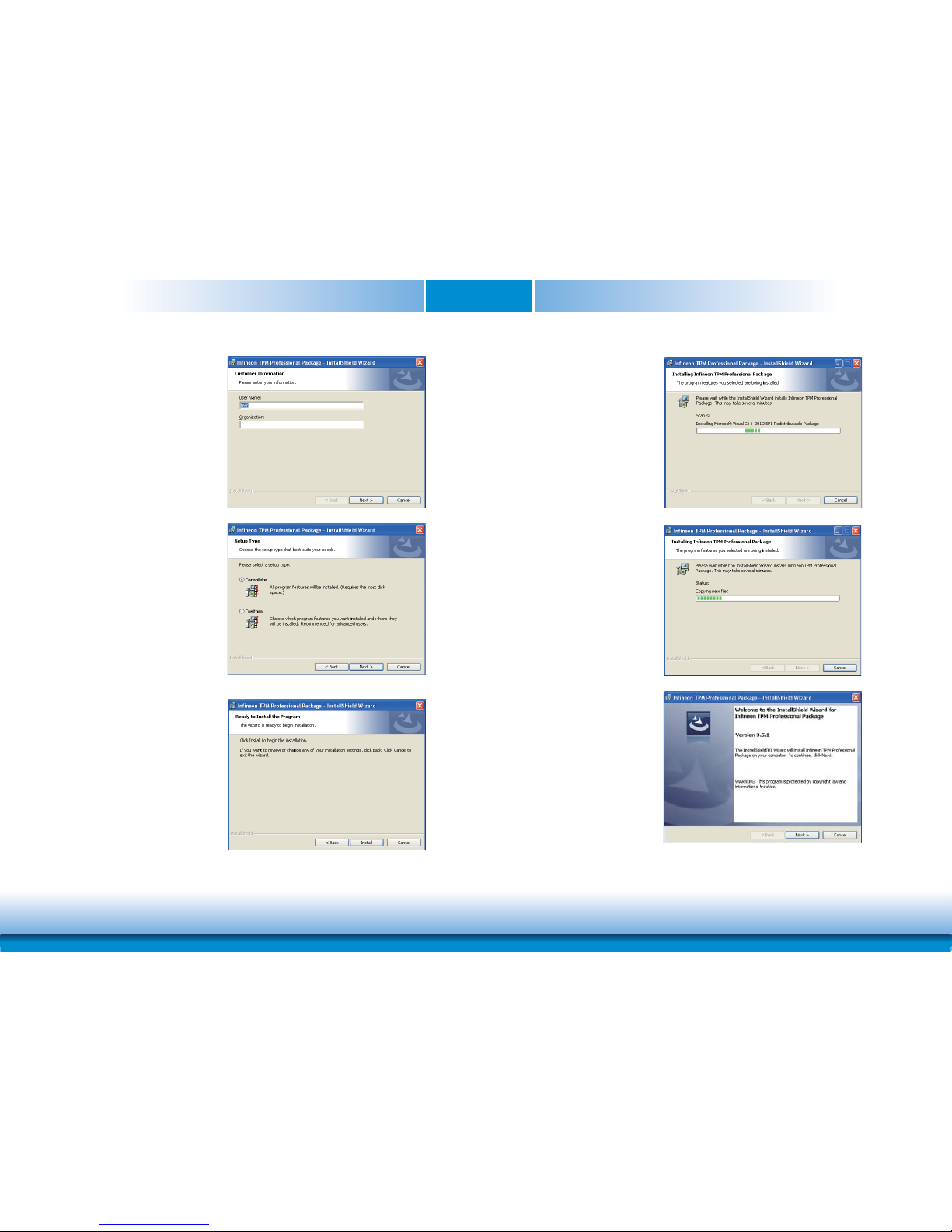

4. Enter the necessary information and then click Next.
5. Select a setup type and then click Next.
6. Click Install.
7. TPM requires installing the Micro­soft Visual C++ package prior to installing the utility. Click Install.
8. The setup program is currently installing the Microsoft Visual C++ package.
9. Click Finish.
Page 46
www.dfi .comChapter 4 Supported Software
46
Chapter 4

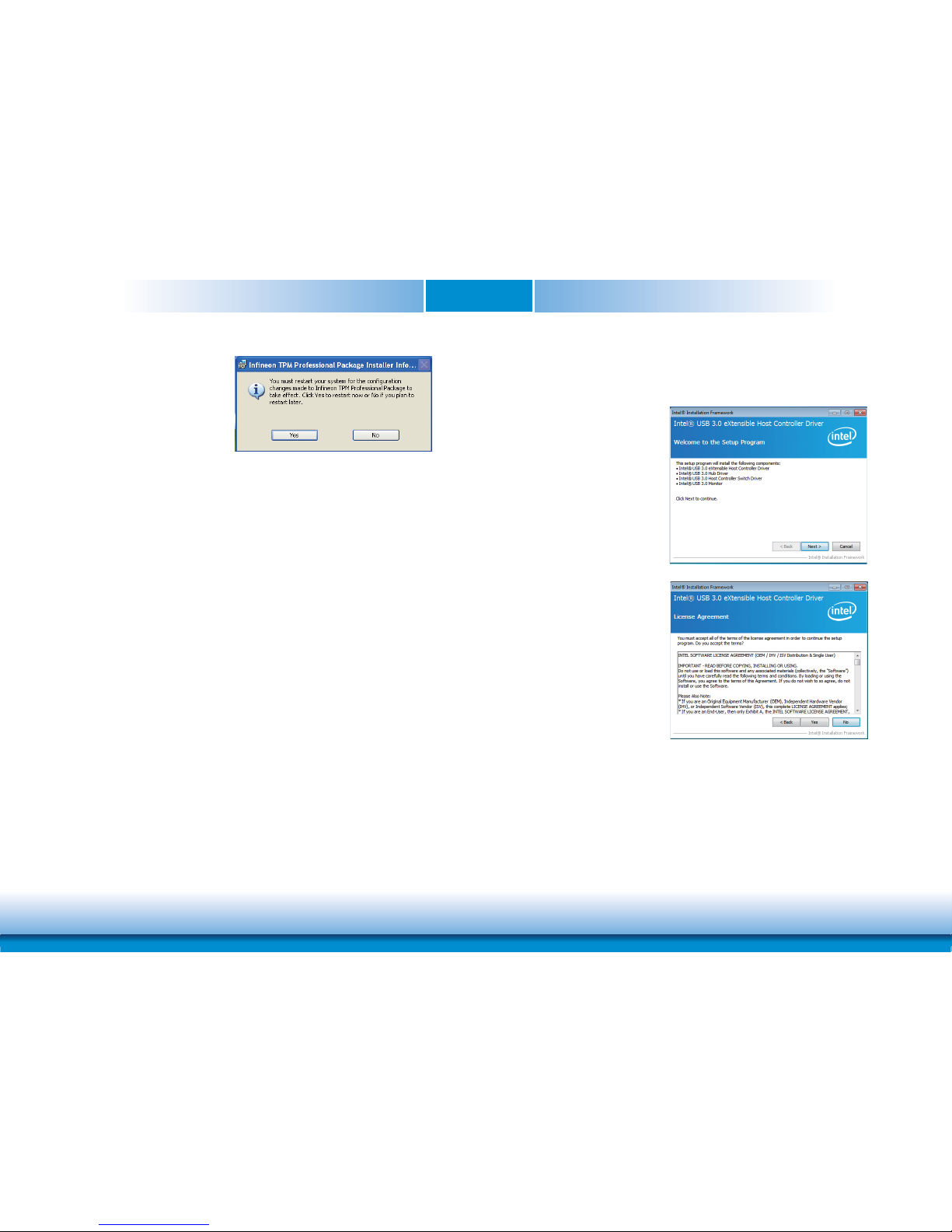

10. Click “Yes“ to restart your system.
2. Read the license agreement then
click Yes.
1. Setup is ready to install the driver.
Click Next.
Intel USB 3.0 Drivers (For Windows 7 Only)
To install the driver, click “Intel USB 3.0 Driver” on the main menu.
Page 47
www.dfi .comChapter 4 Supported Software
47
Chapter 4

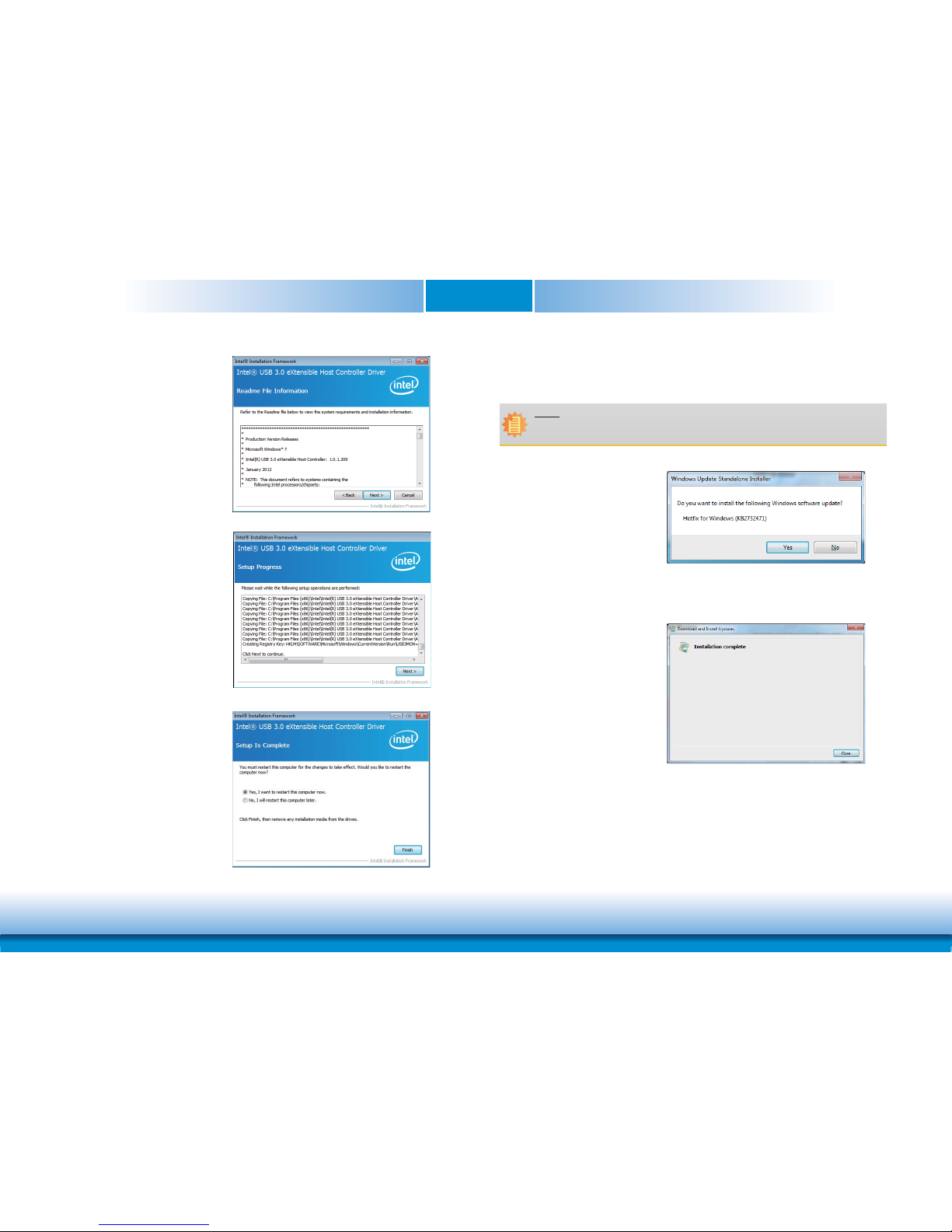

3. Go through the readme docu­ment for more installation tips then click Next.
4. Setup is currently installing the driver. After installation has com­pleted, click Next.
5. After completing installation, click Finish.
IO Driver Patch (For Windows 7 - 64bit Only)
To install the driver, click “IO Driver Patch” on the main menu.
1. Click “Yes” to install the driver update.
2. After the installation is complete, click “Close“.
Note:
When you have problems in using the IO Driver on Windows 7 - 64bit, you need to follow the setps to install the IO Driver Patch.
Page 48
www.dfi .comChapter 4 Supported Software
48
Chapter 4

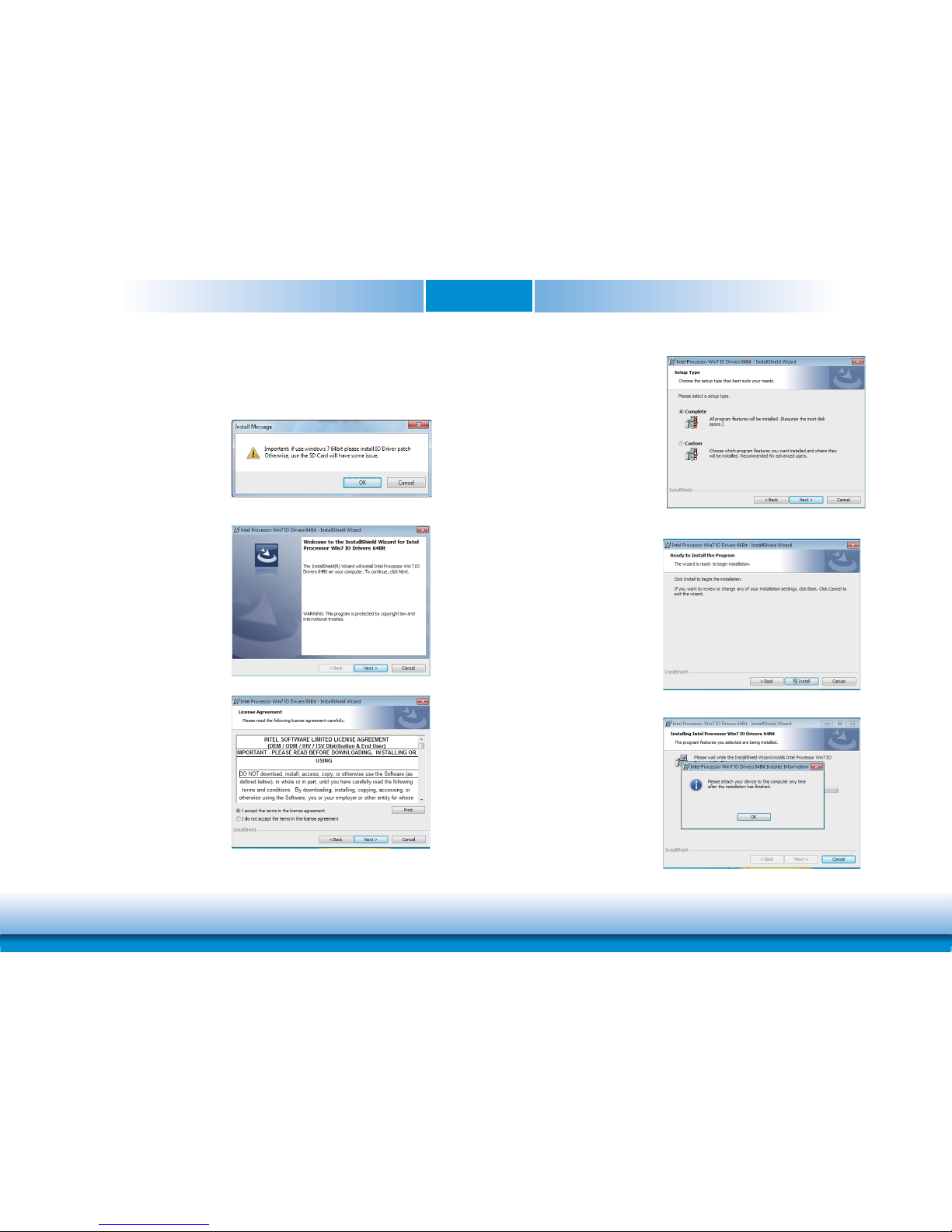

IO Driver
To install the driver, click “IO Driver” on the main menu.
1. The setup program is preparing to install the driver. Click “Next.”
2. Read the license agreement. Click “I accept the terms in the license agreement” and then click “Next”.
3. Choose the setup type and then click “Next”.
4. Click “Install“ to start the installa­tion.
5. A notice for this installation.
Before you install the IO Driver, read the install message and then click “OK”.
Page 49
www.dfi .comChapter 4 Supported Software
49
Chapter 4

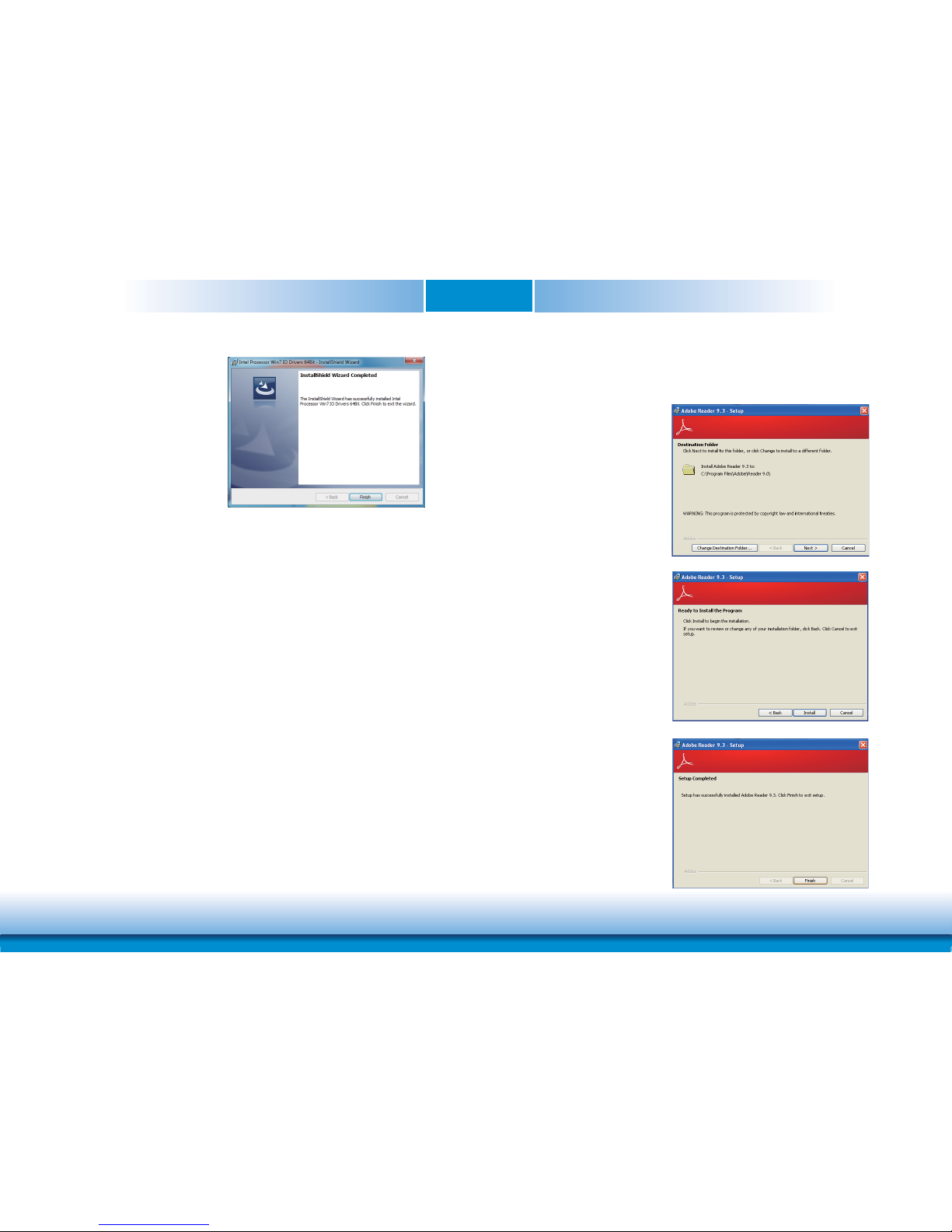

Adobe Acrobat Reader 9.3
To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.
1. Click Next to install or click
Change Destination Folder to select another folder.
2. Click Install to begin installation.
3. Click Finish to exit installation.
5. The installation has been com­pleted successfully. Click “Finish“ to exit the wizard.
Page 50
www.dfi .comAppendix A System Error Message
50
Appendix A
Appendix A - System Error Message
When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter Setup to correct the error.
Error Messages
One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIOSes:
CMOS BATTERY HAS FAILED
The CMOS battery is no longer functional. It should be replaced.
CMOS CHECKSUM ERROR Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error
may have been caused by a weak battery. Check the battery and replace if necessary.
DISPLAY SWITCH IS SET INCORRECTLY
The display switch on the motherboard can be set to either monochrome or color. This indi­cates the switch is set to a different setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.
Important:
Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries accord­ing to the battery manufacturer’s instructions.
Page 51
www.dfi .comAppendix B Troubleshooting
51
Appendix B
Appendix B - Troubleshooting
Troubleshooting Checklist
This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem indi­vidually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.
Some of the most common things to check when you encounter problems while using your system are listed below.
1. The power switch of each peripheral device is turned on.
2. All cables and power cords are tightly connected.
3. The electrical outlet to which your peripheral devices are connected is working. Test the
outlet by plugging in a lamp or other electrical device.
4. The monitor is turned on.
5. The display’s brightness and contrast controls are adjusted properly.
6. All add-in boards in the expansion slots are seated securely.
7. Any add-in board you have installed is designed for your system and is set up correctly.
Monitor/Display
If the display screen remains dark after the system is turned on:
1. Make sure that the monitor’s power switch is on.
2. Check that one end of the monitor’s power cord is properly attached to the monitor and the
other end is plugged into a working AC outlet. If necessary, try another outlet.
3. Check that the video input cable is properly attached to the monitor and the system’s
display adapter.
4. Adjust the brightness of the display by turning the monitor’s brightness control knob
.
The picture seems to be constantly moving.
1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync.
2. Move away any objects, such as another monitor or fan, that may be creating a magnetic field around the display.
3. Make sure your video card’s output frequencies are supported by this monitor.
The screen seems to be constantly wavering.
1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off. Fluorescent lights adjacent to the monitor may also cause screen wavering.
Power Supply
When the computer is turned on, nothing happens.
1. Check that one end of the AC power cord is plugged into a live outlet and the other end properly plugged into the back of the system.
2. Make sure that the voltage selection switch on the back panel is set for the correct type of voltage you are using.
3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if necessary.
Page 52
www.dfi .comAppendix B Troubleshooting
52
Appendix B
Hard Drive
Hard disk failure.
1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.
2. If the system is configured with two hard drives, make sure the bootable (first) hard drive
is configured as Master and the second hard drive is configured as Slave. The master hard drive must have an active/bootable partition.
Excessively long formatting period.
If your hard drive takes an excessively long period of time to format, it is likely a cable con­nection problem. However, if your hard drive has a large capacity, it will take a longer time to format.
Serial Port
The serial device (modem, printer) doesn’t output anything or is outputting garbled
characters.
1. Make sure that the serial device’s power is turned on and that the device is on-line.
2. Verify that the device is plugged into the correct serial port on the rear of the computer.
3. Verify that the attached serial device works by attaching it to a serial port that is work-
ing and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.
4. Make sure the COM settings and I/O address are configured correctly.
Keyboard
Nothing happens when a key on the keyboard was pressed.
1. Make sure the keyboard is properly connected.
2. Make sure there are no objects resting on the keyboard and that no keys are pressed dur-
ing the booting process.
System Board
1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system.
2. Check the jumper settings to ensure that the jumpers are properly set.
3. Verify that all memory modules are seated securely into the memory sockets.
4. Make sure the memory modules are in the correct locations.
5. If the board fails to function, place the board on a flat surface and seat all socketed compo­nents. Gently press each component into the socket.
6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.
Loading...
