DFI BL600-D User Manual

BL600-DR

BL600-D

System Board User’s Manual

A04550127

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Table of Contents

About this Manual................................................................................

Warranty.................................................................................................

Static Electricity Precaution................................................................

Safety Measures.....................................................................................

About the Package...............................................................................

Before Using the System Board.........................................................

Chapter 1 - Introduction....................................................................

Specifications...................................................................................................................................

Features..............................................................................................................................................

Chapter 2 - Hardware Installation....................................................

System Board Layout ..........................................................................................................

System Memory..........................................................................................................................

CPU.......................................................................................................................................................

Jumper Settings............................................................................................................................

Rear Panel I/O Ports.............................................................................................................

I/O Connectors..........................................................................................................................

5 5 6 6 7 7

8 8

15 15 16 20 25 30 40

Chapter 3 - BIOS Setup......................................................................

Award BIOS Setup Utility.................................................................................................

Intel RAID BIOS........................................................................................................................

Updating the BIOS..................................................................................................................

Chapter 4 - Supported Softwares.....................................................

Chapter 5 - RAID.................................................................................

Appendix A - Watchdog Timer.............................................................

Appendix B - System Error Messages...............................................

Appendix C - Troubleshooting..........................................................

Appendix D - NLITE and AHCI Installation Guide......................

60 102 103

105

125

130

132

134

138

About this Manual

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, inser t the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

Introduction

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend the manufacturer.

• Dispose of used batteries according to local ordinance.

About the Package

The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

; The system board ; A user’s manual ; One IDE cable ; Two USB port cables ; Two Serial ATA data cables ; Two Serial ATA power cables ; One “Main Board Utility” CD ; One I/O shield ; One QR (Quick Reference)

Introduction

The system board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.

Introduction

Chapter 1 - Introduction

Specifications

Processor

Chipset

System Memory

BIOS

Energy Efficient Design

Damage Free Intelligence

• LGA 775 socket for:

- Intel® CoreTM2 Quad / Intel® CoreTM2 Duo

- Intel® Wolfdale 45nm processors

• Suppor ts Intel Enhanced Memory 64 Technology (EMT64T)

• Supports Enhanced Intel SpeedStep Technology (EIST)

• 1333*/1066/800MHz FSB *Available on CPUs that support 1333MHz FSB

• Intel

chipset

- Intel® Q35 Express chipset

- Intel® ICH9R I/O Controller Hub (BL600-DR)

Intel® ICH9 I/O Controller Hub (BL600-D)

• Four 240-pin DDR2 DIMM sockets

• Supports dual channel (128-bit wide) memor y interface

• Supports 667MHz and 800MHz DDR2 SDRAM

• Supports maximum of 8GB system memory using 512Mbit or 1Gbit technology for x8 and x16 devices *ECC DDR2 DIMMs are not supported

• Award BIOS

• 8Mbit flash memory

• Suppor ts ACPI specification and OS Directed Power Management

• Suppor ts ACPI STR (Suspend to RAM) function

• Wake-On-Events include:

- Wake-On-PS/2 Keyboard/Mouse

- Wake-On-USB Keyboard/Mouse

- Wake-On-LAN and Wake-On-Ring

- RTC timer to power-on the system

• System power management supported

• Microsoft®/Intel®APM 1.2 compliant

• Soft Power supported - ACPI v1.0a specification

• AC power failure recovery

• Monitors CPU/system/AUX temperature and overheat alarm

• Monitors CPU(V)/5V/1.5V/dimm(V)/12V/VBAT(V)/3.3V/ V3.3sb(V) voltages and failure alarm

• Monitors CPU/system/2nd fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

• Watchdog timer function

Introduction

Audio

Graphics

LAN

Serial ATA

• Realtek ALC885 8-channel HD Audio Codec

• High-performance DACs with 106dB dynamic range (A-Weight), ADCs with 101dB dynamic range (A-Weight)

• Integrated Intel GMA3100

- Up to 384MB maximum video memory

- 2048x1536 at 75 Hz maximum resolution

- Suppor ts DVI port through Serial Digital Video Out (SDVO)

interface

- Dual screen display through CRT and DVI-I (DVI-D signal only)

ports

• Two Realtek RTL8111DL PCI Express Gigabit controllers

• Suppor ts 10Mbps, 100Mbps and 1Gbps data transmission

• IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps) compliant

• Supports Serial ATA interfaces which are compliant with SATA

1.0 specification

• BL600-DR

- Supports up to 6 SATA devices

- SATA speed up to 3Gb/s

- RAID 0, RAID 1, RAID 0+1 and RAID 5

• BL600-D

- Supports up to 4 SATA devices

- SATA speed up to 3Gb/s

IDE

Rear Panel I/O Ports

• JMicron JMB368 PCI Express to PATA host controller

• Supports up to 2 UltraDMA 33/66/100Mbps IDE devices

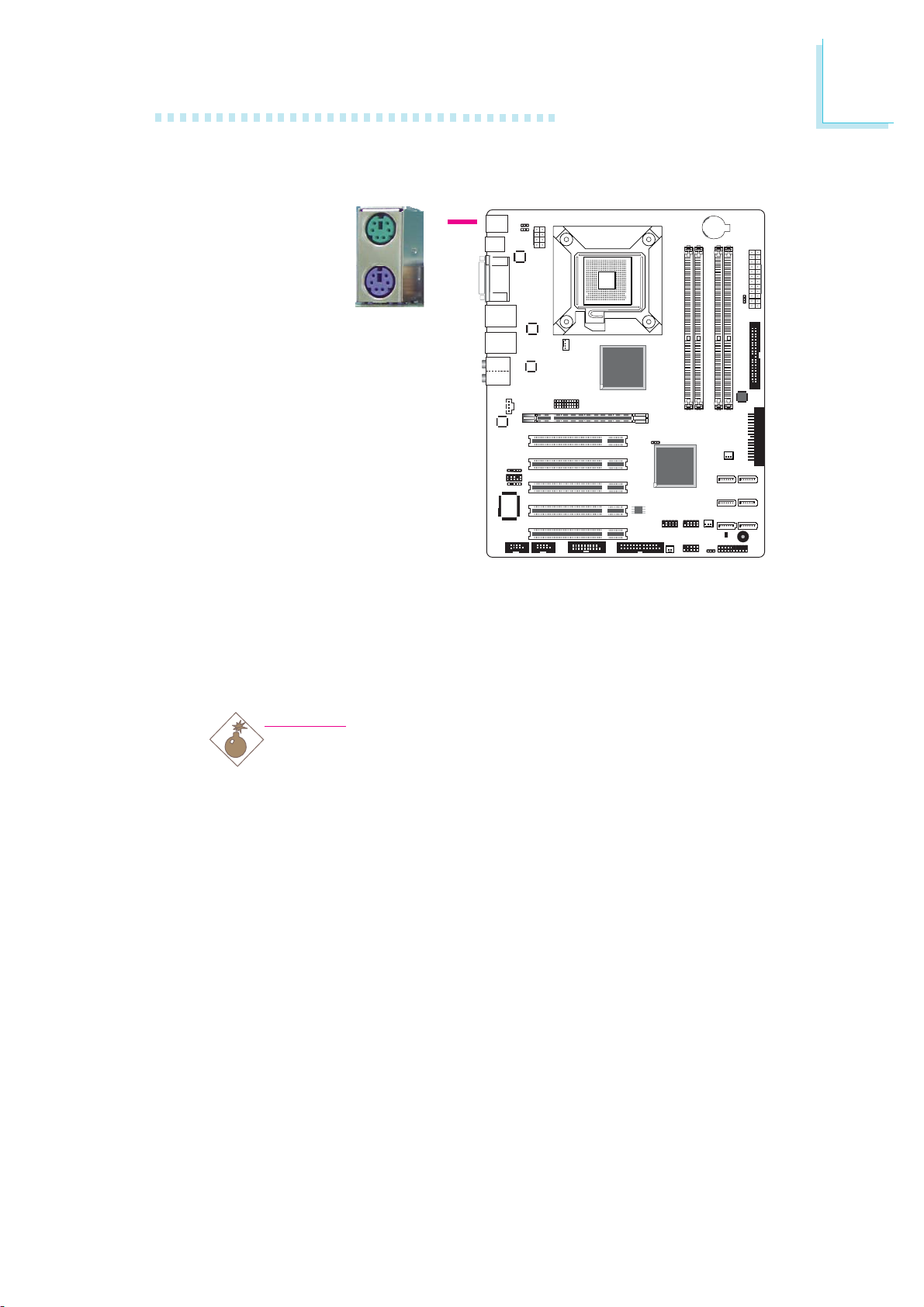

• 1 mini-DIN-6 PS/2 mouse port

• 1 mini-DIN-6 PS/2 keyboard port

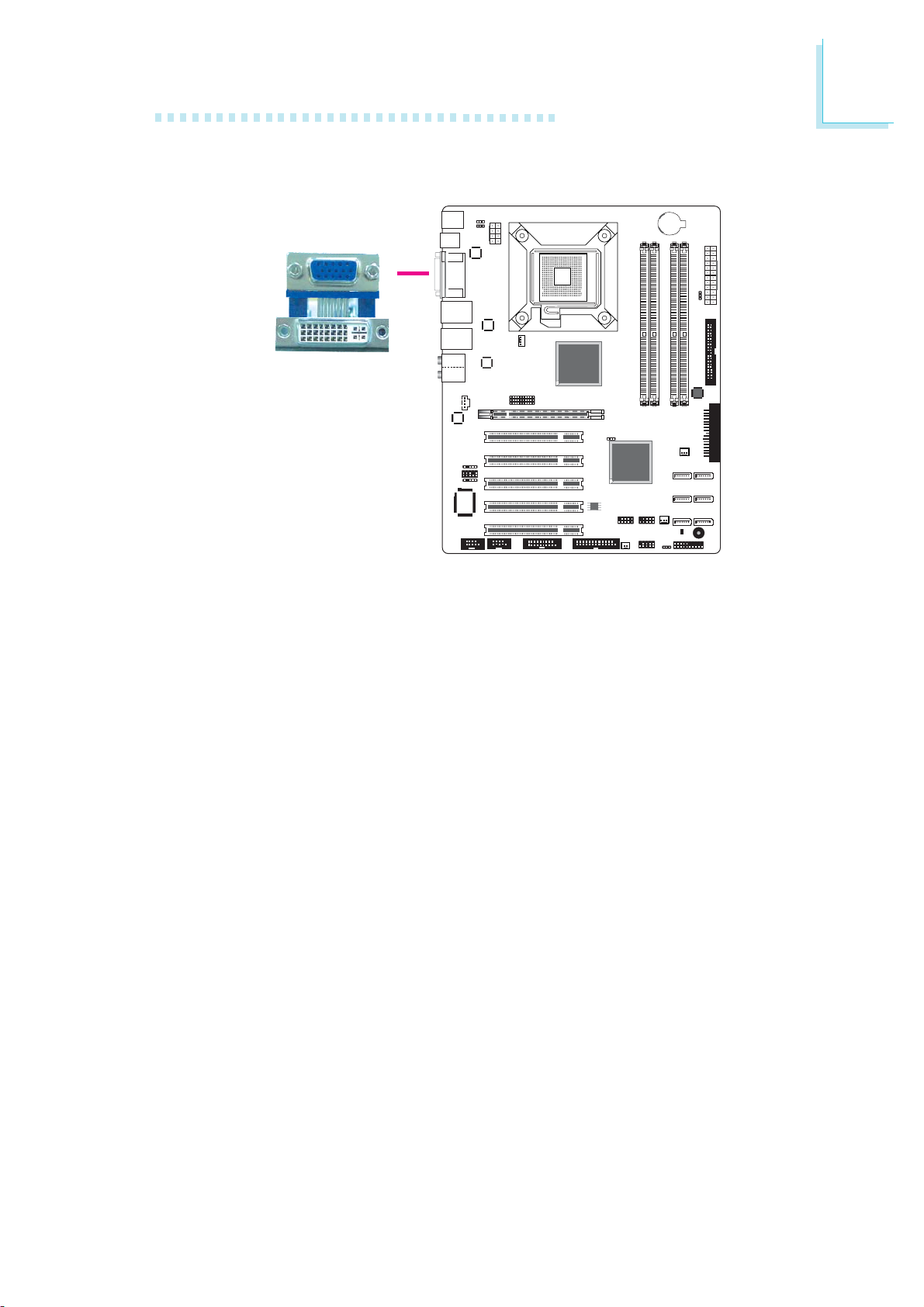

• 1 DB-15 VGA port

• 1 DVI-I port (DVI-D signal only)

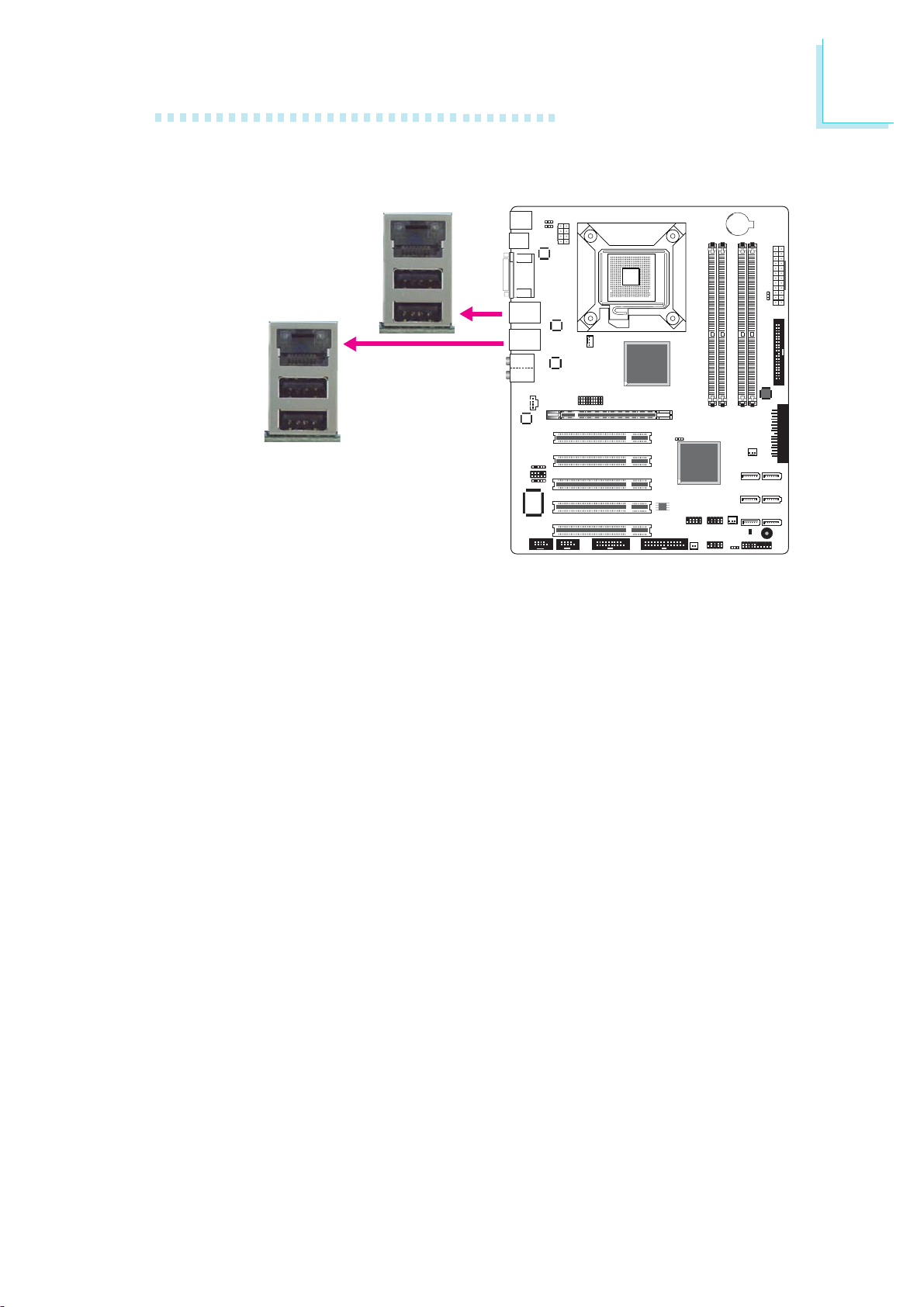

• 2 RJ45 LAN por ts

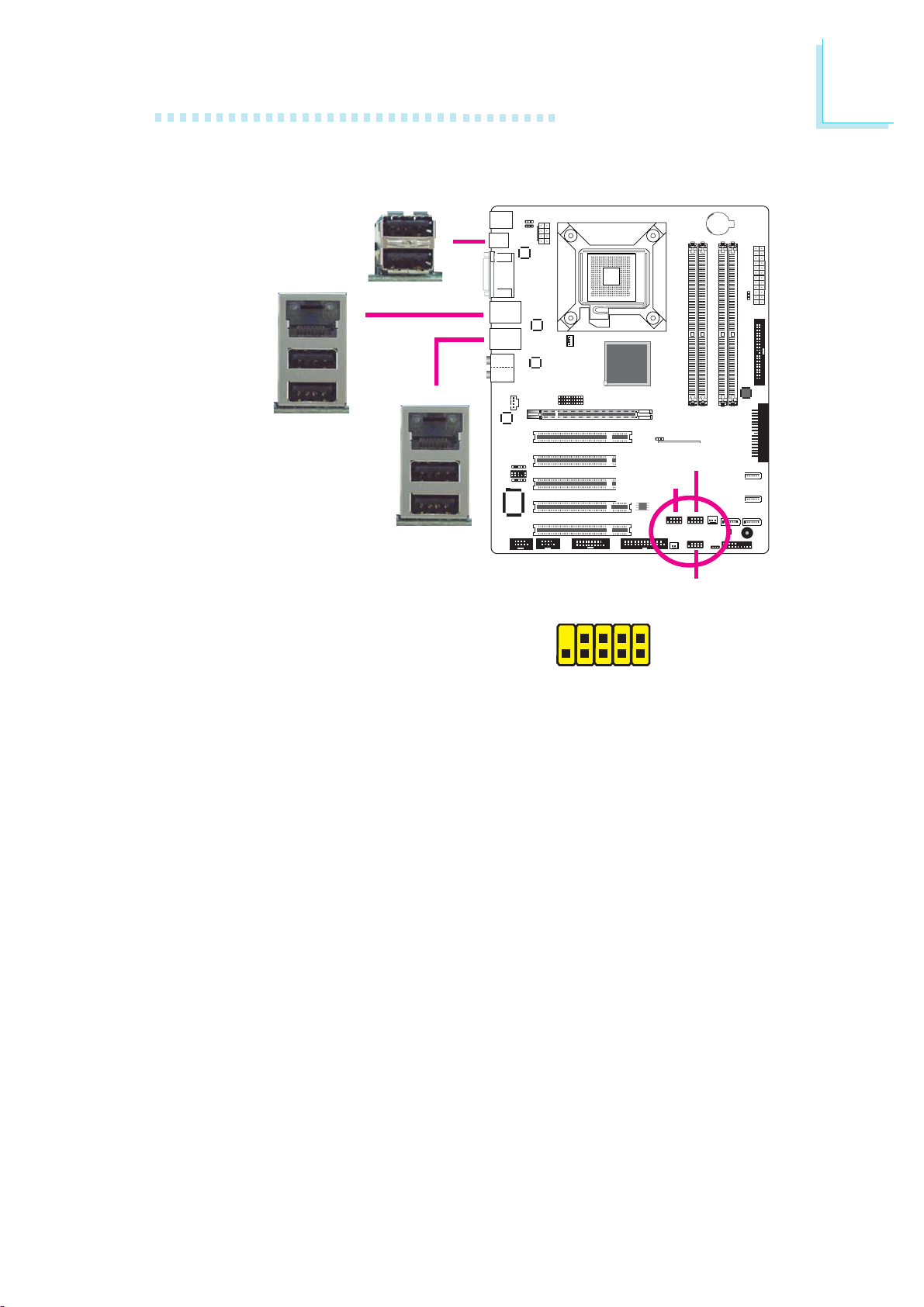

• 6 USB 2.0/1.1 ports

• 6 audio jacks for center/subwoofer, rear R/L, side R/L, line-in, lineout (front R/L) and mic-in

Introduction

I/O Connectors

Expansion Slots

Temperature

Humidity

PCB

• 3 connectors for 6 additional external USB 2.0/1.1 ports

• 2 connectors for external serial ports

• 1 DIO connector

• 1 parallel connector

• 1 front audio connector for line-out and mic-in jacks

• 1 CD-in internal audio connector

• 1 S/PDIF-in/out connector

• 1 connector for IrDA interface

• 6 Serial ATA connectors (BL600-DR) 4 Serial ATA connectors (BL600-D)

• 1 40-pin IDE connector

• 1 floppy connector

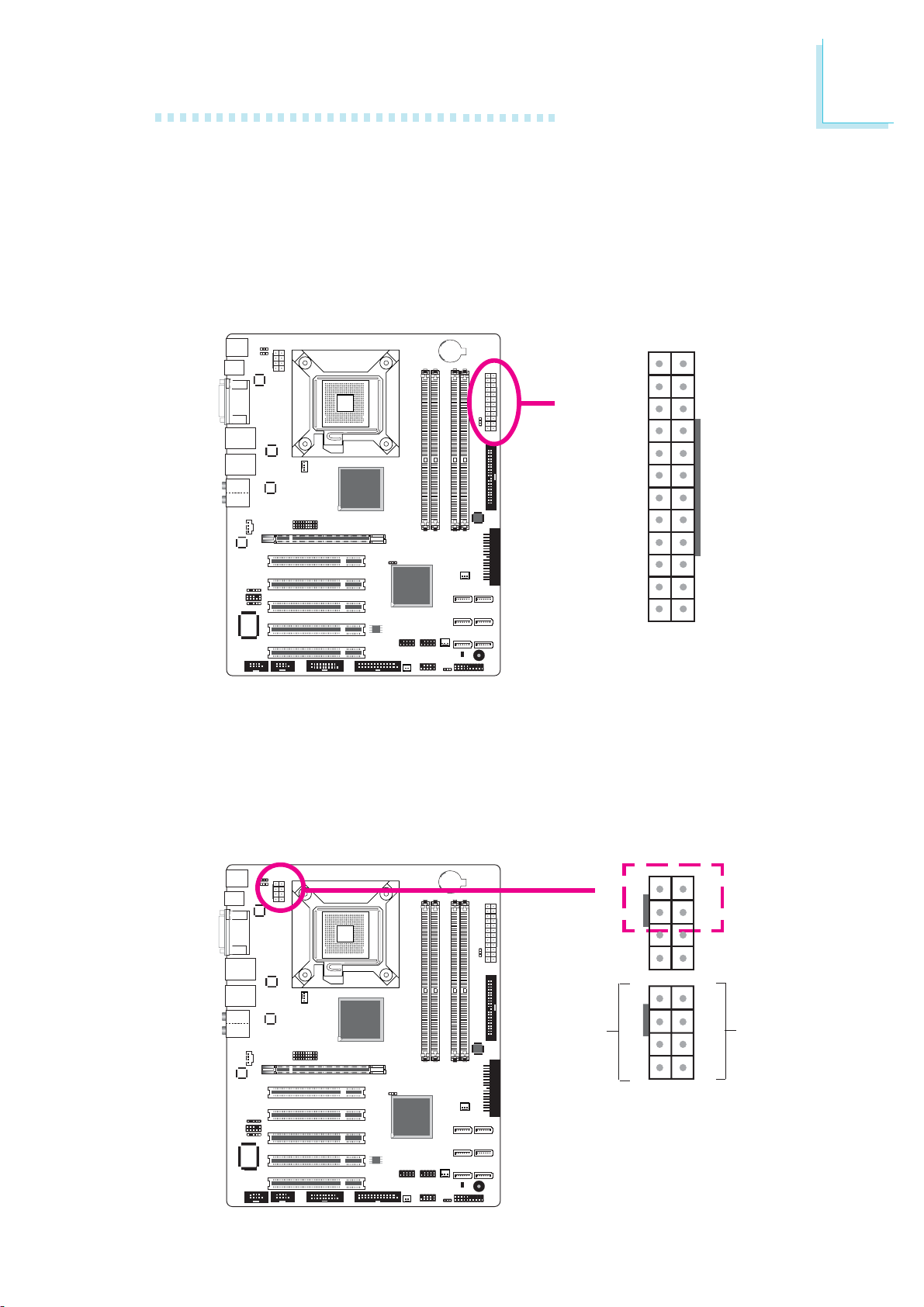

• 1 24-pin ATX power connector

• 1 8-pin 12V power connector

• 1 chassis open connector

• 1 front panel connector

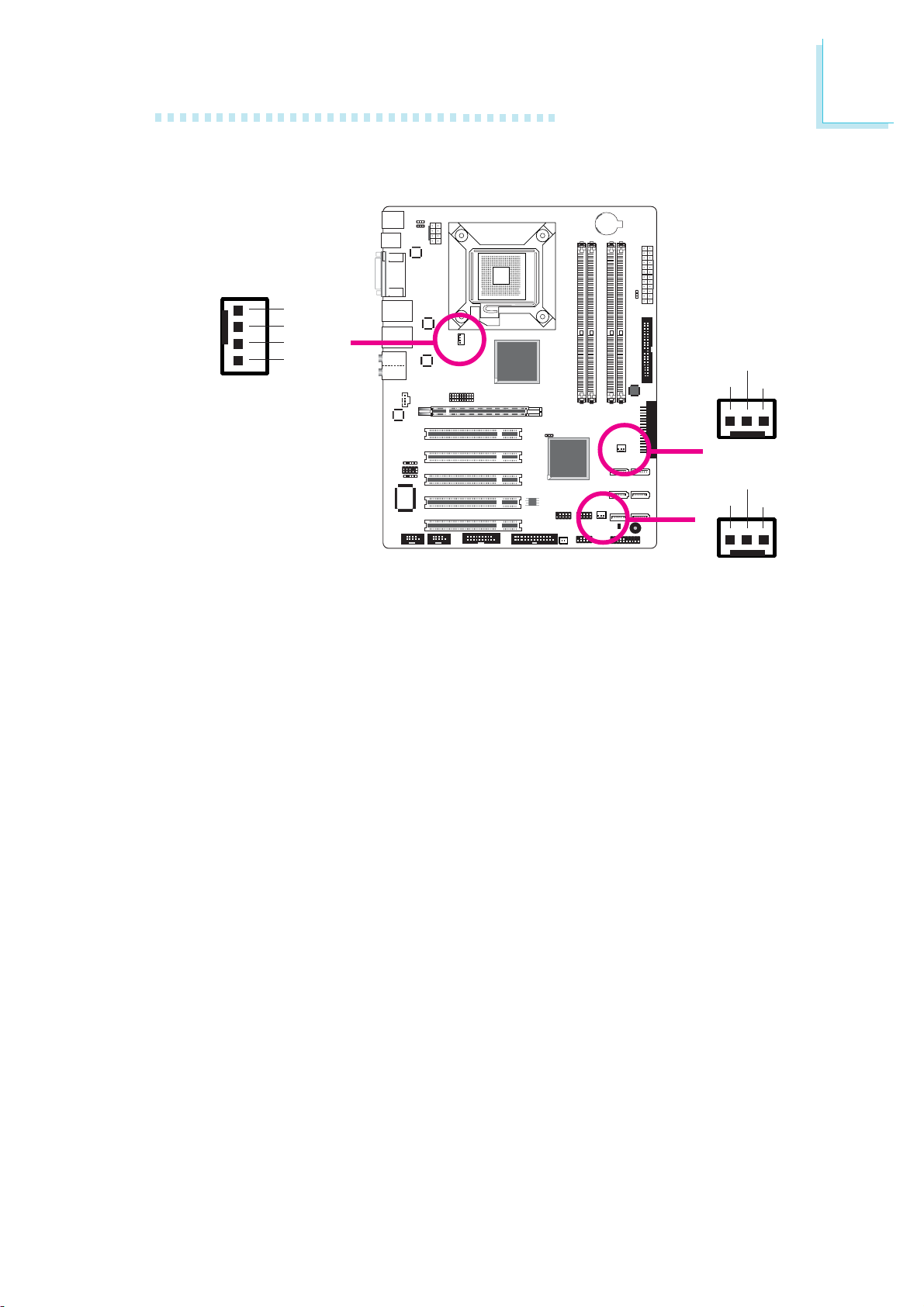

• 3 fan connectors

• 1 PCI Express x16 slot

• 5 PCI slots

•0

C to 60oC

• 10% to 90%

• 4 layers, ATX form factor

• 30.5cm (12") x 24.4cm (9.6")

Features

Introduction

watchdog timer

the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

DDR2

GB per second and beyond. That is twice the speed of the conventional DDR without increasing its power consumption. DDR2 SDRAM modules work at 1.8V supply compared to 2.6V memory voltage for DDR modules. DDR2 also incorporates new innovations such as the On-Die Termination (ODT) as well as larger 4-bit prefetch against DDR which fetches 2 bits per clock cycle.

graphics

ports analog CRT and DVI-I interfaces.

DDR2 is a higher performance DDR technology whose data transfer rate delivers bandwidth of 4.3

The graphics flexibility of the built-in Intel GMA3100 delivers exceptional 3D graphics performance. It sup-

The Watchdog Timer function allows your application to regularly “clear” the system at

DVI

panel LCD monitors and modern video graphics cards. Data is transmitted using the TMDS (Transition Minimized Differential Signaling) protocol, providing a digital signal from the PC’s graphics subsystem to the display.

7.1 + 2 channel audio

channel audio output for advanced 7.1-channel super surround sound audio system. ALC885 also supports S/PDIF output, allowing digital connections with DVD systems or other audio/video multimedia.

DVI (Digital Visual Interface) is a form of video interface technology made to maximize the quality of flat

The onboard Realtek ALC885 is a High Definition audio codec and the 6 audio jacks at the rear I/O panel provides 8-

Introduction

S/PDIF

having to be converted first to an analog format. This prevents the quality of the audio signal from degrading whenever it is converted to analog. S/PDIF is usually found on digital audio equipment such as a DAT machine or audio processing device. The S/PDIF connector on the system board sends surround sound and 3D audio signal outputs to amplifiers and speakers and to digital recording devices like CD recorders.

ide

SERIAL ATA

3Gbps, it improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s. The BL600-DR board allows configuring RAID 0, RAID 1, RAID 0+1 and RAID 5 on Serial ATA drives connected to SATA ports 0, 1, 2, 3, 4 and 5.

S/PDIF is a standard audio file transfer format that transfers digital audio signals to a device without

The JMicron JMB368 chip supports up to two UltraDMA 100Mbps IDE devices.

Serial ATA is a storage interface that is compliant with SATA 1.0 specification. With speed of up to

gigabit lan

irda

and peripheral devices. The IRDA (Infrared Data Association) specification supports data transfers of 115K baud at a distance of 1 meter.

USB

while USB 2.0 supports 480Mb/second bandwidth providing a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

pci express

enhancing the capability of a x16 PCI Express lane to provide 4 Gigabytes per second transfer rate.

The two Realtek PCI Express Gigabit LAN controllers suppor t up to 1Gbps data transmission.

The system board is equipped with an IrDA connector for wireless connectivity between your computer

The system board supports USB 2.0 and USB 1.1 ports. USB 1.1 supports 12Mb/second bandwidth

The PCI Express architecture provides a high performance graphics infrastructure by

Introduction

wake-on-ring

wake-up/power-on to respond to calls coming from an external modem or respond to calls from a modem PCI card that uses the PCI PME (Power Management Event) signal to remotely wake up the PC.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

wake-on-lan

It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

This feature allows the system that is in the Suspend mode or Soft Power Off mode to

This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC.

wake-on-PS/2

tem.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

wake-on-USB

from the S3 (STR - Suspend To RAM) state.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the 5V_standby power source of your power supply must support

≥

2A.

This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the sys-

This function allows you to use a USB keyboard or USB mouse to wake up a system

Introduction

rtc timer

and time.

ACPI STR

fication. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. Currently, only Win-

®®

dows the Power Management Setup will allow you to use the Suspend to RAM function.

With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down Windows through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.

2000/XP supports the ACPI function. ACPI when enabled in

The RTC installed on the system board allows your system to automatically power-on on the set date

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) speci-

®®

2000/XP without having to go

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Power failure recovery

automatically.

When power returns after an AC power failure, you may choose to either power-on the system manually or let the system power-on

Hardware Installation

Chapter 2 - Hardware Installation

System Board Layout

USB 6/7/8/9/10/11

power select (JP3)

Mouse

USB 10 USB 11

Top:VGA

Bottom: DV -II

LAN 1

USB 8 USB 9

LAN 2

USB 6 USB 7

Center/Subwoofer

Rear R/L

Side R/L

Line-in Line-out Mic-in

CD-in

Audio

codec

PS/2 power select (JP1)

Chrontel CH7307C

Realtek

RTL8111DL

Realtek

RTL8111DL

+12V power

PCIE x16 / DVI

1 11 21

CPU fan

select (JP8)

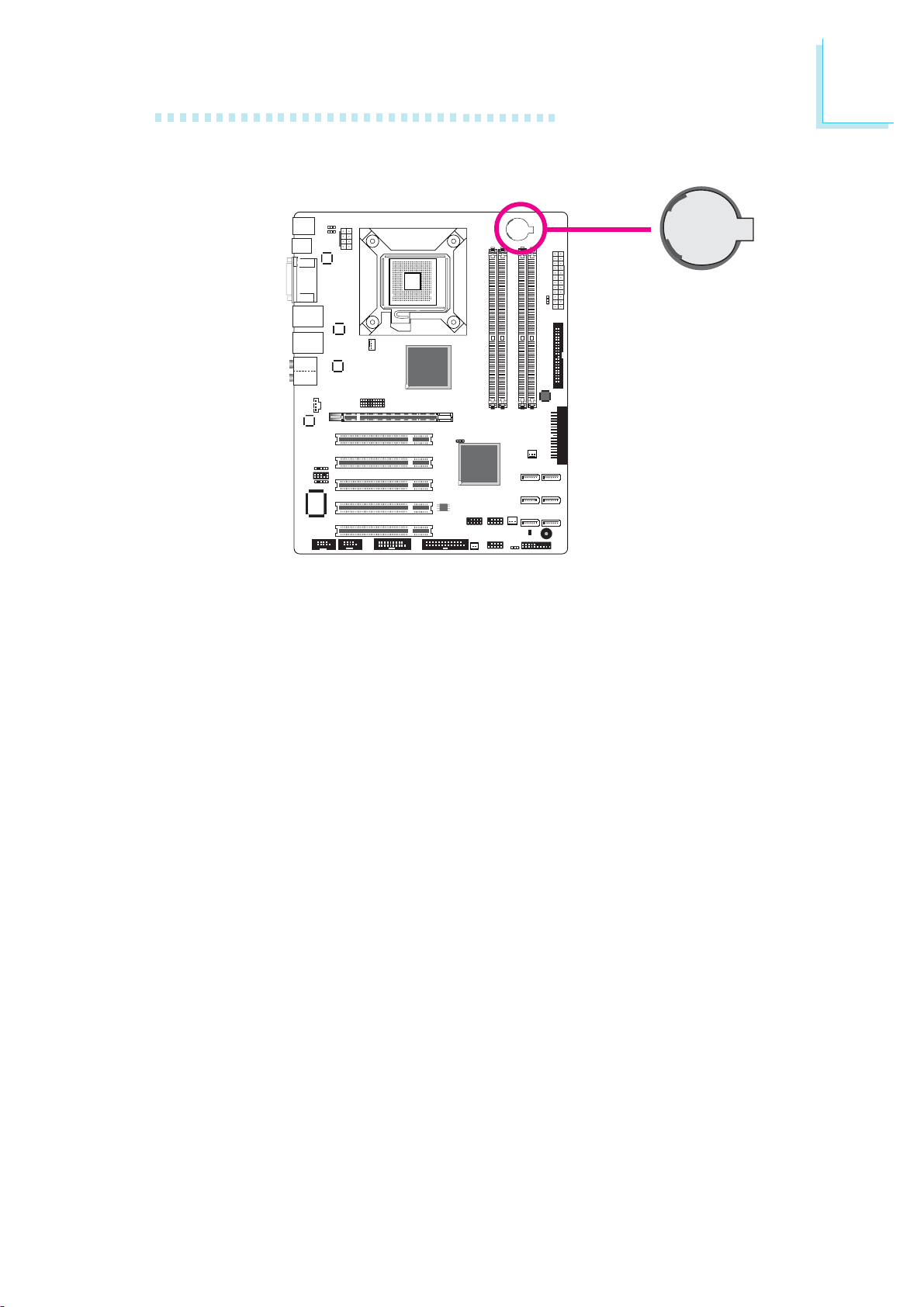

Battery

ATX p ow er

Socket 775

Power-on

select (JP6)

Intel

Q35

IDE

10 20 30

PCIE1

PCI 1

DDR2-1

Clear CMOS (JP5)

DDR2-2

DDR2-3

DDR2-4

JMB368

FDD

System fan

2nd fan

SATA 1

SATA 3

SATA 5

Standby Power LED

Front panel

SATA 0

SATA 2

1 1

SATA 4

I/O

chip

S/PDIF

IrDA

COM 2

Front audio

COM 1

PCI 2

Intel

ICH9R

PCI 3

PCI 4

SPI Flash BIOS

PCI 5

Parallel

DIO

USB 8-7

Chassis open

USB 2-1

USB 0/1/2/3/4/5

power select (JP2)

USB 5-4

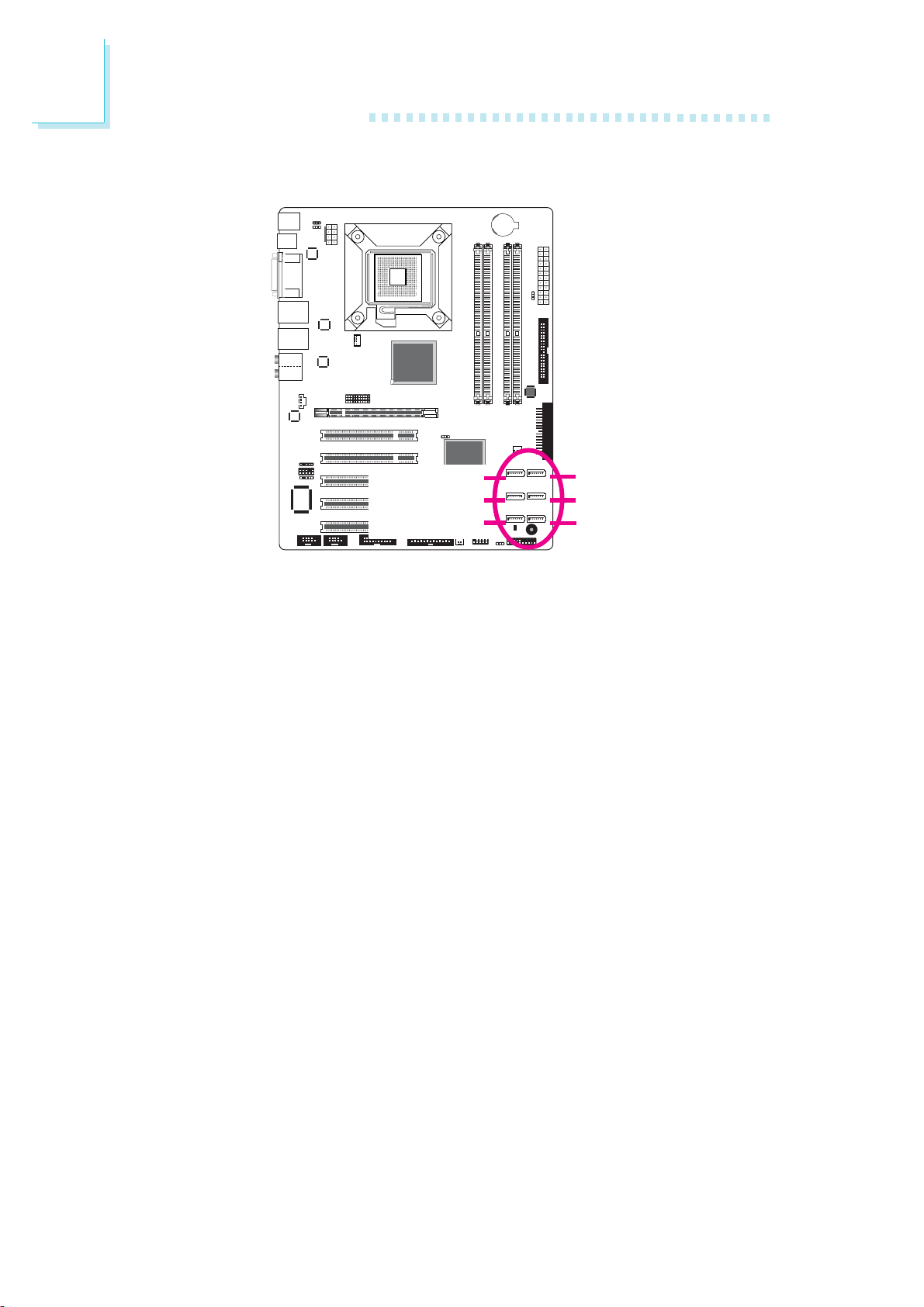

The BL600-DR board (shown above) uses the ICH9R southbridge and supports 6 SATA ports. On a BL600-D board, it uses ICH9 southbridge and supports 4 SATA ports only (SATA 0/1/4/5).

Note:

The DVI-I port supports DVI-D signal only.

Hardware Installation

Warning:

Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

System Memory

DDR2-1 DDR2-2

DDR2-3 DDR2-4

Channel A

Channel B

The system board supports 240-pin DDR2 DIMM sockets. The four DDR2 DIMM sockets on the system board are divided into 2 channels:

Channel A - DDR2-1 and DDR2-2 Channel B - DDR2-3 and DDR2-4

Hardware Installation

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory channels.

Dual Channel (DC)

Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate.

Single Channel

Dual Channel

BIOS Setting

Configure the system memory in the Advanced Chipset Features submenu of the BIOS.

• DIMMs are on the same channel.

• DIMMs in a channel can be identical or

completely different. However, we highly recommend using identical DIMMs.

• Not all slots need to be populated.

• DIMMs of the same memory configura-

tion are on different channels.

Hardware Installation

Installing the DIM Module

Note:

The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the DDR2 socket on the system board.

4. Push the “ejector tabs” which are at the ends of the socket to the side.

Ejector

tab

DDR2 sockets

5. Note how the module is keyed to the socket.

Notch

Ejector tab

Key

Hardware Installation

6. Grasping the module by its edges, position the module above the socket with the “notch” in the module aligned with the “key” on the socket. The keying mechanism ensures the module can be plugged into the socket in only one way.

7. Seat the module vertically, pressing it down firmly until it is completely seated in the socket.

8. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

Hardware Installation

CPU

Overview

The system board is equipped with a surface mount LGA 775 socket. This socket is exclusively designed for installing a LGA 775 packaged Intel CPU.

Important:

1. Before you proceed, make sure (1) the LGA775 socket1. Before you proceed, make sure (1) the LGA775 socket

1. Before you proceed, make sure (1) the LGA775 socket

1. Before you proceed, make sure (1) the LGA775 socket1. Before you proceed, make sure (1) the LGA775 socket comes with a protective cap, (2) the cap is not dam-comes with a protective cap, (2) the cap is not dam-

comes with a protective cap, (2) the cap is not dam-

comes with a protective cap, (2) the cap is not dam-comes with a protective cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent. Ifaged and (3) the socket’s contact pins are not bent. If

aged and (3) the socket’s contact pins are not bent. If

aged and (3) the socket’s contact pins are not bent. Ifaged and (3) the socket’s contact pins are not bent. If the cap is missing or the cap and/or contact pins arethe cap is missing or the cap and/or contact pins are

the cap is missing or the cap and/or contact pins are

the cap is missing or the cap and/or contact pins arethe cap is missing or the cap and/or contact pins are damaged,damaged,

damaged,

damaged,damaged,

2. Make sure to keep the protective cap. RMA requests2. Make sure to keep the protective cap. RMA requests

2. Make sure to keep the protective cap. RMA requests

2. Make sure to keep the protective cap. RMA requests2. Make sure to keep the protective cap. RMA requests will be accepted and processed only if the LGA775will be accepted and processed only if the LGA775

will be accepted and processed only if the LGA775

will be accepted and processed only if the LGA775will be accepted and processed only if the LGA775 socket comes with the protective cap.socket comes with the protective cap.

socket comes with the protective cap.

socket comes with the protective cap.socket comes with the protective cap.

contact your dealer immediately contact your dealer immediately

contact your dealer immediately

contact your dealer immediately contact your dealer immediately

Installing the CPU

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the LGA 775 CPU socket on the system board.

Important:

The CPU socket must not come in contact with anything other than the CPU. Avoid unnecessary exposure. Remove the protective cap only when you are about to install the CPU.

Hardware Installation

4. The CPU socket comes with a cover that is attached with a removable protective cap. The cap is used to protect the CPU socket against dust and harmful par ticles. Remove the protective cap only when you are about to install the CPU.

5. Lift the protective cap from the location pointed below to detach the cap from the cover.

Cover

Protective cap

Lever

Lift this part up

6. Unlock the socket by pushing the lever down, moving it away from the side tab of the socket, then lifting it up.

7. Now lift the cover.

Lever lifted

Ta b

Cover

Hardware Installation

8. Position the CPU above the socket. The gold mark on the CPU must align with pin 1 of the CPU socket.

Important:

Handle the CPU by its edges and avoid touching the pins.

Pin 1 of the socket

9. Insert the CPU into the socket until it is seated in place. The CPU will fit in only one orientation and can easily be inserted without exerting any force.

Important:

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

Gold mark

10. Once the CPU is in place, move the cover down.

11. Push the lever down to lock the socket. The lever should hook onto the side tab to indicate that the CPU is completely secured in the socket.

Installing the Fan and Heat Sink

Hardware Installation

Cover

Lever

The CPU must be kept cool by using a CPU fan with heat sink. Without sufficient air circulation across the CPU and heat sink, the CPU will overheat damaging both the CPU and system board.

Note:

• Use only certified fan and heat sink.

• The fan and heat sink package usually contains the fan and

heat sink assembly, and an installation guide. If the installation procedure in the installation guide differs from the one in this section, please follow the installation guide in the package.

1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the CPU. The thermal paste is usually supplied when you purchase the CPU or fan heat sink assembly. Do not spread the paste all over the surface. When you later place the heat sink on top of the CPU, the compound will disperse evenly.

Do not apply the paste if the fan / heat sink already has a patch of thermal paste on its underside. Peel the strip that covers the paste before you place the fan / heat sink on top of the CPU.

Hardware Installation

2. Place the heat sink on top of the CPU. The 4 studs around the heat sink which are used to secure the heat sink onto the system board must match the 4 mounting holes around the socket.

Position each stud so that the groove faces the heat sink then push it down firmly until it clicks into place.

Groove

Mounting hole

Fan

Heat sink Stud

Note:

You will not be able to secure the fan and heat sink assembly in place if the groove is not facing the heat sink.

3. Connect the CPU fan’s cable connector to the CPU fan connector on the system board.

Jumper Settings

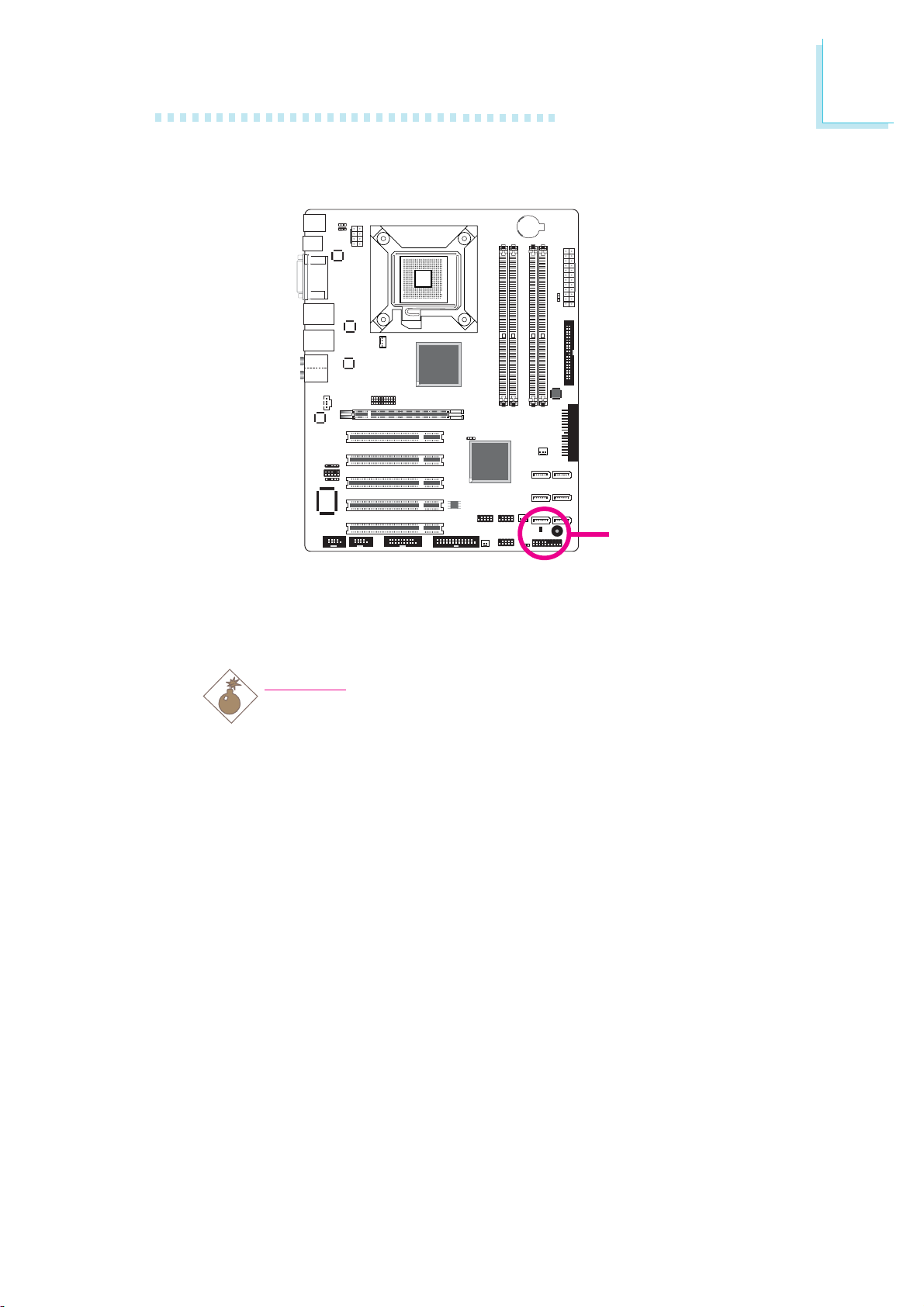

Clear CMOS Data

Hardware Installation

312312

JP5

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

1-2 On: Normal

(default)

2-3 On:

Clear CMOS Data

2. Set JP5 pins 2 and 3 to On. Wait for a few seconds and set JP5 back to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

Hardware Installation

PS/2 Power Select

JP1

312 312

1-2 On: 5V

(default)

JP1 is used to select the power of the PS/2 keyboard/mouse port. Selecting 5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

2-3 On:

5V_standby

BIOS Setting

Configure the PS/2 keyboard/mouse wake up function in the Integrated Peripherals submenu (“Super IO Device” section) of the BIOS. Refer to chapter 3 for more information.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

USB Power Select

Hardware Installation

USB 6/7/8/9/10/11 (JP3)

312 312

1-2 On: 5V

(default)

USB 0/1/2/3/4/5 (JP2)

1-2 On: 5V

(default)

312

JP2 and JP3 are used to select the power of the USB ports. Selecting 5V_standby will allow you to use the USB keyboard or USB mouse to wake up the system.

2-3 On:

5V_standby

312

2-3 On:

5V_standby

BIOS Setting

“USB KB Wake-Up From S3” in the Power Management Setup submenu of the BIOS must be set to Enabled. Refer to chapter 3 for more information.

Important:

≥

2A.

Hardware Installation

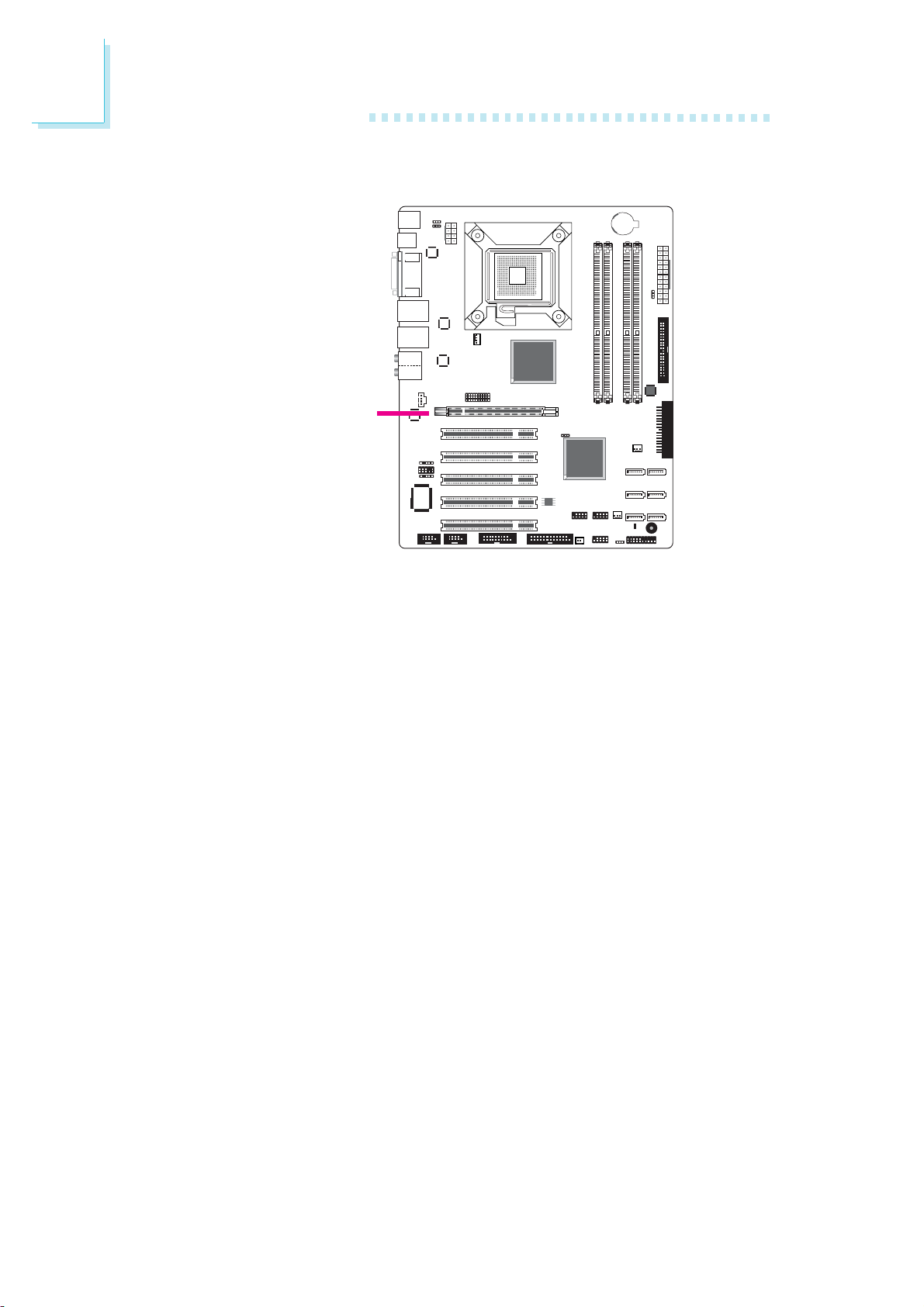

PCIE x16 / DVI Select

10 20 30

JP8

1 11 21

1-10, 11-20 On:

DVI (default)

1 11 21

11-20, 21-30 On:

PCIE x16

The system board allows connecting a device to either the DVI port at the rear panel or to the PCI Express x16 card. However, you cannot use devices connected to both the DVI port and PCI Express x16 card at the same time. Use JP8 to select between using PCIE x16 and DVI.

Power-on Select

Hardware Installation

JP6

1-2 On:

Power-on via

power button

(default)

1 2

Power-on via

AC power

2-3 On:

JP6 is used to select the method of powering on the system. If you want the system to power-on whenever AC power comes in, set JP6 pins 2 and 3 to On. If you want to use the power button, set pins 1 and 2 to On.

Hardware Installation

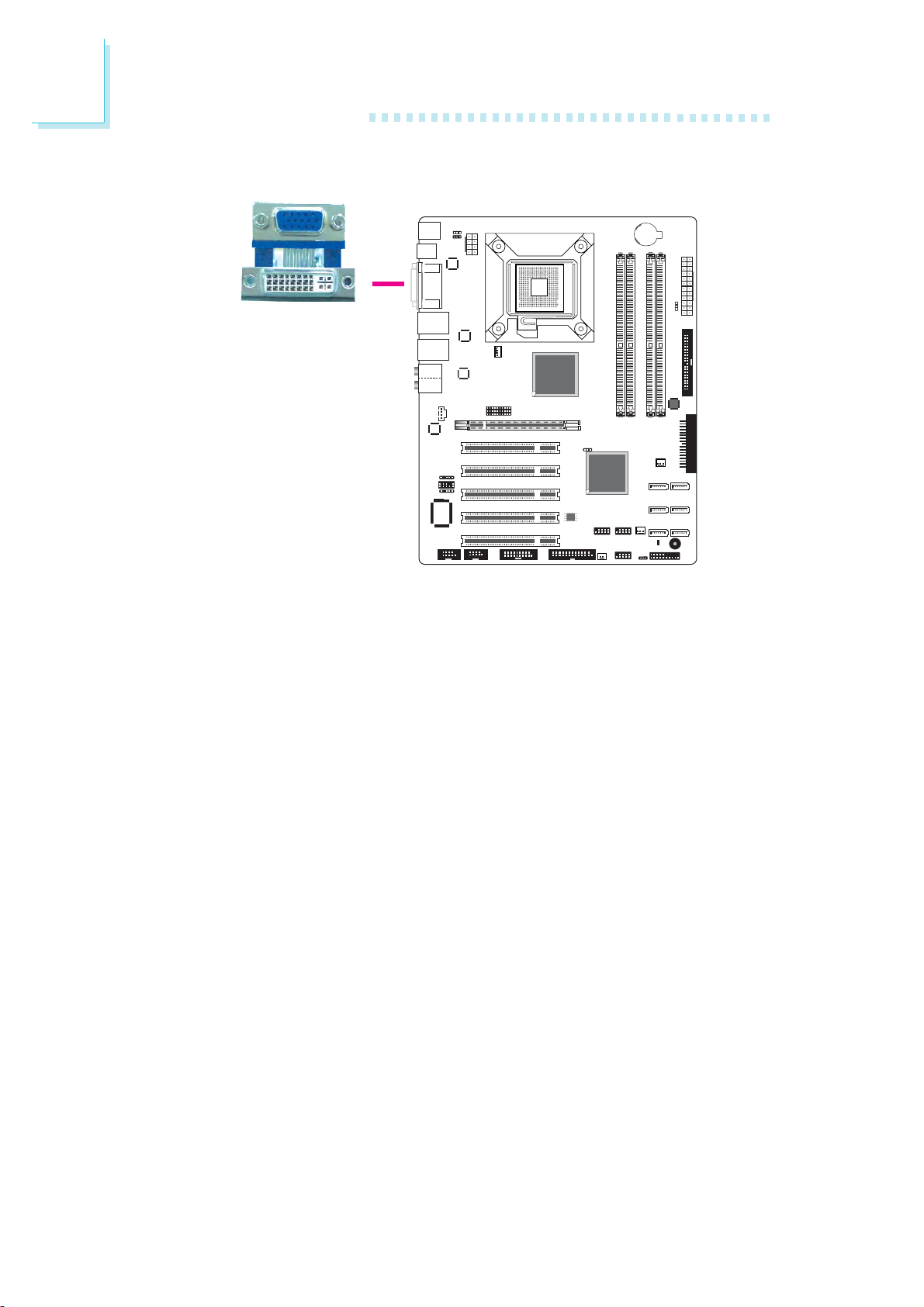

Rear Panel I/O Ports

PS/2

Mouse

VGA

LAN 1 LAN 2

Center/ Subwoofer

Rear R/L

Line-in

USB 11

PS/2 K/B DVI-I

USB 10

USB 8/9

The rear panel I/O ports consist of the following:

• PS/2 mouse port

• PS/2 keyboard port

• USB ports

• VGA por t

• DVI-I port (DVI-D signal only)

• 2 LAN ports

• Center/Subwoofer port

• Rear R/L port

• Side R/L port

• Line-in jack

• Line-out jack

• Mic-in jack

USB 6/7

Line-out

Mic-in

Side R/L

+ 119 hidden pages
