DeWalt DW030PL User Manual

Please read these instructions before operating the product.

www.2helpU.com

E

NL

GR

PT

FIN

HU

BG

LV

ES

DK

CZ

E

NO

SK

RO

LT

F

SE

RU

PT

PL

SI

EE

TR

HR

DW030PL

User Manual

ON

DW030

E

1

2

D

2

Figures

A

1

2

3

B

C

1

2

ON

DW030

4

ON

DW030

6.17ft

USB

3

E

Contents

• User Safety

• Battery Safety

• Setup

• Operation

• Warranty

• Error Codes

• Specications

Retain all sections of this manual for future reference.

User Safety

WARNING:

Carefully read the Safety Instructions and
Product Manual before using this product. The
person responsible for the product must ensure
that all users understand and adhere to these
instructions.

WARNING:

The following label information is placed on your
laser tool to inform you of the laser class for your
convenience and safety.

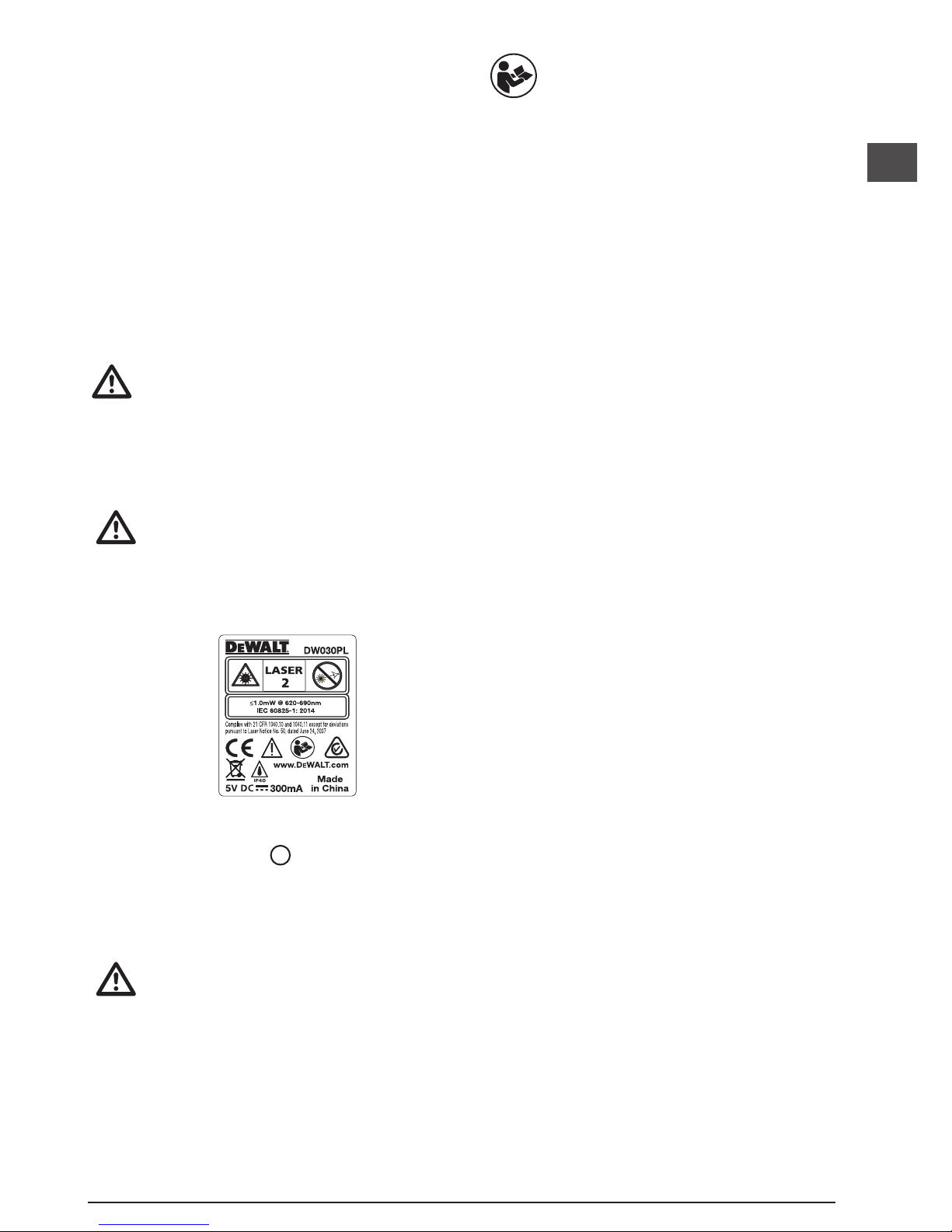

The DW030PL tool emits a visible laser beam, as shown
in Figure A #1. The laser beam emitted is Laser Class 2
per IEC 60825-1 and complies with 21 CFR 1040.10 and

1040.11 except for deviations pursuant to Laser Notice
No. 50, dated June 24, 2007.

WARNING:

While the laser tool is in operation, be careful not
to expose your eyes to the emitting laser beam
(red light source). Exposure to a laser beam
for an extended time period may be hazardous
to your eyes. Do not look into the beam with
optical aids.

WARNING: To reduce the risk of injury, the user
must read the product User Manual and the
Safety Manual.

FCC Compliance

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.

FCC Statement

This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and
the receiver.

- Connect the equipment into an outlet on a different circuit
(not the circuit to which the receiver is connected).

- Consult the dealer or an experienced radio/TV technician
for help.

Canada, Industry Canada (IC) Notices

Class B digital circuitry of this device complies with
Canadian ICES-003. This device complies with Industry
Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept
any interference, including interference that may cause
undesired operation of the device.

Under Industry Canada regulations, the radio transmitter(s)
in this device may only operate using an antenna of a type
and maximum (or lesser) gain approved for the transmitter
by Industry Canada. To reduce potential radio interference
to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful
communication.

4

E

Setup

Attaching the Wrist Strap

1.

While facing the front of the tool, insert the thin end of

the wrist strap through one of the holes in the lower
right corner of the tool.

2.

Push the thin end of the wrist strap until it goes

through the other hole.

3.

Separate the two wires, which make up the thin end

of the wrist strap, to form a loop.

4.

Insert the thick end of the wrist strap all the way

through the loop in the thin end, so the wrist strap is
securely fastened to the tool (Figure

B

).

Charging the Battery

Fully charge the battery before initial use and whenever
the tool has not been used for 6 months or longer.

1.

Locate the port cover on the side of the tool

(Figure A #4).

2.

Using your finger, gently pull the port cover down

(Figure E #1).

3.

Insert the small end of the USB Recharge Cable into

the port on the side of the tool, making sure to insert
the flat side of the cable into the flat side of the port
(Figure

E

#2).

4.

Insert the USB end of the cable into a USB port in a

computer or USB power outlet (Figure E #3).

5.

Wait approximately 2.5 hours for the battery to fully

charge and then disconnect the USB Recharge
Cable.

When the tool is ON, the battery level appears in the
display window (Figure

D

#1).

Operation

1.

Point the laser at the top of the tool (Figure A #1)

toward the wall whose distance you need to measure
(Figure

C

#1).

2.

Click (Figure A #3) to turn the tool on and

display a laser dot on the wall (Figure C #1).

3.

When the bottom of the tool is positioned at the

correct distance from the wall, click

to take the

measurement (Figure C #2).

4.

View the measurement on the display window

(Figure

D

#2).

Changing the Unit of Measure

Once the current measurement is taken, you can change
the unit of measure from decimal ft (6.21 ft) to fractional
ft (6'02"9/16), fractional ft to meters (1.894 m), meters to
inches (74 9/16 in), or inches to decimal ft.

To change the unit of measurement, press and hold
until you see the measurement change (2-3 seconds).

NOTE: If you continue to hold

after the measurement

changes, the tool will turn off.

Re-measuring

If you need to take a new measurement, click .

• The previous measurement (Figure

D

#2) will be

cleared from the display window.

• When you are ready to take the new measurement,
click

.

Turning Off the Tool

The tool can be turned off in either of these ways:

• After taking a measurement, press and hold

for

5 seconds (until the display window clears).

• If you do not use the tool for 45 seconds, it will
automatically turn off.

5

E

Three Year Limited Warranty

DeWALT will repair, without charge, any defects due to
faulty materials or workmanship for three years from
the date of purchase. This warranty does not cover part
failure due to normal wear or tool abuse. For further detail
of warranty coverage and warranty repair information,
visit www.DeWALT.com or call 1–800–4-DeWALT
(1–800–433–9258). This warranty does not apply to
accessories or damage caused where repairs have been
made or attempted by others. This warranty gives you
specific legal rights and you may have other rights which
vary in certain states or provinces.

In addition to the warranty, DeWALT tools are covered
by our:

1 YEAR FREE SERVICE

DeWALT will maintain the tool and replace worn parts
caused by normal use, for free, any time during the first
year after purchase.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of
your DeWALT Power Tool, Laser, or Nailer for any reason,
you can return it within 90 days from the date of purchase
with a receipt for a full refund - no questions asked.

RECONDITIONED PRODUCT: Reconditioned product
is covered under the 1 Year Free Service Warranty. The
90 Day Money Back Guarantee and the Three Year
Limited Warranty do not apply to reconditioned product.

FREE WARNING LABEL REPLACEMENT: If your
warning labels become illegible or are missing, call
1-800-4-DeWALT or visit your local service center for a
free replacement.

6

E

Error Codes

If INFO appears on the display window with a Code number, perform the corresponding Corrective Action.

Code Description Corrective Action

101 Received Signal Too Weak,

Measuring Time Too Long

Use the target plate or change the target surface.

102 Received Signal Too High Target is too reective. Use the target plate or change the

target surface.

201 Too Much Background Light Reduce the background light on the target area.

202 Laser Beam Interrupted Remove the obstacle and repeat the measurement.

203 Insufcient Power Recharge the tool's battery.

301 Temperature Too High Allow the device to cool down to a temperature within the

specied Operating Temperature Range.

302 Temperature Too Low Allow the device to warm up to a temperature within the

specied Operating Temperature Range.

401 Hardware Error Switch the device on/off several times. If the error still occurs,

return the defective device to the Service Center or distributor.
Refer to the Warranty.

402 Unknown Error Contact the Service Center or distributor. Refer to the Warranty.

7

E

Specications

Range 7in to 30ft (17.5cm to 9m)

Measuring Accuracy* Typically ± 1/4in (± 6mm)*

Resolution** 1/16in (1mm)**

Laser Class Class 2 (IEC/EN60825-1: 2014)

Laser Wavelength ≤ 1.0mW @ 620-690nm

Auto Power Switch-off After 45s

Battery Life Up to 3000 Measurements

or 30 days (if the tool is not used)

Dimension (H x D x W) 2.44 x .69 x 1.25in (62 x 17.5 x 32mm)

Weight 1.12oz (31.75g)

Storage Temperature Range 14° F ~ 140° F (-10° C ~ +60 C)

Operating Temperature Range 32° F ~ 104° F (0° C ~ +40° C)

*

Measuring Accuracy depends on the current conditions. Under favorable conditions (good target surface and room temperature)

up to 30ft (9m).

**Resolution is the nest measurement you can see. In inches, that is 1/16". In mm, that is 1mm.

ES

8

Contenido

• Seguridad del usuario

• Seguridad de la batería

• Conguración

• Operación

• Garantía

• Códigos de error

• Especicaciones

Conserve todas las secciones de este manual para
futura referencia.

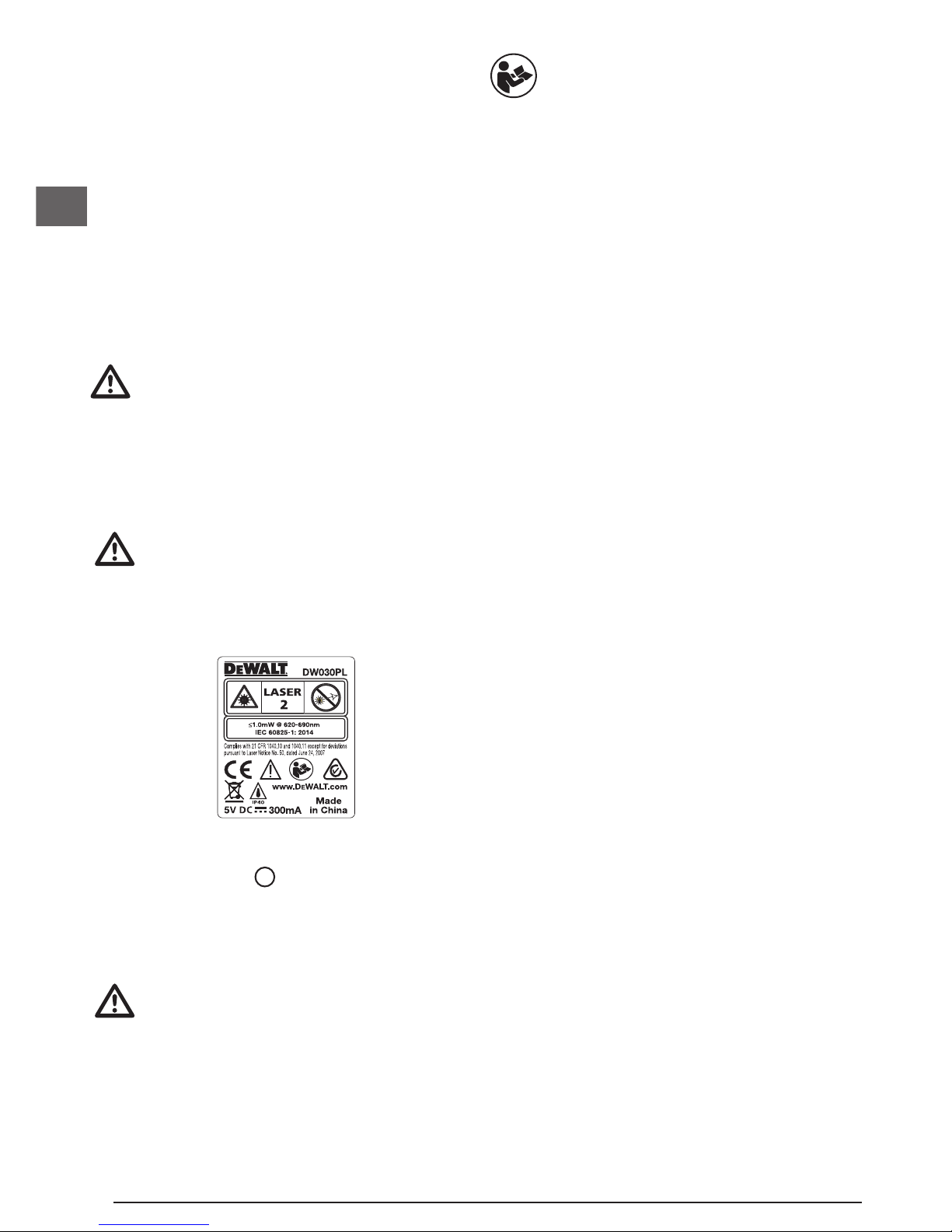

Seguridad del usuario

ADVERTENCIA:

Lea con atención las instrucciones de

seguridad y el manual del producto antes de
usar el producto. La persona responsable
del producto debe asegurarse que todos
los usuarios entiendan y cumplan con estas
instrucciones.

ADVERTENCIA:

La siguiente etiqueta de información

se coloca en su herramienta láser para
informarle sobre la clase de láser para su
comodidad y seguridad.

La herramienta DW030PL emite un rayo láser visible,
como se muestra en la Figura

A

#1. El rayo láser
emitido es un Láser Clase 2 en conformidad con la norma
IEC 60825-1 y cumple las normas 21 CFR 1040.10
y 1040.11, excepto en las desviaciones en conformidad
con lo establecido en Laser Notice No. 50, del 24 de
junio de 2007.

ADVERTENCIA:

Mientras la herramienta láser esté en uso,
tenga cuidado de no exponer sus ojos al rayo

láser (fuente de luz roja). La exposición a un

rayo láser durante un largo periodo de tiempo
podría ser peligroso para sus ojos. No mire

directamente al rayo con ayudas ópticas.

ADVERTENCIA: Para reducir el riesgo de
lesiones, el usuario debe leer el Manual de
usuario y el Manual de seguridad.

Conformidad con FCC

Este dispositivo cumple con la Parte 15 del

Reglamento FCC. La operación está sujeta a las dos

condiciones siguientes: (1) Este dispositivo puede
no causar interferencia dañina, y (2) este dispositivo
debe aceptar cualquier interferencia recibida, incluso

las interferencias que pudieran causar operación no

deseada.

Declaración de FCC

Este equipo ha sido probado y cumple con los límites
para dispositivos digitales de clase B, de conformidad
con la parte 15 de las normas FCC. Estos límites

han sido diseñados para proporcionar una protección

razonable contra las interferencias nocivas en
instalaciones residenciales. Este equipo genera,
usa e irradia energía de radiofrecuencia y, si no se
instala y se usa de acuerdo con las instrucciones,
puede causar interferencia perjudicial para las
radiocomunicaciones. No obstante, no existe ninguna
garantía de que no se producirá interferencia en

una instalación determinada. Si este equipo causa
interferencias perjudiciales para la recepción de radio
o televisión, que puede determinarse al encender

y apagar el equipo, el usuario puede tratar de corregir
la interferencia tomando una o varias de las siguientes
medidas:

- Reorientar o reubicar la antena receptora.

- Aumentar la distancia entre el equipo y el receptor.

- Conectar el equipo en un tomacorriente de otro
circuito diferente (no el circuito al que está conectado
el receptor).

- Consulte al vendedor o a un técnico experto en
radio/TV para solicitar su ayuda.
