DeWalt DW004, DW005 User Manual

1

®

DW004
DW005

3

A

DW005

576

123894

91011

4

C

DW005DW004

B

12
9

12

9

3

3

5

E

D

76

13

4

6

G

F

5 4

2

24

ENGLISH

CORDLESS ROTARY HAMMER DRILL
DW004K/DW004K2/DW004K2C/DW004K2H/
DW005KH/DW005K2C/DW005K2H

Congratulations!

You have chosen a DEWALT power tool. Years of
experience, thorough product development and
innovation make DEWALT one of the most reliable
partners for professional power tool users.

Technical data

DW004 DW005

Voltage V 24 24
No-load speed min-10 - 1,100 0 - 1,100
Load speed min-10 - 800 0 - 800
Impact energy J 2.0 2.0
Maximum drilling range in

steel/wood/concrete mm 13/30/20 13/30/20
Chiselling no yes
Tool holder SDS-plus SDS-plus
Collar diameter mm 43 43
Weight (without battery pack)kg 2.8 2.8

Battery pack DE0240 DE0241
Battery type NiCd NiMH

Voltage V 24 24
Capacity Ah 2.0 3.0
Weight kg 1.4 1.4

Charger DE0246
Battery type NiCd/NiMH

Mains voltage V

AC

230
Approx. charging time min 60/70
Weight kg 0.6

Fuses:

Europe 230 V tools 10 Amperes, mains
U.K. & Ireland 230 V tools 3 Amperes, in plugs

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life
or damage to the tool in case of non­observance of the instructions in this
manual.

Denotes risk of electric shock.

EC-Declaration of conformity

DW004K/DW004K2/DW004K2C/DW004K2H/
DW005KH/DW005K2C/DW005K2H

DEWALT declares that these power tools have been
designed in compliance with: 98/37/EEC, 89/336/
EEC, 73/23/EEC, EN 50144, EN 55014-2, EN 55014,
EN 50260, EN 60335, EN 61000-3-2 &
EN 61000-3-3.

For more information, please contact DEWALT at the
address below, or refer to the back of the manual.

DW004 DW005

LpA(sound pressure) dB(A)* 89 89
LWA(acoustic power) dB(A) 102 102
Weighted RMS acceleration value m/s

2

8.5 8.5

* at the operator’s ear

Take appropriate measures for the
protection of hearing.

Director Engineering and Product Development
Horst Großmann

DEWALT, Richard-Klinger-Straße 40,
D-65510, Idstein, Germany

25

ENGLISH

Safety instructions

When using Power Tools, always observe the
safety regulations applicable in your country to
reduce the risk of fire, electric shock and
personal injury. Read the following safety
instructions before attempting to operate this
product.
Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity.
Keep work area well lit. Do not use Power Tools
in the presence of flammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces
(e.g. pipes, radiators, cookers and refrigerators).
For use under extreme conditions (e.g. high
humidity, when metal swarf is being produced,
etc.) electric safety can be improved by inserting
an isolating transformer or a (FI) earth-leakage
circuit-breaker.

4 Keep children away

Do not let children come into contact with the
tool or extension cord. Supervision is required for
those under 16 years of age.

5 Store idle tools

When not in use, Power Tools must be stored in
a dry place and locked up securely, out of reach
of children.

6 Dress properly

Do not wear loose clothing or jewellery. They can
be caught in moving parts. Preferably wear
rubber gloves and non-slip footwear when
working outdoors. Wear protective hair covering
to keep long hair out of the way.

7 Wear safety goggles

Also use a face or dust mask in case the
operations produce dust or flying particles.

8 Beware of maximum sound pressure

Wear ear protection at all times.

9 Secure workpiece

Use clamps or a vice to hold the workpiece. It is
safer and it frees both hands to operate the tool.

10 Do not overreach

Keep proper footing and balance at all times.

11 Stay alert

Watch what you are doing. Use common
sense. Do not operate the tool when you are
tired.

12 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches
are removed from the tool before operating the
tool.

13 Use appropriate tool

The intended use is described in this instruction
manual. Do not force small tools or attachments
to do the job of a heavy-duty tool. The tool will
do the job better and safer at the rate for which it
was intended.
Warning! The use of any accessory or attachment
or performance of any operation with this tool, other
than those recommended in this instruction manual
may present a risk of personal injury.

14 Maintain tools with care

Keep the tools in good condition and clean for
better and safer performance. Follow the
instructions for maintenance and changing
accessories. Inspect the tool cords at regular
intervals and, if damaged, have them repaired by
an authorized DEWALT repair agent. Keep all
controls dry, clean and free from oil and grease.

15 Check for damaged parts

Before using the tool, carefully check it for
damage to ensure that it will operate properly
and perform its intended function. Check for
misalignment and seizure of moving parts,
breakage of parts and any other conditions that
may affect its operation. Have damaged guards
or other defective parts repaired or replaced as
instructed.
Do not use the tool if the switch is defective.
Have the switch replaced by an authorized
DEWALT repair agent.

16 Remove the battery pack

Remove the battery pack when not in use, before
servicing and when changing accessories.

17 Have your tool repaired by an authorized

DEWALT repair agent

This Power Tool is in accordance with the
relevant safety regulations. To avoid danger,
electric appliances must only be repaired by
qualified technicians.

26

ENGLISH

Additional safety instructions for battery packs
and chargers

Fire hazard! Avoid metal short circuiting
the contacts of a detached battery pack.
Do not store or carry the battery pack
without the battery cap placed over the
contacts.

• The battery fluid, a 25-30% solution of potassium
hydroxide, can be harmful. In case of skin
contact, flush immediately with water. Neutralize
with a mild acid such as lemon juice or vinegar. In
case of eye contact, rinse abundantly with clean
water for at least 10 minutes. Consult a physician.

• Never attempt to open a battery pack for any
reason.

• Use only chargers labelled “NiMH” or “NiMH +
NiCd” to charge DEWALT NiMH battery packs.

• Do not expose the charger to damp or wet
conditions.

• Do not attempt to charge wet battery packs.

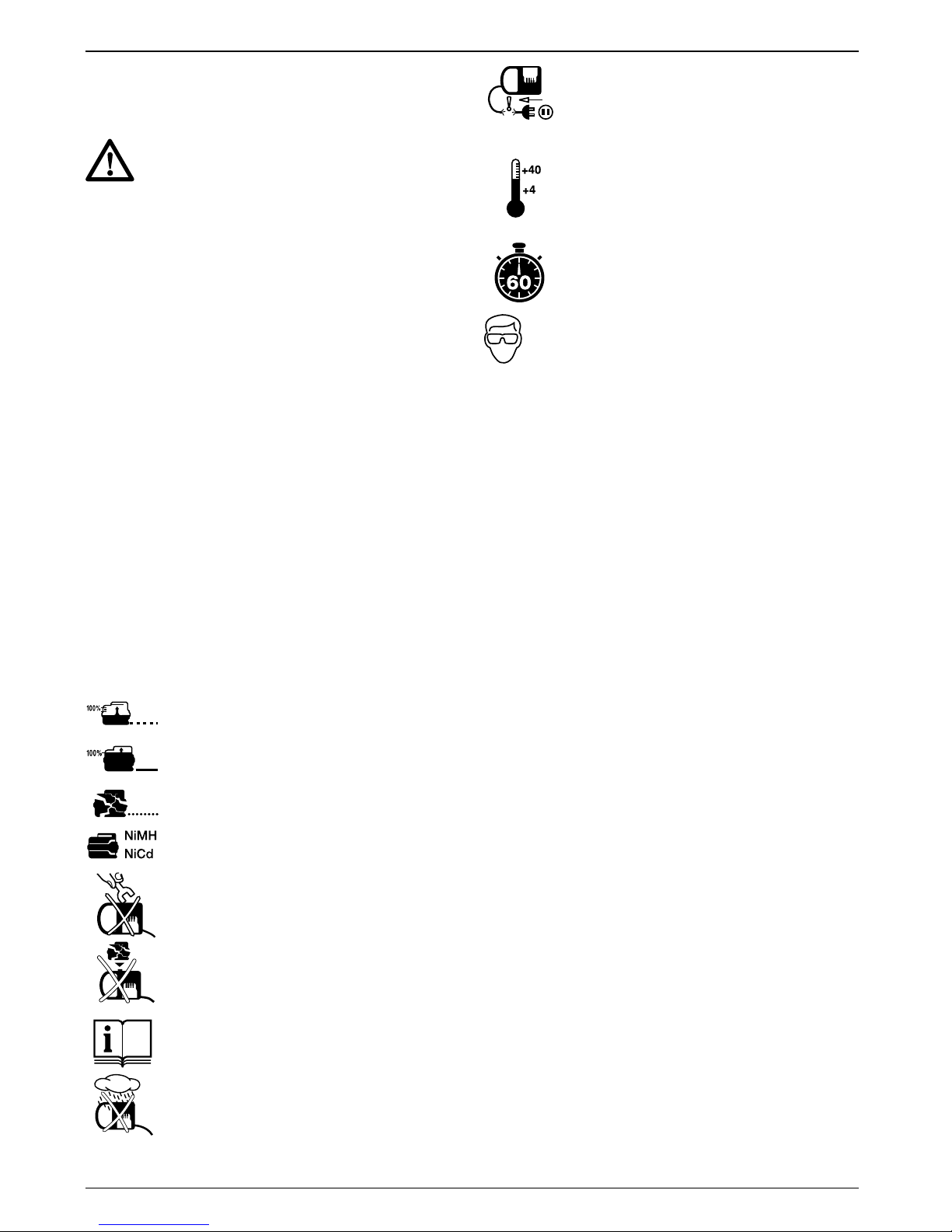

Labels on charger and battery pack

In addition to the pictographs used in this manual,
the labels on the charger and the battery pack show
the following pictographs:

Battery charging

Battery charged

Problem charging

+

Charges NiMH and NiCd battery packs

Do not probe with conductive objects

Do not charge damaged battery packs

Read instruction manual before use

Do not expose to water

Have defective cords replaced
immediately

Charge only between 4 °C and 40 °C

See technical data for charging time

Always wear safety glasses when
plugging in the charger.

Package contents

The package contains:

1 Cordless rotary hammer drill
1 Side handle
1 Depth adjustment rod
1 Charger
1 Battery pack with battery cap

(DW004K/DW005KH)

2 Battery packs with battery cap

(DW004K2/DW004K2C/DW005K2C/

DW004K2H/DW005K2H)
1 Kitbox
1 Keyless chuck + chuck adaptor

(DW004K2C/DW005K2C/DW005K2H)
1 Instruction manual
1 Exploded drawing

• Check for damage to the tool, parts or accessories

which may have occurred during transport.

• Take the time to thoroughly read and understand

this manual prior to operation.

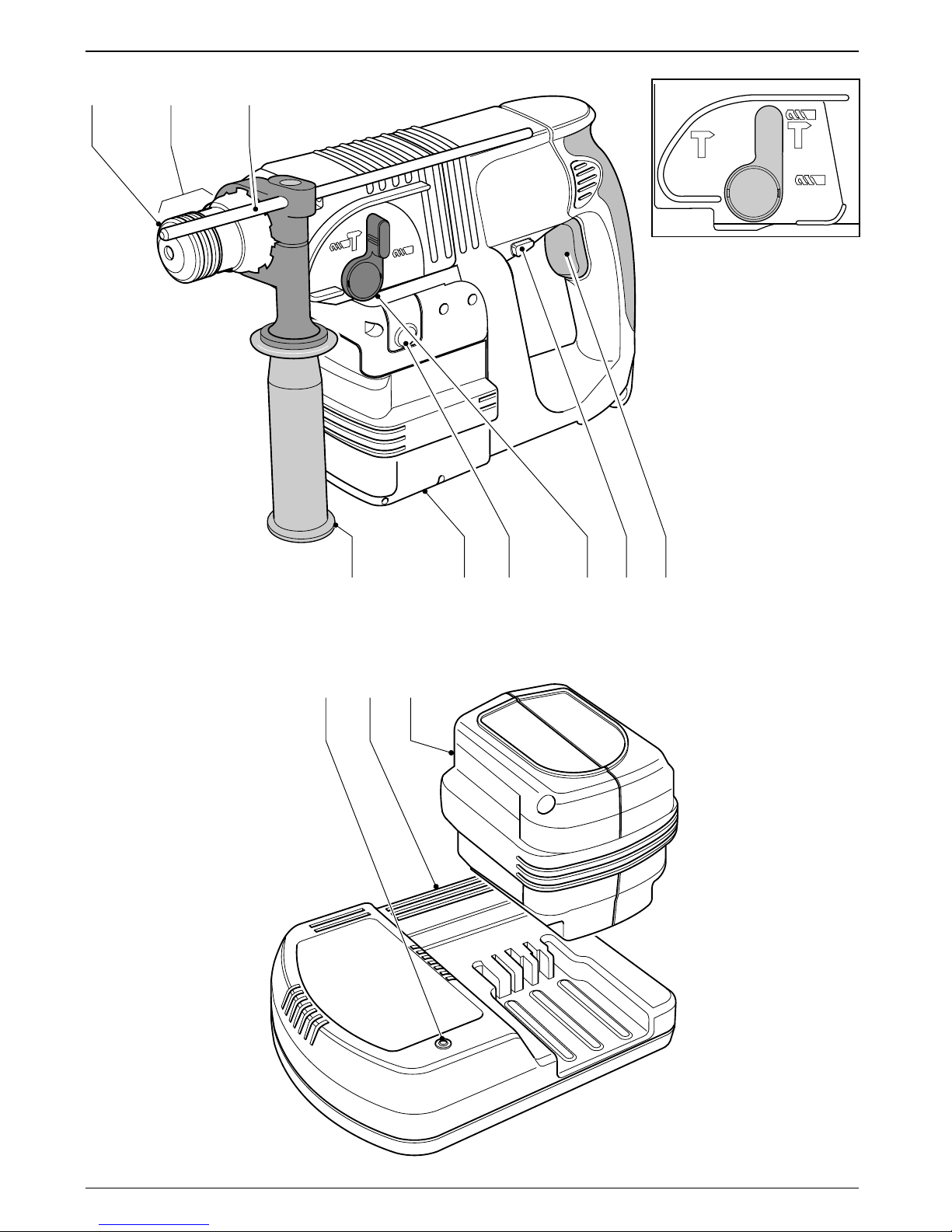

Description (fig. A)

Your cordless rotary hammer drill DW004 has been
designed for professional drilling, hammer drilling
and screwdriving applications.
Your cordless rotary hammer drill DW005 has been
designed for professional drilling, hammer drilling
and screwdriving applications as well as for light
chipping, chiselling and light demolition purposes.

1 Variable speed switch
2 Forward/reverse slider
3 Mode selector
4 Side handle

27

Attach the wires to their respective points in the

plug (see below). Brown is for Live (L) (2) and

Blue is for Neutral (N) (4).

• Before replacing the top cover of the mains plug

ensure that the cable restraint (3) is holding the

outer sheath of the cable firmly and that the two

leads are correctly fixed at the terminal screws.

Never use a light socket.
Never connect the live (L) or neutral (N)

wires to the earth pin marked E or .

Using an extension cable

An extension cord should not be used unless
absolutely necessary. Use an approved extension
cable suitable for the power input of your charger
(see technical data). The minimum conductor size is
1 mm2; the maximum length is 30 m.

Assembly and adjustment

• Prior to assembly and adjustment,
always remove the battery pack.

• Always switch off the tool before
inserting or removing the battery pack.

• Before using the tool, make sure the
battery pack is properly seated.

Use only DEWALT battery packs and
chargers.

Battery pack (fig. A & B)

Charging the battery pack (fig. A)

Always check the mains prior to charging the battery
pack. If the mains is functioning but the battery pack
does not charge, take your charger to an authorized
DEWALT repair agent. Whilst charging, the charger
and the battery pack may become warm to touch.
This is a normal condition and does not indicate a
problem.

ENGLISH

5 Depth adjustment rod
6 Dust cover
7 Tool holder
8 Release buttons
9 Battery pack

Charger

Your DE0246 charger accepts DEWALT 24 V NiCd
and NiMH battery packs.

9 Battery pack
10 Charger
11 Charging indicator

Overload clutch

In case of jamming of a drill bit, the drive to the drill
spindle is interrupted.
Because of the resulting forces, always hold the tool
with both hands and take a firm stance.

Brake mechanism

When the variable speed switch is released,
the spindle will stop rotating instantly.

Electrical safety

The electric motor has been designed for one
voltage only. Always check that the battery pack
voltage corresponds to the voltage on the rating
plate. Also make sure that the voltage of your
charger corresponds to that of your mains.

Your DEWALT charger is double
insulated in accordance with EN 60335.

Mains plug replacement
(U.K. & Ireland only)

• Should your mains plug need replacing and you
are competent to do this, proceed as instructed
below. If you are in doubt, contact an authorized
DEWALT repair agent or a qualified electrician.

• Disconnect the plug from the supply.

• Cut off the plug and dispose of it safely; a plug
with bared copper conductors is dangerous if
engaged in a live socket outlet.

• Only fit 13 Amperes BS1363A approved plugs
fitted with the correctly rated fuse (1).

• The cable wire colours, or a letter, will be marked
at the connection points of most good quality
plugs.

28

ENGLISH

Do not charge the battery pack at
ambient temperatures < 4 °C or > 40 °C.
Recommended charging temperature:
approx. 24 °C.

• To charge the battery pack (9), insert it into the
charger (10) as shown and plug in the charger.
Be sure that the battery pack is fully seated in the
charger. The red charging indicator (11) will blink.
After approx. 1 hour, it will stop blinking and
remain on. The battery pack is now fully charged.

• The red charging indicator flashes rapidly to
indicate a charging problem. Reinsert the battery
pack or try a new one. If the new pack also
refuses to charge, have your charger tested by
an authorised DEWALT repair agent.

Automatic refresh

The automatic refresh mode will
equalize or balance the individual
cells in the battery pack at its peak
capacity. Battery packs should be
refreshed overnight after every 10th
charge/discharge cycle or whenever
the pack no longer delivers the same
amount of work.

• To refresh your battery pack, place the battery in
the charger as usual. The red light will blink
continuously indicating that the charge cycle has
started.

• When the 1-hour charge cycle has completed,
the light will stay on continuously and will no
longer blink. The pack is fully charged and can
be used at this time.

• If the pack is left in the charger after the initial
1-hour charge, the charger will automatically
initiate the refresh mode. This mode will continue
up to 8 hours, but the battery pack can be
removed at any time during the refresh mode.

Inserting and removing the battery pack (fig. A)

• Insert the battery pack into the corresponding
slot in the tool until it clicks in place. You may
need to use some force to fully engage the
spring-loaded mechanism.

• To remove the battery pack, press the two
release buttons (8) simultaneously.

The spring-loaded mechanism will push the
battery pack off the tool.

We recommend to insert the battery pack into the
charger directly after removing it from the tool.

Battery cap (fig. B)

A protective cap is supplied to cover the contacts of
a detached battery pack. Without the protective cap
in place, loose metal objects could short circuit the
contacts, causing a fire hazard and damaging the
battery pack.

• Take off the protective cap (12) before placing
the battery pack (9) in the charger or tool.

• Place the protective cap over the contacts
immediately after removing the battery pack from
the charger or tool.

Make sure the protective cap is in place
before storing or carrying a detached
battery pack.

AIR COOLED

The charger is equipped with an internal fan for rapid
cooling of battery packs. The fan will be automatically
switched on when required. The fan will also be
switched on periodically when there is no battery in
the charger in order to blow dust from the fan vents.

Always wear safety glasses when
plugging in the charger.

Hot/Cold Pack Delay

When the charger detects a battery that is too hot or
too cold, it automatically starts a Hot/Cold Pack
Delay, suspending charging until the battery has
reached an appropriate temperature. The charger
then automatically switches to the pack charging
mode. This feature ensures maximum battery life.
The red indicator blinks long, then short while in the
Hot/Cold Pack Delay mode.

DW004 - Selecting the operating mode (fig. C)

This tool can be used in two operating modes:

Rotary drilling:
for screwdriving and for drilling into steel,
wood and plastics

29

Always use the tool with the side handle
properly assembled.

• Loosen the side handle.

• For RH-users, slide the side handle clamp over the
collar behind the tool holder, handle at the left.

• For LH-users, slide the side handle clamp over
the collar behind the tool holder, handle at the
right.

• Rotate the side handle to the desired position
and tighten the handle.

Setting the drilling depth (fig. F)

• Insert the required drill bit.

• Slacken the side handle (4).

• Fit the depth adjustment rod (5) through the hole
in the side handle clamp.

• Adjust the drilling depth as shown.

• Tighten the side handle.

Forward/reverse slider (fig. G)

• Push the forward/reverse slider (2) to the LH-side
for forward (RH) rotation.

• Push the forward/reverse slider (2) to the RH-side
for reverse (LH) rotation.

• Move the forward/reverse slider (2) to the central
position to lock the switch when changing
accessories, inserting the battery pack or when
storing or transporting the tool.

Always wait until the motor has come to
a complete standstill before changing the
direction of rotation.

Replacing the dust cover (fig. D)

The dust cover (6) prevents dust ingress into the
mechanism. Replace a worn dust cover
immediately.

• Pull back the tool holder locking sleeve (13) and
pull the dust cover (6) off.

• Fit the new dust cover.

• Release the tool holder locking sleeve.

Instructions for use

• Always observe the safety instructions
and applicable regulations.

• Be aware of the location of pipework and
wiring.

ENGLISH

Hammer drilling:
for concrete and masonry drilling

• Select the required operating mode by rotating
the mode selector (3) towards the symbol on the
gear housing.

• For screwdriving, refer to section «Instructions for
use».

DW005 - Selecting the operating mode (fig. C)

This tool can be used in three operating modes:

Rotary drilling:
for screwdriving and for drilling into steel,
wood and plastics

Hammer drilling:
for concrete and masonry drilling

Hammering only with spindle lock:
for light chipping, chiselling and
demolition applications

• Select the required operating mode by rotating
the mode selector (3) towards the symbol on the
gear housing.

• For screwdriving, refer to section «Instructions for
use».

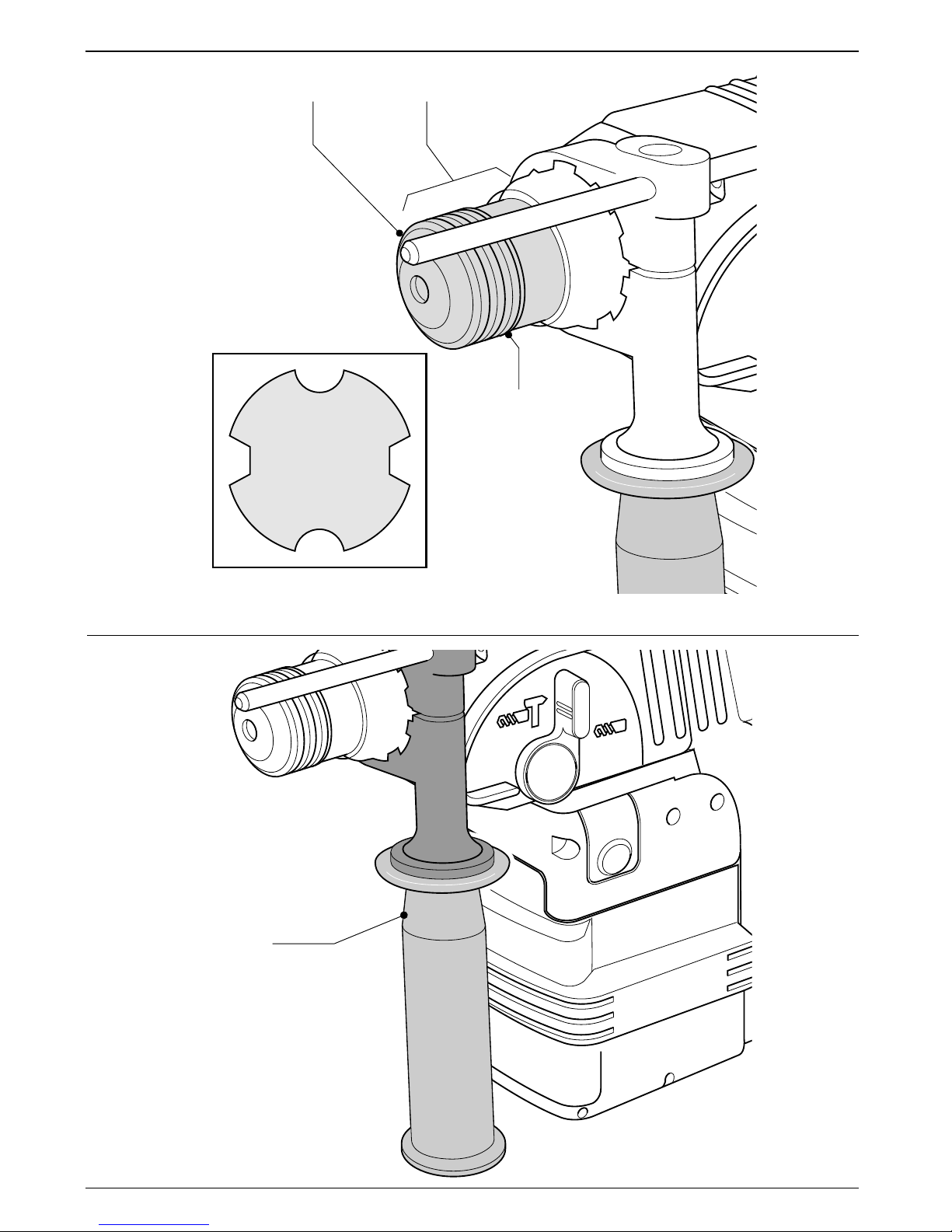

Inserting and removing SDS-plus accessories
(fig. D)

Your rotary hammer drill uses SDS-plus accessories
(refer to the inset in fig. C for a cross-section of an
SDS-plus bit shank).

• Clean and grease the bit shank.

• Insert the bit shank into the tool holder (7).

• Push the bit down and turn it slightly until it fits
into the slots.

• Pull on the bit to check if it is properly locked.
The hammering function requires the bit to be
able to move axially several centimetres when
locked in the tool holder.

• To remove a bit pull back the tool holder locking
sleeve (13) and pull out the bit.

Fitting the side handle (fig. E)

The side handle (4) can be fitted to suit both
RH- and LH-users.

30

ENGLISH

• Apply only a gentle pressure to the tool.

• Do not drill or drive too deep to prevent
damage to the dust cover.

Switching on and off (fig. A)

• To run the tool, press the variable speed switch
(1). The pressure exerted on the variable speed
switch determines the tool speed.

• To stop the tool, release the switch.

Hammer drilling (fig. A)

• Select the hammer drilling mode.

• Insert the appropriate SDS-plus bit. For best
results use high quality carbide-tipped bits.

• Mark the spot where the hole is to be drilled.

• Press the tool against the workpiece.

• Switch the tool on by pressing the variable speed
switch (1). The hammer mechanism should run
smoothly and the tool should not bounce.
If necessary, increase the pressure on the switch.

Rotary drilling (fig. A)

• Select the rotary drilling mode.

• Proceed as described for hammer drilling.
Special SDS-plus adaptors with threaded sections
are available for use with standard 10 or 13 mm
chucks to enable straight shank bits to be used.

Never use standard chucks in the
hammer drilling mode.

Chipping and chiselling (fig. A)

• Select the hammering only mode.

• Insert an SDS-plus® chisel and check if it is
properly locked.

• Adjust the side handle (4) as required.

• Proceed as described for hammer drilling.

It may be necessary to briefly run the motor after
having changed from chiselling to rotary modes in
order to align the gears.

Screwdriving (fig. A)

• Select the rotary drilling mode.

• Select the direction of rotation.

• Insert the special SDS-plus screwdriving adaptor
for use with hexagonal screwdriver bits.

• Insert the appropriate screwdriver bit into the
adaptor. When driving slotted head screws
always use bits with a finder sleeve.

• Gently press the variable speed switch (1) to
prevent damage to the screw head.

• When the screw is flush with the workpiece,
release the variable speed switch to prevent the
screw head from penetrating into the workpiece.

• Do not use this tool to mix or pump
easily combustible or explosive fluids
(benzine, alcohol, etc.).

• Do not mix or stir inflammable liquids
labelled accordingly.

Various types of SDS-plus drill bits and adaptors are
available as an option. Consult your dealer for further
information on the appropriate DEWALT accessories.

Maintenance

Your DEWALT Power Tool has been designed to
operate over a long period of time with a minimum
of maintenance. Continuous satisfactory operation
depends upon proper tool care and regular cleaning.

• The rotary hammer drill is not user-serviceable. Take
the tool to an authorized DEWALT repair agent.
This tool should be serviced at regular intervals or
when showing a noticeable change in performance.

Lubrication

Your power tool requires no additional lubrication.

Always apply a small amount of grease
to the shank of the SDS-plus bit before
inserting it into the tool holder.

Cleaning

• Unplug the charger before cleaning the housing
with a soft cloth.

• Remove the battery pack before cleaning your
Power Tool.

• Keep the ventilation slots clear and regularly
clean the housing with a soft cloth.

31

Environment

Rechargeable battery pack

This long life battery pack must be recharged when
it fails to produce sufficient power on jobs which
were easily done before. At the end of its technical
life, discard it with due care for our environment:

• Run the battery pack down completely, then
remove it from the tool.

• NiCd and NiMH cells are recyclable. Take them
to your dealer or a local recycling station.
The collected battery packs will be recycled or
disposed of properly.

Unwanted tools

Take your tool to an authorised DEWALT repair
agent where it will be disposed of in an
environmentally safe way.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the
performance of your DEWALT tool, simply return
it within 30 days, complete as purchased, to the
point of purchase, for a full refund or exchange.
Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your
DEWALT tool, in the 12 months following purchase,
it will be undertaken free of charge at an authorized
DEWALT repair agent. Proof of purchase must be
produced. Includes labour and spare parts for
Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to
faulty materials or workmanship within 12 months
from the date of purchase, we guarantee to replace
all defective parts free of charge or, at our discretion,
replace the unit free of charge provided that:

• The product has not been misused.

• Repairs have not been attempted by
unauthorized persons.

• Proof of purchase date is produced.
This guarantee is offered as an extra benefit
and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT
repair agent, please use the appropriate telephone
number on the back of this manual. Alternatively,
a list of authorized DEWALT repair agents and full
details on our after-sales service are available on
the Internet at www.2helpU.com.

ENGLISH

116

Belgique et Luxembourg DEWALT Tel: [phone]
België en Luxemburg Weihoek 1, Nossegem Fax: [phone]

1930 Zaventem-Zuid www.dewaltbenelux.com

Danmark D

EWALT Tlf: 70 20 15 30

Hejrevang 26 B Fax: [phone]
3450 Allerød www.dewalt-nordic.com

Deutschland D

EWALT Tel: [phone]

Richard-Klinger-Straße Fax: [phone]
65510 Idstein www.dewalt.de

EÏÏ¿˜

BLACK & DECKER

(E§§∞™) ∞.E. ∆ËÏ. 010 8981616
™ÙÚ¿‚ˆÓÔ˜ 7 & §ÂˆÊ. µÔ˘ÏÈ·Á̤Ó˘ 159 010 8982630
166 74 °Ï˘Ê¿‰· - ∞ı‹Ó· º·Í 010 8983285

España DEWALT Tel: [phone]

Parque de Negocios “Mas Blau” Fax: [phone]
Edificio Muntadas, c/Bergadá, 1, Of. A6
08820 El Prat de Llobregat (Barcelona)

France DEWALT Tel: [phone]

Le Paisy Fax: [phone]
BP 21, 69571 Dardilly Cedex

Helvetia DEWALT ROFO Kundendienst Tel: 026 - 674 93 93
Schweiz Gewerbezone Seeblick Fax: 026 - 674 93 94

3213 Kleinbösingen www.dewalt.ch

Ireland D

EWALT Tel: [phone]

Calpe House Rock Hill Fax: [phone]
Black Rock, Co. Dublin

Italia D

EWALT Tel: [phone]

Viale Elvezia 2 Fax: [phone]
20052 Monza (Mi)

Nederland DEWALT Tel: [phone]

Florijnstraat 10 Fax: [phone]
4879 AH Etten-Leur www.dewalt.benelux.com

Norge DEWALT Tel: [phone]

Strømsveien 344 Fax: [phone]
1011 Oslo www.dewalt-nordic.com

Österreich DEWALT Tel: 01 - 66116 - 0

Werkzeugevertriebs GmbH Fax: 01 - 66116 - 14
Erlaaerstraße 165, Postfach 320,1231 Wien www.dewalt.at

Portugal D

EWALT Tel: [phone]

Rua Egas Moniz 173 Fax: [phone]
João do Estoril, 2766-651 Estoril

Suomi D

EWALT Puh: 98 25

45

40
Palotie 3 Fax: [phone]
01610 Vantaa www.dewalt-nordic.com

Brandvägen 3 Tel: 98 25

45

40
01610 Vanda Fax: [phone]

www.dewalt-nordic.com

Sverige DEWALT Tel: [phone]

Box 603 Fax: [phone]
421 26 Västra Frölunda, Besöksadr. Ekonomivägen 11 www.dewalt-nordic.com

Türkiye

DEWALT

Tel: [phone]
Merkez Mahallesi, Köyaltı Mevkii, Şahnur Sokak Faks: 021 26 39 06 35
(OTTO Binası) 34530 Yenibosna/İstanbul (PBX)

United Kingdom DEWALT Tel: [phone]

210 Bath Road Fax: [phone]
Slough, Berks SL1 3YD
