DP3100
Pressure Washer
Laveuse à pression
Lavadora a presión
INSTRUCTION MANUAL
GUIDE D'UTILISATION
MANUAL DE INSTRUCCIONES
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA
DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES
DE USAR EL PRODUCTO.
If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-800-4-DEWALT • www.dewalt.com
2
English
Specifi cations
MODEL WEIGHT HEIGHT WIDTH LENGTH PSI MAX* OPERATING
PSI
GPM MAX* OPERATING
GPM
ENGINE**
DP3100 83.6 lbs 26.5" 23" 40" 3100
(21375 kPa)
2790
(19236 kPa)
2.8
(10,6 L/min)
2.5
(9,5 L/min)
Honda 6.5
Hp GX200
* Water flow and maximum pressure ratings determined in accordance with PWMA standard PW101
** Horsepower rating (shown as maximum output @ 3600 rpm) is in accordance with SAE J1995. Actual engine power will be lower. Engine
power depends on the application, operating speed, operating conditions and other variables.
A. Handle assemble
B. Frame
C. High-pressure hose
D. Professional Spray gun
E. Quick-connect
spray wand
F. Panel assembly
G. Nozzle holder
H. Engine dipstick/oil plug
I. High-pressure pump
J. Engine
K. Choke control
L. Starter grip
M. Fuel valve lever
N. Engine switch
O. Gas cap
P. Throttle control lever
Q. Side Handle
DP3100 PRESSURE WASHER
ENGINE
Refer to the engine instruction manual for location and operation of
other engine controls.
Pump Specifi cations
DEWALT MAINTENANCE FREE
The high pressure pump is maintenance free and requires no oil, if
there is a problem with the pump contact a D
EWALT factory service
center, a D
EWALT authorized service center or other qualified service
personnel.
FIG. 1
J
D
E
C
K
A
F
B
G
I
N
H
O
P
M
L
Q
3
English
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT
THIS OR ANY D
EWALT TOOL, CALL US TOLL FREE AT:
1-800-4-D
EWALT (1-800-433-9258)
Important Safety Instructions
Important Safety Instructions
WARNING: Do not operate this unit until you read and understand
this instruction manual and the engine instruction manual for safety,
operation and maintenance instructions.
WARNING: When using this product basic precautions should
always be followed, including the following:
1. Read all instructions before using the product.
2. To reduce the risk of injury, close supervision is necessary when
a product is used near children.
3. Know how to stop the product and bleed pressures quickly. Be
thoroughly familiar with the controls.
4. Stay alert–watch what you are doing.
5. Do not operate the product when fatigued or under the influence
of alcohol or drugs.
6. Keep operating area clear of all persons.
7. Do not overreach or stand on unstable support. Keep good
footing and balance at all times.
8. Follow the maintenance instructions specified in the manual.
DANGER: RISK OF INJECTION OR SEVERE INJURY. KEEP
CLEAR OF NOZZLE. DO NOT DIRECT DISCHARGE STREAM AT
PERSONS. THIS PRODUCT IS TO BE USED ONLY BY TRAINED
OPERATORS.
WARNING: This product may not be equipped with a spark-
arresting muffler. If the product is not equipped and will be used
around flam ma ble ma teri als or on land covered with materials such
as agricultural crops, forest, brush, grass or other similar items, then
an ap proved spark arrester must be installed and is legally required
in the state of California. It is a violation of California statutes
section 130050 and/or sec tions 4442 and 4443 of the California
Public Re sourc es Code, unless the engine is equipped with a spark
arrester, as defined in section 4442, and maintained in ef fec tive
work ing order. Spark arresters are also required on some U.S.
For est Service land and may also be legally required under other
statutes and or di nanc es.
WARNING: This product contains chemicals, including lead,
known to the State of California to cause cancer, and birth
defects or other reproductive harm. Wash hands after handling.
SAVE THESE INSTRUCTIONS
Defi nitions: Safety Guidelines
The definitions below describe the level of severity
for each signal word. Please read the manual and
pay attention to these symbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING: Indicates a potentially hazardous
situation which, if not avoided, could result in death
or serious injury.
CAUTION: Indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION: Used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
4
English
DANGER: RISK OF EXPLOSION OR FIRE
What can happen How to prevent it
• Spilled gas o line and it’s
vapors can be come ignited
from cigarette sparks,
electrical arcing, exhaust
gas es and hot engine
components such as
the muffler.
• Shut off en gine and allow
it to cool before adding fuel
to the tank.
• Use care in fill ing tank to
avoid spill ing fuel. Move pressure wash er away
from fueling area before
start ing en gine.
• Heat will ex pand fuel in the
tank which could result in
spillage and pos si ble fire
explosion.
• Keep maximum fuel level
1/2" (12.7 mm) be low
bottom of filler neck
to allow for expansion.
• Operating the pressure
washer in an ex plo sive
en viron ment could
re sult in a fire.
• Operate and fuel equipment
in well-ven ti lat ed areas free
from ob struc tions. Equip
areas with fire extinguisher
suit able for gas o line fires.
• Materials placed against or
near the pressure washer
can in ter fere with its proper
ventilation fea tures caus ing
overheating and possible
ig ni tion of the materials.
• Never op er ate pressure
wash er in an area containing
dry brush or weeds.
• Muffler exhaust heat can
damage paint ed sur fac es,
melt any material sen si tive
to heat (such as siding,
plas tic, rub ber, vinyl or the
pressure hose, itself), and
dam age live plants.
• Always keep pressure washer
a min i mum of 4' (1.2 m) away
from sur fac es (such as
houses, au to mo biles or
live plants) that could be
damaged from muffler exhaust
heat.
• Improperly stored fuel could
lead to acciden tal ignition.
Fuel im prop er ly secured
could get into the hands of
children or oth er un qual i fied
persons.
• Store fuel in an OSHAap proved con tain er, in a
se cure location away from
work area.
• Use of acids, toxic or
cor ro sive chemicals,
poisons, in sec ti cides, or any
kind of flam ma ble solvent
with this product could re sult
in se ri ous injury or death.
• Do not spray flammable
liquids.
DANGER: RISK TO BREATHING (ASPHYXIATION)
What can happen How to prevent it
• Breathing ex haust fumes
will cause se ri ous injury
or death! En gine exhaust
con tains carbon mon ox ide,
an odorless and deadly gas.
• Operate pressure washer in
a well-ventilated area. Avoid
en closed areas such as ga rages, base ments, etc.
• Never op er ate unit in a
lo ca tion occupied by
humans or animals.
5
English
DANGER: RISK TO BREATHING (ASPHYXIATION) CONTINUED
• Some clean ing fluids
con tain sub stanc es which
could cause injury to skin,
eyes or lungs.
• Use only clean ing fluids
spe cif i cal ly rec om mend ed
for high-pressure washers. Follow manufacturers
recommendations. Do not use
chlorine bleach or any other
corrosive compound.
DANGER: RISK OF FLUID INJECTION AND LACERATION
What can happen How to prevent it
• Your pressure washer
operates at fluid pressures
and velocities high enough to
penetrate human and
animal flesh, which could
result in amputation or
other serious injury. Leaks
caused by loose fittings or
worn or damaged hoses can
result in injection injuries.
DO NOT TREAT FLUID
INJECTION AS
A SIMPLE CUT! See a
physician immediately!
• Inspect the high-pressure
hose regularly. Replace
the hose immediately if it is
damaged, worn, has melted
from contacting the engine,
or shows any signs of cracks,
bubbles, pinholes, or other
leakage. Never grasp a
high-pressure hose that
is leaking or damaged.
• Never touch, grasp or attempt
to cover a pinhole or similar
water leak on the highpressure hose. The stream
of water IS under high
pressure and WILL
penetrate skin.
• Never place hands in front
of noz zle.
• Direct spray away from self
and others.
• Make sure hose and fit tings
are tight ened and in good
condition. Never hold onto
the hose or fittings during
op er a tion.
• Do not allow hose to contact
muf fler.
• Never attach or remove wand
or hose fittings while sys tem is
pres sur ized.
• When using replacement
lances or guns with this
pressure washer, DO NOT
use a lance and/or lance/gun
combination that is shorter
in length than what was
provided with this pressure
washer as measured from the
nozzle end of the lance to the
gun trigger.
• Injuries can result if system
pressure is not reduced
before attempting maintenance or disassembly.
• To relieve sys tem pres sure,
shut off engine, turn off water
sup ply and pull gun trigger
until water stops flowing.
• Use only accessories rated
equal to or higher than the
rating of the pressure washer.
6
English
DANGER: RISK OF UNSAFE OPERATION
What can happen How to prevent it
• Unsafe op er a tion of your
pressure wash er could lead
to se ri ous in ju ry or death to
you or others.
• Do not use chlorine
bleach or any other
corrosive compound.
• Be come fa mil iar with the op era tion and con trols of
the pressure washer.
• Keep operating area clear
of all persons, pets and
obstacles.
• Do not operate the product
when fatigued or under the
influence of alcohol or drugs.
Stay alert at all times.
• Never defeat the safety
fea tures of this prod uct.
• Do not op er ate machine
with missing, broken or
un au tho rized parts.
• Never leave wand
unattended while unit
is running.
DANGER: RISK OF INJURY FROM SPRAY
What can happen How to prevent it
• High-velocity fluid spray
can cause objects to break,
propelling particles at high
speed.
• Always wear ANSI-approved
Z87.1 safety glasses. Wear
protective clothing to protect
against accidental spraying.
• Never point wand at or spray
people or animals.
• Light or unsecured objects
can become hazardous
projectiles.
• Always secure trigger lock
when wand is not in service
to prevent accidental
operation.
• Never permanently secure
trigger in pull-back (open)
position.
7
English
• If proper starting procedure
is not followed, engine can
kickback causing serious
hand and arm injury.
• If engine does not start after
two pulls, squeeze trigger
of gun to relieve pump
pressure. Pull starter cord
slowly until resistance is felt.
Then pull cord rapidly to avoid
kickback and prevent hand or
arm injury.
• The spray gun/wand is
a powerful clean ing tool
that could look like a toy
to a child.
• Keep chil dren away from the
pressure washer at all times.
• Reactive force of spray
will cause gun/wand to
kickback, and could cause
the op er a tor to slip or fall
or misdirect the spray.
Im prop er control of gun/
wand can re sult in
in ju ries to self and
others.
• Do not over reach or stand
on an unstable support.
• Do not use pressure washer
while standing on a ladder.
• Grip gun/wand firmly with
both hands. Expect the
gun to kickback when
triggered.
DANGER: RISK OF INJURY OR PROP ER TY DAMAGE WHEN
TRANSPORTING OR STORING
What can happen How to prevent it
• Fuel or oil can leak or spill
and could result in fire or
breathing hazard. Se ri ous
in ju ry or death can re sult.
Fuel or oil leaks will dam age
carpet, paint or oth er
surfaces in ve hi cles
or trailers.
• If pressure washer is equipped
with a fuel shut-off valve, turn
the valve to the OFF position
before transporting to avoid
fuel leaks. If pres sure wash er
is not equipped with a fuel
shut-off valve, drain the fuel
from tank before trans porting. Only trans port fuel in an
OSHA-approved container.
Al ways place pressure washer
on a protective mat when
transporting to protect against
dam age to vehicle from leaks.
Re move pres sure washer
from vehicle immediately upon
arrival at your destination.
8
English
WARNING: RISK OF BURSTING
What can happen How to prevent it
• Over inflation of tires could
result in serious injury and
property damage.
• Use a tire pressure gauge to
check the tires pressure before
each use and while inflating
tires; see the tire sidewall for
the correct tire pressure.
NOTE: Air tanks,
compressors and similar
equipment used to inflate tires
can fill small tires similar to
these very rapidly. Adjust pressure regulator on air
supply to no more than the rating of the tire pressure.
Add air in small increments
and frequently use the tire
gauge to prevent over
inflation.
WARNING: RISK OF HOT SURFACES
What can happen How to prevent it
• Con tact with hot sur fac es,
such as engines exhaust
com po nents, could result in
se ri ous burn.
• During op er a tion, touch
only the control surfaces
of the pres sure washer.
Keep children away from
the pres sure washer at all
times. They may not be able
to recognize the haz ards of
this product.
WARNING: RISK OF CHEMICAL BURN
What can happen How to prevent it
• Use of acids, toxic or
corrosive chemicals, poisons,
in sec ti cides, or any kind of
flam ma ble solvent with this
product could re sult in se rious injury or death.
• Do not use ac ids, gasoline,
ker o sene, or any other flammable materials in this product. Use only household de tergents, cleaners and degreasers recommended
for use in pres sure washers.
• Wear pro tec tive clothing
to protect eyes and skin
from con tact with sprayed
materials.
9
English
WARNING: RISK OF
ELEC TRI CAL SHOCK
What can happen How to prevent it
• Spray di rect ed at elec tri cal
outlets or switch es, or ob jects
con nect ed to an elec tri cal
circuit, could re sult in a
fatal electrical shock.
• Unplug any elec tri cal ly
op er at ed product before
attempting to clean it. Direct
spray away from electric
out lets and switches.
WARNING: RISK OF
INJURY FROM LIFTING
What can happen How to prevent it
• Serious injury can result
from attempting to lift too
heavy an object.
• The pressure washer is too
heavy to be lifted by one
person. Obtain assistance
from others before lifting.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
INSTALLATION
Pressure Washer Assembly (Fig. 1)
1. Place handle assembly (A) onto frame, depress
the snap buttons, and slide the handle assembly
onto the frame (B) until snap buttons are secured
in place.
CAUTION: Risk of personal injury. Avoid placing
hands between handle and frame when assembling
to prevent pinching.
2. Attach high-pressure
hose (C) to spray gun
(D). Make sure it is
secure.
3. Connect wand (E) to
spray gun. Make sure
connection is secure.
4. Remove the set screw
from spray gun extension using a 3/16" hex
wrench.
5. Thread the side handle (Q) into spray gun
extension and tighten
to desired position.
6. Place the nozzle holder (G)
onto the panel assembly (F)
and push each nozzle holder
into place.
10
English
7. Remove the five colored quick-connect nozzles from
the plastic bag and insert them into correct grommet
on the nozzle holder. Nozzles are color coded to
match colored nozzles on panel assembly.
NOTE: The high pressure pump is maintenance free
and requires no oil, if there is a problem with the pump
contact a D
EWALT factory service center, a DEWALT authorized ser-
vice center or other qualified service personnel.
WARNING: Risk of bursting.
Use a tire pressure gauge to check the
tires pressure before each use and while inflating tires; see the tire sidewall for the correct tire pressure.
NOTE: Air tanks, compressors and similar equipment used to inflate
tires can fill small tires similar to these very rapidly. Adjust pressure
regulator on air supply to no more than the rating of the tire pressure.
Add air in small increments and frequently use the tire gauge to
prevent over inflation.
OPERATION
Pressure Adjustments
The pressure setting is preset at the factory to achieve op ti mum pressure and cleaning. To lower the pres sure, follow these instructions.
1. Back away from the sur face to be cleaned. The further away you
are, the less the pressure will be on the surface to be cleaned.
2. Change to the 40˚ nozzle (white). This nozzle delivers a less
powerful stream of water and a wider spray pattern. Refer to
Spray Wand Nozzles.
CAUTION: DO NOT attempt to increase pump pressure. A higher
pressure setting than the factory set pressure may damage pump.
3. Reduce the speed of the gasoline engine (RPM). Slow the
engine down and the water pressure will go down with it.
Spray Wand Nozzles (Fig. 1)
The nozzles for the spray wand are stored in the nozzle holder (G) on
the panel assembly (F). Colors on the panel identify nozzle location
and spray pattern. Refer to the following chart to choose the correct
nozzle for the job to be performed.
Nozzle Color Spray Pattern Uses Surfaces*
Red
0˚ powerful
pinpoint for
very intense
cleaning
metal or
concrete;
DO NOT use
on wood
Yellow
15˚
intense
cleaning of
small areas
metal, concrete
or wood
Green
25
˚
intense
cleaning of
larger areas
metal, concrete
or wood
White
40
˚
covers wide
areas of
cleaning
metal, concrete,
wood or vinyl
Black
low pressure
applies cleaning
solutions
metal, concrete,
wood or vinyl
11
English
TO APPLY CHEMICALS AND SOLVENTS
1. Press chemical hose (S) onto barbed fitting
S
located near high pressure hose connection
of pump as shown.
2. Place the other end of chemical hose with
filter on it into the container holding chemical/cleaning solution.
NOTE: For every 7 gallons (26.5 liters) of
water pumped 1 gallon (3.8 liters) of chemical/cleaning solution will be used.
3. Install low-pressure (black) nozzle into quick connect fitting of spray
wand, refer to Spray Wand Nozzles.
4. After use of chemicals, place chemical hose into container of clean
water and draw clean water through chemical injection system
to rinse system thoroughly. If chemicals remain in the pump it
could be damaged. Pumps damaged due to chemicals will not be
covered under warranty.
NOTE: Chemicals and soaps will not siphon when spray wand is in the
high-pressure setting.
Starting
WARNING: To reduce the risk of injury, read the pressure washer
instruction manual and the engine instruction manual before starting
pressure washer.
DANGER: Risk of fluid injection and laceration. When using the
high-pressure setting, DO NOT allow the high-pressure spray to
come in contact with unprotected skin, eyes, or with any pets or
animals. Serious injury will occur.
* CAUTION: The high-pressure spray from your pressure washer
is capable of causing damage to surfaces such as wood, glass,
automobile paint, auto striping and trim, delicate objects such
as flowers and shrubs. Before spraying, check the item to
be cleaned to assure yourself that it is strong enough to resist
damage from the force of spray.

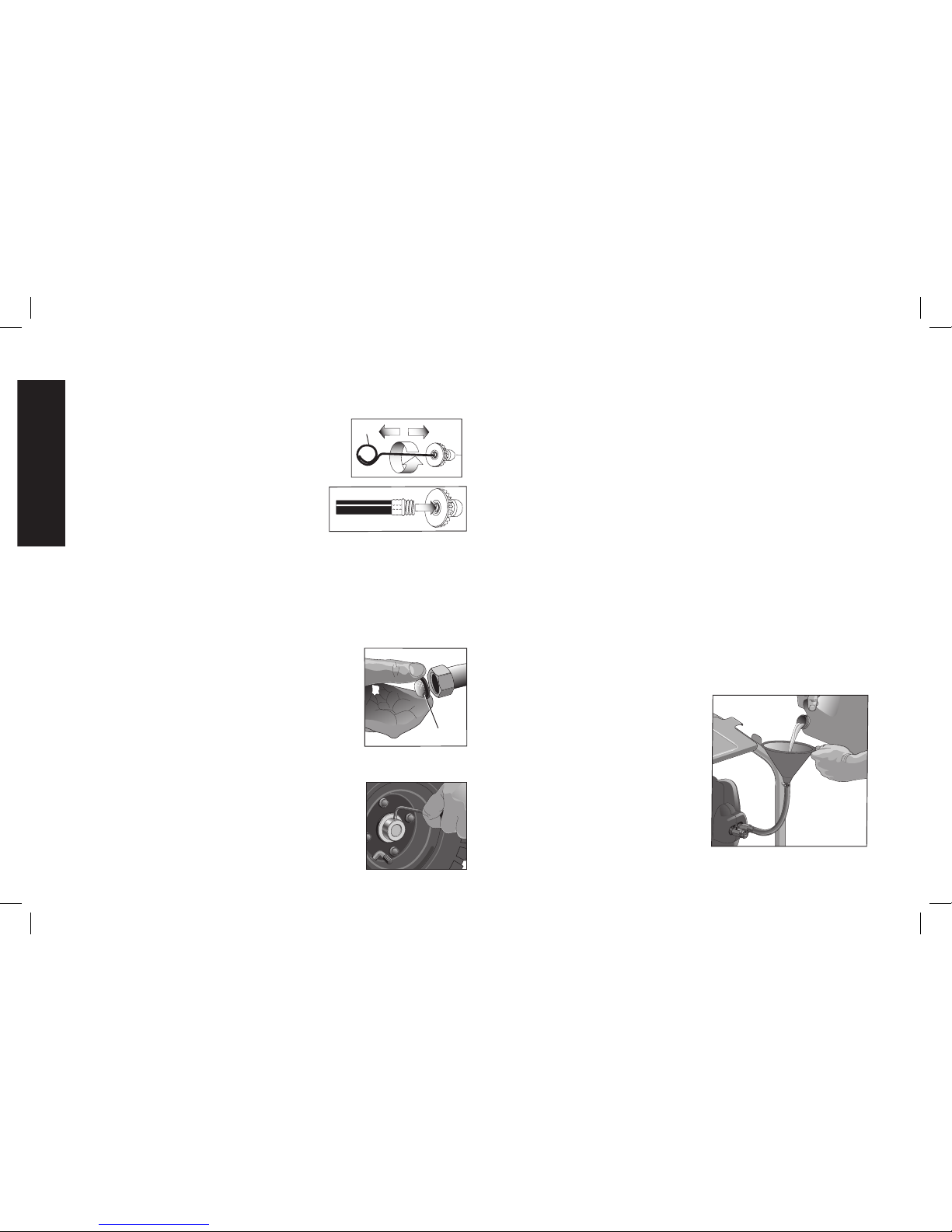

CHANGING NOZZLES ON SPRAY WAND
DANGER: Risk of fluid injection. Do not direct discharge stream
toward persons, unprotected skin, eyes or any pets or animals.
Serious injury will occur.
WARNING: Flying objects could cause risk of serious injury. DO
NOT attempt to change nozzles while pressure washer is running.
Turn engine off before changing nozzles.
1. Pull quick-connect coupler back and insert
nozzle.
2. Release quick-connect coupler and
twist nozzle to make sure it is secure in
coupler.
WARNING: Flying object could cause risk
of serious injury. Ensure nozzle is completely
inserted in quick-connect socket and quickconnect snap ring is fully engaged (forward)
before squeezing gun trigger.
Chemicals and Cleaning Solvents
Applying chemicals or cleaning solvents is a low-pressure operation.
NOTE: Use only soaps and chemicals designed for pressure washer
use. Do not use bleach.
12
English
• Your washer operates at fluid pressures and velocities high
enough to penetrate human and animal flesh, which could result
in amputation or other serious injury. Leaks caused by loose fittings or worn or damaged hoses can result in injection injuries.
DO NOT TREAT FLUID INJECTION AS A SIMPLE CUT! See a
physician immediately!
WARNING: Risk of fire, asphyxiation and burning. NEVER fill fuel
tank when engine is running or hot. Do not smoke when filling fuel
tank.
• NEVER fill fuel tank completely. Fill tank to 1/2" (12.7 mm) below
bottom of filler neck to provide space for fuel expansion. Wipe any fuel
spillage from engine and equipment before starting engine.
• NEVER run engine in doors or in en closed, poorly ven ti lat ed areas.
En gine exhaust con tains carbon mon ox ide, an odorless
and deadly
gas.
• DO NOT let hoses come in contact with very hot engine
muffler during or immediately after use of your pressure
washer. Damage to hoses from contact with hot engine
surfaces will NOT be covered by warranty.
CAUTION: NEVER pull water supply hose to move pres sure washer.
This could damage hose and/or pump inlet.
• DO NOT use hot water, use cold water only.
• NEVER turn water supply off while pressure washer engine is
running or damage to pump will result.
• DO NOT stop spraying water for more than two minutes at a
time. Pump operates in bypass mode when spray
T
gun trigger is not pressed. When the temperature
inside the pump rises too high the thermal relief valve
(T) will open and release a gush of water in an effort
to lower the temperature inside the pump. The thermal
relief valve will then close. If pump is left in bypass
mode for more than two minutes internal components of the pump can be damaged.
START-UP PROCEDURE
1. In a well-ventilated outdoor area, add fresh, high-quality, unleaded
gasoline with a pump octane rating of 86 or higher. Do not overfill.
Wipe up spilled fuel before starting the engine. Refer to engine
instruction manual for correct procedure.
2. Check engine oil level. Refer to the engine instruction manual for
correct procedure.
3. Connect the water hose to the water source. Turn the water source
on to remove all air from the hose. When a steady stream of water
is present, turn the water source off.
4. Verify the filter screen (U) is in water inlet of pump.
U
The cone side faces out.
5. Connect the cold water source (V) to pump inlet.
NOTE: Water source must provide a minimum of
5 gallons per minute at 20 PSI.
WARNING: To reduce the possibility of contami-
nation always protect against backflow when connected to a potable water system.
6. Connect high-pressure hose (C) to pump
V
C
outlet.
7. If applying a chemical or cleaning solution,
refer to Chemicals and Cleaning
Solvents.
8. Turn the water source on.
CAUTION: Risk of property damage. Failure
to do so could cause damage to the pump.
9. Remove all air from the pump and high pressure hose by depressing trigger until a steady stream of water is present.
10. Start engine. Refer to the engine instruction manual for correct
procedure.
13
English
WARNING: Risk of unsafe operation. If engine does not start
after two pulls, squeeze trigger of gun to relieve pump pressure. Pull
starter cord slowly until resistance is felt. Then pull cord rapidly to
avoid kickback and prevent hand or arm injury.
11. Depress trigger on gun to start water flow.
WARNING: Risk of unsafe operation. Stand on a stable
surface and grip gun/wand firmly with both hands. Expect the gun to
kickback when triggered.
12. Release trigger to stop water flow.
DANGER: Risk of injury from spray. Engage the
X
trigger lock (X) when gun is not in use to prevent
accidental spraying.
13. Adjust spray for the task being performed
by changing quick connect nozzle. Refer to
Spray Wand Nozzles.
Shutting Down
1. If chemicals were applied, place the chemical hose into a
container of clean water and draw clean water through chemical
injection system to rinse system thoroughly.
CAUTION: Risk of property damage Failure to do so could cause
damage to the pump.
2. Turn engine off. Refer to the engine instruction manual.
CAUTION: Risk of property damage. NEVER turn water supply off
while pressure washer engine is running or damage to pump will
result.
3. Turn water source off.
4. Pull trigger on spray gun to relieve any water pressure in hose or
spray gun.
5. Refer to Storage for proper storage procedures.
MAINTENANCE
WARNING: Risk of burning. When performing maintenance, you
may be exposed to hot surfaces, water pressure or moving parts that
can cause serious injury or death.
WARNING: Risk of fire. Always disconnect, spark plug wire, let
the engine cool and release all water pressure before performing
any maintenance or repair. The engine contains flammable fuel. Do
not smoke or work near open flames while performing maintenance.
To ensure efficient operation and longer life of your pressure washer,
a routine maintenance schedule should be prepared and followed.
If the pressure washer is used in unusual conditions, such as high
temperatures or dusty conditions, more fre quent maintenance
checks will be required.
Engine
Consult the engine instruction manual for the man u fac tur er's recommendations for any and all maintenance.
NOTE: The pressure washer frame is equipped with an oil drain
hole to help make changing the engine oil easier.
Pump
The high pressure pump is maintenance free and requires no oil, if
there is a problem with the pump contact a D
EWALT factory service
center, a D
EWALT authorized service center or other qualified ser-
vice personnel.
Nozzle Cleaning
If the nozzle becomes clogged with foreign materials, such as dirt,
excessive pressure may develop. If the nozzle becomes partially
clogged or restricted, the pump pressure will pulsate. Clean the
nozzle immediately using the nozzle kit supplied and the following
instructions:
14
English
1. Shut off the pressure washer and turn off the water supply.
2. Pull trigger on gun handle to relieve any water pressure.
3. Disconnect the spray wand from the gun.
Y
4. Remove the high-pressure nozzle from
the spray wand. Remove any obstructions
with the nozzle cleaning tool (Y) provided
and back flush with clean water.
5. Direct water supply into spray wand to
back flush loosened particles for 30
seconds.
6. Reassemble the nozzle to the wand.
7. Reconnect spray wand to gun then turn on water supply.
8. Start pressure washer and place spray wand into high pressure
setting to test.
To Clean the Water Inlet Filter
This filter screen (U) should be checked periodically and cleaned if
necessary.
1. Remove the filter screen (U) by grasping the
U
end and removing it from water inlet of
pump.
2. Clean filter by flushing it with water on both
sides.
3. Reinsert filter into water inlet of pump. Cone
side faces out.
NOTE: Do not operate pressure washer without
fi lter properly installed.
To Remove Tires
1. Using a 1/8" hex head wrench loosen set
screw in hub collar.
2. Slide hub collar from axle and remove the
tire.
STORAGE
Engine
Consult the engine instruction manual for the man u fac tur er's
recommendations for storage.
Pump
The manufacturer recommends using a pump protector/winterizer,
such as DP80 when storing the unit for more than 30 days and/or
when freezing temperatures are expected. DP80 is availabe at the
store where the pressure washer was purchased. If a pump protector/
winterizer is not available, RV antifreeze or windshield washer fluid
needs to be run through the pump as outlined in the steps below.
NOTE: Using a pump protector/ winterizer, RV antifreeze or windshield washer fluid is to provide proper lubrication to the internal
seals of the pump regardless of temperature or environment.
1. Obtain a funnel, 6 oz. (170 ml) of RV antifreeze or windshield
washer fluid, and 16–36" (3.17 mm) of garden hose with a male
hose connector attached to one end.
CAUTION: Risk of property damage. Use only RV antifreeze. Any
other an ti freeze is corrosive and can damage pump.
2. Disconnect spark plug wire.
3. Connect length of garden hose
to water inlet of pump.
4. Add RV antifreeze or windshield
washer fluid to hose as shown.
5. Pull engine starter rope slowly
several times until an ti freeze/
washer fluid comes out of highpressure hose con nec tion of
pump.
6. Remove garden hose from
water inlet of pump.
15
English
7. Reconnect spark plug wire.
Pressure Washer
1. Drain all water from highpressure hose, coil it and store it
in cradle of the pressure washer
handle.
2. With nozzle pointed down and
the spray gun and wand in a
vertical position, squeeze trigger
to drain all water from spray gun
and wand. Store in gun holder.
3. Store chemical hose so it is protected from dam age.
4. If space is needed, handles may be removed and attached as
shown.
CAUTION: Risk of personal injury. Avoid placing hands between
handle and frame when assembling to prevent pinching.
ACCESSORIES
Recommended accessories for use with your tool are available for
purchase from your local dealer or authorized service center. If you
need assistance in locating any accessory for your tool, please contact D
EWALT Industrial Tool Co., 701 East Joppa Road, Baltimore,
MD 21286, call 1-800-4-D
EWALT (1-800-433-9258) or visit our web-
site www.dewalt.com.
DANGER: Risk of fluid injection. When using replacement lances
or guns with this pressure washer, DO NOT use a lance and/or
lance/gun combination that is shorter in length than what was provided with this pressure washer as measured from the nozzle end
of the lance to the gun trigger.
CAUTION: The use of any other accessory not recommended for
use with this tool could be hazardous. Use only accessories rated
equal to or higher than the rating of the pressure washer.
SERVICE INFORMATION
Please have the following information available for all service calls:
Model Number ____________ Serial Number ___________
Date and Place of Purchase ____________________________
Repairs
To assure product SAFETY and RELIABILITY, repairs, maintenance
and adjustment should be performed by a D
EWALT factory service
center, a D
EWALT authorized service center or other qualified
service personnel. Always use identical replacement parts.
Limited Warranty
DEWALT pressure washers are warranted for one year from the
date of purchase. D
EWALT will repair, without charge, any defects
due to faulty materials or workmanship. For further detail of
warranty coverage and warranty repair information, visit
www.dewalt.com or call 1-800-4-D
EWALT (1-800-433-9258). This
warranty does not apply to accessories or damage caused where
repairs have been made or attempted by others. This warranty gives
you specific legal rights and you may have other rights which vary in
certain states or provinces. The product’s engine is covered by the
engine manufacturer’s warranty.
LATIN AMERICA: This warranty does not apply to products sold in
Latin America. For products sold in Latin America, see country specific warranty information contained either in the packaging, call the
local company or see website for warranty information.
FREE WARNING LABEL REPLACEMENT: If your warning labels
(next page) become illegible or are missing, call 1-800-4-D
EWALT
for a free replacement.
16
English
Glossary
Bypass mode: Allows water to re-circulate within pump when the
gun trigger is not pulled.
Chemical hose: Feeds cleaning agents into the pump to mix with
the water. Refer to Chemicals and Cleaning Solvents.
Chemical injection system: Mixes cleaners or cleaning solvents
with water to improve cleaning effectiveness.
Choke control: Opens and closes carburetor choke valve.
CU: Cleaning Units. GPM multiplied by PSI. (GPM x PSI = CU)
Fuel valve lever: Opens/closes connection between fuel tank and
carburetor.
GPM: Gallons Per Minute. The unit of measure for the flow rate of
water.
PSI: Pounds per Square Inch. The unit of measure for water pres-
sure. Also used for air pressure, hydraulic pressure, etc.
Quick-connect spray wand: Allows the user to quickly change out
high-pressure nozzles. Refer to Spray Wand Nozzles.
Thermal relief valve: When the temperature inside the pump rises too
high the valve will open and release a gush of water in an effort to
lower the temperature inside the pump. The valve will then close.
Water supply: All pressure washers must have a source of water. The
minimum requirements for a water supply are 20 PSI and 5 gallons
per minute.
17
English
Troubleshooting Guide
This section provides a list of the more frequently encountered malfunctions, their causes and corrective actions. The
operator or maintenance personnel can perform some corrective actions, and others may require the assistance of a
qualified D
EWALT technician or your dealer.
Problem Code
Engine will not start ......................................................................................................1, 2, 3, 4, 5, 6, 7, 8
(refer to the engine's instruction manual for further engine troubleshooting)
No or low pressure (initial use) .....................................................................................9, 10, 11, 12, 13, 14, 15, 16
Will not draw chemicals ................................................................................................. 16, 17, 18, 19, 20, 21
No or low pressure (after period of normal use) ........................................................... 22, 23, 24
Water leaking at gun/spray wand connection ...............................................................25, 26
Water leaking at pump ..................................................................................................25, 26, 27, 28
Pump Pulsates ..............................................................................................................12
18
English
Troubleshooting Codes
CODE POSSIBLE CAUSE POSSIBLE SOLUTION
1 No fuel. Add fuel.
2 Low oil. Add required amount of oil.
3 Pressure builds up after two pulls on the recoil starter or after
initial use.
Squeeze gun trigger to relieve pres sure.
4 Choke lever in the NO CHOKE position. Move choke to the CHOKE po si tion.
5 Spark plug wire not attached. Attach spark plug wire.
6 Engine ON/OFF switch in OFF po si tion. Place engine ON/OFF switch in ON position.
7 Choke lever in the CHOKE position on a hot engine or an engine
that has been exposed to thermal heat for a long period of time.
Move choke to the NO CHOKE po si tion.
8 Fuel valve closed. Move the fuel valve lever to the OPEN position.
9 Spray wand not in high pressure. See Spray Wand Nozzles under Operation.
10 Low water supply. Water supply must be at least 5 GPM @ 20 PSI.
11 Leak at high-pressure hose fitting. Repair leak. Apply sealant tape if necessary.
12 Nozzle obstructed. See Nozzle Cleaning under Maintenance.
13 Water filter screen clogged. Remove and clean filter.
14 Air in hose. Turn off the engine, then the water source. Disconnect the
water source from the pump inlet and turn the water source
on to remove all air from the hose. When there is a steady
stream of water present, turn water source off. Recon nect
water source to pump inlet and turn on wa ter source. Squeeze
trigger to re move re main ing air.
15 Choke lever in the CHOKE position. Move choke to the NO CHOKE po si tion.
16 High-pressure hose is too long. Use high-pressure hose under 100 feet (30.48 m). Lengthen water
supply hose instead of high-pressure hose.
19
English
(Troubleshooting Codes cont.)
CODE POSSIBLE CAUSE POSSIBLE SOLUTION
17 Spray wand not in low pressure. See Spray Wand Nozzles under Operation.
18 Chemical filter clogged. Clean filter.
19 Chemical screen not in cleaning solution. Make sure end of chemical hose is fully submerged into cleaning
solution.
20 Chemical too thick. Dilute chemical. Chemical should be the same consistency as water.
21 Worn seal or packing. Have parts cleaned or replaced by authorized service center.
22 Chemical build up in chemical injector. Have replaced by an authorized service center.
23 Worn or obstructed valves. Have replaced by authorized service center.
24 Worn unloader piston. Have replaced by authorized service center.
25 Worn or broken o-ring. Check and replace.
26 Loose hose connection. Tighten.
27 Piston packings worn. Have replaced by authorized service center.
28 Pump head or tubes damaged from freezing. Have replaced by authorized service center.
Français
20
A. Module de poignée
B. Cadre
C. Tuyau haute pression
D.
Pistolet de pulvérisation
professionnel
E. Tube de pulvérisation à
changement rapide
F. Panneau
G. Porte-buse
H. Jauge graduée/Bouchon du
réservoir d’huile du moteur
I. Pompe haute pression
J. Moteur
K. Commande d’étrangleur
L. Poignée de démarrage
M. Levier de la soupape à
essence
N. Interrupteur moteur
O. Bouchon du réservoir
d’essence
P. Levier de contrôle de
l’étrangleur
Q. Poignée latérale
LAVEUSE HAUTE PRESSION, MODÈLE DP3100
MOTEUR
Se reporter au mode d’emploi du moteur pour l’emplacement et
l’utilisation des commandes moteur.
Caractéristiques techniques de la
pompe
DEWALT SANS ENTRETIEN
La pompe haute pression est sans entretien et n’exige aucune huile.
En cas de problème avec la pompe, communiquer avec un centre
de réparation en usine D
EWALT, un centre de réparation autorisé
D
EWALT ou un personnel de réparation professionnel.
FIG. 1
J
D
E
C
K
A
F
B
G
I
N
H
O
P
M
L
Q
Loading...
