DeWalt DCS355 Instruction Manual
DCS355
20V Max* Oscillating Multi-Tool
Outil multifonctions à oscillations sans fil 20V max*
Multi-herramienta oscilante inalámbrica de 20 V Máx
INSTRUCTION MANUAL
GUIDE D’UTILISATION
MANUAL DE INSTRUCCIONES
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE
GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE
USAR EL PRODUCTO.
If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-800-4-DEWALT • www.dewalt.com
Defi nitions: Safety Guidelines
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to these
symbols.
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury
which, if not avoided, may result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR
ANY D
EWALT TOOL, CALL US TOLL FREE AT: 1-800-4-DEWALT
(1-800-433-9258).
WARNING: To reduce the risk of injury, read the instruction
manual.
General Power Tool Safety Warnings
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
The term “power tool” in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric
shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable,
use a ground fault circuit interrupter (GFCI) protected
supply. Use of a GFCI reduces the risk of electric shock.
English
1
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in
the off position before connecting to power source and/
or battery pack, picking up or carrying the tool. Carrying
power tools with your finger on the switch or energizing power
tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the
battery pack from the power tool before making any
adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools
are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding
of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind and
are easier to control.
g) Use the power tool, accessories and tool bits, etc. in
accordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.
English
2
5) BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another
battery pack.
b) Use power tools only with specifically designated battery
packs. Use of any other battery packs may create a risk of
injury and fire.
c) When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws, or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
6) SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
Additional Safety Rules for Oscillating
Multi-Tool
• Hold power tool by insulated gripping surfaces, when
performing an operation where the cutting accessory may
contact hidden wiring or its own cord. Cutting accessory
contacting a "live" wire may make exposed metal parts of the
power tool "live" and could give the operator an electric shock.
• Use clamps or another practical way to secure and support
the workpiece to a stable platform. Holding the work by hand
or against your body leaves it unstable and may lead to loss of
control.
• Air vents often cover moving parts and should be avoided.
Loose clothes, jewelry or long hair can be caught in moving parts.
WARNING: ALWAYS use safety glasses. Everyday eyeglasses are
NOT safety glasses. Also use face or dust mask if cutting operation is
dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.
WARNING: Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities contains chemicals
known to the State of California to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to
filter out microscopic particles.
• Avoid prolonged contact with dust from power sanding,
sawing, grinding, drilling, and other construction activities.
Wear protective clothing and wash exposed areas with
soap and water. Allowing dust to get into your mouth, eyes, or
lay on the skin may promote absorption of harmful chemicals.
English
3
WARNING: Use of this tool can generate and/or disperse dust,
which may cause serious and permanent respiratory or other
injury. Always use NIOSH/OSHA approved respiratory protection
appropriate for the dust exposure. Direct particles away from face
and body.
WARNING: Always wear proper personal hearing protection
that conforms to ANSI S12.6 (S3.19) during use. Under some
conditions and duration of use, noise from this product may
contribute to hearing loss.
CAUTION: When not in use, place tool on its side on a stable
surface where it will not cause a tripping or falling hazard.
Some tools with large battery packs will stand upright on the battery
pack but may be easily knocked over.
• The label on your tool may include the following symbols. The
symbols and their definitions are as follows:
V ................... volts A ......................amperes
Hz ................. hertz W .....................watts
min ............... minutes
or AC ..........alternating
or DC ... direct current current
................. Class I Construction or AC/DC ...alternating or
.....................
(grounded) ........................direct current
................. Class II Construction no ....................no load
(double insulated) speed
…/min ...........per minute n ...................... rated speed
BPM ............. beats per minute
.....................earthing
IPM ............... impacts per minute terminal
RPM ............. revolutions per
.....................safety alert
minute symbol
sfpm ............. surface feet SPM ................strokes per
..................... per minute ........................ minute
Important Safety Instructions for All
Battery Packs

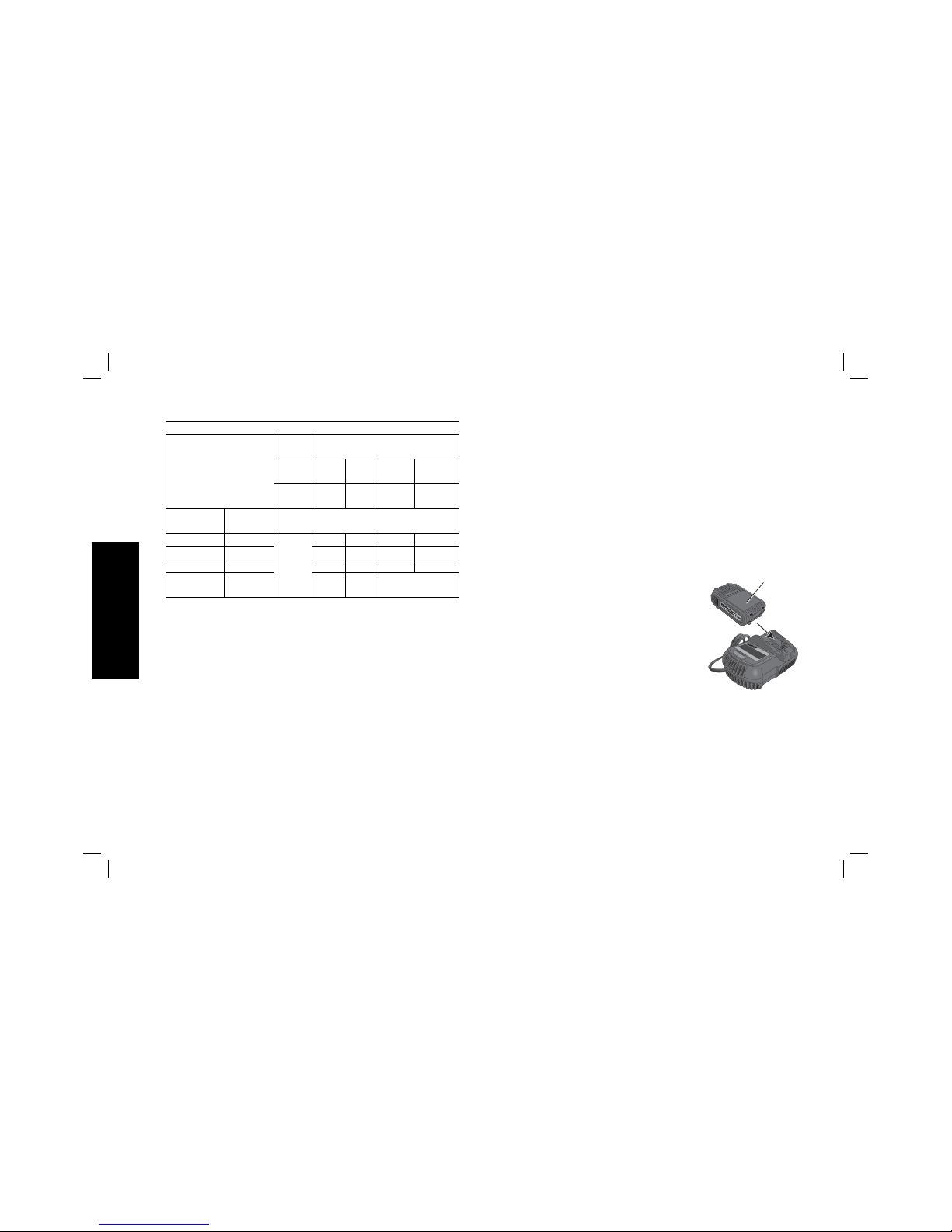

When ordering replacement battery packs, be sure to include the
catalog number and voltage. Consult the chart at the end of this
manual for compatibility of chargers and battery packs.
The battery pack is not fully charged out of the carton. Before using
the battery pack and charger, read the safety instructions below and
then follow charging procedures outlined.
READ ALL INSTRUCTIONS
• Do not charge or use the battery pack in explosive
atmospheres, such as in the presence of flammable liquids,
gases or dust. Inserting or removing the battery pack from the
charger may ignite the dust or fumes.
• NEVER force the battery pack into the charger. DO NOT
modify the battery pack in any way to fit into a noncompatible charger as battery pack may rupture causing
serious personal injury. Consult the chart at the end of this
manual for compatibility of batteries and chargers.
• Charge the battery packs only in designated D
EWALT chargers.
• DO NOT splash or immerse in water or other liquids.
• Do not store or use the tool and battery pack in locations
where the temperature may reach or exceed 105°F (40°C)
(such as outside sheds or metal buildings in summer). For
best life store battery packs in a cool, dry location.
NOTE: Do not store the battery packs in a tool with the
trigger switch locked on. Never tape the trigger switch in
the ON position.
WARNING: Fire hazard. Never attempt to open the battery pack
for any reason. If the battery pack case is cracked or damaged, do
not insert into the charger. Do not crush, drop or damage the battery
pack. Do not use a battery pack or charger that has received a sharp
English
4
blow, been dropped, run over or damaged in any way (e.g., pierced
with a nail, hit with a hammer, stepped on). Damaged battery packs
should be returned to the service center for recycling.
WARNING: Fire hazard. Do not store or carry the battery
pack so that metal objects can contact exposed battery
terminals. For example, do not place the battery pack in aprons,
pockets, tool boxes, product kit boxes, drawers, etc., with loose nails,
screws, keys, etc. Transporting batteries can possibly cause
fires if the battery terminals inadvertently come in contact
with conductive materials such as keys, coins, hand tools
and the like. The US Department of Transportation Hazardous
Material Regulations (HMR) actually prohibit transporting batteries in
commerce or on airplanes (e.g., packed in suitcases and carry-on
luggage) UNLESS they are properly protected from short circuits. So
when transporting individual battery packs, make sure that the battery
terminals are protected and well insulated from materials that could
contact them and cause a short circuit.
SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION (Li-Ion)
• Do not incinerate the battery pack even if it is severely
damaged or is completely worn out. The battery pack can
explode in a fire. Toxic fumes and materials are created when
lithium ion battery packs are burned.
• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If battery
liquid gets into the eye, rinse water over the open eye for 15
minutes or until irritation ceases. If medical attention is needed,
the battery electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory
irritation. Provide fresh air. If symptoms persist, seek medical
attention.
WARNING: Burn hazard. Battery liquid may be flammable if
exposed to spark or flame.
The RBRC™ Seal
The RBRC™ (Rechargeable Battery Recycling
Corp oration) Seal on the nickel cadmium, nickel metal
hydride or lithium ion batteries (or battery packs)
indicate that the costs to recycle these batteries (or
battery packs) at the end of their useful life have already
been paid by D
EWALT. In some areas, it is illegal to
place spent nickel cadmium, nickel metal hydride or lithium ion
batteries in the trash or municipal solid waste stream and the RBRC
program provides an environmentally conscious alternative.
RBRC™, in cooperation with D
EWALT and other battery users, has
established programs in the United States and Canada to facilitate
the collection of spent nickel cadmium, nickel metal hydride or lithium
ion batteries. Help protect our environment and conserve natural
resources by returning the spent nickel cadmium, nickel metal
hydride or lithium ion batteries to an authorized D
EWALT service
center or to your local retailer for recycling. You may also contact
your local recycling center for information on where to drop off the
spent battery.
RBRC™ is a registered trademark of the Rechargeable Battery
Recycling Corporation.
Important Safety Instructions for All
Battery Chargers
SAVE THESE INSTRUCTIONS: This manual contains important
safety and operating instructions for battery chargers.
• Before using the charger, read all instructions and cautionary
markings on the charger, battery pack and product using the
battery pack.
WARNING: Shock hazard. Do not allow any liquid to get inside the
charger. Electric shock may result.
English
5
CAUTION: Burn hazard. To reduce the risk of injury, charge only
D
EWALT rechargeable battery packs. Other types of batteries may
overheat and burst resulting in personal injury and property damage.
NOTICE: Under certain conditions, with the charger plugged into
the power supply, the charger can be shorted by foreign material.
Foreign materials of a conductive nature, such as, but not limited to,
grinding dust, metal chips, steel wool, aluminum foil or any buildup
of metallic particles should be kept away from the charger cavities.
Always unplug the charger from the power supply when there is no
battery pack in the cavity. Unplug the charger before attempting to
clean.
• DO NOT attempt to charge the battery pack with any
chargers other than the ones in this manual. The charger and
battery pack are specifically designed to work together.
• These chargers are not intended for any uses other than
charging D
EWALT rechargeable batteries. Any other uses
may result in risk of fire, electric shock or electrocution.
• Do not expose the charger to rain or snow.
• Pull by the plug rather than the cord when disconnecting
the charger. This will reduce the risk of damage to the electric
plug and cord.
• Make sure that the cord is located so that it will not be
stepped on, tripped over or otherwise subjected to damage
or stress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in risk of
fire, electric shock or electrocution.
• When operating a charger outdoors, always provide a dry
location and use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric
shock.
• An extension cord must have adequate wire size (AWG or
American Wire Gauge) for safety. The smaller the gauge number
of the wire, the greater the capacity of the cable, that is, 16 gauge
has more capacity than 18 gauge. An undersized cord will cause a
drop in line voltage resulting in loss of power and overheating. When
using more than one extension to make up the total length, be sure
each individual extension contains at least the minimum wire size.
The following table shows the correct size to use depending on
cord length and nameplate ampere rating. If in doubt, use the next
heavier gauge. The lower the gauge number, the heavier the cord.
Minimum Gauge for Cord Sets
Ampere
Rating
Volts Total Length of Cord
in Feet (meters)
120 V 25
(7.6)
50
(15.2)
100
(30.5)
150
(45.7)
240 V 50
(15.2)
100
(30.5)
200
(61.0)
300
(91.4)
More
Than
Not
More
Than
AWG
0 6 18 16 16 14
610 1816 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
• Do not place any object on top of the charger or place the
charger on a soft surface that might block the ventilation
slots and result in excessive internal heat. Place the charger
in a position away from any heat source. The charger is ventilated
through slots in the top and the bottom of the housing.
• Do not operate the charger with a damaged cord or plug.
• Do not operate the charger if it has received a sharp blow,
been dropped or otherwise damaged in any way. Take it to
an authorized service center.
English
6
• Do not disassemble the charger; take it to an authorized
service center when service or repair is required. Incorrect
reassembly may result in a risk of electric shock, electrocution or fire.
• Disconnect the charger from the outlet before attempting
any cleaning. This will reduce the risk of electric shock.
Removing the battery pack will not reduce this risk.
• NEVER attempt to connect 2 chargers together.
• The charger is designed to operate on standard 120V
household electrical power. Do not attempt to use it on any
other voltage. This does not apply to the vehicular charger.
Chargers
Your tool uses a DEWALT charger. Be sure to read all safety
instructions before using your charger. Consult the chart at the end of
this manual for compatibility of chargers and battery packs.

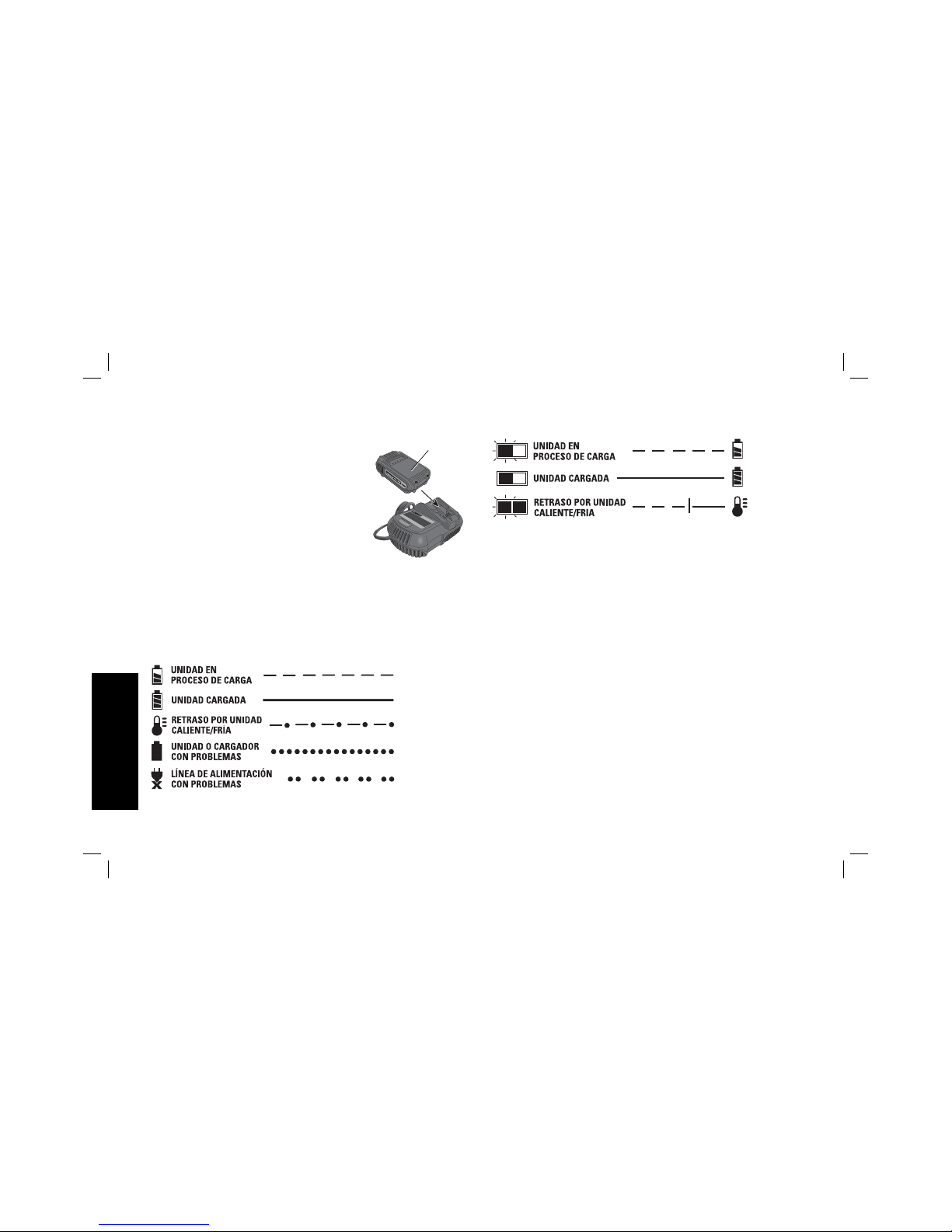

Charging Procedure (Fig. 1)
1. Plug the charger into an appropriate
DCB101
H
FIG. 1
outlet before inserting the battery
pack.
2. Insert the battery pack (H) into
the charger, as shown in Figure 1,
making sure the pack is fully seated
in charger. The red (charging) light
will blink continuously, indicating that
the charging process has started.
3. The completion of charge will be
indicated by the red light remaining
ON continuously. The pack is fully
charged and may be used at this
time or left in the charger.

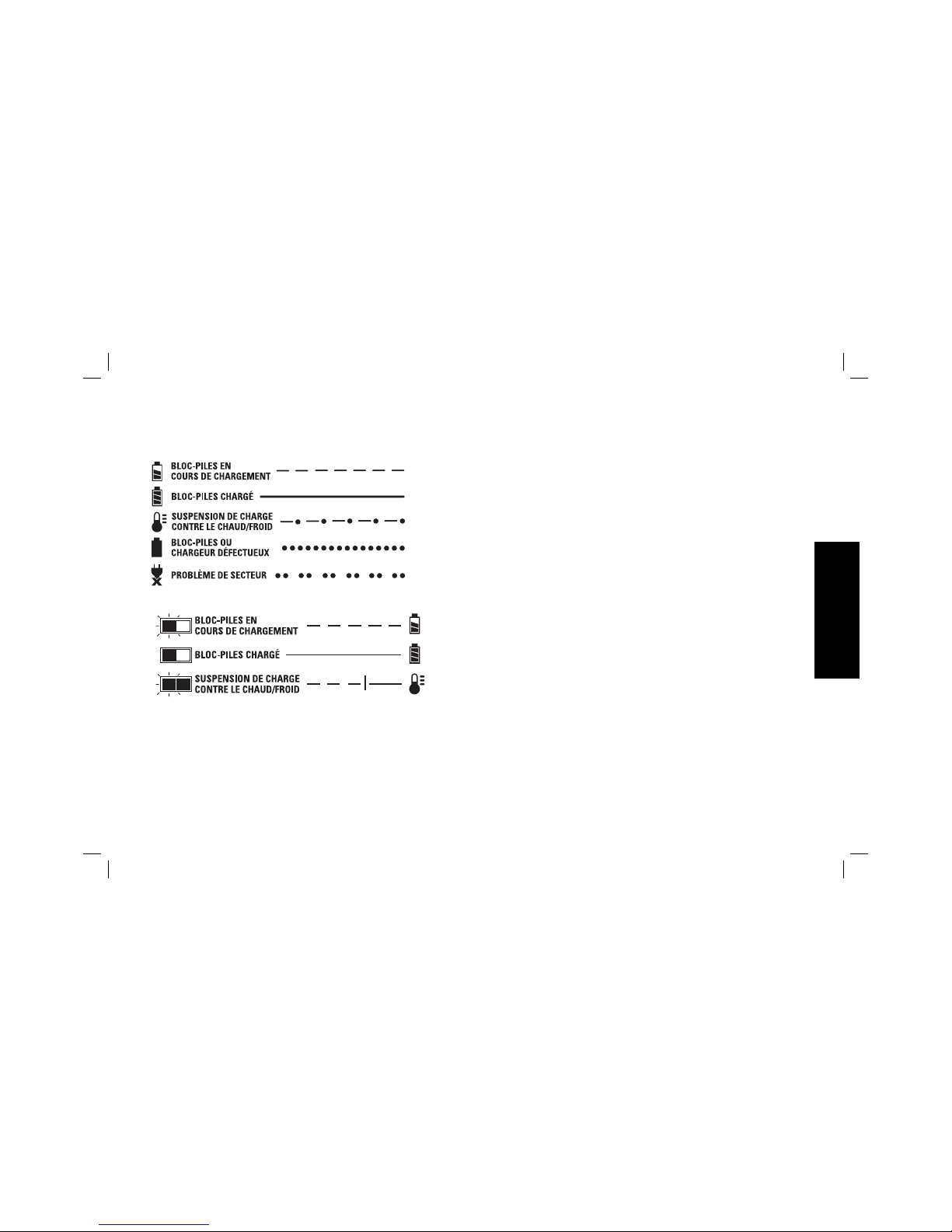

Indicator Light Operation
DCB101
PACK CHARGING
PACK CHARGED
x
HOT/COLD DELAY
PROBLEM PACK OR CHARGER
PROBLEM POWERLINE
DCB107, DCB112
PACK CHARGING
PACK CHARGED
HOT/COLD DELAY
Charge Indicators
This charger is designed to detect certain problems that can arise.
Problems are indicated by the red light flashing at a fast rate. If this
occurs, re-insert the battery pack into the charger. If the problem
persists, try a different battery pack to determine if the charger is
working properly. If the new pack charges correctly, then the original
pack is defective and should be returned to a service center or other
collection site for recycling. If the new battery pack elicits the same
trouble indication as the original, have the charger and the battery
pack tested at an authorized service center.
English
7
HOT/COLD DELAY
DCB101
This charger has a hot/cold delay feature: when the charger detects a
battery that is hot, it automatically starts a delay, suspending charging
until the battery has cooled. After the battery has cooled, the charger
automatically switches to the pack charging mode. This feature
ensures maximum battery life. The red light flashes long, then short
while in the hot/cold delay mode.
DCB107, DCB112
The DCB107 and DCB112 chargers have a hot/cold delay feature.
When the charger detects a battery that is hot, it automatically delays
charging until the battery has cooled. When the charger detects a
battery that is cold, it automatically delays charging until the battery
has warmed.
The red light will continue to blink, but a yellow indicator light will be
illuminated during this operation. Once the battery has cooled, the
yellow light will turn off and the charger will resume the charging
procedure.
LEAVING THE BATTERY PACK IN THE CHARGER
The charger and battery pack can be left connected with the charge
indicator showing Pack Charged.
WEAK BATTERY PACKS: Weak batteries will continue to function
but should not be expected to perform as much work.
FAULTY BATTERY PACKS: This charger will not charge a faulty
battery pack. The charger will indicate faulty battery pack by refusing
to light or by displaying problem pack or charger.
NOTE: This could also mean a problem with a charger.
PROBLEM POWER LINE (DCB101)
Some chargers have a Problem Power Line indicator. When the
charger is used with some portable power sources such as generators
or sources that convert DC to AC, the charger may temporarily
suspend operation, flashing the red light with two fast blinks followed
by a pause. This indicates the power source is out of limits.
Wall Mounting
DCB107, DCB112
These chargers are designed to be wall mountable or to sit upright on
a table or work surface.
If wall mounting, locate the charger within reach of an electrical
outlet. Mount the charger securely using drywall screws at least
1" (25.4 mm) long, screwed into wood to an optimal depth leaving
approximately 7/32" (5.5 mm) of the screw exposed.
Important Charging Notes
1. Longest life and best performance can be obtained if the battery
pack is charged when the air temperature is between 65 °F
and 75 °F (18° – 24 °C). DO NOT charge the battery pack in
an air temperature below +40 °F (+4.5 °C), or above +105 °F
(+40.5°C). This is important and will prevent serious damage to
the battery pack.
2. The charger and battery pack may become warm to the touch
while charging. This is a normal condition, and does not indicate
a problem. To facilitate the cooling of the battery pack after use,
avoid placing the charger or battery pack in a warm environment
such as in a metal shed or an uninsulated trailer.
3. A cold battery pack will charge at about half the rate of a warm
battery pack. The battery pack will charge at that slower rate
throughout the entire charging cycle and will not return to
maximum charge rate even if the battery pack warms.
4. If the battery pack does not charge properly:
a. Check operation of receptacle by plugging in a lamp or other
appliance;
English
8
b. Check to see if receptacle is connected to a light switch which
turns power off when you turn out the lights;
c. Move the charger and battery pack to a location where the
surrounding air temperature is approximately 65 °F – 75 °F
(18° – 24°C);
d. If charging problems persist, take the tool, battery pack and
charger to your local service center.
5. The battery pack should be recharged when it fails to produce
sufficient power on jobs which were easily done previously. DO
NOT CONTINUE to use under these conditions. Follow the
charging procedure. You may also charge a partially used pack
whenever you desire with no adverse effect on the battery pack.
6. Foreign materials of a conductive nature such as, but not limited
to, grinding dust, metal chips, steel wool, aluminum foil, or any
buildup of metallic particles should be kept away from charger
cavities. Always unplug the charger from the power supply when
there is no battery pack in the cavity. Unplug the charger before
attempting to clean.
7. Do not freeze or immerse the charger in water or any other liquid.
WARNING: Shock hazard. Don’t allow any liquid to get inside the
charger. Electric shock may result.
WARNING: Burn hazard. Do not submerge the battery pack in
any liquid or allow any liquid to enter the battery pack. Never attempt
to open the battery pack for any reason. If the plastic housing of the
battery pack breaks or cracks, return to a service center for recycling.
Storage Recommendations
1. The best storage place is one that is cool and dry, away from
direct sunlight and excess heat or cold.
2. For long storage, it is recommended to store a fully charged
battery pack in a cool dry place out of the charger for optimal
results.
NOTE: Battery packs should not be stored completely depleted of
charge. The battery pack will need to be recharged before use.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
FIG. 2
A
D
F
C
E
B
G
HI
COMPONENTS (Fig. 2)
WARNING: Never modify the power tool or any part of it. Damage
or personal injury could result.
A. Variable speed trigger
B. LED worklight
C. Accessory clamp lever
D. Lock on/off button
E. Accessory side mount
F. Cut guide block
G. Cut guide arm
H. Battery pack
I. Battery release button
English
9
INTENDED USE
This oscillating multi-tool is designed for professional detail sanding,
plunge cutting, flush cutting, removal of excess materials and surface
preparation applications.
DO NOT use under wet conditions or in presence of flammable
liquids or gases.
This oscillating multi-tool is a professional power tool. DO NOT let
children come into contact with the tool. Supervision is required when
inexperienced operators use this tool.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal injury,
turn tool off and remove the battery pack before making any
adjustments or removing/installing attachments or accessories.
An accidental start-up can cause injury.
WARNING: Risk of lacerations or burns. Do not touch the
sharp edges of accessories at any time. Do not touch workpiece
or blade immediately after operating the tool. They can become very
hot. Handle carefully. Always allow accessories and workpiece to
cool before handling.

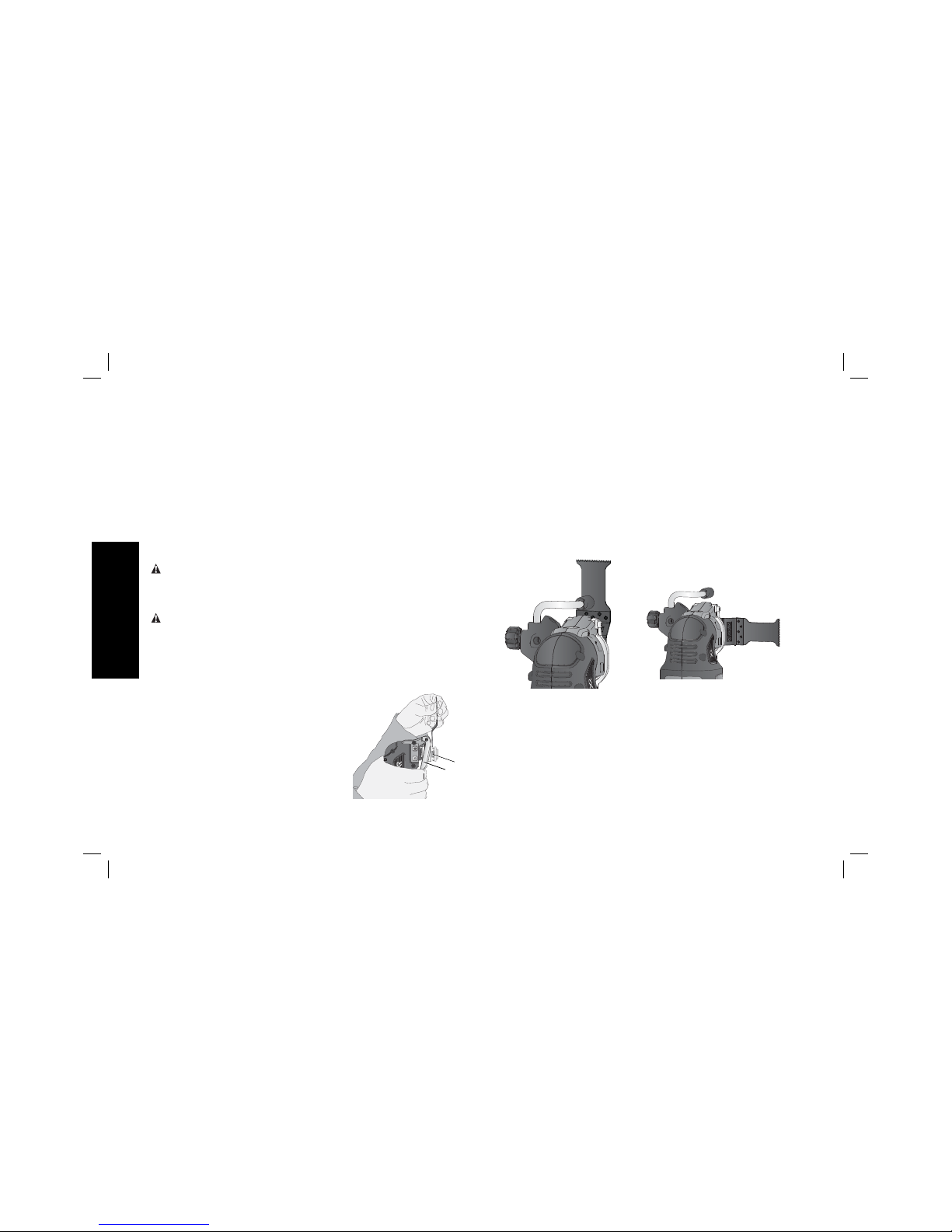

Installing/Removing Accessories
(Fig.3–5)
TOOL-FREE ACCESSORY CLAMP
The DCS355 features a quick change accessory system. This allows
for faster accessory changes without the need for wrenches or hex
keys like other oscillating tool systems.

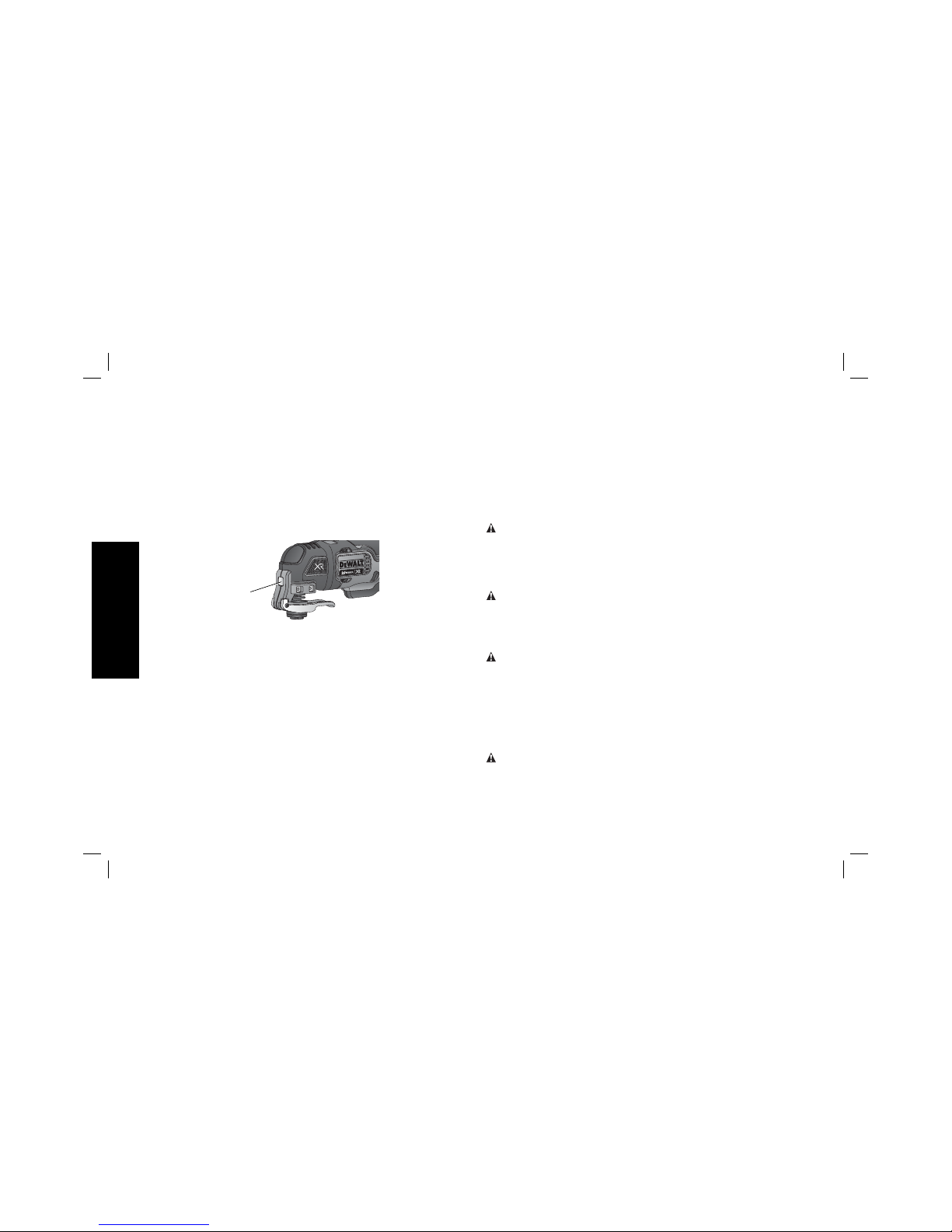

1. Grasp the tool and squeeze the
FIG. 3
C
J
accessory clamping lever (C) as
shown in Figure 3.
2. Clean any residual debris from the
tool shaft and the accessory holder.
3. Slide the accessory between the
shaft (J) and the accessory holder
making sure the accessory engages
all eight pins on the holder and is
flush with the shaft.
4. Release the accessory clamp lever.
NOTE: Some accessories, such as scrapers and blades, can be
mounted at an angle if required as shown in Figure 5.
FIG. 4 FIG. 5
English
10

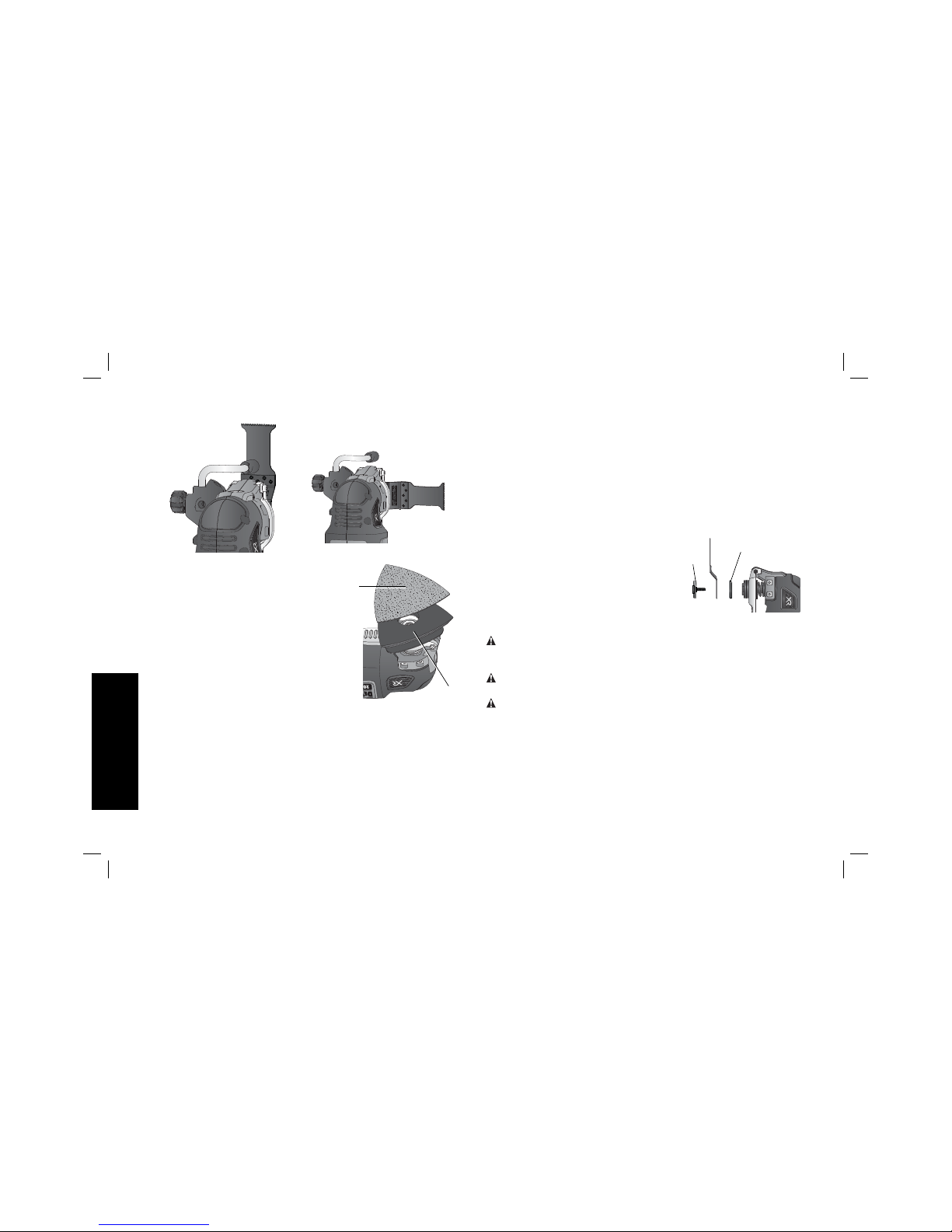

INSTALLING/REMOVING SANDING SHEETS (FIG. 6)
A diamond shaped platen uses a hook
and loop adhesion system to attach the
sanding sheets. The platen allows you
to use it on large flat surfaces and tight
spots or corners.
1. Attach the sanding platen (K) as
described under Installing/
Removing Accessories.
2. Align the edges on the sanding
sheet, with the edge of the sanding
platen and press the sanding sheet
(L) onto the platen.
3. Firmly press the base with the sanding sheet attached against a
flat surface and briefly switch the tool on. This provides for good
adhesion between the platen and the sanding sheet and also
helps to prevent premature wear.
4. When the tip of the sanding sheet becomes worn, detach the
sheet from the platen, rotate and reapply.
ATTACHING ACCESSORIES USING THE UNIVERSAL
ADAPTER (FIG. 7)
Non-D
EWALT accessories can be
attached using the universal adaptor.
1. Place the washer (M) on the tool.
2. Place accessory on to washer.
3. Tighten and secure adaptor nut (N)
using hex wrench.
FIG. 6
L
K
FIG. 7
M
N
CAUTION: To avoid injury, do not use any accessory for an
application where the adaptor may fail to hold the accessory.
CAUTION: Read and follow all manufacturers' safety warnings for
any accessories used with this tool.
CAUTION: To avoid injury, ensure adaptor and accessory are
securely tightened.

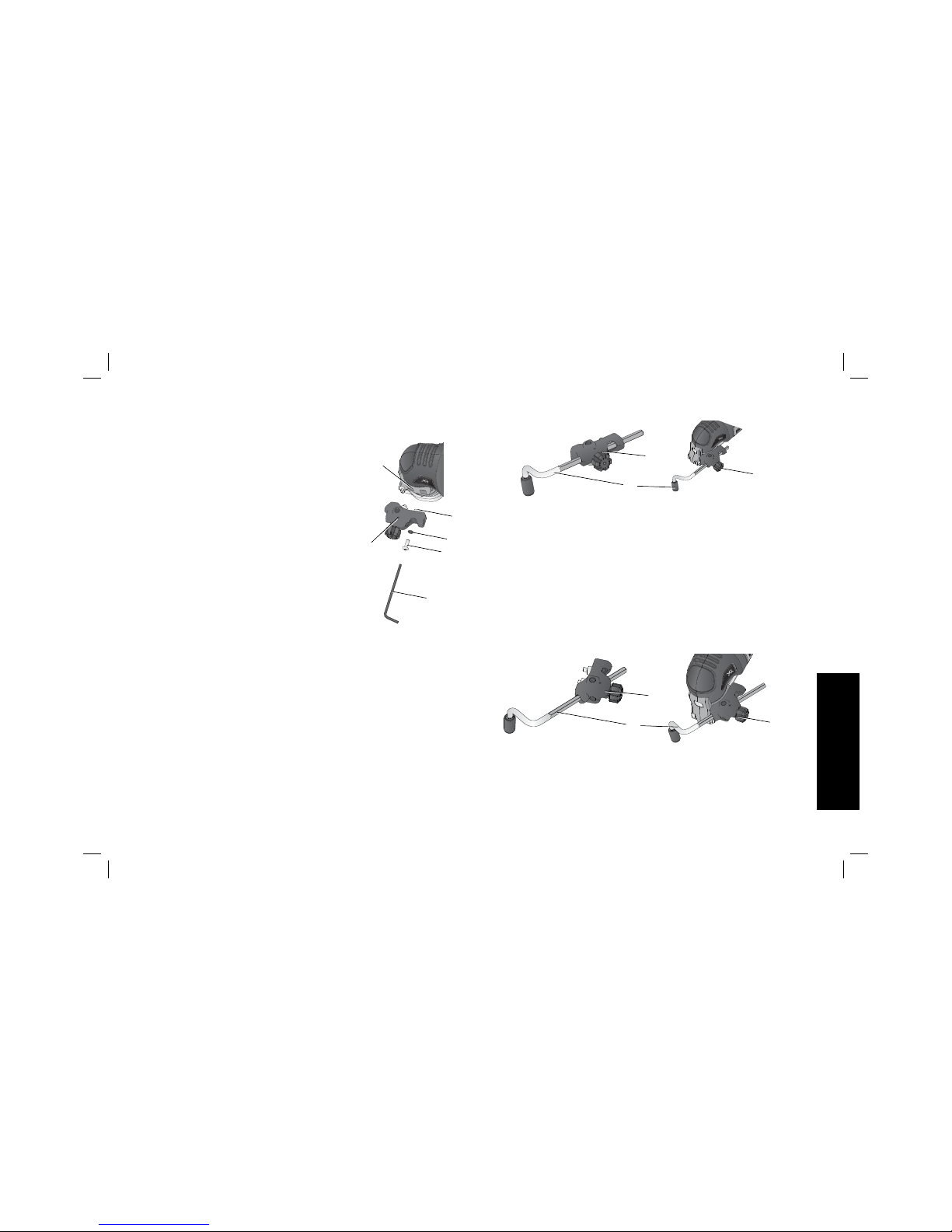

Attaching the Cut Guide (Fig. 8–12)
The depth/cut guide allows you to precisely
cut material at a specified depth or height and
more accurately track a marked cut line.
1. Attach the cut guide block (F) by inserting
the tabs (O) on the guide into the
accessory side mount (E) on the main
body of the tool.
2. Secure the block to the main body with
the supplied screw (Q) and washer (S).
Tighten with the supplied hex wrench(R).
DEPTH GUIDE
This feature allows you to precisely cut
material at a specified depth.
1. Insert the guide arm (G) as shown in
Figure 9 into the front slot on the guide
block (F).
2. Adjust the length of the guide by pulling out or pushing inward to
achieve the desired cut depth as shown in Figure 10.
3. Secure the guide in place by turning the depth/cut adjustment
knob (P) clockwise. To release the guide, turn the depth/cut
adjustment knob counterclockwise.
E
O
Q
R
F
FIG. 8
S
English
11
P
FIG. 9
FIG. 10
F
G

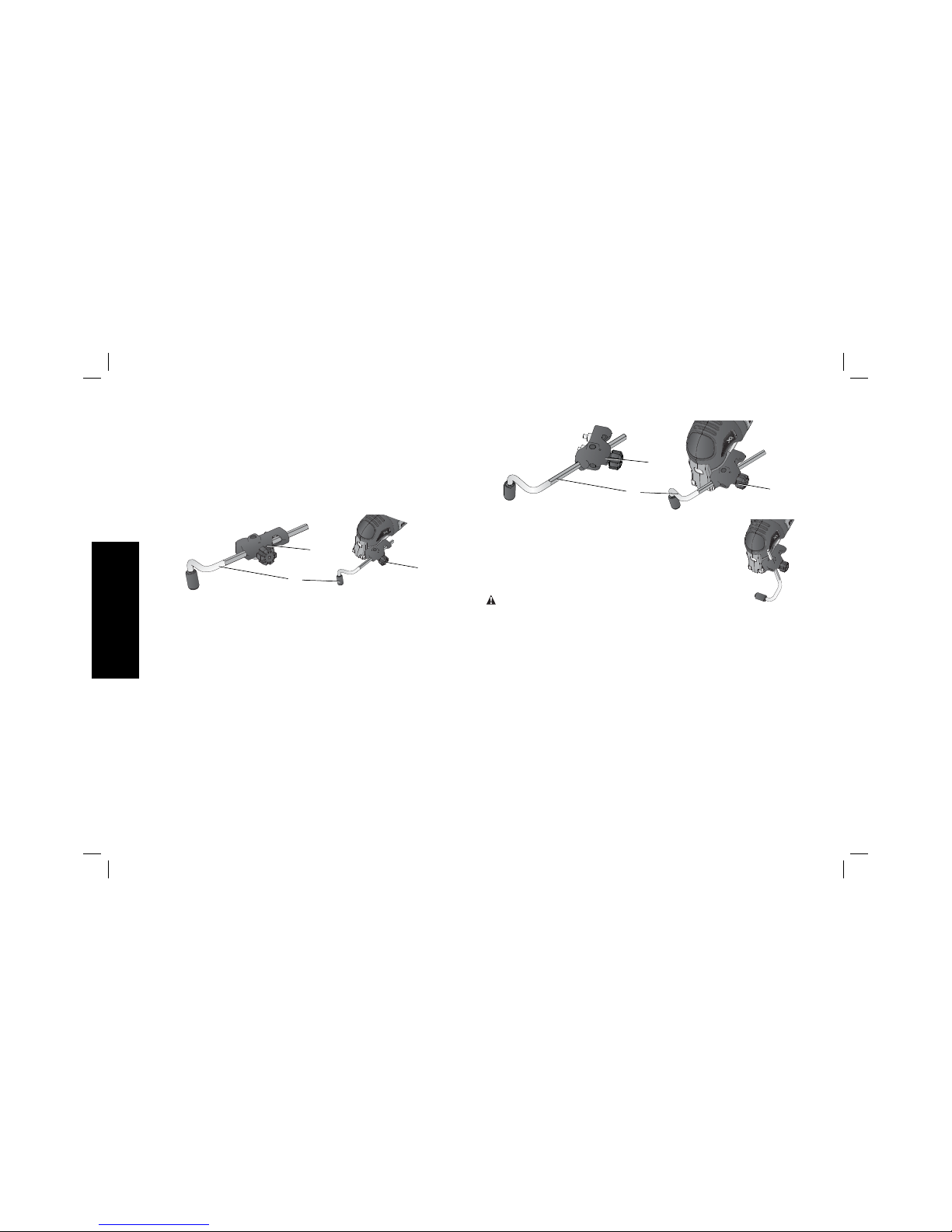

CUT GUIDE
This feature allows you to more accurately track a marked cut line.
1. Insert the guide arm (G) as shown in Figure 11 into the slots on
the left and right sides of the guide block (F).
2. Adjust the length of the guide by pulling out or pushing inward to
achieve the desired length as shown in Figure 12.
3. Secure the guide in place by turning the depth/cut adjustment
knob (P) clockwise. To release the guide, turn the depth/cut
adjustment knob counterclockwise.
P
FIG. 11 FIG. 12
F
G
NOTE: The guide arm can also be placed in
the guard assembly vertically in order to set
the height of a cut. Refer to Figure 13.
FIG. 13
OPERATION
WARNING: To reduce the risk of serious personal injury,
turn tool off and remove the battery pack before making any
adjustments or removing/installing attachments or accessories.
An accidental start-up can cause injury.

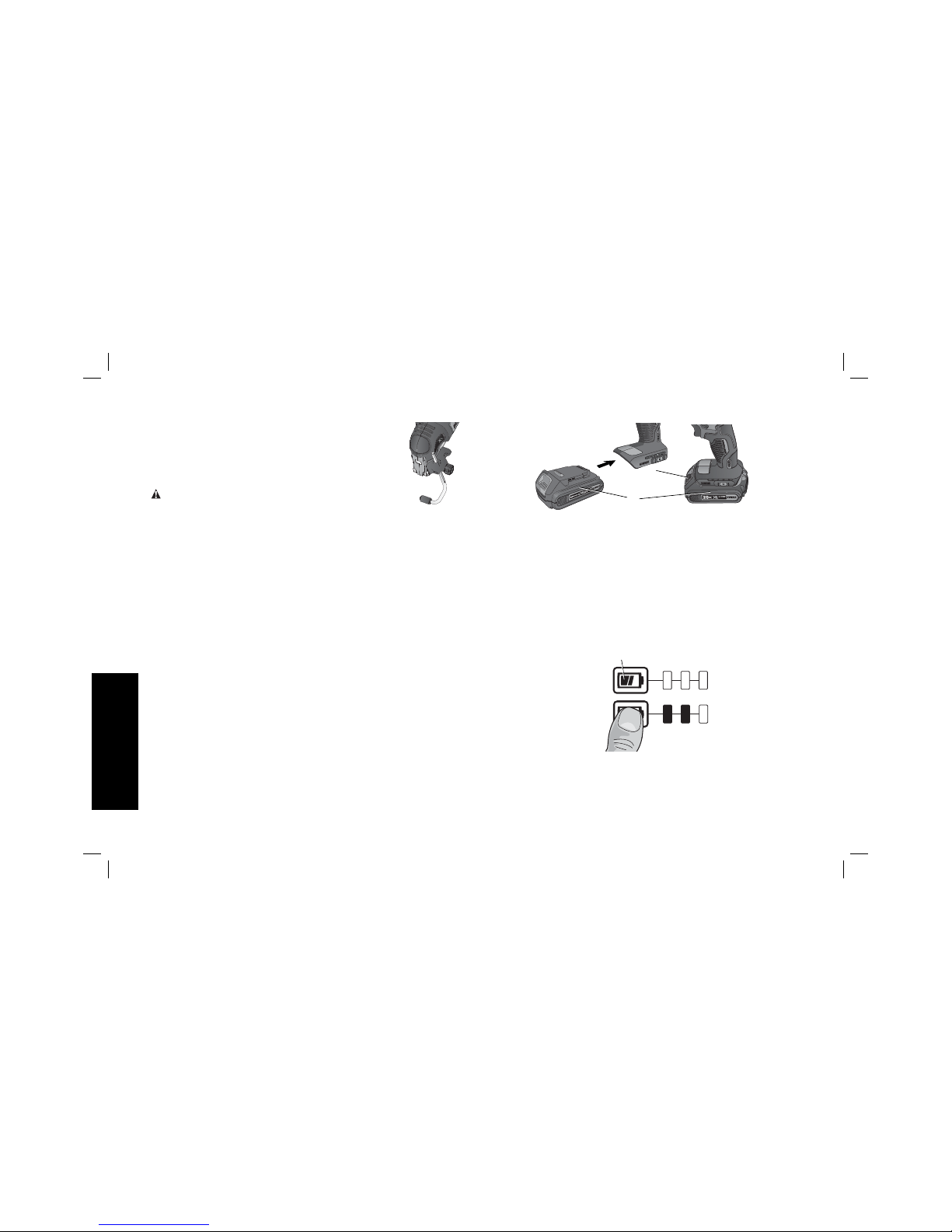

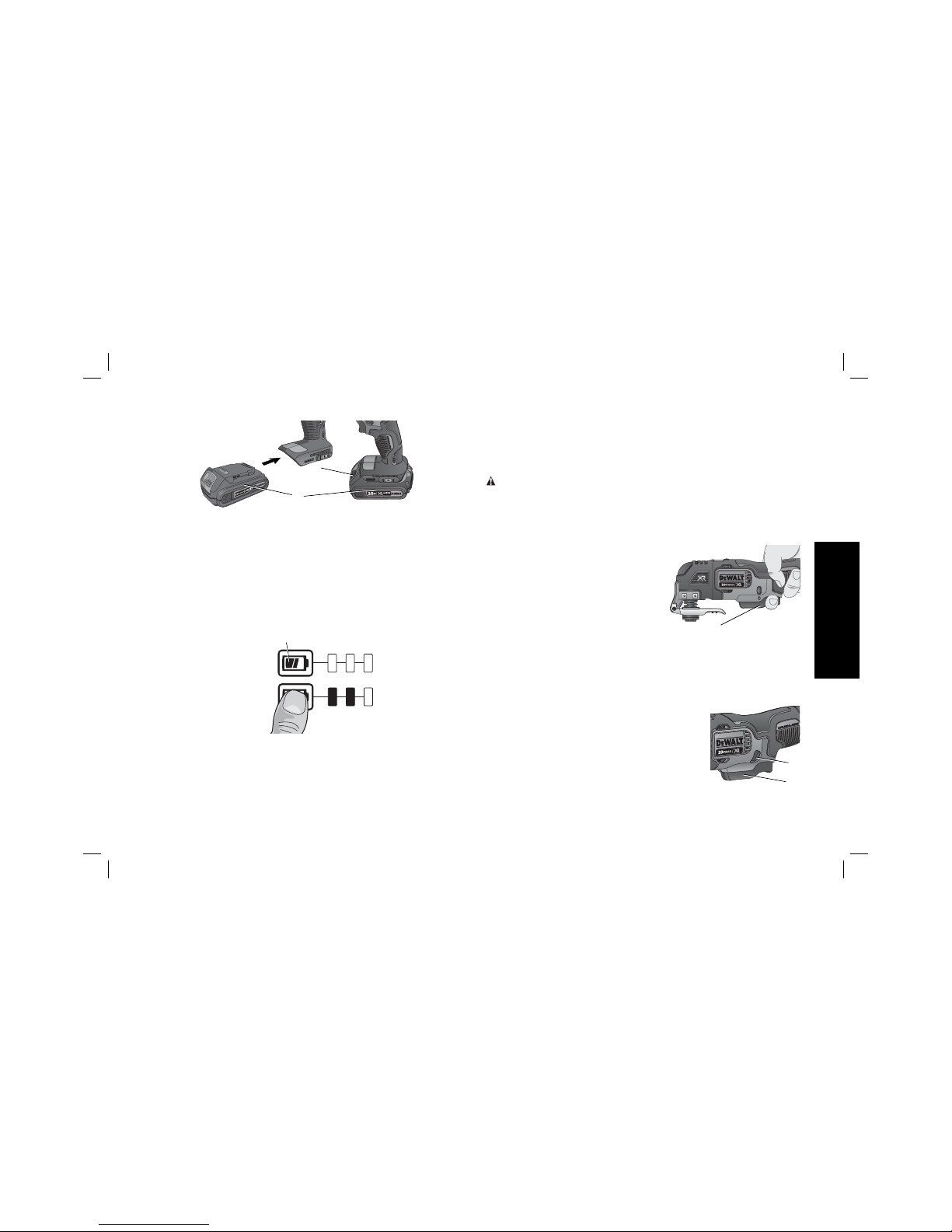

Installing and Removing the Battery Pack
(Fig. 14)
NOTE: For best results, make sure your battery pack is fully charged.
To install the battery pack (H) into the tool handle, align the battery
pack with the rails inside the tool’s handle and slide it into the handle
until the battery pack is firmly seated in the tool and ensure that it
does not disengage.
To remove the battery pack from the tool, press the release button (I)
and firmly pull the battery pack out of the tool handle. Insert it into the
charger as described in the charger section of this manual.
FIG. 14
I
H
FUEL GAUGE BATTERY PACKS (FIG. 15)
Some D
EWALT battery packs include a fuel gauge which consists of
three green LED lights that indicate the level of charge remaining in
the battery pack.
English
12
To actuate the fuel gauge, press and hold
T
FIG. 15
the fuel gauge button (T). A combination
of the three green LED lights will illuminate
designating the level of charge left. When
the level of charge in the battery is below
the usable limit, the fuel gauge will not
illuminate and the battery will need to be
recharged.
NOTE: The fuel gauge is only an indication of the charge left on the
battery pack. It does not indicate tool functionality and is subject to
variation based on product components, temperature and end-user
application.
For more information regarding fuel gauge battery packs, please call
1-800-4-D
EWALT (1-800-433-9258) or visit our website www.dewalt.
com.

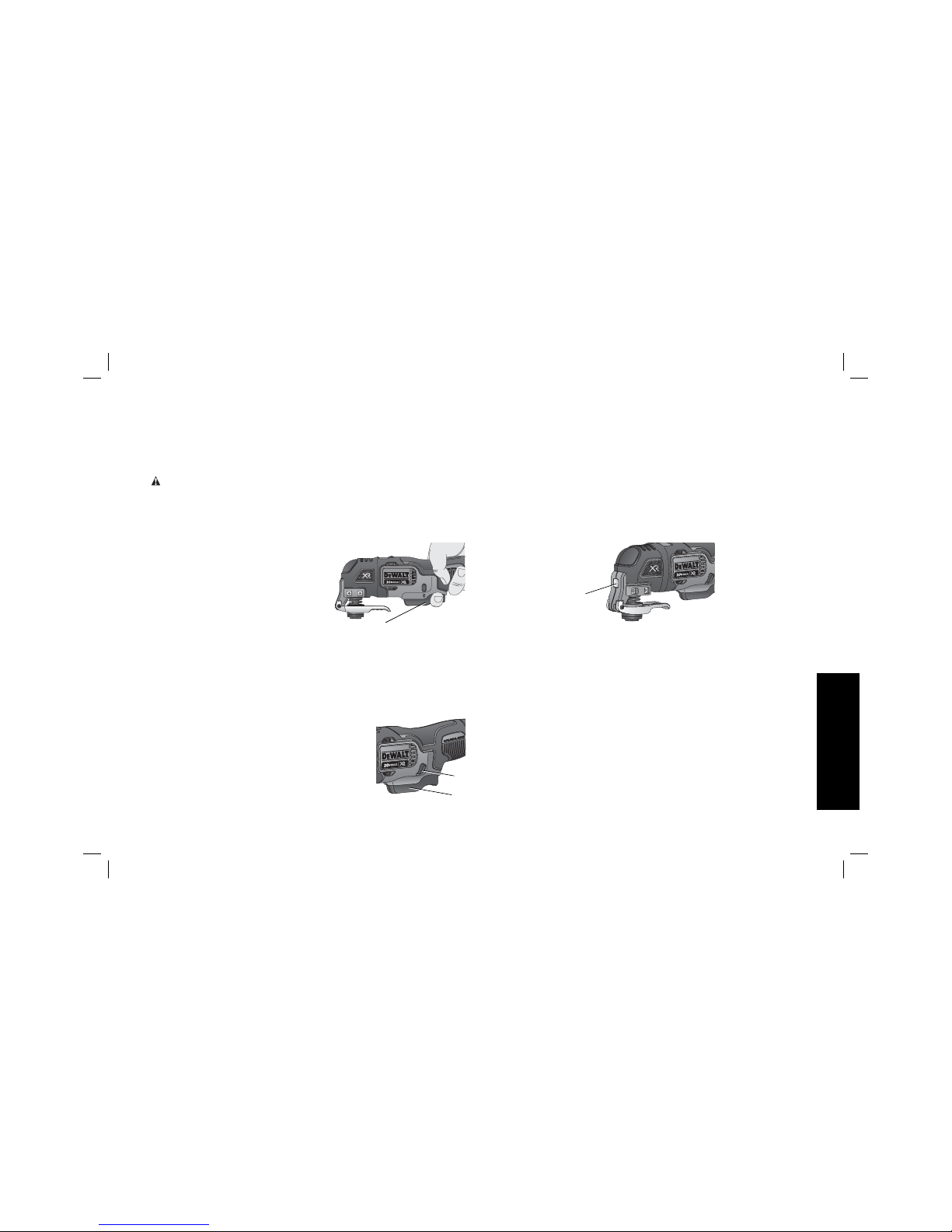

Variable Speed Trigger (Fig. 16)
WARNING: Ensure switch is fully OFF before installing the battery
pack.
1. Install the battery pack.
2. To turn the tool ON, hold it as shown in Figure 16 and press the
variable speed trigger (A).
NOTE: The further the trigger
switch is depressed, the faster
the tool will operate. If in doubt
about the proper speed for your
operation, test the performance
at low speed and gradually
increase until a comfortable
speed is found.
3. To turn the tool OFF, release the variable speed switch (A).
FIG. 16
A
Lock On/Off Button (Fig. 17)
Engage the lock on/off button (D), by pushing
it to the left or right. When the trigger (A) is
not depressed, pushing the button fully to
either side until it snaps into place will lock the
trigger and disable it from being depressed.
Placing the button in the center position
allows the trigger to operate normally.
Pushing the button to the left or right with the
trigger depressed will lock the trigger in the depressed position. This
allows for more comfort and control in extended use applications.
Pressing the trigger switch again will release the lock out and the tool
will turn off upon release of the trigger.
LED Worklight (Fig. 18)
The LED worklight (B) will activate any time the trigger is depressed
and will remain on for 20 seconds after trigger is released.
FIG. 18
B
Helpful Hints
• Always ensure the workpiece is firmly held or clamped to prevent
movement. Any movement of the material may affect the quality
of the cutting or sanding finish.
• Do not start sanding without having the sandpaper attached to
sanding platen.
FIG. 17
A
D
English
13
• Use coarse grit paper to sand rough surfaces, medium grit
for smooth surfaces and fine grit for the finishing surfaces. If
necessary, first make a test run on scrap material.
• Excessive force will reduce the working efficiency and cause
motor overload. Replacing the accessory regularly will maintain
optimum working efficiency.
• Do not allow the sandpaper to wear away, it will damage the
sanding pad.
• If the tool overheats, especially when used at low speed, set the
speed to maximum and run it with no load for 2–3 minutes to cool
the motor. Avoid prolonged usage at very low speeds. Always
keep the blade sharp.
MAINTENANCE
WARNING: To reduce the risk of serious personal injury,
turn tool off and remove the battery pack before making any
adjustments or removing/installing attachments or accessories.
An accidental start-up can cause injury.
Cleaning
WARNING: Blow dirt and dust out of all air vents with clean, dry air
at least once a week. To minimize the risk of eye injury, always wear
ANSI Z87.1 approved eye protection when performing this.
WARNING: Never use solvents or other harsh chemicals for
cleaning the non-metallic parts of the tool. These chemicals may
weaken the plastic materials used in these parts. Use a cloth
dampened only with water and mild soap. Never let any liquid get
inside the tool; never immerse any part of the tool into a liquid.
CHARGER CLEANING INSTRUCTIONS
WARNING: Shock hazard. Disconnect the charger from the AC
outlet before cleaning. Dirt and grease may be removed from the
exterior of the charger using a cloth or soft non-metallic brush. Do not
use water or any cleaning solutions.
Accessories
WARNING: Since accessories, other than those offered by
D
EWALT, have not been tested with this product, use of such
accessories with this tool could be hazardous. To reduce the risk of
injury, only D
EWALT recommended accessories should be used with
this product.
Recommended accessories for use with your tool are available
at extra cost from your local dealer or authorized service center. If
you need assistance in locating any accessory, please contact
D
EWALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD
21286, call 1-800-4-D
EWALT (1-800-433-9258) or visit our website:
www.dewalt.com.
COMPATIBLE ACCESSORIES
Oscillating Sanding Pad
Oscillating Wood with Nails Blade
Wide Titanium Oscillating Wood with Nails Blade
Oscillating Hardwood Blade
Oscillating Fastcut Wood Blade
Wide Oscillating Fastcut Wood Blade
Oscillating Wood Detail Blade
Oscillating Titanium Metal Blade
Oscillating Semicircle Blade
Oscillating Titanium Semicircle Blade
Oscillating Flush Cut Blade
English
14
Titanium Oscillating Flush Cut Blade
Oscillating Multi-Material Blade
Oscillating Rigid Scraper Blade
Oscillating Flexible Scraper Blade
Oscillating Carbide Grout Removal Blade
Oscillating Fastcut Carbide Grout Removal Blade
Oscillating Carbide Rasp
Repairs
The charger and battery pack are not serviceable.
To assure product SAFETY and RELIABILITY, repairs, maintenance
and adjustment (including brush inspection and replacement) should
be performed by a D
EWALT factory service center, a DEWALT
authorized service center or other qualified service personnel. Always
use identical replacement parts.
Register Online
Thank you for your purchase. Register your product now for:
• WARRANTY SERVICE: Registering your product will help you
obtain more efficient warranty service in case there is a problem
with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance
loss, such as fire, flood or theft, your registration of ownership will
serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to
contact you in the unlikely event a safety notification is required
under the Federal Consumer Safety Act.
Register online at www.dewalt.com/register.
Three Year Limited Warranty
DEWALT will repair, without charge, any defects due to faulty materials
or workmanship for three years from the date of purchase. This
warranty does not cover part failure due to normal wear or tool
abuse. For further detail of warranty coverage and warranty repair
information, visit www.dewalt.com or call 1-800-4-D
EWALT (1-800-
433-9258). This warranty does not apply to accessories or damage
caused where repairs have been made or attempted by others. This
warranty gives you specific legal rights and you may have other rights
which vary in certain states or provinces.
In addition to the warranty, D
EWALT tools are covered by our:
1 YEAR FREE SERVICE
D
EWALT will maintain the tool and replace worn parts caused by
normal use, for free, any time during the first year after purchase.
2 YEARS FREE SERVICE ON D
EWALT BATTERY PACKS
DC9071, DC9091, DC9096, DC9280, DC9360, DC9180, DCB120,
DCB127, DCB201, DCB203 and DCB207
3 YEARS FREE SERVICE ON D
EWALT BATTERY PACKS
DCB200, DCB204, DCB205
D
EWALT BATTERY PACKS
Product warranty voided if the battery pack is tampered with in any
way. D
EWALT is not responsible for any injury caused by tampering
and may prosecute warranty fraud to the fullest extent permitted by
law.
English
15
90 DAY MONEY BACK GUARANTEE
If you are not completely satisfied with the performance of your
D
EWALT Power Tool, Laser, or Nailer for any reason, you can return
it within 90 days from the date of purchase with a receipt for a full
refund – no questions asked.
LATIN AMERICA: This warranty does not apply to products sold
in Latin America. For products sold in Latin America, see country
specific warranty information contained in the packaging, call the
local company or see website for warranty information.

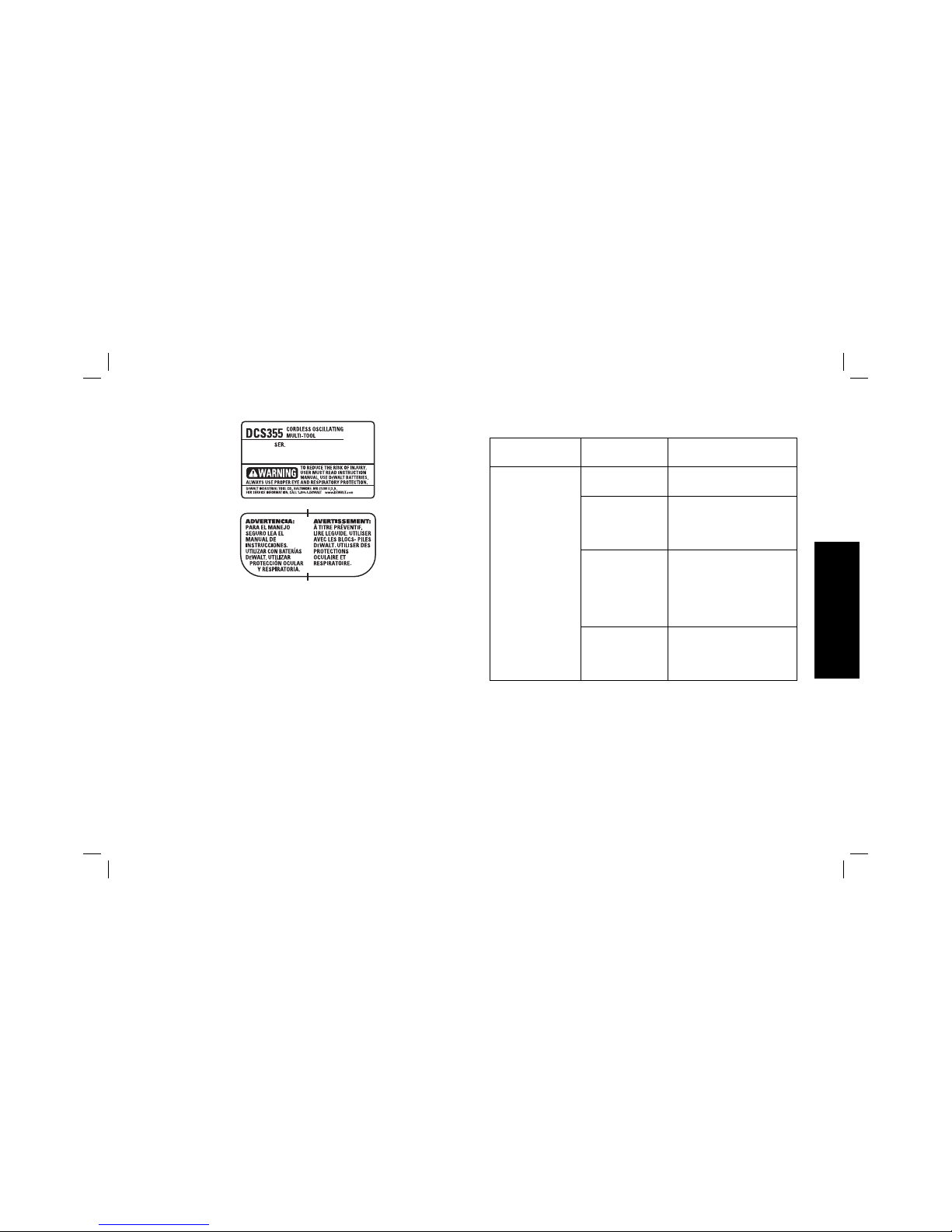

FREE WARNING LABEL REPLACEMENT: If your warning labels
become illegible or are missing, call 1-800-4-D
EWALT (1-800-433-
9258) for a free replacement.
Troubleshooting
Problem Possible Cause Possible Solution
Unit will not start. Battery not
installed.
Install battery in tool
handle.
Battery is not
charged.
Place battery on charger
and install a fully charged
battery pack in tool.
Battery or
power tool is
overheated.
Allow battery and/or
tool to cool after
extended use or replace
overheated battery pack
with a cool one.
Switch is
damaged.
Have switch replaced
at an authorized service
center.
English
16
