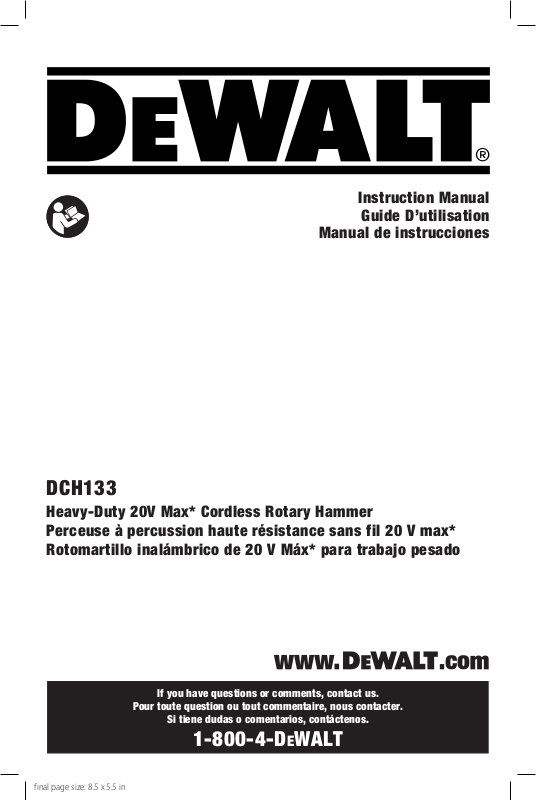

Instruction Manual

Guide D’utilisation

Manual de instrucciones

DCH133

Heavy-Duty 20V Max* Cordless Rotary Hammer Perceuse à percussion haute résistance sans fil 20 V max* Rotomartillo inalámbrico de 20 V Máx* para trabajo pesado

final page size: 8.5 x 5.5 in

English (original instructions) 1

Français (traduction de la notice d’instructions originale) 12

Español (traducido de las instrucciones originales) 24

ENGLISH

DeWALT

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.



WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.



CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.



(Used without word) Indicates a safety related message.



NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

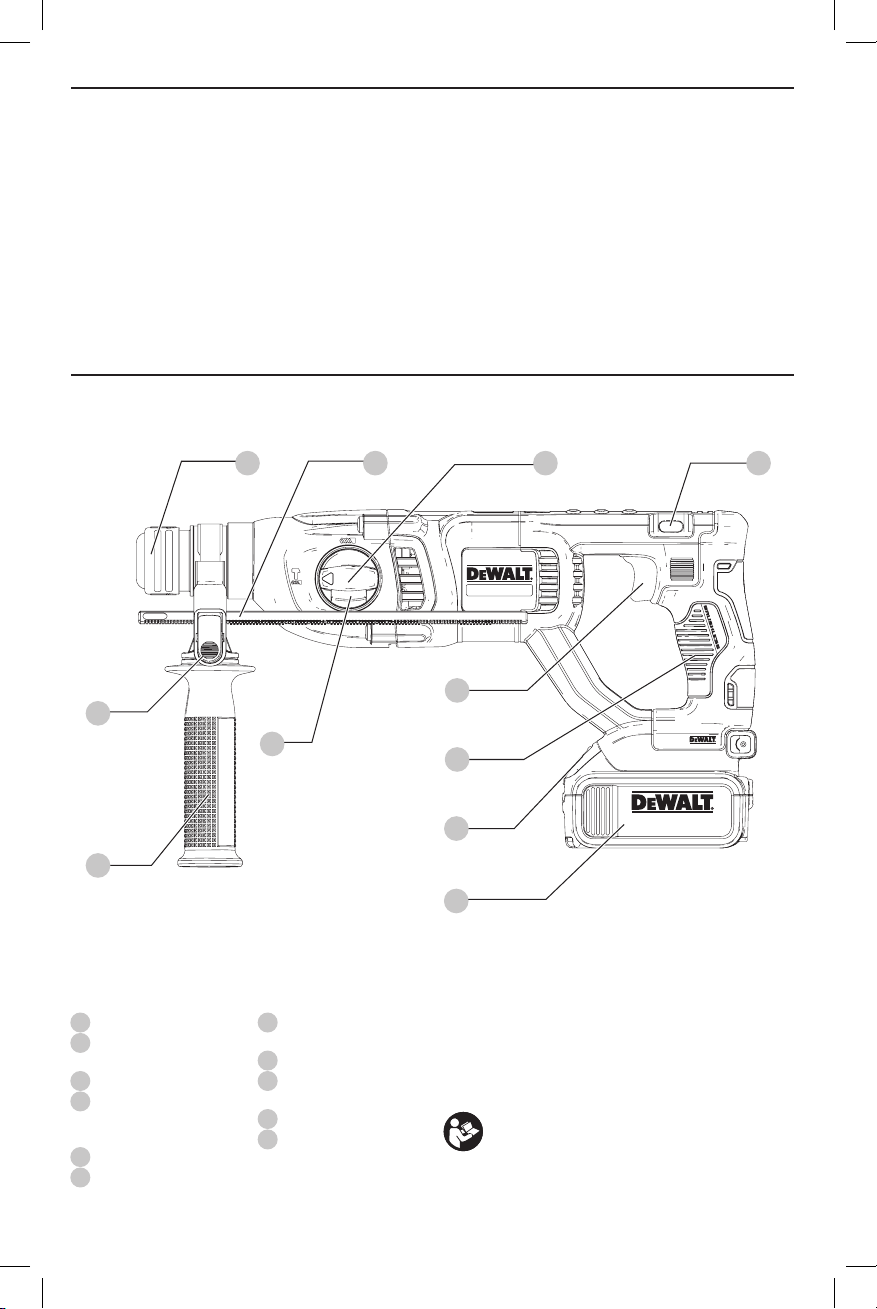

Fig. A

Battery pack

Battery release button

Side handle

Forward/reverse control button (Lock-off button)

Trigger switch

Mode selector dial

Mode selector release button

Depth rod

Depth rod adjust button

Main handle

Bit holder

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and



instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the instructionmanual.

If you have any questions or comments about this or any 1-800-4-

tool, call us toll free at:

(1-800-433-9258).

ENGLISH

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and



instructions may result in electric shock, fire and/or seriousinjury.

SAVE ALL WARNINGS AND

INSTRUCTIONS FOR FUTURE

REFERENCE

The term “power tool” in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) powertool.

1) Work Area Safety

a ) Keep work area clean and well lit. Cluttered or dark

areas inviteaccidents.

b ) Do not operate power tools in explosive

atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools

create sparks which may ignite the dust orfumes.

c ) Keep children and bystanders away while

operating a power tool. Distractions can cause you to losecontrol.

2) Electrical Safety

a ) Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will

reduce risk of electricshock.

b ) Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric

shock if your body is earthed orgrounded.

c ) Do not expose power tools to rain or wet

conditions. Water entering a power tool will increase the risk of electricshock.

d ) Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase

the risk of electricshock.

e ) When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

f ) If operating a power tool in a damp location

is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI

reduces the risk of electricshock.

3) Personal Safety

a ) Stay alert, watch what you are doing and use

common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A

moment of inattention while operating power tools may result in serious personalinjury.

b ) Use personal protective equipment. Always wear

eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personalinjuries.

c ) Prevent unintentional starting. Ensure the

switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your

finger on the switch or energizing power tools that have the switch on invitesaccidents.

d ) Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury.

e ) Do not overreach. Keep proper footing and

balance at all times. This enables better control of the power tool in unexpectedsituations.

f ) Dress properly. Do not wear loose clothing or

jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or

long hair can be caught in movingparts.

g ) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are connected and properly used. Use of dust

collection can reduce dust-relatedhazards.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct

power tool for your application. The correct power

tool will do the job better and safer at the rate for which it wasdesigned.

b ) Do not use the power tool if the switch does not

turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired.

c ) Disconnect the plug from the power source and/

or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety

measures reduce the risk of starting the power toolaccidentally.

d ) Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands

of untrainedusers.

e ) Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are

caused by poorly maintained powertools.

f ) Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol.

g ) Use the power tool, accessories and tool bits, etc.

in accordance with these instructions, taking

into account the working conditions and the work to be performed. Use of the power tool for

operations different from those intended could result in a hazardoussituation.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type

of battery pack may create a risk of fire when used with another batterypack.

b ) Use power tools only with specifically designated

battery packs. Use of any other battery packs may create a risk of injury andfire.

c ) When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may

cause burns or afire.

d ) Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally

occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from

the battery may cause irritation orburns.

6) Service

a ) Have your power tool serviced by a qualified

repair person using only identical replacement parts. This will ensure that the safety of the power

tool ismaintained.

Additional Safety Instructions for Rotary Hammers

• Wear ear protectors. Exposure to noise can cause

hearingloss.

• Use auxiliary handle(s), if supplied with the tool. Loss

of control can cause personalinjury.

• Hold power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory may contact hidden wiring. Cutting

accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electricshock.

• Be certain that the material being drilled does

not conceal electric or gas service and that their locations have been verified with the utilitycompanies.

• Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding

the work by hand or against your body is unstable and may lead to loss ofcontrol.

• Wear safety goggles or other eye protection. Hammering operations cause chips to fly. Flying particles can cause permanent eye damage. Wear a dust mask or respirator for applications that generate dust. Ear protection may be required for mostapplications.

• Keep a firm grip on the tool at all times. Do not

attempt to operate this tool without holding it with both hands. Operating this tool with one hand will result

ENGLISH

in loss of control. Breaking through or encountering hard materials such as re-bar may be hazardous aswell.

• Do not operate this tool for long periods of time. Vibration caused by hammer action may be harmful to your hands and arms. Use gloves to provide extra cushion and limit exposure by taking frequent restperiods.

• Do not recondition bits yourself. Chisel reconditioning should be done by an authorized specialist. Improperly reconditioned chisels could causeinjury.

• Accessories and tool may get hot during operation. Wear gloves when handling them if performing heat producing applications such as hammerdrilling and drillingmetals.

• Never lay the tool down until the bit has come to a complete stop. Moving bits could causeinjury.

• Do not strike jammed bits with a hammer to dislodge them. Fragments of metal or material chips could dislodge and causeinjury.

• Slightly worn chisels can be resharpened bygrinding.

• Do not overheat the bit (discoloration) while grinding a new edge. Badly worn chisels require reforging. Do not reharden and temper thechisel.

Additional Safety Information

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or



dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),

• ANSI S12.6 (S3.19) hearing protection,

• NIOSH/OSHA/MSHA respiratoryprotection. WARNING: Some dust created by power sanding,

sawing, grinding, drilling, and other construction



activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicalsare:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemicallytreatedlumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopicparticles.

• Avoid prolonged contact with dust from power

sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing

dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals.

WARNING: Use of this tool can generate and/ or disperse dust, which may cause serious and



permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection

ENGLISH

DeWALT

appropriate for the dust exposure. Direct particles away from face andbody.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)



during use. Under some conditions and duration of use, noise from this product may contribute to hearingloss.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a



tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.

The label on your tool may include the following symbols. The symbols and their definitions are asfollows:

V ......................... volts

Hz ....................... hertz

min ..................... minutes

or DC ......direct current

...................... Class I Construction

(grounded)

…/min .............. per minute

BPM .................... beats per minute

IPM ..................... impacts per minute

RPM .................... revolutions per

minute

sfpm ................... surface feet per

minute

SPM .................... strokes per minute

A ......................... amperes

W ........................ watts

or AC ........... alternating current

or AC/DC .... alternating or

direct current

...................... Class II

Construction

(double insulated)

no ....................... no load speed

n ......................... rated speed

...................... earthing terminal

..................... safety alert symbol

..................... visible radiation

..................... wear respiratory

protection

..................... wear eye

protection

..................... wear hearing

protection

..................... read all

documentation

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage.

Your tool uses a instructions before using your charger. Consult the chart at the end of this manual for compatibility of chargers and batterypacks.

READ ALL INSTRUCTIONS

charger. Be sure to read all safety

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings and all instructions for the battery pack, charger and



power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery

pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO

NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult

the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in designated

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in

• Do not incinerate the battery pack even if it is

• If battery contents come into contact with the skin,

• Contents of opened battery cells may cause

Transportation

chargers.

locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

severely damaged or is completely worn out. The

battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs areburned.

immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark orflame.



WARNING: Fire hazard. Never attempt to open the battery pack for any reason. If the battery pack case



is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling.

WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can contact



exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries

can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the

like. The US Department of Transportation Hazardous

DeWALT

Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit.

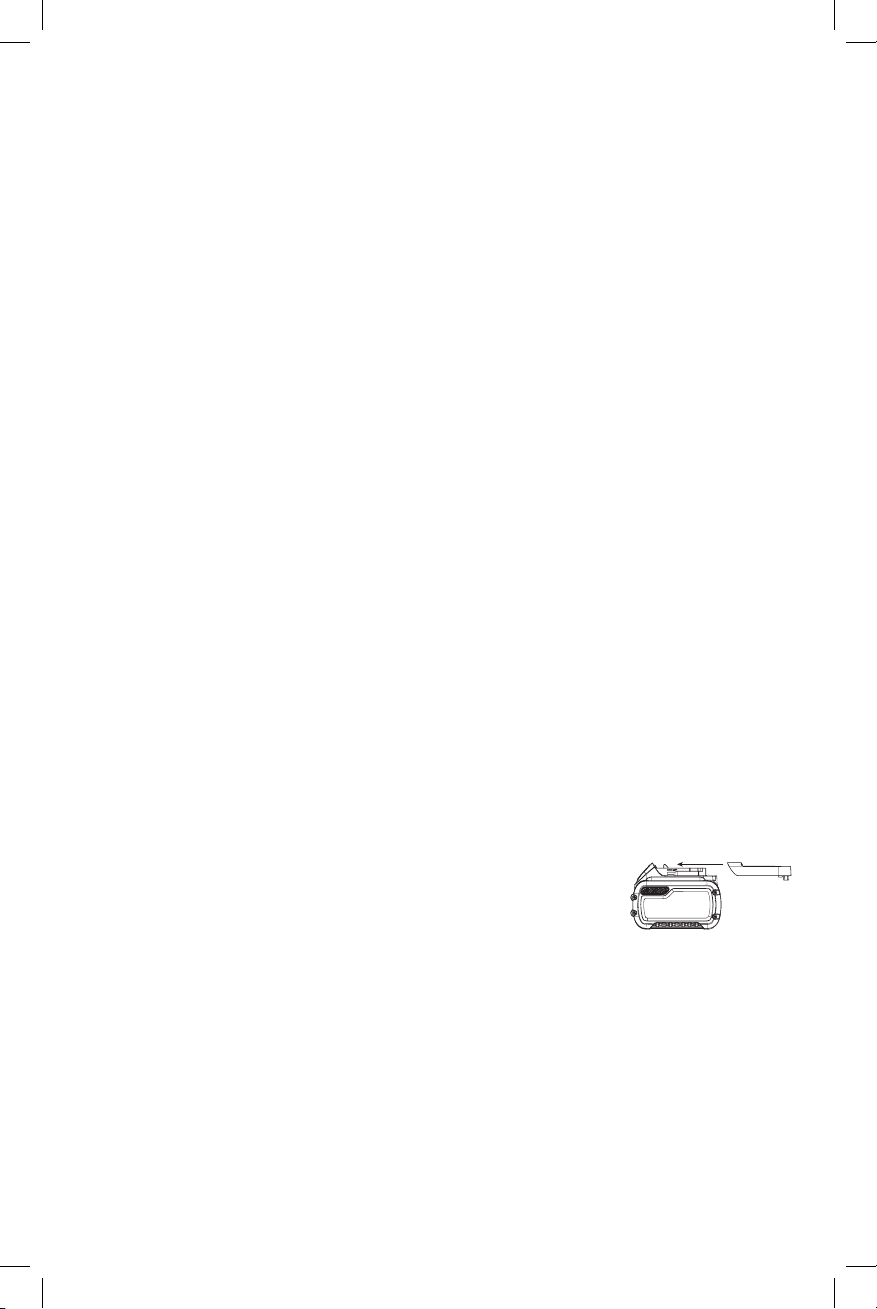

Shipping the The DeWALT FLEXVOLT™ battery has two modes: Use and

Shipping. Use Mode: When the FLEXVOLT™ battery stands alone or is

in a DeWALT 20V Max* product, it will operate as a 20V Max* battery. When the FLEXVOLT™ battery is in a 60V Max* or a 120V Max* (two 60V Max* batteries) product, it will operate as a 60V Max* battery.

Shipping Mode: When the cap is attached to the FLEXVOLT™ battery, the battery is in Shipping Mode. Strings of cells are electrically disconnected within the pack resulting in three batteries with a lower Watt hour (Wh) rating as compared to one battery with a higher Watt hour rating. This increased quantity of three batteries with the lower Watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hour batteries.

The battery label indicates two Watt hour ratings (see example). Depending on how the battery is shipped, the appropriate Watt hour rating must be used to determine the applicable shipping requirements. If utilizing the shipping cap, the pack will be considered 3 batteries at the Watt hour rating indicated for “Shipping”. If shipping without the cap or in a tool, the pack will be considered one battery at the Watt hour rating indicated next to “Use”.

Example of Use and Shipping Label Marking

Shipping Watt hour rating indicates 3 x 40 Wh, meaning 3 batteries of 40 Watt hours each. The Use Watt hour rating

indicates 120 Watt hour (1 battery implied).

FLEXVOLT™ Battery

USE: 120 Wh Shipping: 3 x 40 Wh

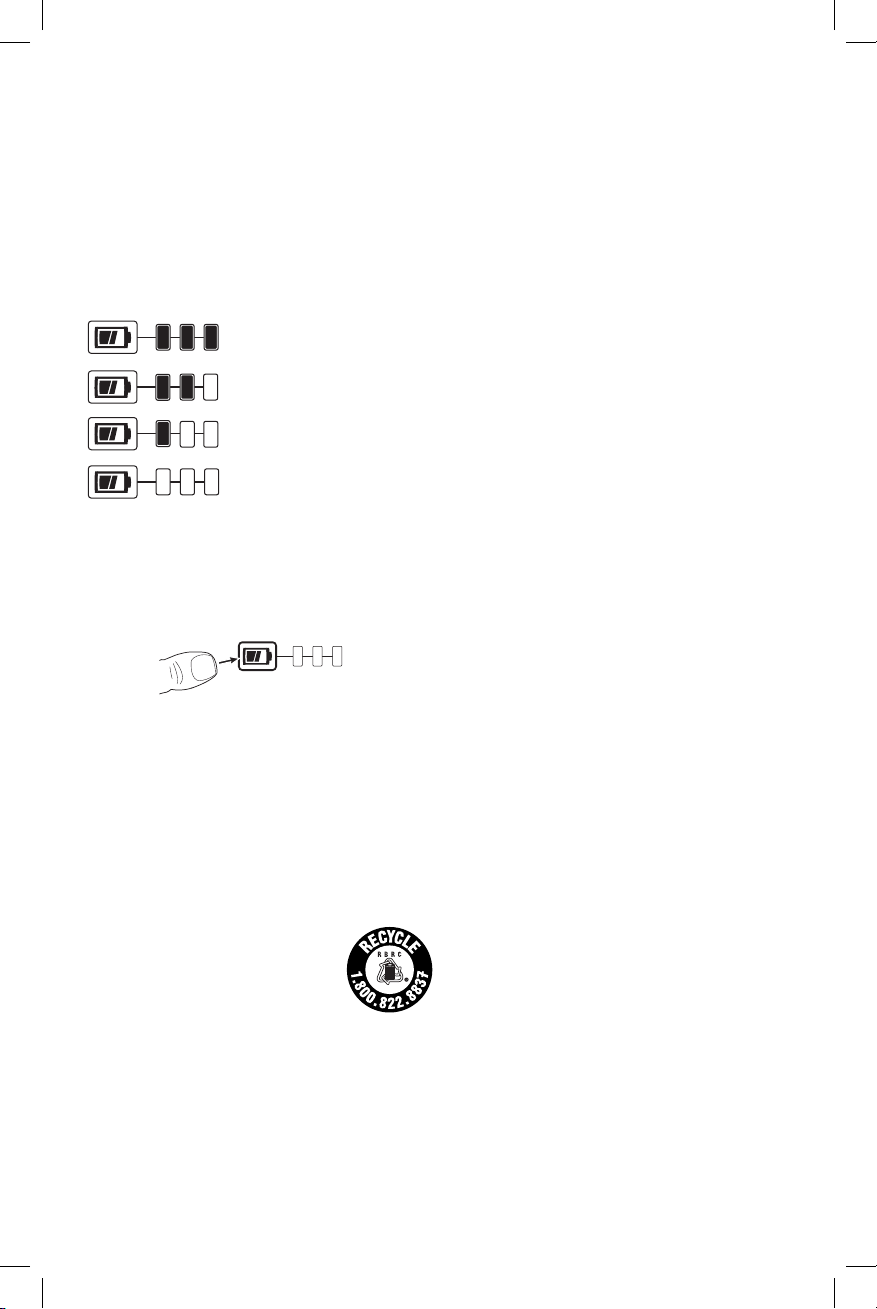

Fuel Gauge Battery Packs (Fig. B)

Some consists of three green LED lights that indicate the level of charge remaining in the batterypack.

The fuel gauge is an indication of approximate levels of charge remaining in the battery pack according to the followingindicators:

battery packs include a fuel gauge which

75–100% charged

51–74% charged

< 50% charged

Pack needs to be charged

ENGLISH

To actuate the fuel gauge, press and hold the fuel gauge button. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to berecharged.

NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-userapplication.

For more information regarding fuel gauge battery packs, please contact call 1-800-4visit our website www.dewalt.com.

Fig. B

(1-800-433-9258) or

The RBRC® Seal

The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithiumion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call2Recycle® program provides an environmentally consciousalternative.

Call 2 Recycle, Inc., in cooperation with battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle,Inc.

. In some areas, it is illegal to place

and other

service

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings and all instructions for the battery pack, charger and



power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual.

The charger and battery pack are specifically designed to worktogether.

• These chargers are not intended for any uses other

than charging

Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

rechargeable batteries.

ENGLISH

DeWALT

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of

damage to the electric plug andcord.

• Make sure that the cord is located so that it will not

be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in

risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide

a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use

reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier thecord.

Minimum Gauge for Cord Sets

Volts

120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) 240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)

Ampere Rating

Not

Than

0 6 18 16 16 14

6 10 18 16 14 12 10 12 16 16 14 12 12 16 14 12 Not Recommended

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat

source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord

orplug.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of

electric shock, electrocution orfire.

• Disconnect the charger from the outlet before

attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce

thisrisk.

Total Length of Cord in Feet

(meters)

American Wire Gauge

• NEVER attempt to connect 2 chargerstogether.

• The charger is designed to operate on standard

120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the

vehicularcharger.

WARNING: Shock hazard. Do not allow any liquid to get inside the charger. Electric shock mayresult.



WARNING: Burn hazard. Do not submerge the battery pack in any liquid or allow any liquid to



enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only



Other types of batteries may overheat and burst resulting in personal injury and propertydamage.

NOTICE: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean.

rechargeable battery packs.

Charging a Battery (Fig. C)

1. Plug the charger into an appropriate outlet before inserting battery pack.

Fig. C

2. Insert the battery pack the battery pack is fully seated in the charger. The red (charging) light will blink continuously indicating that the charging process has started.

3. The completion of charge will be indicated by the red light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button

NOTE: To ensure maximum performance and life of lithiumion battery packs, charge the battery pack fully before first use.

Charger Operation

Refer to the indicators below for the charge status of the battery pack.

1

into the charger, making sure

2

on the battery pack.

DCB101

Charging

Fully Charged

Hot/Cold Pack Delay

Problem Pack or Charger

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

Charging

Fully Charged

Hot/Cold Pack Delay*

* DCB107, DCB112, DCB113, DCB115, DCB118, DCB132:

The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure.

The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery pack by refusing to light or by displaying a problem pack or charger blink pattern.

NOTE: This could also mean a problem with a charger. If the charger indicates a problem, take the charger and

battery pack to be tested at an authorized service center.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery pack warms.

The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled.

Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of the charger.

Electronic Protection System

Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge.

The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithiumion battery pack on the charger until it is fully charged.

Wall Mounting

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting,

ENGLISH

locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28–0.35" (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease



may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65°F and 75°F (18° – 24°C). DO NOT charge the battery pack in an air temperature below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the battery pack.

2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp

or other appliance;

b. Check to see if receptacle is connected to a light

switch which turns power off when you turn out the lights;

c. Move the charger and battery pack to a location

where the surrounding air temperature is approximately 65°F – 75°F (18° – 24°C);

d. If charging problems persist, take the tool, battery

pack and charger to your local service center.

4. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.

5. Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.

6. Do not freeze or immerse the charger in water or any other liquid.

ENGLISH

Storage Recommendations

1. The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold.

2. For long storage, it is recommended to store a fully charged battery pack in a cool dry place out of the charger for optimal results.

NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

SAVE THESE INSTRUCTIONS FOR

FUTURE USE

COMPONENTS (FIG. A)

WARNING: Never modify the power tool or any part of it. Damage or personal injury couldresult.



Refer to Figure A at the beginning of this manual for a complete list ofcomponents.

INTENDED USE

Your heavy-duty cordless rotary hammers are designed for professional concrete drilling and chiselingapplications.

DO NOT use under wet conditions or in presence of flammable liquids orgases.

Your heavy-duty cordless rotary hammers are professional power tools.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack



before making any adjustments or removing/ installing attachments or accessories. An

accidental start-up can causeinjury.

Side Handle and Depth Rod (Fig. A, D)

WARNING: To reduce the risk of personal injury, ALWAYS operate the tool with the side handle



properly installed. Failure to do so may result in the side handle slipping during tool operation and subsequent loss of control. Hold tool with both hands to maximizecontrol.

The side handle and may be rotated 360˚ to permit right- or left-hand use. The side handle must be tightened sufficiently to resist the twisting action of the tool if the accessory binds or stalls. Be sure to grip the side handle at the far end to control the tool during astall.

To loosen side handle, rotatecounterclockwise.

To Adjust the Depth Rod (Fig. D)

1. Push in and hold the depth rod release button side handle.

2. Move the depth rod end of the rod and the end of the bit equals the desired drilling depth.

3

clamps to the front of the gear case

8

so the distance between the

9

on the

Fig. D

3. Release the button to lock rod into position. When drilling with the depth rod, stop when end of rod reaches surface of material.

Bit and Bit Holder

WARNING: Burn Hazard. ALWAYS wear gloves when changing bits. Accessible metal parts on the tool and



bits may get extremely hot during operation. Small bits of broken material may damage barehands.

The hammerdrill can be fitted with different bits depending on the desired application. Use sharp drill bits only.

Bit Reccomendations

• For wood, use twist bits, spade bits, power auger bits or hole saws.

• For metal, use high-speed steel twist drill bits or holesaws. Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass which should be drilleddry.

• For masonry, such as brick, cement, cinder block, etc., use carbide-tipped bits rated for percussiondrilling.

SDS Plus Bit Holder (Fig. E)

NOTE: Special adapters are needed to use the SDS Plus bit holder with straight shank bits and hexagonal screwdriver bits. Refer to Optional Accessories.

To insert a drill bit or other accessory:

1. Insert the shank of the bit about 19mm (3/4") into SDS Plus tool holder

2. Push and rotate bit until it locks in place. The bit will be securelyheld.

3. To release bit, pull the sleeve thebit.

Fig. E

11

14

back and remove

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack



before making any adjustments or removing/ installing attachments or accessories. An

accidental start-up can causeinjury.

Installing and Removing the Battery Pack (Fig. F)

NOTE: For best results, make sure your battery pack is fullycharged.

To install the battery pack battery pack with the rails inside the tool’s handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does notdisengage.

To remove the battery pack from the tool, press the release

2

button

and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of thismanual.

Fig.F

1

into the tool handle, align the

ENGLISH

Overload Clutch

In case of jamming of a drill bit, the drive to the drill spindle is interrupted by the overload clutch. Due to the resulting forces, always hold the tool with both hands and take a firmstance. After the overload, release and depress the trigger to re-engage drive.

WARNING: Drill may stall if overloaded causing a sudden twist. Always expect the stall. Grip the drill



firmly to control the twisting action and avoidinjury.

Operation Modes (Fig. H)

WARNING: Do not select the operating mode when the tool isrunning.



CAUTION: Never use in Rotary Drilling or Rotary Hammering mode with a chisel bit in the bit holder.



Personal injury and damage to the the tool may result.

Your tool is equipped with a mode selector dial  selectthe mode appropriate to desired operation.

Symbol Mode Application

Screwdriving

Rotary Drilling

Drilling into steel, wood andplastics

6

Proper Hand Position (Fig. G)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.



WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden



reaction.

Proper hand position requires one hand on the side handle, with the other hand on the mainhandle. Hold tool firmly with both hands to control the twisting action of the drill.

Fig. G

Rotary

Hammering

only

To select an operating mode:

1. Depress the mode selector release button

2. Rotate the mode selector dial so that the arrow points to the symbol corresponding for the desired mode.

Fig. H

NOTE: The arrow on the mode selector dial

pointing at a mode symbol at all times. There are no operable positions inbetween. It may be necessary to briefly run the motor after having changed from 'hammering only' to 'rotary' modes in order to align thegears.

Drilling into concrete and masonry

Lightchipping

7

6

must be

ENGLISH

DeWALT

Performing an Application (Fig. A, I)

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, ALWAYS ensure workpiece is anchored or



clamped firmly. If drilling thin material, use a wood “back-up” block to prevent damage to thematerial.

WARNING: Always wait until the motor has come to a complete standstill before changing the direction



ofrotation.

1. Choose and install the appropriate chuck, adapter, and/

or bit onto to the tool. Refer to Bit and Bit Holder.

2. Using the mode selector dial

appropriate to desired application. Refer to

OperationModes.

3. Adjust the side handle

4. Select the direction ofrotation using the forward/ reverse button control button, be sure the trigger isreleased.

- To select forward rotation, press the for ward/re verse control button on the right side of thetool.

- To select reverse, press the forward/reverse control button on the left side of thetool. NOTE: The center position of the control button locks the tool in the off position.

Fig. K

5. Place the bit/chisel on the desired location.

6. Depress the trigger switch the trigger switch, the faster the tool will operate. For maximum tool life, use variable speed only for starting holes orfasteners.

7. To stop the hammer, release the switch.

Recommendations for Tool Operation

• Large (5/16" to 1/2" [7.9 mm to 12.7 mm]) holes in steel can be made easier if a pilot hole (5/32" to 3/16" [4 mm to 4.8 mm]) is drilledfirst.

• When drilling, always apply pressure in a straight line with the bit, but do not push hard enough to stall the motor or deflect thebit. A smooth even flow of material indicates the proper drilling rate.

• If drilling thin material or material that is prone to splinter, use a wood “back-up” block to prevent damage to thework piece.

WARNING:

• Do not use this tool to mix or pump easily



• Do not mix or stir inflammable liquids

4

. When changing the position of the

combustible or explosive fluids (benzine, alcohol,etc.).

labelledaccordingly.

6

, selectthe mode

3

asnecessary.

5

. The farther you depress

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack



before making any adjustments or removing/ installing attachments or accessories. An

accidental start-up can causeinjury.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk



of eye injury, always wear ANSI Z87.1 approved eye protection when performingthis.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of



the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid.

Accessories

WARNING: Since accessories, other than those offered by



product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only recommended accessories should be used with

thisproduct.

Various types of SDS Plus drill bits and chisels are available as anoption. Accessories and attachments used must be regularly lubricated around the SDS Plusfitment.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact Tool Co., 701East Joppa Road, Towson, MD 21286, call 1-800-4www.dewalt.com.

, have not been tested with this

(1-800-433-9258) or visit our website:

Repairs

The charger and battery pack are notserviceable.

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment



(including brush inspection and replacement) should be performed by a or a identical replacementparts.

authorized service center. Always use

factory service center

Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will

help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of

an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

Industrial

+ 28 hidden pages
