DeWalt DCF897NT operation manual

If you have questions or comments, contact us.

Pour toute question ou tout commentaire, nous contacter.

Si tiene dudas o comentarios, contáctenos.

1-800-4-DeWALT

Instruction Manual

Guide D’utilisation

Manual de instrucciones

DCF897

3/4" (19 mm) 20V Max* Cordless Impact Wrench
Clé à chocs sans fil de 19mm (3/4po), 20V max*
Llave de Impacto Inalámbrica de 19 mm (3/4") 20V Máx*

DCF898

7/16" (11 mm) 20V Max* Cordless Impact Wrench
Clé à chocs sans fil de 11mm (7/16po), 20V max*
Llave de impacto inalámbrica de 11 mm (7/16") 20V Máx*

DCF899, DCF899H

1/2" (13 mm) 20V Max* Cordless Impact Wrench
Clé à chocs sans fil de 13mm (1/2po), 20V max*
Llave de impacto inalámbrica de 13 mm (1/2") 20V Máx*

final page size: 8.5 x 5.5 in

ENGLISH

English (original instructions) 1

Français (traduction de la notice d’instructions originale) 12

Español (traducido de las instrucciones originales) 24

ENGLISH

DeWALT

DeWALT

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk
of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.



WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.



CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.



(Used without word) Indicates a safety related message.



NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

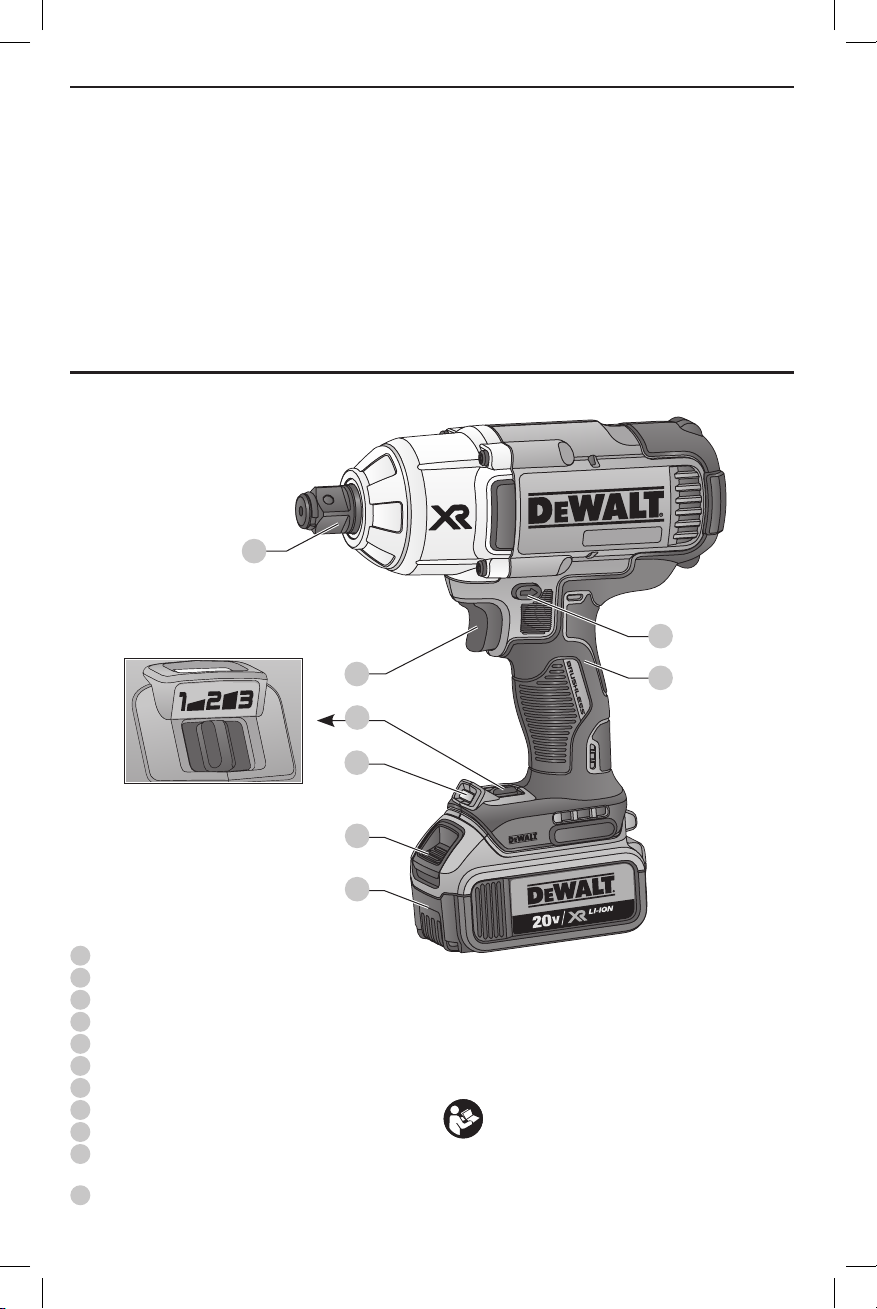

Fig. A

DCF897

3

2

1

Trigger switch

2

Forward/reverse control button

3

Anvil

4

Main handle

5

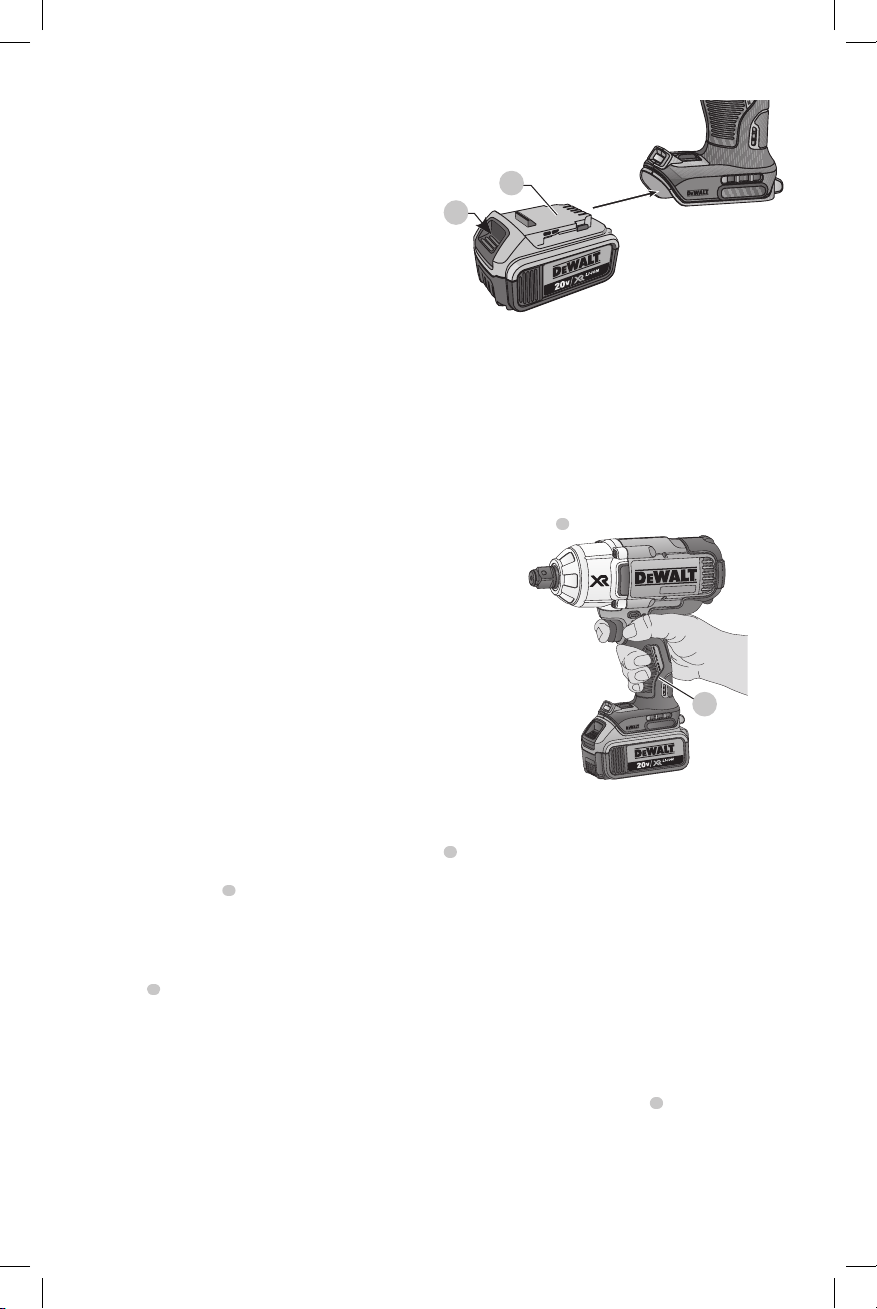

Battery release button

6

Battery pack

7

Worklight

8

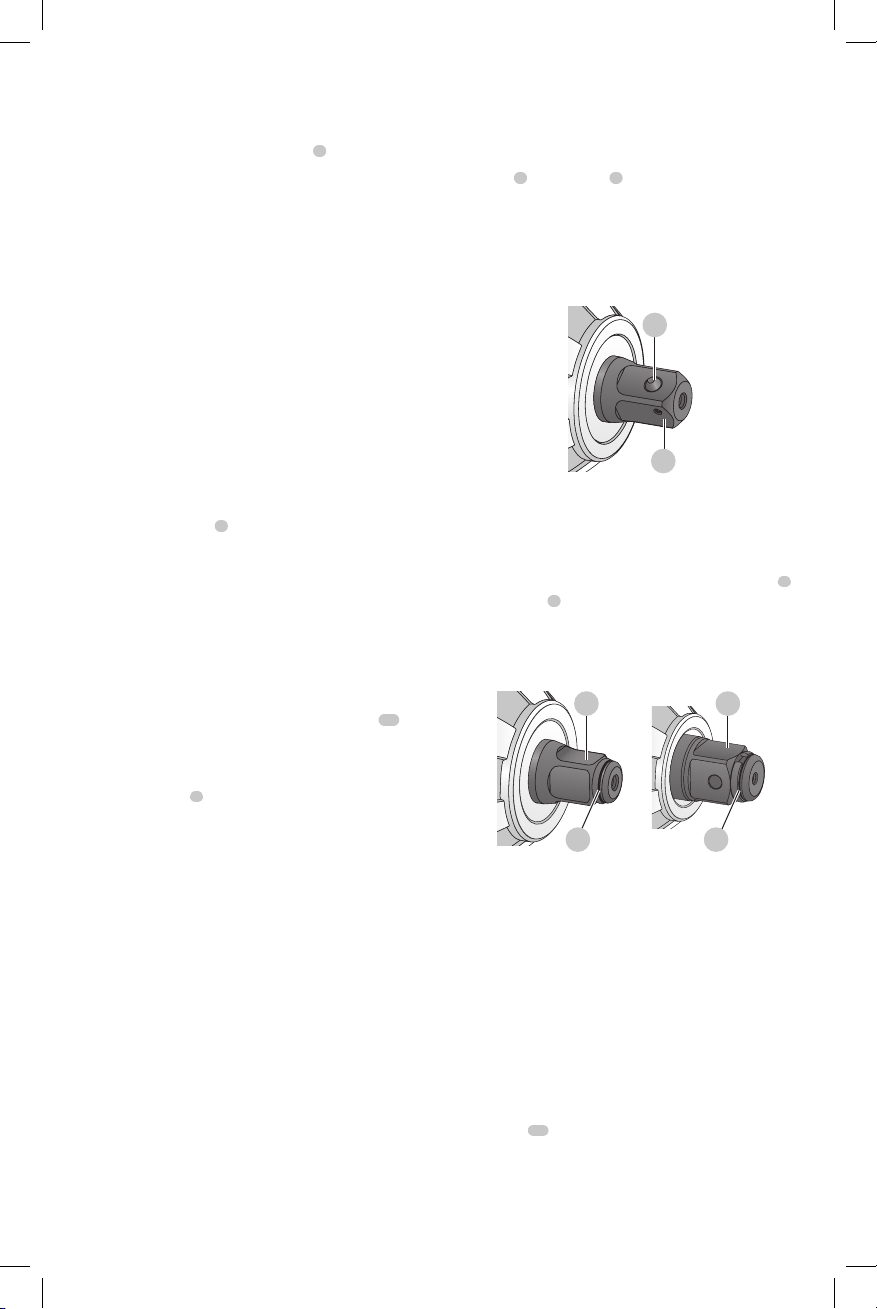

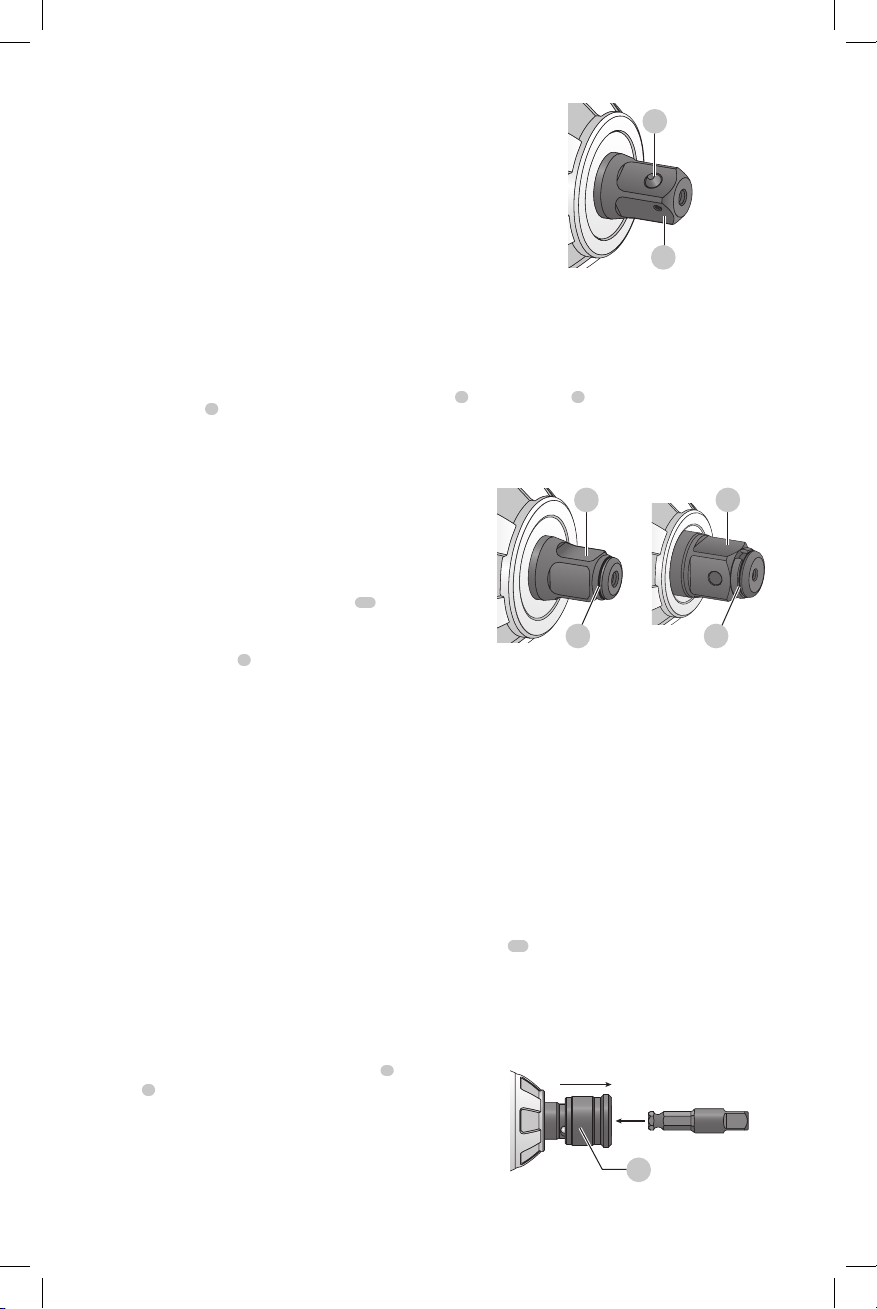

Detent pin (DCF899)

9

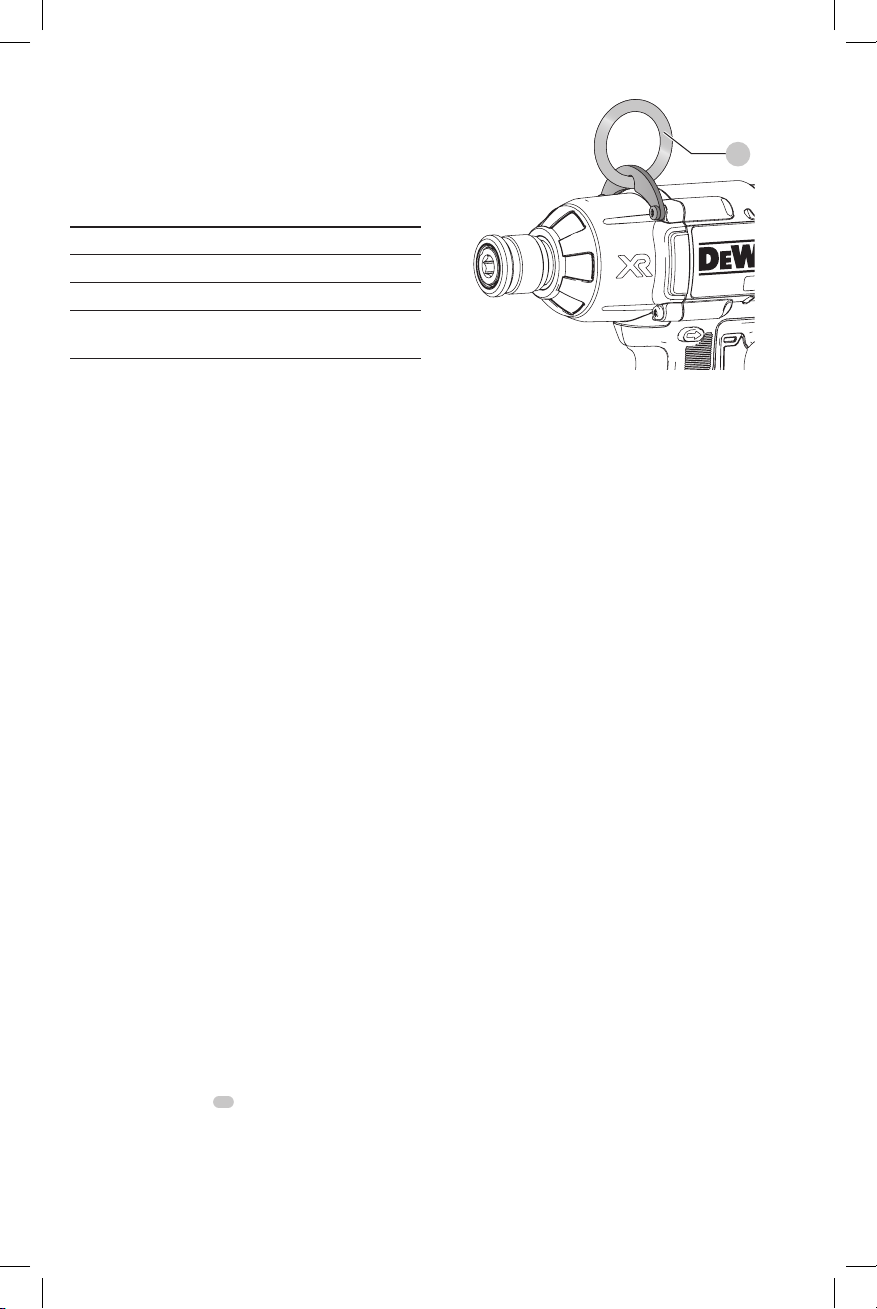

Hog ring (DCF897, DCF899H)

10

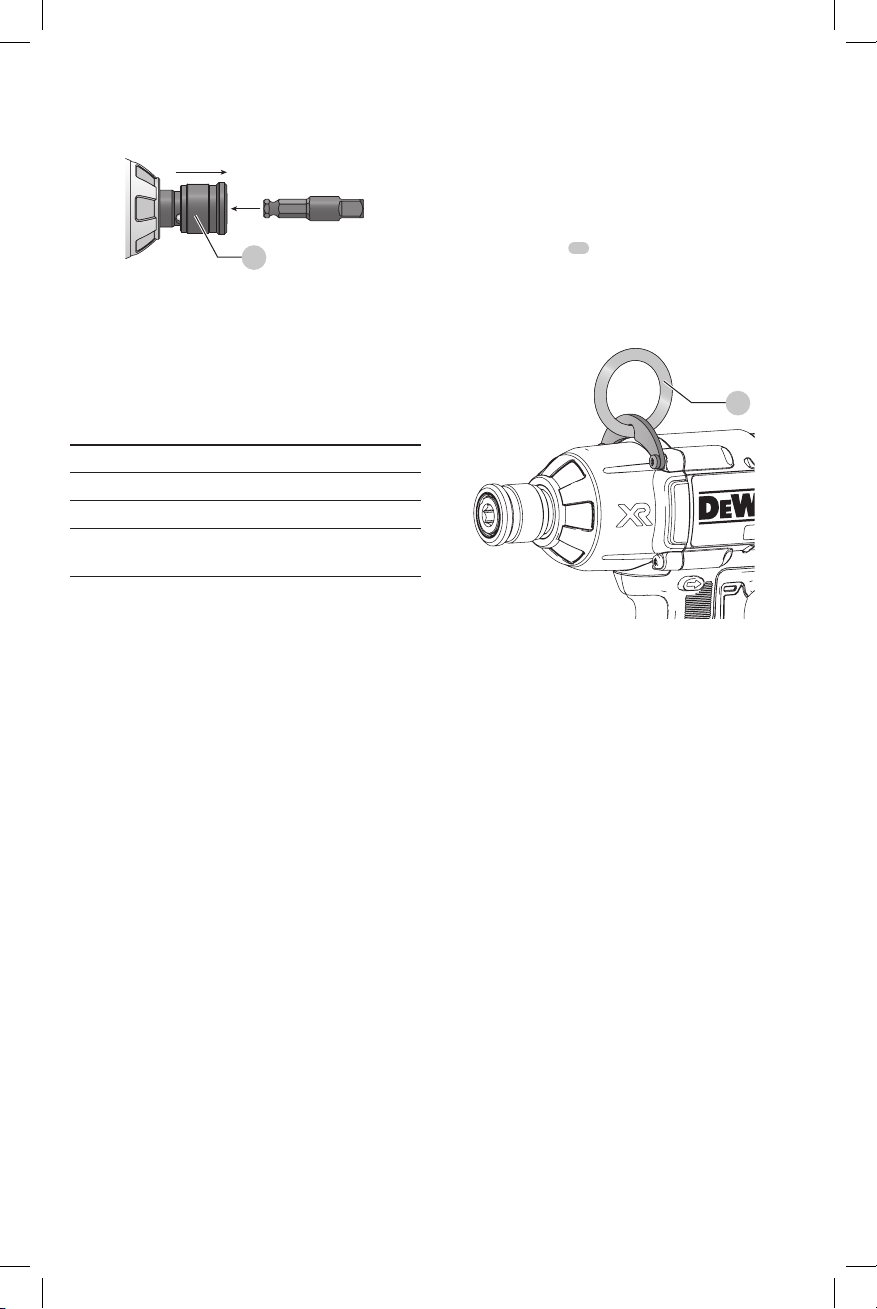

7/16" (11 mm) Hex quick-release chuck (DCF898)

11

Speed selector

1

11

7

5

6

WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and



instructions may result in electric shock, fire and/or
seriousinjury.

WARNING: To reduce the risk of injury, read the
instructionmanual.

If you have any questions or comments about this or
any
1-800-4-

tool, call us toll free at:

(1-800-433-9258).

4

1

ENGLISH

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and



instructions may result in electric shock, fire and/or
seriousinjury.

SAVE ALL WARNINGS AND

INSTRUCTIONS FOR FUTURE

REFERENCE

The term “power tool” in the warnings refers to your mains­operated (corded) power tool or battery-operated (cordless)
powertool.

1) Work Area Safety

a ) Keep work area clean and well lit. Cluttered or dark

areas inviteaccidents.

b ) Do not operate power tools in explosive

atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools

create sparks which may ignite the dust orfumes.

c ) Keep children and bystanders away while

operating a power tool. Distractions can cause you
to losecontrol.

2) Electrical Safety

a ) Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will

reduce risk of electricshock.

b ) Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric

shock if your body is earthed orgrounded.

c ) Do not expose power tools to rain or wet

conditions. Water entering a power tool will increase
the risk of electricshock.

d ) Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase

the risk of electricshock.

e ) When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electricshock.

f ) If operating a power tool in a damp location

is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a GFCI

reduces the risk of electricshock.

3) Personal Safety

a ) Stay alert, watch what you are doing and use

common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A

moment of inattention while operating power tools
may result in serious personalinjury.

b ) Use personal protective equipment. Always wear

eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personalinjuries.

c ) Prevent unintentional starting. Ensure the

switch is in the off position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your

finger on the switch or energizing power tools that
have the switch on invitesaccidents.

d ) Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personalinjury.

e ) Do not overreach. Keep proper footing and

balance at all times. This enables better control of
the power tool in unexpectedsituations.

f ) Dress properly. Do not wear loose clothing or

jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry or

long hair can be caught in movingparts.

g ) If devices are provided for the connection of dust

extraction and collection facilities, ensure these
are connected and properly used. Use of dust

collection can reduce dust-relatedhazards.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct

power tool for your application. The correct power

tool will do the job better and safer at the rate for
which it wasdesigned.

b ) Do not use the power tool if the switch does not

turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
berepaired.

c ) Disconnect the plug from the power source and/

or the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety

measures reduce the risk of starting the power
toolaccidentally.

d ) Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands

of untrainedusers.

e ) Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are

caused by poorly maintained powertools.

f ) Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are
less likely to bind and are easier tocontrol.

2

g ) Use the power tool, accessories and tool bits, etc.

in accordance with these instructions, taking
into account the working conditions and the
work to be performed. Use of the power tool for

operations different from those intended could result
in a hazardoussituation.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type

of battery pack may create a risk of fire when used
with another batterypack.

b ) Use power tools only with specifically designated

battery packs. Use of any other battery packs may
create a risk of injury andfire.

c ) When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins,
keys, nails, screws, or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together may

cause burns or afire.

d ) Under abusive conditions, liquid may be ejected

from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation
orburns.

6) Service

a ) Have your power tool serviced by a qualified

repair person using only identical replacement
parts. This will ensure that the safety of the power

tool ismaintained.

Additional Specific Safety Rules

• Hold power tool by insulated gripping surfaces when
performing an operation where the fastener may
contact hidden wiring. Fasteners contacting a “live”

wire may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.

• Use clamps or other practical way to secure and
support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and
may lead to loss of control.

• Wear safety goggles or other eye protection.
Hammering and drilling operations cause chips to fly.
Flying particles can cause permanent eye damage.

• Air vents often cover moving parts and should be
avoided. Loose clothes, jewelry or long hair can be
caught in moving parts.

• Do not operate this tool for long periods of time.

Vibration caused by tool action may be harmful to your
hands and arms. Use gloves to provide extra cushion and
limit exposure by taking frequent rest periods.

ENGLISH

Additional Safety Information

WARNING: ALWAYS use safety glasses. Everyday
eyeglasses are NOT safety glasses. Also use face or



dust mask if cutting operation is dusty. ALWAYS WEAR
CERTIFIED SAFETYEQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),

• ANSI S12.6 (S3.19) hearing protection,

• NIOSH/OSHA/MSHA respiratoryprotection.
WARNING: Some dust created by power sanding,

sawing, grinding, drilling, and other construction



activities contains chemicals known to the State
of California to cause cancer, birth defects or
other reproductive harm. Some examples of these
chemicalsare:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other
masonry products, and

• arsenic and chromium from chemically­treatedlumber.

Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are
specially designed to filter out microscopicparticles.

• Avoid prolonged contact with dust from power

sanding, sawing, grinding, drilling, and other
construction activities. Wear protective clothing and
wash exposed areas with soap and water. Allowing

dust to get into your mouth, eyes, or lay on the skin may
promote absorption of harmfulchemicals.

WARNING: Use of this tool can generate and/
or disperse dust, which may cause serious and



permanent respiratory or other injury. Always use
NIOSH/OSHA approved respiratory protection
appropriate for the dust exposure. Direct particles
away from face andbody.

WARNING: Always wear proper personal hearing
protection that conforms to ANSI S12.6 (S3.19)



during use. Under some conditions and duration
of use, noise from this product may contribute to
hearingloss.

CAUTION: When not in use, place tool on its side
on a stable surface where it will not cause a



tripping or falling hazard. Some tools with large
battery packs will stand upright on the battery pack
but may be easily knockedover.

• Air vents often cover moving parts and should be
avoided. Loose clothes, jewelry or long hair can be
caught in movingparts.

• An extension cord must have adequate wire size
(AWG or American Wire Gauge) for safety. The smaller
the gauge number of the wire, the greater the capacity
of the cable, that is, 16 gauge has more capacity than 18
gauge. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. When using
more than one extension to make up the total length,
be sure each individual extension contains at least the

3

ENGLISH

DeWALT

DeWALT

minimum wire size. The following table shows the correct
size to use depending on cord length and nameplate
ampere rating. If in doubt, use the next heavier gauge. The
lower the gauge number, the heavier thecord.

Minimum Gauge for Cord Sets

Volts

120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)

Ampere Rating

More

Not

Than

More
Than

0 6 18 16 16 14

6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended

The label on your tool may include the following symbols. The
symbols and their definitions are asfollows:

V ......................... volts

Hz ....................... hertz

min ..................... minutes

or DC ......direct current

...................... Class I Construction

…/min .............. per minute

BPM .................... beats per minute

IPM ..................... impacts per minute

RPM .................... revolutions per

sfpm ................... surface feet per

SPM .................... strokes per minute

A ......................... amperes

W ........................ watts

or AC ........... alternating current

Total Length of Cord in Feet

American Wire Gauge

(grounded)

minute

minute

no ....................... no load speed

n ......................... rated speed

(meters)

or AC/DC .... alternating or

direct current

...................... Class II

Construction
(double insulated)

...................... earthing terminal

..................... safety alert symbol

..................... visible radiation

..................... wear respiratory

protection

..................... wear eye

protection

..................... wear hearing

protection

..................... read all

documentation

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton.
Before using the battery pack and charger, read the
safety instructions below and then follow charging
proceduresoutlined. When ordering replacement battery
packs, be sure to include the catalog number andvoltage.

Your tool uses a
instructions before using your charger. Consult the chart
at the end of this manual for compatibility of chargers and
batterypacks.

charger. Be sure to read all safety

READ ALL INSTRUCTIONS

Important Safety Instructions for All
Battery Packs

WARNING: Read all safety warnings and all
instructions for the battery pack, charger and



power tool. Failure to follow the warnings and
instructions may result in electric shock, fire and/
or serious injury.

4

• Do not charge or use the battery pack in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Inserting or removing the battery

pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO

NOT modify the battery pack in any way to fit into
a non-compatible charger as battery pack may
rupture causing serious personal injury. Consult

the chart at the end of this manual for compatibility of
batteries andchargers.

• Charge the battery packs only in designated

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in

• Do not incinerate the battery pack even if it is

• If battery contents come into contact with the skin,

• Contents of opened battery cells may cause

chargers.

locations where the temperature may reach or
exceed 104°F (40°C) (such as outside sheds or metal
buildings in summer). For best life store battery packs in
a cool, drylocation.
NOTE: Do not store the battery packs in a tool with
the trigger switch locked on. Never tape the trigger
switch in the ONposition.

severely damaged or is completely worn out. The

battery pack can explode in a fire. Toxic fumes and
materials are created when lithium ion battery packs
areburned.

immedicately wash area with mild soap and water.

If battery liquid gets into the eye, rinse water over the open
eye for 15 minutes or until irritation ceases. If medical
attention is needed, the battery electrolyte is composed of
a mixture of liquid organic carbonates and lithiumsalts.

respiratory irritation. Provide fresh air. If symptoms
persist, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be
flammable if exposed to spark orflame.



WARNING: Fire hazard. Never attempt to open the
battery pack for any reason. If the battery pack case



is cracked or damaged, do not insert into the charger.
Do not crush, drop or damage the battery pack. Do
not use a battery pack or charger that has received a
sharp blow, been dropped, run over or damaged in
any way (e.g., pierced with a nail, hit with a hammer,
stepped on). Damaged battery packs should be
returned to the service center forrecycling.

Transportation

WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact



exposed battery terminals. For example, do
not place the battery pack in aprons, pockets, tool
boxes, product kit boxes, drawers, etc., with loose
nails, screws, keys, etc. Transporting batteries

can possibly cause fires if the battery terminals
inadvertently come in contact with conductive
materials such as keys, coins, hand tools and the
like. The US Department of Transportation Hazardous

Material Regulations (HMR) actually prohibit

transporting batteries in commerce or on airplanes in

DeWALT

e

e

DeWALT

DeWALT

DeWALT

DeWALT

DeWALT

DeWALT

carry-on baggage UNLESS they are properly protected
from short circuits. So when transporting individual
battery packs, make sure that the battery terminals
are protected and well insulated from materials that
could contact them and cause a short circuit.

Shipping the

The D

WALT FLEXVOLT™ battery has two modes: Use and

Shipping.
Use Mode: When the FLEXVOLT™ battery stands alone or is

in a D

WALT 20V Max* product, it will operate as a 20V Max*

battery. When the FLEXVOLT™ battery is in a 60V Max* or a
120V Max* (two 60V Max* batteries) product, it will operate
as a 60V Max* battery.

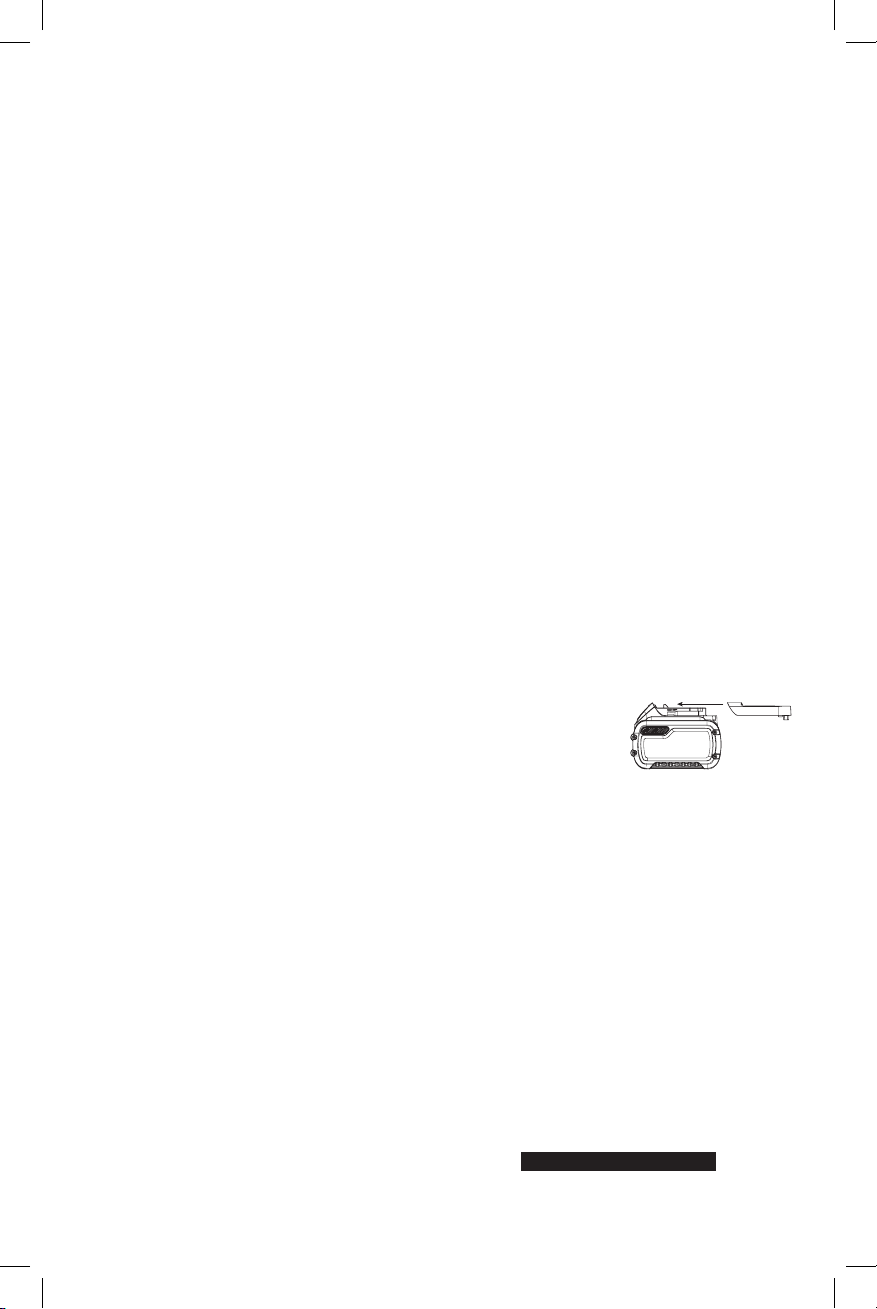

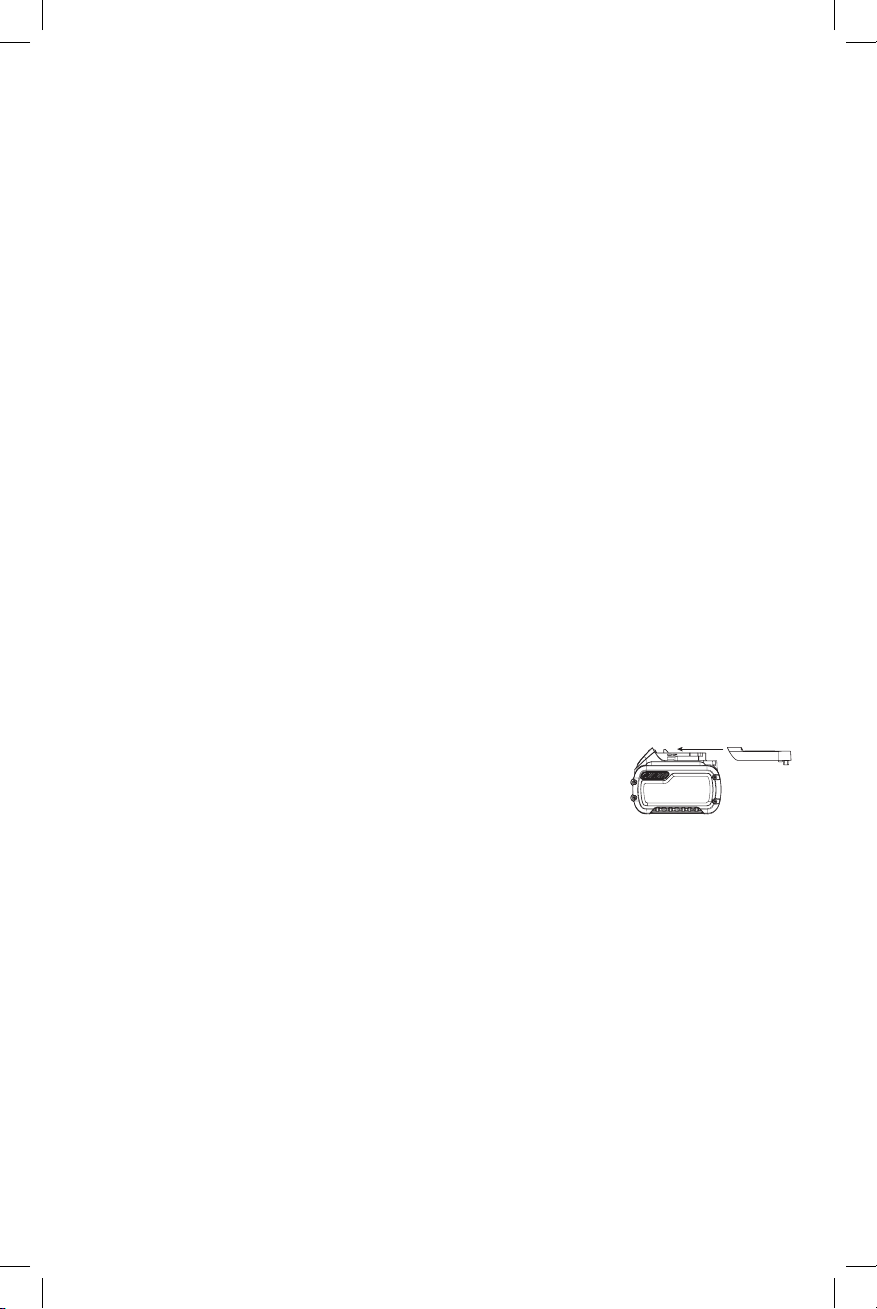

Shipping Mode: When
the cap is attached to the
FLEXVOLT™ battery, the
battery is in Shipping Mode.
Strings of cells are electrically
disconnected within the pack resulting in three batteries
with a lower Watt hour (Wh) rating as compared to one
battery with a higher Watt hour rating. This increased
quantity of three batteries with the lower Watt hour rating
can exempt the pack from certain shipping regulations that
are imposed upon the higher Watt hour batteries.

The battery label indicates two Watt hour ratings (see
example). Depending on how the battery is shipped, the
appropriate Watt hour rating must be used to determine
the applicable shipping requirements. If utilizing the
shipping cap, the pack will be considered 3 batteries at
the Watt hour rating indicated for “Shipping”. If shipping
without the cap or in a tool, the pack will be considered one
battery at the Watt hour rating indicated next to “Use”.

Example of Use and Shipping Label Marking

For example, Shipping Wh rating might indicate 3 x 40 Wh,
meaning 3 batteries of 40 Watt hours each. The Use Wh
rating might indicate 120 Wh (1 battery implied).

FLEXVOLT™ Battery

USE: 120 Wh Shipping: 3 x 40 Wh

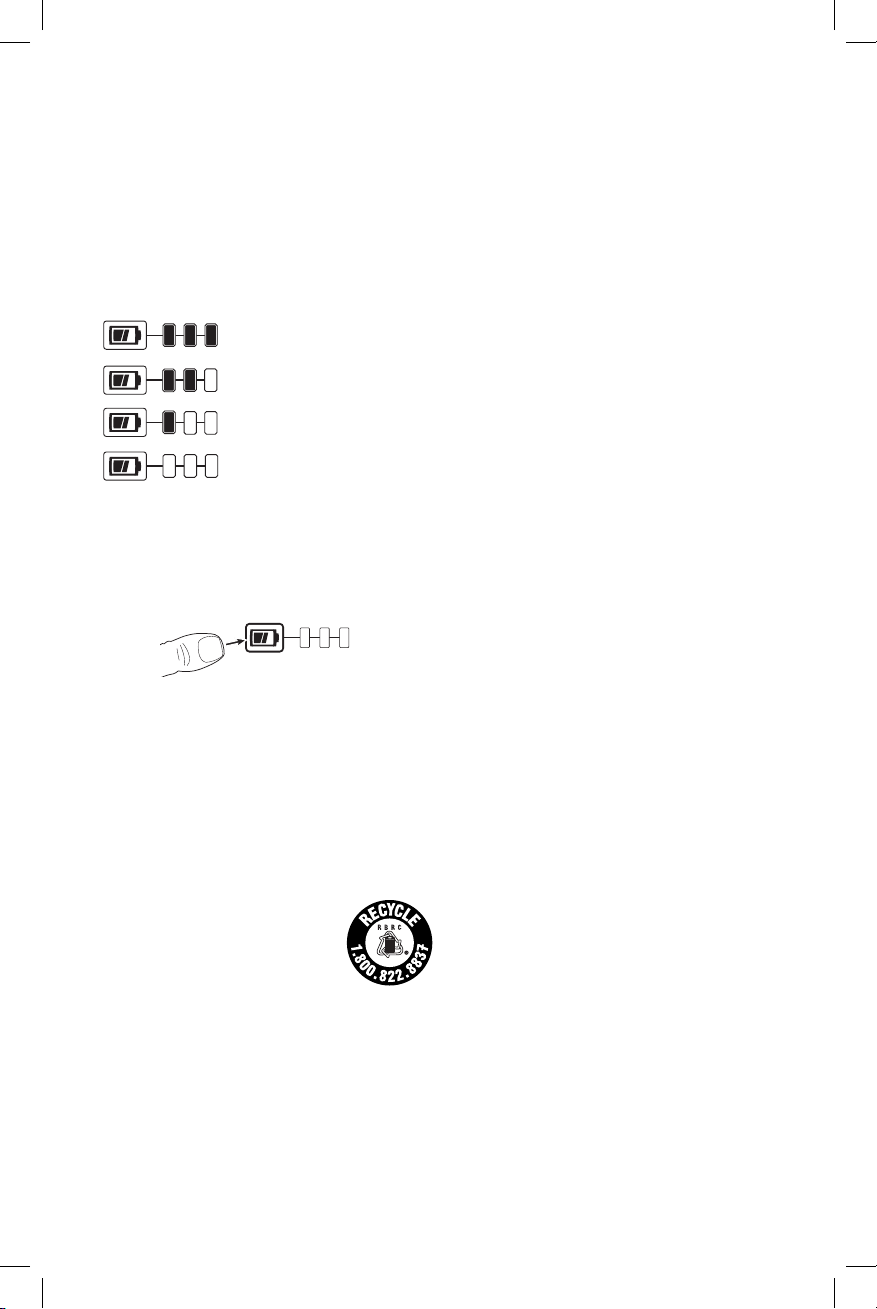

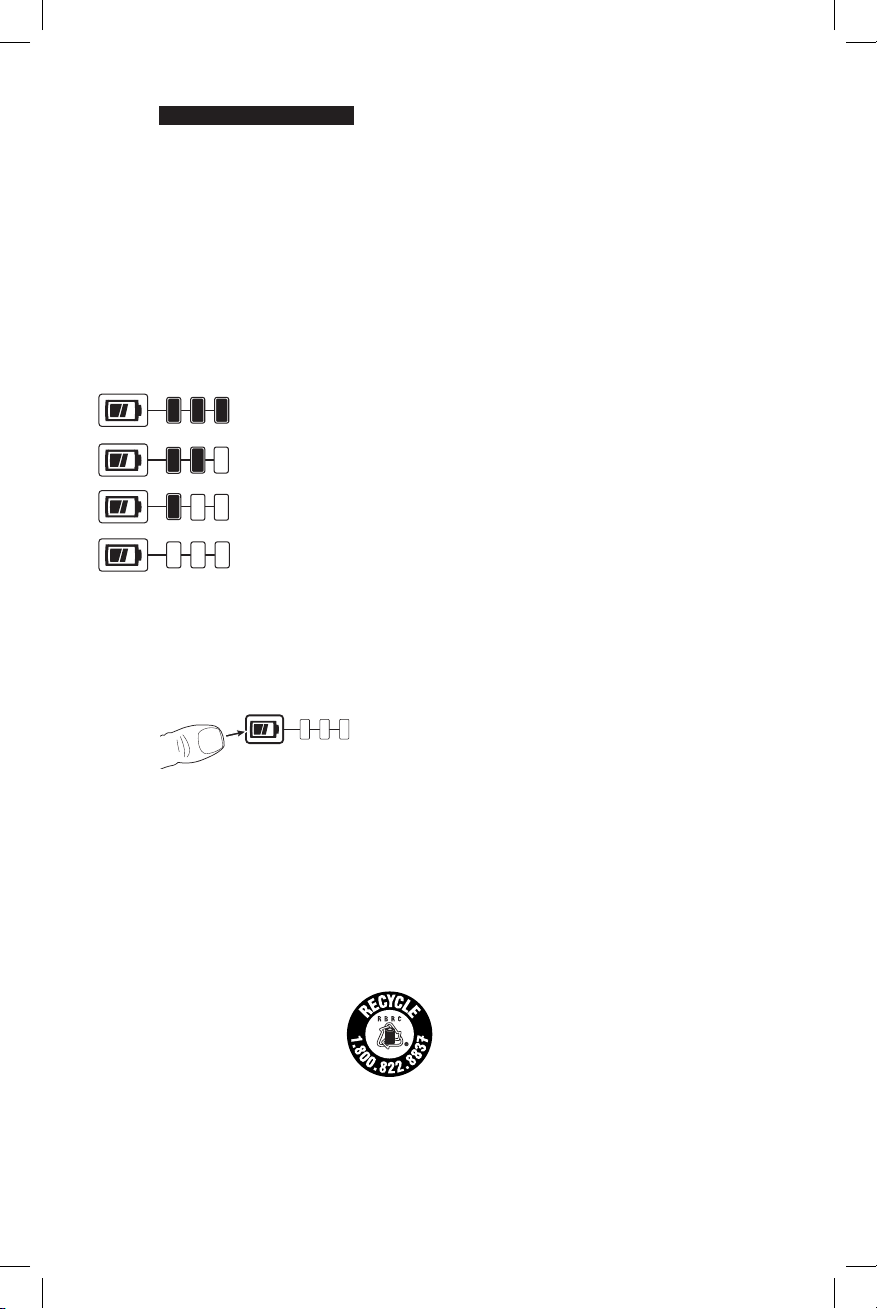

Fuel Gauge Battery Packs (Fig. B)

Some
consists of three green LED lights that indicate the level of
charge remaining in the batterypack.

The fuel gauge is an indication of approximate levels of
charge remaining in the battery pack according to the
followingindicators:

To actuate the fuel gauge, press and hold the fuel gauge
button. A combination of the three green LED lights will
illuminate designating the level of charge left. When the

battery packs include a fuel gauge which

75–100% charged

51–74% charged

< 50% charged

Pack needs to be charged

ENGLISH

level of charge in the battery is below the usable limit, the
fuel gauge will not illuminate and the battery will need to
berecharged.

NOTE: The fuel gauge is only an indication of the charge left
on the battery pack. It does not indicate tool functionality
and is subject to variation based on product components,
temperature and end-userapplication.

For more information regarding fuel gauge battery packs,
please call 1-800-4­website www.dewalt.com.

Fig. B

(1-800-433-9258) or visit our

The RBRC® Seal

The RBRC® (Rechargeable Battery
Recycling Corporation) Seal on the nickel
cadmium, nickel metal hydride or lithium­ion batteries (or battery packs) indicates
that the costs to recycle these batteries
(or battery packs) at the end of their useful life have already
been paid by
spent nickel cadmium, nickel metal hydride or lithium-ion
batteries in the trash or municipal solid waste stream and
the Call2Recycle® program provides an environmentally
consciousalternative.

Call 2 Recycle, Inc., in cooperation with
battery users, has established the program in the United
States and Canada to facilitate the collection of spent nickel
cadmium, nickel metal hydride or lithium-ion batteries. Help
protect our environment and conserve natural resources by
returning the spent nickel cadmium, nickel metal hydride
or lithium-ion batteries to an authorized
center or to your local retailer for recycling. You may also
contact your local recycling center for information on
where to drop off the spent battery. RBRC® is a registered
trademark of Call 2 Recycle,Inc.

. In some areas, it is illegal to place

and other

service

Important Safety Instructions for All
Battery Chargers

WARNING: Read all safety warnings and all
instructions for the battery pack, charger and



power tool. Failure to follow the warnings and
instructions may result in electric shock, fire and/
or serious injury.

• DO NOT attempt to charge the battery pack with
any chargers other than the ones in this manual.

The charger and battery pack are specifically designed to
worktogether.

• These chargers are not intended for any uses other

than charging

Any other uses may result in risk of fire, electric shock
orelectrocution.

• Do not expose the charger to rain orsnow.

• Pull by the plug rather than the cord when
disconnecting the charger. This will reduce the risk of
damage to the electric plug andcord.

rechargeable batteries.

5

ENGLISH

DeWALT

• Make sure that the cord is located so that it will not
be stepped on, tripped over or otherwise subjected
to damage orstress.

• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in

risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide

a dry location and use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use

reduces the risk of electricshock.

• An extension cord must have adequate wire size
(AWG or American Wire Gauge) for safety. The smaller
the gauge number of the wire, the greater the capacity
of the cable, that is, 16 gauge has more capacity than 18
gauge. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. When using
more than one extension to make up the total length,
be sure each individual extension contains at least the
minimum wire size. The following table shows the correct
size to use depending on cord length and nameplate
ampere rating. If in doubt, use the next heavier gauge. The
lower the gauge number, the heavier thecord.

Minimum Gauge for Cord Sets

Volts

120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)

Ampere Rating

More

Not

Than

More
Than

0 6 18 16 16 14

6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended

• Do not place any object on top of the charger or
place the charger on a soft surface that might block
the ventilation slots and result in excessive internal
heat. Place the charger in a position away from any heat

source. The charger is ventilated through slots in the top
and the bottom of thehousing.

• Do not operate the charger with a damaged cord

orplug.

• Do not operate the charger if it has received a sharp
blow, been dropped or otherwise damaged in any
way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an
authorized service center when service or repair
is required. Incorrect reassembly may result in a risk of

electric shock, electrocution orfire.

• Disconnect the charger from the outlet before

attempting any cleaning. This will reduce the risk of
electric shock. Removing the battery pack will not reduce

thisrisk.

• NEVER attempt to connect 2 chargerstogether.

• The charger is designed to operate on standard

120V household electrical power. Do not attempt to

Total Length of Cord in Feet

(meters)

American Wire Gauge

use it on any other voltage. This does not apply to the
vehicularcharger.

WARNING: Shock hazard. Do not allow any liquid to
get inside the charger. Electric shock mayresult.



WARNING: Burn hazard. Do not submerge the
battery pack in any liquid or allow any liquid to



enter the battery pack. Never attempt to open the
battery pack for any reason. If the plastic housing of
the battery pack breaks or cracks, return to a service
center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury,
charge only



Other types of batteries may overheat and burst
resulting in personal injury and propertydamage.

NOTICE: Under certain conditions, with the charger
plugged into the power supply, the charger can
be shorted by foreign material. Foreign materials
of a conductive nature, such as, but not limited to,
grinding dust, metal chips, steel wool, aluminum
foil or any buildup of metallic particles should be
kept away from the charger cavities. Always unplug
the charger from the power supply when there is no
battery pack in the cavity. Unplug the charger before
attempting toclean.

rechargeable battery packs.

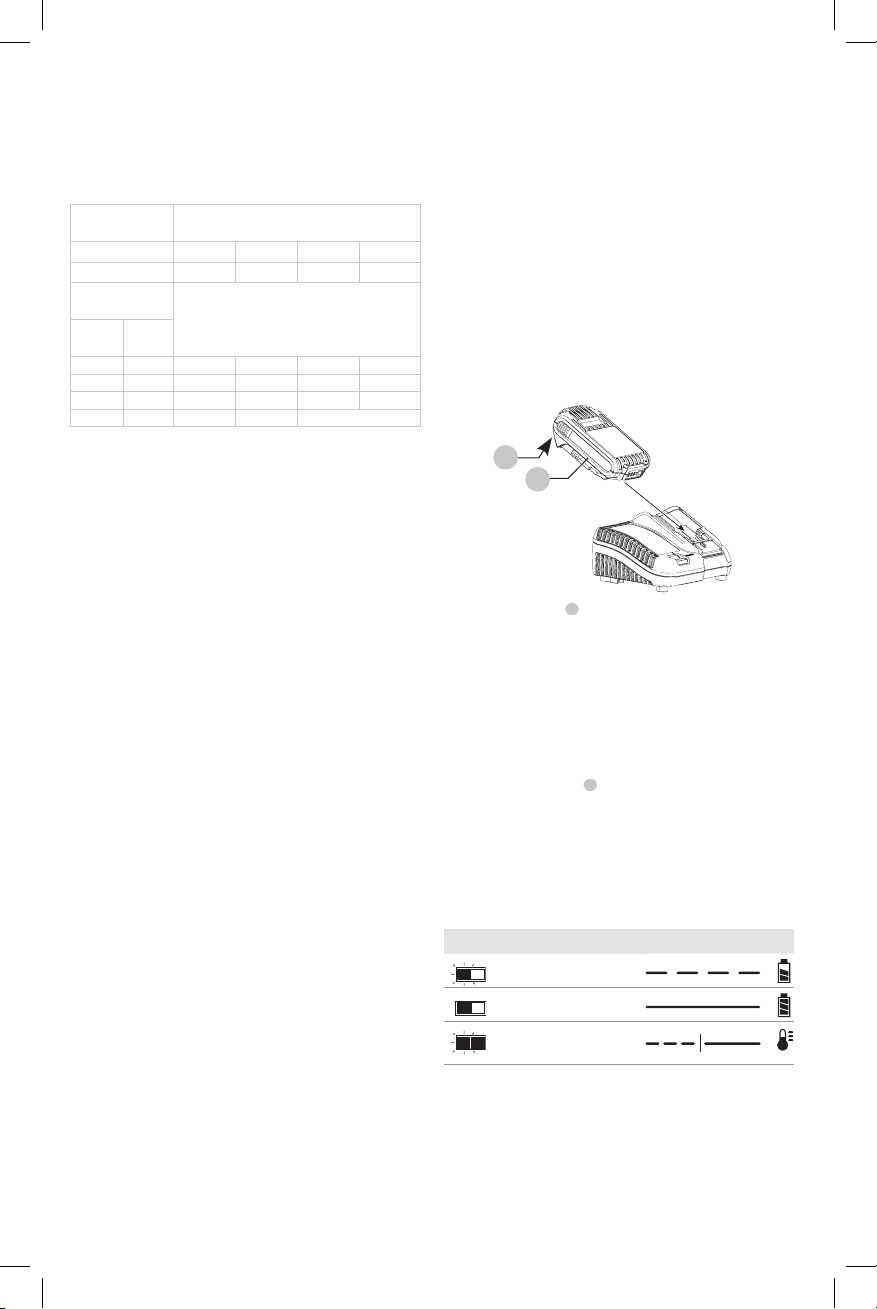

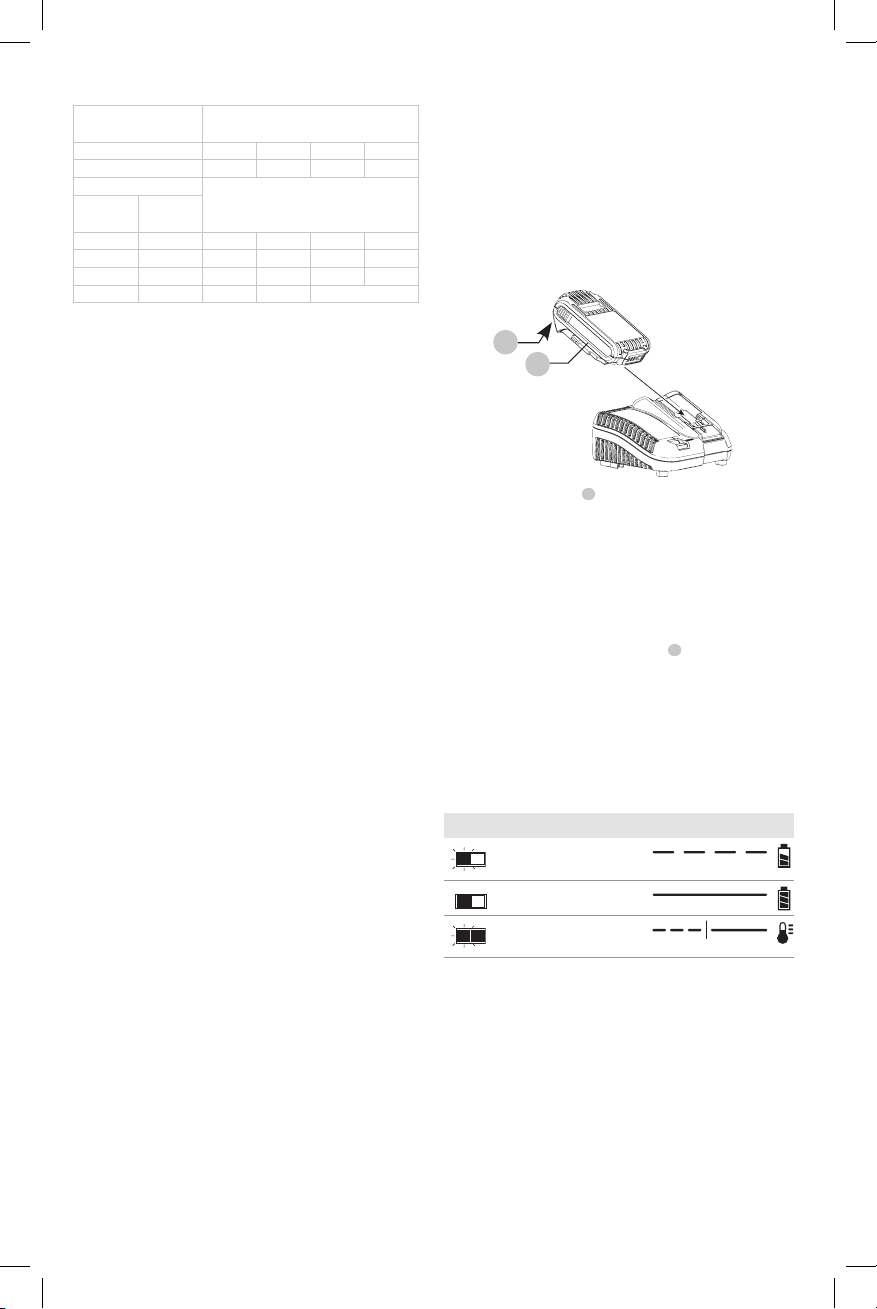

Charging a Battery (Fig. C)

1. Plug the charger into an appropriate outlet before
inserting battery pack.

Fig. C

5

6

2. Insert the battery pack
the battery pack is fully seated in the charger. The red
(charging) light will blink continuously indicating that
the charging process has started.

3. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is
fully charged and may be used at this time or left in the
charger. To remove the battery pack from the charger,
push the battery release button

NOTE: To ensure maximum performance and life of lithium­ion battery packs, charge the battery pack fully before first
use.

Charger Operation

Refer to the indicators below for the charge status of the
battery pack.

6

into the charger, making sure

5

on the battery pack.

6

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

Charging

Fully Charged

Hot/Cold Pack Delay*

* DCB107, DCB112, DCB113, DCB115, DCB118, DCB132:

The red light will continue to blink, but a yellow indicator
light will be illuminated during this operation. Once the
battery pack has reached an appropriate temperature, the
yellow light will turn off and the charger will resume the
charging procedure.

The compatible charger(s) will not charge a faulty battery
pack. The charger will indicate faulty battery pack by
refusing to light.

NOTE: This could also mean a problem with a charger.
If the charger indicates a problem, take the charger and

battery pack to be tested at an authorized service center.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot
or too cold, it automatically starts a Hot/Cold Pack Delay,
suspending charging until the battery pack has reached an
appropriate temperature. The charger then automatically
switches to the pack charging mode. This feature ensures
maximum battery pack life.

A cold battery pack will charge at a slower rate than a warm
battery pack. The battery pack will charge at that slower rate
throughout the entire charging cycle and will not return to
maximum charge rate even if the battery pack warms.

The DCB118 charger is equipped with an internal fan
designed to cool the battery pack. The fan will turn on
automatically when the battery pack needs to be cooled.

Never operate the charger if the fan does not operate
properly or if ventilation slots are blocked. Do not permit
foreign objects to enter the interior of the charger.

Electronic Protection System

Li-Ion tools are designed with an Electronic Protection
System that will protect the battery pack against
overloading, overheating or deep discharge.

The tool will automatically turn off if the Electronic
Protection System engages. If this occurs, place the lithium­ion battery pack on the charger until it is fully charged.

Wall Mounting

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

These chargers are designed to be wall mountable or to
sit upright on a table or work surface. If wall mounting,
locate the charger within reach of an electrical outlet,
and away from a corner or other obstructions which may
impede air flow. Use the back of the charger as a template
for the location of the mounting screws on the wall. Mount
the charger securely using drywall screws (purchased
separately) at least 1" (25.4 mm) long, with a screw head
diameter of 0.28–0.35" (7–9mm), screwed into wood to an
optimal depth leaving approximately 7/32" (5.5 mm) of the

ENGLISH

screw exposed. Align the slots on the back of the charger
with the exposed screws and fully engage them in the slots.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease



may be removed from the exterior of the charger using
a cloth or soft non-metallic brush. Do not use water or
any cleaning solutions.

Important Charging Notes

1. Longest life and best performance can be obtained if
the battery pack is charged when the air temperature is
between 65°F and 75°F (18° – 24°C). DO NOT charge
the battery pack below +40°F (+4.5°C), or above
+104°F (+40°C). This is important and will prevent
serious damage to the battery pack.

2. The charger and battery pack may become warm to the
touch while charging. This is a normal condition, and
does not indicate a problem. To facilitate the cooling of
the battery pack after use, avoid placing the charger or
battery pack in a warm environment such as in a metal
shed or an uninsulated trailer.

3. If the battery pack does not charge properly:
a. Check operation of receptacle by plugging in a lamp

or other appliance;

b. Check to see if receptacle is connected to a light

switch which turns power off when you turn out the
lights;

c. Move the charger and battery pack to a location

where the surrounding air temperature is
approximately 65°F – 75°F (18° – 24°C);

d. If charging problems persist, take the tool, battery

pack and charger to your local service center.

4. The battery pack should be recharged when it fails to
produce sufficient power on jobs which were easily
done previously. DO NOT CONTINUE to use under these
conditions. Follow the charging procedure. You may
also charge a partially used pack whenever you desire
with no adverse effect on the battery pack.

5. Foreign materials of a conductive nature such as, but
not limited to, grinding dust, metal chips, steel wool,
aluminum foil, or any buildup of metallic particles
should be kept away from charger cavities. Always
unplug the charger from the power supply when there
is no battery pack in the cavity. Unplug the charger
before attempting to clean.

6. Do not freeze or immerse the charger in water or any
other liquid.

Storage Recommendations

1. The best storage place is one that is cool and dry, away
from direct sunlight and excess heat or cold.

2. For long storage, it is recommended to store a fully
charged battery pack in a cool dry place out of the
charger for optimal results.

7

ENGLISH

DeWALT

NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be
recharged before use.

SAVE THESE INSTRUCTIONS FOR

FUTURE USE

Motor

Be sure your power supply agrees with the nameplate
marking. Voltage decrease of more than 10% will cause loss
of power and overheating.
if this tool does not operate, check power supply.

tools are factory tested;

Fig. D

6

5

COMPONENTS (FIG. A)

WARNING: Never modify the power tool or any part
of it. Damage or personal injury couldresult.



Refer to Figure A at the beginning of this manual for a
complete list ofcomponents.

Intended Use

This impact wrench is designed for professional impact
fastening and drilling applications. The impact function
makes this tool particularly useful for driving fasteners in
wood, metal and concrete.

DO NOT use under wet conditions or in presence of
flammable liquids orgases.

DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.

OPERATION

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from



power source remove the battery pack before
making any adjustments or removing/installing
attachments or accessories. An accidental start-up

can causeinjury.

Installing and Removing the Battery Pack
(Fig. D)

NOTE: For best results, make sure your battery pack is
fullycharged.

To install the battery pack
battery pack with the rails inside the tool’s handle and slide
it into the handle until the battery pack is firmly seated in
the tool and ensure that it does notdisengage.

To remove the battery pack from the tool, press the release

5

button

and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of thismanual.

6

into the tool handle, align the

Proper Hand Position (Fig. E)

WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position as shown.



WARNING: To reduce the risk of serious personal injury,
ALWAYS hold securely in anticipation of a sudden



reaction.

Proper hand position requires one hand on the main

4

handle

.

Fig. E

4

Variable Speed Trigger Switch (Fig. A)

To turn the tool on, squeeze the trigger switch
the tool off, release the trigger switch. Your tool is equipped
with a brake. The anvil will stop when the trigger switch
is fully released. The variable speed switch enables you to
select the best speed for a particular application. The more
you squeeze the trigger, the faster the tool will operate. For
maximum tool life, use variable speed only for starting holes
or fasteners.

NOTE: Continuous use in variable speed range is not
recommended. It may damage the switch and should
beavoided.

1

. To turn

Forward/Reverse Control Button (Fig. A)

A forward/reverse control button
direction of the tool and also serves as a lock-off button.

To select forward rotation, release the trigger switch and
depress the forward/reverse control button on the right side
of the tool.

To select reverse, release the trigger switch and depress the
forward/reverse control button on the left side of the tool.

2

determines the

8

The center position of the control button locks the tool in
the off position. When changing the position of the control
button, be sure the trigger is released.

NOTE: The first time the tool is run after changing the
direction of rotation, you may hear a click on start up. This is
normal and does not indicate a problem.

Worklight (Fig. A)

There is a worklight
worklight is activated when the trigger switch is depressed,
and will automatically turn off 20 seconds after the trigger
switch is released. If the trigger switch remains depressed,
the worklight will remain on.

NOTE: The worklight is for lighting the immediate work
surface and is not intended to be used as a flashlight.

7

located on the foot of the tool. The

Speed Selector (Fig. A)

Your tool is equipped with a speed selector
allows you to select one of three speeds. Select the speed
based on the application and control the speed of the tool
using the variable speed trigger switch

Speed 1 0–400 rpm
Speed 2 0–1200 rpm
Speed 3 0–1900 rpm

11

which

1

.

Anvils (Fig. F–I)

WARNING: Use only impact accessories. Non-impact

accessories may break and cause a hazardous



condition. Inspect accessories prior to use to ensure

that it con tains no cracks.

CAUTION: Inspect anvils, detent pins and hog rings

prior to use. Missing or damaged items should be



replaced before use.

Place the switch in the locked off (center) position or
remove battery pack before changing accessories.

Anvil with Detent Pin (Fig. F)
DCF899

To install an accessory on the anvil, align the hole in
the side of the accessory with the detent pin

3

anvil

. Press the accessory on until the detent pin engages
in the hole. Depression of detent pin may be necessary to
aid installation of accessory.

To remove an accessory, depress the detent pin through
the hole and pull the accessory off.

Fig. F

8

DCF899

8

on the

3

ENGLISH

Anvil with Hog Ring (Fig. G, H)
DCF897, DCF899H

To install an accessory on the hog ring anvil, firmly push
accessory onto the anvil
to allow the accessory to slide on. After accessory is
installed, the hog ring applies pressure to help provide
accessoryretention.

Fig. G

DCF899H

To remove an accessory, grasp the accessory and firmly

pull it off.
NOTE: The thru-hole (Fig.H) allows an O-ring with retaining

pin or a 1-piece retaining pin to be used to help secure
sockets and accessories to the tool.

3

3

9

. The hog ring

Fig. H

DCF897

9

compresses

3

9

Anvil with Quick-Release Chuck (Fig. I)
DCF898

NOTE: The chuck accepts 7/16" (11 mm) hex
accessoriesonly.

To install an accessory, pull the chuck collar
from the front of the tool, insert the accessory and release
the collar. The accessory is locked in place.

To remove an accessory, pull the chuck collar away from
the front of the tool. Remove the accessory and release
thecollar.

Fig. I

10

DCF898

10

away

Usage

Your impact tool can generate the following maximum
torque values (Speed 3, Speed 2, Speed 1).

NOTE: Output torque is dependent on the speed selected,
with the highest provided in Speed 3.

Ft.-Lbs. Nm

Cat #

DCF897 700/300/100 950/400/130

DCF898 500/300/100 680/400/130

DCF899,
DCF899H

SPEED 3/2/1 SPEED 3/2/1

700/300/100 950/400/130

9

ENGLISH

DeWALT

DeWALT

DeWALT

DeWALT

DeWALT

DeWALT

DeWALT

CAUTION: Ensure fastener and/or system will
withstand the level of torque generated by the



tool. Excessive torque may cause breakage and
possible personal injury.

1. Place the accessory on the fastener head. Keep the tool
pointed straight at the fastener.

2. Press switch to start operation. Release switch to stop
operation. Always check torque with a torque wrench,
as the fastening torque is affected by many factors
including the following:

• Voltage: Low voltage, due to a nearly discharged

battery, will reduce fastening torque.

• Accessory size: Failure to use the correct accessory

size will cause a reduction in fastening torque.

• Bolt size: Larger bolt diameters generally require

higher fastening torque. Fastening torque will also vary
according to length, grade, and torque coefficient.

• Bolt: Ensure that all threads are free of rust and other

debris to allow proper fastening torque.

• Material: The type of material and surface finish of the

material will affect fastening torque.

• Fastening time: Longer fasten ing time results in

increased fastening torque. Using a longer fastening
time than recom mended could cause the fasteners to
be overstressed, stripped or damaged.

Lift Ring (Fig. J)

DCF898

WARNING: To reduce the risk of serious personal
injury, DO NOT use the lift ring for tethering or



securing the tool to a person or object during use
when elevated.

Fig. J

12

is for moving the tool into difficult to reach

12

The lift ring
areas. Securely fasten lifting device to the ring before
moving the tool. Follow all worksite rules.

MAINTENANCE

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from



power source remove the battery pack before
making any adjustments or removing/installing
attachments or accessories. An accidental start-up

can causeinjury.

Cleaning

WARNING: Blow dirt and dust out of all air vents with
clean, dry air at least once a week. To minimize the risk



of eye injury, always wear ANSI Z87.1 approved eye
protection when performingthis.

WARNING: Never use solvents or other harsh
chemicals for cleaning the non-metallic parts of



the tool. These chemicals may weaken the plastic
materials used in these parts. Use a cloth dampened
only with water and mild soap. Never let any liquid
get inside the tool; never immerse any part of the tool
into aliquid.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease



may be removed from the exterior of the charger using
a cloth or soft non-metallic brush. Do not use water or
any cleaning solutions.

Accessories

WARNING: Since accessories, other than those
offered by



product, use of such accessories with this tool could be
hazardous. To reduce the risk of injury, only
recommended accessories should be used with
thisproduct.

WARNING: To reduce the risk of injury, use only



WARNING: Use only impact accessories. Non-impact
accessories may break and cause a hazardous



condition. Inspect accessories prior to use to ensure
that they con tain no cracks.

Recommended accessories for use with your tool
are available at extra cost from your local dealer or
authorized service center. If you need assistance in
locating any accessory, please contact
Tool Co., 701East Joppa Road, Towson, MD 21286, call
1-800-4­www.dewalt.com.

, have not been tested with this

impact-ready accessories.

(1-800-433-9258) or visit our website:

Industrial

Repairs

The charger and battery pack are notserviceable.

WARNING: To assure product SAFETY and
RELIABILITY, repairs, maintenance and adjustment



(including brush inspection and replacement, when
applicable) should be performed by a
service center or a
Always use identical replacementparts.

10

authorized service center.

factory
