DeVILBISS AIR POWER COMPANY
OWNERS MANUAL FOR PRESSURE WASHER
Model No.
W1217
SPECIFICATION CHART
MODEL
PUMP PRESSURE
FLOW RATE
VOLTAGE REQUIREMENT
MINIMUM FUSE SIZE
POWER CORD
HOSE
PKG. WEIGHT
20' SWIVEL HIGH PRESSURE HOSE
115V/15 AMP/60HZ
15 AMP., TIME DELAY
IMPORTANT:
READ AND RETAIN THE SAFETY GUIDELINES AND ALL
INSTRUCTIONS CAREFULLY BEFORE OPERATING
W1217
1300 P.S.I. MAX
1.7 G.P.M.
35'
17 LBS.
MPG-1217 6/12/97
DeVilbiss Air Power Company • 213 Industrial Drive • Jackson, TN 38301-9615
TABLE OF CONTENTS
PAGE
WARRANTY STATEMENT...................................................... 3
SAFETY GUIDELINES ............................................................ 4
IMPORTANT SAFETY INSTRUCTIONS .............................. 4-5
GLOSSARY ............................................................................ 6
GROUNDING INSTRUCTIONS/EXTENSION CORDS ........... 6
OPERATING INSTRUCTIONS ................................................ 7
MAINTENANCE & STORAGE ................................................ 8
TROUBLE SHOOTING GUIDE ............................................... 9

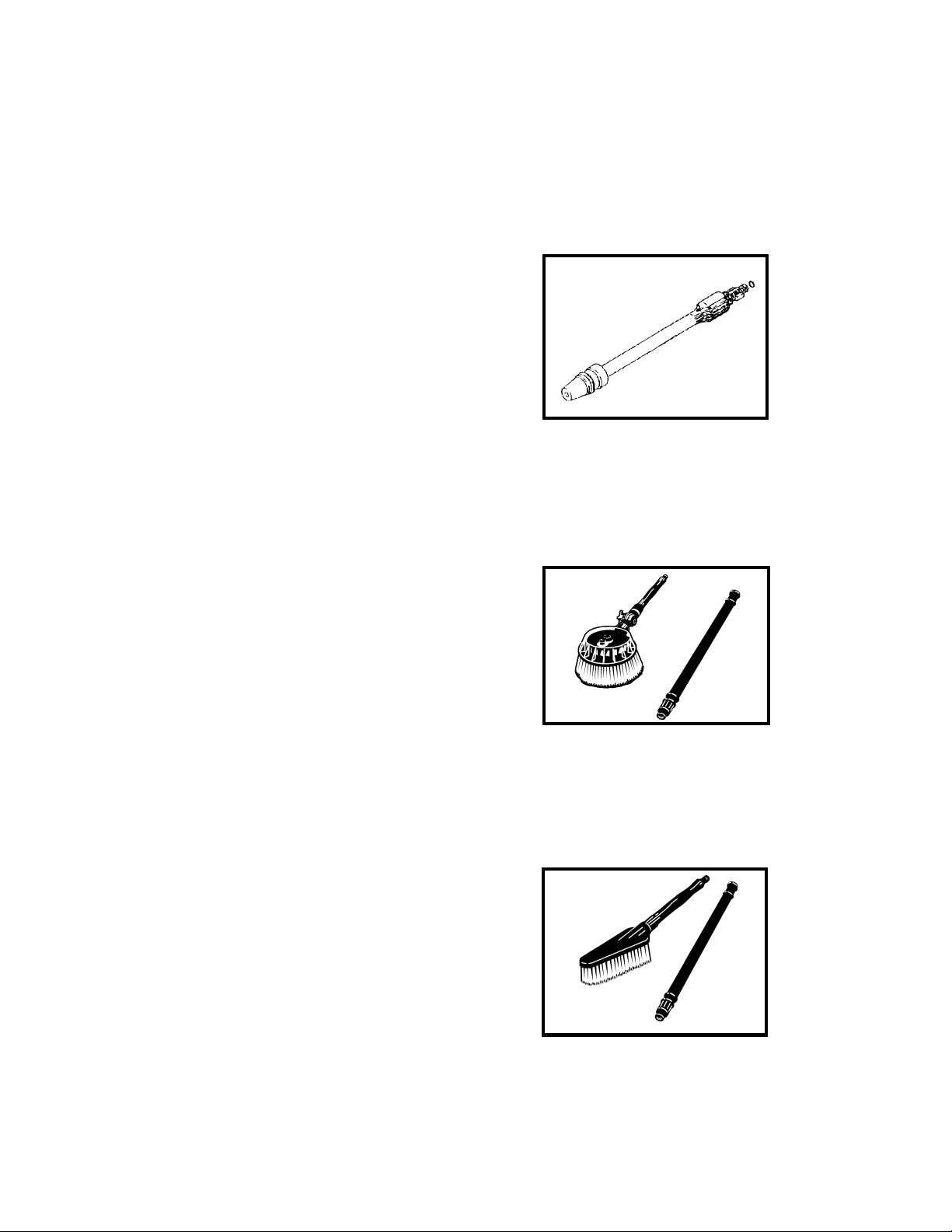

ACCESSORIES/CLEANING SOLUTIONS/
SERVICE PARTS ....................................................... 10-11
2
LIMITED WARRANTY
ONE YEAR FROM DATE OF PURCHASE
All merchandise manufactured by DeVilbiss Air Power Company is warranted to be free of defects in workmanship and
material which occur during the first year from the date of purchase by the original purchaser (initial user). Products
covered under this warranty include: air compressors, *air tools, accessories, service parts, pressure washers, and
generators used in consumer applications (i.e., personal residential household usage only).
Air compressors, *air tools, accessories, service parts, pressure washers, and generators used in commercial applications (income producing) are covered by a 90 day warranty.
DeVilbiss Air Power will repair or replace, at DeVilbiss's option, products or components which have failed within the
warranty period. Repair or replacement, and service calls on 60 and 80 gallon air compressors, will be handled by
Authorized Warranty Service Centers and will be scheduled and serviced according to the normal work flow and business hours at the service center location, and depending on the availability of replacement parts.
All decisions of DeVilbiss Air Power Company with regard to this policy shall be final.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
RESPONSIBILITY OF ORIGINAL PURCHASER (Initial User):
o
Retain original cash register sales receipt as proof of purchase for warranty work.
o
Use reasonable care in the operation and maintenance of the product as described in the Owners Manual(s).
o
Deliver or ship the product to the nearest DeVilbiss Air Power Authorized Warranty Service Center.
Freight costs, if any, must be paid by the purchaser.
o
Air compressors with 60 and 80 gallon tanks only will be inspected at the site of installation. Contact the nearest
Authorized Warranty Service Center, that provides on-site service calls, for service call arrangement.
o
If the purchaser does not receive satisfactory results from the Authorized Warranty Service Center, the purchaser
should contact DeVilbiss Air Power Company.
THIS WARRANTY DOES NOT COVER:
o
Merchandise sold as reconditioned, floor models and/or display models. Any damaged or incomplete equipment
sold "as is".
o
Merchandise used as "rental" equipment.
o
Merchandise that has become inoperative because of ordinary wear, misuse, freeze damage, use of improper
chemicals, negligence, accident, improper and/or unauthorized repair or alterations including failure to operate
the product in accordance with the instructions provided in the Owners Manual (s) supplied with the product.
*Air Tools: O-Rings and driver blades are considered ordinary wear parts, therefore, they are warranted for a
period of 45 days from the date of purchase.
o
An air compressor that pumps air more than 50% during a one hour period is considered misuse because
the air compressor is undersized for the required air demand. Maximum compressor pumping time per hour is
30 minutes.
o
Merchandise sold by DeVilbiss Air Power which has been manufactured by and identified as the product of
another company. The product manufacturer's warranty will apply.
o
Repair and transportation costs of merchandise determined not to be defective.
o
Cost associated with assembly, required oil, adjustments or other installation and start-up cost.
o
ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM
ANY DEFECT, FAILURE OR MALFUNCTION OF THE PRODUCT. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
o
IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
DeVilbiss Air Power Company
213 Industrial Drive • Jackson, TN 38301-9615 • Telephone: 1-800-888-2468 , Ext. 2 • FAX: 1-800-888-9036
Form: SP-100-E - 4/25/96
3
SAFETY GUIDELINES - DEFINITIONS
This manual contains information
that is important for you to know
and understand. This information
relates to protecting YOUR
SAFETY and PREVENTING EQUIP-
MENT PROBLEMS. To help you
recognize this information, we
use symbols to the right. Please
read the manual and pay attention to these sections.
IMPORTANT SAFETY INSTUCTIONS
URGENT SAFETY INFORMATION - A
HAZARD THAT WILL CAUSE SERIOUS
INJURY OR LOSS OF LIFE
IMPORTANT SAFETY INFORMATION - A
HAZARD THAT MIGHT CAUSE SERIOUS
INJURY OR LOSS OF LIFE.
Information for preventing damage to
equipment.
Information that you should pay special
attention to.
• SAVE THESE INSTRUCTIONS •
THIS UNIT OPERATES WITH COLD WATER ONLY.
When using this product basic precautions should always be followed including
the following:
1. Read and understand all the instructions before
using the product.
2. To reduce the risk of injury, close supervision is
necessary when a product is used near children.
3. Know how to stop the product. Be thoroughly
familiar with the controls.
4. Stay alert – watch what you are doing.
5. Do not operate the product when fatigued or under
the influence of alcohol or drugs.
HAZARD
n
RISK OF ELECTRICAL
SHOCK
n
n
WHAT COULD HAPPEN HOW TO PREVENT IT
This product is not equipped with a GFCI. It
contains and sprays water and other
conductive liquids. Improper operation
could result in electrocution.
Spraying directed at electrical outlets or
switches, or objects connected to electrical
circuit could result in electrical
shock.
Extension cords of improper size or in
poor condition can lead to electrical
shock.
6. Keep operating area clear of all persons.
7. Do not overreach or stand on unstable
support. Keep good footing at all times.
8. Follow the maintenance instructions specified in
the manual.
9. Never operate this machine with broken or missing parts,
or without protective housing in place.
10. – Risk of Injection or Injury – Do
Not Direct Discharge Stream At Persons."
n
This product must be connected to a
properly grounded electrical circuit,
equipped with a Ground Fault Circuit
Interrupter (GFCI) for your personal
protection.
n
Unplug any electrically operated product
before attempting to clean it. Direct spray
away from electric outlets and switches.
n
Always keep cord connections dry. Never
attempt to assemble connections with
wet hands. See section on Grounding
Instructions/Extension Cords. (Page 6)
4
IMPORTANT SAFETY INSTRUCTIONS (cont'd)
HAZARD
RISK OF FLUID
INJECTION
RISK OF INJURY
FROM SPRAY
RISK OF INJURY
FROM WAND
RECOIL
WHAT COULD HAPPEN
n
Your washer operates at fluid pressures and
velocities high enough to penetrate human
and animal flesh, which could result in serious injury or amputation. Leaks caused by
loose fittings or worn or damaged hoses can
result in injection injuries. DO NOT TREAT
FLUID INJECTION AS A SIMPLE CUT! Fluid
injection can lead to amputation. See a
physician immediately.
n
High velocity fluid spray can cause some
objects to break, projecting particles at high
speed. Light or unsecured objects can become hazardous projectiles.
n
All sources of energy include the potential for
injury. Unsafe operation or maintenance of your
pressure washer could lead to serious injury or
death to you or others.
n
Reactive force of spray will cause wand to
move, and could cause the operator to slip or
fall, or misdirect the spray. Improper control
of wand can result in injuries to self and
others.
HOW TO PREVENT IT
n
Never place hands in front of nozzle.
Keep operating area clear of all persons.
Direct spray away from self and others.
Make sure hose and fittings are tightened
and in good condition. Never hold on to the
hose or fittings during operation.
n
Never attach or remove wand or hose
fittings while system is pressurized.
n
Use only hose and high pressure accessories
rated for 2000 PSI service.
n
Always wear ANSI approved Z87 safety
glasses. Keep children and others away
from work area. Remove loose objects
from spray path. Secure light objects to be
cleaned.
n
Direct spray away from self and others.
n
Always secure trigger lock when wand is
not in service to prevent accidental
triggering and actuation of wand.
n
Never point wand at, or spray people or
animals.
n
Always secure trigger lock when wand is not
in service to prevent accidential triggering
and auctuation of wand.
n
Keep work area free of obstacles. Assume
a solid stance on stable surface. Keep a
firm grip on the wand and expect it to kick
when triggered.
n
Only use cleaning fluids specifically
recommended for use in high pressure
washers.
RISK TO
BREATHING
RISK OF
EXPLOSION
OR FIRE
n
Some cleaning fluids contain substances
which could cause injury to skin, eyes, or
lungs.
n
Use of acids, unapproved chemicals, or flammable solvents with this product could cause
injury or death.
5
n
Wear protective clothing to protect eyes and
skin from contact with sprayed materials.
Work in a well ventilated area.
n
Never use this product to spray toxic or corrosive materials such as poisons, insecticides,
etc.
n
Do not use acids, gasoline, kerosene, or any
other flammable materials in this product.
Use only household detergents, cleaners and
degreasers recommended for use in
Pressure Washer. Work in a well ventilated
area.
n
Always follow Manufacturer's recommendations for safe use of chemicals.
GLOSSARY
FLOW RATE: This is the amount of water that passes
through your wand. (Usually measured in G.P.M.,
gallons per minute.).
P.S.I.: Unit of measure, pounds per square inch.
START/STOP: This unit will automatically start when
the trigger is depressed and automatically stop when
you let off of the trigger.
GROUNDING INSTRUCTIONS & EXTENSION CORDS
This product is not equipped with a ground
fault interrupter. It has been manufactured in
compliance with code requirements for a
double insulated product. For your personal
protection, this product must be connected to
a circuit equipped with ground fault
interrupter protection.
EXTENSION CORDS: Extension cords are NOT recom-
mended to be used with this product. If an extension
cord must be used, the following 3 requirements should
be met:
1. 14 guage minimum wire size up to 25 ft. cord.
2. 12 guage minimum wire size up to 50 ft. cord.
3. Use only extension cords that are intended for out
door use. These extension cords are identified by
a marking "Acceptable for use with outdoor
appliances; store indoors while not in use." Use only
extension cords having an electrical rating not less
than the rating of the product. Do not use
damaged extension cord and do not yank on any
cord to disconnect. Keep cord away from heat
and sharp edges. Always disconnect the extension
cord from the receptacle before disconnecting the
product from the extension cord. Extension cord
must be connected to a grounded outlet equipped
with a GFCI (Ground Fault Circuit Interrupter).
There is a risk of Electrocution if extension cord is
not connected to a grounded outlet equipped with
a GFCI.
To reduce the risk of electrocution, keep all
connections dry and off the ground. Do not
touch plug with wet hands. Do not use if cord
is damaged.
6
OPERATING INSTRUCTIONS
START-UP
1. Attach middle extension wand to gun/hose assembly by inserting the stem and tightening the
threaded collar.
2. Insert hose into pressure washer outlet port, then
push the hose retaining clip fully downward which
will secure the hose to the pressure washer.
3. Connect garden hose to the pressure washer inlet
port by using the quick connect coupler supplied
with your unit. Make sure the screen faces the
water hose.
4. Turn on water supply, then release trigger safety,
pull trigger to remove any trapped air in the system
(about 15 seconds). Verify that there are no water
leaks.
5. Verify that the pressure washer switch is in the "Off"
position. Plug the power cord into the G.F.C.I.
Protected outlet. (Push reset on G.F.C.I.).
6. Assemble proper wand/accessory into the end of
the middle extension wand by pushing in and
rotating 90º until it locks into place.
7. Switch to "On" position.
8. You are now ready to use your pressure washer.
OPERATION
1. For high pressure cleaning, attach adjustable spray
wand to middle extension wand (see #6 in Startup). Spray pattern can be adjusted from narrow
angle to wide angle by rotating the end of the
wand. Narrow spray patterns are ideal for stubborn
areas whereas wide spray patterns increase overall
coverage.
2. For applying detergents, attach detergent dispenser
to middle extension wand (see #6 in set-up). The
cup should be oriented downward. When using
detergents, it is best to give them time to work (3
to 5 minutes) before high pressure rinse.
SHUT-DOWN
1. Turn off the water supply and disconnect quick
connect coupler.
2. Pull the trigger for 2 to 4 seconds to remove
remaining water from the hose and pump.
NOTE: (This should be done quickly). Unit will
continue to run without the water connected to
your pressure washer.
3. Turn switch off and unplug.
NOTE: The unit will stop automatically when the
trigger is released and will start when the trigger is
pulled.
Operating unit with water supply shut off (without flow of water) will result in equipment damage.
During shut-down, entire system including pump, hose and wand will remain under pressure.
Do not attempt to remove hose/gun until pressure is relieved.
7

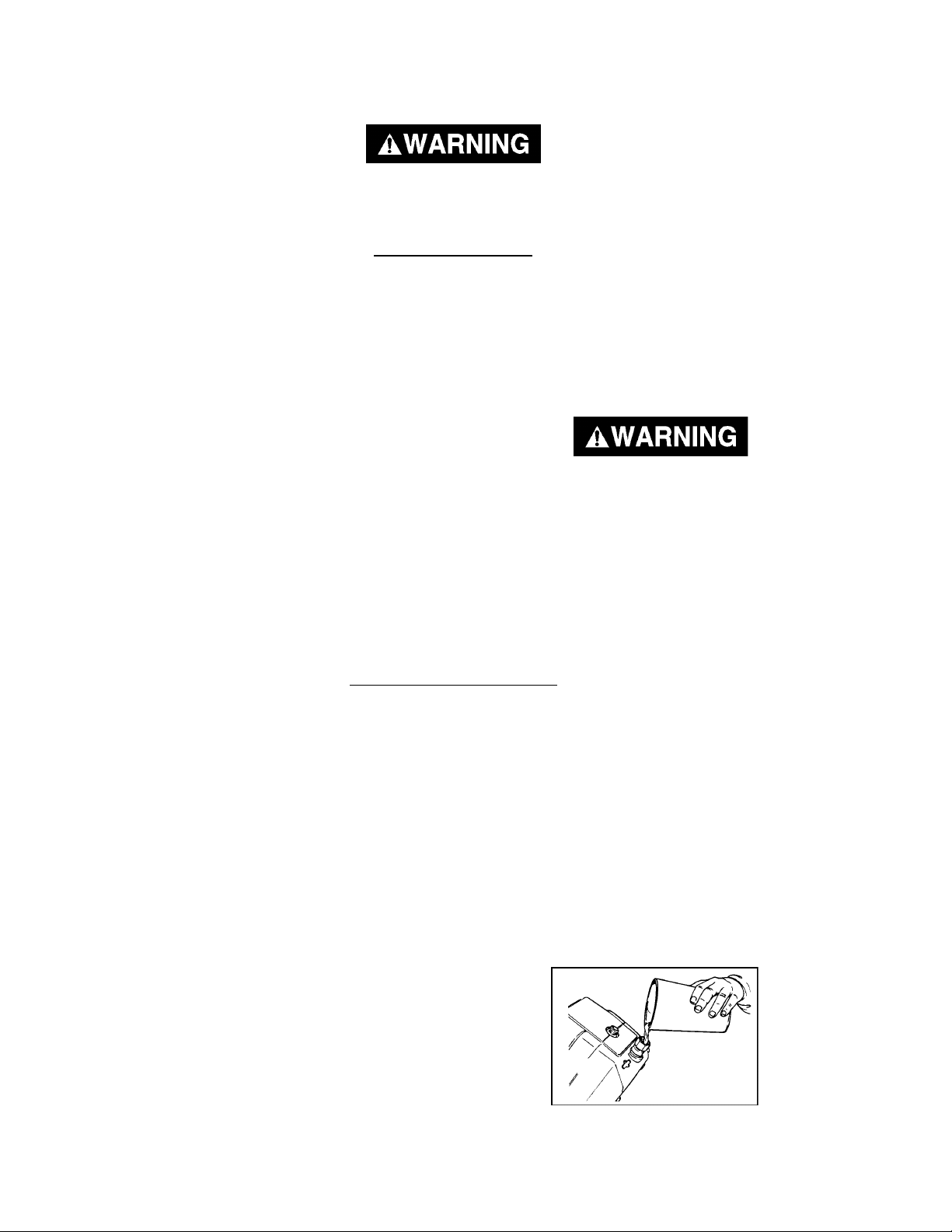

MAINTENANCE AND STORAGE
TO AVOID ELECTRICAL SHOCK, ALWAYS DISCONNECT THE PLUG FROM THE ELECTRICAL
SUPPLY BEFORE ANY MAINTENANCE IS STARTED.
MAINTENANCE
1. WATER SCREEN:
Inspect the water screen before attaching water
supply. Clean water screen if dirty. (Quick Connect
Coupler)
2. NOZZLE CLOGGED:
A clogged nozzle will cause a distorted spray
pattern and/or low pressure output.
1. Unplug power supply, pull trigger on gun
handle to relieve pressure, remove wand
assembly from gun assembly.
2. Clean the nozzle with the nozzle cleaning
tool.
WINTER STORAGE
This pressure washer should be stored in such a way to
protect it from freezing. Do not store this unit outdoors
or in an area where temperatures will fall below 32ºF.
This can cause extensive damage to this unit. Drain as
much water as possible.
If unit has to be stored under freezing conditions a
non-toxic R.V. anti-freeze can be used to protect from
freezing.
3. Flush wand assembly backwards with
water or compressed air.
4. If problems still exist, repeat steps 1-3.
3. LUBRICATION:
No lubrication is required for this pump.
HIGH PRESSURE HOSE: Damaged high pressure
hoses can burst which can cause a potentially
hazardous situation. High pressure hoses should
not be kinked, crushed, twisted, or damaged in
any way. Replace high pressure hose should this
occur.
Add anti-freeze as follows:
1. Be sure the unit is turned off, the water supply
hose is disconnected, and the pressure has been
relieved from the gun.
2. Remove gun/hose assembly from the pressure
washer.
3. Tip the unit on end with the water inlet fitting
pointing upward, and start the motor.
4. Quickly pour approx. 1/4 cup of non-toxic R.V. antifreeze down the plastic fitting where the water
hose attaches while the motor is running (See
Figure 1 below). Let unit run for a few seconds.
5. Turn the unit off .
Figure 1
8
TROUBLESHOOTING GUIDE
PROBLEM
Motor will not start and there is no
humming sound
Power source circuit continues to
trip or blow fuses
Motor hums but will not start
Unit does not reach required
pressure
1. Not plugged in.
2. "RESET" button on GFCI not
pushed.
3. Circuit breaker has tripped or
fuse is blown.
1. Too much load already on
circuit.
1. Extension cord is too long or of
improper gauge, causing voltage
drop.
2. Pump is stuck due to dirt,
mineral build up, or ice.
3. Motor malfunction
1. Restricted, or insufficient water
supply.
REMEDYCAUSE
1. Plug in.
2. Push "RESET" button.
3. Reset breaker or replace fuse.
1. Reduce load on circuit.
2. Try another G.F.C.I. circuit.
1. See section on extension cords
(See page 6).
2. Unplug unit. If temp is below
freezing do not use. Thaw in a
warm area.
3. Take to authorized service
center (See page 2)
1. Check supply hose, faucet and
inlet screen. Must be connected
to water source which provides
1.7 gal. water per minute.
Units cycles automatically without
triggering the gun.
Continuous tripping of a G.F.C.I.
circuit.
2. Clogged nozzle.
1. Water leak in high pressure fittings,
hose, or gun
1. Unit could have an electrial short.
2. See nozzle cleaning section.
1. New gun/hose assembly.
1. Take to nearest AWSC.
9
ACCESSORIES/CLEANING SOLUTIONS/
SERVICE PARTS
HIGH PRESSURE ROTARY SPRAY WAND
PART NUMBER WA150
• High pressure rotating spray for maximum cleaning
• Durable stainless steel nozzle
ANGLE ROTARY BRUSH KIT
PART NUMBER WA200
• 7 in. dia. nylon brush with rotating brush
• Adjustable- for angled surfaces
• Adjustable- for angled use
• 2 ft. extension for added reach
• Requires adaptor that is included with
Pressure Washer (K-0369)
• 7 in. x 3 in. soft nylon bristles
• Tapered for cleaning in tight spots
• 2 ft. extension for added reach
• Requires adaptor that is included with
Pressure Washer (K-0369)
FIXED BRUSH KIT
PART NUMBER WA250
10
Detergent Dispenser
Gun/Hose
SERVICE PARTS
Pressure Washer
Quick Connect
Coupler
On/Off Switch
Inlet Port
Low
Pressure
Attachment
Adaptor
Hose Retainer
Clip
1. Pressure Washer W1217
2. Gun/Hose PW-0201
3. Middle Extension Wand PW-0203
4. Adjustable Spray Wand PW-0202
5. Detergent Dispenser PW-0205
6. Low Pressure Attachment PW-0204
7. Quick Connect Coupler PW-0021
8. On/Off Switch --------
9. Hose Retaining Clip PW-0206
Adjustable Spray Wand
Middle Extension
Wand
Adaptor (for use when
attaching either of the
brush kit)
11
DeVILBISS AIR POWER COMPANY
OWNERS MANUAL
FOR ELECTRIC
PRESSURE WASHER
MODEL NO.
W1217
Call our Toll Free Number 1-800-888-2468, Ext 2, then 1, to
obtain the location of the nearest Authorized Service Center for ordering repair parts and for warranty repairs.
When ordering repair parts from your local Authorized Service Center, always give the following information:
• Model number of your product
• Part number and description of the item you
wish to purchase
WARRANTY
This product is covered by the
DeVilbiss one year limited
warranty. The warranty can be
found on page 3 or is available
upon request.
Retain the original sales receipts
as proof of purchase for warranty
repair work.
Attach sales receipt here.
DeVilbiss Air Power Company • 213 Industrial Drive • Jackson, TN 38301-9615
Loading...
