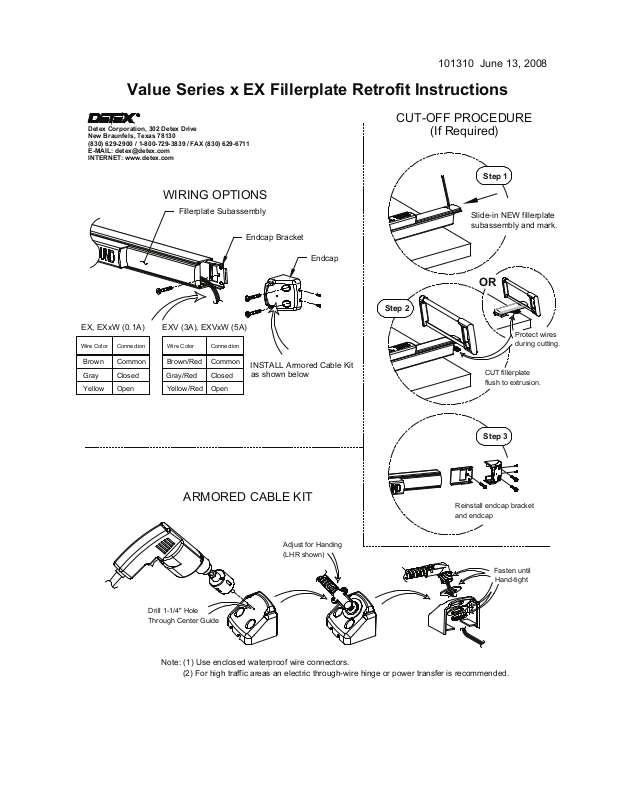

Value Series x EX Fillerplate Retrofit Instructions
Detex Corporation, 302 Detex Drive
New Braunfels, Texas 78130
(830) 629-2900 / 1-800-729-3839 / FAX (830) 629-6711
E-MAIL: [email protected]
INTERNET: www.detex.com

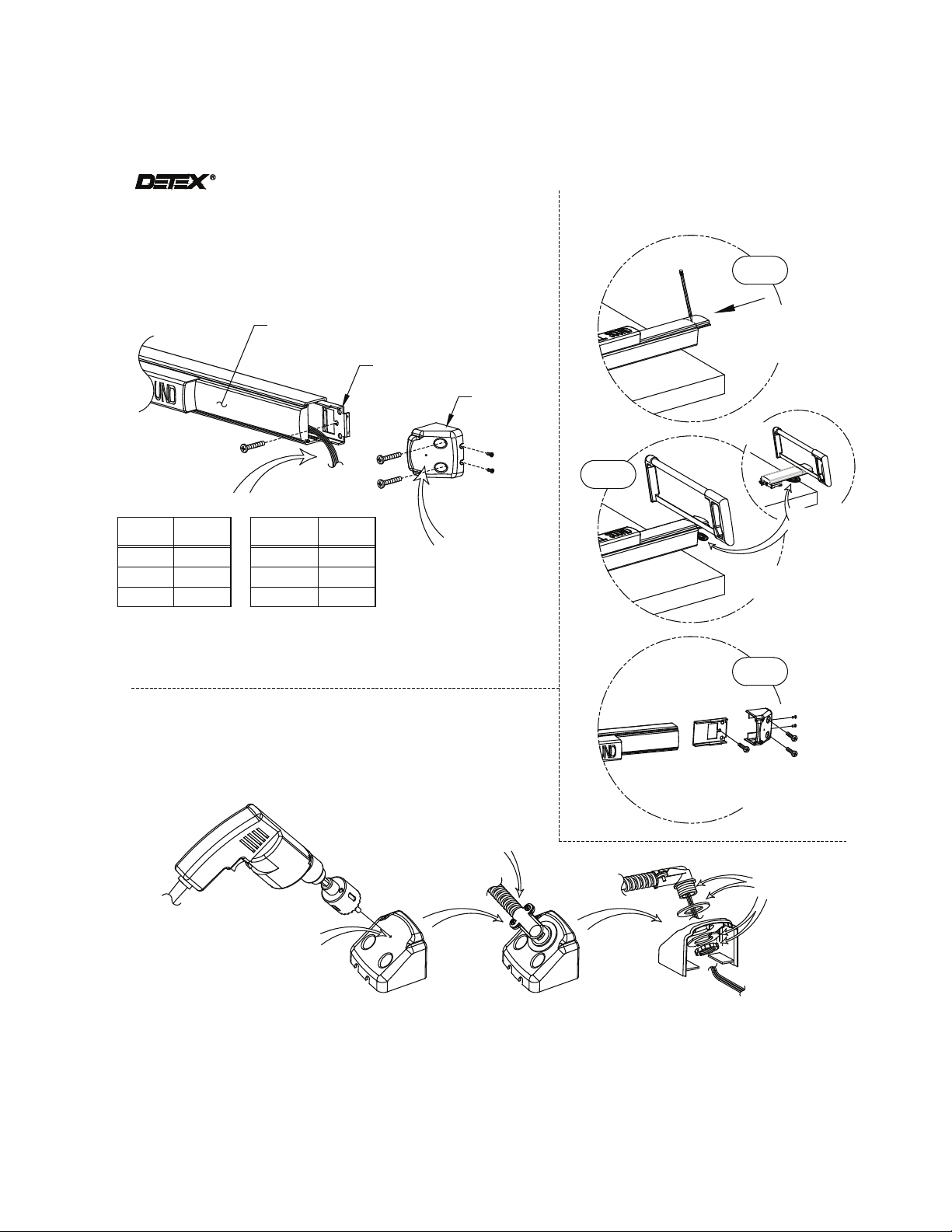

WIRING OPTIONS
Fillerplate Subassembly
EX, EXxW (0.1A)
Wire Color
Brown
Gray
Yellow
Connection
Common
Closed
Open
EXV (3A), EXVxW (5A)
Wire Color
Brown/Red
Gray/Red
Yellow/Red
Connection
Common
Closed
Open
Endcap Bracket
Endcap
INSTALL Armored Cable Kit
as shown below
CUT-OFF PROCEDURE
(If Required)
Step 1
Slide-in NEW fillerplate
subassembly and mark.
OR
Step 2
Protect wires
during cutting.
CUT fillerplate
flush to extrusion.
ARMORED CABLE KIT
Adjust for Handing
(LHR shown)
Drill 1-1/4" Hole
Through Center Guide
Note: (1) Use enclosed waterproof wire connectors.
(2) For high traffic areas an electric through-wire hinge or power transfer is recommended.
Step 3
Reinstall endcap bracket
and endcap
Fasten until
Hand-tight
