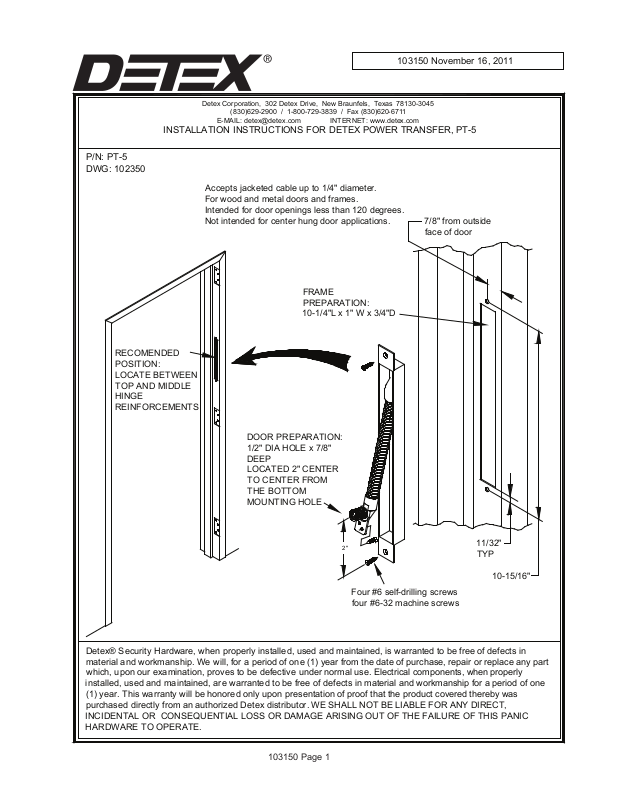

Page 1
P/N: PT-5
DWG: 102350
RECOMENDED
POSITION:
LOCATE BETWEEN
TOP AND MIDDLE
HINGE
REINFORCEMENTS
103150 November 16, 2011
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: [email protected] INTERNET: www.detex.com

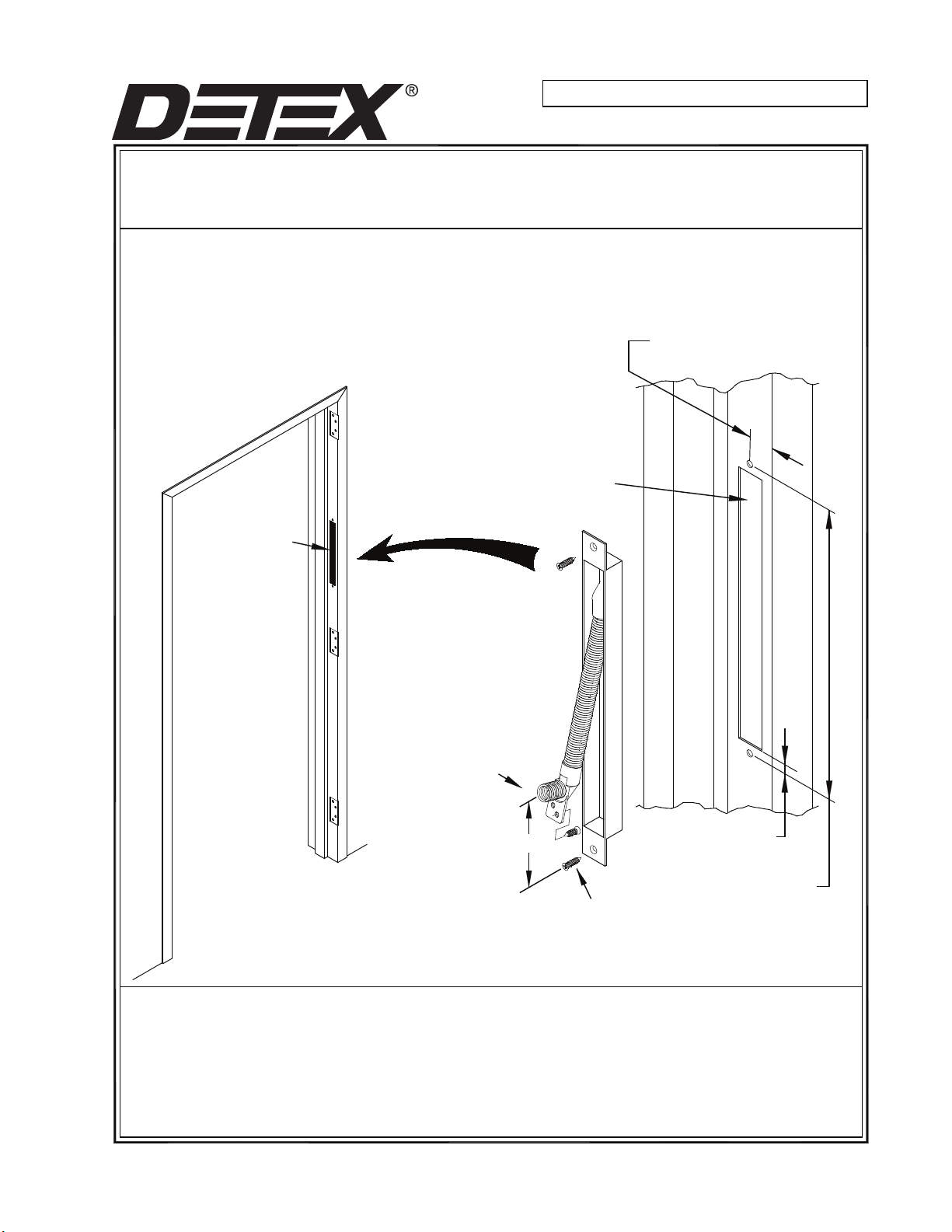

INSTALLATION INSTRUCTIONS FOR DETEX POWER TRANSFER, PT-5
Accepts jacketed cable up to 1/4" diameter.
For wood and metal doors and frames.
Intended for door openings less than 120 degrees.
Not intended for center hung door applications.
7/8" from outside
face of door
FRAME
PREPARATION:
10-1/4"L x 1" W x 3/4"D
DOOR PREPARATION:
1/2" DIA HOLE x 7/8"
DEEP
LOCATED 2" CENTER
TO CENTER FROM
THE BOTTOM
MOUNTING HOLE
2"
11/32"
TYP
10-15/16"
Four #6 self-drilling screws
four #6-32 machine screws
Detex® Security Hardware, when properly installed, used and maintained, is warranted to be free of defects in
material and workmanship. We will, for a period of one (1) year from the date of purchase, repair or replace any part
which, upon our examination, proves to be defective under normal use. Electrical components, when properly
installed, used and maintained, are warranted to be free of defects
in material and workmanship for a period of one
(1) year. This warranty will be honored only upon presentation of proof that the product covered thereby was
purchased directly from an authorized Detex distributor. WE SHALL NOT BE LIABLE FOR ANY DIRECT,
INCIDENTAL OR CONSEQUENTIAL LOSS OR DAMAGE ARISING OUT OF THE FAILURE OF THIS PANIC
HARDWARE TO OPERATE.
103150 Page 1
Page 2
P/N: PT-56C
DWG: 102350
RECOMENDED
POSITION:
LOCATE BETWEEN
TOP AND MIDDLE
HINGE
REINFORCEMENTS
103150 November 16, 2011
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: [email protected] INTERNET: www.detex.com

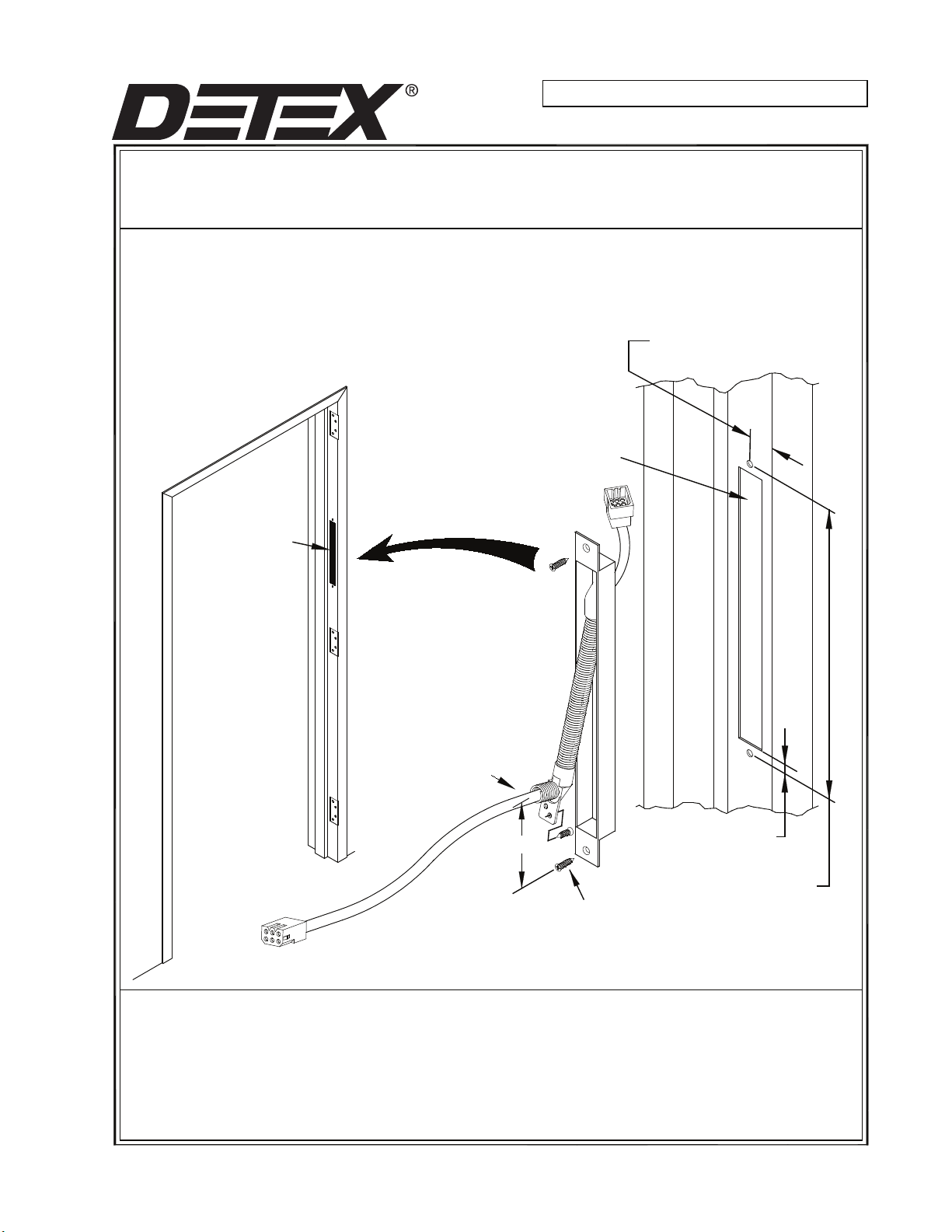

INSTALLATION INSTRUCTIONS FOR DETEX POWER TRANSFER, PT-56C
Accepts jacketed cable up to 1/4" diameter.
For wood and metal doors and frames.
Intended for door openings less than 120 degrees.
Not intended for center hung door applications.
7/8" from outside
face of door
FRAME
PREPARATION:
10-1/4"L x 1" W x 3/4"D
DOOR PREPARATION:
5/8" DIA HOLE x 7/8"
DEEP
LOCATED 2" CENTER
TO CENTER FROM
THE BOTTOM
MOUNTING HOLE
2"
11/32"
TYP
10-15/16"
Four #6 self-drilling screws
four #6-32 machine screws
Detex® Security Hardware, when properly installed, used and maintained, is warranted to be free of defects in
material and workmanship. We will, for a period of one (1) year from the date of purchase, repair or replace any part
which, upon our examination, proves to be defective under normal use. Electrical components, when properly
installed, used and maintained, are warranted to be free of defects
in material and workmanship for a period of one
(1) year. This warranty will be honored only upon presentation of proof that the product covered thereby was
purchased directly from an authorized Detex distributor. WE SHALL NOT BE LIABLE FOR ANY DIRECT,
INCIDENTAL OR CONSEQUENTIAL LOSS OR DAMAGE ARISING OUT OF THE FAILURE OF THIS PANIC
HARDWARE TO OPERATE.
103150 Page 2
