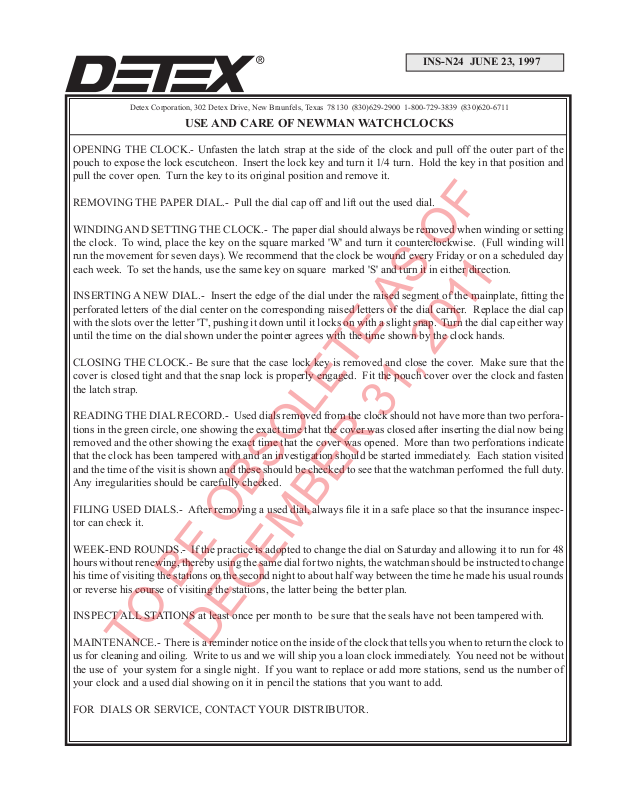

Detex Newman Watchclock User Manual

INS-N24 JUNE 23, 1997

TO BE OBSOLETE AS OF

DECEMBER 31, 2011

Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130 [phone] 1-800-729-3839 [phone]

USE AND CARE OF NEWMAN WATCHCLOCKS

OPENING THE CLOCK.- Unfasten the latch strap at the side of the clock and pull off the outer part of the
pouch to expose the lock escutcheon. Insert the lock key and turn it 1/4 turn. Hold the key in that position and
pull the cover open. Turn the key to its original position and remove it.

REMOVING THE PAPER DIAL.- Pull the dial cap off and lift out the used dial.

WINDING AND SETTING THE CLOCK.- The paper dial should always be removed when winding or setting
the clock. To wind, place the key on the square marked 'W' and turn it counterclockwise. (Full winding will
run the movement for seven days). We recommend that the clock be wound every Friday or on a scheduled day
each week. To set the hands, use the same key on square marked 'S' and turn it in either direction.

INSERTING A NEW DIAL.- Insert the edge of the dial under the raised segment of the mainplate, tting the
perforated letters of the dial center on the corresponding raised letters of the dial carrier. Replace the dial cap
with the slots over the letter 'T', pushing it down until it locks on with a slight snap. Turn the dial cap either way
until the time on the dial shown under the pointer agrees with the time shown by the clock hands.

CLOSING THE CLOCK.- Be sure that the case lock key is removed and close the cover. Make sure that the
cover is closed tight and that the snap lock is properly engaged. Fit the pouch cover over the clock and fasten
the latch strap.

READING THE DIAL RECORD.- Used dials removed from the clock should not have more than two perfora­tions in the green circle, one showing the exact time that the cover was closed after inserting the dial now being
removed and the other showing the exact time that the cover was opened. More than two perforations indicate
that the clock has been tampered with and an investigation should be started immediately. Each station visited
and the time of the visit is shown and these should be checked to see that the watchman performed the full duty.
Any irregularities should be carefully checked.

FILING USED DIALS.- After removing a used dial, always le it in a safe place so that the insurance inspec­tor can check it.

WEEK-END ROUNDS.- If the practice is adopted to change the dial on Saturday and allowing it to run for 48
hours without renewing, thereby using the same dial for two nights, the watchman should be instructed to change
his time of visiting the stations on the second night to about half way between the time he made his usual rounds
or reverse his course of visiting the stations, the latter being the better plan.

INSPECT ALL STATIONS at least once per month to be sure that the seals have not been tampered with.

MAINTENANCE.- There is a reminder notice on the inside of the clock that tells you when to return the clock to
us for cleaning and oiling. Write to us and we will ship you a loan clock immediately. You need not be without
the use of your system for a single night. If you want to replace or add more stations, send us the number of
your clock and a used dial showing on it in pencil the stations that you want to add.

FOR DIALS OR SERVICE, CONTACT YOUR DISTRIBUTOR.
