Page 1
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: detex@detex.com INTERNET: www.detex.com
101324 May 31, 2007

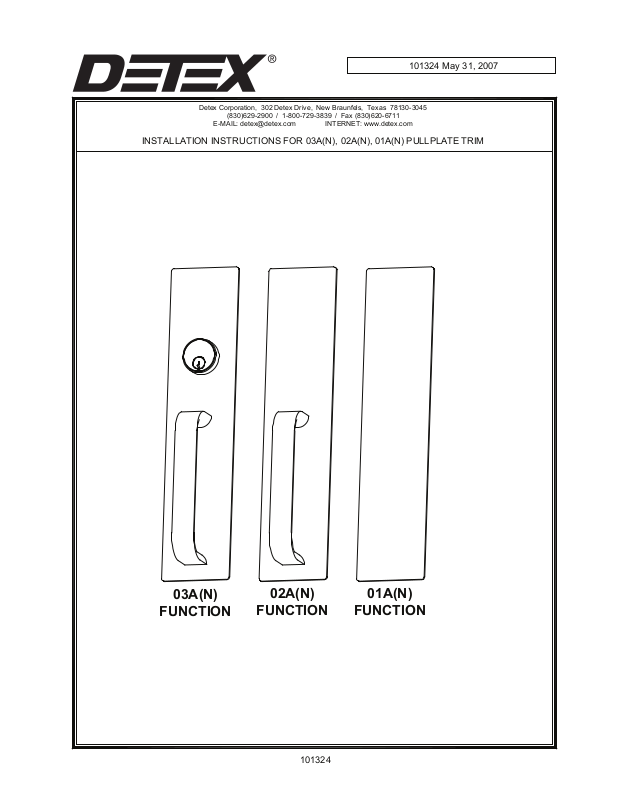

INSTALLATION INSTRUCTIONS FOR 03A(N), 02A(N), 01A(N) PULLPLATE TRIM
101324
03A(N)
FUNCTION
02A(N)
FUNCTION
01A(N)
FUNCTION
101324 May 31, 2007
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: [email protected] INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR 03A(N), 02A(N), 01A(N) PULLPLATE TRIM
03A(N)
FUNCTION
02A(N)
FUNCTION
01A(N)
FUNCTION
101324
Page 2

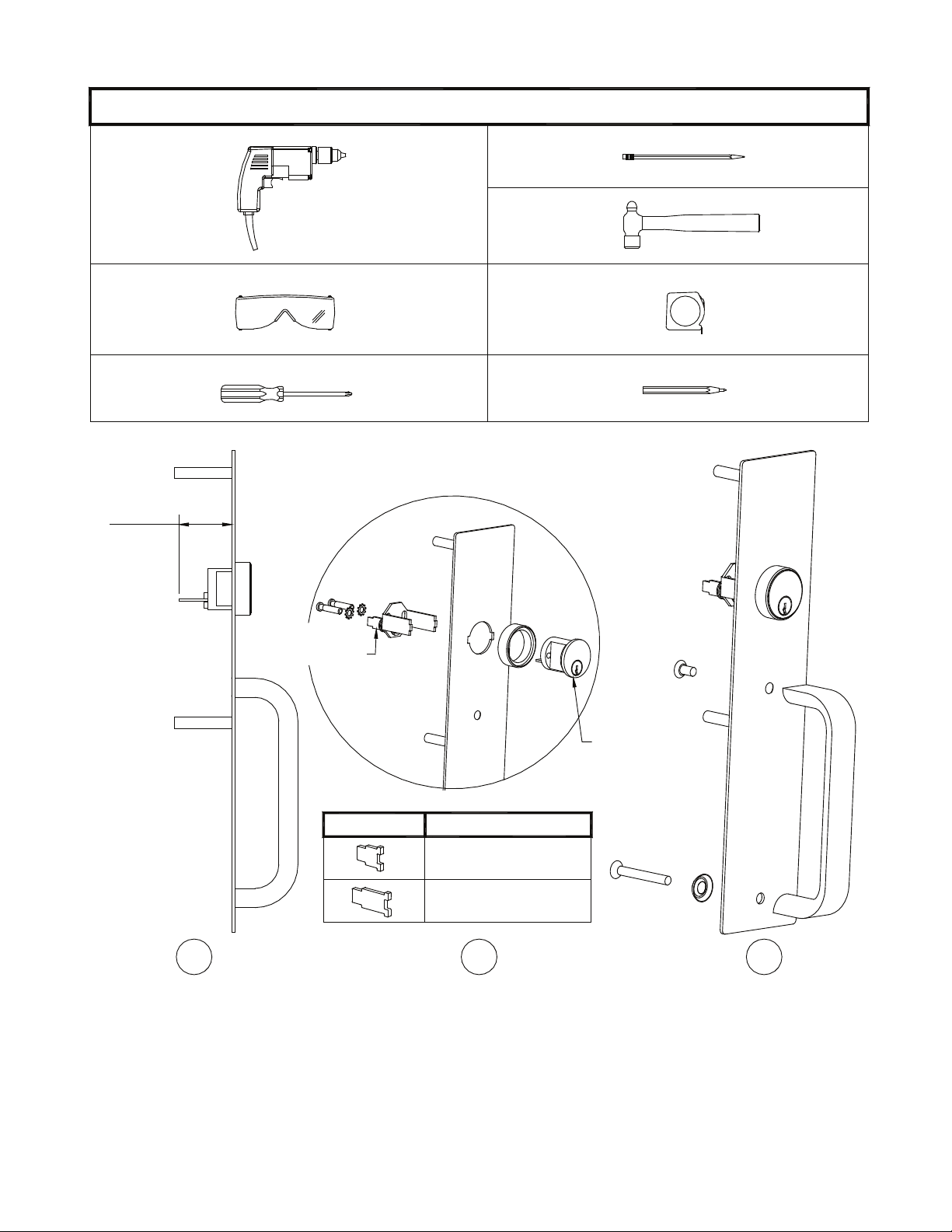

Tools Required
Power Drill
Safety Glasses
Screw Driver Center Punch
Cut
cylinder
tailpiece
1-1/16" (Min)
1-1/8" (Max)
(No cylinder prep necessary for 02 & 01 Trims)
03 Trim Preparation
Pencil
Hammer
Tape Measure
1
Rim Cylinder
Preparation
Tailpiece
(see table below)
Tailpiece Used
Door Thickness
1-3/4" and 2" Thick Doors
2-1/4" Thick Doors
2
Install
Tailpiece Assembly
Sold separately
3
Install
Trim Unit on Door
(see next page)
101324 Page 2
Page 3

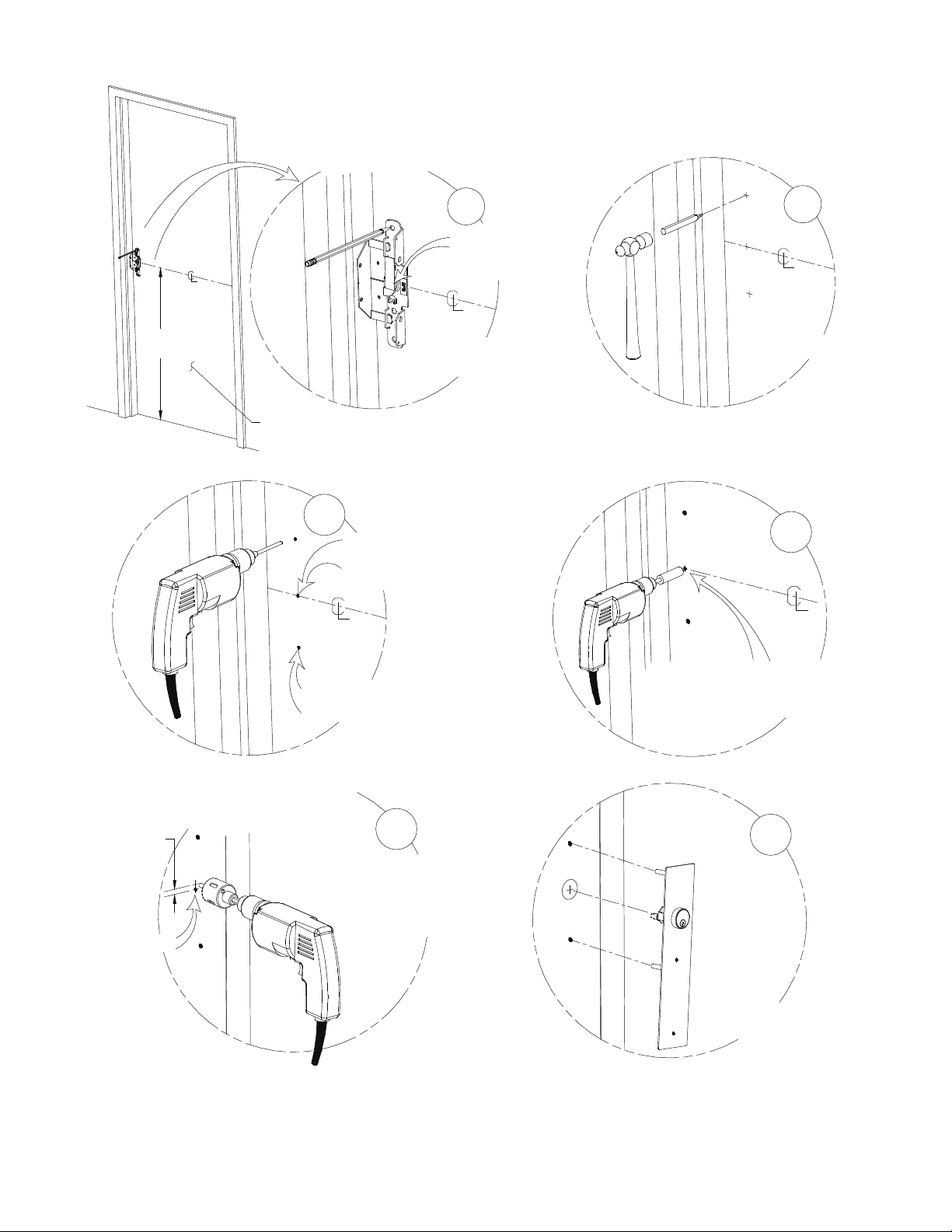

Door Preparation
INTERIOR PREP
Floor
Height
Interior door face
Note: All Holes Must Be
Drilled Straight and Level
3
For 03 function, drill
pilot hole thru door.
1
For 03 function
mark centerhole
Mark mounting plate holes
(narrow stile shown)
2
Punch marked
holes
4
1/4"
Pilot Hole
EXTERIOR PREP
Mark 1/4" UP
from center mark
Drill 3/8" thru holes
5
For 03 function ONLY
Drill 1-1/2" hole through exterior
door face ONLY
(1/4" up from center mark)
For 03 function ONLY
Next, drill 3/4" hole through interior
door face ONLY
6
Place trim unit onto
exterior door face.
101324 Page 3
Page 4

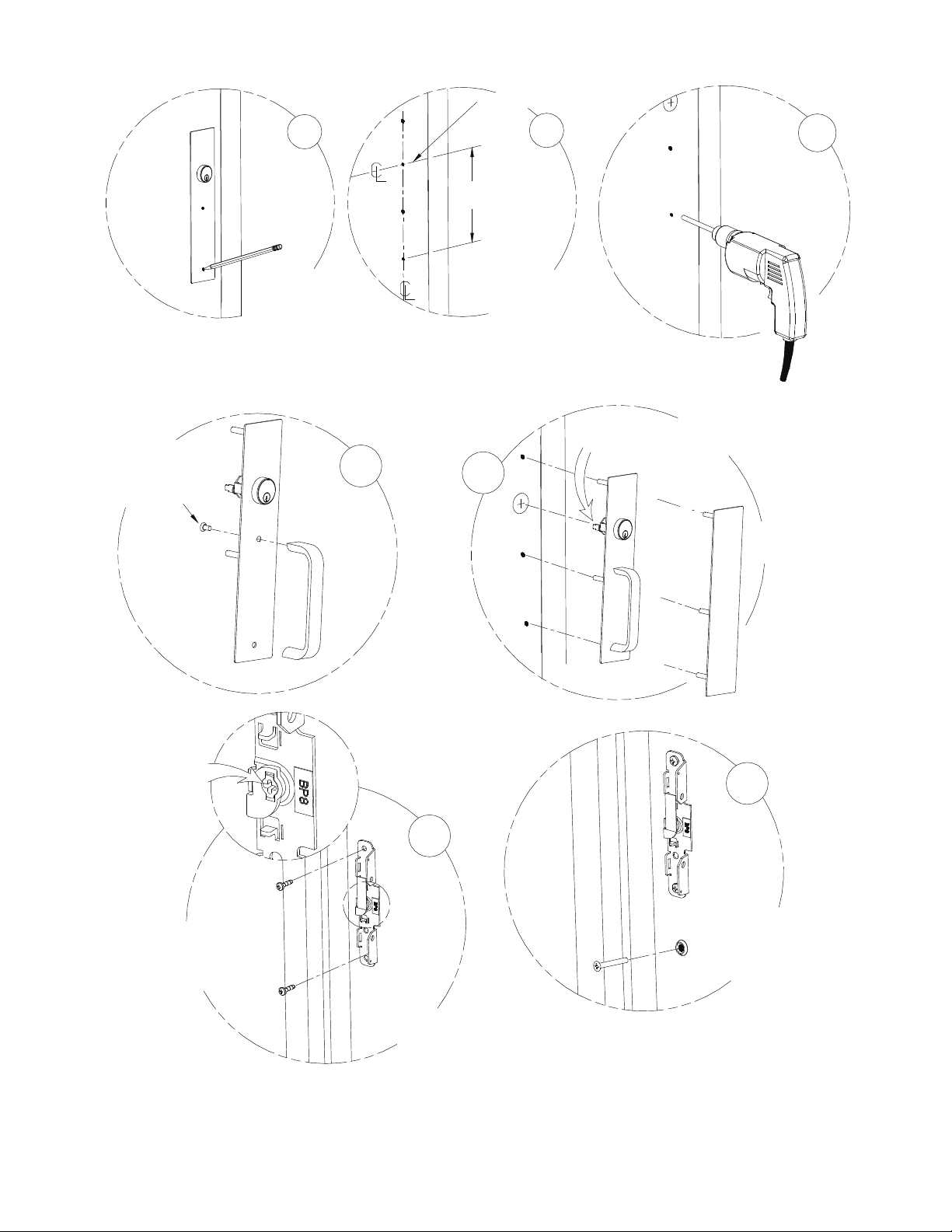

C
from Fig 1
L
Fasten the top
of pull to the
trim plate using
screw provided
7
Mark bottom hole
for thru bolt
(for 01 trims see
step number 8)
8
8-1/2"
For 01 trim
measure from the
device centerline
Installing the Trim
10
11
9
Once hole is
marked drill 3/8"
thru hole.
Position tailpiece vertically
when installing trim plate
Place trim unit onto
exterior door face.
Be sure to engage
cam to tailpiece
on mounting plate
03 function mounting
plate shown.
01 & 02 functions use
BP2 mounting plate
12
Fasten mounting
plate to pullplate
03 Function
01 Function
13
Fasten bottom of
pull with PFH screw
(be sure to use
finished washer)
Continue with Exit
Hardware Instructions
101324 Page 4
