DE-STA-CO Revised Cam Follower Installation

Page 1

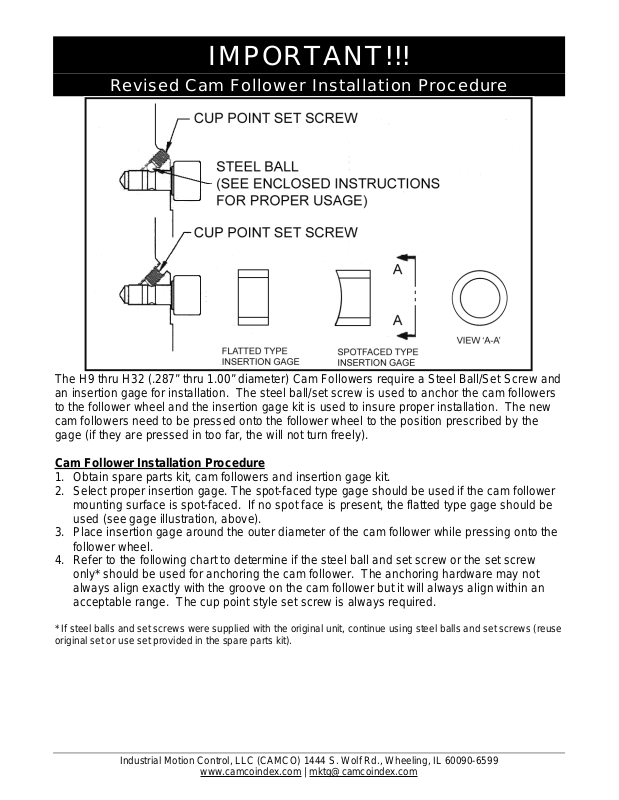

IMPORTANT!!!
Revised Cam Follower Installation Procedure
The H9 thru H32 (.287” thru 1.00” diameter) Cam Followers require a Steel Ball/Set Screw and an insertion gage for installation. The steel ball/set screw is used to anchor the cam followers to the follower wheel and the insertion gage kit is used to insure proper installation. The new cam followers need to be pressed onto the follower wheel to the position prescribed by the gage (if they are pressed in too far, the will not turn freely).
Cam Follower Installation Procedure
1. Obtain spare parts kit, cam followers and insertion gage kit.
2. Select proper insertion gage. The spot-faced type gage should be used if the cam follower mounting surface is spot-faced. If no spot face is present, the flatted type gage should be used (see gage illustration, above).
3. Place insertion gage around the outer diameter of the cam follower while pressing onto the follower wheel.
4. Refer to the following chart to determine if the steel ball and set screw or the set screw only* should be used for anchoring the cam follower. The anchoring hardware may not always align exactly with the groove on the cam follower but it will always align within an acceptable range. The cup point style set screw is always required.
* If steel balls and set screws were supplied with the original unit, continue using steel balls and set screws (reuse original set or use set provided in the spare parts kit).
Industrial Motion Control, LLC (CAMCO) 1444 S. Wolf Rd., Wheeling, IL 60090-6599
www.camcoindex.com | mktg@camcoindex.com
Page 2
Cam Follower Anchoring Method
MODEL CAM FOLLOWER DIAMETER (INCHES) ANCHORING METHOD
MINIATURE RGD/RGS H9 thru H24 .287 thru .750 BALL/SET SCREW 350RGD / RGS H20 thru H32 .750 thru 1.00 BALL/SET SCREW 350RG H20 thru H24 .625 thru .750 SET SCREW ONLY * 500RGD / RGS H28 thru H32 .875 thru 1.000 BALL/SET SCREW 500RG H28 thru H32 .875 thru 1.000 SET SCREW ONLY * 80RDM H16 .500 BALL/SET SCREW 80RDM H20 .625 SET SCREW ONLY * 600RDM H20 thru H24 .625 thru .750 SET SCREW ONLY * 601RDM H20 thru H24 .625 thru .750 BALL/SET SCREW 900RDM or 901RDM H20 thru H32 .625 thru 1.000 SET SCREW ONLY * 902RDM H20 thru H28 .625 thru .875 SET SCREW ONLY * 902RDM H32 1.000 BALL/SET SCREW 1305RDM H28 thru H32 .875 thru 1.000 BALL/SET SCREW 425RD H20 thru H28 .625 thru .875 SET SCREW ONLY * 425RD H32 1.000 BALL/SET SCREW 800RD H28 thru H32 .875 thru 1.000 SET SCREW ONLY * 150RPP LIFT & ROTARY H20 .625 BALL/SET SCREW 300RPP ROTARY H24 .750 SET SCREW ONLY * 300RPP LIFT H24 .750 BALL/SET SCREW 500RPP ROTARY H24 thru H32 .750 thru 1.000 SET SCREW ONLY * 500RPP LIFT H24 thru H28 .750 thru .875 SET SCREW ONLY * 500RPP LIFT H32 1.000 BALL/SET SCREW 240LPP H20 .625 BALL/SET SCREW 240LPP H24 .750 SET SCREW ONLY * 380LPP H24 .750 BALL/SET SCREW 380LPP H32 1.000 SET SCREW ONLY * * If steel balls and set screws were supplied with the original unit, continue using steel balls and set screws (reuse original set or use set provided in the spare parts kit).
Cam Follower Part Numbers
CAM FOLLOWER SIZE DIAMETER (INCHES) NEW PN OBSOLETE PN
H9 .287 82C33150150003 82A48589000000 H12 .366 82C33150160003 82A49590000000 H14 .445 82C33150170003 82A49591000000 H16 .500 82C33150100003 82C33150060003 H18 .563 82C33150180003 82A49592000000 H20 .625 82C33150110003 82C33150010003 H24 .750 82C33150120003 82C33150020003 H28 .875 82C33150130003 82C33150030003 H32 1.000 82C33150140003 82C33150040003
Insertion Gage Kit Part Numbers
MODEL CAM FOLLOWER DIAMETER (INCH) INSERTION GAGE KIT
MINIATURE RGD/RGS H9 .287 99A73572000000 MINIATURE RGD/RGS H12 .366 99A73571000000 MINIATURE RGD/RGS H14 .445 99A73570000000 MINIATURE RGD/RGS H16 .500 99A73568000000 MINIATURE RGD/RGS H18 .563 99A73569000000 MINIATURE RGD/RGS H20 .625 99A73560000000 MINIATURE RGD/RGS H24 .750 99A73565000000 MINIATURE RGD/RGS H28 .875 99A73567000000
110RGD / RGS H20 .625 99A73560000000 110RGD / RGS H24 .750 99A73565000000 110RGD / RGS H28 .875 99A73567000000 140RGD / RGS H24 .750 99A73565000000 140RGD / RGS H28 .875 99A73567000000
- 2 -
Page 3
350RGD / RGS H20 .625 IGS350RGDH20 350RGD / RGS H24 .750 IGS350RGDH24
350RG H20 .625 48A73573000000 350RG H24 .750 48A73574000000
500RGD / RGS H28 .875 IGS500RGDH28
500RG H28 .875 58A73587000000 80RDM H16 .500 IGS80RDMH16 80RDM H20 .625 IGS80RDMH20
600RDM H20 .625 56A73580000000 600RDM H24 .750 99A73565000000 601RDM H20 .625 IGS601RDMH20 601RDM H24 .750 IGS601RDMH24 901RDM H20 .625 56A73580000000 901RDM H24 .750 56A73581000000 901RDM H28 .875 56A73582000000 902RDM H20 .625 IGS902RDMH20 902RDM H24 .750 IGS902RDMH24
902RDM H28 .875 IGS902RDMH28 1305RDM H20 .625 IGS1305RDMH20 1305RDM H24 .750 IGS1305RDMH24 1305RDM H28 .875 IGS1305RDMH28
425RD H24 .750 IGS425RDH24 425RD H28 .875 IGS425RDH28 800RD H28 .875 IGS800RDH28
150RPP ROTARY H20 .625 IGS150RPPH20
150RPP LIFT H20 .625 48A73573000000 150RPP LIFT H24 .750 IGS150RPPH24L
300RPP LIFT & ROTARY H24 .750 IGS300RPPH24
500RPP ROTARY H24 .750 IGS500RPPH24 500RPP ROTARY H28 .875 IGS500RPPH28
500RPP LIFT H24 .750 03A73593000000 500RPP LIFT H28 .875 03A73590000000
900RPP RECIP H24 . .750 99A73565000000
240LPP H20 .625 IGS240LPPH20 240LPP H24 .750 IGS240LPPH24 380LPP H24 .750 IGS380LPPH24
* H32 cam followers do not require insertion gage kit
Steel Ball & Set Screw Compatibility Chart
If spare parts kit is not ordered, ball & set screw must be ordered separately (at no cost)
MODEL CAM FOLLOWER DIAMETER (INCH) PART NUMBER
40RGD / RGS H9 .287 40RGD / RGS H9 thru H12 .287 thru .750 50RGD / RGS H12 .750 50RGD / RGS H14 thru H18 .445 thru .563 70RGD / RGS H14 thru H20 .445 thru .625 70RGD / RGS H24 .750 80RGD / RGS H18 .563 80RGD / RGS H20 thru H28 .625 thru .875
350RG H20 thru H24 .625 thru .750 95A26005320000 SET SCREW
95A3304103000 SET SCREW 95A67373010000 STEEL BALL 95A33041020000 SET SCREW 95A67373010000 STEEL BALL 95A33041030000 SET SCREW 95A67373010000 STEEL BALL 95A33041110000 SET SCREW 95A67373000000 STEEL BALL 95A33041110000 SET SCREW 95A67373000000 STEEL BALL 95A33041190000 SET SCREW 95A67373020000 STEEL BALL 95A33041110000 SET SCREW 95A67373000000 STEEL BALL 95A33041170000 SET SCREW 95A67373030000 STEEL BALL
- 3 -
Page 4
350RGD / RGS H20 thru H24 .625 thru .750 350RGD / RGS H32 1.000
95A26005310000 SET SCREW 95A67373000000 STEEL BALL 95A26005300000 SET SCREW 95A67373000000 STEEL BALL
500RG H28 .875 95A26005330000 SET SCREW
500RGD / RGS H28 .875
95A26005300000 SET SCREW 95A67373000000 STEEL BALL
500RG H32 1.000 95A26005450000 SET SCREW
500RGD / RGS H32 1.000
80RDM H16 .500 80RDM H20 .625
95A26005440000 SET SCREW 95A67373020000 STEEL BALL 95A33041110000 SET SCREW 95A67373000000 STEEL BALL 95A33041180000 SET SCREW 95A67373020000 STEEL BALL
600RDM H20 thru H24 .625 thru .750 95A26005300000 SET SCREW 601RDM H20 thru H24 .625 thru .750
95A26005290000 SET SCREW 95A67373000000 STEEL BALL
900RDM H32 1.000 95A26005440000 SET SCREW 901RDM H20 thru H28 .625 thru .750 95A26005320000 SET SCREW 902RDM H20 thru H28 .625 thru .750
95A26005320000 SET SCREW 95A67373000000 STEEL BALL
901RDM H32 1.000 95A26005440000 SET SCREW
902RDM H32 1.000 1305RDM H28 .875 1305RDM H32 1.000
425RD H20 thru H32 .625 thru 1.000 800RD H28 thru H32 .875 thru 1.000
150RPP
LIFT & ROTARY
300RPP
LIFT & ROTARY
500RPP
LIFT & ROTARY
500RPP
LIFT &ROTARY
240LPP
LIFT & TRANSFER
240LPP
LIFT & TRANSFER
H20 .625 H24 .750
H24 thru H28 .750 thru .875
H32 1.000 H20 .625 H24 .750
380LPP LIFT H24 .750
380LPP TRANSFER H32 1.000
95A26005420000 SET SCREW 95A67373020000 STEEL BALL 95A26005320000 SET SCREW 95A67373000000 STEEL BALL 95A26005420000 SET SCREW 95A67373020000 STEEL BALL 95A26005420000 SET SCREW 95A67373020000 STEEL BALL 95A26005450000 SET SCREW 95A67373020000 STEEL BALL 95A26005300000 SET SCREW 95A67373000000 STEEL BALL 95A26005300000 SET SCREW 95A67373000000 STEEL BALL 95A26005300000 SET SCREW 95A67373000000 STEEL BALL 95A26005420000 SET SCREW 95A67373020000 STEEL BALL 95A26005290000 SET SCREW 95A67373000000 STEEL BALL 95A26005310000 SET SCREW 95A67373000000 STEEL BALL 95A26005300000 SET SCREW 95A67373000000 STEEL BALL 95A26005420000 SET SCREW 95A67373020000 STEEL BALL
- 4 -
