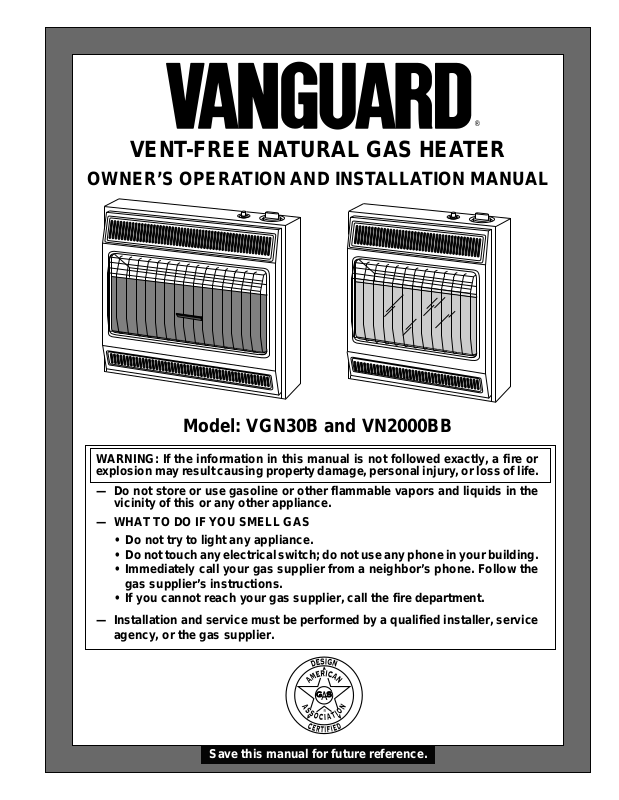

VENT-FREE NATURAL GAS HEATER
OWNER’S OPERATION AND INSTALLATION MANUAL
Model: VGN30B and VN2000BB
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service
agency, or the gas supplier.
®
Save this manual for future reference.
CONTENTS
SECTION PAGE
Safety Information.........................................................................2
Product Identification .................................................................... 4
Local Codes ................................................................................... 4
Unpacking......................................................................................4
Product Features ............................................................................ 4
Fresh Air For Combustion And Ventilation .................................. 5
Installing To Wall..........................................................................9
Connecting To Gas Supply............................................................14
Checking Gas Connections............................................................15
Operating Heater ...........................................................................17
Inspecting Burner ..........................................................................19
Cleaning And Maintenance ........................................................... 21
Troubleshooting.............................................................................21
Technical Service .......................................................................... 25
Specifications ................................................................................25
Service Hints .................................................................................25
Replacement Parts ......................................................................... 26
Accessories ....................................................................................27
Illustrated Parts List.......................................................................28-31
Warranty Information .................................................................... Back Cover
SAFETY
INFORMATION
WARNINGS
IMPORTANT: Read this Owner’s Manual carefully and completely
before trying to assemble, operate, or service this heater. Improper
use of this heater can cause serious injury or death from burns, fire,
explosion, electrical shock, and carbon monoxide poisoning.
DANGER
Carbon monoxide poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning
resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the
heater may not be working properly. Get fresh air at once! Have heater serviced.
Some people are more affected by carbon monoxide than others. These include
pregnant women, persons with heart or lung disease or anemia, those under the
influence of alcohol, and those at high altitudes.
Natural Gas: Natural gas is odorless. An odor-making agent is added to natural
gas. The odor helps you detect a natural gas leak. However, the odor added to
natural gas can fade. Natural gas may be present even though no odor exists.
Make certain you read and understand all Warnings. Keep this manual for
reference. It is your guide to safe and proper operation of this heater.
Safety Information continues on next page
2
100099
SAFETY
WARNINGS
Continued
INFORMATION
Continued
WARNING: Any change to this heater or its controls can be dangerous.
1. Use only natural gas. Do not convert heater to use different fuel type.
2. If you smell gas
• Shut off gas supply
• Do not try to light any appliance
• Do not touch any electrical switch; do not use any phone in your building
• Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions
• If you cannot reach your gas supplier, call the fire department
3. This heater shall not be installed in a bedroom or bathroom.
4. Never install the heater
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are less than
36 inches from the front, top, or sides of the heater
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
5. This heater needs fresh, outside air ventilation to run properly. This heater has
an oxygen depletion sensor (ODS) pilot light safety system. The ODS shuts
down the heater if not enough fresh air is available. See Fresh Air for Combus-
tion and Ventilation, pages 5 through 8.
6. Never run heater in small, closed room.
7. If heater shuts off, do not relight until you provide fresh, outside air. If heater
keeps shutting off, have it serviced.
8. Do not run heater
• where flammable liquids or vapors are used or stored
• under dusty conditions
9. Never place any objects on the heater.
10.Surface of heater becomes very hot when running heater. Keep children and
adults away from hot surface to avoid burns or clothing ignition. Heater will
remain hot for a time after shut-down. Allow surface to cool before touching.
11.Carefully supervise young children when they are in same room with heater.
12.Make sure grill guard is in place before running heater.
13.Do not use heater if any part has been under water. Immediately call a qualified service technician to inspect the room heater and to replace any part of the
control system and any gas control which has been under water.
14.Turn off and unplug heater and let cool before servicing. Only a qualified
service person should service and repair heater.
15. Operating heater above elevations of 4,500 feet may cause pilot outage.
100099
3
PRODUCT
IDENTIFICATION
Front
Panel
Ignitor Button Control Knob
Grill
Guard
Heat Shield
(VGN30B) or
Glass Panel
(VN2000BB)
Heater
Cabinet
Figure 1 - Vent-Free Natural Gas Heater
LOCAL CODES
UNPACKING
PRODUCT
FEATURES
Install and use heater with care. Follow all local codes. In the absence of local
codes, use the latest edition of National Fuel Gas Code ANSI Z223.1, also known
as NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
1. Remove heater from carton.
2. Remove all protective packaging applied to heater for shipment.
3. Check heater for any shipping damage. If heater is damaged, promptly inform
dealer where you bought heater.
Safety Device
This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).
The ODS/pilot is a required feature for vent-free heaters. The ODS/pilot shuts off
the heater if there is not enough fresh air.
Piezo Ignition System
This heater has a piezo ignitor. This system requires no matches, batteries, or other
sources to light heater.
4
100099
FRESH AIR
WARNING
FOR
COMBUSTION
AND
VENTILA TION
This heater must have fresh air for proper operation. If not, poor
fuel combustion could result. Read the following instructions to
insure proper fresh air for this and other fuel-burning appliances
in your home.
Today’s homes are built more energy efficient than ever. New materials, increased
insulation, and new construction methods help reduce heat loss in homes. Home
owners weather strip and caulk around windows and doors to keep the cold air out
and the warm air in. During heating months, home owners want their homes as
airtight as possible.
While it is good to make your home energy efficient, your home needs to breathe.
Fresh air must enter your home. All fuel-burning appliances need fresh air for
proper combustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from
the house to operate. You must provide adequate fresh air for these appliances.
This will insure proper venting of vented fuel-burning appliances.
PRODUCING ADEQUATE VENTILATION
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Contruction; 2. Unconfined Space; 3. Confined Space.
The information on pages 5 through 8 will help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for
combustion and ventilation. However, in buildings of unusually tight construction,
you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a continu-
ous water vapor retarder with a rating of one perm or less with open-
ings gasketed or sealed
b. weather stripping has been added on openable windows and doors
c. caulking or sealants are applied to areas such as joints around window
and door frames, between sole plates and floors, between wall-ceiling
joints, between wall panels, at penetrations for plumbing, electrical, and
gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide additional fresh air. See
If your home does not meet all of the three criteria above, continue reading.
Ventilation Air From Outdoors
and
, page 8
and
.
Unconfined Space
An unconfined space has a minimum air volume of 50 cubic feet for each 1000
BTU/Hr input rating of all appliances in the space (cubic feet equals length x
width x height of space). Include adjoining rooms only if there are doorless
passageways or ventilation grills between the rooms.
100099
Confined Space
A confined space has an air volume of less than 50 cubic feet for each 1000
BTU/Hr input rating of all appliances in the space (cubic feet equals length x
width x height of space). Include adjoining rooms only if there are doorless
passageways or ventilation grills between the rooms.
Continued
5
FRESH AIR
FOR
COMBUSTION
AND
VENTILA TION
Continued
DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION
Determining if You Have a Confined or Unconfined Space
Use this worksheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install heater plus any adjoining rooms with
doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________________ cu. ft. (volume of space)
Example:
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum BTU/Hr the space
can support.
____________ (volume of space) ÷ 50 cu. ft. = (Maximum BTU/Hr
the space can support)
Example:
BTU/Hr the space can support)
3. Add the BTU/Hr of all fuel burning appliances in the space.
Example:
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
4. Compare the maximum BTU/Hr the space can support with the actual amount of BTU/
Hr used.
_________________ BTU/Hr (maximum the space can support)
_________________ BTU/Hr (actual amount of BTU/Hr used)
Example:
The space in the above example is a confined space because the actual BTU/Hr used is
more than the maximum BTU/Hr the space can support. You must provide additional fresh
air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides
an unconfined space, remove door to adjoining room or add ventilation grills between
rooms. See Ventilation Air From Inside Building, page 7.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 8.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room unconfined.
If the actual BTU/Hr used is less than the maximum BTU/Hr the space can support, the
space is an unconfined space. You will need no additional fresh air ventilation.
Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) =
2560 cu. ft. (volume of space)
2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum
Vent-free heater ___________________ BTU/Hr
Gas water heater* ___________________ BTU/Hr
Gas furnace ___________________ BTU/Hr
Vented gas heater ___________________ BTU/Hr
Gas fireplace logs ___________________ BTU/Hr
Other gas appliances* + ___________________ BTU/Hr
Total = ___________________ BTU/Hr
Gas water heater 40,000 BTU/Hr
Vent-free heater + 18,000 BTU/Hr
Total = 58,000 BTU/Hr
51,200 BTU/Hr (maximum the space can support)
58,000 BTU/Hr (actual amount of BTU/Hr used)
WARNING
6
You must provide additional ventilation air in a confined space.
100099
FRESH AIR
FOR
COMBUSTION
AND
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space. When ventilating to an
adjoining unconfined space, you must provide two permanent openings: one within 12" of the
ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and
2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2).
VENTILA TION
Continued
WARNING
Rework worksheet, adding the space of the adjoining unconfined
space.
appliances in both spaces.
The combined spaces must have enough fresh air to supply all
12"
Ventilation Grills
Ventilation
Grills
into Adjoining
Room,
Option 1
Or
Remove
Door into
Adjoining
Room,
Option 3
Into Adjoining Room,
Option 2
100099
12"
Figure 2 - Ventilation Air from Inside Building
Continued
7
FRESH AIR
FOR
COMBUSTION
AND
VENTILA TION
Continued
VENTILATION AIR
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these
items directly to the outdoors or spaces open to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3,
Air for Combustion and Ventilation for required size of ventilation grills or ducts.
IMPORTANT:
thermostat-controlled power vent. Heated air entering the attic will activate the power vent.
Do not provide openings for inlet or outlet air into attic if attic has a
(Continued)
Outlet
Air
Inlet
Air
Outlet
Air
Inlet Air
Figure 3 - Ventilation Air from Outdoors
Ventilated
Attic
Ventilated
Crawl Space
To Attic
To
Crawl
Space
8
100099
INSTALLING
TO WALL
NOTICE
A qualified service person must install heater. Follow all local codes.
CHECK GAS TYPE
Use only natural gas. If your gas supply is not natural gas, do not install heater. Call
dealer where you bought heater for proper type heater.
INSTALLATION ITEMS
Before installing the heater, make sure you have the items listed below.
• piping (check local codes)
• sealant (resistant to propane gas)
• manual shutoff valve *
• ground joint union
* An A.G.A. design certified manual shutoff valve with 1/8" NPT tap is an acceptable
alternative to test gauge connection. Purchase the optional A.G.A. design certified
manual shutoff valve from your dealer. See Accessories, page 27.
LOCATING HEATER
This heater is designed to be mounted on a wall.
• test gauge connection * (see
Figure 12, page 15)
• sediment trap
• tee joint
• pipe wrench
WARNING
Maintain the minimum clearances shown in Figure 4 (page 10). If you
can, provide greater clearances from floor, ceiling, and joining wall.
You can locate model VN2000BB on floor, away from a wall. An optional floor
mounting stand is needed. Purchase the floor mounting stand from your dealer. See
Accessories, page 27.
Never install the heater
• in a bedroom or a bathroom
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are
less than 36 inches from the front, top, or sides of the heater
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
WARNING
CAUTION
This heater creates warm air currents. These currents move heat
to wall surfaces next to heater. Installing heater next to vinyl or
cloth wall coverings or operating heater where impurities in the air
(such as tobacco smoke) exist, may discolor walls.
100099
IMPORTANT:
stalling heater in rooms without enough ventilation air may cause mildew to form from
too much moisture. See Fresh Air for Combustion and Ventilation, pages 5 through 8.
Vent-free heaters add moisture to the air. Although this is beneficial, in-
Continued
9
INSTALLING
CAUTION
TO WALL
Continued
If you install the heater in a home garage
• heater pilot and burner must be at least 18 inches above floor
• locate heater where moving vehicle will not hit it
For convenience and efficiency, install heater
• where there is easy access for operation, inspection, and service
• where strong wind gusts from an open door or garage door can not blow
directly into heater.
An optional fan kit is available from your dealer. See Accessories, page 27. If
planning to use fan, locate heater near an electrical outlet.
CEILING
36"
6"
Minimum
From
Sides Of
Heater
Minimum
Left
Side
FLOOR
Figure 4 - Mounting Clearances As Viewed From Front of Heater
Right
Side
Minimum To Floor
*
*163/4"- VGN30B
*3" - VN2000BB
10
100099
INSTALLING
TO WALL
Continued
INSTALLING HEATER TO WALL
Mounting Bracket
The mounting bracket is located on back panel of heater. It has been taped there for
shipping. Remove mounting bracket from back panel.
Mounting
Bracket
Figure 5 - Mounting Bracket Location
Removing Front Panel Of Heater
1. Remove two screws near bottom corners of front panel.
2. Lift straight up on grill guard until it stops. Grill guard will slide up about 1/4".
3. Pull bottom of front panel forward, then down.
4. Remove cardboard packing from grill and glass (VN2000BB) or heat shield
(VGN30B).
100099
Figure 6 - Removing Front Panel Of Heater
Methods For Attaching Mounting Bracket To Wall
Only use last hole on each end of mounting bracket to attach bracket to wall. These
two holes are 16 inches apart from their centers. Attach mounting bracket to wall in
one of two ways.
1. Attaching to wall stud
2. Attaching to wall anchor
Attaching to wall stud This method provides the strongest hold. Insert mounting
screws through mounting bracket and into wall studs.
Attaching to wall anchor This method allows you to attach mounting bracket to
hollow walls (wall areas between studs) or to solid walls (concrete or masonry).
Decide which method better suits your needs. Either method will provide a secure
hold for the mounting bracket.
Continued
11
INSTALLING
TO WALL
Marking Screw Locations
1. Tape mounting bracket to wall where heater will be located. Make sure mounting bracket is level.
Continued
WARNING
Maintain minimum clearances shown in Figure 7. If you can,
provide greater clearances from floor and joining wall.
2. Mark screw locations on wall (see Figure 7).
Note:
Only mark last hole on each end of mounting bracket. Insert mounting
screws through these holes only.
3. Remove tape and mounting bracket from wall.
11"
Min.
Only Insert Mounting
Screws Through Last
Hole On Each End
Adjoining Wall
VGN30B VN2000BB
16"
32 1/2"
Min.
Floor
7 1/4"
Min.
Only Insert Mounting
Screws Through Last
Hole On Each End
Adjoining Wall
16"
Floor
18 3/4"
Min.
Figure 7 - Mounting Bracket Clearances
Attaching Mounting Bracket To Wall
Note:
Wall anchors, mounting screws, and spacers are in hardware package. The
hardware package is provided with heater.
Attaching to wall stud method
For attaching mounting bracket to wall studs
1. Drill holes at marked locations using 9/64" drill bit.
2. Place mounting bracket onto wall. Line up last hole on each end of bracket with
holes drilled in wall.
3. Insert mounting screws through bracket and into wall studs.
4. Tighten screws until mounting bracket is firmly fastened to wall studs.
Attaching to wall anchor method
For attaching mounting bracket to hollow walls (wall areas between studs) or solid
walls (concrete or masonry)
1. Drill holes at marked locations using 5/16" drill bit. For solid walls (concrete or
masonry), drill at least 1" deep.
2. Fold wall anchor as shown in Figure 8.
12
Figure 8 - Folding Anchor
3. Insert wall anchor (wings first) into hole. Tap anchor flush to wall.
100099
INSTALLING
TO WALL
Continued
4. For thin walls (1/2" or less), insert red key into wall anchor. Push red key to
“pop” open anchor wings.
For thick walls (over 1/2" thick) or solid walls, do not pop open wings.
Figure 9 - Popping Open Anchor Wings For Thin Walls
5. Place mounting bracket onto wall. Line up last hole on each end of bracket with
wall anchors.
6. Insert mounting screws through bracket and into wall anchors.
7. Tighten screws until mounting bracket is firmly fastened to wall.
Placing Heater On Mounting Bracket
1. Locate two horizontal slots on back panel of heater.
2. Place heater onto mounting bracket. Slide horizontal slots onto stand-out tabs on
mounting bracket.
IMPORTANT:
Do not hammer key!
Horizontal Slots
Stand-Out Tab
Figure 10 - Mounting Heater Onto Mounting Bracket
Installing Bottom Mounting Screws
1. Locate two bottom mounting holes. These holes are near bottom on back panel
of heater (see Figure 11).
2. Mark screw locations on wall.
3. Remove heater from mounting bracket.
4. If installing bottom mounting screws into hollow or solid wall, install wall anchors.
Follow steps 1 through 4 under Attaching To Wall Anchor Method, page 12.
If installing bottom mounting screw into wall stud, drill holes at marked locations using 9/64" drill bit.
5. Replace heater onto mounting bracket.
6. Place spacers between bottom mounting holes and wall anchor or drilled hole.
7. Hold spacer in place with one hand. With other hand, insert mounting screw
through bottom mounting hole and spacer. Place tip of screw in opening of wall
anchor or drilled hole.
8. Tighten both screws until heater is firmly secured to wall. Do not over tighten.
Note:
Do not replace front panel at this time. Replace front panel after making
gas connections and checking for leaks (see pages 14-16).
Mounting Bracket
(attached to wall)
100099
Figure 11 - Installing Bottom Mounting Screws
Continued
13
CONNECTING
TO GAS
SUPPLY
NOTICE
A qualified service person must connect heater to gas supply.
Follow all local codes.
WARNING
Never connect heater to private (non-utility) gas wells. This gas is
commonly known as well-head gas.
IMPORTANT:
pressure must be no greater than 14 inches of water. If gas line pressure is higher,
heater regulator damage could occur.
Check gas line pressure before connecting heater to gas line. Gas line
CAUTION
Use only new, black iron or steel pipe. Internally-tinned copper
tubing may be used in certain areas. Check your local codes. Use
pipe of 1/2" diameter or greater to allow proper gas volume to heater.
If pipe is too small, undue loss of pressure will occur.
Installation must include a manual shutoff valve, union, and plugged 1/8" NPT tap.
Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream
from heater (see Figure 12, page 15).
Apply pipe joint sealant lightly to male threads. This will prevent excess sealant
from going into pipe. Excess sealant in the pipe could result in clogged heater
valves.
CAUTION
Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.
14
Install sediment trap in supply line as shown in Figure 12, page 15. Locate sediment
trap where it is within reach for cleaning. Locate sediment trap where trapped
matter is not likely to freeze. A sediment trap traps moisture and contaminants. This
keeps them from going into heater controls. If sediment trap is not installed or is
installed wrong, heater may not run properly.
100099
CONNECTING
TO GAS
SUPPLY
Continued
IMPORTANT:
and/or fittings.
1/2" NPT
Pipe Nipple
Hold pressure regulator with wrench when connecting it to gas piping
Note:
Burner bracket
Pressure
Regulator
not shown for clarity
CHECKING
GAS
CONNECTIONS
Ground Joint
Tee Joint
Test
Gauge
Connection *
Sediment
Trap
* An A.G.A. design certified manual shutoff valve with 1/8" NPT tap is an acceptable
alternative to test gauge connection. Purchase the optional A.G.A. design certified
manual shutoff valve from your dealer. See Accessories, page 27.
Reducer
Bushing to
1/8" NPT
1/8" NPT
Plug Tap
Tee Joint
Pipe
Nipple
Cap
Figure 12 - Gas Connection
Union
Gas Meter
(4" W.C. to 10.5" W.C.
Pressure)
3" Minimum
Heater
Cabinet
Manual
Shutoff
Valve *
From
WARNING
Test all gas piping and connections for leaks after installing or
servicing. Correct all leaks at once.
100099
WARNING
Never use an open flame to check for a leak. Apply a mixture of
liquid soap and water to all joints. Bubbles forming show a leak.
Correct all leaks at once.
PRESSURE TESTING GAS SUPPLY PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
1. Disconnect heater and its individual manual shutoff valve from gas supply
piping system. Pressures in excess of 1/2 PSIG will damage heater regulator.
2. Cap off open end of gas pipe where manual shutoff valve was connected.
3. Pressurize supply piping system by either using compressed air or
opening main gas valve located on or near gas meter.
Continued
15
CHECKING
GAS
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and
water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
CONNECTIONS
Continued
Test Pressures Equal To or Less Than 1/2 PSIG
1. Close manual shutoff valve (see Figure 13).
2. Pressurize supply piping system by either using compressed air or opening main
gas valve located on or near gas meter.
3. Check all joints from gas meter to manual shutoff valve (see Figure 14). Apply
mixture of liquid soap and water to gas joints. Bubbles forming show a leak.
4. Correct all leaks at once.
PRESSURE TESTING HEATER GAS CONNECTIONS
1. Open manual shutoff valve (see Figure 13).
2. Open main gas valve located on or near gas meter.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from manual shutoff valve to control valve (see Figure 14).
Apply mixture of liquid soap and water to gas joints. Bubbles forming show a
leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, pages 17 through 19). Check the rest of the
internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to Appliance, page 19).
8. Replace front panel.
Manual
Shutoff
Valve
Gas Meter
ON
Open
POSITION
OFF
POSITION
Closed
Figure 13 - Manual Shutoff Valve
Control Valve Location
Manual
Shutoff
Valve
16
Figure 14 - Checking Gas Joints
100099
OPERATING
Clockwise
HEATER
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING
If you do not follow these instructions exactly, a fire or
explosion may result causing property damage, personal
injury or loss of life.
A. This appliance has a pilot which must be lighted by hand. When lighting
the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure
to smell next to the floor because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use
tools. If the knob will not push in or turn by hand, don’t try to repair it,
call a qualified service technician or gas supplier. Force or attempted
repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately
call a qualified service technician to inspect the appliance and to replace
any part of the control system and any gas control which has been under
water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Make sure manual shutoff valve is fully open.
3. Turn control knob clockwise
Ignitor Button
to the OFF position.
Control Knob
LOW
PILOT
100099
OFF
HIGH
IGNITOR
Figure 15 - Control Knob In The OFF Position
Continued
17
OPERATING
HEATER
Continued
4. Wait five (5) minutes to clear out any gas. Then smell for gas, including
near the floor. If you smell gas, STOP! Follow “B” in the safety information
at the top of page 17. If you don’t smell gas, go to the next step.
5. Press in control knob and turn counterclockwise
C-clockwise
to the PILOT
position. Keep control knob pressed in for five (5) seconds (see Figure 15,
page 17).
Note:
You may be running this heater for the first time after hooking up
to gas supply. If so, the control knob may need to be pressed in for 30
seconds. This will allow air to bleed from the gas system.
• If control knob does not pop up when released, contact a qualified
service person or gas supplier for repairs.
6. With control knob pressed in, push down and release ignitor button. This
will light pilot. The pilot is attached to the front of burner. The burner and
pilot are located behind the heat shield. If needed, keep pressing ignitor
button until pilot lights.
Note:
If pilot does not stay lit, refer to Troubleshooting, pages 21 through
24. Also contact a qualified service person or gas supplier for repairs.
Until repairs are made, light pilot with match. To light pilot with match,
see Manual Lighting Procedure, page 19.
Ignitor Electrode
Thermocouple
Pilot GRH/OV 007G
Figure 16 - Pilot
Pilot Burner
7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30
seconds, release control knob.
Note:
If pilot goes out, repeat steps 3 through 7.
C-clockwise
8. Turn control knob counterclockwise
to the LOW position. The
main burner should light. Set control knob to any heat level between HIGH
and LOW. To turn control knob from LOW to a higher setting, press in the
control knob and turn counterclockwise
Note:
Both HIGH and LOW are locked positions. You must press in control
C-clockwise
.
knob before turning it from these positions.
18
CAUTION
Do not try to adjust heating levels by using the manual shutoff valve.
100099
OPERATING
Clockwise
Clockwise
TO TURN OFF GAS TO APPLIANCE
HEATER
Continued
INSPECTING
BURNER
Shutting Off Heater
1. Turn control knob clockwise
2. Press in control knob and turn clockwise
to the PILOT position.
to the OFF position.
Clockwise
3. Turn off all electric power to the appliance if service is to be performed.
Shutting Off Burner Only (pilot stays lit)
1. Turn control knob clockwise
to the PILOT position.
MANUAL LIGHTING PROCEDURE
1. Remove front panel (see Figure 6, page 11).
2. Follow steps 1 through 5 under Lighting Instructions, pages 17 and 18.
3. With control knob pressed in, strike match. Hold match to pilot until pilot
lights.
4. Keep control knob pressed in for 30 seconds after lighting pilot. After 30
seconds, release control knob.
5. Replace front panel.
Check pilot flame pattern and burner flame pattern often.
PILOT FLAME PATTERN
Figure 17 shows a correct pilot flame pattern. Figure 18 shows an incorrect pilot
flame pattern. The incorrect pilot flame is not touching the thermocouple. This will
cause the thermocouple to cool. When the thermocouple cools, the heater will shut
down.
100099
Thermocouple
Figure 17 - Correct Pilot Flame Pattern
Thermocouple
Figure 18 - Incorrect Pilot Flame Pattern
Pilot Burner
GRH/OV 009GOOD PILOT
Pilot Burner
GRH/OV 010BAD PILOT
Continued
19
CORRECT FLAME PATTERN
AT HIGH POSITION
1/2 HEAT SHIELD
OR GLASS HEIGHT
INSPECTING
1/2 HEAT SHIELD
OR GLASS HEIGHT
INCORRECT FLAME PATTERN
AT HIGH POSITION
BURNER
If pilot flame pattern is incorrect, as shown in Figure 18
• turn heater off (see To Turn Off Gas to Appliance, page 19)
• see Troubleshooting, pages 21 through 24
Continued
BURNER FLAME PATTERN
Figure 19 shows a correct burner flame pattern. Figure 20 shows an incorrect
burner flame pattern. The incorrect burner flame pattern shows yellow tipping of
the flame. It also shows the flame higher than 1/2 the heat shield height.
If yellow tipping occurs, your heater could produce increased
levels of carbon monoxide. If burner flame pattern shows yellow
tipping, follow instructions at bottom of this page.
WARNING
NOTICE
Do not mistake orange flames with yellow tipping. Dirt or other fine
particles enter the heater and burn causing brief patches of orange
flame.
20
If burner flame pattern is incorrect, as shown in Figure 20
• turn heater off (see To Turn Off Gas to Appliance, page 19)
• see Troubleshooting, pages 21 through 24
Figure 19 - Correct Burner Flame Pattern
Figure 20 - Incorrect Burner Flame Pattern
Yellow
Tipping
100099
CLEANING
AND
MAINTENANCE
WARNING
Turn off heater and let cool before cleaning.
CAUTION
You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each
use. Have heater inspected yearly by a qualified service person.
Heater may need more frequent cleaning due to excessive lint from
carpeting and bedding material, sawdust, cobwebs, etc.
ODS/PILOT AND BURNER
• Use a vacuum cleaner, pressurized air, or small, soft bristled brush to clean.
CABINET
Air Passageways
• Use a vacuum cleaner or pressurized air to clean.
Exterior
• Use a soft cloth dampened with a mild soap and water mixture. Wipe the
cabinet to remove dust.
TROUBLE-
SHOOTING
Note:
All troubleshooting
items are listed in order of
operation.
WARNING
Turn off and unplug heater and let cool before servicing. Only a
qualified service person should service and repair heater.
CAUTION
Never use a wire, needle, or similar object to clean ODS/pilot. This
can damage ODS/pilot unit.
OBSERVED
PROBLEM
When ignitor button
is pressed, there is no
spark at ODS/pilot
POSSIBLE
CAUSE
1. Ignitor electrode positioned wrong
2. Ignitor electrode broken
3. Ignitor electrode not connected to ignitor cable
4. Ignitor cable pinched or
wet
5. Piezo ignitor nut is loose
6. Broken ignitor cable
7. Bad piezo ignitor
REMEDY
1. Replace ignitor
2. Replace ignitor
3. Reconnect ignitor cable
4. Free ignitor cable if
pinched by any metal or
tubing. Keep ignitor
cable dry
5. Tighten nut holding
piezo ignitor to heater
cabinet. Nut is located
inside heater cabinet at
top
6. Replace ignitor cable
7. Replace piezo ignitor
100099
Continued
21
TROUBLE-
SHOOTING
Continued
OBSERVED
PROBLEM
When ignitor button
is pressed, there is
spark at ODS/pilot
but no ignition
POSSIBLE
CAUSE
1. Gas supply turned off
or manual shutoff
valve closed
2. Control knob not in
PILOT position
3. Control knob not
pressed in while in
PILOT position
4. Air in gas lines when
installed
5. ODS/pilot is clogged
6. Gas regulator setting is
not correct
REMEDY
1. Turn on gas supply or
open manual shutoff
valve
2. Turn control knob to
PILOT position
3. Press in control knob
while in PILOT
position
4. Continue holding down
control knob. Repeat
igniting operation until
air is removed
5. Clean ODS/pilot (see
Cleaning and Maintenance, page 21) or
replace ODS/pilot
assembly
6. Replace gas regulator
ODS/pilot lights but
flame goes out when
control knob is
released
1. Control knob not fully
pressed in
2. Control knob not
pressed in long enough
3. Manual shutoff valve
not fully open
4. Thermocouple connection loose at control
valve
5. Pilot flame not touching thermocouple,
which allows thermocouple to cool, causing
pilot flame to go out.
This problem could be
caused by one or both
of the following:
A) Low gas pressure
B) Dirty or partially
clogged ODS/pilot
6. Thermocouple damaged
7. Control valve damaged
1. Press in control knob
fully
2. After ODS/pilot lights,
keep control knob
pressed in 30 seconds
3. Fully open manual
shut-off valve
4. Hand tighten until
snug, then tighten 1/4
turn more
5. A) Contact local
natural gas company
B) Clean ODS/pilot
(see Cleaning and
Maintenance, page 21)
or replace ODS/pilot
assembly
6. Replace thermocouple
7. Replace control valve
22
Burner does not light
after ODS/pilot is lit
1. Burner orifice is
clogged
1. Clean burner (see
Cleaning and Maintenance, page 21) or
replace burner orifice
Continued
100099
TROUBLE-
SHOOTING
Continued
OBSERVED
PROBLEM
Burner does not light
after ODS/pilot is lit
(continued from page
22)
POSSIBLE
CAUSE
2. Burner orifice diameter
is too small
3. Inlet gas pressure is
too low
REMEDY
2. Replace burner orifice
3. Contact local natural gas
company
Delayed ignition of
burner
Burner backfiring
during combustion
Yellow flame during
burner combustion
Slight smoke or odor
during initial operation
1. Manifold pressure is
too low
2. Burner orifice is
clogged
1. Burner orifice is
clogged or damaged
2. Burner damaged
3. Gas regulator defective
1. Not enough air
2. Gas regulator defective
1. Residues from manufacturing processes
1. Contact local natural gas
company
2. Clean burner (see
Cleaning and Maintenance, page 21) or
replace burner orifice
1. Clean burner (see
Cleaning and Maintenance, page 21) or
replace burner orifice
2. Replace burner
3. Replace gas regulator
1. Check burner for dirt
and debris. If found,
clean burner (see
Cleaning and Maintenance, page 21)
2. Replace gas regulator
1. Problem will stop after a
few hours of operation
100099
Heater produces a
whistling noise when
burner is lit
1. Turning control knob
to HIGH position
when burner is cold
2. Air in gas line
3. Air passageways on
heater blocked
4. Dirty or partially
clogged burner orifice
1. Turn control knob to
LOW position and let
warm up for a minute
2. Operate burner until air
is removed from line.
Have gas line checked
by local natural gas
company
3. Observe minimum
installation clearances
(see Figure 4, page 10)
4. Clean burner (see
Cleaning and Maintenance, page 21) or
replace burner orifice
Continued
23
TROUBLE-
SHOOTING
Continued
WARNING
If you smell gas
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
IMPORTANT:
Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new
carpet or textiles, etc., create fumes. These fumes may mix with combustion air and
create odors.
OBSERVED
PROBLEM
Heater produces a
clicking/ticking noise
just after burner is lit
or shut off
Heater produces
unwanted odors
Heater shuts off in
use (ODS operates)
Operating heater where impurities in air exist may create odors.
POSSIBLE
CAUSE
1. Metal expanding while
heating or contracting
while cooling
1. Heater burning vapors
from paint, solvents,
glues, etc. See
TANT
statement above
2. Gas leak. See Warn-
ing statement at
top of page
1. Not enough fresh air is
available
2. Low line pressure
3. ODS/pilot is partially
clogged
IMPOR-
REMEDY
1. This is common with
most heaters. If noise is
excessive, contact
qualified service person
1. Ventilate room. Stop
using odor causing
products while heater is
running
2. Locate and correct all
leaks (see Checking Gas
Connections, page 15)
1. Open window and/or
door for ventilation
2. Contact local natural
gas company
3. Clean ODS/pilot (see
Cleaning and Maintenance, page 17)
24
Gas odor even when
control knob is in
OFF position
Gas odor during
combustion
1. Gas leak. See Warn-
ing statement at
top of page
2. Control valve defective
1. Foreign matter between control valve
and burner
2. Gas leak. See Warn-
ing statement at
top of page
1. Locate and correct all
leaks (see Checking Gas
Connections, page 15)
2. Replace control valve
1. Take apart gas tubing
and remove foreign
matter
2. Locate and correct all
leaks (see Checking Gas
Connections, page 15)
100099
TECHNICAL
SERVICE
You may have further questions about installation, operation, or troubleshooting.
If so, contact DESA International’s Technical Service Department at 1-800-323-
5190.
SPECIFICATIONS
SERVICE
HINTS
VGN30B VN2000BB
BTU (Variable) 15,000/30,000 9,000/18,000
Type Gas Natural Only Natural Only
Ignition Piezo Piezo
Pressure Regulator Setting 3" W.C. 3" W.C.
Inlet Gas Pressure (inches of water)
Maximum 10.5" 10.5"
Minimum 4" 4"
Dimensions, Inches (H x W x D)
Heater 23.5 x 25.9 x 8.0 23.5 x 18.5 x 8.0
Carton 25.8 x 28.7 x 10.1 25.8 x 21.3 x 10.1
Weight (pounds)
Heater 30 22
Shipping 35 27
When gas pressure is too low
• pilot will not stay lit
• burner will have delayed ignition
• heater will not produce specified heat
When gas quality is bad
• pilot will not stay lit
• burner will produce flames and soot
• heater will backfire when lit
You may feel your gas pressure is too low or gas quality is bad. If so, contact your
local natural gas supplier.
100099
25
REPLACEMENT
PARTS
Note:
Use only original replacement parts. This will protect your warranty coverage
for parts replaced under warranty.
Parts Under Warranty
Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA International’s Technical Service Department at 1-800323-5190.
When calling, have ready
• your name
• your address
• model number of your heater
• how heater was malfunctioning
• type of gas used (propane or natural gas)
• purchase date
Usually, we will ask you to return the defective part to the factory.
Parts Not Under Warranty
Contact authorized dealers of this product. If they can’t supply original replacement
part(s), call DESA International’s Parts Department at 1-800-972-7879 for information.
When calling, have ready
• model number of your heater
• the replacement part number
26
100099
ACCESSORIES
Purchase these heater accessories from your local dealer. If they can not supply
these accessories, call DESA International’s Parts Department at 1-800-972-7879
for information. You can also write to the address listed on the back page of this
manual.
FAN KIT - GA3100 (GA2100A)
Provides better heat distribution.
Makes heater more efficient. Complete
installation and operating instructions
included.
MANUAL SHUTOFF
VALVE - GA5010
Manual shutoff valve with 1/8" NPT tap.
FLOOR MOUNTING STAND GA4000B
Model VN2000BB Only
For locating heater on the floor,
away from a wall. Complete
installation instructions included.
100099
27
28
ODS/Pilot
10-2
10-1
21
22
26
27
28
20
11
4
8
5
3
7
10
12
13
17
9
6
16
14
19
25
15
8
24
18
23
100099
2
1
VGN30B
PARTS LIST
This list contains replaceable parts used in your heater. When ordering parts, follow
the instructions listed under Replacement Parts on page 26 of this manual.
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 098304-01 Screw, #10 x 3/8" 2
2 098742-15 Front Panel 1
3 098197-04 Grill Guard 1
4 098342-01 Grill Guard Clip 2
5 099001-01BR Heat Shield 1
6 M11084-26 Screw, #10 x 3/8" 4
7 098352-02BR Deflector Unit 1
8 098271-03 Ignitor Cable 1
9 098249-01 Nut, M5 2
10 503329-02 ODS/Pilot, N.G. 1
10-1 098514-01 Thermocouple 1
10-2 098594-01 Ignitor Electrode 1
11 099126-02 Burner 1
12 099387-05 3/16" Pilot Tubing 1
13 098251-06 Injector 1
14 098250-01 Injector Holder 1
15 098867-04 Pressure Regulator 1
16 099553-01 Pilot Shield 1
17 100091-01 3/8" Outlet (Burner) Tubing 1
18 100092-01 3/8" Inlet Tubing 1
19 100068-01 Pressure Tap Fitting 1
20 100047-01 Control Valve 1
21 098529-02 Cabinet 1
22 097159-02 Piezo Ignitor 1
23 M11084-26 Screw, #10 x 3/8" 2
24 M11084-38 Screw, #8 x 3/8" 2
25 098276-01 1/8" NPT Plug 1
26 098354-01 Control Knob 1
27 098508-01 Valve Retainer Nut 1
28 099066-01 Mounting Bracket 1
PARTS AVAILABLE — NOT SHOWN
098306-02 Control Position Decal 1
099261-02 Operating Instructions Decal 1
100099
29
30
ODS/Pilot
12-2
12-1
22
23
26
24
10
28
29
30
25
13
11
12
14
18
8
4
10
7
6
3
5
2
9
21
27
15
19
16
20
17
100099
1
VN2000BB
PARTS LIST
This list contains replaceable parts used in your heater. When ordering parts, follow
the instructions listed under Replacement Parts on page 26 of this manual.
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 098304-01 Screw, #10 x 3/8" 2
2 098742-13 Front Panel 1
3 098197-03 Grill Guard 1
4 098342-01 Grill Guard Clip 2
5 098533-01AA Bottom Glass Retainer 1
6 098260-01 Glass Panel 1
7 098532-01AA Top Glass Retainer 1
8 M11084-26 Screw, #10 x 3/8" 4
9 098352-01BR Deflector Unit 1
10 098271-03 Ignitor Cable 1
11 098249-01 Nut, M5 2
12 099440-05 ODS/Pilot Assembly 1
12-1 098514-01 Thermocouple 1
12-2 098594-01 Ignitor Electrode 1
13 099120-02 Burner 1
14 099387-05 3/16" Pilot Tubing 1
15 098251-02 Injector 1
16 098250-01 Injector Holder 1
17 098867-04 Pressure Regulator 1
18 099553-01 Pilot Shield 1
19 100091-01 3/8" Outlet (Burner) Tubing 1
20 100092-01 3/8" Inlet Tubing 1
21 100068-01 Pressure Tap Fitting 1
22 100047-03 Control Valve 1
23 098529-01 Cabinet 1
24 097159-02 Piezo Ignitor 1
25 M11084-26 Screw, #10 x 3/8" 2
26 M11084-38 Screw, #8 x 3/8" 2
27 098276-01 1/8" NPT Plug 1
28 098354-01 Control Knob 1
29 098508-01 Valve Retainer Nut 1
30 099066-01 Mounting Bracket 1
PARTS AVAILABLE — NOT SHOWN
098306-02 Control Position Decal 1
099491-07 Operating Instructions Decal 1
100099
31
WARRANTY INFORMATION
KEEP THIS WARRANTY
Model
Serial No.
Date Purchased
Always specify model and serial numbers when communicating with the factory.
We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our
standard written warranty. We make no other warranty, expressed or implied.
LIMITED WARRANTY
VANGUARD VENT-FREE HEATERS
DESA International warrants this product and any parts thereof, to be free from defects in material and workmanship for two years from the date of first purchase, provided that the product has been properly installed,
operated, and maintained in accordance with all applicable instructions. To make a claim under this warranty,
the bill of sales or proof of purchase must be presented.
This warranty is extended only to the original retail purchaser. This warranty covers only the cost of parts and
labor required to restore this heater to proper operating condition. Warranty parts must be obtained through
authorized dealers of this product and/or DESA International who will provide original factory replacement
parts. Failure to use original factory replacement parts voids this warranty. The heater must be installed by a
qualified installer in accordance with all local codes and instructions furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts
that fail or become damaged as a result of misuse, accidents, lack of proper maintenance, alteration, tampering,
contaminated fuels, or defects caused by improper installation. Travel, transportation, and incidental costs
associated with warranty repairs are not reimbursable under this warranty and are the responsibility of the
owner.
To the full extent allowed by the law of the jurisdiction that governs the sale of the product, this express
warranty excludes any and all other expressed warranties and limits the duration of any and all implied warranties, including warranties of merchantability and fitness for a particular purpose to two years from the date of
first purchase; and DESA International’s liability is hereby limited to the purchase price of the product and
DESA International shall not be liable for any other damages whatsoever including indirect, incidental, or
consequential damages.
Some states do not allow a limitation of how long an implied warranty lasts or an exclusion or limitation of
incidental or consequential damages, so the above limitation of implied warranties, or exclusion, or limitation of
damages may not apply to you.
This warranty provides the original retail purchaser with specific legal rights. For specific information regarding
those rights, please consult the applicable state laws.
For information about this warranty write:
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
100099-01
REV. D
5/94
Loading...
