Desa SPC-54PHT, SPC-54PHB, SPC-54PHS User Manual

Propane/LP Patio Heater
Owner’s Manual
86NH
WARNING: For
outdoor use only.
MODELS SPC-54PHW, SPC-54PHB, SPC-54PHT AND SPC-54PHS
IMPORTANT: Read and understand this manual before assembling, starting or servicing heater. Improper use of heater can cause serious injury. Keep this manual for future reference.
Failure to comply with the precautions and instructions provided with this heater, can result in death, serious bodily injury and property loss or damage from hazards of fire, explosion, burn, asphyxiation, carbon monoxide poisoning and/or electrical shock.
Only persons who can understand and follow the in­structions should use or service this heater.
If you need assistance or heater information such as an in­structions manual, labels, etc. contact the manufacturer.
Save this manual for future reference.
For more information, visit www.desatech.com
TABLE OF CONTENTS
Specifications ...................................................... 2
Safety Information ............................................... 2
Propane/LP Safety ..............................................
Assembly Instructions ......................................... 5
Operating Instructions ......................................... 7
Storage ................................................................ 8
Servicing .............................................................. 8
Replacement Parts .............................................. 9
4
Technical Service ................................................

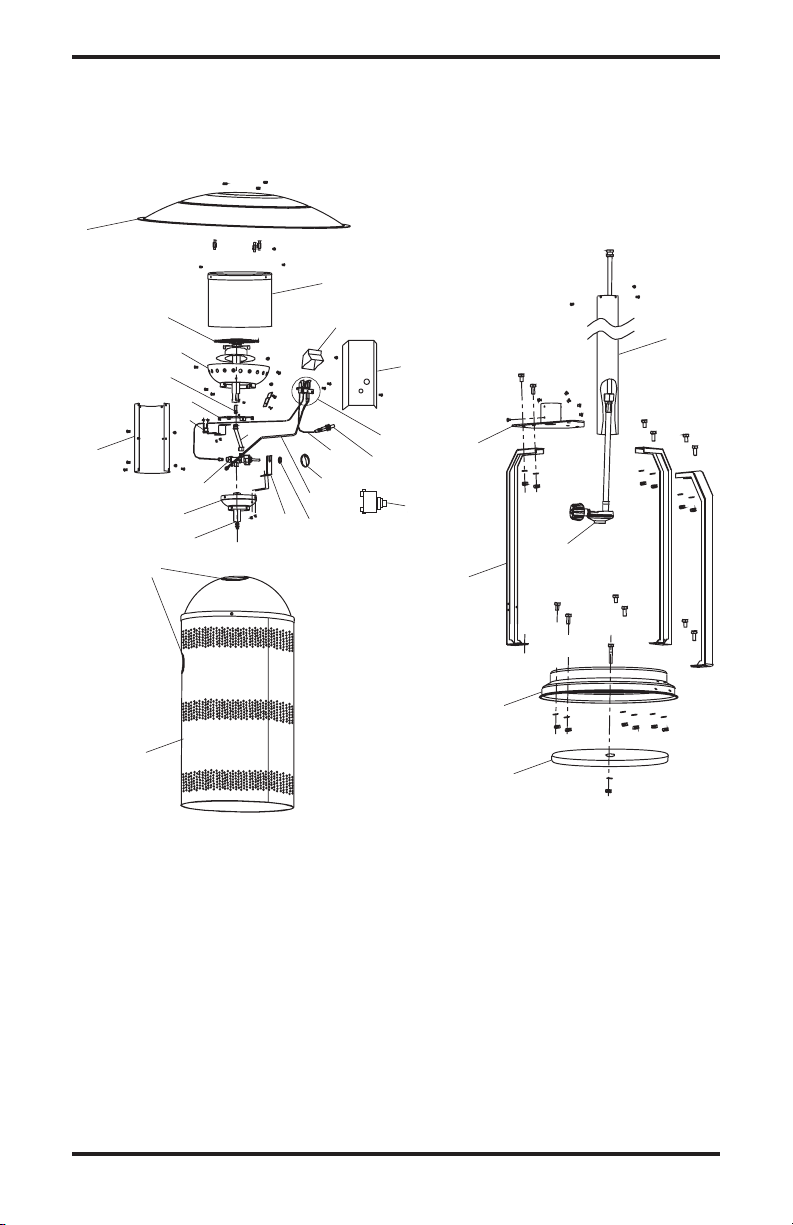

Illustrated Parts Breakdown and Parts List ....... 10
Warranty and Repair Service ............................ 12

SPECIFICATIONS

Rating 40,000 Btu/hr (11.7 kW) Type of Gas Propane/LP Only
Gas Supply Pressure to regulator Maximum - 150 psi (1034.2 kPa) Minimum - 5 psi (34.5 kPa) Gas Supply Pressure Regulator out 11" W.C. (2.74 kPa)
Ignition Piezo Ignition Fuel Consumption 1.86 lbs./hr (.84 kg/hr)
Flame Safety Thermocouple Operated Gas Valve
9

SAFETY INFORMATION

WARNING: This product con­tains and/or generates chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm.
WARNING: Not for home or recreational vehicle use.
WARNING: Fire, burn, inhala­tion, and explosion hazard. Keep solid combustibles, such as build ing materials, paper or cardboard, a safe distance away from the heater as recommended by the instructions. Never use the heater in spaces which do or may contain volatile or airborne combustibles, or products such as gasoline, sol­vents, paint thinner, dust particles or unknown chemicals.
We cannot foresee every use which may be made of our heaters. Check with your local fire safety authority if you have questions about heater use.
Other standards govern the use of fuel gases and heat producing products for specific uses. Your local authorities can advise you about these.
Carbon Monoxide Poisoning: Direct-Fired means
that all of the combustion products enter the heated space. Even though this heater operates very close to 100 percent combustion efficiency, it still pro
-
duces small amounts of carbon monoxide. Some people are more affected by carbon monoxide than others. Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and/or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Check for proper ventilation and have heater serviced.
Propane Gas: Propane gas is odorless. An odor-
making agent is added to propane gas. The odor helps you detect a propane gas leak. However, the odor added to propane gas can fade. Propane gas may be present even though no odor exists.
This is a propane, direct-fired heater. Propane is heavier than air. If propane leaks from a connection or fitting, it sinks to the floor, collecting there with the surrounding air, forming a potentially explosive mixture. Obviously, propane leaks should be avoided, so set up the propane supply with utmost care. Read Propane/LP Safety, page 4 for additional informa tion about detecting propane leaks. Leak check new connections or reconnections with a soap and water solution and follow all connection instructions herein. Also, ask your propane dealer for advice on the propane application and supply installation and ask them to check it if there are any questions.
When the heater is to be operated in the presence of other people the user is responsible for properly ac quainting those present with the safety precautions and instructions, and of the hazards involved.
Make certain you read and understand all warn ings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.
1. Check the heater thoroughly for damage. DO NOT operate a damaged heater.
2. DO NOT modify the heater or operate a heater which has been modified from its original condition.
-
-
-
-
2
www.desatech.com
114144-01D
SAFETY INFORMATION
Continued
3. Use only propane/LP gas.
4. Use only VAPOR WITHDRAWAL propane supply. The propane cylinder must be arranged for vapor-withdrawal, in accordance with the
Compress Gas Associations, Small Propane Bottle Assembly. If there is any question about
vapor withdrawal, ask your propane dealer.
5. Never use the heater if the ballast weight is not assembled onto the base. The base must be weighted to avoid tipping.
6. Use only the hose and regulator assembly provided with the heater.
7. Inspect hose assembly before each use of the heater. If there is excessive abrasion or wear, or hose is cut, replace with hose assembly listed on parts list before using heater.
8. This heater is for OUTDOOR USE ONLY, even so, make sure that there is ample fresh air ventilation. Do not use in buildings, garages or other enclosed spaces.
9. If at any time gas odor is detected, IMMEDI ATELY DISCONTINUE operation until the source of gas has been located and corrected. Read Propane Safety, page 4 for additional information about detecting propane leaks.
10. Install the heater such that it is not directly exposed to water spray, rain and/or dripping water.
11. Maintain minimum clearance to people or normal combustible material (like paper) of
3.6 ft. (1100 mm) from top and 2 ft. (609 mm) from the reflector.
12. Operate only on a stable, level surface.
13. Do not spray aerosols near the heater during use or shortly thereafter.
14. Do not clean heater with combustible or cor rosive cleaners. Use warm, soapy water.
15. Check control compartment burners and cir culation air passageways for free air passage, make sure that there are no obstructions. These areas are a common location for spider webs, which can present a dangerous condition, damage the heater and render it unsafe for use. The heater must be checked if any of the following conditions exist:
a) Gas smell along with predominate yellow
tipping of the burner. b) Heater does not reach temperature. c) Uneven burner glow. d) Burner makes popping noises during nor
mal use, other than during shutdown.
114144-01D
www.desatech.com
16. Use only soapy water (1 part liquid dishwash­ing detergent to 3 parts water) to conduct leak tests whenever a propane cylinder is connected. Bubbles indicate a leak.
17. Do not adjust gas regulator. If you are unsure of your appliances gas type or pressure, call a qualified service person.
18. Place the control knob on "OFF" position when heater is not in use.
19. Always disconnect the gas supply after the heater is turned "OFF".
20. Do not move, handle or service while hot or burning.
21. Allow 45 minutes to cool down after use before attempting to move heater.
22. Do not operate this appliance in windy con ditions. Maximum allowable wind speed is 10 mph (16 Km/h).
23. Do not operate this appliance in temperature conditions below 40° F (5° C).
24. Keep heater away from areas where flammable liquids, vapors or solids are stored or used.
25. If operated in salt air environments, the
­unit will require more frequent cleaning;
otherwise, the longevity of the unit will deteriorate rapidly. Use warm soapy water to clean the unit.
26. Items or material, when stored under the heater, will be subjected to radiant heat and could be seriously damaged.
27. Use only in accordance with local codes, or in the absence of local codes, with the National
Fuel Gas Code ANSI Z223.1
.
Any guard or other protective device removed for servicing must be re­placed prior to operating the heater.
-
Surface temperatures become very hot when operating heater. Children
-
and adults should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable mate rials should not be hung from the heater, or placed on or near heater.
-
-
-
3
SAFETY INFORMATION
Continued
Installation and repair should be done by a qualified service person. The heater should be inspected before use and at least annually by a qualified service person. More frequent cleanings may be required as necessary. It is imperative that control compartments, burners and circulating air passageways of the heater be kept clean.
CAUTION: The gas pressure regulator provided with this ap­pliance must be used. This regu­lator is set for an output pressure of 11" W.C. (2.74 kPa).

PROPANE/LP SAFETY

WARNING: For outdoor
use only.
ASPHYXIATION HAZARD
• Do not use this heater for heating human living quarters.
• Do not use in unventilated areas.
• The flow of combustion and ventilation air must not be obstructed.
• Proper ventilation air must be provided to support the combustion air require ments of the heater being used.
• Refer to the Specifications, page 2, heater data plate or contact DESA Heating Prod ucts to determine combustion air ventila tion requirements of the heater.
• Lack of proper ventilation air will lead to improper combustion.
• Improper combustion can lead to carbon monoxide poisoning leading to serious injury or death. Symptom of carbon mon oxide poisoning can include headaches
dizziness and difficulty in breathing.
ASSEMBLY
INSTRUCTIONS
Tools Required:
• #2 Phillips Head Screwdriver 1
• Adjustable Wrench 2 Inspect heater components for possible shipping
damage. If any is found, immediately notify the dealer. Check to make sure that all components are included with your heater (see pages 10 and 11).
POLE ASSEMBLY
1. Attach legs to base using two bolts, two lock washers and two nuts (see Figure 1). Insert bolts through legs and into top of base. Attach lock washers and nuts from underneath base. Finger tighten only. Repeat for each leg. Do not fully tighten until next step.
2. Secure pole support to legs using two bolts, two lock washers and two nuts. Repeat for each leg. Wrench tighten nuts and bolts from step 1 and 2.
3. Attach ballast weight to base using one, long bolt, lock washer and nut (see Figure 1).
Pole Support
Legs
-
-
-
Base
-
Ballast Weight

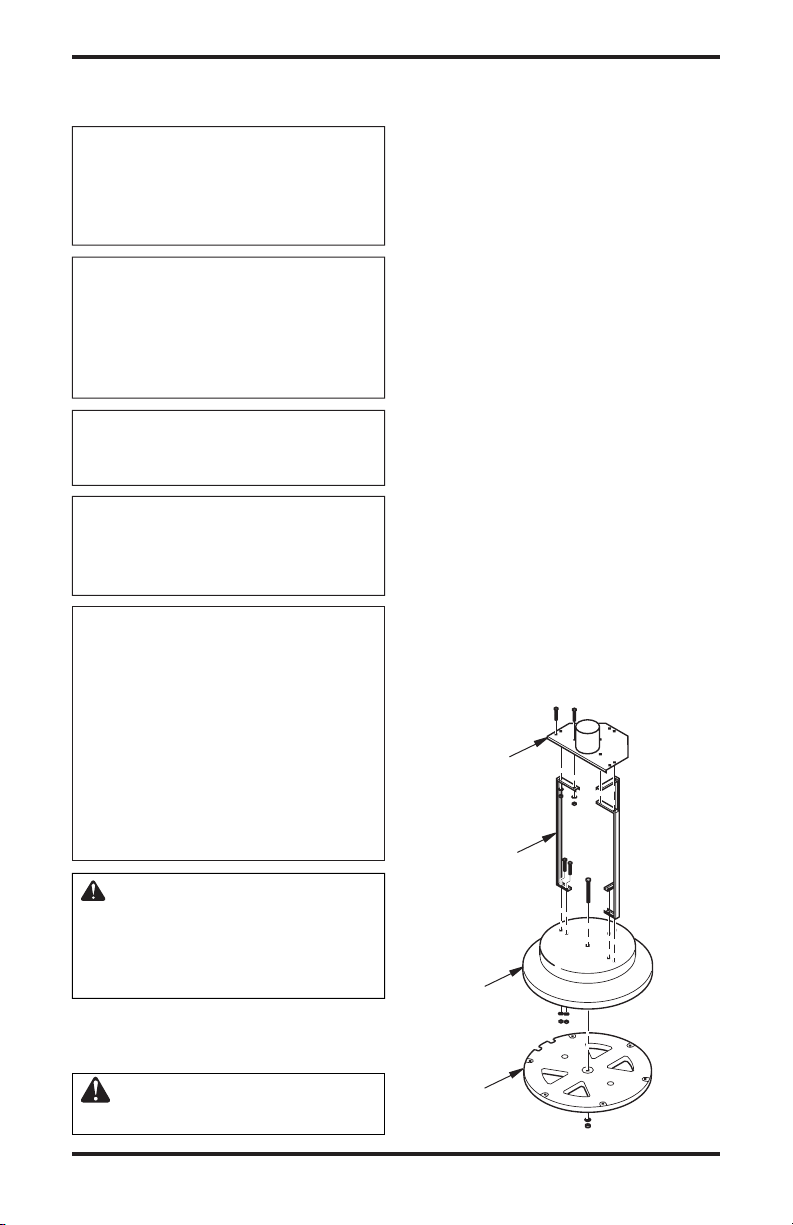

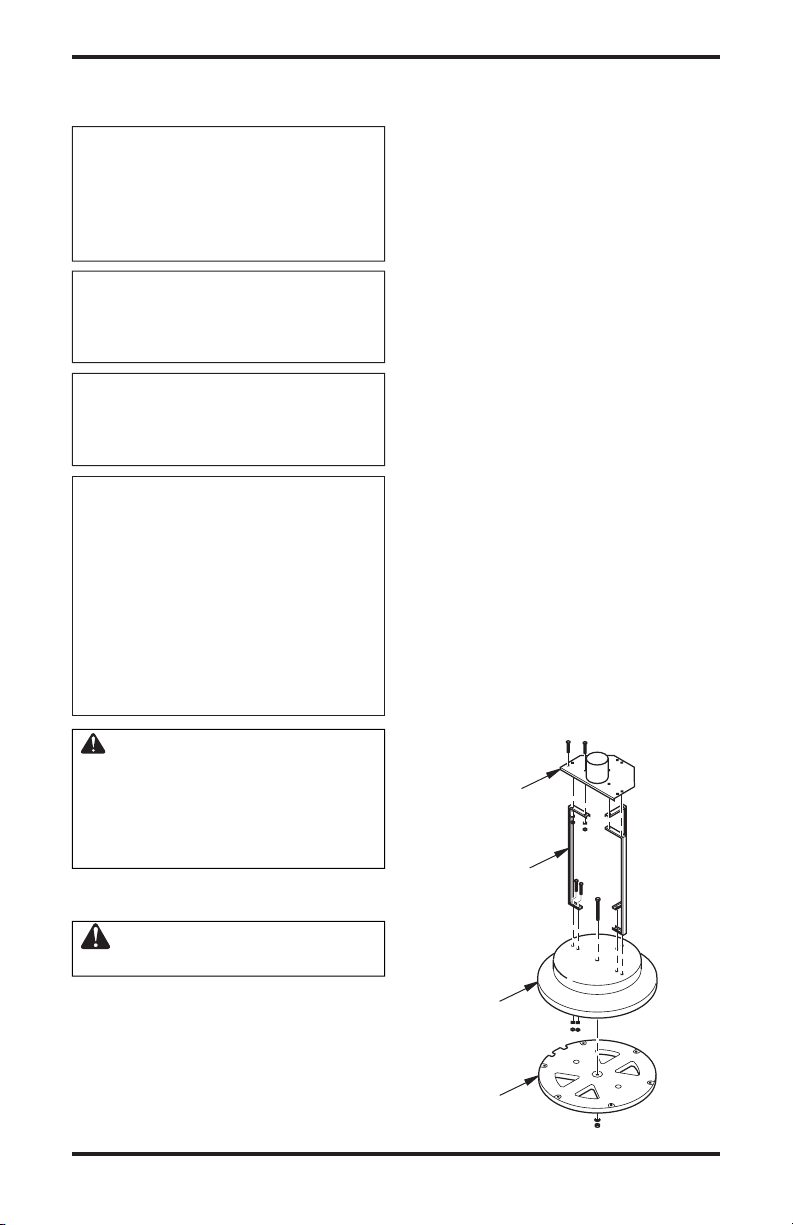

Figure 1 - Base Assembly
4
www.desatech.com
114144-01D

ASSEMBLY INSTRUCTIONS

Continued

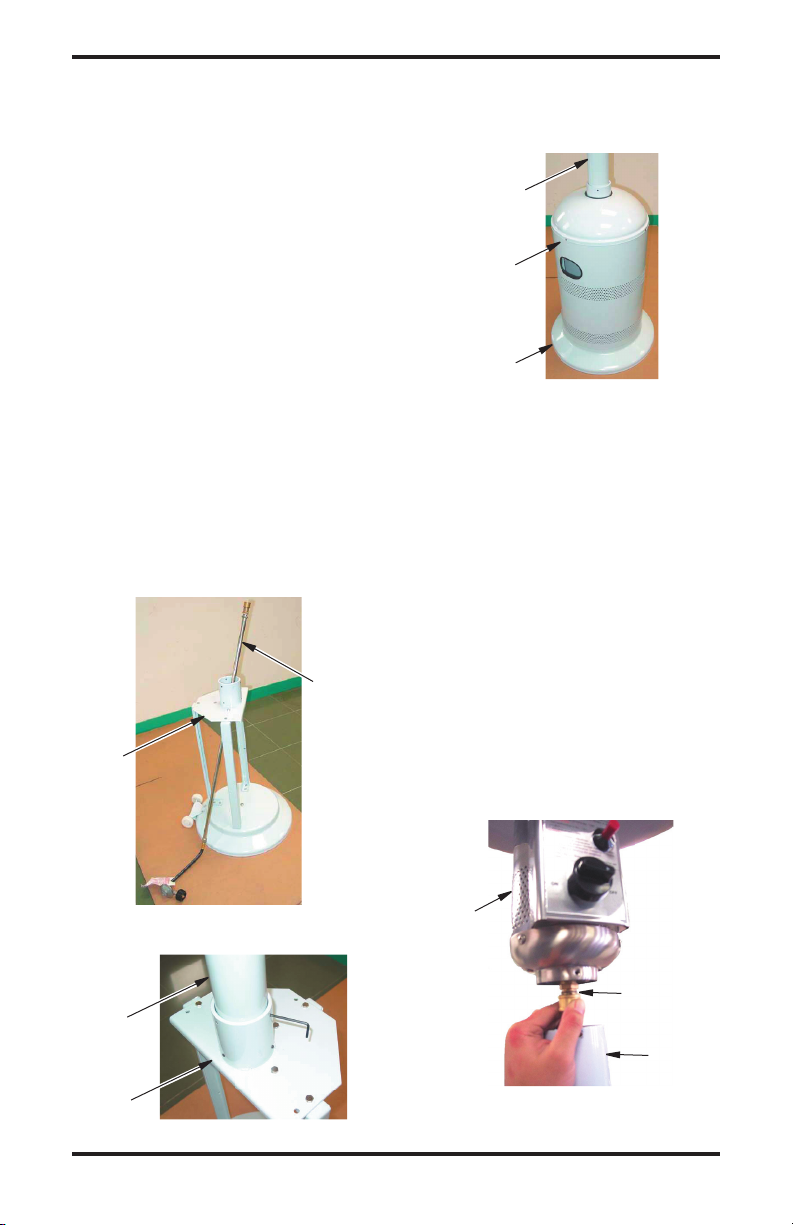

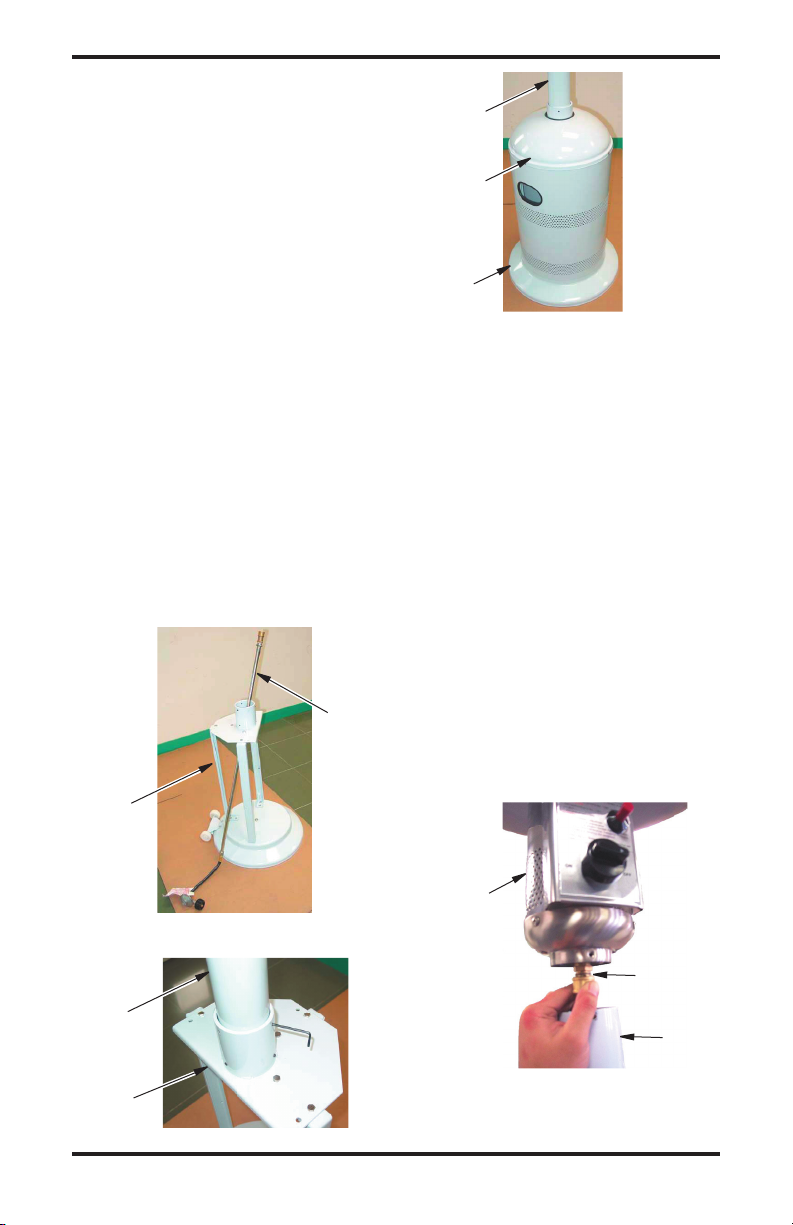

4. Insert manifold into pole support (see Figure 2). Insert the manifold assembly through the post by passing through the hole in the post support. Note: Make sure hose and regulator assembly attached to manifold are never bent or kinked during installation and operation of heater.
5. Attach pole to pole support (Figure 3). Place pole into pole support center connector. Tighten six set screws with hex allen wrench supplied with heater. Note: Set screws are threaded inside post support.
6. Put propane/LP cylinder cover on base as sembly (see Figure 4). Slide propane/LP cylinder cover over pole and pole support. Be sure that propane/LP cylinder cover rests level on the base.
Manifold Assembly
Pole Support
Pole
Propane/LP Cylinder Cover
Base
Figure 4 - Propane/LP Cylinder Cover
-
BURNER AND CONTROL ASSEMBLY
The connection between the fuel line to the burner is a quick connect connection type. Follow these steps to assemble, while referring to Figure 5.
1.
Pull manifold out of top end of pole.
2. Slide/move quick connect collar of manifold to the back.
3. Attach manifold to burner and control assem bly by pushing burner and control assembly connection all the way through manifold.
4. Make sure manifold and burner assembly snap in properly.
5. Release the quick connect collar of manifold that was slid to the back in step 2.
6. Place burner and control assembly onto pole.
-
Figure 2 - Installing Manifold Assembly
Pole
Pole Support
Figure 3 - Pole to Pole Support
114144-01D
www.desatech.com
Burner and Control Assembly
Manifold Assembly
Pole
Figure 5 - Connecting Manifold Assembly
to Burner and Control Assembly
5
ASSEMBLY INSTRUCTIONS
Continued
CHECK FOR LEAKS
IMPORTANT: The heater must be leak tested be­fore any further assembly is done. Use only a soap and water solution. DO NOT USE FLAME.
Turn control knob to the OFF position. Securely connect regulator to propane/LP gas cylinder. Open propane/LP cylinder valve. Apply a soap and water solution to connections at the manifold, burner, and control assembly. Bubbles forming show a leak. In case of any leaks, turn off pro pane/LP cylinder valve, remove manifold, check and clean connection. Reconnect manifold and leak test again.
Upon completion of leak test, and when there is no sign of a leak, turn off propane/LP cylinder valve and disconnect regulator from propane/LP gas cylinder. Remove propane/LP gas cylinder and continue to next step.

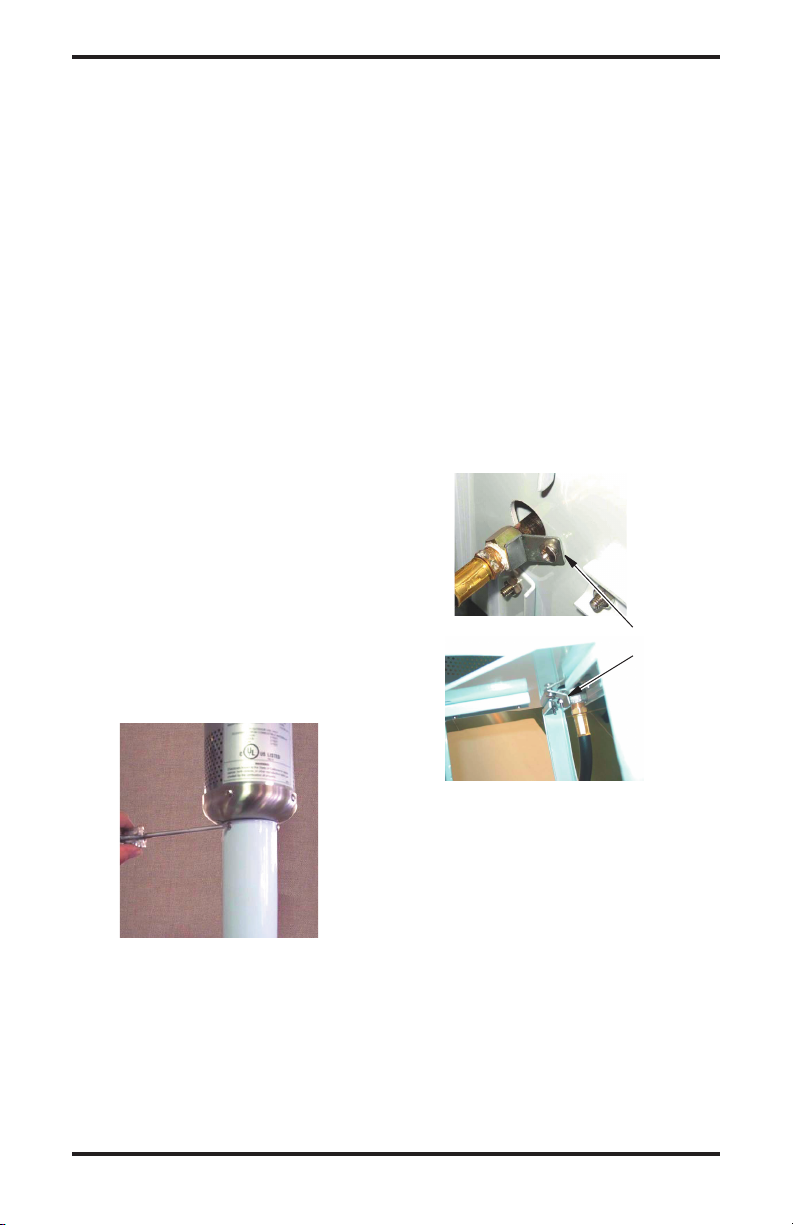

POLE AND BURNER/CONTROL ASSEMBLY

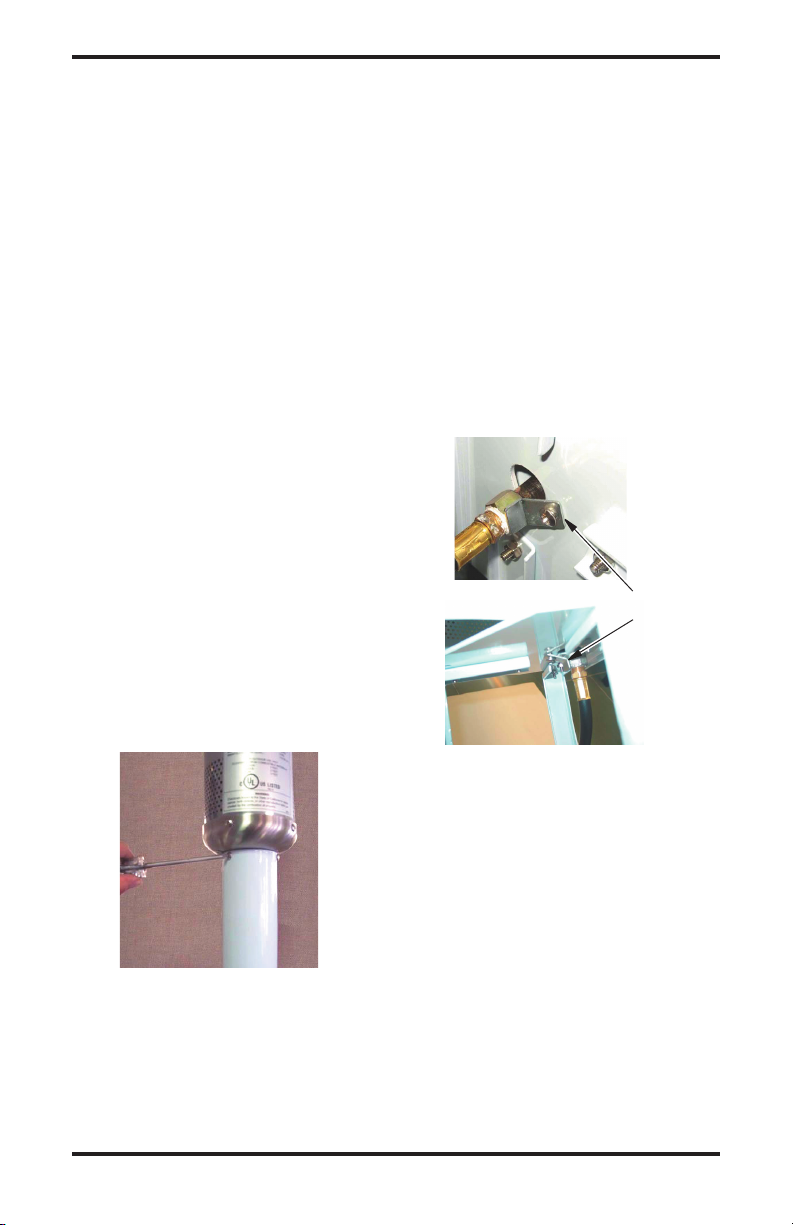

Attach pole to burner and control assembly (see Figure 6). Align the three holes. Insert a small bolt in each hole and tighten using #2 Phillips head screwdriver.
MANIFOLD FIXING PLATE AND POLE SUPPORT
1. Locate threaded hole underneath post support. This hole is for mounting manifold fixing plate (see Figure 7).
2. Align holes on manifold fixing plate with threaded holes on pole support.
3. Make sure manifold fixing plate is facing downward see (Figure 7).
4. Use a bolt to tighten manifold fixing plate to post support using #2 Phillips head screw driver.
-
5. Turn manifold fixing plate so it will hold manifold in place.
6. Tighten bolt so manifold fixing plate will not move.
Manifold Fixing Plate
-
Figure 6 - Attach Burner and Control
Assembly to Pole
6
Figure 7 - Attaching Manifold Fixing
www.desatech.com
Plate to Post Support
114144-01D
ASSEMBLY INSTRUCTIONS
Continued

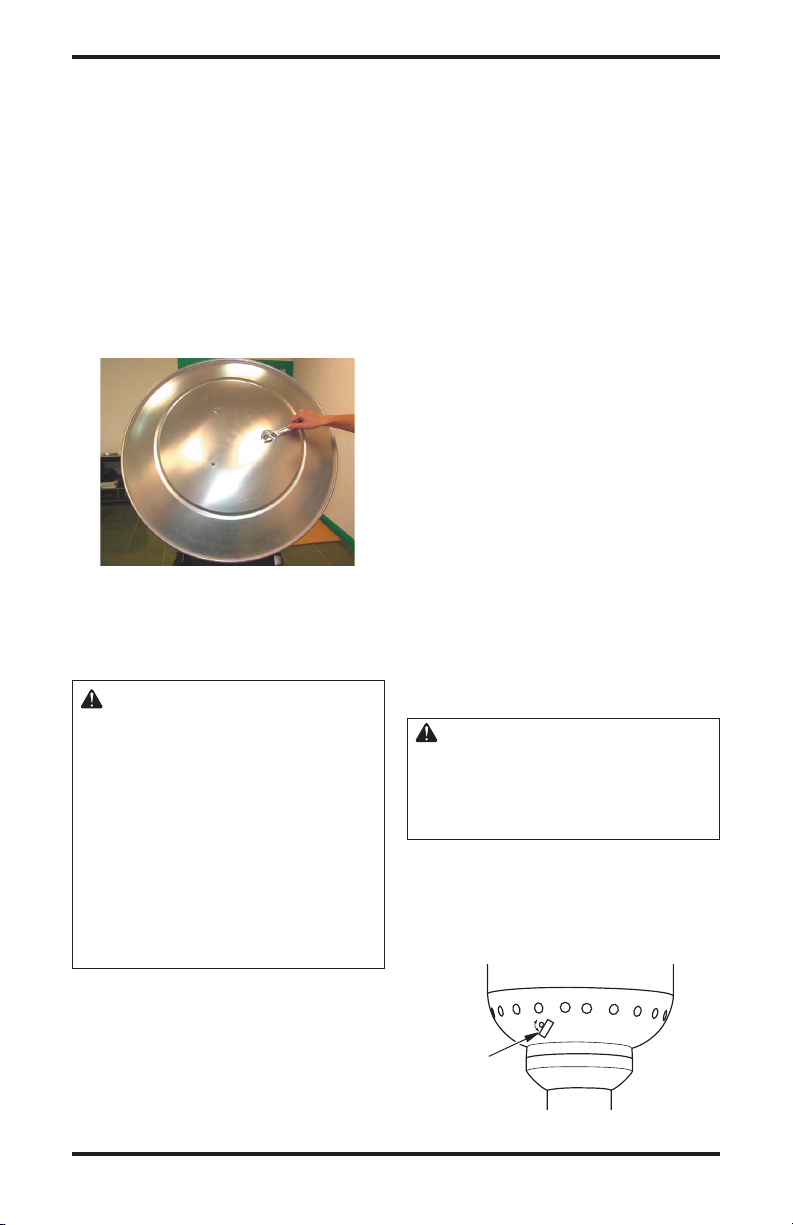

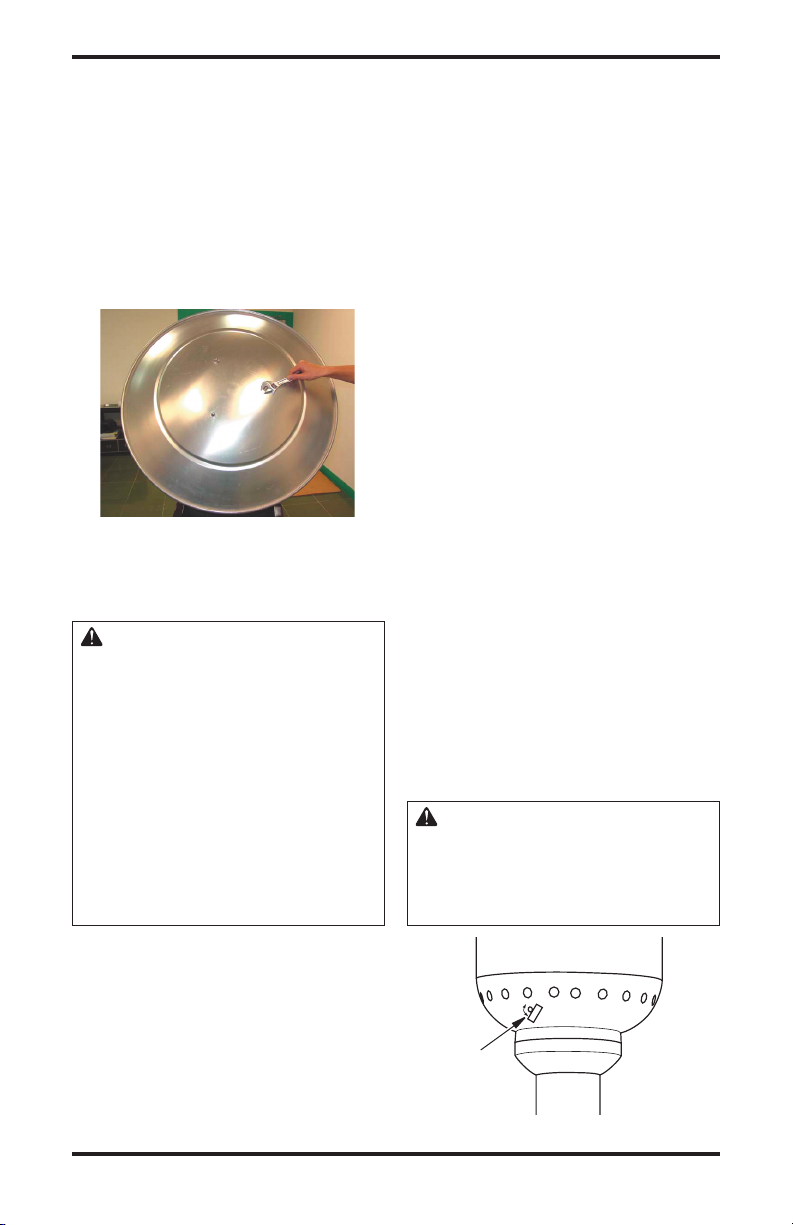

DOME AND EMITTER
Gently lay heater assembly on its side using one of the shipping styrofoam inserts to prop up the top half of heater. Align holes in dome with threaded studs in emitter cover. Secure dome to emitter using three cap nuts. Tighten with an adjustable wrench. Stand heater back to upright position.
Figure 8 - Attaching Dome to Emitter
OPERATING
INSTRUCTIONS
WARNING: If you smell gas:
• Shut off gas to the appli ance.
• Extinguish any open flames.
• If odor continues, immediately call your gas supplier.
See safety warnings and pre cautions starting on the front page of this manual for more information.
-
-
4. Place propane/LP gas cylinder inside cylinder base. Securely connect regulator to propane/LP gas cylinder.
5. Turn cylinder valve on. Apply a soap and water solution to connection at regulator and cylinder. Bubbles forming show a leak.
6. In case of any leaks, turn off propane/LP cyl inder valve, undo leaking connection. Check and clean connection. Reconnect regulator and leak test again.
START
1. Purge gas line leading to pilot assembly. Press and turn control knob to HIGH position, keep ing it pressed in for 1 to 2 minutes. Note: When a new or refilled gas cylinder is installed, heater will need to be purged again.
2. To light the pilot: a) Press control knob and turn to the PILOT
position.
b) Hold control knob in and press ignition
button until the pilot lights.
c) Keep control knob pressed in for 30 sec
onds to heat thermocouple.
d) Release control knob and pilot should re
e) Once pilot flame stays on, close viewing
Note: To visually check ignition
main lit. of pilot, slide viewing hole cover to either side (see Figure 9).
hole cover.
CAUTION: Do not attempt to slide the viewing hole cover when the main burner is lighting, operating or hot.
-
-
-
-
PREPARING FOR OPERATION
1. Check heater for possible shipping damage. If any is found, immediately notify the factory.
2. Follow all safety information.
3. Check and assure control knob is in the OFF position.
114144-01D
www.desatech.com
Viewing Hole and Cover
Figure 9 - Viewing Hole and Cover
7
OPERATING INSTRUCTIONS
Continued
3. To match light pilot, rotate the viewing hole cover and apply flame to the pilot burner while holding knob in for 20 seconds or until pilot remains lit when knob is released.
4. Set the heat level. a) Press and turn control knob to the HIGH
position. Burner will light immediately.
b) Press and turn control knob to the desired
heat level. Note: While in use, burner flame should be mainly blue in appearance
with a small amount of yellow. IMPORTANT: Smoke and odor (not a gas odor) emission may occur in the first 15 minutes of use. Run heater at high setting for at least 15 minutes to eliminate this problem.
WARNING: If you smell gas while in use, immediately press and turn control knob to the OFF position to shutdown heater.
STOP
1. Press and turn control knob to the PILOT position. Burner will extinguish but pilot will stay on.
2. To extinguish pilot, press and turn control knob to the OFF position.
3. Turn off gas supply.
4. Do not attempt to relight the heater for 5 minutes after propane/LP cylinder valve has been closed.
RESTART HEATER
1. Turn gas control knob to the OFF position.
2. Wait 5 minutes.
3. Restart following
Start procedure.

STORAGE

1. Allow at least 45 minutes for heater to cool down after using.
2. Store heater upright in a sheltered area away from inclement weather and dust.
3. If desired, cover heater after heater has cooled.
4. If heater is not to be used for an extended period of time, disconnect and remove propane/LP gas cylinder and store in accordance with the
Standard for Storage and Handling of Liquefied Petroleum Gases, ANSI/INFPA 58.

SERVICING

To assure safety, proper function and longevity of the heater, regular maintenance is required. The frequency of maintenance will depend on the usage of the unit. Review the following concern ing the criteria for a properly functioning heater. Failing to follow proper, regular maintenance will void warranty.
A hazardous condition may result if a heater is used that has been modified or is not functioning properly. When the heater is working properly:
• The flame is contained within the heater.
• The flame is essentially blue with perhaps some
yellow tipping.
• There is no strong disagreeable odor, eye burn
ing or other physical discomfort.
• There is no smoke or soot internal or external
to the heater.
• There are no unplanned or unexplained shut
downs of the heater.
The parts lists and wiring diagram show the heater as it was constructed. Do not use a heater which is different from that shown. In this regard, use only the hose, regulator and cylinder connection fitting (called a POL fitting) supplied with the heater. IMPORTANT: Do not use alternates. For this heater, the regulator must be set as shown in Speci- fications, page 2. If there is any uncertainty about the regulator setting, have it checked.
-
-
8
www.desatech.com
114144-01D

REPLACEMENT PARTS

WARNING: Use only original replacement parts. This heater must use design-specific parts. Do not substitute or use generic parts. Improper replacement parts could cause serious or fa­tal injuries. This will also protect your warranty coverage for parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If they canʼt supply original replacement part(s), either contact your nearest Parts Central or call DESA Heating Productsʼ Technical Service Department at 1-866-672-6040.
When calling DESA Heating Products, have ready
• your name
• your address
• model number of your heater
• how heater was malfunctioning
• purchase date
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If they canʼt supply original replacement part(s), either contact your nearest Parts Central (listed in Authorized Service Center booklet) or call DESA Heating Products at 1-866-672-6040 for referral information.
When calling DESA Heating Products, have ready
• model number of your heater
• the replacement part number

TECHNICAL SERVICE

A heater which is not working right must be re­paired, but only by a trained, experienced service person. To find the service center closest to you, or if you have further questions about this heater, contact DESA Heating Productsʼ Technical Service Department at 1-866-672-6040. When calling, please have your model and serial numbers of your heater ready.
You can also visit DESA Heating Productsʼ Techni cal Service web site at www.desatech.com. You may also obtain in-warranty or out-of-war
ranty service by taking the product to your local service center.
-
-
114144-01D
www.desatech.com
9
ILLUSTRATED PARTS BREAKDOWN
1
21
20
10
22
29
28
27
25
24
26
23
9
7
6
5
4
3
8
2
11
12
17
16
19
18
15
14
13
14
(Model
SPC-54PHS
Only)
MODELS SPC-54PHW, SPC-54PHB, SPC-54PHT AND SPC-54PHS
10
www.desatech.com
114144-01D
PARTS LIST
This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 9 of this manual.
KEY PART NO. NUMBER DESCRIPTION QTY.
1 114133-01 Reflector 1 2 114102-01 Emitter Assembly 1 3 114104-01 Burner Assembly 1 4 114113-01 Burner Cover Bottom 1 5 114126-01 Orifice, Main Burner 1 6 114130-01 Adiabatic Plate 1 7 114138-01 Tip Switch 1 8 114140-01 Fuel Tube 1 9 114142-01 Valve 1 10 114115-01 Valve Housing Cover 1 11 114129-01 Front Cover Panel 1 114129-02 Front Cover Panel (SPC-54PHS only) 1 12 114136-01 Shield, Pilot Wind 1 13 114105-01 Pilot Assembly 1 14 102445-01 Piezo Ignitor Kit 1 114187-01 Electronic Ignitor Kit (SPC-54PHS only) 1 15 114117-01 Ignition Wire 1 16 114141-01 Pilot Tube 1 17 114180-01 Knob 1 18 114114-01 Valve Cover Base 1 19 114112-01 Valve Mounting Bracket 1 21 114101-01 Fuel Line Adaptor 1 22 114139-01 Tank Cover Assembly (White) 1 114139-02 Tank Cover Assembly (Bronze) 1 114139-03 Tank Cover Assembly (Black) 1 114139-04 Tank Cover Assembly (Stainless Steel) 1 23 114116-01 Guards, Rubber Handle 1 24 114103-01 Manifold Assembly (Fuel line, hose, regulator) 1 25 114132-01 Pole (White) 1 114132-02 Pole (Bronze) 1 114132-03 Pole (Stainless Steel) 1 114132-04 Pole (Black) 1 26 114137-01 Pole Support (White) 1 114137-02 Pole Support (Bronze) 1 114137-03 Pole Support (Black) 1 27 114108-01 Base Legs (Black) 3 114108-02 Base Legs (Bronze) 3 114108-03 Base Legs (White) 3 28 114107-01 Base (Black) 1 114107-03 Base (Bronze) 1 114107-04 Base (White) 1 29 114131-01 Ballast Plate 1
PARTS AVAILABLE - NOT SHOWN
114106-01 Wheel Assembly 1 114122-01 Model Decal SPC-54 1 114123-01 Operating Instruction Label (English) 1 114124-01 Warning Label (English) 1 114124-02 Warning Label (Spanish) 1 114124-03 Warning Label (French) 1 114124-04 Operating Instruction Label (Spanish) 1 114124-05 Operating Instruction Label (French) 1 114127-01 Hardware Package 1
114144-01D 11
www.desatech.com
Loading...
+ 25 hidden pages
