DESA SL-5412 User guide

Motion Sensor Light Control
OPERATION
Mode: On-Time: Works: Day Night
Test 5 Sec x x Auto 1, 5, 10 min. x Manual Until Dawn* x
* resets to Auto Mode at dawn.
As an ENERGY STAR® Partner, Heath®/ Zenith has determined that this product meets the ENERGY STAR
®
STAR
compliant when used with 120 Watt bulbs.
energy efficiency. This product is ENERGY
®
guidelines for
Model SL-5412

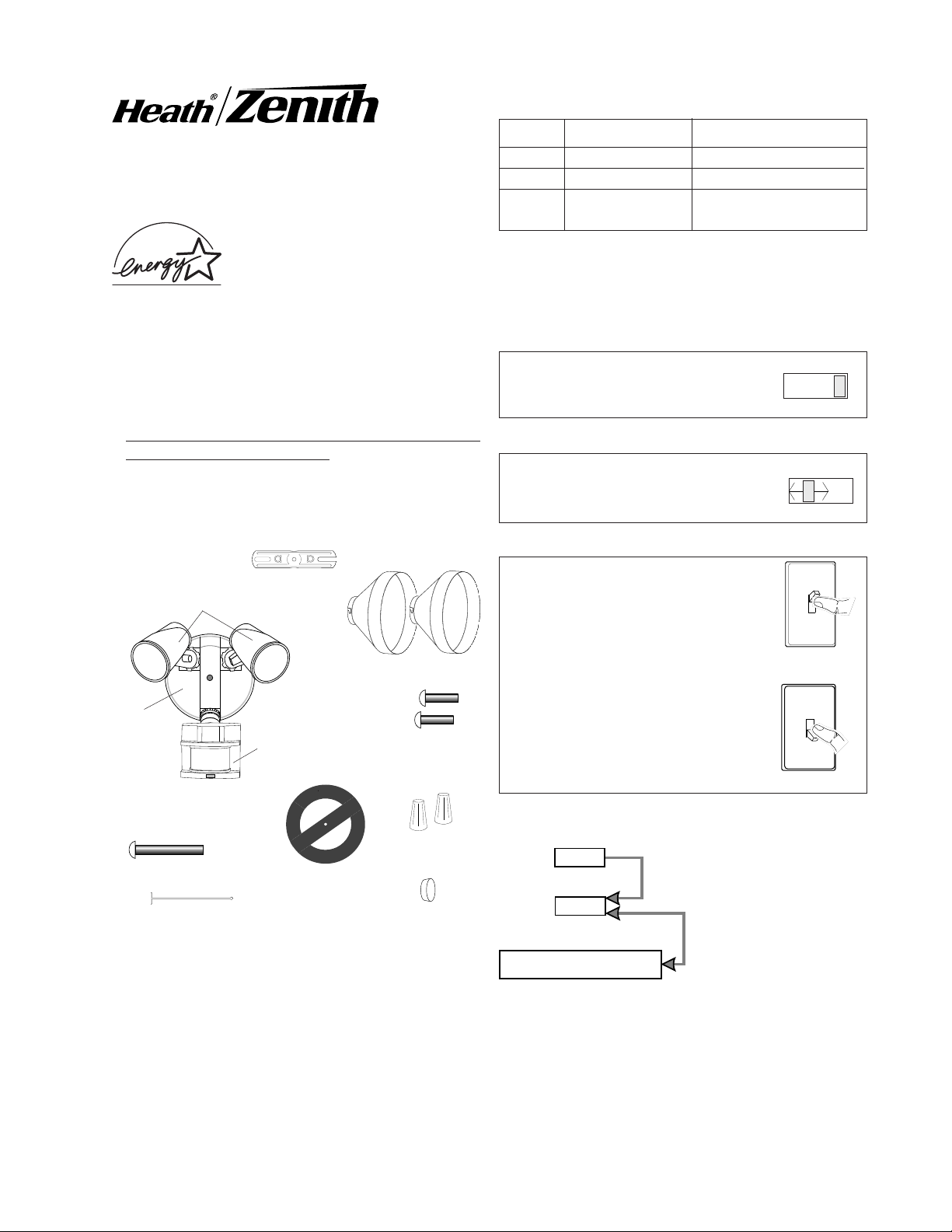

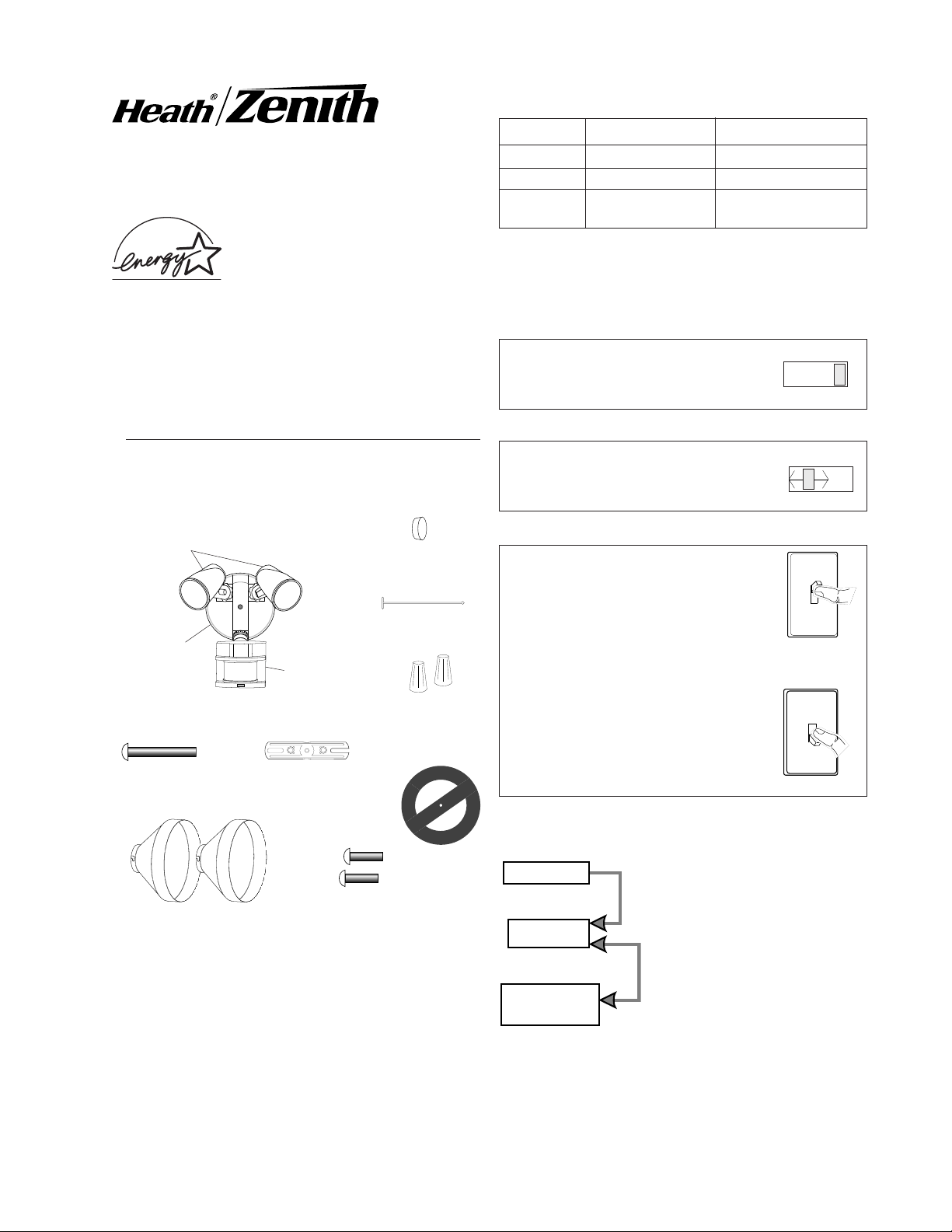

Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
This package includes:
Lamp Holders
Cover
Plate
Rubber Plug
2 Shells
Gasket
Sensor
Note: When first turned on wait about 1 1/2 minutes for
the circuitry to calibrate.
TEST
Put the ON-TIME switch on the bottom of the sensor in the TEST position.
AUTO
Put the ON-TIME switch in the 1, 5 or 10 minute position.
MANUAL MODE
Manual mode only works at night because daylight returns the sensor to AUTO.
Flip the light switch off for one second then back on to toggle between AUTO and MANUAL MODE.
Manual mode works only with the ON­TIME switch in the 1, 5, or 10 position.
ON-TIME
10 5 1 TEST
ON-TIME
10 5 1 TEST
1 Second OFF
then...
Light Control
6 Screws
(3 sizes included)
... back on.
Mode Switching Summary
Mounting Strap
Mounting Bolt
2 Wire
Plastic
Hanger
Connectors
Requirements
• The Light Control requires 120-volts AC.
• If you want to use Manual Mode, the control must be wired through a switch.
Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed gasket and with a junction box marked for use in wet locations.
© 2002 DESA International 595-5545-06
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the calibration time the control will be in the AUTO mode.
TEST
AUTO
MANUAL MODE
Move ON-TIME Switch to
1, 5 or 10 minutes
Flip light switch off
for one second then
back on*

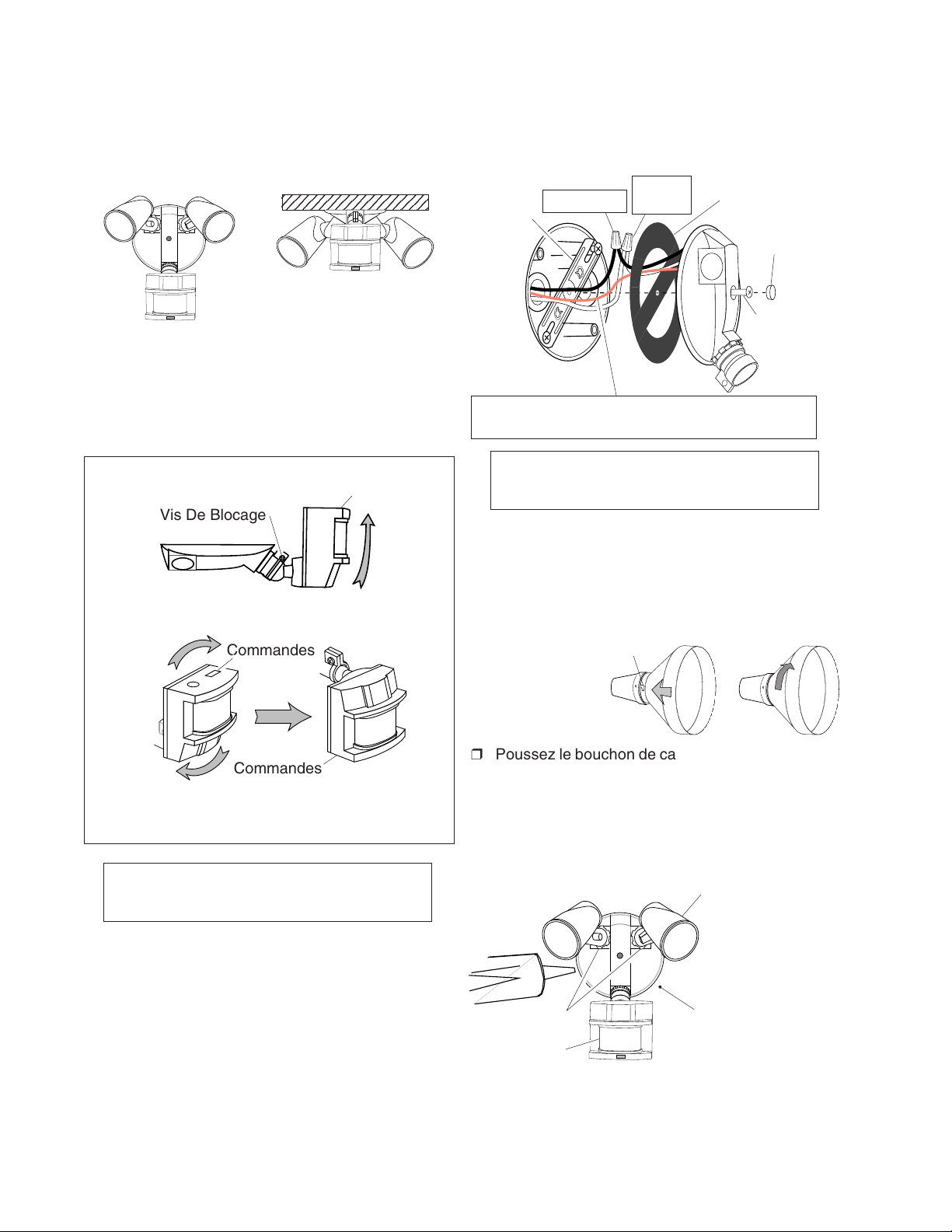

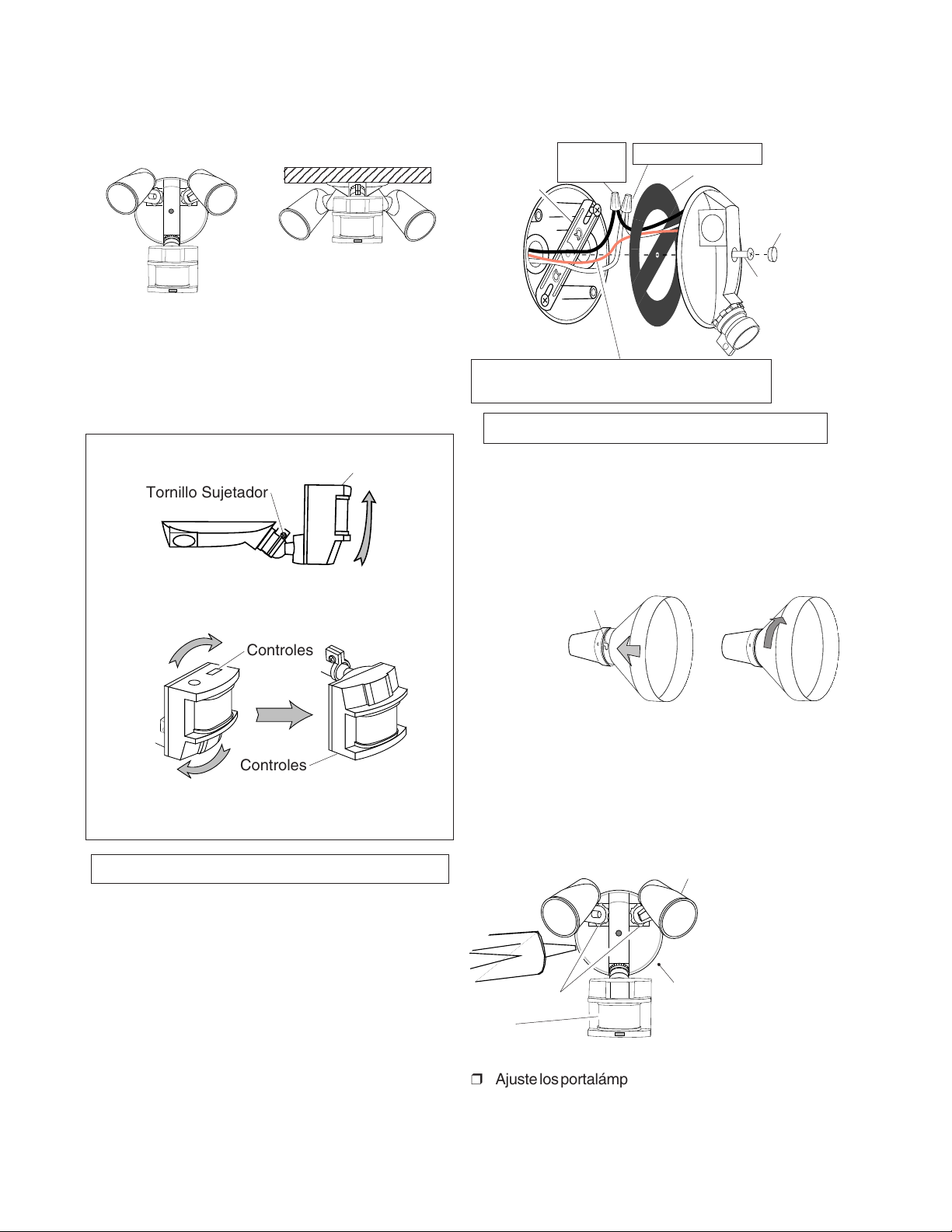

INSTALLATION
9
For easy installation, select an existing light with a wall switch for replacement.
23456789012345678
Twist the junction box wires and fixture wires together
as shown. Secure with wire connectors.
Mounting
Strap
Black to Black
White to White
Rubber
Plug
Wall Mount
Eave Mount
For under eave installation, the sensor head must be rotated as shown in the next two steps for proper
operation and to avoid the risk of electrical shock.
For eave mount only:
Swing the sensor head towards the clamp screw
joint.
Controls
Clamp Screw
Then rotate the sensor head clockwise 180° so the
controls face down.
Controls
Controls
If the sensor pops out of the ball joint, loosen the clamp screw and push the sensor back into the ball joint. Tighten the clamp screw when done.
WIRE THE LIGHT CONTROL.
Mounting
Bolt
Gasket
Junction box ground wire to green ground screw on fixture.
MOUNT THE LIGHT CONTROL.
Align the Light Control cover plate and cover plate
gasket. Secure with the mounting bolt.
Align the three slots in the decorative shell with the
lamp holder pins. Push the shell in and then twist clockwise to lock. Repeat for other shell.
Shell Slot
Push the Rubber Plug firmly into place.If a wet location junction box was not used, caulk
the wall plate mounting surface with silicone weather sealant.
To avoid water damage and electrical shock, keep lamp holders 30° below horizontal.
Turn power off at the fuse or circuit breaker.Remove the existing light fixture.Install the mounting strap as shown using two screws
that fit your junction box.
The plastic hanger can be used to hold the fixture
while wiring. The small end of the plastic hanger can be threaded through the hole in the center of the cover plate. The small end then goes into one of the slots on the mounting strap.
Route the Light Control’s wires through the large
gasket holes.
Keep lamps at least 1" (2.5 cm) from the
Lock Nut
sensor. Do not al­low the lamps to block the lens.Lens
Adjust the lamp holders by loosening the lock nuts
but do not rotate the lamp holders more than 180° from the factory setting. When screwing in the floodlamps, do not overtighten.
2
595-5545-06

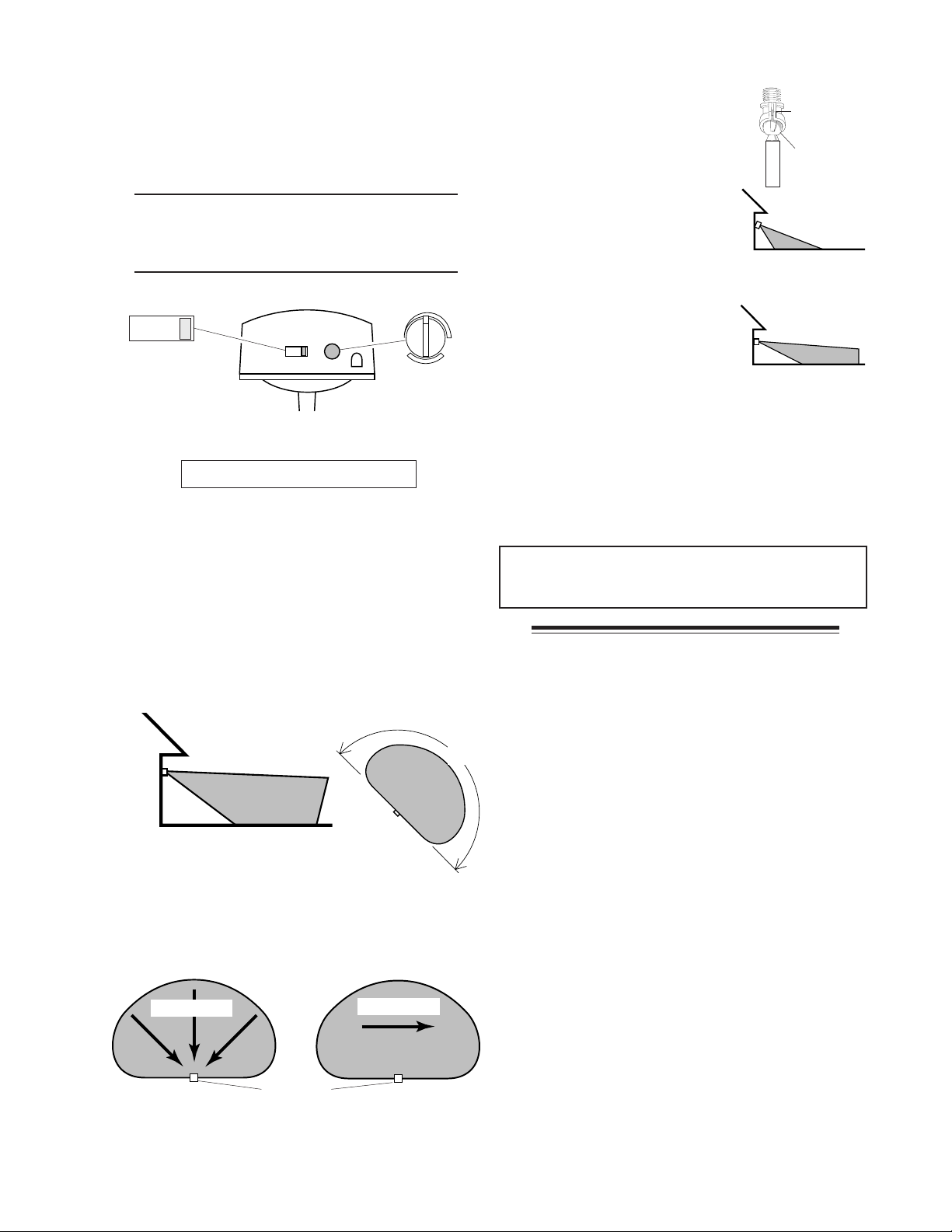

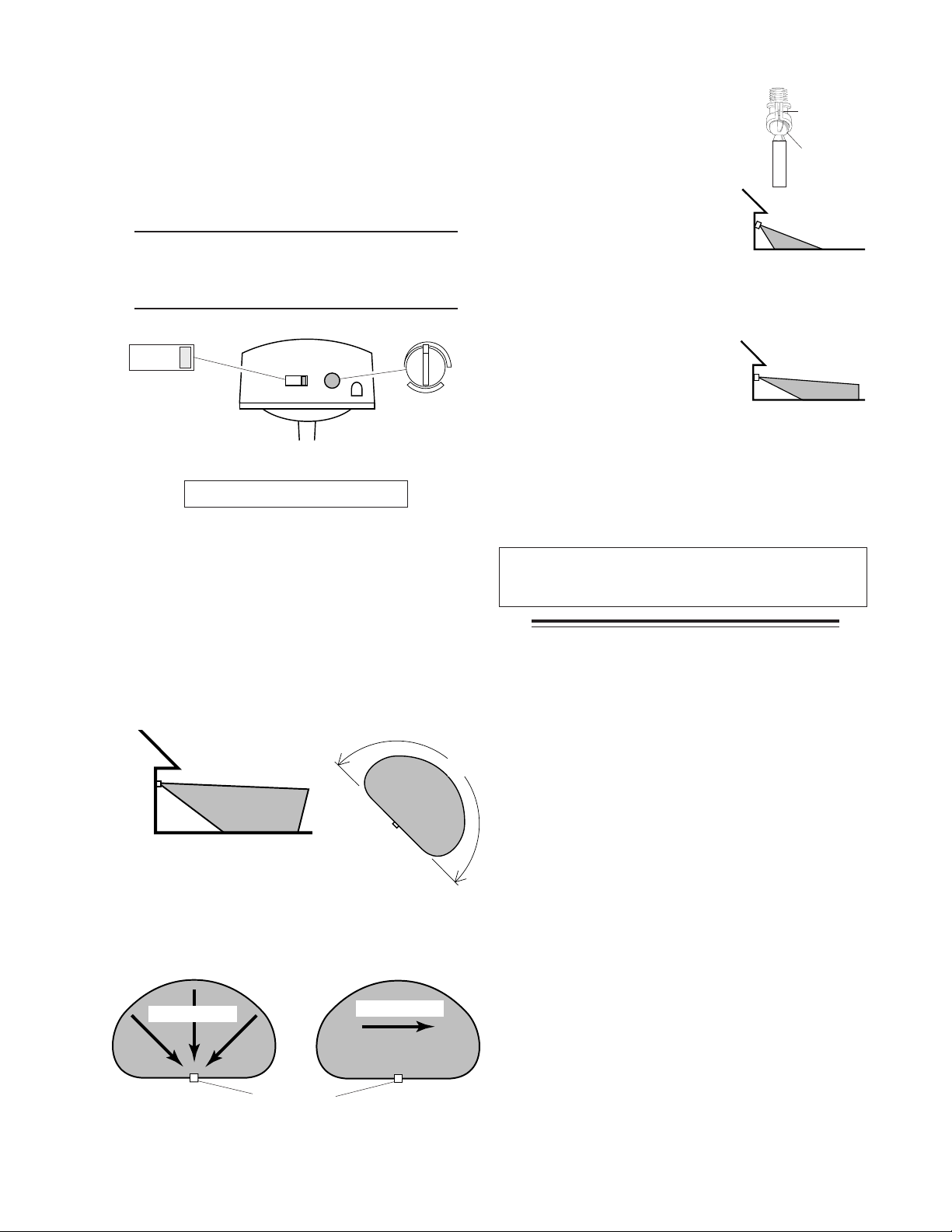

TEST AND ADJUSTMENT
Turn on the circuit breaker and light switch.Turn the RANGE control to the mid position and the
ON-TIME control to the TEST position.
NOTE: Sensor has a 1 1/2 minute warm up period
before it will detect motion. When first turned on, wait 1 1/2 minutes.
ON-TIME
10 5 1 TEST
Bottom of Sensor
Avoid aiming the control at:
• Objects that change temperature rapidly, such as heating vents and air conditioners. These heat sources could cause false triggering.
• Areas where pets or traffic may trigger the control.
Nearby large, light-colored objects reflecting light may trigger the shut-off feature. Do not point other lights at the sensor.
8 ft.
(2.4 m)
70 ft.
(21 m)
Maximum Range Maximum
Coverage Angle
The detector is most sensitive to motion across its field of view.
RANGE
MIN MAX
180°
Loosen the clamp screw in
the sensor ball joint and gen­tly rotate the sensor.
Walk through the coverage
area noting where you are when the lights turn on (also, the LED will flash several times when motion is detected). Move the sensor head up, down, or sideways to change the coverage area. Keep the
sensor at least 1" (2.5 cm) away from the lamps.
Adjust the RANGE as needed.
RANGE set too high may increase false triggering.
Secure the sensor head by
tightening the clamp screw.
Do not overtighten the screw.
Set the amount of TIME you want the lights to stay
on after motion is detected (1, 5 or 10 minutes).
Warning - Risk of fire. Do not aim the lamps at a combustible surface within 3 ft. (1 m).
Down for Short
Higher for Long
Clamp Screw
Ball Joint
Aim Sensor
Coverage
Aim Sensor
Coverage
SPECIFICATIONS
Range . . . . . . . . . . . . Up to 70 ft. (21 m) [varies with
surrounding temperature].
Sensing Angle . . . . . . Up to 180°
Electrical Load. . . . . . Up to 300 Watt Maximum In-
candescent [Up to 150 Watt
maximum each lamp holder.] Power Requirements. 120 VAC, 60 Hz
Operating Modes. . . . TEST, AUTO and MANUAL
MODE
Time Delay . . . . . . . . 1 , 5, 10 minutes
Range . . . . . . . . . . . . Adjustable
Heath®/Zenith reserves the right to discontinue prod­ucts and to change specifications at any time without incurring any obligation to incorporate new features in products previously sold.
Motion
Sensor
Motion
Least Sensitive Most Sensitive
595-5545-06
3
TROUBLESHOOTING GUIDE
SYMPTOM Lights will not come
on.
Lights come on in daylight.
Lights come on for no apparent rea­son.
POSSIBLE CAUSE
1. Light switch is turned off.
2. Flood light is loose or burned out.
3. Fuse is blown or circuit breaker is turned off.
4. Daylight turn-off is in effect
check after dark)
5. Incorrect circuit wiring, if this is a new installation.
6. Re-aim the sensor to cover de­sired area.
1. Light Control may be installed in a relatively dark location.
2. Light Control is in Test.
(Set control switch to an ON-TIME position)
1. Light Control may be sensing small animals or automobile traf­fic
(re-aim sensor)
2. Range is set too high.
(Reduce Range)
.
.
.
.
(re-
SYMPTOM Lights stay on
continuously.
Lights flash on and off.
POSSIBLE CAUSE
1. A flood lamp is positioned too close to the sensor or pointed at nearby ob­jects that cause heat to trigger the sensor.
from the sensor or nearby objects)
2. Light Control is pointed toward a heat source like an air vent, dryer vent, or brightly-painted heat-reflective sur­face.
3. Light Control is in Manual Mode.
(Switch to Auto.)
1. Heat or light from the lamps may be turning the Light Control on and off.
(Reposition the lamps away from the sensor)
2. Heat being reflected from other ob­jects may be affecting the sensor.
(Reposition sensor)
3. Light Control is in the Test mode and warming up.
der these conditions)
4. Light may be leaking through the floodlamp reflectors.
metal lamp protectors are installed.)
(Reposition the lamp away
(Reposition sensor)
.
(Flashing is normal un-
.
.
.
(Make sure the
.
TECHNICAL SERVICE
(Do Not Send Products)
If you experience a problem, follow this guide. You may also want to visit our Web site at: www.desatech.com. If the problem persists, call* for assistance at 1-800-858-8501, 7:30 AM to 4:30 PM Central Time weekdays. You may also write* to: DESA International, Inc. P.O. Box 90004, Bowling Green, KY 42102-9004
* If contacting Technical Service, please have the following information available: Model Number, Date of Purchase, and Place of Purchase.
No Service Parts Available for this Product
YOUR HEATH®/ZENITH TEN YEAR LIMITED WARRANTY
This is a "Limited Warranty" which gives you specific legal rights. You may also have other rights which vary from state to state or province to province. For a period of ten years from the date of purchase, any malfunction caused by factory defective parts or workmanship will be corrected at no charge to you. Light bulbs are not covered. To obtain a refund or a replacement, return the product to the place of purchase. Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs and other expendable items are not covered by this warranty. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, or unauthorized service. This warranty covers only Heath®/Zenith assembled products and is not extended to other equipment and components that a customer uses in conjunction with our products. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDEN­TAL, OR CONSEQUENTIAL DAMAGES. REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF DESA FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Retain receipt for warranty claims.
4
595-5545-06
