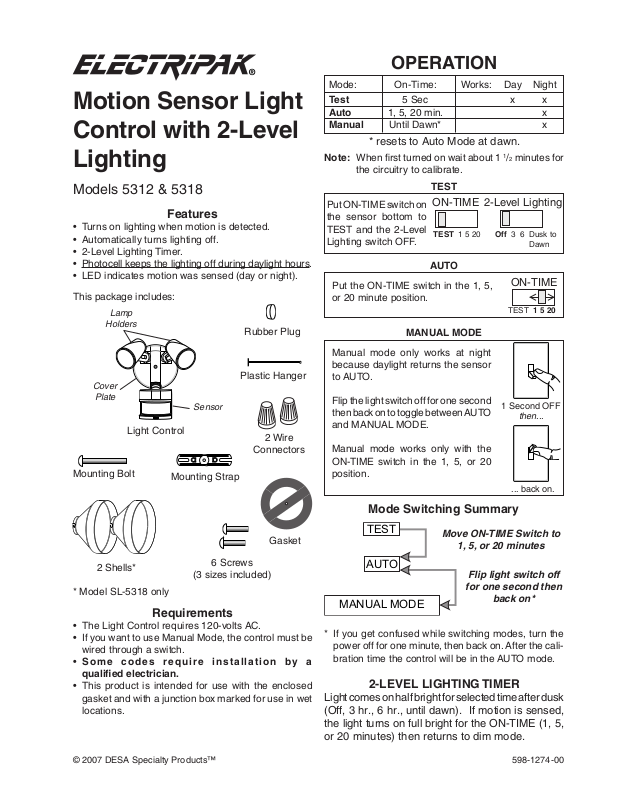

Desa SL-5326 User Manual
®
Motion Sensor Light
Control with 2-Level
Lighting
Models 5312 & 5318
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• 2-Level Lighting Timer.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).

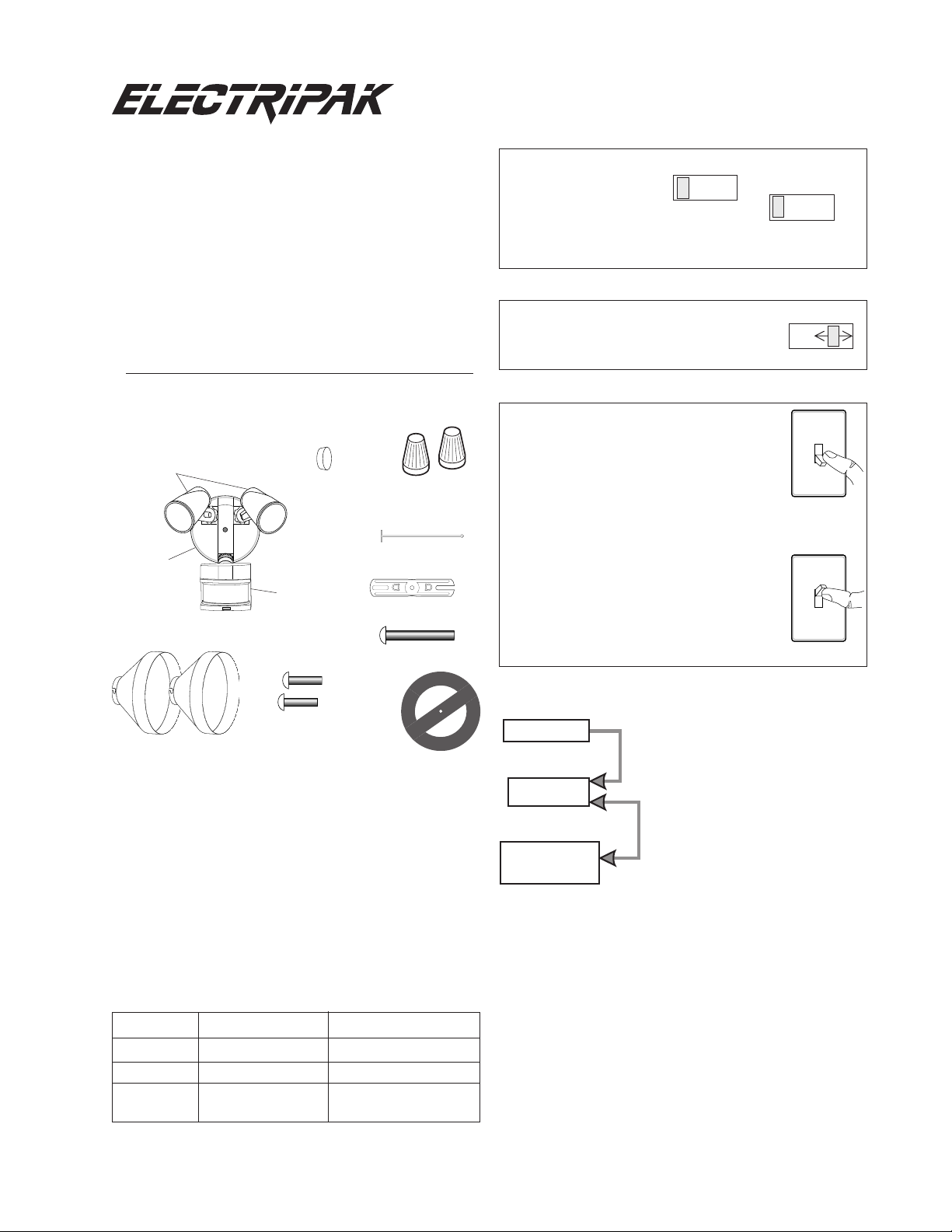

This package includes:
Lamp
Holders
Cover
Plate
Mounting Bolt
Sensor
Light Control
Mounting Strap
Rubber Plug
Plastic Hanger
2 Wire
Connectors
OPERATION
Mode: On-Time: Works: Day Night
Test 5 Sec x x
Auto 1, 5, 20 min. x
Manual Until Dawn* x
* resets to Auto Mode at dawn.
Note: When fi rst turned on wait about 1 1/2 minutes for
the circuitry to calibrate.
TEST
Put ON-TIME switch on
the sensor bottom to
TEST and the 2-Level
Lighting switch OFF.
Put the ON-TIME switch in the 1, 5,
or 20 minute position.
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.
ON-TIME
TEST 1 5 20
AUTO
MANUAL MODE
2-Level Lighting
Off 3 6 Dusk to
Dawn
ON-TIME
TEST 1 5 20
1 Second OFF
then...
... back on.
Mode Switching Summary
2 Shells*
* Model SL-5318 only
6 Screws
(3 sizes included)
TEST
Gasket
AUTO
MANUAL MODE
Move ON-TIME Switch to
1, 5, or 20 minutes
Flip light switch off
for one second then
back on*
Requirements
• The Light Control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a
qualifi ed electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
© 2007 DESA Specialty Products™ 598-1274-00
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the calibration time the control will be in the AUTO mode.
2-LEVEL LIGHTING TIMER
Light comes on half bright for selected time after dusk
(Off, 3 hr., 6 hr., until dawn). If motion is sensed,
the light turns on full bright for the ON-TIME (1, 5,
or 20 minutes) then returns to dim mode.

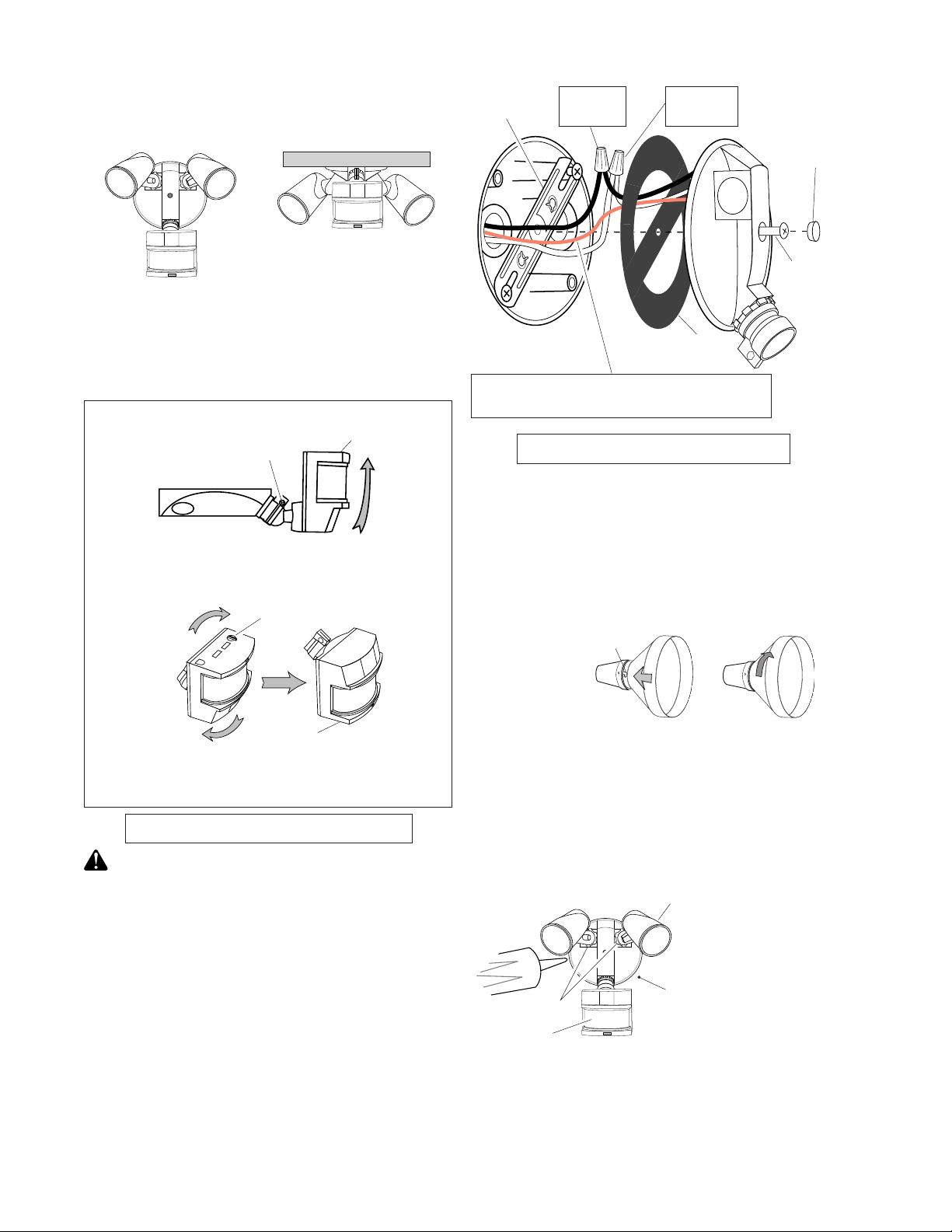

INSTALLATION
For easy installation, select an existing light with a wall
switch for replacement.
Mounting
Strap
Black to
Black
White to
White
Rubber
Plug
Wall Mount
For under eave installation, the sensor head must
be rotated as shown in the next two steps for proper
operation and to avoid the risk of electrical shock.
For eave mount only:
❒ Swing the sensor head towards the clamp screw
joint.
Clamp Screw
❒ Then rotate the sensor head clockwise 180° so the
controls face down.
Controls
If the sensor pops out of the ball joint, loosen the
clamp screw and push the sensor back into the ball
joint. Tighten the clamp screw when done.
Eave Mount
Controls
Controls
Mounting
Bolt
Gasket
Junction box ground wire to
green ground screw on fi xture.
MOUNT THE LIGHT CONTROL
❒ Align the Light Control cover plate and cover plate
gasket. Secure with the mounting bolt.
❒ For model SL-5318 only, align the three slots in
the decorative shell with the lamp holder pins. Push
the shell in and then twist clockwise to lock. Repeat
for other shell.
Shell Slot
❒ Push the Rubber Plug fi rmly into place.
❒ If a wet location junction box was not used, caulk
the wall plate mounting surface with silicone
weather sealant.
WIRE THE LIGHT CONTROL
WARNING: Turn power off at circuit breaker.
❒ Remove the existing light fi xture.
❒ Install the mounting strap as shown using two screws
that fi t your junction box.
❒ The plastic hanger can be used to hold the fi xture
while wiring. The small end of the plastic hanger
can be threaded through the hole in the center of
the cover plate. The small end then goes into one
of the slots on the mounting strap.
❒ Route the Light Control’s wires through the large
gasket holes.
❒ Twist the junction box wires and fi xture wires together
as shown. Secure with wire connectors.
To avoid water damage and electrical shock,
keep lamp holders 30° below horizontal.
Keep lamps at least
1" (2.5 cm) from the
Lock Nut
❒ Adjust the lamp holders by loosening the lock nuts
but do not rotate the lamp holders more than 180°
from the factory setting. When screwing in the
fl oodlamps, do not overtighten.
2
sensor. Do not allow
the lamps to block
the lens.Lens
598-1274-00

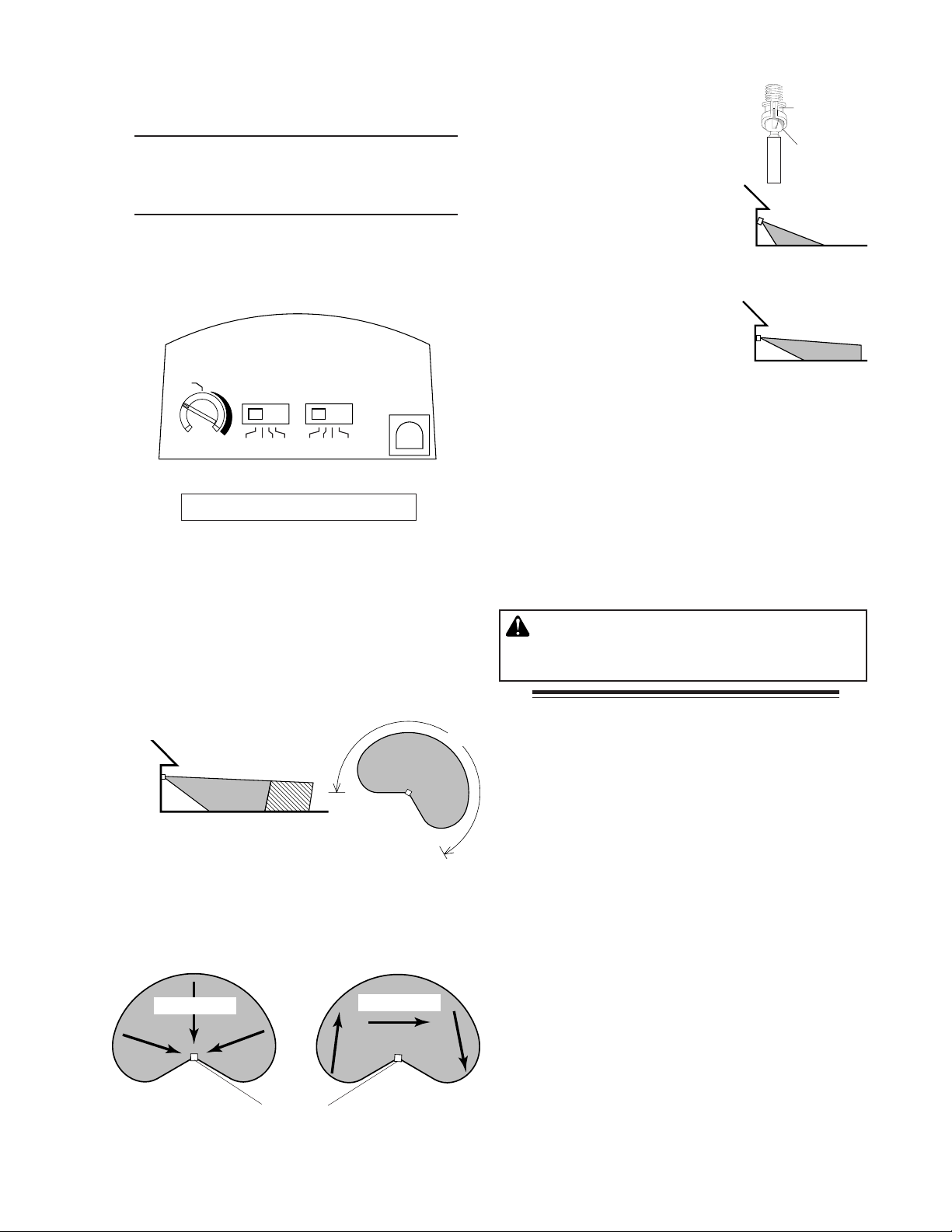

TEST AND ADJUSTMENT
❒ Turn on the circuit breaker and light switch.
NOTE: Sensor has a 1 1/2 minute warm up period
before it will detect motion. When fi rst turned
on, wait 1 1/2 minutes.
❒ Turn the RANGE control to the mid position, 2-Level
Lighting to OFF and the ON-TIME control to the
TEST position.
MAX
MIN
Avoid aiming the control at:
• Objects that change temperature rapidly, such as
heating vents and air conditioners. These heat
sources could cause false triggering.
• Areas where pets or traffi c may trigger the control.
• Nearby large, light-colored objects refl ecting light
may trigger the shut-off feature. Do not point other
lights at the sensor.
B
ON - TIME DUAL BRITE
O
O
S
T
RANGE
TEST 1 5 20
MINUTES
Bottom of Sensor
OFF 3 6 DUSK TO
HOUR DAWN
❒ Loosen the clamp screw in the
sensor ball joint and gently
Clamp
Screw
rotate the sensor.
❒ Walk through the coverage
area noting where you are
Ball
Joint
when the lights turn on (also,
the LED will fl ash several times
when motion is detected). Move
the sensor head up, down, or
sideways to change the coverage area. Keep the sensor at
least 1" (2.5 cm) away from
Aim Sensor
Down for Short
Coverage
the lamps.
❒ Adjust the RANGE as needed.
RANGE set too high may
increase false triggering.
❒ Secure the sensor head by
tightening the clamp screw.
Aim Sensor
Higher for Long
Coverage
Do not overtighten the screw.
❒ Set the amount of TIME you want the lights to stay
on after motion is detected (1, 5, or 20 minutes).
❒ Set the 2-LEVEL Lighting switch to the amount of
time after dusk you want the lights on at low level
(Off, 3, 6 Hrs., Dusk-to-Dawn).
Warning - Risk of fi re. Do not aim the lamps
at a combustible surface within 3 ft. (1 m).
240°
8 ft.
(2.4 m)
70 ft.
(21 m)
100 ft.
(30.5 m)
Boosted
Maximum Range Maximum
Coverage Angle
The detector is most sensitive to motion across its fi eld
of view.
Motion
Motion
Sensor
Least Sensitive Most Sensitive
SPECIFICATIONS
Range ............................. Up to 70 ft. (21 m); 100 ft.
(30.5 m) with Range Boost.
[varies with surrounding tem-
perature]
Sensing Angle ................Up to 240°
Electrical Load ................ Up to 300 Watt Maximum
Incandescent [Up to 150
Watt maximum each lamp
holder.]
Power Requirements ...... 120 VAC, 60 Hz
Operating Modes ............ TEST, AUTO and MANUAL
MODE
Time Delay .....................1, 5, 20 minutes
2-Level Lighting Timer .... 3, 6 hours, Dusk-to-Dawn
DESA Specialty Products reserves the right to discontinue products and to change specifi cations at any
time without incurring any obligation to incorporate
new features in products previously sold.
598-1274-00
3
