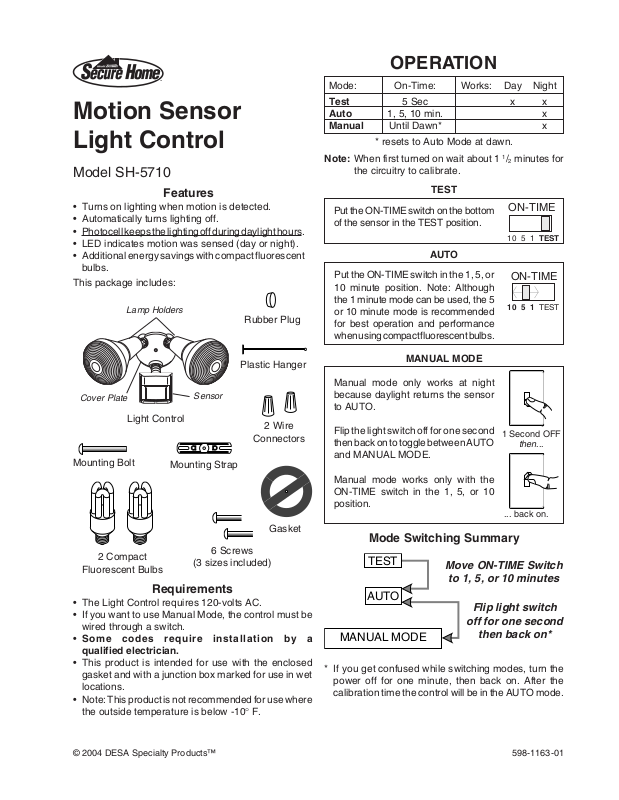

Desa SH-5710 User Manual

Motion Sensor Light Control

Model SH-5710

Features

• Turns on lighting when motion is detected.

• Automatically turns lighting off.

• Photocell keeps the lighting off during daylight hours.

• LED indicates motion was sensed (day or night).

• Additional energy savings with compact fluorescent bulbs.

This package includes:

Lamp Holders

Rubber Plug

OPERATION

Mode: On-Time: Works: Day Night

Test 5 Sec x x Auto 1, 5, 10 min. x Manual Until Dawn* x

* resets to Auto Mode at dawn.

Note: When first turned on wait about 1

the circuitry to calibrate.

TEST

Put the ON-TIME switch on the bottom of the sensor in the TEST position.

AUTO

Put the ON-TIME switch in the 1, 5, or 10 minute position. Note: Although the 1 minute mode can be used, the 5 or 10 minute mode is recommended for best operation and performance when using compact fluorescent bulbs.

/2 minutes for

ON-TIME

10 5 1 TEST

ON-TIME

10 5 1 TEST

Plastic Hanger

Cover Plate

Light Control

Mounting Bolt

2 Compact

Fluorescent Bulbs

Sensor

2 Wire

Connectors

Mounting Strap

Gasket

6 Screws

(3 sizes included)

Requirements

• The Light Control requires 120-volts AC.

• If you want to use Manual Mode, the control must be wired through a switch.

• Some codes require installation by a

qualified electrician.

• This product is intended for use with the enclosed gasket and with a junction box marked for use in wet locations.

• Note: This product is not recommended for use where the outside temperature is below -10° F.

MANUAL MODE

Manual mode only works at night because daylight returns the sensor to AUTO.

Flip the light switch off for one second then back on to toggle between AUTO and MANUAL MODE.

Manual mode works only with the ON-TIME switch in the 1, 5, or 10 position.

1 Second OFF

then

...

... back on.

Mode Switching Summary

TEST

Move ON-TIME Switch

to 1, 5, or 10 minutes

AUTO

Flip light switch

off for one second

MANUAL MODE

* If you get confused while switching modes, turn the

power off for one minute, then back on. After the calibration time the control will be in the AUTO mode.

then back on*

INSTALLATION

For easy installation, select an existing light with a wall switch for replacement.

❒ Route the Light Control’s wires through the large

gasket holes.

❒ Twist the junction box wires and fixture wires together

as shown. Secure with wire connectors.

Mounting

Strap

White to White

Black to Black

Rubber

Plug

Wall Mount

For under eave installation, the sensor head must be rotated as shown in the next two steps for proper

operation and to avoid the risk of electrical shock.

For eave mount only:

❒ Swing the sensor head towards the clamp

screw joint.

Clamp Screw

❒ Then rotate the sensor head clockwise 180° so the

controls face down.

Controls

If the sensor pops out of the ball joint, loosen the clamp screw and push the sensor back into the ball joint. Tighten the clamp screw when done.

Eave Mount

Controls

WIRE THE LIGHT CONTROL.

❒ Turn power off at the fuse or circuit breaker. ❒ Remove the existing light fixture. ❒ Install the mounting strap as shown using two screws

that fit your junction box.

❒ The plastic hanger can be used to hold the fixture

while wiring. The small end of the plastic hanger can be threaded through the hole in the center of the cover plate. The small end then goes into one of the slots on the mounting strap.

Mounting

Bolt

Gasket

Junction box ground wire to green ground screw on fixture.

MOUNT THE LIGHT CONTROL.

❒ Align the Light Control cover plate and cover plate

gasket. Secure with the mounting bolt.

❒ Push the Rubber Plug firmly into place. ❒ If a wet location junction box was not used, caulk the

wall plate mounting surface with silicone weather sealant.

Push Rubber Plug Firmly into Place.

To avoid water damage and electrical shock, keep lamp holders 30° below horizontal.

❒ Adjust the lamp holders by loosening the lock nuts

but do not rotate the lamp holders more than 180° from the factory setting. When screwing in the lamps, do not overtighten.

❒ Install the lamp covers. Align the tabs on the lamp

covers with the holes on the lamp holders. Gently press lamp covers until the tabs snap into the holes on the lamp holders.

Lens

Lock Nut

Holes for Lamp Cover Tabs

Keep lamps at least 1" (2.5 cm) from the sensor. Do not allow the lamps to block the lens.

598-1163-01

TEST AND ADJUSTMENT

❒ Turn on the circuit breaker and light switch.

NOTE: Sensor has about 1 1/2 minutes warm up period

before it will detect motion. When first turned on, wait about 1 1/2 minutes.

❒ Turn the RANGE control to the mid position and the

ON-TIME control to the TEST position.

ON-TIME

RANGEON-TIME

10 5 1 TEST

MINUTES

MAXMIN

Bottom of Sensor

Avoid aiming the control at:

• Objects that change temperature rapidly, such as heating vents and air conditioners. These heat sources could cause false triggering.

• Areas where pets or traffic may trigger the control.

• Nearby large, light-colored objects reflecting light may trigger the shut-off feature. Do not point other lights at the sensor.

8 ft.

(2.4 m)

70 ft.

(21 m)

Maximum Range Maximum

Coverage Angle

The detector is most sensitive to motion across its field of view.

RANGE

MIN MAX

180°

❒ Loosen the clamp screw in the

sensor ball joint and gently ro-

Clamp Screw

tate the sensor.

❒ Walk through the coverage area

noting where you are when the

Ball Joint

lights turn on (also, the LED will flash several times when motion is detected). Move the sensor head up, down, or sideways to change the coverage area.

Keep the sensor at least 1"

Aim Sensor

Down for Short

Coverage

(2.5 cm) away from the lamps.

❒ Adjust the RANGE as needed.

RANGE set too high may increase false triggering.

❒ Secure the sensor head by

tightening the clamp screw.

Aim Sensor

Higher for Long

Coverage

Do not overtighten the screw.

❒ Set the amount of TIME you want the lights to stay

on after motion is detected (1, 5, or 10 minutes). Note: One minute mode is not recommended for use with compact fluorescent bulbs.

Warning - Risk of fire. Do not aim the lamps at a combustible surface within 3 ft. (1 m).

SPECIFICATIONS

Range . . . . . . . . . . . . Up to 70 ft. (21 m) [varies with

surrounding temperature].

Sensing Angle . . . . . . Up to 180°

Electrical Load. . . . . . Up to 120 Watts Maximum In-

candescent [Up to 60 Watts

Maximum each lamp holder.]

Up to 40 Watts Maximum Fluo-

rescent [Up to 20 Watts Maxi-

mum each lamp holder.] Power Requirements. 120 VAC, 60 Hz

Operating Modes. . . . TEST, AUTO and MANUAL

MODE

Time Delay . . . . . . . . 1 , 5, 10 minutes

Range . . . . . . . . . . . . Adjustable

Motion

Sensor

Least Sensitive Most Sensitive

598-1163-01

DESA Specialty Products™ reserves the right to discontinue products and to change specifications at any time without incurring any obligation to incorporate new features in products previously sold.
