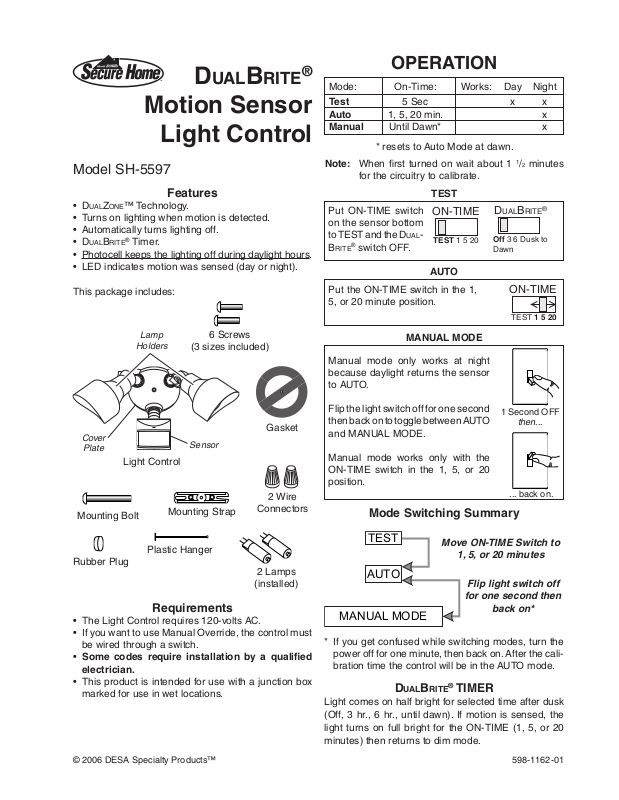

Desa SH-5597 User Manual

DUALBRITE®
MANUAL MODE
AUTO
TEST
Motion Sensor
Light Control
OPERATION
Mode: On-Time: Works: Day Night
Test 5 Sec x x Auto 1, 5, 20 min. x Manual Until Dawn* x
* resets to Auto Mode at dawn.
Model SH-5597

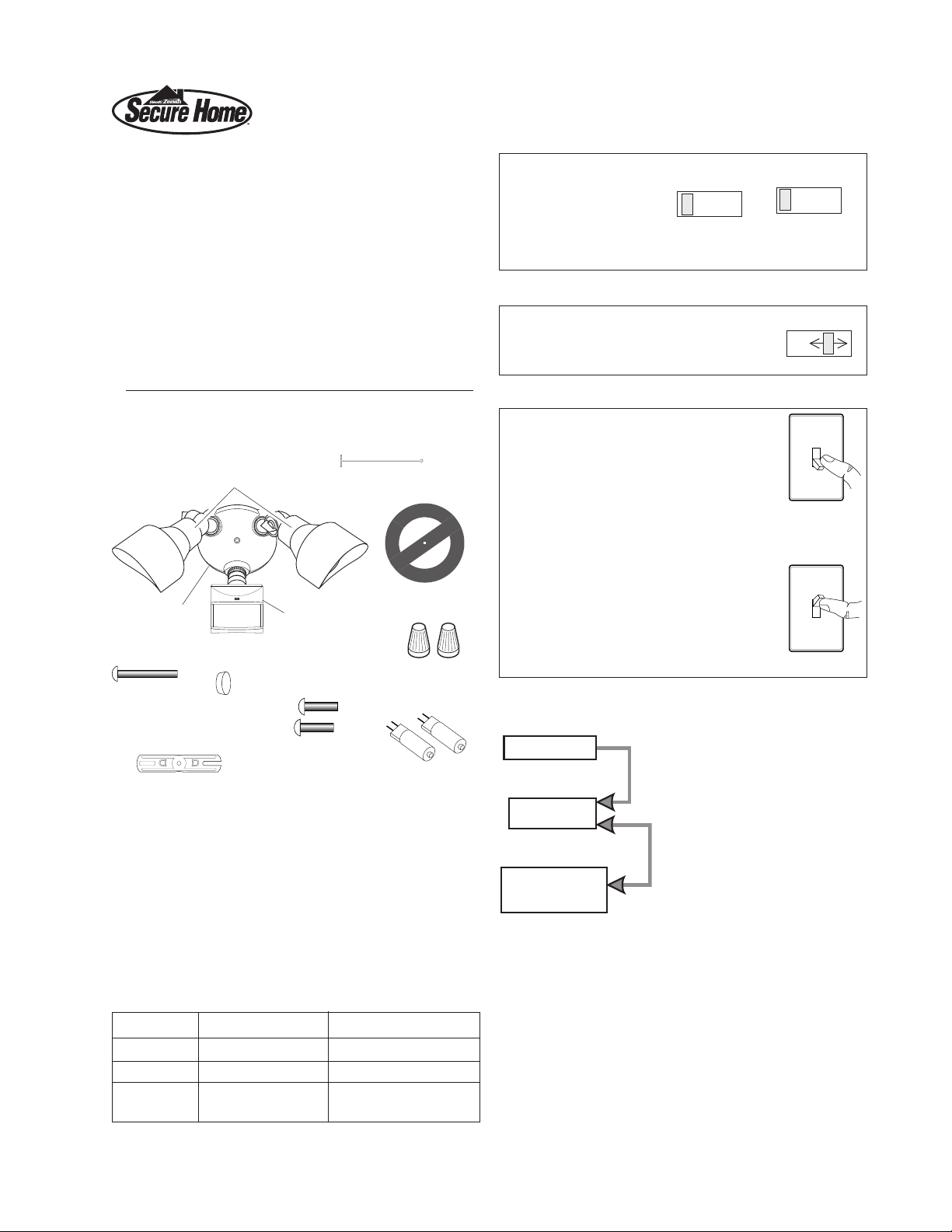

Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
DUALBRITE® Timer.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
This package includes:
Cover
Plate
Light Control
Mounting Bolt
Lamp
Holders
Mounting Strap
6 Screws
(3 sizes included)
Gasket
Sensor
2 Wire
Connectors
Note: When first turned on wait about 1 1/2 minutes
for the circuitry to calibrate.
TEST
Put ON-TIME switch on the sensor bottom to TEST and the DUAL-
BRITE® switch OFF.
Put the ON-TIME switch in the 1, 5, or 20 minute position.
Manual mode only works at night because daylight returns the sensor to AUTO.
Flip the light switch off for one second then back on to toggle between AUTO and MANUAL MODE.
Manual mode works only with the ON-TIME switch in the 1, 5, or 20 position.
ON-TIME
TEST 1 5 20
AUTO
MANUAL MODE
DUALBRITE
Off 3 6 Dusk to Dawn
ON-TIME
TEST 1 5 20
1 Second OFF
... back on.
®
then...
Mode Switching Summary
Rubber Plug
• The Light Control requires 120-volts AC.
• If you want to use Manual Override, the control must be wired through a switch.
Some codes require installation by a qualified
electrician.
• This product is intended for use with a junction box marked for use in wet locations.
© 2006 DESA Specialty Products™ 598-1162-01
Plastic Hanger
Requirements
2 Lamps
(installed)
Move ON-TIME Switch to
1, 5, or 20 minutes
Flip light switch off
for one second then
back on*
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali bration time the control will be in the AUTO mode.
DUALBRITE® TIMER
Light comes on half bright for selected time after dusk (Off, 3 hr., 6 hr., until dawn). If motion is sensed, the light turns on full bright for the ON-TIME (1, 5, or 20 minutes) then returns to dim mode.
-

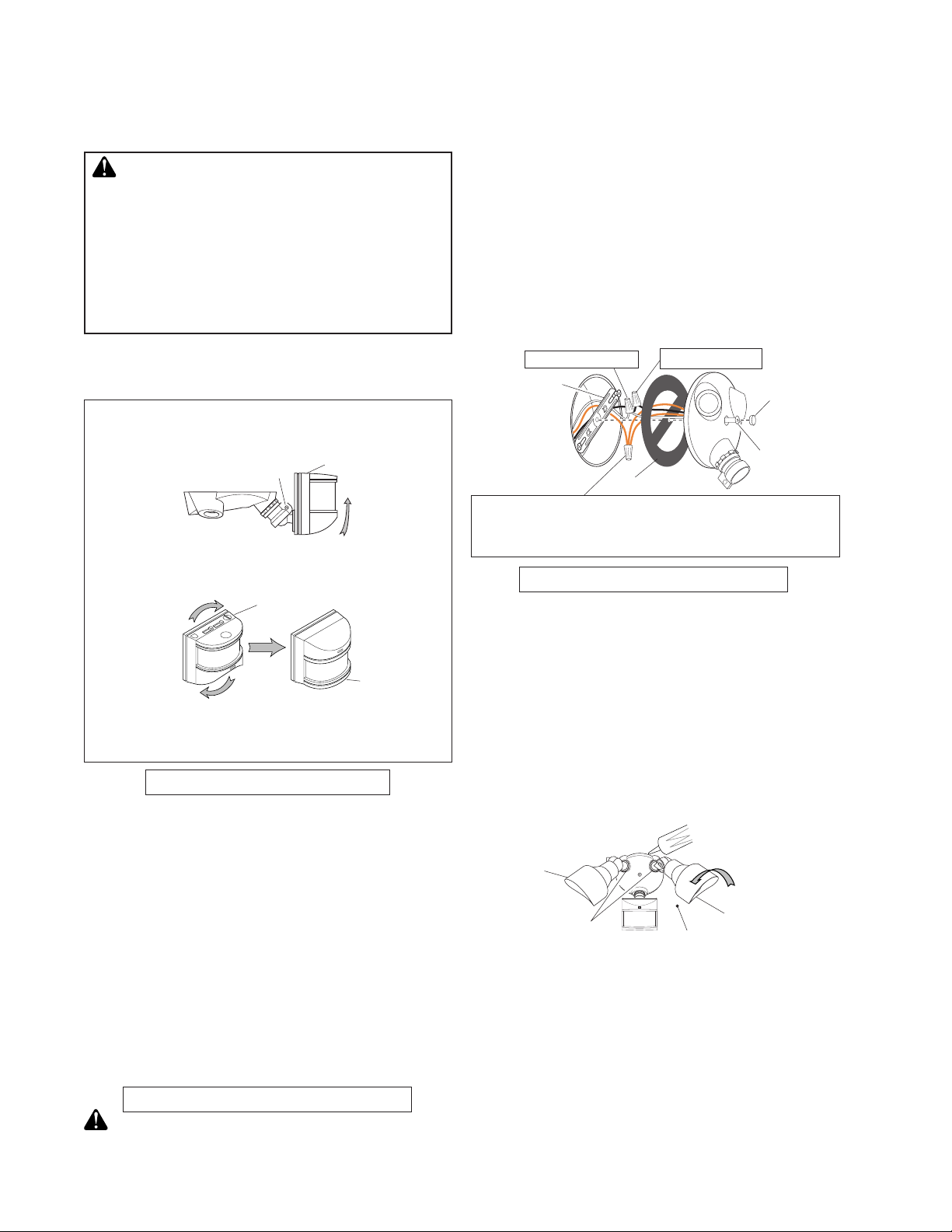

INSTALLATION
For easy installation, select an existing light with a wall switch for replacement.
CAUTION: To Avoid Fire Or Burn Hazards:
• Allow fixture to cool before touching. The bulb and the fixture operate at high temperatures.
• Keep fixture at least 2" (51 mm) from combustible materials. Do not aim at objects closer than 3' (1 m).
• Use only T4 100W (max.), G8 tungsten halogen bi-pin 120 VAC lamps.
For under eave installation, the sensor head must be rotated as shown in the next two steps for proper
operation and to avoid the risk of electrical shock.
For eave mount only: Swing the sensor head towards the clamp
screw joint.
Controls
Clamp Screw
The plastic hanger can be used to hold the fixture
while wiring. The small end of the plastic hanger can be threaded through the hole in the center of the cover plate. The small end then goes into one of the slots on the mounting strap.
Route all fixture wires through the large holes in
the gasket as shown.
Connect the junction box wires to the light fixture
wires as shown. Twist together and secure with wire connectors.
Mounting
Strap
White to White
Black to Black
Gasket
Rubber
Plug
Mounting
Bolt
Rotate the sensor head clockwise 180° so the
controls face down.
Controls
Controls
If the sensor pops out of the ball joint, loosen the clamp screw and push the sensor back into the ball joint. Tighten the clamp screw when done.
BULB INSTALLATION
NOTE: When re-lamping, turn power off and let the fixture cool. To remove lamp shade, loosen set screw 2 full
turns with a small flat-head screwdriver. Turn shade counterclockwise and remove.
To remove bulb, pull straight out of fixture. To replace bulb, push bulb pins into lamp socket.
Check that the bulb is seated properly.
To reinstall lamp shade, place shade on fixture and
align notches on shade with tabs on fixture. Turn clockwise. Tighten set screw firmly.
WIRE THE LIGHT CONTROL
WARNING: Turn power off at the fuse or circuit
breaker.
Remove the existing light fixture.Install mounting strap to junction box using screws
appropriate for your junction box.
Connect any fixture ground wire(s) and the cover plate ground screw to the junction box ground wire.
MOUNT THE LIGHT CONTROL
Place the Mounting Bolt through the front of the
junction box cover. Push the small gasket hole over the Mounting Screw.
Make sure the wire connectors and wires are inside
the junction box. Align the Mounting Screw with the center hole in the Mounting Strap. Secure the fixture to the Mounting Strap.
Push the Rubber Plug firmly into place.
If a wet location junction box was not used, caulk the wall plate mounting surface with silicone weather sealant.
Lamp Shade
Set Screw
Lock Nuts
Keep lamps at least 2" (51 mm) from the
sensor and 2" (51 mm) from combustibles.
Adjust the lamp holders by loosening the lock nuts,
but do not rotate the lamp holders more than 180° from the factory setting.
Adjust lamp shades by loosening the set screws
several turns, turn shades counterclockwise and remove. Reinstall the shades in the desired position and tighten set screws.
2
598-1162-01
MAX
MIN
RANGE
ON-TIME
DUAL BRITE™
TEST 1 5 20
MINUTES
OFF
3
6
DUSK TO
DA
WNHOUR
B
O
O
S
T

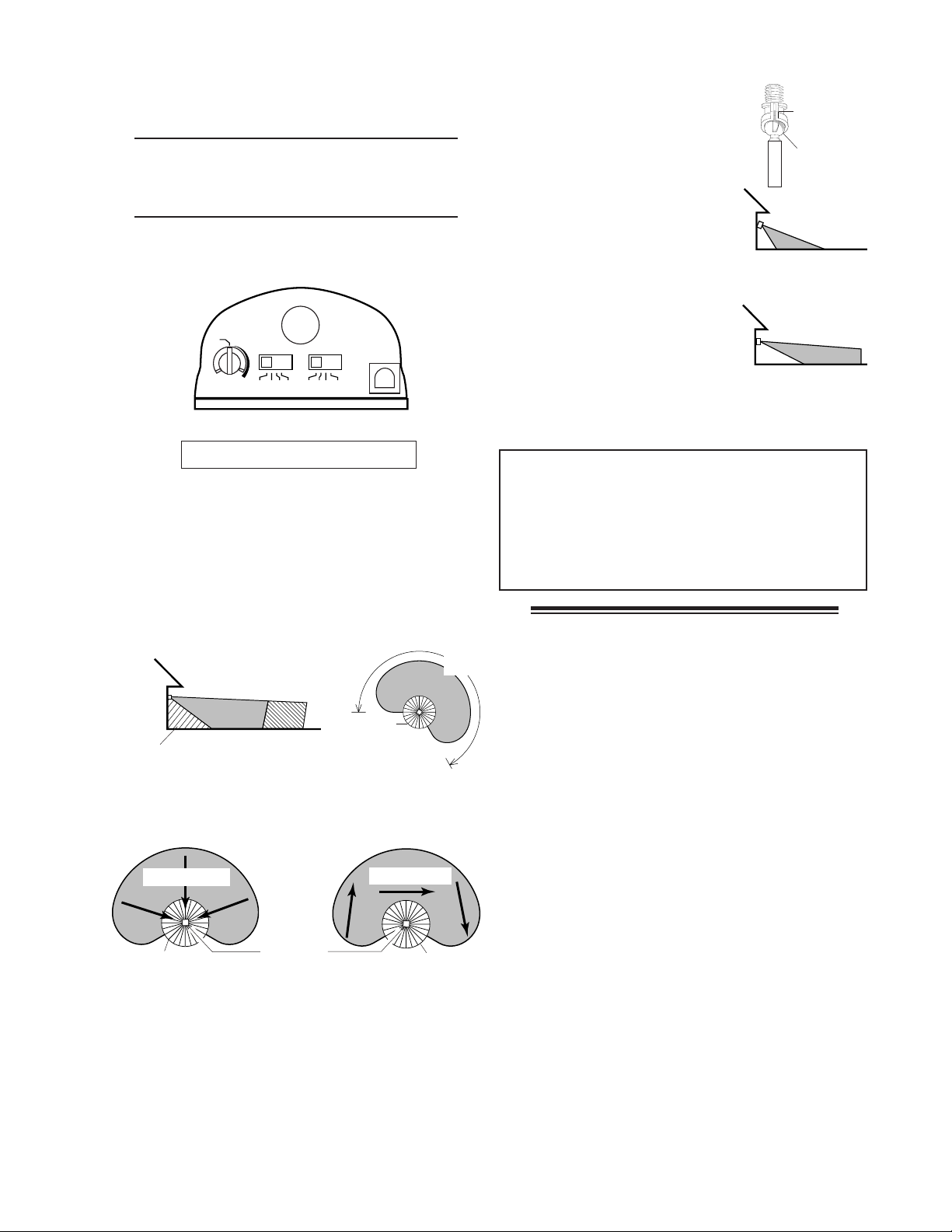

TEST AND ADJUSTMENT
Turn on the circuit breaker and light switch.
NOTE: Sensor has a 1 1/2 minute warm up period
before it will detect motion. When first turned on, wait 1 1/2 minutes.
Turn the RANGE control to the mid position,
DUALBRITE® to OFF and the ON-TIME control to the
TEST position.
Bottom of Sensor
Avoid aiming the control at:
• Objects that change temperature rapidly, such as
heating vents and air conditioners. These heat sources could cause false triggering.
• Areas where pets or traffic may trigger the control.
Nearby large, light-colored objects reflecting light
may trigger the shut-off feature. Do not point other lights at the sensor.
240°
Loosen the clamp screw in the
sensor ball joint and gently rotate the sensor.
Walk through the coverage
area noting where you are when the lights turn on (also,
Clamp Screw
Ball Joint
the LED will flash several times when motion is detected). Move the sensor head up, down, or sideways to change the cover­age area. Keep the sensor at
least 2" (2.5 cm) away from
Aim Sensor
Down for Short
Coverage
the lamps.
Adjust the RANGE as needed.
RANGE set too high may increase false triggering.
Secure the sensor head by
tightening the clamp screw.
Do not overtighten the screw.
Aim Sensor
Higher for Long
Coverage
Set the amount of TIME you want the lights to stay
on after motion is detected (1, 5, or 20 minutes).
Set the DUALBRITE® switch to the amount of time
after dusk you want the lights on at low level (Off, 3, 6 Hrs., Dusk-to-Dawn).
NOTE: DUALZONE™ is a new zone of detection which was added as an option to select Heath®/Zenith motion sensing products. This feature adds a zone of detec­tion under the motion sensor. DUALZONE™ requires no additional adjustment and operates in conjuction with the forward-looking sensor.
15 ft.
(4.6 m)
UALZONE
D
70 ft. 100 ft.
D
UALZONE
Maximum
(21 m) (30.5 m) Boosted
Maximum Range Coverage Angle
The detector is less sensitive to motion directly towards it.
Motion
UALZONE
D
Sensor
Motion
UALZONE
D
Least Sensitive Most Sensitive
598-1162-01
SPECIFICATIONS
Horizontal Range . . . . Up to 70 ft. (21 m); 100 ft.
(30.5 m) with Range Boost. [vari e s with s u rroun d ing
temperature]
Vertical Range . . . . . . Up to 15 ft. (4.6 m)
Sensing Angle . . . . . . Up to 240° horizontal. Up to 80°
Vertical
Electrical Load . . . . . . Up to 200 Watt Maximum In-
candescent [Up to 100 Watt
Maximum each lamp holder.] Power Requirements . 120 VAC, 60 Hz
Operating Modes . . . . TEST, AUTO, and MANUAL
MODE
Time Delay . . . . . . . . 1, 5, 20 minutes
DUALBRITE® Timer . . . . 3, 6 hours, Dusk-to-Dawn
Replacement lamp . . . T4 100W, G8 halogen bi-pin 120
VAC
DESA Specialty Products continue products and to change specifications at any time without incurring any obligation to incorporate new features in products previously sold.
3
reserves the right to dis-
