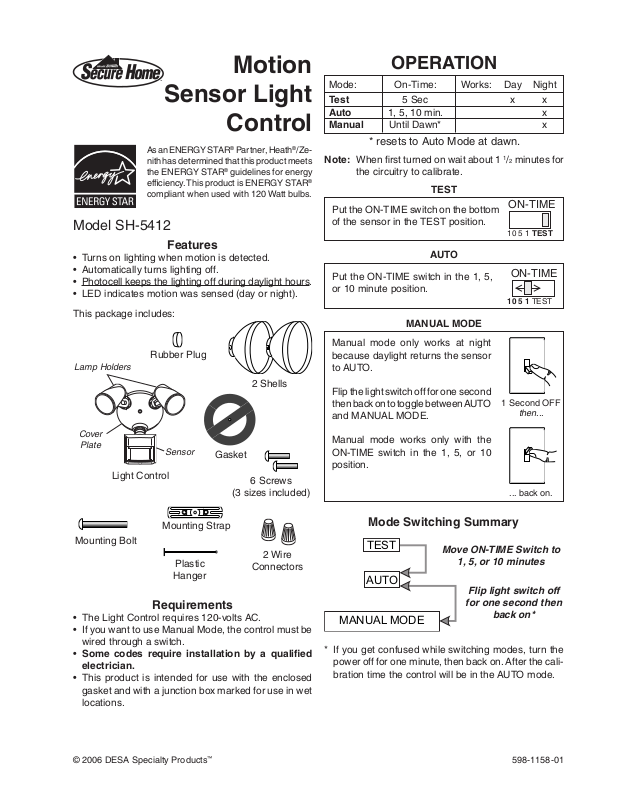

Desa SH-5412 User Manual

Motion
MANUAL MODE
AUTO
TEST
Sensor Light
Control
As an ENERGY STAR® Partner, Heath®/Ze­nith has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. This product is ENERGY STAR compliant when used with 120 Watt bulbs.
Model SH-5412
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).

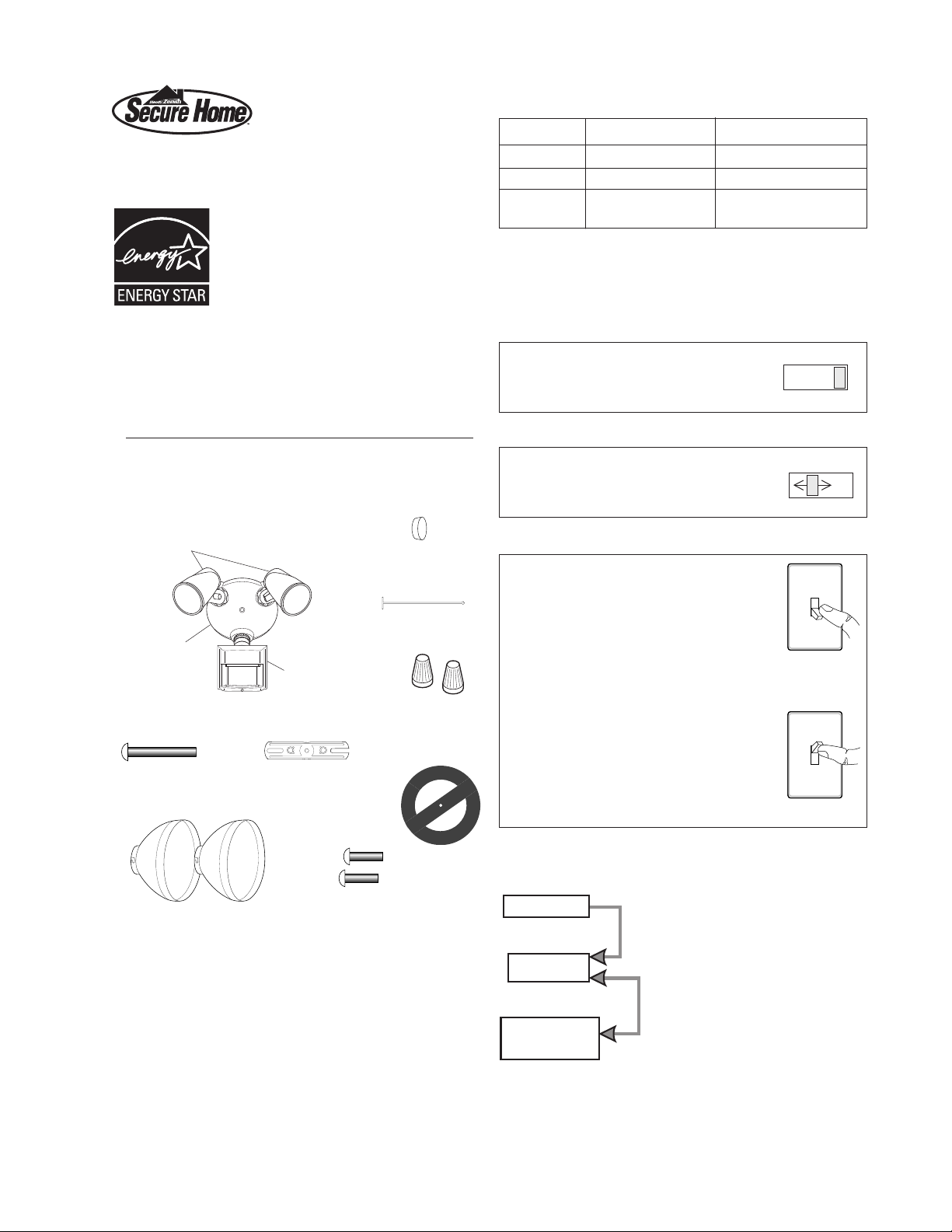

This package includes:
Rubber Plug
Lamp Holders
2 Shells
OPERATION
Mode: On-Time: Works: Day Night
Test 5 Sec x x Auto 1, 5, 10 min. x Manual Until Dawn* x
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1 1/2 minutes for
®
the circuitry to calibrate.
TEST
Put the ON-TIME switch on the bottom of the sensor in the TEST position.
AUTO
Put the ON-TIME switch in the 1, 5, or 10 minute position.
MANUAL MODE
Manual mode only works at night because daylight returns the sensor to AUTO.
Flip the light switch off for one second then back on to toggle between AUTO and MANUAL MODE.
ON-TIME
10 5 1 TEST
ON-TIME
10 5 1 TEST
1 Second OFF
then...
Cover
Plate
Light Control
Mounting Bolt
Sensor
Mounting Strap
Plastic
Hanger
Gasket
6 Screws
(3 sizes included)
2 Wire
Connectors
Requirements
• The Light Control requires 120-volts AC.
• If you want to use Manual Mode, the control must be wired through a switch.
Some codes require installation by a qualified
• This product is intended for use with the enclosed gasket and with a junction box marked for use in wet locations.
Manual mode works only with the ON-TIME switch in the 1, 5, or 10 position.
... back on.
Mode Switching Summary
Move ON-TIME Switch to
1, 5, or 10 minutes
Flip light switch off
for one second then
back on*
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali­bration time the control will be in the AUTO mode.
© 2006 DESA Specialty Products™ 598-1158-01
INSTALLATION
For easy installation, select an existing light with a wall switch for replacement.
Twist the junction box wires and fixture wires together
as shown. Secure with wire connectors.
Mounting
Strap
White to White
Black to Black
Rubber
Plug
Wall Mount

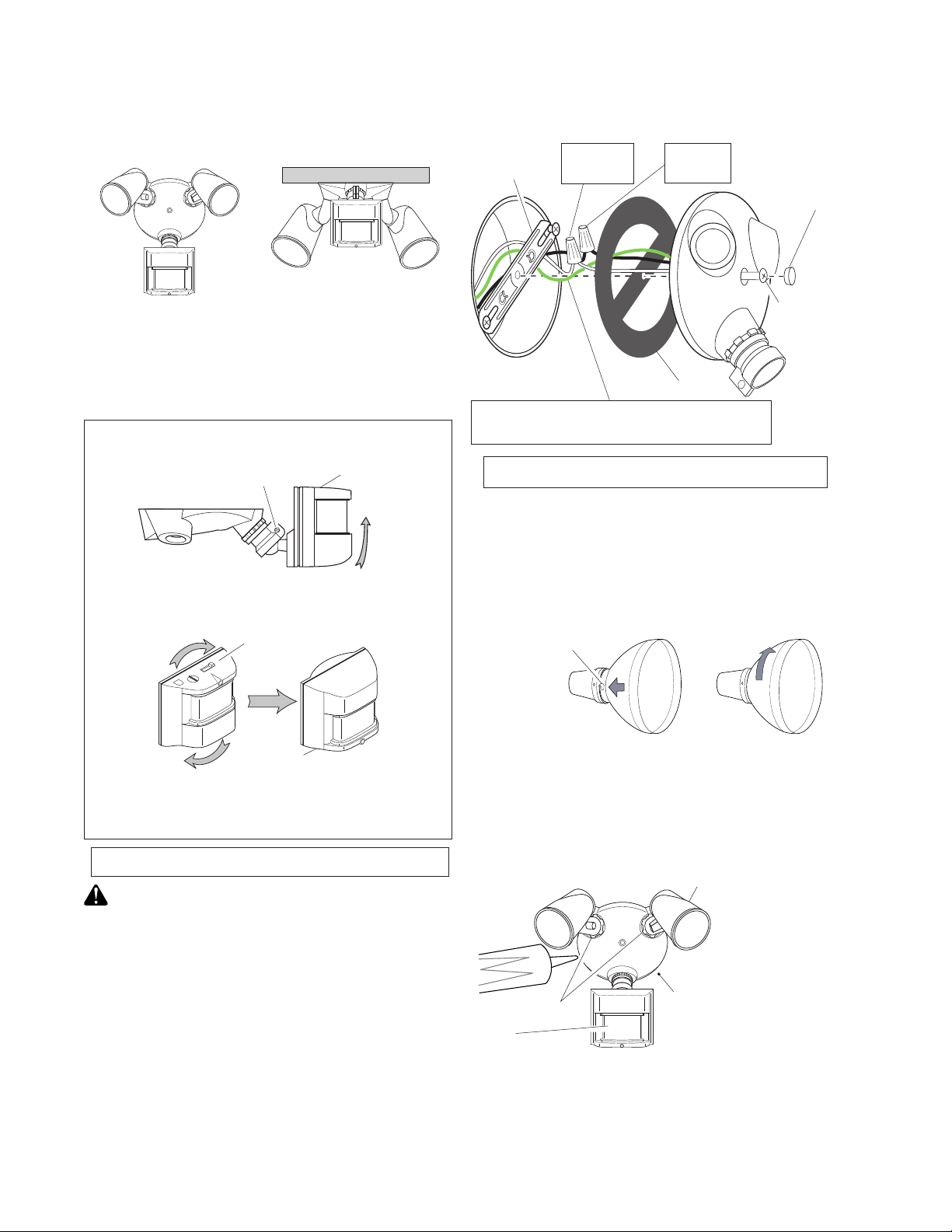

For under eave installation, the sensor head must be rotated as shown in the next two steps for proper
operation and to avoid the risk of electrical shock.
For eave mount only:
Swing the sensor head towards the clamp screw
joint.
Clamp Screw
Then rotate the sensor head clockwise 180° so the
controls face down.
Controls
Controls
If the sensor pops out of the ball joint, loosen the clamp screw and push the sensor back into the ball joint. Tighten the clamp screw when done.
Eave Mount
Controls
WIRE THE LIGHT CONTROL
Mounting
Bolt
Gasket
Junction box ground wire to green ground screw on fixture.
MOUNT THE LIGHT CONTROL
Align the Light Control cover plate and cover plate
gasket. Secure with the mounting bolt.
Align the three slots in the decorative shell with the
lamp holder pins. Push the shell in and then twist clockwise to lock. Repeat for other shell.
Shell Slot
Push the Rubber Plug firmly into place. If a wet location junction box was not used, caulk
the wall plate mounting surface with silicone weather sealant.
To avoid water damage and electrical shock, keep lamp holders 30° below horizontal.
Turn power off at the fuse or circuit breaker.Remove the existing light fixture. Install the mounting strap as shown using two screws
that fit your junction box.
The plastic hanger can be used to hold the fixture
while wiring. The small end of the plastic hanger can be threaded through the hole in the center of the cover plate. The small end then goes into one of the slots on the mounting strap.
Route the Light Control’s wires through the large
gasket holes.
Keep lamps at least 1" (2.5 cm) from the
Lock Nut
Lens
Adjust the lamp holders by loosening the lock nuts
but do not rotate the lamp holders more than 180° from the factory setting. When screwing in the floodlamps, do not overtighten.
2
sensor. Do not allow the lamps to block the lens.
598-1158-01
TEST AND ADJUSTMENT
MAXMIN
RANGEON-TIME
10 5 1 TEST
MINUTES
Turn on the circuit breaker and light switch.
NOTE: Sensor has a 1 1/2 minute warm up period
before it will detect motion. When first turned on, wait 1 1/2 minutes.
Turn the RANGE control to the mid position and the
ON-TIME control to the TEST position.
ON-TIME
10 5 1 TEST
Bottom of Sensor

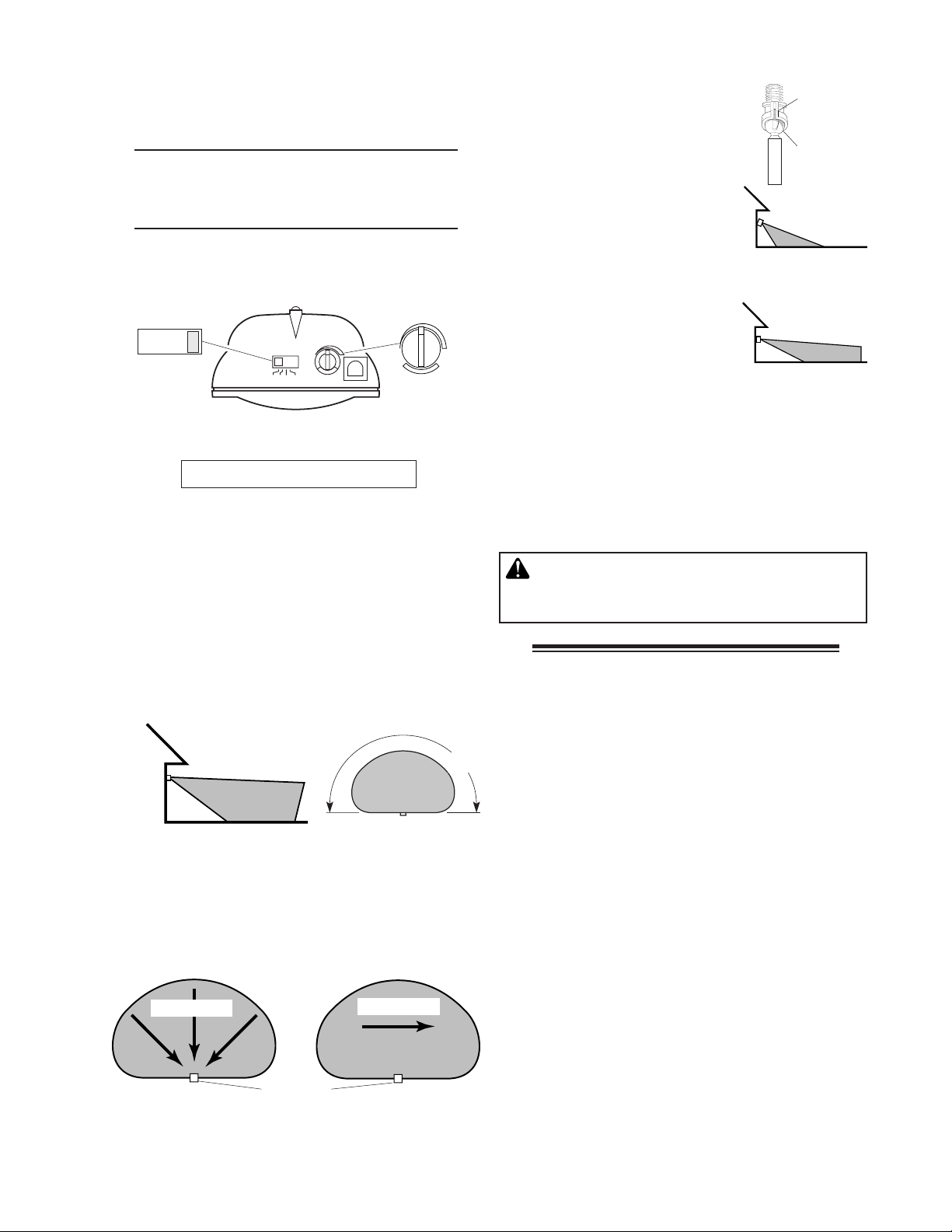

Avoid aiming the control at:
• Objects that change temperature rapidly, such as heating vents and air conditioners. These heat sources could cause false triggering.
• Areas where pets or traffic may trigger the control.
Nearby large, light-colored objects reflecting light may trigger the shut-off feature. Do not point other lights at the sensor.
8 ft.
(2.4 m)
70 ft.
(21 m)
Maximum Range Maximum Coverage Angle
The detector is most sensitive to motion across its field of view.
RANGE
MIN MAX
180°
Loosen the clamp screw in the
sensor ball joint and gently rotate the sensor.
Walk through the coverage
area noting where you are
Clamp Screw
Ball
Joint when the lights turn on (also, the LED will flash several times when motion is detected). Move the sensor head up, down, or sideways to change the cover­age area. Keep the sensor at
least 1" (2.5 cm) away from
Aim Sensor
Down for Short
Coverage
the lamps.
Adjust the RANGE as needed.
RANGE set too high may increase false triggering.
Secure the sensor head by
tightening the clamp screw.
Aim Sensor
Higher for Long
Coverage
Do not overtighten the screw.
Set the amount of TIME you want the lights to stay
on after motion is detected (1, 5, or 10 minutes).
WARNING: Risk of fire. Do not aim the lamps
at a combustible surface within 3 ft. (1 m).
SPECIFICATIONS
Range . . . . . . . . . . . . Up to 70 ft. (21 m) [varies with
surrounding temperature].
Sensing Angle . . . . . . Up to 180°
Electrical Load . . . . . . Up to 300 Watt Maximum In-
candescent [Up to 150 Watt
maximum each lamp holder.] Power Requirements . 120 VAC, 60 Hz
Operating Modes . . . . TEST, AUTO, and MANUAL
MODE
Time Delay . . . . . . . . 1, 5, 10 minutes
Range . . . . . . . . . . . . Adjustable
DESA Specialty Products™ reserves the right to dis­continue products and to change specifications at any time without incurring any obligation to incorporate new features in products previously sold.
Motion
Motion
Sensor
Least Sensitive Most Sensitive
598-1158-01
3
