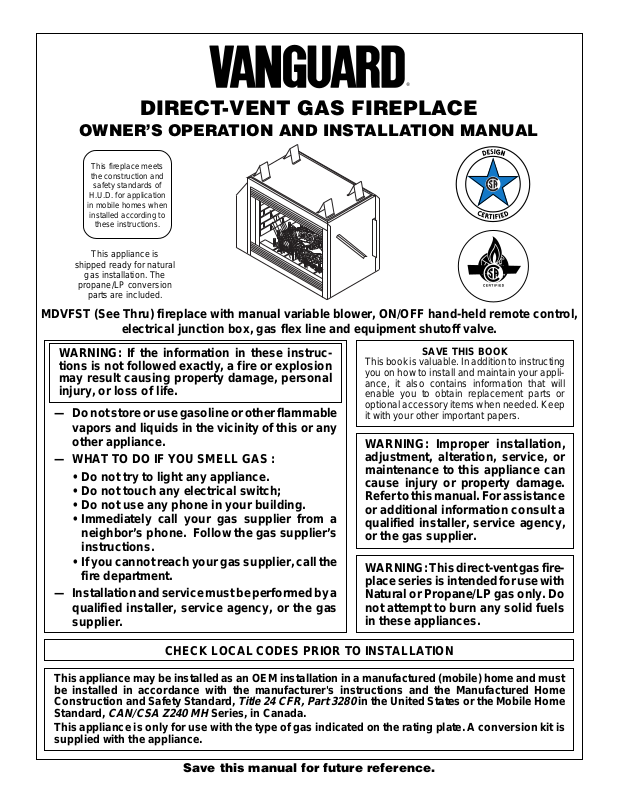

Desa MDVFST User Manual

DIRECT-VENT GAS FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

This fireplace meets the construction and

safety standards of

H.U.D. for application

in mobile homes when

installed according to

these instructions.

This appliance is

shipped ready for natural

gas installation. The

propane/LP conversion

parts are included.

MDVFST (See Thru) fireplace with manual variable blower, ON/OFF hand-held remote control,

electrical junction box, gas flex line and equipment shutoff valve.

WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS :

• Do not try to light any appliance.

• Do not touch any electrical switch;

• Do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed by a

qualified installer, service agency, or the gas supplier.

SAVE THIS BOOK

This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that will enable you to obtain replacement parts or optional accessory items when needed. Keep it with your other important papers.

WARNING: Improper installation, adjustment, alteration, service, or maintenance to this appliance can cause injury or property damage. Refer to this manual. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This direct-vent gas fireplace series is intended for use with Natural or Propane/LP gas only. Do not attempt to burn any solid fuels in these appliances.

CHECK LOCAL CODES PRIOR TO INSTALLATION

This appliance may be installed as an OEM installation in a manufactured (mobile) home and must be installed in accordance with the manufacturer's instructions and the Manufactured Home Construction and Safety Standard, Standard,

This appliance is only for use with the type of gas indicated on the rating plate. A conversion kit is supplied with the appliance.

CAN/CSA Z240 MH

Title 24 CFR, Part 3280

Series, in Canada.

in the United States or the Mobile Home

Save this manual for future reference.

MDVFST DIRECT-VENT GAS FIREPLACE

Left Side Surround

Back of Surround

(Back)

Right Side Surround

23 5/

(60cm)

11 (30cm)

/4 (3cm)

TOP VIEW

(Left Side)

10 1/

(27cm)

ø1.5

(4cm)

(Right Side)

RIGHT SIDE

Alternate Gas Supply Inlets

(Front)

ø1.5

(4cm)

(28cm)

39 3/

(101cm)

(67cm)

3 (8cm)

Rating Plate

22 5/

(57cm)

32 (81cm) (Opening)

/8 (110cm)

Location

/8 (5cm)

Figure 1 - MDVFST (See Thru) Dimensions

Note:

All dimensions in this manual are in inches unless otherwise specified.

GLOSSARY OF TERMS

fireplace includes a manual variable blower, electrical junction box, flexible gas line, equipment shutoff valve, and an ON/OFF hand-held remote control. Model MDVFST

Chase - A boxlike enclosure to protect

venting from the elements when the venting run is on the outside of a structure.

Mastic - A pliable sealant for use around the

vent terminal.

Snorkel Termination - A box that raises the

horizontal termination above ground level clearances.

Vent Terminal - Mounted on an outside

wall or roof to separate the inlet and outlet of the vent system and protect it from weather.

Vinyl Siding Standoff - A metal box that

separates the vent cap from vinyl siding.

Wall Thimble/Firestop - A metal plate used

to secure the vent pipe when it passes through a wall or ceiling.

INTRODUCTION

is convertible with the fireplace factory setup as natural gas. For details on conversion, see pages 21 and 22.

NOTICE: Check local building codes for area requirements before installing this appliance.

If you have any doubts as to which gas your particular appliance is approved and tested for, please check the CSA/AGA/CGA rating plate located at the interior of the appliance opening or consult your local distributor (see Figure 1).

BEFORE YOU BEGIN

Before beginning the installation of this appliance, read these instructions through completely.

This DESA appliance and its approved com-

Model MDVFST is a two-sided direct-vent gas fireplace with a sealed combustion chamber.

Model MDVFST is specifically designed for use in manufactured (mobile) homes. This appliance uses a millivolt gas control valve and a millivolt ignition system. The

ponents are safe when installed according to this installation manual and operated as recommended by DESA. Unless you use DESA approved components tested for this appliance, YOU MAY CAUSE A SAFETY

HAZARD!

BACK VIEW

1 (3cm)

FRONT VIEW

/8 (60cm)

25 (64cm)

(57cm)

3 (8cm)

2 (5cm)

(76cm)

(Opening)

(88cm)

The DESA warranty will be voided by, and DESA disclaims any responsibility for the following actions:

A) Modification of the appliance or any

of the components manufactured by DESA unless otherwise permitted in writing by DESA.

B) The use of any components part not ap-

proved by DESA in combination with this DESA appliance.

C) Installation and/or operation in a man-

ner other than instructed in this manual.

D) The burning of anything other than the

type of gas approved for use in this gas appliance.

This appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANS/NFPA 70 or the Canadian Electrical Code, CSA C22.1.

The installation must conform with local codes or, in the absence of local codes, with the

National Fuel Gas Code, ANS Z223.1 or the Canadian Installation Code, CAN/CGA B149.

This appliance complies with ANS Z21.501998/CSA 2.22-M48 as a VENTED GAS

FIREPLACE. It is listed and tested by CSA.

NOTICE: This appliance is intended to be used only for supplemental heat.

WARNING: Installation and repair must be done by a qualified installer/service person. The appliance should be inspected before use, and at least annually thereafter by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding, material, pet hair, etc. It is imperative that the control compartments, burners, and circulating air systems be kept clean.

106442

SELECTING LOCATION

To determine the safest and most efficient location for your appliance, consider the following guidelines:

1. The location must allow for proper clearances (see Clearances).

2. Consider a location where heat output would not be affected by drafts, air conditioning ducts, windows, or doors.

3. A location that avoids the cutting of joists or roof rafters makes installation easier.

In selecting a location, the following precautions must be observed:

1. A projection may be ideal for a new addition on an existing finished wall. See Horizontal T ermination Configuration, page 9, or Vertical Ter mination Con- figuration, pages 10 through 12.

2. Do not locate appliance close to where gasoline or other flammable liquids may be stored. The appliance must be kept clear and free from combustible materials.

3. Do not connect this appliance to a chimney system used for solid fuel burning fireplace.

4. Due to high temperatures, do not locate this appliance in high traffic areas or near furniture and draperies.

5. This fireplace may be installed in bedrooms or bathrooms in accordance with local codes.

6. Never obstruct the openings of the appliance or flow of ventilation air. Keep the control compartments accessible.

7. Do not use this appliance if any part has been under water. Immediately contact a local service technician to examine the appliance and to replace any part(s) of the control ignition system and other related components that have submerged under water.

OWNER’S MANUAL

Figure 2 - Possible Installation of SeeThru Fireplace

PRE-INSTALLATION PREPARATION

CLEARANCES

Minimum clearances to combustibles are:

• Back and Sides of Fireplace:................................. 0" min.

• Vent Surfaces: .......................................... 1" (2.5cm) min.

• Ceiling to Top of Opening: .....................36" (91cm) min.

• Floor: ..................................................................... 0" min.

• Wall to Front of Glass: ............................ 36" (91cm) min.

• Perpendicular Wall to Opening of Unit:......2" (5cm) min.

• Top Spacer: ........................................................... 0" min.

CEILING

36"

(914mm)

Min.

WALL

36"

(914mm)

Min.

Figure 3 - Minimum Clearances

Left Side Surround (0" Min.)

Combustible Material

Right Side Surround (0" Min.)

Perpendicular Wall 2" (51mm) Min. From Opening

Figure 4 - Minimum Clearances

Top Spacers

TOP VIEW

2" (51mm)

Wall In Front Of Glass

36" (91cm) Min.

0" Floor

CAUTION: Do not block required air spaces with insulation or any other material. Do not obstruct the effective opening of the appliance with any type of facing material.

Drywall

2 x 4 Stud

Minimum 1" Clearance from Side

36"

(914mm)

Continued

106442

MDVFST DIRECT-VENT GAS FIREPLACE

PRE-INSTALLATION PREPARATION

Continued

MANTEL CLEARANCES

Woodwork, such as wood trims, mantels, and other combustible materials projecting no more than 1 1/2 inches (3.8cm) shall not be placed within 7 inches (17.8cm) from the opening of the unit. Combustible material above and projecting more than 1 1/2 inches (3.8cm) from the appliance’s face must not be placed less than 15 inches (38.1cm) from the louver opening (see Figure 5).

Combustible Material May Be Used

21"

(533mm)

Min.

(381mm)

(102mm)

15"

Min.

Top of Louver Opening

Figure 5 - Mantel Clearances

FRAMING

Once the final location has been determined, observing height clearances for vent termination, you may construct framing using dimensions shown in Figure 6, depending on your installation.

If the appliance is to be installed directly on carpeting, tile (other than ceramic), or any combustible material other than wood flooring, the appliance must be installed on a metal or wood panel extending the full width and depth of the appliance. There are three holes on each side of the bottom of the unit where screws can be used to secure the unit to the floor.

Drywall (Gypsum Board, Sheetrock, Etc.)

12"

(305mm)

Min.

7" (178mm) Min.

Safe Zone for Projection of Combustible Material

2 x 4

Spacer

/2" (38mm)

1 Min.

UNIT

(600mm)

39 3/4"

(1010mm)

Min.

(1098mm)

/4"

Figure 6 - Rough Opening for Installing See Thru Fireplace

1" (25mm)

Dia. Hole

(25mm)

2" (51mm)

Dia. Hole

(51mm)

3" (76mm)

(76mm)

Figure 7 - Hole Locations For Gas Line and Electric Wires

10"

(254mm)

Square Min.

Height

Depends On

Installation

Figure 8 - Rough Opening for Installing Exterior Vent Terminal

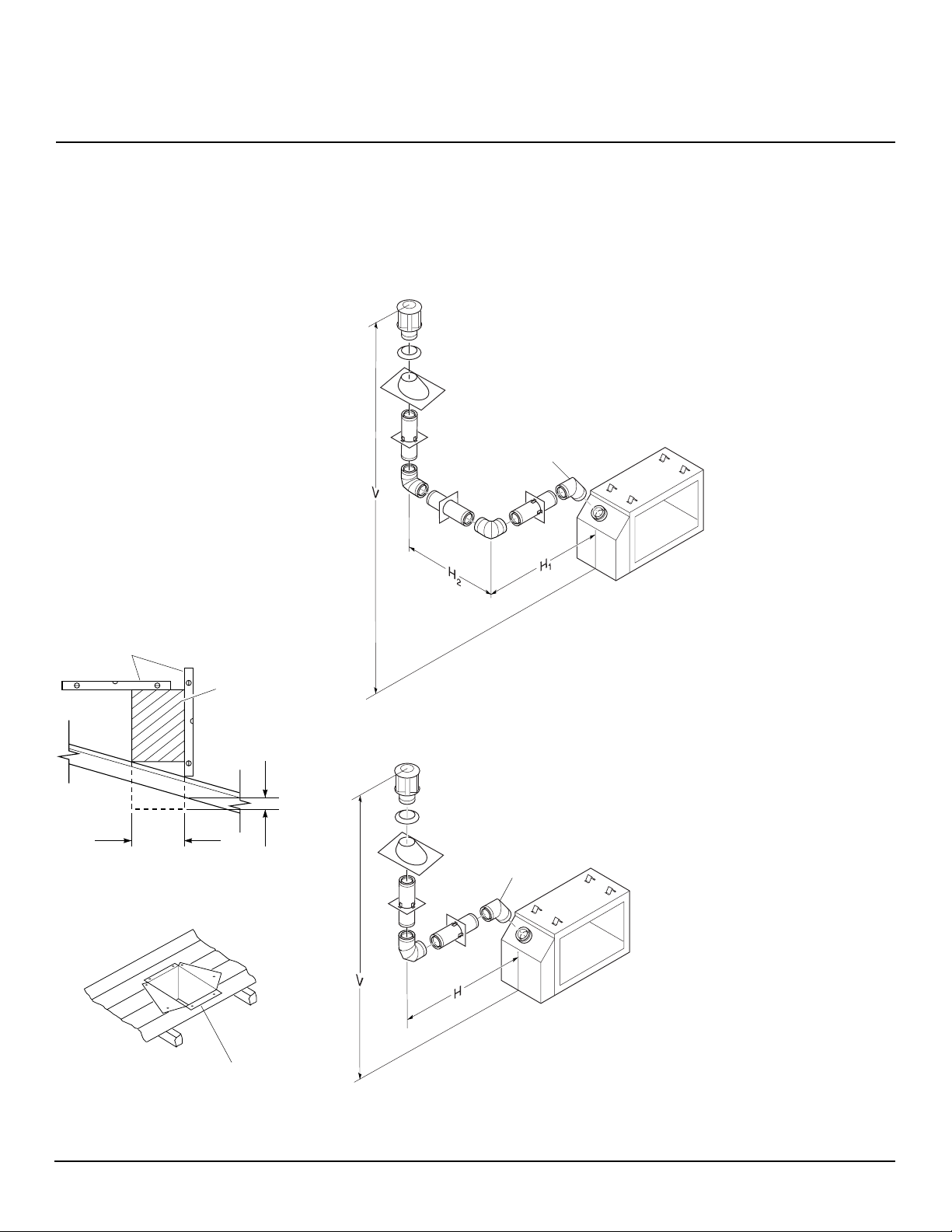

Refer to Pages 9 through 12 for Horizontal and Vertical

Vertical Height

Depends on

Installation

Elbow

/8"

(670mm)

Horizontal

Length Depends

on Installation

Installation Details

Figure 9 - Vent Opening Height

GENERAL VENTING

Note:

Terminations are not designed for

installation prior to transportation.

These models are approved for use with both flex and rigid Vanguard vent components as well as Simpson Dura-Vent 6 5/8" direct-vent pipe components and terminations.

Your fireplace is approved to be vented either through the side wall, or vertically using the following guidelines:

• Only use Vanguard or Simpson DuraV ent GS venting components or kits specifically approved for this fireplace.

• Minimum clearance between vent pipes and combustible materials is 1" (25 mm), except where stated otherwise.

• Combustible material may be flush with the top front of fireplace with a maximum thickness of 3/4".

• Do not recess venting terminals into a wall or siding.

• Install horizontal venting with a 1/4" rise for every 12" of run toward the termination.

• You may paint the vent terminal with 450°F (232°C) heat-resistant paint to coordinate with the exterior finish.

• There must not be any obstruction such as bushes, garden sheds, fences, decks, or utility buildings within 24" from the front of the termination cap.

• Do not locate termination cap where excessive snow or ice build up may occur. Be sure to clear vent termination area after snow falls to prevent accidental blockage of venting system. When using snow blowers, do not direct snow towards vent termination area.

106442

OWNER’S MANUAL

GENERAL VENTING

Continued

LOCATION OF VENT TERMINATION

When locating vent termination, it is important to observe the minimum clearances shown in Figure 10. You will avoid extra framing by positioning your fireplace against an already existing framing member. The sides of the fireplace may be positioned directly against combustible walls.

*Check with local codes or with the current CAN/CGA B149 [.1 or .2] Installation Codes for Canada or the USA Installations follow the current National Fuel Gas Code, ANS Z223.1, also known as NFPA 54.

A = clearance above grade, veranda, porch, deck, or balcony

[*12 inches (305mm) minimum]

B = clearance to window or door that may be opened

[12 inches (305mm) minimum]

C = clearance to permanently closed window [minimum 12 inches

(305mm) recommended to prevent condensation on window]

D = vertical clearance to ventilated soffit located above the terminal

within a horizontal distance of 24 inches (610mm) from the

center-line of the terminal [18 inches (457mm) minimum] E = clearance to unventilated soffit [12 inches (305mm) minimum] F = clearance to outside corner (see below) G = clearance to inside corner (see below) H = *not to be installed above a meter/regulator assembly within

36 inches (914mm) horizontally from the center-line of the regulator

† vent shall not terminate directly above a side-walk or paved driveway which is located between two

single family dwellings and serves both dwellings* ‡ only permitted if veranda, porch, deck or balconey is fully open on a minimum of 2 sides beneath the floor* * as specified in CAN/SGA B149 (.1 or .2) Installation Codes (1991) for Canada or for U.S.A. installation follow

the current Note: Local codes or regulations may require different clearances

Fixed

Closed

TERMINATION CAP

Openable

National Fuel Gas Code, ANS Z223.1

Openable

AIR SUPPLY INLET

I = clearance to service regulator vent outlet [*72 inches (1829mm)

minimum]

J = clearance to non-mechanical air supply inlet to building or the

combustion air inlet to any other fireplace [*12 inches (305mm) minimum]

K = clearance to a mechanical air supply inlet [*72 inches (1829mm)

minimum]

L = † clearance above paved side-walk or a paved driveway located on

public property [*84 inches (2133mm) minimum] M = clearance under veranda, porch, deck [*12 inches (305mm) minimum ‡] N = clearance above a roof shall extend a minimum of 24 inches (610mm)

above the highest point when it passes through the roof surface and

any other obstruction within a horizontal distance of 18 inches (457mm)

V A

Fixed

Closed

GAS METER RESTRICTED AREA

Termination Clearances for Buildings with Combustible and Noncombustible Exteriors

Inside Corner

Outside Corner Recessed Location

(TERMINATION PROHIBITED)

Balcony with No Side Wall

G = Combustible 24" (610mm)

Noncombustible 18" (457mm)

A = 6" (152mm)

B = 6" (152mm)

Balcony with Perpendicular Side Wall

Combustible & Noncombustible H = 24" (610mm) J = 20" (508mm)

Figure 10 - Minimum Clearances for Vent Terminations

106442

C = Maximum depth of 48" (1219mm) for

recessed location

D = Minimum width for back wall of

recessed location Combustible - 38" (965mm) Noncombustible - 24" (610mm)

E = Clearance from corner in

recessed locationCombustible - 6" (152mm) Noncombustible - 2" (51mm)

MDVFST DIRECT-VENT GAS FIREPLACE

VENTING INSTALLATION

WARNING: Read all instructions completely and thoroughly before attempting installation. Failure to do so could result in serious injury, property damage or loss of life. Operation of improperly installed and maintained venting system could result in serious injury, property damage or loss of life.

WARNING: Seal all vent connections. Seal only the outer pipe connections high temperature silicone (600°F/316° C). Before joining elbows and pipes, apply a bead of high temperature silicone sealant (GE RTV 106/Loctite RTV 81585) to the male end of the elbow or pipe. High temperature silicone must also be used to reseal any connections after maintenance to venting system.

NOTICE: Failure to follow these instructions will void the warranty.

INSTALLATION PRECAUTIONS

Consult local building codes before beginning the installation. The installer must make sure to select the proper vent system for installation. Before installing vent kit, the installer must read this fireplace manual and vent kit instructions.

Only a qualified installer or service person should install venting system. The installer must follow these safety rules:

• Wear gloves and safety glasses for protection

• Use extreme caution when using ladders or when on roof tops

• Be aware of electrical wiring locations in walls and ceilings

The following actions will void the warranty on your venting system:

• Installation of any damaged venting component

• Unauthorized modification of the venting system

• Installation of any component part not manufactured or approved by DESA International

• Installation other than as instructed by these instructions

WARNING: This gas fireplace and vent assembly must be vented directly to the outside. The venting system must NEVER be attached to a chimney serving a separate solid fuel burning appliance. Each gas appliance must use a separate vent system. Do not use common vent systems.

WARNING: Horizontal sections of this vent system require a minimum clearance of 2" from the top of the vent pipe and 1" minimum to the sides and bottom. Vertical sections of this system require a minimum of 1" clearance to combustible materials on all sides of the vent pipe.

INSTALLATION PLANNING

There are two basic types of direct-vent installation:

• Horizontal Termination

• V ertical Termination It is important to select the proper length of

vent pipe for the type of termination you choose. It is also important to note the wall thickness.

For Horizontal Termination: Select the

amount of vertical rise desired. The horizontal run of venting must have 1/4" rise for every 12" of run towards the termination.

A MDVGFK ground floor horizontal vent kit is specifically designed for common horizontal installations in manufactured (mobile) homes. Additional horizontal installations are described on page 9. All vent kits and components are listed on page 13.

WARNING: Never run the vent downward as this may cause excessive temperatures which could cause a fire.

You may use one or two 90° elbows in a horizontal vent configuration. See Horizon- tal Termination Configurations on page 9.

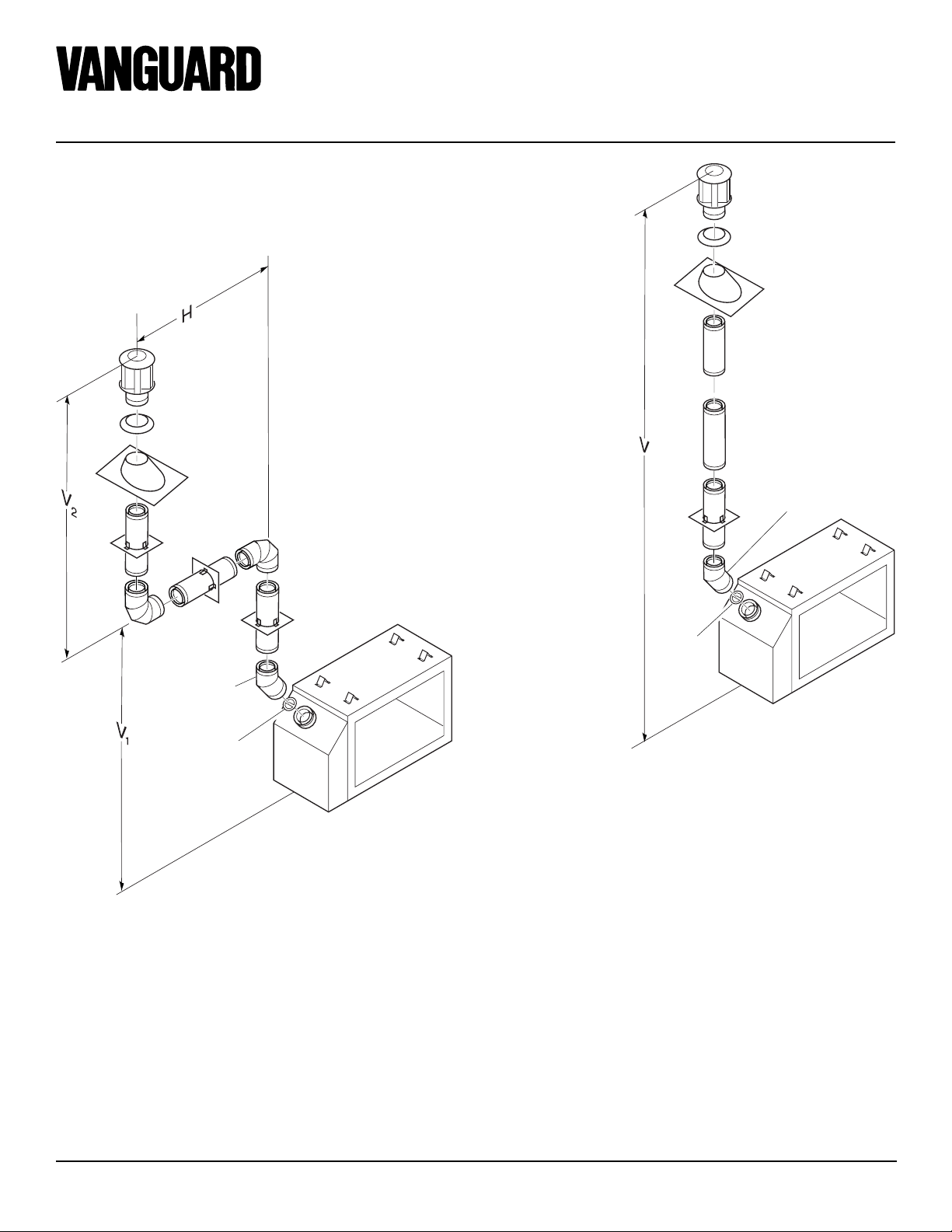

For Vertical Termination: Measure the dis-

tance from the fireplace flue outlet to the ceiling. Add the ceiling thickness, the vertical rise in an attic or second story, and allow for sufficient vent height above the roofline. You may use one or two 90° elbows in a

vertical vent configuration. See Vertical Ter- mination Configurations on pages 11 and 12.

Note:

You may use two 45° elbows in place of a 90° elbow. You must follow rise to run ratios when using 45° elbows.

The MDV9K 9' vertical vent kit is specifically designed for common vertical installations in manufactured (mobile) homes. Additional vertical installations are described on pages 11 and 12. All vent kits and components are listed on page 13.

For two-story applications, firestops are required at each floor level. If an offset is needed in the attic, additional pipe and elbows will be required.

You may use a chase with a vent termination with exposed pipe on the exterior of the house. See Installing Vent System in a Chase, below.

Your Vanguard direct-vent fireplace has been tested for a minimum 3' rise with a maximum 10" wall thickness. The maximum horizontal run is 20' with 8' vertical rise (see Installation for Horizontal Termi- nation, pages 7 through 9). The maximum vertical run is 40' (see Installation for Ver- tical Termination, page 10 through 12).

It is very important that the venting system maintain its balance between the combustion air intake and the flue gas exhaust. Certain limitations apply to vent configurations and must be strictly followed.

Installing Vent System in a Chase

A chase is a vertical boxlike structure built to enclose venting that runs along the outside of a building. A chase is not required for such venting.

NOTICE: Treatment of firestops and construction of the chase may vary from building type to building type. These instructions are not substitutes for the requirements of local building codes. You must follow all local building codes.

Note:

When installing in a chase, you should insulate the chase as you would the outside walls of your home. This is especially important in cold climates. Minimum clearance between vent pipes and combustible materials such as insulation is 1".

After framing the chase (see Framing on page 4) install the vent system by following the installation instructions.

106442

VENTING INSTALLATION

Continued

INSTALLATION FOR HORIZONTAL TERMINATION

1. Determine the route your horizontal venting will take. of the horizontal vent termination on the exterior wall must meet all local and national building codes and must not be easily blocked or obstructed.

Note:

The location

OWNER’S MANUAL

12" Minimum

90°

1' Minimum

WARNING: Do not recess vent

terminal into a wall or siding.

Snorkel terminations are available for terminations requiring a vertical rise on the exterior of the building (see Figures 11 and 12). Snorkel kit SVK is also available (see page 13). Follow the same installation procedures used for standard horizontal terminations. If installing the snorkel termination below grade (basement applications), you must provide proper drainage to prevent water from entering the snorkel termination (see Figure 12). Do not back fill around the snorkel termination.

2. Rigid vent pipes and fittings have special twist-lock connections. Assemble the desired combination of pipe and elbows to the appliance adaptor with pipe seams oriented towards the wall or floor.

Twist-lock Procedure: The female ends of the pipes and fittings have four locking lugs (indentations). These lugs will slide straight into matching slots on the male ends of adjacent pipes and fittings. (All connections must be sealed with high temperature silicone sealant as specified in the second warning statement on page 6.) Push the pipe sections together and twist one section clockwise approximately one-quarter turn until the sections are fully locked. See Figure 13, page 8. must be supported every three feet. Use wall straps for this purpose.

Flexible vent pipe must be installed with spacer springs every 12". See Figure 13, page 8. All connections must be clamped tightly and sealed with high temperature silicone sealant as specified in the second warning statement on page 6.

Note:

Horizontal runs of vent

Snorkel

45°

Figure 11 - Snorkel Termination

90°

1' Minimum

45°

Figure 12 - Snorkel Termination with Drainage Pipe

Snorkel

12" Minimum

Adequate Drainage

Continued

106442

MDVFST DIRECT-VENT GAS FIREPLACE

VENTING INSTALLATION

Continued

3. Attach vent pipe assembly to the fireplace. Set fireplace in front of it’s per manent location to insure minimum clearances. Mark the wall for a 10" square hole (for noncombustible material such as masonry block or concrete, a 7 1/2" diameter hole is acceptable). See Figure 14. The center of the hole should line up with the centerline of the horizontal rigid vent pipe. Cut a 10"x10" (254mm x 254mm) square hole through combustible exterior wall (7 1/2" [190mm] diameter hole if noncombustible). Frame as necessary (see Figure 14).

4" Clamp

Female Locking Lugs

Male Slots

7" Clamp

Spacer Spring

4" Flex Pipe

7" Flex Pipe

4. Apply a bead of non-hardening mastic around the outside edge of the vent cap. Position the vent cap in the center of the 7 1/2" or 10" hole on the exterior wall with the arrow on the vent cap pointing up. Insure proper clearance of 1" to combustibles is maintained. Attach the vent cap with four wood screws supplied (see Figure 15).

Note

: Replace the wood screws with appropriate fasteners for stucco, brick, concrete, or other types of siding.

WARNING: Do not recess vent termination in to any wall. This will cause a fire hazard.

For vinyl or stucco siding use vinyl siding standoffs between vent cap and exterior wall. The vinyl siding standoff prevents excessive heat from melting the vinyl siding material. Bolt the vent cap to the standoff. Apply non-hardening mastic around outside edge of the standoff instead of the vent cap assembly . Use wood screws provided to attach the standoff. See Figure 16.

5. Slide the wall thimble over the vent pipe before connecting the horizontal run to the vent cap (see Figure 17).

6. Carefully move the fireplace with vent assembly attached toward the wall and insert the vent pipe into the horizontal termination. The pipe overlap should be a minimum of 1 1/4". Apply silicone to the outer pipe connection. Fasten all vent connections with screws provided. Refer to Fr aming on page 4 for instructions on securing unit to framing or floor.

7. Slide the wall thimble against the interior wall surface and attach with screws provided (see Figure 17).

Cut Wood or Vinyl Siding Away to Fit Standoff

Wood Screw

Standoff

Nut

Apply Mastic to All Four Sides

Figure 16 - Installing Vinyl Siding Standoff

Vent Cap

Bolt

Rigid Vent Pipe Flexible Vent Pipe

Figure 13 - Vent Pipe Connections

Vent Opening

Combustible Wall

10"

(254mm)

10"

(254mm)

(Framing

Vent Opening

Noncombustible Wall

7 1/2"

(190mm)

Figure 14 - Vent Opening Requirements

Detail)

Apply Mastic to All Four Sides

Wood Screw

Vent Cap

Figure 15 - Installing Horizontal Vent Cap

Interior Wall Surface

Wall Thimble

Vent Cap (Horizontal Termination)

Figure 17 - Connecting Vent Cap with Horizontal Vent Pipe

Screw

Horizontal Vent Pipe

106442

OWNER’S MANUAL

VENTING INSTALLATION

Continued

Horizontal Termination Configurations

Figures 18 through 20 show different configurations for venting with horizontal termination. Each figure includes a chart with vertical minimum/maximum and horizontal maximum dimensions which must be met. All connections must be sealed with high temperature silicone sealant (outer pipe only) as specified in the second warning statement on page 6. All horizontal terminations require 1/4" rise per 12" of horizontal run.

Vinyl Standoff

(MDVGFK Kit Shown)

Horizontal Venting

Vertical (V) Horizontal (H)

49.5" min. 15" max.

45° Starter Elbow

(45° elbow, 1' vertical pipe, 90° elbow)

61.5" min. 34" max.

73.5" min. 58" max.

85.5" min. 10' max.

102.5" min. 20' max.

Figure 18 - Horizontal Termination Configuration for Rigid Venting Using One 90° Elbow

Note:

The 30° Starter Elbow Must Be Discarded and Replaced with a 45° Starter Elbow D2060 Purchased Separately.

Horizontal Venting

See information in Figure 18 for Vertical(V) and

Horizontal(H) maximums and minimums. The same amounts apply for flexible venting.

Note:

If your installation has wood or vinyl siding, you must install the wood/vinyl siding standoff D5000

Figure 19 - Horizontal Termination Using Flexible Venting

FGFVK Vent Kit Shown

Venting with Two 90° Elbows

Vertical (V) Horizontal (H1) +

Horizontal (H2)

5' min. 4' max. 6' min. 8' max. 7' min. 10' max.

Note:

8' min. 15' max.

20' max. 20' max.

If your installation has wood or vinyl siding, you must install the wood/vinyl siding standoff D5000

45° Starter Elbow

Figure 20 - Horizontal Termination Configuration for Rigid Venting Using Two 90° Elbows with Termination at 90° with Fireplace

Continued

106442

+ 19 hidden pages
