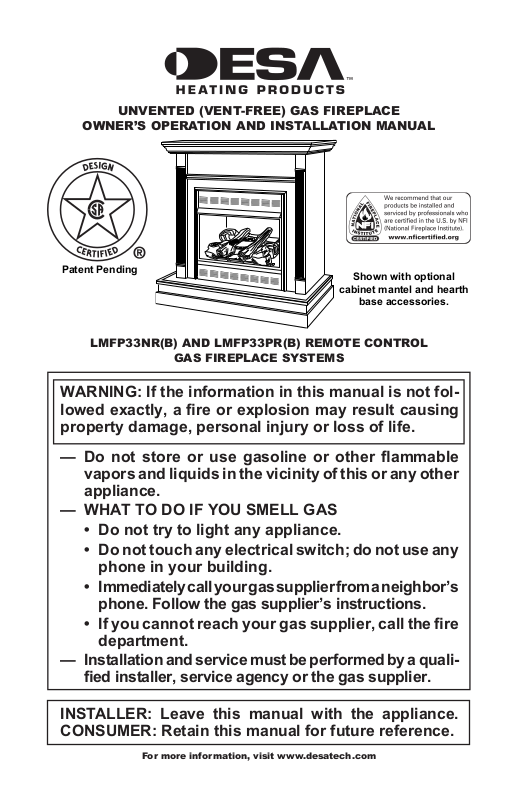

Desa LMFP33NRB, LMFP33PRB User Manual

UNVENTED (VENT-FREE) GAS FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

Patent Pending

LMFP33NR(B) AND LMFP33PR(B) REMOTE CONTROL

GAS FIREPLACE SySTEMS

Shown with optional

cabinet mantel and hearth

base accessories.

WARNING: If the information in this manual is not fol-

lowed exactly, a re or explosion may result causing property damage, personal injury or loss of life.

— Do not store or use gasoline or other ammable

vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any

phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department.

— Installation and service must be performed by a quali-

ed installer, service agency or the gas supplier.

INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.

For more information, visit www.desatech.com

CONTENTS

Safety Information ............................................... 2

Product identication ........................................... 4

Local Codes......................................................... 4

Unpacking............................................................ 5

Product Features ................................................. 5

Air for Combustion and Ventilation ...................... 5

Installation ........................................................... 8

Operating Heater ............................................... 19

Inspecting Burners............................................. 22

Cleaning and Maintenance ................................ 23

SAFETy INFORMATION

Troubleshooting ................................................. 24

Specications .................................................... 28

Wiring Diagram .................................................. 28

Technical Service............................................... 28

Service Hints ..................................................... 28

Replacement Parts ............................................ 28

Accessories ....................................................... 29

Illustrated Parts Breakdown and Parts List........ 30

Warranty Information ..........................Back Cover

WARNING: Improper installation, adjustment, al-

teration, service or maintenance can cause in-

jury or property damage.

Refer to this manual for correct installation and

operational procedures.

For assistance or additional information con-

sult a qualied installer, service agency or the gas supplier.

WARNING: This is an

unvented gas-red heater. It uses air (oxygen)

from the room in which

it is installed. Provisions for adequate combustion

and ventilation air must

be provided. Refer to Air for Combustion and Ventilation section on page 5

of this manual.

This appliance may be in-

stalled in an aftermarket,*

perm a nently loca t ed, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

WARNING: This product con-

tains and/or generates chemicals

known to the State of California

to cause cancer or birth defects or other reproductive harm.

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate or service this heater. Improper

use of this heater can cause seri-

ous injury or death from burns, re, explosion, electrical shock and carbon monoxide poisoning.

www.desatech.com

119526-01A2

SAFETy INFORMATION

Continued

DANGER: Carbon monoxide

poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon

monoxide poisoning resemble the u, with headaches, dizziness or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart

or lung disease or anemia, those under the inuence

of alcohol and those at high altitudes.

Natural and Propane/LP Gas: Natural and pro-

pane/LP gases are odorless. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

WARNING: Any change to

this heater or its controls can

be dangerous.

WARNING: Do not allow fans

to blow directly into the replace. Avoid any drafts that alter burner ame patterns. Ceiling fans can create drafts that alter burner ame patterns. Altered burner patterns can cause sooting.

WARNING: Do not use a

blower insert, heat exchanger insert or other accessory not approved for use with this heater.

Due to high temperatures, the appliance should be located out of trafc and away from furniture and draperies.

Do not place clothing or other ammable material on or near the appliance. Never place any objects on the heater.

Fireplace and screen become very hot when running replace. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace

will remain hot for a time after

shutdown. Allow surfaces to cool before touching.

Carefully supervise young chil-

dren when they are in the room

with replace. When using the optional hand-held remote accessory, keep selector switch in the OFF position to prevent children from turning on burners with remote.

You must operate this replace with the replace screen and hood in place. Make sure replace screen and hood are in place before running heater.

Keep the appliance area clear and free from combustible materials, gasoline and other ammable vapors and liquids.

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors (propane/LP units only).

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not use

any phone in your building

• immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s instructions

• if you cannot reach your gas supplier, call

the re department

4. This replace shall not be installed in a bed-

room or bathroom.

5. Do not use this replace as a wood-burning replace. Use only the logs provided with the replace.

119526-01A 3

www.desatech.com

SAFETy INFORMATION

Continued

6. Do not add extra logs or ornaments such as

pine cones, vermiculite or rock wool. Using

these added items can cause sooting. Do not add lava rock around base. Rock and debris

could fall into the control area of replace.

To prevent the creation of soot, follow the instructions in Cleaning and Maintenance, page 24.

8. Before using furniture polish, wax, carpet cleaner or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

9. This replace needs fresh air ventilation to run properly. This replace has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the replace if enough fresh

air is not available. See Air for Combustion and Ventilation, page 5. If replace keeps shutting off, see Troubleshooting, page 25.

10. Do not run replace

• where ammable liquids or vapors are used

or stored

• under dusty conditions

11. Do not use this replace to cook food or burn

paper or other objects.

12. Do not use replace if any part has been exposed to or under water. Immediately call a qualied service technician to inspect the replace and to

replace any part of the control system and any gas control which has been under water.

13. Do not operate replace if any log is broken. Do not operate replace if a log is chipped

(dime-sized or larger).

14. Turn replace off and let cool before servicing. Only a qualied service person should service and repair replace.

15. Operating replace above elevations of 4,500

feet could cause pilot outage.

16. To prevent performance problems in propane/LP units, do not use propane/LP fuel tanks of less than 100 lbs. capacity (propane/LP units only).

17. Prov ide adequa te cleara nce s arou nd air

openings.

PRODUCT

IDENTIFICATION

4-Piece Log Set (A Models shown)

Control Knob

Piezo Ignitor

Remote Control

Remote Receiver

Figure 1 - Log Base Assembly

Top Louver Assembly

Firebox

Top Outer Casing

Blower Assembly (Optional)

Hood

Firebox Support

Screen Assembly

Bottom Louver Assembly

Figure 2 - Fireplace (LMFP33PR Shown)

LOCAL CODES

Install and use replace with care. Follow all local

codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

National Fire Protection Association, Inc.

Note: Where listed vented decorative logs are

required, thermostat operation is not permitted.

1430 Broadway

New York, NY 10018

Batterymarch Park Quincy, MA 02269

www.desatech.com

119526-01A4

LOCAL CODES

Continued

State of Massachusetts: The installation must be made by a licensed plumber or gas tter in the Commonwealth of Massachusetts.

Sel lers of unvented propane or natu ral

gas-red supplemental room heaters shall

provide to each purchaser a copy of 527 CMR 30 upon sale of the unit.

Vent-free gas products are prohibited for bedroom and bathroom installation in the Commonwealth of Massachusetts.

UNPACkING

CAUTION: Do not remove the

data plates attached to the heater base assembly. The data plates contain important warranty and safety information.

1. With utility knife, cut the carton all the way around above the staples on the bottom tray. Lift the carton off the heater. Remove packing. Note: The hood is located in the packing on the right hand side of the heater front. Lift the heater off the bottom tray.

2. Locate two screws above top corners of the

replace screen. Remove and discard these screws. Lift replace screen up and pull out

to remove.

3. Remove protective packaging applied to logs,

log base assembly and replace.

4. Remove replace hood from carton insert.

5. Check all items for any shipping damage. If damaged, promptly inform dealer where you

bought replace.

PRODUCT FEATURES

OPERATION

This vent-free replace is clean burning. It requires

no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by both

realistic ames. When used without the blower, the replace requires no electricity making it ideal for

emergency backup heat. This heater is designed for vent-free operation. It has been tested and approved to ANSI Z21.11.2 standard for unvented heaters. State and local codes in some areas prohibit the use of vent-free heaters.

SAFETY DEVICE

This replace has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/ pilot is a required feature for vent-free room heaters. The ODS/pilot system shuts off the replace

if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This replace has a piezo ignitor. This system requires no matches, batteries or other sources to light replace.

OPTIONAL BLOWER ASSEMBLY

(GA3750 SERIES & GA3650TB SERIES)

This replace accepts an optional blower assembly

(not included). The GA3650TB Series blower operates thermostatically and features a variable speed control. The GA3750 Series blower operates manually and also features a variable speed control.

The blower circulates heated air from the replace

into the room. See Accessories, page 34

AIR FOR COMBUSTION

AND VENTILATION

WARNING: This heater shall

not be installed in a conned space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efcient

than ever. New materials, increased insulation and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efcient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, replaces, clothes dryers and fuel

burning appliances draw air from the house to

operate. You must provide adequate fresh air for

these appliances. This will insure proper venting of vented fuel-burning appliances.

119526-01A 5

www.desatech.com

AIR FOR COMBUSTION

AND VENTILATION

Continued

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three fol-

lowing ventilation classications:

1. Unusually Tight Construction

2. Unconned Space

3. Conned Space

The information on pages 5 through 7 will help

you classify your space and provide adequate

ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is dened as

construction where:

a. walls and ceilings exposed to the out-

side atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10 with openings gasketed or sealed and

b. weather stripping has been added on

openable windows and doors and

c. caulking or sealants are applied to areas

such as joints around window and door frames, between sole plates and oors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical and gas lines and at other openings.

If your home meets all of the three criteria

above, you must provide additional fresh air. See Ventilation Air From Outdoors, page 7.

If your home does not meet all of the three

criteria above, proceed to Determining Fresh-Air Flow For Heater Location.

-11

kg per pa-sec-m2) or less

Conned and Unconned Space

The National Fuel Gas Code, ANSI Z223.1/NFPA 54 denes a conned space as a space whose vol-

ume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all

appliances installed in that space and an unconned

space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are

considered a part of the unconned space.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

DETERMINING FRESH-AIR FLOW FOR FIREPLACE LOCATION

Determining if You Have a Conned or Unconned Space

Use this work sheet to determine if you have a conned or unconned space.

Space: Includes the room in which you will install

replace plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x height).

Length x Width x Height =__________cu. ft.

(volume of space)

Example: Space size 20 ft. (length) x 16 ft.

(width) x 8 ft. (ceiling height) = 2,560 cu. ft. (volume of space)

If additional ventilation to adjoining room is

supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.

__________ (volume of space) x 20 = (Maxi-

mum Btu/Hr the space can support) Example: 2,560 cu. ft. (volume of space) x 20 =

51,200 (maximum Btu/Hr the space can support)

3. Add the Btu/Hr of all fuel burning appliances in the space.

Vent-free replace __________ Btu/Hr Gas water heater* __________ Btu/Hr Gas furnace __________ Btu/Hr Vented gas heater __________ Btu/Hr

Gas replace logs __________ Btu/Hr Other gas appliances* + ________ Btu/Hr

Total = ________ Btu/Hr

* Do not include direct-vent gas appliances. Di-

rect-vent draws combustion air from the outdoors and vents to the outdoors.

www.desatech.com

119526-01A6

AIR FOR COMBUSTION

Outlet Air

Ventilated Attic

Outlet

Inlet Air

Ventilated

Crawl Space

Crawl

Space

To Attic

Remove Door into Adjoining

Room, Option

Ventilation Grills

Into Adjoining Room,

Option 2

Ventilation

Grills

Into Adjoining

Room,

Option 1

12"

AND VENTILATION

Continued

Example:

Gas water heater __________ Btu/Hr

Vent-free replace + ________ Btu/Hr

Total = ________ Btu/Hr

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

__________

_________

Btu/Hr (maximum the space can support)

Btu/Hr (actual amount of Btu/Hr used)

Example: 51,200 Btu/Hr (maximum the space

can support)

73,000 Btu/Hr (actual amount of

Btu/Hr used)

The space in the example is a conned space because

the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoin-

ing room. If the extra space provides an unconned

space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation

Air From Inside Building.

B. Vent room directly to the outdoors. See Ventila-

tion Air From Outdoors.

C. Install a lower Btu/Hr replace, if lower Btu/Hr

size makes room unconned.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an un-

conned space. You will need no additional fresh

air ventilation.

WARNING: If the area in

which the heater may be operated is smaller than that dened as an unconned space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described

in the National Fuel Gas Code, ANSI Z223.1/NFPA 54 Section 5.3

or applicable local codes.

40,000 33,000 73,000

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining un-

conned space. When ventilating to an adjoining unconned space, you must provide two perma-

nent openings: one within 12" of the ceiling and

one within 12" of the oor on the wall connecting

the two spaces (see options 1 and 2, Figure 3). You can also remove door into adjoining room (see option 3, Figure 3). Follow the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for required size of

ventilation grills or ducts.

Figure 3 - Ventilation Air from Inside

Building

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12"

of the oor. Connect these items directly to the

outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the

National Fuel Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for

required size of ventilation grills or ducts.

IMPORTANT: Do not provide openings for inlet or outlet air into attic if attic has a thermostatcontrolled power vent. Heated air entering the attic will activate the power vent.

119526-01A 7

Figure 4 - Ventilation Air from Outdoors

www.desatech.com

INSTALLATION

NOTICE: This heater is intended

for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualied service person must install replace. Follow all local codes.

WARNING: Never install the

replace

• in a bedroom or bathroom

• in a recreational vehicle

• where curtains, furniture,

clothing or other ammable objects are less than 42 inches from the front, top or sides of

the heater

• in high trafc areas

• in windy or drafty areas

CAUTION: This replace creates warm air currents. These

currents move heat to wall sur-

faces next to replace. Installing replace next to vinyl or cloth wall coverings or operating heater where impurities (such as, but not limited to, tobacco

smoke, aromatic candles, clean-

ing uids, oil or kerosene lamps, etc.) in the air exist, may discolor walls or cause odors.

Note: Your replace is designed to be used in zero

clearance installations. Wall or framing material can be placed directly against any exterior surface

on the rear, sides or top of your replace, except

where standoff spacers are integrally attached. If

standoff spacers are attached to your replace,

these spacers can be placed directly against wall or framing materials.

Use the dimensions shown for rough openings to

create the easiest installation. See Built-In Fireplace Installation, page 11.

IMPORTANT: Vent-free heaters add moisture

to the air. Although this is benecial, installing replace in rooms without enough ventilation

air may cause mildew to form from too much moisture. See Air for Combustion and Ventilation, page 5. IMPORTANT: Make sure the replace

is level. If replace is not level, log set will not

work properly.

CHECK GAS TYPE

Use the correct gas type (natural or propane/LP) for your replace. If your gas supply is not correct, do not install replace. Call dealer where you bought replace for proper type replace.

WARNING: This appliance is equipped for (natural or propane/LP) gas. Field conversion is not permitted.

ELECTRICAL HOOKUP

(Models GA3750 Series and GA3650TB Series Blower Accessories and GA3555 Internal Duplex Kit)

This replace accepts a blower assembly with an electrical cord. The electrical cord is ve feet in length. You must locate replace within reach of

a 120 volt grounded electrical outlet. If not, you must install an electrical outlet within reach of replace power cord. The GA3555 outlet accessory is used for built-in applications with blower accessory installed.

www.desatech.com

119526-01A8

INSTALLATION

Continued

INSTALLING HOOD

Install hood to top of rebox as shown in Figure

5. Use 3 Phillips screws provided

Figure 5 - Installing Hood to Firebox

ASSEMBLING AND ATTACHING OPTIONAL TRIM)

IMPORTANT: If you are recessing the rebox in a

wall, do not attach trim at this time. See page 11. Note: The instructions below show assembling

and attaching trim to replace.

1. Remove packaging from three pieces of trim.

2. Locate four brass screws, two adjusting plates with set screws and two shims in the hardware packet.

3. Align shim under adjusting plate as shown in Figure 6.

4. Slide one end of adjusting plate/shim in slot on mitered edge of top trim (see Figure 6).

5. Slide other end of adjusting plate/shim in slot on mitered edge of side trim (see Figure 6).

6. While rmly holding edges of trim together,

tighten both set screws on the adjusting plate with slotted screwdriver.

7. Repeat steps 1 through 6 for other side.

8. Tighten trim hanging screws (#10 x 6.25 shoulder) into holes in cabinets. Place the

assembled trim onto replace cabinet. Align

hanging notches on trim with hanging screws

on side of replace (see Figure 7). Push trim rmly into place, sliding hanging notches over

hanging screws.

Set Screws

Top Trim

Side Trim

Adjusting Plate

Trim Hanging Screws

Hanging Notches on Trim

Assembled Trim

Figure 7 - Attaching Trim to Fireplace

INSTALLATION CLEARANCES

WARNING: Maintain the

minimum clearances. If you can, provide greater clearances from oor, ceiling and adjoining wall.

Carefully follow the instructions below. This will ensure safe installation.

Minimum Clearances For Side

Combustible Material, Side Wall and Ceiling

A. Clearances from the side of the fireplace

cabinet to any combustible material and wall should follow diagram in Figure 8.

Example: The face of a mantel, bookshelf,

etc. is made of combustible material and protrudes 3 1/2" from the wall. This combustible material must be 4" from the side of the

replace opening (see Figure 8).

Clearances from the top of the replace opening

to the ceiling should not be less than 42 inches.

MINIMUM CLEARANCE TO

COMBUSTIBLE MATERIALS

Top Left and Bottom Right Sides and Rear

42" 16" 0"

Example

Mitered Edge

Slot

Figure 6 - Assembling Trim

119526-01A 9

Shim

Slot

www.desatech.com

*Minimum 16 inches from Side Wall

Figure 8 - Minimum Clearance for

Combustible to Wall

INSTALLATION

Continued

CONVENTIONAL FIREPLACE INSTALLATION

Conventional installation of this replace involves installing replace along with the corner, face or

cabinet mantel with hearth base accessories against a wall in your home. Follow the instructions below

to install the replace in this manner.

Note: The instructions in this section show installation using the cabinet mantel and hearth base accessories. The hearth base accessory shown is

optional for this installation. You can install replace and cabinet mantel directly on the oor.

1. Assemble cabinet mantel, hearth base and trim accessories. Assembly instructions are included with each accessory.

2. When installing blower, install a properly grounded, 120 volt three-prong electrical out-

let at replace location if an outlet is not there.

If possible, locate outlet so cabinet mantel will cover it when installed (see Figure 9).

3. Install gas piping to replace location. This installation includes an approved exible gas line (if allowed by local codes) after the equipment shutoff valve. The exible gas line must

be the last item installed on the gas piping. See Installing Gas Piping to Fireplace Location, page 13.

Place hearth base accessory against wall at installation location. Cut an access hole in hearth top

to run exible gas line to replace (see Figure

9). Make sure to locate access hole so cabinet mantel will cover it when installed. Note: You

can secure base to oor using wood screws.

Countersink screw heads and putty over.

5. Route exible gas line through access hole in

hearth base.

Center cabinet mantel on hearth base (see Figure

10). Make sure mantel is ush against wall.

7. Break off nailing anges (see Figure 11) with

hammer or pliers.

8. Place cardboard or other protective material

on top of hearth base. Carefully set replace on protective material, with back of replace

inside mantel opening.

9. Attach exible gas line from replace gas

regulator to gas supply. See Connecti ng Fireplace to Gas Supply, page 15.

10.

If blower is installed, route blower electrical cord

through access holes in either side of replace.

Note: Bushing may be moved if necessary. Plug electrical cord into electrical outlet.

11.

Carefully insert replace into cabinet mantel.

Be careful not to scratch or damage hearth base or cabinet mantel. Remove protective material from top of hearth base and from front of replace (if any). Note: You can secure replace

to hearth or oor. Open lower louver. Locate

screw holes in bottom of base. Tighten wood screws through these holes and into hearth or

oor.

12. Check all gas connections for leaks. See Checking Gas Connections, page 16.

Cabinet Mantel

Figure 10 - Installing Cabinet Mantel

Hearth Base

Electrical Outlet

Rigid Gas Line

Figure 9 - Placing Hearth Base

Accessory Against Wall

Gas Line

Access

Hole

Figure 11 - Location of Nailing Flanges

www.desatech.com

Nailing Flanges

119526-01A10

INSTALLATION

35 1/8"

17 3/4"

33"

Continued

BUILT-IN FIREPLACE INSTALLATION

Built-in installation of this fireplace involves

installing replace into a framed-in enclosure. This makes the front of replace ush with wall. If installing a mantel above the replace, you must

follow the clearances shown in Figure 18, page 13.

Follow the instructions below to install the replace

in this manner.

Actual Framing

Height 32 3/8" 33"

Front Width 34 5/16" 35 1/8"

Depth 16 11/16" 17 3/4"

WARNING: A qualied electrician must connect electrical wiring to duplex outlet for built-in installation. Follow all local codes.

1. Frame in rough opening. Use dimensions

shown in Figure 12 for the rough opening. If installing in a corner, use dimensions shown in Figure 13 for the rough opening. The height is 33" which is the same as the wall opening above.

2. If using blower, install duplex outlet to the

right support bracket in the bottom of rebox

(see Figure 14). See Accessories, page 29. If not using blower, go to step 7.

3. Rou te wires from elect rical box throu gh smallest hole in outer casing using strain relief

tting provided (see Figure 14).

4. Connect wires from the electrical box to duplex outlet. Match wire colors to those indicated on duplex outlet. Be sure to connect ground wire.

5. Install shield to end of right support bracket

and behind the rebox wrapper with 2 screws

provided (see Figure 15, page 12).

6. Plug blower cord into duplex outlet.

7. Replace bottom of firebox and reconnect remote receiver module to valve.

8. Install gas piping to replace location. This installation includes an approved exible gas line (if allowed by local codes) after the equipment shutoff valve. The exible gas line must

be the last item installed on the gas piping. See Installing Gas Piping to Fireplace Location, page 13.

9. Carefully set replace in front of rough opening with back of replace inside wall opening.

10. Attach exible gas line to gas supply. See Con-

necting Fireplace to Gas Supply, page 15.

11. Plug electrical cord into electrical outlet installed in step 2 if using blower.

12. Carefully insert replace into rough opening.

Blower Power Cord

Blower

Cable from Electrical Source

Figure 12 - Rough Opening for Installing

in Wall

Screw

Figure 14 - Connecting Duplex Outlet

Figure 13 - Rough Opening for Installing

119526-01A 11

in Corner

www.desatech.com

Duplex Outlet

Support Bracket

Strain Relief Fitting

+ 25 hidden pages
