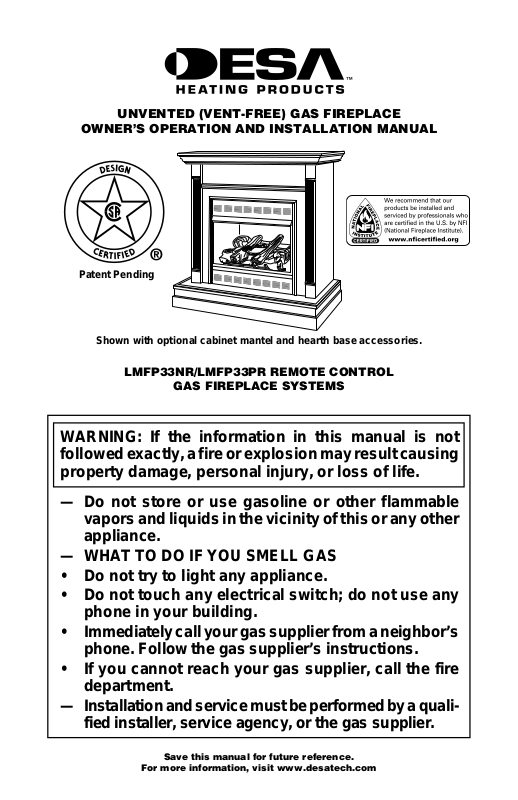

Desa LMFP33NR, LMFP33PR User Manual
UNVENTED (VENT-FREE) GAS FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL
Patent Pending
Shown with optional cabinet mantel and hearth base accessories.
LMFP33NR/LMFP33PR REMOTE CONTROL
GAS FIREPLACE SYSTEMS
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency, or the gas supplier.
Save this manual for future reference.
For more information, visit www.desatech.com
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation
and operational procedures. For assistance or additional information consult a qualified installer, service
agency, or the gas supplier.
WARNING: This is an unvented gas-fired heater. It uses
air (oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air
must be provided. Refer to Air for Combustion and
Ventilation section on page 5 of this manual.
This appliance may be installed in an aftermarket,*
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
* Aftermarket: Completion of sale, not for purpose of resale, from the
manufacturer
Safety Information ............................................... 3
TABLE OF CONTENTS
Product identification...........................................4
Local Codes ........................................................ 5
Unpacking ........................................................... 5
Product Features ................................................ 5
Air for Combustion and Ventilation...................... 5
Installation ........................................................... 8
Operating Heater .............................................. 19
Inspecting Burners ............................................ 22
Cleaning and Maintenance ...............................23
2
www.desatech.com 111604-01E
Troubleshooting ................................................24
Specifications .................................................... 28
Wiring Diagram .................................................28
Technical Service .............................................. 28
Service Hints ..................................................... 28
Replacement Parts ........................................... 28
Accessories....................................................... 29
Illustrated Parts Breakdown and Parts List ....... 30
Warranty Information.......................... Back Cover
SAFETY INFORMATION
WARNING: This product contains and/or generates chemicals
known to the State of California
to cause cancer or birth defects,
or other reproductive harm.
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, operate, or service this heater. Improper use of this heater can
cause serious injury or death
from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.
WARNING: Do not allow fans
to blow directly into the fireplace.
Avoid any drafts that alter burner
flame patterns. Ceiling fans can
create drafts that alter burner
flame patterns. Altered burner
patterns can cause sooting.
Due to high temperatures, the
appliance should be located out
of traffic and away from furniture and draperies.
Do not place clothing or other
flammable material on or near
the appliance. Never place any
objects on the heater.
DANGER: Carbon monoxide
poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of car-
bon monoxide poisoning resemble the flu, with
headaches, dizziness, or nausea. If you have these
signs, the heater may not be working properly. Get
fresh air at once! Have heater serviced. Some
people are more affected by carbon monoxide than
others. These include pregnant women, people with
heart or lung disease or anemia, those under the
influence of alcohol, and those at high altitudes.
Natural and Propane/LP Gas: Natural and propane/
LP gases are odorless. An odor-making agent is
added to the gas. The odor helps you detect a gas
leak. However, the odor added to the gas can fade.
Gas may be present even though no odor exists.
Make certain you read and understand all warnings. Keep this manual for reference. It is your
guide to safe and proper operation of this heater.
WARNING: Any change to
this heater or its controls can be
dangerous.
WARNING: Do not use a
blower insert, heat exchanger
insert, or other accessory not
approved for use with this heater.
Fireplace and screen become
very hot when running fireplace.
Keep children and adults away
from hot surfaces to avoid burns
or clothing ignition. Fireplace
will remain hot for a time after
shutdown. Allow surfaces to
cool before touching.
Carefully supervise young children when they are in the room
with fireplace. When using the
optional hand-held remote accessory, keep selector switch in
the OFF position to prevent children from turning on burners
with remote.
You must operate this fireplace
with the fireplace screen and
hood in place. Make sure fireplace screen and hood are in
place before running heater.
Keep the appliance area clear
and free from combustible materials, gasoline, and other flammable vapors and liquids.
111604-01E
www.desatech.com
3
SAFETY INFORMATION
O
F
F
P
I
L
O
T
O
N
Continued
1. This appliance is only for use with the type of
gas indicated on the rating plate. This appliance is not convertible for use with other gases.
2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply
tank(s) outdoors (propane/LP units only).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions
• if you cannot reach your gas supplier, call
the fire department
4. This fireplace shall not be installed in a bedroom or bathroom.
5. Do not use this fireplace as a wood-burning
fireplace. Use only the logs provided with the
fireplace.
6. Do not add extra logs or ornaments such as
pine cones, vermiculite, or rock wool. Using
these added items can cause sooting. Do not
add lava rock around base. Rock and debris
could fall into the control area of fireplace.
7. To prevent the creation of soot, follow the
instructions in Cleaning and Maintenance,
page 23.
8. Before using furniture polish, wax, carpet
cleaner, or similar products, turn heater off. If
heated, the vapors from these products may
create a white powder residue within burner
box or on adjacent walls or furniture.
9. This fireplace needs fresh air ventilation to run
properly. This fireplace has an Oxygen Depletion Sensing (ODS) safety shutoff system. The
ODS shuts down the fireplace if enough fresh
air is not available. See Air for Combustion and
Ventilation, pages 5 through 7. If fireplace keeps
shutting off, see Troubleshooting, pages 24
through 27.
10. Do not run fireplace
• where flammable liquids or vapors are used
or stored
• under dusty conditions
11. Do not use this fireplace to cook food or burn
paper or other objects.
4
www.desatech.com 111604-01E
12. Do not use fireplace if any part has been exposed
to or under water. Immediately call a qualified
service technician to inspect the fireplace and to
replace any part of the control system and any
gas control which has been under water.
13. Do not operate fireplace if any log is broken.
Do not operate fireplace if a log is chipped
(dime-sized or larger).
14. Turn fireplace off and let cool before servicing. Only a qualified service person should
service and repair fireplace.
15. Operating fireplace above elevations of 4,500
feet could cause pilot outage.
16. To prevent performance problems in propane/LP
units, do not use propane/LP fuel tanks of less
than 100 lbs. capacity (propane/LP units only).
17. Provide adequate clearances around air openings.
PRODUCT
IDENTIFICATION
5-Piece
Log Set
Control
Knob
Piezo
Ignitor
Remote Control
Figure 1 - Log Base Assembly
Top Louver
Top Outer Casing
Assembly
Firebox
Hood
Firebox
Support
Screen
Assembly
Figure 2 - Fireplace
(VYGF33PRA Shown)
Bottom Louver
Assembly
Remote
Receiver
Blower
Assembly
(Optional)
LOCAL CODES
Install and use fireplace with care. Follow all local codes. In the absence of local codes, use the
latest edition of The National Fuel Gas Code ANSI
Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Note:
Where listed vented decorative logs are re-
quired, thermostat operation is not permitted.
UNPACKING
CAUTION: Do not remove
the data plates attached to the
heater base assembly. The data
plates contain important warranty and safety information.
1. With utility knife, cut the carton all the way
around above the staples on the bottom tray.
Lift the carton off the heater. Remove packing.
Note:
on the right hand side of the heater front. Lift
the heater off the bottom tray.
2. Locate two screws above top corners of the
fireplace screen. Remove and discard these
screws. Lift fireplace screen up and pull out
to remove.
3. Remove protective packaging applied to logs,
log base assembly, and fireplace.
4. Remove fireplace hood from carton insert.
5. Check all items for any shipping damage. If
damaged, promptly inform dealer where you
bought fireplace.
The hood is located in the packing
PRODUCT FEATURES
OPERATION
This vent-free fireplace is clean burning. It requires
no outside venting. There is no heat loss out a vent
or up a chimney. Heat is generated by both realistic flames. When used without the blower, the fireplace requires no electricity making it ideal for
emergency backup heat. This heater is designed
for vent-free operation. It has been tested and approved to ANSI Z21.11.2 standard for unvented
heaters. State and local codes in some areas prohibit the use of vent-free heaters.
111604-01E
www.desatech.com
SAFETY DEVICE
This fireplace has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The
ODS/pilot is a required feature for vent-free room
heaters. The ODS/pilot system shuts off the fireplace if there is not enough fresh air.
PIEZO IGNITION SYSTEM
This fireplace has a piezo ignitor. This system requires no matches, batteries, or other sources to
light fireplace.
OPTIONAL BLOWER ASSEMBLY
(GA3700 SERIES & GA3700TA
SERIES)
This fireplace accepts an optional blower assembly (not included). The GA3700T A Series blower
operates thermostatically and features a variable
speed control. The GA3700 Series blower operates manually and also features a variable speed
control. The blower circulates heated air from the
fireplace into the room. See Accessories, page 29.
AIR FOR COMBUSTION
AND VENTILATION
WARNING: This heater shall
not be installed in a confined space
or unusually tight construction
unless provisions are provided
for adequate combustion and ventilation air. Read the following instructions to insure proper fresh
air for this and other fuel-burning
appliances in your home.
Today’ s homes are built more ener gy efficient than
ever. New materials, increased insulation, and new
construction methods help reduce heat loss in
homes. Home owners weather strip and caulk
around windows and doors to keep the cold air out
and the warm air in. During heating months, home
owners want their homes as airtight as possible.
While it is good to make your home energy efficient, your home needs to breathe. Fresh air must
enter your home. All fuel-burning appliances need
fresh air for proper combustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel
burning appliances draw air from the house to
operate. You must provide adequate fresh air for
these appliances. This will insure proper venting
of vented fuel-burning appliances.
5
AIR FOR COMBUSTION
AND VENTILATION
Continued
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFP A 54, Section 5.3, Air
for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 5 through 7 will help
you classify your space and provide adequate
ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may
provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight
construction, you must provide additional fresh air.
Unusually tight construction is defined as
construction where:
a. walls and ceilings exposed to the out-
side atmosphere have a continuous
water vapor retarder with a rating of one
perm (6 x 10
with openings gasketed or sealed and
b. weather stripping has been added on
openable windows and doors and
c. caulking or sealants are applied to ar-
eas such as joints around window and
door frames, between sole plates and
floors, between wall-ceiling joints, between wall panels, at penetrations for
plumbing, electrical, and gas lines, and
at other openings.
If your home meets all of the three criteria
above, you must provide additional fresh
air. See
page 7.
If your home does not meet all of the three
criteria above, proceed to
Fresh-Air Flow For Heater Location
6
-11
kg per pa-sec-m2) or less
Ventilation Air From Outdoors
Determining
.
www.desatech.com 111604-01E
Confined and Unconfined Space
The National Fuel Gas Code, ANSI Z223.1/
NFPA 54 defines a confined space as a space
whose volume is less than 50 cubic feet per 1,000
Btu per hour (4.8 m
3
per kw) of the aggregate input rating of all appliances installed in that space
and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu
per hour (4.8 m
3
per kw) of the aggregate input
rating of all appliances installed in that space.
Rooms communicating directly with the space in
which the appliances are installed*, through openings not furnished with doors, are considered a
part of the unconfined space.
* Adjoining rooms are communicating only if there
are doorless passageways or ventilation grills between them.
DETERMINING FRESH-AIR FLOW
FOR FIREPLACE LOCATION
Determining if You Have a Confined or
Unconfined Space
Use this work sheet to determine if you have a
confined or unconfined space.
Space: Includes the room in which you will install
fireplace plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x
width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example:
(width) x 8 ft. (ceiling height) = 2,560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the volume of
these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
__________ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example:
,
51,200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in
the space.
Vent-free fireplace _________ Btu/Hr
Gas water heater* _________ Btu/Hr
Gas furnace _________ Btu/Hr
Vented gas heater _________ Btu/Hr
Gas fireplace logs _________ Btu/Hr
Other gas appliances* + ________ Btu/Hr
Total = ________ Btu/Hr
* Do not include direct-vent gas appliances. Di-
rect-vent draws combustion air from the outdoors
and vents to the outdoors.
Space size 20 ft. (length) x 16 ft.
2,560 cu. ft. (volume of space) x 20 =
AIR FOR COMBUSTION
AND VENTILATION
Continued
Example:
Gas water heater _____________ Btu/Hr
Vent-free fireplace _____________ Btu/Hr
Total _____________ Btu/Hr
4. Compare the maximum Btu/Hr the space can
support with the actual amount of Btu/Hr used.
________
________
Example:
Btu/Hr (maximum the space can support)
Btu/Hr (actual amount of Btu/Hr used)
51,200 Btu/Hr (maximum the space
can support)
73,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the example is a confined space because
the actual Btu/Hr used is more than the maximum
Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoin-
ing room. If the extra space provides an unconfined space, remove door to adjoining room or add
ventilation grills between rooms. See Ventilation
Air From Inside Building.
B. Vent room directly to the outdoors. See Ventila-
tion Air From Outdoors.
C. Install a lower Btu/Hr fireplace, if lower Btu/Hr
size makes room unconfined.
If the actual Btu/Hr used is less than the maximum
Btu/Hr the space can support, the space is an unconfined space. You will need no additional fresh
air ventilation.
WARNING: If the area in
which the heater may be operated is smaller than that defined
as an unconfined space or if the
building is of unusually tight
construction, provide adequate
combustion and ventilation air
by one of the methods described
in the National Fuel Gas Code,
ANSI Z223.1/NFPA 54 Section
5.3 or applicable local codes
40,000
33,000
73,000
.
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining
unconfined space, you must provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor on the wall connecting
the two spaces (see options 1 and 2, Figure 3).
Y ou can also remove door into adjoining room (see
option 3, Figure 3). Follow the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for
Combustion and Ventilation for required size of
ventilation grills or ducts.
12"
Ventilation
Grills
Into Adjoining
Room,
Option 1
Or
Remove
Door into
Adjoining
Room,
Option
3
Figure 3 - Ventilation Air from Inside
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills
or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within
12" of the floor. Connect these items directly to
the outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces. Follow the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
Section 5.3, Air for Combustion and Ventilation
for required size of ventilation grills or ducts.
IMPORTANT:
Do not provide openings for inlet
or outlet air into attic if attic has a thermostat-controlled power vent. Heated air entering the attic
will activate the power vent.
Outlet
Air
Outlet
Air
Ventilation Grills
Into Adjoining Room,
12"
Building
Ventilated
Attic
Option 2
To Attic
111604-01E
Inlet
Air
Figure 4 - Ventilation Air from Outdoors
www.desatech.com
Inlet Air
Ventilated
Crawl Space
To
Crawl
Space
7
INSTALLATION
NOTICE: This heater is intended
for use as supplemental heat.
Use this heater along with your
primary heating system. Do not
install this heater as your primary heat source. If you have a
central heating system, you may
run system’s circulating blower
while using heater. This will help
circulate the heat throughout the
house. In the event of a power
outage, you can use this heater
as your primary heat source.
WARNING: A qualified service person must install fireplace. Follow all local codes.
WARNING: Never install the
fireplace
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture,
clothing or other flammable
objects are less than 42 inches
from the front, top or sides of
the heater
• in high traffic areas
• in windy or drafty areas
CAUTION: This fireplace creates warm air currents. These
currents move heat to wall surfaces next to fireplace. Installing fireplace next to vinyl or cloth
wall coverings or operating
heater where impurities (such
as, but not limited to, tobacco
smoke, aromatic candles, cleaning fluids, oil or kerosene lamps,
etc.) in the air exist, may discolor walls or cause odors.
Note:
Y our fireplace is designed to be used in zero
clearance installations. Wall or framing material
can be placed directly against any exterior surface
on the rear, sides, or top of your fireplace, except
where standoff spacers are integrally attached. If
standoff spacers are attached to your fireplace,
these spacers can be placed directly against wall
or framing materials.
Use the dimensions shown for rough openings to
create the easiest installation. See Built-In Fire-
place Installation, pages 11 through 13.
IMPORTANT:
the air. Although this is beneficial, installing fireplace in rooms without enough ventilation air may
cause mildew to form from too much moisture.
See Air for Combustion and Ventilation, pages 5
through 7.
is level. If fireplace is not level, log set will not
work properly.
Vent-free heaters add moisture to
IMPORTANT:
Make sure the fireplace
CHECK GAS TYPE
Use the correct gas type (natural or propane/LP)
for your fireplace. If your gas supply is not correct, do not install fireplace. Call dealer where you
bought fireplace for proper type fireplace.
ELECTRICAL HOOKUP
(Models GA3700 Series and GA3700T
Series Blower Accessories, and GA3555
Internal Duplex Kit)
This fireplace accepts a blower assembly with an
electrical cord. The electrical cord is five feet in
length. You must locate fireplace within reach of
a 120 volt grounded electrical outlet. If not, you
must install an electrical outlet within reach of fireplace power cord. The GA3555 outlet accessory
is used for built-in applications with blower accessory installed.
INSTALLING HOOD
Install hood to top of firebox as shown in Figure 5.
Use 3 Phillips screws provided
Figure 5 - Installing Hood to Firebox
8
www.desatech.com 111604-01E
INSTALLATION
Continued
ASSEMBLING AND ATTACHING
OPTIONAL BRASS TRIM
(Included with Mantel Accessory)
IMPORTANT:
wall, do not attach brass trim at this time. See page 10.
Note
and attaching brass trim to fireplace.
1. Remove packaging from three pieces of brass trim.
2. Locate four brass screws, two adjusting plates with
set screws, and two shims in the hardware packet.
3. Align shim under adjusting plate as shown in
Figure 6.
4. Slide one end of adjusting plate/shim in slot on
mitered edge of top brass trim (see Figure 6).
5. Slide other end of adjusting plate/shim in slot on
mitered edge of side brass trim (see Figure 6).
6. While firmly holding edges of brass trim together, tighten both set screws on the adjusting plate with slotted screwdriver.
7. Repeat steps 1 through 6 for other side.
8. Tighten trim hanging screws (#10 x 6.25 shoulder) into holes in cabinets. Place the assembled
trim onto fireplace cabinet. Align hanging notches
on trim with hanging screws on side of fireplace
(see Figure 7). Push trim firmly into place, sliding hanging notches over hanging screws.
Side Brass
Trim
If you are recessing the firebox in a
: The instructions below show assembling
Set Screws
Adjusting
Plate
Top Brass
Trim
INSTALLATION CLEARANCES
WARNING: Maintain the
minimum clearances. If you can,
provide greater clearances from
floor, ceiling, and adjoining wall.
Carefully follow the instructions below. This will
ensure safe installation.
Minimum Clearances For Side
Combustible Material, Side Wall, and
Ceiling
A. Clearances from the side of the fireplace cabi-
net to any combustible material and wall
should follow diagram in Figure 8.
Example: The face of a mantel, bookshelf, etc.
is made of combustible material and protrudes
3 1/2" from the wall. This combustible material must be 4" from the side of the fireplace
opening (see Figure 8).
B. Clearances from the top of the fireplace opening
to the ceiling should not be less than 42 inches.
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
Top Left and Bottom
Right Sides and Rear
42" 16" 0"
Example
Mitered
Edge
Slot
Figure 6 - Assembling Brass Trim
Assembled
Brass Trim
Figure 7 - Attaching Brass Trim to
111604-01E
Shim
Fireplace
Slot
*Minimum 16 inches from Side Wall
Trim
Hanging
Screws
Hanging
Notches
on Trim
www.desatech.com
*
Figure 8 - Minimum Clearance for
Combustible to Wall
9
INSTALLATION
Continued
CONVENTIONAL FIREPLACE
INSTALLATION
Conventional installation of this fireplace involves
installing fireplace along with the corner, face, or
cabinet mantel with hearth base accessories against
a wall in your home. Follow the instructions below to install the fireplace in this manner.
Note:
The instructions in this section show installation using the cabinet mantel and hearth base
accessories. The hearth base accessory shown is
optional for this installation. You can install fireplace and cabinet mantel directly on the floor.
1. Assemble cabinet mantel, hearth base, and
trim accessories. Assembly instructions are included with each accessory.
2. When installing blower, install a properly
grounded, 120 volt three-prong electrical outlet at fireplace location if an outlet is not there.
If possible, locate outlet so cabinet mantel will
cover it when installed (see Figure 9).
3. Install gas piping to fireplace location. This
installation includes an approved flexible gas
line (if allowed by local codes) after the equipment shutoff valve. The flexible gas line must
be the last item installed on the gas piping.
See Installing Gas Piping to Fireplace Loca-
tion, pages 13 and 14.
4. Place hearth base accessory against wall at
installation location. Cut an access hole in
hearth top to run flexible gas line to fireplace
(see Figure 9). Make sure to locate access hole
so cabinet mantel will cover it when installed.
Note:
You can secure base to floor using wood
screws. Countersink screw heads and putty over.
5. Route flexible gas line through access hole in
hearth base.
6. Center cabinet mantel on hearth base (see Fig-
ure 10). Make sure mantel is flush against wall.
7. Break off nailing flanges (see Figure 11) with
hammer or pliers.
8. Place cardboard or other protective material
on top of hearth base. Carefully set fireplace
on protective material, with back of fireplace
inside mantel opening.
9. Attach flexible gas line from fireplace gas
regulator to gas supply. See Connecting Fir e-
place to Gas Supply, page 13.
10. If blower is installed, route blower electrical
cord through access holes in either side of fire-
Note:
place.
sary. Plug electrical cord into electrical outlet.
11. Carefully insert fireplace into cabinet mantel.
Be careful not to scratch or damage hearth base,
cabinet mantel, or any laminate trim on hearth
base. Remove protective material from top of
hearth base and from front of fireplace (if any).
Note:
floor. Open lower louver. Locate screw holes
in bottom of base. Tighten wood screws through
these holes and into hearth or floor.
12. Check all gas connections for leaks. See
Checking Gas Connections, pages 16 and 17.
Bushing may be moved if neces-
You can secure fireplace to hearth or
Cabinet
Mantel
Figure 10 - Installing Cabinet Mantel
Hearth
Base
Electrical Outlet
Rigid Gas Line
Figure 9 - Placing Hearth Base
Accessory Against Wall
10
Gas Line
Access
Hole
Nailing
Flanges
Figure 11 - Location of Nailing Flanges
www.desatech.com 111604-01E
INSTALLATION
Continued
Figure 12 - Inserting Fireplace Into
Cabinet Mantel
BUILT-IN FIREPLACE
INSTALLATION
Built-in installation of this fireplace involves installing fireplace into a framed-in enclosure. This
makes the front of fireplace flush with wall. If installing a mantel above the fireplace, you must follow the clearances shown in Figure 18, page 13.
Follow the instructions below to install the fireplace in this manner.
ACTUAL FRAMING
Height 32 3/8" 33"
Front Width 34 5/16" 35 1/8"
Depth 16 11/16" 17 3/4"
WARNING: A qualified electrician must connect electrical wiring to duplex outlet for built-in
installation. Follow all local codes.
1. Frame in rough opening. Use dimensions shown
in Figure 13 for the rough opening. If installing
in a corner, use dimensions shown in Figure 14
for the rough opening. The height is 33" which
is the same as the wall opening above.
2. If using blower, install duplex outlet to the
right support bracket in the bottom of firebox
(see Figure 15).See Accessories, page 29. If
not using blower, go to step 7.
3. Route wires from electrical box through smallest hole in outer casing using strain relief fitting provided (see Figure 15).
4. Connect wires from the electrical box to duplex outlet. Match wire colors to those indicated on duplex outlet. Be sure to connect
ground wire.
5. Install shield to end of right support bracket
and behind the firebox wrapper with 2 screws
provided (see Figure 16, page 12).
6. Plug blower cord into duplex outlet.
7. Replace bottom of firebox and reconnect remote receiver module to valve.
3
17
/4"
33"
35 1/8"
Figure 13 - Rough Opening for Installing
in Wall
3
39
/
8"
1
/
8"
35
5
/
8"
55
27
7
/
8"
Figure 14 - Rough Opening for Installing
in Corner
Blower
Power Cord
Blower
Cable from
Electrical Source
Duplex
Outlet
Support
Bracket
Strain
Relief
Fitting
Screw
Figure 15 - Connecting Duplex Outlet
111604-01E
www.desatech.com
11
Loading...
