Desa FORCED AIR HEATER User Manual

PROPANE CONSTRUCTION FORCED AIR HEATER

OWNER’S MANUAL

For more information, visit www.desatech.com

30,000 Btu/Hr

IMPORTANT: Read and understand this manual before assembling, starting or servicing heater. Improper use of heater can cause serious injury. Keep this manual for future reference.

GENERAL HAZARD WARNING:

FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK.

ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE OR SERVICE THIS HEATER.

IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS MANUAL, LABELS, ETC. CONTACT THE MANUFACTURER.

TABLE OF CONTENTS

SAFETY INFORMATION ............................................................ 2

PRODUCT IDENTIFICATION ..................................................... 3

UNPACKING............................................................................... 3

FUNDAMENTALS OF OPERATION ........................................... 3

ASSEMBLY................................................................................. 4

PROPANE SUPPLY .................................................................... 4

INSTALLATION ........................................................................... 4

VENTILATION............................................................................. 5

OPERATION ............................................................................... 5

STORAGE................................................................................... 6

MAINTENANCE .......................................................................... 6

SPECIFICATIONS ...................................................................... 6

TROUBLESHOOTING ................................................................ 7

SERVICE PROCEDURES .......................................................... 8

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 10

ACCESSORIES ........................................................................ 12

TECHNICAL SERVICE ............................................................. 12

REPLACEMENT PARTS .......................................................... 12

OWNER’S REGISTRATION ..................................................... 13

WARRANTY AND REPAIR SERVICE ........................ Back Cover

Save this manual for future reference.

SAFETY INFORMATION

WARNINGS

WARNING: This product contains and/or generates chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm.

WARNING: FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY THE INSTRUCTIONS. NEVER USE THE HEATER IN SPACES WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT THINNER, DUST PARTICLES OR UNKNOWN CHEMICALS.

WARNING: NOT FOR HOME OR RECREATIONAL VEHICLE USE.

The heater is designed for use as a construction heater in accordance with ANSI Z83.7/CGA2.14. Other standards govern the use of fuel gases and heating products for specific uses. Your local authority can advise you about these. The primary purpose of construction heaters is to provide temporary heating of buildings under construction, alteration or repair. Properly used, the heater provides safe economical heating. Products of combustion are vented into the area being heated.

We cannot foresee every use which may be made of our heaters. Check with your local fire safety authority if you have questions about heater use.

Other standards govern the use of fuel gases and heat producing products for specific uses. Your local authorities can advise you about these.

Carbon Monoxide Poisoning: Some people are more affected by

carbon monoxide than others. Early signs of carbon monoxide poisoning resemble the ﬂu, with headaches, dizziness, and/or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Check for proper ventilation and have heater serviced.

Propane Gas: Propane gas is odorless. An odor-making agent is

added to propane gas. The odor helps you detect a propane gas leak. However, the odor added to propane gas can fade. Propane gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

• Install and use heater with care. Follow all local ordinances and codes. In the absence of local ordinances and codes, refer to the Standard for Storage and Handling of Liquefied Petroleum Gas, ANSI/NFPA 58 and the Propane Gas Installation Code, CAN/ CGA B149.2. This instructs on the safe storage and handling of propane gases.

• Use only the electrical voltage and frequency speciﬁed on model plate. The electrical connections and grounding of the heater shall follow the National Electric Code, ANSI/NFPA 70 or the Canadian Electrical Code, Part 1.

• Electrical grounding instructions — This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle or extension cord.

• This product has been approved for use in the Commonwealth of Massachusetts.

• Use only a three-prong, grounded extension cord.

• Use only the hose and factory preset regulator provided with the heater.

• Use only propane gas set up for vapor withdrawal.

• Provide adequate ventilation. Before using heater, provide at least a one-square-foot opening of fresh, outside air.

• For indoor use only. Do not use heater outdoors.

• Do not use heater in occupied dwellings or in living or sleeping quarters.

• Do not use heater in basement or below ground level. Propane gas is heavier than air. If a leak occurs, propane gas will sink to the lowest possible level.

• Keep appliance area clear and free from combustible materials, gasoline, paint thinner, and other flammable vapors and liquids.

• Do not use heater in areas with high dust content. Dust is combustible.

• Minimum heater clearances from combustibles: Outlet: 6 Ft. Sides: 2 Ft. Top: 6 Ft. Rear: 2 Ft.

• Keep heater at least six feet from propane tank(s). Do not point heater at propane tank(s) within 20 feet.

• Keep propane tank(s) below 100° F.

• Check heater for damage before each use. Do not use a damaged heater.

• Check hose before each use of heater. If highly worn or cut, replace with hose specified by manufacturer before using heater.

• Locate heater on stable and level surface if heater is hot or operating.

• Not intended for use on finished floors.

• Never block air inlet (rear) or air outlet (front) of heater.

For more information, visit www.desatech.com

104163-01G

SAFETY INFORMATION

PRODUCT IDENTIFICATION

UNPACKING

FUNDAMENTALS OF OPERATION

SAFETY INFORMATION

Continued

• Keep heater away from strong drafts, water spray , rain, or dripping water.

• Do not leave heater unattended.

• Keep children and animals away from heater.

• Never move, handle, or service a hot, operating, or plugged-in heater . Severe burns may result. You must wait 15 minutes after turning heater off.

• To prevent injury, wear gloves when handling heater.

• Never attach duct work to front or rear of heater.

• Do not alter heater. Keep heater in its original state.

• Do not use heater if altered.

• Turn off propane supply and unplug heater when not in use.

• Use only original replacement parts. This heater must use design-specific parts. Do not substitute or use generic parts. Improper replacement parts could cause serious or fatal injuries.

PRODUCT IDENTIFICATION

Hot Air Outlet (Front)

Outer Shell

Handle

UNPACKING

1. Remove all packing items applied to heater for shipment. Keep plastic cover caps (attached to inlet connector and hose/regulator assembly) for storage.

2. Remove all items from carton.

3. Check all items for shipping damage. If heater is damaged, promptly inform dealer where you bought heater.

FUNDAMENTALS OF OPERATION

The Fuel System: The hose/regulator assembly attaches to the

propane gas supply. This provides fuel to the heater.

The Air System: The motor turns the fan. The fan pushes air into

and around the combustion chamber. This air is heated and provides a stream of clean, hot air.

The Ignition System: The piezo ignitor lights the burner. The Automatic Control System: This system causes the heater to

shut down if the ﬂame goes out.

Fan

Motor

Clean Heated Air Out (Front)

Cool Air In (Back)

Piezo Ignitor Button

Automatic Control Valve Button

Figure 1 - 30,000 BTU/Hr Model

For more information, visit www.desatech.com

104163-01G

Motor

Power Cord

Hose/Regulator Assembly

Combustion Chamber

Air For Combustion Air For Heating

Hose/Regulator Assembly

Figure 2 - Cross Section Operational View

ASSEMBLY

PROPANE SUPPLY INSTALLATION

ASSEMBLY

1. Remove screw from top of fan guard. Discard screw.

2. Insert nut clip (provided with handle) with flat side facing up through slot in top of shell. Align holes in nut clip with screw hole behind slot in top of shell. (see Figure 4).

3. Place handle over hole and clip. Insert two screws (provided with handle) through handle and tighten into shell. Make sure rear screw goes through shell and into fan guard. Tighten screws firmly.

Remove Screw

Figure 3 - Removing Screw from Top of Fan Guard

Flat Side Facing Up

Slot

Nut Clip

Shell

PROPANE SUPPLY

Propane gas and propane tank(s) are to be furnished by the user. Use this heater only with a propane vapor withdrawal supply system.

See Chapter 5 of the Standard for Storage and Handling of Liqueﬁed Petroleum Gas, ANSI/NFPA 58 and/or CAN/CGA B149.2. Your local library or ﬁre department will have this booklet.

The amount of propane gas ready for use from propane tanks varies. Two factors decide this amount:

1. The amount of propane gas in tank(s)

2. The temperature of tank(s) This heater is designed to operate with a minimum 20-pound

propane tank. You may need two or more tanks or one larger tank in colder weather. Use a 100-pound tank for longer operation or in very cold weather. Less gas is vaporized at lower temperatures. Your local propane gas dealer will help you select the proper supply system. The minimum surrounding air temperature rating for each heater is -20°F (-29°C).

Average Temp (°F) No. Of Tanks

At Tank Location (100-pound)

40° 1 32° 1 20° 1 10° 1

0° 1

-10° 2

-20° 2

Figure 4 - Installing Nut Clip

Nut Clip

Figure 5 - Attaching Handle

INSTALLATION

WARNING: Review and understand the warnings in the needed to safely operate this heater. Follow all local

Screws

Handle

Rear of Heater

For more information, visit www.desatech.com

codes when using this heater.

for leaks after installation or servicing. Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. Bubbles forming show a leak. Correct all leaks at once.

1. Provide propane supply system (see Propane Supply).

2. Connect POL ﬁtting on hose/regulator assembly to propane

Safety Information

WARNING: Test all gas piping and connections

tank(s). Turn POL ﬁtting counterclockwise into threads on tank. Tighten firmly using wrench. tor so that hose leaving the regulator is in a horizontal position (see Figure 6, page 5). This places the regulator vent in the proper position to protect it from the weather.

section, page 2. They are

IMPORTANT:

Position regula-

104163-01G

INSTALLATION

VENTILATION

OPERATION

To Start Heater

INSTALLATION

Continued

3. Connect hose to valve inlet (see Figure 7). Tighten ﬁrmly using a wrench.

IMPORTANT:

tra hose or piping between hose/regulator assembly and propane tank. You must use the regulator supplied with heater.

4. Open propane supply valve on propane tank(s) slowly. Note: If not opened slowly, excess-flow check valve on propane tank will stop gas flow. You may hear a click from the excess-flow check valve closing. If this happens, reset the excess-flow check valve by closing propane supply valve and open again slowly .

5. Check all connections for leaks. Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak that must be corrected.

6. Close propane supply valve.

Propane Supply Valve

Propane Tank

Use extra hose or piping if needed. Install ex-

Hose

POL Fitting

Regulator

OPERATION

WARNING: Review and understand the warnings in the needed to safely operate this heater. Follow all local codes when using this heater.

TO START HEATER

1. Follow all installation, ventilation, and safety information.

2. Locate heater on stable and level surface. Make sure strong

3. Plug power cord of heater into a three-prong, grounded exten-

4. Plug extension cord into a 120 volt/60 hertz, 3-hole, grounded

5. Open propane supply valve on propane tank(s) slowly. Note: If

Safety Information

drafts do not blow into front or rear of heater.

sion cord. Extension cord must be at least six feet long. Extension cord must be UL listed.

Extension Cord Wire Size Requirements

• Up to 50 ft long, use 18 AWG rated cord.

• 51 to 100 ft long, use 16 AWG rated cord.

• 101 to 200 ft long, use 14 AWG rated cord.

outlet. Motor will start. Fan will turn, forcing air out front of heater.

not opened slowly, excess-flow check valve on propane tank will stop gas flow. You may hear a click from the excess-flow check valve closing. If this happens, reset the excess-flow check valve by closing propane supply valve and open again slowly .

section, page 2. They are

Figure 6 - Regulator Position

Figure 7 - Hose and Inlet Connector

VENTILATION

WARNING: Provide at least a one square foot opening of fresh, outside air while running heater. If proper fresh, outside air ventilation is not provided, carbon monoxide poisoning can occur. Provide proper fresh, outside air ventilation before running heater.

WARNING: Be sure motor and fan are running before pushing in automatic control valve button. Flames could flash outside heater if motor and fan are not running.

6. Push in and hold automatic control valve button (see Figure

8). Push piezo ignitor button (see Figure 8). Keep pushing ignitor button until the burner lights. When burner lights, keep automatic control valve button pushed in. Release button after 30 seconds. This activates the automatic control system.

Note:

If heater fails to ignite, hose may have air in it. If so, keep automatic control valve button pressed and wait 20 seconds. Release automatic control valve button and wait 20 seconds for unburned fuel to exit heater . Repeat this step.

Piezo Ignitor Button

Automatic Control Valve Button

Figure 8 - Automatic Control Valve Button and Piezo Ignitor Button

104163-01G

For more information, visit www.desatech.com

OPERATION

To Start Heater (Cont.) To Stop Heater To Restart Heater

STORAGE MAINTENANCE SPECIFICATIONS

OPERATION

Continued

NOTICE: If heater is unplugged or power outage occurs while heater is running, the thermal limit device will stop fuel flow. A few seconds occur before the thermal limit device activates. During this short time, flames may appear outside the heater. This is normal. The flames will go out when thermal limit device activates.

TO STOP HEATER

1. Tightly close propane supply valve on propane tank(s).

2. Wait a few seconds. Heater will burn gas left in supply hose.

3. Unplug heater.

1. Keep heater clean. Clean heater annually or as needed to remove dust and debris. If heater is dirty or dusty, clean heater with a damp cloth. Use household cleaners on difficult spots.

2. Inspect heater before each use. Check connections for leaks. Apply mixture of liquid soap and water to connections. Bubbles forming show a leak. Correct all leaks at once.

3. Inspect hose/regulator assembly before each use. If hose is highly worn or cut, replace with hose specified by manufacturer.

4. Have heater inspected yearly by a qualified service agency.

5. Keep inside of heater free from combustible and foreign objects. Remove motor and other internal parts if needed to clean inside of heater (see Service Procedures, page 8).

6. Clean fan blades each season or as needed (see Fan, page 9).

TO RESTART HEATER

1. Wait five minutes after stopping heater.

2. Repeat steps under To Start Heater, page 5.

STORAGE

CAUTION: Disconnect heater from propane sup-

ply tank(s).

1. Store propane tank(s) in safe manner. See Chapter 5 of Standard for Storag e and Handling of Liqueﬁed Petroleum Gases, ANSI/NFPA 58. Follow all local codes. Always store propane

tanks outdoors.

2. Place plastic cover caps over brass ﬁttings on inlet connector and hose/regulator assembly.

3. Store in dry , clean, and safe place. Do not store hose/regulator assembly inside heater combustion chamber.

4. When taking heater out of storage, always check inside of heater. Insects and small animals may place foreign objects in heater. Remove motor and other internal parts if needed to remove foreign objects (see Service Procedures, page 8).

MAINTENANCE

WARNINGS

• Never service heater while it is plugged in, connected to propane supply, operating, or hot. Severe burns and electrical shock can occur.

• Keep heater clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

• Do not block the flow of combustion or ventilation air.

SPECIFICATIONS

Output Rating (BTU/Hr) 30,000 Fuel Propane Vapor Only Fuel Consumption

Gallons/Hour .33 Pounds/Hour 1.4

Supply Pressure To Regulator

Minimum (for purposes 20 psi of input adjustment)

Maximum Tank Pressure or 200 psi Regulator Outlet Pressure 10 PSI Manifold Pressure 10.1 PSI Hot Air Output

(CFM Approx) 175 Motor 3045 RPM, 1/40 HP Electric Input 120 volt/60 hertz Amperage .6 Ignition Manual, Piezo Temperature Range for -20° F to 85° F*

Heater Operation Weight (Pounds)

Heater 11

Shipping 13 Size - L x W x H (Inches)

Carton 19.4 x 9.75 x 14.75

Heater 18.5 x 7.7 x 12.8 * When running heater in temperatures above 85° F, high internal

temperatures may cause thermal limit device to shut down heater.

For more information, visit www.desatech.com

104163-01G

TROUBLESHOOTING

Note:

For additional help, visit DESA

International’s Technical Service web site at

www.desatech.com.

OBSERVED FAULT POSSIBLE CAUSE REMEDY

WARNING: Never service heater while it is plugged in, connected to propane supply, operating, or hot. Severe burns and electrical shock can occur.

Fan does not turn when heater is plugged in.

Heater will not ignite.

Heater shuts down while running.

1. No electrical power to heater

2. Fan hitting inside of heater shell

3. Fan blades bent

4. Defective motor

1. User did not follow installation or operation instructions properly

2. No spark at ignitor. T o test for spark, follow step 8 under Ignitor, page 9. If you see spark at ignitor, have heater serviced by qualified service person. If no spark seen: A) Loose or disconnected ignitor wire B) Wrong spark gap C) Piezo ignitor loose D) Bad ignitor electrode

1. High surrounding air temperature causing thermal limit device to shut down heater

2. Restricted air flow

3. Damaged fan

4. Excessive dust or debris in surrounding area

1. Check voltage to electrical outlet. If voltage is good, check heater power cord for breaks

2. Adjust motor/fan guard to keep fan from hitting inside of heater shell. Bend fan guard if necessary

3. Replace fan. See Fan, pages 8 and 9

4. Replace motor . See Motor, page 8

1. Repeat installation and operation instructions. See Installation, page 4 and Operation, page 5

2. A) Check ignitor wire. Tighten or reat-

tach loose ignitor wire. See Figure 14, page 10 for ignitor wire location

B) Set gap between ignitor electrode and

target plate to .17"

C) Tighten nut holding piezo ignitor to

base of heater

D) Replace ignitor electrode. See

Ignitor, page 9

1. This can happen when running heater in temperatures above 85°F . Run heater in cooler temperatures

2 Check heater inlet and outlet. Remove

any obstructions

3. Replace fan. See Fan, pages 8 and 9

4. Clean heater. See Maintenance, page 6

104163-01G

WARNING: Use only in areas

free of high dust content.

For more information, visit www.desatech.com

SERVICE PROCEDURES

Electrical System Motor Fan

SERVICE PROCEDURES

WARNING: Never service heater while it is plugged in, connected to propane supply, operating, or hot. Severe burns and electrical shock can occur.

ELECTRICAL SYSTEM

The entire electrical system for this heater is contained within the motor. If any part of the electrical system is damaged, you must replace motor.

MOTOR

1. Remove three screws that attach fan guard to heater shell.

2. Remove motor and fan guard from heater shell (see Figure 9).

3. Use hex wrench to loosen set screw which holds fan to motor shaft (see Figure 10). Remove fan. Be careful not to damage the fan blade pitch.

4. Remove two nuts and two screws that attach fan guard to motor using nut-driver. Remove fan guard from motor (see Figure 1 1).

5 Disconnect the green power cord wire from motor and remove

black and white wire terminals.

6. Discard old motor.

7. Attach green power cord wire to motor.

8. Attach fan guard to new motor with two nuts and two screws.

9. Replace black and white terminals.

10. Place fan onto motor shaft of new motor. Make sure set screw contacts flat surface on motor shaft. Tighten set screw firmly (40-50 inch-pounds).

11. Place motor and fan guard into rear of heater shell. Make sure power cord is properly located (see Figure 12).

12. Insert three screws through heater shell and into fan guard. Tighten screws ﬁrmly.

Setscrew

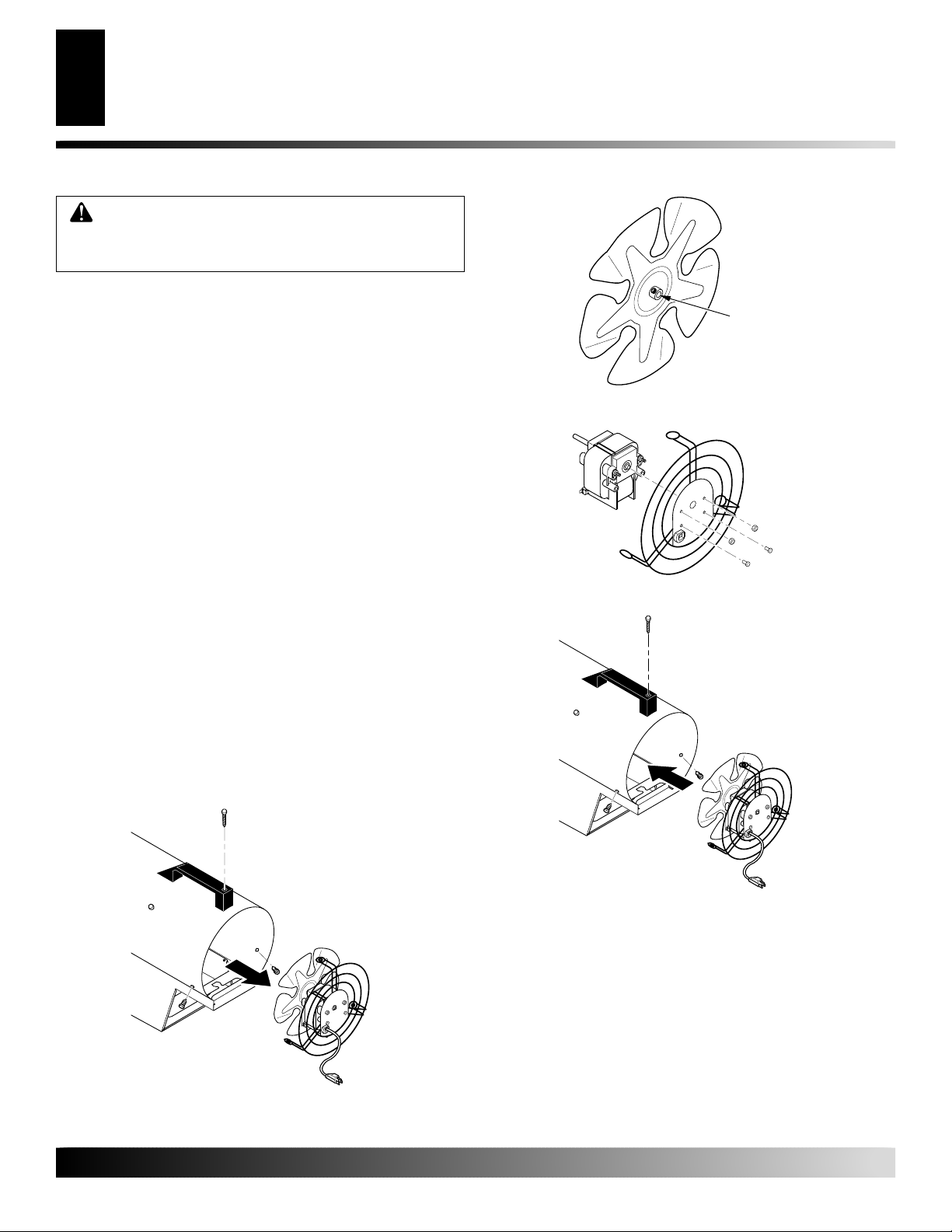

Figure 10 - Setscrew Location

Figure 11 - Removing or Attaching Fan Guard from Motor

Figure 9 - Removing Motor and Fan Guard from Heater

For more information, visit www.desatech.com

Figure 12 - Replacing Motor and Fan Guard into Heater

FAN

1. Remove three screws that attach fan guard to heater shell.

2. Remove motor and fan guard from heater shell (see Figure 9).

3. Use hex wrench to loosen set screw that holds fan to motor shaft (see Figure 10).

4. Remove fan. Be careful not to damage the fan blade pitch.

104163-01G

SERVICE PROCEDURES

Continued

SERVICE PROCEDURES

Fan (Cont.)

Ignitor

5a. If replacing fan, remove old fan and discard. Go to step 7 below. 5b. If cleaning fan,use soft cloth moistened with kerosene or solvent.

6. Dry fan thoroughly.

7. Place fan onto motor shaft. Make sure set screw contacts flat surface on motor shaft. Tighten set screw firmly (40-50 inch-pounds).

8. Place motor and fan guard into rear of heater shell. Make sure power cord is properly located (see Figure 12, page 8).

9. Insert three screws through heater shell and into fan guard. Tighten screws ﬁrmly.

IGNITOR

1. Remove motor and fan guard from heater (see Motor, page 8, steps 1 and 2).

2. Remove black ignitor wire from piezo ignitor. Access ignitor wire through underside of heater base (see Figure 13). Push wire up through notch in filler panel.

3. Remove ignitor mounting screw from rear head using nut-driver or standard screwdriver (see Figure 14).

4. Remove ignitor from rear head.

5. Install new ignitor. Attach ignitor to rear head with ignitor mounting screw.

6. Run ignitor wire from new ignitor through notch in filler panel. Attach ignitor wire to piezo ignitor.

7. Set gap between ignitor electrode and target plate to .17" (see Figure 15).

WARNING: Make sure heater is disconnected from propane supply. Heater could ignite causing severe burns.

8. Test for spark. Push piezo ignitor button and watch for spark between ignitor electrode and target plate.

9. Place motor and fan guard into rear of heater shell (see Motor, page 8, steps 9 and 10).

Ignitor Electrode

Gap Area

Piezo Ignitor

Ignitor Wire

Figure 13 - Removing Ignitor Wire from Piezo Ignitor

Ignitor

Figure 14 - Removing Ignitor Mounting Screw and Ignitor

For more information, visit www.desatech.com

104163-01G

Underside of Heater

Mounting Screw

Figure 15 - Clearance between Ignitor Electrode and Target Plate

ILLUSTRATED PARTS BREAKDOWN

BLP30, REM30LP, RLP30, RM30LP, RM30SPA

ILLUSTRATED PARTS BREAKDOWN

MODELS BLP30, REM30LP RLP30, RM30LP RM30SPA

For more information, visit www.desatech.com

104163-01G

PARTS LIST

MODELS BLP30, REM30LP, RLP30, RM30LP, RM30SPA

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 12 of this manual.

KEY PART NO. NO. DESCRIPTION QTY.

1 ** Combustion Chamber 1 2 104152-01 Unichassis (BLP30) 1

104152-02 Unichassis (RLP30) 1

104152-03 Unichassis (REM30LP, RM30LP, RM30SPA) 1 3 M11143-1 Bushing, Strain Relief 1 4 M11084-27 Screw 5 5 099237-01 Thermocouple Nut 2 6 103894-01 Target Bracket Kit 1 7 104162-01 Electrode Ignitor 1 8 M11084-38 Hex Tap Screw, #8-18 x 3/8" 1 9 101478-02 Fan 1 10 104156-01 Motor Assembly 1 11 103863-01 Fan Guard 1 12 097384-02 Captive Washer Nut 2 13 101480-12 Wire Assembly 1 14 104786-01 Handle Assembly 1 15 101732-05 Thermal Switch Kit 1 16 103895-01 Rear Head Kit 1 17 098219-17 Cord, Power Supply 1 18 104146-01 Thermocouple 1 19 104144-01 Valve/Orifice/Burner Tube Assembly 1 20 102445-01 Piezo Ignitor Kit 1 21 104153-01 Filler Panel 1 22 M12461-14 Hex Screw, 8-32 x 3/8 4

BLP30, REM30LP, RLP30, RM30LP, RM30SPA

PARTS LIST

104163-01G

PARTS AVAILABLE - NOT SHOWN

097647-09 Tradename Decal (BLP30) 2

097941-26 Tradename Decal (RLP30) 2

099596-15 Tradename Decal (REM30LP) 2

097941-31 Tradename Decal (RM30LP, RM30SPA) 2

104161-01 General Information Decal 1

104160-01 Operation Decal 1

** Not a field replaceable part.

For more information, visit www.desatech.com

ACCESSORIES TECHNICAL SERVICE REPLACEMENT PARTS

ACCESSORIES

Purchase accessories and parts from your nearest dealer or service center. If they can not supply an accessory or part, either contact your nearest Parts Central (listed in the separate Authorized Service Center booklet) or contact DESA International for referral information.

DESA International P.O. Box 90004 Bowling Green, KY 42102-9004 1-866-672-6040

Part Number Description

LPA1020 10' Rubber Hose with Brass Fitting

U.L. listed.

LPA2170 Propane Gas Regulator

U.L. listed.

LPA3120 Hose/Regulator Assembly

U.L. listed.

LPA4020 Fuel Gas Connector

Connects regulator to all standard propane tanks. U.L. and A.G.A. listed.

TECHNICAL SERVICE

You may have further questions about this heater. If so, contact DESA International’s Technical Service Department at 1-866-672-6040. When calling, please have your model and serial numbers of your heater ready.

You can also visit DESA International’s Technical Service web site at www.desatech.com.

REPLACEMENT PARTS

WARNING: Use only original replacement parts. This heater must use design-specific parts. Do not substitute or use generic parts. Improper replacement parts could cause serious or fatal injuries. This will also protect your warranty coverage for parts replaced under warranty.

Parts Under Warranty

Contact authorized dealers of this product. If they can’t supply original replacement part(s), either contact your nearest Parts Central or call DESA International’s Technical Service Department at 1-866-672-6040.

When calling DESA International, have ready

• your name

• your address

• model number of your heater

• how heater was malfunctioning

• purchase date

Parts Not Under Warranty

Contact authorized dealers of this product. If they can’t supply original replacement part(s), either contact your nearest Parts Central (listed in Authorized Service Center booklet) or call DESA International at 1-866-672-6040 for referral information.

When calling DESA International, have ready

• model number of your heater

• the replacement part number

For more information, visit www.desatech.com

104163-01G

OWNER'S REGISTRATION FORM

Complete registration form and mail or complete on-line registration at www.desatech.com within 30 days after purchase.

Brand: Model: Date Purchased: Serial Number: First Name: Last Name: Address: City: State: Zip: Country: Phone: ( ) - E-Mail:

Please answer the following questions to register your product with DESA International:

1. Who will heater be used by? ❍ Individual ❍ Business

2. Will you use your heater in more than one location? ❍ Yes ❍ No

3. Where will the product be used? (You may select more than one.) ❍ Workshop ❍ Barn ❍ Residential Construction

❍ Commercial Construction ❍ Garage ❍ Factory ❍ Recreation ❍ Warehouse ❍ Utility Shed/Outbuilding ❍ Other ______________________________ (Specify)

4. Cost of product (excluding sales tax)? $________________________________

5. Maintenance/service work will be performed by: ❍ Self ❍ Service Center ❍ Other ___________________________________

6. If you bought this product yourself, did you plan to purchase this type of product before going into the store? ❍ Yes ❍ No

7. Type of store where product was purchased? ❍ Hardware ❍ Propane Dealer ❍ Natural Gas/Utility Co. ❍ Home Center or Builder's Supply ❍ Farm/Ag. Supply ❍ Auto Parts ❍ Warehouse Club ❍ Industrial/Contractor Supply ❍ Rental Store ❍ Discount Store ❍ HVAC Dealer ❍ Other _________________________________________________

8. What is your primary source of heat? ❍ Propane (LP Gas) ❍ Natural Gas ❍ Kerosene ❍ Diesel ❍ Electric ❍ Other________________

9. What motivated you to buy this product? ❍ Sudden Cold Weather ❍ Replace Older Model ❍ D.I.Y. Home Project ❍ Emergency Back-Up Heat ❍ Heater on Sale ❍ Construction Project ❍ Hard to Heat Location ❍ Other ________________________________

10. How did you learn about this product brand? ❍ Advertisement ❍ Relative or Friend ❍ Co-Worker ❍ Store Representative ❍ Store Display ❍ Previously Owned a Heater ❍ Other _________________________________________________(Specify)

11. What other brands did you consider? ❍ None ❍ Master ❍ Remington ❍ All-Pro ❍ Dayton ❍ Universal ❍ Mr. Heater ❍ L.B. White Tradesman ❍ John Deere ❍ Dyna-Glo ❍ Dura-Heat ❍ Paulin ❍ Coleman ❍ Vogelzang American ❍ Other ___________________________________

12. Who selected the product? ❍ Male ❍ Female ❍ Both

13. Level of Education of Purchaser: ❍ High School ❍ Vocation/Technical School ❍ Some College ❍ Completed College ❍ Graduate School

14. Age of Purchaser: ❍ Under 20 ❍ 20 - 29 ❍ 30 - 39 ❍ 40 - 49 ❍ 50 - 59 ❍ 60 or Over

15. Buyer's total annual household income: ❍ Under $19,999 ❍ $20,000 to $34,999 ❍ $35,000 to $49,999 ❍ $50,000 to $74,999 ❍ $75,000 to $99,999 ❍ $100,000 and Over

16. What is the population of your area? ❍ Under 10,000 ❍ 10,000 to 25,000 ❍ 25,000 to 50,000 ❍ 50,000 to 100,000 ❍ 100,000 to 250,000 ❍ Over 250,000

17. Store where product was purchased: Name: ______________________________________ City: _____________________________________ State: __________

18. In choosing this product, how important were the following:

Availability Price Brand Name Overall Quality Heat Output (Btu/Hr Rating) Variable Heat Output (Btu/Hr) Made in USA Warranty Local Service Value for Price

Not Somewhat Very

❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍

(Reddy Heater, Master, Remington, etc.) (R60, HD15, etc.)

Note:

Keep receipt for warranty verification.

7 or 9 digit number located on product or identification tag.

Not Somewhat Very

❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍

Size Prior Brand Experience Built-In Thermostat Ease of Operation Special Features Salesperson's Recommendation Friend/Relative's Recommendation Portability Quiet Operation

❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍

19. This question will allow us to better understand the demographic profile of our customers. Which of the following best describes you? (not required) ❍ African American ❍ Asian American ❍ Mexican ❍ Puerto Rican ❍ Cuban ❍ Other Hispanic ❍ White ❍ Other ___________________

104163-01G

For more information, visit www.desatech.com

TAPE

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

Postage

Required

TAPE

OTHER OUTDOOR HEATING PRODUCTS

PROPANE/LP FORCED AIR HEATERS

PROPANE/LP CONVECTION HEATERS

l ; l

d l ; l

;

l ; l

;

; d d

;

o l

;

o l

;

o l

;

o l

;

o l

;

l h l

;

s i

;

o l

;

o l

;

o l

;

k k

h k

;

WARNING

;

l j

; i u s l

l;l

b o

dl;l

;;pd

dl;l

;;p

dl;l

iejl

;;pd

;e ;;pdl;l

;e ;;p

,,;log;e

g;e

,,;log

l;lk

g;e ;;p

,,;log

,,;lo

i kokle

kle

;;pd

kle ,,;lo

kle

eklh

i ko

eklhi kokle

i k

i ko

klhi ko

klh

,,;lo

jlb o

iejlb o

eklh

jlb

b o

iejlb oe

jlb

i k

l;l klsu d

uiejl

dl;l klsuiejlb oeklhi kokle ,,;log

l;l klsu

dl;l klsuie

;;p

;;pdl;l klsu

dl;l

l;lk

dl;l klsuie

g;e

jlb

;;p

g;e ;;p

;;p

;;pd

lsu

,,;log;e ;;p

,,;log

,,;log;e

i kokle ,,;lo

kle ,,;log;e ;;p

kle

eklh

i kokle

klhi kokle ,,;lo

klhi ko

jlb

eklh

eklhi ko

iejlb oeklhi kokle ,,;log

jlb

jlb jlb o ie

jlb

klsu

;l klsuie

klsu

klsuie

klsu

klsu klsuie

PROPANE/LP TANK TOP HEATERS

PROPANE/LP AND NATURAL

GAS GARAGE HEATERS

PORTABLE KEROSENE/DIESEL

FORCED AIR HEATERS

PROPANE/LP

PATIO HEATERS

PROPANE/LP AND NATURAL

GAS CHIMENEAS

WARRANTY AND REPAIR SERVICE

KEEP THIS WARRANTY

Model Serial No. Date of Purchase

LIMITED WARRANTY

DESA International warrants this product and any parts thereof, to be free from defects in materials and workmanship for one (1) year from the date of first purchase when operated and maintained in accordance with instructions. This warranty is extended only to the original retail purchaser, when proof of purchase is provided.

This warranty covers only the cost of parts and labor required to restore the product to proper operating condition. Transportation and incidental costs associated with warranty repairs are not reimbursable under this warranty.

Warranty service is available only through authorized dealers and service centers. This warranty does not cover defects resulting from misuse, abuse, negligence, accidents, lack of proper maintenance, normal wear, alteration,

modification, tampering, contaminated fuels, repair using improper parts, or repair by anyone other than an authorized dealer or service center. Routine maintenance is the responsibility of the owner.

THIS EXPRESS WARRANTY IS GIVEN IN LIEU OF ANY OTHER WARRANTY EITHER EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

DESA International assumes no responsibility for indirect, incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations or exclusions may not apply to you. This Limited Warranty gives you specific legal rights and you may also have other rights which vary from state to state.

We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied.

WARRANTY SERVICE

Should your heater require service, return it to your nearest authorized service center. Proof of purchase must be presented with the heater. The heater will be inspected. A defect may be caused by faulty materials or workmanship. If so, DESA International will repair or replace the heater without charge.

REPAIR SERVICE

Return your heater to your nearest authorized service center. Repairs not covered by the warranty will be billed at standard prices. Each Service Center is independently owned and operated. We reserve the right to amend these specifications at any time without notice.

When writing for information regarding your heater, be sure to include the model number and serial number as shown on the model plate. For more information about this warranty, write:

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

ATTN: Customer Service Department

104163 01

NOT A UPC

For more information, visit www.desatech.com

104163-01 Rev. G 10/02

104163-01G

Desa FORCED AIR HEATER User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
