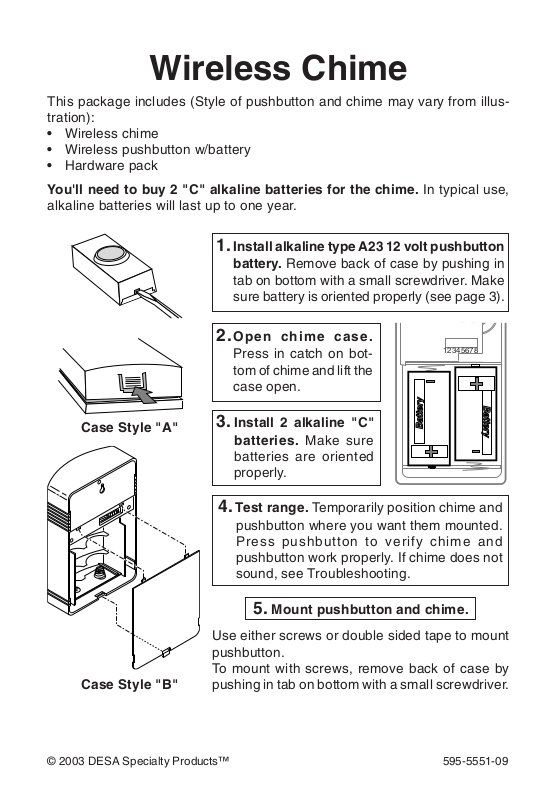

Wireless Chime

Battery

This package includes (Style of pushbutton and chime may vary from illustration):

• Wireless chime

• Wireless pushbutton w/battery

• Hardware pack You'll need to buy 2 "C" alkaline batteries for the chime. In typical use,

alkaline batteries will last up to one year.

1.Install alkaline type A23 12 volt pushbutton

battery. Remove back of case by pushing in

tab on bottom with a small screwdriver. Make sure battery is oriented properly (see page 3).

Case Style "A"

2.Open chime case.

Press in catch on bottom of chime and lift the case open.

3.Install 2 alkaline "C"

batteries. Make sure

batteries are oriented properly.

12345678

4. Test range. Temporarily position chime and

pushbutton where you want them mounted. Press pushbutton to verify chime and pushbutton work properly. If chime does not sound, see Troubleshooting.

5. Mount pushbutton and chime.

Use either screws or double sided tape to mount pushbutton. To mount with screws, remove back of case by

Case Style "B"

pushing in tab on bottom with a small screwdriver.

Attach back of case to door jamb or wall. Snap front of pushbutton on.

When attaching pushbutton using double sided tape, make sure the surface of the door jamb or wall is clean.

Case Style "A": Chime can be mounted by using 2 holes in the back of case, or by using 1 screw with keyhole.

Keyhole

1 9/16"

Holes for

Wall

Mounting

Case Style "A" Back

Case Style "B": Chime can be mounted by using 1 screw with keyhole (see illustration on page 1).

Case Style "A": Snap front of chime case on. Start with top edge of case aligned with the top of back plate.

Case Style "B": Snap battery access door firmly in place before mounting (See illustration on page 1).

Code and Tune Settings

Note: Most installations will not require you to change any jumpers on your chime and pushbutton.

The pushbutton and chime communicate by using a code that can be changed by removing and/or adding jumpers on both the pushbutton and chime. The code is factory set; however, there are 128 selectable codes that allow you to expand your system and prevent outside interference. Other wireless products may cause interference and the system may not function properly. Follow the instructions below for setting a new code.

1. Open the cases and locate the jumpers on both the pushbutton and chime (See illustration on page 3).

2. The pushbutton and chime both have eight different jumper locations. The jumper positions 1 through 7 are used for setting the code.

3. To change the code, add and/or remove jumpers as needed. It is recommended to only change one jumper at a time and then check to see if system is functioning properly. Note: Jumpers in positions 1 through 7 must be exactly the same for both the pushbutton and chime for this system to function.

Code Settings

-2-

595-5551-09

Your wireless chime has different selectable tunes: Ding (one note), Ding-

Tune Settings

Dong (two note), or Westminster (eight note) (Available on selected chimes).

The factory setting is for the Ding-Dong tune (or Westminster, when available). This tune can be changed by following the instructions below.

• Ding (one note tune) Pushbutton: Add a jumper to location 8.

• Ding-Dong (two note tune) Pushbutton: Remove jumper from location 8. Chime: Remove jumper from location 8.

• Westminster (Eight note tune) (Available on selected chimes) Pushbutton: Remove jumper from location 8. Chime: Add a jumper to location 8.

Note: All models have both front and back door tune capabilities. We recommend the back door use the Ding tune and the front door use the Ding- Dong tune (or Westminster tune, available on selected chimes). Models that include two pushbuttons will come factory set for front and back doors. Decals on the rear of the pushbutton will indicate its setting.

Pushbutton Battery Replacement

Inside Chime

Install an alkaline type A23 12 Volt battery. The positive terminal should be positioned as shown.

595-5551-09

12345678

Tune Setting (Not used on

all models)

12345678

Inside

Pushbutton

-3-

* Code Settings 1-7

Must Match Both

Pushbutton and

Chime

Tune Setting

Note: Some models might require the use of tweezers to remove and replace the jumpers.

Troubleshooting

Chime doesn't sound:

• Make sure pushbutton and chime codes are the same (See pages 2 and 3).

• Check orientation of pushbutton battery (See page 3).

• Check charge of pushbutton and chime batteries, replace if necessary.

Batteries seem OK, but the chime doesn't work when installed:

• Don't mount chime or pushbutton on metal or near metal studs. This reduces the transmitter range. Use 1/4" to 1/2" (6 to 13 mm) wood shims to move chime or pushbutton off metal surface.

• Concrete floors may reduce range. Move chime away from floor.

•Try locating chime closer to pushbutton.

The range of the wireless chime can vary with location, temperature and battery condition.

Technical Service

If you experience a problem, follow this guide. You may also want to visit our Web site at: www.desatech.com. If the problem persists, call* for assistance at 1- 800-858-8501, 7:30 AM to 4:30 PM CST (M-F). You may also write* to: DESA Specialty Products™ P.O. Box 90004, Bowling Green, KY 42102-9004 ATTN: Technical Service Specialty Products

* If contacting Technical Service, please have the following information available: Model Number, Date of Purchase, and Place of Purchase.

No Service Parts Available for this Product

(Do Not Send Products)

Regulatory Information

This device (SL-6150-RX, WB-94A-TX) complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The user is cautioned that changes or modifications not expressly approved by the party responsible for regulatory compliance could void the user’s authority to operate the equipment.

-4-

595-5551-09

This is a "Limited Warranty" which gives you specific legal rights. You may also have other rights which vary from state to state or province to province.

For a period of one year from the date of purchase, any malfunction caused by factory defective parts or workmanship will be corrected at no charge to you. Batteries are not covered. To obtain a refund or a replacement, return the product to the place of purchase.

Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs and other expendable items are not covered by this warranty. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, or unauthorized service.

This warranty covers only DESA Specialty Products™ assembled products and is not extended to other equipment and components that a customer uses in conjunction with our products.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF DESA SPECIALTY PRODUCTS™ FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Retain receipt for warranty claims.

DESA Specialty Products™ reserves the right to discontinue and to change specifications at any time without notice without incurring any obligation to incorporate new features in previously sold products.

ONE YEAR LIMITED WARRANTY

595-5551-09
