DIRECT-VENT FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

REMOTE REQUIRES

TWO 9-VOLT BATTERIES -

NOT INCLUDED

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

FOR YOUR SAFETY

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch

• Do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

This appliance may be installed in an aftermarket* manufactured (mobile) home, where not prohibited by local codes.

*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer.

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

— Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

— This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.

Save this manual for future reference.

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

SAFETY INFORMATION

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. Improper use of this fireplace can cause serious injury or death from burns, fire, explosions, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide

poisoning may lead to death!

This fireplace is a vented product. This fireplace will not produce any gas leakage into your home if properly installed. This fireplace must be properly installed by a qualified service person. The glass door must be properly seated and sealed. If this unit is not properly installed by a qualified service person with glass door properly seated and sealed, gas leakage can occur.

Carbon Monoxide Poisoning: Early signs

of carbon monoxide poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the fireplace may not have been installed properly. Get fresh air at once! Have fireplace inspected and serviced by a qualified service person. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Propane/LP gas and natural gas are both odorless. An odor-making agent is added to each of these gases. The odor helps you detect a gas leak. However, the odor added to these gases can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this fireplace.

WARNING: Any change to this fireplace or its controls can be dangerous.

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases unless a certified kit is used.

2. For propane/LP fireplace, do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lbs. capacity.

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do

not use any phone in your building

• immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier's instructions

• if you cannot reach you gas supplier,

call the fire department.

4. Never install the fireplace

• in a recreational vehicle

• where curtains, furniture, clothing, or

other flammable objects are less than 42" from the front, top, or sides of the fireplace

• in high traffic areas

• in windy or drafty areas

5. This fireplace reaches high temperatures. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching.

6. Carefully supervise young children when they are in the room with fireplace.

7. Do not modify this fireplace under any circumstances. Any parts removed for servicing must be replaced prior to operating fireplace.

8. Turn fireplace off and let cool before servicing, installing, or repairing. Only a qualified service person should install, service, or repair this fireplace. Have fireplace inspected annually by a qualified service person.

9. You must keep control compartments, burners, and circulating air passages clean. More frequent cleaning may be needed due to excessive lint and dust from carpeting, bedding material, etc. Turn off the gas valve and pilot light before cleaning fireplace.

10. Have venting system inspected annually by a qualified service person. If needed, have venting system cleaned or repaired. See Cleaning and Mainte- nance, page 27.

11. Keep the area around your fireplace clear of combustible materials, gasoline, and other flammable vapor and liquids. Do not run fireplace where these are used or stored. Do not place items such as clothing or decorations on or around fireplace.

12. Do not use this fireplace to cook food or burn paper or other objects.

13. Do not use any solid fuels (wood, coal, paper, cardboard, etc.) in this fireplace. Use only the gas type indicated on fireplace nameplate.

14. This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electri-

cal Code, ANS/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

15. Do not obstruct the flow of combustion and ventilation air in any way . Provide adequate clearances around air openings into the combustion chamber along with adequate accessibility clearance for servicing and proper operation.

16. Do not install fireplace directly on carpeting, vinyl tile, or any combustible material other than wood. The fireplace must set on a metal or wood panel extending the full width and depth of the fireplace.

17. Do not use fireplace if any part has been exposed to or under water. Immediately call a qualified service person to arrange for replacement of the unit.

18. Do not operate fireplace if any log is broken.

19. Do not use a blower insert, heat exchanger insert, or other accessory not approved for use with this fireplace.

20. Do not operate fireplace with glass door removed, cracked, or broken.

105542

OWNER’S MANUAL

PRODUCT IDENTIFICATION

Top Louver Panel

Nailing Flange

Magnetic Brass Trim

Glass Door Assembly

Magnetic Brass Trim

Blower Adjustment (Optional Installation)

ON/OFF/ Remote Switch

Piezo Ignitor

Valve

Lower Louver Panel

Figure 1 - Comfort Glow Direct-Vent Fireplace HDV Series

REMOTE

OFF

Glowing Embers

Front Burner

Vent Opening

Standoff

Lava Rock

Grate Assembly

Rear Burner

Log Set

Pilot Assembly

LOCAL CODES

Install and use fireplace with care. Follow all local codes. In the absence to local codes, use the current National Fuel Gas Code ANS Z223.1, also known as NFPA 54* (USA) or the current CAN/CGA-B149 [.1 or .2] Installation Codes (Canada).

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

PRODUCT FEATURES

OPERATION

This direct-vent fireplace is clean burning and vents easily through outside walls or vertically using outside air for combustion. Heat is generated by both realistic flames and glowing embers. When used without the blower accessory, the fireplace requires no electricity making it ideal for emergency backup heat.

PIEZO IGNITOR

This fireplace has a piezo ignitor. This system requires no matches, batteries, or other sources to light fireplace.

105542

GLOSSARY OF TERMS

Chase - A boxlike enclosure to protect

venting from the elements when the venting run is on the outside of a structure.

Mastic - A pliable sealant for use around the

vent terminal.

Snorkel Termination - A box that raises the

horizontal termination above ground level clearances.

Vent Terminal - Mounted on an outside

wall or roof to separate the inlet and outlet of the vent system and protect it from weather.

Vinyl Siding Standoff - A metal box that

separates the vent cap from vinyl siding.

Wall Thimble/Firestop - A metal plate used

to secure the vent pipe when it passes through a wall or ceiling.

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

37 1/2" 41

/2"

/4"

20" Vertical Termination 19" Horizontal Termination

Note:

Where two numbers are given the top number is exclusive to the

37" Fireplace and the bottom number is exclusive to the 41" Fireplace

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

PRE-INSTALLATION PREPARATION

LOCATION AND SPACE REQUIREMENTS

Determine the safest and most efficient location for your Comfort Glow direct-vent fireplace. Make sure that rafters and wall studs are not in the way of the venting system. Choose a location where the heat output is not affected by drafts, air conditioning ducts, windows or doors. Figure 2 shows some common locations. Read all venting information in this manual. Be aware of all restrictions and precautions before deciding the exact location for your fireplace.

When deciding the location of your fireplace, follow these rules:

1. Do not connect this fireplace to a chimney flue serving a separate solid-fuel burning fireplace or appliance.

2. Due to high temperatures, do not locate this fireplace in high traffic areas or near furniture or draperies.

3. Proper clearances must be maintained.

4. If your fireplace is to be installed directly on carpeting, vinyl tile, or any combustible material other than wood, it must be installed on a metal or wood panel extending the full width and depth of the fireplace. See Figure 3.

CLEARANCES

Minimum clearances to combustibles for the fireplace are as follows:

Back, and sides 0"/mm Perpendicular walls 6" (152mm) Floor 0"/mm Ceiling to louver opening 42" (1067mm) Front 36" (914mm) Top of Standoffs 0"/mm

See General Venting on page 5 for specific venting clearances.

FRAMING AND FINISHING

Figures 4 and 5 show typical framing of this fireplace. Figure 6 on page 5 shows framing for corner installation. All minimum clearances must be met. Do not install fireplace directly on carpeting, vinyl tile, or any combustible material other than wood. The fireplace must set on a metal or wood panel extending the full width and depth of the fireplace.

See Accessories on page 33 for mantel kits available for this fireplace. If you are using a separate combustible mantel piece, refer to Figure 7 on page 5 for proper installation height. You can install noncombustible mantels at any height above the fireplace.

Must maintain a minimum 1" clearance to combustibles

(37) 34

(41) 36

20"

5/8" for drywall facing

Figure 5 - Framing Clearances for Typical Fireplace Installation

Flush with a wall

Through exterior wall enclosed in a chase

Corner installation

Figure 2 - Common Fireplace Locations

Fireplace size D x FW x RW

37" 18 1/2" 37" 14" 41" 18

Figure 3 - Fireplace Bottom Dimensions

/2" 41" 18"

Figure 4 - Framing Clearances for Installation Against an Exterior Wall

105542

OWNER’S MANUAL

PRE-INSTALLATION PREPARATION

Continued

13"

29"

/4"

58"

Note

: Where two numbers are given the top number

is exclusive to the 37" Fireplace and the bottom number is exclusive to the 41" Fireplace

Figure 6 - Framing Clearances for Corner Installation

Note:

There must be a minimum clearance of 18" above top of louver opening when installing a television or entertainment center above the fireplace.

Ref. Mantel Depth Ref. Mantel from Top

1 14" (356mm) A 16" (406mm) 2 12" (305mm) B 14" (356mm) 3 10" (254mm) C 12" (305mm) 4 8" (203mm) D 10" (254mm) 5 6" (152mm) E 8" (203mm) 6 4" (101mm) F 6" (152mm) 7 2" (51mm) G 4" (101mm)

of Louver Opening

/4"

37" 41"

Top of Louver Opening

37 41

/2"

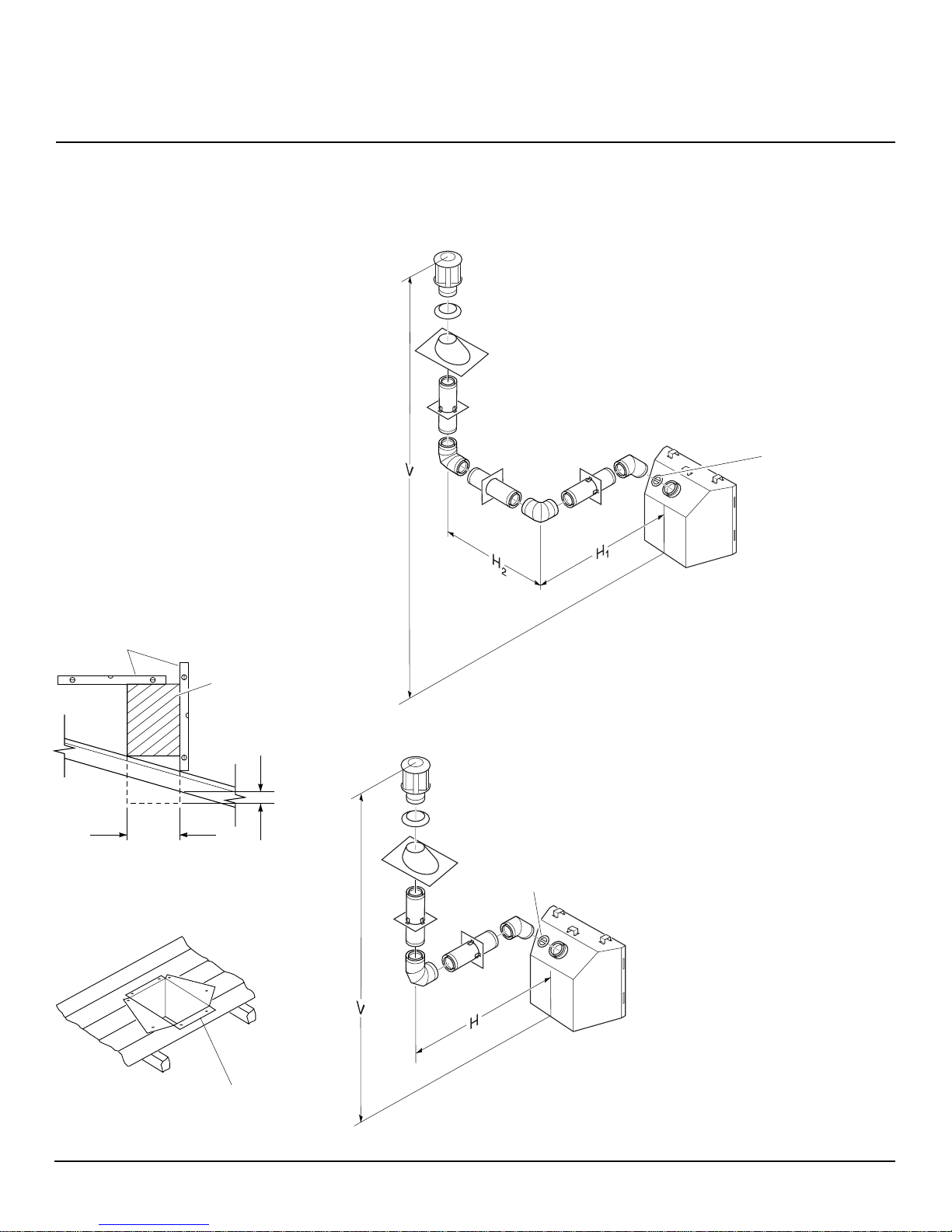

GENERAL VENTING

These models are approved for use with Simpson Dura-Vent 6 5/8" direct-vent pipe components and terminations as well as both flex and rigid Comfort Glow vent components.

41"

Nailing Tabs

1 2

5 6 7

Wall

Your fireplace is approved to be vented either through the side wall, or vertically using the following guidelines:

• Only use Comfort Glow or Simpson DuraVent GS venting components or kits specifically approved for this fireplace.

• Minimum clearance between vent pipes and combustible materials is 1" (25 mm), except where stated otherwise.

• Combustible material may be flush with the top front of fireplace with a maximum thickness of 3/4".

• Do not recess venting terminals into a wall or siding.

• Install horizontal venting with a 1/4" rise for every 12" of run toward the termination.

• You may paint the vent terminal with 450ºF (232ºC) heat-resistant paint to coordinate with the exterior finish.

• There must not be any obstruction such as bushes, garden sheds, fences, decks, or utility buildings within 24" from the front of the termination cap.

• Do not locate termination cap where excessive snow or ice build up may occur. Be sure to clear vent termination area after snow falls to prevent accidental blockage of venting system. When using snow blowers, do not direct snow towards vent termination area.

Location of Vent Termination

When locating vent termination, it is important to observe the minimum clearances shown in Figure 8, page 6. You will avoid extra framing by positioning your fireplace against an already existing framing member. The sides of the fireplace may be positioned directly against combustible walls.

*Check with local codes or with the current

CAN/CGA B149[.1 or .2] Installation Codes

for Canada or the USA Installations follow the current National Fuel Gas Code, ANS Z223.1, also known as NFPA 54.

Figure 7 - Clearances for Combustible Mantels

105542

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

Fixed

Closed

Openable

Continued

Openable

AIR SUPPLY INLET

Fixed

Closed

V A

I = clearance to service regulator vent outlet [*72 inches (1829mm)

minimum]

J = clearance to non-mechanical air supply inlet to building or the

combustion air inlet to any other fireplace [*12 inches (305mm) minimum]

K = clearance to a mechanical air supply inlet [*72 inches (1829mm)

minimum]

L = † clearance above paved side-walk or a paved driveway located on

public property [*84 inches (2133mm) minimum] M = clearance under veranda, porch, deck [*12 inches (305mm) minimum ‡] N = clearance above a roof shall extend a minimum of 24 inches (610mm)

above the highest point when it passes through the roof surface and

any other obstruction within a horizontal distance of 18 inches (457mm)

GENERAL VENTING

TERMINATION CAP

A = clearance above grade, veranda, porch, deck, or balcony

[*12 inches (305mm) minimum]

B = clearance to window or door that may be opened

[12 inches (305mm) minimum]

C = clearance to permanently closed window [minimum 12 inches

(305mm) recommended to prevent condensation on window]

D = vertical clearance to ventilated soffit located above the terminal

within a horizontal distance of 24 inches (610mm) from the

center-line of the terminal [18 inches (457mm) minimum] E = clearance to unventilated soffit [12 inches (305mm) minimum] F = clearance to outside corner (see below) G = clearance to inside corner (see below) H = *not to be installed above a meter/regulator assembly within

36 inches (914mm) horizontally from the center-line of the regulator

† vent shall not terminate directly above a side-walk or paved driveway which is located between two

single family dwellings and serves both dwellings* ‡ only permitted if veranda, porch, deck or balconey is fully open on a minimum of 2 sides beneath the floor* * as specified in CAN/SGA B149 (.1 or .2) Installation Codes (1991) for Canada or for U.S.A. installation follow

the current Note: Local codes or regulations may require different clearances

National Fuel Gas Code, ANS Z223.1

Termination Clearances for Buildings with Combustible and Noncombustible Exteriors

Inside Corner

Outside Corner Recessed Location

GAS METER RESTRICTED AREA

(TERMINATION PROHIBITED)

Balcony with No Side Wall

G = Combustible 24" (610mm)

Noncombustible 18" (457mm)

A = 6" (152mm)

G V

Figure 8 - Minimum Clearances for Vent Terminations

B = 6" (152mm)

Balcony with Perpendicular Side Wall

Combustible & Noncombustible H = 24" (610mm) J = 20" (508mm)

C = Maximum depth of 48" (1219mm) for

recessed location

D = Minimum width for back wall of

recessed location Combustible - 38" (965mm) Noncombustible - 24" (610mm)

E = Clearance from corner in

recessed locationCombustible - 6" (152mm) Noncombustible - 2" (51mm)

105542

OWNER’S MANUAL

VENTING INSTALLATION

WARNING: Read all instructions completely and thoroughly before attempting installation. Failure to do so could result in serious injury, property damage or loss of life. Operation of improperly installed and maintained venting system could result in serious injury, property damage or loss of life.

WARNING: Seal all vent con-

nections. Seal only the outer pipe connections with high temperature silicone (600°F/316° C). Before joining elbows and pipes, apply a bead of high temperature silicone sealant (GE RTV 106/Loctite RTV 81585) to the male end of the elbow or pipe. High temperature silicone must also be used to re-seal any connections after maintenance to venting system.

NOTICE: Failure to follow these instructions will void the warranty.

INSTALLATION PRECAUTIONS

Consult local building codes before beginning the installation. The installer must make sure to select the proper vent system for installation. Before installing vent kit, the installer must read this fireplace manual and vent kit instructions.

Only a qualified service person should install venting system. The installer must follow these safety rules:

• Wear gloves and safety glasses for protection

• Use extreme caution when using ladders or when on roof tops

• Be aware of electrical wiring locations in walls and ceilings

The following actions will void the warranty on your venting system:

• Installation of any damaged venting component

• Unauthorized modification of the venting system

• Installation of any component part not manufactured or approved by DESA International

• Installation other than as instructed by these instructions

WARNING: This gas fireplace and vent assembly must be vented directly to the outside. The venting system must NEVER be attached to a chimney serving a separate solid fuel burning appliance. Each gas appliance must use a separate vent system. Do not use common vent systems.

WARNING: Horizontal sections of this vent system require a minimum clearance of 2" from the top of the pipe and 1" minimum to the sides and bottom. Vertical sections of this system require a minimum of 1" clearance to combustible materials on all sides of the pipe.

INSTALLATION PLANNING

There are two basic types of direct-vent installation:

• Horizontal T ermination

• Vertical Termination It is important to select the proper length of

vent pipe for the type of termination you choose. It is also important to note the wall thickness.

For Horizontal Termination: Select the

amount of vertical rise desired. The horizontal run of venting must have 1/4" rise for every 12" of run towards the termination.

WARNING: Never run the vent downward as this may cause excessive temperatures which could cause a fire.

You may use one or two 90° elbows in this vent configuration. See Horizontal Termina- tion Configurations on pages 10 and 11.

For Vertical Termination: Measure the dis-

tance from the fireplace flue outlet to the ceiling. Add the ceiling thickness, the vertical rise in an attic or second story, and allow for sufficient vent height above the roofline.

You may use one or two 90° elbows in this vent configuration. See Vertical Termination Configurations on pages 13 and 14.

Note:

You may use two 45° elbows in place of a 90° elbow. You must follow rise to run ratios when using 45° elbows.

For two-story applications, firestops are required at each floor level. If an offset is needed in the attic, additional pipe and elbows will be required.

You may use a chase with a vent termination with exposed pipe on the exterior of the house. See Installing Vent System in a Chase, below.

Your Comfort Glow direct-vent fireplace has been tested for a minimum 3' rise with a maximum 10" wall thickness. The maximum horizontal run is 20' with 8' vertical rise (see Installation for Horizontal Termi- nation, page 8). The maximum vertical run is 30' (see Installation for Vertical Termina- tion, page 12).

It is very important that the venting system maintain its balance between the combustion air intake and the flue gas exhaust. Certain limitations apply to vent configurations and must be strictly followed.

Installing Vent System in a Chase

A chase is a vertical boxlike structure built to enclose venting that runs along the outside of a building. A chase is not required for such venting.

NOTICE: Treatment of firestops and construction of the chase may vary from building type to building type. These instructions are not substitutes for the requirements of local building codes. You must follow all local building codes .

Note:

When installing in a chase, you should insulate the chase as you would the outside walls of your home. This is especially important in cold climates. Minimum clearance between vent pipes and combustible materials such as insulation is 1".

After framing the chase (see Framing and Finishing on page 4) install the vent system by following the installation instructions.

Continued

105542

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

VENTING INSTALLATION

Continued

INSTALLATION FOR HORIZONTAL TERMINATION

1. Determine the route your horizontal venting will take. of the horizontal vent termination on the exterior wall must meet all local and national building codes and must not be easily blocked or obstructed.

WARNING: Do not recess vent

terminal into a wall or siding.

Snorkel terminations are available for terminations requiring a vertical rise on the exterior of the building (see Figures 9 and 10). Snorkel kit CSVK is also available (see page 15). Follow the same installation procedures as used for standard horizontal terminations. If installing the snorkel termination below grade (basement applications), you must provide proper drainage to prevent water from entering the snorkel termination (see Figure 10). Do not back fill around the snorkel termination.

2. Rigid vent pipes and fittings have special twist-lock connections. Assemble the desired combination of pipe and elbows to the appliance adaptor with pipe seams oriented towards the wall or floor.

Twist-lock Procedure: The female ends of the pipes and fittings have four locking lugs (indentations). These lugs will slide straight into matching slots on the male ends of adjacent pipes and fittings. (All connections must be sealed with high temperature silicone sealant as specified in the second warning statement on page 7.) Push the pipe sections together and twist one section clockwise approximately one-quarter turn until the sections are fully locked. See Figure 11, page 9. must be supported every three feet. Use wall straps for this purpose.

Flexible vent pipe must be installed with spacer springs every 12". See Figure 11, page 9. All connections must be clamped tightly and sealed with high temperature silicone sealant as specified in the second warning statement on page 7.

Note:

The location

Horizontal runs of vent

Snorkel

12" Minimum

Figure 9 - Snorkel Termination

Snorkel

12" Minimum

Adequate drainage

Figure 10 - Snorkel Termination with Drainage Pipe

105542

OWNER’S MANUAL

VENTING INSTALLATION

Continued

3. Attach vent pipe assembly to the fireplace. Set fireplace in front of it’s permanent location to insure minimum clearances. Mark the wall for a 10" square hole (for noncombustible material such as masonry block or concrete, a 7 1/2" diameter hole is acceptable). See Figure 12. The center of the hole should line up with the center-line of the horizontal rigid vent pipe. Cut a 10"x10" (254mm x 254mm) square hole through combustible exterior wall (7 1/2" [190mm] diameter hole if noncombustible). Frame as necessary (see Figure 12).

4" Clamp

Female Locking Lugs

Male Slots

7" Clamp

Spacer Spring

4" Flex Pipe

7" Flex Pipe

4. Apply a bead of non-hardening mastic around the outside edge of the vent cap. Position the vent cap in the center of the 7 1/2" or 10" hole on the exterior wall with the arrow on the vent cap pointing up. Insure proper clearance of 1" to combustibles is maintained. Attach the vent cap with four wood screws supplied (see Figure 13).

Note

: Replace the wood screws with appropriate fasteners for stucco, brick, concrete, or other types of siding.

WARNING: Do not recess vent termination in to any wall. This will cause a fire hazard.

For vinyl siding use vinyl siding standoffs between vent cap and exterior wall. The vinyl siding standoff prevents excessive heat from melting the vinyl siding material. Bolt the vent cap to the standoff. Apply non-hardening mastic around outside edge of the standoff instead of the vent cap assembly. Use wood screws provided to attach the standoff. See Figure 14.

5. Slide the wall thimble over the vent pipe before connecting the horizontal run to the vent cap (see Figure 15).

6. Carefully move the fireplace with vent assembly attached toward the wall and insert the vent pipe into the horizontal termination. The pipe overlap should be a minimum of 1 1/4". Apply silicone to the outer pipe connection. Fasten all vent connections with screws provided. Refer to Fir eplace Installation on page 16 for instructions on securing unit to framing or floor.

7. Slide the wall thimble against the interior wall surface and attach with screws provided (see Figure 15).

Cut Vinyl Siding Away to Fit Standoff

Wood Screw

Standoff

Nut

Apply Mastic to All Four Sides

Figure 14 - Installing Vinyl Siding Standoff

Vent Cap

Bolt

Rigid Vent Pipe Flexible Vent Pipe

Figure 11 - Vent Pipe Connections

Vent Opening

Combustible Wall

10"

(254mm)

10"

(254mm)

(Framing

Vent Opening

Noncombustible Wall

7 1/2"

(190mm)

Figure 12 - Vent Opening Requirements

105542

Detail)

Apply Mastic to All Four Sides

Wood Screw

Vent Cap

Figure 13 - Installing Horizontal Vent Cap

Interior Wall Surface

Wall Thimble

Vent Cap (Horizontal Termination)

Figure 15 - Connecting Vent Cap with Horizontal Vent Pipe

Screw

Horizontal Vent Pipe

Continued

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

VENTING INSTALLATION

Continued

Horizontal Termination Configurations

Figures 16 through 20 show different configurations for venting with horizontal termination. Each figure includes a chart with vertical minimum/maximum and horizontal maximum dimensions which must be met. Seal all connections with high temperature silicone sealant (outer pipe only) as specified in the second warning statement on page 7. All horizontal terminations require 1/4" rise per 12" of horizontal run.

CBGFVK Vent Kit Shown (recommended for use with cabinet mantel)

Horizontal Venting

Vertical (V) Horizontal (H)

37" min. 10" max.

Figure 16 - Horizontal Termination Configuration for Rigid Venting

Horizontal Venting

Vertical (V) Horizontal (H)

44" min. 29" max.

(30° and 90° only, no vertical pipe)

55" min. 41" max.

(30° elbow, 1' vertical pipe, 90° elbow)

67" min. 60" max. 79" min. 84" max. 96" min. 20' max.

Note:

This configuration for use with

corner installation.

CBVK Vent Kit Shown

Figure 17 - Horizontal Termination Configuration for Rigid Venting Using One 90° Elbow

Horizontal Venting

See information in Figure 17 for Vertical(V) and Horizontal(H) maximums and minimums. The same amounts apply for flexible venting. (A higher termination mounting location is desirable.)

Note:

Figure 16 applies to rigid venting only.

Figure 18 - Horizontal Termination Using Flexible Venting

105542

VENTING INSTALLATION

Continued

Venting with Two 90° Elbows

Vertical (V) Horizontal (H1) Horizontal (H1) +

Horizontal (H2)

5' min. 2' max. 6' max. 6' min. 4' max. 12' max. 7' min. 6' max. 18' max. 8' min. 8' min. 20' max.

20' max. 8' max. 20' max.

OWNER’S MANUAL

Figure 19 - Horizontal Termination Configuration for Rigid Venting Using Two 90° Elbows

Venting with Two 90° Elbows

Vertical (V) Horizontal (H1) +

Horizontal (H2)

5' min. 6' max. 6' min. 12' max. 7' min. 18' max. 8' min. 20' max.

20' max. 20' max.

Figure 20 - Horizontal Termination Configuration for Rigid Venting Using Two 90° Elbows with Termination at 90° with Fireplace

105542

Continued

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

VENTING INSTALLATION

Continued

INSTALLATION FOR VERTICAL TERMINATION

1. Determine the route your vertical venting will take. If ceiling joists, roof rafters, or other framing will obstruct the venting system, consider an offset (see Figure 21) to avoid cutting loadbearing members. these installation instructions for required clearances (air space) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafters, etc. Do not pack air spaces with insulation. Also note maximum vertical rise of the venting system and any maximum horizontal offset limitations. Offsets must fall within the parameters shown in Figure 8 on page 6.

2. Set the fireplace in desired location. Drop a plumb line down from the ceiling to the position of the fireplace exit flue. Mark the center point where the vent will penetrate the ceiling. Drill a small locating hole at this point.

Drop a plumb line from the inside of the roof to the locating hole in the ceiling. Mark the center point where the vent will penetrate the roof. Drill a small locating hole at this point.

Wall Strap

Note:

Pay special attention to

45° Elbow

Roof Flashing

Flat Ceiling Installation

1. Cut a 10" square hole in the ceiling using the locating hole as a center point. The opening should be framed to 10"x10" (254mm x 254mm) inside dimensions, as shown in Figure 12 on page 9 using framing lumber the same size as the ceiling joists. If the area above the ceiling is an insulated ceiling or a room, nail firestop from the top side. This prevents loose insulation from falling into the required clearance space. Otherwise, install firestop below the framed hole. The firestop should be installed with no less than three nails per side (see Figure 22).

2. Assemble the desired lengths of pipe and elbows necessary to reach from the fireplace flue up through the firestop. All connections must be sealed with high temperature silicone sealant as specified in the second warning statement on page 7. Be sure all pipe and elbow connections are fully twistlocked (see Figure 11, page 9).

3. Cut a hole in the roof using the locating hole as a center point. (Cover any exposed open vent pipes before cutting hole in roof.) The 10"x10" hole must be measured on the horizontal; actual length may be larger depending on the pitch of the roof. There must be a 1" clearance from the vent pipe to combustible materials. Frame the opening as shown in Figure 12, page 9.

If area above is a room, install firestop above framed hole.

If area above is not a room, install firestop below framed hole.

4. Connect a section of pipe and extend up through the hole.

Note:

If an offset is needed to avoid obstructions, you must support the vent pipe every 3 feet. Use wall straps for this purpose (see Figure 21). Whenever possible, use 45° elbows instead of 90° elbows. The 45° elbow offers less restriction to the flow of the flue gases and intake air.

5. Place the flashing over the pipe section(s) extending through the roof. Secure the base of the flashing to the roof and framing with roofing nails. Be sure roofing material overlaps the top edge of the flashing as shown in Figure

21. There must be a 1" clearance from the vent pipe to combustible materials.

6. Continue to add pipe sections until the height of the vent cap meets the minimum building code requirements described in Figure 8 on page 6. must increase vent height for steep roof pitches. Nearby trees, adjoining rooflines, steep pitched roofs, and other similar factors may cause poor draft or down-drafting in high winds. Increasing the vent height may solve this problem.

7. Twist-lock the vent cap onto the last section of vent pipe and seal outer pipe connection with high temperature silicone sealant as specified in the second warning statement on page 7.

Note:

If the vent pipe passes through any occupied areas above the first floor, including storage spaces and closets, you must enclose pipe. You may frame and sheetrock the enclosure with standard construction material. Make sure and meet the minimum allowable clearances to combustibles. Do not fill any of the required air spaces with insulation.

Note

: Y ou

Cathedral Ceiling Installation

1. Remove shingles or other roof cover-

ing as necessary to cut the rectangular hole for the support box. Mark the outline of the cathedral ceiling support box on the roof sheathing using the locating hole as a center point.

2. Cut the hole 1/8" larger than the sup-

port box outline (see Figure 23, page 13).

Ceiling Firestop

Figure 21 - Offset with Wall Strap and

Elbows

Figure 22 - Installing Firestop

105542

OWNER’S MANUAL

VENTING INSTALLATION

Continued

3. Lower the support box through the hole in the roof until the bottom of the box extends at least 2" below the ceiling (see Figure 23). Align the support box vertically and horizontally using a level. T emporarily tack the support box in place through the inside walls and into the roof sheathing.

4. Using tin snips, cut the support box from the top corners down to the roofline and fold the resulting flaps over the roof sheathing (see Figure 24). Apply a bead of non-hardening mastic around the top edges of the support box to make a seal between the box and the roof. Nail in place with roofing nails. Remove any combustible material that might be inside of the support box.

5. Complete the cathedral ceiling installation by following the same procedures outlined in steps 2 through 7 for Flat Ceiling Installation, page 12

Vertical Termination Configurations

Figures 25 through 28 show four different configurations for vertical termination. All connections must be sealed with high temperature silicone sealant as specified in the second warning statement on page 7.

Venting with Two 90° Elbows

Vertical (V) Horizontal (H1) +

Horizontal (H2)

5' min. 2' max. 6' min. 4' max. 7' min. 6' max. 8' min. 8' max.

20' max. 8' max.

Note:

Install restrictor into 4" collar of stove as shown.

Level

Cathedral ceiling support box

2" minimum below

finished ceiling

Cut hole 1/8" larger than support box when projected onto roofline

Figure 23 - Cathedral Ceiling Support Box Installation

Non-hardening Mastic under all edges of support box before nailing

Figure 24 - Installed Cathedral Ceiling Support Box

Figure 25 - Vertical Rigid Venting Configuration Using Two 90° Elbows with Two Horizontal Runs

Venting with One 90° Elbow

Note:

Install restrictor into 4" collar of stove as shown.

Vertical (V) Horizontal (H)

5' min. 2' max. 6' min. 4' max. 7' min. 6' max. 8' min. 8' max.

20' max. 8' max.

Figure 26 - Vertical Rigid Venting Configuration Using One 90° Elbow

Continued

105542

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

VENTING INSTALLATION

Continued

Note:

Install restrictor into 4" collar of stove as shown.

Venting with Two 90° Elbows

Vertical (V1) Horizontal (H)

5' min. 6' max. 6' min. 12' max. 7' min. 18' max. 8' min. 20' max.

Note:

Install restrictor into 4" collar of stove as shown.

CRVF Kit Shown

Vertical V enting

V = 40' max.

Figure 28 - Vertical Rigid Venting Configuration With No Horizontal Run

Note: Vertical (V1) + Vertical (V2) = 20' max.

Figure 27 - Vertical Rigid Venting Configuration Using Two 90° Elbows

105542

OWNER’S MANUAL

VENTING INSTALLATION

Continued

HIGH ALTITUDE INSTALLATION

Your Comfort Glow direct-vent fireplace has been AGA tested and approved for elevations from 0-2000 feet and CGA certified for elevations from 0-4500 feet.

When installing this fireplace at an elevation above 2000 feet (in the USA), you may need to decrease the input rating by changing the existing burner orifice to a smaller size. Reduce input 4% for each 1000 feet above sea level. Check with your local gas company for proper orifice size identification.

When installing this fireplace at an elevation above 4500 feet (in Canada), check with local authorities.

Consult your local gas company to help determine the proper orifice for your location.

For assistance with any high altitude installation contact DESA International’s Technical Services Department at 1-800-DESA-LOG (1-800-337-2564).

PARTS LISTS FOR VENTING KITS AND COMPONENTS

Comfort Glow Rigid Venting

Number Description

CBGFVK Basic Ground Floor Rigid

Vent Kit

Includes: 7" x 60° Elbow, Extended Adjustable Horizontal Termination, Wall Thimble and 14 Screws

CBVK Basement Rigid Vent Kit

Includes: 7" x 30° Elbow, 7" x 4' Galvanized Pipe, 7" x 90° Elbow, 7" Adjustable Galvanized Pipe (7-12"), Wall Thimble, Horizontal Termination, RTV Silicone and 20 Screws

CCVK Corner Vent Kit

Includes: 7" x 30° Elbow, 7" x 90° Elbow, 7" Adjustable Galvanized Pipe (7-12"), 6" Pipe, Wall Thimble, Horizontal Termination, RTV Silicone and 20 Screws

105542

Comfort Glow Rigid Venting

(Cont.)

Number Description

CBVKA Basement Rigid Vent Kit

Includes: 7" x 30° Elbow, 7" x 4' Galvanized Pipe, 7" x 90° Elbow, 7" Adjustable Galvanized Pipe (7-12"), RTV Silicone and 20 Screws

CSVK Snorkel Rigid Vent Kit

Includes: 7" x 30° Elbow, 7" x 4' Galvanized Pipe, 7" x 90° Elbow, 7" Adjustable Galvanized Pipe (7-12"), Wall Thimble, 36" Snorkel Termination, RTV Silicone and 28 Screws

CRVF Roof Rigid Vent Kit

Includes: Flue Restrictor, Storm Collar, 7" x 30° Elbow, 7" x 4' Galvanized Pipe, 7" x 2' Galvanized Pipe, 7" Adjustable Galvanized Pipe (7-12"), Firestop Support, Roof Flashing, RTV Silicone, Vertical Termination, and 26 screws.

CD1000 7" x 12" Galvanized Coaxial

Pipe (Qty 1)

CD1010 7" x 24" Galvanized Coaxial

Pipe (Qty 1)

CD1020 7" x 48" Galvanized Coaxial

Pipe (Qty 1)

CD1030 7" Adjustable (7-12") Galvanized

Coaxial Pipe (Qty 1)

CD1050 7" x 6" Galvanized Coaxial Pipe

(Qty 1) CD2000 7" x 90° Elbow (Qty 1) CD2010 7" x 45° Elbow (Qty 1) CD2020 7" x 30° Elbow (Qty 1) CD2030 7" x 60° Elbow (Qty 1) CD3000 Wall Strap/Offset Support (Qty 1) CD3010 Storm Collar (Qty 1) CD3020 Wall Thimble (Qty 1) CD3050 Vertical Restrictor (Qty 1) CD3060 Ceiling Firestop/Support (Qty 1) CD3070 Rectangular Horizontal Rigid

Vent Termination Cap CD3090 Cathedral Ceiling Support Box CD4000 Roof Flashing 6/12-9/12 CD4010 Roof Flashing 9/12-12/12 CD4020 Flex Connector (Qty 1) CD4030 Flex Wall Thimble (Qty 1) CD4040 4" Hose Clamp (Qty 1) CD4050 7" Hose Clamp (Qty 1) CD5000 Wood/Vinyl Siding Standoff

(Qty 1)

Comfort Glow Flexible Venting

Number Description

CBFGFVK Basic Flex Ground Floor Vent Kit

Includes: Flex Adapter, 7" x 2' Flexible Pipe, 4" x 2' Flexible Pipe, Wall Thimble, Horizontal Termination, (2) Spacer Springs, (2) 4" Hose Clamps, (2) 7" Hose Clamps, and 10 Screws

CFGFVK Flex Ground Floor Vent Kit

Includes: Flex Adapter, 7" x 4' Flexible Pipe, 4" x 4' Flexible Pipe, Wall Thimble, Horizontal Termination, (4) Spacer Springs, (2) 4" Hose Clamps, (2) 7" Hose Clamps, RTV Silicone, and 10 Screws

CD1040 7" x 25' Coaxial Flex Pipe with

Spacer Springs

CD3080 Rectangular Horizontal Flex

Termination Cap

Simpson Dura-Vent GS 4" x 6 5/8 "

Number Description Available from DESA International:

CSD2040 Simpson Dura-Vent GS

30° Elbow (6 pcs.)

CSD2050 Simpson Dura-Vent GS

60° Elbow (6 pcs.)

Available from Simpson Dura-Vent Only:

902 7" x 48" Pipe 903 7" x 36" Pipe 904 7" x 24" Pipe 906 7" x 12" Pipe 907 7" x 9" Pipe 908 7" x 6" Pipe 911 7" Adjustable (11"-14 940 Wall Thimble 941 Cathedral Ceiling Support Box 943 Roof Flashing 0/12-6/12 943S Roof Flashing 7/12-12/12 945 7" x 45° Elbow 950 Vinyl Siding Standoff 953 Storm Collar 963 Ceiling Firestop 981 36" Snorkel Termination 984 Horizontal Termination Vent Cap 988 Wall Strap 990 7" x 90° Elbow 991 Vertical High Wind Termination

/8") Pipe

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

FIREPLACE INSTALLATION

NOTICE: This fireplace is intended for use as supplemental heat. Use this fireplace along with your primary heating system. Do not install this fireplace as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using fireplace. This will help circulate the heat throughout the house. In the event of a power outage, you can use this fireplace as a heat source.

WARNING: A qualified service person must install fireplace. Follow all local codes.

CAUTION: This fireplace creates warm air currents. These currents move heat to wall surfaces next to fireplace. Installing fireplace next to vinyl or cloth wall coverings or operating fireplace where impurities (such as tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls.

Note:

Your fireplace is designed to be used in zero clearance installations. Wall or framing material can be placed directly against any exterior surface on the rear, sides, or top of your fireplace, except where standoff spacers are integrally attached. If standoff spacers are attached to your fireplace, these spacers can be placed directly against wall or framing material. See framing details on page 4.

Place the fireplace into position and shim with noncombustible material if needed. Nail the side flanges to the framing to secure the unit in place. There are two floor brackets included with each unit. Use these as an alternative method of securing the fireplace.

IMPORTANT:

before securing. If fireplace is not level it will not work properly.

Make sure fireplace is level

CHECK GAS TYPE

Use proper gas type for the fireplace unit you are installing. If you have conflicting gas types, do not install fireplace. See retailer where you purchased the fireplace for proper fireplace according to your gas type.

INSTALLING OPTIONAL BLOWER ACCESSORY

NOTICE: If installing blower in an existing fireplace with gas connections, shut off gas supply and disconnect heater from gas supply. Contact a qualified service person to do this.

Attaching Thermal Switch to CDA3620T ThermostaticallyControlled Blower

When installing the CDA3620T thermostatically-controlled blower accessory, you must first secure the thermal switch to the blower.

1. Remove the two hex head screws on the blower assembly as shown in Figure 29.

2. Place the green wire between the bottom hole on the thermal switch bracket and the bottom hole on the blower assembly. Insert one of the hex screws into all three pieces and tighten.

3. Insert the top screw through the thermal switch bracket and into the blower assembly. Tighten screw.

4. Connect the blue wire on the blower assembly to the right side of the thermal switch.

5. Connect the black wire to the left side of the thermal switch.

Thermal Switch with Bracket

Black Wire

Hex Head Screws

Figure 29 - Attaching Thermal Switch to CDA3620T Thermostatically-Controlled Blower Accessory

White Wire

Blue Wire

Installing GA3750/CDA3620T Blowers

IMPORTANT

bly and grate/burner assembly are not shown in Figures 30 through 33, page 17. They will, however, be in your fireplace when you are installing the blower. Also for clarity the firebox is shown with dotted lines.

1. Open lower louver panel or remove for easier access.

2. Place the blower against the lower rear wall of firebox outer wrapper with the exhaust port directed upward. Align the holes in the top mounting tabs of blower with holes in wall of wrapper (see Figure 30, page 17). Using the two screws provided, mount blower and tighten screws securely.

Note:

thermal switch is comfortably under the back of the firebox as shown in Figure 31, page 17.

3. Be sure to securely attach all wire terminals to terminals on blower motor (and thermal switch where applicable) and that the screw retaining the green ground wire is tight.

4. Remove screws securing the plate containing the ON/OFF switch to the bottom of the firebox and set aside.

5. Place speed control against back of this plate and push the plastic control shaft through opening (see Figure 32, page 17).

6. While supporting speed control, secure control shaft with lock nut by pushing and turning lock nut with pliers clockwise until tight against the plate. Place control knob provided onto shaft (see Figure 32, page 17).

7. Replace plate containing switches and tighten screws securely.

Green Wire

: For clarity, gas valve assem-

For CDA3620T, make sure the

Blower Assembly

105542

OWNER’S MANUAL

FIREPLACE INSTALLATION

Continued

8. Plug in blower power cord.

a. If your fir eplace system is installed

as a freestanding unit with an accessory mantel, determine whether

the power cord will exit the left side or the right side of the firebox. Install one plastic bushing provided into the 1 1/2" hole in the outer casing through which the power cord will exit. Install the second plastic bushing provided into the floor support bracket if exiting through the right side (see Figure 33). Route power cord through (both) plastic bushing(s) and plug the power cord into a properly grounded 3-prong wall receptacle near the firebox.

b.If your fireplace system installation

is recessed and/or pre-wired, a qualified installer must make all electrical connections for the outlet kit included with the fireplace.

9. Check to make sure that the power cord is completely clear of the blower wheel and that there are no other foreign objects in blower wheel. Turn blower on and check for operation. Turn blower off by rotating knob fully counterclockwise before continuing.

WARNING: Never touch the

blower wheel while in operation.

10. Peel off the backing paper and stick the supplied wiring diagram decal on the firebox bottom approximately 3" to the right of the blower speed control bracket (Figure 33).

WARNING: Failure to position the parts in accordance with supplied diagrams or failure to use only parts specifically approved with this heater may result in damage or personal injury.

11. Connect or reconnect gas supply to fireplace per Connecting Fir eplace to Gas Supply on page 19 of this manual.

WARNING: A qualified service person must connect fireplace to gas supply. Follow all local codes.

Firebox Bottom

Thermal Switch

Firebox Back

Firebox Flange

Blower

Lower Rear Wall of Firebox Wrapper

Blower

Screws

Figure 30 - Mounting Blower to Firebox

Lower Louver Panel

Exhaust Port

Top Mounting Tab

Thermal Switch

Figure 31 - Locating Thermal Switch Against Back of Firebox

Speed Control

Control Knob

Locknut

Figure 32 - Attaching Speed Control to Firebox

Blower Speed Control Bracket

Figure 33 - Installing Plastic Bushing and Wiring Diagram Sticker

Control Shaft

Plastic Bushing

Wiring Diagram

Side View

Continued

105542

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

FIREPLACE INSTALLATION

Continued

INSTALLING GAS PIPING TO FIREPLACE LOCATION

WARNING: A qualified service person must connect fireplace to gas supply. Follow all local codes.

CAUTION: For propane/LP units, never connect heater directly to the propane/LP supply. This heater requires an external regulator (not supplied). Install the external regulator between the heater and propane/LP supply.

Installation Items Needed

Before installing fireplace, make sure you have the items listed below.

• external regulator (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• manual shutoff valve *

• test gauge connection *

• sediment trap

• tee joint

• pipe wrench

• approved flexible gas line with gas connector (if allowed by local codes) (not provided)

* An A.G.A. design-certified manual shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. Purchase the A.G.A. design-certified manual shutoff valve from your retailer.

For propane/LP connection only, the installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, heater regulator damage could occur. Install external regulator with the vent pointing down as shown in Figure 34. Pointing the vent down protects it from freezing rain or sleet.

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to fireplace. If pipe is too small, undue loss of pressure will occur.

Installation must include a manual shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from fireplace (see Figure 35).

Propane/LP Supply Tank

External Regulator

Vent Pointing Down

Figure 34 - External Regulator with Vent Pointing Down (Propane/LP Only)

A.G.A. Design-Certified Manual Shutoff Valve with 1/8" NPT Tap*

Approved Flexible Gas Line

3" Minimum

Cap Pipe Nipple Tee Joint

Sediment Trap/Drip Leg

Figure 35 - Gas Connection

* The A.G.A. design-certified manual shutoff valve may be supplied with the appliance or you can purchase it from your retailer.

(manual shutoff valve) in an accessible location. The main gas valve is for turning on or shutting off the gas to the appliance.

Check your building codes for any special requirements for locating manual shutoff valve to fireplaces.

Apply pipe joint sealant lightly to male threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged fireplace valves.

CAUTION: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

We recommend that you install a sediment trap/drip leg in supply line as shown in Figure 35. Locate sediment trap/drip leg where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap/drip leg where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into fireplace gas controls. If sediment trap/drip leg is not installed or is installed wrong, fireplace may not run properly.

Natural - From Gas

Meter (5" W.C. to 10.5"

W.C. Pressure )

Propane/LP - From External Regulator (11" W.C. to 14" W.C. Pressure)

IMPORTANT:

Install main gas valve

105542

OWNER’S MANUAL

FIREPLACE INSTALLATION

Continued

CONNECTING FIREPLACE TO GAS SUPPLY

Installation Items Needed

• 5/16" hex socket wrench or nut-driver

• sealant (resistant to propane/LP gas, not provided)

1. Open lower louver door panel by gen-

tly pulling forward.

2. Route flexible gas line (provided by

installer) from manual shutoff valve to fireplace. Route flexible gas supply line through one of the access holes on side of fireplace.

3. Attach a 45° flare union gas connector

to flexible gas line from gas supply (see Figure 36). Connect flare union to flexible gas line attached to gas regulator of fireplace (see Figure 36).

4. Check all gas connections for leaks. See

Checking Gas Connections.

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply commercial leak test solution to all gas joints. Bubbles forming show a leak. Correct all leaks at once.

Pressure Testing Gas Supply Piping System

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

Disconnect fireplace and its individual manual shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig (3.5 kPa) will damage fireplace gas regulator.

2. Cap off open end of gas pipe where manual shutoff valve was connected.

3. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas fireplace or opening main gas valve located on or near gas meter for natural gas fireplace, using compressed air.

4. Check all joints of gas supply piping system. Apply commercial leak test solution to all gas joints. Bubbles forming show a leak. Correct all leaks at once.

5. Reconnect fireplace and manual shutoff valve to gas supply. Check reconnected fittings for leaks.

To Fireplace Gas Valve

Flare Union

Flexible Gas Line from Fireplace Gas Valve Provided with Fireplace

Figure 36 - Attaching Flexible Gas Lines Together

Flexible Gas Line from Manual Shutoff Valve Provided by Installer

Manual Shutoff Valve

To Gas Supply (Natural) To External Regulator

(Propane/LP)

105542

Continued

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

POSITION

OFF

POSITION

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

FIREPLACE INSTALLATION

Continued

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close manual shutoff valve (see Figure 37).

2. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas fireplace or opening main gas valve located on or near gas meter for natural gas fireplace, using compressed air.

3. Check all joints from propane/LP supply tank or gas meter to manual shutoff valve (see Figure 38 for propane/LP or Figure 39 for natural). Apply commer cial leak test solution to all gas joints. Bubbles forming show a leak. Correct all leaks at once.

Pressure Testing Fireplace Gas Connections

1. Open manual shutoff valve (see Figure 37).

2. Open propane/LP supply tank valve for propane/LP fireplace or main gas valve located on or near gas meter for natural gas fireplace.

3. Make sure control knob of fireplace is in the OFF position.

4. Check all joints from manual shutoff valve to thermostat gas valve (see Figure 38 for propane/LP or Figure 39 for natural). Apply commercial leak test solution to all gas joints. Bubbles forming show a leak. Correct all leaks at once.

5. Light fireplace (see Operating Fire- place, pages 24 and 25). Check all other internal joints for leaks.

6. Turn off fireplace (see To Turn Off Gas to Appliance, page 24).

Open

Manual Shutoff Valve

Closed

Figure 37 - Manual Shutoff Valve

Propane/LP Supply Tank

Manual Shutoff Valve

Gas Valve

Figure 38 - Checking Gas Joints for Propane/LP Gas Fireplace

Manual Shutoff Valve

Gas Meter

Gas Valve

Figure 39 - Checking Gas Joints for Natural Gas Fireplace

105542

OWNER’S MANUAL

FIREPLACE INSTALLATION

Continued

WIRELESS HAND-HELD REMOTE CONTROL

(Included) Installing Battery into Receiver

1. Open bottom louver and locate the switch bracket on the left.

2. Unscrew the switch bracket. Lean bracket forward so you are able to access the back of the remote receiver.

3. Locate the battery clip mounted on the back of the receiver. Slide a 9-volt battery (not included) through the clip.

4. Attach the terminal wires to the battery.

5. Replace the switch bracket.

Receiver

REMOVING/REPLACING GLASS DOOR

You must remove glass door to install optional brick liners, logs, lava rock, and ember material.

CAUTION: Do not operate this fireplace with a broken glass door panel or without the glass door panel securely in place. For replacement part information see

Replacement Parts

, page 31.

Top Louver Panel

1. Remove the upper louver panel by lifting upward and out (see Figure 42).

2. Remove the screws from the three tabs at the top of the glass door while holding door securely keeping it from falling forward.

3. Grasp door by both sides and ease it upward off of the lower bracket (see Figure 43).

4. T o replace glass door, follow the above instructions in reverse.

Terminal Wires

Battery Clip

9-Volt Battery

Figure 40- Attaching Battery to Receiver

Installing 9-Volt Battery in HandHeld Remote Control Unit

1. Remove battery cover on back of remote control unit.

2. Attach terminal wires to a 9-volt battery (not included). Place battery into the battery housing.

3. Replace battery cover onto remote control unit.

Battery

Terminal Wires

9-Volt Battery

Cover

Remote Control Unit

Battery Housing

Figure 42 - Removing Top Louver Panel

Screw

Glass Door Assembly

Lower Bracket for Glass Door Assembly

Figure 41 - Installing Battery in HandHeld Remote Control Unit

105542

Figure 43 - Removing/Replacing Glass Door

Continued

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

FIREPLACE INSTALLATION

Continued

Attaching Magnetic Decorative Brass Strips

This fireplace comes with a set of two magnetic decorative brass strips. Before attaching strips to fireplace, remove plastic film from brass pieces. After installing door, attach these strips to the top and bottom of glass door frame.

INSTALLING OPTIONAL BRICK LINER CD8037A/ CD8041

WARNING: If fireplace has been running, turn off and unplug fireplace. Let cool before installing brick liner.

This brick liner kit is optional. You may purchase brick liner from your local retailer or see Accessories, page 33.

CAUTION: Always handle brick panels with two hands. Do not force brick panels into place. Excessive force will break brick panels.

7. Install rear brick panel. Rest bottom edge of panel on back edge of grate (see Figure 45).

8. Loosely secure retainer brackets to grate. Brackets are adjustable left to right to allow proper placement of panel. These will hold rear panel in place.

Left Side Brick Panel

Retainer Brackets

Figure 44 - Installing Left Side Brick Panel

9. Tighten all bracket screws.

10. Follow instructions on page 23 to install logs, lava rock, and ember material.

11. Replace glass door (see page 21).

1. Remove glass door. See Removing/Re- placing Glass Door, page 21.

2. If installing brick liner in new fireplace, go to step 3. If installing brick liner in an existing fireplace, carefully remove logs, lava rock, and ember material.

3. Install left side brick panel first by sliding it between the grate and the side of the firebox (see Figure 44).

4. Slide the left retainer bracket against the left side brick panel. Loosely secure the bracket screw . This secures the left side brick panel.

5. Install the right brick panel using the same method described in step 3.

6. Slide the right retainer bracket against the right side brick panel. Loosely secure the bracket screw . This secures the right side brick panel.

Rear Brick Panel

Retaining Brackets

Figure 45 - Installing Rear Brick Panel and Retainer Brackets

105542

OWNER’S MANUAL

FIREPLACE INSTALLATION

Continued

INSTALLING LOGS, LAVA ROCK AND GLOWING EMBERS

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

Each log is marked with a number. These numbers will help you identify the log when installing. It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with fireplace.

Remove glass door. See Removing/Replacing Glass Door, page 21. Install logs according to instructions for fireplace model numbers.

5. Pull ember material apart into pieces no larger than a dime. Place these pieces loosely onto the exposed section of the front burner and space between logs 2 and 3 where front burner is exposed (see Figure 49). This will create the glowing appearance as the flame touches the ember material. Do not block ports by using too much ember material in one area. It is not necessary to use all of the ember material provided.

6. Replace the glass door. See Removing/ Replacing Glass Door, page 21.

WARNING: The glass door must be securely in place before running this fireplace. Do not run this fireplace if glass is missing or broken.

Figure 48 - Installing Log Assembly No. 3

Ember Material

Fireplace Models CHDV37N/P and CHDV41N/P

1. Place log #1 (back log) on grate. Make sure the lower middle section of the log fits securely into the open area in back of grate (see Figure 46).

2. Place log #2 (two log assembly) onto pins on left and right of the front burner (see Figure 47). The middle pin is not used.

3. Place log #3 (crossover assembly) onto the notched out section of log #2. Log #3 rests on the back portion of front log and in the crook of back log (see Figure 48).

4. Place lava rock along sides and front of firebox bottom.

NOTICE: Do not put lava rock on burner or under burner. Placing lava rock on burner could cause performance problems.

It is not necessary to use all of the lava rock provided.

Figure 46 - Installing Log No. 1

Figure 49 - Placing Ember Material on Burner

105542

Figure 47 - Installing Log Assembly No. 2

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

OPERATING FIREPLACE

FOR YOUR SAFETY

READ BEFORE

LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must

be lighted by hand. When lighting the pilot, follow these instructions exactly .

B. BEFORE LIGHTING smell all

around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHA T TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

C. Use only your hand to push in or turn

the gas control knob. Ne ver use tools. If the knob will not push in or turn by hand, don't try to repair it, call a qualified service technician. For ce or attempted repair may result in a f ire or explosion.

D. Do not use this appliance if any part

has been under water . Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

1. STOP! Read the safety information in column one.

2. Open lower louver panel.

3. Turn ON/OFF switch to “OFF”.

4. Turn off all electric power to the fireplace.

5. Push in gas control knob slightly and turn clockwise to “OFF”.

6. Wait f ive (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information in column one. If you don't smell gas, go to the next step.

7. The pilot is located by the main burner and should not require accessing for lighting.

8. T urn gas control knob counter clockwise to “PILOT”.

9. Push in gas control knob all the way and hold. Immediately light the pilot by repeatedly depressing the piezo spark ignitor until a flame appears. Continue to hold for about one (1) minute after the pilot is lit. Release gas control knob and it will pop back. Pilot should remain lit. If it goes out, repeat steps 5 through 8.

• If gas control knob does not pop

up when released, stop and immediately call your service technician or gas supplier.

• If the pilot will not stay lit after sev-

eral tries, turn the gas control knob to “OFF” and call your service technician or gas supplier.

10. Tur n gas control knob counterclockwise to “ON”.

11. Turn on all electric power to the fireplace.

Variable Control

Gas Control Knob

Knob

12. Turn the ON/OFF switch to ON position.

13. This valve is equipped with a HI/LO feature. Set fir eplace input as desired.

14. Close lower louver panel.

TO TURN OFF GAS

TO APPLIANCE

1. Open lower louver panel.

2a. Set selector switch in the OFF position. 2b. T urn ON/OFF switch to OFF.

3. Turn off all electrical power to the appliance if service is to be performed.

4. Push in gas control knob slightly and turn clockwise to “OFF”.

5. Set selector switch in the OFF position to prevent draining the battery.

6. Close lower louver panel.

Shutting Off Burners Only (pilot stays lit)

You may shut off the burners and keep the pilot lit by doing one of the following:

1. Turn gas control knob clockwise

to the PILOT position.

2. Set selector switch in the OFF position.

MANUAL LIGHTING

PROCEDURE

1. Remove glass door (see Removing/ Replacing Glass Door, page 21).

2. Follow steps 1 through 8 under Lighting Instructions.

3. Depress gas control knob and light pilot with match.

4. Keep gas control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release gas control knob . Follow steps 10 through 14, column 2.

5. Replace glass door (see Removing/ Replacing Glass Door, page 21).

Piezo Ignitor

Figure 50 - Control Valve

105542

OWNER’S MANUAL

TEMP

STATUS

MAN ON

AUTO OFF

OPERATING FIREPLACE

Continued

HAND-HELD REMOTE

OPERATION

NOTICE: You must light the pilot before using the hand-held remote control unit. See

Instructions,

page 24.

The thermostat control setting on the remote control unit can be set to any comfort level between HI and LO. The burners will turn on and off automatically to maintain the comfort level you select. The ideal comfort setting will vary by household depending upon the amount of space to be heated, the output of the central heating system, etc.

1. After lighting, let pilot flame burn for about one minute. Turn gas control knob on the control valve to ON position. Turn variable control knob anywhere between HI and LO. Slide the selector switch to the REMOTE position.

Note:

The burner(s) may light if handheld remote ON button was on when selector switch was last turned off. You can now turn the burners on and off with the hand-held remote control unit.

IMPORTANT:

Do not leave the selector switch in the REMOTE position when the pilot is not lit. This will drain the battery .

IMPORTANT:

Be sure to press the ON/OFF buttons on the hand-held remote control unit for up to 3 seconds to assure proper operation.

2. Select the MAN (manual) or AUTO button on the hand-held remote control unit (see Figure 52).

• In manual mode, turn burners on or

off by pressing the ON/OFF buttons on the hand-held remote control unit.

• In auto mode, the room tempera-

ture is controlled by the thermostat in the hand-held remote control unit. To increase the room temperature, press the top arrow of the TEMP button. To lower the room

105542

Lighting

temperature, press the bottom ar row of the TEMP b utton. At higher settings the heater will run more.

IMPORTANT:

This remote control has been specially engineered to take an air temperature sample every 5.5 minutes in the A UTO mode. It will not respond immediately to the temperature setting being turned up or down.

IMPORT ANT :

The hand-held remote control unit must be near the heater but not extremely close to it. The thermostat on the hand-held remote control unit will heat up too quickly and turn the heater off.

3. Use the ST A TUS button on the handheld remote control unit to see the operation mode being used and the temperature setting selected. A red light will come on beside the operation mode being used.

Blower Control Knob (Optional Accessory)

OFF

REMOTE

Selector Switch in Remote Position

Figure 51 - Setting the Selector Switch, Gas Control Knob, and Variable Control Knob for Remote Operation

Variable Control Knob

Gas Control Knob in ON Position

4. To turn the burners off when operating in the manual mode, press the OFF button. If operating in the auto mode, press the MAN button, then press the OFF button. The pilot will r emain lit.

IMPORTANT:

To turn the pilot off, manually turn the gas control knob on the heater to the OFF position or set selector switch to OFF position.

OPERATING

OPTIONAL BLOWER

ACCESSORY

Locate the blower controls by opening the lower louver panel on the fireplace. Blower controls are located on the left side of the switch bracket to the left just inside the louver panel.

Both the GA3750 manual blower and the CDA3620T thermostatically controlled blower have an ON setting and an OFF setting. The blower will only run when the switch is in the ON position. In the OFF position, the blower will not operate.

Note for CDA3620T Only:

using CDA3620T blower, your fireplace and blower will not turn on and off at the

same time. The fireplace may run for several minutes before the blower turns on. After the heater modulates to the pilot position, the blower will continue to run. The blower will shut off after the firebox temperature decreases.

The blower helps distribute heated air from the fireplace. Periodically check the louvers of the firebox and remove any

If you are

dust, dirt, or other obstructions that will hinder the flow of air.

Shows Temperature Setting

Allows Burner(s) to be Turned On and Off with the HandHeld Remote Unit.

The Heater will Automatically Cycle between Pilot and the Heat Setting that has been Selected.

Figure 52 - Hand-Held Thermostat Remote Control Unit Selections (GHRCT)

Increases Room Temperature

Decreases Room Temperature

Turns Burners On and Off

Shows Current Operation Mode

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

INSPECTING BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT ASSEMBLY

The pilot assembly is factory preset for the proper flame height. Alterations may have occurred during shipping and handling. Call a qualified service person to readjust the pilot if necessary.

The height of the thermopile must be 3/8" to 1/2" above the pilot flame as shown in Figure

53. The thermocouple must be at a height of about 1/8" above the pilot flame. The flame from the pilot burner must extend beyond both the thermocouple and thermopile.

If you pilot assembly does not meet these requirements:

• turn fireplace off (see To Turn Off Gas to Appliance, page 24)

• see Troubleshooting, pages 28 through 30

Thermopile

BURNER FLAME PATTERN

Burner flames will be steady; not lifting or floating. Flame patterns will be different from unit to unit and will vary depending on installation type and weather conditions.

If the vent configuration is installed incorrectly, the flames will lift or "ghost". This can be dangerous. Inspect the flames after installation to ensure proper installation and performance.

Figure 54 shows a typical flame pattern for CHDV37N(A,B), CHDV37P(A,B), CHDV41N(A,B), and CHDV41P(A,B) models.

If burner flame pattern differs from that described:

• turn fireplace off (see T o T urn Off Gas to Appliance, page 24)

• see Troubleshooting , pages 28 through 30

3/8" to 1/2"

Pilot Burner

Piezo Ignitor

Figure 53 - Pilot Assembly

1/8"

Figure 54 - Typical Flame Pattern for CHDV37N/P(A,B) and CHDV41N/P(A,B)

Thermocouple

105542

OWNER’S MANUAL

CLEANING AND MAINTENANCE

WARNING: Turn off fireplace

and let cool before cleaning.

CAUTION: You must keep control areas, burners, and circulating air passageways of fireplace clean. Inspect these areas of fireplace before each use. Have fireplace inspected yearly by a qualified service person. Fireplace may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.

GLASS DOOR

WARNING: Handle glass door panel with care. Do not strike, slam, or otherwise abuse glass. Do not operate fireplace with the glass door removed, cracked, or broken.

WARNING: Do not use abrasive cleaners as this may damage glass. Use a nonabrasive household glass cleaner to clean glass. Do not clean glass when hot.

Glass must be cleaned periodically. During start-up it is normal for condensation to form on the inside of the glass causing lint, dust, and other airborne particles to cling to the glass surface. During initial start-up a slight film may form on the glass due to paint curing. The glass should be cleaned several times with a non-ammonia, nonabrasive household cleaner and warm water after the first two weeks of operation. Thereafter, clean the glass two or three times during each heating season, depending on the usage and circumstances present. Refer to Removing/Replacing Glass Door on page 21 of this manual when removing glass door for cleaning.

WARNING: Only parts supplied by the manufacturer should be used when replacing broken or damaged glass door panel (see

Replacement Parts

glass door panel is a complete unit. No substitute materials may be used.

CAUTION: Wear gloves and safety glasses while handling or removing broken glass. Do not remove if glass is hot. Keep children and pets away from glass.

If glass has been broken, carefully remove glass door (see Removing/Replacing Glass Door, page 21). Vacuum all glass pieces with a shop vac.

CAUTION: Do not vacuum if pieces are hot.

Use only the ceramic glass door replacement intended for this fireplace (see Re- placement Parts, page 31 for detail on ordering). No substitutions may be made. See Removing/Replacing Glass Door, page 21 for instructions for replacing glass door.

, page 31). This

WARNING: Do not operate fireplace with the glass door removed, cracked, or broken.

PILOT AND BURNERS

• Remove ember material before cleaning burners and replace when cleaning is complete.

• Burner and controls should be cleaned with compressed air to remove dust, dirt, or lint.

• Use a vacuum cleaner or small, soft bristled brush to remove excess dust, dirt, or lint.

LOGS

• If you remove logs for cleaning, refer to

Installing Logs, Lava Rock, and Glowing Embers, page 23, to properly replace logs.

• Use a vacuum cleaner to remove any carbon buildup on logs.

• Replace log(s) if broken. See Replace- ment Parts on page 31.

• Replace ember material periodically as needed. See Replacement P arts on page 31.

VENTING SYSTEM

Conduct annual inspection of the venting system following these guidelines:

1. Check areas of venting system that are

exposed to the weather for corrosion (rust spots or streaks and, in extreme cases, holes). Have these items replaced immediately by a qualified service person.

2. Remove the vent cap and shine a flash-

light into the vent. Remove any foreign material.

3. Check for evidence of excessive con-

densation. Continuous condensation can cause corrosion of caps, pipes, and fittings and can be caused by having excessive lateral runs, too many elbows, or exterior portions of the system being exposed to cold weather.

4. Inspect joints to verify that no pipe sec-

tion or fitting has been disturbed and loosened. Check mechanical supports such as wall straps for rigidity.

105542

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

TROUBLESHOOTING

Note:

For additional help, visit DESA

International’s technical service web site at www.desatech.com.

Note:

All troubleshooting items are listed in

order of operation.

OBSERVED PROBLEM

When ignitor button is pressed, there is no spark at pilot

When ignitor button is pressed, there is spark at pilot but no ignition

WARNING: Turn off heater and let cool before servicing. Only a qualified service person should service and repair heater.

POSSIBLE CAUSE

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or wet

3. Piezo ignitor nut is loose

4. Broken ignitor cable

5. Bad piezo ignitor

6. Ignitor electrode broken

7. Ignitor electrode positioned wrong

1. Gas supply turned off or manual shutoff valve closed

2. Gas control knob not in PILOT position

3. Gas control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. Depleted gas supply (propane/LP models only)

6. Pilot is clogged

7. Gas regulator setting is not correct

CAUTION: Never use a wire, needle, or similar object to clean pilot. This can damage pilot unit.

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

3. Tighten nut holding piezo ignitor. Nut is located behind the mounting bracket

4. Replace ignitor cable

5. Replace piezo ignitor

6. Replace pilot assembly

7. Replace pilot assembly

1. Turn on gas supply or open manual shutoff valve

2. Turn gas control knob to PILOT position

3. Press in gas control knob while in PILOT position

4. Continue holding down gas control knob. Repeat igniting operation until air is removed

5. Contact local propane/LP gas company

6. Clean pilot (see Cleaning and Mainte- nance, page 27) or replace pilot assembly

7. Replace gas control

Pilot lights but flame goes out when control knob is released

1. Gas control knob not fully pressed in

2. Gas control knob not pressed in long enough

3. Manual shutoff valve not fully open

4. Pilot flame not touching thermocouple, which allows thermocouple to cool, causing pilot flame to go out. This problem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged pilot

5. Thermocouple connection loose at control valve

6. Thermocouple damaged

7. Control valve damaged

www.desatech.com

1. Press in gas control knob fully

2. After pilot lights, keep gas control knob pressed in 30 seconds

3. Fully open manual shutoff valve

4. A) Contact local gas company

B) Clean pilot (see Cleaning and Mainte- nance, page 27) or replace pilot assembly

5. Hand tighten until snug, then tighten 1/4 turn more

6. Replace thermocouple

7. Replace control valve

105542

TROUBLESHOOTING

Continued

OWNER’S MANUAL

OBSERVED PROBLEM

Burner does not light after pilot is lit

Delayed ignition burner

Burner backfiring during combustion

Slight smoke or odor during initial operation

Heater produces a whistling noise when burner is lit

POSSIBLE CAUSE

1. Burner orifice clogged

2. Inlet gas pressure is too low

3. Thermopile leads disconnected or improperly connected

4. Thermopile is defective

1. Manifold pressure is too low

2. Burner porting or orifice clogged

1. Burner orifice is clogged or damaged

2. Damaged burner

3. Gas regulator defective

1. Residues from manufacturing processes and logs curing

1. Turning gas control knob to HI position when burner is cold

2. Air in gas line

3. Dirty or partially clogged burner orifice

REMEDY

1. Clean burner (see Cleaning and Maintenance, page 27) or replace burner orifice

2. Contact local propane/LP or natural gas company

3. Reconnect leads (see Wiring Diagram, page 31)

4. Replace thermopile

1. Contact local propane/LP or natural gas company

2. Clean burner (see Cleaning and Main-

enance, page 27) or replace burner orifice

1. Clean burner (see Cleaning and Maintenance, page 27) or replace burner orifice

2. Replace damaged burner

3. Replace gas control

1. Problem will stop after a few hours of operation

1. Turn gas control knob to LO position and let warm up for a minute

2. Operate burner until air is removed from line. Have gas line checked by local propane/LP or natural gas company

3. Clean burner (see Cleaning and Mainte- nance, page 27) or replace burner orifice

Glass soots

Fireplace produces a clicking/ticking noise just after burners are lit or shut off

Remote does not function

105542

1. Flame impingement on logs

2. Debris around burner air mixer

1. Metal expanding while heating or contracting while cooling

1. Battery is not installed or battery power is low

www.desatech.com

1. Adjust the log set so that the flame does not excessively impinge on it

2. Inspect the opening at the base of the burner to see that it is NOT packed with any type of material

1. This is common. If noise is excessive, contact qualified service person

1. Replace 9-volt batteries in receiver and remote control

Continued

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

IMPORTANT:

paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

OBSERVED PROBLEM

Fireplace produces unwanted odors

Fireplace shuts off in use

Operating fireplace where impurities in air exist may create odors. Cleaning supplies,

POSSIBLE CAUSE

1. Gas leak. See Warning statement above

1. High or gusting winds

2. Low line pressure

3. Pilot is partially clogged

4. Inner vent pipe leaking exhaust gasses into system

5. Horizontal vent improperly pitched

6. Glass too loose and air tight gasket leaks in corners after usage

7. Bad thermopile or thermocouple

8. Improper vent cap installation

REMEDY

1. Locate and correct all leaks (see Checking Gas Connections, pages 19 and 20)

1. Fireplace has been tested for up to 40mph winds. However, extreme conditions may occur. See Lighting Instruc- tions on page 24

2. Contact local propane/LP or natural gas company

3. Clean pilot (see Cleaning and Mainte- nance, page 27)

4. Locate and correct all leaks (see Check- ing Gas Connections, pages 19 and 20)

5. Horizontal vent termination should slope down only enough to prevent any water from entering the unit. The maximum downward slope of the vent termination is 1/4" for any horizontal run

6. Tighten glass

7. Replace faulty component

8. Check for proper installation and freedom from debris or blockage

Gas odor even when control knob is in OFF position

Gas odor during combustion

Dark residue on logs or inside of fireplace

1. Gas leak. See Warning statement above

2. Control valve defective

1. Gas leak. See Warning statement

above

1. Improper log placement

2. Air holes at burner inlet blocked

3. Burner flame holes blocked

www.desatech.com

1. Locate and correct all leaks (see Checking Gas Connections, pages 19 and 20)

2. Replace control valve

1. Locate and correct all leaks (see Check- ing Gas Connections, pages 19 and 20)

1. Properly locate logs (see Installing Logs, Lava Rock, and Glowing Embers, page 23)

2. Clean out air holes at burner inlets. Periodically repeat as needed

3. Remove blockage or replace burner

105542

OWNER’S MANUAL

REPLACEMENT PARTS

Note:

Use only original replacement parts.

This will protect your warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized retailers of this product. If they can not supply original replacement part(s), call DESA International’s Technical Service Department at 1-800-DESA LOG (1-800-337-2564).

When calling DESA International, have ready

• your name

• your address

• model and serial numbers of your fireplace

• how fireplace was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date

Usually, we will ask you to return the defective part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized retailers of this product. If they can not supply original replacement part(s), call DESA International’s Parts Department at 1-800-972-7879 for referral information.

When calling DESA International, have ready

• model number of your fireplace

• the replacement part number

WIRING DIAGRAM

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

Variable

Fan Switch

Off

110/115

V.A.C.

Figure 55 - Blower Wiring Diagram for Thermostat-Controlled Models

Black White

Green

Black

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• fireplace will not produce specified heat

• propane/LP gas supply might be low (propane/LP units only)

When Gas Quality Is Bad

• pilot will not stay lit

• burners will produce flames and soot

• fireplace will backfire when lit

If you feel your gas pressure is too low or gas quality is bad, contact your local natural or propane/LP gas supplier.

Fan Switch

(N.O.)

Blue

Blower

Motor

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting. If so, contact DESA International’s Technical Service Department at 1-800-DESA LOG (1-800-337-2564).

You can also visit DESA International’s technical service web site at

www.desatech.com.

105542

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

SPECIFICATIONS

CHDV37N(A,B) CHDV37P(A,B) CHDV41N(A,B) CHDV41P(A,B)

Btu 17,000/24,000 Btu/h 17,000/22,000 Btu/h 18,000/26,000 Btu/h 19,000/24,000 Btu/h Gas Type Natural Propane/LP Natural Propane/LP Ignition Piezo Piezo Piezo Piezo Manifold Pressure 3.5" w.c. 10.0" w.c. 3.5" w.c. 10.0" w.c. Minimum Inlet Supply Pressure 4.5" w.c. 11.0" w.c. 4.5" w.c. 11.0" w.c. Thermal Efficiency 70% 70% 70% 70% Dimension, Inches/mm (HxWxD)

Fireplace 33" x 37" x 18 1/2" 33" x 37" x 18 1/2" 35" x 41" x 18 1/2" 35" x 41" x 18 1/2"

838 x 940 x 470mm 838 x 940 x 470mm 838 x 1041 x 470mm 838 x 1041 x 470mm

Carton 36" x 39" x 19 1/2" 36" x 39" x 19 1/2" 36" x 43" x 19 1/2" 36" x 43" x 19 1/2"

914 x 991 x 495mm 914 x 991 x 495mm 914 x 1092 x 495mm 914 x 1092 x 495mm

Weight, lbs/kg

Fireplace 132 lbs/60 kg 132 lbs/60 kg 142 lbs/64 kg 142 lbs/64 kg Shipping 135 lbs/61 kg 135 lbs/61 kg 145 lbs/66 kg 145 lbs/66 kg

105542

OWNER’S MANUAL

ACCESSORIES

Purchase these fireplace accessories from your local retailer. If they can not supply these accessories, call DESA International’s Sales Department at 1-800-432-2382. for information. You can also write to the address listed on the back page of this manual.

BRASS PERIMETER TRIM KIT CD9037(37")/GA7091(41") (Not Shown)

Optional three sided brass trim kit. Provides a finished appearance with the class of brass.

BRICK LINER CD8037A(37")/ CD8041(41") (Not Shown)

This brick liner adds a touch of style to your direct-vent fireplace. Complete installation and operation instructions included in this manual.

THERMOSTATICALLYCONTROLLED BLOWER KIT CDA3620T

Provides better heat distribution. Blower turns off and on automatically, as needed. Complete installation and operation instructions included in this manual.

FREE-STANDING CABINET MANTEL WITH SQUARE LEG STYLING - FINISHED

GMC41F(41") - Walnut Stained Hardwood Veneer

Complete assembly instructions are included along with a three-sided perimeter brass trim kit to cover unfinished fireplace edges. This freestanding cabinet mantel allows the unit to be installed against any wall without recessing fireplace.

MANUAL BLOWER KIT GA3750

Manual variable control blower accessory provides better heat distribution. Complete installation and operation instructions included in this manual.

105542

FREE-STANDING CABINET MANTEL WITH SQUARE LEG STYLING - UNFINISHED

GMC511U(37") Oak Veneer GMC42U(41") Hardwood Veneer

For use with all models. This mantel is unfinished and ready to stain or paint. Complete assembly instructions are included along with a three-sided perimeter brass trim kit to cover unfinished fireplace edges. This freestanding cabinet mantel allows the unit to be installed against any wall without recessing fireplace.

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

ILLUSTRATED PARTS BREAKDOWN

CHDV37N(A,B) CHDV41N(A,B)

39-2

39-1

39-3

11 (Included in

Hardware Pack)

AUTO

STATUS

TEM M AN

O NLO

O FF

REMOTE

OFF

105542

OWNER’S MANUAL

PARTS LIST

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 31 of this manual.

DIRECT-VENT FIREPLACE CHDV37N(A,B)

CHDV41N(A,B)

KEY NO. PART NUMBER DESCRIPTION QTY.

1 104547-02 Top Outer Casing-37" 1

104547-03 Top Outer Casing-41" 1

2 104474-02 Outer Casing-37" 1

104474-03 Outer Casing-41" 1

3 104548-02 Bottom Outer Casing-37" 1

104548-01 Bottom Outer Casing-41" 1

4 104479-04BR Firebox Assembly-37" 1

104479-01BR Firebox Assembly-41" 1 5 M11084-26 Screw, Hex 52 6 M11084-46 Screw, Hex 9 7 102455-04 Louver, Extruded-37" 2

102455-03 Louver, Extruded-41" 2 8 104443-01 Firebox Support, Right 1 9 104486-01 Firebox Support, Left 1 10 104482-01 Switch Bracket 1 11 104483-01 Floor Mounting Bracket 2 12 104491-01 Relief Cover 1 13 104518-01 Relief Cover Gasket 1 14 104527-01 Relief Spring 2 15 104528-01 Relief Washer 2 16 104537-01 Valve Bracket 1 17 104496-01 SIT Valve, Natural 1 18 104497-01 SIT Pilot, Natural 1 19 104498-01 Thermocouple 1 20 104499-01 Thermopile 1 21 104500-01 Piezo Ignitor 1 22 104501-01 Ignitor Bracket 1 23 104502-01 Ignitor Screw 1 24 104503-01 Ignitor Wire 1 25 104571-02 Front Burner, Natural-37" 1

104606-01 Front Burner, Natural-41" 1 26 104572-01 Rear Burner, Natural-37" 1

104505-01 Rear Burner, Natural-41" 1 27 104488-03 Burner Manifold 1 28 104489-01 Burner Gasket 1 29 104506-04 Orifice 1 30 104506-08 Orifice-37" 1

104506-11 Orifice-41" 1 31 104507-01 Brass Elbow 1 32 104574-01 Brass Elbow 1 33 104508-01 Brass Fitting 3 34 104608-02

104608-01

Aluminum Tubing Assy-37" Aluminum Tubing Assy-41"

KEY NO. PART NUMBER DESCRIPTION QTY.

35 104510-01 Pilot Tubing Assy 1 36 101628-04 Flexible Connector 1 37 103823-01 Thermostat Remote Set 1 38 104972-01 Burner Bracket 2 39 104628-01 Log Set - 37" 1

104631-01 Log Set - 41" 1

39-1 104883-02 Rear Log - 37" 1

104883-01 Rear Log - 41" 1

39-2 104884-02 Front Log - 37" 1

104884-01 Front Log - 41" 1

39-3 104885-02 Crossover Log - 37" 1

104885-01 Crossover Log - 41" 1 40 M10908-2 Screw 6 41 M12461-73 Screw 3 42 H5C4-20B Bolt 2 43 NTC-4C Locknut 2 44 M12461-26 Screw 4 45 104569-02CJ Grate Assy-37" 1

104569-01CJ Grate Assy-41" 1 46 105775-08 Glass Door Assy-37" 1

105775-06 Glass Door Assy-41" 1 47 104490-02CJ Baffle - 37" 1

104490-01CJ Baffle - 41" 1 48 104576-02CK Front Assembly-37" 1

104576-03CK Front Assembly-41" 1 49 104615-02 Insulation-37" 1

105628-01 Insulation-41" 1 50 104313-01 Hinge, Pin 1 51 104313-02 Hinge, Pin 1 52 103769-01 Duplex Outlet 1 53 104602-01 Duplex Outlet Cover 1 54 104542-04 Brass Plated Trim-37" 2

104542-03 Brass Plated Trim-41" 2 55 104565-01 Magnet 4 56 104954-01 Screw 3 57 104963-01 Washer 3 58 104955-01 Nut 3 59 105180-01 Burner Baffle 1

PARTS INCLUDED - NOT SHOWN

GA6060 Lava Rock 1

1 1

104529-01 Ember Material 1

104512-01 Ball Valve 1

105542

CHDV37N/P(A,B) AND CHDV41N/P(A,B)

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

ILLUSTRATED PARTS BREAKDOWN

CHDV37P(A,B) CHDV41P(A,B)

39-2

39-1

39-3

11 (Included in

Hardware Pack)

AUTO

STATUS

MAN

OFF

REMOTE

OFF

TEMP

ONLO

105542

OWNER’S MANUAL

PARTS LIST

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 31 of this manual.

DIRECT-VENT FIREPLACE CHDV37P(A,B)

CHDV41P(A,B)

KEY NO. PART NUMBER DESCRIPTION QTY.

1 104547-02 Top Outer Casing-37" 1

104547-03 Top Outer Casing-41" 1

2 104474-02 Outer Casing-37" 1

104474-03 Outer Casing-41" 1

3 104548-02 Bottom Outer Casing-37" 1

104548-01 Bottom Outer Casing-41" 1

4 104479-04BR Firebox Assembly-37" 1

104479-01BR Firebox Assembly-41" 1 5 M11084-26 Screw, Hex 52 6 M11084-46 Screw, Hex 9 7 102455-04 Louver, Extruded-37" 2

102455-03 Louver, Extruded-41" 2 8 104443-01 Firebox Support, Right 1 9 104486-01 Firebox Support, Left 1 10 104482-01 Switch Bracket 1 11 104483-01 Floor Mounting Bracket 2 12 104491-01 Relief Cover 1 13 104518-01 Relief Cover Gasket 1 14 104527-01 Relief Spring 2 15 104528-01 Relief Washer 2 16 104537-01 Valve Bracket 1 17 104496-02 SIT Valve, Propane/LP 1 18 104497-02 SIT Pilot, Propane/LP 1 19 104498-01 Thermocouple 1 20 104499-01 Thermopile 1 21 104500-01 Piezo Ignitor 1 22 104501-01 Ignitor Bracket 1 23 104502-01 Ignitor Screw 1 24 104503-01 Ignitor Wire 1 25 104571-02 Front Burner, LP-37" 1

104606-01 Front Burner, LP-41" 1 26 104572-02 Rear Burner, LP-37" 1

104505-02 Rear Burner, LP-41" 1 27 104488-04 Burner Manifold - 37” 1

104488-02 Burner Manifold - 41” 1 28 104489-01 Burner Gasket 1 29 104506-15 Orifice-37" 1

104506-07 Orifice-41" 1 30 104506-09 Orifice-37" 1

104506-10 Orifice-41" 1 31 104507-01 Brass Elbow 1 32 104574-01 Brass Elbow 1 33 104508-01 Brass Fitting 3 34 104608-02

104608-01

Aluminum Tubing Assy-37" Aluminum Tubing Assy-41"

KEY NO. PART NUMBER DESCRIPTION QTY.

35 104510-01 Pilot Tubing Assy 1 36 101628-04 Flexible Connector 1 37 103823-01 Thermostat Remote Set 1 38 104972-01 Burner Bracket 1 39 104628-01 Log Set - 37" 1

104631-01 Log Set - 41" 1

39-1 104883-02 Rear Log - 37" 1

104883-01 Rear Log - 41" 1

39-2 104884-02 Front Log - 37" 1

104884-01 Front Log - 41" 1

39-3 104885-02 Crossover Log - 37" 1

104885-01 Crossover Log - 41" 1 40 M10908-2 Screw 6 41 M12461-73 Screw 3 42 H5C4-20B Bolt 2 43 NTC-4C Locknut 2 44 M12461-26 Screw 4 45 104569-02CJ Grate Assy-37" 1

104569-01CJ Grate Assy-41" 1 46 105775-08 Glass Door Assy-37" 1

105775-06 Glass Door Assy-41" 1 47 104490-02CJ Baffle - 37" 1

104490-01CJ Baffle - 41" 1 48 104576-02CK Front Assembly-37" 1

104576-03CK Front Assembly-41" 1 49 104615-02 Insulation-37" 1

105628-01 Insulation-41" 1 50 104313-01 Hinge, Pin 1 51 104313-02 Hinge, Pin 1 52 103769-01 Duplex Outlet 1 53 104602-01 Duplex Outlet Cover 1 54 104542-04 Brass Plated Trim-37" 2

104542-03 Brass Plated Trim-41" 2 55 104565-01 Magnet 4 56 104954-01 Screw 3 57 104963-01 Washer 3 58 104955-01 Nut 3 59 105180-01 Burner Baffle 1

PARTS AVAILABLE - NOT SHOWN

GA6060 Lava Rock 1

104529-01 Ember Material 1

1 1

104512-01 Ball Valve 1

105542

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model Serial No. Date Purchased

Always specify model and serial numbers when communicating with the factory. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written

warranty. We make no other warranty, expressed or implied.

LIMITED WARRANTY

DIRECT-VENT FIREPLACE

DESA International warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST be obtained through authorized retailers of this product and/or DESA International who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. For information about this warranty write:

INTERNATIONAL

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

105542 01

NOT A UPC

105542-01 55647 Rev. C 02/00

Desa CHDV37NA, CHDV37NB, CHDV37PA, CHDV37PB, CHDV41N Owner's Operation And Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
