Desa VGX24NR, VGX30PR, VGX24PR, VGX30NR, VGX24NT Owner's Operation And Installation Manual

UNVENTED (VENT-FREE) GAS LOG HEATER

INTERNATIONAL

For more information, visit www.desatech.com

Remote-Ready Models Also Design-Certified As Vented

OWNER’S OPERATION AND INSTALLATION MANUAL

Decorative Appliances

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed

by a qualified installer, service agency, or the gas supplier.

24" and 30"Remote-Ready

24" and 30" Thermostat-

Controlled

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This appliance is for installation only in a solid-fuel burning masonry or UL127 factory-built fireplace, or in an approved ventless firebox. It is design-certified for these installations in accordance with ANSI Z21.11.2. Exception: Do not install this appliance in a factory-built fireplace that includes instructions stating it has not been tested or should not be used with unvented gas logs. For unmarked factory-built fireplaces, contact fireplace manufacturer if unsure of this application.

WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to

Air for Combustion and Ventilation

This appliance may be installed in an aftermarket,* manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Save this manual for future reference.

section on page 5 of this manual.

TABLE OF CONTENTS SAFETY INFORMATION

2

TABLE OF CONTENTS

SAFETY INFORMATION ............................................................ 2

PRODUCT IDENTIFICATION ..................................................... 4

OPTIONAL REMOTE CONTROL ACCESSORIES .................... 4

LOCAL CODES ........................................................................... 4

UNPACKING ............................................................................... 4

PRODUCT FEATURES .............................................................. 5

AIR FOR COMBUSTION AND VENTILATION ........................... 5

INSTALLATION ........................................................................... 8

OPERATING HEATER .............................................................. 18

INSPECTING BURNERS.......................................................... 23

CLEANING AND MAINTENANCE ............................................ 24

TROUBLESHOOTING .............................................................. 25

SAFETY INFORMATION

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause property damage and serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead

to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide

poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Natural and Propane/LP Gas: Natural and Propane/LP gases are

odorless. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

WARNING: Any change to this heater or its con-

trols can be dangerous.

OPTIONAL POSITIONING OF

THERMOSTAT SENSING BULB ........................................... 28

SPECIFICATIONS .................................................................... 29

WIRING DIAGRAM ................................................................... 29

SERVICE HINTS....................................................................... 29

TECHNICAL SERVICE ............................................................. 29

ILLUSTRATED PARTS BREAKDOWN

AND PARTS LIST ................................................................ 30

REPLACEMENT PARTS .......................................................... 38

ACCESSORIES ........................................................................ 38

OWNER'S REGISTRATION FORM .......................................... 39

WARNING: Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects on the heater.

Heater base assembly becomes very hot when running heater. Keep children and adults away from hot surface to avoid burns or clothing ignition. Heater will remain hot for a time after shutdown. Allow surface to cool before touching.

Carefully supervise young children when they are in the room with heater. When using the hand-held remote accessory (Remote-Ready Models Only), keep selector switch in the OFF position to prevent children from turning on burners with remote.

WARNING: Do not use a blower insert, heat exchanger insert, or other accessory not approved for use with this heater.

WARNING: This appliance is for installation only in a solid-fuel burning fireplace or approved ventless firebox enclosure.

For more information, visit www.desatech.com

You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

108114

SAFETY INFORMATION

Continued

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors.

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not use any phone in

your building

• immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions

• if you cannot reach your gas supplier, call the fire department

4. This heater shall not be installed in a bedroom or bathroom, unless installed as a vented appliance. See Installing Damper Clamp Accessory for Vented Operation, page 11 (RemoteReady Models Only).

5. Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. Inspect chimney flue for damage. If damaged, repair flue damper before operating heater.

6. If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also, if fireplace opening has vents at the bottom, you must open the vents before operating heater.

7. To prevent the creation of soot, follow the instructions in Clean- ing and Maintenance, page 24.

8. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls and furniture.

SAFETY INFORMATION

9. This heater needs fresh, outside air ventilation to run properly. This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater if enough fresh air is not available. See Air for Combustion and Ventilation, pages 5 through 7. If heater keeps shutting off, see Trouble- shooting, pages 25 through 27.

10. Do not run heater

• where flammable liquids or vapors are used or stored

• under dusty conditions

11. Do not use this heater to cook food or burn paper or any other type of sold fuels.

12. Do not use heater if any part has been exposed to or under water. Immediately call a qualified service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water.

13. Do not operate heater if any log is broken. Do not operate heater if a log is chipped (dime-sized or larger).

14. Turn heater off and let cool before servicing, installing, or repairing. Make sure the selector switch is in the OFF position (Remote-Ready Models Only). Only a qualified service person should install, service, or repair heater.

15. Make sure the selector switch is in the OFF position when you are away from home for long periods of time (Remote-Ready Models Only).

16. Remote-ready heaters do not need to be connected to any external electrical source.

17. Operating heater above elevations of 4,500 feet may cause pilot outage.

18. To prevent performance problems with propane/LP models, do not use propane/LP fuel tank of less than 100 lb. capacity.

19. Provide adequate clearances around air openings.

3 3

For more information, visit www.desatech.com

108114

PRODUCT IDENTIFICATION OPTIONAL REMOTE CONTROL ACCESSORIES

4

LOCAL CODES UNPACKING

PRODUCT IDENTIFICATION

Log Set (Varies According to Model)

Grate

Piezo Ignitor

Thermostat Models: VGX24NT, VGX24PT, VGX30NT, VGX30PT,

Selector Switch (Optional)

Flame Adjustment Knob

Remote Control (Optional)

Remote-Ready Models: VGX24NR, VGX24PR, VGX30NR, VGX30PR,

CGX3924NR, CGX3924PR, EX24NR, EX24PR, EX30NR and EX30PR

Control Knob

Rear Burner Control Knob

CGX3924NT, CGX3924PT, CGX3930NT, CGX3930PT

Base Extension

Grate

Pilot Assembly

Piezo

Control Knob

Grate

Ignitor

Front Burner

W A

R M

ER

C O

T

O

E

L

M

E

P

R A U

T

O

N O F

F

Rear Burner Control Knob

Base Assembly

Pilot Assembly

Base Assembly

Rear Burner

Base Extension (30" Models Only)

Rear Burner

OPTIONAL REMOTE CONTROL ACCESSORIES

There are four optional remote controls that can be purchased separately for Remote-Ready Models Only:

• wall switch • hand-held ON/OFF remote

• wall thermostat • hand-held thermostat remote.

See Accessories, page 38.

The wall thermostat or hand-held thermostat may not be used where vented decorative listing is required.

LOCAL CODES

Install and use heater with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel

Gas Code ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

Note:

Where listed vented decorative logs are required, thermostat

operation is not permitted.

UNPACKING

CAUTION: Do not remove the metal data plates from the base assembly. The data plates contain important warranty and safety information.

1. Remove logs and heater base assembly from carton. not pick up heater base assembly by burners. This could damage heater. Always handle base assembly by the sides of assembly.

2. Remove all protective packaging applied to logs and heater for shipment.

3. Check all items for any shipping damage. If damaged, promptly inform dealer where you bought heater.

Note:

Do

Piezo Ignitor

Control Knob

Front Burner

Thermostat Models: LGX3924NT, LGX3924PT

Figure 1 - Product Identification

For more information, visit www.desatech.com

Base Assembly

108114

PRODUCT FEATURES

Operation

Safety Device

Piezo Ignition System

AIR FOR COMBUSTION AND VENTILATION

Providing Adequate Ventilation

5 5

OPERATION

This heater is clean burning. It requires no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by both realistic flames and glowing coals. This heater is designed for ventfree operation with flue damper closed. It has been tested and approved to ANSI Z21.11.2 standard for unvented heaters. State and local codes in some areas prohibit the use of vent-free heaters. This heater may also be operated as a vented decorative (ANSI Z21.60) product by opening the flue damper (Remote-Ready Models Only).

SAFETY DEVICE

This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for ventfree room heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This heater has a piezo ignitor. This system requires no matches, batteries, or other sources to light heater.

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuelburning appliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuel-burning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space

The information on pages 5 through 7 will help you classify your space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a. walls and ceilings exposed to the outside atmosphere

have a continuous water vapor retarder with a rating of one perm (6 x 10 openings gasketed or sealed

b. weather stripping has been added on openable win-

dows and doors

c. caulking or sealants are applied to areas such as

joints around window and door frames, between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See

Air From Outdoors

If your home does not meet all of the three criteria above, proceed to

tion,

Determining Fresh-Air Flow For Heater Loca-

page 6.

Confined and Unconfined Space

The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

-11

kg per pa-sec-m2) or less with

and

Ventilation

, page 7

.

For more information, visit www.desatech.com

108114

AIR FOR COMBUSTION AND VENTILATION

6

Determining Fresh-Air Flow For Heater Location

AIR FOR COMBUSTION AND VENTILATION

Continued

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space.

Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x height).

Length x Width x Height = ___________ cu. ft. (volume of space)

Example:

height) = 2560 cu. ft. (volume of space)

If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.

__________ (volume of space) x 20 = (Maximum Btu/Hr the space

Example:

Btu/Hr the space can support)

3. Add the Btu/Hr of all fuel burning appliances in the space.

* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

__________________ Btu/Hr (maximum the space can support)

__________________ Btu/Hr (actual amount of Btu/Hr used)

Example:

Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling

can support)

2560 cu. ft. (volume of space) x 20 = 51,200 (maximum

Vent-free heater _____________ Btu/Hr

Gas water heater* _____________ Btu/Hr

Gas furnace _____________ Btu/Hr

Vented gas heater _____________ Btu/Hr

Gas fireplace logs _____________ Btu/Hr

Other gas appliances* + _____________ Btu/Hr

Total = _____________ Btu/Hr

Example:

Gas water heater _____________ Btu/Hr

Vent-free heater + _____________ Btu/Hr

Total = _____________ Btu/Hr

51,200 Btu/Hr (maximum the space can support)

79,000 Btu/Hr (actual amount of Btu/Hr used)

40,000

39,000

79,000

The space in the above example is a confined space because the actual Btu/ Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoining room. If the ex-

tra space provides an unconfined space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 7.

B. Vent room directly to the outdoors. See Ventilation Air From Out-

doors, page 7.

C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room

unconfined.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no additional fresh air ventilation.

WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the

National Fuel Gas Code, ANSI Z223.1/NFPA 54 Section 5.3

or applicable local codes

.

For more information, visit www.desatech.com

108114

AIR FOR COMBUSTION AND VENTILATION

Continued

VENTILATION AIR

AIR FOR COMBUSTION AND VENTILATION

Ventilation Air

7 7

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and 2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2). Follow the National Fuel

Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for required size of ventilation grills or ducts.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel Gas Code, ANSI

Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation

for required size of ventilation grills or ducts.

IMPORTANT:

attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

Do not provide openings for inlet or outlet air into

12"

Ventilation

Grills

Into Adjoining

Room,

Option 1

Figure 2 - Ventilation Air from Inside Building

Or

Remove Door into Adjoining

Room, Option

3

12"

Outlet Air

Ventilation Grills

Into Adjoining Room,

Option 2

Ventilated Attic

For more information, visit www.desatech.com

108114

Outlet Air

Inlet Air

Figure 3 - Ventilation Air from Outdoors

Ventilated

Crawl Space

To Attic

To

Crawl

Space

INSTALLATION

8

Check Gas Type Installation and Clearances For Vent-Free Operation

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualified service person must in-

stall heater. Follow all local codes.

NOTICE: State or local codes may only allow operation of this appliance in a vented configuration. Check your state or local codes.

WARNING: Make sure the selector switch is in the OFF position before installing heater (Remote-Ready Models Only).

WARNING: Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. A dirty chimney flue may create and distribute soot within the house. Inspect chimney flue for damage. If damaged, repair flue damper before operating heater.

WARNING: Seal any fresh air vents or ash cleanout doors located on floor or wall of fireplace. If not, drafting may cause pilot outage or sooting. Use a heat-resistant sealant. Do not seal chimney flue damper.

CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as, but not limited to, tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls or cause odors.

IMPORTANT:

this is beneficial, installing heater in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Combustion and Ventilation, pages 5 through 7.

Vent-free heaters add moisture to the air. Although

CHECK GAS TYPE

Use the correct gas type (natural or propane/LP) for your unit. If your gas supply is not correct, do not install fireplace. Call dealer where you bought fireplace for proper type fireplace.

INSTALLATION AND CLEARANCES FOR VENT-FREE OPERATION

WARNING: Maintain the minimum clearances. If possible, provide greater clearances from floor, ceiling, and adjoining wall.

LOG SIZING REQUIREMENTS

Log Minimum Firebox Size Height Depth Front Rear *

Width Width

24" 17" 14" 28" 20 1/4" 30" 17" 14" 34" 22 3/8"

* Measured at 14" depth.

WARNING: Never install the heater

• in a bedroom or bathroom unless installed as a vented appliance, see page 11 (Remote-Ready Models Only)

• in a recreational vehicle

• where curtains, furniture, clothing, or other flam-

mable objects are less than 42 inches from the front, top, or sides of the heater

• in high traffic areas

• in windy or drafty areas

For more information, visit www.desatech.com

108114

Heat Resistant Material

(A)

INSTALLATION

Continued

Installation and Clearances For Vent-Free Operation (Cont.)

INSTALLATION

9 9

Carefully follow the instructions below. This will ensure safe installation into a masonry, UL127-listed manufactured fireplace, or listed vent-free firebox.

Minimum Clearances For Side Combustible Material, Side Wall, and Ceiling

A. Clearances from the side of the fireplace cabinet to any combus-

tible material and wall should follow diagram in Figure 4.

Example:

combustible material and protrudes 3 1/2" from the wall. This combustible material must be 4" from the side of the fireplace cabinet (see Figure 4).

Note:

follow firebox manufacturer’s instructions for minimum clearances to combustible materials.

B. Clearances from the top of the fireplace opening to the ceiling

should not be less than 42 inches.

*Minimum 16 inches from Side Wall

Figure 4 - Minimum Clearance for Combustible to Wall

The face of a mantel, bookshelf, etc. is made of

When installing your gas logs into a manufactured firebox,

Example

*

If Using Mantel

You must have noncombustible material(s) above the fireplace opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have noncombustible material behind it. Noncombustible material must extend at least 8 inches up. If noncombustible material is less than 12", you must install the fireplace hood accessory. Even if noncombustible material is more than 12", you may need the hood accessory to deflect heat away from your mantel shelf. See Figure 5 and Figures 6 and 7, page 10, for minimum clearances.

IMPORTANT:

If you cannot meet these minimum clearances, you must operate heater with chimney flue damper open. Go to Install- ing Damper Clamp Accessory for Vented Operation, page 11.

Noncombustible Requirements for Material Distance (A) Safe Installation

12" or more Noncombustible material OK.

Between 8" and 12" 24" or 30" Models: Install

fireplace hood accessory (GA6050, GA6052, or GA6053 see

Accessories

,

page 38).

Less than 8" Noncombustible material

must be extended to at least 8". See

Between 8" and 12"

, above. If you cannot extend material, you must operate heater with flue damper open.

NOTICE: Manual control heaters may be used as a vented product. If so, you must always run heater with chimney flue damper open. If running heater with damper open, noncombustible material above fireplace opening is not needed. Go to

Clamp Accessory for Vented Operation,

Minimum Noncombustible Material Clearances

If Not Using Mantel

Note:

If using a mantel proceed to If Using Mantel. If not using a

mantel, follow the information on this page.

You must have noncombustible material(s) above the fireplace opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have noncombustible material behind it. Noncombustible material must extend at least 8" up (for all models). If noncombustible material is less than 12", you must install the fireplace hood accessory (24" and 30" models only). See Figure 5 for minimum clearances.

108114

For more information, visit www.desatech.com

Installing Damper

page 11.

Figure 5 - Heat Resistant Material (Slate, Marble, Tile, etc.) Above Fireplace

INSTALLATION

10

Mantel Clearances Floor Clearances

INSTALLATION

Continued

MANTEL CLEARANCES

In addition to meeting noncombustible material clearances, you must also meet required clearances between fireplace opening and mantel shelf. If you do not meet the clearances listed below, you will need a hood.

Determining Minimum Mantel Clearance

If you meet minimum clearance between mantel shelf and top of fireplace opening, a hood is not required (see Figure 6).

Determining Minimum Mantel Clearance When Using a Hood

If minimum clearances in Figure 6 are not met, you must have a hood. When using a hood there are still certain minimum mantel clearances required. Follow minimum clearances shown in Figure 7 when using hood.

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Walls and mantels above the firebox may become hot to the touch. If installed properly, these temperatures meet the requirement of the national product standard. Follow all minimum clearances shown in this manual.

NOTICE: If your installation does not meet the minimum clearances shown, you must do one of the following:

• operate the logs only with the flue damper open

• raise the mantel to an acceptable height

• remove the mantel

FLOOR CLEARANCES

A. If installing appliance on the floor level, you must maintain

the minimum distance of 14" to combustibles (see Figure 8).

B. If combustible materials are less than 14" to the fireplace, you

must install appliance at least 5" above the combustible flooring (see Figure 9).

Mantel Shelf

18" 20" 22" 24"

Distances to Underside of Mantel

Underside of Mantel Shelf

All minimum distances are in inches

Log Set

All Models

Top of Fireplace Opening

Minimum NonCombustible Material

10"

8"

6"

1

/2

"

2

(A)

12"

Minimum NonCombustible Material Height

Figure 6 - Minimum Mantel Clearances Without Using Hood

8" Min.

Mantel Shelf

12" 15" 18"

Distances to Underside of Mantel

Underside of Mantel Shelf

All minimum distances are in inches

20"

Top of Fireplace Opening

Minimum NonCombustible Material

12"

10"

8"

6"

1

/2

"

2

Hood

(GA6050, GA6052,

(GA6050, GA6052)

or GA6053)

For more information, visit www.desatech.com

Figure 7 - Minimum Mantel Clearances When Using Hood

Combustible Material

14" Min.

Noncombustible Material

Non-Combustible Material

Figure 8 - Minimum Fireplace Clearances If Installed at Floor Level

Figure 9 - Minimum Fireplace Clearances Above Combustible Flooring

Hearth

5"

5" Min.

Combustible

Combustible Material

Material

108114

INSTALLATION

Continued

Installing Damper Clamp Accessory For Vented Operation

INSTALLATION

Installing Heater Base Assembly

11 11

INSTALLING DAMPER CLAMP ACCESSORY FOR VENTED OPERATION

(Remote-Ready Models Only)

Note:

When used as a vented heater, appliance must be installed only in a solid-fuel burning fireplace with a working flue and constructed of noncombustible material.

If your heater is a manually-controlled, you may use this heater as a vented product. There are three reasons for operating your heater in the vented mode.

1. The fireplace does not meet the clearance to combustibles re-

quirements for vent-free operation.

2. State or local codes do not permit vent-free operation.

3. You prefer vented operation.

If reasons number 1 or 2 above apply to you, you must permanently open chimney flue damper. You must install the damper clamp accessory (to order, see Accessories, page 38). This will insure vented operation (see Figure 10). The damper clamp will keep damper open. Installation instructions are included with clamp accessory.

See chart below for minimum permanent flue opening you must provide. Attach damper clamp so the minimum permanent flue opening will be maintained at all times.

Area of Various Standard

Round Flues

Diameter (ins.) Area (sq. ins.)

5" 20 sq. inches 6" 29 sq. inches 7" 39 sq. inches 8" 51 sq. inches

Chimney Minimum Permanent

Height (ft.) Flue Opening (sq. ins.)

6' to 15' 39 sq. inches

15' to 30' 29 sq. inches

INSTALLING HEATER BASE ASSEMBLY

WARNING: You must secure this heater to fireplace floor. If not, heater will move when you adjust controls. Moving heater may cause a gas leak.

WARNING: If installing in a sunken fireplace, special care is needed. You must raise the fireplace floor to allow access to heater control panel. This will insure adequate air flow and guard against sooting. Raise fireplace floor with noncombustible material. Make sure material is secure.

CAUTION: Do not pick up heater base assembly by burners. This could damage heater. Only handle base assembly by sides of base.

IMPORTANT:

not level, heater will not work properly. For thermostat models, avoid damage to thermostat bulb. Avoid nicks or sharp bends in thermostat bulb wire. Keep thermostat bulb in mounting bracket.

Installation Items Needed

• hardware package (provided with heater)

• approved flexible gas hose and fitting (not provided) (if allowed by local codes)

• sealant (resistant to propane/LP gas, not provided)

• electric drill with 3/16" drill bit (metal or masonry as applicable)

• flathead screwdriver

1. Connect fitting to base as shown in Figure 11. Connect approved

flexible gas hose to fitting in base (see Figure 11).

IMPORTANT:

flexible gas hose.

Make sure the heater burners are level. If heater is

Hold gas fitting with wrench when connecting

Damper Clamp

Damper

Masonry Fireplace

Figure 10 - Attaching Damper Clamp

108114

Manufactured Fireplace

For more information, visit www.desatech.com

Damper

Damper Clamp

Damper

Flexible Gas Hose (if allowed by local codes)

Figure 11 - Attaching Flexible Gas Hose to Heater

Fitting

INSTALLATION

12

Installing Heater Base Assembly (Cont.) Connecting To Gas Supply

INSTALLATION

Continued

2. Locate two masonry screws in hardware package.

3. Place heater base in fireplace.

4. Place logs in their proper position on heater base (see Installing Logs, pages 15 through 17).

5. Center heater base and logs front-to-back and side-to-side in fireplace.

6. Carefully remove logs without moving heater base.

7. Mark screw locations through one hole on each side of the mounting bracket (see Figure 12). If installing in a brick-bottom fireplace, mark screw locations in mortar joint of bricks.

8. Remove heater base from fireplace. If installing optional control accessories, do so at this time. Follow all directions provided with accessory.

9. Drill holes at marked locations using 3/16" drill bit.

10. Attach base assembly to fireplace floor using two masonry screws (in hardware package).

Mounting Flanges

Figure 12 - Attaching Base Assembly to Fireplace Floor (Base Assembly Will Vary According to Model)

Masonry Screw

CONNECTING TO GAS SUPPLY

WARNING: This appliance requires a 1/2" NPT (National Pipe Thread) inlet connection to the pressure regulator.

WARNING: A qualified service person must connect heater to gas supply. Follow all local codes.

CAUTION: For propane/LP gas, never connect heater directly to the propane/LP supply. This heater requires an external regulator (not supplied). Install the external regulator between the heater and propane/LP supply.

Installation Items Needed

Before installing heater, make sure you have the items listed below.

• external regulator for propane/LP only (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• sediment trap

• tee joint

• pipe wrench

* A CSA design-certified equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Accessories, page 38.

For propane/LP only, the installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, heater regulator damage could occur. Install external regulator with the vent pointing down as shown in Figure 13, page 13. Pointing the vent down protects it from freezing rain or sleet.

For more information, visit www.desatech.com

WARNING: For natural gas, never connect heater to private (non-utility) gas wells. This gas is commonly known as wellhead gas.

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to heater. If pipe is too small, undue loss of volume will occur.

108114

INSTALLATION

Continued

Installation must include an equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from heater (see Figure 14 or 15, depending on your model).

IMPORTANT:

location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Apply pipe joint sealant lightly to male NPT threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged heater valves.

WARNING: Use pipe joint sealant that is resistant

to liquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply line as shown in Figure 14 or 15, depending on your model. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into heater controls. If sediment trap is not installed or is installed wrong, heater may not run properly.

Install equipment shutoff valve in an accessible

Connecting To Gas Supply (Cont.)

CSA Design-Certified Equipment

PROPANE/LP -

From External Regulator (11" W.C.** to 14" W.C. Pressure)

NATURAL -

From Gas Meter (5" W.C.** to 10.5" W.C. Pressure)

Tee Cap Pipe Joint Nipple

Figure 14 - Gas Connection (Thermostat-Controlled Models Only)

Shutoff Valve With 1/8" NPT Tap*

3" Minimum

Sediment Trap

INSTALLATION

Approved Flexible Gas Hose (if allowed by local codes)

Gas Regulator

13 13

CAUTION: Avoid damage to regulator. Hold gas regulator with wrench when connecting it to gas piping and/or fittings (Thermostat-Controlled Models Only).

CAUTION: Avoid damage to gas control. Hold gas control with wrench when connecting it to gas piping and/or fittings (Remote-Ready Models Only).

External Regulator Propane/LP Supply Tank

Vent Pointing Down

Figure 13 - External Regulator With Vent Pointing Down

CSA Design-Certified Equipment

PROPANE/LP From External Regulator (11" W.C.** to 14" W.C. Pressure)

NATURAL From Gas Meter (5" W.C.** to 10.5" W.C. Pressure)

Tee Pipe Joint Nipple Cap

Sediment Trap

Figure 15 - Gas Connection (Remote-Ready Models Only)

* Purchase the optional CSA design-certified equipment shutoff valve

from your dealer. See Accessories, page 38.

**Minimum inlet pressure for purpose of input adjustment.

Shutoff Valve With 1/8" NPT Tap*

Approved Flexible Gas Hose (if allowed by local codes)

3" Minimum

Gas Control Valve

For more information, visit www.desatech.com

108114

INSTALLATION

14

Checking Gas Connections

INSTALLATION

Continued

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply a noncorrosive leak detection fluid to all joints. Bubbles forming show a leak. Correct all leaks at once.

CAUTION: Make sure external regulator has been installed between propane/LP supply and heater. See guidelines under

Pressure Testing gas Supply Piping system

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage heater regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either opening propane/ LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas, or using compressed air.

4. Check all joints of gas supply piping system. Apply a noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnected fittings for leaks.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 16).

2. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas, or using compressed air.

3. Check all joints from gas meter for natural or propane/LP supply to equipment shutoff valve (see Figure 17 or 18). Apply a noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

4. Correct all leaks at once.

Connecting to Gas Supply

, page 12.

Pressure Testing Heater Gas Connections

1. Open equipment shutoff valve (see Figure 16).

2. Open main gas valve located on or near gas meter for natural gas or open propane/LP supply tank valve.

3. Make sure control knobs of heater are in the OFF position.

4. Check all joints from equipment shutoff valve to thermostat gas valve (Thermostat-Controlled Models) or control valve (RemoteReady Models) (see Figure 17 or 18). Apply a noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light heater (see Operating Heater, pages 18 through 22). Check all other internal joints for leaks.

7. Turn off heater (see To Turn Off Gas to Appliance, page 19 [Ther- mostat-Controlled Models] or page 21 [Remote-Ready Models]).

ON

Open

Equipment Shutoff Valve

Figure 16 - Equipment Shutoff Valve

Equipment Shutoff Valve

Propane/LP Supply Tank

Figure 17 - Checking Gas Joints (Propane/LP only)

Equipment Shutoff Valve

Gas Meter

POSITION

OFF

POSITION

Closed

Thermostat Gas Valve or Control Valve Location

For more information, visit www.desatech.com

Figure 18 - Checking Gas Joints (Natural Gas only)

108114

INSTALLATION

Continued

INSTALLING LOGS

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

CAUTION: After installation and periodically thereafter, check to ensure that no yellow flame comes in contact with any log. With the heater set to High, check to see if flames contact any log. If so, reposition logs according to the log installation instructions in this manual. Yellow flames contacting logs will create soot.

INSTALLATION

Installing Logs

Figure 20 - Installing Log #2 (Model CGX3930NT Shown)

15 15

It is very important to install the logs exactly as instructed. Do not modify logs. Only use logs supplied with heater.

Models CGX3924NT, CGX3924PT, CGX3930NT, CGX3930PT, CGX3924NR, AND CGX3924PR

1. Place log #1 (ember bed) onto the base. Position the log over the shoulder bolts on either side of the front burner. The log will sit on top of the front burner (see Figure 19).

2. Place log #2 behind the back burner and onto the three tabs as shown in Figure 20.

3. Place log #3 on the left side of the base. It will overlap log #1 and log #2 and will wrap around the front end of the back burner (see Figure 21).

4. Place log #4 onto the pins on the right side of log #1 and onto the “ledge” on the front of log #2 (see Figure 22).

5. Place log #5 over the knob on log #2 and across the back part of log #1. It will slant down toward the front (see Figure 22).

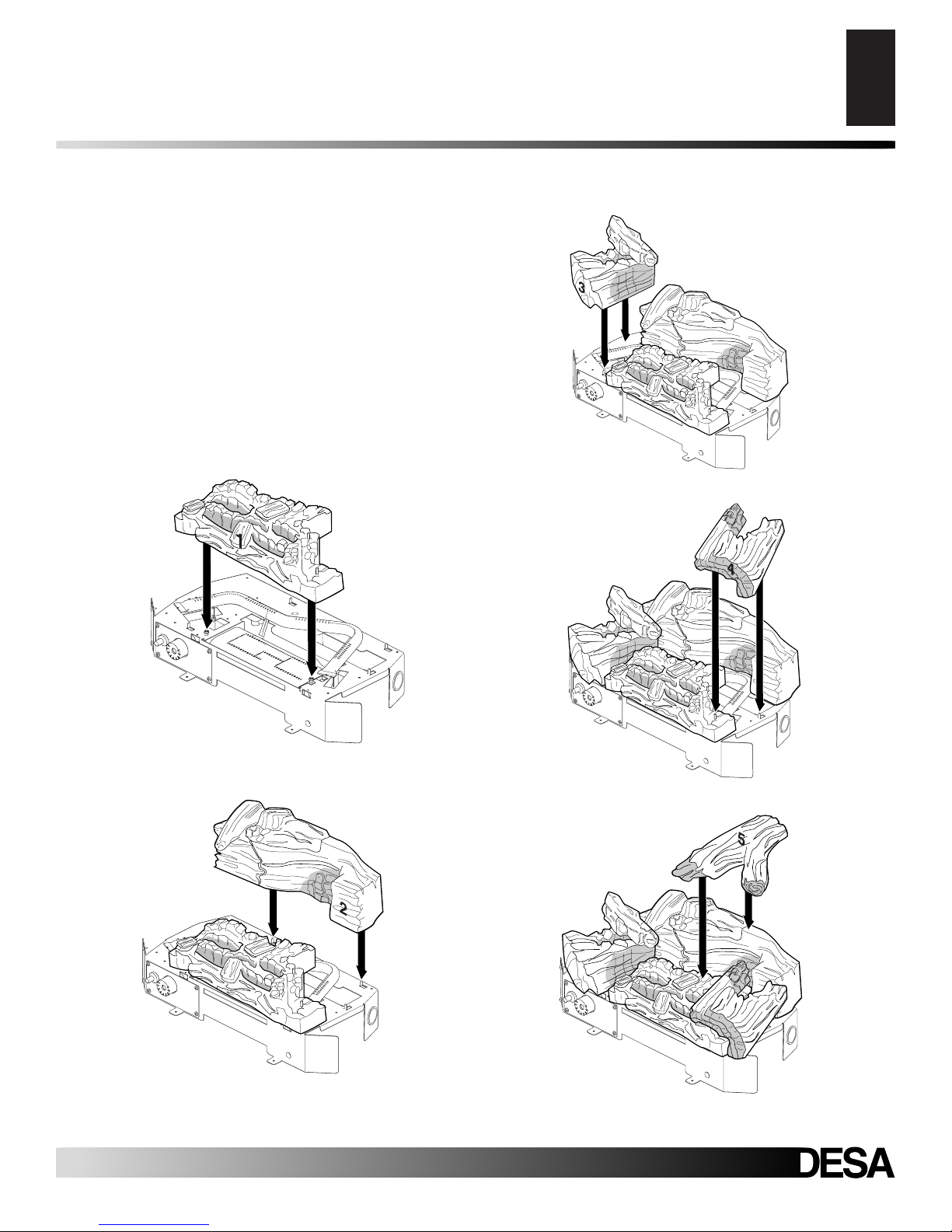

Figure 21 - Installing Log #3 (Model CGX3930NT Shown)

Figure 19 - Installing Log #1 [Ember Bed] (Model CGX3930NT Shown)

For more information, visit www.desatech.com

108114

Figure 22 - Installing Logs #4 and #5 (Model CGX3930NT Shown)

INSTALLATION

16

Installing Logs (Cont.)

INSTALLATION

Continued

Models VGX24NT, VGX24PT, VGX30NT, VGX30PT, VGX24NR, VGX24PR, VGX30NR, VGX30PR, EX24NR, EX24PR, EX30NR AND EX30PR

1. Place log #1 (ember bed) onto the base. Position the log over the shoulder bolts on either side of the front burner. The log will sit on top of the front burner (see Figure 23).

2. Place log #2 over the right portion of the back burner and onto the two tabs on the right side of the base as shown in Figure 24.

3. Place log #3 on the left side of the base. It will wrap around the front end of the back burner and onto two tabs on the base (see Figure 25).

4. Place log #4 onto the tabs on the back of the base. It will lay on the “ledge” on the back of log #3 (see Figure 26).

5. Place log #5 onto the pins on log #1 (see Figure 27).

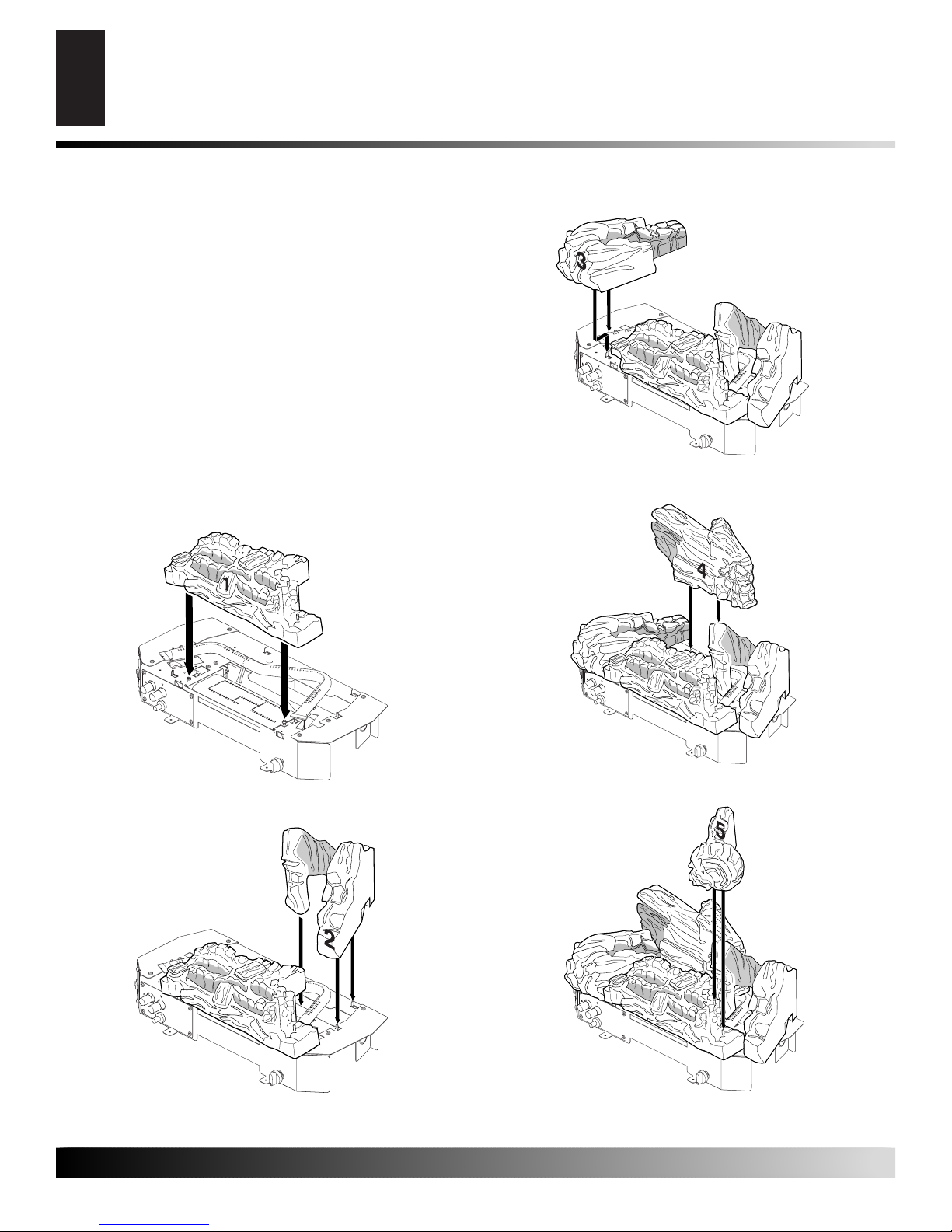

Figure 25 - Installing Log #3 (Model VGX30NT Shown)

Figure 23 - Installing Log #1 [Ember Bed] (Model VGX30NT Shown)

Figure 24 - Installing Log #2 (Model VGX30NT Shown)

For more information, visit www.desatech.com

Figure 26 - Installing Log #4 (Model VGX30NT Shown)

Figure 27 - Installing Log #5 (Model VGX30NT Shown)

108114

INSTALLATION

Continued

Models LGX3924NT and LGX3924PT

1. Place log #1 (ember bed) onto the base. Position the log over the shoulder bolts on either side of the front burner. The log will sit on top of the front burner (see Figure 28).

2. Place log #2 behind the back burner and onto the two back tabs as shown in Figure 29.

3. Place log #3 on the left side of the base. It will wrap around the front end of the back burner and fit over the tab at the front of the base (see Figure 30).

4. Place log #4 onto the pins on the right side of log #1 and onto the tab on the base in front of log #2 (see Figure 31).

5. Place log #5 crossing over log #2 and log #1 as shown in Figure 32.

INSTALLATION

Installing Logs (Cont.)

17 17

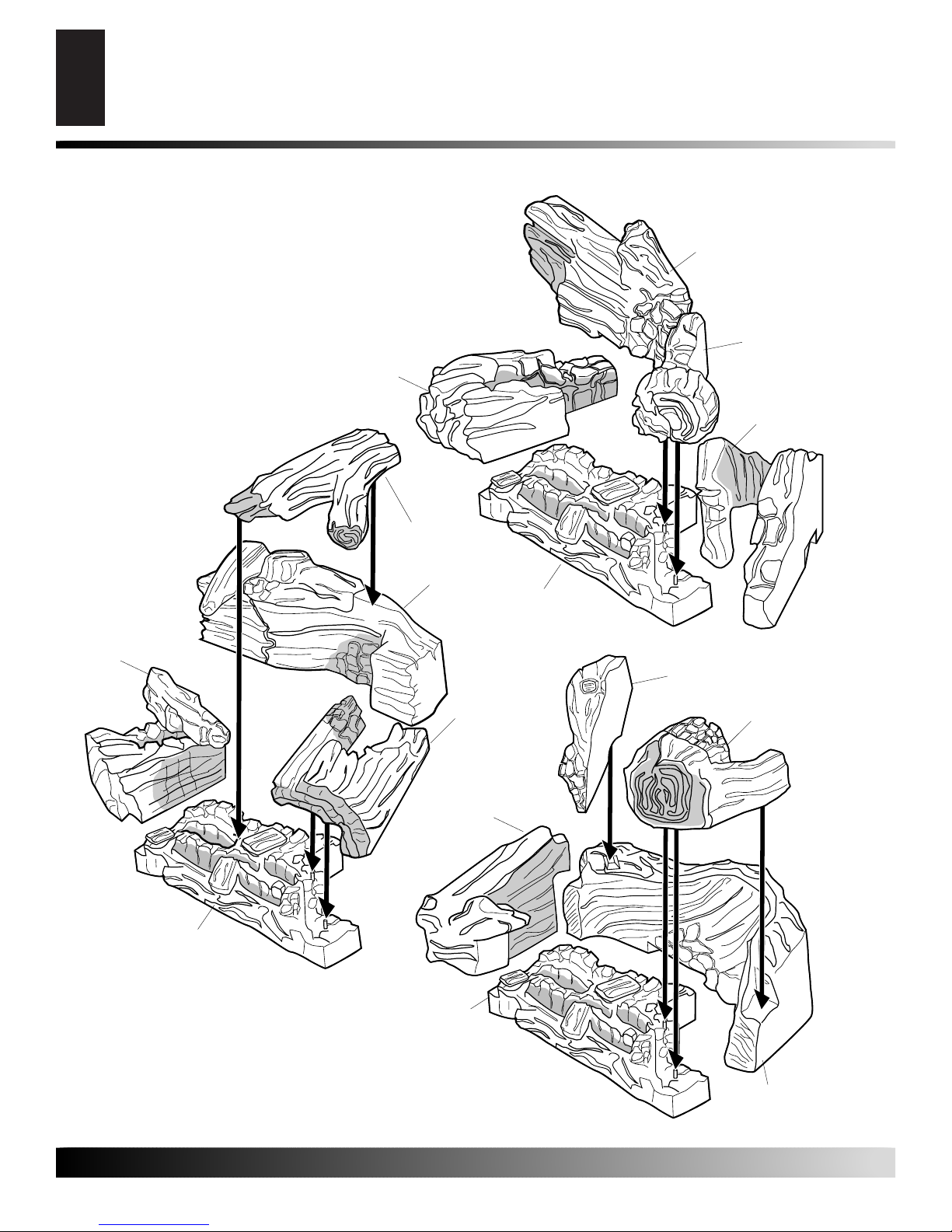

Figure 28 - Installing Log #1 [Ember Bed] (Model LGX3924NT Shown)

Figure 30 - Installing Log #3 (Model LGX3924NT Shown)

Figure 31 - Installing Log #4 (Model LGX3924NT Shown)

Figure 29 - Installing Log #2 (Model LGX3924NT Shown)

For more information, visit www.desatech.com

108114

Figure 32 - Installing Log #5 (Model LGX3924NT Shown)

18

INSTALLATION

Attaching Grate To Base Assembly

OPERATING HEATER (THERMOSTAT-CONTROLLED MODELS)

For Your Safety Read Before Lighting Lighting Instructions

INSTALLATION

Continued

ATTACHING GRATE TO BASE ASSEMBLY

Locate the two slots in the front of the base assembly. Carefully slide the decorative grate into these slots (see Figure 33).

Grate

Figure 33 - Attaching Grate to Base Assembly (Logs and Base Will Vary According to Model)

ADDING LAVA ROCK

Place lava rock around base of heater. Be sure not to cover the control knobs or air inlet openings on the front of heater.

Slots in Base

OPERATING HEATER

THERMOSTAT-CONTROLLED MODELS

FOR YOUR SAFETY READ

BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance area

for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn the gas control knob.

Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

For more information, visit www.desatech.com

LIGHTING INSTRUCTIONS

WARNING:

• If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if fireplace opening has vents at the bottom, you must open the vents before operating heater.

• You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

NOTICE: During initial operation of new heater, burning logs will give off a paper-burning smell. Orange flame will also be present. Open damper or window to vent smell. This will only last a few hours.

108114

OPERATING HEATER (THERMOSTAT-CONTROLLED MODELS)

OPERATING HEATER

Continued

Note:

Home owners generally prefer to operate their heater with the chimney damper closed. This will put all the heat into the room. However, there may be times you will desire the full flames of the Hi heat setting but will find the heat output excessive. You can open the chimney damper (if you have one) fully or partially to release some of the heat.

WARNING: Damper handle will be hot if heater has

been running.

1. STOP! Read the safety information on page 18, column 2.

2. Make sure equipment shutoff valve is fully open.

3. Turn control knob clockwise

4. Wait five (5) minutes to clear out any gas. Then smell for

gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, page 18, column 2. If you don’t smell gas, go to the next step.

5. Turn control knob counterclockwise to the PI-

LOT position. Press in control knob for five (5) seconds (see Figure 34).

Note:

You may be running this heater for the first time after hooking up to gas supply. If so, the control knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

6. With thermostat control knob pressed in, press and release ignitor button. This will light pilot. The pilot is attached to the front burner. If needed, keep pressing ignitor button until pilot lights.

Note:

If pilot does not stay lit, contact a qualified service

person or gas supplier for repairs. Until repairs are made, light pilot with match. To light pilot with match, see Manual Lighting Procedure on page 20.

7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

• If control knob does not pop out when released, contact

a qualified service person or gas supplier for repairs.

Note:

If pilot goes out, repeat steps 3 through 7. This heater has a safety interlock system. Wait one (1) minute for system to reset before lighting pilot again.

8. Turn control knob counterclockwise to desired heating level. The front burner should light. Set control knob to any heat level between HI and LO.

9. To light the rear yellow flame burner, push in and turn rear burner control knob counterclockwise to the ON position.

to the OFF position.

Clockwise

Lighting Instructions (Cont.)

To Turn Off Gas To Appliance

Ignitor Button

Models: VGX24NT, VGX24PT, VGX30NT, VGX30PT, CGX3924NT, CGX3924PT, CGX3930NT and CGX3930PT

Ignitor Button

Models: LGX3924NT and LGX3924PT

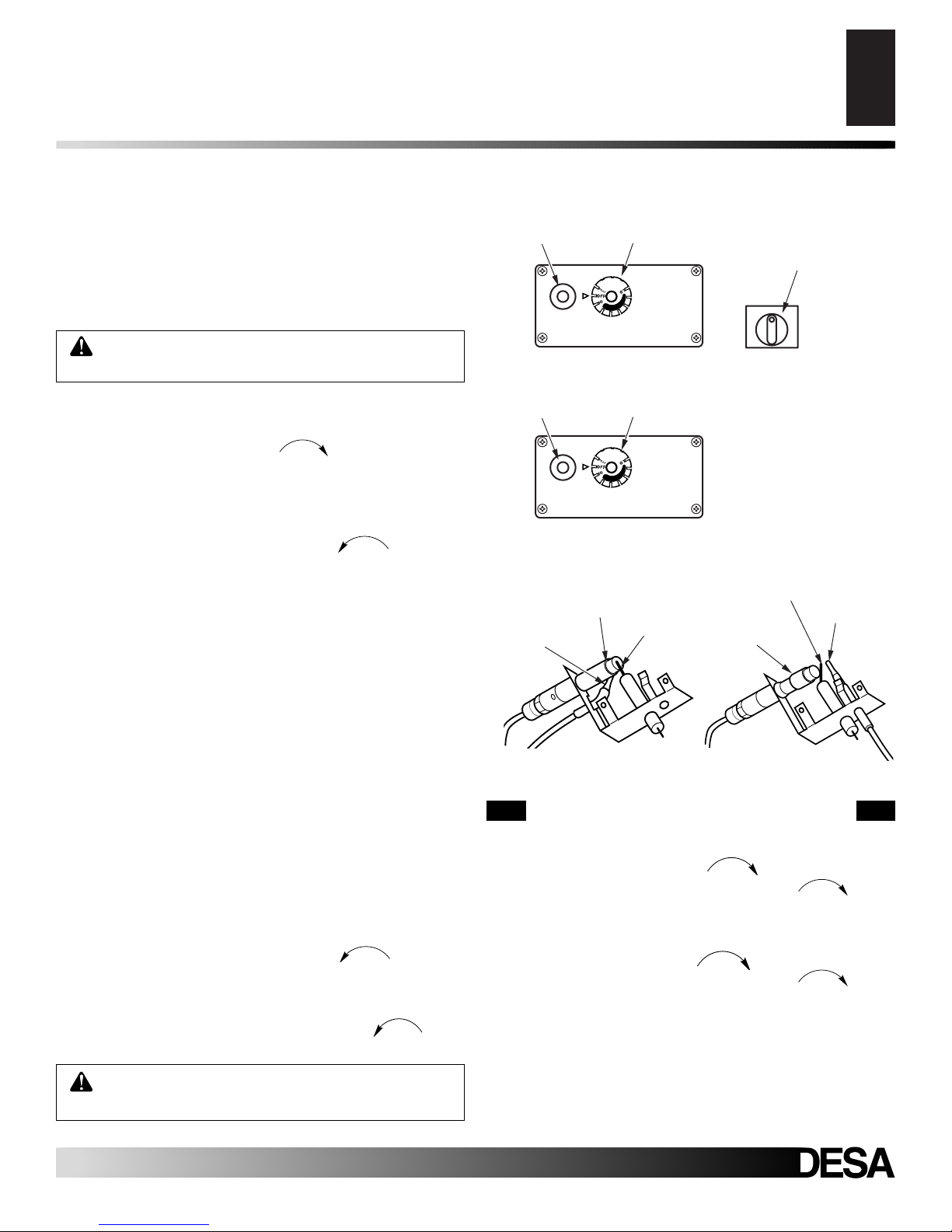

Figure 34 - Control Knob(s) and Ignitor Button Locations

Pilot Burner

Thermocouple

Figure 35 - Pilot (Propane/LP)

Control Knob

Ignitor Electrode

Rear Burner Control Knob

Ignitor Electrode

Thermocouple

Pilot Burner

Figure 36 - Pilot (Natural)

19 19

TO TURN OFF GAS TO APPLIANCE

Shutting Off Heater

1. Turn control knob clockwise to the OFF position.

2. Turn rear burner control knob clockwise to the OFF position.

Shutting Off Burners Only (pilot stays lit)

1. Turn control knob clockwise to the PILOT position.

2. Turn rear burner control knob clockwise to the OFF position.

CAUTION: Do not try to adjust heating levels by

using the equipment shutoff valve.

For more information, visit www.desatech.com

108114

OPERATING HEATER (THERMOSTAT-CONTROLLED MODELS)

20

Thermostat Control Manual Lighting Procedure

OPERATING HEATER (REMOTE-READY MODELS)

For Your Safety Read Before Lighting Lighting Instructions

OPERATING HEATER

Continued

THERMOSTAT CONTROL

OPERATION

The thermostat control knob can be set to any comfort level between Hi and Lo. The thermostat will gradually modulate the heat output and flame height from higher to lower settings, or pilot, in order to maintain the comfort level you select. The ideal comfort setting will vary by household depending upon the amount of space to be heated, the output of the central heating system, etc.

Note:

Selecting the Hi setting with the control knob will cause the

burner to remain fully on, without modulating down in most cases.

MANUAL LIGHTING PROCEDURE

1. Follow steps 1 through 5 under Lighting Instructions, page 19.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow steps 8 and 9 under Lighting Instructions, page 19.

REMOTE-READY MODELS

FOR YOUR SAFETY

READ BEFORE LIGHTING

LIGHTING INSTRUCTIONS

WARNING:

• If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if fireplace opening has vents at the bottom, you must open the vents before operating heater.

• You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

NOTICE: During initial operation of new heater, burning logs will give off a paper-burning smell. Open damper or window to vent smell. This will only last a few hours.

Note:

Home owners generally prefer to operate their heater with the chimney damper closed. This will put all the heat into the room. However, there may be times you will desire the full flames of the High heat setting but will find the heat output excessive. You can open the chimney damper (if you have one) fully or partially to release some of the heat.

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance area

for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn the gas control knob.

Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

WARNING: Damper handle will be hot if heater

has been running.

1. STOP! Read the safety information in column 1.

2. Make sure equipment shutoff valve is fully open.

3. Set switch in OFF position.

WARNING: Burner will come on automatically within one minute when the remote selector switch is in the ON position after the pilot is lit.

4. Press in and turn control knobs clockwise to the OFF position.

5. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, column 1. If you don’t smell gas, go to the next step.

6. Press in and turn control knob counterclockwise to the PILOT position. Press in control knob for five (5) seconds (see Figure 37, page 21).

Note:

You may be running this heater for the first time after hooking up to gas supply. If so, the control knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

For more information, visit www.desatech.com

108114

OPERATING HEATER

Continued

7. With control knob pressed in, press and release ignitor button. This will light pilot. The pilot is attached to the front burner. If needed, keep pressing ignitor button until pilot lights.

Note:

If pilot does not stay lit, contact a qualified service

person or gas supplier for repairs. Until repairs are made, light pilot with match. To light pilot with match, see Manual Lighting Procedure.

8. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

• If control knob does not pop out when released, contact

a qualified service person or gas supplier for repairs.

Note:

If pilot goes out, repeat steps 4 through 8.

9. Slightly push in and turn control knob counterclockwise

to the ON position.

10. Wait one minute and switch selector switch to the ON position to light burner. using GWMT1 or GWMS2 optional accessories.

11. Set flame adjustment knob to any level between HI and LO.

12. To light the rear yellow flame burner, push in and turn rear burner control knob counterclockwise to the ON position.

Note:

AUTO is only functional when

OPERATING HEATER (REMOTE-READY MODELS)

Lighting Instructions (Cont.)

To Turn Off Gas To Appliance

Manual Lighting Procedure

Pilot Burner

Ignitor

Thermocouple

Electrode

Figure 38 - Pilot (Propane/LP)

Ignitor Electrode

Thermocouple

Pilot Burner

Figure 39 - Pilot (Natural)

TO TURN OFF GAS TO APPLIANCE

Shutting Off Heater

1. Turn control knob clockwise to the OFF position.

2. Turn rear burner control knob clockwise to the OFF position.

3a. Set selector switch in the OFF position. 3b. If Using Optional Hand-Held Remote: Set selector switch

in the OFF position to prevent draining battery.

21 21

CAUTION: Do not try to adjust heating levels by

using the equipment shutoff valve.

WARNING: Make sure the selector switch is in the OFF position when you are away from home for long periods of time. Heater will come on automatically with selector switch in the ON position.

Flame

O

T

O

N

Adjustment Knob

H

I

L

O

Ignitor Button

Rear Burner Control Knob

Control Knob

L

I

P

F

ON

OFF

AUTO

O

Selector Switch

Figure 37 - Control Knobs and Ignitor Button Locations (Shown as Supplied, No Remote Control Operation)

Shutting Off Burners Only (pilot stays lit)

You may shut off the burners and keep the pilot lit by doing one of the following:

1. Turn control knob clockwise to the PILOT position.

2. Turn rear burner control knob clockwise to the OFF position.

3. Use remote control manual OFF button.

4. Set selector switch in the OFF position.

MANUAL LIGHTING PROCEDURE

1. Follow steps 1 through 6 under Lighting Instructions, page 20.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow steps 9 through 12, Lighting Instructions, column 1.

For more information, visit www.desatech.com

108114

OPERATING HEATER (REMOTE-READY MODELS)

22

Optional Remote Operation

OPERATING HEATER

Continued

OPTIONAL REMOTE OPERATION

Note:

All remote control accessories must be purchased sepa-

rately (see Accessories, page 38). Follow instructions included with the remote control.

Thermostat Control Operation

(Optional GHRCTA Series Only) The thermostat control setting on the remote control unit can be set to any comfort level between WARMER and COOLER. The burners will turn on and off automatically to maintain the comfort level you select. The ideal comfort setting will vary by household depending upon the amount of space to be heated, the output of the central heating system, etc.

For wall thermostat operation, follow instruction supplied with thermostat accessory GWMT1. For wall switch operation follow instructions supplied with GWMS2.

NOTICE: You must light the pilot before using the hand-held remote control unit. See

tions

on page 20.

1. After lighting, let pilot flame burn for about one minute. Turn control knob to ON position. Adjust flame adjustment knob anywhere between HI and LO. Slide the selector switch to the REMOTE position. may light if hand-held remote ON button was on when selector switch was last turned off. You can now turn the burners on and off with the hand-held remote control unit.

IMPORTANT

: Do not leave the selector switch in the REMOTE position when the pilot is not lit. This will drain the battery.

IMPORTANT:

Be sure to press the ON/OFF buttons on the hand-held remote control unit for up to 3 seconds to assure proper operation.

GHRC Series Operation:

2a. Press the ON/OFF button to turn the burners on and off.

When turning burners off, the pilot will remain lit.

GHRCTA Series Operation:

2b. Press the AUTO/ON/OFF button on the hand-held remote

control (see Figure 41). The lights to the left of the button will show AUTO, ON, or OFF.

• In the ON mode, the burners will ignite. The heater is in

manual mode when ON is lit.

Lighting Instruc-

Note:

The burners

• In the AUTO mode, the thermostat in the hand-held remote unit controls the room temperature. To increase the room temperature, press the top arrow of the TEMP button. To lower the room temperature, press the bottom arrow of the TEMP button. At higher settings the heater will run longer.

IMPORTANT:

This remote control has been specially engineered to take an air temperature sample every 5.5 minutes in the auto mode. It will not respond immediately to the temperature setting being turned up or down.

IMPORTANT:

The hand-held remote control unit must

be near the heater. Do not keep the hand-held remote control unit too close to the heater. The thermostat on the hand-held remote control unit will heat up too quickly and turn the heater off.

3. To turn the burner off, press the AUTO/ON/OFF button until OFF lights. The pilot will remain lit.

IMPORTANT:

To turn the pilot off, manually turn the con-

trol knob on the heater to the OFF position.

Control Knob

T

O

L

O

I

N

P

F

ON

OFF

REMOTE

O

Selector Switch

Figure 40 - Control Knobs, Selector Switch and Ignitor Button Locations for Remote Operation

Shows Temperature Setting

The Log Heater will Automatically Cycle between Pilot and the Heat Setting that has been Selected

Flame Adjustment Knob

H

I

L

O

Ignitor Button

Rear Burner Control Knob

Increases Room Temperature in AUTO Mode

Decreases Room Temperature in AUTO Mode

Turns Burners On or Off and Allows You to Choose the Auto Setting

For more information, visit www.desatech.com

Figure 41 - Thermostat Hand-Held Remote Control Unit Selections (GHRCTA Only)

108114

INSPECTING BURNERS

Flame Pattern

Front Burner Flame Pattern

23 23

Check pilot flame pattern and burner flame patterns often.

PILOT FLAME PATTERN

Figure 42 shows a correct pilot flame pattern. Figure 43 shows an incorrect pilot flame pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the heater will shut down.

If pilot flame pattern is incorrect, as shown in Figure 43

• turn heater off (see To Turn Off Gas to Appliance, page 19 [Ther- mostat-Controlled Models] or page 21 [Remote-Ready Models])

• see Troubleshooting, pages 25 through 27

Pilot Burner

Figure 42 - Correct Pilot Flame Pattern (Your pilot may vary from pilots shown)

Pilot Burner

Thermocouple

Pilot Burner

Thermocouple

Pilot Burner

FRONT BURNER FLAME PATTERN

Figure 44 shows correct front burner flame pattern. Figure 45 shows incorrect front burner flame pattern. The incorrect burner flame pattern shows yellow tipping at top of blue flame.

WARNING: If yellow tipping occurs, your heater could produce increased levels of carbon monoxide. If front burner flame pattern shows yellow tipping, follow instructions at bottom of this page. Yellow flame on rear burner is normal.

NOTICE: Do not mistake orange flames with yellow tipping. Dirt or other fine particles are burned by heater, causing brief patches of orange flame.

If front burner flame pattern is incorrect, as shown in Figure 45

• turn heater off (see To Turn Off Gas to Appliance, page 19 [Ther- mostat-Controlled Models] or page 21 [Remote-Ready Models])

• see Troubleshooting, pages 25 through 27

Thermocouple

Figure 43 - Incorrect Pilot Flame Pattern (Your pilot may vary from pilots shown)

For more information, visit www.desatech.com

108114

Thermocouple

Figure 44 - Correct Front Burner Flame Pattern

Yellow Tipping At Top of Blue Flame

Figure 45 - Incorrect Front Burner Flame Pattern

CLEANING AND MAINTENANCE

24

CLEANING AND MAINTENANCE

WARNING: Turn off heater and let cool before

cleaning.

CAUTION: You must keep control areas, burners, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service person. Heater may need more frequent cleaning due to excessive lint from carpeting, pet hair, bedding material, etc.

CLEANING BURNER INJECTOR HOLDER AND PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning flame. Keep these holes clear of dust, dirt, lint, and pet hair. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have heater inspected yearly by a qualified service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store, or home center may carry compressed air in a can. You can use a vacuum cleaner in the blow position. If using compressed air in a can, please follow the directions on the can. If you don't follow directions on the can, you could damage the pilot assembly.

1. Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

2. Inspect burner, pilot, and primary air inlet holes on injector holder for dust and dirt (see Figures 46 or 47).

3. Blow air through the ports/slots and holes in the burner.

4. Check the injector holder located at the end of the burner tube again. Remove any large particles of dust, dirt, lint, or pet hair with a soft cloth or vacuum cleaner nozzle.

5. Blow air into the primary air holes on the injector holder.

6. In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.

Clean the pilot assembly also. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see Figure 48). With the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if compressed air is not available.

Injector Holder

Burner Tube

Primary Air Inlet Holes

Figure 46 - Injector Holder On Outlet Burner Tube - Rear Burner

Injector Holder

Primary Air Inlet Holes

Figure 47 - Injector Holder On Outlet Burner Tube - Front Burner

Ports/Slots

Pilot Assembly

Figure 48 - Pilot Inlet Air Hole

Pilot Air Inlet Hole

Pilot Assembly

LOGS

• If you remove logs for cleaning, refer to Installing Logs, pages 15 through 17, to properly replace logs.

• Replace log(s) if broken or chipped (dime-sized or larger).

For more information, visit www.desatech.com

108114

TROUBLESHOOTING

25 25

TROUBLESHOOTING

Note:

For additional help, visit DESA

International’s technical service web site at www.desatech.com.

Note:

All troubleshooting items are listed in

order of operation.

OBSERVED PROBLEM

When ignitor button is pressed, there is no spark at ODS/pilot

When ignitor button is pressed, there is spark at ODS/pilot but no ignition

WARNING: Turn off heater and let cool before servicing. Only a qualified service person should service and repair heater.

POSSIBLE CAUSE

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or wet

3. Piezo ignitor nut is loose

4. Broken ignitor cable

5. Bad piezo ignitor

6. Ignitor electrode positioned wrong

7. Ignitor electrode broken

1. Gas supply turned off or equipment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. Depleted gas supply (propane/LP only)

6. ODS/pilot is clogged

7. Gas regulator setting is not correct

CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/ pilot unit.

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

3. Tighten nut holding piezo ignitor to base panel of log set. Nut is located behind base panel.

4. Replace ignitor cable

5. Replace piezo ignitor

6. Replace piezo ignitor

7. Replace piezo ignitor

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Contact local propane/LP gas company

6. Clean ODS/pilot (see Cleaning and Maintenance, page 24) or replace ODS/ pilot assembly

7. Replace gas regulator

ODS/pilot lights but flame goes out when control knob is released

For more information, visit www.desatech.com

108114

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Safety interlock system has been triggered (Termostat-Controlled Models only)

4. Equipment shutoff valve not fully open

5. Pilot flame not touching thermocouple, which allows thermocouple to cool, causing pilot flame to go out. This problem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged ODS/pilot

6. Thermocouple connection loose at control valve

7. Thermocouple damaged

8. Control valve damaged

1. Press in control knob fully

2. After ODS/pilot lights, keep control knob pressed in 30 seconds

3. Wait one minute for safety interlock system to reset. Repeat ignition operation

4. Fully open equipment shutoff valve

5. A) Contact local natural or propane/LP gas company

B) Clean ODS/pilot (see Cleaning and Maintenance, page 24) or replace ODS/ pilot assembly

6. Hand tighten until snug, then tighten 1/4 turn more

7. Replace thermocouple

8. Replace control valve

TROUBLESHOOTING

26

TROUBLESHOOTING

Continued

OBSERVED PROBLEM

One or both burners do not light after ODS/ pilot is lit

Delayed ignition of one or both burners

Burner backfiring during combustion

Yellow flame in front burner during burner combustion

POSSIBLE CAUSE

1. Inlet gas pressure is too low

2. Burner orifice(s) clogged

3. Mislocated crossover tube

4. Burner orifice(s) diameter is too small

5. Thermopile leads disconnected or improperly connected (Remote-Ready Models Only)

6. Burners will not come on in remote position (Remote-Ready Models Only)

1. Manifold pressure is too low

2. Burner orifice(s) clogged

3. Mislocated crossover tube

1. Burner orifice is clogged or damaged

2. Damaged burner

3. Gas regulator defective

1. Not enough air

2. Gas regulator defective

REMEDY

1. Contact local natural or propane/LP gas company

2. Clean burner(s) (see Cleaning and Mainte- nance, page 24) or replace burner orifice(s)

3. Contact qualified service person

4. Replace burner orifice(s)

5. Reconnect leads (see Wiring Diagram, page 29)

6. Replace battery in transmitter and receiver

1. Contact local natural or propane/LP gas company

2. Clean burner(s) (see Cleaning and Main- tenance, page 24) or replace burner orifice(s)

3. Contact qualified service person

1. Clean burner (see Cleaning and Mainte- nance, page 24) or replace burner orifice

2. Replace damaged burner

3. Replace gas regulator

1. Check burner(s) for dirt and debris. If found, clean burner(s) (see Cleaning and Maintenance, page 24)

2. Replace gas regulator

Slight smoke or odor during initial operation

Heater produces a whistling noise when burners are lit

White powder residue forming within burner box or on adjacent walls or furniture

Moisture/condensation noticed on windows

For more information, visit www.desatech.com

1. Residues from manufacturing processes and logs curing

1. Turning control knob to HI position when burners are cold

2. Air in gas line

3. Air passageways on heater blocked

4. Dirty or partially clogged burner orifice(s)

1. When heated, vapors from furniture polish, wax, carpet cleaners, etc. turn into white powder residue

1. Not enough combustion/ventilation air

1. Problem will stop after a few hours of operation

1. Turn control knob to LO position and let warm up for a minute

2. Operate burners until air is removed from line. Have gas line checked by local natural or propane/LP gas company

3. Observe minimum installation clearances (see pages 8 through 10)

4. Clean burners (see Cleaning and Main- tenance, page 24)) or replace burner orifice(s)

1. Turn heater off when using furniture polish, wax, carpet cleaners, or similar products

1. Refer to Air for Combustion and Venti- lation requirements (page 5)

108114

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

TROUBLESHOOTING

27 27

IMPORTANT:

supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

Operating heater where impurities in air exist may create odors. Cleaning

OBSERVED PROBLEM

Remote does not function

Heater produces a clicking/ticking noise just after burners are lit or shut off

Heater produces unwanted odors

Heater shuts off in use (ODS operates)

POSSIBLE CAUSE

1. Battery is not installed. Battery power is low

1. Metal expanding while heating or contracting while cooling

1. Heater burning vapors from paint, hair spray, glues, cleaners, chemicals, new carpet, etc. (See ment above)

2. Low fuel supply (propane/LP only)

3. Gas leak. See Warning statement

at top of page

1. Not enough fresh air is available

2. Low line pressure

3. ODS/pilot is partially clogged

IMPORTANT

state-

REMEDY

1. Replace 9-volt batteries in receiver and remote control

1. This is common with most heaters. If noise is excessive, contact qualified service person

1. Open window to ventilate room. Stop using odor causing products while heater is running

2. Refill supply tank (propane/LP only)

3. Locate and correct all leaks (see Check- ing Gas Connections, page 14)

1. Open window and/or door for ventilation

2. Contact local natural or propane/LP gas company

3. Clean ODS/pilot (see Cleaning and Maintenance, page 24)

Gas odor even when control knob is in OFF position

Gas odor during combustion

Log set cycles to pilot, but room temperature drops to a lower than ideal level before log set comes back on (Thermostat-Controlled Models Only)

For more information, visit www.desatech.com

108114

1. Gas leak. See Warning statement at top of page

2. Control valve defective

1. Foreign matter between control valve and burner

2. Gas leak. See Warning statement

at top of page

1. Thermostat sensing bulb needs to be repositioned

1. Locate and correct all leaks (see Check- ing Gas Connections, page 14)

2. Replace control valve

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Check- ing Gas Connections, page 14)

1. Reposition thermostat sensing bulb (see Instructions for Optional Positioning of Thermostat Sensing Bulb, page 28)

OPTIONAL POSITIONING OF THERMOSTAT SENSING BULB

28

(THERMOSTAT-CONTROLLED MODELS ONLY)

For Masonry and Factory-Built Metal Fireplace

OPTIONAL POSITIONING OF THERMOSTAT SENSING BULB

(THERMOSTAT-CONTROLLED MODELS ONLY) FOR MASONRY AND FACTORY-BUILT

METAL FIREPLACE

Thermostat Sensing Bulb

If your log set cycles to pilot, but the room temperature drops to a lower than ideal comfort level before the log set comes back on, you may want to reposition the thermostat sensing bulb.

The thermostat sensing bulb is located on the left side of the base assembly. This location allows the thermostat to keep the room temperature at an ideal comfort level for most fireplace applications. For positioning the thermostat sensing bulb elsewhere, an adhesive-backed mounting clip is available.

1. Locate the gas valve assembly and thermostat sensing bulb (see Figure 49).

2. Gently pull thermostat sensing bulb free from the retaining clamp.

IMPORTANT:

Do not force or bend the thermostat sensing

bulb or capillary.

3. The thermostat sensing bulb may be located to the lower right front side of fireplace. Determine location of sensing bulb, but do not mount sensing bulb until step 4. If you have a masonry fireplace, see Figure 51 for location.

If you have a factory-built metal fireplace, see Figure 52 for location.

If your fireplace has glass doors, position sensing bulb directly behind door gap on right bottom side (see Figure 53).

4. The mounting clip must be a minimum of 3" from bottom of fireplace to prevent crimping of capillary. Once you have decided on a location, clean the area thoroughly. Remove the paper backing from the adhesive on back of mounting clip. Press the clip into the new location so that the thermostat sensing bulb will be positioned vertically with the capillary at the bottom (see Figure 54). Slide the thermostat sensing bulb into the clip.

IMPORTANT:

Do not crimp capillary.

Figure 50 - Adhesive-backed Mounting Clip

Thermostat Sensing Bulb

Adhesivebacked Mounting Clip

Figure 52 - Locating Thermostat Sensing Bulb on Factory-built Metal Fireplace

Thermostat Sensing Bulb

Adhesivebacked Mounting

Capillary

Clip

Do Not Crimp Capillary

Adhesivebacked Mounting Clip

Figure 51 - Locating Thermostat Sensing Bulb on Masonry Fireplace

Thermostat Sensing Bulb

Adhesivebacked Mounting Clip

Glass

Figure 53 - Installing Thermostat Sensing Bulb behind Glass Doors

Thermostat Sensing Bulb

Figure 49 - Location of Gas Valve Assembly and Thermostat Sensing Bulb

For more information, visit www.desatech.com

Retaining Clamp

Figure 54 - Positioning the Thermostat Sensing Bulb in the Vertical Position with the Capillary at the Bottom

Gas Valve Assembly

108114

SPECIFICATIONS

WIRING DIAGRAM (REMOTE-READY MODELS ONLY)

SERVICE HINTS

TECHNICAL SERVICE

SPECIFICATIONS

24" Thermostat-Controlled 24" Thermostat-Controlled 30" Thermostat-Controlled

LGX3924PT LGX3924NT

Btu (Variable) 10,000/39,000 10,000/39,000 20,000/39,000 20,000/39,000 10,000/39,000 10,000/39,000 Type Gas Propane/LP Natural Propane/LP Natural Propane/LP Natural Ignition Piezo Piezo Piezo Piezo Piezo Piezo Manifold Pressure 7.9" W.C. 3.5" W.C. 7.9" W.C. 3.5" W.C. 7.9" W.C. 3.5" W.C. Inlet Gas Pressure

(in. of water)

Maximum 14" 10.5" 14" 10.5" 14" 10.5"

Minimum* 11" 5" 11" 5" 11" 5" Shipping Weight 30 lbs. 30 lbs. 30 lbs. 30 lbs. 34 lbs. 34 lbs. Certified Standards Z21.11.2-2000 Z21.11.2-2000 Z21.11.2-2000 Z21.11.2-2000 Z21.11.2-2000 Z21.11.2-2000 * For purpose of input adjustment

24" Remote-Ready 30" Remote-Ready

Btu (Variable) 10,000/39,000 10,000/39,000 10,000/39,000 10,000/39,000 Type Gas Propane/LP Natural Propane/LP Natural Ignition Piezo Piezo Piezo Piezo Manifold Pressure 8.0" W.C. 3.5" W.C. 8.0" W.C. 3.5" W.C. Inlet Gas Pressure

(in. of water)

Maximum 14" 10.5" 14" 10.5"

Minimum* 11" 5" 11" 5" Shipping Weight 30 lbs. 30 lbs. 34 lbs. 34 lbs. Certified Standards Z21.11.2-2000 Z21.11.2-2000 Z21.11.2-2000 Z21.11.2-2000

Z21.60-1996 Z21.60-1996 Z21.60-1996 Z21.60-1996 CGA2.26-M96 CGA2.26-M96 CGA2.26-M96 CGA2.26-M96

* For purpose of input adjustment

29 29

WIRING DIAGRAM

(REMOTE-READY MODELS ONLY)

Note:

For proper operation of optional accessories, the wires from

the switch to the control valve must be connected exactly as shown:

AUTO

OFF

ON

108114

SWITCH

AUTO

OFF

ON

Wire Harness

O.D.S. PILOT

IGNITOR

THERMOCOUPLE

Thermocouple

THERMOCOUPLE

CONNECTION

VALV E

TPTH TP TH

THERMOPILE

PILOT

Wire

PILOT OUT

For more information, visit www.desatech.com

PIEZO

Ignitor Cable

Thermopile Wire

Thermopile

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• heater will not produce specified heat

• propane/LP gas supply may be low

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting.

If so, contact DESA International’s Technical Service Department at 1-800-DESA LOG (1-800-337-2564).

You can also visit DESA International’s technical services web site at www.desatech.com.

30

ILLUSTRATED PARTS BREAKDOWN

Logs VGX24NR, VGX24PR, VGX30NR, VGX30PR VGX24NT, VGX24PT, VGX30NT, VGX30PT EX24NR, EX24PR, EX30NR, EX30PR CGX3924NR, CGX3924PR, CGX3924NT, CGX3924PT, CGX3930NT, CGX3930PT LGX3924NT, LGX3924PT

ILLUSTRATED PARTS BREAKDOWN

LOGS

Log Set for Models: LGX3924NT and LGX3924PT

6

Log Set for Models: VGX24NR, VGX24PR, VGX30NR, VGX30PR, VGX24NT, VGX24PT, VGX30NT, VGX30PT, EX24NR, EX24PR, EX30NR and EX30PR

6

4

5

4

3

2

4

3

6

2

Log Set for Models: CGX3924NR, CGX3924PR, CGX3924NT, CGX3924PT, CGX3930NT and CGX3930PT

For more information, visit www.desatech.com

3

5

108114

CGX3924NR, CGX3924PR, CGX3924NT, CGX3924PT, CGX3930NT, CGX3930PT

PARTS LIST

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 38 of this manual.

LOGS

PART NUMBER FOR VGX24NR VGX30NR VGX24PR VGX30PR VGX24NT VGX30NT CGX3924NR VGX24PT VGX30PT CGX3924PR

KEY EX24NR EX30NR CGX3924NT CGX3930NT LGX3924NT NO. EX24PR EX30PR CGX3924PT CGX3930PT LGX3924PT DESCRIPTION QTY.

1 108102-01 108102-02 108102-03 108102-04 108102-05 Log Set 1 2 108510-01 108510-01 108510-01 108510-01 108510-01 Log Ember Bed 1 3 108741-02 108742-02 108743-02 108744-02 108745-02 Log, Right Front 1 4 108741-03 108742-03 108743-03 108744-03 108745-03 Log, Crossover 1 5 108741-04 108742-04 108743-04 108744-04 108745-04 Log, Back 1 6 108741-01 108742-01 108743-01 108744-01 108745-01 Log, Left Front 1

PARTS LIST

Logs

VGX24NR, VGX24PR, VGX30NR, VGX30PR

VGX24NT, VGX24PT, VGX30NT, VGX30PT

EX24NR, EX24PR, EX30NR, EX30PR

LGX3924NT, LGX3924PT

31 31

For more information, visit www.desatech.com

108114

32

ILLUSTRATED PARTS BREAKDOWN

Thermostat-Controlled VGX24NT, VGX24PT, VGX30NT, VGX30PT CGX3924NT, CGX3924PT, CGX3930NT, CGX3930PT

ILLUSTRATED PARTS BREAKDOWN

THERMOSTAT-CONTROLLED

VGX24NT, VGX24PT VGX30NT, VGX30PT CGX3924NT, CGX3924PT CGX3930NT, CGX3930PT

31

29

12

10

14

7

6

7

9

5

30

4

16

15

19

11

23

12

21

28

For more information, visit www.desatech.com

25

26

1

3

22

17

13

24

8

Natural Gas Models Only

18

20

27

2

108114

PARTS LIST

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 38 of this manual.

THERMOSTAT-CONTROLLED

PART NUMBER FOR KEY VGX24NT VGX24PT VGX30NT VGX30PT NO. CGX3924NT CGX3924PT CGX3930NT CGX3930PT DESCRIPTION QTY.

1 108110-01 108110-01 108110-01 108110-01 Burner Carriage 1 2 108108-02 108108-02 108108-02 108108-02 Front Burner Tube 1 3 108107-01 108107-01 108107-01 108107-01 Rear Burner Tube 1 4 102843-01 102843-01 102843-01 102843-01 Burner Clip 1 5 108103-01 108103-01 108103-01 108103-01 Burner, Front 1 6 108105-01 108105-01 108105-01 108105-01 Burner, Rear 1 7 099230-02 099230-02 099230-02 099230-02 Shoulder Bolt 2 8 101629-01 101629-01 101629-01 101629-01 Grommet Bushing 1 9 104285-01 104286-01 104285-01 104286-01 ODS Pilot 1 10 098249-01 098249-01 098249-01 098249-01 ODS Nut 2 11 102394-02 102394-02 102394-02 102394-02 Control Bracket (T-Stat) 1 12 099387-18 099387-18 099387-18 099387-18 Pilot Tube 1 13 108628-01 108628-01 108628-01 108628-01 Inlet Tube 1 14 103780-03 103780-03 103780-03 103780-03 Pilot Mounting Bracket 1 15 097159-04 097159-04 097159-04 097159-04 Piezo Ignitor 1 16 098271-10 098271-10 098271-10 098271-10 Ignitor Cable 1 17 099056-18 099056-21 099056-18 099056-21 Burner Orifice Injector Back 1 18 101004-11 101004-10 101004-11 101004-10 Burner Orifice Injector Front 1 19 108692-02 108692-02 108692-02 108692-02 T-Stat Cover Plate 1 20 108188-01 21 102030-01 102030-01 102030-01 102030-01 Thermobulb Clip 2 22 099415-20 099415-21 099415-20 099415-21 Gas Regulator 1 23 098522-25 098522-25 098522-10 098522-10 Thermostatic Gas Valve Kit 1 24 108106-01 108106-01 108106-01 108106-01 Manual Control Valve 1 25 099393-03 099393-03 099393-03 099393-03 Control Knob 1 26 098508-01 098508-01 098508-01 098508-01 Valve Retainer Nut 1 27 108134-01 28 108111-01 108111-01 108111-01 108111-01 Cast Iron Grate 1

____ ____

29

____ ____

30 31 108692-03 108692-03 108692-03 108692-03 Remote Cover Plate 1

____

108188-01

108134-01

108717-01 108717-01 Extension Plate, Left Side 1 108717-02 108717-02 Extension Plate, Right Side 1

CGX3924NT, CGX3924PT, CGX3930NT, CGX3930PT

____

VGX24NT, VGX24PT, VGX30NT, VGX30PT

Plate Screw, NG 1

Rear Plate, NG 1

Thermostat-Controlled

PARTS LIST

33 33

100563-01 100563-01 100563-01 100563-01 Warning Plate 1 101054-05 101054-05 101054-05 101054-05 Lighting Instructions Plate 1 100639-03 100639-03 100639-03 100639-03 Caution Decal 1 104310-13 104310-13 104310-13 104310-13 Information Video 1 GA6060 GA6060 GA6060 GA6060 Lava Rock 1 100565-01 100565-01 100565-01 100565-01 Cable Connector 1

For more information, visit www.desatech.com

108114

PARTS AVAILABLE — NOT SHOWN

34

Remote-Ready Models VGX24NR, VGX24PR, VGX30NR, VGX30PR EX24NR, EX24PR, EX30NR, EX30PR CGX3924NR, CGX3924PR

ILLUSTRATED PARTS BREAKDOWN

REMOTE-READY

ILLUSTRATED PARTS BREAKDOWN

VGX24NR, VGX24PR VGX30NR, VGX30PR EX24NR, EX24PR EX30NR, EX30PR CGX3924NR, CGX3924PR

34

35

29

36

21

12

10

9

14

7

5

6

30

7

4

19

H

I

L

32

31

O

F

N

O

P

I

T

L

O

15

16

23

11

25

26

33

21

13

Natural Gas Models Only

22

12

28

For more information, visit www.desatech.com

8

1

3

Natural Gas Models Only

27

17

24

20

18

2

108114

Remote-Ready Models

PARTS LIST

VGX24NR, VGX24PR, VGX30NR, VGX30PR

EX24NR, EX24PR, EX30NR, EX30PR

CGX3924NR, CGX3924PR

35 35

PARTS LIST

REMOTE-READY

VGX24NR VGX30NR VGX24PR VGX30PR KEY EX24NR EX30NR EX24PR EX30PR NO. CGX3924NR CGX3924PR DESCRIPTION QTY.

1 108110-01 108110-01 108110-01 108110-01 Burner Carriage 1 2 108108-01 108108-01 108108-01 108108-01 Front Burner Tube 1 3 108107-01 108107-01 108107-01 108107-01 Rear Burner Tube 1 4 102843-01 102843-01 102843-01 102843-01 Burner Clip 1 5 108103-01 108103-01 108103-01 108103-01 Burner, Front 1 6 108105-01 108105-01 108105-01 108105-01 Burner, Rear 1 7 099230-02 099230-02 099230-02 099230-02 Shoulder Bolt 2 8 101629-01 101629-01 101629-01 101629-01 Grommet Bushing 1 9 103779-01 103779-01 103778-01 103778-01 ODS Pilot 1 10 098249-01 098249-01 098249-01 098249-01 ODS Nut 2 11 108135-01 108135-01 108135-01 108135-01 Valve Bracket 1 12 099387-14 099387-14 099387-18 099387-18 Pilot Tube 1 13 099387-15 099387-15 14 103780-03 103780-03 103780-03 103780-03 Pilot Mounting Bracket 1 15 097159-04 097159-04 097159-04 097159-04 Piezo Ignitor 1 16 098271-10 098271-10 098271-10 098271-10 Ignitor Cable 1 17 099056-18 099056-18 099056-21 099056-21 Burner Orifice Injector Back 1 18 101004-11 101004-11 101004-10 101004-10 Burner Orifice Injector Front 1 19 108692-01 108692-01 108692-01 108692-01 Remote Cover Plate 1 20 108188-01 108188-01 21 M12461-26 M12461-26 M12461-26 M12461-26 Screw, Hex Slt Wsr 10-32 x .38 4 22 099918-02 099918-02 23 103781-01 103781-01 103781-02 103781-02 Gas Control Valve 1 24 108106-01 108106-01 108106-01 108106-01 Manual Control Valve 1 25 099393-03 099393-03 099393-03 099393-03 Control Knob 1 26 098508-01 098508-01 098508-01 098508-01 Valve Retainer Nut 1 27 108134-01 108134-01 28 108111-01 108111-01 108111-01 108111-01 Cast Iron Grate 1

____

29

____

30 31 103784-01 103784-01 103784-01 103784-01 On-Off-Pilot Knob Extension 1 32 103784-02 103784-02 103784-02 103784-02 Low-High Knob Extension 1 33 098265-02 098265-02 098265-02 098265-02 Male Elbow 1 34 099998-01 099998-01 099998-01 099998-01 Fan Switch 1 35 103587-02 103587-02 103587-02 103587-02 Plate, Switch 1 36 103284-03 103284-03 103284-03 103284-03 Wire Harness 1

100563-01 100563-01 100563-01 100563-01 Warning Plate 1

103877-03 103877-03 103877-03 103877-03 Lighting Instructions Plate 1

100639-03 100639-03 100639-03 100639-03 Caution Decal 1

104310-13 104310-13 104310-13 104310-13 Information Video 1

GA6060 GA6060 GA6060 GA6060 Lava Rock 1

100565-01 100565-01 100565-01 100565-01 Cable with Cable Connector 1

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 38 of this manual.

PART NUMBER FOR

108717-01 108717-02

____

____ ____

PARTS AVAILABLE — NOT SHOWN

____

108717-01 Extension Plate, Left Side 1 108717-02 Extension Plate, Right Side 1

Pilot Regulator Tube, NG 1

Plate Screw, NG 1

Pilot Regulator, NG 1

Rear Plate, NG 1

For more information, visit www.desatech.com

108114

36

ILLUSTRATED PARTS BREAKDOWN

Thermostat-Controlled LGX3924NT, LGX3924PT

ILLUSTRATED PARTS BREAKDOWN

THERMOSTAT-CONTROLLED

LGX3924NT, LGX3924PT

6

10

12

9

14

7

5

18

4

15

16

23

26

11

7

1

8

19

21

2

12

22

Natural Gas Models Only

20

17

3

25

For more information, visit www.desatech.com

24

13

2

108114

PARTS LIST

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 38 of this manual.

THERMOSTAT-CONTROLLED

KEY PART NUMBER NO. LGX3924NT LGX3924PT DESCRIPTION QTY.

1 108110-01 108110-01 Burner Carriage 1 2 108108-03 108108-03 Burner Tube 1 3 108134-01 4 102843-01 102843-01 Burner Clip 1 5 108103-01 108103-01 Burner, Front 1 6 108105-01 108105-01 Burner, Rear 1 7 099230-02 099230-02 Shoulder Bolt 2 8 101629-01 101629-01 Grommet Bushing 1 9 104285-01 104286-01 ODS Pilot 1 10 098249-01 098249-01 ODS Nut 2 11 102394-02 102394-02 Control Bracket (T-Stat) 1 12 099387-18 099387-18 Pilot Tube 1 13 108628-01 108628-01 Inlet Tube 1 14 103780-03 103780-03 Pilot Mounting Bracket 1 15 097159-04 097159-04 Piezo Ignitor 1 16 098271-10 098271-10 Ignitor Cable 1 17 099056-18 099056-21 Burner Orifice Injector Back 1 18 101004-11 101004-10 Burner Orifice Injector Front 1 19 108692-02 108692-02 T-Stat Cover Plate 1 20 108188-01 21 103977-01 103977-01 Button Plug, 5/8" 1 22 099415-20 099415-21 Gas Regulator 1 23 098522-25 098522-10 Thermostatic Gas Valve 1 24 102030-01 102030-01 Thermobulb Clip 2 25 108111-01 108111-01 Cast Iron Grate 1 26 108692-03 108692-03 Remote Cover Plate 1

____

Thermostat-Controlled

LGX3924NT, LGX3924PT

Rear Plate, NG 1

Plate Screw, NG 1

PARTS LIST

37 37

100563-01 100563-01 Warning Plate 1 101054-05 101054-05 Lighting Instructions Plate 1 100639-03 100639-03 Caution Decal 1 104310-13 104310-13 Information Video 1 GA6060 GA6060 Lava Rock 1 100565-01 100565-01 Cable with Cable Connector 1

For more information, visit www.desatech.com

108114

PARTS AVAILABLE — NOT SHOWN

REPLACEMENT PARTS

38

ACCESSORIES

REPLACEMENT PARTS

Note:

Use only original replacement parts. This will protect your

warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA International’s Technical Service Department at 1-800-323-5190.

When calling DESA International, have ready

• your name

• your address

• model and serial numbers of your heater

• how heater was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date

Usually, we will ask you to return the part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA International at 1-800-458-2472 for referral information.

When calling DESA International, have ready

• model number of your heater

• the replacement part number

ACCESSORIES

Purchase these heater accessories from your local dealer. If they can not supply these accessories, call DESA International at 1-800-458-2472 for referral information. You can also write to the address listed on the back page of this manual.

W

A

RM

E

R

C

OO

TEM

LE

P

R

AU

TO

O

N

O

FF

RECEIVER AND HAND-HELD THERMOSTAT REMOTE CONTROL KIT - GHRCTA

For all Remote-Ready Models.

Allows the gas log heater to be operated in a manually or ther-

RECEIVER AND HAND-HELD REMOTE CONTROL KIT - GHRC

For all Remote-Ready Models.

Allows the gas log heater to be turned on and off by using a hand-held remote control.

mostatically controlled mode. You can turn the gas log heater on and off without ever leaving the comfort of your easy chair.

WALL-MOUNT THERMOSTAT SWITCH GWMT1

(Not Shown)

For all Remote-Ready Models. The desired comfort setting can be selected on the wall thermostat and the log heater will automatically cycle from pilot to the heat setting selected.

WALL-MOUNT ON/OFF SWITCH - GWMS2

(Not Shown)

For all Remote-Ready Models. Allows the gas log heater to be turned on and off with a wall switch.

EQUIPMENT SHUTOFF VALVE - GA5010

For all models. Equipment shutoff valve with 1/8" NPT tap. Fits 1/2" NPT pipe.

FIREPLACE HOOD

Black - GA6050 Brass - GA6052 Antique Brass - GA6053

For all models. Helps deflect heat away from mantel or wall above fireplace. Fits openings 28" to 48" wide.

For more information, visit www.desatech.com

DAMPER CLAMP - GA6080

(Not Shown)

For Remote-Ready Models. Permanently opens chimney flue damper for vented operation.

LAVA ROCK - GA6060

(Not Shown)

For all models. Order when additional rock is desired. (3 lb. bag)

CLEANING KIT - CCK/GCK

(Not Shown)

For all models. Your vent-free gas appliance requires regular cleaning and maintenance to prevent performance problems. This kit gives you the tools and instructions to make it easy to clean all critical areas of your appliance.

108114

OWNER'S REGISTRATION FORM

In order to provide better customer service for this and future purchases, we recommend that you register your product with us. You can register online at www.desatech.com. If access to our website is not available to you, please complete this Owner’s Registration Form and mail to the address on the back of this owner’s manual. Please provide the following product information:

Brand:

Model:

Date Purchased:

Serial Number:

First Name: Last Name:

Address:

City: State: Zip: Country:

Home Phone: ( ) -

E-Mail:

Please answer the following questions to register your product with DESA International:

1. Where will the product be used?

❍ Living/Family Room ❍ Office/Warehouse ❍ Utility Shed/Outbuilding ❍ Garage ❍ Bedroom ❍ Bathroom ❍ Other

2. If you bought this product yourself, did you plan to purchase this type of product before going into the store? ❍ Yes ❍ No

3. Who selected the product? ❍ Male ❍ Female ❍ Both

4. What is the population of your area? ❍ Under 10,000 ❍ 10,000 to 25,000 ❍ 25,000 to 50,000 ❍ 50,000 to 100,000

❍ 100,000 to 250,000 ❍ Over 250,000

5. What is your primary source of heat? ❍ Propane (LP Gas) ❍ Fuel Oil ❍ Wood ❍ Natural Gas ❍ Electric ❍ Other

6. How was the product installed? ❍ Professional Installer ❍ Self ❍ Other

7. Cost of product excluding sales tax? $___________________

8. Cost to install product? $____________________

9. Type of store where product was purchased? ❍ Hardware ❍ Propane Dealer ❍ Natural Gas/Utility Co. ❍ Home Center/Builder’s Supply

❍ Fireplace or Hearth Shop ❍ Farm Store ❍ Other

10. What motivated you to buy this product? ❍ Sudden Cold Weather ❍ Replace Older Model ❍ D.I.Y. Home Project

❍ Emergency Back-Up Heat ❍ Heater was on Sale ❍ Energy Savings/High Efficiency ❍ Construction Project ❍ Other

11. How did you learn about this product brand? ❍ Advertising ❍ Relative or Friend ❍ Store Display ❍ Other ________________________

12. Level of Education of Purchaser: ❍ Some High School ❍ Completed High School ❍ Completed College ❍ Completed Graduate School

13. Age of Purchaser: ❍ Under 20 ❍ 20 - 29 ❍ 30 - 39 ❍ 40 - 49 ❍ 50 - 59 ❍ 60 or Over

14. Buyer’s total annual household income: ❍ Under $15,000 ❍ $15,000 to $19,999 ❍ $20,000 to $34,999 ❍ $35,000 to $49,999

❍ $50,000 to $74,999 ❍ $75,000 to $99,999 ❍ $100,000 and Over

15. Store where product was purchased:

Name: ______________________________________

City: _______________________ State: __________

16. In choosing this product, how important were the following:

Availability Price Brand Name Overall Quality Heat Output Made in USA Warranty Local Service Value for Price Prior Brand Experience Controls Location Thermostat, Remote, or Manual Operation Ease of Operation Special Features Salesperson’s Recommendation Friend/Relative’s Recommendation Portability Quiet Operation

108114

For more information, visit www.desatech.com

Not Important Somewhat Important Very Important

(Comfort Glow, Vanguard, etc.)

(EFP33PR, VTGH33NR, etc.)

Note:

Keep receipt for warranty verification.

7 or 9 digit number located on product or identification tag.

❍

39 39

40

INTERNATIONAL

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

Postage

Required

For more information, visit www.desatech.com

108114

NOTES

_______________________________________________________________________________________________

41 41

_______________________________________________________________________________________________

For more information, visit www.desatech.com

108114

INTERNATIONAL

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

108114 01

NOT A UPC

108114-01 Rev. C 07/01

Desa VGX24NR, VGX30PR, VGX24PR, VGX30NR, VGX24NT Owner's Operation And Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
