BLUE FLAME VENT -FREE NA TURAL GAS HEA TER
OWNER’S OPERATION AND INSTALLATION MANUAL
CGN20T
CGN20TL
CGN30T
CGN30TL
Heater Sizes: 20,000 Btu/Hr Thermostat and
30,000 Btu/Hr Thermostat Model Heaters
®
WARNING: If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal
injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by
a qualified installer, service agency, or the
gas supplier.
WARNING: This is an
unvented gas-fired heater.
It uses air (oxygen) from
the room in which it is
installed. Provisions for
adequate combustion
must be provided. Refer to
page 5 of this manual
This appliance may be installed in an aftermarket*
manufactured (mobile) home,
where not prohibited by state
or local codes.
* Aftermarket: Completion of sale,
not for purpose of resale, from the
manufacturer
This appliance is only for use
with the type of gas indicated
on the rating plate. This appliance is not convertible for
use with other gases.
Save this manual for future reference.
CONTENTS
SECTION PAGE
Safety Information.......................................................................................2
Product Identification ..................................................................................4
Local Codes ................................................................................................. 4
Unpacking.................................................................................................... 4
Product Features ..........................................................................................4
Fresh Air For Combustion And Ventilation ................................................ 5

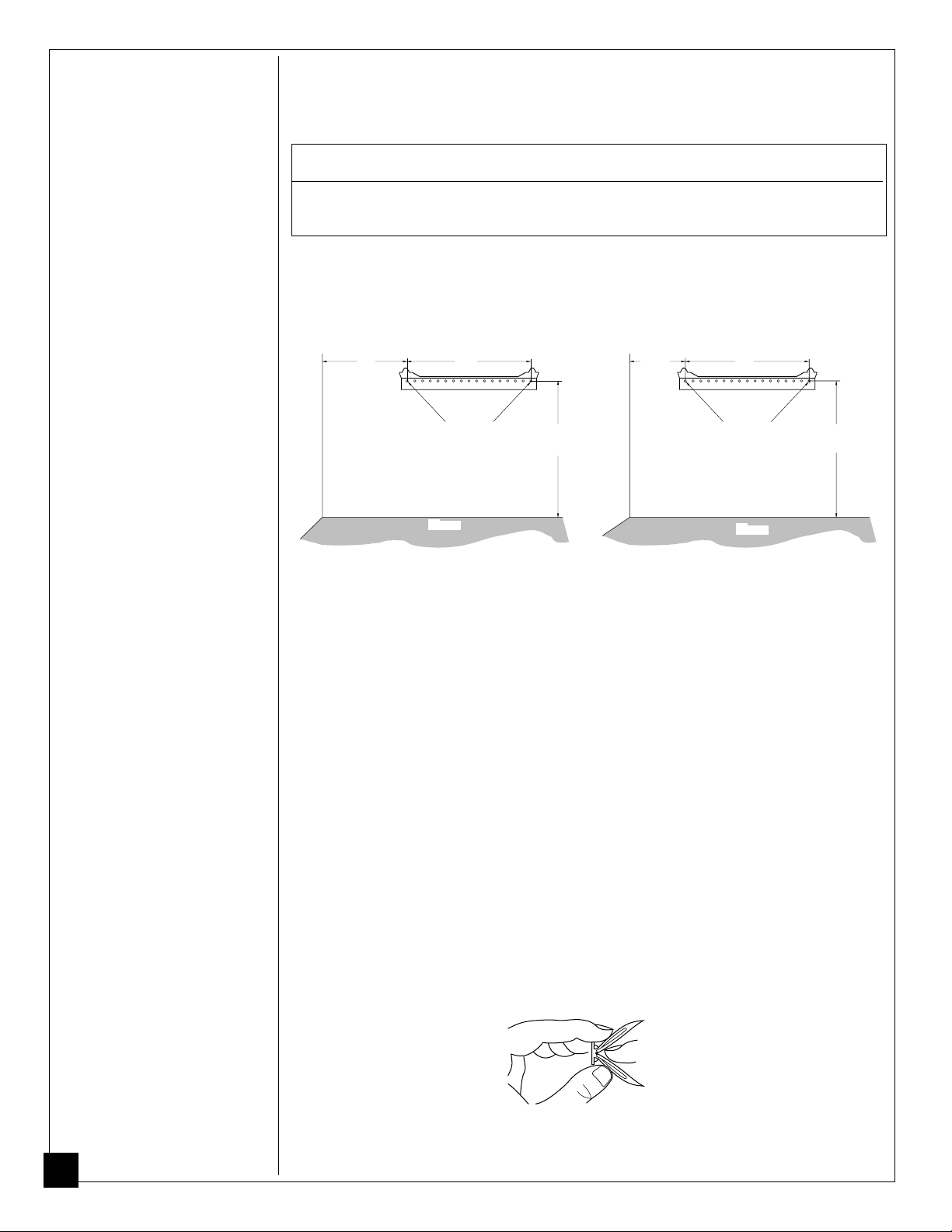

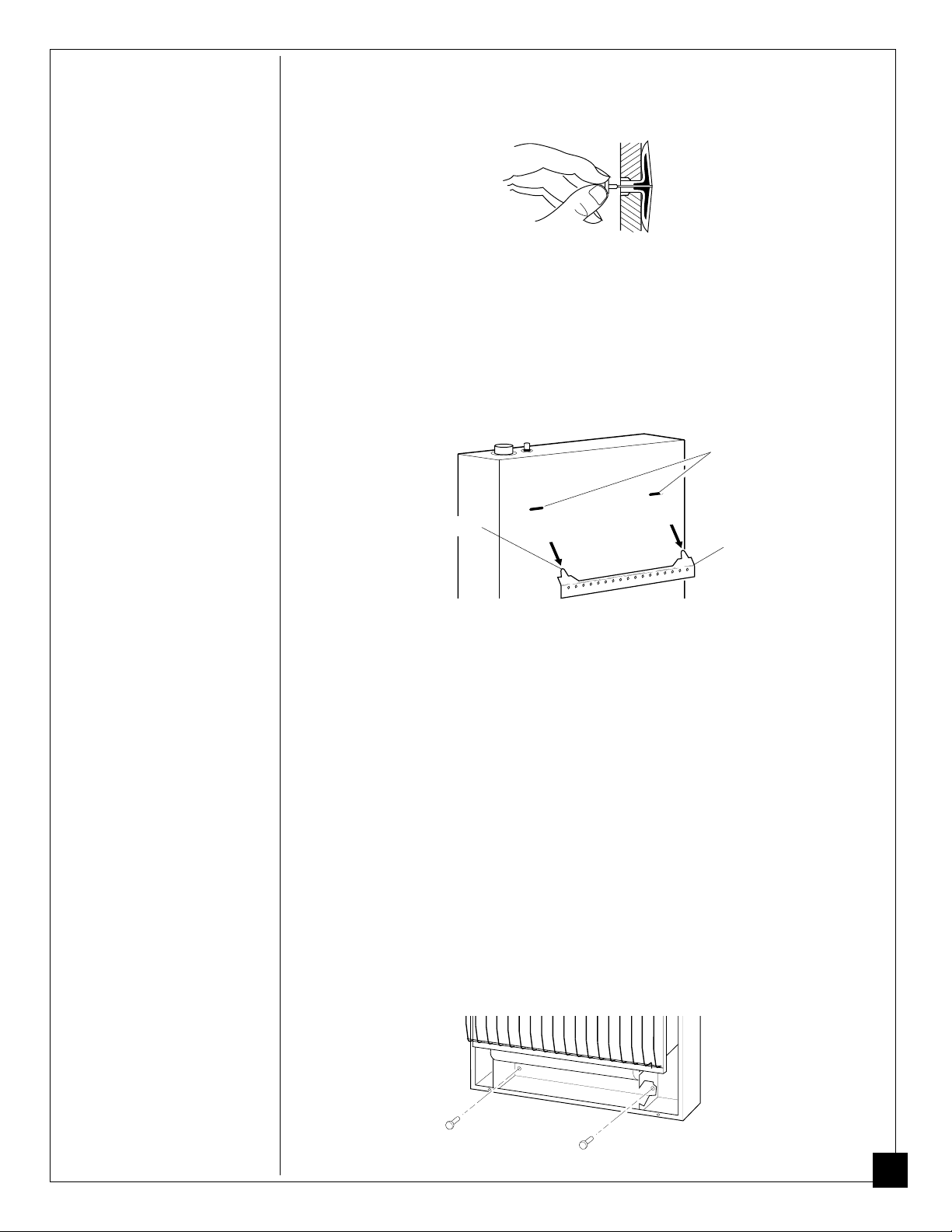

Installing To Wall........................................................................................9

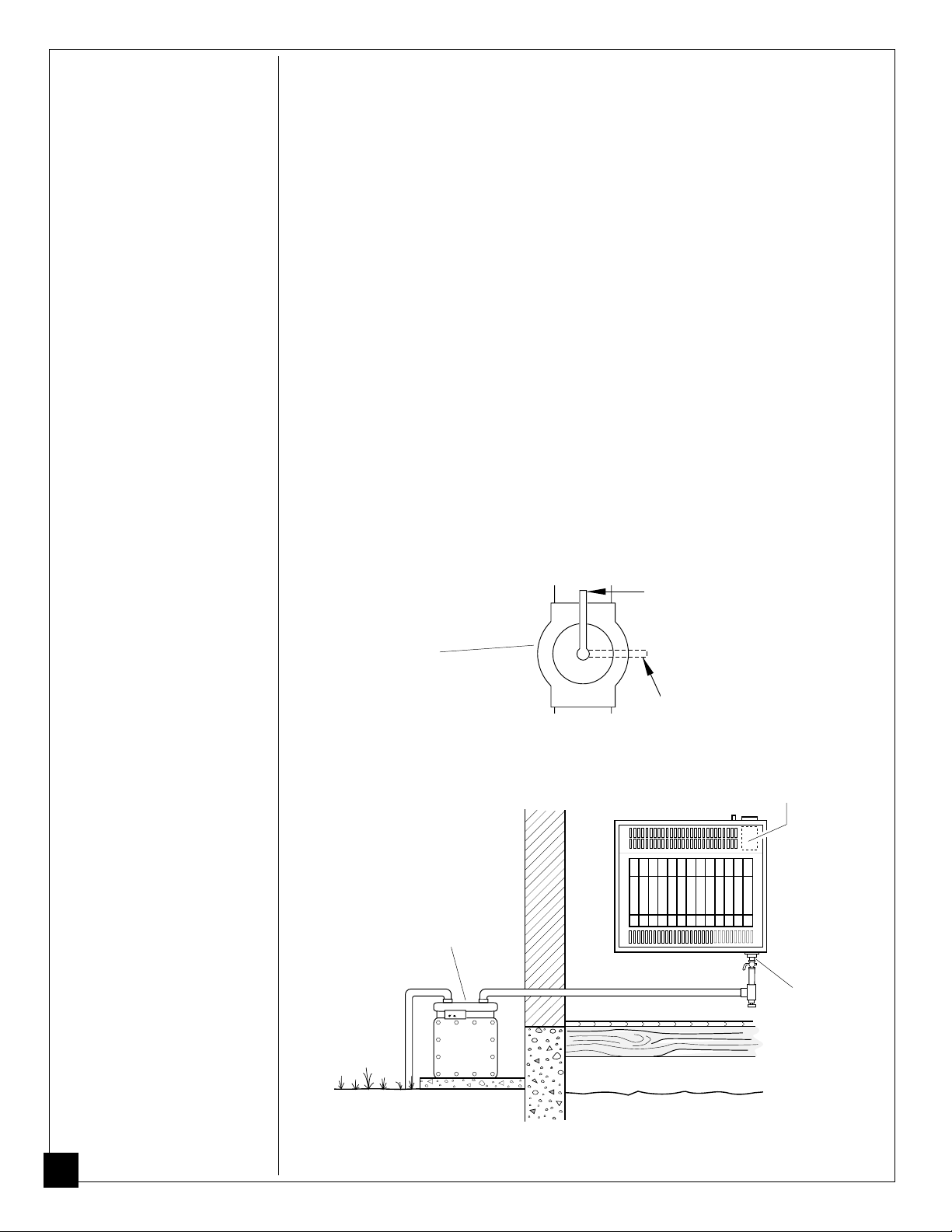

Connecting To Gas Supply..........................................................................14
Checking Gas Connections.......................................................................... 15
Operating Heater .........................................................................................17
Inspecting Burner ........................................................................................20
Cleaning And Maintenance .........................................................................22
Troubleshooting...........................................................................................22
Technical Service ........................................................................................ 26
Specifications ..............................................................................................26
Service Hints ...............................................................................................26
Service Publications ....................................................................................26
Replacement Parts ....................................................................................... 27
Parts Centrals...............................................................................................27

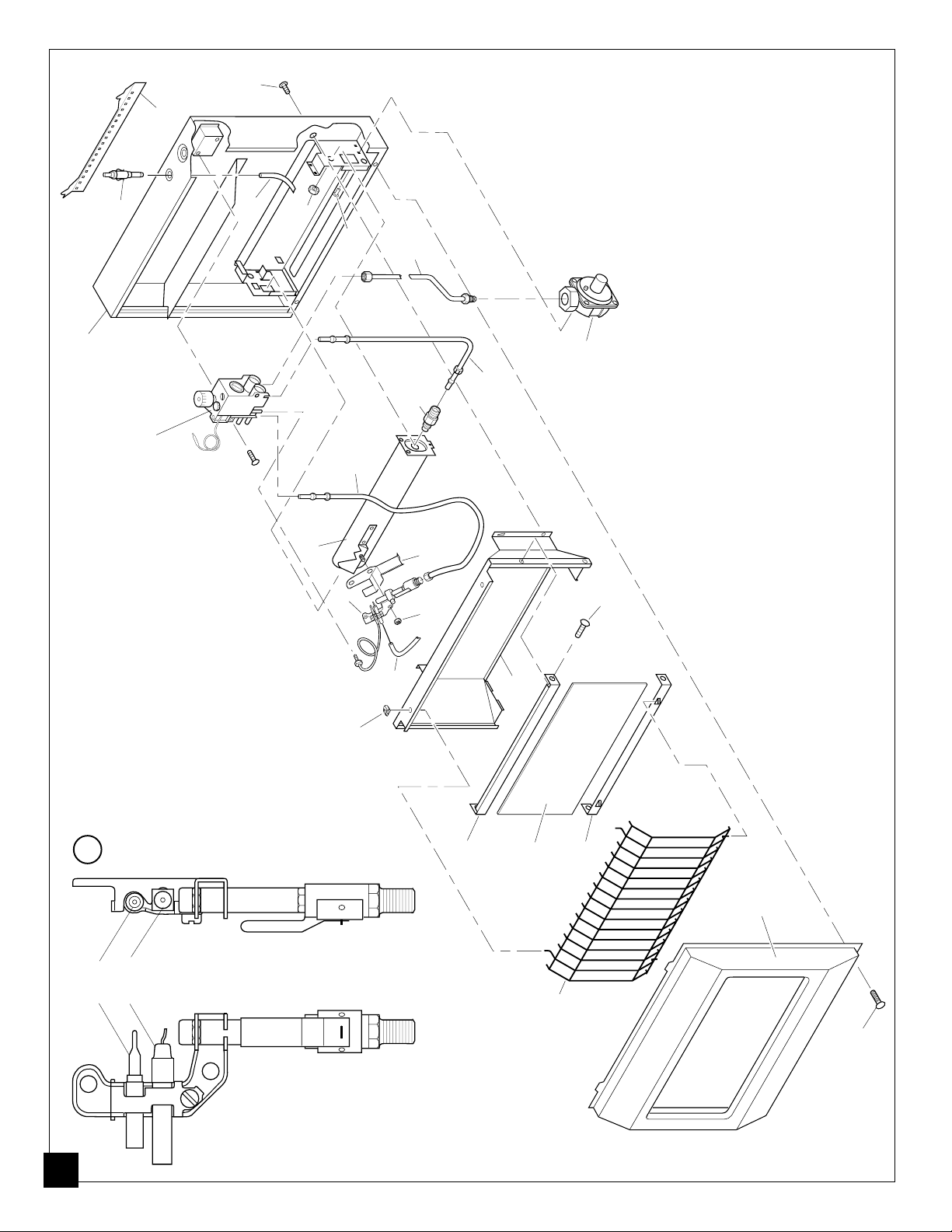

Illustrated Parts List.....................................................................................28-29
Accessories ..................................................................................................30
Warranty Information .................................................................................. Back Cover
