Denver WCM-5003 User Guide

GPRS/MMS/SMS Digital

Infrared Trail Camera

User’s Manual

WCM-5003

Table of Contents

1. Instructions ........................................................................................................... 1

1.1 General Description .............................................................................................. 1

1.2 Camera Body Interface ......................................................................................... 1

1.3 Camera components and features ........................................................................ 1

1.4 Remote Control ..................................................................................................... 1

1.5 Shooting Information Display ............................................................................... 2

1.6 Brief Introduction for SIM card and Signal ........................................................... 2

1.7 Supported Format ................................................................................................. 2

2. Easy Operation ...................................................................................................... 2

2.1 Power Supply ........................................................................................................ 2

2.2 Insert the MICROSD-card and the SIM-card ......................................................... 3

2.3 Enter into the TEST Mode ..................................................................................... 3

2.3.1 User Settings ......................................................................................................... 3

2.3.2 Manual Capturing ................................................................................................. 3

2.3.3 View Images or Videos ......................................................................................... 3

2.4 Power on and Enter into the ON Mode ................................................................ 4

2.5 Power Off .............................................................................................................. 4

3. Advanced Operations ............................................................................................ 4

3.1 Settings Menu ....................................................................................................... 4

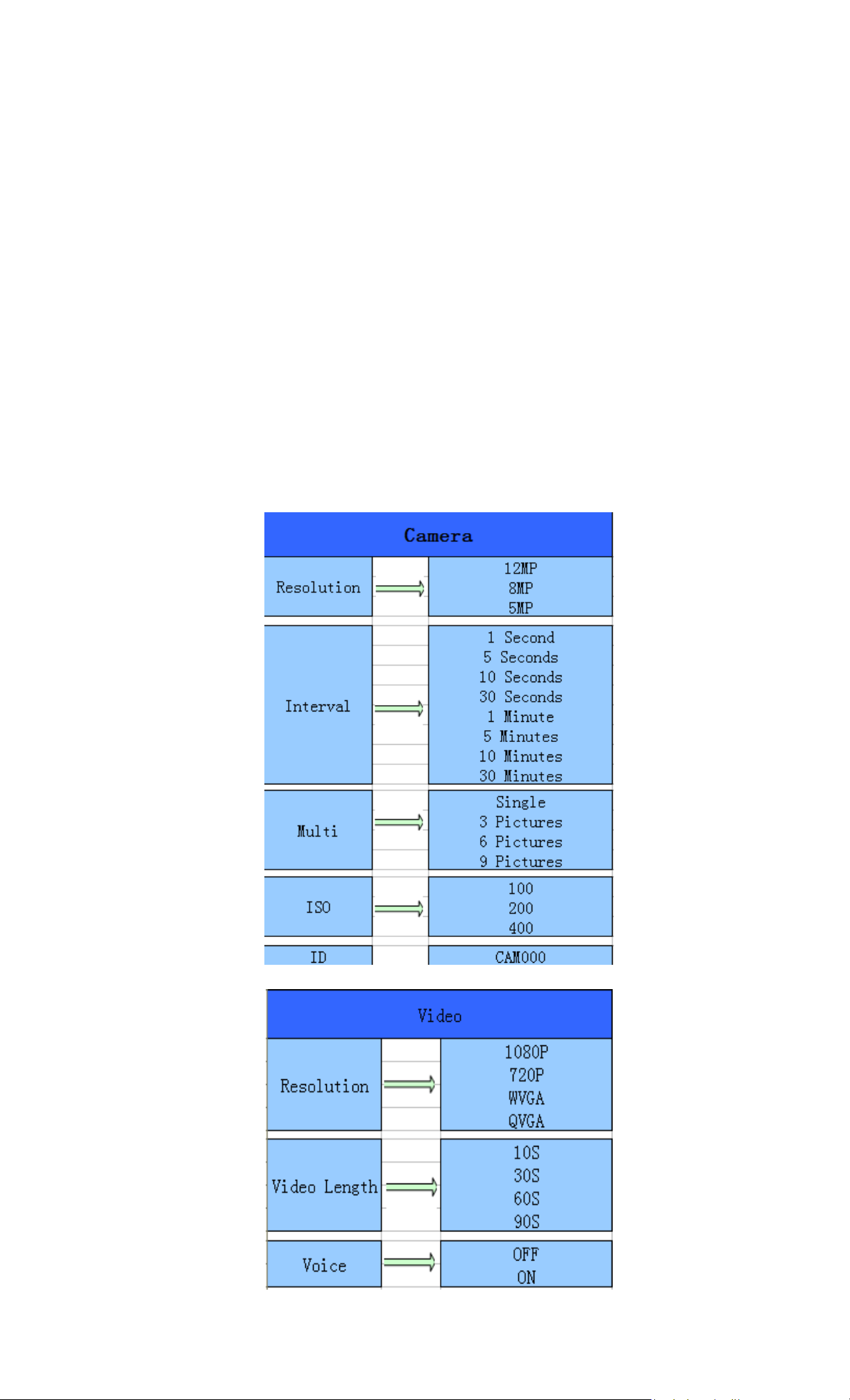

3.1.1 Photo Setting ........................................................................................................ 4

3.1.2 Video Setting ........................................................................................................ 4

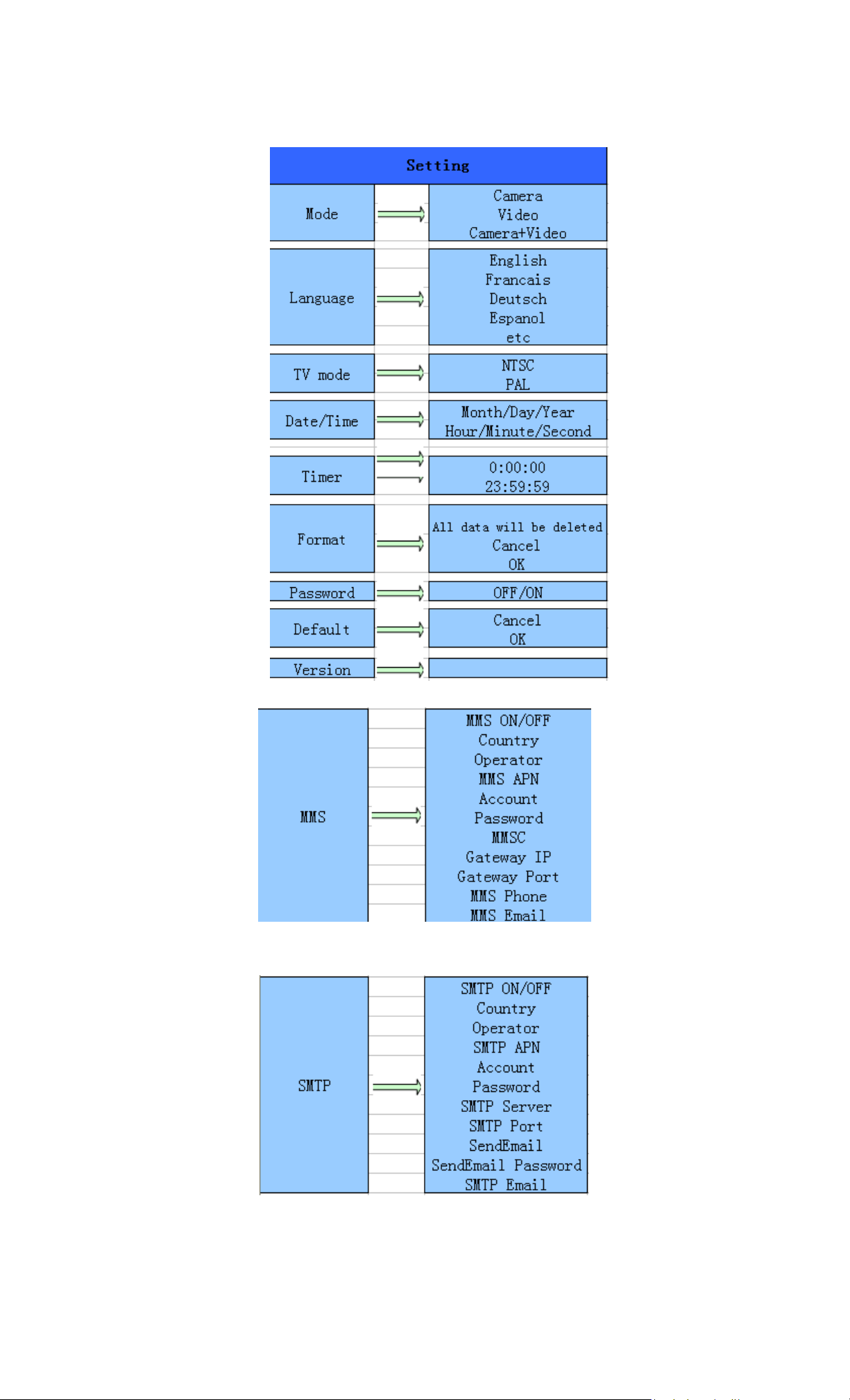

3.1.3 System Setting....................................................................................................... 5

3.1.4 MMS Menu Setting ............................................................................................... 5

3.1.5 SMTP Menu Setting .............................................................................................. 5

3.2 MMS/SMTP Settings ............................................................................................. 6

3.2.1 Preparation ........................................................................................................... 6

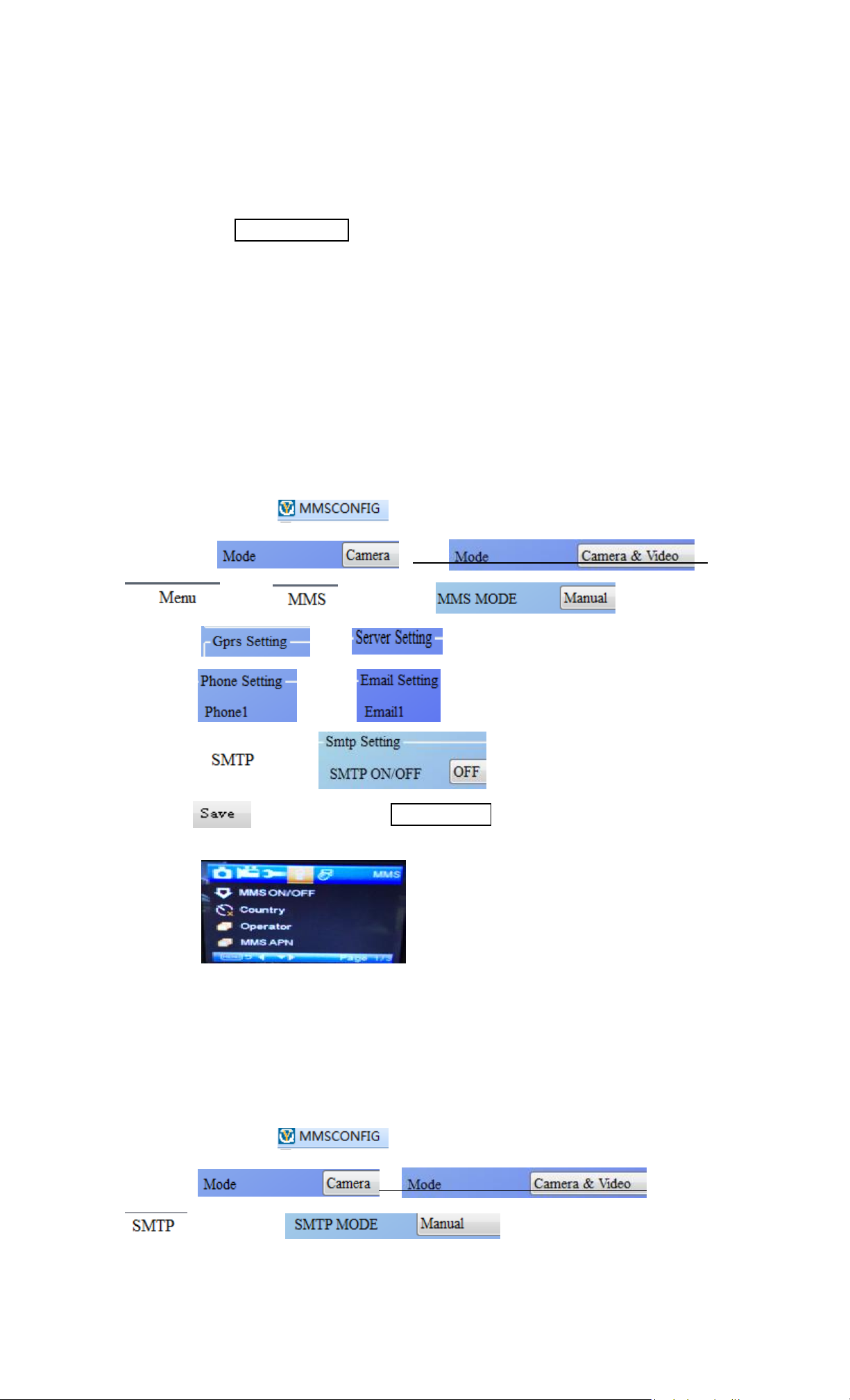

3.2.2 MMS setting: ......................................................................................................... 6

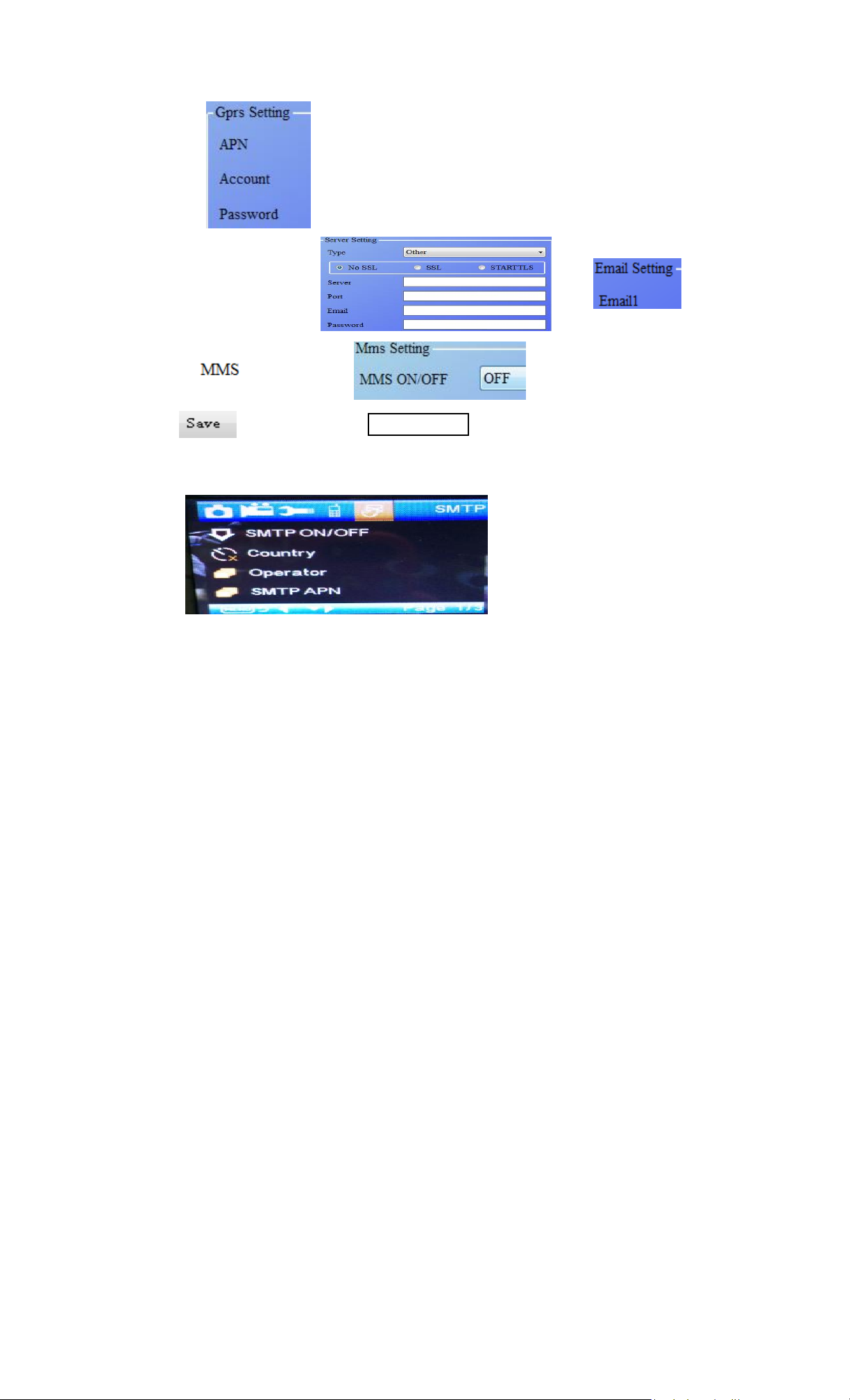

3.2.3 SMTP setting ......................................................................................................... 6

3.3 SMS Command Code ............................................................................................ 7

4. Cautions ................................................................................................................ 8

AppendixⅠ: Technical Specifications ................................................................................. 9

AppendixⅡ: Parts List ......................................................................................................... 9

1. Instructions

1.1 General Description

This digital trail camera with MMS function can work automatically day and night. It can be triggered by any movement of human (or animals) in a certain region monitored by motion sensor, and then automatically captures pictures (up to 12M pixels) or records 1080p or HD video clips (WVGA or QVGA). During daytime it begins to take color photos and video till light is not enough, then it begins to take monochrome photos and video. It supports 2G/GSM/MMS/SMTP/SMS. And it is waterproof IP54.

1.2 Camera Body Interface

It has the following interfaces: USB connector, MICROSD-Card Slot, SIM card slot, TV output and external DC power connector.

1.3 Camera components and features

1) Bottom Cover

2) MicroSD-Card Slot

3) USB Connector

4) TV Out connector

5) PIR

6) Infrared Flash

7) Lens

9) 2 inch color LCD Display

10) Sound recorder

11) SIM card slot

12) Lock

13) Power witch

14) Battery Depot

15) Portable remote controller

8) GSM Antenna

1.4 Remote Control

The remote control is primarily used for menu settings and password input. This is wireless remote control. The maximum remote distance is 9 meters.

Press LEFT or RIGHT to select menu table, press UP or DOWN to select the sub-menu then press OK to finish

Press the punctuation “*” for laser pointer.

Select Item (UP)

Display Menu

Select Option

Select Item (DOWN)

Selection

Select Option

1.5 Shooting Information Display

When power switch is turn to TEST position, the shooting information will be displayed in the monitor.

3. Image Size

4. Signal Strength

2. Camera Mode

1. SD Card

5. Battery Level

6. SIM Card

7. Date (M:D:Y)

8. Time (H:M:S)

9. Available Picture space

1.6 Brief Introduction for SIM card and Signal

There are two SIM card icons. It means the SIM card is inserted and it can work well.

It means the network signal in your local place is very good.

1.7 Supported Format

Item Format

Photo JPG

Video AVI

2. Easy Operation

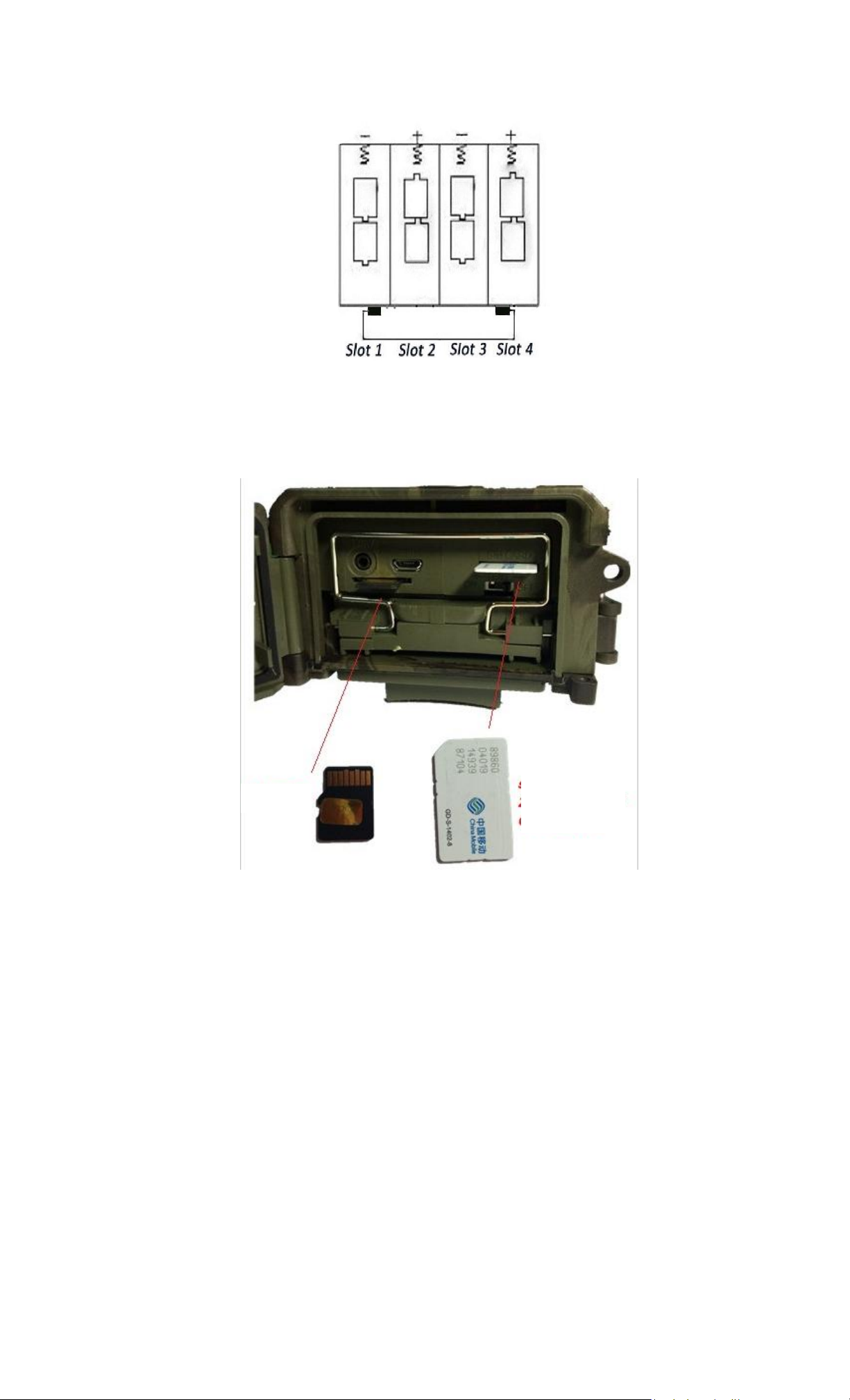

2.1 Power Supply

To s up pl y po we r for t he c am er a, 4 o r 8 AA b at te r ie s a re n e ed ed . The following batteries with 1.5V output can be used:

1. High-density and high-performance alkaline batteries (Recommended)

2. Rechargeable alkaline batteries

3. Rechargeable NiMH batteries

When in Test Mode, camera will be automatically shut down to save power if without any operation within 3 minutes; it could be waked up by any movement detection. When in low power state, camera will also automatically shut down. Please change the batteries in time.
