ACV-8305W Quick start guide
Overview
DENVER 360°Camera is a digital panoramic camera with two lenses. Through
the application of up-to-date technologies, it enables you to get panoramic
videos and photos,creating an experience of brand new panoramic world.
Important
Before using this product, please carefully read this Manual
Prepare one 32G (Class 6~Class 10) Micro SD card
Check the camera power. A full charging is recommended before use
(Until the charging indicator goes out)
Search for “Denver 360°action camera” on Apple Store and Google
Playstore, and then download and install it
About Camera
1. LCD display
2. Power button/Mode button
3. WIFI indicator (red)
4. Power indicator（red）/Charging indicator (blue)
5. Wifi button/MENU button
6. Busy indicator (red)
ENG 1
ACV-8305W Quick start guide
7. Shutter button/OK button
8. Lens×2
9. Triangle nut
10. Interface cover (USB/Micro SD)
11. Speaker
12. Microphone
13. Rope hole
14. Reset hole
ENG 2
ACV-8305W Quick start guide
Quick start guide
1. Install SD card:
Insert the Micro SD card you prepare into the slot as
indicated, as shown on the right.
Important:
A high-speed Micro SD card between Class 6~Class 10 is a must; or else,
this product may not work normally.
Always turn off the camera before inserting or pulling out of the card.
2. Power-on/off
Power-on: Press and hold Power button for about 2 seconds and release, until it
beeps. The display screen will be lighted, as shown below, indicating the product
is ready to work (the default work mode after power-on is video mode).
ENG 3
ACV-8305W Quick start guide
Important:
If power-on fails, charge the camera first, and see whether the blue
indicator lights up during charging. If yes, it indicates the product is being
charged.
Power-off: After video stops, press and hold Power button for about 3 seconds
and release. The Display will display “GOODBYE” and turns off. No operation on
mainframe for 3 minutes under Power-save mode (default), the camera will
automatically power off.
ENG 4
ACV-8305W Quick start guide
3. Charging
Use data cable included in the product pack for camera charging. During
charging, the indicator displays in blue and lights constantly; when charging
completed, the blue indicator goes out.
Important:
If other charger is used, check the output power before use to ensure it
within 5V/0.5A ~ 5V/2.0A.
4. Video or photo
This camera has Video mode and photo mode. After power-on, press MODE
(Power button) to switch between different modes, and the corresponding mode
icon will be displayed on the screen.
Video: In Video mode, press Shutter button, and the camera get started to work.
The display screen displays the video timing.
ENG 5
ACV-8305W Quick start guide
( With maximum 2GB video recording and then stop.Must be
started manually on the camera again.)
Stop video : During video , press Shutter button to stop it. The video will
automatically be saved on your camera storage card. At that moment, the
display screen will show remaining time available for video as below:
photo : In photo mode, press photo button to take photos. After photo , the
display screen will display the number (estimated value) of pictures the available
space on your camera storage card can save.
5. Menu setting
To operate Menu, press and hold WIFI button for about 2 seconds to enter menu
ENG 6
ACV-8305W Quick start guide
setting (as shown below):
Menu operation:
In Menu mode, press WIFI button to move cursor. Press Shutter button to
confirm. Press and hold WIFI button to back to previous menu or exit Menu
mode.
Explanation of menu functions:
Power Save: Set Power-save mode. You may set the camera to enter
Power-save mode after a certain period of time. The available options are
1min/3min/5min or Power-save mode off.
Date & Time: Set system time for the camera manually.
Language: Set system language for the camera, with English as its default
language.
Factory Reset: Restore factory default settings.
System: Check system and storage card information.
Format: Format storage card.
ENG 7
ACV-8305W Quick start guide
Important:
After formatting, all existing data on the storage card will be lost due to such
formatting. Please be cautious to this operation!
6. How to use accessories properly
It is strongly recommended to use the accessories originally provided by the
manufacturer. It helps create a better product use experience and better photo
/video effect.
Tripod: Screw the tripod nut attached into the screw hole on the bottom of the
camera. It serves both as a hand-held or fixed device.
Fix to use tripod Hold to use tripod
ENG 8
ACV-8305W Quick start guide
Play panoramic video or picture
Note: The videos or pictures may be played in right panoramic effect only on
smart mobile phone, panel computer or PC procedures.
1. Use mobile phone or panel computer to play
Follow these steps to play panoramic videos or pictures on mobile phone or
tablet.
Download APP:
Search for “Denver 360°action camera” on
App Store or Google Playstore to download and
install the product APP.
Connect mobile phone and camera: Connect mobile phone and camera
through WIFI connection
ENG 9
ACV-8305W Quick start guide
i. Turn on camera WIFI: Press camera WIFI button, and the display screen
will display “WI-FI ON”, and then “ACV8305_XXXX”, and initial password is
“1234567890”.
ii. Turn on mobile phone WIFI, search for AP hot
“ACV8305_XXXX” and select Connect.
iii. If connected, the camera display screen will display as below picture.
Activate APP: Activate “Denver 360°action camera” APP on mobile phone or
ENG 10
ACV-8305W Quick start guide
tablet, and click the upper right corner to “Search for Camera”.
Download: Enter camera folder, select the file to be downloaded and click to
download.
Play: Select the file on mobile phone and click to play.
ENG 11
ACV-8305W Quick start guide
Important
It is recommended to follow the above steps in order to achieve the best HD
video or picture playing effect.
Before connection, remember to make sure the SD card properly inserted into
camera.
After connection, it will not affect 4G communication function of mobile phone or
tablet .
Share：
Videos can be merged and shared after downloading from camera to mobile
device, such as smart phone, tablet and etc.
ENG 12
ACV-8305W Quick start guide

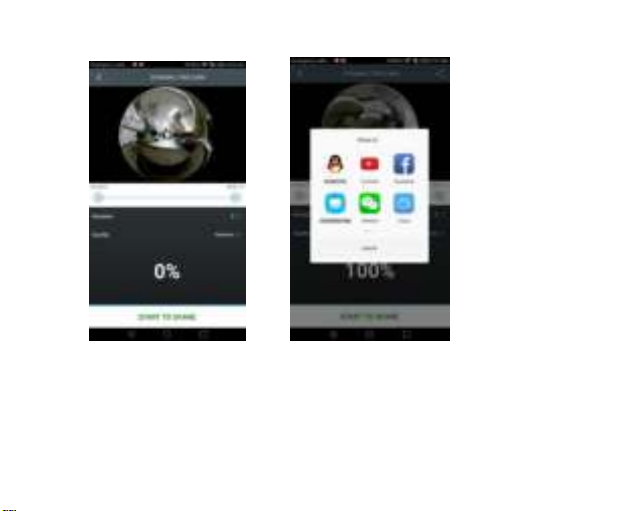

Click “START TO SHARE”, videos shall start to merge together, after merging,
videos can be shared via Youtube, Facebook, Wechat, QQ and etc. The sharing
videos can be searched on its relevant websites or webpages.
Notice: The merged video file is in .mp4 format.
ENG 13
ACV-8305W Quick start guide
Effect of panoramic playing
The following effects are available if played on APP player
Tiny planet mode
ENG 14
Fisheye mode
Plane mode
VR mode
ACV-8305W Quick start guide
ENG 15
ACV-8305W Quick start guide
2. Use PC or notebook to play
You may use your PC to acquire a better playing experience, or edit/share videos.
It can be completed by following the steps as shown below:
Download and install player: Open PC filemanager and install the Player in
the CD ROM, or just go
visit http://www.denver-electronics.com/pc-software-for-denver-acv-83
05w/ to download and install Denver 360°action camera Player.
Remind: If dialog box as below image appears during the installation process,
please choose YES and continue the installation.
Download video or picture onto PC:
ENG 16
ACV-8305W Quick start guide
Use the USB data cable attached to this product to connect the camera
and PC. After connection, the camera display screen will display “MSDC”.
Open “My computer” to select “VIDEO” OR “JPG” folder under
“Removable disks”. Select file to be downloaded and download it into
location specified on PC.
ENG 17
ACV-8305W Quick start guide
Run player: Open the video or picture downloaded and stored on PC in the
player.
Playback video with player
Clip the icon
, choose the video which you want to play.
ENG 18
ACV-8305W Quick start guide

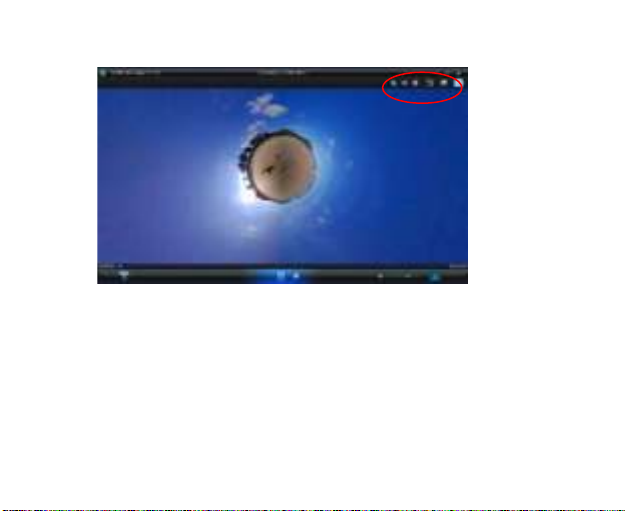

When playing the video, move the mouse to top right cone, it will show some
different mode(Plane/Planet/Invert). Clip it and will show different effects. Please
clip and move the mouse, you could enjoy the video with full angle 360 degree.
ENG 19
ACV-8305W Quick start guide

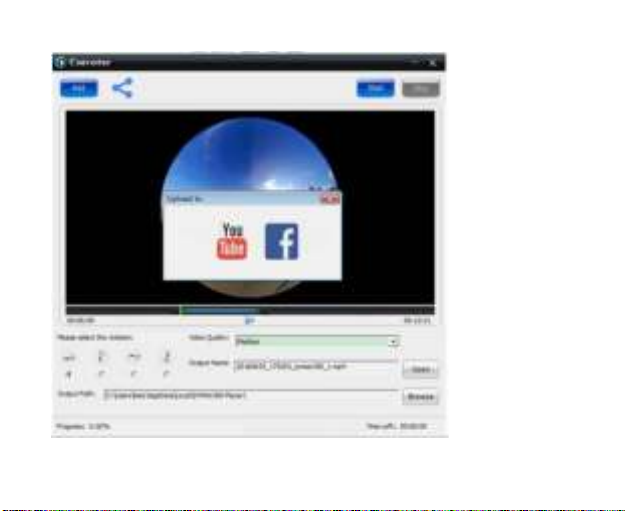

Edit and share video:
The video and photo which are recorded by this device could be edited and
shared, as above picture, it could be shared to YouTube, Facebook and some
other popular social website.
ENG 20
ACV-8305W Quick start guide
ENG 21
ACV-8305W Quick start guide
Image sensor
4.0M (CMOS)×2
Functional mode
Video & photo
Lens
F2.0 f=1.1mm
Video resolution
1920*960 (30fps)
Picture resolution
3008*1504
File format
Video H.264 (MOV)
Image JPG
Storage medium
MICRO SD card (supportive 32GB at most)
USB interface
High-speed USB2.0 interface
Power supply
Built-in high voltage lithium battery 1500mAh
Size
60.4*49.8*47.8mm
Important:
On current video websites, the videos uploaded by users have been compressed
automatically. This may lead to different video play effects between website and
local videos.
Technological parameters:
Instructions for use
ENG 22
ACV-8305W Quick start guide
The product is equipped with a built-in battery. Do not put it directly into fire,
or it may cause explosion or other dangers.
The product may radiate heat due to long-time use or exposure to direct
sunlight. This is normal.
If the camera stops working or fails to respond to any operation during use,
use a needle to press and hold Reset button for about 3 seconds to restart
the product.
Do not use the camera under any environment with temperature lower
than 0℃ or higher than 40℃; or else it may not turn on normally.
Do not use the camera in humid place, for the humidity may damage
important parts of the camera.
Do not put the camera directly into water.
Do not use the camera during charging, for it may cause system halt or
other failure due to improper heat radiation.
Do not contact the lens with hard articles to avoid any damage.
Thank you again for purchasing this product. Have fun with it!
ENG 23
ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S
ACV-8305W Quick start guide
Electric and electronic equipment and included batteries contains materials,
components and substances that can be hazardous to your health and the
environment, if the waste material (discarded electric and electronic equipment
and batteries) is not handled correctly.
ENG 24
ACV-8305W Quick start guide
Electric and electronic equipment and batteries is marked with the crossed out
trash can symbol, seen below. This symbol signifies that electric and electronic
equipment and batteries should not be disposed of with other household waste,
but should be disposed of separately.
As the end user it is important that you submit your used batteries to the
approriate and designated facility. In this manner you make sure that the
batteries are recycled in accordance with legislature and will not harm the
environment.
All cities have established collection points, where electric and electronic
equipment and batteries can either be submitted free of charge at recycling
stations and other collection sites, or be collected from the households.
Additional information is available at the technical department of your city.
Imported by:
DENVER ELECTRONICS A/S
Omega 5A Soeften
DK-8382 Hinnerup
Denmark
ENG 25
ACV-8305W Quick start guide
www.facebook.com/denverelectronics
Hereby, Inter Sales A/S, declares that this product (ACV-8305W) is in
compliance with the essential requirements and other relevant provisions of
Directive 2014/53/EU. A copy of the Declaration of conformity may be obtained
at:
Inter Sales A/S
Omega 5A Soeften
DK-8382 Hinnerup
Denmark
ENG 26
Loading...
