Page 1

2D Code Handy Terminal

BHT-604Q

User’s Manual

Page 2

BHT-604Q

Preface

Thank you for using the BHT-604Q DENSO WAVE 2D Code Handy Terminal. Please read this manual thoroughly prior to operation to ensure full use of the product’s functionality, and store safely

in a convenient location for quick reference even after reading.

Liability Limitations

 DENSO WAVE INCORPORATED does not assume any product liability (including damages for lost profits,

interruption of operations, or the loss of business-related information) arising out of, or in connection with, the use of, or inability to use the BHT system software or related manuals.

 DENSO WAVE INCORPORATED ("DENSO WAVE") takes reasonable precautions to ensure its products do not

infringe upon any patents or other intellectual property rights of other(s), however, DENSO WAVE cannot be responsible for any patent or other intellectual property right infringement(s) or violation(s) arising from any of the following.

1) The use of DENSO WAVE's products in connection or in combination with other components, products, devices, data processing systems or software not supplied by DENSO WAVE.

2) The use of DENSO WAVE's products in a manner for which they were not intended nor designed.

3) The modification of DENSO WAVE's products by parties other than DENSO WAVE.

 If it is judged by DENSO WAVE INCORPORATED that malfunction of the product is due to the product having

been dropped or subjected to impact, repairs will be made at a reasonable charge even within the warranty period.

Page 3

2D Code Handy Terminal

Customer Registration and Inquiries

Customer Registration

To allow us to provide our customers with comprehensive service and support, we request that all customers complete a Member Registration Form. Registered members will be offered the following privileges.

 The latest upgrade information  Free exhibition and event information for new products  Free Web-information service "QBdirect".

QBdirect Service Contents

Information search service (FAQ) Download service Offers downloads of repair modules for the latest BHT Series systems or

E-mail inquiries Product related queries can be sent in by e-mail.

* Please note that these privileges may be subject to change without prior notice.

− How to Register

Access the URL below and follow the instructions provided.

http://www.qbdirect.net/

Offers detailed information on each product.

software, and sample programs.

Inquiries

− Technical Inquiries (QBdirect)

 BHT product programming method  Product setup method, usage  Other technical questions

Inquires relating to the above can be made at our exclusive Web site for registered users (QBdirect). Access the link below to log on or register.

http://www.qbdirect.net/

Page 4

BHT-604Q

About this Manual

 Due to improvements and so on, the content of this manual may be subject to change without prior notice.  The reproduction or duplication of the whole or part of this manual is strictly prohibited without prior consent.  Every attempt has been made to ensure that the content of this manual is thorough and up to date, however, we

kindly ask that any questionable content, mistakes, or omissions be reported to DENSO WAVE.

 The copyright for this User’s Manual belongs to DENSO WAVE INCORPORATED.

Manual Composition

This manual is made up of the following 9 chapters.

Chapter 1 Outline

Describes the BHT system and provides an overall outline of the BHT.

Chapter 2 BHT Preparation

Describes information required by the user and procedures that must be performed prior to commencing operation.

Chapter 3 Basic Operation

Describes basic operations performed by the operator and how to make basic changes to settings such as the beeper volume.

Chapter 4 System Operation

Describes how to initialize and update the system, start up a user program, and operate System Mode.

Chapter 5 Communication

Describes interfaces and communication specifications.

Chapter 6 Maintenance

Describes battery cartridge replacement and daily procedures for taking care of the BHT.

Chapter 7 Error Messages

Describes causes and countermeasures for error messages expected to occur during basic operation.

Chapter 8 Specifications

Describes specifications for hardware, readable barcodes, and interfaces.

Appendices-1 CU-600 Specifications (Option)

Describes the main specifications for the CU-600 Series (option).

Appendices-2 When File Transfer is Not Possible Using the Transfer Utility

Describes causes and countermeasures when unable to transfer files.

iii

Page 5

Viewing this Manual

− About the Bookmark

The PDF Bookmark function can be used to jump to the Contents page.

<Procedure> (1) Click the “Bookmark” tab. (2) Click (3) Click the item to be read.

to search for the desired item.

(1) Click the “Bookmarks” tab.

(2) Click “+” to search for the desired item.

(3) Click the item to be read.

2D Code Handy Terminal

Page 6

BHT-604Q

− Searching by Word

The PDF search function can be used to jump to the target page by entering words or characters related to the item being searched. (1) Click the Search icon. (Or select “Edit” – “Search”.) (2) Enter the word(s) or character(s) to be searched for. (3) Click [Search].

rch Results Example

<Sea

(1) Click the Search icon.

(2) Enter the search word(s)

or character(s).

(3) Click [Search].

Page 7

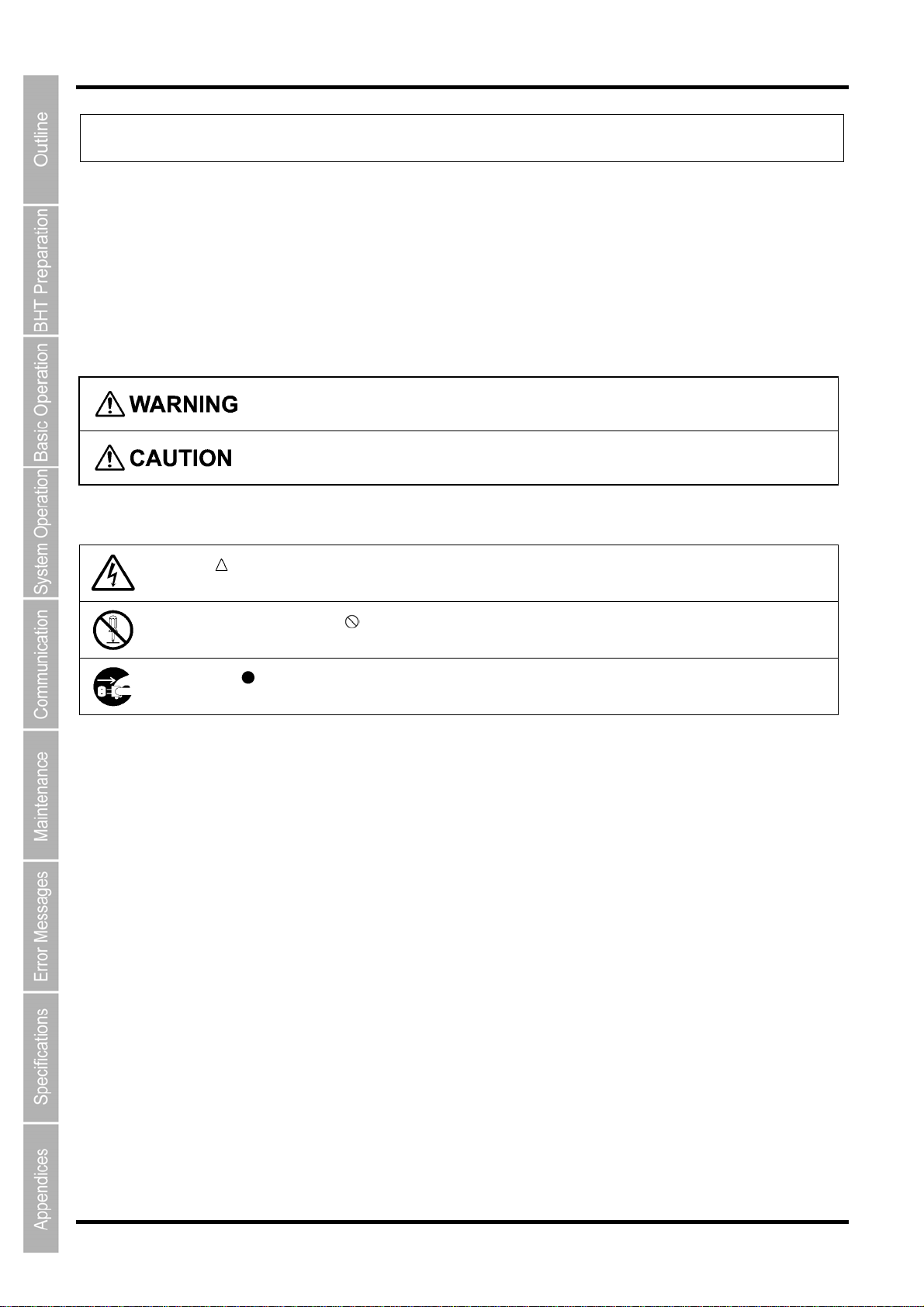

SAFETY PRECAUTIONS

Be sure to observe all these safety precautions.

 Please READ through this manual carefully. It will enable you to use the BHT and CU correctly.  Always keep this manual nearby for speedy reference.

Strict observance of these warnings and cautions is a MUST for preventing accidents that could result in bodily injury and substantial property damage. Make sure you fully understand all definitions of these terms and symbols given below before you proceed to the text itself.

Alerts you to those conditions that could cause serious bodily injury or death if the instructions are not followed correctly.

Alerts you to those conditions that could cause minor bodily injury or substantial property damage if the instructions are not followed correctly.

Meaning of Symbols

A triangle ( ) with a picture ins ide alerts you to a warning of danger. Here you see the warning for electrical shock.

A diagonal line through a circle ( ) warns you of something you should not do; it may or may not have a picture inside. Here you see a screwdriver inside the circle, meaning that you should not disassemble.

A black circle ( MUST unplug the power cord.

) with a picture inside alerts you to something you MUST do. This example shows that you

vii

Page 9

Handling the battery cartridge

 Never disassemble or heat the battery cartridge, nor put it into fire or water; doing so could cause

battery-rupture or leakage of battery fluid, resulting in a fire or bodily injury.

 Do not carry or store the battery cartridge together with metallic ball-point pens, necklaces, coins,

hairpins, etc.

Doing so could short-circuit the terminal pins, causing the batteries to rupture or the battery fluid to leak,

resulting in a fire or bodily injury.

 Never put the battery cartridge into a microwave oven or high-pressure container. Doing so could cause the batteries to break, generate heat, rupture or burn.

 Avoid dropping the battery cartridge or letting it undergo any shock or impact. Doing so could cause the batteries to break, generate heat, rupture or burn.

 Never charge the rechargeable battery cartridge where any inflammable gases may be emitted; do ing

so could cause fire.

2D Code Handy Terminal

 Only use the dedicated charger for charging the rechargeable battery cartridge. Using a different type of charger could cause battery-rupture or leakage of battery fluid and result in a

fire, bodily injury, or serious damage to property.

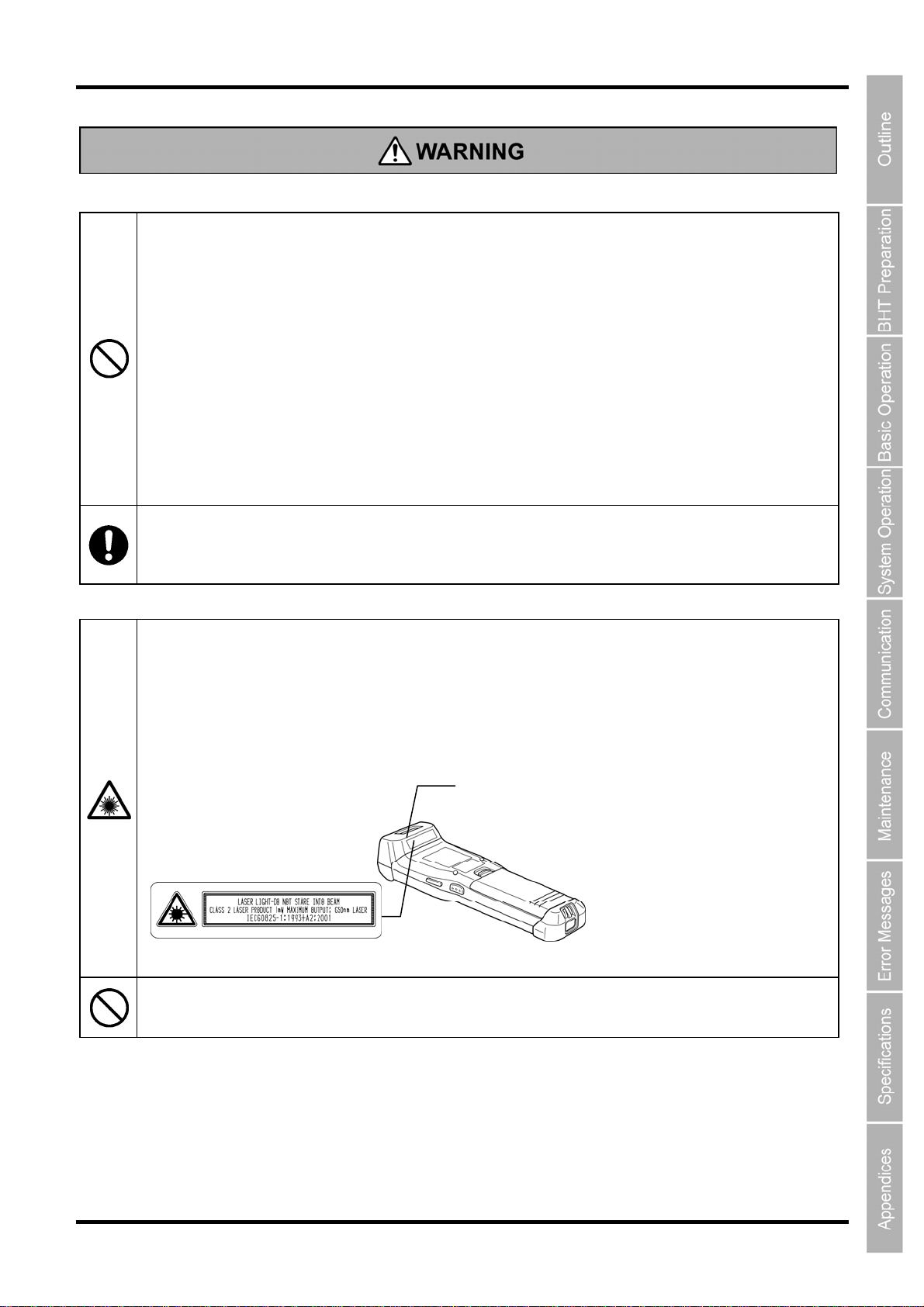

Handling the BHT

 The BHT uses a laser light for indicating the scanning range. Though the intensity of the laser light is

too low to inflict bodily injury. You must observe the following precautions when handling the BHT equipped with laser light:

1) Never stare into the laser light.

2) Never point the code reading window at someone’s eyes.

The BHT complies with IEC 60825-1:1993+A2:2001. In accordance with Clause 5, IEC 60825-1, the following information is provided to the user:

Caution - Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser light exposure.

LASER LIGHT

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

Reading window

(Laser light emission w

indow)

 Never put the BHT into a microwave oven or high-pressure container. Doing so could cause the BHT to break, generate heat, rupture or burn.

viii

Page 10

BHT-604Q

Handling the CU

 If smoke, abnormal odors or noises come from the CU, immediately unplug the AC adapter from the

wall socket or CU and contact your nearest dealer.

Failure to do so could cause fire or electrical shock.  If foreign material or water gets into the CU, immediately unplug the AC adapter from the wall socket or

CU and contact your nearest dealer.

Failure to do so could cause fire or electrical shock.  If you drop the CU so as to damage its housing, immediately unplug the AC adapter from the wall

socket or CU and contact your nearest dealer.

Failure to do so could cause fire or electrical shock.

 Never use the CU for charging anything other than the specified battery cartridges. Doing so could cause heat, battery-rupture, or fire.

 Never bring any metals into contact with the output terminals. Doing so could produce a large current through the CU, resulting in heat or fire, as well as damage to

the CU.

 Never use the CU on the line voltage other than the specified level. Doing so could cause the CU to break or burn.

 Use the dedicated AC adapter only. Failure to do so could result in fire.

 If the power cord of the AC adapter is damaged (e.g., exposed or broken lead wires), stop using it and

contact your nearest dealer.

Failure to do so could result in a fire or electrical shock.

Page 11

To System Designers:

 When introducing BHTs in those systems that could affect human lives (e.g., medicines management

system), develop applications carefully through redundancy and safety design which avoids the feasibility of affecting human lives even if a data error occurs.

Handling the battery cartridge

 Never charge a wet or damp rechargeable battery cartridge. Doing so could cause the batteries to break, generate heat, rupture or burn.

Handling the BHT

 If smoke, abn ormal odors or noises come from the BHT, immediately turn off the power, pull out the

battery cartridge, and contact your nearest dealer.

Failure to do so could cause smoke or fire.  If foreign material or water gets into the BHT, immediately turn off the power, pull out the battery

cartridge, and contact your nearest dealer.

Failure to do so could cause smoke or fire.

2D Code Handy Terminal

Never dis-

assemble

 If you drop the BHT so as to damage its housing, immediately turn off the power, pull out the battery

cartridge, and contact your nearest dealer.

Failure to do so could cause smoke or fire.  Do not use batteries or power sources other than the specified ones; doing so could generate heat or

cause malfunction.

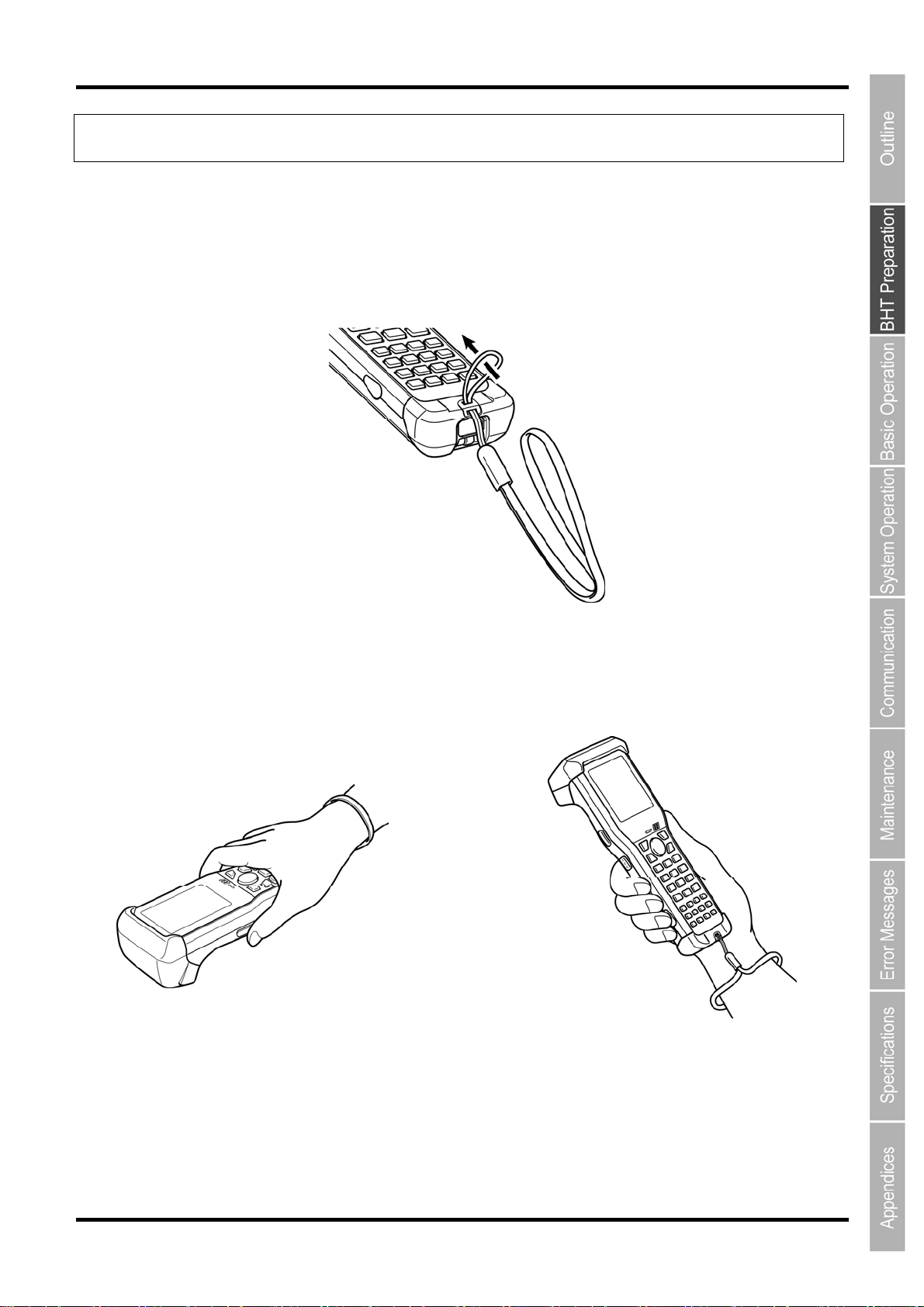

 When using the hand strap or neck strap, exercise due care to avoid getting them caught in other

objects or entangled in rotating machinery. Failure to do so could result in accident or injury.

 Never disassemble or modify the BHT; doing so could result in an accident such as break or fire.

 Never put the BHT in places where there are excessively high temperatures, such as inside closed-up

automobiles, or in places exposed to direct sunlight.

Doing so could affect the housing or parts, resulting in a fire.  Avoid using the BHT in extremely humid or dusty areas, or where there are drastic temperature

changes.

Moisture or dust will get into the BHT, resulting in malfunction, fire or electrical shock.  In environments where static electricity can build into significant charges (e.g., if you wipe off the plastic

plate with a dry cloth), do not operate the BHT. Doing so will result in malfunction or machine failure.

 When connecting or disconnecting the direct-connect interface cable to/from the BHT, do not plug or

unplug it at an angle and do not pull the cable strongly. Doing so will result in a machine failure.

 Do not apply excessive force when inserting or removing the rechargeable battery cartridge. Doing so

will result in damage.

 If the BHT has been stored in a hot (50°C to 60°C, 122°F to 140°F) and humid place, allow it to sit at

room temperature and humidity for at least one day before use. Using the BHT with its inside being hot will fail to scan or result in a machine failure.

Page 12

BHT-604Q

Handling the CU

 Never disassemble or modify the CU; doing so could result in an accident such as fire or malfunction.

 Never put the CU in places where there are excessively high temperatures, such as inside closed-up

automobiles, or in places exposed to direct sunlight.

Doing so could affect the housing or parts, resulting in a fire.  Avoid using the CU in extremely humid or dusty areas, or where there are drastic temperature cha nges.

Moisture or dust will get into the CU, resulting in malfunction, fire or electrical shock.  Never cover or wrap up the CU or AC adapter in a cloth or blanket.

Doing so could cause the unit to heat up inside, deforming its housing, resulting in a fire. Always use the CU and AC adapter in a well-ventilated area.

 Do not place the CU anyplace where it may be subjected to oily smoke or steam, e.g., near a co oking

range or humidifier.

Doing so could result in a fire or electrical shock.  Keep the power cord away from any heating equipment.

Failure to do so could melt the sheathing, resulting in a fire or electrical shock.  Do not insert or drop foreign materials such as metals or anything inflammable through the openings or

vents into the CU.

Doing so could result in a fire or electrical shock.

 If you are not using the CU for a long time, be sure to unplug the AC adapter from the wall socket for

safety.

Failure to do so could result in a fire.  When caring for the CU, unplug the AC adapter from the wall socket for safety.

Failure to do so could result in an electrical shock.

Page 13

BHT-604

Chapter 1

Outline

This chapter describes the BHT system and provides an overall outline of the BHT.

1.1 System Configuration･･････････････････････････････････････････････ 2

1.1.1 System Configur ation

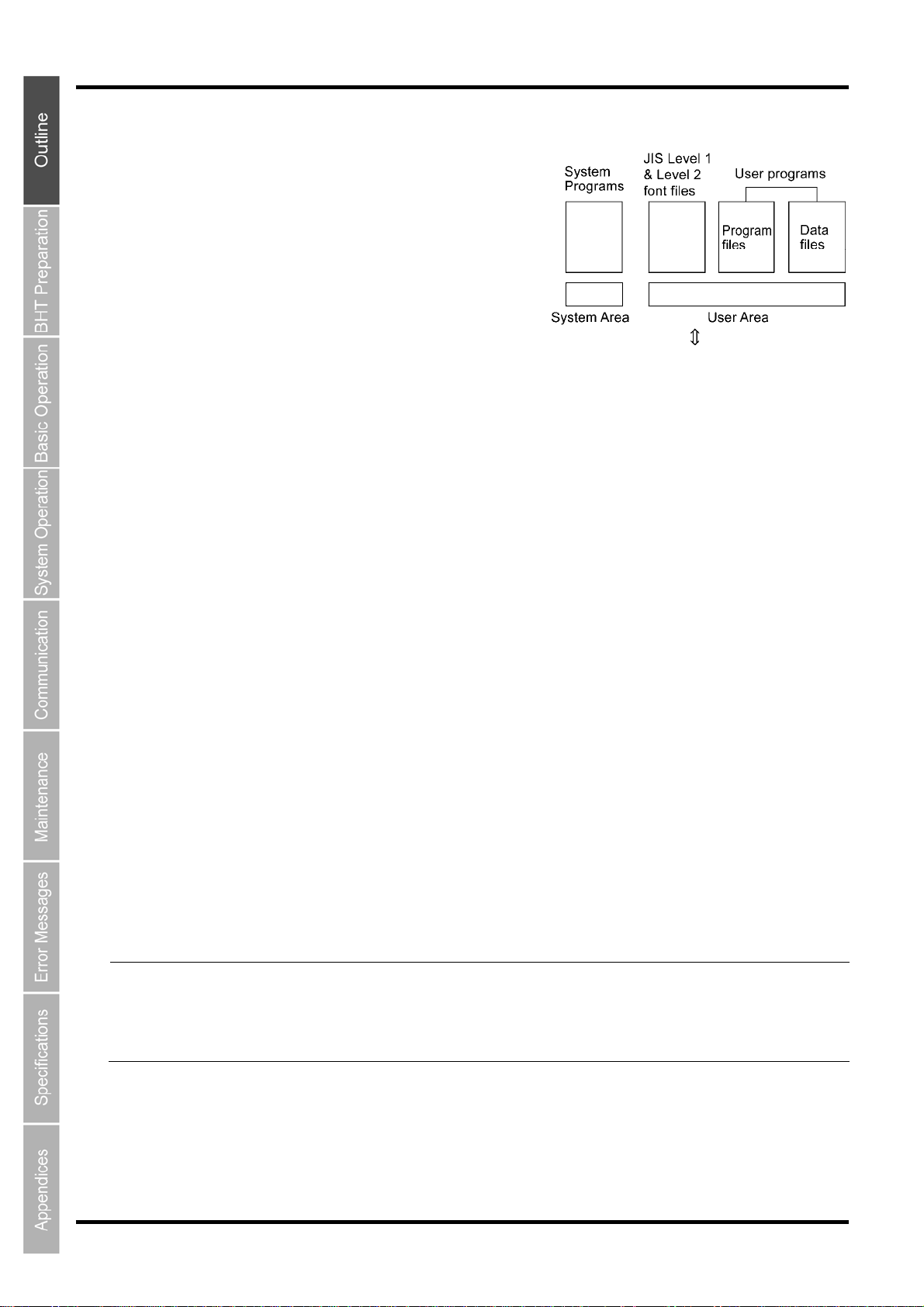

1.1.2 Software Configuration

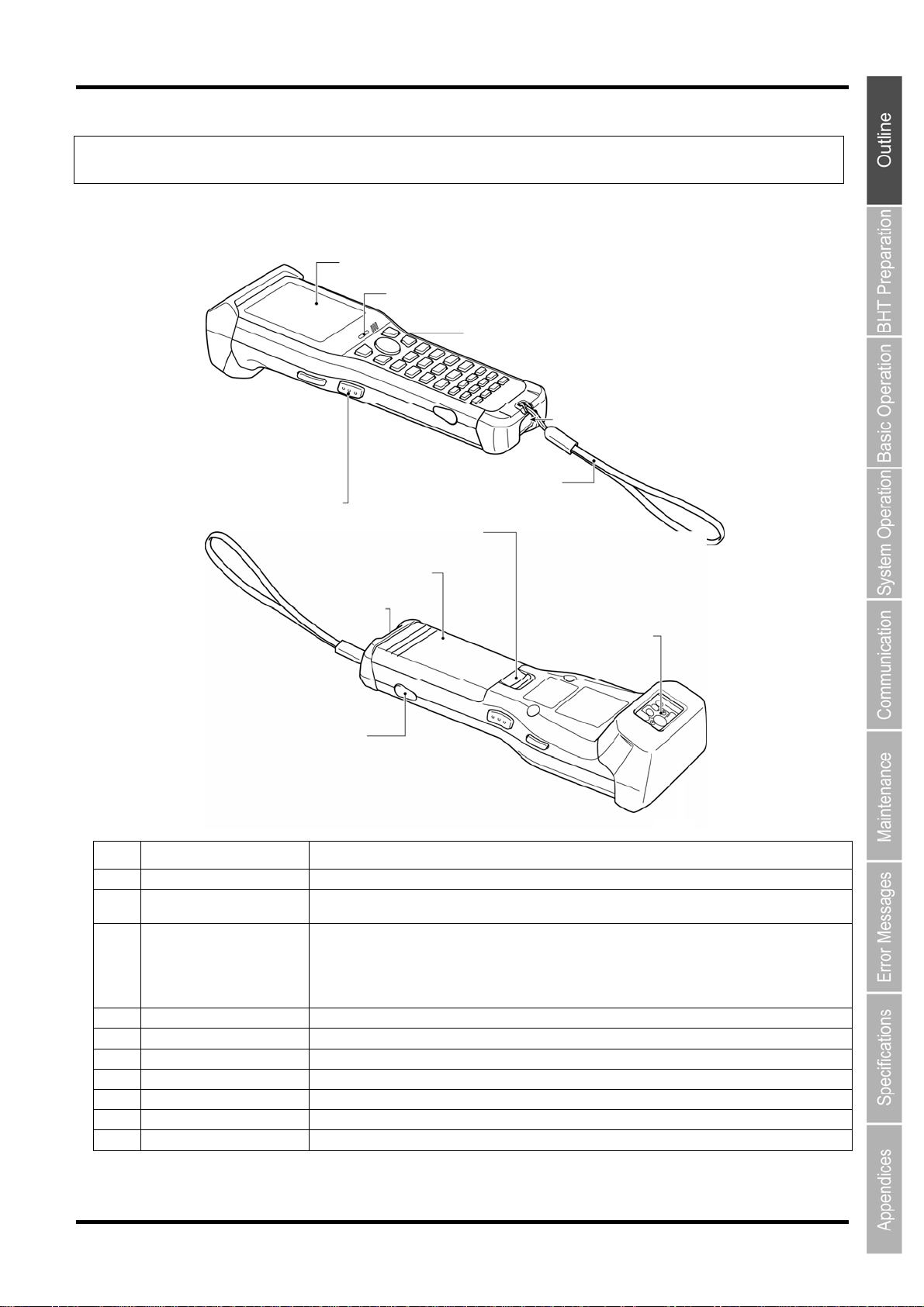

1.2 Component Names and Functions ･･････････････････････････････････ 7

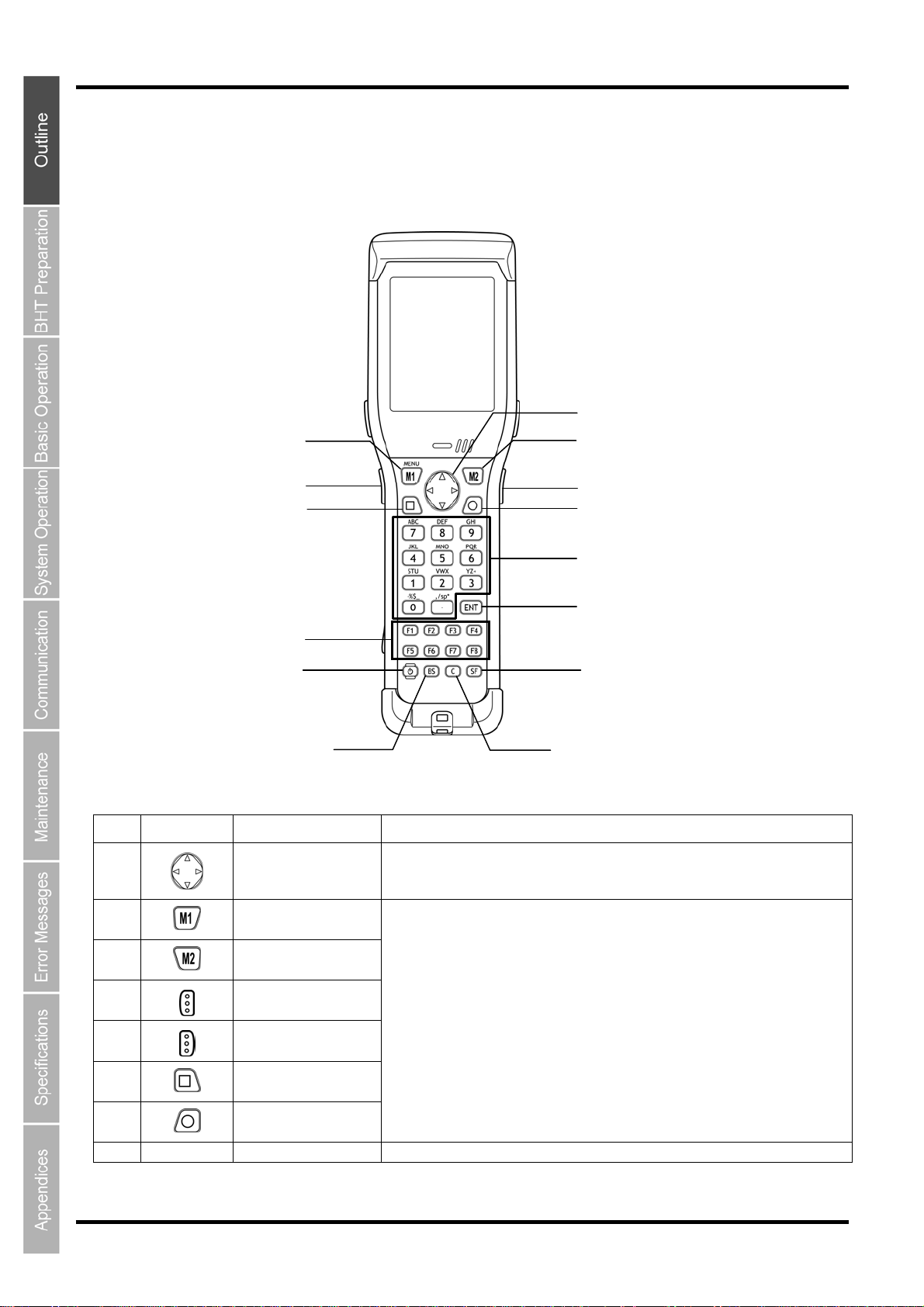

1.2.1 BHT Front/Rear

1.2.2 Keypad

1.2.3

･･･････････････････････････････････････････････････････････ 8

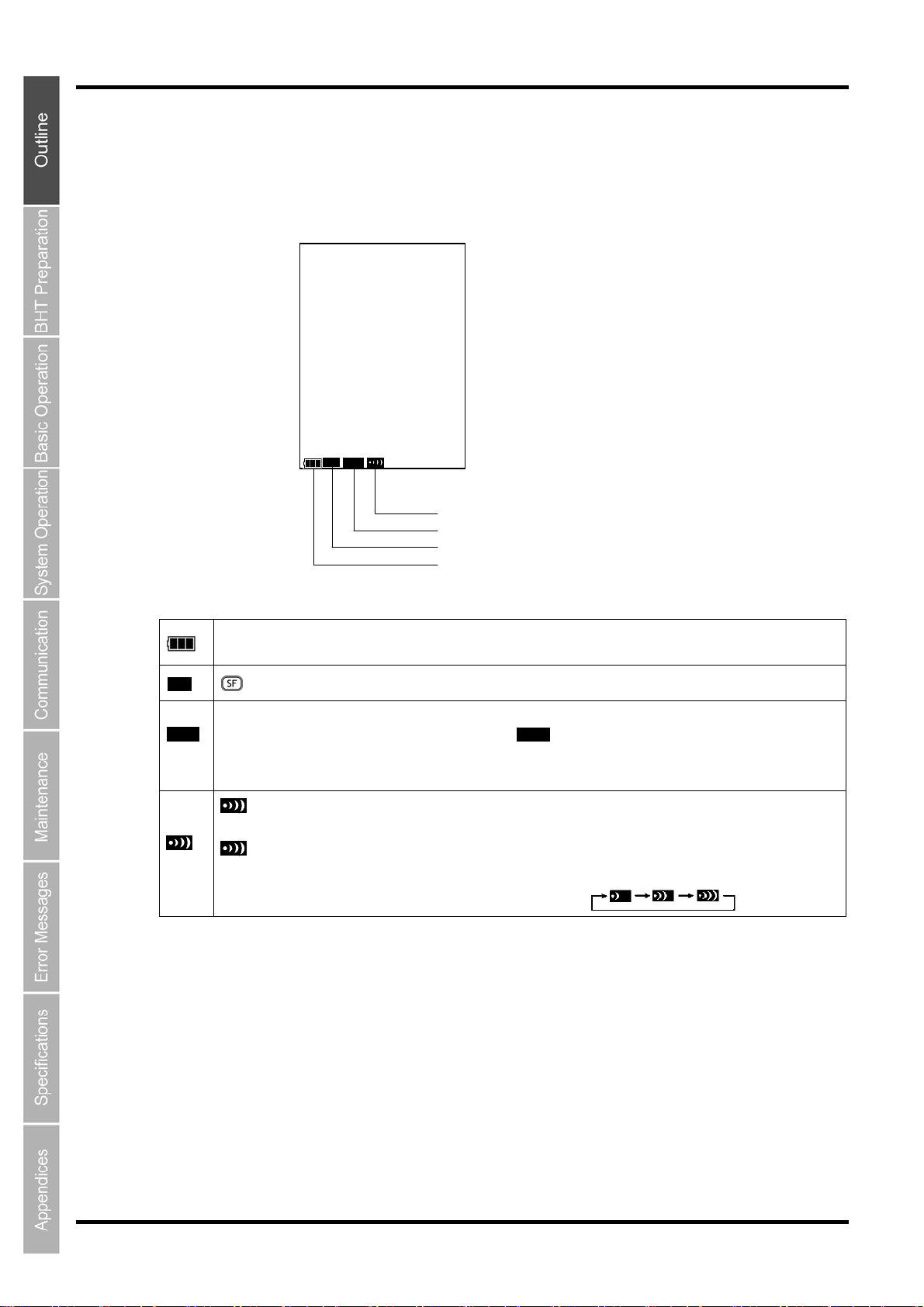

BHT Screen ････････････････････････････････････････････････････ 10

･･･････････････････････････････････････････････ 2

･････････････････････････････････････････････ 4

････････････････････････････････････････････････････ 7

Page 14

BHT-604Q

(op

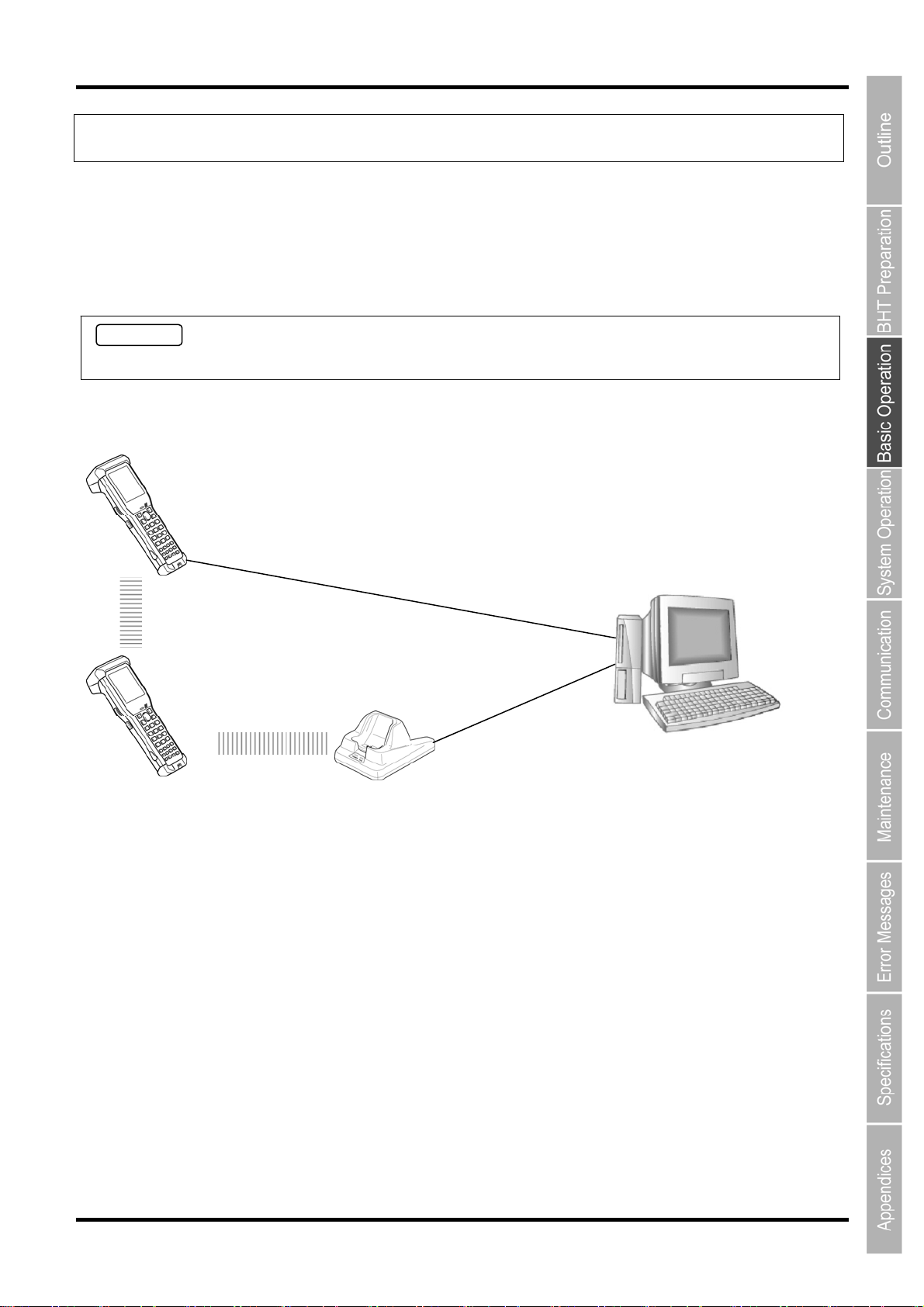

1.1 System Configuration

This section describes the hardware required for the barcode data collection system used by the BHT and the BHT software.

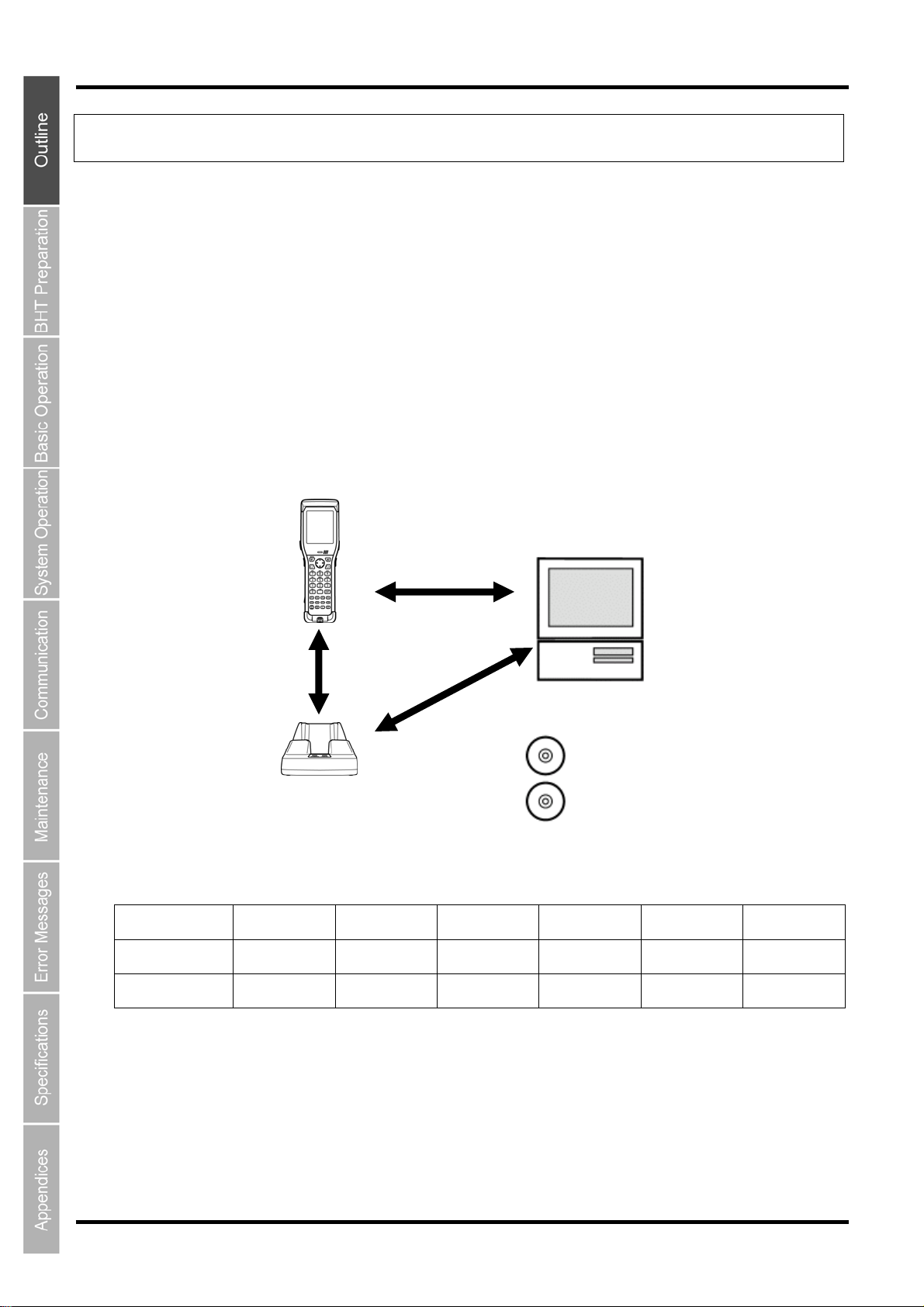

1.1.1 System Configuration

In addition to the BHT, the following hardware and software are required for the barcode data collection system used by the BHT. Please note that certain components of the required hardware will differ depending on the type of communication used.

 Host computer  CU-600 Series (option): Communication unit  Connection cable (option): Used to connect the BHT and host computer.  Software: BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC 4.0 Transfer Utility (Option)

● : Required f

(1)Connector

communication

(2) IrDA

communication

or system configuration

BHT

tion)

Host computer BHT CU

(1) Connector

communication

(2) IrDA

communication

Host compute

BHT-BASIC 4.0 Develo

BHT-BASIC 4.0 Transfer Utility (Option)

Wireless LAN

access point

● ● — — ●

● ● ● — ●

ment Pack (Option)

Software Ref. Page

Page 32

Page 33

Page 15

2D Code Handy Terminal

 Host computer

Allows you to edit, manage and download user programs and data, as well as downloading system programs.

Models : PC/AT Compatible

Operating Systems and Optional Application Programs

Operating Systems (OS) Windows 98 BHT-BASIC4.0 Development Pack – –  

BHT-BASIC4.0 T ransfer Utility*    

*This application does not activate any built-in IrDA interface port.

Windows NT

3.51/4.0

 CU-600 Series (Option)

Used for communication between the BHT and host computer. Communication with the BHT is performed by IrDA communication, and communication with the host computer is performed with an RS-232C, Ethernet or USB interface. The following three types of CU are available depending on the interface used to communicate with the host computer.

 CU-601: RS-232C interface  CU-611: Ethernet  CU-621: USB interface

 Connection Cable (Option or Commercially Available Product)

Used to connect the host computer and CU-600 Series. Select a cable suited to the CU-600 Series interface being used.

Supported CU-600 Series Cables

 CU-601: RS-232C cable (Option)  CU-611: Ethernet (10BASE-T) cable (commercially available product)  CU-621: USB cable (Option)

Furthermore, by preparing the BHT connector interface and cable suited to each connection port, connection is also possible between the BHT and host computer, between the BHT and modem, and between BHT units. Please note, however, that the BHT connector interfaces have not been designed for frequent cable insertion and removal and therefore use of the CU-600 Series is recommended. * Refer to “Chapter 8 Specifications” for further details on BHT interfaces.

 BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC 4.0 Transfer Utility

Windows 2000

Professional

Windows XP

(Option)

Refer to “Software Configuration” on the following page.

Page 16

BHT-604Q

1.1.2 Software Configuration

This section describes the software used for BHT Series application development and application in addition to the software used at the BHT unit. Please note that the above-mentioned software can be downloaded (Certain versions may be for trial use.) from the QBdirect service discussed at “Customer Registration” on page ii.

[1] Application Development Procedure

The procedure for BHT Series program development is as follows.

Program creation

Program generation (compiling and linking)

Program download

Program ex

ecution and debugging

[2] Software Used for Application

 BHT-BASIC Programmer’s Manual for BHT-600 Series

This is an instruction manual used to create handy terminal programs with BHT-BASIC.

 BHT-BASIC4.0 Development Pack (option)

This is a package containing four software products required for BHT Series application development and accessories. The BHT-BASIC 4.0 Development Pack contains the following products.

 BHT-BASIC 4.0 Compiler

Compiles and links a source program written in BHT-BASIC 4.0 to create a user program executable on the BHT (*.PD4).

 BHT-BASIC 4.0 Simulator

Performs an operation check for generated application programs (*.PD4) at the computer.

 BHT-BASIC 4.0 Remote Debugger

Uses the BHT unit to debug generated application programs (*.PD4) at the computer.

 BHT-BASIC4.0 Transfer Utility

Transfers files between the host computer and BHT at the host computer. YMODEM or BHT-Ir protocol is used for file transfer. BHT-BASIC 4.0 specification files such as application programs and data files are transferred using YMODEM protocol.

Page 17

2D Code Handy Terminal

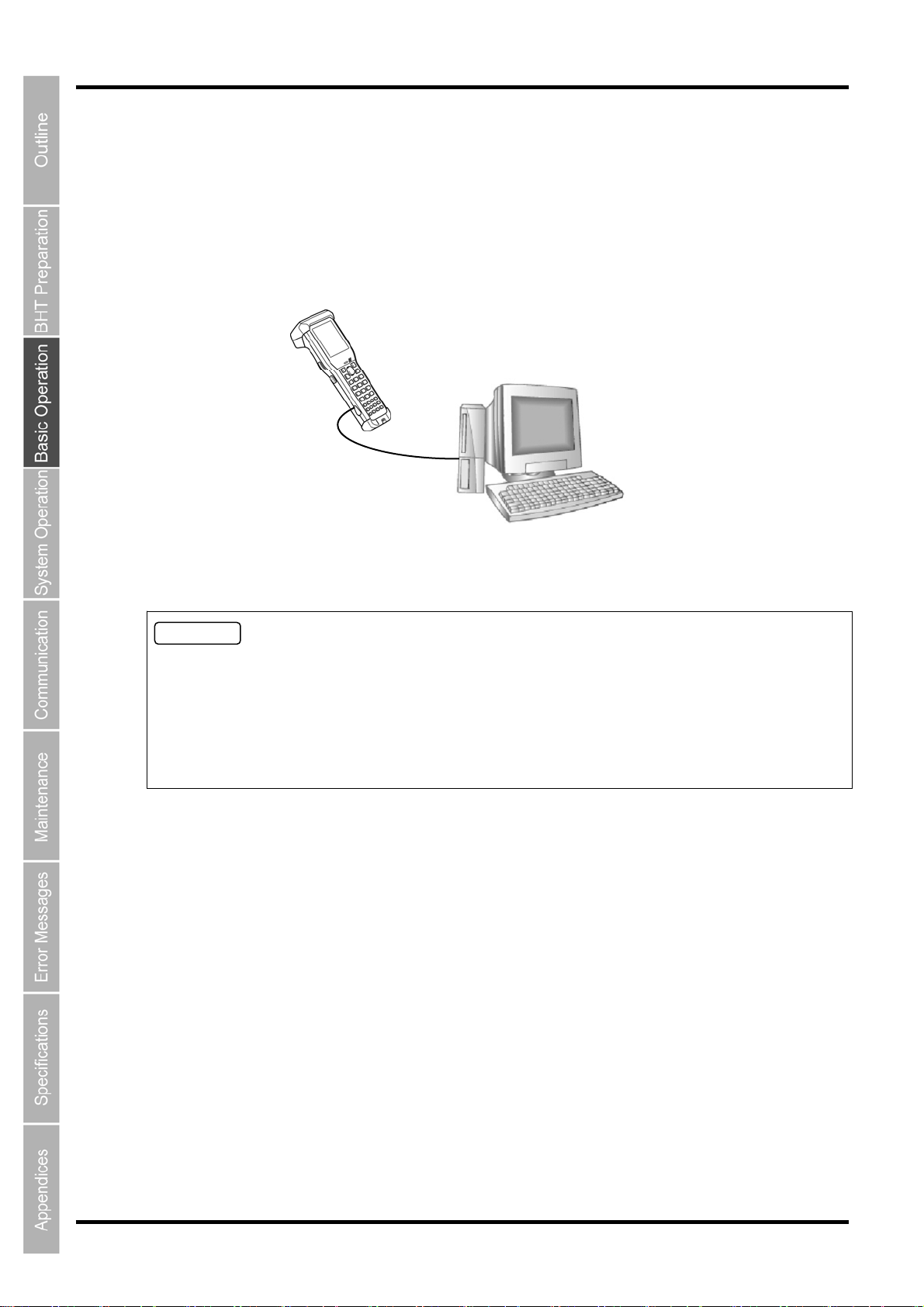

 BHT-PC Cable (RS-232C)

This cable can be used to connect the BHT and computer using the BHT connector interface and computer RS-232C interface.

(Note) The BHT connector interface has not been designed for frequent removal and insertion of the

cable. The CU-600 Series should normally be used. Refer to “Chapter 5 Communication” - “5.1 Connector Communication (RS-232C Interface)” for details on the connector interface.

 BHT-BASIC4.0 Transfer Utility (Option)

This is the same BHT-BASIC 4.0 Transfer Utility that comes bundled with the BHT-BASIC 4.0 Development Pack.

Page 18

BHT-604Q

[3] Software Used at the BHT Unit

The BHT unit FLASH memory has a system area and user area, with the system program stored in the system area and font files and user programs stored in the user area. The BHT unit is shipped files stored in their respective areas.

Application programs (*.PD4) stored in the user area are run by the BHT. It is necessary to download application programs (*.PD4) and data files (product master files etc.) required to run application programs (*.PD4) to the BHT user area prior to use.

 System Program

 Driver

Drivers is a set of programs that directly controls the BHT hardware. It can be called up by the BHT-BASIC Interpreter or System Mode.

 BHT-BASIC Interpreter

This program interprets application program (*.PD4) command language and controls the BHT unit hardware via drivers.

 System Mode

This program is used to operate files, make system environment settings, and perform various types of tests. Refer to “Chapter 4 System Operation“ - “4.4 System Mode“ for further details.

 Font File

These files are required to display JIS 1 and 2 standard Kanji characters at the BHT unit LCD display. By using font files, the BHT unit is able to display 16 to 40 dot Kanji in application programs (*.PD4).

 Point  If you do not need to display Kanji characters, you may delete these JIS font files. After deletion, the

with the system program and font

Host computer

system program in order to use the

memory area which was occupied by these files can be used as a user area. For the deleting procedure, refer to "Chapter 4 System Operation" - "4.1.4 Performing System Initialization"or "4.5.10 Deleting Font Files (DELETE FILE Menu)."

The names of the font file: FNTFSHG.FN4 (JIS Level 1 and 2 font, 16-dot to 40-dot)

 User Programs

Application programs and data files are downloaded to the BHT user area and are collectively known as user programs. To download a BHT-BASIC 4.0 specification user program to the BHT unit, the BHT-BASIC 4.0 Transfer Utility is required.

Page 19

2D Code Handy Terminal

1.2 Component Names and Functions

1.2.1 BHT Front/Rear

NO. Name Functio

(1) LCD (Liquid crystal display) Displays the characters and graphic patterns. (2) Indicator LED Indicates the code read status.

Trigger switch (M3 and M4

(3)

Magic keys)

(4)

(5) IrDA interface port Used to exchange data/programs with the communication unit CU-600 or other BHTs. (6) Hand strap Wear this strap around your wrist to prevent you from dropping the BHT accidentally. (7) Battery cover Remove this cover to replace the battery cartridge. (8) Battery cover lock Use this to lock or unlock the battery cover.

(9) Connector port Inside this cover is the connect interface port. (10) Code reading window Align the reading window with barcodes to perform code reading. (11) Charge terminal Place on the CU to charge the BHT.

①

②

④

⑤

⑥

③

⑧

⑦

⑪

⑩

⑨

n and Description

Illuminates in blue when the BHT has successfully read a code. Press when reading a code.

The SF and ENT key functions can be assigned to these magic keys by making settings at the SYSTEM MENU.

Character strings can be assigned at user programs. * Refer to “Chapter 4 System Operation“ for details on how to operate the SYSTEM MENU.

Page 20

BHT-604Q

1.2.2 Keypad

The BHT key functions can be set at user programs. The diagram below shows an example of settings for each key function.

NO. Key Nam

①

②

④ ⑥

⑩

⑪

⑫

③

⑤

⑦

⑧

⑨

⑭

⑬

e Function and Description

(1)

Cursor key Used to move the cursor and select menus.

(2)

(3)

(4)

(5)

(6)

(7)

(8) Numeric keys Used to enter data.

Magic key[M1]

Magic key[M2]

Magic key[M3]

Magic key[M4]

Magic key[M5]

Magic key[M6]

 Each of the M3 and M4 keys is assigned a trigger switch by default.  The M5 key is assigned the C key by default.  Character strings can be assigned at user programs.  The SF, ENT, Backlight, MENU or C key functions can be assigned with

SYSTEM MENU.

 A character or character strings can also be assigned with the user programs.  Hold down the M1 key to display the following setting screens when set to the

default.

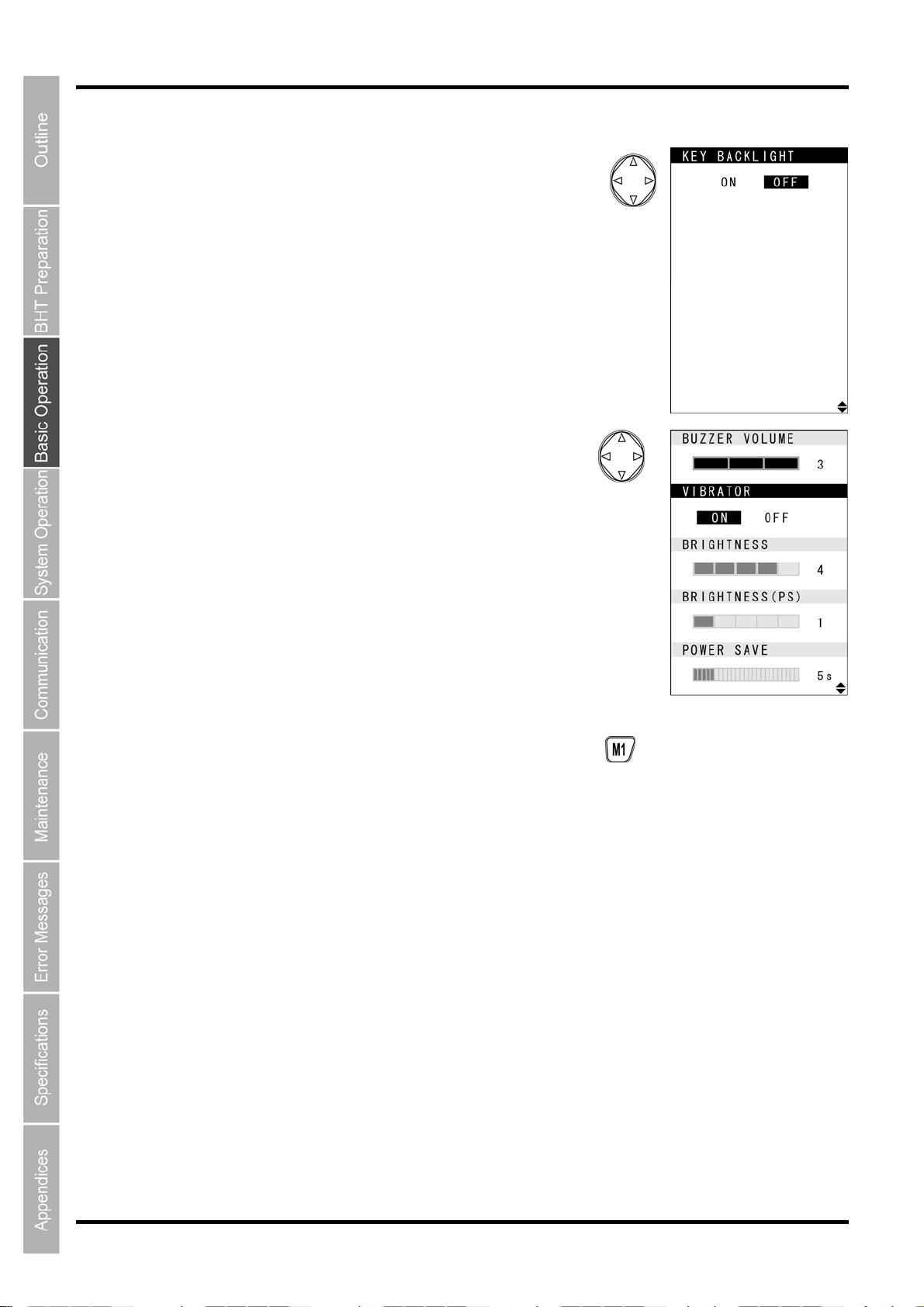

- Beeper volume

- Vibrator

- LCD display brightness

- Power save

- Key backlight

Page 21

2D Code Handy Terminal

NO. Key Name Function and Description

(9) (10)

(11) (12) (13)

(14)

Enter key Press to finalize entered data or execute operations. Function key Used to select functions. Power key Turns ON or OFF. Backspace key Removes the last character that you entered. Clear key Cancels entry and returns the LCD display to the previous screen.

Shift key

Used in combination with other keys such as the numerical keys for special input procedures.

Page 22

BHT-604Q

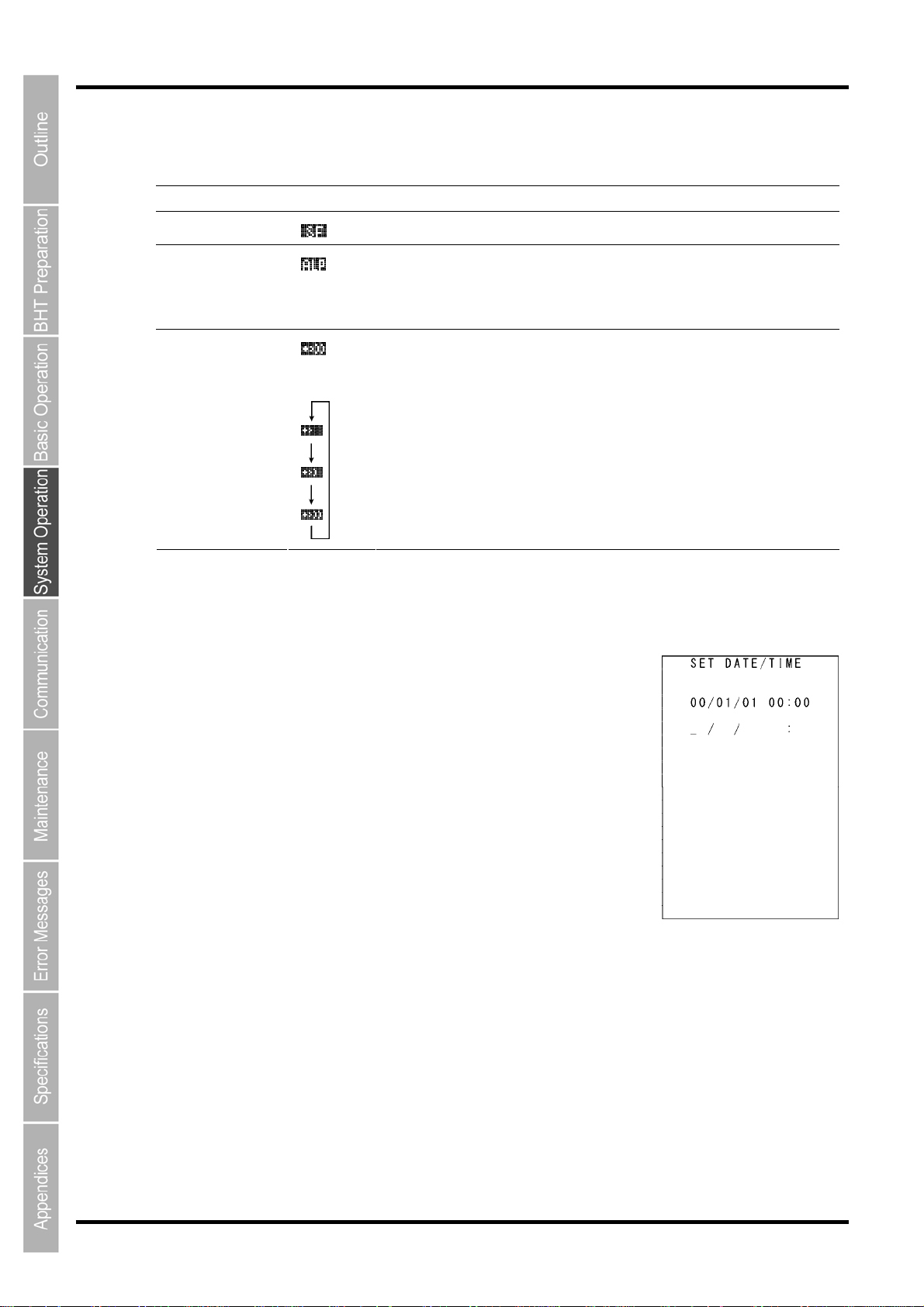

1.2.3 BHT Screen

If the system display is set to ON at the system settings or in the user program, icons display at the bottom of the screen (default) indicating the key shift status, alphabet entry status, and status of the link with the CU-611.

This is the battery icon. Indicates the current battery power level.

SF ALP

Link status with CU-611

lphabet entry status Key shift status Battery icon

ALP

Displays when the SF key is pressed and the keys are in the shift status.

When the SF and the BS keys are pressed while set to alphabet entry mode at the user program, the entry mode changes from “numeric entry” to “alphabet entry” and displays.

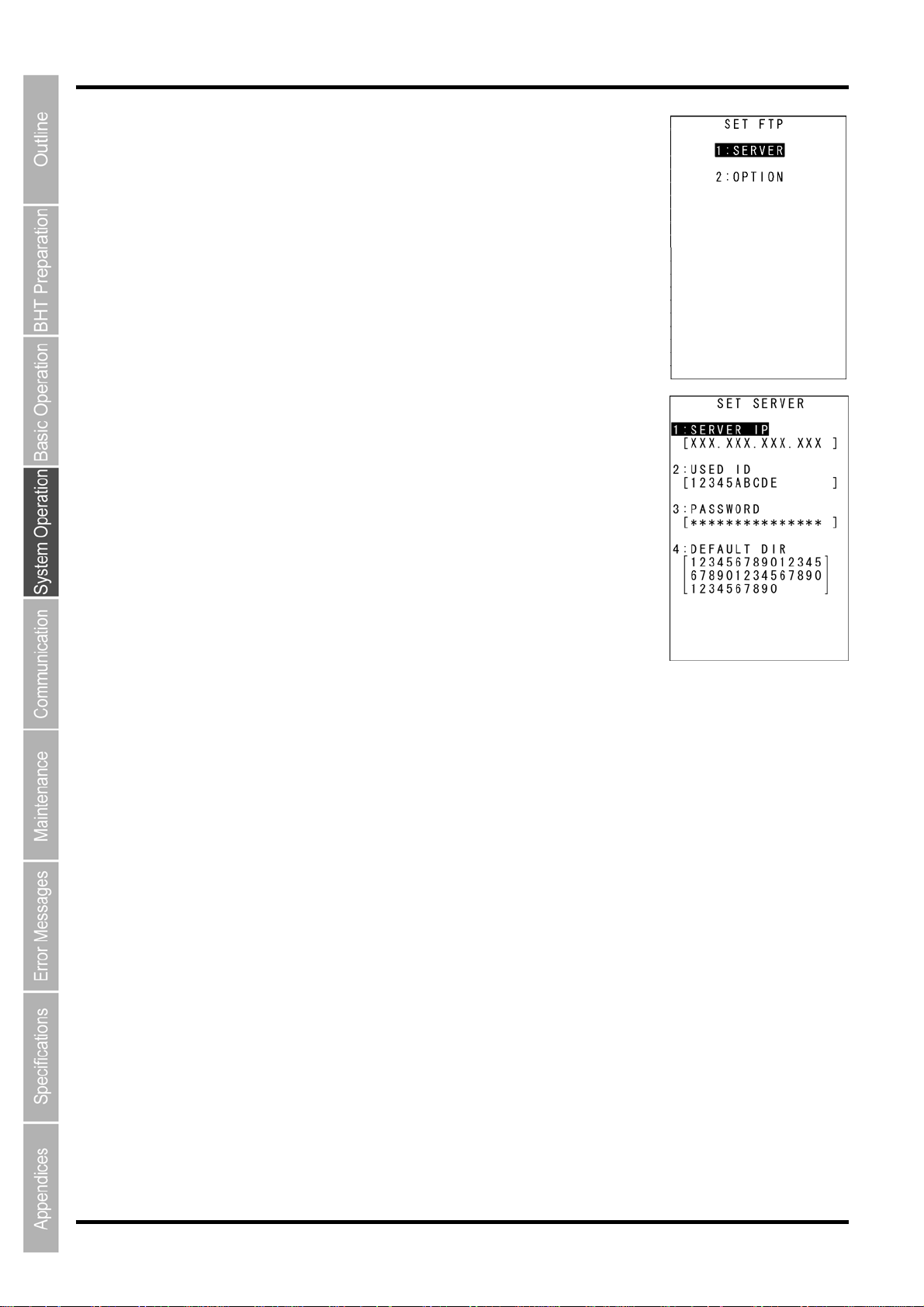

Alphabet entry is used when performing FTP settings. Refer to “Chapter 7.2.1 Numeric, Alphabet Entry of Programmer’s manual” for more information.

displays when a link is established with the CU-611. When an attempt is made to perform communication with the CU-611 when no link has been established, the

icon flashes. When there is no response from the CU-611, when waiting for the link with the CU-611 to be established, or when waiting for the link to be disengaged, the icon displays in the order .

ALP

Page 23

BHT-604

Chapter 2

BHT Preparation

This chapter describes inserting and charging the battery cartridge, turning the BHT power ON and OFF, and use of the hand strap.

2.1 “BHT Preparation” Procedure·····································································12

2.2 Loading and Charging the Battery Cartridge ··············································12

2.2.1 Battery Power Level Indicator ·························································· 18

2.3 Attaching the Hand Strap············································································19

2.3.1 Attaching the Hand Strap ·································································19

2.3.2 Holding the BH T···············································································19

2.4 Initial Setup·································································································20

2.5 Turning OFF the Power··············································································21

2.5.1 Normal Po wer OFF ··········································································21

2.5.2 Turning the Power OFF after Data Back-up·····································21

2.5.3 Auto Power OFF ··············································································21

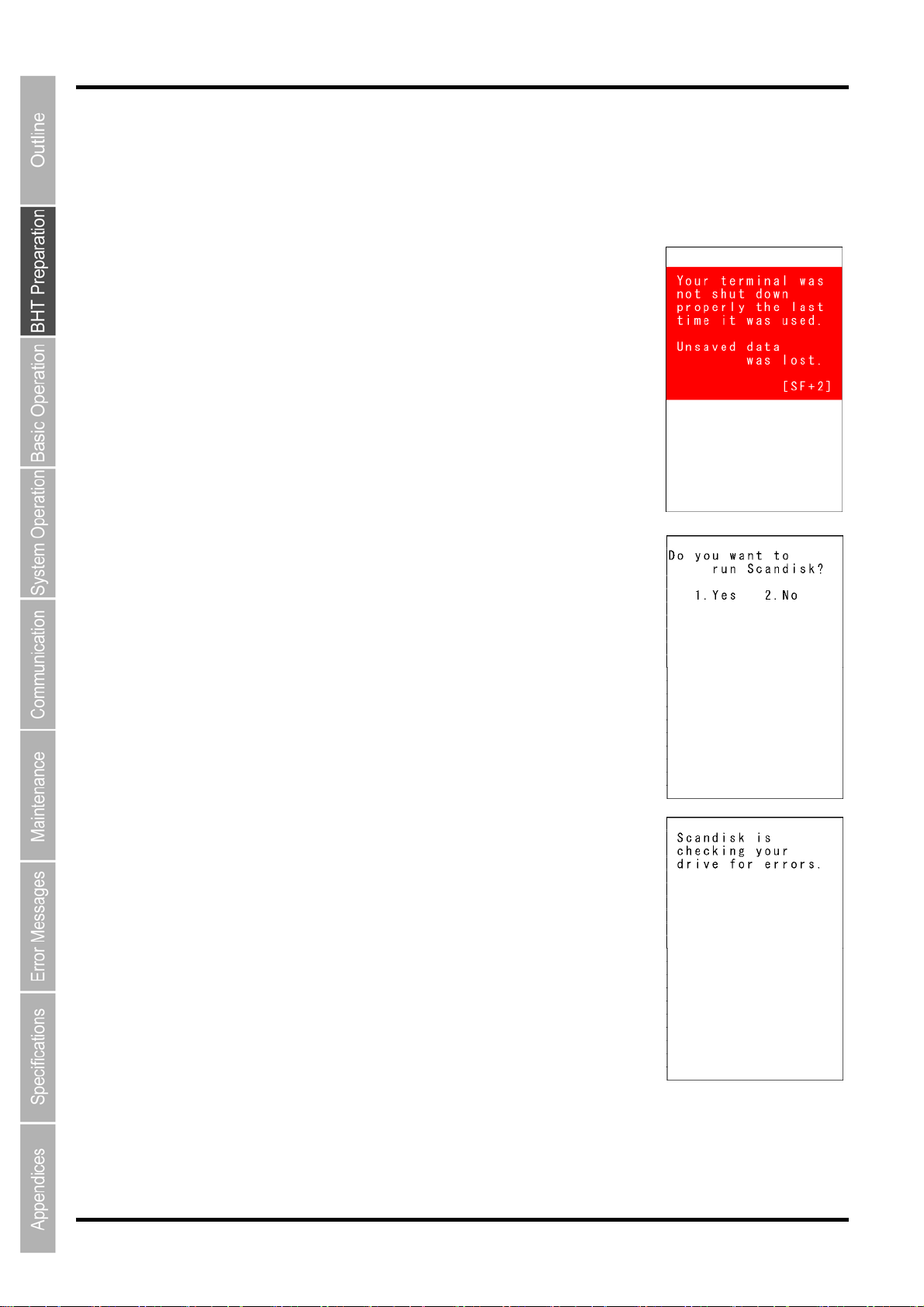

2.5.4 If the BHT Is Shut Down Abnormally················································22

2.5.5 If Invalid Files Are Found··································································24

Page 24

BHT-604Q

2.1 “BHT Preparation” Procedure

Follow the steps below to prepare the BHT for use.

2.2 Inserting and Charging the Battery Cartridge(Page 12)

2.3 Wearing the Hand Strap (Page 19)

2.4 Initial Setup (Page 20)

First insert and charge the battery cartridge.

Wear the hand strap at your w BHT from being dropped.

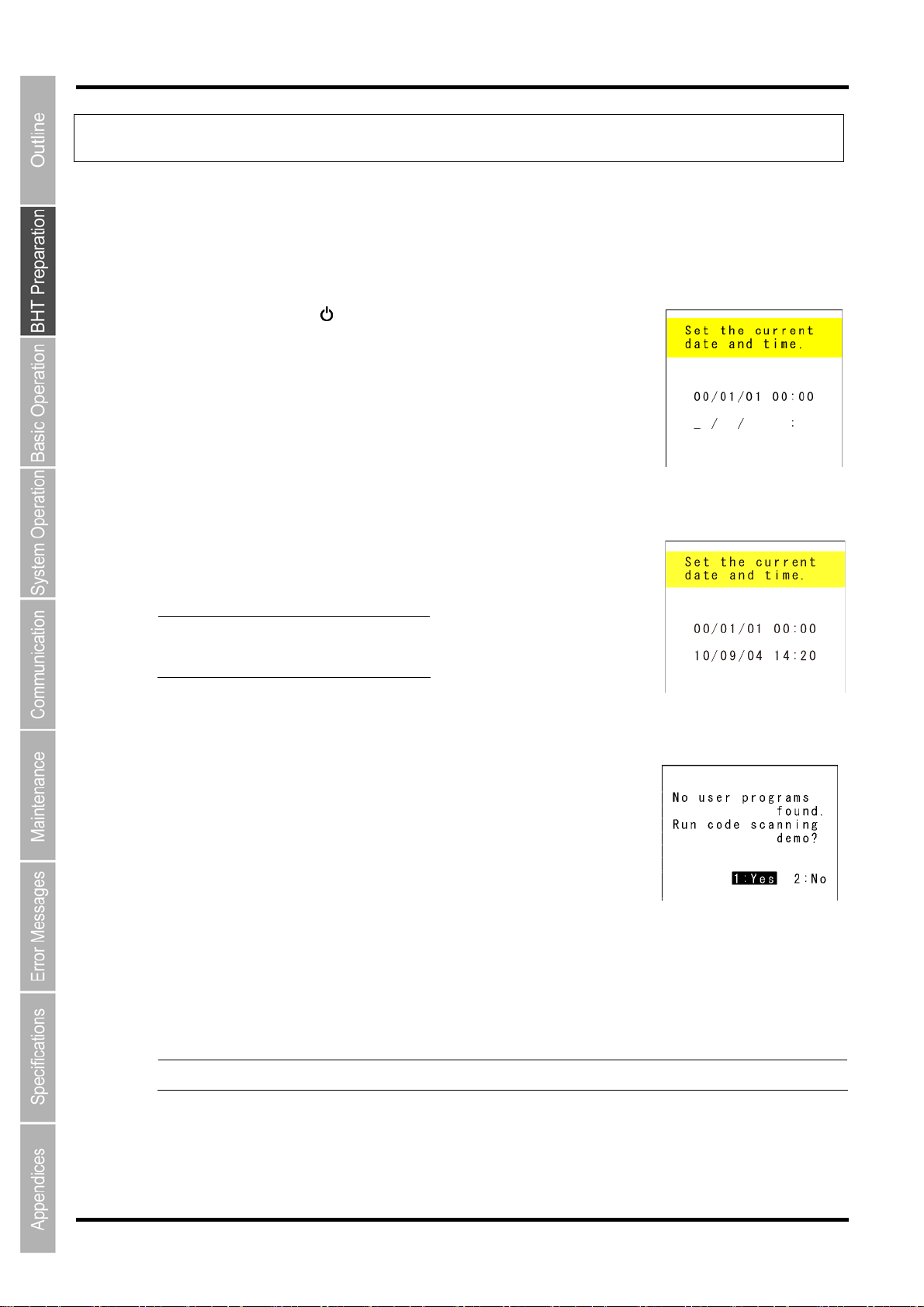

Set the calendar clock whe ON for the first time.

rist to prevent the

n the power is turned

2.2 Inserting and Charging the Battery Cartridge

The battery cartridge is not charged when purchased and should therefore be charged prior to use. The chargers that can be use with the BHT are the communication units (CU-601, CU-611 and CU-621) and battery chargers (CH-201A, CH-651, CH-704 and CH-654).

* The CH-201A and CH-704 are chargers to separately charge the battery cartridge on its own, while the

CH-651 and CH-654 are stationary models (same type as CU (communication unit)) for directly charging the battery cartridge placed in the BHT..

The charging time is approximately 3 hours.

 The charging time is approximately 7 hours using the CU-621 with power supplied via the USB port.  This time will be reduced for a battery cartridge with low discharge capacity.

Charging Precautions

 Do not touch the any terminals of BHT, battery, or charger by hand or stain them. Do

in a contact failure or prevent charging.

 Never charge the battery near fire or in a high-temperature environment.

High-temperatures may activate the charger’s protective device, preventing charging, and lead to protective device damage, overheating, blowout or combustion.

 Terminate charging if not completed even after the specified time has elapsed.

ing so could result

Page 25

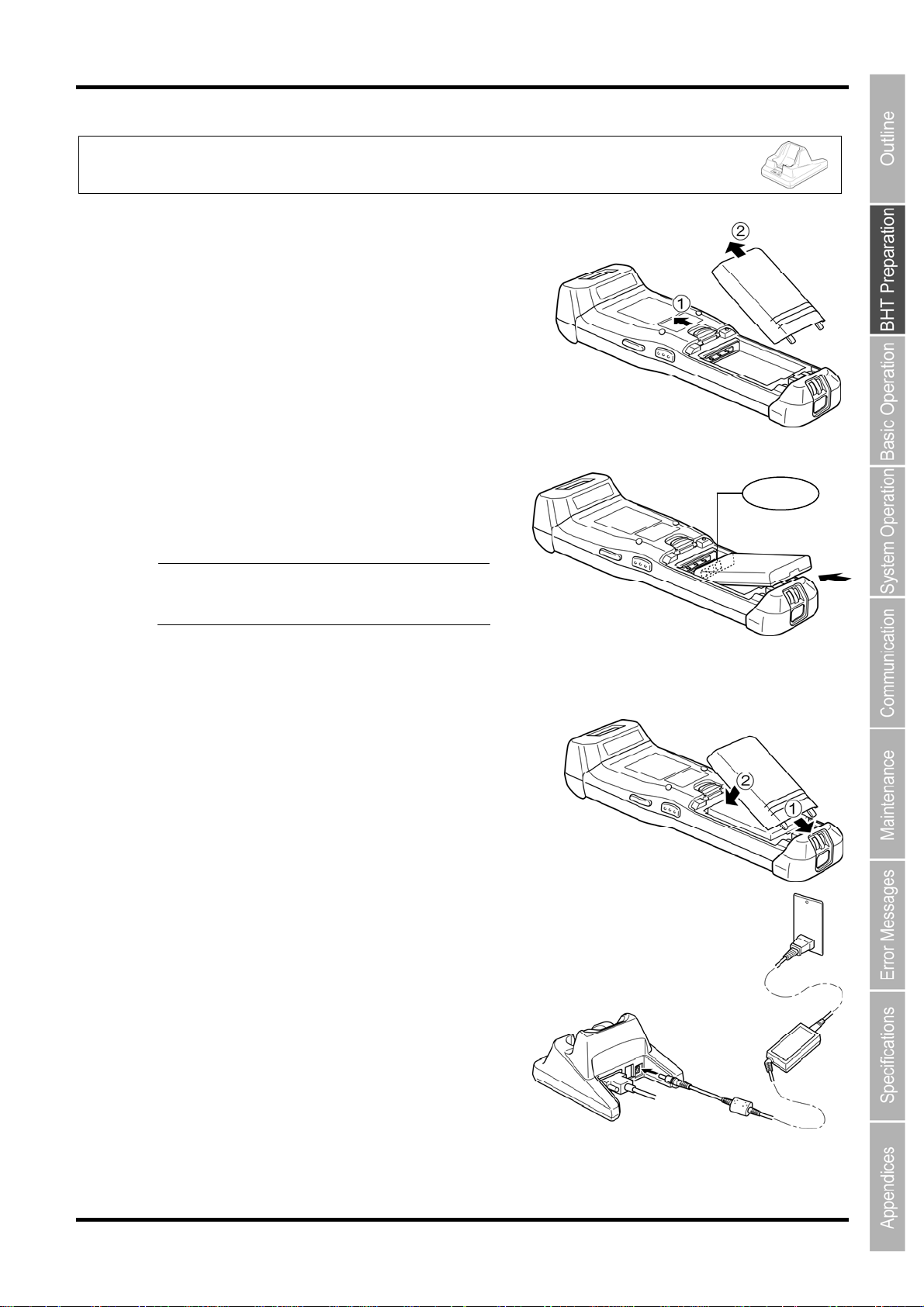

Charging with the communication unit (CU-601, CU-611 and CU-621) or battery charger (CH-651 and CH-654)

1. Slide the battery cover lock (1) in the direction

indicated by the arrow and remove the battery cover (2).

2D Code Handy Terminal

2. Check the battery cartridge terminals and

indication on the BHT unit, and then insert the cartridge in the direction indicated by the arrow.

 Point  Do not use battery cartridges other

than those specified by DENSO WAVE.

3. Insert the battery cover tab (1), and then close the

battery cover (2) to lock the cover in position.

4. Connect the dedicated AC adapter to the DC input

connector on the charger and plug the adapter into the wall socket.

Terminal

The charger Power LED (green) turns ON.

Page 26

BHT-604Q

 Note  Power for the CU-621 can be obtained from a USB connection port (host computer or hub),

however, charging is not possible while the host computer is in suspend mode. Charging is resumed when suspend mode is exited. This can be avoided using a dedicated AC adapter to supply power. Suspend mode is a power saving function used to temporarily put the computer on standby when not in use.

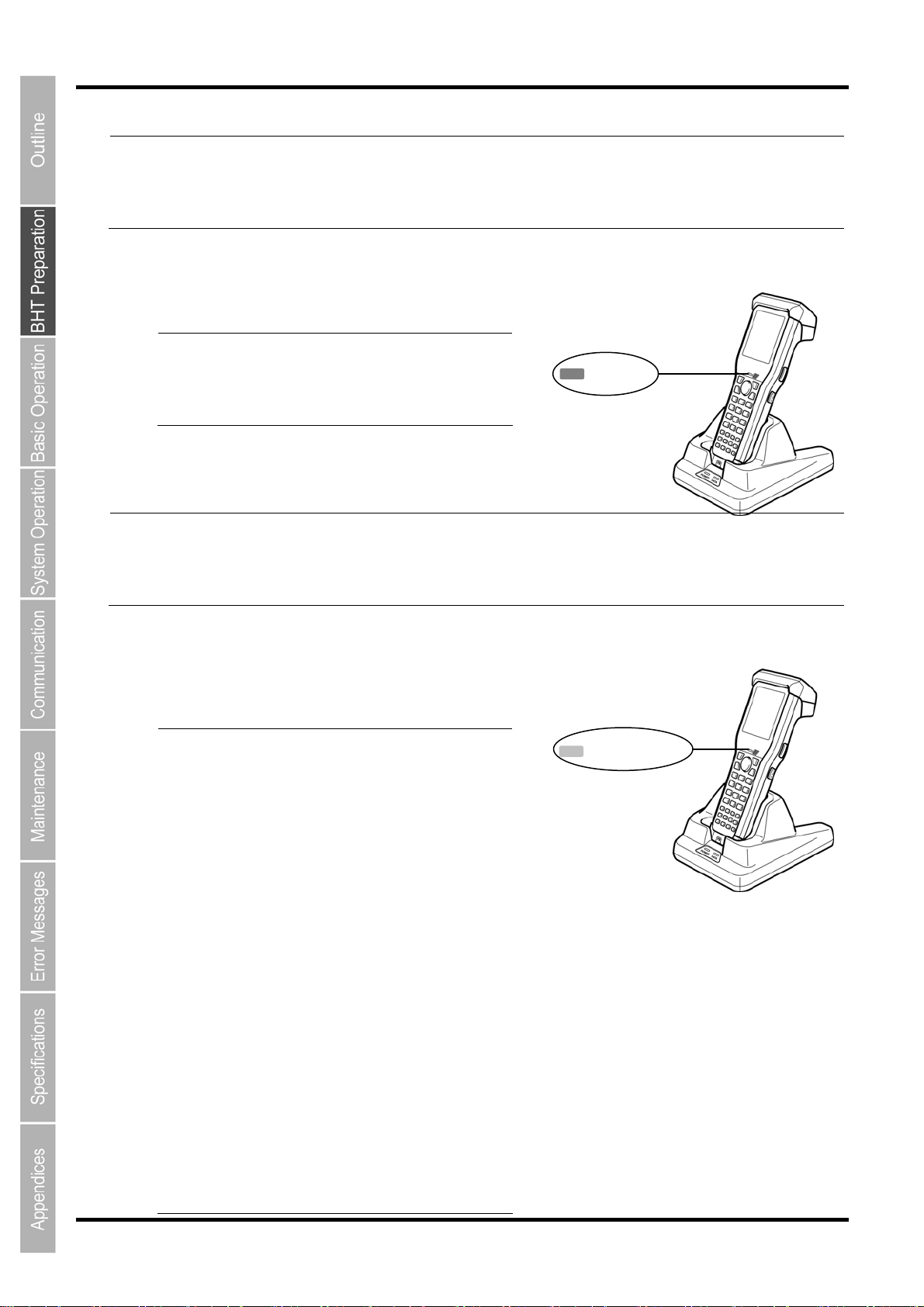

5. PLACE THE BHT ON THE CHARGER.

 Point  After placing the BHT on the charger

when using the BHT for the first time or when left unused for long periods of time, do not remove from the charger for approximately 10 minutes.

 Note  The BHT is equipped with a back-up battery used to back-up the internal memory and calenda

clock. The internal back-up battery is charged first when charging is commenced. Do not remove the BHT from the charger for at least 10 minutes when using the BHT for the first time or when using after long periods of time.

The indicator LED illuminate red and charging begins.

Red LED ON

s in

6. The BHT indicator LED will change to green

when charging is complete.

 Point   The charge time is approximately 3

hours.

 The charge time is approximately 7

hours using the CU-621 with powe supplied via the USB port.

 An only slightly discharged battery

cartridge should take less time to become fully charged.

 Take proper steps if the BHT indicato

LED is blinking in red. a. Detecting the abnormal temperature of the battery cartridge. Charge at the right temperature(0 to 40 degree). Avoid the direct sunlight o something hot. Stop the charging if under the prope environment. b. Bad electrical contact. Wipe any dirt from battery cartridge terminals with refer to “Chapter 6.3 Daily Maintenance”. c. Non-completion of the charge in the given time. Charge again using dedicated AC adapter if the charging was using USB port which is weak power supplying capability. d. Failure or life of battery cartridge. Replace the new battery cartridge.

The BHT indicator LED will change to green when charging is complete.

Green LED ON

Page 27

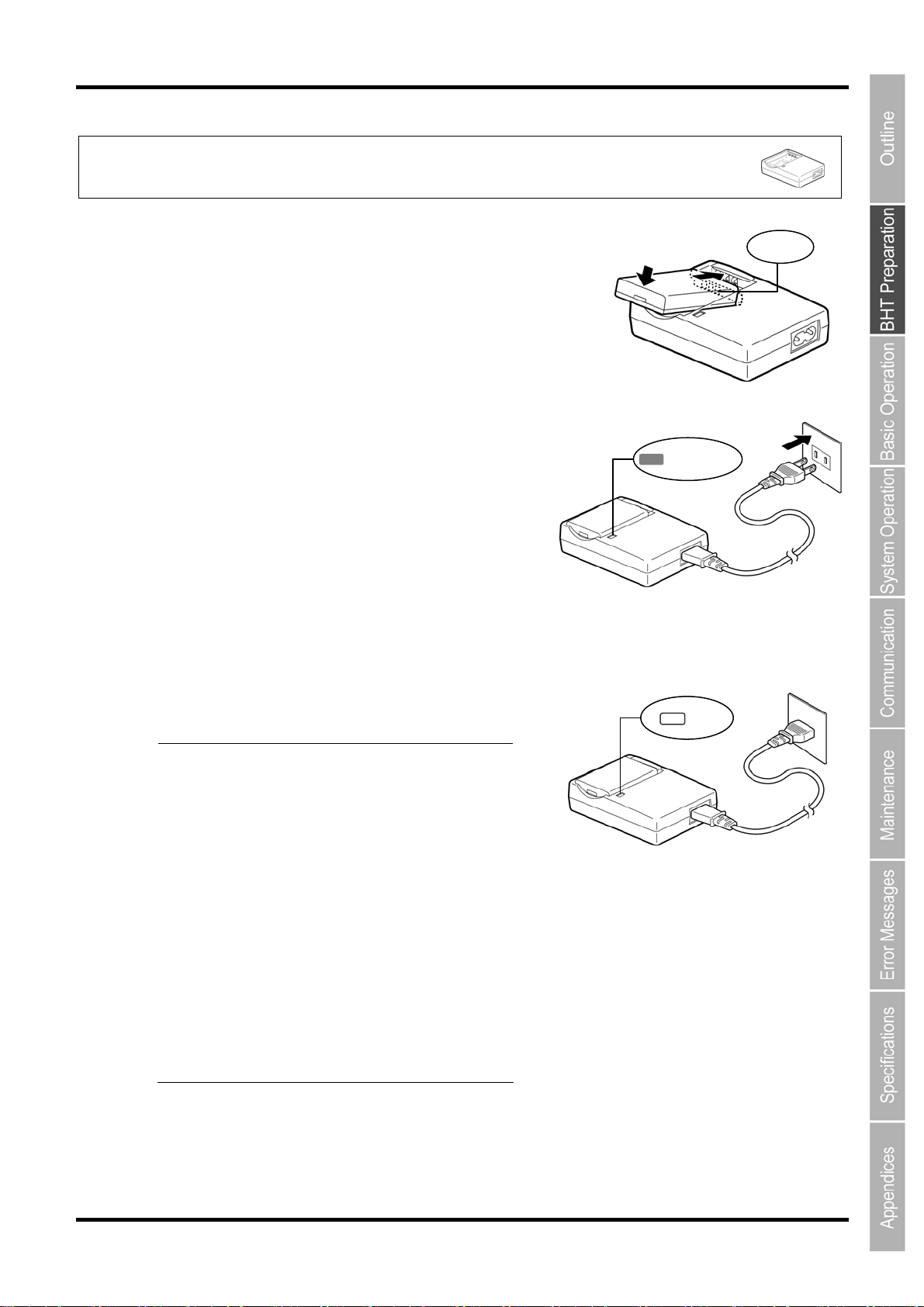

Charging with the battery charger (CH-201A and CH-704)

2D Code Handy Terminal

1. Check the battery cartridge terminals and insert the cartridge.

2. Connect the power cable to the CH-201A and

connect the plug to a commercial AC power source (230 V AC).

Terminal

Red LED ON

The LED illuminates in red and charging begins.

3. The LED will turn OFF when charging is complete.

 Point   The charge time is approximately 3

hours.

 An only slightly discharged battery

cartridge should take this time to become fully charged.

 Take proper steps if the LED is blinking

in red. a. Detecting the abnormal temperature of the battery cartridge. Charge at the right temperature(0 to 40 degree). Avoid the direct sunlight o something hot. Stop the charging if under the prope environment. b. Bad electrical contact. Wipe any dirt from battery cartridge terminals with refer to “Chapter 6.3 Daily Maintenance”. c. Failure or life of battery cartridge. Replace the new battery cartridge.

OFF

Page 28

BHT-604Q

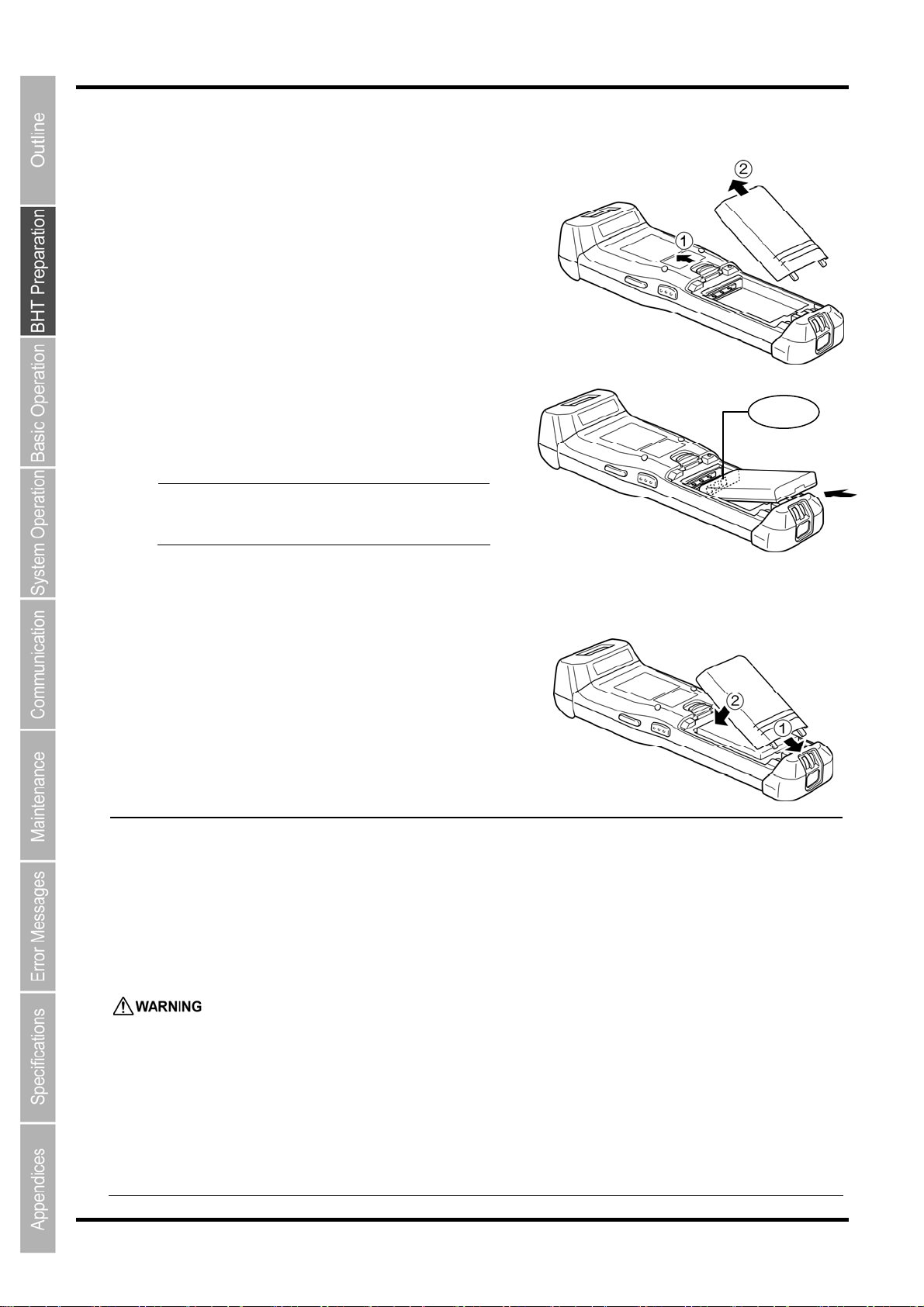

4. Slide the battery cover lock (1) in the direction

indicated by the arrow and remove the battery cover (2).

5. Check the battery cartridge terminals and

indication on the BHT unit, and then insert the cartridge in the direction indicated by the arrow.

 Point  Do not use battery cartridges other

than those specified by DENSO WAVE.

6. Insert the battery cover tab (1), and then close the

battery cover (2). tThe battery cover is now locked in position.

Mishandling of the charger may result in charger overheating, smoke generation, blowout or combustion. Please read the following items prior to use.

 Never disassemble or modify the battery cartridge.  Never connect the battery cartridge (+) and (-) terminals with a metal object such as a piece o

wire.

 Never carry or store the battery cartridge together with metallic necklaces, hairpins and so on.  Never expose the battery cartridge to fire or apply heat.  Never use or leave the battery cartridge in the vicinity of high-temperature locations (60° C or

higher) such as a fire or stove.

 Never place the battery cartridge into or soak it in water or seawater.  Never charge the battery cartridge in the vicinity of fire or under a scorching sun.  Never hammer nails into the battery cartridge, hit it with a hammer, or trample on it.  Never apply strong impact to or throw the battery cartridge.  Never use significantly damaged or deformed battery cartridges.  Never apply solder directly to the battery cartridge.  If battery fluid leaked from the battery cartridge gets into the eyes or comes into contact with the

skin, wash thoroughly with clean water such as tap water without rubbing, and obtain medical treatment immediately. Failure to do so will result in eye or skin injuries.

Terminal

Page 29

2D Code Handy Terminal

Mishandling of the charger may result in charger overheating, smoke generation, blowout or combustion. Please read the following items prior to use.

 Terminate charging if not completed even after the specified time has elapsed.

 Note   The BHT is equipped with a back-up battery used to back-up the internal memory and calenda

clock when the battery cartridge is removed or the battery voltage falls below the stipulated level. It is therefore necessary to charge the internal back-up battery when using the BHT for the first time or when left unused for long periods of time. The back-up battery is charged automatically when a fully-charged battery cartridge is inserted. To ensure that the back-up battery is fully charged, do not remove the battery cartridge for at least 10 minutes when using the BHT for the first time or when using after long periods of time.

 If you leave the BHT without a battery cartridge inserted for a long time, the memory contents will

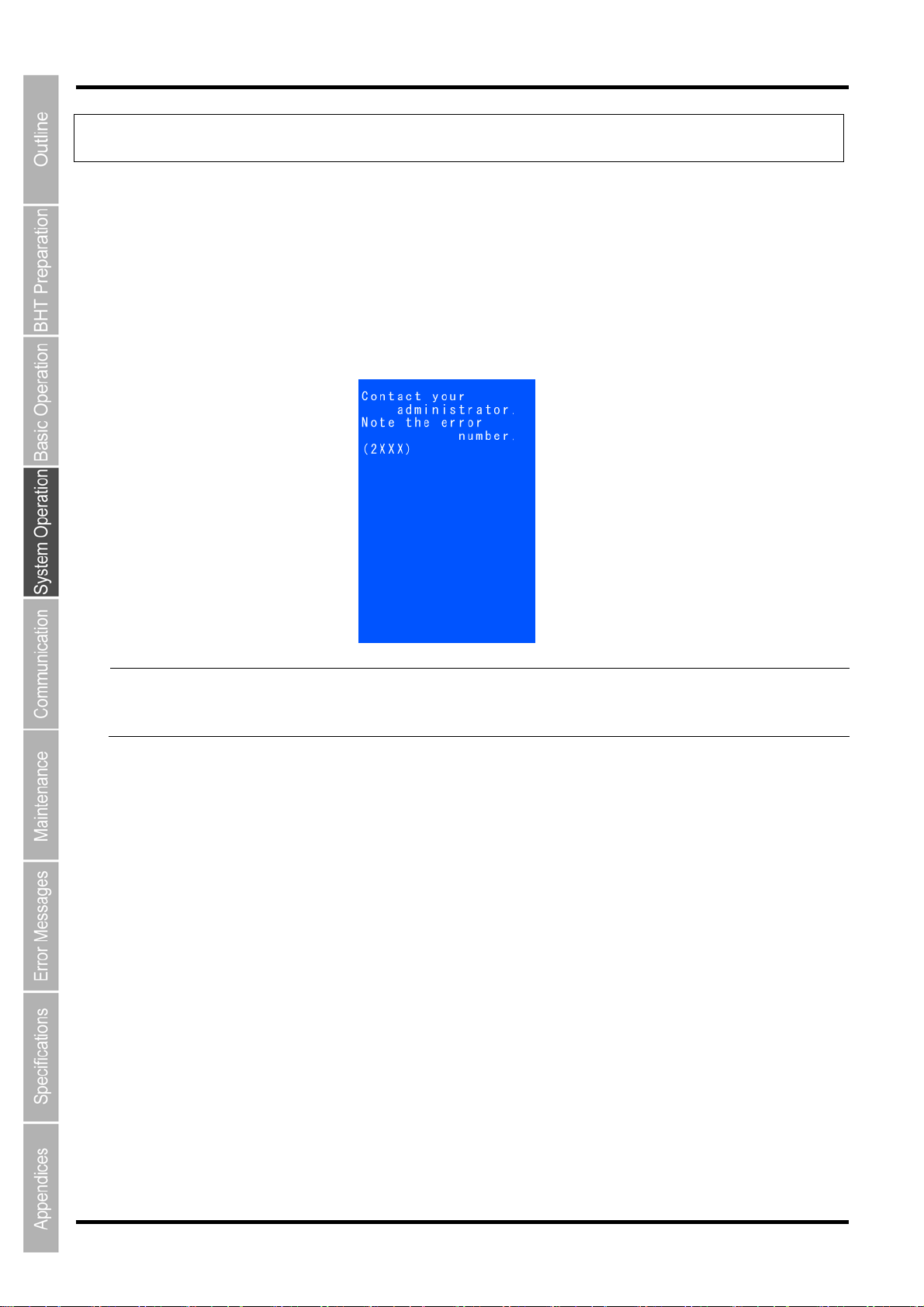

no longer be backed up so that the message "Contact your administrator. Note the error number. (XXXX)" or "Set the current date and time." may appear on the LCD.

 Refer to “Chapter 6 Maintenance” – “6.2 Using the BHT after Long Periods” for details of handling

the BHT after long periods of time.

 Avoid storing the battery cartridge in high-temperature locations. The battery capacity may

decrease.

 Do not touch the BHT, battery, or charger terminals by hand or stain them. Doing so may result in

a BHT operation defect or battery cartridge charging failure. It is recommended that dirt on the battery cartridge terminals or BHT battery terminals be periodically wiped with a soft, dry cloth.

Page 30

BHT-604Q

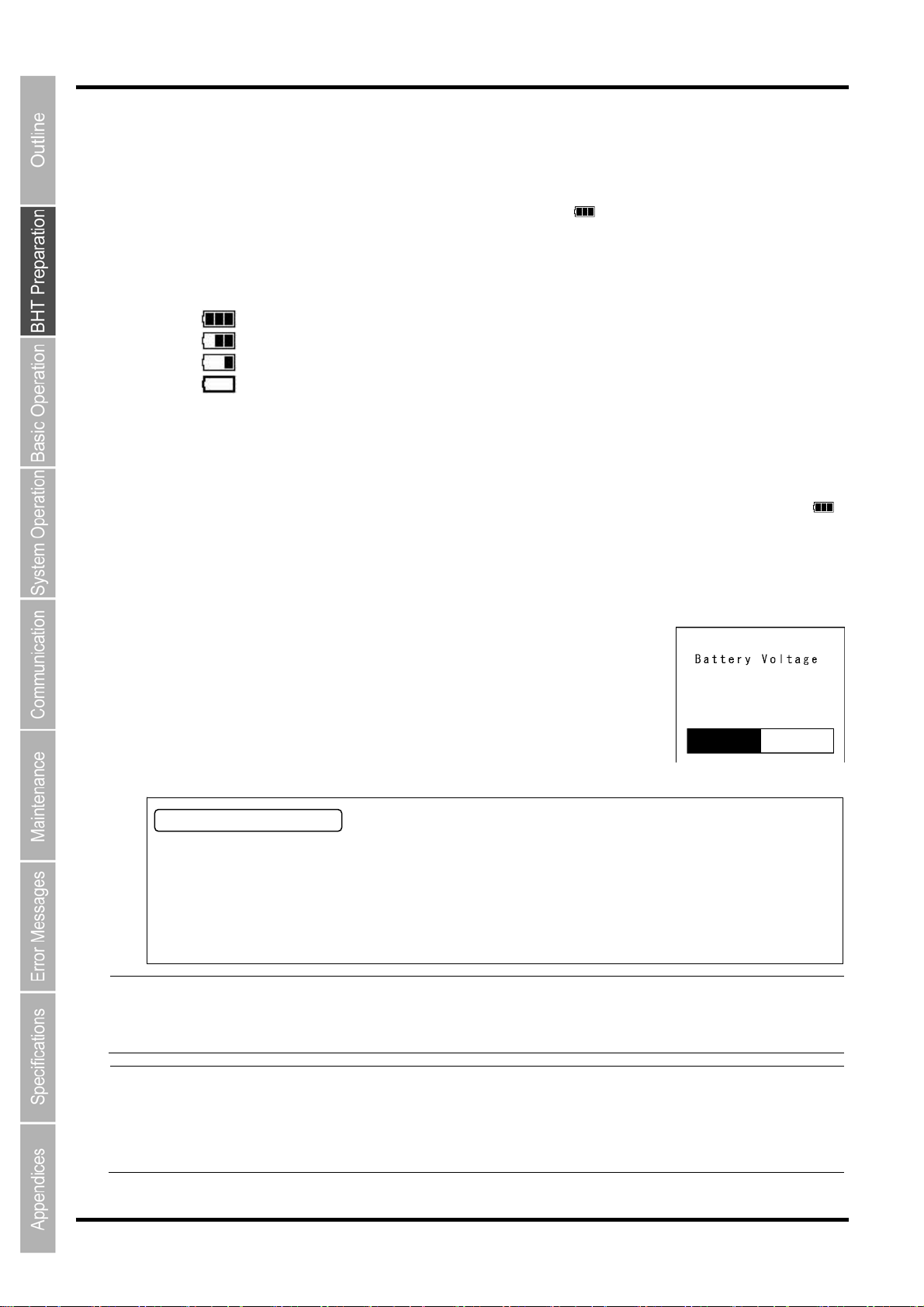

2.2.1 Battery Power Level Indicator

Confirming at the Power Level Icon

The battery power level can be confirmed with the battery icon ( ) displayed at the bottom left of the LCD screen. The battery power is indicated in four levels. The battery power level indicator tells you when to charge the battery cartridge.

：Sufficient battery power remains. ：The battery power is partially depleted. Making early charge is recommended. ：The battery power is almost fully depleted. Charge immediately. ：The battery power is totally depleted. Charge immediately or replace with a fully charged battery cartridge.

Confirming at the “Battery Voltage” Screen

The battery power level can also be confirmed at the “Battery Voltage” screen. The "Battery Voltage" screen displays the battery power level in more detail than the battery icon ( ) that displays on the LCD screen. Display the “Battery Voltage” screen using the follo

wing procedure.

1. Hold down the SF key and press the ENT key.

The “Battery Voltage” screen displays while the keys are pressed.

About the Battery

 The battery pow

be used as a guideline.

 The battery power level will fluctuate due to BHT operation, and therefore disparities may

occur between the actual battery voltage and the display indicator.

 Ensure to charge the battery as soon as possible before the battery power is depleted.

 Point   If the BHT is placed in the alphanumeric entry system in user programs, the combination of the SF

and ENT keys cannot be used for displaying the battery voltage level. This is because in the alphanumeric entry system the SF key and ENT key are used for switching between the numeric and alphabet entry modes.

 TIP   In user programs, you may select the key to be used for displaying the battery voltage level

(instead of the default: combination of SF and ENT keys).

 The displayed battery level shows the terminal voltage of the battery, not how much power is left.  The actual voltage level varies depending upon the operation of the BHT, so the displayed level

also may vary.

Level

er level indicator does not accurately reflect the battery residual power and should only

Page 31

2D Code Handy Terminal

2.3 Wearing the Hand Strap

Wear the hand strap to prevent the BHT from being accidentally dropped during use.

2.3.1 Attaching the Hand Strap

Attach the hand strap to the BHT as shown below.

2.3.2 Holding the BHT

Wear the hand strap to your wrist and hold the BHT as shown below.

Page 32

BHT-604Q

2.4 Initial Setup

Turn ON the power after inserting the fully charged battery cartridge into the BHT. The date and time are not set at the time of purchase. You are required to set the date and time when turning ON the power for the first time. Also follow the below procedure when resetting the date and time

1. Press the Power key ( ) to turn ON the BHT.

The screen right displays.

2. Enter the date and time using the numeric keys.

[Ex.] : September 4, 2010, 14:20

 Point  Enter the last two digits fo

the year, and enter the time in 24-hour clock format.

3. Press the ENT key to set the date and time.

The screen right displays when the date and time are set.

4. Press the numeric key 1 and the ENT key. Then, select [1:Yes].

A scanning demo commences. The scanning demo is a program that allows codes to be read without a user program. Press the trigger switch to enable code reading. Refer to "Chapter 3 Basic Operation" – “3.1 Reading Codes or 2D Codes” when reading codes

 Point  The power turns OFF by selecting [2:No].

Page 33

2D Code Handy Terminal

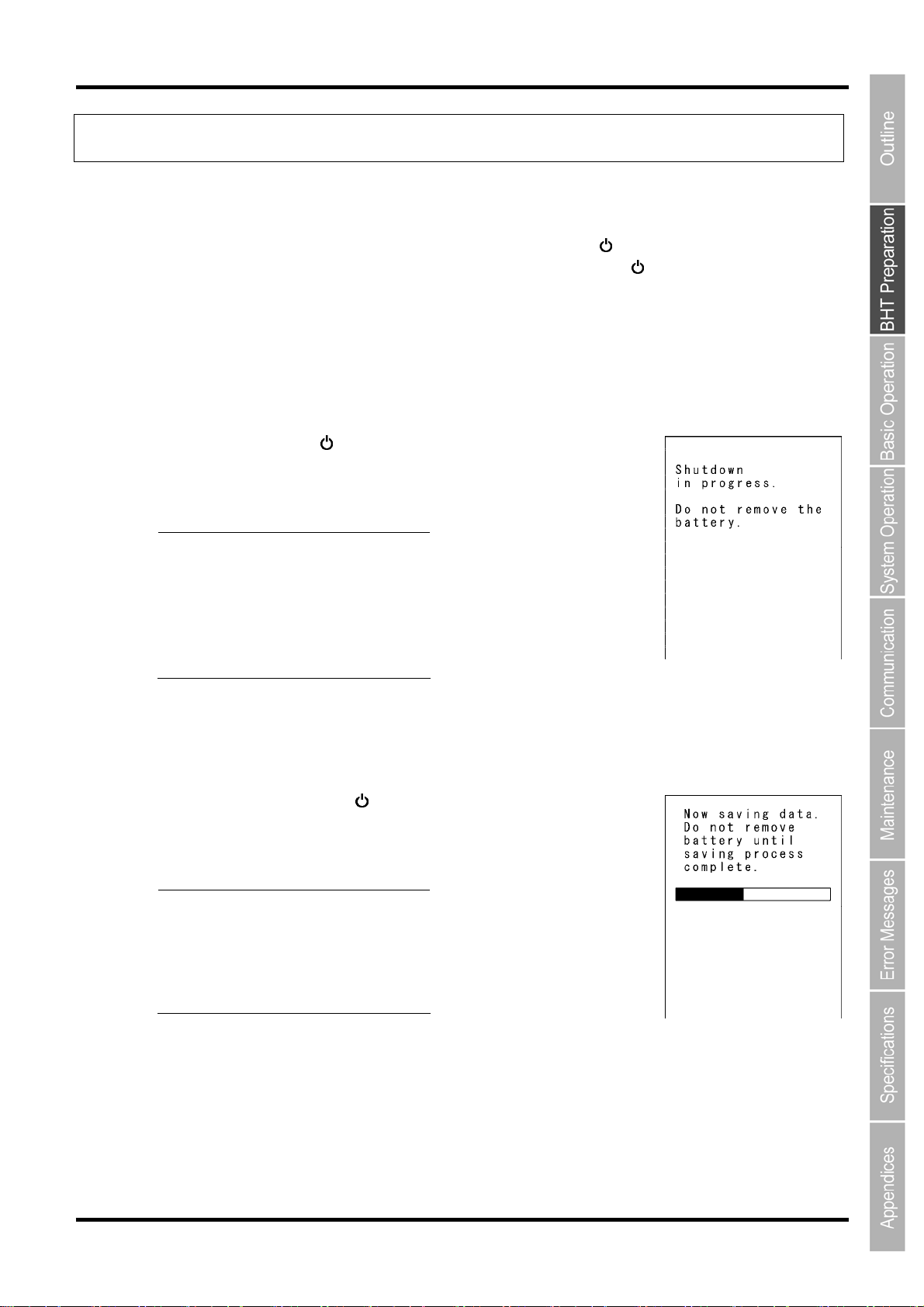

2.5 Turning OFF the Power

You can turn OFF the BHT in one of the following three methods.

Normal Power OFF → Press the Power key ( Turning the power OFF after data back-up → Hold down the Power key ( Auto power OFF → The power turns OFF itself when the BHT is not used for

specified period of time set at the user program.

2.5.1 Normal Power OFF

1. Press the Power key ( ).

The BHT turns OFF after the message on the screen given to the right displays.

 Point  Do not remove the battery

cartridge while the message on the right is displayed.

When the power is next turned ON, there are times when a message (2XXX ) displays asking the user to contact the administrator.

) for at least 3 seconds.

2.5.2 Turning the Power OFF after Data Back-up

1. Hold down the Power key ( ) for at least 3 seconds.

The message right displays and data back-up is commenced. The power turns OFF itself when the back-up is complete.

 Point  Do not remove the battery

2.5.3 Auto Power OFF

The power turns OFF itself when the BHT is not used for the specified period of time set at the user program. This is set to 3 minutes at default when the BHT is shipped from the factory. * Refer to “BHT-600 Programmer’s Manual” for details of auto power OFF.

cartridge while the message on the right is displayed. The back-up process may take several tens o seconds depending on the amount of data.

Page 34

BHT-604Q

2.5.4 If the BHT Is Shut Down Abnormally

If the BHT is shut down abnormally* and is left without a battery cartridge or with a discharged battery cartridge inserted, then unsaved data may be lost. (*"Normally shut down" refers to "2.5 Turning OFF the Power.")

1. The right message will appear when you insert a charged battery

cartridge and turn the BHT on.

2. Press the 2 key while hol ding down the SF key.

The screen right displays.

[1. Yes]: Run Scandisk and start the System. [2. No]: Turn the BHT off.

3. Choose [1. Yes] with the numerical keys and press the ENT key.

When Scandisk is in progress, the right message is displayed.

Page 35

2D Code Handy Terminal

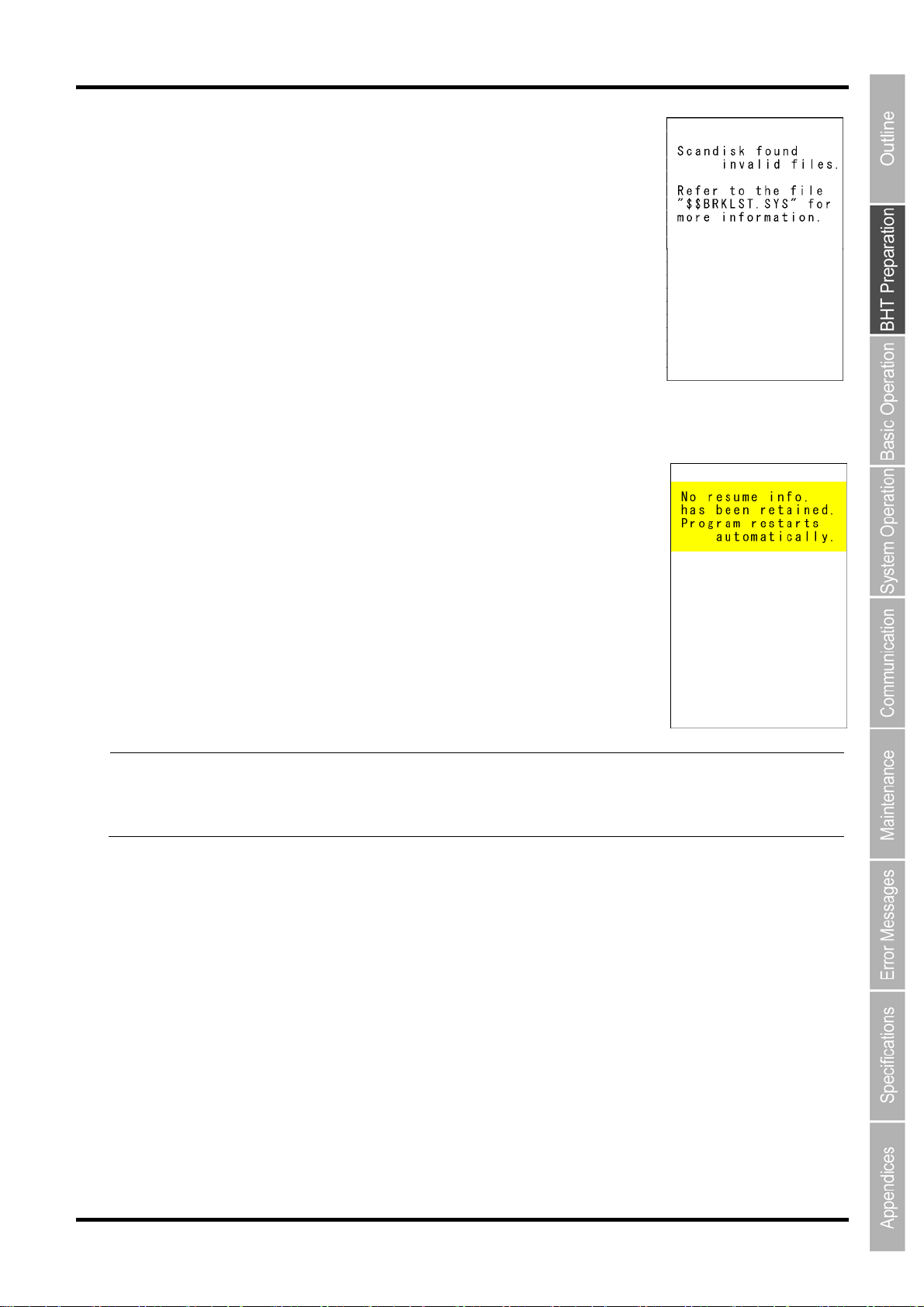

If Scandisk finds an invalid file(s), the right screen will appear. (As long as an invalid file exits, the screen displays every time the BHT System is started up.)

(Refer to “About “$$BRKLST.SYS” on the following page.)

4. Press the ENT key to start up the BHT System.

Scandisk when the resume function is enabled

If Scandisk runs when the resume function is enabled, the screen given right may appear.

The BHT disp the execution program from the beginning. (The screen may also appear when the calendar clock built in the BHT stops, even without running Scandisk.)

 Point  The resume function is used to return the display to the status (screen) when the power was last

turned OFF when the power is next turned ON. Resume function settings are made at the “SET SYSTEM” menu. Refer to “Chapter 4 System

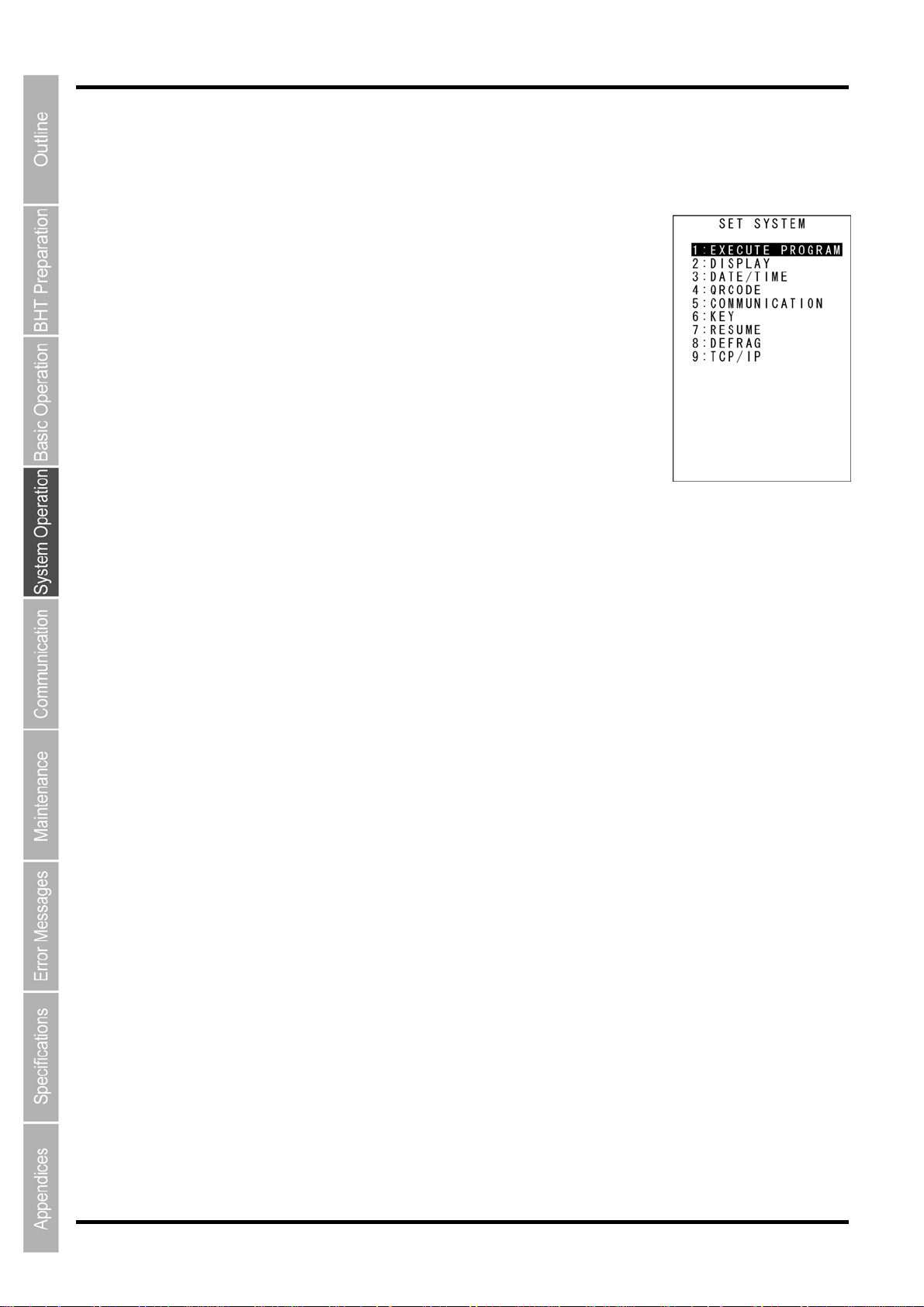

Operation” – “4.5.5 System Environment Settings (SET SYSTEM Menu)” for further details.

lays the screen for three seconds and the

n automatically runs

Page 36

BHT-604Q

About “$$BRKLST.SYS”

If Scandisk finds an invalid file(s), it will automatically create the “$$BRKLST.SYS” file. To check the contents of the file, upload the file in System Mode to the host computer. (Refer to “Chapter 4 System Operation” – “4.5.3 Uploading Files (UPLOAD MENU).”)

Contents of the “$$BRKLST.SYS” file

Records

[Ex.] SAMPLE1.DAT + 01000-01050 If more than one sequence of records is broken in a same file, SAMPLE1.DAT + 01200-01250 they will be written into the subsequent records in the SAMPLE1.DAT + 01600-01650 “$$BRKLST.SYS.” SAMPLE2.DAT * 00250-00275 SAMPLE3.DAT * 00100-00150

↑ ① ② ③

(1) File name (2) Error factor + (Broken since the BHT has not been turned off normally)

* (Broken due to any other causes)

(3) Broken records e.g. 01000-01200 (Data in records numbered 1000 to 1200

is lost)

↑ ↑

2.5.5 If Invalid Files Are Found

Even invalid files can be uploaded, so upload them to the host computer according to your needs.

 Delete those invalid files.

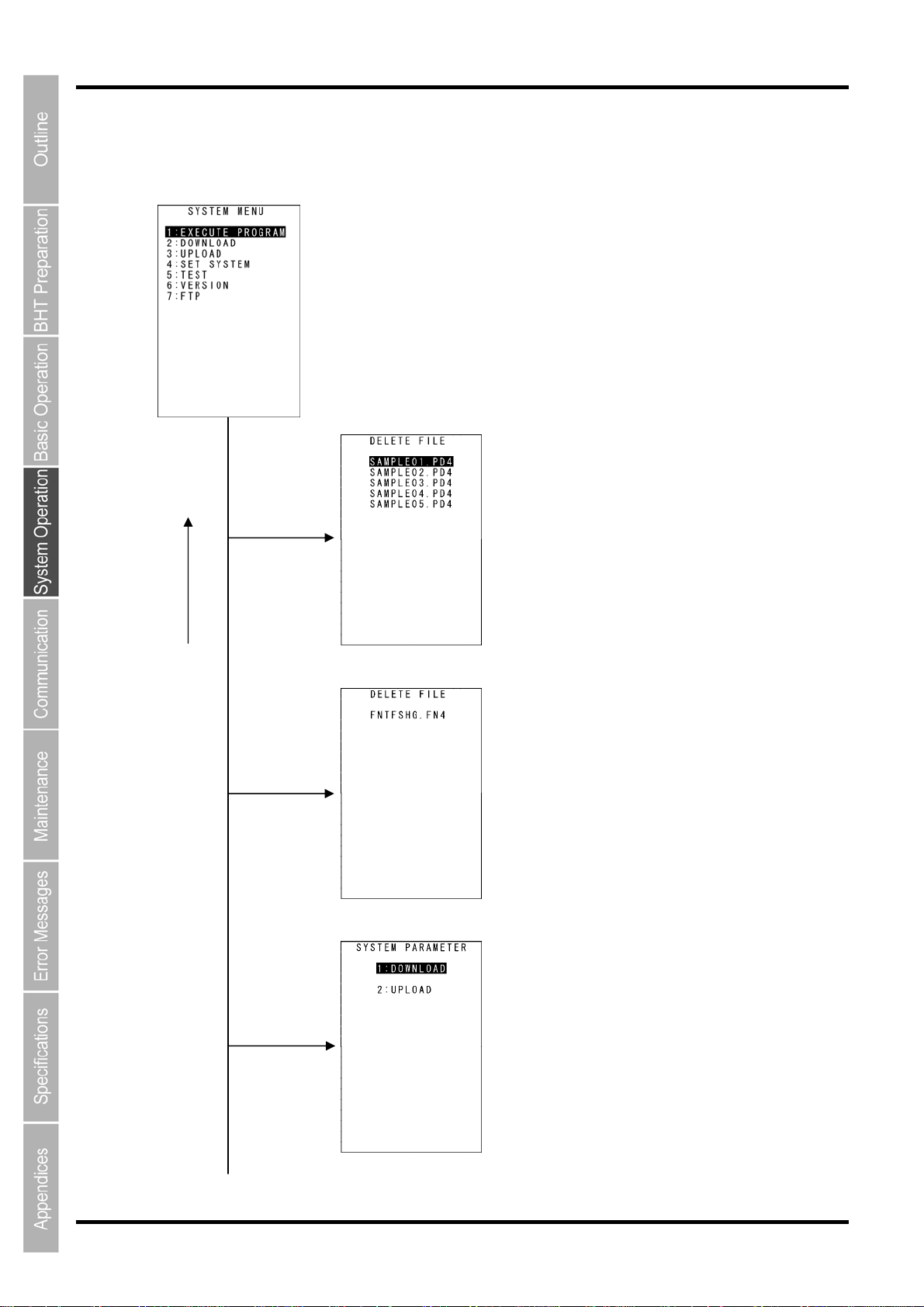

(Refer to “Chapter 4 System Operation” – “4.5.9 Deleting Program/Data Files (DELETE FILE MENU).”)

 Download valid files having the same names as invalid ones.

(Refer to “Chapter 4 System Operation” – “4.5.2 Downloading Files (DOWNLOAD MENU).”)

Page 37

BHT-604

Chapter 3

Basic Operation

This chapter describes basic operations such as code reading, numerical data entry and item selection using the BHT, basic changes to settings, and BHT data transmission

3.1 Reading Barcodes or 2D Codes·································································26

3.2 Numeric Data Entry····················································································28

3.3 Task Selection····························································································28

3.4 Changing the Default Settings····································································29

3.4.1 Procedure ·······································································································29

3.5 Transmitting Data·······················································································31

3.5.1 Connector Communication ············································································32

3.5.2 IrDA Communication······················································································33

Page 38

BHT-604Q

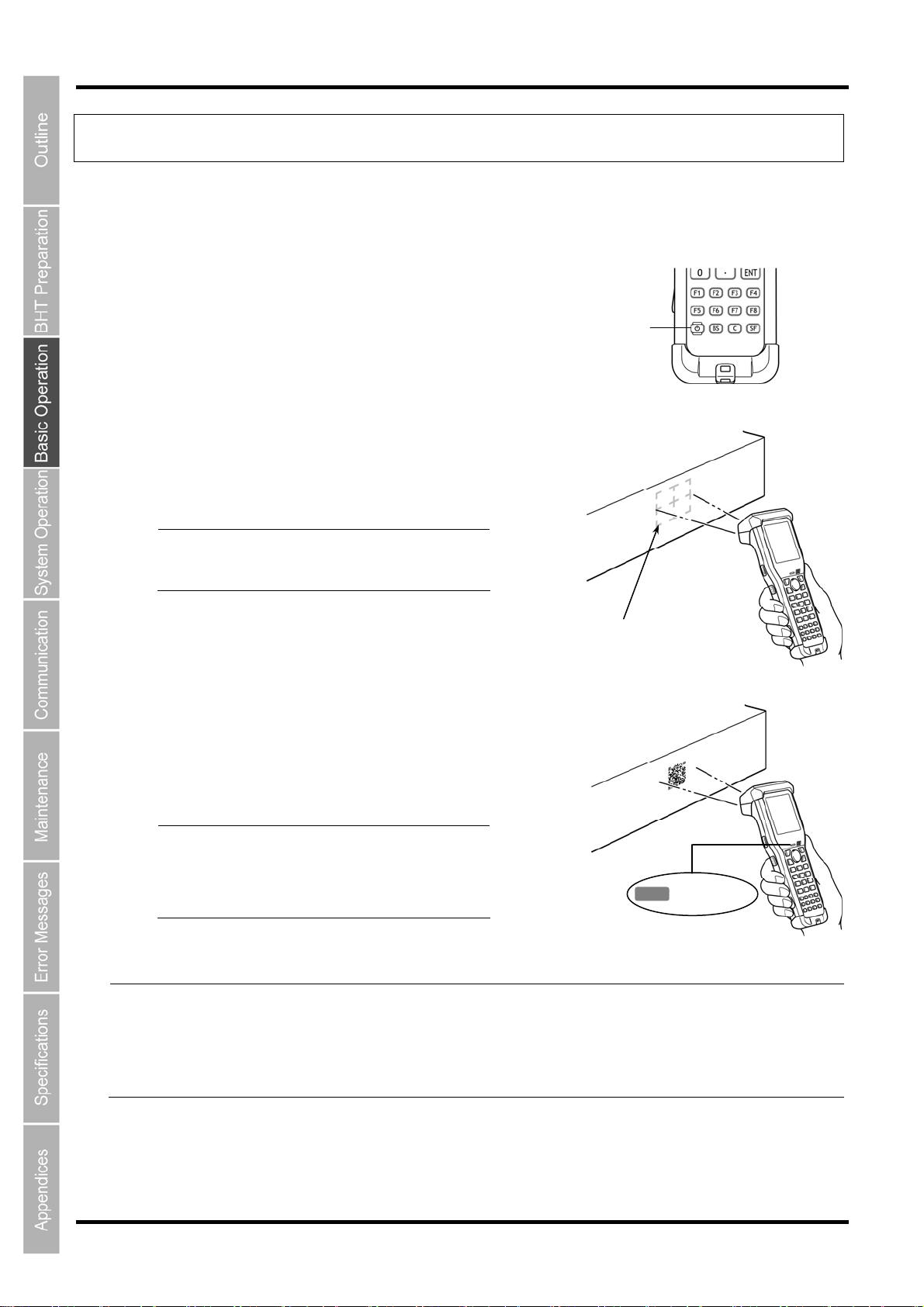

3.1 Reading Barcodes or 2D Codes

Follow the procedure below to read codes.

1. Turn the BHT power ON.

2. Press the trigger switch.

The BHT emits guide marker (laser light) and the light for reading

━ Point ━ The trigger switch is assigned to

magic keys M3 and M4 when shipped from the factory.

Power ke

3. Hold the BHT close to the code to align the guide marker.

When the BHT has read the code successfully, the indicator LED will illuminate in blue.

━ Point ━ The code reading method may

differ depending on the application. Select the most appropriate in accordance with in the User’s Manual.

━ Note ━  If required, clean dirty labels before reading.

 It may not be possible to perform reading in direct sunlight.  If the code is on a curved surface, flatten the label surface and read it again.  If the code reading window is pulled away from the code, the readable code range will become

narrower than that of the light emission.

Guide marker

Blue LED ON

Page 39

2D Code Handy Terminal

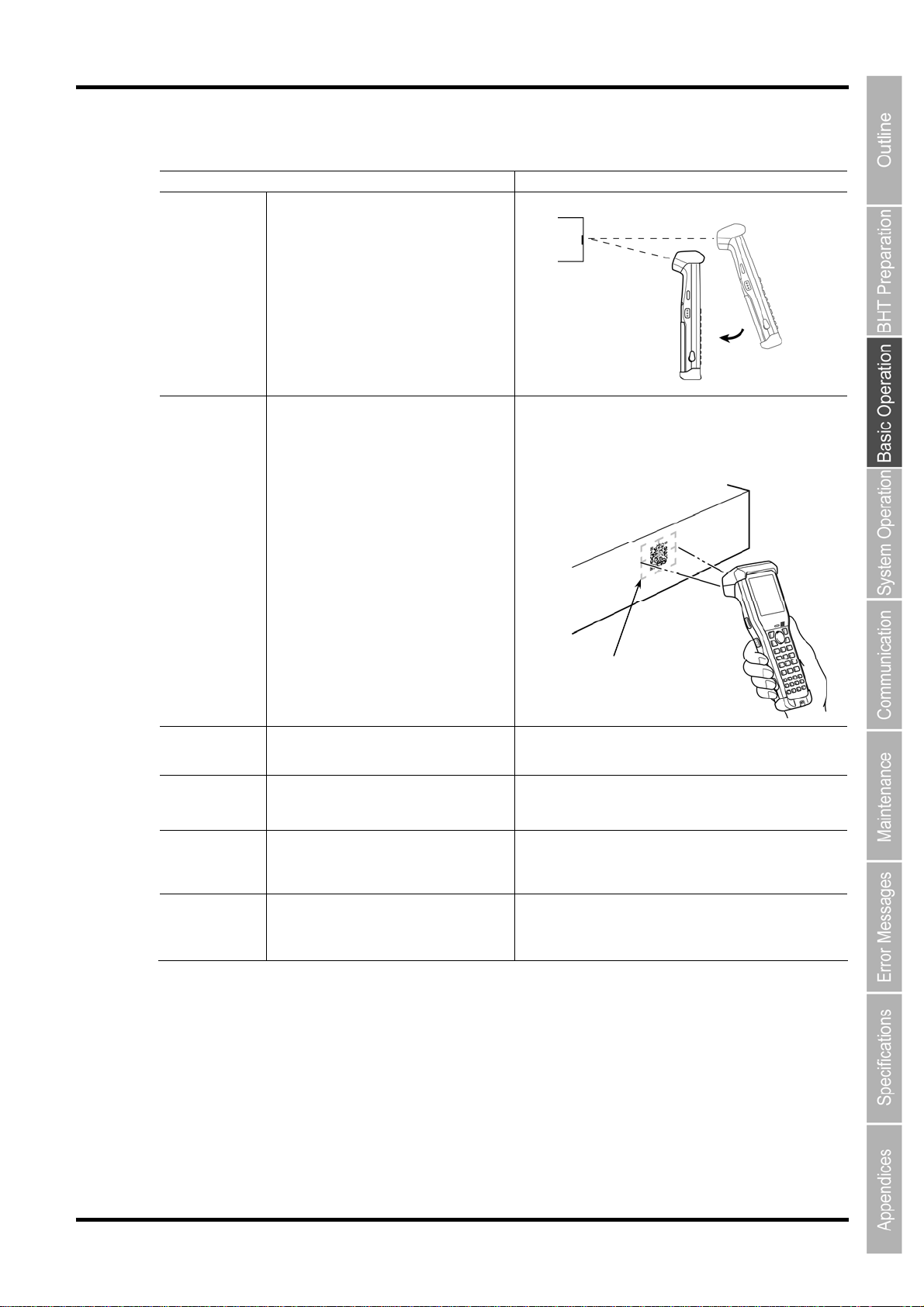

When unable to successfully read barcodes or 2D codes…

Cause Countermeasure

Change the BHT reading angle and try again.

Move the BHT slowly toward or away from the code and try again.

Use the display range of the guide marker as a guide. The valid reading range is approx. 6×4 cm if the reading distance is 11 cm.

Guide marker

Specular reflection

Distance from code

When the light is focused on the printed surface of the code from directly above, the BHT may not read the code due to specular reflection.

The barcode may not be read if it is too close to or too far from the BHT reading window,

Code surface curvature

Code surface dirt

Code reading window dirt

Direct sunlight, ambient light

The code may not be read if surface is extremely curved.

The code may not be read if its surface is dirty.

The code may not be read if the barcode reading window is dirty.

Code reading may be adversely affected by direct sunlight or the brightness of the surrounding light.

Flatten the label surface and read it again.

Wipe the dirt from the code and try again.

Blow any dust away with an airbrush, and then gently wipe the reading window with a cotton swab or similar soft object.

Read the code away from direct sunlight. Adjust the brightness of the surrounding light when reading indoors.

Page 40

BHT-604Q

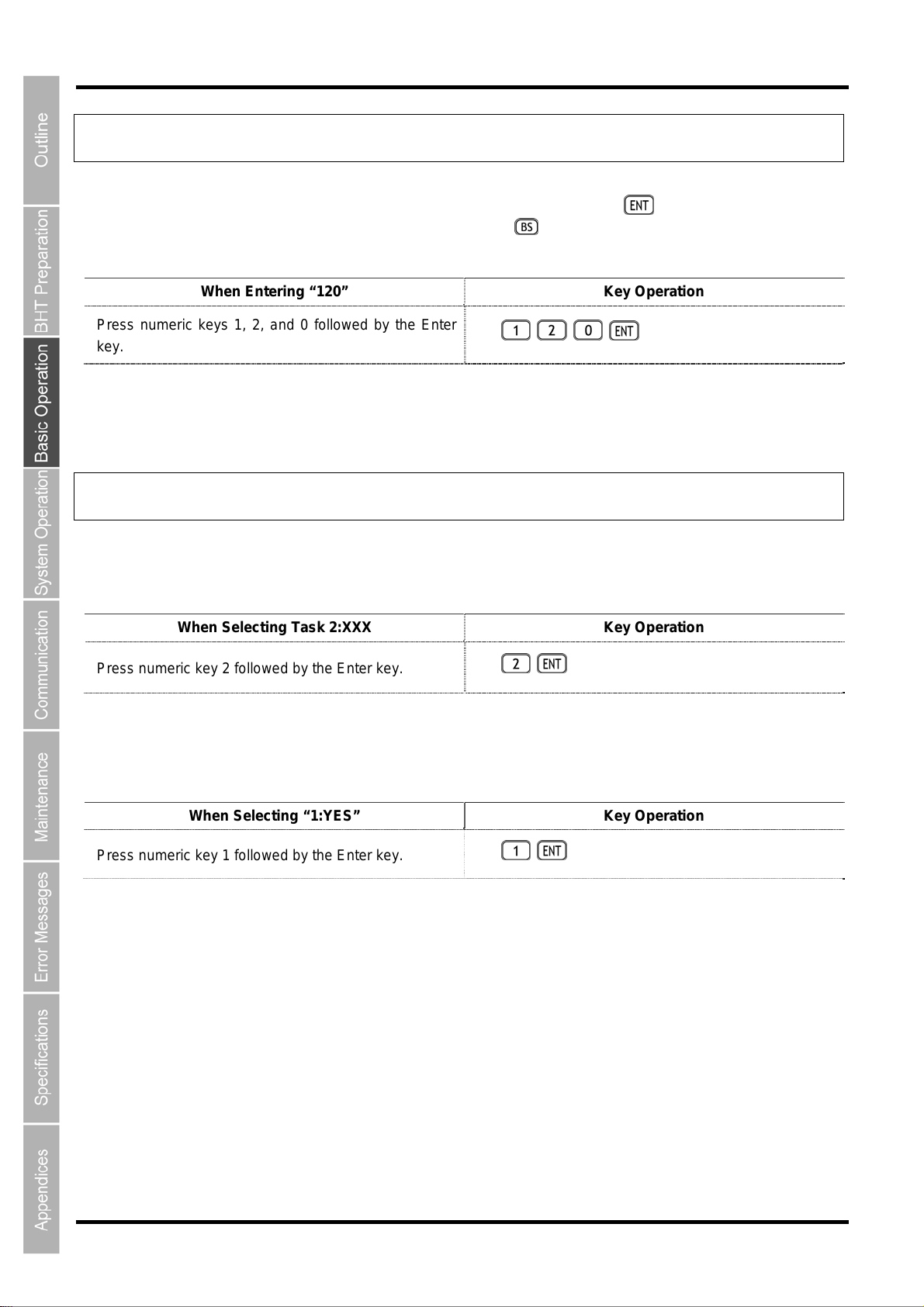

3.2 Numeric Data Entry

Enter numeric data such as product volume with the numeric keys and Enter ( ) key. If numeric data is entered incorrectly, use the backspace numeric keys.

When Entering “120” Key Operation

key ( ) to delete the data and then reenter with the

Press numeric keys 1, 2, and 0 followed by the Enter key.

3.3 Task Selection

If a selection item “such as “1:XXX 2:XXX” with numeric values displays, enter the values with the numeric entry keys and then press the Enter key.

When Selecting Task 2:XXX Key Operation

Press numeric key 2 followed by the Enter key.

If a YES/NO selection screen such as “1:YES 2:NO” displays, press numeric key [1] to select “YES”, and [2] to select “NO”.

When Selecting “1:YES” Key Operation

Press numeric key 1 followed by the Enter key.

Page 41

2D Code Handy Terminal

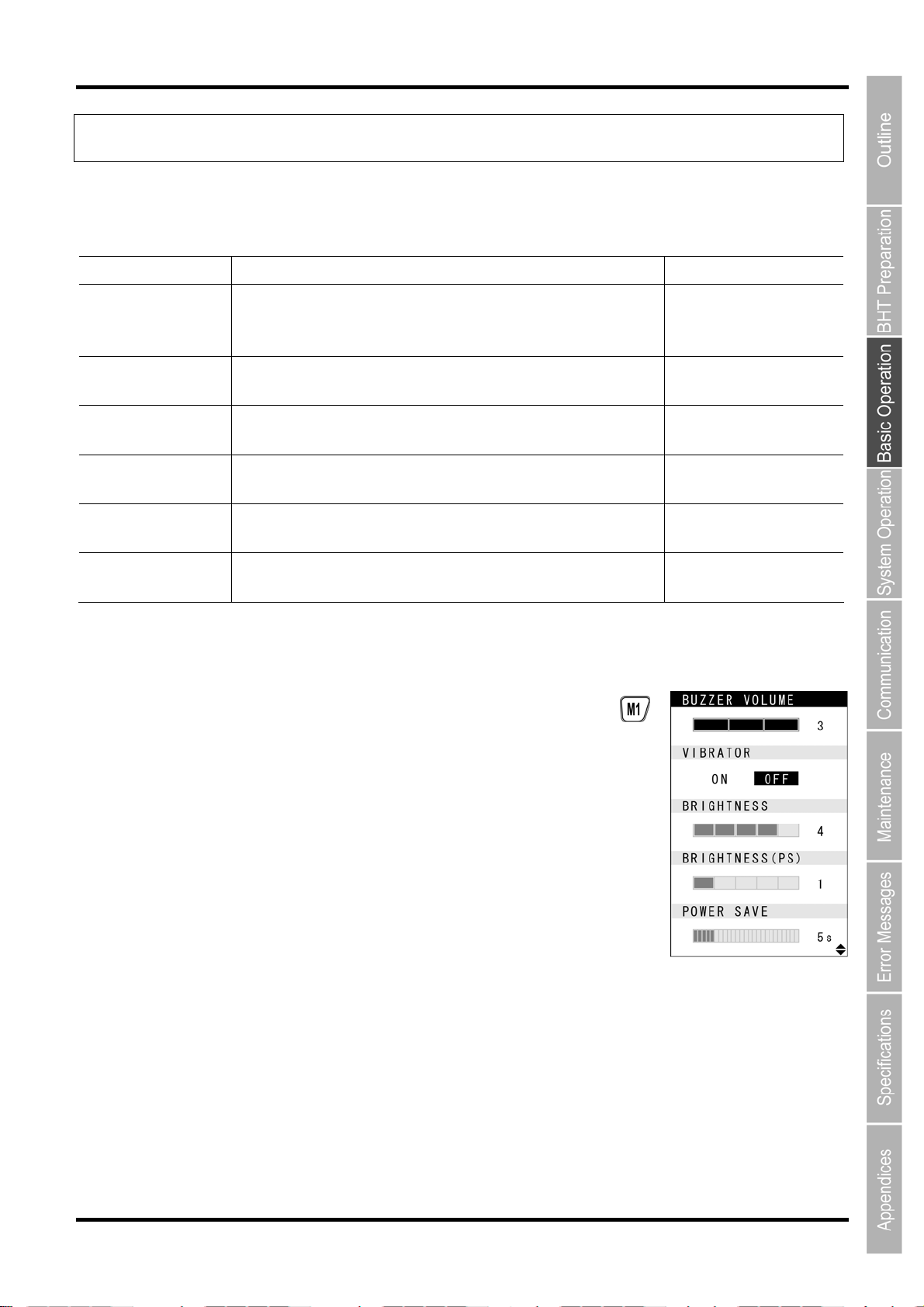

3.4 Changing the Default Settings

The buzzer volume, vibrator, LCD screen brightness, power save settings and key backlight can be changed at the MENU screen.

Item Details Setting

Used to set the volume of the buzzer that notifies the user when

BUZZER VOLUME

VIBRATOR

code reading is complete. The volume can be adjusted in 4 levels: Hi, Lo, Mid and Mute. Used to turn ON/OFF the vibrator that notifies the user when

code reading is complete.

Mute→Lo→Mid→Hi

ON, OFF

BRIGHTNESS

BRIGHTNESS(PS)

POWER SAVE

KEY BACKLIGHT Used to turn ON/OFF the keypad backlight. ON, OFF

Used to set the backlight brightness of the LCD screen. The brightness can be adjusted in 5 levels.

Used to set the backlight brightness of the LCD screen during power save mode. The brightness can be adjusted in 6 levels.

Used to set the time until the LCD screen backlight is dimmed when not in use in order to save power.

Levels 1 to 5

Levels 0 to 5

1-second units (max. 30 seconds)

3.1.1 Procedure

1. Hold down magic key M1 for at least 1 second.

The MENU screen displays

Page 42

BHT-604Q

2. Use the [▲] and [▼] cursor keys to select the item to be

changed.

The selected item is highlighted.

With BUZZER VOLUME highlighted, press [▲] or with POWER SAVE highlighted, press [▼] to change to the next screen.

3. Use the [◄] and [►] cursor keys to select the setting.

4. Press any of the following keys to exit the settings screen.

• M1 key long press

• Clear key

• Enter key

Page 43

2D Code Handy Terminal

3.5 Transmitting Data

Data gathered by the BHT can be transmitted to the host computer by connector communication, IrDA communication and wireless communication. The data transmission method and BHT setting method will differ depending on the system used, and therefore the system administrator should be contacted for details of operation.

Requests

Data gathered by the BHT should be promptly uploaded to the host computer.

IrDA Communication

Connector

Communication

IrDA

Communication

Dedicated interface cable

CU-601: RS232C CU-621: USB CU-611: Ethernet

CU-601 CU-621 CU-611

Host computer

Page 44

BHT-604Q

3.5.1 Connector Communication

Connect the host computer and BHT with a dedicated interface cable (Option, Type: CBBHT-RS1000/3-9-02) and perform data communication. The BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC 4.0 Transfer Utility (Option) software is required.

Requests

 Do not use a cable other than the dedicated interface ca  Avoid disconnecting and reconnecting the cable more than once a day. Disconnecting and

reconnecting the cable too frequently will shorten the lifetime of the connector interface port. Use the communication unit (CU-601, CU-621 or CU-611) when it is necessary to perform frequent communication between the host computer and BHT.

 Avoid inserting the connector at an angle or pulling the cable strongly.

Dedicated interface cable

ble.

Page 45

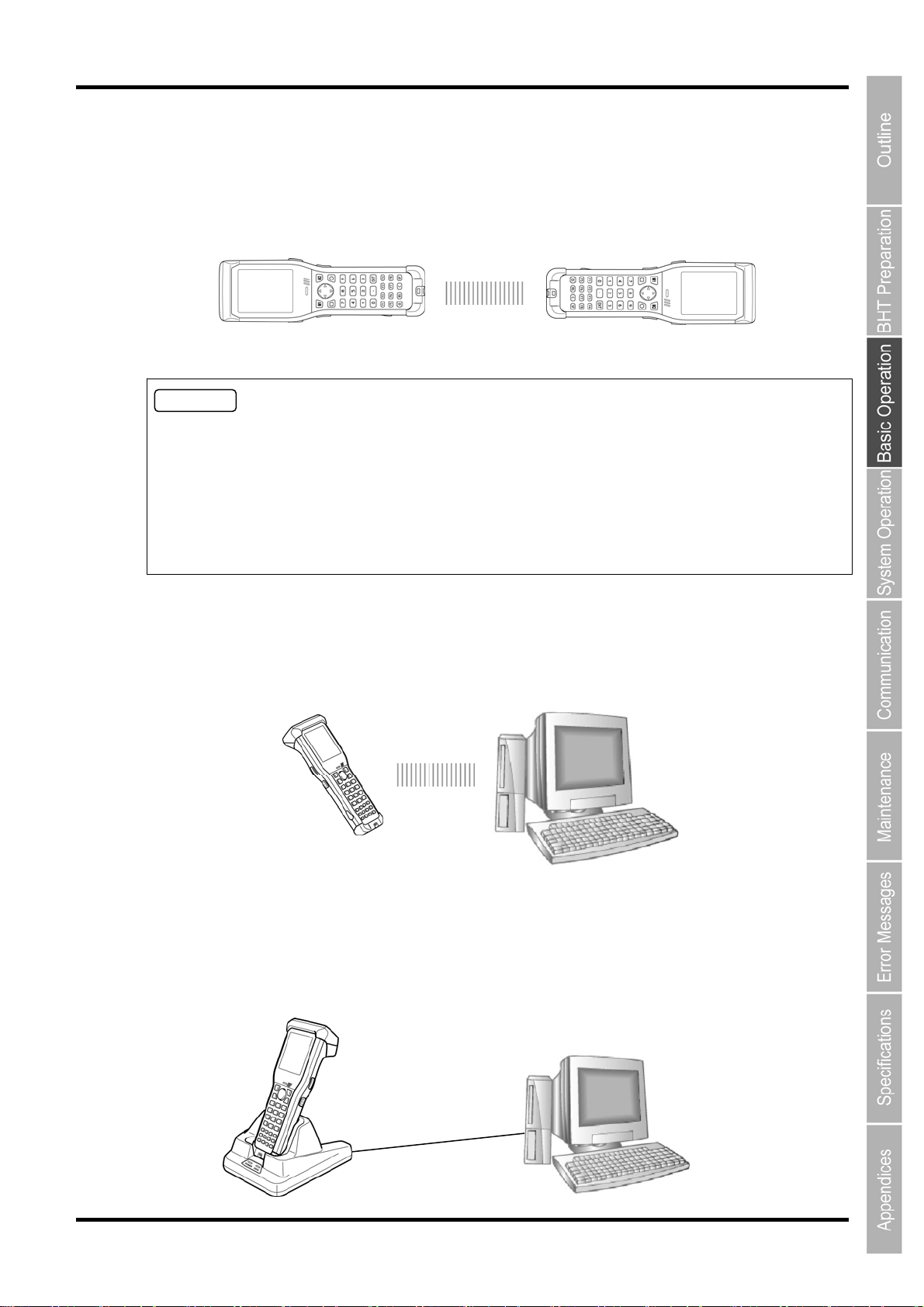

3.5.2 IrDA Communication

 WHEN PERFORMING DATA COMMUNICATION BETWEEN BHT UNITS

Point the BHT IrDA communication ports toward each other and perform communication.

Request

 Make sure that the light path betwe  Perform communication within the effective IrDA emission range (15 cm).  Do not operate remote control units for televisions and so forth in the vicinity of IrDA communication.

This may result in communication failure.

 Perform communication in locations where the BHT units will not be exposed to light interference from

sources such as intense ambient lighting (inverter-driven fluorescent lighting, in particular) or direct sunlight. This may result in communication failure.

 When performing data communication with the host computer

Data can be transmitted directly to the host computer if the computer is equipped with an IrDA communication port.

If the host computer is not equipped with an IrDA communication port, place the BHT on the communication unit (CU-601, CU-621 or CU-611) and transmit data. In case of using the CU-601 or CU-621, the BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC 4.0 Transfer Utility (Option) software is required. In case of using the CU-611, FTP communication environment is required.

2D Code Handy Terminal

en the BHT and any target stations is not obstructed.

CU-601: RS232C CU-611: Ethernet CU-621: USB

Page 46

BHT-604Q

Page 47

BHT-604

Chapter 4

System Operation

This chapter describes how to initialize and update the system, start up a user program, and operate System Mode.

4.1 Initializing the BHT System·········································································36

4.1.1 Selecting the Memory Area to be Initialized····································37

4.1.2 Selecting the Message Version (English or Japanese)···················38

4.1.3 Confirming the Memory Area Selected for Initialization···················38

4.1.4 Performing System Initialization······················································39

4.2 Updating the System ··················································································40

4.2.1 Updating the BHT System·······························································40

4.2.2 CU-611 System Update ··································································41

4.3 Executing User Programs···········································································42

4.3.1 Executing from the SYSTEM MENU “EXECUTE PROGRAM”·······42

4.3.2 Automatically Executing the Program Set at the SYSTEM MENU when Turning the Power ON···························································42

4.3.3 Executing the First Registered Program by Turning the Power ON (BHT System Directory Management Program Function)···············42

4.3.4 Executing by Wake-up····································································44

4.3.5 Executing by Remote Wake-up·······················································44

4.4 System Mode······························································································45

4.4.1 Starting Up System Mode·······························································45

4.4.2 System Mode Basic Operation························································46

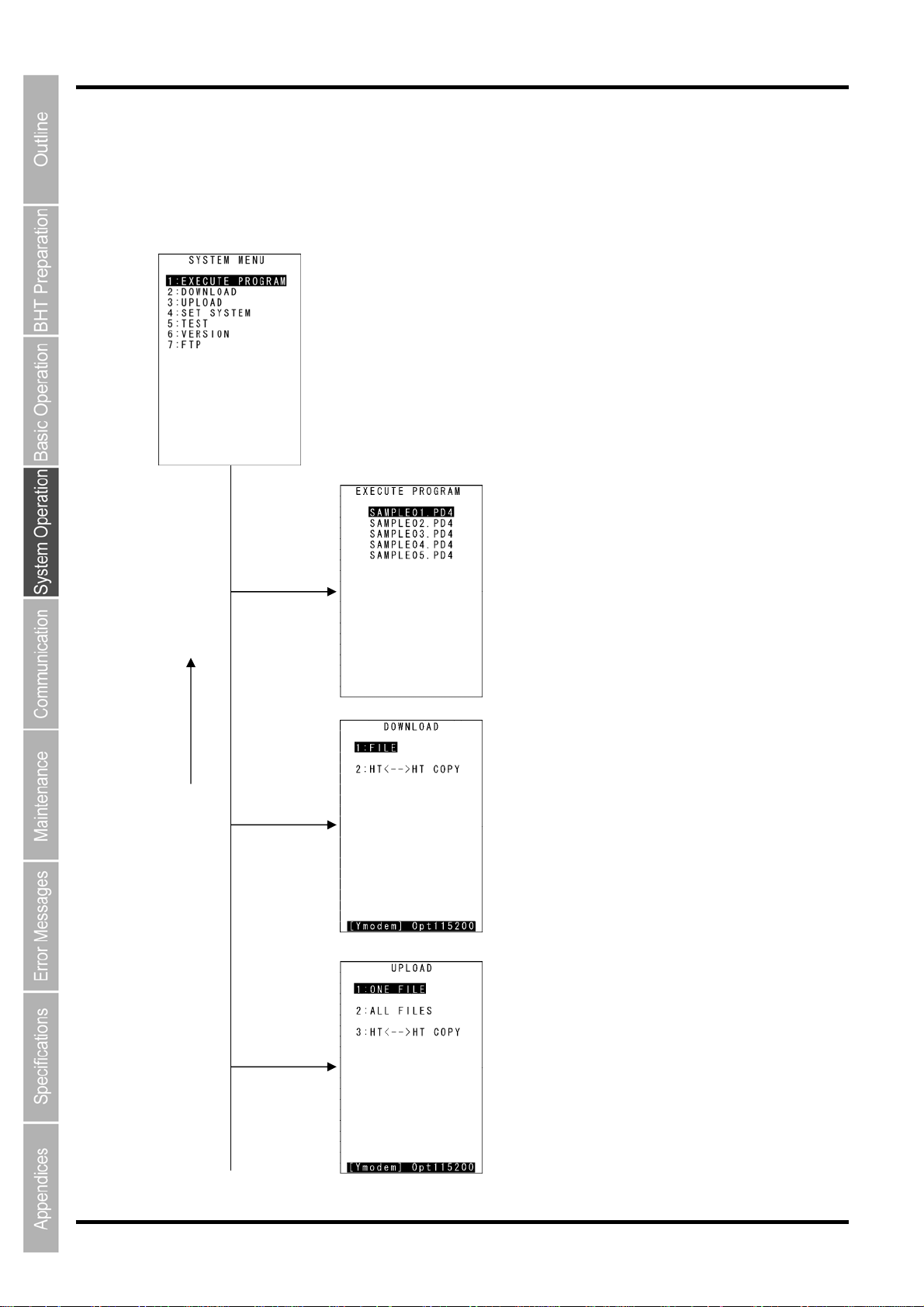

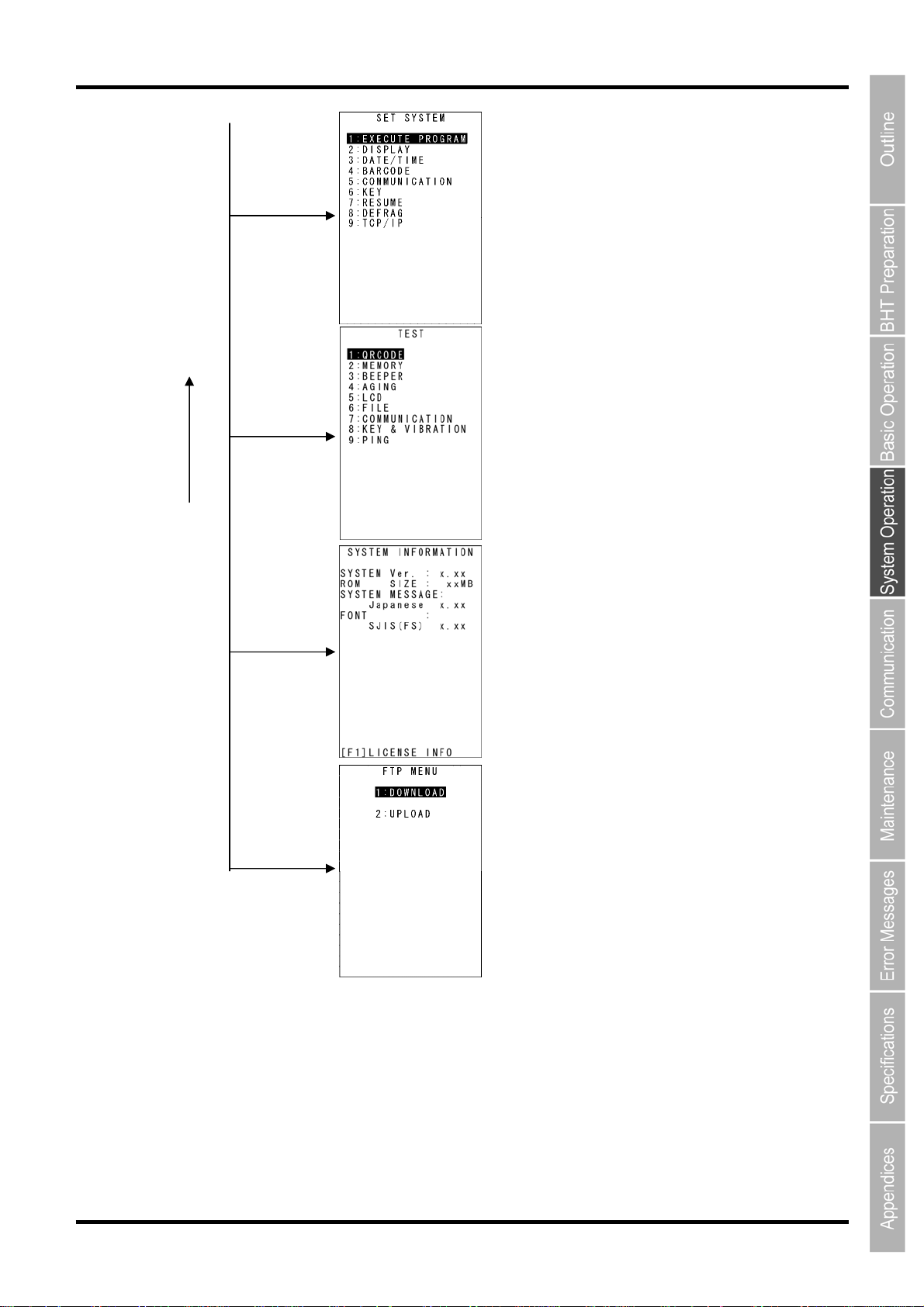

4.4.3 SYSTEM MENU Configuration·······················································48

4.5 SYSTEM MENU·························································································52

4.5.1 Executing User Programs (EXECUTE PROGRAM Menu) ·············52

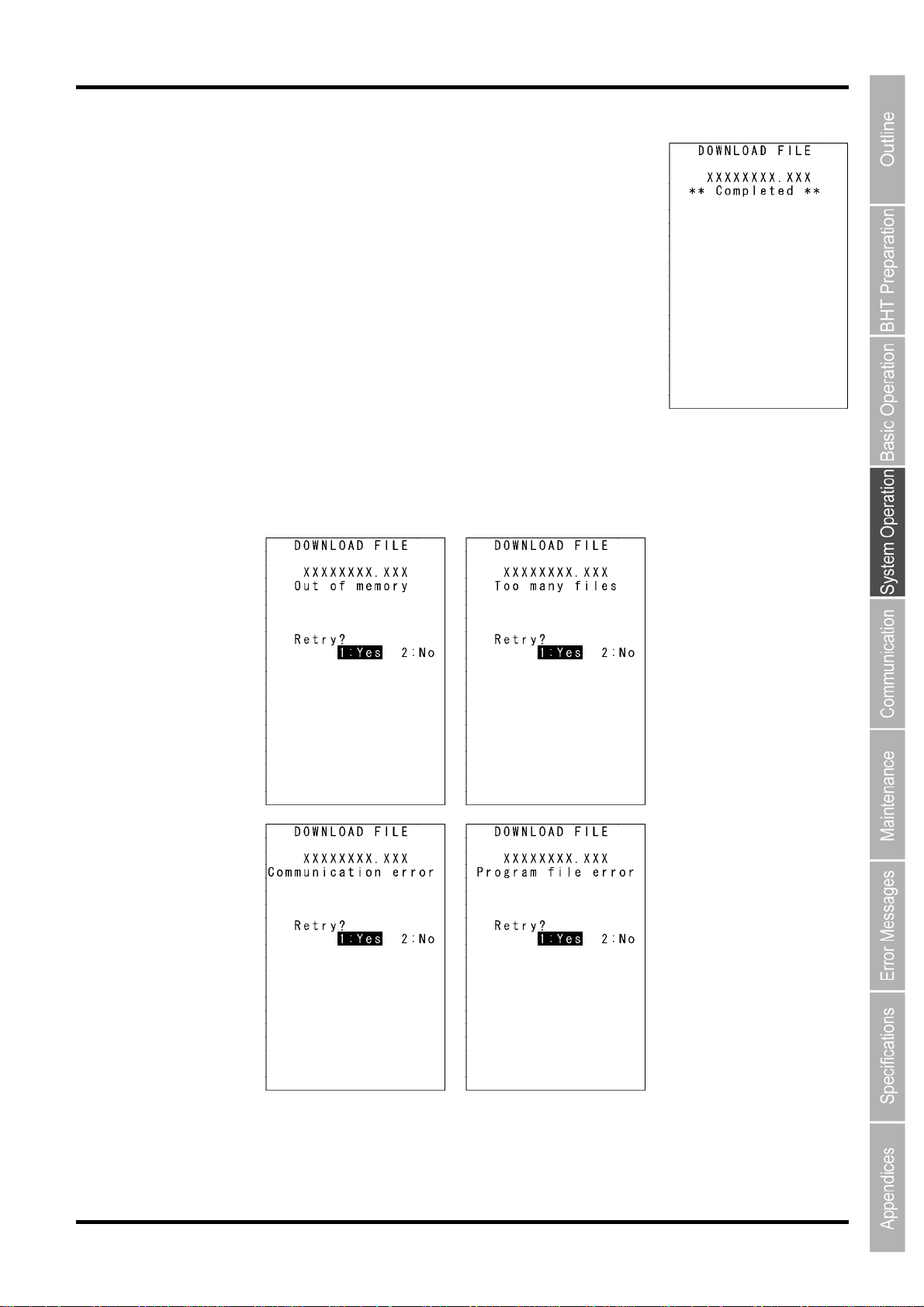

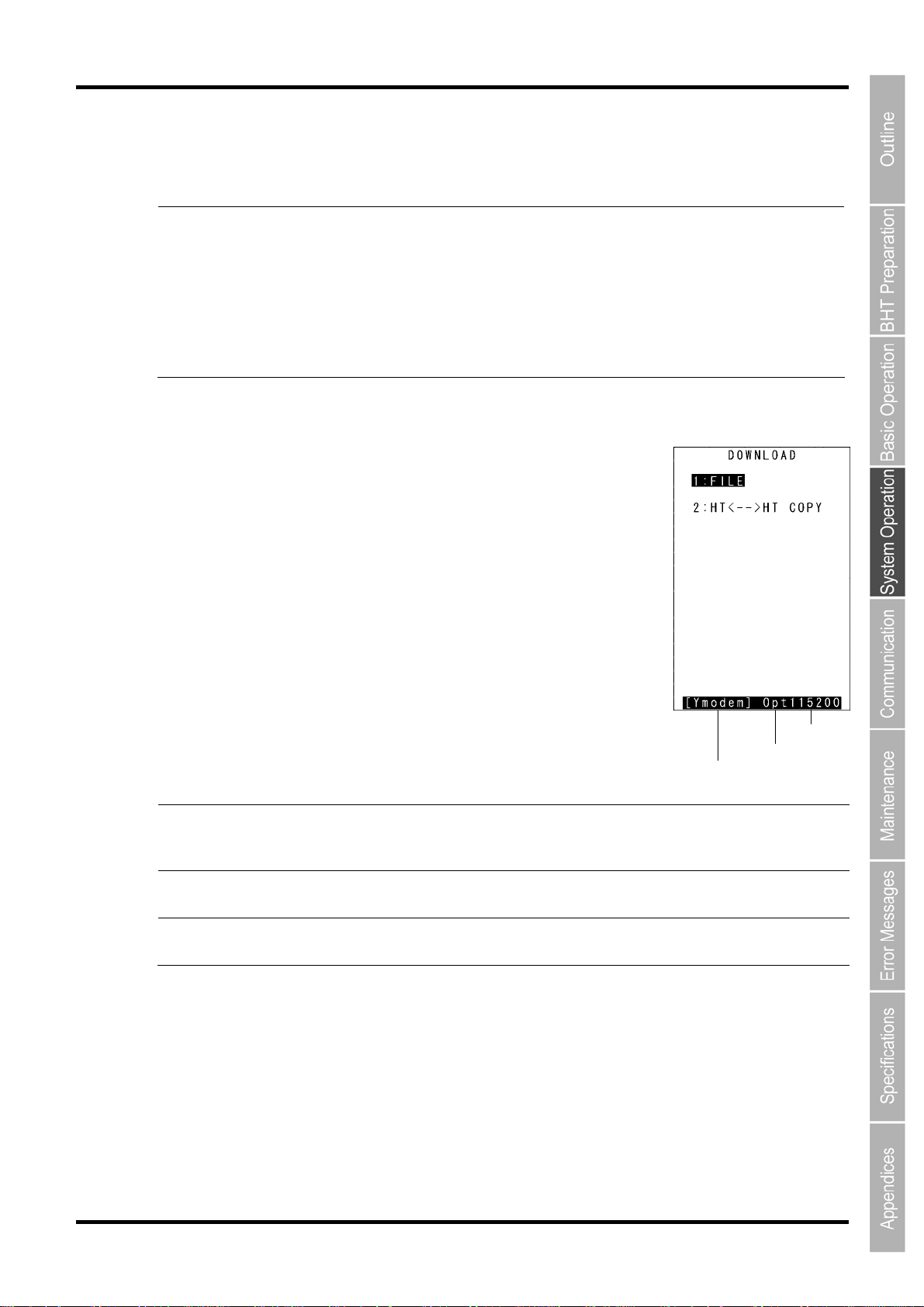

4.5.2 Downloading Files (DOWNLOAD Menu)········································53

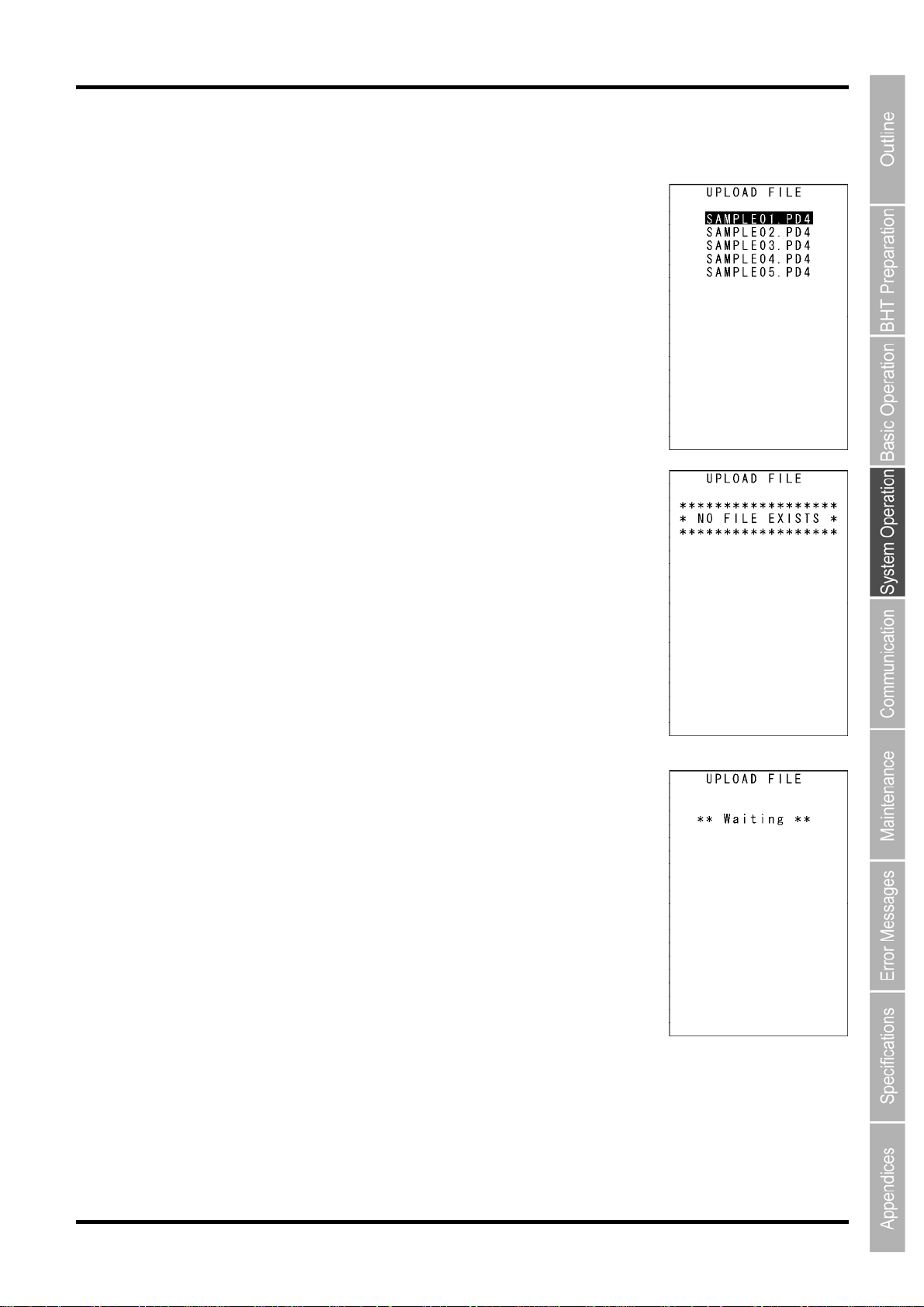

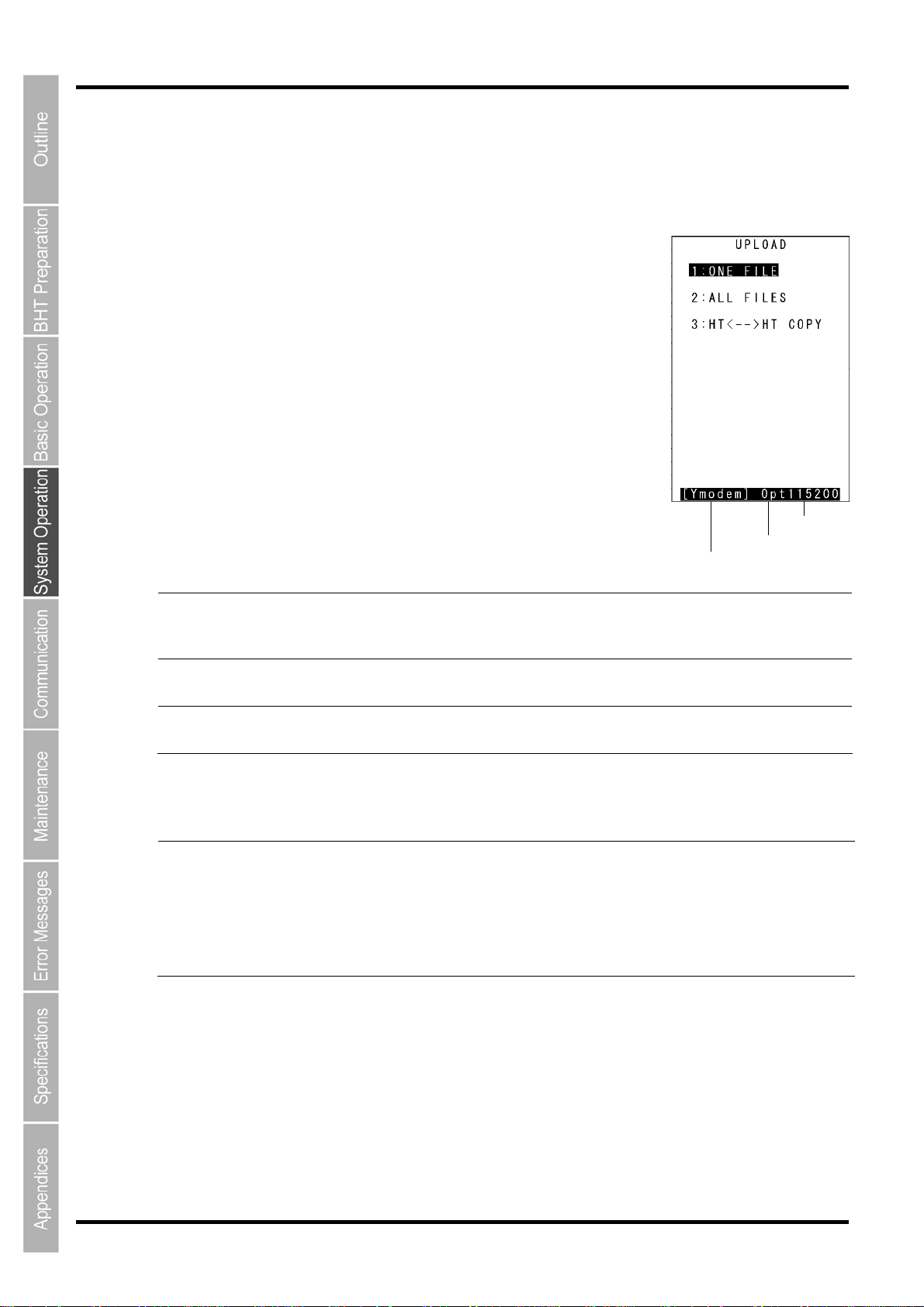

4.5.3 Uploading Files (UPLOAD Menu)···················································56

4.5.4 Copying Files between 2 BHT Units················································59

4.5.5 System Environment Settings (SET SYSTEM Menu)·····················62

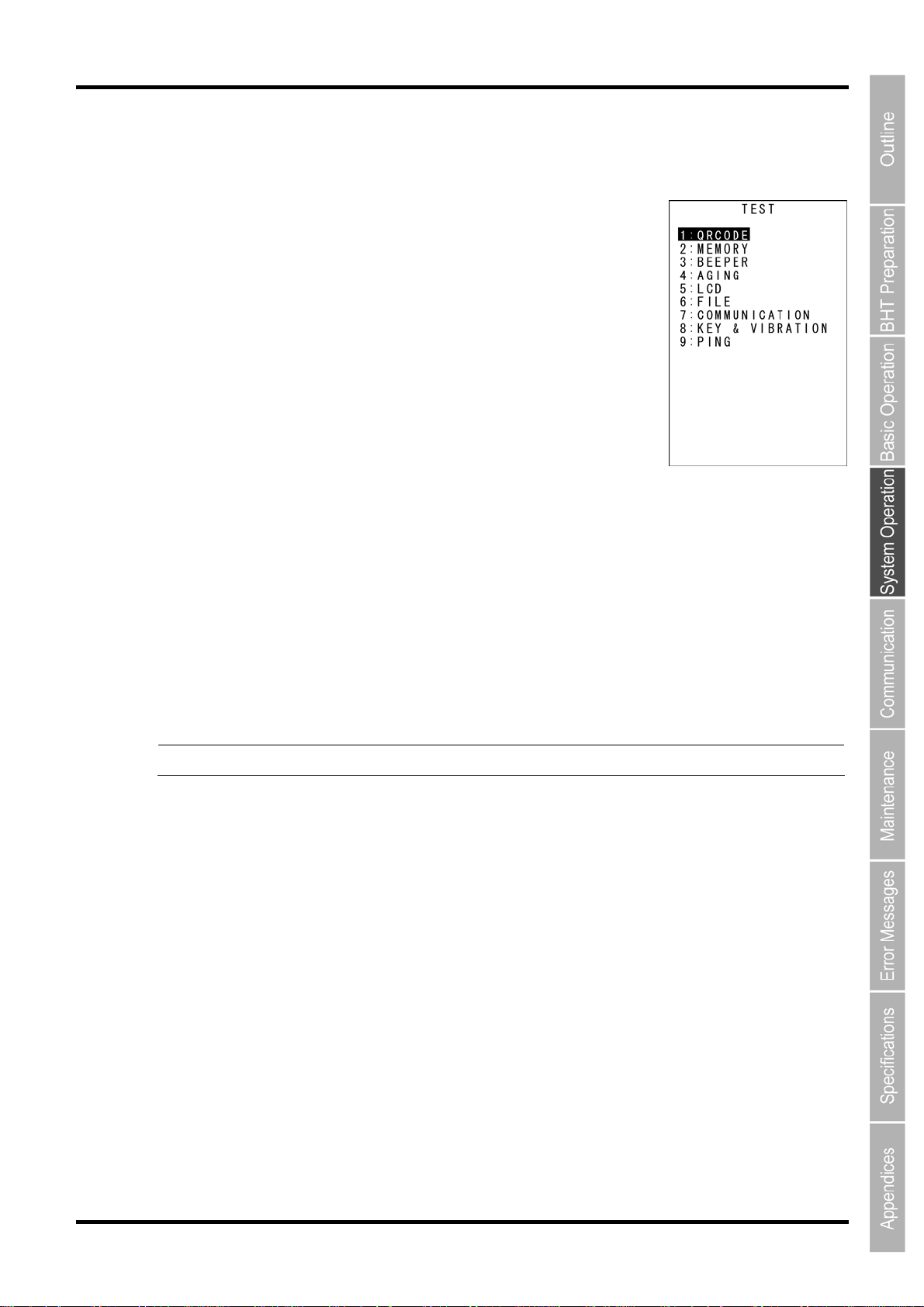

4.5.6 BHT Operation Test (TEST Menu)··················································87

4.5.7 System Information (SYSTEM INFORMATION Menu) ················· 111

4.5.8 Downloading/Uploading Files by FTP (FTP MENU)······················114

4.5.9 Deleting Program/Data Files (DELETE FILE Menu)···················120

4.5.10 Deleting Font Files (DELETE FILE Menu) ····································121

4.5.11 Downloading/Uploading the BHT System Parameter File (SYSTEM PARAMETER Menu)·····································································123

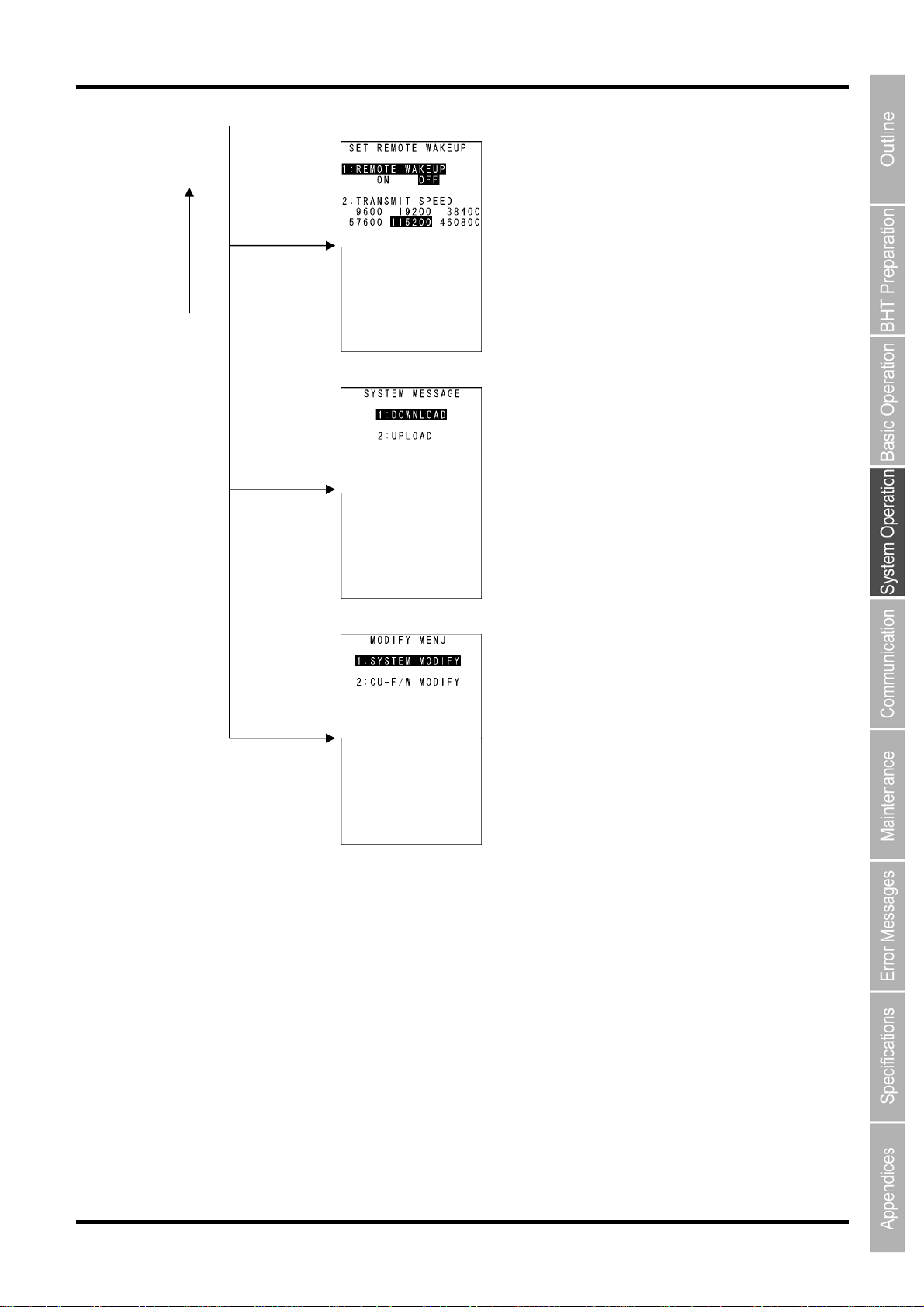

4.5.12 Setting the Remote Wake-up (SET REMOTE WAKEUP Menu)···126

4.5.13 Downloading/Uploading the System Message File (SYSTEM MESSAGE Menu)·········································································127

4.5.14 Updating the System (MODIFY MENU)········································130

Page 48

BHT-604Q

4.1 Initializing the BHT System

By initializing the system, program files and data files downloaded to the BHT user area are deleted, and system settings are returned to the default status when shipped from the factory. The system must be initialized when:

・ Deleting all program files and data files downloaded to the BHT user area (Font files are also deleted

by selecting the area subject to initialization.)

・ The following message displays on the screen when the BHT is turned on.

- Point - By initializing the system, all files in the user area are deleted, and therefore all fi les that need to be

backed up should be uploaded to the host computer and so on beforehand. Refer to section “4.5.3 Uploading files (UPLOAD menu)” for details of uploading.

The initialization procedure is described on the following pages. Perform operation in accordance with the procedure for each item.

■Selecting the Memory Area to be Initialized ↓

■Selecting the Message Version (English or Japanese) ↓

■Confirming the Memory Area to be Selected for Initialization ↓

■Performing System Initialization

Page 49

2D Code Handy Terminal

4.1.1

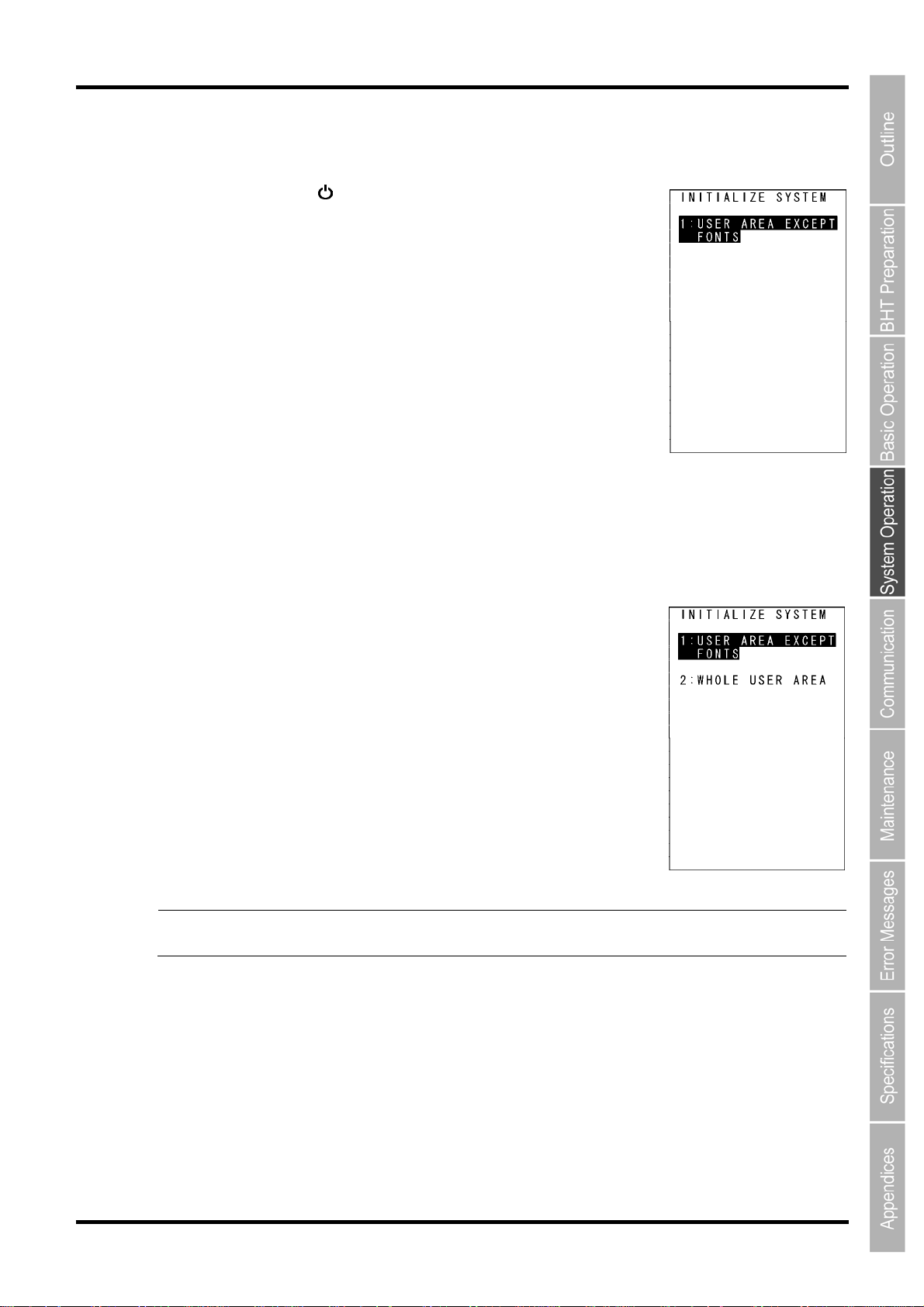

Selecting the Memory Area to be Initialized

1. Press the Power key ( ) while holding down the SF, M1 and 0 keys

together. The screen displays as shown on the right.

2. Select the memory area to be initialized.

(1) To exempt font files from deletion:

Ensure that “1:USER AREA EXCEPT FONTS” is selected and press the ENT key. The screen changes to the “4.1.3 Confirming The Memory Area Selected for Initialization”.

(2) To delete font files:

Press the 2 key while holding down the SF key. The screen displays as shown on the right. Next, press the 2 key, select “2:WHOLE USER AREA”, and press the ENT key. The screen changes to the “4.1.2 Selecting the Message Version (English or Japanese)”.

“1: USER AREA EXCEPT FONTS”

The user area is initialized without deleting file fonts.

“2: WHOLE USER AREA”

The entire user area is initialized and therefore file fonts are also deleted.

- Point - If a “Contact the administrator. (2XXX)” message displays when the BHT power is ON, select

“2: WHOLE USER AREA”.

Page 50

BHT-604Q

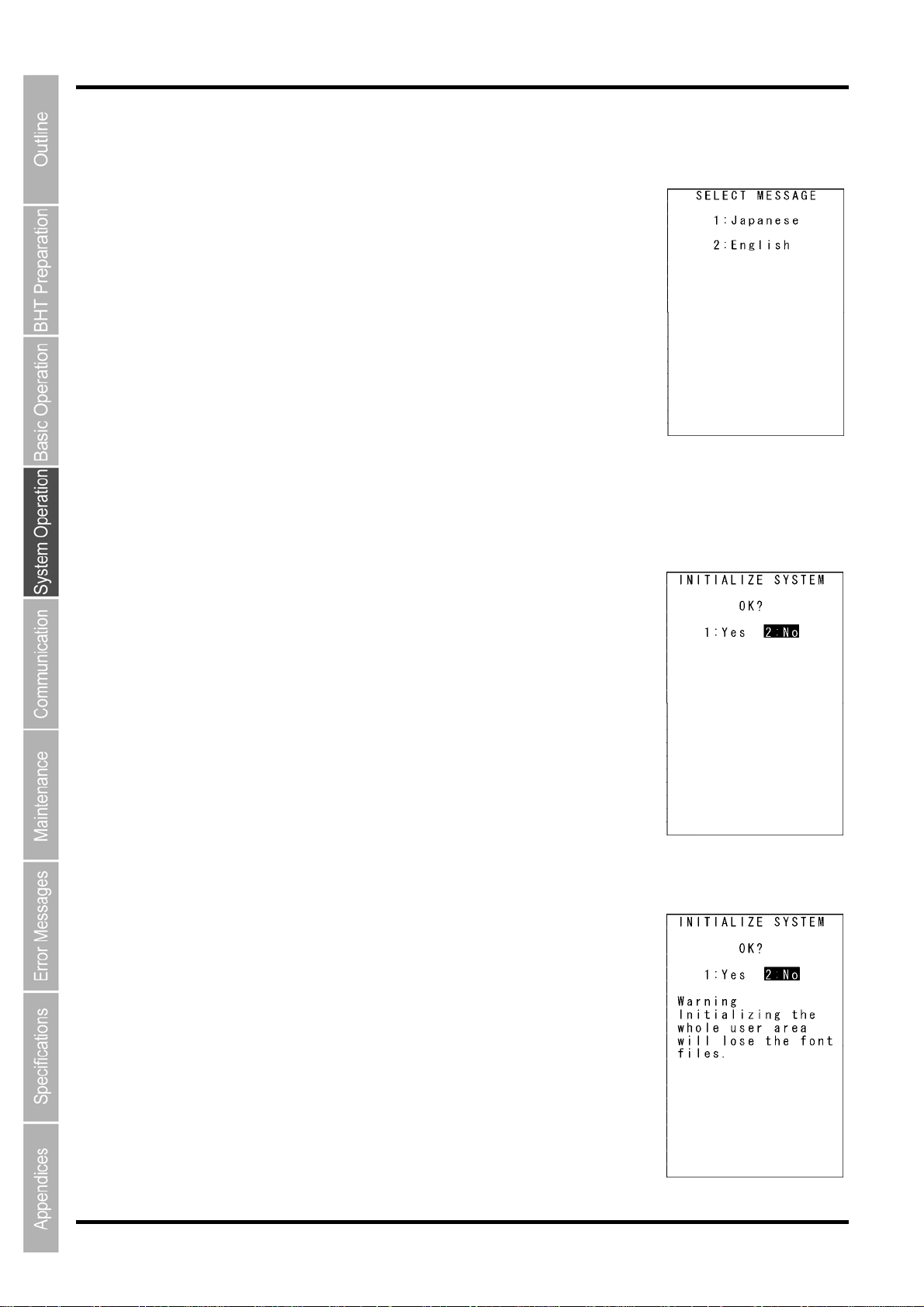

4.1.2

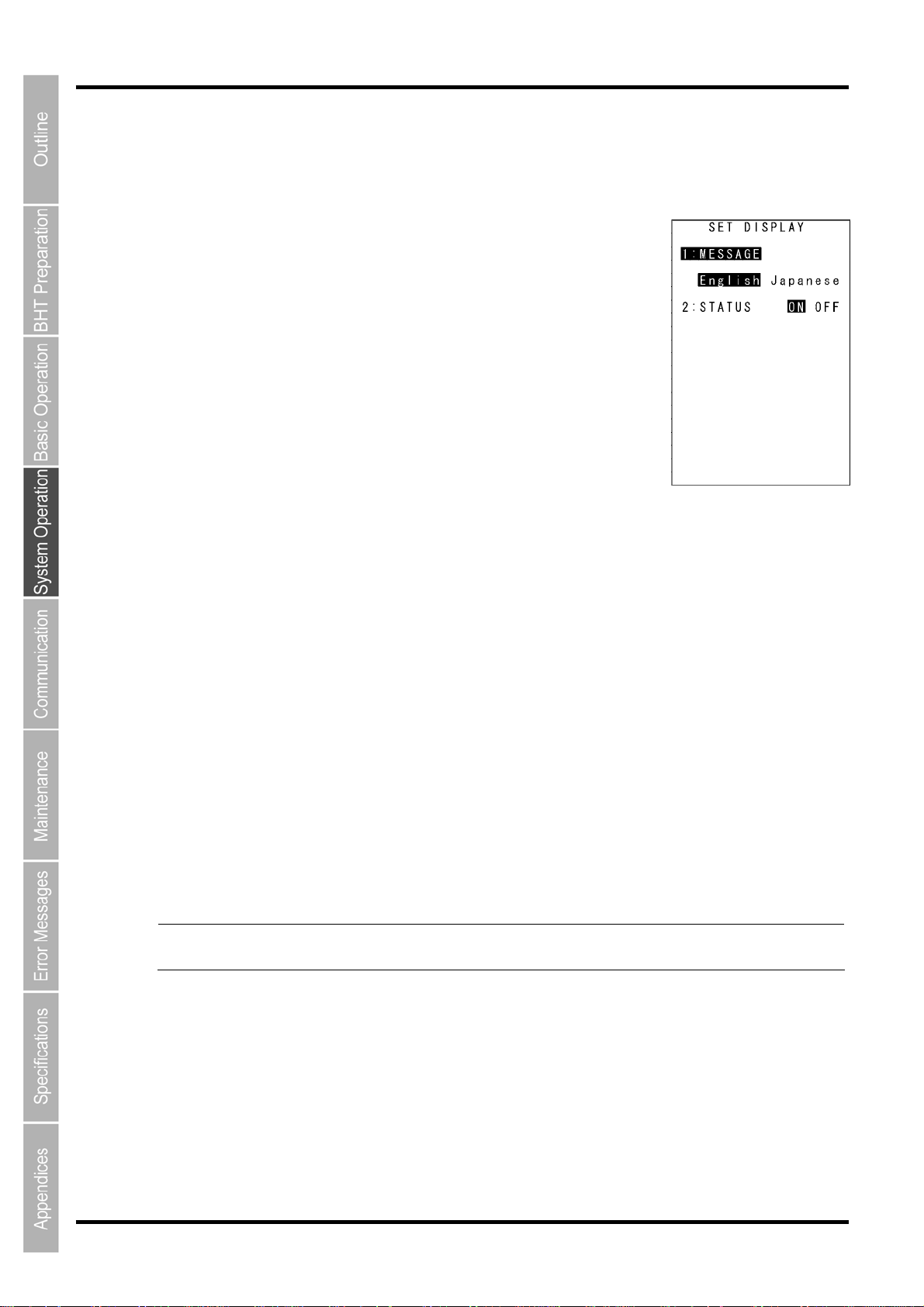

Selecting the Message Version (English or Japanese)

1. When the screen displays as shown on the right, select the

message display language with the numerical keys.

“1: Japanese” Changes the message language to Japanese. “2: English” Changes the message language to English.

2. Press the ENT key.

The screen changes to the “4.1.3 Confirming the Memory Area Selected for Initialization”.

4.1.3

Confirming the Memory Area Selected for Initialization

(1) To exempt font files from deletion:

When the screen displays as shown on the right, select the item and press the ENT key.

Press the C key to return to the screen to select the area for initialization.

“1: Yes”:

The system will be initialized without deleting font files.

“2: No”:

Cancels system initialization and turns the BHT power OFF.

(2) To dele

te font files

When the screen displays as shown on the right, select the item and press the ENT key.

Press the C key to return to the screen to select the area for initialization.

“1: Yes”:

The system will be initialized, and all files in the user area, including font files, will be deleted.

“2: No”:

Cancels system initialization and turns the BHT power OFF.

Page 51

2D Code Handy Terminal

4.1.4

Performing System Initialization

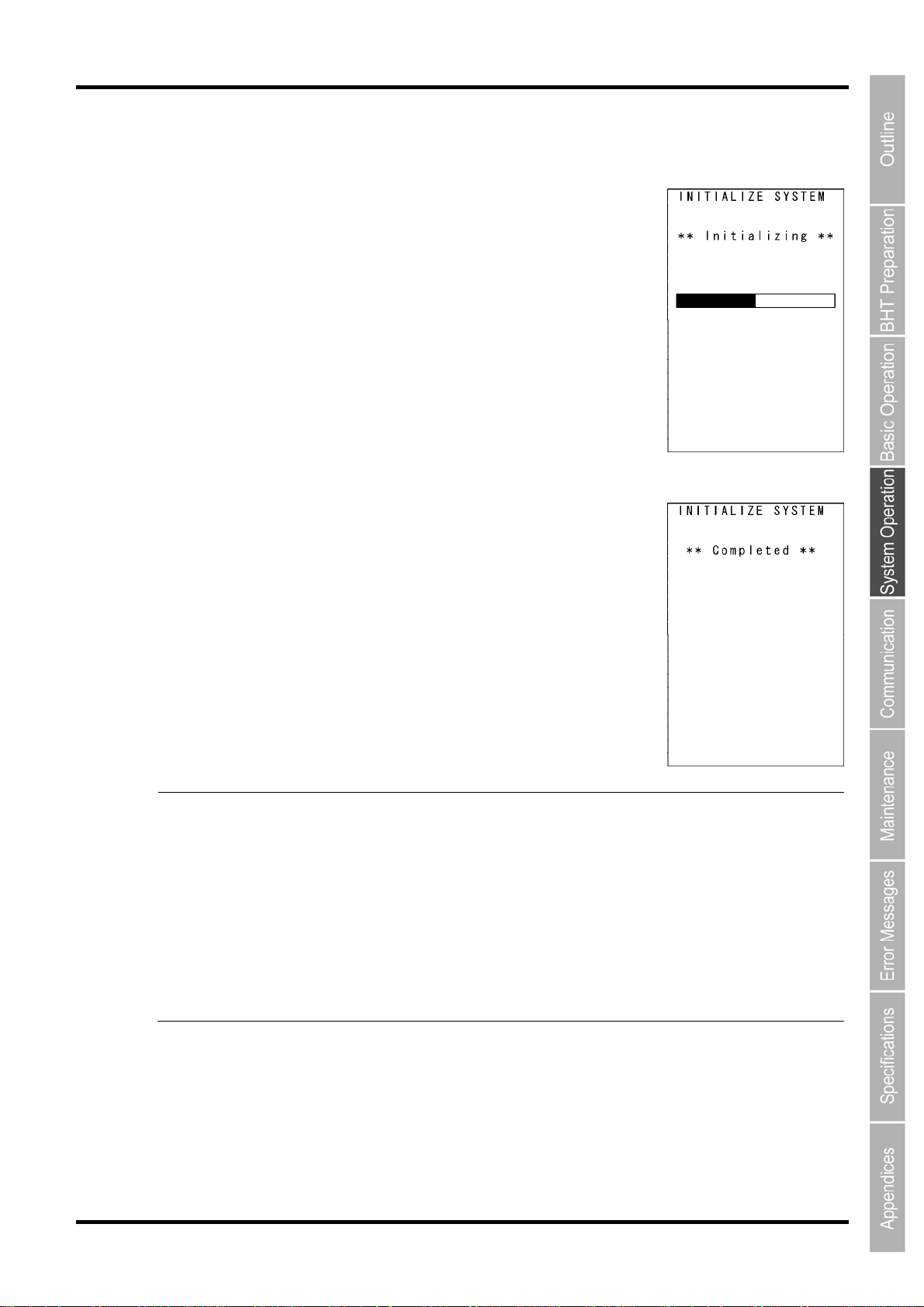

1. The screen displays as shown on the right during system

initialization.

2. Upon complet ion of system initialization, the BHT displays the screen on

the right for a second and then turns OFF automatically.

- Point -  Never turn OFF the BHT power during system initialization. Turning the power OFF too

early will interrupt the process, requiring initialization to be performed again.

 If a “Contact your administrator. Note the error number. (XXXX)” message displays even

although initialization has been completed, initialize the BHT again.

 Following initialization, all programs and data files stored in the target memory area will be

lost. Download them again if necessary. (Refer to section “4.5.2 Downloading Files (DOWNLOAD Menu)” for details of downloading.)

 Always set the calendar clock following initialization. (Refer to “Chapter 2 BHT

Preparation” – “2.4 Initial Setup”.)

 Initialization will restore the display contrast level, communication conditions and othe

settings to their default values when shipped from the factory, and therefore they should be edited if necessary.

Page 52

BHT-604Q

4.2 Updating the System

4.2.1

Updating the BHT System

The BHT System Update procedure is as follows.

BHT System Update File Download ↓ Bht System Update

 BHT System Update File Download

Refer to sections “4.5.2 Downloading Files (DOWNLOAD menu)” and “4.5.8 Downloading/Uploading Files by FTP (FTP MENU)”, and Download the BHT system update file to the BHT.

- Note - The BHT system update file can be downloaded from the following Web site.

http://www.qbdirect.net/

 BHT SYSTEM UPDATE

Refer to section “4.5.14 Updating the System (MODIFY MENU)” and update the BHT system.

- Important -

In order to prevent the battery running low during the system update process, perform the system update with the battery sufficiently charged, or with the BHT placed in the CU-600 Series. If the BHT power turns OFF due to a low battery and so on during the system update, the system update will continue when the power is next turned ON. Furthermore, during system update, the power will not turn OFF even if the Power key ( the system update process is complete before operating the BHT.

) is pressed. Wait until

Page 53

2D Code Handy Terminal

4.2.2

CU-611 System Update

The CU-611 System Update procedure is as follows.

CU-611 System Update File Download ↓ CU-611 System Update

 CU-611 System Update File Download

Refer to sections “4.5.2 Downloading Files (DOWNLOAD Menu)” and “4.5.8 Downloading/Uploading Files by FTP (FTP MENU)”, and Download the CU-611 System update file to the BHT. Download the CU-611 System update file as a data file with field length of 64 bytes.

- Important - If the Transfer Utility is used to Download in BHT protocol, select the “perform binary file

- Note - The CU-611 system update file can be downloaded from the following Web site.

 CU-611 System Update

Refer to section “4.5.14 Updating the System (MODIFY MENU)” and update the CU-611 System. The CU-611 LED flashes during CU-611 system update.

- Important - Never remove the BHT from the CU-611 or turn the BHT power OFF during the system

transfer (F)” check box at the Transfer Utility Options screen and then download.

http://www.denso-wave.com/

update process. If the BHT is removed from the CU-611 or the BHT power turned OFF during system update,

a system update error will occur, and the CU-611 will wait for the update to be retried. In such a case, either perform the CU-611 system update again, or reboot the CU-611.

- Point - If the CU-611 power is turned OFF during the system update, when the power is next turned

ON, either the system prior to updating or system after updating will run. The system running can be verified at the CU-611 System Information display.

(Refer to section “4.5.7 System Information (SYSTEM INFORMATION Menu)” for details.)

Page 54

BHT-604Q

4.3 Executing User Programs

User programs (application programs) can be executed using the following methods. Select the most appropriate method to meet the objective.

4.3.1

4.3.2

4.3.3

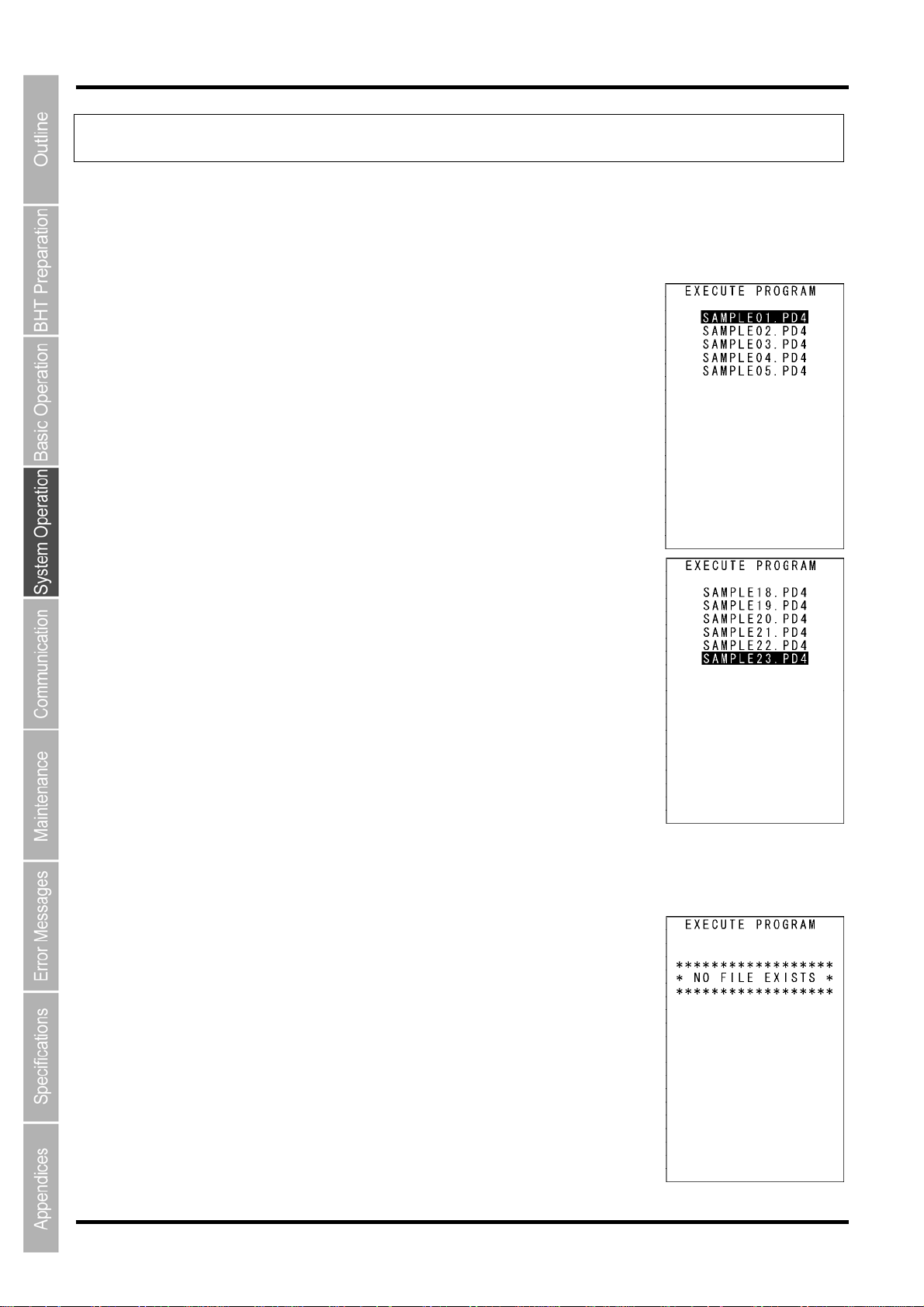

Executing from the SYSTEM MENU “EXECUTE PROGRAM”

Select the program to be executed at the SYSTEM MENU “EXECUTE PROGRAM” menu. In such a case, the selected program will always be executed from the start. Refer to section “4.5.1 Executing User Programs (EXECUTE PROGRAM Menu)” for details.

Automatically Executing the Program Set at the SYSTEM MENU when Turning the Power ON

Select the program to be executed at the SYSTEM MENU “EXECUTE PROGRAM” menu, and then turn the BHT power OFF. The selected program will executed automatically the next time the BHT power is turned ON. If the resume function has been set, the BHT will resume from the position in the program that was stopped when the BHT power was last turned OFF. Refer to section “4.5.5 System Environment Settings (SET SYSTEM Menu)” for details.

Executing the First Registered Program by Turning the Power ON (BHT System Directory Management Program Function)

If no program has been selected at the SYSTEM MENU “EXECUTE PROGRAM” menu and the BHT power is turned ON, control will switch to the directory management program, and the first of the programs (.PD4) registered in the BHT will executed. If the resume function has been set, the BHT will resume from the position in the program that was stopped when the BHT power was last turned OFF.

If downloading multiple programs after system initialization, programs are registered in the system in the order in which they are downloaded, and therefore ensure that the program to be executed is the first program downloaded.

If a program is later downloaded for purpose of upgrading the version, use the same program name. The order in which programs are registered in the system will not change, and therefore the same program will be executed even after upgrading the version. ()

 The system directory management program also manages files with other extensions simultaneously. If

the top file from the first registered program is deleted and a new program is downloaded, the new program will be registered in the position vacated by the deleted file and therefore caution is advised. It is recommended that the program to be execute after turning on the BHT power is first downloaded following system initialization.

Page 55

2D Code Handy Terminal



Several directory management program examples are given below. The names of the files used in these examples are as follows.

MAIN.PD4 : Program to be executed by pressing the Power key ( SUBMAIN.PD4 : Program chained from MAIN.PD4 using the BHT-BASIC CHAIN

statement USER.PD4 : New program AAAAAAAA.DAT : Data file 1 used at the user program BBBBBBBB.DAT : Data file 2 used at the user program

 (Example 1) When downloading the MAIN.PD4 and SUBMAIN.PD4 upgrade

version

In the above case, the registration order does not change and therefore MAIN.PD4 starts up by pressing the Power key (

Directory info

AAAAAAAA.DAT BBBBBBBB.DAT

MAIN.PD4

SUBMAIN.PD4

: : :

MAIN.PD4

(Upgrade ver.)  SUBMAIN.PD4 (Upgrade ver.)

Download

Directory info

AAAAAAAA.DAT BBBBBBBB.DAT

MAIN.PD4

SUBMAIN.PD4

: : :

 (Example 2) When newly downloading USER.PD4 after deleting BBBBBBBB.DAT

In the above case, USER.PD4 is registered after BBBBBBBB.DAT, and therefore USER.PD4 will be the first registered program. Press the Power key (

Directory info

AAAAAAAA.DAT BBBBBBBB.DAT

MAIN.PD4

SUBMAIN.PD4

: :

Delete

Download

USER.PD4

) to start up USER.PD4.

Directory info

AAAAAAAA.DAT

USER.PD4

MAIN.PD4

SUBMAIN.PD4

: :

) only

Page 56

BHT-604Q

 (Example 3) Recommended download method

After system initialization, first download the program to be executed simply by pressing the Power key (

). In this case, this program is always registered at the beginning of the system directory management

unless the program has been deleted and another file downloaded.

4.3.4

Directory info

: : :

(1) MAIN.PD4 (2) SUBMAIN.PD4 (3) AAAAAAAA.DAT (4) BBBBBBBB.DAT

Download in the order (1), (2), (3), (4).

Directory info

MAIN.PD4

SUBMAIN.PD4 AAAAAAAA.DAT BBBBBBBB.DAT

: : :

Executing by Wake-up

By specifying the wake-up time at the user program, the BHT can be started up at the wake-up time and a program executed. If an auto-start execution program has been selected at the system Mode “4.5.5 [1] Setting the auto-start execution program”, the selected program will be executed. If no auto-start execution program has been selected, the first registered program from among the programs (.PD4) registered in the BHT will be executed. Refer to the “BHT-BASIC Programmer’s Manual” for details.

4.3.5

Executing by Remote Wake-up

If remote wake-up is enabled, the BHT can be started up by receiving a control command from the host computer. If a fixed file called “BHTRMT.PD4” exists in the BHT at this time, BHTRMT.PD4 will be executed. In other words, it is possible to execute the desired program by chaining from BHTRMT.PD4 using a BHT-BASIC CHAIN statement. Refer to “4.5.12 Setting the Remote Wake-up (SET REMOTE WAKEUP Menu)” and the “BHT-BASIC Programmer’s Manual” for details.

Page 57

2D Code Handy Terminal

4.4 System Mode

By starting up the BHT in system Mode and selecting each menu, the following operations can be performed individually.

 Executing user programs  File download/upload  System environment setting  BHT operation test  System information display  Downloading/uploading files by FTP  File deletion  Font file deletion  System settings parameter file download/upload  Remote wake-up setting  System message file download/upload  System update

Refer to each item at the “4.5 SYSTEM MENU” for details of the above operations.

4.4.1

Starting Up System Mode

Use the following procedure to start up System Mode.

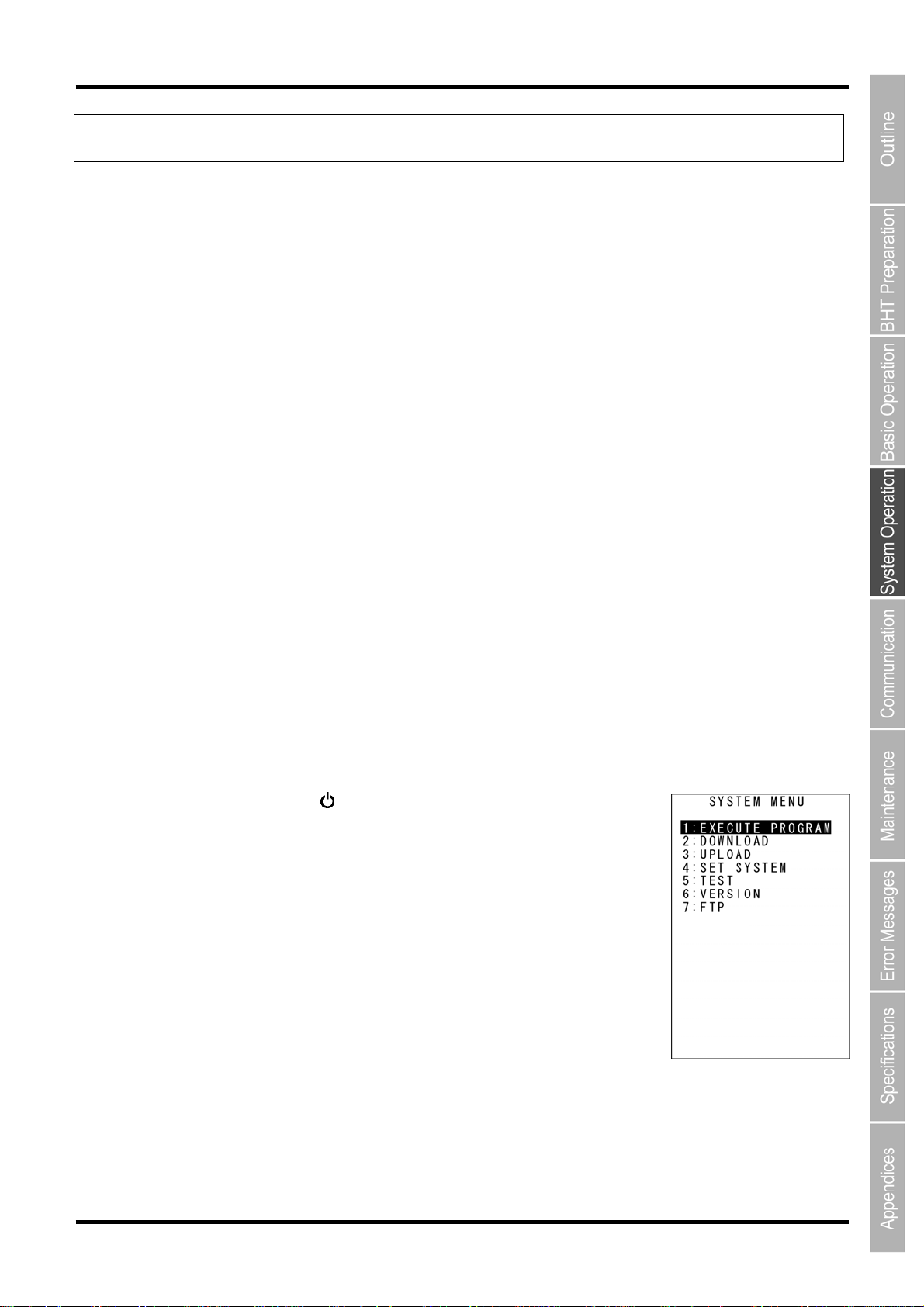

1. Press the Power key ( ) while holding down the SF and 1 keys.

System Mode starts up and the SYSTEM MENU (screen on right) displays.

Select and display each menu from the SYSTEM MENU and perform each operation.

Hold down the SF key and press the appropriate numerical key to display items not displayed at the SYSTEM MENU. Refer to “4.4.3 SYSTEM MENU Configuration” for details.

Page 58

BHT-604Q

4.4.2

System Mode Basic Operation

Menu selection and Display

Use the following procedure to select and display each menu.

1. Press the numerical key corresponding to

the menu to be selected. Alternatively, press the cursor keys ([▲] [▼]) to select the menu.

The selected menu item will be highlighted. “EXECUTE PROGRAM” will be highlighted when System Mode is started up.

2. Press the ENT key.

The selected item is set and the next screen displays. Press the C key to return to the previous screen. The selected item will be highlighted when returning to the previous screen.

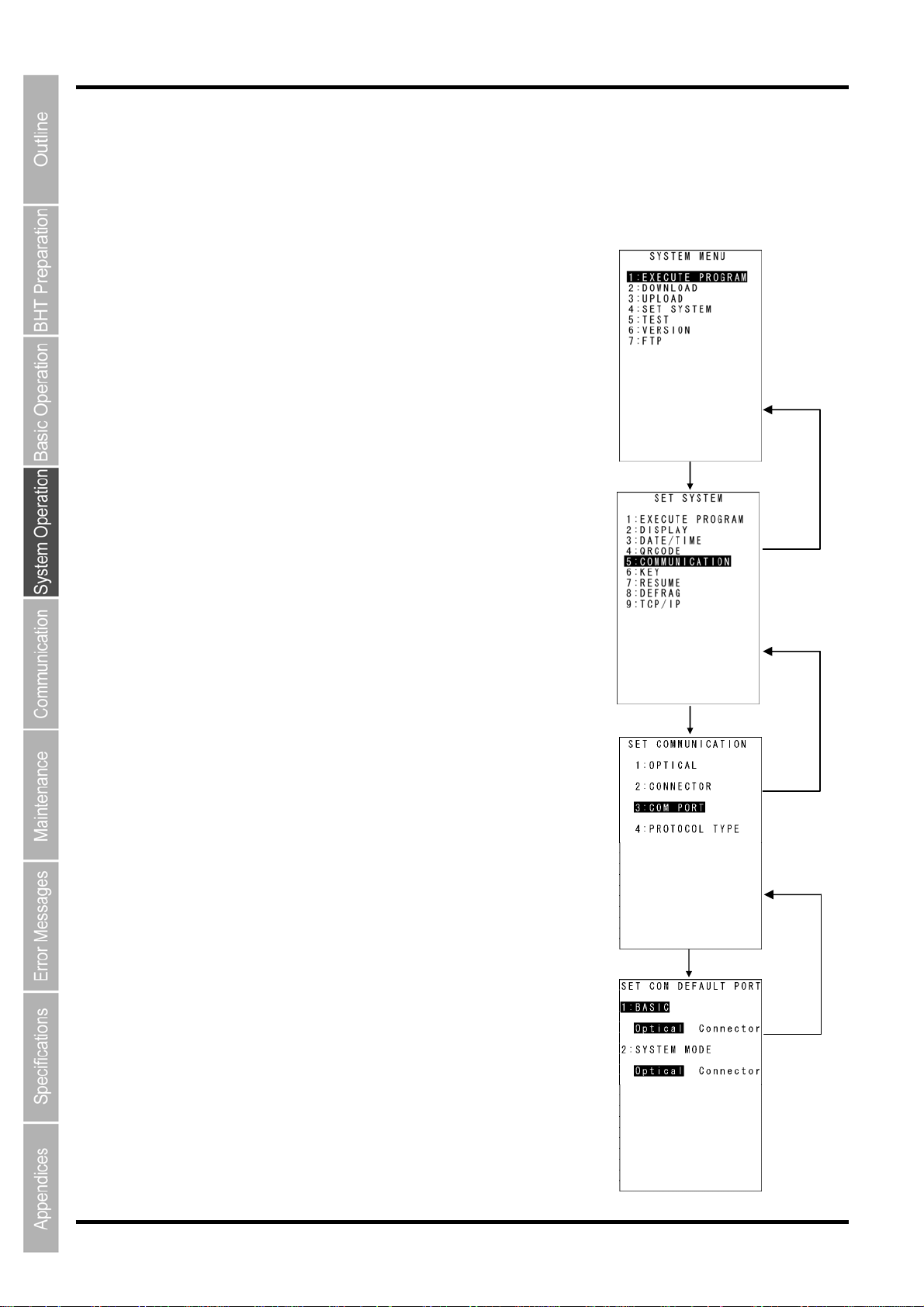

 Operation example

Select [4: SET SYSTEM] with the [4] or [▲]/[▼] keys.

Select [5:COMMUNICATION] with the [5] o keys.

[▲]/[▼]

ENT key

C key

3. Repeat the above operation to display the

target menu.

Select [3:COM PORT] with the [3] or [▲]/[▼] keys.

ENT key

C key

ENT key

C key

Page 59

2D Code Handy Terminal

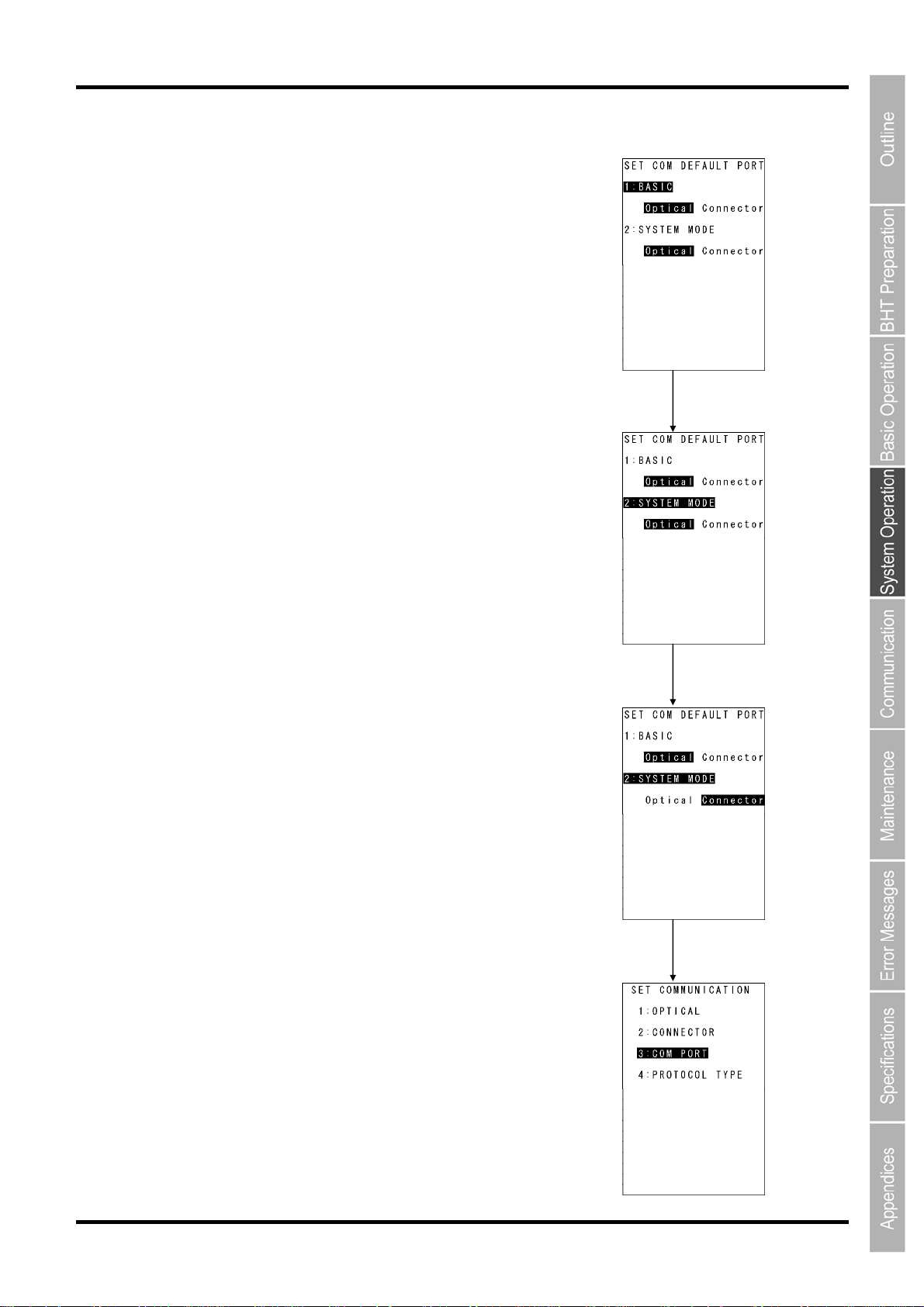

Setting Value Selection

Use the following procedure to select setting values.

1. Press the numerical key corresponding to the item to be selected.

Alternatively, press the cursor keys ([▲] [▼]) to select the item. The selected item will be highlighted.

2. Select the setting value with the cursor keys ([◄] [►]).

3. Press the ENT key.

The selected setting value will be set.

 Operation example

Select the setting item with the [2] key or [▲]/[▼] keys.

Select the setting value with the cursor keys ([◄] [►]).

ENT key

Page 60

BHT-604Q

4.4.3

SYSTEM MENU Configuration

Menu Configuration for Items Displayed at the SYSTEM MENU screen

Select the item with the numerical keys or cursor keys ([▲] [▼]) and press the ENT key.

SYSTEM MENU

Exeucting Programs

Refer to section “4.5.1 Executing User Programs”.

1 and ENT keys

Downloading

Refer to section “4.5.2 Downloading Files”.

C key

2 and ENT keys

3 and ENT keys

Uploading

Refer to section “4.5.3 Uplo

ading Files”.

Page 61

2D Code Handy Terminal

4 and ENT keys

5 and ENT keys

C key

6 and ENT keys

7 and ENT keys

System Environment Setting

Refer to section “4.5.5 System Environment Setting”.

Testing Refer to section “4.5.6 BHT Operation T

System Info

Refer to section “4.5.7 System Information”.

Downloa

Refer to section “4.5.8 Downlo FTP”.

rmation Display

ding/Uploading by FTP

est”.

ading/Uploading Files by

Page 62

BHT-604Q

Menu Configuration for Items Not Displayed at the SYSTEM MENU Screen

Press the corresponding numerical key while holding down the SF key.

C key

0 with SF

held down

2 with SF held down

3 with SF held down

SYSTEM MENU

Deleting Program/Data Files

Refer to section “4.5.9 Deleting Program/Data Files”.

Deleting Font Files

Refer to section “4.5.10 Deleting Font Files”.

Downloading/Uploading the BHT System Parameter File

Refer to section “4.5.11 Dow System Parameter File”.

nloading/Uploading the BHT

Page 63

2D Code Handy Terminal

C key

4 with SF

held down

6 with SF held down

Dot [.]

with SF held down

Setting Remote Wake-up

Refer to section “4.5.12 Setting Remote Wake-up”.

Downloading/Uploading the System Message File

Refer to section “4.5.13 Do the Message File”.

Updating the System

Refer to section “4.5.14 Updating the System”.

wnloading/Uploading System

Page 64

BHT-604Q

4.5 SYSTEM MENU

4.5.1

Executing User Programs (EXECUTE PROGRAM Menu)

Individually select and execute user programs downloaded to the BHT. Use the following procedure to execute user programs.

1. Select “1: EXECUT E PROGRAM” at the SYSTEM MENU and then press

the ENT key. The screen displays as shown on the right.

Press the C key to return to the SYSTEM MENU.

2. Use the cursor keys ([▲] [▼]) to select the target program.

The selected program will be highlighted. Use the [▼] key to scroll down when more than 18 programs have been downloaded to the user area.

The screen on the right shows an example in which 23 programs have been downloaded.

3. When the target program is highlighted, press the ENT key.

The selected program will be executed.

The screen displays as shown on the right when no program files exist in the user area. Press the C key to return to the SYSTEM MENU.

Page 65

2D Code Handy Terminal

4.5.2

Downloading Files (DOWNLOAD Menu)

Download files to the BHT user area from other devices such as the host computer

- Point -

Use the following procedure to download files.

 If a file with the same name as one already used in the user area of the target memory in

the BHT is downloaded, the newly downloaded file replaces the old one.

 If an auto-start execution program has not been specified (See 4.5.5 [1] Setting the

auto-start execution program), the directory management program will execute the first managed program from among the programs (.PD4) downloaded to the BHT when the BHT power is turned ON. (Program displayed at the top of the “EXECUTE PROGRAM” menu) Take this into account when determining the file download order. Refer to “4.3 Executing User Programs” for details.

1. Select “2: DO WNLOAD” at the SYSTEM MENU and then press the ENT

key. The screen displays as shown on the right.

“1: FILE”:

Select to download a specific file.

“2: HT<-->HT COPY”:

Select to download a file from another BHT. Refer to “4.5.4 Copying Files between 2 BHT Units” for details.

Press the C key to return to the SYSTEM MENU.

The current communication settings display at the bottom of the screen.

Communicatio type

n protocol

Ymodem BHT-Ir BHT

Ymodem protocol BHT-Ir protocol BHT protocol

Copy speed

Interface

used

Communication protocol type

Interface used Opt

Con

Copy speed 300 to 460800 Transmission speed corresponding to each

Refer to “4.5.5 System Environment Settings (SET SYSTEM Menu)” for details of communication environment settings.

Infrared interface Connector interface

protocol

Page 66

BHT-604Q

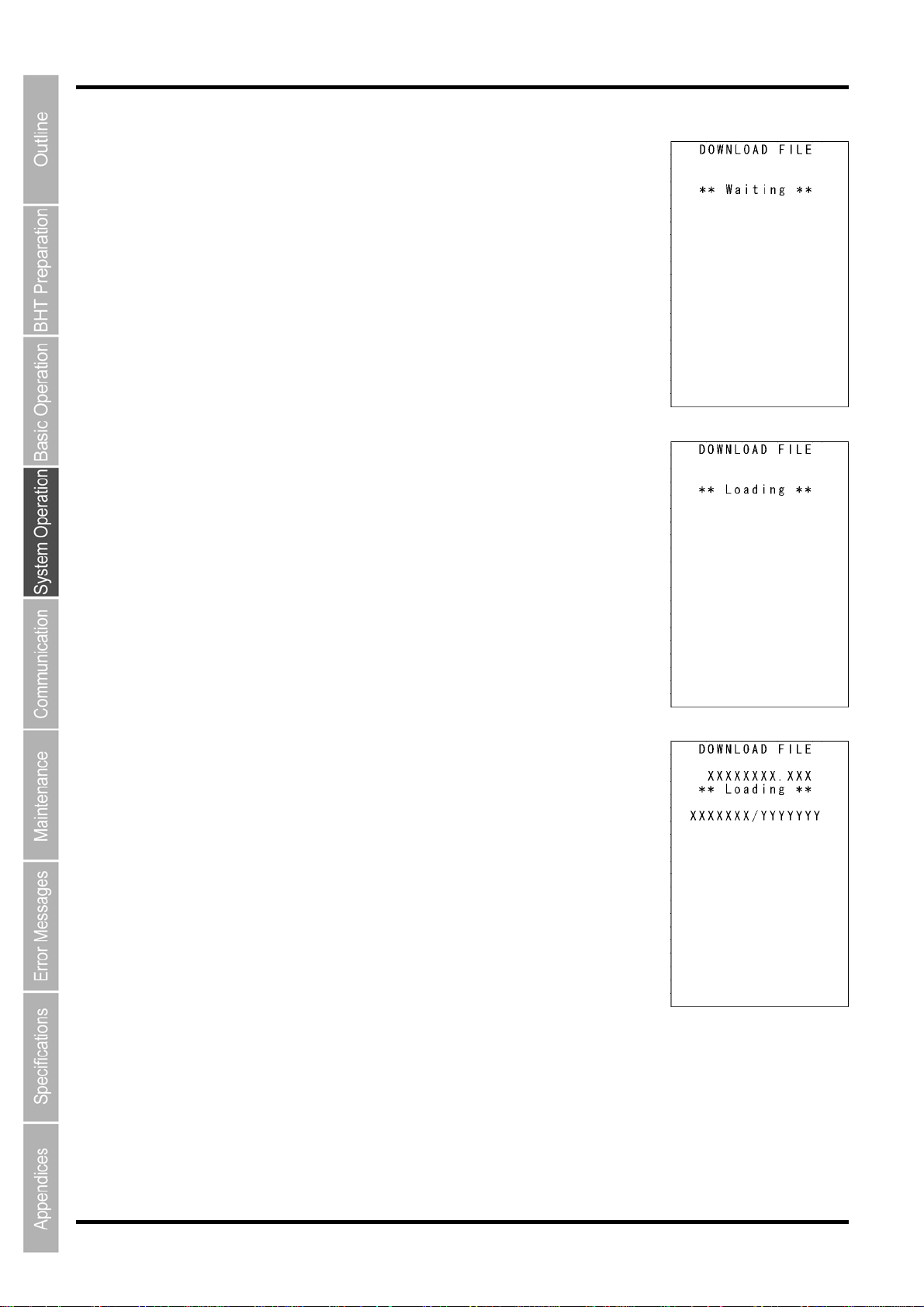

2. Select either “1: FILE” or “2: HT<-->HT COPY” and press the ENT key.

The screen displays as shown on the right indicating that the BHT is waiting for the file to be downloaded.

The screen displays as shown on the right only when “1: FILE” is selected. If “2: HT<-->HT COPY” is selected, “HT<-->HT” displays in the center of the second row of the screen.

3. By executing the BHT-BASIC 4.0 Transfer Utility or similar program, the

screen displays as shown on the right and file downloading is commenced. (Refer to the “BHT-BASIC4.0 Transfer Utility User’s Guide.”)

4. The screen displays as shown on the right during downloading.

The screen displays as shown on the right indicating the file name and the number of received records/the total number of records. (When using the Ymodem protocol, the received file size/the total file size (units: KB) displays.)

Press the C key to abort the download process and return to the DOWNLOAD menu.

Page 67

2D Code Handy Terminal

5. When do wnloading is complete, the beeper sounds once and the screen

displays as shown on the right.

When the number of received records equals the total number of records,

downloading is complete. (When using the Ymodem protocol, the received file size equals the total file size.)

Press the C key to return to the DOWNLOAD menu. With this screen is displayed on the BHT, downloading another new file from the host computer allows the BHT to begin receiving. (Refer to the “BHT-BASIC 4.0 Transfer Utility User’s Guide.”)

If “2: HT<-->HT COPY” is selected, repeat the above operation until all files are downloaded.

If an error message (screen below) displays during downloading, refer to “Chapter 7 Error Messages”.

Page 68

BHT-604Q

4.5.3

Uploading Files (UPLOAD Menu)

Upload files stored in the BHT user area to another device. Use the following procedure to upload files.

1. Select “3: UPLOAD” at the SYSTEM MENU and then press the ENT key.

The screen displays as shown on the right.

“1: ONE FILE”:

Select to upload a specific file.

“2: ALL FILES”:

Select to upload all files, excluding font files.

“3: HT<-->HT COPY”:

Select to upload a file to another BHT. Refer to “4.5.4 Copying Files between 2 BHT Units” for details.

Press the C key to return to the SYSTEM MENU.

The current communication settings display at the bottom of the screen.

Communication protocol type Ymodem

BHTBHTp

Ymodem protocol BHT-Ir protocol BHT protocol

Copy speed

Interface used

Communication protocol type

Interface used Opt

Con

Copy speed 300 to 460800 Transmission speed corresponding to each

Refer to “4.5.5 System Environment Settings (SET SYSTEM Menu)” for details of communication environment settings.

- Point -

If BHT protocol or BHT-Ir protocol is selected for the communication protocol, BHT-BASIC

Infrared interface Connector interface

protocol

4.0* specification files will not display at the file selection screen, and therefore cannot be downloaded.

(*Applications with extension “.PD4”, extension libraries with extension “.FN4”, and data files that have any of the following structures: the number of fields is 17 or more, the total of the number of fields and each field length is 255 or more, and the number of records is 32768 o more)

Page 69

2D Code Handy Terminal

2. Select “1: FILE”, “2: ALL FILES” or “3: HT<-->HT COPY” and press the ENT key.

When “1: FILE” is selected:

The screen displays as shown on the right. Select the file to be uploaded and press the ENT key. Next, proceed to step 3.

When “2: ALL FILES” or “3:HT<-->HT COPY” is selected:

Proceed to step 3.

The screen displays as shown on the right If no files that can be uploaded exist in the user area. Press the C key to return to the UPLOAD menu.

3. The screen displays as shown on the right indicating that the BHT is waiting

for the file to be uploaded. The screen displays as shown on the right only when “1: FILE” is selected.

If “2:ALL FILES” is selected, “ALL” displays in the center of the second row of the screen. If “3: HT<-->HT COPY” is selected, “HT<-->HT” displays in the center of the second row of the screen

Page 70

BHT-604Q

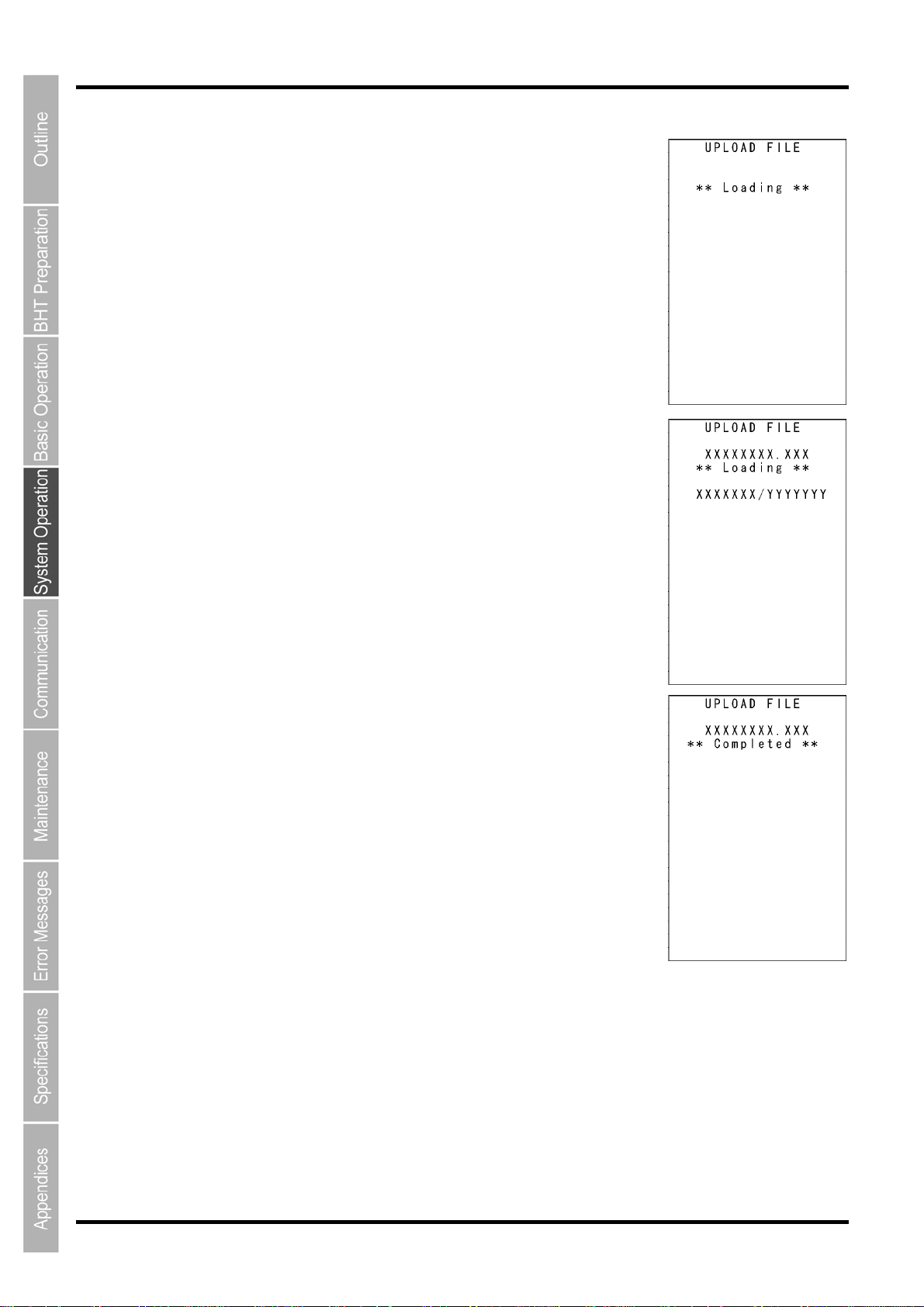

4. By e xecuting the BHT-BASIC 4.0 Transfer Utility or similar program, the

screen displays as shown on the right and file uploading is commenced. (Refer to the “BHT-BASIC4.0 Transfer Utility User’s Guide.”)

5. The screen screen displays as shown on the right during uploading.

The screen screen displays as shown on the right indicating the file name and the number of sent records/the total number of records. (When using the Ymodem protocol, the sent file size/the total file size (units: KB) displays.)

Press the C key to abort the download process and return to the UPLOAD menu.

6. When uploading is complete, the beeper sounds once and the screen

screen displays as shown on the right.

When the number of sent records equals the total number of records,

downloading is complete. (When using the Ymodem protocol, the sent file size equals the total file size.)

Press the C key to return to the UPLOAD menu.

If “2: ALL FILES” or “3: HT<-->HT COPY” is selected, repeat the above operation until all files are uploaded.

If an error message displays during uploading, refer to “Chapter 7 Error Messages”.

Page 71

2D Code Handy Terminal

4.5.4

Copying Files between 2 BHT Units

Copy “all files (excluding font files)”, “setting data”, and the “date and time” stored in the BHT user area to another BHT. Use the following procedure to copy files between 2 BHT units.

1. Set the same interface at both BHT units.

An infrared communication (Optical) interface and connector communication (Connector) interface are available. The default interface is set to infrared communication (Optical).

Changing the Interface

Select “4: SET SYSTEM”  “5: COMMUNICATION”  “3: COM PORT” from the SYSTEM MENU, and change at the [2: SYSTEM MODE] “INTEFACE USED” item.

2. Set “COMMUNICATION PROTOCOL OPTION”  “FIELD SPACE” (space at the end of the field) to

“Ignore” at both BHT units. The default setting is “Ignore”.

Refer to “4.5.5 System Environment Settings (SET SYSTEM Menu)” when changing the interface.

3. When using infrared communication, ens ure that the BHT infrared communication ports are facing one

another.

 When using the connector interface, open the BHT connector covers and connect both BHT units using

a cable with JC-25-P-3 (2.5mm stereo mini-plug). (Refer to “Chapter 8 Specifications” for cable details.)

4. Select “2: DO WNLOAD”  “2: HT<-->HT COPY” at the SYSTEM MENU of the BHT that is downloading

to await downloading. Refer to “4.5.2 Downloading Files (DOWNLOAD Menu)” for details.

When copying only the system parameter file, use the SYSTEM PARAMETER transfer menu. Refer to “4.5.11 Downloading/Uploading the BHT System Parameter File (SYSTEM PARAMETER Menu)” for details.

5. Select “3: UPLOAD”  “3: HT<-->HT COPY” at the SYSTEM MENU of the BHT that is uploading to await

uploading. Refer to the “4.5.3 Uploading Files (UPLOAD Menu)” for details.

When copying only the system parameter file, use the SYSTEM PARAMETER transfer menu. Refer to “4.5.11 Downloading/Uploading the BHT System Parameter File (SYSTEM PARAMETER Menu)” for details.

6. Preparation at both BHT units is now complete and file copying will be commenced.

Page 72

BHT-604Q

- Note - The following setting data is copied when copying between BHT units.

LCD contrast level Beeper volume

Switching between beeper and vibrator

Program to be executed automatically when the BHT is turned ON Message version (English or Japanese) Backlight brightness of the LCD display

Backlight brightness of the LCD display during power save mode Key backlight

Display font size System status display Date Time

Setting of black-and-white inverted label reading function (enable/disable)

Decode level Minimum number of digits to be read for ITF Minimum number of digits to be read for codabar (NW-7) Interface port to be used in user programs Interface port to be used in System Mode Communication parameters for the infrared interface Communication parameters for the direct-connect interface Communication protocol options for the infrared interface Communication protocol options for the direct-connect interface Communication protocol type

Shift key function definition M1 key function definition M2 key function definition M3 key function definition M4 key function definition M5 key function definition M6 key function definition

Resume function Remote wake-up setting (enable/disable) Transmission speed for remote wake-up Remote wake-up history YMODEM option IP address of FTP server User name of FTP server

Password of FTP server

Default directory for FTP server FTP option, Line delimiters (CR/LF)

Page 73

2D Code Handy Terminal

FTP option, Handling of line delimiters FTP option, Handling of trailing spaces in data fields FTP option, Upload mode FTP option, Verbose mode IP address of host computer for ping-test Data size of echo request Echo request intervals Timeout period for echo request No. of echo requests to be sent Echo Request send timing TCP/IP operation device TCP/IP link layer

Transmission speed between BHT and CU

No. of retries for link establishment command to be sent Link establishment command intervals No. of retries for link release command to be sent Link release command intervals Link release period

Service Set ID (SSID) (Not possible to copy correctly if there is a space at the end.)

Page 74

BHT-604Q

4.5.5

System Environment Settings (SET SYSTEM Menu)

Use the following procedure to set the system environment.

1. Select “4: SET SYSTEM” at the SYSTEM MENU and then press the ENT

key. The SET SYSTEM menu screen screen displays as shown on the right.

“1: EXECUTE PROGRAM”:

Sets the auto-start execution program to be executed when the power is turned ON.

“2: DISPLAY”:

Sets the message version (English or Japanese).

“3: DATE/TIME”:

Sets the calendar clock (date and time).

“4: QRCODE”:

Sets the code reading conditions (black/white inverted label rading function, inverted 2D code reading function, decode label, added option data for the 2D codes, minimum number of read digits for read codes (ITF, Codabar), light and sensor off time).

“5: COMMUNICATION”:

Sets the communication environment (interface port and communication parameters).

“6: KEY”:

Defines the functions of the shift key and magic keys.

“7: RESUME”:

Sets the resume function.

“8: DEFRAG”:

Defragments the drive.

“9: TCP/IP”:

Displays the setting menu for TCP/IP, FTP and DHCP.

Refer to the following section for details of the above items. Press the C key to return to the SYSTEM MENU.

Page 75

2D Code Handy Terminal

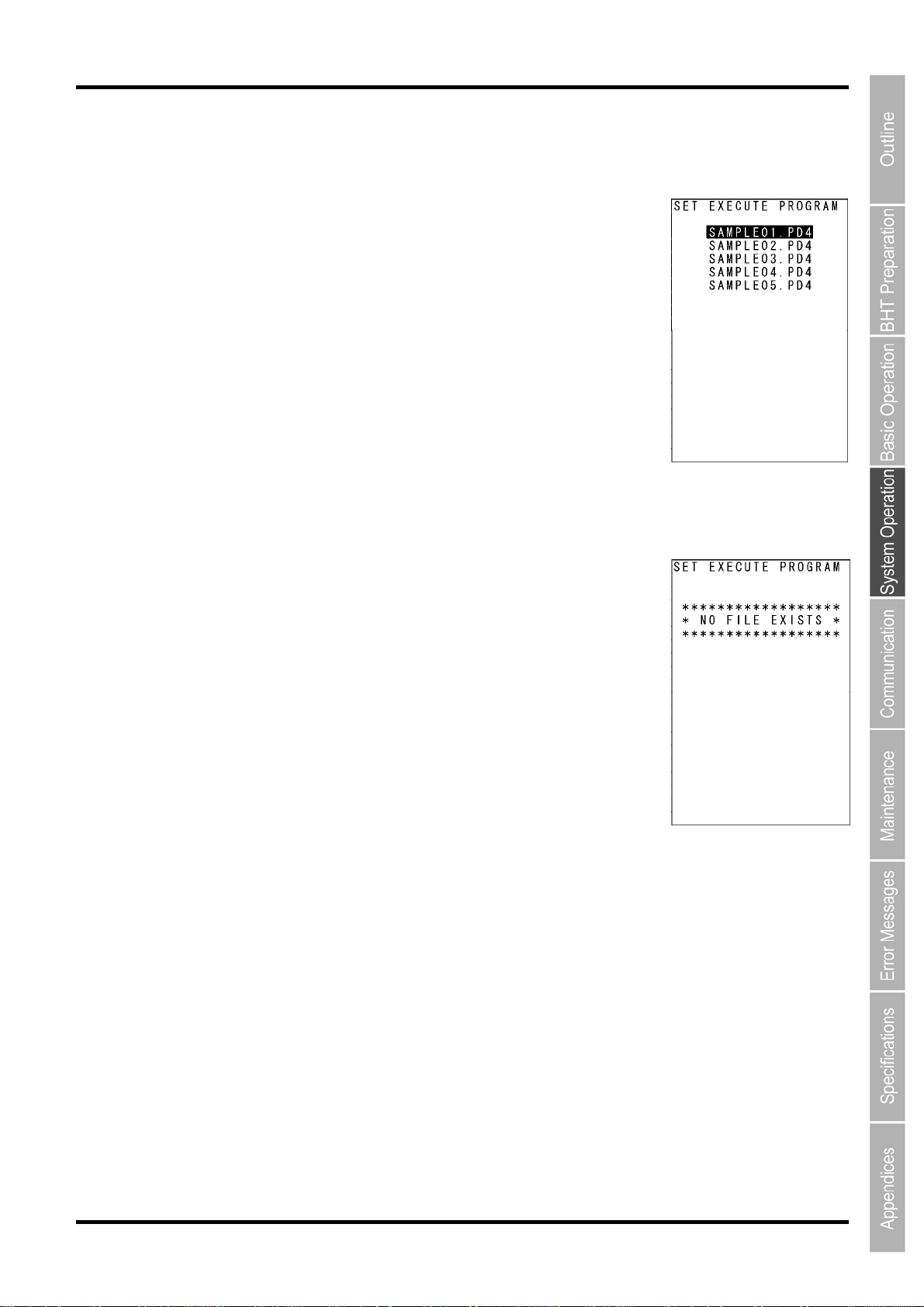

[1] Setting the auto-start execution program

Use the following procedure to set the auto-start execution program.

1. Select “1: EXECUTE PROGRAM” at the SET SYSTEM menu and then

press the ENT key. The SET EXECUTE PROGRAM menu screen screen displays as shown on

the right. The highlighted program will be the program currently set as the auto-start execution program.

2. Use the cursor keys ([▲] [▼]) to highlight the target program.

3. Press the ENT key.

The selected program will be set as the auto-start execution program.

Press the C key to return to the SET SYSTEM menu.

The screen screen displays as shown on the right if no programs have been downloaded.

Press the C key to return to the SET SYSTEM menu.

Page 76

BHT-604Q

[2] Setting the message version, system status indication and screen display compatible mode

Use the following procedure to set the display language, system status indication and screen display compatible mode.

1. Select “2: DISPLAY” at the SET SYST EM menu and then press the ENT

key. The SET DISPLAY menu screen displays as shown on the right.

The highlighted settings will be the current settings.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight “1:

MESSAGE” or “2: STATUS”.

3. Highlight the target setting with the cursor keys ([◄] [►]) and press the ENT

key. Press the C key to return to the SET SYSTEM menu.

“1: MESSAGE”:

Sets whether messages displayed at the screen are displayed in English or Japanese. The default is the message version selected at the system initializing process. The English and Japanese display changes at the following messages.

 System error messages  Indications relating to the LCD contrast  Beeper volume  Beeper & vibrator switching  Battery voltage level screens

“2: STATUS”:

Sets whether to display or hide the system status displayed at the bottom of the screen. Refer to “System Status Indication” on the following page for details of the system status indication.

 “ON”: The system status is displayed.  “OFF”: The system status is hidden.

- Note - The system status indication can be turned ON or OFF using the OUT statement in use

programs. Refer to the “BHT-BASIC Programmer’s Manual.”

Page 77

2D Code Handy Terminal

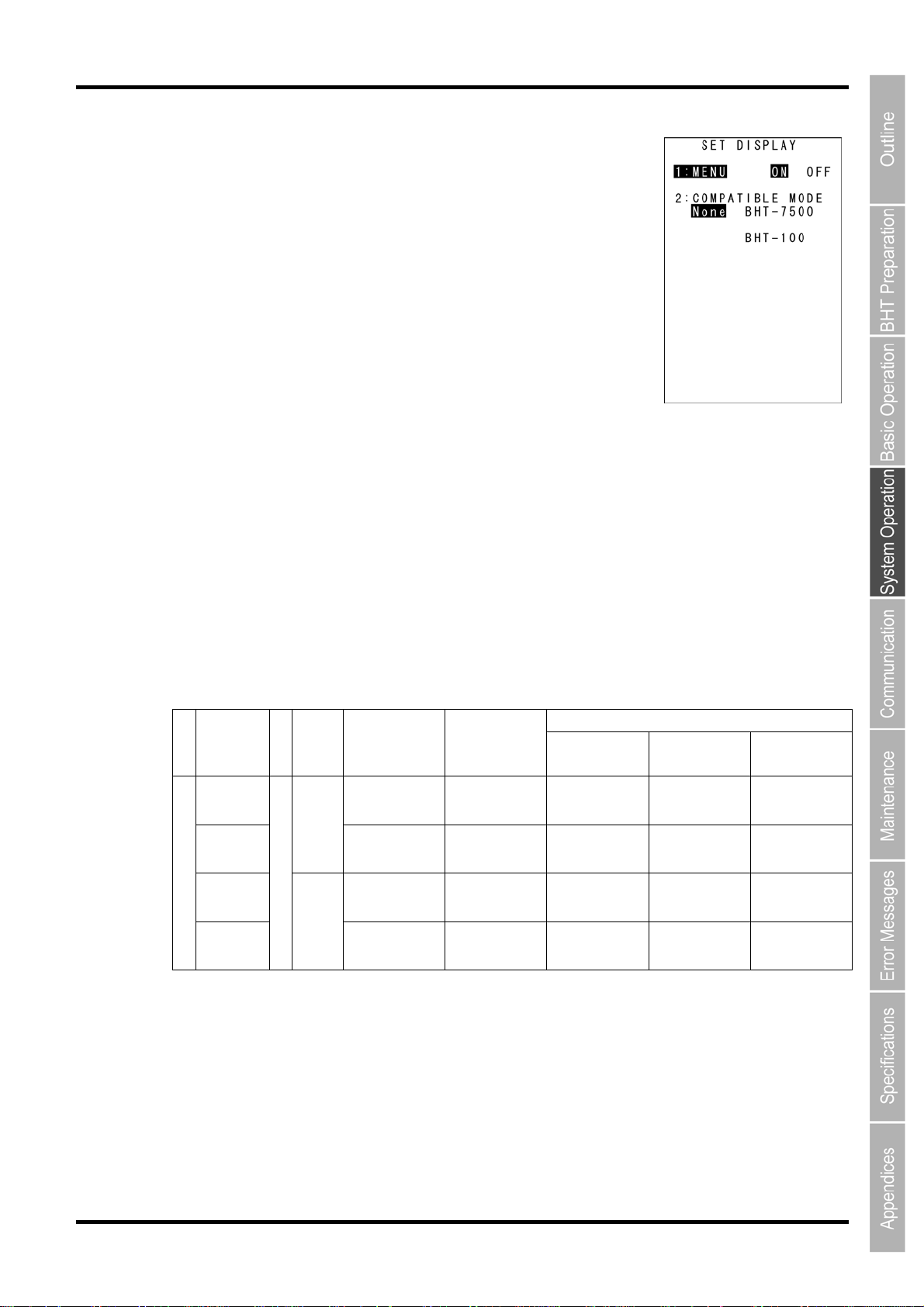

4. Simultaneously press the SF key and “1: MESSAGE” at the SET

DISPLAY menu.

The SET DISPLAY menu screen displays as shown on the right. The highlighted settings will be the current settings.

5. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight “1:

MENU” or “ 2: COMPATIBLE MODE”.

6. Highlight the target setting with the cursor keys ([◄] [►]) and press the ENT

key. Press the C key to return to the SET SYSTEM menu.

“1: MENU”:

Sets whether to permit or prohibit menu screens (beeper volume, vibrator, screen brightness, power saving, key backlight settings) being started up while applications are running.

 “ON”: Permits menu screen display.  “OFF”: Prohibits menu screen display.

“2: COMPATIBLE MODE”:

Sets compatible mode for screen display between the BHT-100 and BHT-7500. This allows BHT-100 Series and BHT-7500 Series application programs to be used at the BHT-604Q without changing or correcting the font size.

BHT-604Q

BHT-7500 BHT-100

Standard font

Small font

Standard

Font size

font Small

font

ANK mode

Screen mode

Kanji mode

26 x 20 char. (6 x 8 dots)

26 x 26 char. (6 x 6 dots)

10 x 10 char. (16 x 16dots)

13 x 13 char. (12 x 12 dots)

16 x 25 char. (12 x 12 dots)

12 x 19 char. (16 x 16 dots)

16 x 25 char. (12 x 12 dots)

BHT-7500

Mode 26 x 26 char. (9 x 12 dots)

26 x 26 char. (9 x 12 dots)

10 x 13 char. (24 x 24 dots)

13 x 17 char. (18 x 18 dots)

BHT-100

Mode 20 x 26 char. (12 x 12 dots)

20 x 26 char. (12 x 12 dots)

15 x 20 char. (16 x 16 dots)

20 x 26 char. (12 x 12 dots)

Normal Mode

20 x 20 char. (12 x 16 dots)

8 x 10 char. (30 x 30 dots)

10 x 13 char. (24 x 24 dots)

Page 78

BHT-604Q

 System Status Indication

Turning ON the system status indication displays the following icons at the bottom of the screen.

Indication Icon Description Key Shift status

Displays when the keys on the keypad are in shift mode.

Alphabet entry mode

Communication link with the CU-611

[3] Setting the calendar clock

When resetting the date and time, refer to “Chapter 2 BHT Preparation” ･ “2.4 Initial Setup.” Select “3: DATE/TIME” at the SET SYSTEM menu and press the ENT key to display the SET DATE/TIM

Displays when the BHT is set to alphabet entry mode. (If the alphanumeric entry system has been selected in user programs,

pressing the SF and the BS key switches from the numeric entry mode to alphabet entry mode.)

Displays when a communication link is established with the CU-611. Flashes when the BHT tries to communicate with a CU-611 that has not

been linked with the BHT. Displays cyclically when the BHT receives no response from the

CU-611, or when it is waiting for the link to be established with or severed from the CU-611.

E menu screen on the right.

Page 79

2D Code Handy Terminal

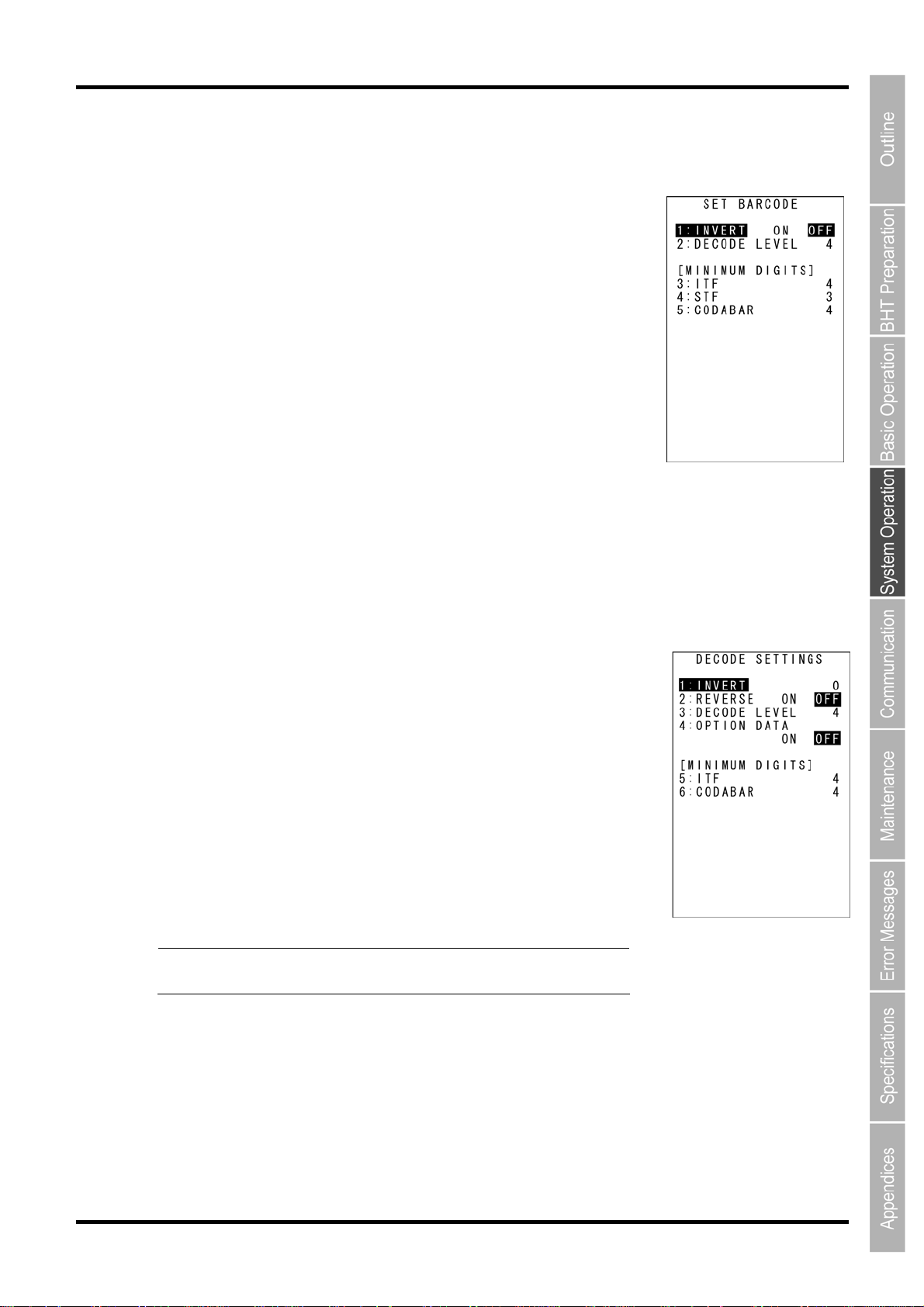

[4] Setting the code reading conditions

Use the following procedure to set the code reading conditions.

1. Select “4: QRCODE” at the SET SYSTEM menu and then press the ENT

key. The SET QRCODE menu screen displays as shown on the right.

The highlighted display and displayed values will be the current settings.

1: DECODE SETTINGS:

The DECODE SETTINGS screen displays

2: DEVICE SETTINGS:

The DEVICE SETTINGS screen displays

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight the item

to be set and press the ENT key. Press the C key to return to the SET SYSTEM menu.

 “1: DECODE SETTINGS”: Code reading conditions and minimum number of digits for

the code to be read

1. Use the cursor keys ([ ▲] [▼]) or numerical keys ([1] [2] [3] [4] [5] [6])

to highlight the item to be set, highlight the setting value using the cursor keys ([◄] [►]) and press the ENT key.

Press the C key to return to the SET CODE SCANNING CONDITIONS menu.

 “1: INVERT”: Black/white inverted label reading function

Inverted 2D codes and barcodes can be read.

“0”: Disables black/white inverted label reading. “1”: Enables black/white inverted label reading. “2”: Enables black/white inverted label auto-detect reading.

- Point - Auto-detect reading may take longer than ordinary reading

“2: REVERSE”: Inverted 2D code reading function

Setting inverted 2D code reading to ON enables 2D code reading from the reverse side. Reading times for 2D codes may be longer in such cases.

of black/white inverted labels or non-inverted labels.

Page 80

BHT-604Q

“3: DECODE LEVEL”

Set the decode level (code reading tolerance level). Press [

Decode level entry range: 1 - 9 (default: 4)

Setting a lower value improves the reading rate but increases the risk of incorrectly reading poor quality codes (split or dirty codes). Conversely, setting a higher value reduces the reading rate but decreases the risk of such errors.

“4: OPTION DATA”

If set to ON when 2D codes are read, option data for the 2D codes such as the model and the error-correcting level are added to the end of the reading data.

- Point - These settings are enabled even when system mode reading tests are not being carried out.

■Option data formats ・QR code

1 2 3 N—1 N

(Ex.) When read code is “QR code, Model 2, Version 5, Error-correcting level M, Mask number 6”

・PDF417

1 2 3 N—1 N

(Ex.) When read code is “PDF417 code, Error-correcting level 4, Lines: 12, Digits: 2” (Reading data)...

・Maxi Code

1 2 3 N—1 N

] to decrease the setting value and [ ] to increase the setting value.

Do not change these settings unless necessary.

Readng data

N+1 N+2 N+3 N+4 N+5 N+6 N+7

Model Version

“Q”

Option data

(Reading data)... Q2v05M6

Reading data

N+1 N+2 N+3 N+4 N+5 N+6 N+7 N+8

Model

“Y”

Option data

Error-correcting

level

Y1041202

Reading data

Option data

N+1N+2

Mode

“X”

Error-correcting

level

Lines Digits

Mask

(Ex.) When read code is “Maxi code, Mode 4” (Reading data)... X4

・Data Matrix

Reading data

1 2 3 N—1 N

N+1 N+2 N+3 N+4 N+5 N+6 N+7 N+8 N+9 N+10 N+11

Model Error-correcting level Longitudinal cells Lateral cells

“Z”

Option data

(Ex.) When read code is “data matrix, Error-correcting level ECC200, Longitudinal cells: 10, Lateral cells:

10”...z0200010010

Page 81

2D Code Handy Terminal

“5: ITF”: Minimum number of digits to be read for ITF “6: CODABAR”: Minimum number of digits to be read for Codabar

Set minimum number of digits for the Code to be read. Press [

Setting a small number of digits increases the frequency of missing digits when reading or incorrectly reading depending on how codes are read or the quality of codes. On the other hand, setting a large number will decrease the possibility of such errors.

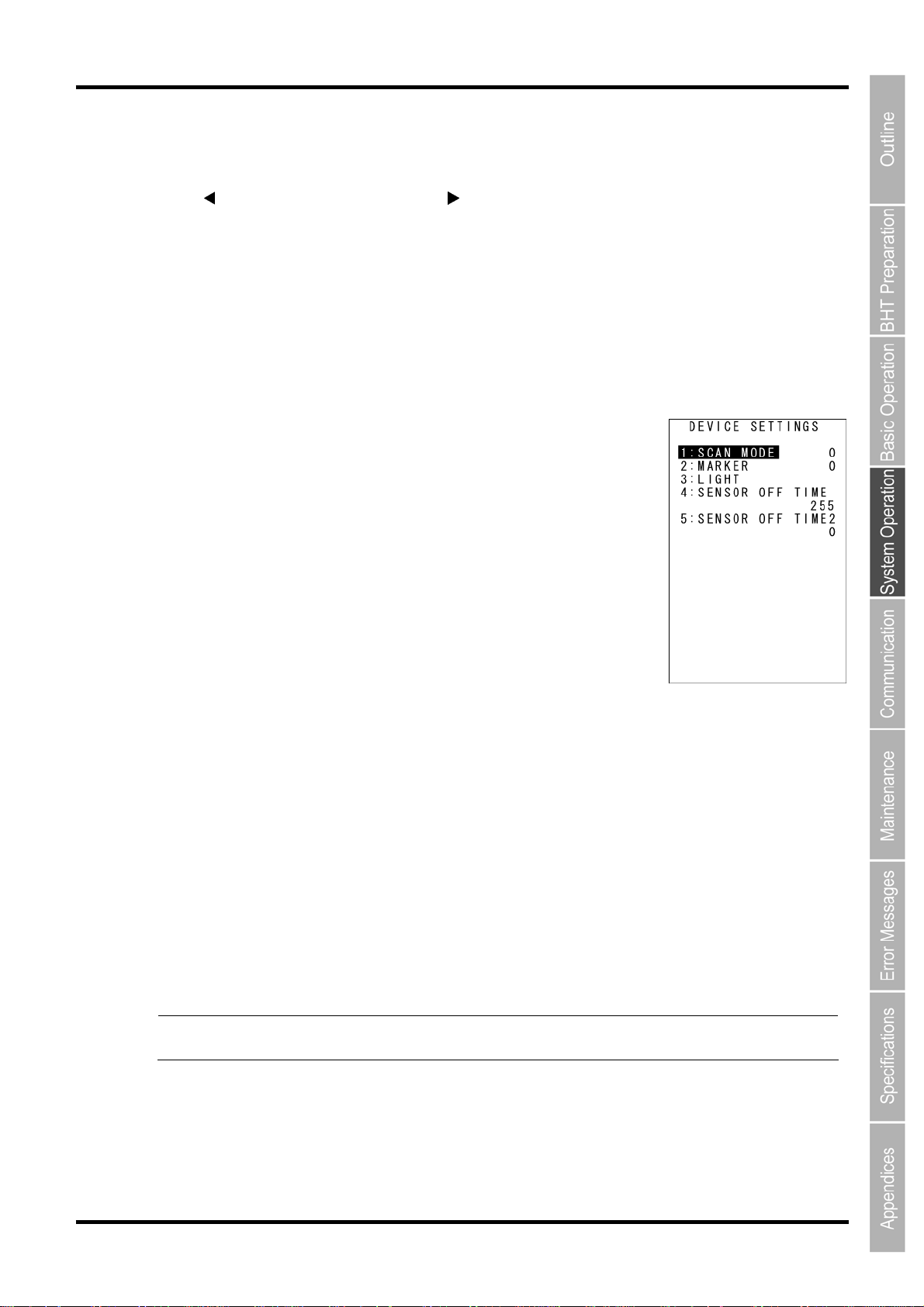

 “2:DEVICE SETTINGS”: Device settings during reading

] to decrease the setting value and [ ] to increase the setting value.

ITF entry range: 2 - 20 (default: 4) Codabar entry range: 3 - 20 (default: 4)

1. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4] [5]) to highlight

the item to be set, highlight the setting value using the cursor keys ([◄] [►]) and press the ENT key.

Press the C key to return to the SET CODE SCANNING CONDITIONS menu.

“1: SCAN MODE”

Set the scan mode.

“0”: Normal mode

Codes within the field of view can be read. Refer to “Chapter 8 Specifications” regarding the size of the field of view.

“1”: Point scan mode

Codes above the cross at the center of the marker can be read. Reading will be unsuccessful if there is no code above the cross or the marker cannot be detected due to external light. This kind of reading is only enabled if marker illumination is enabled.

“2: MARKER”

Set whether the guide marker illuminates or not when the trigger switch is pressed.

“0”: Operated by trigger switch “1”: Locked ON (Illuminates) “2”: Locked OFF (Doesn’t illuminate)

- Point -

When the marker is locked on, more power is used and operating times are shorter compared to other modes. Do not change these settings unless necessary.

Page 82

BHT-604Q

“3: LIGHT”

Set whether the INDICATOR LED light illuminates or not when the trigger switch is depressed.

“0”: Illuminates “1”: Illuminates “2”: OFF

“4: SENSOR OFF TIME”

Set the sensor off time Press [

OFF time setting range: 0～255 Default value : 255

“5: SENSOR OFF TIME 2”

Set the time from close to sensor off Press [

OFF time setting range: 0～255 Default value : 0

] to decrease the setting value and [ ] to increase the setting value.

[5] Setting the communication environment

The communication environment settings following system initialization are follows. Do not change these settings unless necessary.

Item Default Interface used Optical (infrared interface port) Communication protocol type Ymodem protocol

Infrared interface port

TRANSMIT SPEED Baud rate 115200 Bps PROTOCOL Protocol optio n s SERIAL No.: ON (Adds serial numbers to data

Connector interface port

TRANSMIT SPEED Baud rate PARITY BIT (Vertical parity) None DATA BIT (Character

length)

STOP BIT (Stop bit length) 1 Bit

blocks.

) H. PARITY: ON (Adds horizontal parity.) LINKUP TIME: 30 seconds FIELD SPACE: ignore (Trim)

115200 Bps

8 bits

PROTOCOL (Protocol options) SERIAL No.: ON (Adds serial numbers to data

blocks.

) H. PARITY: ON (Adds horizontal parity.) LINKUP TIME: 30 seconds FIELD SPACE: ignore (Trim)

Page 83

2D Code Handy Terminal

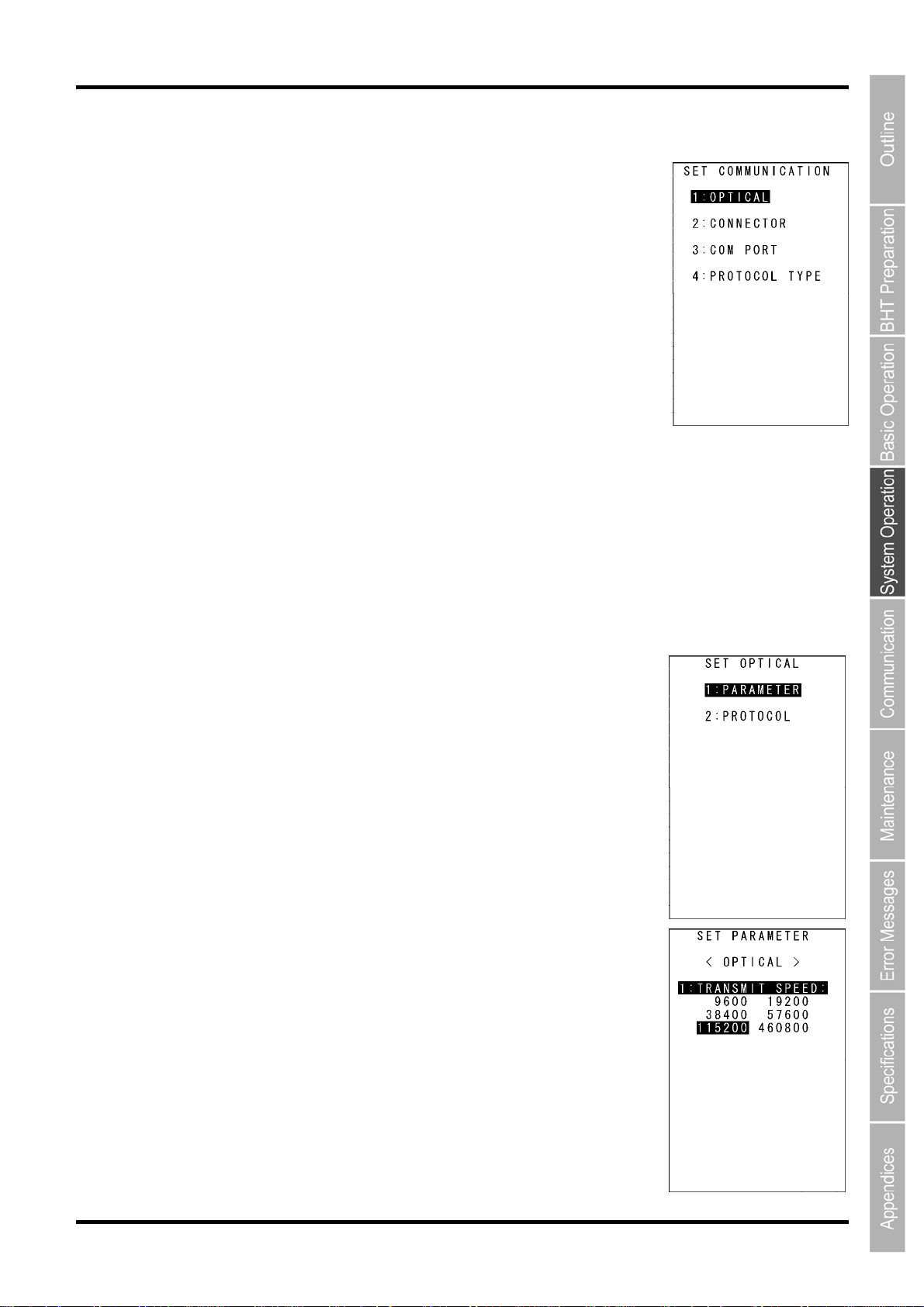

Use the following procedure if necessary to change the communication environment settings.

1. Select “5: COMMUNICATION” at the SET SYSTEM menu and then press

the ENT key. The SET COMMUNICATION menu screen displays as shown on the right.

2. Use the curso r keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to highlight

the item to be set and press the ENT key. “1: OPTICAL”:

Changes the infrared communication parameters.

“2: CONNECTOR”:

Changes the connector communication parameters.

“3: COM PORT”:

Changes the communication port setting.

“4: PROTOCOL TYPE”:

Change the communication protocol type setting

Refer to the following section for details of the above items. Press the C key to return to the SET SYSTEM menu.

 “1: OPTICAL”:infrared communication parameters

1. Select “1: OPTICAL” at the SET COMMUNICATION m enu and then press

the ENT key. The SET OPTICAL menu screen displays as shown on the right.

2. Use the curso r keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight “1:

PARAMETER” or “2: PROTOCOL”, and then press the ENT key.

Press the C key to return to the SET SYSTEM menu.

“1: PARAMETER”: setting the communication parameters

Select “1: PARAMETER” to display the screen shown on the right.

The highlighted settings will be the current settings.

“1: TRANSMIT SPEED”: Setting the transmission speed To change the setting, highlight the transmission speed with the cursor keys ([◄] [►]) and press the ENT key. Press the C key to return to the SET OPTICAL menu.

Page 84

BHT-604Q

“2: PROTOCOL”: Communication protocol options setting screen

Select “2: PROTOCOL” to display the screen shown on the right The highlighted settings will be the current settings.

“1: SERIAL No.”:

Selects whether or not to add serial numbers to data blocks.

“2: H.PARITY”:

Selects whether or not to add horizontal parity.

“3: LINKUP TIME”:

Selects the timeout length (in seconds) to be applied when a link is to be established.

“4: FIELD SPACE”:

Specifies handling for trailing spaces in fields. To trim trailing spaces in fields, select “ignore”, and to retain them as data, select “data”.

- Point - Selecting the BHT-IR or YMODEM protocol ignores the serial number and horizontal parity

settings.

Page 85

2D Code Handy Terminal

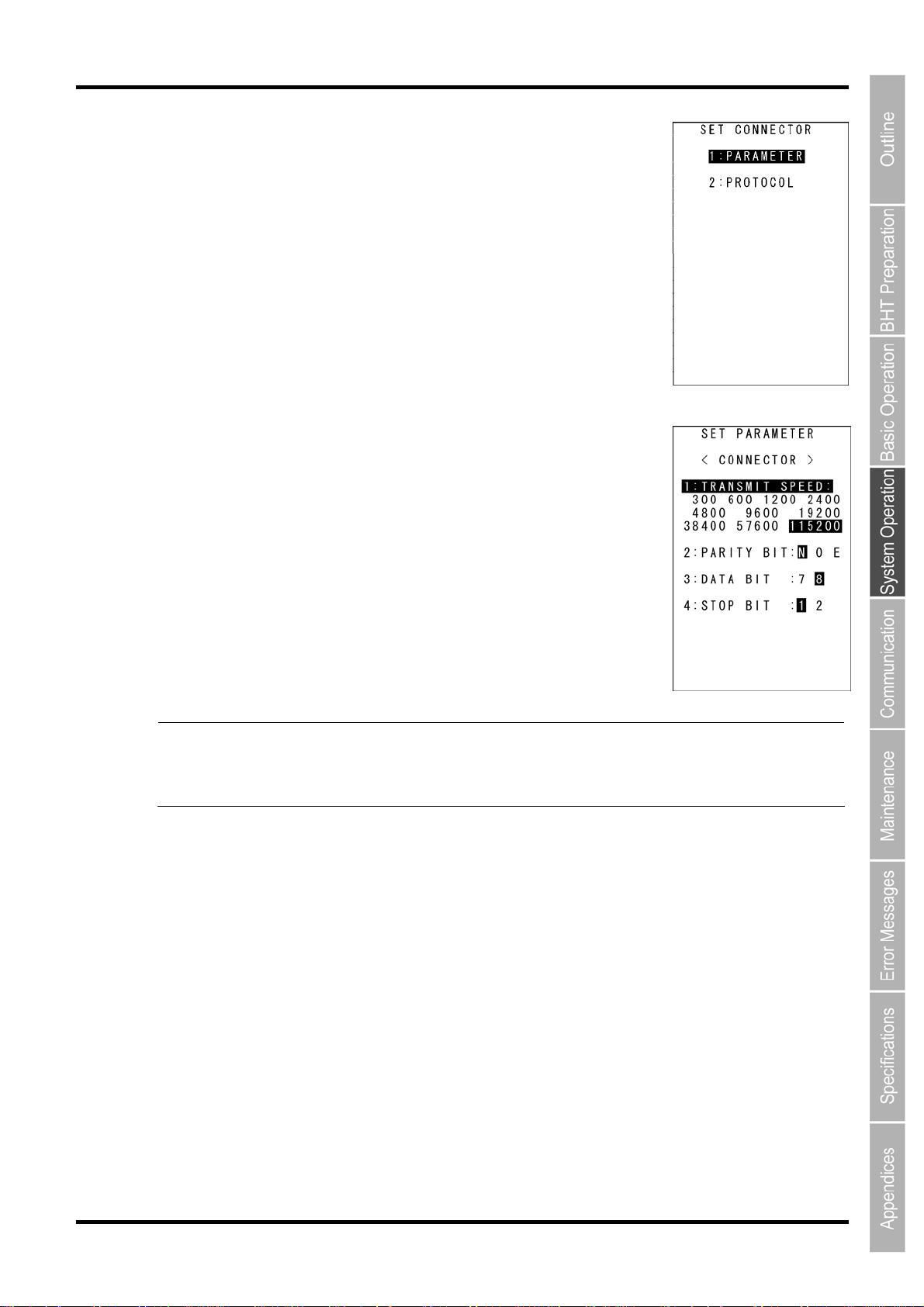

 “2: CONNECTOR”: Connector communication environment

settings

1. Select “2: CONNECTOR” at the SET COMMUNICATIO N menu and then

press the ENT key. The SET CONNECTOR menu screen displays as shown on the right.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight “1:

PARAMETER” or “2: PROTOCOL”, and then press the ENT key.

Press the C key to return to the SET SYSTEM menu.

“1: PARAMETER”: Setting the communication parameters

Select “1: PARAMETER” to display the screen shown on the right. The highlighted settings will be the current settings.

“1: TRANSMIT SPEED”: Sets the transmission speed. “2: PARITY BIT”: Sets the vertical parity: none, odd, or even. “3: DATA BIT”: Sets the character length. “4: STOP BIT”: Sets the stop bit length.

- Point -  Selecting the BHT-Ir protocol ignores the vertical parity, character length, and stop bit

length settings.

 Selecting YMODEM require s the vertical parity, character length, and stop bit length to be

set to N, 8 and 1, respectively.

Page 86

BHT-604Q

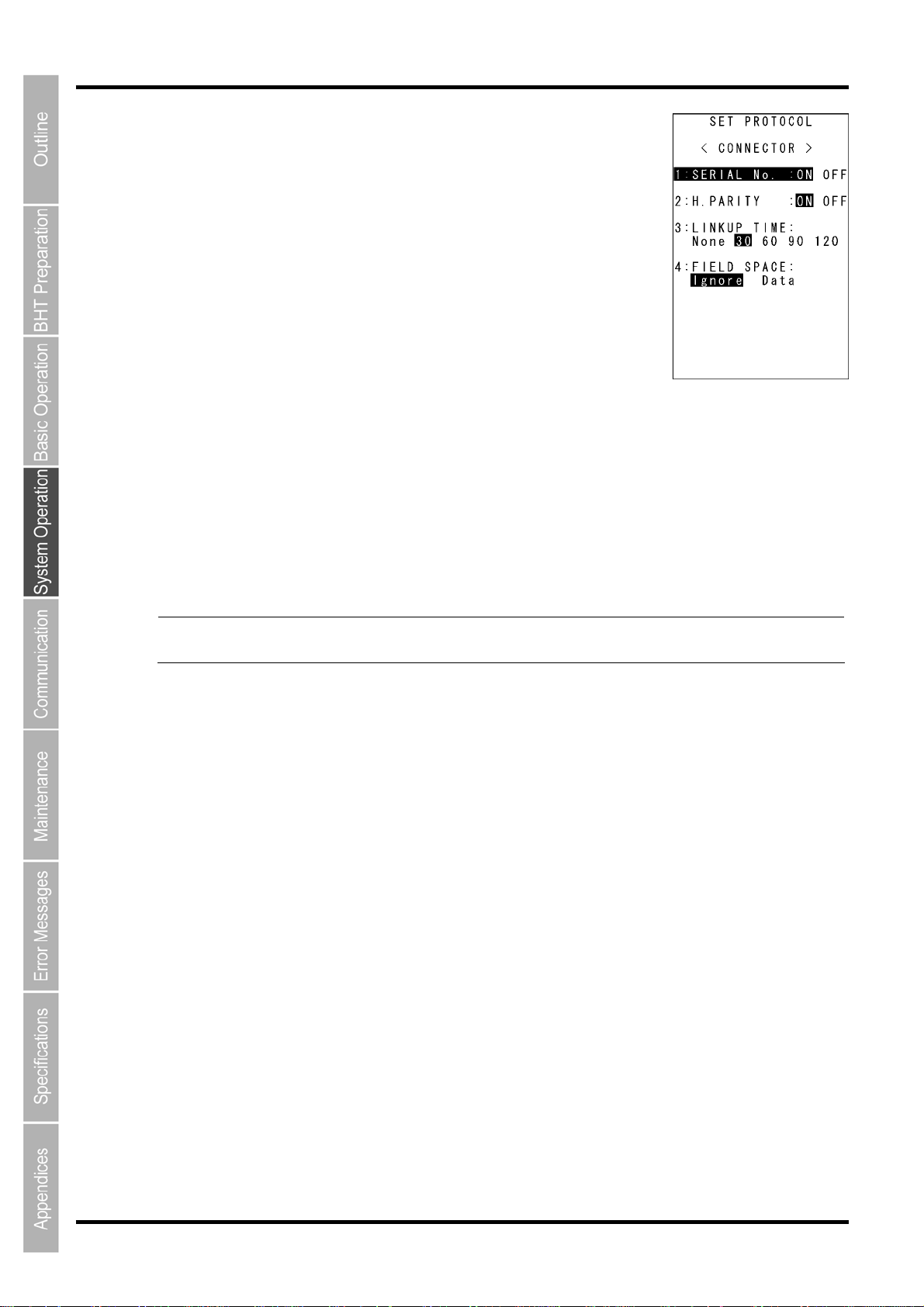

“2: PROTOCOL”: Communication protocol options setting screen

Select “2: PROTOCOL” to display the screen shown on the right The highlighted settings will be the current settings.

“1: SERIAL No.”:

Selects whether or not to add serial numbers to data blocks.

“2: H.PARITY”:

Selects whether or not to add horizontal parity.

“3: LINKUP TIME”:

Selects the timeout length (in seconds) to be applied when a link is to be established.

“4: FIELD SPACE”:

Specifies the handling for trailing spaces in fields. To trim trailing spaces in fields, select “Ignore”, and to retain them as data, select “Data”.

- Point - Selecting the BHT-IR or YMODEM protocol ignores the serial number and horizontal parity

settings.

Page 87

2D Code Handy Terminal

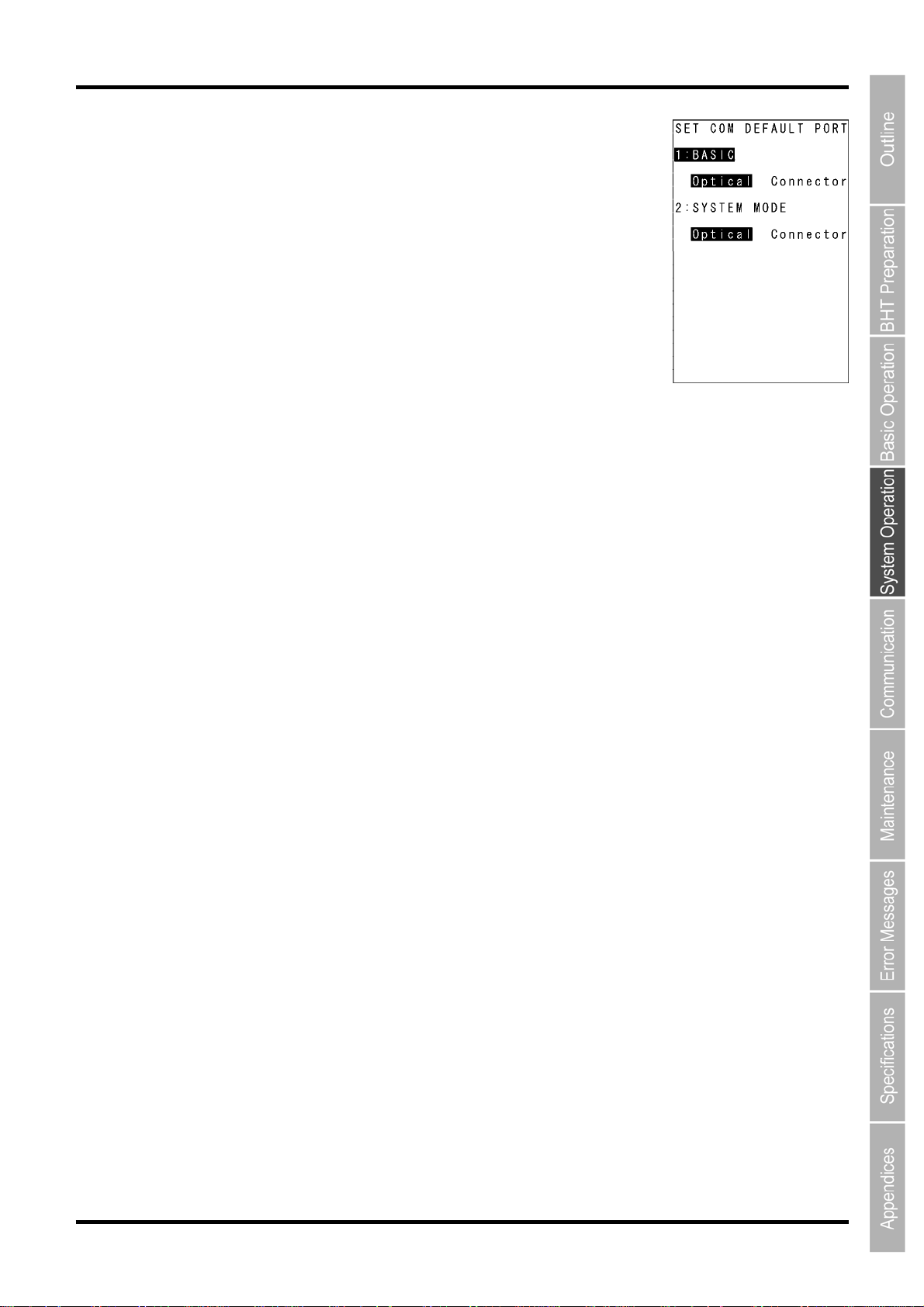

 “3: COM PORT”: Setting the interface port

1. Select “3: COM PORT” at the SET COMMUNICATION menu and then

press the ENT key. The SET COM DEFAULT PORT menu screen displays as shown on the

right. The highlighted settings will be the current settings.

“1: BASIC”

Selects the infrared communication (Optical) or connector Communication (Connector) interface port to be used for user programs written in BHT-BASIC (OPEN “COM:”). “Optical”: Uses infrared communication. “Connector”: Uses connector communication.

“2: SYSTEM MODE”

Selects the infrared communication (Optical) or connector communication (Connector) interface port to be used for downloading or uploading files in System Mode. “Optical”: Uses infrared communication. “Connector”: Uses connector communication.

To change the setting, use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight the item to be set, highlight the setting value using the cursor keys ([◄] [►]), and then press the ENT key. Press the C key to return to the SET CONNECTOR menu.

Page 88

BHT-604Q

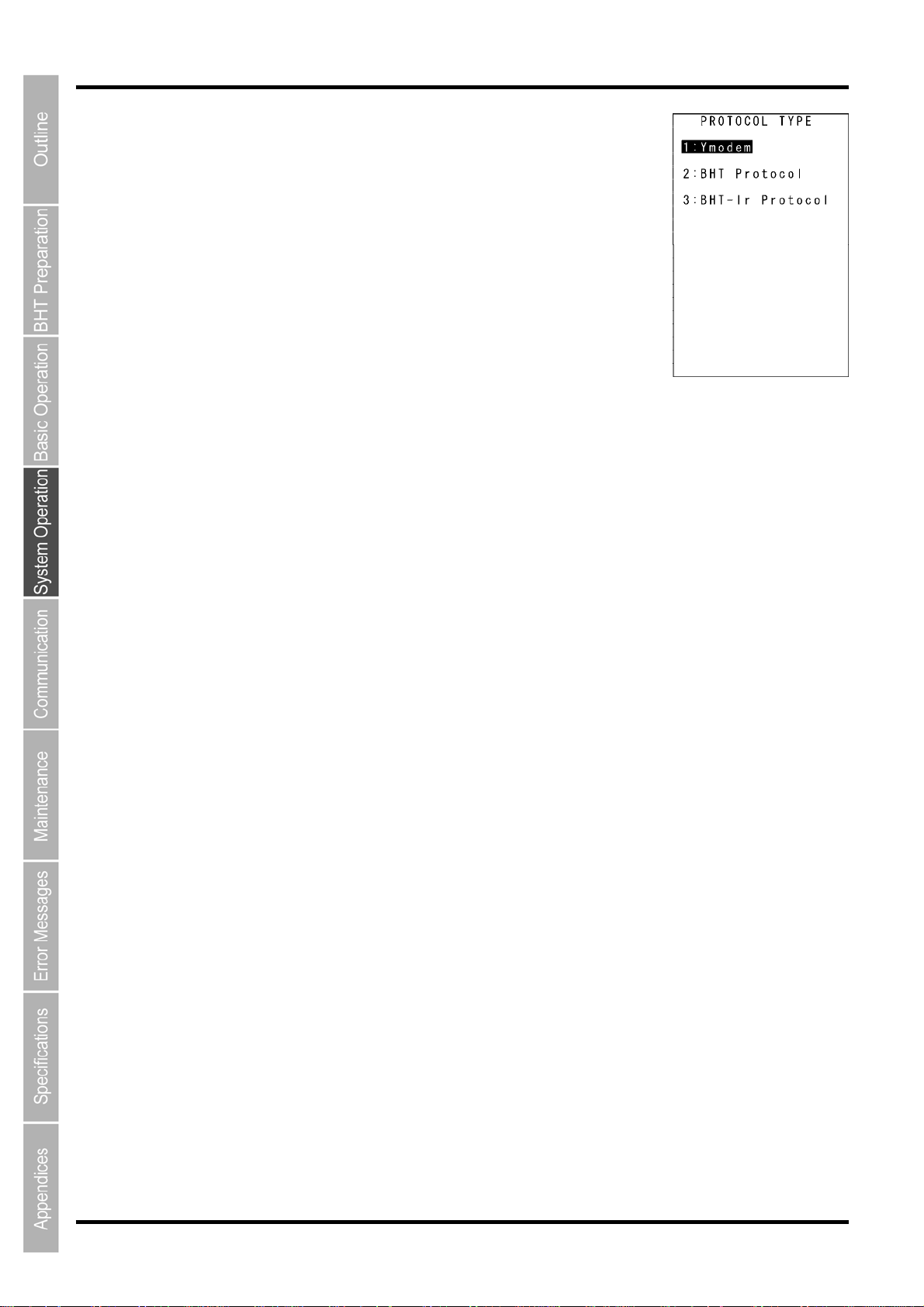

 “4: PROTOCOL TYPE”: Setting the communication protocol

type

1. Select “4: PROTOCOL TYPE” at the SET COMMUNICATION menu and

then press the ENT key. The PROTOCOL TYPE menu screen displays as shown on the right.

The highlighted settings will be the current settings.

“1: Ymodem”:

Selects Ymodem when uploading downloading in System Mode or for the execution of the XFILE statement in BHT-BASIC.

“2: BHT Protocol”:

Selects the BHT-protocol when uploading downloading in System Mode or for the execution of the XFILE statement in BHT-BASIC.

“3: BHT-IR Protocol”:

Selects the BHT-IR protocol when uploading downloading in System Mode or for the execution of the XFILE statement in BHT-BASIC.

To make changes, use the cursor Keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to highlight the setting item, and then press the ENT key.

To use the BHT-BASIC 4.0 Transfer Utility, select Ymodem or BHT-Ir protocol.

Press the C key to return to the SET COMMUNICATION menu.

Page 89

2D Code Handy Terminal

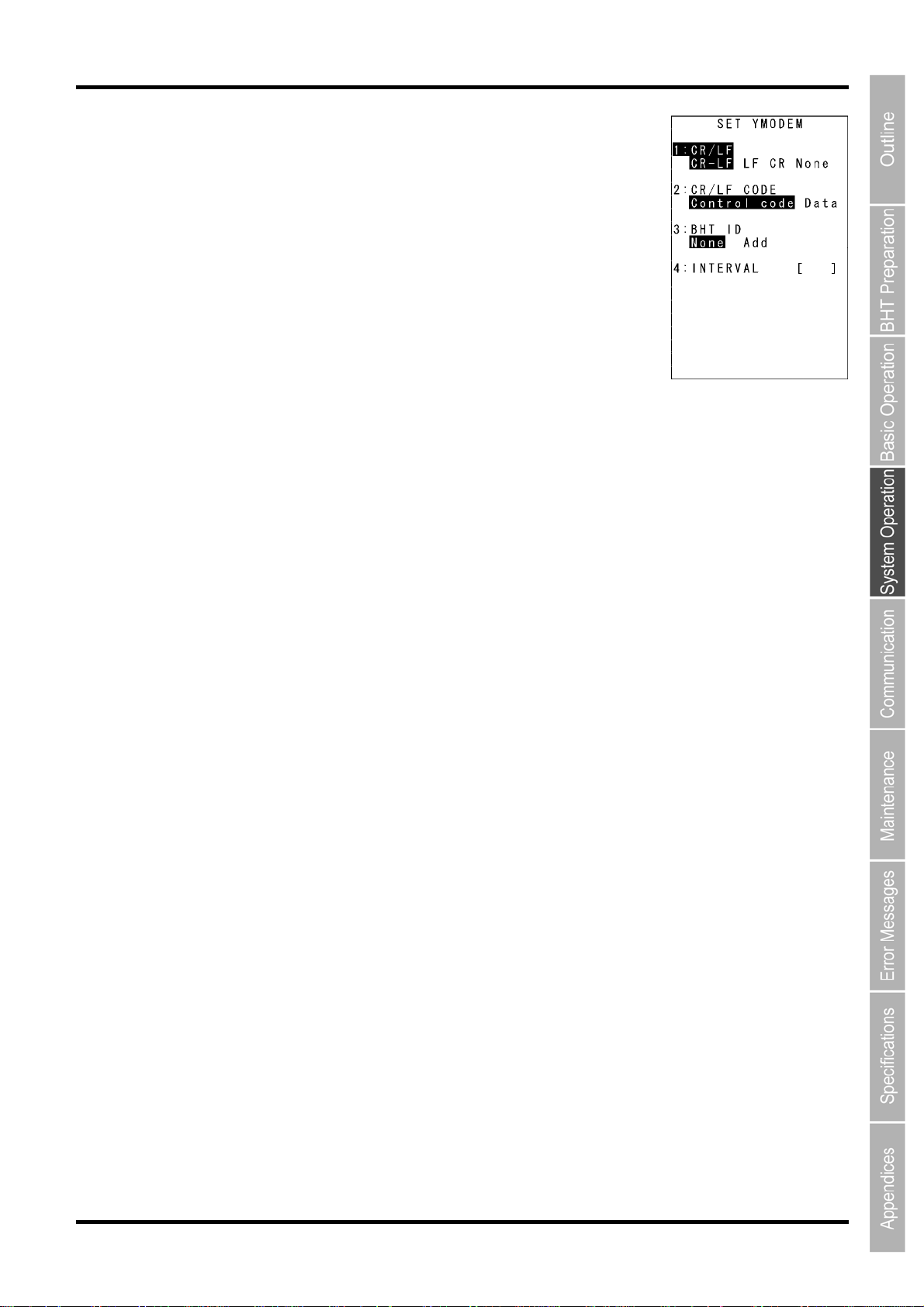

Select “1: Ymodem” at the PROTOCOL TYPE menu to display the screen on the right. The highlighted settings will be the current settings.

“1: CR/LF”:

Specifies line delimiters.

“2: CR/LF CODE”:

Specifies handling for line delimiters in records when data files are downloaded. “Control code”:

Does not handle line-break codes as data. (handles as record delimiters.)

“Data”:

Handles line-break codes as data.

“3: BHT ID”:

Specifies whether or not to add the BHT ID number to packets when performing YMODEM transfer. “None” should normally be selected. To add the BHT ID number to the transfer tool, select “Add”. (This setting is not supported. Changing this setting has no result.)

“4: INTERVAL”:

Specifies the retry interval within a range of 1 to 255 in units of 100 ms.

To change the setting, use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to highlight the item to be set, highlight the setting value using the cursor keys ([◄] [►]), and then press the ENT key. For “4: INTERVAL”, press the ENT key to change to entry mode. The cursor displays, allowing the previous setting to be deleted by pressing the BS key. Enter a new setting values with the numerical keys and press the ENT key.

Press the C key to return to the SET COMMUNICATION menu.

Page 90

BHT-604Q

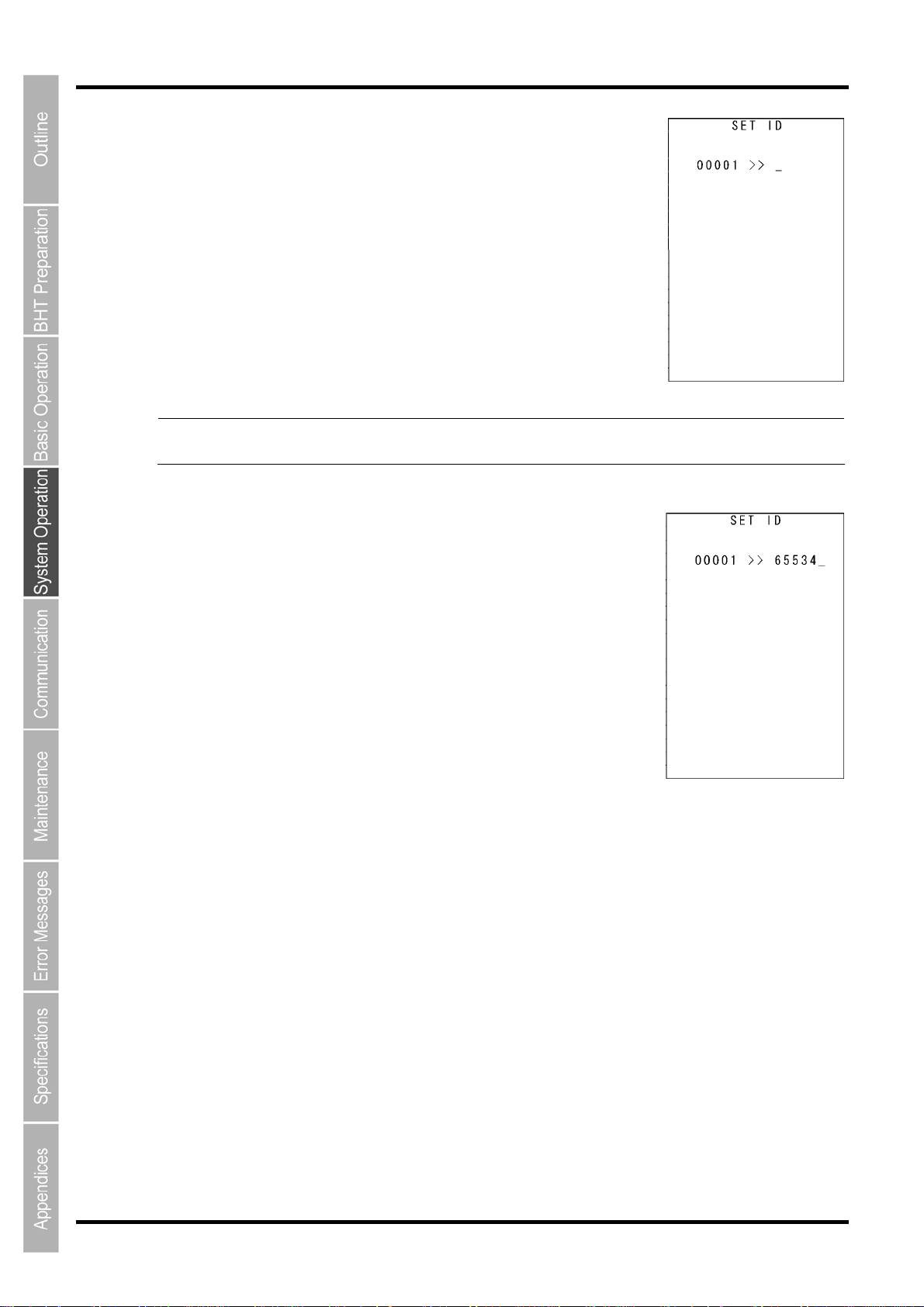

Select “3: BHT-IR protocol” at the PROTOCOL TYPE menu to display the screen on the right.

Enter the ID number of the BHT using the numerical keys and then press the ENT key. If there is no need to edit the current setting, press the ENT key only.

- Point - ID numbers should consist of a five-digit decimal character string. The entry range is from

If an incorrect entry is made, press the BS key to delete it and then enter the correct data. Press the C key to return to the SET COMMUNICATION

00001 To 65534. If the entry value is less than five digits, the ENT key will be invalid.

menu.

Page 91

2D Code Handy Terminal

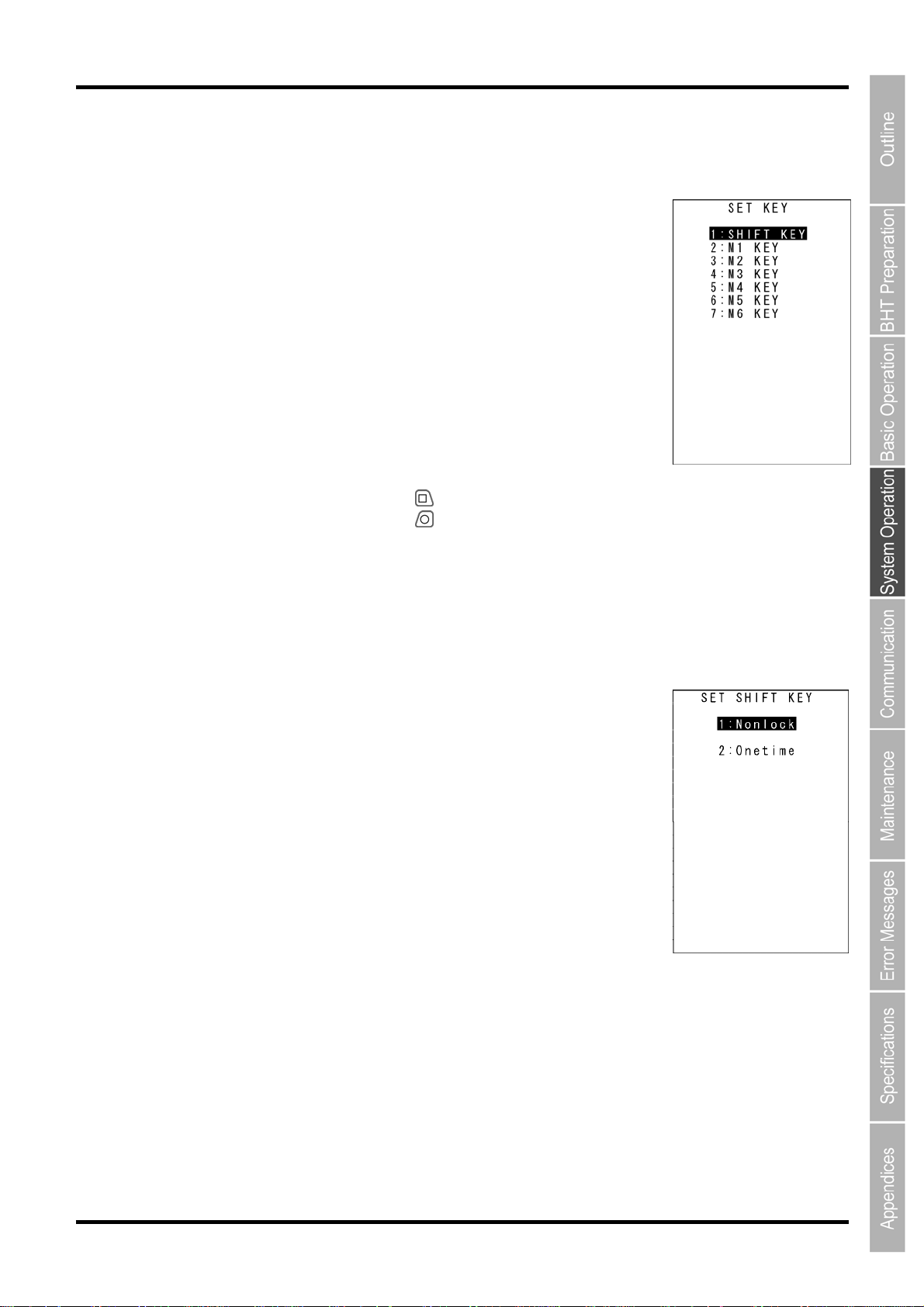

[6] Defining the functions of the Shift key and Magic keys

Use the following procedure to change the key settings.

1. Select “6: KEY” at the SET SYSTEM menu and then press the ENT key.

The SET KEY menu screen displays as shown on the right.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4] [5] [6] [7]) to

highlight the item to be set, and then press the ENT key. “1: SHIFT KEY”: Displays the SF key definition screen.

“2: M1 KEY”: Displays the M1 key definition screen. “3: M2 KEY”: Displays the M2 key definition screen. “4: M3 KEY”: Displays the M3 (left-hand trigger switch) key definition

screen.

“5: M4 KEY”: Displays the M4 (right-hand trigger switch) key definition

screen. “6: M5 KEY”: Displays the M5 key ( ) definition screen. “7: M6 KEY”: Displays the M6 key ( ) definition screen.

Refer to the following section for details of the above items. Press the C key to return to the SET COMMUNICATION menu.

 “1:SHIFT KEY”: Defining the Shift key function

1. Select “1: SHIFT KEY” at the SET KEY menu and then press the ENT key.

The SET SHIFT KEY menu screen displays as shown on the right. The highlighted settings will be the current settings.

“1: Nonlock”: Shifts the keypad only when the SF key is held down. “2: Onetime”: Shifts only the key pressed immediately after the SF key is

pressed. (The following keys will not be shifted.)

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight the item

to be set, and then press the ENT key.

The selected item will be set and the screen will return to the SET KEY menu.

Page 92

BHT-604Q

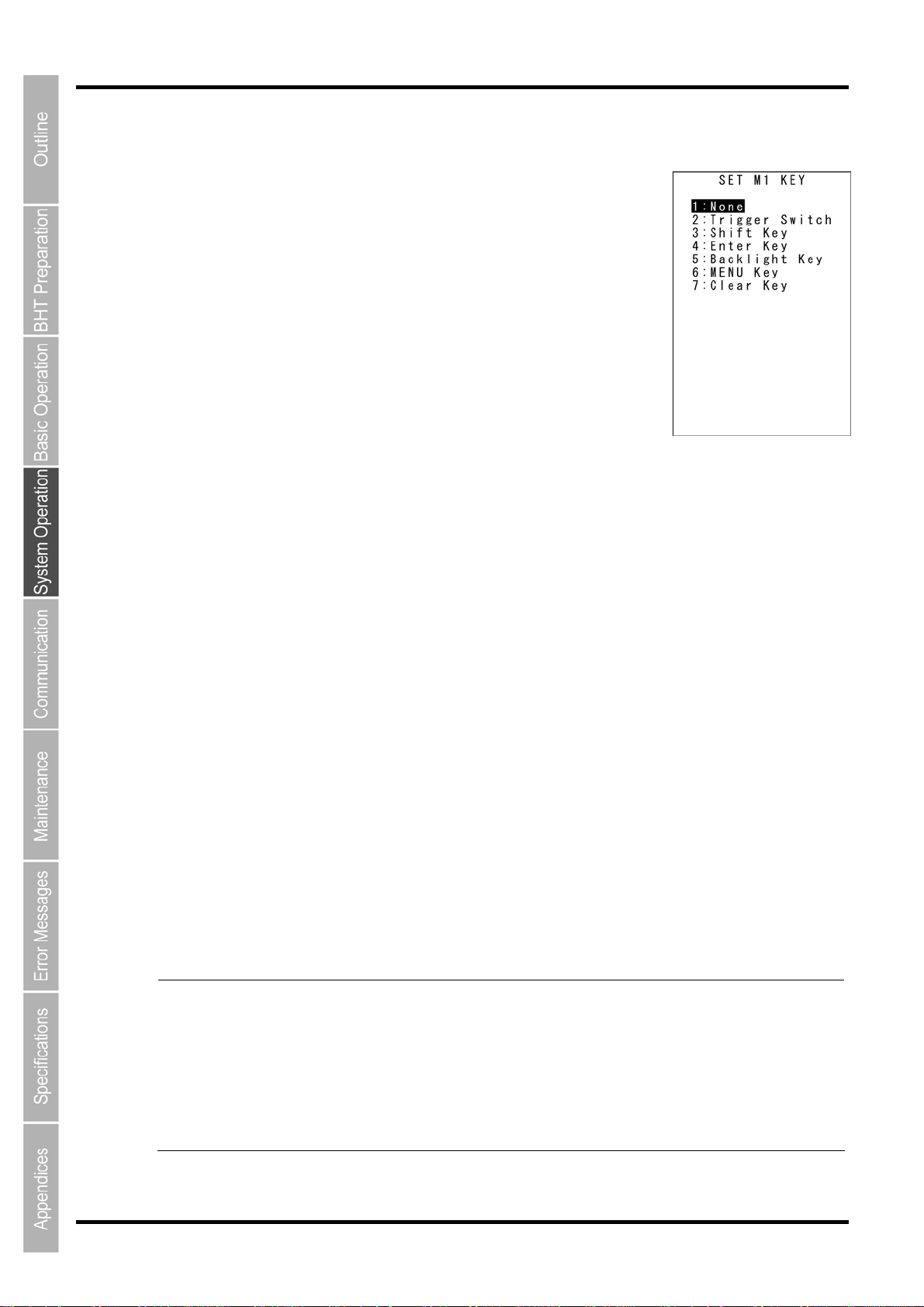

 “2: M1 KEY” - “7: M6 KEY”: Defining the Mx key functions

1. Select “2: M1 KEY” to “7: M6 KEY” at the SET KEY menu and then press the

ENT key.

The SET Mx KEY menu screen displays as shown on the right. (In the example on the right, “2: M1 KEY” has been selected.) The highlighted settings will be the current settings.

“1: None”:

Key entry will be ignored.

“2: Trigger switch”:

Sets the magic key as the trigger switch.

“3: Shift key”:

Sets the magic key as the SF key.

“4: Enter key”:

Sets the magic key as the ENT key.

“5: Backlight key”:

Sets the magic key as the backlight function ON/OFF key.

“6: MENU Key”:

Sets the magic key as a key used to start up the “Beeper/Vibrator/backlight Adjustment Screen”.

“7: Clear key”:

Sets the magic key as the C key.

2. Use the cursor keys ([▲] [▼]) or numerical ke ys ([ 1] [2 ] [3] [ 4] [ 5] [6 ] [7]) t o hi ghl ight the i tem t o be se t, and

then press the ENT key. The selected item will be set and the screen will return to the SET KEY menu.

 Magic keys (M1 to M6)

Magic keys (M1 to M6) can be set to function as the trigger switch, SF key, ENT key, backlight function ON/OFF key, MENU key or C key. If the M1 key is defined as the backlight function ON/OFF key, pressing the M1 key enables or disables the backlight function. In user programs, data strings can be also assigned to these Magic keys. Magic keys M3 and M4 are set as the trigger switch by default.

- Point -

The backlight function ON/OFF key can be assigned only to one of the magic keys from M1 to M6. The key defined more recently will act as the backlight function ON/OFF key and the previously defined key will be ignored.

If, for example, the M1 and M2 keys are defined as the backlight function ON/OFF key in this order, the M2 key will function as the backlight function ON/OFF key and the M1 key entry will be ignored. On the other hand, if the M2 and M1 keys are defined as the backlight function ON/OFF key in this order, the M1 key will function as the backlight function ON/OFF key and the M2 key entry will be ignored.

Page 93

2D Code Handy Terminal

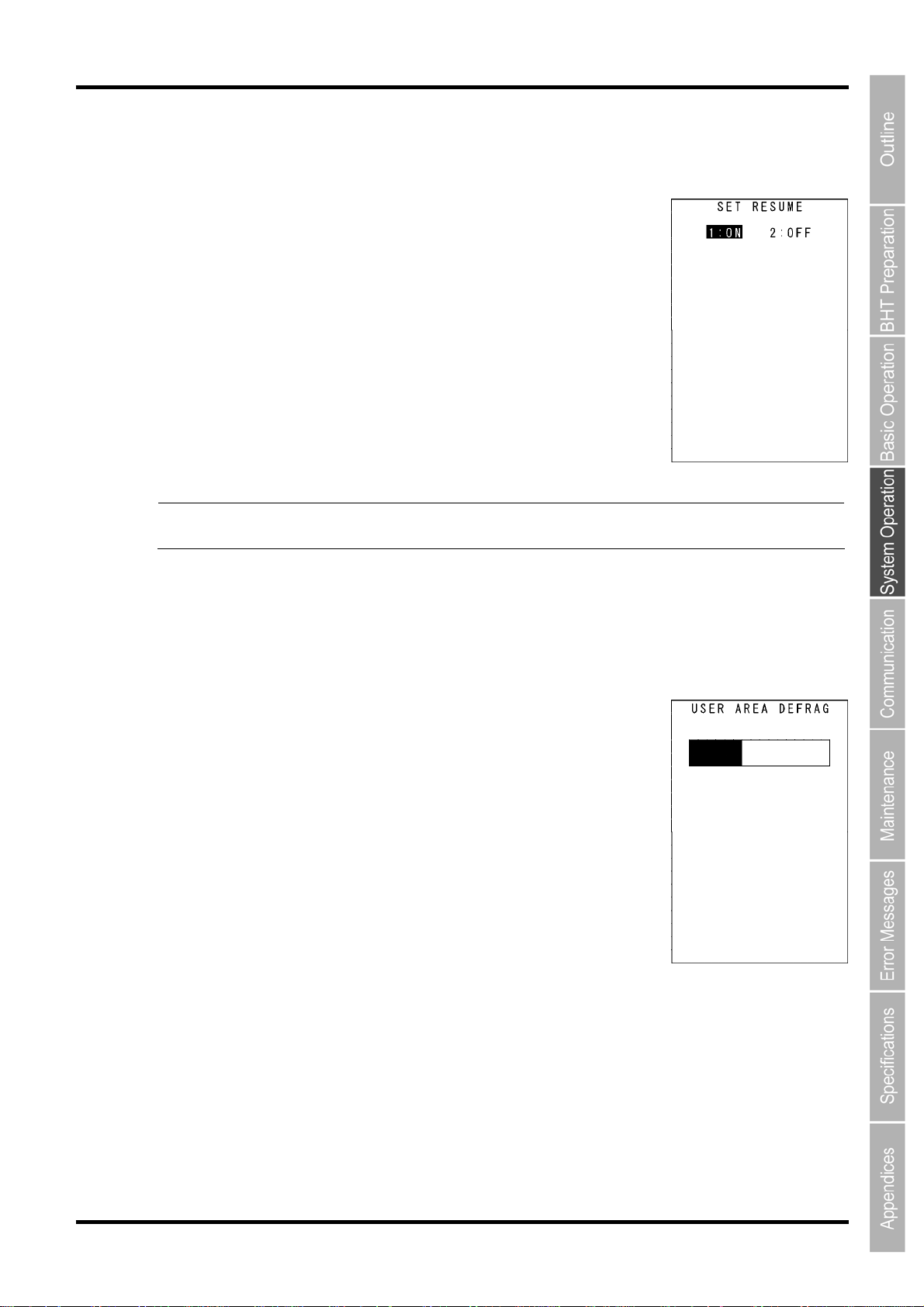

[7] Setting the resume function

Use the following procedure to set the resume function.

1. Select “7: RESUME” at the SET SYSTEM menu and then press the ENT

key. The SET RESUME menu screen displays as shown on the right.

The highlighted settings will be the current settings.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to change the

setting and press the ENT key. Press the C key to return to the SET SYSTEM menu.

“1: ON”: Enables the resume function. “2: OFF”: Disables the resume function.

- Note - The resume function is used to return the BHT status (screen) when the power is turned ON

to the status at the point the power was turned OFF.

[8] Defragmenting the drive

Use the following procedure to defragment the drive.

1. Select “8: DEFRAG” at the SET SYSTEM menu and then press the ENT

key. The screen displays as shown on the right and the defragmentation process

is performed for the entire user area. The screen returns to the SYSTEM MENU when defragmentation is complete.

Defragmentation reorganizes the user area in order to increase the amount of available space. If defragmented, the BHT may download files more efficiently than before performing defragmentation.

Page 94

BHT-604Q

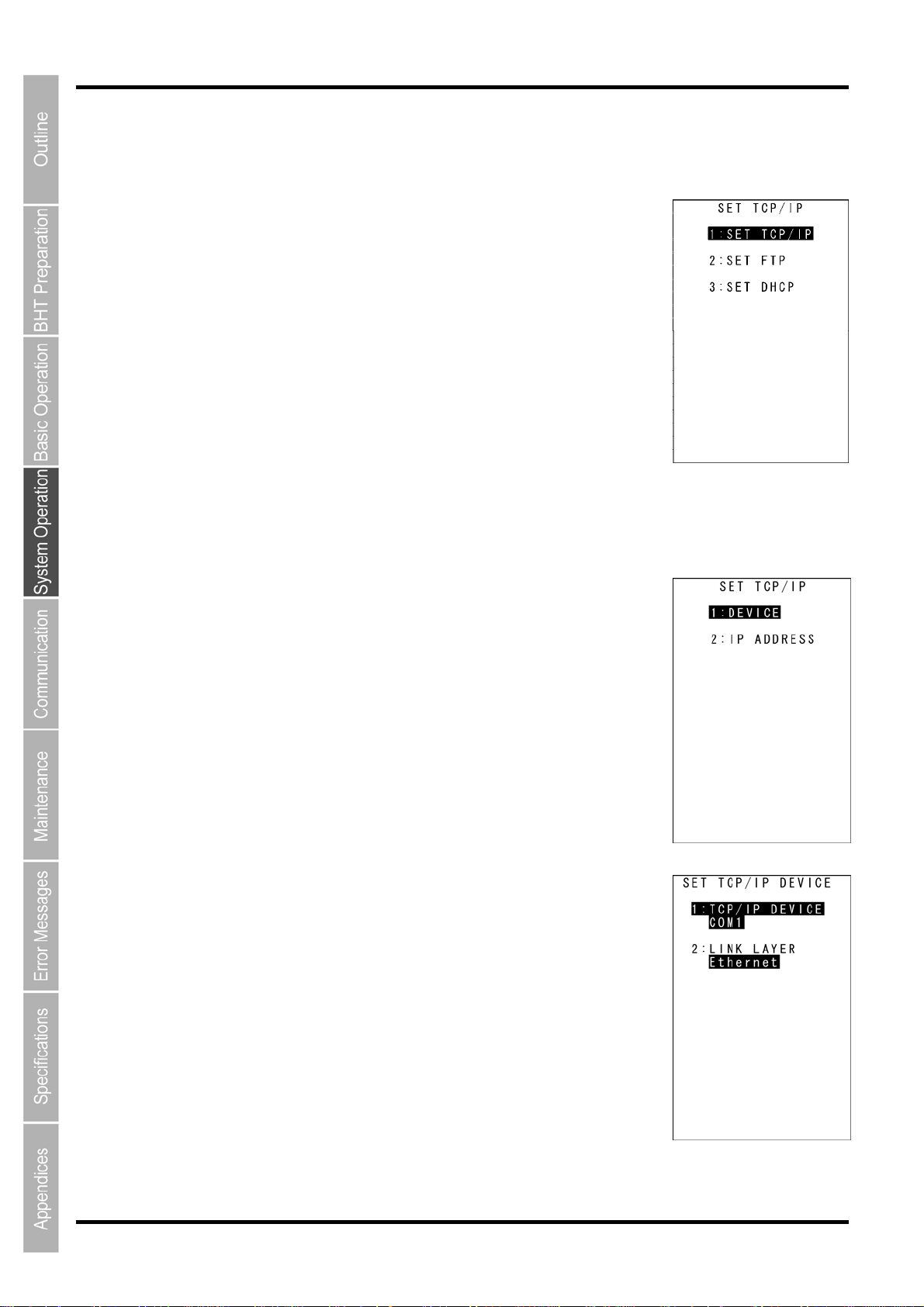

[9] Setting the TCP/IP, FTP and DHCP

Use the following procedure to change the TCP/IP, FTP and DHCP settings.

1. Select “9: TCP/IP” at the SET SYSTEM menu and then press the ENT key.

The SET TCP/IP menu screen displays as shown on the right.

2. Use the curso r keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to highlight the

item to be set, and then press the ENT key. “1: SET TCP/IP”: Changes the TCP/IP setting.

“2: SET FTP”: Changes the FTP setting. “3: SET DHCP”: Changes the DHCP setting.

Refer to the following section for details of the above items. Press the C key to return to the SET SYSTEM menu.

 “1: SET TCP/IP”: Setting the TCP/IP

1. Select “1: SET TCP/IP” at the SET TCP/ IP menu and then press the ENT

key. The SET TCP/IP menu screen displays as shown on the right.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight the item

to be set, and then press the ENT key. Press the C key to return to the SET TCP/IP menu.

“1: DEVICE”: Setting the T

Select “1: right where the current settings are displayed.

“1: TCP/IP DEVICE”: TCP/IP communication device “2: LINK LAYER”: Link layer

Press the C key to return to the SET TCP/IP menu.

DEVICE” at the

CP/IP device

SET TCP/IP

menu to display the screen

on the

Page 95

2D Code Handy Terminal

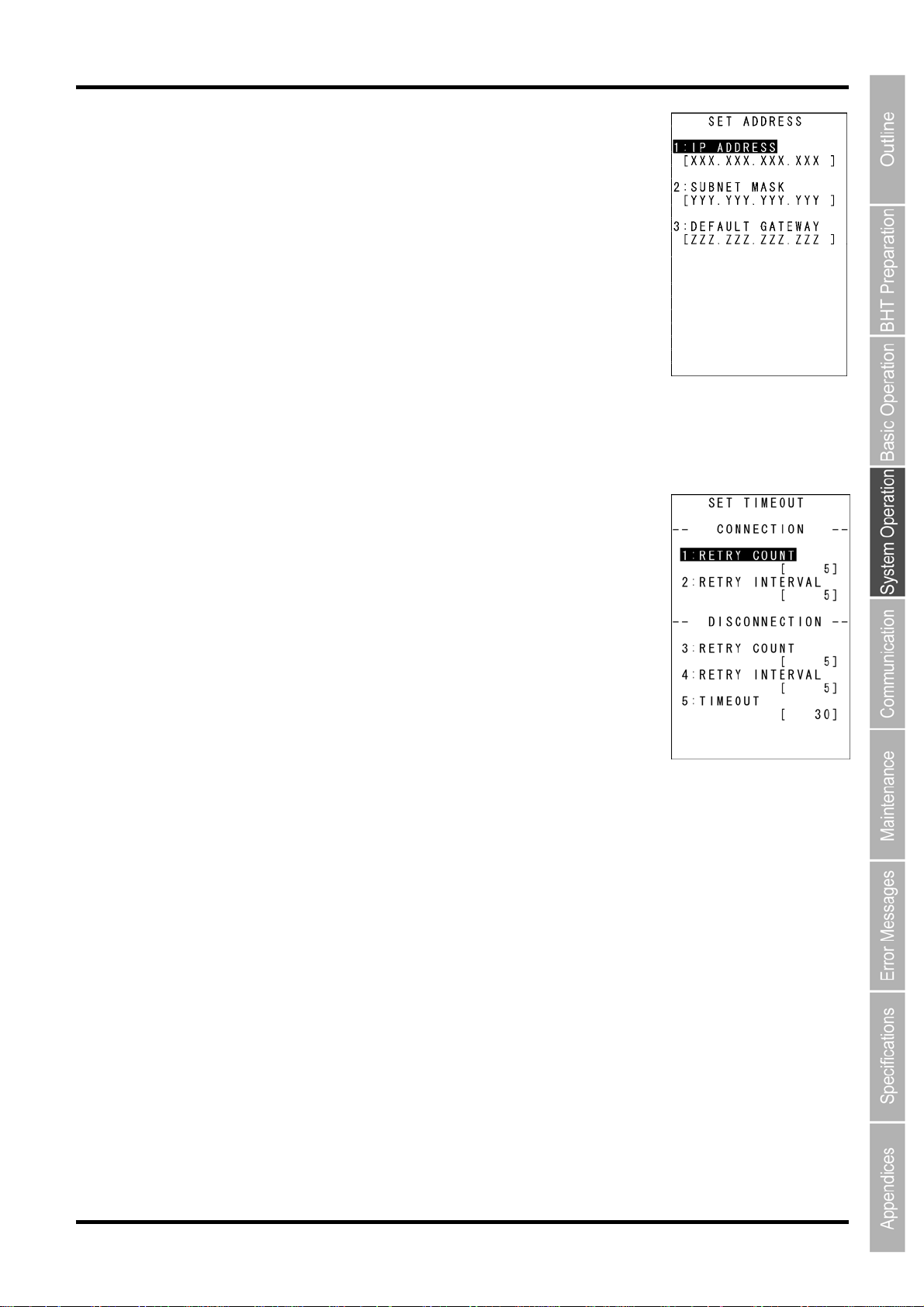

“2: IP ADDRESS”: Setting the IP address

Select “2: IP ADDRESS” at the SET TCP/IP menu to display the screen on the right where the current settings are displayed.

To change the setting:

(1) Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to

highlight the item to be set and press the ENT key.

(2) The mode changes to entry mode and the cursor displays, allowing

the setting to be entered with the numerical keys and dot key. To delete a single character, press the BS key. To delete the entire entry, press the C key. Enter the desired value and then press the ENT key (3)

If the IP address, subnet mask and default gateway are all set to [0.0.0.0], DHCP is enabled. Press the C key to return to the SET TCP/IP menu.

“3: TIMEOUT”: Setting the timeout (only when COM1 selected)

Select “3: TIMEOUT” at the SET TCP/IP right where the current settings are displayed.

To change the setting: (1) Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4] [5]) to

highlight the item to be set and press the ENT key.

(2) The mode changes to entry mode and the cursor disp lays, allowing

the setting to be entered with the numerical keys and dot key. To delete a single character, press the BS key. To delete the entire entry, press the C key.

(3) Enter the desired value, and then press the ENT key.

ss th

Pre e C key to return to the SET TCP/IP menu.

menu to display the screen on the

Page 96

BHT-604Q

 Setting the FTP

1. Select “2: SET FTP” at the SET TCP/IP menu and then press the ENT key.

The SET FTP menu screen displays as shown on the right.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight the

item to be set, and then press the ENT key. Press the C key to return to the SET TCP/IP menu.

“1: SERVER”: Setting the FTP server connection environment

Select “1: SERVER” at the SET FTP menu to display the screen on the right where the current settings are displayed.

“1: SERVER IP”:

Sets the IP address for the FTP server.

“2: USER ID”:

Sets the user

“3: PASSWORD”:

Sets the password.

“4: DEFAULT DIR”:

Specifies an initial directory through which the FTP server will search for files for transfer first when the FTP client establishes a connection to the server.

To change the setting: (1) Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to

(2) The mode changes to entry mode and the cursor displays, allowing

Press the C key to return to the SET FTP menu.

name.

highlight the item to be set and press the ENT key.

the setting to be entered with the numerical keys and dot key. Press the SF and the BS key to change the entry mode (numeric entry (with no guidance display) and alphabet entry). To delete a single character, press the BS key. To delete the entire entry, press the C key. Enter the desired value, and then press the ENT key. (3)

Page 97

2D Code Handy Terminal

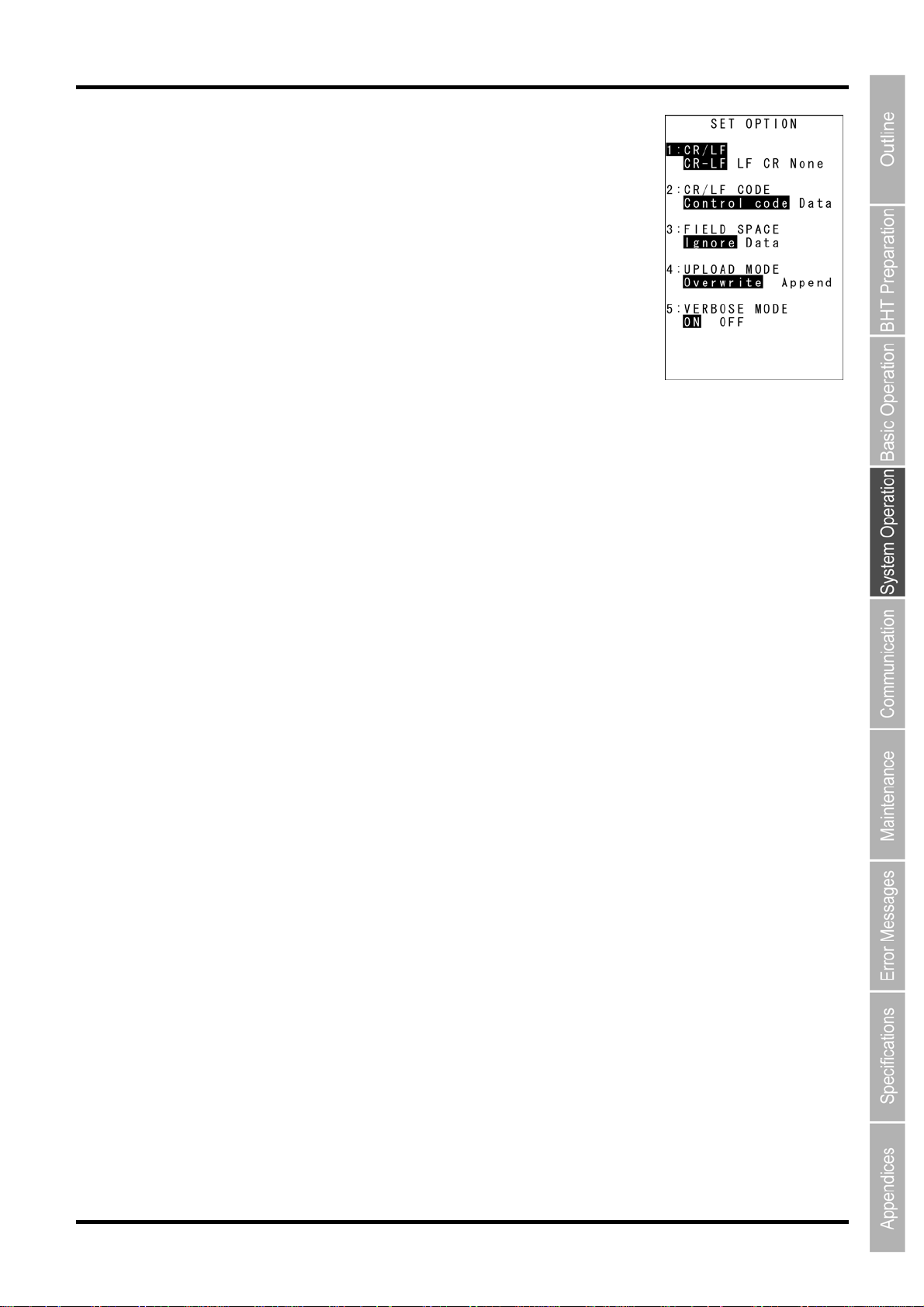

“2: OPTION”: Setting the FTP options

Select “2: OPTION” at the SET FTP menu to display the screen on the right where the current settings are displayed.

“1: CR/LF”:

Specifies line delimiters that should match ones used in the server OPERATING SYSTEMS (OS).

“2: CR/LF CODE”:

Specifies handling for line delimiters in records when data files are downloaded.

“Control code”: Does not handle line-break codes as data.

(handles as record delimiters.)

“Data”: Handles line-break codes as data.

“3: FIELD SPACE”:

Specifies the treatment of trailing spaces in fields.

“Ignore”: Trims trailing spaces in fields. “Data”: Retains trailing spaces as data.

“4: UPLOAD MODE”:

Specifies the treatment of trailing spaces in fields.

“Overwrite”: Uploaded files will be written over the existing files “Append”: Uploaded files will be appended to the existing files.

“5: VERBOSE MODE”:

Specifies the command response display when using FTP.

“ON”: Displays a message to the response (number) from the FTP server when the BHT (FTP

client) outputs a message.

“OFF”: Displays only messages output by the BHT (FTP client).

Refer to “FTP Download/Upload Messages” at section “4.5.8 Downloading/Uploading Files by FTP (FTP MENU)” for messages output by the BHT (FTP client). Refer to “Response messages from the FTP Server” at section “4.5.8 Downloading/Uploading Files by FTP (FTP MENU)” for messages to responses (numbers) from the FTP server.

To change the setting: (1) Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4] [5]) to highlight the item to be set and

press the ENT key. (2) Use the cursor keys ([◄] [►]) to highlight each setting value. (3) Press the ENT key.

Press the C key to return to the SET FTP menu.

Page 98

BHT-604Q

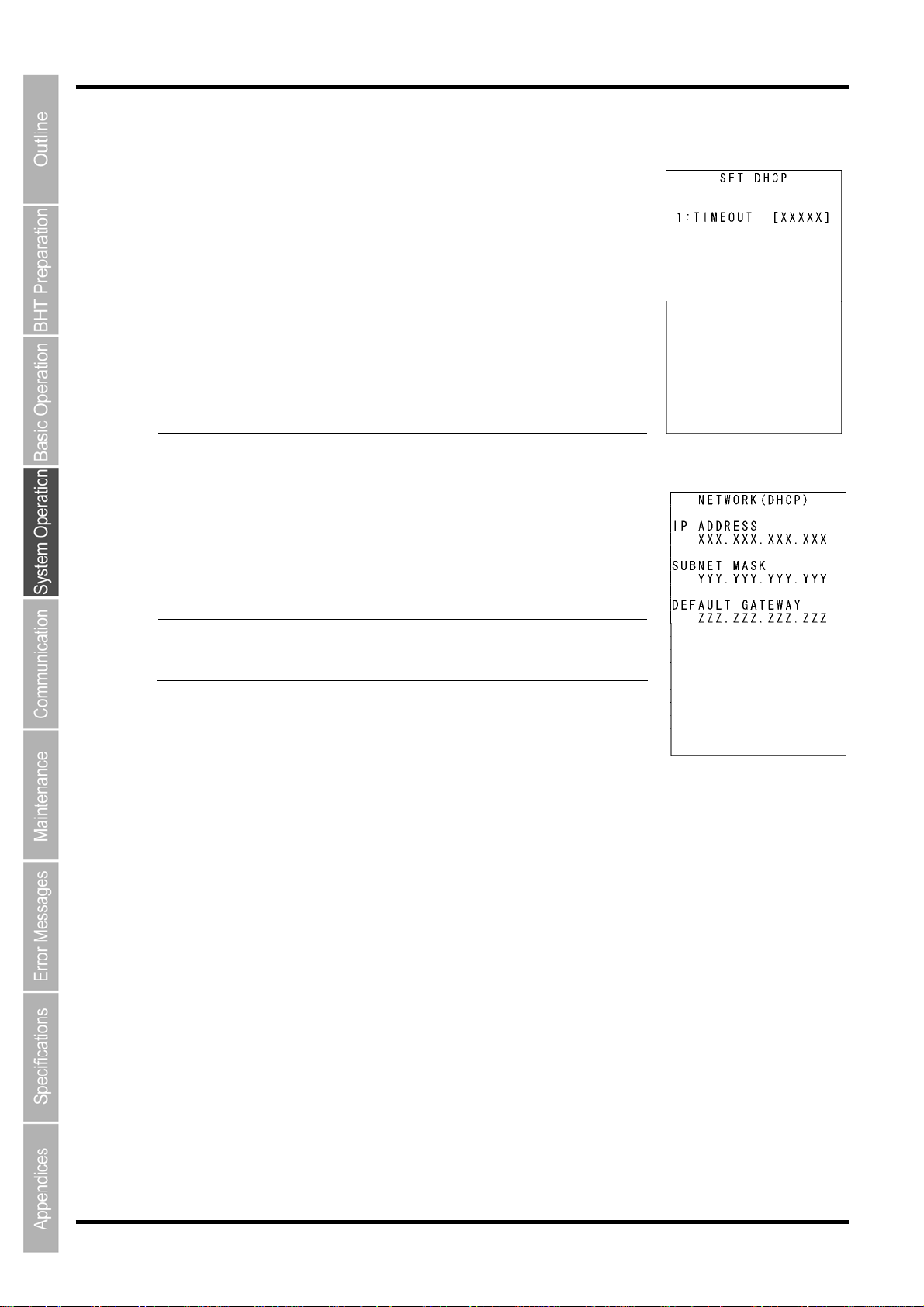

 Setting the DHCP

1. Select “3: SET DHCP” at the SET TCP/IP menu and then press the ENT

key. The SET DHCP screen displays as shown on the right.

Press the C k

Press the dot key while holding down the SF key at the SET DHCP menu to display the NETWORK (DHCP) screen (acquisition check screen for IP address at DHCP). Press the C key at the NETWORK (DHCP) screen to return to the SET DHCP screen.

ey to return to the SET TCP/IP menu.

- Point -

“1: TIMEOUT”: Sets the timeout for acquiring the IP configuration from the DHCP Server. The entry range is from 00001 to 32767 seconds.

- Point -

To set the DHCP: (1) Press the ENT key. (2) The mode changes to entry mode and the cursor displays, allowing the

Press the C key to return to the SET FTP menu.

If the acquired IP configuration is displayed when the IP address, subn other than “0.0.0.0”, the DHCP does not display on the screen shown on the right.

Up to 32767 seconds can be entered, but in actual operation,

ximum of

a ma retries and retry intervals are determined by the system.

setting to be entered with the numerical keys. To delete a single character, press the BS key. To delete the entire entry, press the C key. Enter the desired value, and then press the ENT key. (3)

et mask or default gatewa

190 seconds is available since the number o

y is set to a value

[C]key   [SF]+[.]key

Page 99

2D Code Handy Terminal

4.5.6

BHT Operation Test (TEST Menu)

Use the following procedure to perform a BHT operation test.

1. Select “5: TEST” at the SYSTEM MENU and then press the ENT key.

The TEST menu screen displays as shown on the right. “1: QRCODE”:

Selects the Q “2: MEMORY”:

Selects the RAM read/write test. “3: BEEPER”:

Selects the beeper scale test. “4: AGING”:

Selects the aging test. “5: LCD”:

Selects the LCD and indicator indicator LED tests. “6: FILE”:

Selects the file checksum test. “7: COMMUNICATION”:

Selects the communication test. “8: KEY & VIBRAT

Selects the key entry, beeper and vibrator tests. “9: PING”:

Selects the PING test.

Refer to the following section for details of the above items. Press the C key to return to the SYSTEM MENU.

- Point -

Rcode reading test.

ION”:

Contact your nearest dealer If an error occurs during any of the above tests.

Page 100

BHT-604Q

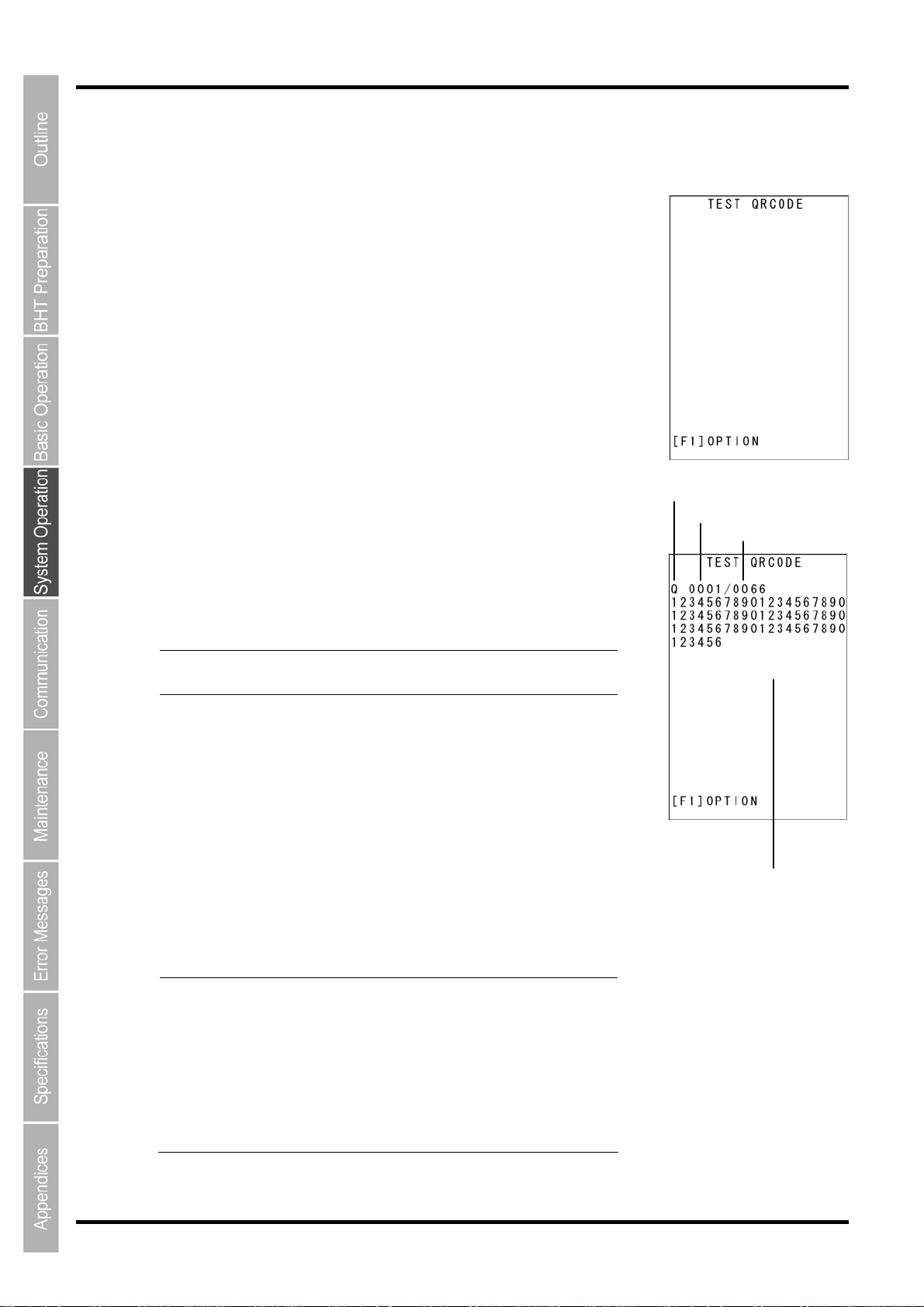

[1] QR code reading test

Use the following procedure to perform a QR code reading test.

1. Select “1: QRCODE” at the TEST menu and then press the ENT key.

The screen displays as shown on the right.

2. Read a barcode or 2D code with the BHT.

Upon completion of barcode or 2D code reading, the BHT beeps once, and the indicator LED turns blue.

3. The read 2D code or barcode type, lead digits, total number of digits,

and code data display on the screen. Ensure that the code data and screen display match.

Code type

Lead digits

Total digits

Press the C key to return to the TEST menu.

Code Type and Corresponding Characters Displayed on the Screen

Code type ID

characters QR Code Q QR Code (Codes concatenated with unedited modes) PDF417 Y Maxicode X Data matrix Z EAN-13 (JAN-13)UPC-A A EAN-13（JAN-13), UPC-A COMPOSITE A EAN-8（JAN-8） B EAN-8（JAN-8）COMPOSITE B UPC-E C UPC-E COMPOSITE C Interleaved 2of5 (ITF) * I Codabar（NW-7） N Code 39 M Code 93 L Code 128 K GS1-128 (EAN-128) W GS1-128 (EAN-128) COMPOSITE W RSS (GS1 DataBar) R RSS (GS1 Da

*with ITF, a code with 4 or more digits is read.

taBar) COMPOSITE R

Code data
