DENSITRON TFT-I-Kit-007 User Guide

TFT Evaluation Kit

User manual

CUSTOMER

PRODUCT

NUMBER

CUSTOMER

APPROVAL

TFT-I-Kit-007

INTERNAL APPROVALS

Product Mgr Doc. Control Electr. Eng

Elijah

Ebo

Date: 04/09/07 Date: 04/09/07 Date: 04/09/07

Anthony

Perkins

Bazile

Peter

Date

TABLE OF CONTENTS

1 INTRODUCTION.........................................................................................................4

2 SETTING UP THE KIT ..............................................................................................5

3 TFT PANEL ....................................................................................................................6

3.1 TFT

3.2 E

MECHANICAL PARAMETERS

LECTRICAL PARAMETERS

................................... E

............................................. E

RROR! BOOKMARK NOT DEFINED

4 EDD50200/IB520 SBC ........................................................................................10

4.1 I

4.2 S

4.3 B

4.4 I

4.5 S

4.6 C

4.7 BIOS S

4.8 D

NTRODUCTION

PECIFICATIONS

OARD DIMENSIONS

NSTALLATIONS

ETTING THE JUMPERS

ONNECTORS ON THE

ETUP

RIVERS INSTALLATION

.................................................................................................................... 10

................................................................................................................. 11

................................................................................................................... 13

....................................................................................................................... 24

.......................................................................................................... 12

....................................................................................................... 14

IB520 ............................................................................................ 16

..................................................................................................... 35

5 TECHNICAL SUPPORT ..........................................................................................47

. .

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 2 / 47

REVISION RECORD

Rev.

A 04/09/07

Date Page Chapt.

First revision

Comment ECR no.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 3 / 47

1 Introduction

This user manual contains the instructions on setting up and using the Densitron Kyocera TFT evaluation kit.

The evaluation kit contains:

- 1 x Kyocera TCG057QVGLAC 5.7” TFT panel

o Anti glare treatment o (320 x R.G.B) x 240 dots o COG LCD with LED Backlight. o Dimensions: 144.0 x 104.8 x 13.0 mm o Effective Viewing Area: 117.2 x 88.4 mm o Dot Pitch: 0.12 x 0.36 mm o 3.3V supply

(Please refer to datasheet for full specifications).

- 1 x Driver Card with VGA and DVI inputs

- 24V Power supply

- 33 way FFC Cable

- 24V to 12V DC-DC Converter

- Documentation CD with chipset drivers and flash memory utility.

The documentation CD contains the manual for the parts that make up the kit.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 4 / 47

2 Setting up the kit

The kit should be unpacked in a static-free environment, with adequate antistatic precautions being observed.

The cables are all keyed and only one cable from the kit will fit each of the connection steps described below:

1) Connect the display to the driver card, using the 33 way FFC cable. You will notice that one end is only 32 ways wide; this end plugs into CN400 on the driver card.

2) Connect the OSD board to CN500 on the driver card.

3) Check the jumper settings on the driver card and confirm that they are correctly set according to the display requirements.

4) Connect the 12V output of the DC-DC converter to connector CN300 of the driver card.

5) Supply a VGA source via CN2 (Analogue RGB) or CN1 (DVI).

6) The system will power up automatically, however the correct input will have to be selected from the OSD menu. Refer to the driver card specifications for the OSD menu functionality.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 5 / 47

3 TFT PANEL

3.1

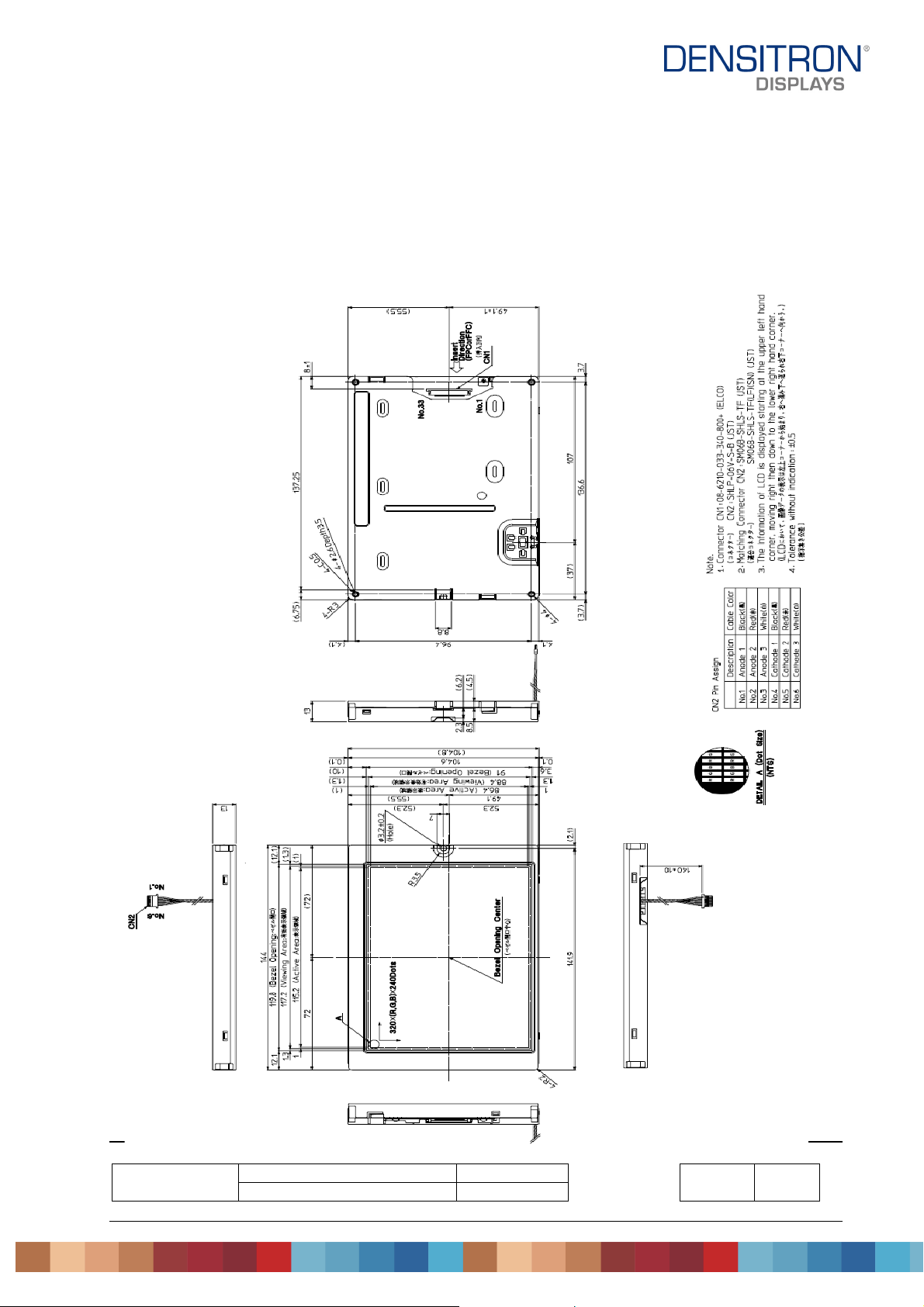

TFT mechanical parameters

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 6 / 47

3.2

Electrical parameters

3.2.1 Absolute Maximum Ratings

Item Symbol Min Max Unit

Power input voltage VDD 0 4.0 V

Input signal voltage Vin -0.3 6.0 V

Forward Current IF - (27) mA

Reversed Voltage VR - (5) V

3.2.2 Electrical Characteristics

Item Symbol

Power input

voltage

Current

consumption

Permissive input ripple voltage

(VDD = 3.3V)

Input signal voltage (Low) V

Input signal voltage (High) V

VDD = 3.3V

Min Typ Max Unit

VDD 3.0 3.3 3.6 V

IDD - 130 160 mA

V

RP

IL

IH

- - 100 mVp-p

0 - 0.3VDD

0.7VDD

- +5.5V V

V

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 7 / 47

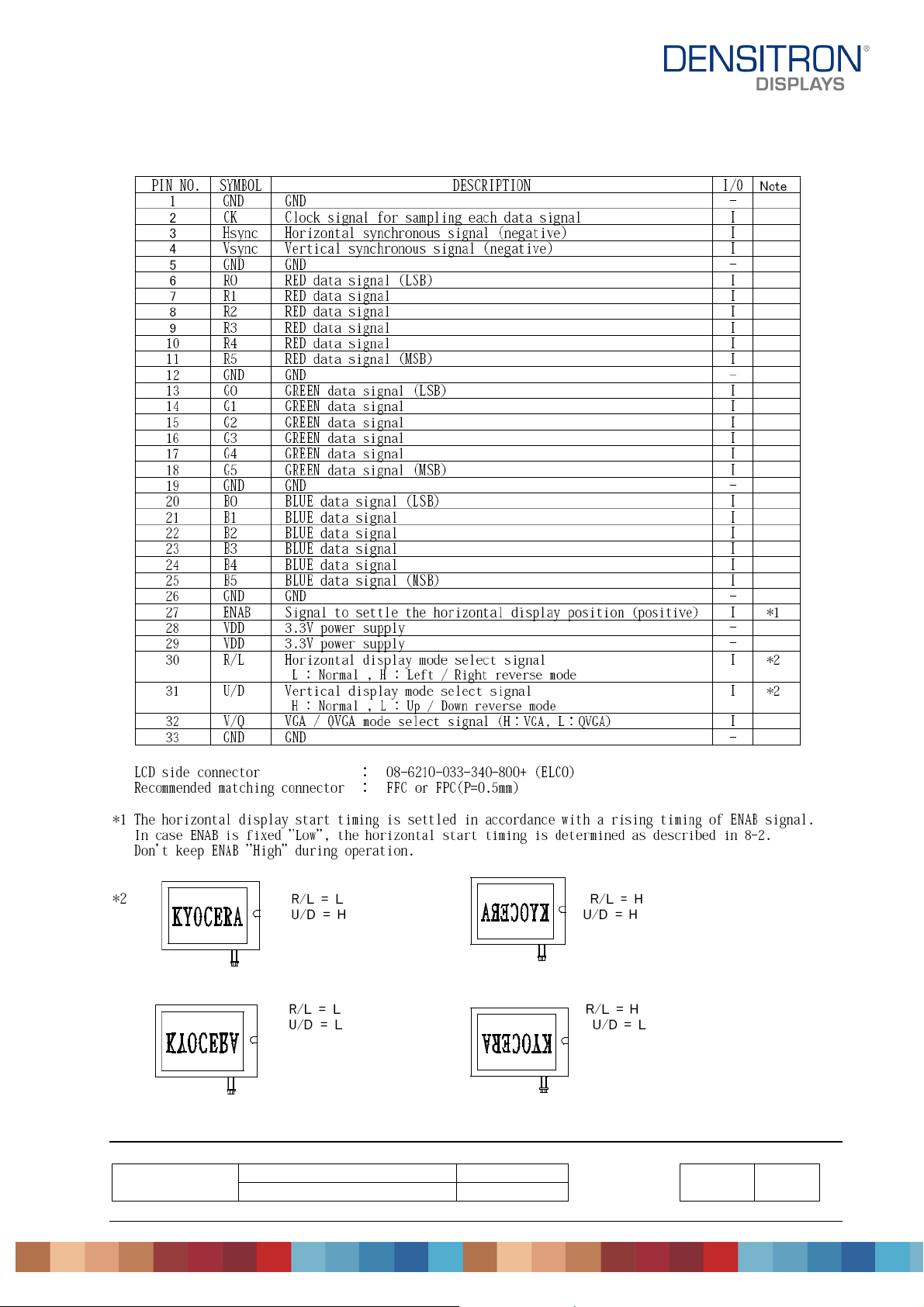

3.2.3 Interface Signals

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 8 / 47

Pin No.

Symbol

Description

1 AN1

Anode 1

2 AN2

Anode 2

3 AN3

Anode 3

4 CA1

Cathode 1

5 CA2

Cathode 2

6 CA3

Cathode 3

Forward Current *1

IF -

(25)

- mA

Ta =

-

10~70

- (24.2)

(27.0)

V

IF = 25mA *1,

- (23.1)

(25.9)

V

IF = 25mA *1,

- (22.1)

(24.9)

V

IF = 25mA *1,

Operating life *2

T -

(50,000

- V IF = 25mA *1

3.2.4

LED Backlight pin descriptions

3.2.5 Backlight Characteristics

Item Symbol Min.

Typ. Max. Unit

Note

°C

Forward Voltage

VF

) *3

Ta = -10 °C

Ta = 25 °C

Ta = 70 °C

*1 For each “AN1-CA1”, “AN2-CN2” and “AN3-CN3”

*2 When brightness decreases to 50% of initial brightness

*3 Life Time is estimated data.

*An input current below 8.0mA may reduce the brightness uniformity of the LED backlight. This is because the amount of light from each LED chip is different. Therefore, please evaluate carefully before finalizing the input current.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 9 / 47

4 EDD50200/IB520 SBC

Acknowledgments

Award is a registered trademark of Award Software International, Inc.

PS/2 is a trademark of International Business Machines Corporation.

AMD, AMD Geode, and combinations thereof, are trademarks of Advanced Micro Devices, Inc.

Microsoft Windows is a registered trademark of Microsoft Corporation.

All other product names or trademarks are properties of their respective owners.

4.1 Introduction

The IB520 3.5-inch disk size SBC incorporates the AMD Geode LX processor with speeds of 433MHz (LX700) or 500MHz (LX800). It comes with one DDR SO-DIMM socket that has a capacity of 1GB system memory. The board supports one 10/100Mbps Ethernet, using a Realtek RTL8100C controller. A 2D graphics controller comes integrated on the board that supports CRT and TFT LCD displays. Useful interface includes four USB 2.0 ports, 2 COM ports, and one PCI-104 expansion slot. Other expansion options are available with the Compact Flash socket and PCMCIA connector.

IB520 FEATURES:

- Embedded AMD Geode LX processor, 433MHz (LX700) / 500MHz (LX800)

- DDR SO-DIMM x 1, Max. 1GB

- Realtek RTL8100C 10/100Mbps Ethernet

- Integrated LX800/LX700 2D VGA controller, supports CRT and TFT LCD

display

- 4 x USB 2.0, 2 x COM, CF socket, Watchdog timer, Digital I/O

- PCI-104 expansion, optional PCMCIA connector

- Dimensions: 145mm x 102mm (5.7” x 4”)

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 10 / 47

AMD Geode LX CPU, 481

-

ball BGA

LX800 @500MHz

APM

Award BIOS

AMD CS5536 I/O companion multi

-

function south bridge

One DDR SO

-

DIMM socket, Max. up to 1GB

LX800/LX700 built

-

in high performance 2D graphic

24-bit single channel LVDS

Realtek RTL8100C

-

LF 10/100Mbps Ethernet chip

CS5536 built

-

in one channel UDMA100 IDE

Realtek ALC203 AC97 audio codec, supports 2

-

CH Line

-

CS5536 built

-

in USB2.0 controller, support 4 ports

TI PCI1510 Card bus controller (IB520F only)

Winbond W83627HF: KB/Mouse controller, Parallel

,

AT209S PCI arbiter/clock buffer, extend PCI devices

CS5536 built

-

in, with on board Lithium battery

DB-9 connector x1 for COM1 (RS232 only)

PCMCIA connector x1 for Card Bus (IB520F only)

PCI-104 w/ 4 mounting holes

Supports 4 In / 4 Out

+12V DC

-in

Software programmable, supports 1~255 sec. system

Yes

145 x 102mm

4.2 Specifications

[

CPU CPU Internal Speed Power Management BIOS Chipset Memory Graphic

LVDS Ethernet IDE

Audio

USB PCMCIA LPC I/O

PCI Arbiter

RTC Edge Connectors

Onboard Headers

Expansion Slot Digital I/O Power Watchdog Timer RoHS Compliant Board Size

LX700 @433MHz

controller, supports TFT, LVDS LCD & CRT display

- 44-pin header x1

- Compact Flash (type II) connector x1

Out, Line-In & MIC

IrDA, Floppy, COM1, COM2 (RS232) & Hardware monitor (3 thermal inputs, 4 voltage monitor inputs, VID0-4 & 2 Fan Headers)

(master) from 1 to 3

6-pins Mini-DIN connector x1 for PS/2 KB & Mouse (Y cable) USB connector x1 for USB0 DB-15 connector x1 for CRT RJ-45 connector x1 for LAN

DF13-20 header x1 for LVDS channel Compact Flash Socket x1 for CF card 10-pin header x1 for COM2 (RS232 only) 4-pin header for USB1 10-pin header x1 for USB2, 3 26-pin header x1 for LPT port 44-pin header x1 for IDE 34-pin header x1 for FDD 12-pin header x1 for Audio 4-pin header x1 for IrDA 10-pin header x1 for Digital I/O 44-pin header x1 for TFT LCD panel

reset

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 11 / 47

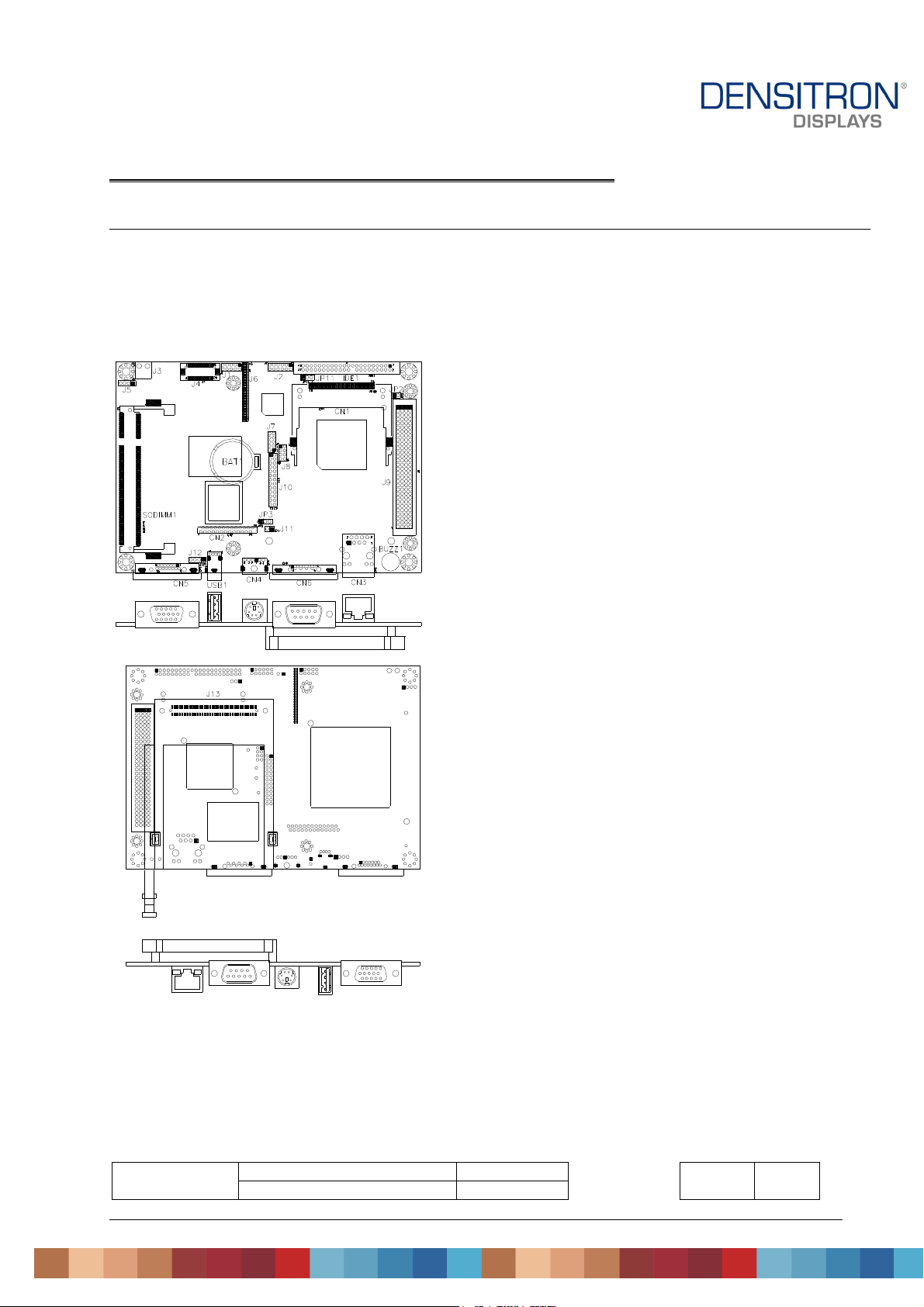

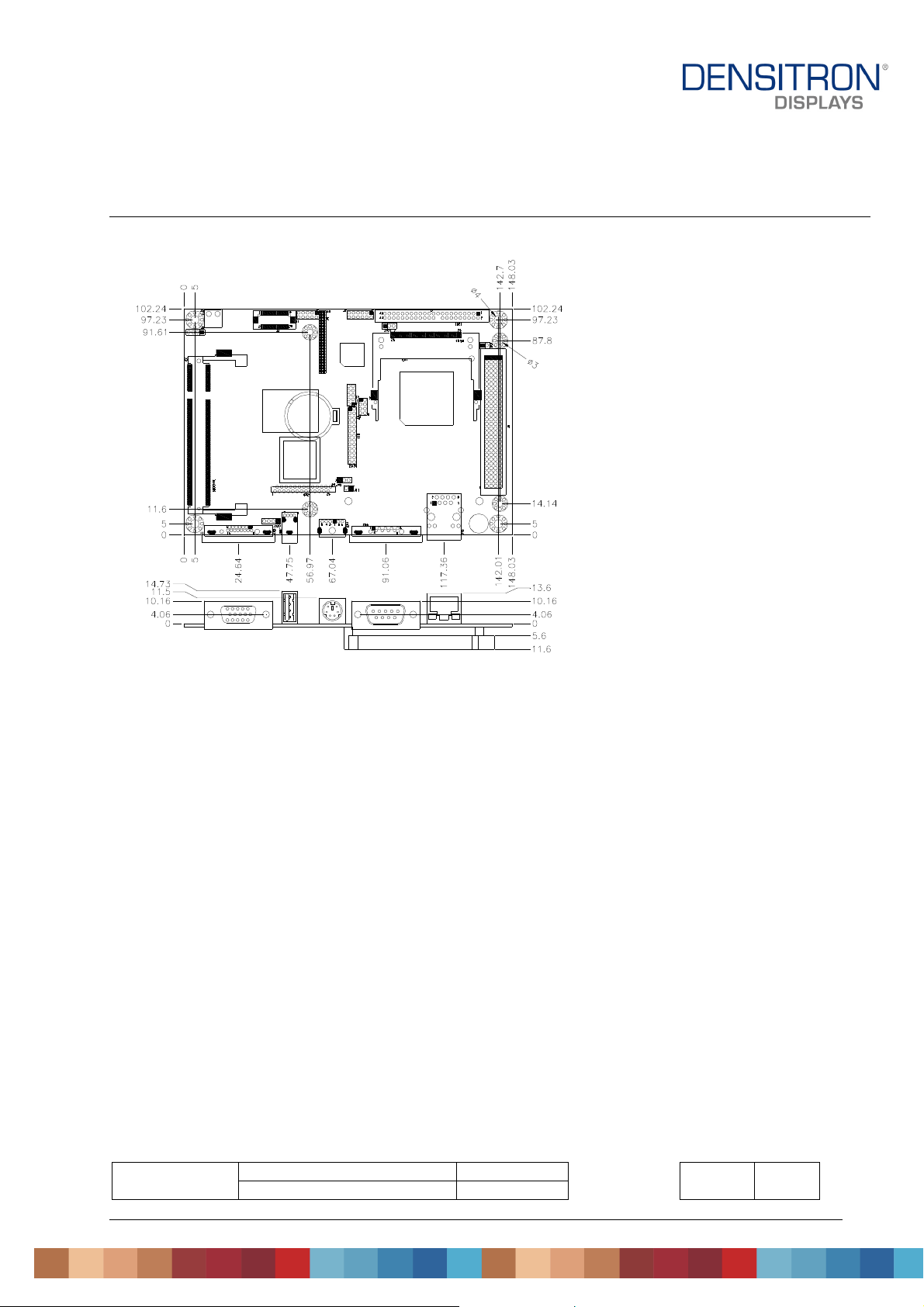

4.3 Board Dimensions

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 12 / 47

4.4 Installations

This section provides information on how to use the jumpers and connectors on the IB520 in order to set up a workable system. The topics covered are:

4.4.1 Installing the Memory

The IB520 board supports one SODIMM DDR memory socket for a maximum total memory. The memory module capacities supported are 128MB, 256MB, 512MB and 1GB.

Installing and Removing Memory Modules

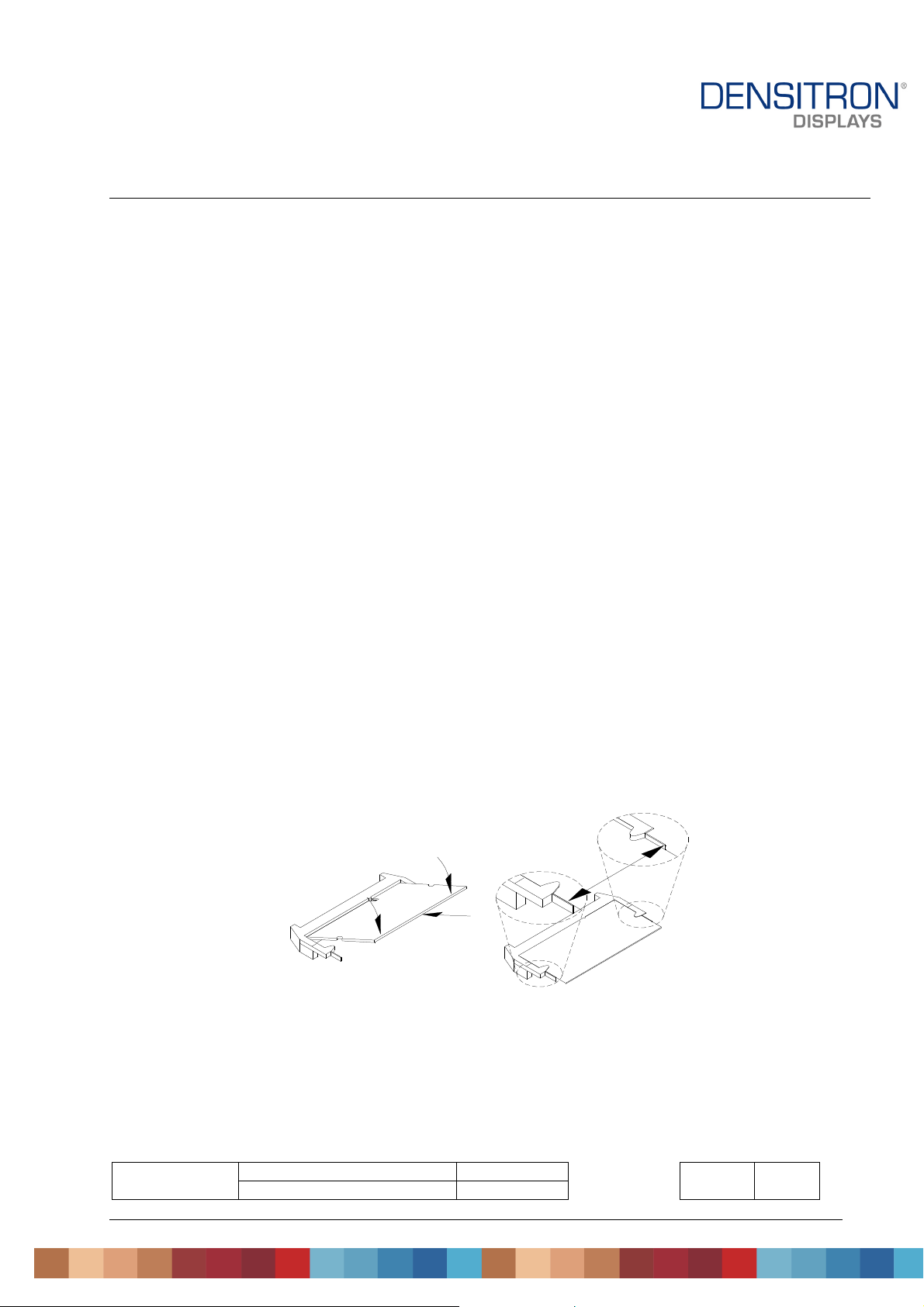

To install the DDR modules, locate the memory slot on the board and perform the following steps:

1. Hold the DDR module so that the key of the DDR module align with those on the memory slot. Insert the module into the socket at a slight angle (approximately 30 degrees). Note that the socket and module are both keyed, which means that the module can be installed only in one direction.

2. To seat the memory module into the socket, apply firm and even pressure to each end of the module until you feel it slip down into the socket.

3. With the module properly seated in the socket, rotate the module downward. Continue pressing downward until the clips at each end lock into position.

4. To remove the DDR module, press the clips with both hands.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 13 / 47

4.5 Setting the Jumpers

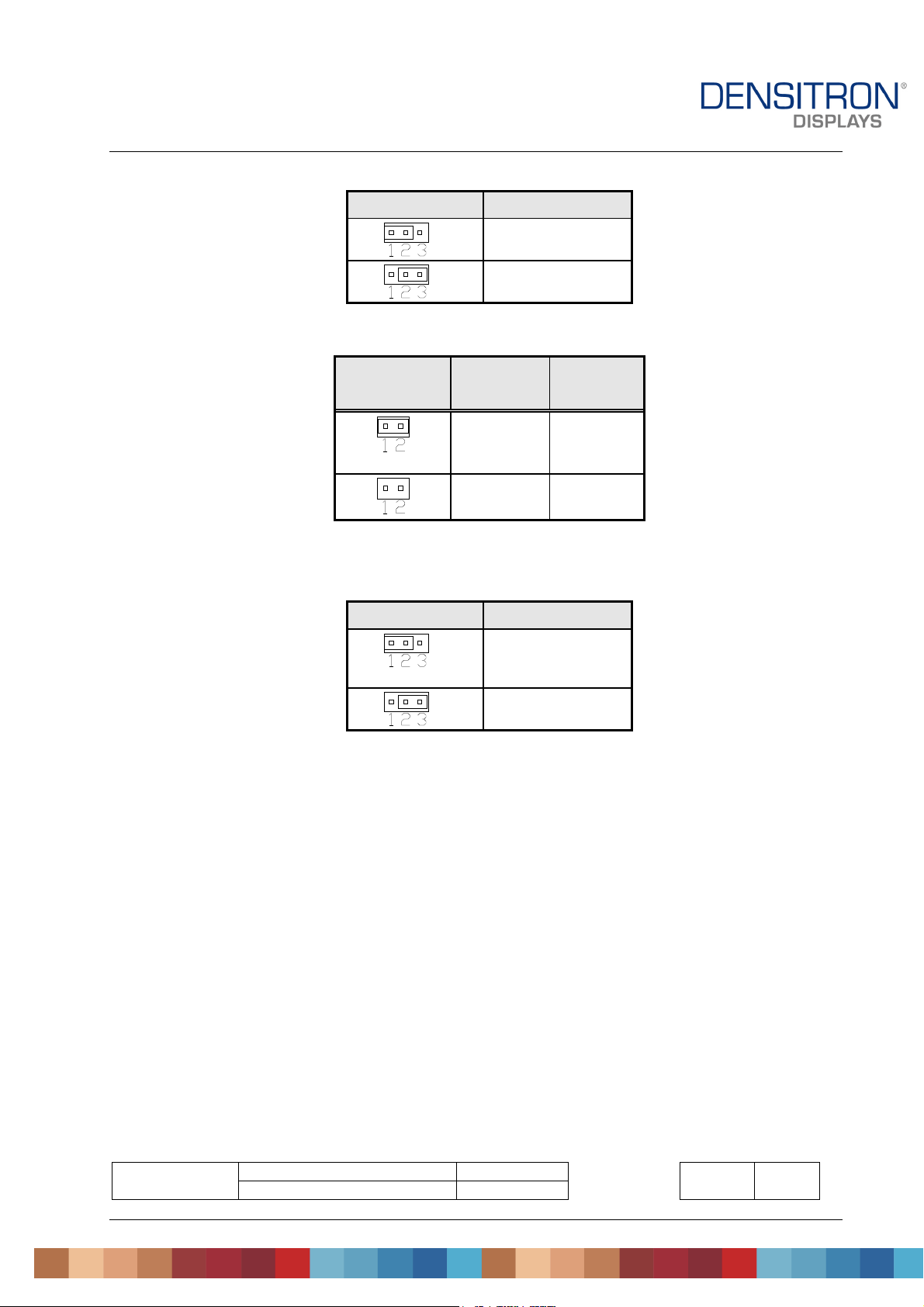

Jumpers are used on IB520 to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following section lists the connectors on IB520 and their respective functions.

Jumper Locations on IB520

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 14 / 47

JP1: LVDS VDD Select (5V / 3.3V)

JP1 VDD Setting

3.3V

5V

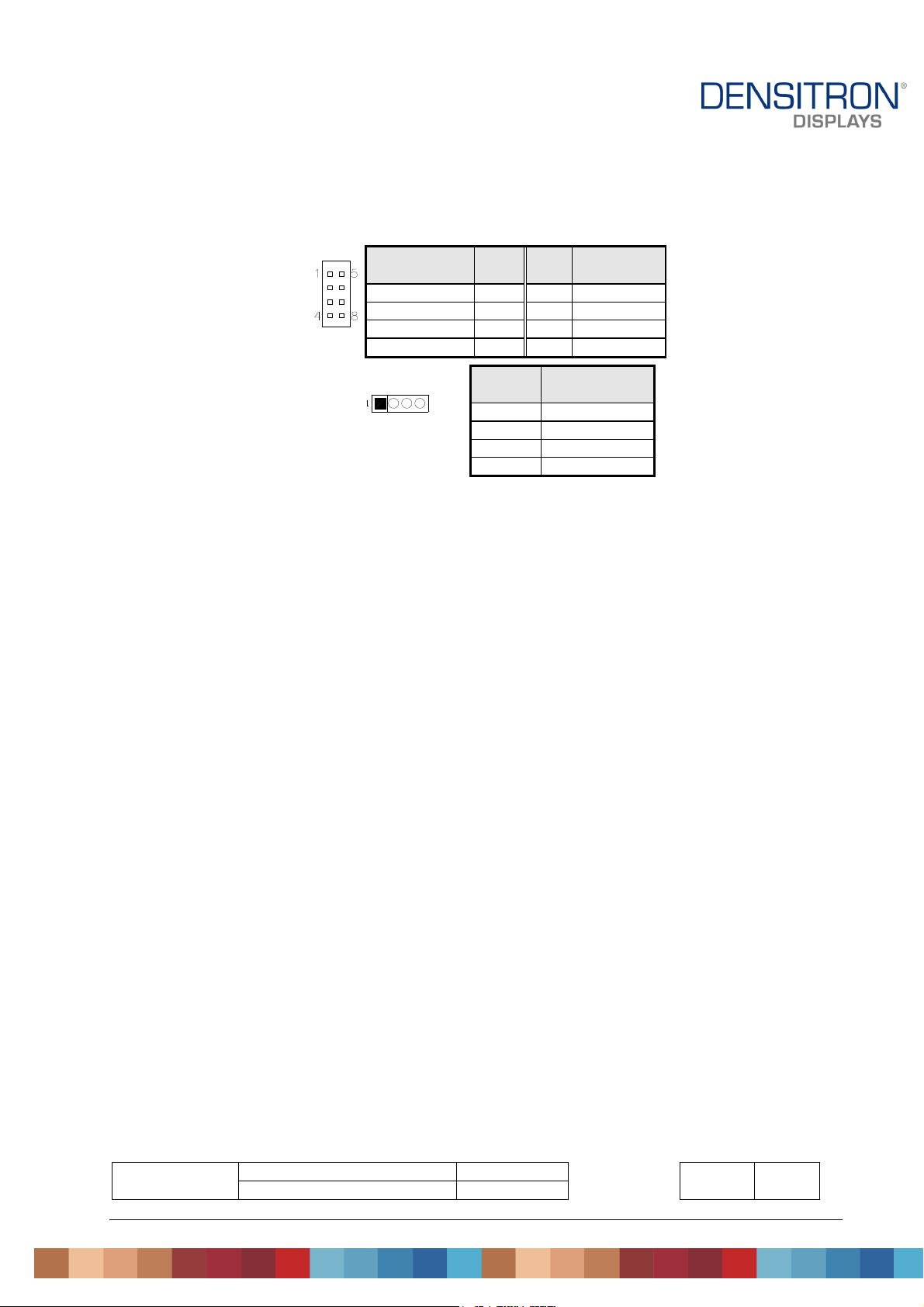

JP2: CF Connector master/Slave Setting

JP2 Setting

Functio

n

Short/Cl

Master

osed

Open Slave

JP3: Clear CMOS Setting

Use JP3 to clear the CMOS contents. Note that the power connector should be disconnected from the board before clearing CMOS.

JP3 Function

Normal

(default)

Clear CMOS

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 15 / 47

4.6 Connectors on the IB520

The connectors on the IB520 allow you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers, etc. The following section lists the connectors on the IB520 and their respective functions.

Connector Locations on IB520

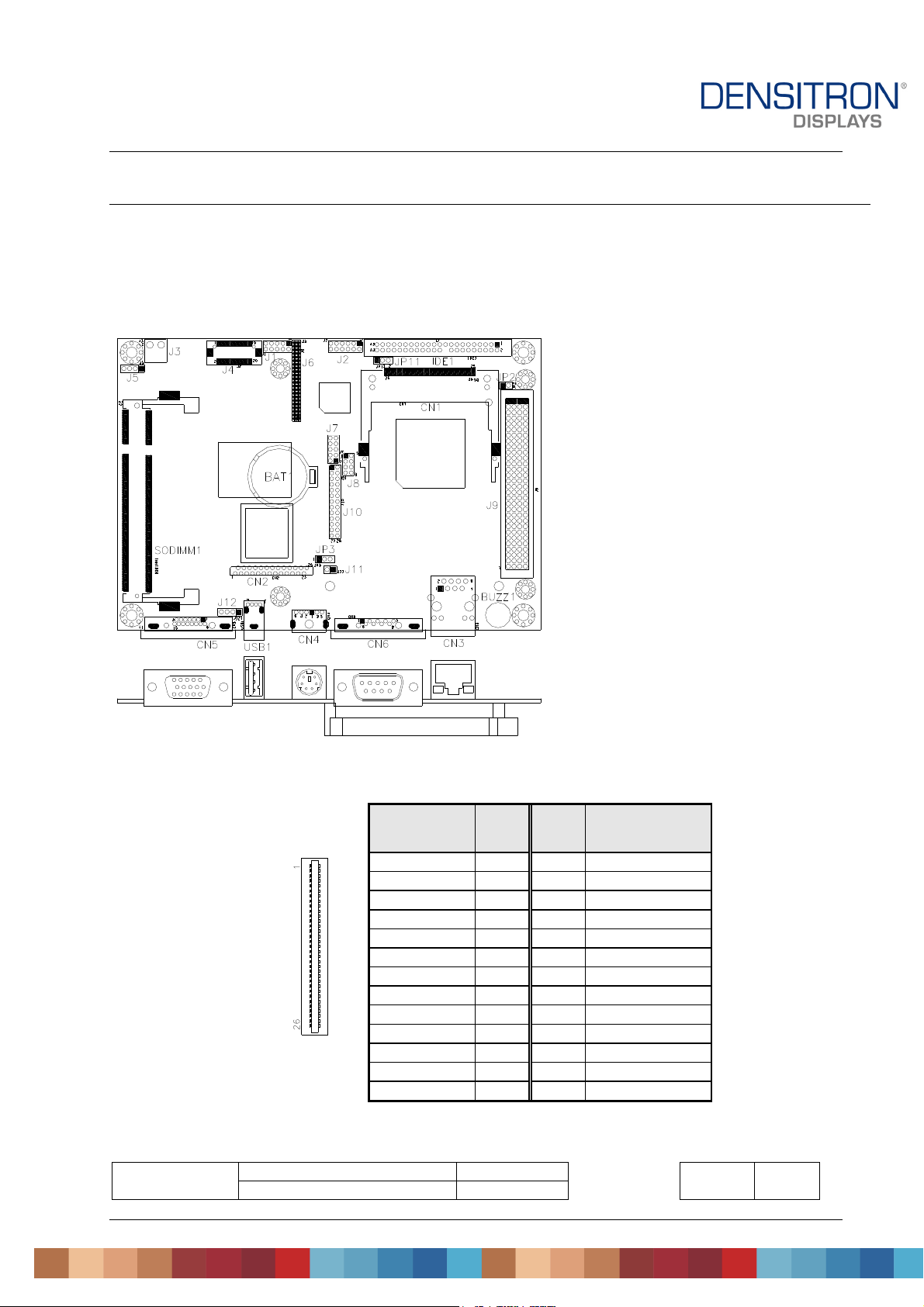

CN1: Compact Flash Card Socket - Standard compact flash specification.

CN2: FDD Connector

Signal

Name

VCC 1 2 INDEX VCC 3 4 DRV_SEL VCC 5 6 DSK_CH

NC 7 8 NC NC 9 10 MOTOR

DINST 11 12 DIR

NC 13 14 STEP GND 15 16 WDATA GND 17 18 WGATE GND 19 20 TRACK

NC 21 22 WPROT GND 23 24 RDATA GND 25 26 SIDE

Pin # Pin

#

Signal

Name

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 16 / 47

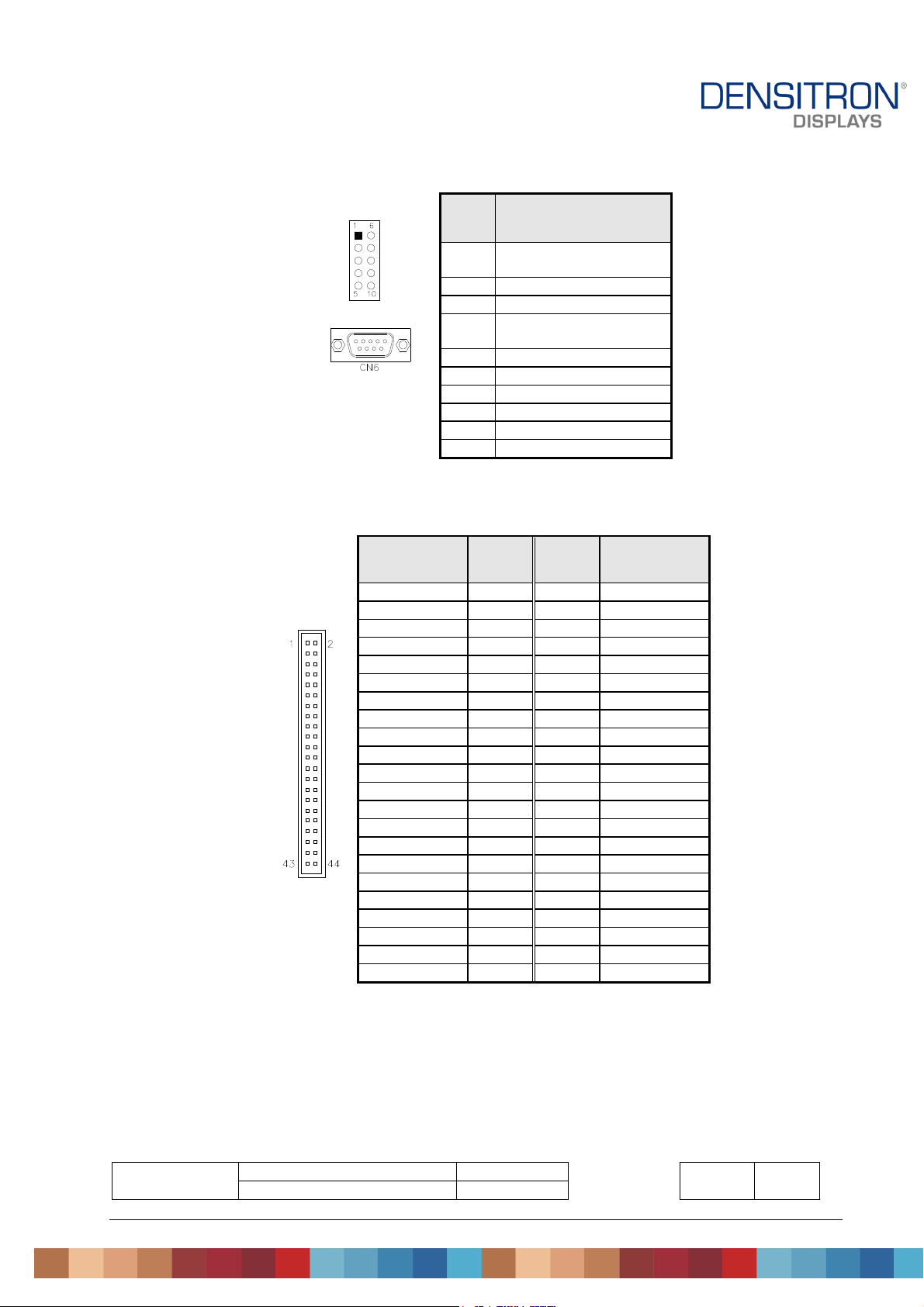

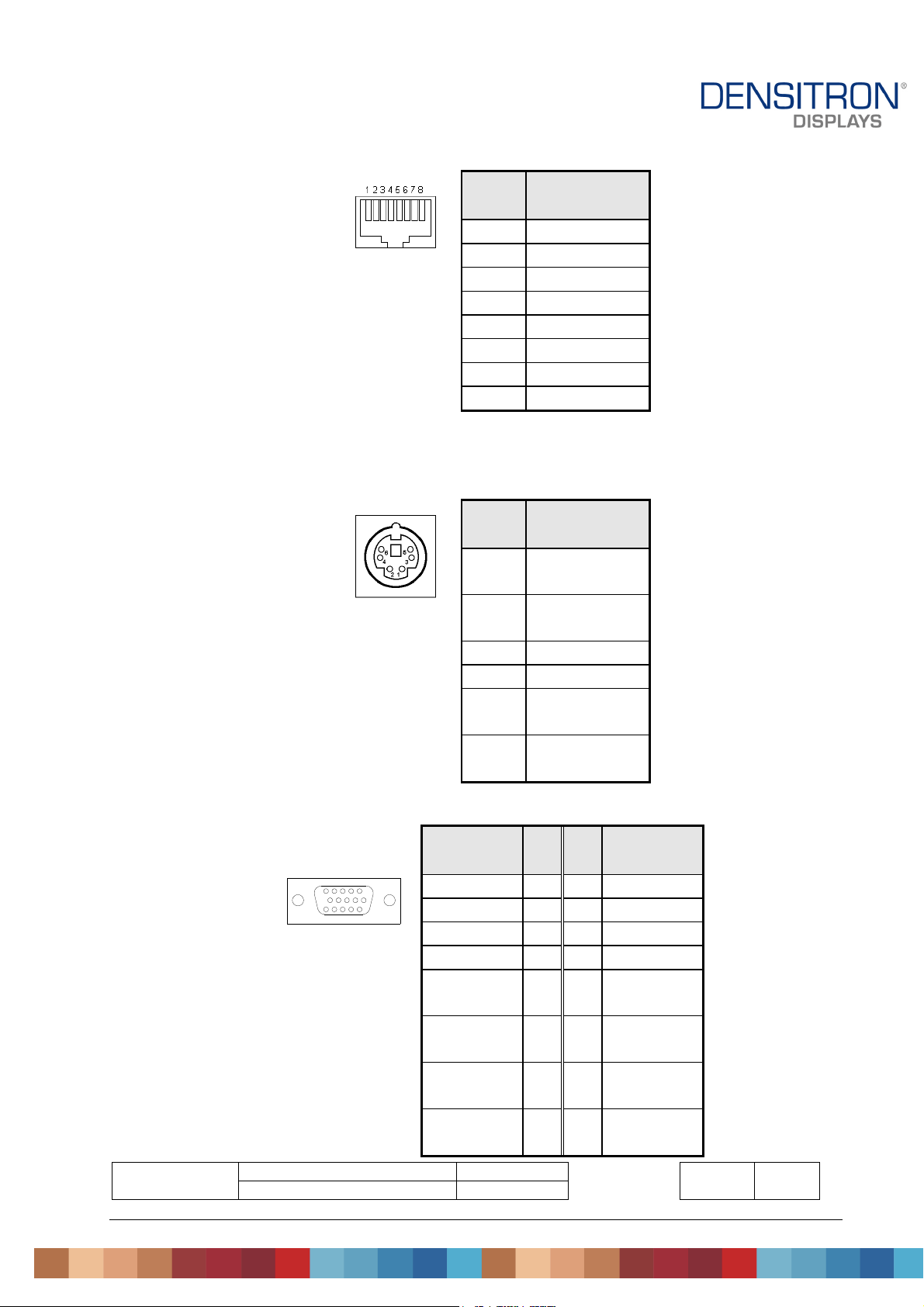

CN3:RJ45 Connector

#

1 TD+ 2 TD3 RD+

Signal

Name

4 RJ45-4A 5 RJ45-5A 6 RD7 RJ45-7A 8 RJ45-8A

CN4: PS/2 Keyboard and Mouse Connector

CN4 uses a Y-cable with dual D-connectors for a PS/2 keyboard and a PS/2 mouse.

#

Signal

Name

1 Keyboard

2 Mouse

data

data 3 Ground 4 Vcc 5 Keyboard

Clock

6 Mouse

Clock

CN5: VGA CRT Connector

[

Signal

Name Pin

Pi

n

Signal

Name

Red 1 2 Green Blue 3 4 NC GND 5 6 GND GND 7 8 GND

Vcc 9 1

GND

0

N.C. 11 1

DDCDA

2

HSYNC 13 1

VSYNC

4

DDCCLK 1

5

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 17 / 47

CN6, J7: Serial Ports

Pin # Signal Name

(RS-232)

1 DCD, Data carrier

detect 2 RXD, Receive data 3 TXD, Transmit data 4 DTR, Data terminal

ready 5 Ground 6 DSR, Data set ready 7 RTS, Request to send 8 CTS, Clear to send 9 RI, Ring indicator

10 No Connect.

CN6 is the D-sub type COM1 serial port connector, while J7 (COM2) is a pin header type COM2 serial port connector.

IDE1: IDE Connector

Signal

Name

Reset IDE 1 2 Ground Host data 7 3 4 Host data 8 Host data 6 5 6 Host data 9 Host data 5 7 8 Host data 10 Host data 4 9 10 Host data 11 Host data 3 11 12 Host data 12 Host data 2 13 14 Host data 13 Host data 1 15 16 Host data 14 Host data 0 17 18 Host data 15

Ground 19 20 Key

DRQ0 21 22 Ground

Host IOW 23 24 Ground

Host IOR 25 26 Ground

IOCHRDY 27 28 Host ALE

DACK0 29 30 Ground

IRQ14 31 32 No connect Address 1 33 34 No connect Address 0 35 36 Address 2

Chip select 0 37 38 Chip select 1

Activity 39 40 Ground

Vcc 41 42 Vcc

Ground 43 44 N.C.

Pin # Pin

#

Signal

Name

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 18 / 47

LINEOUT_R

1

2 LINEOUT_L

Ground

3 4

Ground

LINEIN_R

5 6

LINEIN L

Ground

7 8

Grou

nd

Mic-In 9 10 VREFOUT

Ground

11 12

Protect pin

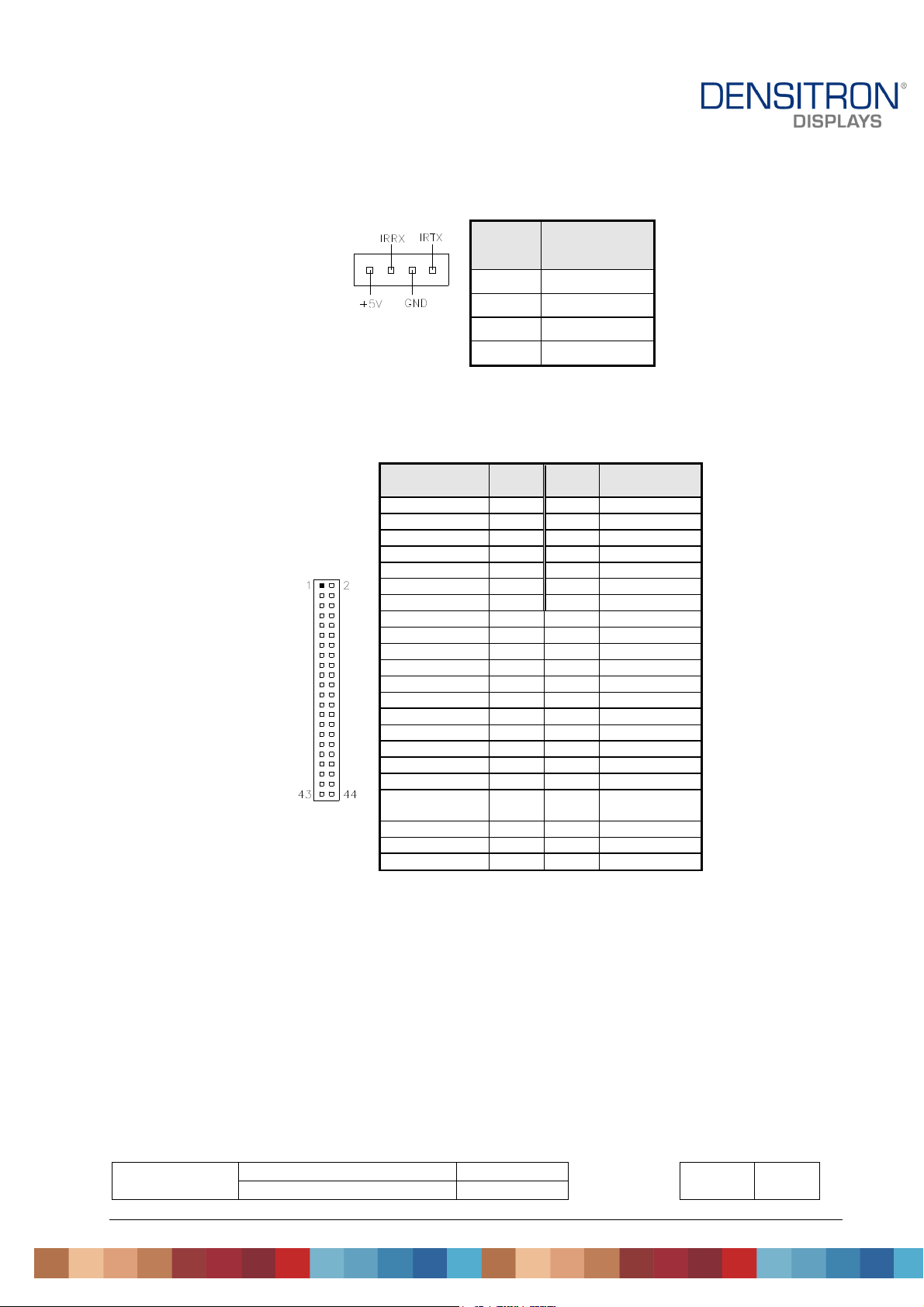

J1: Digital 4-in 4-out Connector

Signal

Name

Pin Pin

Signal

Name

Ground 1 2 Vcc

Out3 3 4 Out1 Out2 5 6 Out0

IN3 7 8 IN1 IN2 9 10 IN0

J2: External Audio Connector

J2 is a 12-pin header that is used to connect to the optional audio cable card that integrates jacks for Line In, Line Out and Mic.

Signal

Name

Pin # Pin

#

Signal Name

J3: Power DC-In

Pin #

1 DC In

2

Signal

Name

(12V

only)

Ground

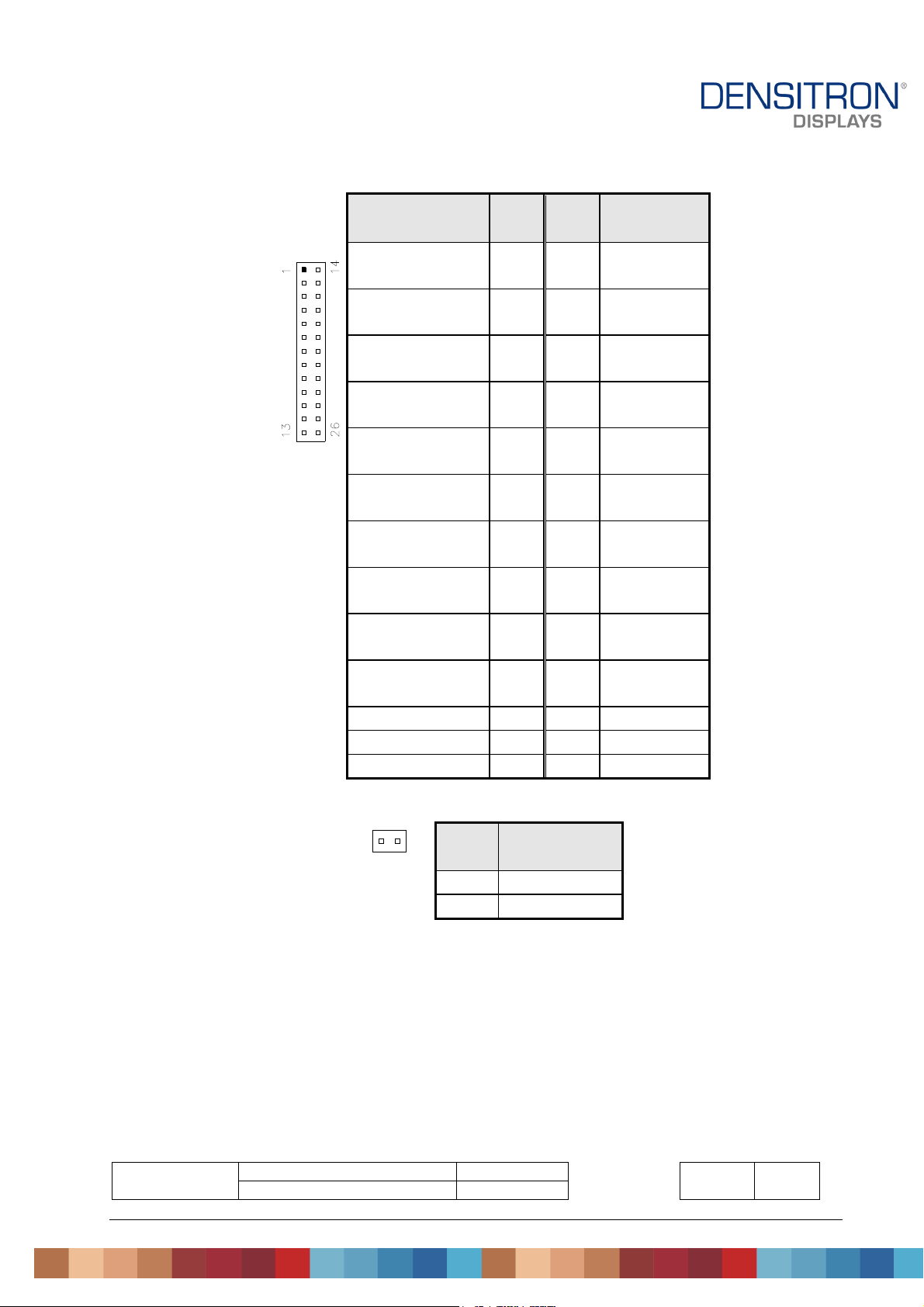

J4: LVDS Connectors

Signal Name

Pi

Pin # Signal

n

Name

#

TX0- 2 1 TX0+

Ground 4 3 Ground

TX1- 6 5 TX1+

5V/3.3V 8 7 Ground

TX3- 10 9 TX3+ TX2- 12 11 TX2+

Ground 14 13 Ground

TXC- 16 15 TXC+

*5V/3.3V 18 17 ENABKL

+12V 20 19 +12V

*Depends on JP1 setting (1-2 for 3.3V/default, 2-3 for 5V).

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 19 / 47

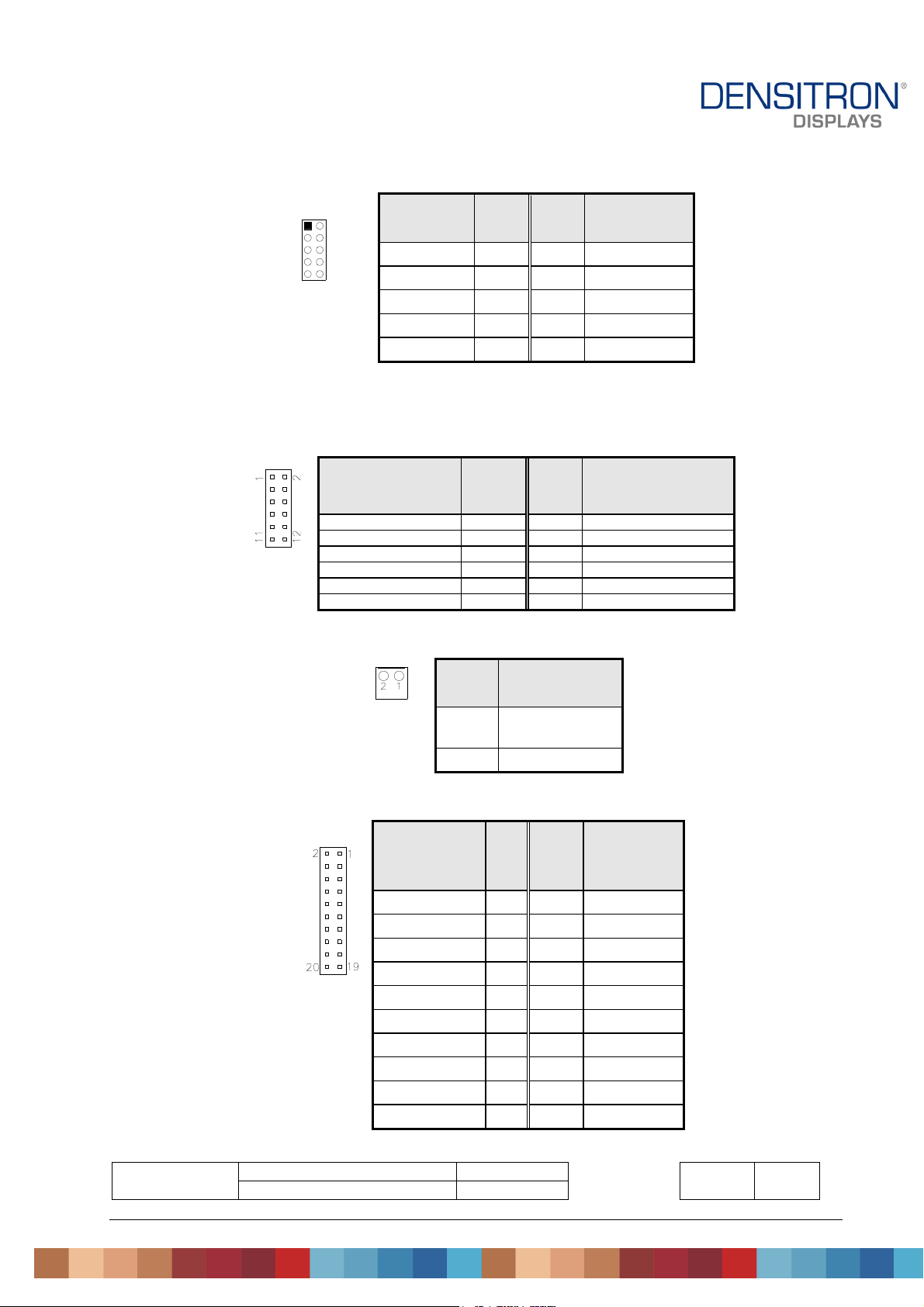

J5: IrDA Connector

J5 is used for an optional IrDA connector for wireless communication.

#

Signal

Name

1 +5V 2 Ir RX 3 Ground 4 Ir TX

J6: TFT Panel Connector

J6 is the pin header for TFT flat panel LCD displays.

Signal Name Pin # Pin #

+12V 1 2 +12V

Ground 3 4 Ground

5V/3.3V 5 6 5V/3.3V

N.C. 7 8 Ground

R0 9 10 R1 R2 11 12 R3 R4 13 14 R5 R6 15 16 R7 G0 17 18 G1 G2 19 20 G3 G4 21 22 G5 G6 23 24 G7 B0 25 26 B1 B2 27 28 B3 B4 29 30 B5 B6 31 32 B7

Ground 33 34 Ground

SHFCLK 35 36 FLM(VSYNC)

DISPENA(MDE) 37 38 LP(HSYNC)

Signal

Name

Ground 39 40 ENABKL Ground 41 42 N.C.

ENAVDD 43 44 * 5V/3.3V

*Depends on JP1 setting (1-2 for 3.3V/default, 2-3 for 5V).

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 20 / 47

USB1, J8, J12: USB Connectors

The J8, J12 USB pin header connectors support three USB 2.0 ports via optional USB cables. The IB520 also supports an embedded USB connector, USB1, which supports another USB 2.0 port.

Signal

Name

+5V 1 5 Ground

USB0- 2 6 USB1+

J8

USB0+ 3 7 USB1-

Ground 4 8 +5V

J12

Pin Pin Signal

Name

Pin # Signal

Name

1 +5V 2 USB3 USB+ 4 Ground

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 21 / 47

J3/P3

Pin A B C D

1 GND/5.0V KEY²

Reserved

+5

AD00

2 VI/O AD02 AD01 +5V

3 AD05 GND AD04 AD03

4 C/BE0*

AD07 GND AD06

5 GND AD09 AD08 GND

6 AD11 VI/O AD10 M66EN

7 AD14 AD13 GND AD12

8 +3.3V

C/BE1*

AD15 +3.3V

9 SERR*

GND SB0* PAR

10 GND

PERR*

+3.3V

SDONE

11 STOP*

+3.3V

LOCK*

GND

12 +3.3V

TRDY*

GND DEVSEL*

13 FRAME*

GND IRDY*

+3.3V

14 GND AD16 +3.3V

C/BE2*

15 AD18 +3.3V

AD17 GND

16 AD21 AD20 GND AD19

17 +3.3V

AD23 AD22 +3.3V

18 IDSEL0

GND IDSEL1

IDSEL2

19 AD24 C/BE3*

VI/O IDSEL

3

20 GND AD26 AD25 GND

21 AD29 +5V AD28 AD27

22 +5V AD30 GND AD31

23 REQ0*

GND REQ1*

VI/O

24 GND REQ2*

+5V GNT0*

25 GNT1*

VI/O GNT2*

GND

26 +5V CLK0 GND CLK1

27 CLK2 +5V CLK3 GND

28 GND INTD*

+5V RST*

29 +12V INTA*

INTB*

INTC*

30 -

12V Reserved

Reserved

GND/3.3V

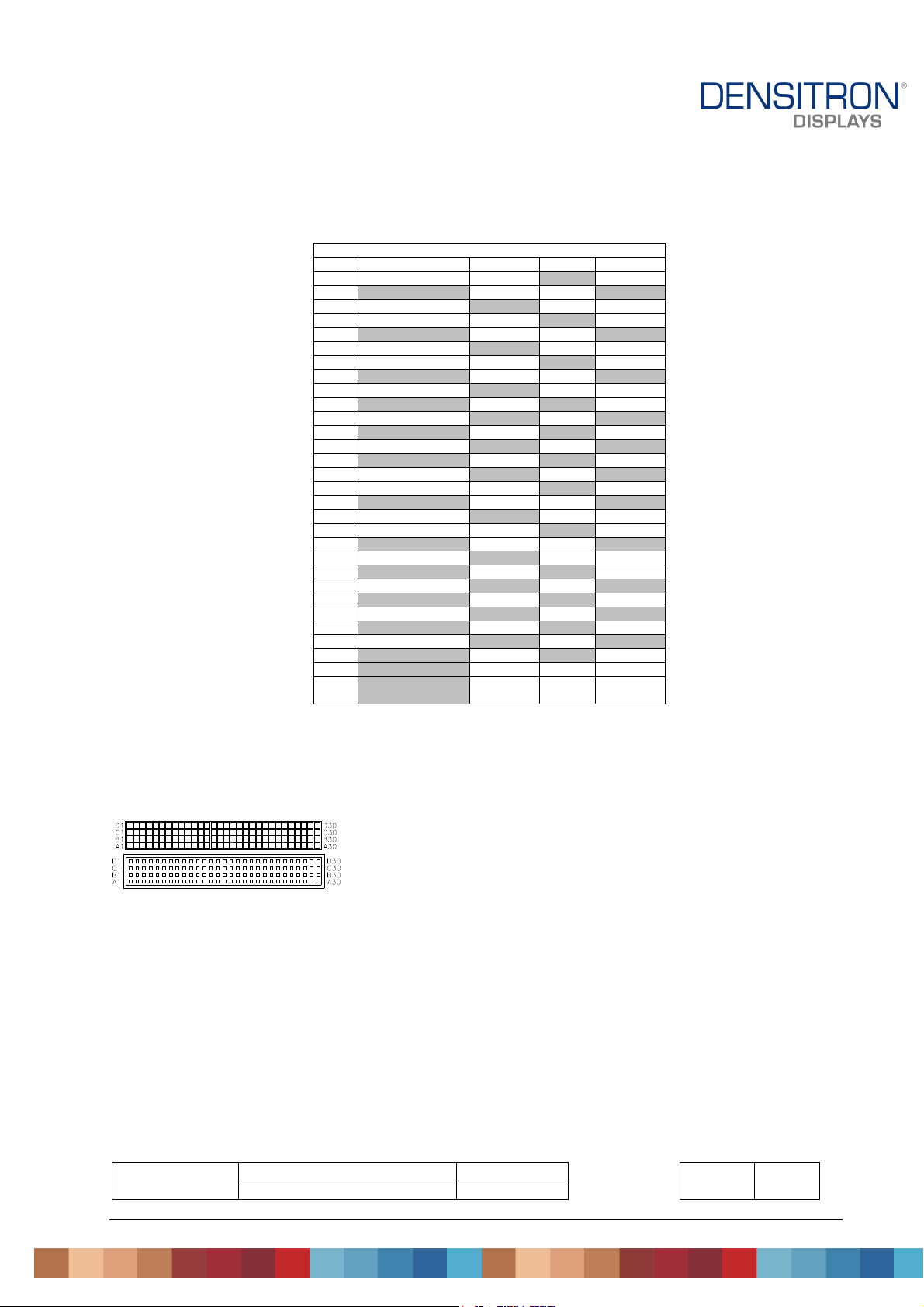

J9: PCI-104 Connector

4.6.1.1

PCI-104

Bus Signal Assignments

KEY²

* The shaded area denotes power or ground signals. * The KEY pins are to guarantee proper module installation. Pin-A1 will be removed and the female side plugged for 5.0V I/O signals and Pin-D30 will be modified in the same manner for 3.3V I/O. It is recommended that both KEY pins (A1 and D30) be electrically connnected for GND for shielding.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 22 / 47

J10: Parallel Port Connector

Signal

Name

Line printer

Pin # Pin # Signal

Name

1 14 AutoFeed

strobe

PD0, parallel

2 15 Error

data 0

PD1, parallel

3 16 Initialize

data 1

PD2, parallel

4 17 Select

data 2

data 3

PD4, parallel

PD3, parallel

5 18 Ground

6 19 Ground

data 4

PD5, parallel

7 20 Ground

data 5

PD6, parallel

8 21 Ground

data 6

PD7, parallel

9 22 Ground

data 7

ACK,

10 23 Ground

acknowledge

Busy 11 24 Ground

Paper empty 12 25 Ground

Select 13 N/A

N/A

J11: Reset Switch

Pin #

Signal

Name

1 Reset

2 Ground

J13: Cardbus Connector

SODIMM1: SO DIMM Socket

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 23 / 47

4.7 BIOS Setup

This chapter describes the different settings available in the Award BIOS that comes with the board.

BIOS Introduction

The Award BIOS (Basic Input/Output System) installed in your computer system’s ROM supports various processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also adds virus and password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

BIOS Setup

The Award BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the Award BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:

In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

The section below the setup items of the Main Menu displays the control keys for this menu. At the bottom of the Main Menu just below the control keys section, there is another section, which displays information on the currently highlighted item in the list.

Press <DEL> to Enter Setup

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults Advanced Chipset Features Set Supervisor Integrated Peripherals Set User Password Power Management Setup Save & Exit Setup PnP/PCI Configurations Exit Without Saving PC Health Status

ESC : Quit F10 : Save & Exit Setup

Time, Date, Hard Disk Type…

    : Select Item

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 24 / 47

Note

: If the system cannot boot after making and saving system

Warning:

It is strongly recommended that you avoid

making any changes

to the chipset defaults. These defaults have been carefully chosen

changes with Setup, the Award BIOS supports an override to the CMOS settings that resets your system to its default.

by both Award and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 25 / 47

Standard CMOS Setup

“Standard CMOS Setup” choice allows you to record some basic hardware configurations in your computer system and set the system clock and error handling. If the motherboard is already installed in a working system, you will not need to select this option. You will need to run the Standard CMOS option, however, if you change your system hardware configurations, the onboard battery fails, or the configuration stored in the CMOS memory was lost or damaged.

Date (mm:dd:yy) Fri, Jun 30, 2006 Item Help

Time (hh:mm:ss) 00 : 00 : 00 Menu Level >

IDE Primary Master None Change the day, month,

IDE Primary Slave None

Drive A 1.44M, 3.5 in.

Drive B None

Video EGA/VGA

Halt On All , But keyboard

Base Memory 640K

Extended Memory 514816K

Total Memory 515584K

At the bottom of the menu are the control keys for use on this menu. If you need any help in each item field, you can press the <F1> key. It will display the relevant information to help you. The memory display at the lower right-hand side of the menu is read-only. It will adjust automatically according to the memory changed. The following describes each item of this menu.

Date

The date format is:

Day : Sun to Sat Month : 1 to 12 Date : 1 to 31 Year : 1999 to 2099

To set the date, highlight the “Date” field and use the PageUp/ PageDown or +/- keys to set the current time.

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

Year and century

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 26 / 47

Time

The time format is:

Minute : 00 to 59 Second : 00 to 59

To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn> or +/- keys to set the current time.

IDE Primary HDDs / IDE Secondary HDDs

The onboard PCI IDE connectors provide Primary and Secondary channels for connecting up to four IDE hard disks or other IDE devices. Each channel can support up to two hard disks; the first is the “Master” and the second is the “Slave”.

Press <Enter> to configure the hard disk. The selections include Auto, Manual, and None. Select ‘Manual’ to define the drive information manually. You will be asked to enter the following items.

CYLS : Number of cylinders HEAD : Number of read/write heads PRECOMP : Write precompensation LANDING ZONE : Landing zone SECTOR : Number of sectors

The Access Mode selections are as follows: CHS (HD < 528MB)

Remarks: The main board supports two serial ATA ports and are represented in this setting as IDE Channel 2 / 3 Master.

Drive A / Drive B

These fields identify the types of floppy disk drive A or drive B that has been installed in the computer. The available specifications are: 360KB

5.25 in.

Hour : 00 to 23

LBA (HD > 528MB and supports Logical Block Addressing) Large (for MS-DOS only) Auto

1.2MB

5.25 in.

720KB

3.5 in.

1.44MB

3.5 in.

2.88MB

3.5 in.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 27 / 47

tem boot will not be halted

fatal error, the system will stop and

The system boot will not be halted

for

The system boot will not be halted

for a disk error; it will stop for all

The system boot will not be halted

board or disk error; it will

Video

This field selects the type of video display card installed in your system. You can choose the following video display cards: EGA/VGA For EGA, VGA, SEGA, SVGA or PGA monitor adapters. (default) CGA 40 Power up in 40 column mode. CGA 80 Power up in 80 column mode. MONO For Hercules or MDA adapters.

Halt On

This field determines whether or not the system will halt if an error is detected during power up. No errors The sys

for any error that may be detected.

All errors Whenever the BIOS detects a non-

you will be prompted.

All, But Keyboard

for a keyboard error; it will stop all other errors

All, But Diskette

All, But Disk/Key

other errors.

for a keystop for all others.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 28 / 47

Advanced BIOS Features

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Virus Warning Disabled ITEM HELP CPU Internal Cache Enabled Menu Level > First Boot Device Floppy Second Boot Device HDD-0 Third Boot Device CDROM Boot Other Device Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Enabled Boot Up NumLock Status On Gate A20 Option Fast Typematic Rate Setting Disabled Typematic Rate (Chars/Sec) 6 Typematic Delay (Msec) 250 Security Option Setup OS Select For DRAM>64MB Non-OS2 Small Logo (EPA) Show Disabled

Virus Warning

If this option is enabled, an alarm message will be displayed when trying to write on the boot sector or on the partition table on the disk, which is typical of the virus.

CPU Internal Cache

Cache memory is additional memory that is much faster than conventional DRAM (system memory). CPUs from 486-type on up contain internal cache memory, and most, but not all, modern PCs have additional (external) cache memory. When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory, for even faster access by the CPU.

First/Second/Third Boot Device

These fields determine the drive that the system searches first for an operating system. The options available include Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-2, HDD-3, ZIP100, USB-FDD, LAN, USB-CDROM, USB-HDD and Disable.

Boot Other Device

These fields allow the system to search for an OS from other devices other than the ones selected in the First/Second/Third Boot Device.

Swap Floppy Drive

This item allows you to determine whether or not to enable Swap Floppy Drive. When enabled, the BIOS swaps floppy drive assignments so that Drive A becomes Drive B, and Drive B becomes Drive A. By default, this field is set to Disabled.

Boot Up Floppy Seek

This feature controls whether the BIOS checks for a floppy drive while booting up. If it cannot detect one (either due to improper configuration or its absence), it will flash an error message.

Boot Up NumLock Status

This allows you to activate the NumLock function after you power up the system.

Gate A20 Option

This field allows you to select how Gate A20 is worked. Gate A20 is a device used to address memory above 1 MB.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced BIOS Features

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 29 / 47

Typematic Rate Setting

When disabled, continually holding down a key on your keyboard will generate only one instance. When enabled, you can set the two typematic controls listed next. By default, this field is set to Disabled.

Typematic Rate (Chars/Sec)

When the typematic rate is enabled, the system registers repeated keystrokes speeds. Settings are from 6 to 30 characters per second.

Typematic Delay (Msec)

When the typematic rate is enabled, this item allows you to set the time interval for displaying the first and second characters. By default, this item is set to 250msec.

Security Option

This field allows you to limit access to the System and Setup. The default value is Setup. When you select System, the system prompts for the User Password every time you boot up. When you select Setup, the system always boots up and prompts for the Supervisor Password only when the Setup utility is called up.

OS Select for DRAM > 64MB

This option allows the system to access greater than 64MB of DRAM memory when used with OS/2 that depends on certain BIOS calls to access memory. The default setting is Non-OS/2.

Small Logo (EPA) Show

The EPA logo appears at the right side of the monitor screen when the system is boot up.

Advanced Chipset Features

This Setup menu controls the configuration of the chipset.

CPU Frequency Auto ITEM HELP Memory Frequency 133 MHz Menu Level > CAS Latency Auto Video Memory Size 8M

Output Display Panel & CRT Flat Panel Configuration Press Enter

Onboard Audio Enabled

Overcurrent Reporting Disabled Port 4 Assignment Host

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features

CPU Frequency This options for this field are Auto, 433MHz and 500MHz.

Memory Frequency This default setting for this field is 133MHz.

CAS Latency Time You can configure CAS latency time in HCLKs as 1.5, 2, 2.5, 3 or 3.5. The system board designer should set the values in this field, depending on the DRAM installed. Do not change the values in this field unless you change specifications of the installed DRAM or the installed CPU.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 30 / 47

Video Memory Size The default setting for this field is 8M. The options are from 8M to 254M.

Flat Panel Configuration This options for this field are Flat Panel, CRT and Panel & CRT. For flat panel, configuration settings include Flat Panel Type, Resolution (320x240 up to 1600x1200), Data Bus Type, Refresh Rate (60~100Hz), HSYNC Polarity, VSYNC Polarity, SHFCLK Active Period and LP Active Period.

Integrated Peripherals

This section sets configurations for your hard disk and other integrated peripherals. The first screen shows three main items for user to select. Once an item selected, a submenu appears. Details follow.

OnChip IDE Channel 1 Master Drive PIO Mode Slave Drive PIO Mode IDE Primary Master UDMA IDE Primary Slave UDMA IDE DMA transfer access IDE HDD Block Mode Onboard LAN Boot ROM Onboard FDC Controller Onboard Serial Port 1 Onboard Serial Port 2 UART Mode Select Onboard Parallel Port Parallel Port Mode

OnChip IDE Channel 1

The integrated peripheral controller contains an IDE interface with support for IDE channels. Select Enabled to activate the channel.

IDE Primary/Secondary Master/Slave PIO

These fields allow your system hard disk controller to work faster. Rather than have the BIOS issue a series of commands that transfer to or from the disk drive, PIO (Programmed Input/Output) allows the BIOS to communicate with the controller and CPU directly.

The system supports five modes, numbered from 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode.

IDE Primary/Secondary Master/Slave UDMA

These fields allow your system to improve disk I/O throughput to 33Mb/sec with the Ultra DMA/33 feature. The options are Auto and Disabled.

IDE HDD Block Mode

This field allows your hard disk controller to use the fast block mode to transfer data to and from your hard disk drive.

Onboard LAN Boot ROM

This feature allows users to enable or disable the onboard LAN boot ROM. The default setting is Disabled

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals

Enabled ITEM HELP Auto Menu Level > Auto Disabled Disabled Enabled Enabled Disabled Enabled 3F8/IRQ4 2F8/IRQ3 Normal 387/IRQ7 SPP

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 31 / 47

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed on the motherboard and you wish to use it. If you install an add-in FDC or the system has no floppy drive, select Disabled in this field. This option allows you to select the onboard FDD port.

Onboard Serial/Parallel Port

These fields allow you to select the onboard serial and parallel ports and their addresses. The default values for these ports are: Serial Port 1 3F8/IRQ4 Serial Port 2 2F8/IRQ3 Parallel Port 378H/IRQ7

UART Mode Select

This field determines the UART 2 mode in your computer. The default value is Normal. Other options include IrDA and ASKIR.

Parallel Port Mode

This field allows you to determine parallel port mode function. SPP Standard Printer Port EPP Enhanced Parallel Port ECP Extended Capabilities Port

Power Management Setup

The Power Management Setup allows you to save energy of your system effectively.

Power Management

** PM Timers **

Standby Mode

Suspend Mode

Power-On by Alarm

Time (hh:mm:ss) Alarm

IRQ Wakeup Events

Power Management

The options for the power management setting are Disabled, Legacy and APM.

PM Timers and IRQ Wakeup Events

The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can prevent the system from entering a power saving mode or can awaken the system from such a mode. When an I/O device wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

Disabled ITEM HELP

Menu Level >

Disabled

0

Press Enter

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 32 / 47

PNP/PCI Configurations

This option configures the PCI bus system. All PCI bus systems on the system use INT#, thus all installed PCI cards must be set to this value.

PNP OS Installed

Init Display First

Reset Configuration Data

Resources Controlled By

IRQ Resources

Memory Resources

PCI/VGA Palette Snoop

PNP OS Installed

If your OS supports Plug & Play (PnP), select Yes so that it can take over the management of device resources. If you are using a non-PnP-aware OS or not all of the operating systems you are using support PnP, select No to let the BIOS handle it instead.

Init Display First

This field refers to the primary video or primary video adapter. The default setting is PCI Slot.

Reset Configuration Data

This field allows you to determine whether to reset the configuration data or not. The default value is Disabled.

Resources Controlled by

This PnP BIOS can configure all of the boot and compatible devices automatically with the use of a use a PnP OS system such as Windows 95.

PCI/VGA Palette Snoop

Some non-standard VGA display cards may not show colors properly. This field allows you to set whether or not MPEG ISA/VESA VGA cards can work with PCI/VGA. When this field is enabled, a PCI/VGA can work with an MPEG ISA/VESA VGA card. When this field is disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations

No ITEM HELP

PCI Slot Menu Level

Disabled

Auto (ESCD)

Press Enter

Disabled

Default is Disabled. Select Enabled to reset Extended System Configuration Data ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 33 / 47

PC Health Status

This section shows the parameters in determining the PC Health Status. These parameters include temperatures, fan speeds and voltages.

Phoenix - AwardBIOS CMOS Setup Utility

CPU Warning Temperature Disabled Current System Temp. 45°C/113°F Current CPU Temp 30°C/86°F Vcore(V) 1.18 V

Vmem 2.57V

Vcc3(V) 3.39V

+5V 5.13 V

+12V 11.12 V

-12V -12.19 V

VBAT 3.21 V

PC Health Status

ITEM HELP

Menu Level >

CPU Warning Temperature

This field allows the user to set the temperature so that when the temperature is reached, the system sounds a warning. This function can help prevent damage to the system that is caused by overheating.

Temperatures/Voltages

These fields are the parameters of the hardware monitoring function feature of the motherboard. The values are read-only values as monitored by the system and show the PC health status.

Load Fail-Safe Defaults

This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all high-performance features.

Load Optimized Defaults

This option allows you to load the default values to your system configuration. These default settings are optimal and enable all high performance features.

Set Supervisor/User Password

These two options set the system password. Supervisor Password sets a password that will be used to protect the system and Setup utility. User Password sets a password that will be used exclusively on the system. To specify a password, highlight the type you want and press <Enter>. The Enter Password: message prompts on the screen. Type the password, up to eight characters in length, and press <Enter>. The system confirms your password by asking you to type it again. After setting a password, the screen automatically returns to the main screen.

To disable a password, just press the <Enter> key when you are prompted to enter the password. A message will confirm the password to be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

Save & Exit Setup

This option allows you to determine whether or not to accept the modifications. If you type “Y”, you will quit the setup utility and save all changes into the CMOS memory. If you type “N”, you will return to Setup utility.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 34 / 47

Exit Without Saving

Select this option to exit the Setup utility without saving the changes you have made in this session. Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return you to Setup utility.

4.8 Drivers Installation

This section describes the installation procedures for software and drivers under the Windows 2000 and Windows XP. The software and drivers are included with the motherboard. If you find the items missing, please contact the vendor where you made the purchase.

4.8.1 Entertainment Encryption/Decryption Controller Driver

1. In the Windows operating system, go to the Device Manager.

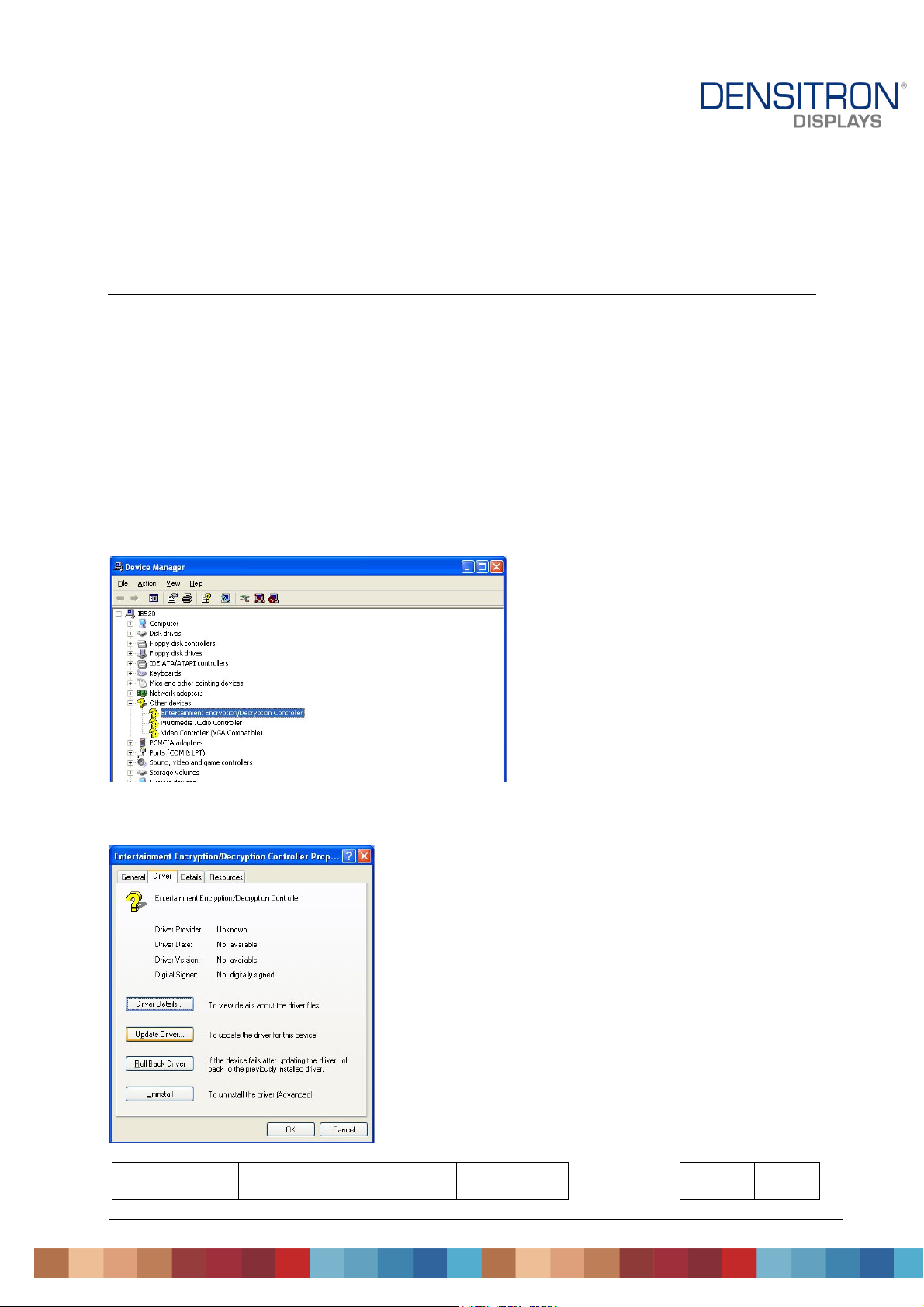

2. As shown below, click the Entertainment Encryption/Decryption Controller under Other devices.

3. In the following window, click the Driver tab and click OK to continue.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 35 / 47

4. In the Hardware Update Wizard, select No, not this time and click Next to continue. Then select Install from a list of specific location (Advanced). Click Browse to find the driver’s path in the CD provided - \AMD\AES. Then, click Next to start the drivers installtion. Then click Finish after the wizard has finished installing the software for Geode LX AES Crypto Driver.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 36 / 47

4.8.2 VGA Drivers Installation

1. In the Windows operating system, go to the Device Manager.

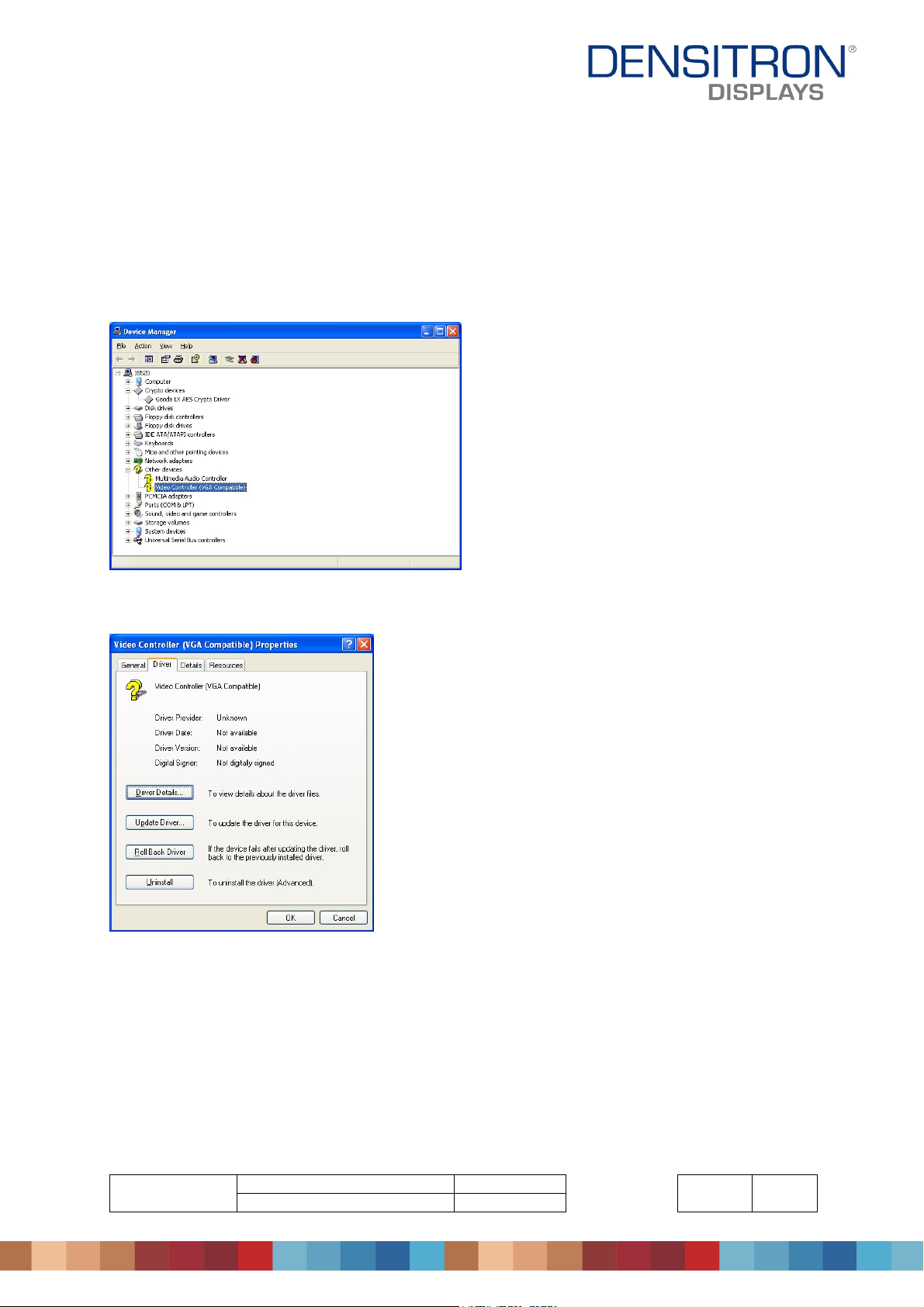

2. As shown below, click the Video Controller (VGA Compatible under Other devices.

3. In the following window, click the Driver tab and click OK to continue.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 37 / 47

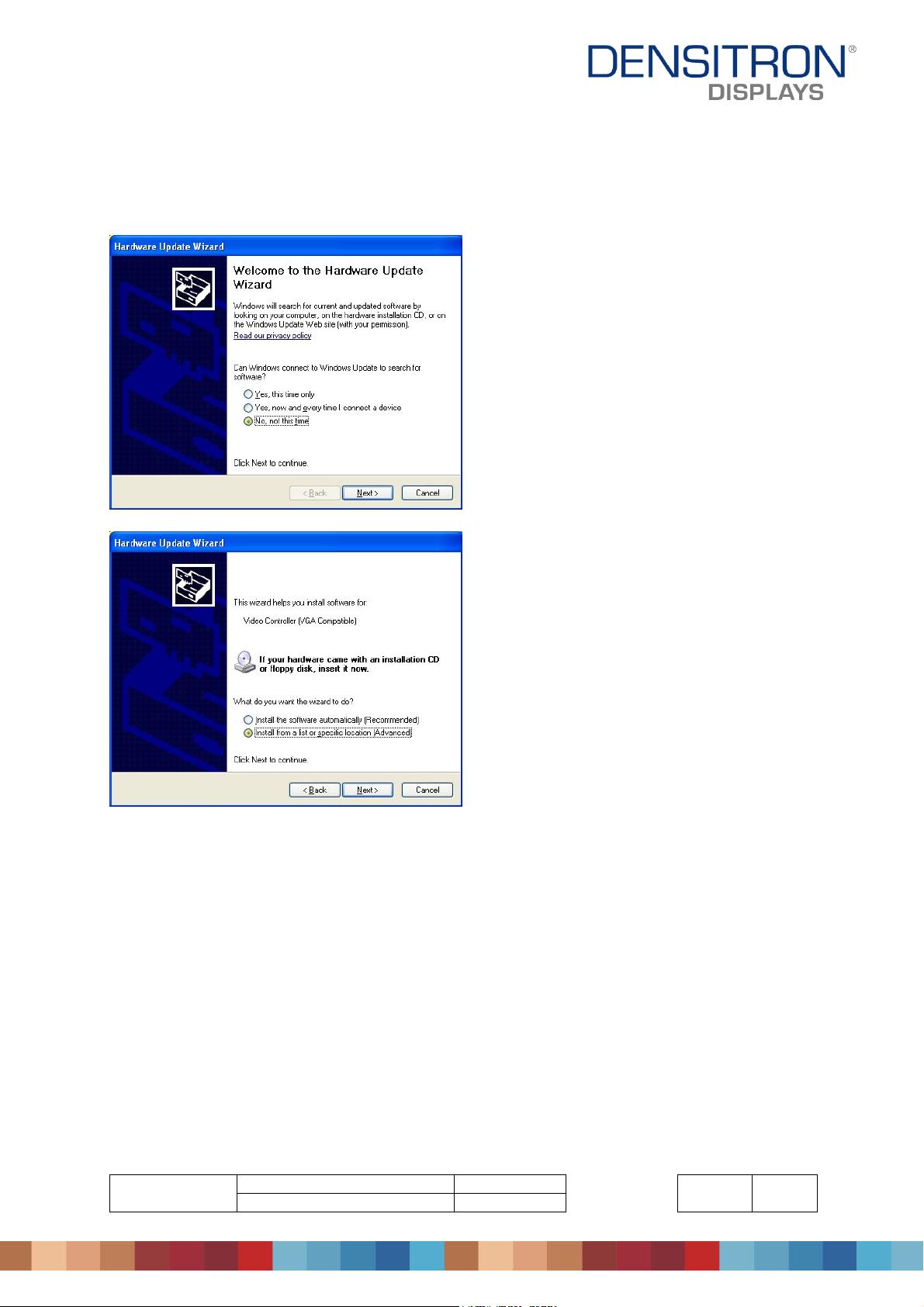

4. In the Hardware Update Wizard, select No, not this time and click Next to continue. Then select Install from a list of specific location (Advanced).

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 38 / 47

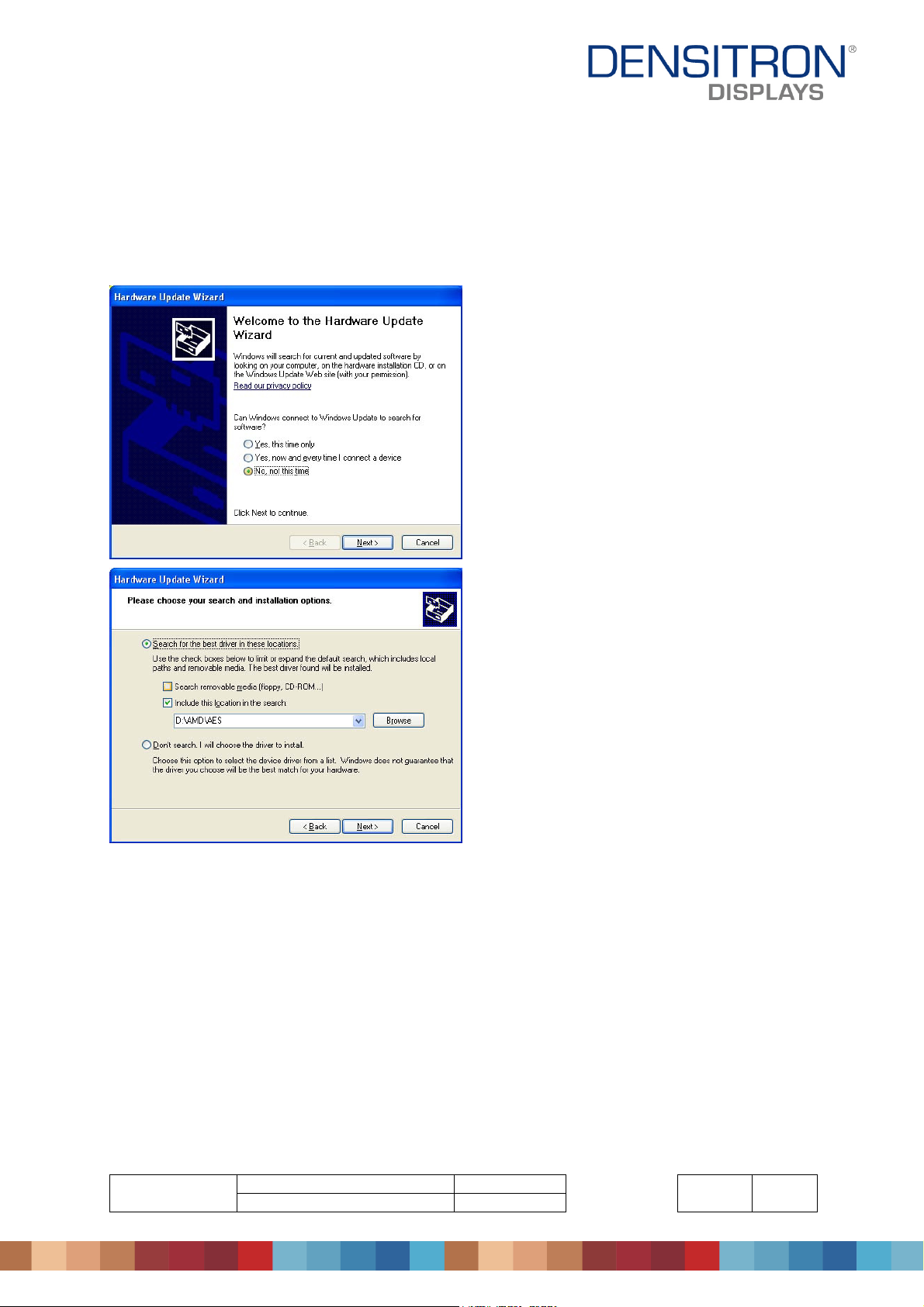

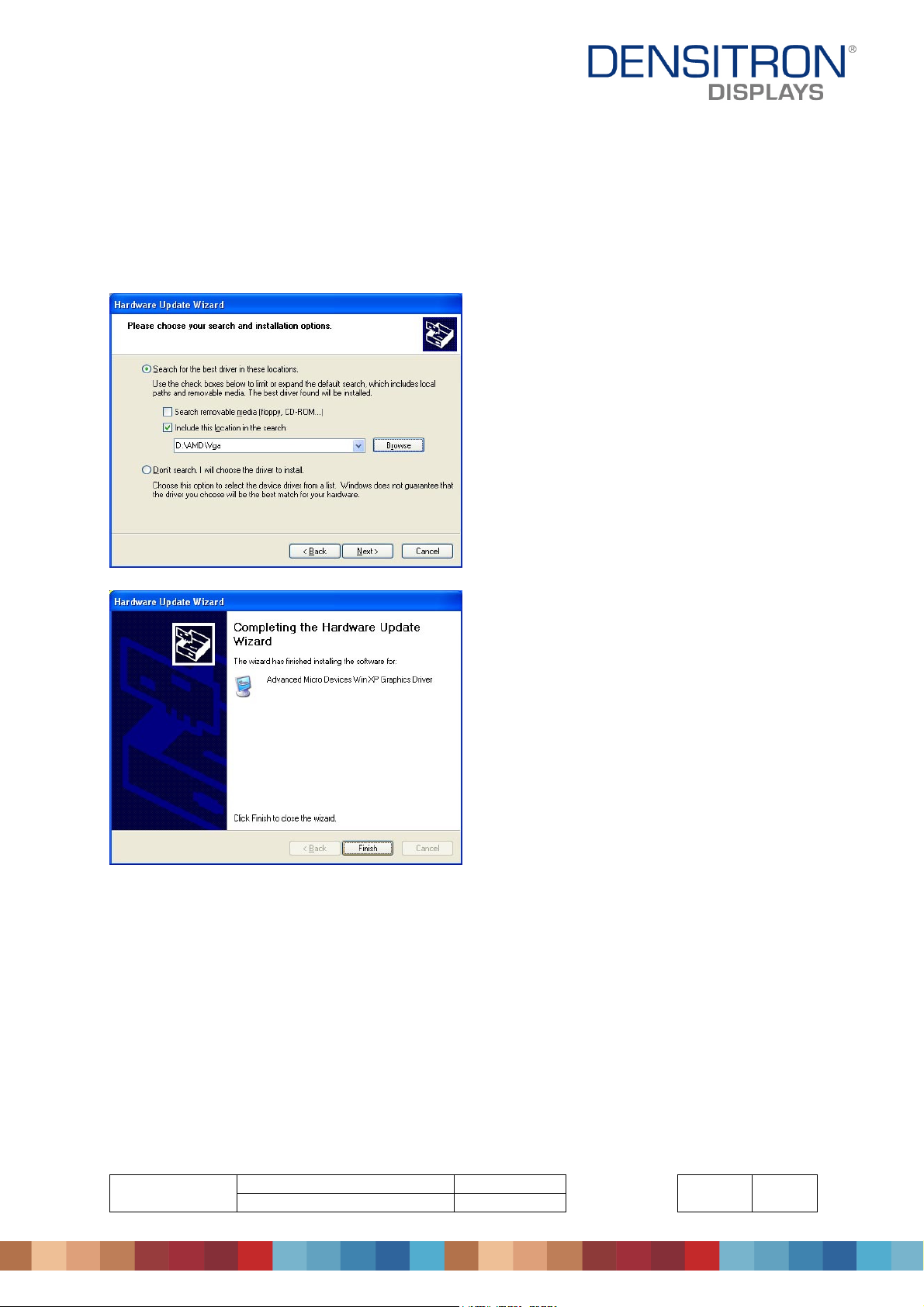

5. In the next screen, click Search for the best driver in these locations. Check Include this location in the search. Click Browse to find the driver’s path in the CD

provided or enter the path directly - \AMD\Vga\. Then, click Next to start the drivers installtion. Then click Finish after the wizard has finished installing the software for Advanced Micro Devices Win XP Graphics Driver.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 39 / 47

4.8.3 Audio Driver Installation

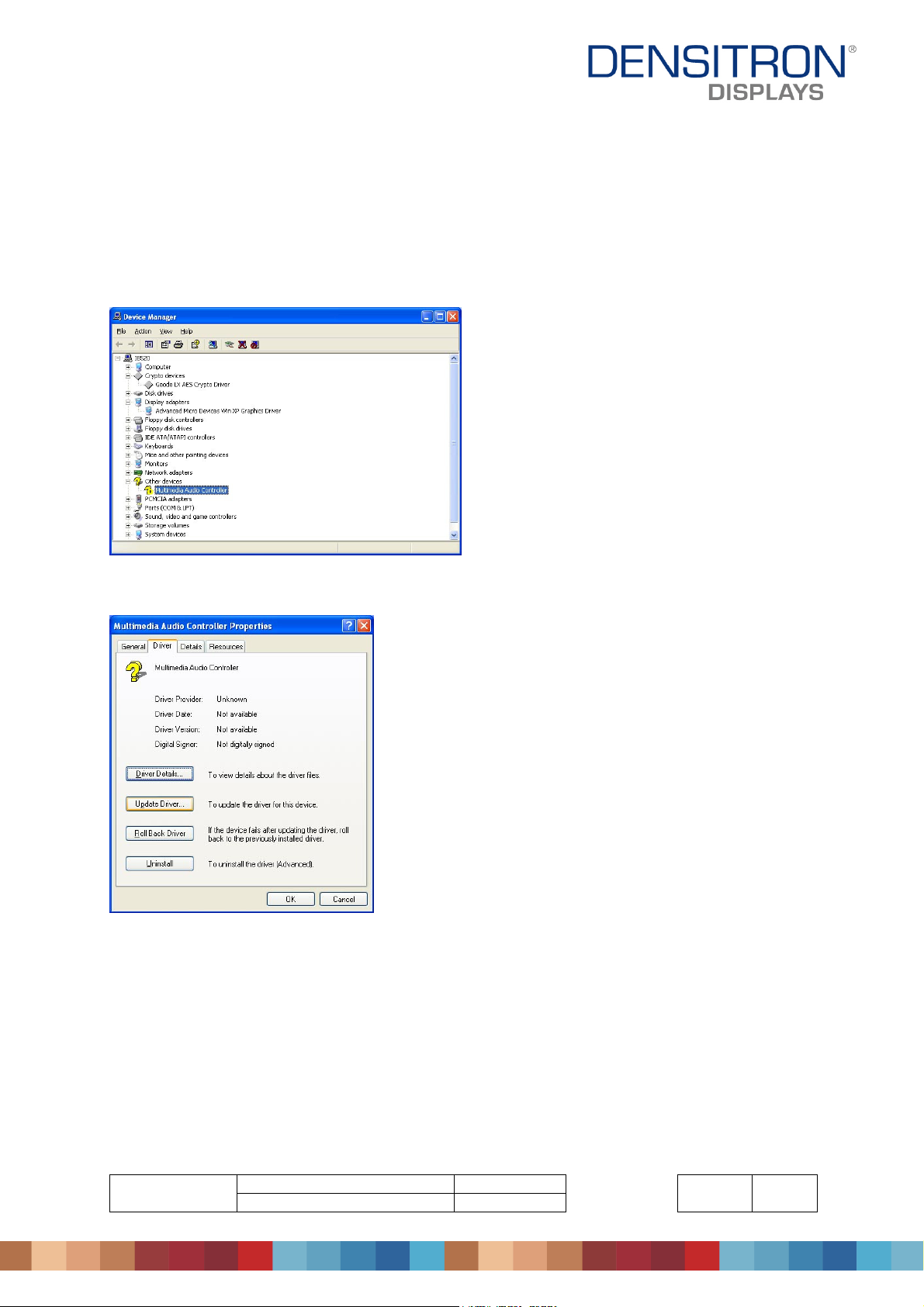

1. In the Windows operating system, go to the Device Manager.

2. As shown below, click the Multimedia Audio Controller under Other devices.

3. In the following window, click the Driver tab and click OK to continue.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 40 / 47

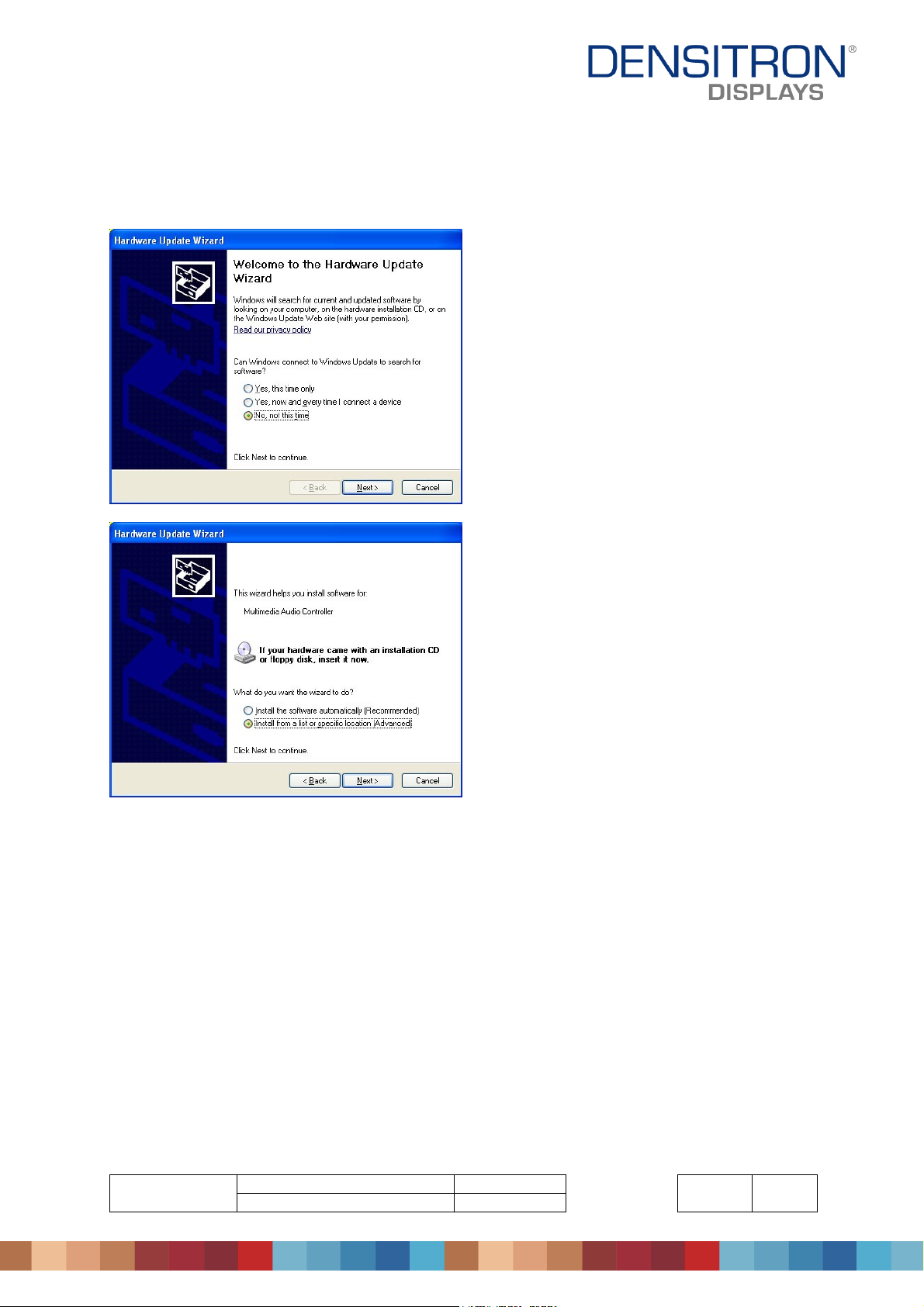

4. In the Hardware Update Wizard, select No, not this time and click Next to continue. Then select Install from a list of specific location (Advanced).

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 41 / 47

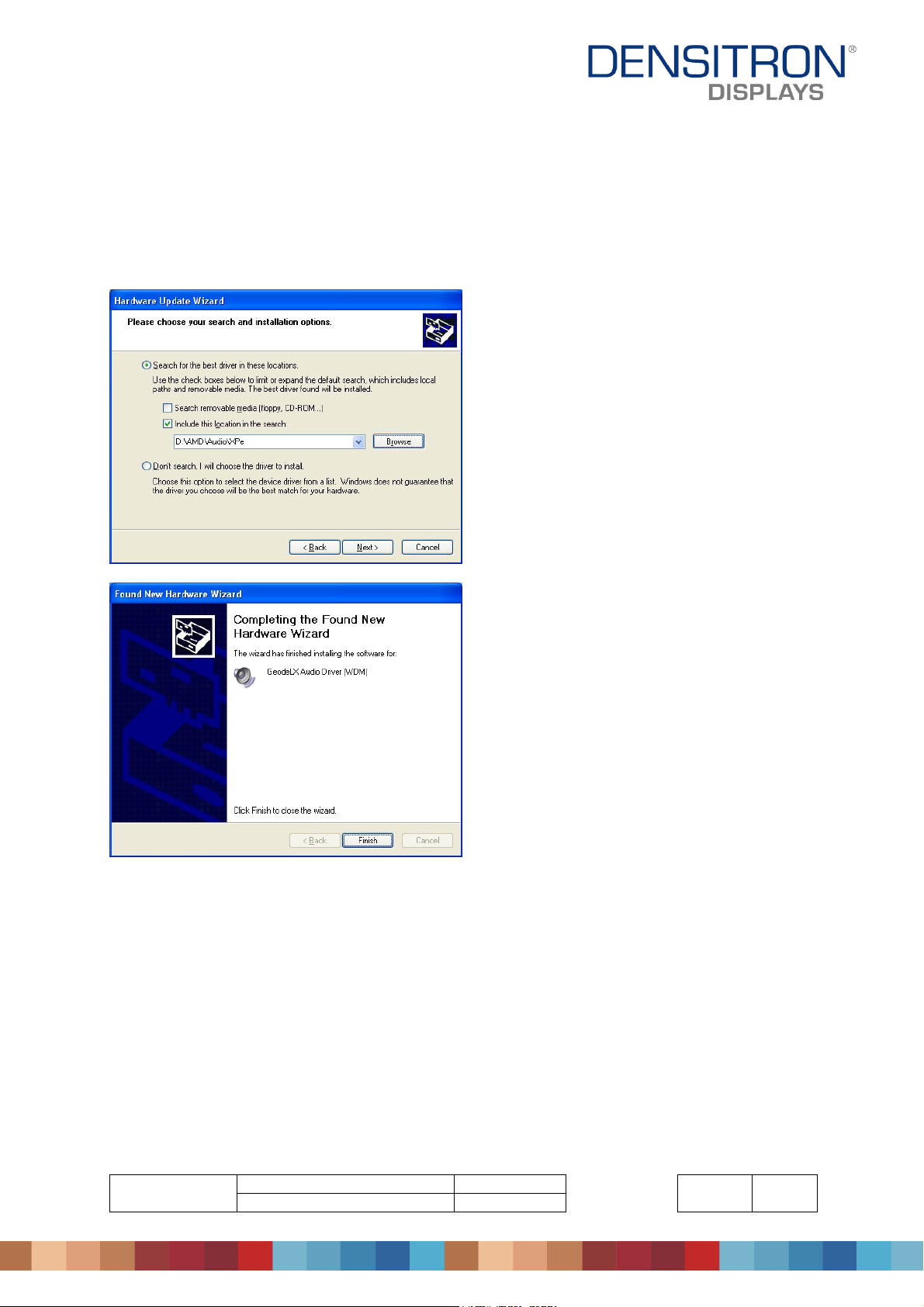

5. In the next screen, click Search for the best driver in these locations. Check Include this location in the search. Click Browse to find the driver’s path in the CD

provided or enter the path directly - \AMD\Audio\XPe. Then, click Next to start the drivers installtion. Then click Finish after the wizard has finished installing the software for GeodeLX Audio Driver (WDM).

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 42 / 47

Appendices

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used.

Address Device Description

000h - 01Fh DMA Controller #1 020h - 03Fh Interrupt Controller #1 040h - 05Fh Timer 060h Keyboard Controller (1) 0601h Control Port 064h Real Time Clock 070h - 07Fh Keyboard Controller (2) 080h - 09Fh DMA Page Register 0A0h 0BFh 0C0h 0DFh 0F0h – 00FFh 01F0h – 01F7h 03F6h 02F8h 02FFh 0378h – 037Ah 03C0h – 03DFh 03F0h – 03F5h 03F7h 03F8h 3FFh

Interrupt Controller #2

DMA Controller #2

Coprocessor

IDE (Primary)

Serial Port #2(COM2)

Parallel Port #1(LPT1)

Reserved for VGA

FDD Controller

Serial Port #1(COM1)

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 43 / 47

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.

Level Function

IRQ0 System Timer Output IRQ1 Keyboard IRQ2 PIC2 (IRQ8-15) IRQ3 Serial Port #2 IRQ4 Serial Port #1 IRQ5 For PCI IRQ6 Floppy Disk Controller IRQ7 Parallel Port #1 IRQ8 Real Time Clock IRQ9 For PCI IRQ10 For PCI IRQ11 For PCI IRQ12 PS/2 Mouse IRQ13 Coprocessor IRQ14 Primary IDE

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 44 / 47

.

C. Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sort of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.

SAMPLE CODE: This code and information is provided "as is" without warranty of any kind, either expressed or implied, including but not limited to the implied warranties of merchantability and/or fitness for a particular purpose

;[]================================================ ; Name : Enable_And_Set_Watchdog ; IN : AL - 1sec ~ 255sec ; OUT : None ;[]================================================ Enable_And_Set_Watchdog Proc Near push ax ;save time interval call Unlock_Chip

mov cl, 2Bh call Read_Reg and al, NOT 10h call Write_Reg ;set GP24 as WDTO

mov cl, 07h mov al, 08h call Write_Reg ;switch to LD8 mov cl, 0F5h call Read_Reg and al, NOT 08h call Write_Reg ;set count mode as second

pop ax mov cl, 0F6h call Write_Reg ;set watchdog timer

mov al, 01h mov cl, 30h call Write_Reg ;watchdog enabled

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 45 / 47

call Lock_Chip ret Enable_And_Set_Watchdog Endp

;[]=============================================== ; Name : Disable_Watchdog ; IN : None ; OUT : None ;[]=============================================== Disable_Watchdog Proc Near call Unlock_Chip

mov cl, 07h mov al, 08h call Write_Reg ;switch to LD8

xor al, al mov cl, 0F6h call Write_Reg ;clear watchdog timer

xor al, al mov cl, 30h call Write_Reg ;watchdog disabled

call Lock_Chip ret Disable_Watchdog Endp ;[]=============================================== ; Name : Unlock_Chip ; IN : None ; OUT : None ;[]=============================================== Unlock_Chip Proc Near mov dx, 4Eh mov al, 87h out dx, al out dx, al ret Unlock_Chip Endp ;[]================================================ ; Name : Lock_Chip ; IN : None ; OUT : None

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 46 / 47

;[]================================================ Unlock_Chip Proc Near mov dx, 4Eh mov al, 0Aah

out dx, al ret Unlock_Chip Endp ;[]================================================ ; Name : Write_Reg ; IN : CL - register index ; AL - Value to write ; OUT : None ;[]================================================ Write_Reg Proc Near push ax mov dx, 4Eh mov al,cl out dx,al pop ax inc dx out dx,al ret Write_Reg Endp ;[]================================================ ; Name : Read_Reg ; IN : CL - register index ; OUT : AL - Value to read ;[]=================================================== Read_Reg Proc Near mov al, cl mov dx, 4Eh out dx, al inc dx in al, dx ret Read_Reg Endp ;[]================================================

5 Technical support

For technical support, please contact us at sales@densitron.co.uk or visit our website: www.densitron.co.uk.

Product No.

TFT-I-Kit-007 REV. A

PD064VT4

Page 47 / 47

DENSITRON TFT-I-Kit-007 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
