DENSITRON DD-2832BE-2A Product Specification

OLED DISPLAY MODULE

Product Specification

CUSTOMER

PRODUCT

NUMBER

CUSTOMER

APPROVAL

STANDARD

DD-2832BE-2A

INTERNAL APPROVALS

Product Mgr Doc Control Electr. Eng

Bruno

Recaldini

Date: 21 Nov 06 Date: 21 Nov 06 Date: 21 Nov 06

Anthony

Perkins

Bazile Peter

Date

Appr ov al f or Spe ci f icat ion onl y

Appr ov al for Speci fi ca t i on a nd Sam pl e

FORM NO: DT-029

TABLE OF CONTENTS

1 MAIN FEATURES ..........................................................................................................4

2 MECHANICAL SPECIFICATION...............................................................................5

2.1 MECHANICAL CHARACTERISTICS .................................................................... 5

2.2 MECHANICAL DRAWING ..................................................................................... 6

3 ELECTRICAL SPECIFICATION................................................................................. 7

3.1 ABSOLUTE MAXIMUM RATINGS ....................................................................... 7

3.2 ELECTRICAL CHARACTERISTICS ...................................................................... 7

3.3 INTERFACE PIN ASSIGNMENT ............................................................................ 8

3.4 BLOCK DIAGRAM .................................................................................................. 9

3.5 TIMING CHARACTERISTICS .............................................................................. 10

4 OPTICAL SPECIFICATION.......................................................................................11

4.1 OPTICAL CHARACTERISTICS............................................................................ 11

5 APPLICATION NOTES ............................................................................................... 12

5.1 COMMANDS .......................................................................................................... 12

5.2 POWER UP/DOWN SEQUENCE........................................................................... 12

5.3 RESET CIRCUIT..................................................................................................... 12

5.4 APPLICATION EXAMPLE .................................................................................... 13

5.5 DISPLAY DIRECTION SETTING ......................................................................... 14

5.6 APPLICATION CIRCUIT....................................................................................... 16

6 PACKAGING AND LABELLING SPECIFICATION..............................................17

6.1 PACKAGING .......................................................................................................... 17

6.2 LABELLING & MARKING.................................................................................... 17

7 QUALITY ASSURANCE SPECIFICATION.............................................................18

7.1 CONFORMITY ....................................................................................................... 18

7.2 DELIVERY

7.3 DEALING

ASSURANCE ..................................................................................... 18

WITH CUSTOMER COMPLAINTS .................................................... 23

8 RELIABILITY SPECIFICATION ..............................................................................24

8.1 RELIABILITY

8.2 LIFE

TIME............................................................................................................... 24

TESTS ............................................................................................ 24

9 HANDLING PRECAUTIONS......................................................................................25

Product No.

DD-2832BE-2A REV. D

Page 2 / 25

REVISION RECORD

Rev. Date Page Chapt. Comment ECR no.

A Production Release

15-16

B 23-Mar-06

17 18

C 16-May-06 10 3.5.1.1

Updated Display Direction Setting Updated Application circuit Updated Packaging and Labelling

Chapter removed, no 6800 series MPU interface provided

D 21-Nov-06 17 6 Packing details corrected

Product No.

DD-2832BE-2A REV. D

Page 3 / 25

1 MAIN FEATURES

ITEM CONTENTS

Display Format 128 x 32 Dots

Overall Dimensions(W*H*T) Glass 33.4 x 14.5 x 1.8 mm

Active Area(W*H) 27.50 x 6.06 mm

Viewing Area(W*H) 29.50 x 8.06 mm

Display Mode Passive Matrix (1.11”)

Display Colour Blue

Driving Method 1 / 32 duty

Driver IC SSD1303 (COF)

Operating temperature

Storage temperature

-20℃ ~ +70℃

-30℃ ~ +80℃

Product No.

DD-2832BE-2A REV. D

Page 4 / 25

2 MECHANICAL SPECIFICATION

2.1 MECHANICAL CHARACTERISTICS

ITEM CHARACTERISTIC UNIT

Display Format 128 x 32 Dots

Overall Dimensions Glass 33.4 x 14.5 x 1.8 mm

Viewing Area(W*H) 29.50 x 8.06 mm

Active Area(W*H) 27.50 x 6.06 mm

Dot Size 0.195 x 0.17 mm

Dot Pitch 0.215 x 0.19 mm

Weight 2.0 g

IC Controller/Driver SSD1303 ( COF )

Product No.

DD-2832BE-2A REV. D

Page 5 / 25

2.2 MECHANICAL DRAWING

Product No.

DD-2832BE-2A REV. D

Page 6 / 25

3 ELECTRICAL SPECIFICATION

3.1 ABSOLUTE MAXIMUM RATI NG S

Item Symbol Min Max Unit Note

Supply Voltage VDD -0.3 4 V

Note 1,2

Driver Supply Voltage Vcc 0 15 V

Operating Temperature Top -20 70 °C -

Storage Temperature Tst -30 80 °C -

Static Electricity Be sure that you are grounded when handling displays.

Note 1: All the above voltages are on the basis of “GND=0V”. Note 2: When this module is used beyond the above absolute maximum ratings, permanent

breakage of the module may occur. Also, for normal operations, it’s desirable to use this module under the conditions according to Section 3 “Electrical Characteristics”. If this module is used beyond these conditions, malfunctioning of the module can occur and the reliability of the module may deteriorate.

3.2 ELECTRICAL CHARACTERISTICS

3.2.1 DC CHARACTERISTICS

Characteristics Symbol Min Typ Max Unit

Supply Logic VDD 2.6 2.8 3.5 V

Driver Supply Voltage VCC 7.0 7.5 8.0 V

High Level Input VIH

Low Level Input VIL 0 -

High Level Output VOH

Low Level Output VOL 0 -

0.8xVDD

0.9xVDD

- V

V

DD

0.2xVDD

V

- VDD V

0.1xVDD

V

VDD Current IDD Note 1,2 300 450 µA

Note 1 3.0 4.9

VCC Current ICC

mA

Note 2 5.0 7.5

(1)

Note Note

: VDD = 2.8V, VCC = 7.5V, Frame Rate = 100Hz, Contrast Setting = 0xFF, 50% pixels ON

(2)

: VDD = 2.8V, VCC = 7.5V, Frame Rate = 100Hz, Contrast Setting = 0xFF, 100% pixels ON

Product No.

DD-2832BE-2A REV. D

Page 7 / 25

3.3 INTERFACE PIN ASSIGNMENT

No. Symbol I/O Function

Reserved Pin (Supporting Pin).

1 N.C. -

2 VCC I/O

3 VCOMH I/O

4 IREF I

5~12 D7~D0 I/O

13 E/RD# I

14 R/W# I

15 D/C# I

16 RES# I

17 CS# I

18 VDD I

19 VSS I

20 N.C. -

The supporting pin can reduce the influences from stresses on the function pins.

Power Supply for Panel.

This is the most positive voltage supply pin of the chip. It can be supplied externally or generated internally by using internal DC/DC voltage converter.

Voltage Output High Level for COM Signal.

This pin is the input pin for the voltage output high level for COM signal. A capacitor should be connected between this pin and VSS.

Current Reference for Brightness Adjustment.

This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current at 10uA.

Host Data Input/Output Bus. These pins are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus.

Read/Write Enable or Read.

This pin receives the Read (RD#) signal. Data read operation is initiated when this pin is pulled low and CS# is pulled low.

Read/Write Select or Write.

This pin is the Write (WR#) input. Data write operation is initiated when this pin is pulled low and CS# ispulled low

Data/Command Control.

This pin is Data/Command control pin. When the pin is pulled high, the input at D7~D0 is treated as display data. When the pin is pulled low, the input at D7~D0 will be transferred to the command register. For detail relationship to MCU interface signal, please refer to the Timing Characteristics Diagrams.

Power Reset for Controller and Driver.

This pin is reset signal input. When the pin is low, initialization of the chip executed.

Chip Select.

This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.

Power Supply for Logic circuit

This is a voltage supply pin It must be connected to an external source.

Ground

This is a ground pin. It also acts as a reference for the logic pins, the OLED driving voltages, and the analogue circuits. It must be connected to external ground.

Reserved Pin (Supporting Pin).

The supporting pin can reduce the influences from stresses on the function pins.

Product No.

DD-2832BE-2A REV. D

Page 8 / 25

3.4 BLOCK DIAGRAM

Active Area 1.11"

128

~

COM62

COM32

x 32 Pixels

SEG0

~~~

COM33~COM63

SEG127

SSD1303

~

VCOMH

VCC

IREF

D0

D7

R1

C3

C2

Pins connected to MCU interface: D7~D0, E/RD#, R/W#, D/C#, RES#, and CS#

C1, C3: 4.7μF C2: 10μF R1: 910kΩ, R1 = (Voltage at IREF - BGGND) / IREF

E/RD#

VDD

VSS

RES#

D/C#

R/W#

CS#

C1

Product No.

DD-2832BE-2A REV. D

Page 9 / 25

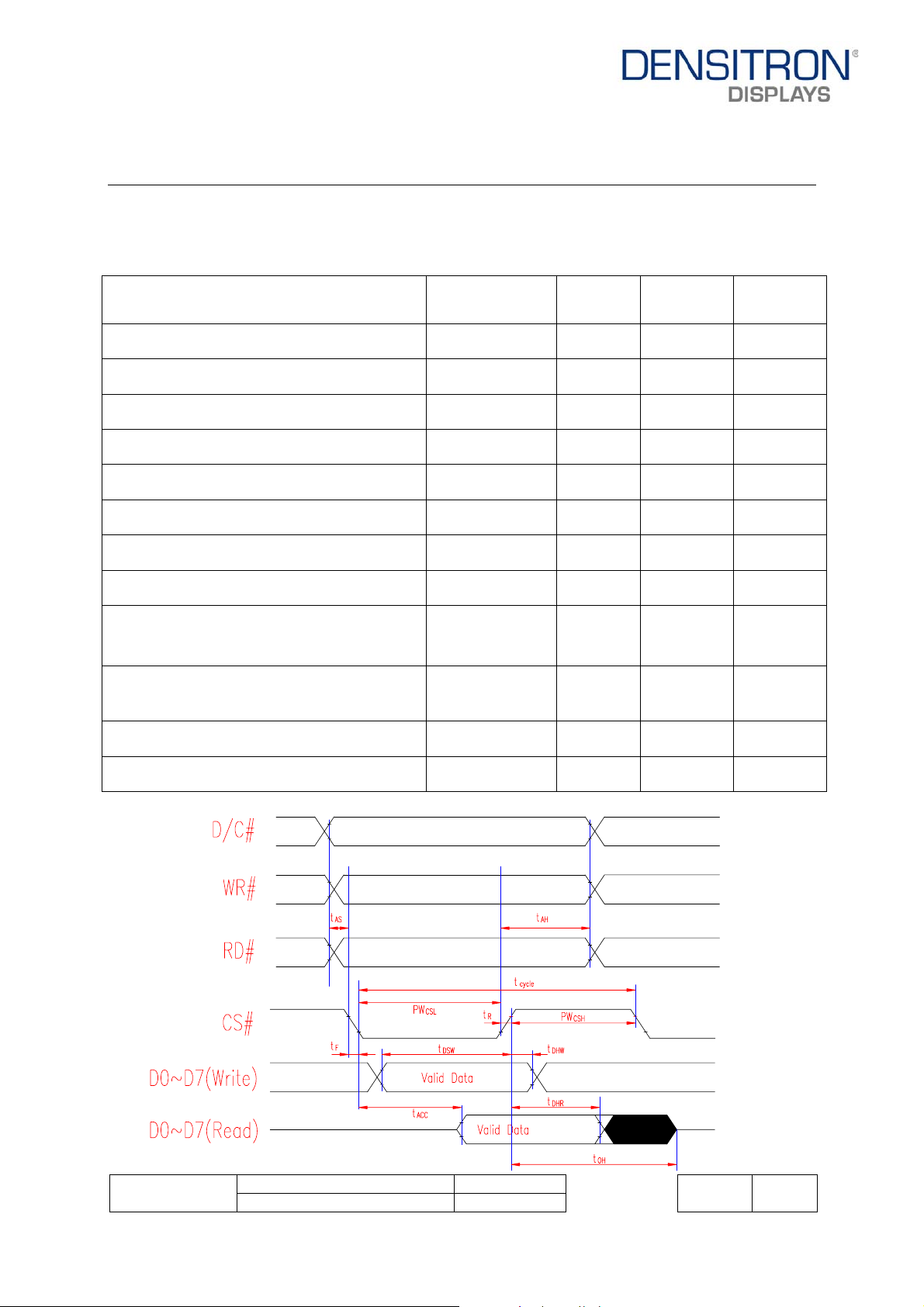

3.5 TIMING CHARACTERISTICS

3.5.1 AC CHARACTERISTICS

3.5.1.1 8080-Series MPU Parallel Interface Timing Characteristics:

Characteristics Symbol Min Max Unit

Clock Cycle Time t

300 - ns

cycle

Address Setup Time tAS 0 - ns

Address Hold Time tAH

Write Data Setup Time t

Write Data Hold Time t

Read Data Hold Time t

40

DSW

DHW

20

DHR

Output Disable Time tOH -

Access Time t

Chip Select Low Pulse Width (Read) Chip Select Low Pulse Width (Write)

Chip Select High Pulse Width (Read) Chip Select High Pulse Width (Write)

-

ACC

PW

CSL

CSH

Rise Time tR -

Fall Time tF -

0 -

-

15

120

60

60 60

- ns

-

70

140

-

15

ns

* All the timing should be based on 30% and 70% of VDD-GND.

Product No.

DD-2832BE-2A REV. D

Page 10 / 25

4 OPTICAL SPECIFICATION

4.1 OPTICAL CHARACTERISTICS

Characteristics Symbol Condition Min Typ Max Unit

Brightness Lbr With Polarizer 35 60 - cd/m2

(X) 0.12 0.16 0.20

C.I.E.(Blue)

(Y)

Without Polarizer

-

0.22 0.26 0.30

Frame Rate 100 F/sec

Dark Room

Contrast

CR Shown as below - >1:100 - -

View Angle >160 - - degree

Note 3: Optical measurement taken at 1/32 duty, 100Hz Frame Rate, 0xFF Contrast Setting.

Product No.

DD-2832BE-2A REV. D

Page 11 / 25

5 APPLICATION NOTES

5.1 COMMANDS

Please refer to the Technical Manual for the SSD1303.

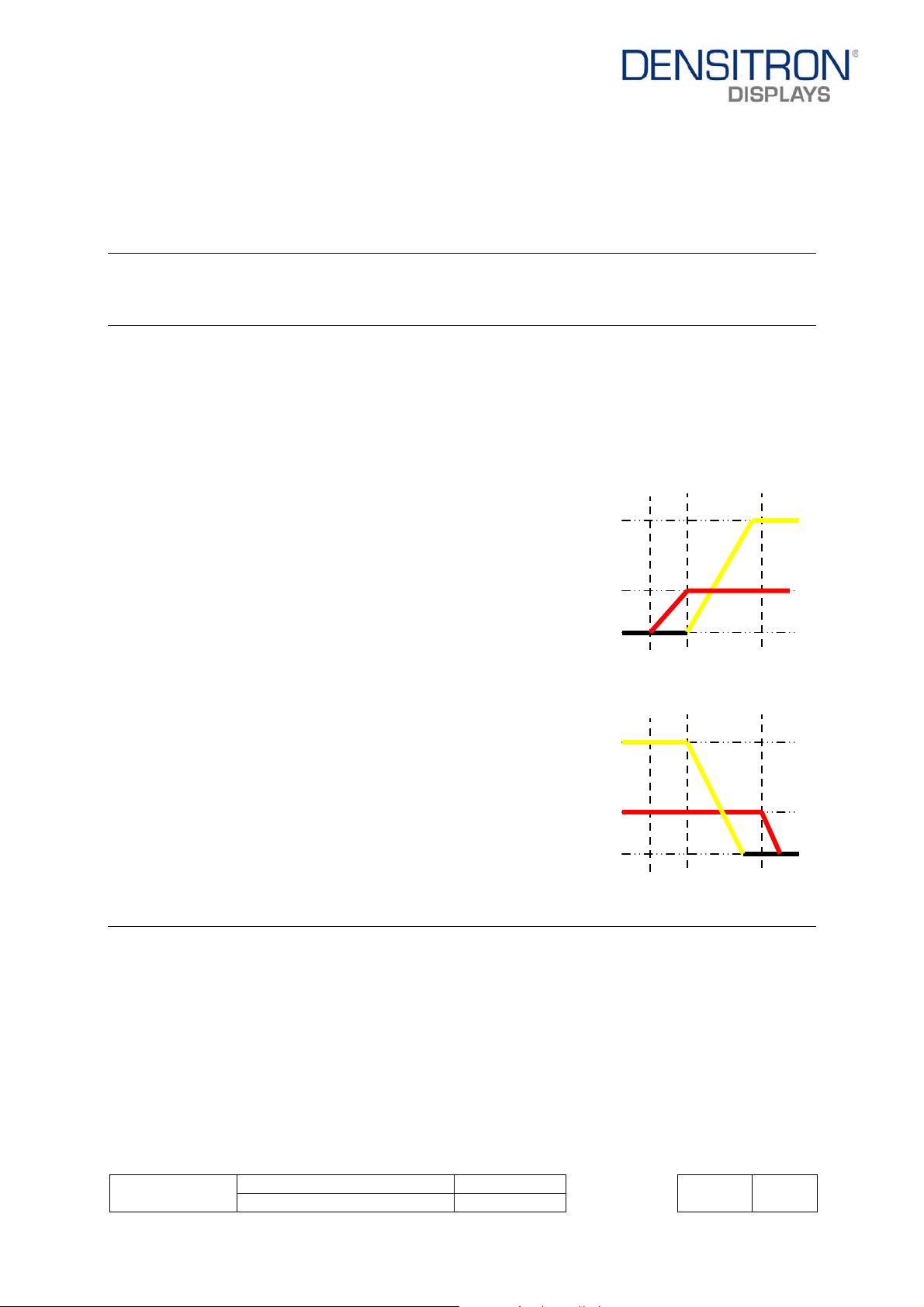

5.2 POWER UP/DOWN SEQUENCE

To protect panel and extend the panel life time, the driver IC power up/down routine should include a delay period between high voltage and low voltage power sources during turn on/off. It gives the panel enough time to complete the action of charge and discharge before/after the operation.

5.2.1 POWER UP SEQUENCE：

V

1. Power up VDD

2. Send Display off command VCC

3. Clear Screen

4. Power up VCC

5. Delay 100ms VDD (When VDD is stable)

6. Send Display on command VSS/Ground

ON VCC ON Display On

DD

5.2.2 POWER DOWN SEQUENCE：

Display off V

off VDD off

CC

1. Send Display off command

2. Power down VCC VCC

3. Delay 100ms (when V

is reach 0 and panel is

CC

completely discharges) VDD

4. Power down V

DD

VSS/Ground

5.3 RESET CIRCUIT

When RES# input is low, the chip is initialized with the following status:

1. Display is off

2. 132x64 Display Mode

3. Normal segment and display data column and row address mapping (SEG0 mapped to column address 00H and COM0 mapped to row address 00H)

4. Shift register data clear in serial interface

5. Display start line is set at display RAM address 0

6. Column address counter is set at 0

7. Normal scan direction of the COM outputs

8. Contrast control register is set at 80H

9. Internal booster is selected

Product No.

DD-2832BE-2A REV. D

Page 12 / 25

5.4 APPLICATION EXAMPLE

Command usage and explanation of an actual example

< Initialization Setting > Set Display Clock Divide Ratio / Oscillator Frequency ( 11010101 with XXXXXXXX )

Set Display Offset ( 11010011 with **XXXXXX ) * XXXXXX = 64 – Dummy Line from Common 0 Set Multiplex Ratio ( 10101000 with **XXXXXX )

Set DC/DC On/Off ( 10101101 with 1000101X ) 10001010 => 0x8A ( Off ) Set Area Colour Mode & Low Power Display Mode ( 11011000 with 00XX0X0X ) 00000101 => 0x05 ( Mono & Low Power Save Mode )

Set Display Start Line ( 01XXXXXX ) Set Segment Re-map ( 1010000X ) Set COM Output Scan Direction ( 11011010 with 000X0010 ) 00010010 => 0x12 ( Alternative Mode )

Set Contrast Control Register ( 10000001 with XXXXXXXX )

Set Entire Display On/Off ( 1010010X ) 10100100 => 0xA4 ( Normal ) Set Normal/Inverse Display ( 1010011X ) 10100110 => 0xA6 ( Normal ) Set Display On/Off ( 1010111X ) 10101111 => 0xAF ( Turns On )

< Display Boundary Setting > Set Page Address ( 1011XXXX ) 10110000 => 0xB0 Set Lower Column Address ( 0000XXXX ) Set Higher Column Address ( 0001XXXX )

If the noise is accidentally occurred at the displaying window during the operation, please reset the display in order to recover the display function.

Product No.

DD-2832BE-2A REV. D

Page 13 / 25

5.5 DISPLAY DIRECTION SETTING

5.5.1 Normal Display Mode

Set Display Offset

0xD3 with 0x20

Set Multiplex Ratio

0xA8 with 0x1F

Set Display Start Line

0x40

Set Segment Re-map

0xA0 (Normal Mode)

Set COM Output Scan Direction

0xC8 (Remapped Mode)

Set Lower Column Address

0x00

Set Higher Column Address

0x10

Product No.

DD-2832BE-2A REV. D

Page 14 / 25

5.5.2 Inverted Display Mode

* The pattern shown in active area is the same as that in normal display mode but

setting the COM Output Scan Direction as remapped mode.

Set Display Offset

0xD3 with 0x20

Set Multiplex Ratio

0xA8 with 0x1F

Set Display Start Line

0x40

Set Segment Re-map

0xA1 (Remapped Mode)

Set COM Output Scan Direction

0xC0 (Normal Mode)

Set Lower Column Address

0x04

Set Higher Column Address

0x10

Product No.

DD-2832BE-2A REV. D

Page 15 / 25

5.6 APPLICATION CIRCUIT

5.6.1 Components List

Item Silk Name Value Remark

Driver IC SSD1303

DC/DC Converter TPS61041

Inductor L1 4.7μH 2A

Schottky Diode D1

R1 150kΩ 1%, 1/4W

Resistor

Capacitor

FH12A-20S-0.5SH

Connector

FH19S-20S-0.5SH Bottom Contact Type (HRS)

R2 24kΩ 1%, 1/4W R3 910kΩ 1% C1 0.1μF 6.3V, Low ESR

C2, C5 4.7μF 6.3V, Low ESR

C3 10μF 16V, Low ESR C4 0.1μF 16V, Low ESR C6 4.7μF 16V, Low ESR

(Solomon Systech)

Step-up Type (TI)

1A, 20V

Top Contact Type (HRS)

Product No.

DD-2832BE-2A REV. D

Page 16 / 25

6 PACKAGING AND LABELLING SPECIFICATION

6.1 PACKAGING

6.1.1 Material

Item Part code

1 Module

DD-2832BE-2A 33.4*14.5*1.8

2 Tray ***** 3 Inner box ***** 4 Carton ***** 5 Inner box bag *****

Dimensions

(mm)

*** *** *** ***

Unit weight

(kg)

0.002 2880

0.010 64

0.250 4

1.100 1 *** ***

6 Total weight 7.54 Kg ± 5%

6.1.2 Specification and quantity

Modules x tray = 48 Modules per inner box = 720 Modules in outer box = 2880

Quantity

6.2 LABELLING & MARKING

Product No.

DENSITRON DD-2832BE-2A TW YY MM

DD-2832BE-2A REV. D

Page 17 / 25

7 QUALITY ASSURANCE SPECIFICATION

7.1 CONFORMITY

The performance, function and reliability of the shipped products conform to the Product Specification.

7.2 DELIVERY ASSURANCE

7.2.1 Delivery inspection standards

• IPC-AA610, class 2 electronic assemblies standard

7.2.2 Zone definition

A Viewing area

B Outside viewing area

Product No.

DD-2832BE-2A REV. D

Page 18 / 25

7.2.3 Visual inspection

• Inspect under 30W fluorescent lamp leaving 50 cm between the module and the lamp

and 30 cm between the module and the eye (measuring position).

• Appearance is inspected at the best contrast voltage (best contrast is adjusted

considering clearness and crosstalk on screen).

• Inspect the module at 45° right and left, top and bottom.

• Use the optimum viewing angle during the contrast inspection.

eye

45°45°

Product No.

DD-2832BE-2A REV. D

Page 19 / 25

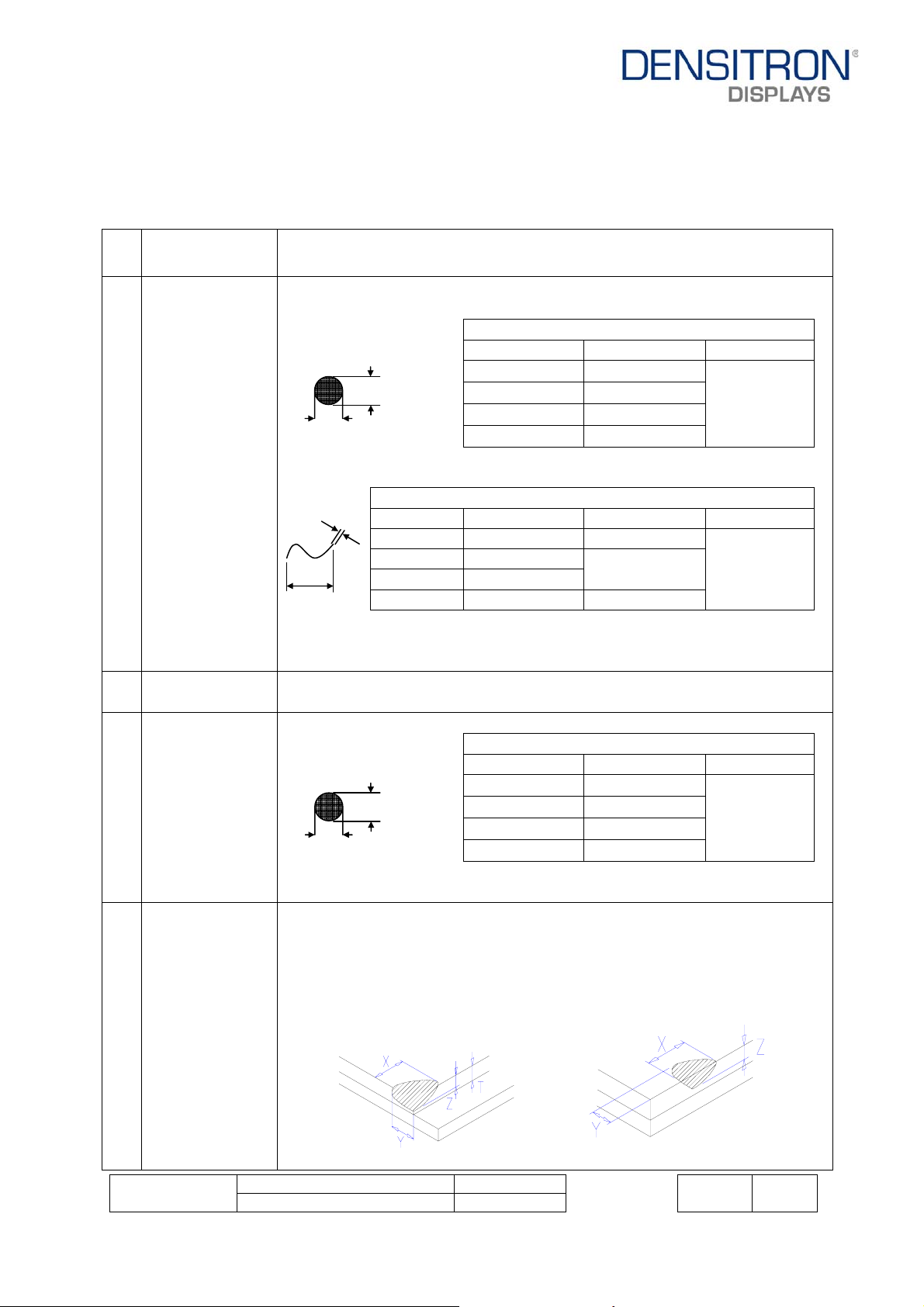

7.2.4 Standard of appearance inspection

Units: mm

No Item Criteria

Round type: as per following drawing ∅ = (X+Y)/2 Acceptable quantity Size Zone A Zone B

1

2 Polarizer scratch

3 Polarizer bubble

Black spot,

white spot, dust

Line type: as per following drawing Acceptable quantity Length Width Zone A Zone B

- - W≤0.02 Any number L≤3.0 0.02<W≤0.03 L≤2.5 0.03<W≤0.05

- - 0.05<W As round type

Total acceptable quantity: 3

Scratch on protective film is permitted Scratch on polarizer: same as No. 1 ∅ = (X+Y)/2 Acceptable quantity Size Zone A Zone B

Total acceptable quantity: 3

X≦1/6 Panel Length

∅<0.1

0.1<∅<0.2

0.2<∅<0.25

0.25<∅

∅<0.1

0.1<∅<0.2

0.2<∅<0.25

0.25<∅

Any number

3 1 0

2

3 1 0

Any number

Y≦1

Z≦T

4 Panel Chipping

Product No.

DD-2832BE-2A REV. D

Page 20 / 25

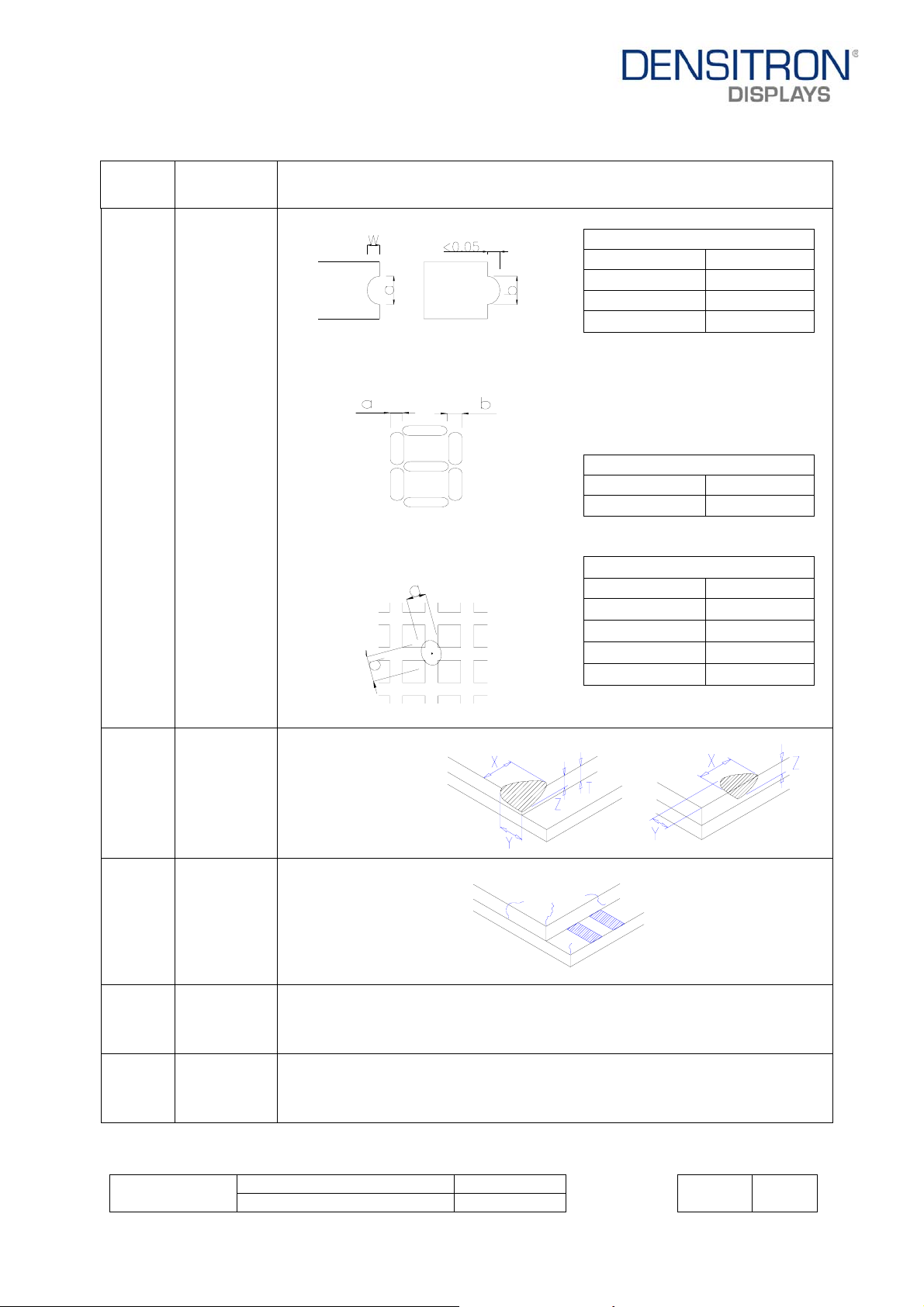

Class Item Criteria

Minor Segment

deformation

Minor Panel

Chipping

1b. Pin hole on dot matrix display

Acceptable quantity

Size

a,b<0.1 Any number

2. Segments / dots with different width

3. Alignment layer defect ∅ = (a+b)/2

X ≤ 1/6 Panel length Y ≤ 1 Z ≤ T

Acceptable quantity

(a+b)/2≤0.1 Any number

0.5<∅<1.0 Total acceptable quantity: 7

Acceptable a≥b a/b≤4/3 a<b a/b>4/3

Size

∅≤0.4

0.4<∅≤1.0

1.0<∅≤1.5

1.5<∅≤2.0

Total acceptable quantity: 7

3

Any number

5 3 2

Minor Panel

Cracking

Minor Cupper

exposed (pin or film)

Minor Film or

Trace Damage

Cracks not allowed

Not allowed if visible by eye inspection

Not allowed if affect electrical function

Product No.

DD-2832BE-2A REV. D

Page 21 / 25

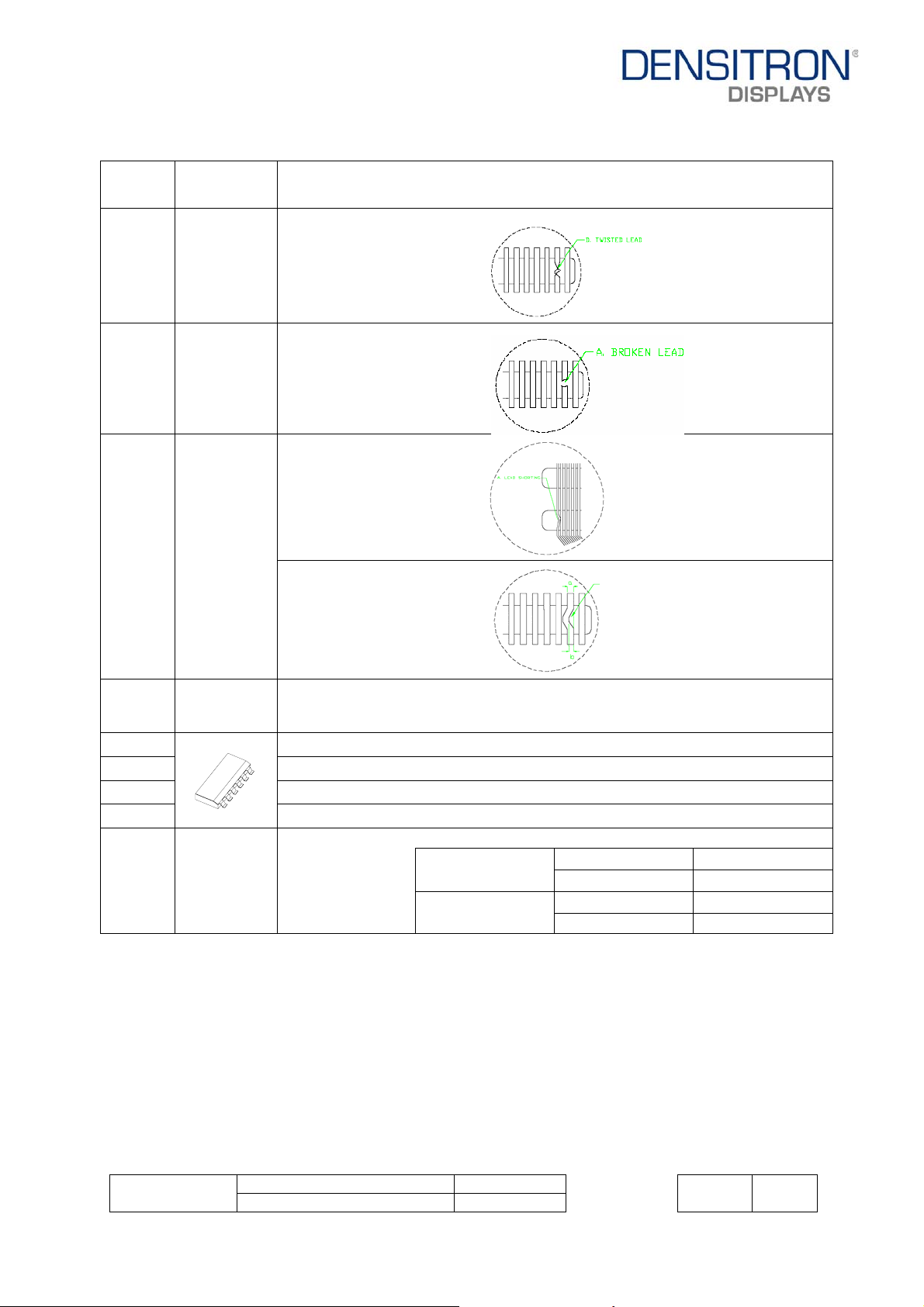

Class Item Criteria

Minor Contact

Lead Twist Not allowed

Minor Contact

Lead Broken

Minor Contact

Lead Bent

Minor Colour

uniformity

Major No unmelted solder paste should be present on PCB

Critical Cold solder joints, missing solder connections, or oxidation are not allowed Minor No residue or solder balls on PCB are allowed Critical Minor Tray

PCB

particles

Not allowed

Not allowed if bent lead causes short circuit

Not allowed if bent lead extends horizontally more than 50% of its width

Level of sample for approval set as limit sample

Short circuits on components are not allowed Size Quantity

On tray

On display

∅<0.2 ∅>0.25 ∅≥0.25

L = 3 1

Any number

4 2

Product No.

DD-2832BE-2A REV. D

Page 22 / 25

7.3 DEALING WITH CUSTOMER COMPLAINTS

7.3.1 Non-conforming analysis

Purchaser should supply Densitron with detailed data of non-conforming sample. After accepting it, Densitron should complete the analysis in two weeks from receiving the sample. If the analysis cannot be completed on time, Densitron must inform the purchaser.

7.3.2 Handling of non-conforming displays

If any non-conforming displays are found during customer acceptance inspection which Densitron is clearly responsible for, return them to Densitron. Both Densitron and customer should analyse the reason and discuss the handling of nonconforming displays when the reason is not clear. Equally, both sides should discuss and come to agreement for issues pertaining to modification of Densitron quality assurance standard.

Product No.

DD-2832BE-2A REV. D

Page 23 / 25

8 RELIABILITY SPECIFICATION

8.1 RELIABILITY TESTS

Test Item Test Condition Evaluation and assessment

High Temperature Operation 70°C±2, 240 hours

Low Temperature Operation -20°C±2, 240 hours

High Temperature Storage 80°C±2, 240 hours

Low Temperature Storage -30°C±2, 240 hours

High Temperature & High Humidity Storage(Operation)

60°C±2, 90%RH, 240 hours

No abnormalities in function and appearance No abnormalities in function and appearance No abnormalities in function and appearance No abnormalities in function and appearance No abnormalities in function and appearance

10 cycle of

Thermal Shock

-30°C 30 min R.T. 5 min,

No abnormalities in function and appearance

80°C 30 min

• The brightness should be greater than 50% of the initial brightness.

• The samples used for above tests do not include polarizer.

• No moisture condensation is observed during tests.

8.1.1 FAILURE CHECK STANDARD

After the completion of the described reliability test, the samples were left at room temperature for 2 hrs prior to conducting the failure teat at 23±5 °C；55±15% RH

8.2 LIFE TIME

Item Description

Function, performance, appearance, etc. shall be free from remarkable deterioration within 15,000 hours under ordinary operating and storage conditions of room

1

temperature (25±10 °C), normal humidity (45±20% RH), and in area not exposed to direct sunlight.

2 End of lifetime is specified as 50% of initial brightness.

Product No.

DD-2832BE-2A REV. D

Page 24 / 25

9 HANDLING PRECAUTIONS

Safety

If the panel breaks, be careful not to get the organic substance in your mouth or in your eyes. If the organic substance touches your skin or clothes, wash it off immediately using soap and plenty of water.

Mounting and Design

Place a transparent plate (e.g. acrylic, polycarbonate or glass) on the display surface to protect the display from external pressure. Leave a small gap between the transparent plate and the display surface. Design the system so that no input signal is given unless the power supply voltage is applied.

Caution during OLED cleaning

Lightly wipe the display surface with a soft cloth soaked with Isopropyl alcohol, Ethyl alcohol or Trichlorotriflorothane. Do not wipe the display surface with dry or hard materials that will damage the polariser surface. Do not use aromatic solvents (toluene and xylene), or ketonic solvents (ketone and acetone).

Caution against static charge

As the display uses C-MOS LSI drivers, connect any unused input terminal to V input any signals before power is turned on. Also, ground your body, work/assembly table and assembly equipment to protect against static electricity.

Packaging

Displays use OLED elements, and must be treated as such. Avoid strong shock and drop from a height. To prevent displays from degradation, do not operate or store them exposed directly to sunshine or high temperature/humidity.

Caution during operation

It is indispensable to drive the display within the specified voltage limit since excessive voltage shortens its life.

Other Precautions

When a display module is operated for a long of time with fixed pattern may remain as an after image or slight contrast deviation may occur. Nonetheless, if the operation is interrupted and left unused for a while, normal state can be restored. Also, there will be no problem in the reliability of the module.

Storage

Store the display in a dark place where the temperature is 25°C ± 10°C and the humidity below 50%RH. Store the display in a clean environment, free from dust, organic solvents and corrosive gases. Do not crash, shake or jolt the display (including accessories).

or VSS. Do not

DD

Product No.

DD-2832BE-2A REV. D

Page 25 / 25

DENSITRON DD-2832BE-2A Product Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
