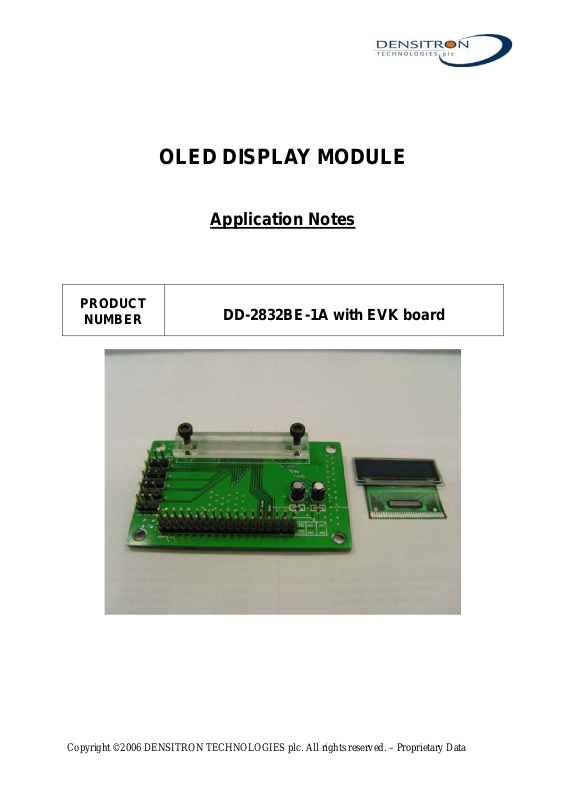

DENSITRON DD-2832BE-1A Product Specification

PRODUCT

NUMBER

OLED DISPLAY MODULE

Application Notes

DD-2832BE-1A with EVK board

TABLE OF CONTENTS

1 EVK SCHEMATIC..........................................................................................................4

2 SYMBOL DEFINITION ................................................................................................. 5

3 TIMING CHARACTERISTICS ....................................................................................7

4 CONNECTION BETWEEN OLED AND EVK .........................................................11

5 HOW TO USE THE DD-2832BE-1A...........................................................................13

5.1 RECOMMENDED INITIAL CODE .................................................................................. 14

Product No.

DD-2832BE-1A REV. A

Page 2 / 14

REVISION RECORD

Rev. Date Page Chapt. Comment ECR no.

A 21 May. 06 First Issue

Product No.

DD-2832BE-1A REV. A

Page 3 / 14

1 EVK Schematic

Product No.

DD-2832BE-1A REV. A

Page 4 / 14

2 Symbol Definition

D0-D7：These pins are 8-bit bi-directional data bus to be connected to the MCU’s data bus.

I/S#：This is a serial interface selection input pin. When it is pulled High and P/S# Pulled Low, I2C

interface is selected (J1).

PS#：This pin is a parallel interface selection input pin. . When it is pulled High, parallel interface mode is selected. When this pin and I/S# pin is pulled Low, serial interface is selected (J2).

Note: Read Data operation is only available in parallel mode.

CMPU：This pin is MCU parallel interface selection input. When the pin is pulled High, 6800 serial interface is selected and when the pin is pulled Low, 8080 serial interface is selected(P/S# pulled

Low). The setting of this pin is ignored, but must be connected to a known logic (either High or Low) (J3).

CCL：the pin is internal clock enable. When this pin is pulled High, internal clock is enabled. The internal clock is disabled when it is pulled Low. An external clock source must be connected to CL pin

for normal operation. (J4).

M/S#：This pin is the select input. This pin must be pulled High, the chip function is as master (J5).

E/RD#：This pin is MCU interface input. When interfacing to a 6800-series microprocessor, this pin

is used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled high and the chip is selected.

When connecting to an 8080-microprocessor, this pin receives the Read (RD) signal. Data read operation is initiated when this pin is pulled low and the chip is selected. When serial interface is selected, this pin E(RD) must be connected to VSS.

R/W#：This pin is MCU interface input. When interfacing to a 6800-series microprocessor, this pin is used as Read/Write (R/W) selection input. Read mode will be carried out when this pin is pulled high

and write mode when low.

When 8080 interface mode is selected, this pin is the Write (WR) input. Data write operation is initiated when this pin is pulled low and the chip is selected. When serial interface is selected, this pin R/W must be connected to VSS.

RS#：This pin is Data/Command control pin. When the pin is pulled high, the data at D0-D7 is treated as display data. When the pin is pulled low, the data at D0-D8 is transferred to the command

register. For detail relationship to MCU interface signals, please refer to the timing characteristics diagrams at following pages and datasheet.

RES#：This pin is reset signal input. When the pin is low, initialization of the chip is executed.

Product No.

DD-2832BE-1A REV. A

Page 5 / 14

CS#：This pin is the chip select input. The chip is enabled for MCU communication only when CS is pulled low.

VCC：This is the most positive voltage supply pin of the chip.

VDD3.3V：Power supply pin for logic operation of the driver.

Product No.

DD-2832BE-1A REV. A

Page 6 / 14

3 Timing characteristics

VDD = 2.4 to 3.5V, TA= -40to 85°C

Table 1 6800-Series MPU Parallel Interface Timing Characteristics

Figure 1 6800-series MPU parallel interface characteristics

Product No.

DD-2832BE-1A REV. A

Page 7 / 14

Table 2 8080-Series MPU Parallel Interface Timing Characteristics

Figure 2 8080-series MPU parallel interface characteristics

Product No.

DD-2832BE-1A REV. A

Page 8 / 14

Table 3 Serial Interface Timing Characteristics

Figure 3 Serial Interface Timing Characteristics

Product No.

DD-2832BE-1A REV. A

Page 9 / 14

Table 4 I2C Interface Timing Characteristics

Figure 4 I2C Interface Characteristics

Product No.

DD-2832BE-1A REV. A

Page 10 / 14

Connection Between OLED and EVK

Figure 5 EVK PCB and DD-2832BE-1A Module

Figure 6 the DD-2832BE-1A and EVK assembled (Top view)

Product No.

DD-2832BE-1A REV. A

Page 11 / 14

As the package is TCP, the connector pads are double sided. When assembling the OLED, make sure it in the right direction as shown in Figure 6 and tightened with the two hexagonal bolts.

Figure 7 control MCU (not supplied) connected with EVK

Note 1：It is the external most positive voltage supply. In this sample is connected to power supply.

Product No.

DD-2832BE-1A REV. A

Page 12 / 14

4 How to use the DD-2832BE-1A

Product No.

DD-2832BE-1A REV. A

Reset Set

RES#=0; Delay 10ms; RES#=1

Initial IC

code

Suggest all registers set again

Display on

Clear RAM

Start

sending

data

Page 13 / 14

4.1 Recommended Initial code

Product No.

DD-2832BE-1A REV. A

Page 14 / 14
