Denon TU-1500 Service Manual
Specifications and Main Features
- Enumerator Model: TU-1500, TU-1500RD
- Frequency Range Specification:
- FM: 87.5Mhz – 108.0Mhz
- AM: 522kHz – 1611kHz
- Usable Sensitivy (For frequency modulation):
- FM: 0.9 µV (DIN)
- AM: 18µV
- Sensitivity Limit Signal Report:
- FM Mono: 82 dB
- FM Stereo: 78 dB
- Total Function Distortion (For frequency modulation):
- FM Mono: 0.08%
- FM Stereo: 0.12%
- Output Impedance: 75 Ohm
- Power Supply: 30W
- Dimensions: 434mm x 75mm x 242mm (W x H x D)
- Weight: 2.5 kg
- Voltage Rating: AC 230V, 50/60 Hz
- Preset Memor Records: Total 40 (A1-A8, B1-B8, C1-C8, D1-D8, E1-E8)
- Control Panel Specification: RC-824
- Other Capabilities Include: Wide Band/Narrow Band Switch Selection, EON (Enhanced Other Network) Function, Automatic Tuning, Manual Tuning, RDS (Radio Data System) Functions, Programmable Types and Station Name.
Frequently Asked Questions
Q: What is the principal use of TU-1500?
A: TU-1500 is designed to receive radio signals through FM or AM transmissions.
Q: How can the FM and Am antennas be set up?
A: Locate the FM and the AM terminals and refer to the manual to connect the FM antenna and the AM loop antenna respectively.
Q: If a device is not producing any noise, what can be done?
A: Firstly ensure that the speaker type is well connected and the power cord is inserted correctly. Once you have checked the sound volume, make sure that the correct frequency has been set.
Q: Which is the procedure to preserve certain FM radio stations?
A: It is simple, all you need to do is, select the desired station, press the MEMORY button, and choose a preset channel to save the station in its memory.
Q: Do you have any idea what the EON function is for?
A: EON is used to allow a tuner to rapidly change to a different station for the provision of traffic or news information.
Q: Is it possible for the remote control to access all the functions of the TU-1500 in its entirety?
A: The remote control has full access to the majority of the functions, however some can only be obtained on the unit itself.
Q: Where can I obtain spare parts best suited for the TU-1500?

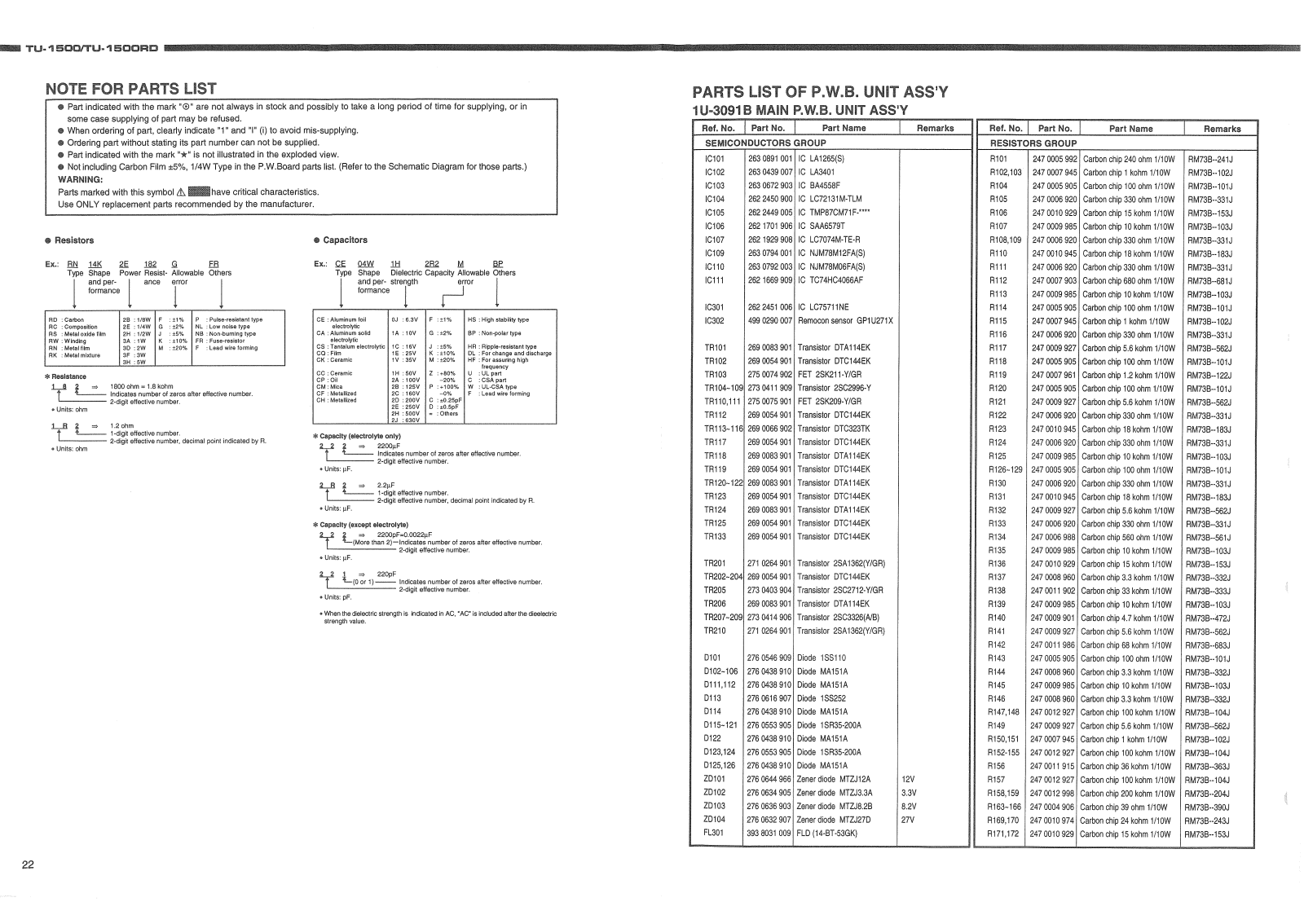

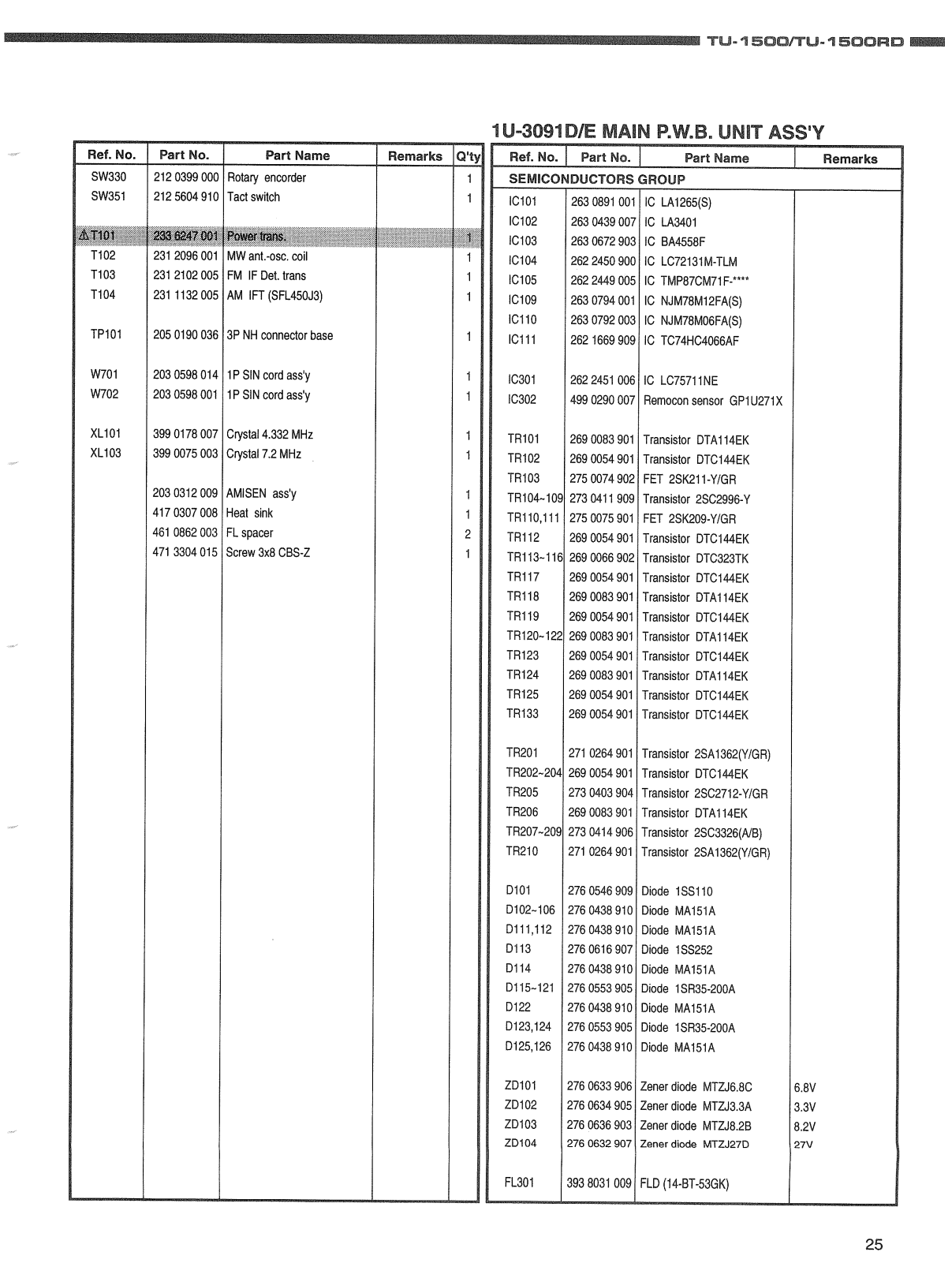

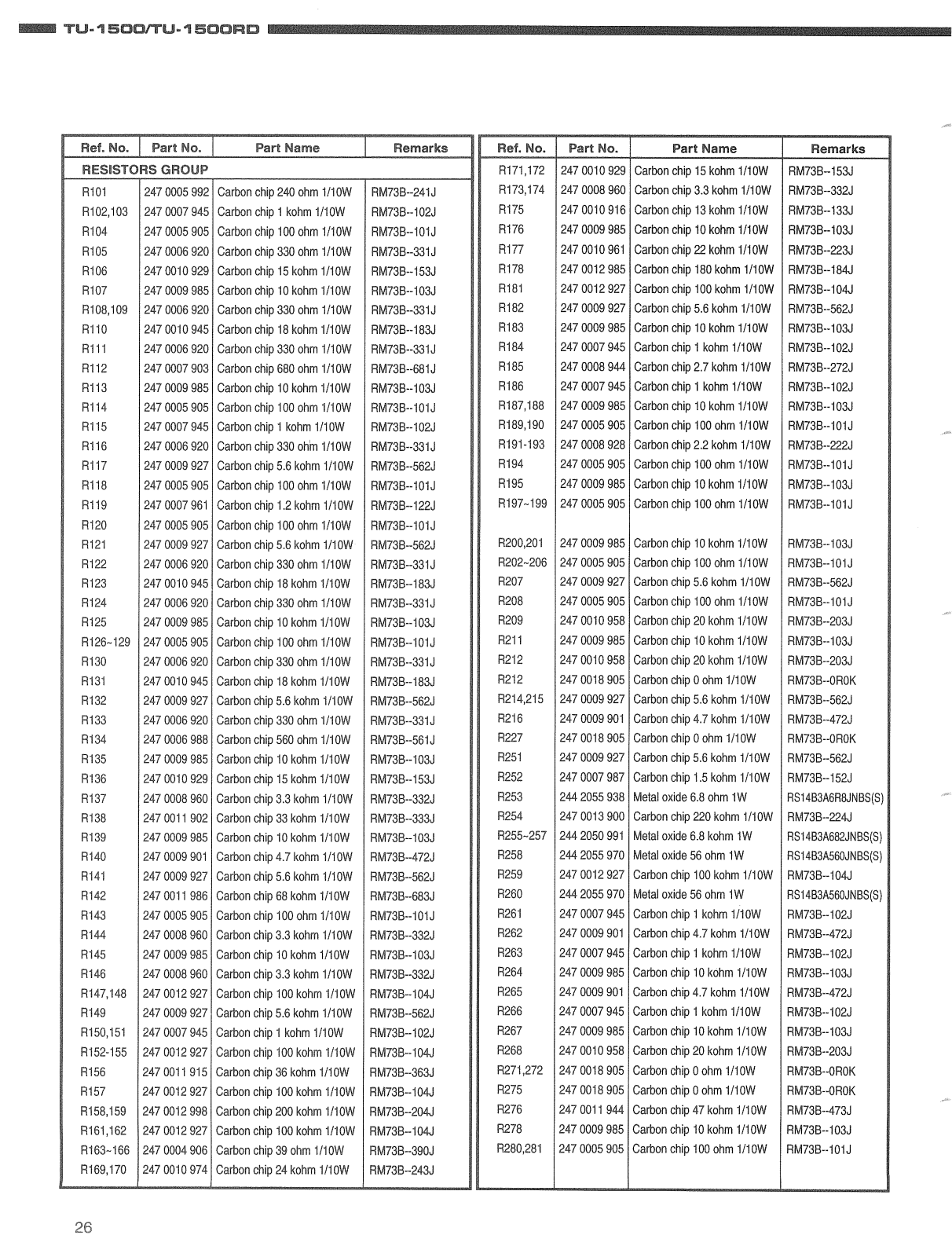

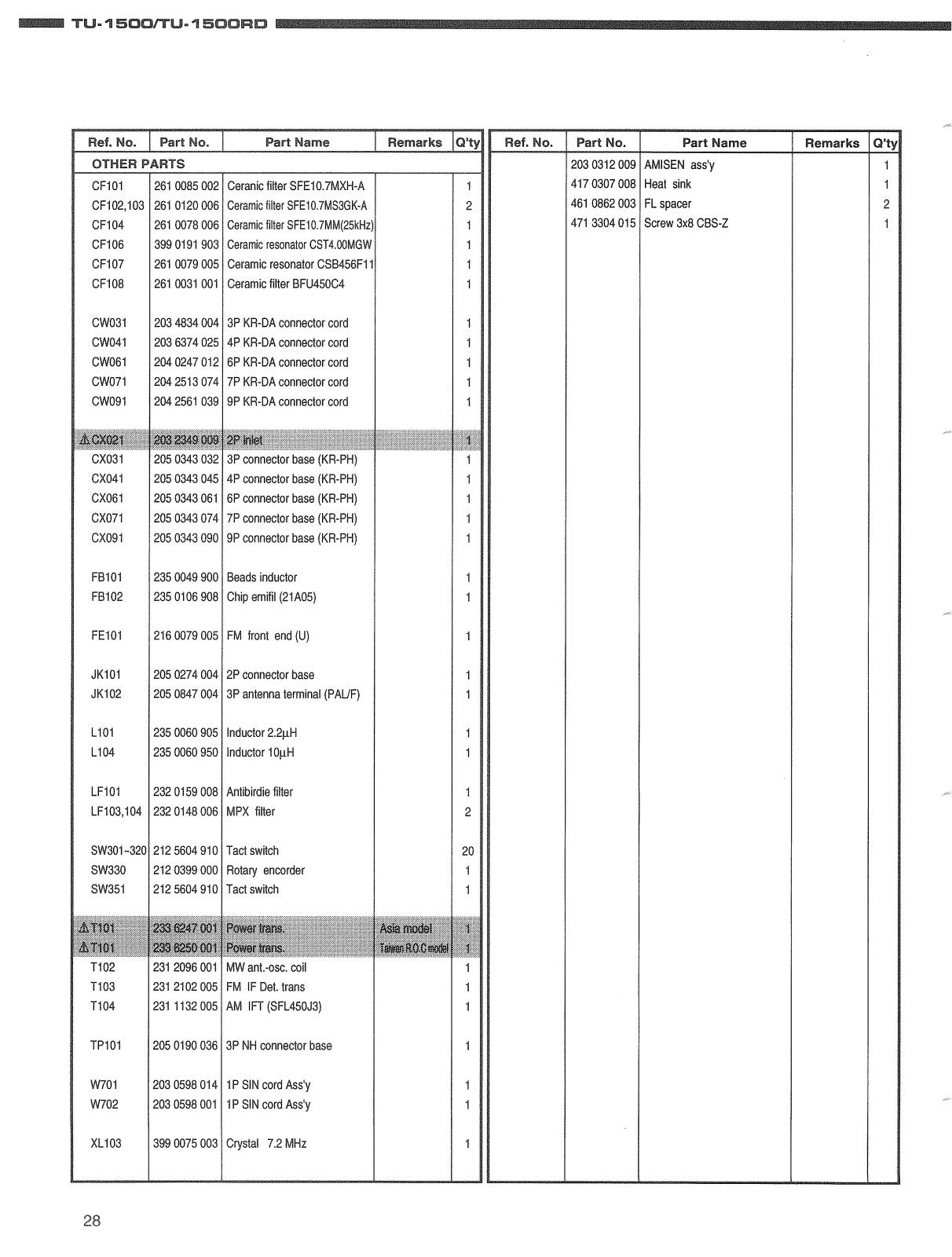

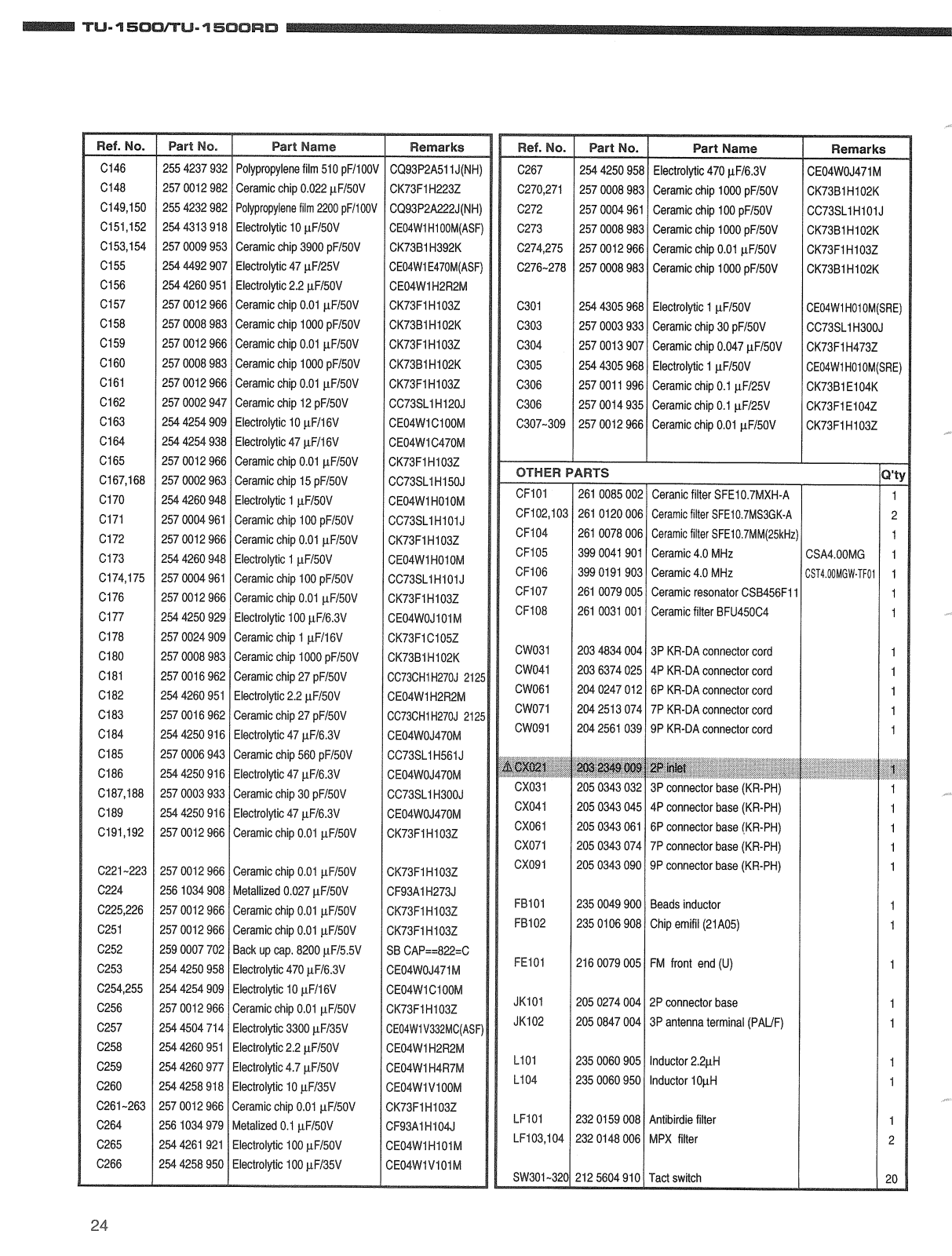

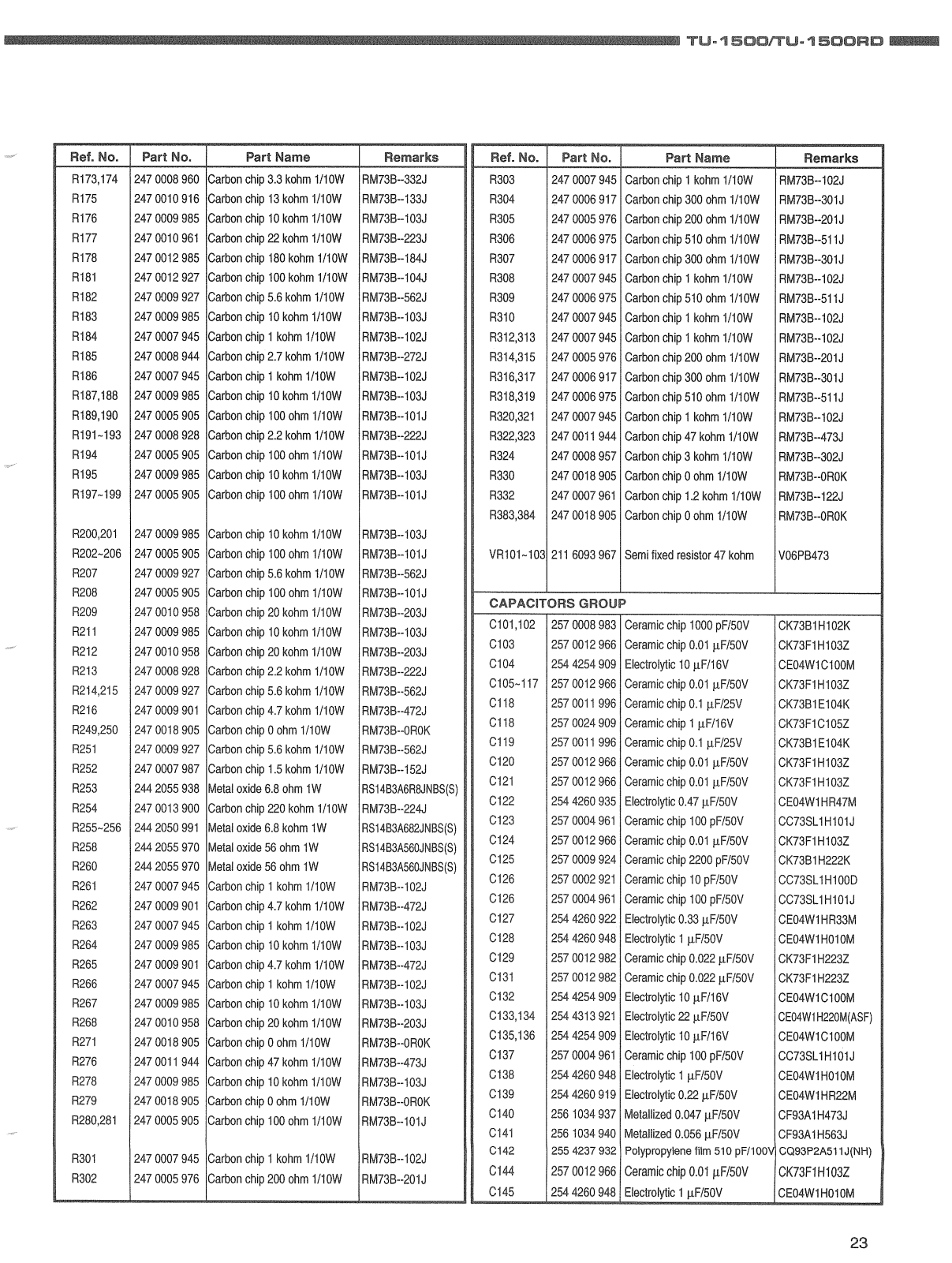

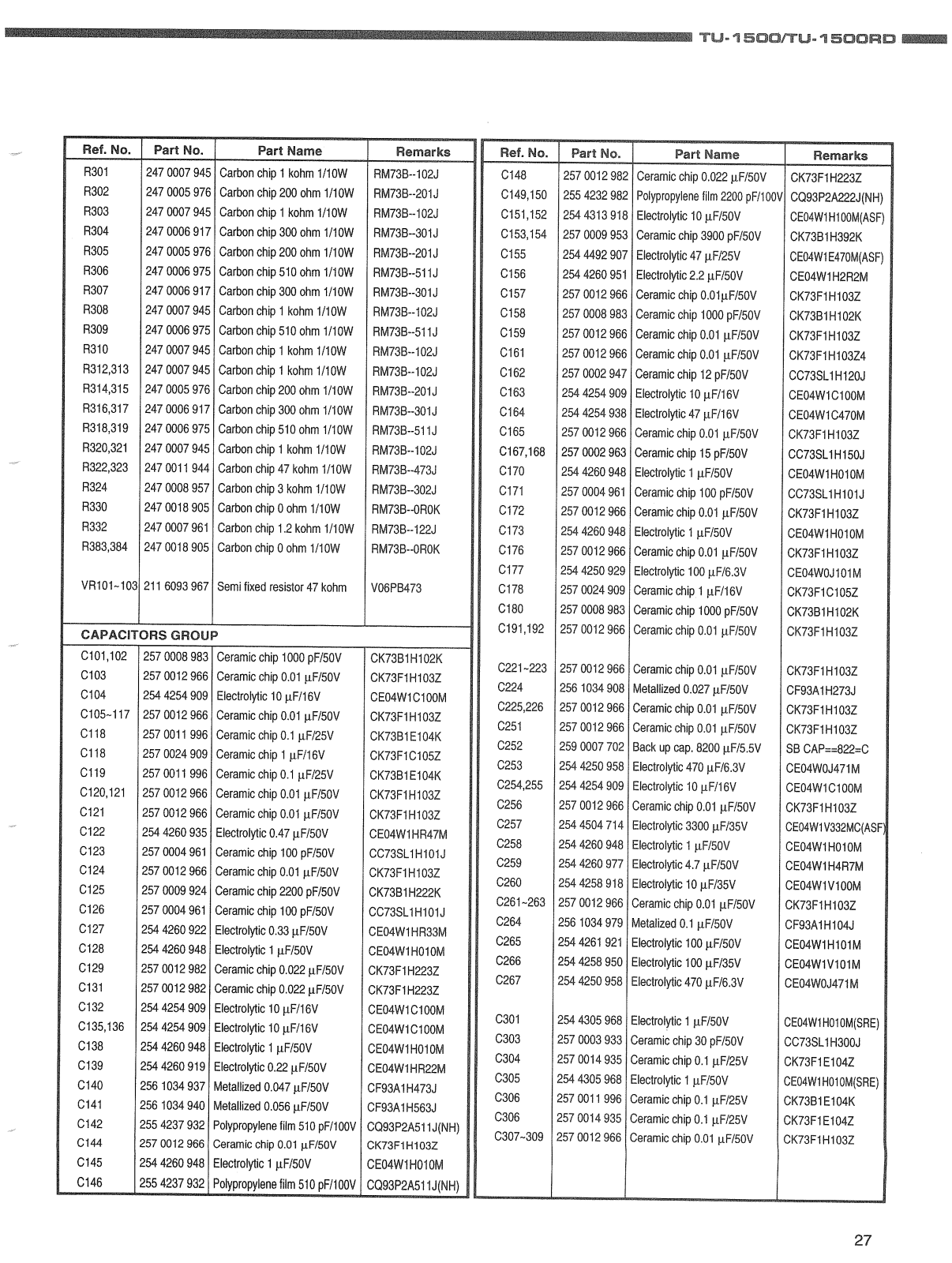

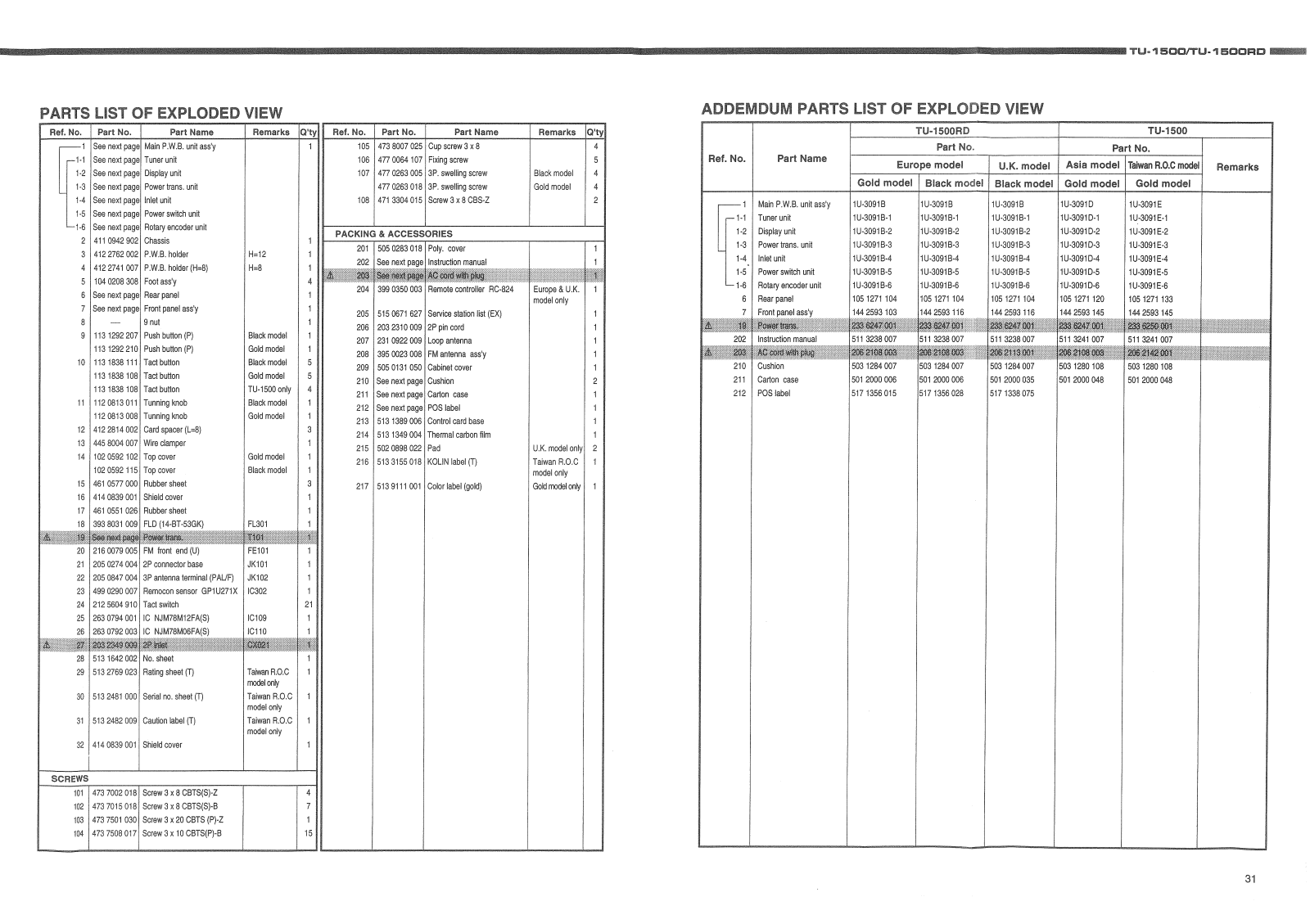

A: Parts can be purchased from certified sellers, consult the parts list that is found within the manual to locate numbers and details that are relevant to the parts.
Q: What courses of action can I take if the remote control is malfunctioning?
A: Look to see if the batteries that are in the remote control need to be changed and check that no other objects are obstructing the remote sensor.
Q: Through what means can I change the state of the device back to the original factory settings?
A: To change the state of your device follow the procedures in the manual and plug and press down on the correct keys on the device to reset it.
