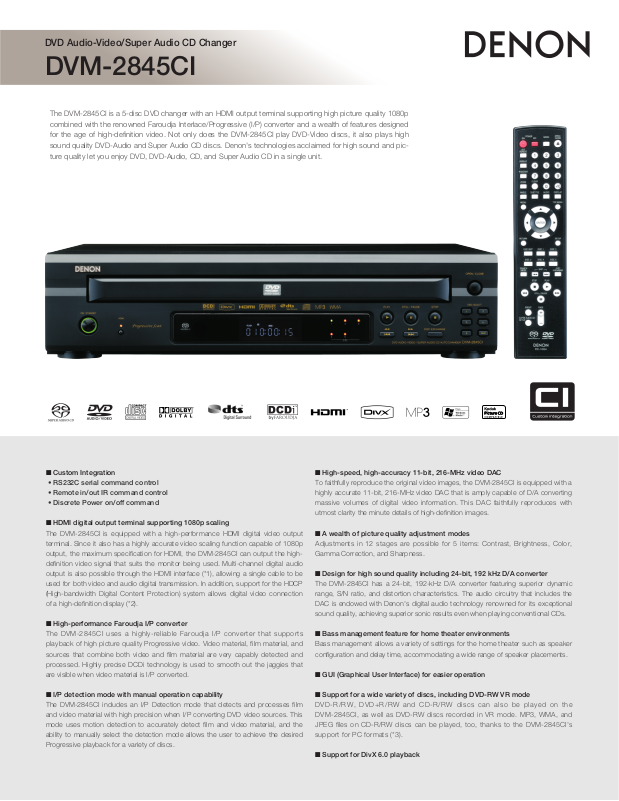

Denon DVM-2845, DVM-2845CI Specifications

DVD Audio-Video/Super Audio CD Changer

DVM-2845CI

The DVM-2845CI is a 5-disc DVD changer with an HDMI output terminal supporting high picture quality 1080p
combined with the renowned Faroudja Interlace/Progressive (I/P) converter and a wealth of features designed
for the age of high-definition video. Not only does the DVM-2845CI play DVD-Video discs, it also plays high
sound quality DVD-Audio and Super Audio CD discs. Denon's technologies acclaimed for high sound and pic­ture quality let you enjoy DVD, DVD-Audio, CD, and Super Audio CD in a single unit.

■ Custom Integration

• RS232C serial command control

• Remote in/out IR command control

• Discrete Power on/off command

■ HDMI digital output terminal supporting 1080p scaling

The DVM-2845CI is equipped with a high-performance HDMI digital video output
terminal. Since it also has a highly accurate video scaling function capable of 1080p
output, the maximum specification for HDMI, the DVM-2845CI can output the high­definition video signal that suits the monitor being used. Multi-channel digital audio
output is also possible through the HDMI interface (*1), allowing a single cable to be
used for both video and audio digital transmission. In addition, support for the HDCP
(High-bandwidth Digital Content Protection) system allows digital video connection
of a high-definition display (*2).

■ High-performance Faroudja I/P converter

The DVM-2845CI uses a highly-reliable Faroudja I/P converter that supports
playback of high picture quality Progressive video. Video material, film material, and
sources that combine both video and film material are very capably detected and
processed. Highly precise DCDi technology is used to smooth out the jaggies that
are visible when video material is I/P converted.

■ I/P detection mode with manual operation capability

The DVM-2845CI includes an I/P Detection mode that detects and processes film
and video material with high precision when I/P converting DVD video sources. This
mode uses motion detection to accurately detect film and video material, and the
ability to manually select the detection mode allows the user to achieve the desired
Progressive playback for a variety of discs.

■ High-speed, high-accuracy 11-bit, 216-MHz video DAC

To faithfully reproduce the original video images, the DVM-2845CI is equipped with a
highly accurate 11-bit, 216-MHz video DAC that is amply capable of D/A converting
massive volumes of digital video information. This DAC faithfully reproduces with
utmost clarity the minute details of high-definition images.

■ A wealth of picture quality adjustment modes

Adjustments in 12 stages are possible for 5 items: Contrast, Brightness, Color,
Gamma Correction, and Sharpness.

■ Design for high sound quality including 24-bit, 192 kHz D/A converter

The DVM-2845CI has a 24-bit, 192-kHz D/A converter featuring superior dynamic
range, S/N ratio, and distortion characteristics. The audio circuitry that includes the
DAC is endowed with Denon's digital audio technology renowned for its exceptional
sound quality, achieving superior sonic results even when playing conventional CDs.

■ Bass management feature for home theater environments

Bass management allows a variety of settings for the home theater such as speaker
configuration and delay time, accommodating a wide range of speaker placements.

■ GUI (Graphical User Interface) for easier operation

■ Support for a wide variety of discs, including DVD-RW VR mode

DVD-R/RW, DVD+R/RW and CD-R/RW discs can also be played on the
DVM-2845CI, as well as DVD-RW discs recorded in VR mode. MP3, WMA, and
JPEG files on CD-R/RW discs can be played, too, thanks to the DVM-2845CI's
support for PC formats (*3).

■ Support for DivX 6.0 playback

DVM-2845CI

■ A wealth of functions to ensure full enjoyment of DVD

The DVM-2845CI's wealth of DVD functions includes playback functions that the
user can select to enjoy desired information, such as multi sound, captions,
or video angle, that is recorded on DVD discs. Another useful function is 2x
and 4x video zoom.

■ A Wealth of Playback Functions

The DVM-2845CI includes a wide variety of playback functions, such as Resume
Play, for returning to the Pause position on the disc after the playback was
restarted; Slow Play; Repeated Play (A-B, Chapter, Track, Disc); Random Play
and Program Play.

Specifications

Video Section

Signal system

NTSC

Disc played

DVD Audio, DVD Video, Music CD,
CD-R/RW (Audio/MP3/WMA/JPEG/Kodak picture CD/DivX)
DVD-R/RW (DivX), DVD+R/RW(DivX), Super Audio CD

Video outputs

Composite Video Output:

1.0 Vp-p (with 75 ohms load)

S-Video Output:

Y; 1.0 Vp-p (with 75 ohms load),
C; 0.286 Vp-p

Component Video Output:

Y, Pb/Cb, Pr/Cr:
Y; 1.0 Vp-p (with 75 ohms load),
Pb/Cb; 0.648 Vp-p (with 75 ohms load),
Pr/Cr; 0.648 Vp-p (with 75 ohms load)

1 HDMI Output (ver1.1)

*1) Version 1.1 compliant. HDMI audio output capacity is dependent on the monitor being used.

*2) HDMI outputs is HDCP compliant. Video cannot be viewed if connected to a monitor that does not support
HDCP; video can be viewed only on HDCP-compliant monitors.

*3) Discs that have been poorly finalized following recording may be only partially playable or not playable at all.

Audio Section

Audio outputs

1 Set of Analog Output (L/R)
1 Set of Multi channel (Front L/R, Center, Surround L/R, Subwoofer)
1 Optical Digital Output
1 Coaxial Digital Output
1 HDMI output
Frequency response

DVD 4 Hz - 22 kHz (48kHz sampling)

4 Hz - 44 kHz (96kHz sampling)

4 Hz - 88 kHz (192kHz sampling)
CD 4 Hz - 20 kHz
Super Audio CD 4 Hz - 100 kHz

Signal-to-noise ratio 115 dB
Dynamic range

DVD 100 dB
CD 98 dB

Total harmonic distortion 1 kHz CD: 0.003%

General

Power supply AC 120 V, 60 Hz
Power Consumption 17 W (Standby: 0.8 W)
Dimensions 435 (W) x 104 (H) x 370 (D) mm

17-3/32” (W) x 4-3/32” (H) x 14-9/16” (D)

Weight 4.5 kg, 9.92 lbs
Remote Control Unit RC-1017

* Design and specifications are subject to change without notice.
* "Dolby" and the double-D symbol are registered trademarks of Dolby Laboratories.
* “DTS” and “DTS Digital Surround” are registered trademarks of DTS Inc.
* “DCDiTM” is a trademark of Faroudja, a division of Genesis Microchip Inc.
* HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
* "WMA"(Windows Media Audio) is a new audio codec developed by Microsoft® in the United States of America.
* DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc. and are used under license.
