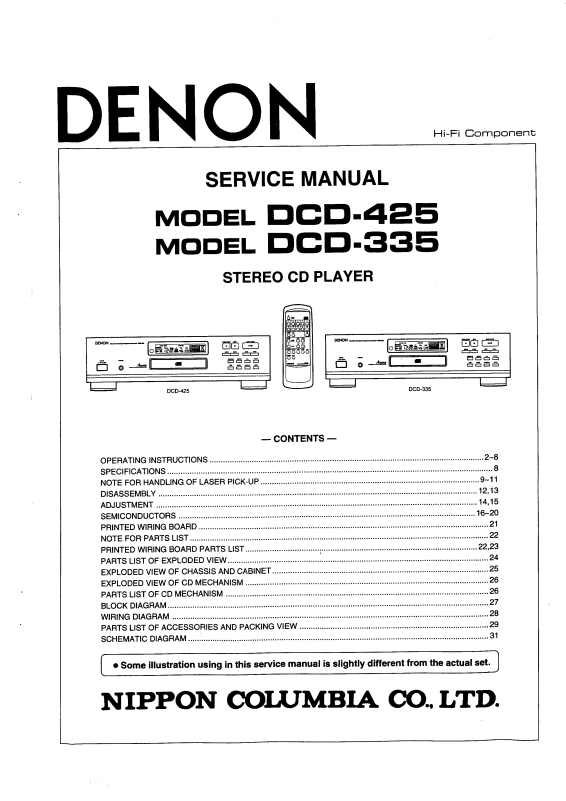

Denon DCD425, DCD-325 Service Manual

Specifications and Main Features
  • Model: DCD-425 / DCD-335
  • Supported Media: CD, CD-R, CD-RW
  • Operating Frequency Range: 2 Hz - 20 KHz
  • Observed Amount of Total Harmonic Distortion(THD): 0.002%
  • Signal to Noise Ratio: 110 dB
  • Channel Isolation: 100 dB
  • Voltage Output: 2.0 V pronounced in RMS
  • Operating Watts: 15 W
  • Size: 430 mm in Width, 290 mm in Depth and 100 mm in height
  • Mass: 3.5 kg

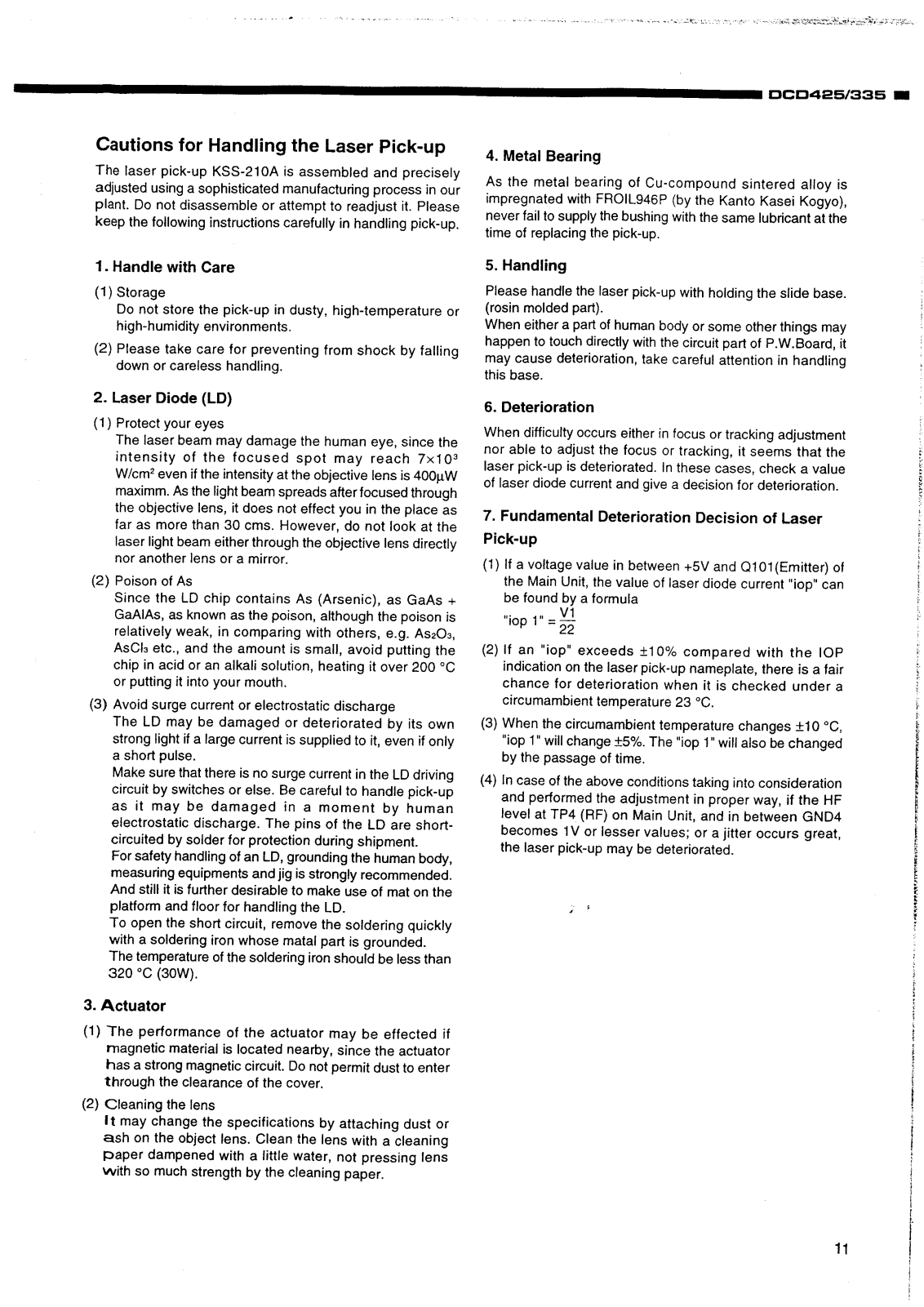

  • Type Of Laser Pickup Used: KSS-210A
  • Type of output port: Coaxial/Optical
  • Usage Of Remote Control: Yes
Frequently Asked Questions

Q1: What formats of discs could be used in DCD-425 / DCD-335 player’s slot?

A1: DCD-425 / DCD-335 has compatibility for CD, CD-R as well as CD-RW discs.

Q2: What about the power that the device requires to be used?

A2: The device requires 15 watts to be able to operate and be used.

Q3: Is a remote control compatible devices working in conjunction with DCD-425 / DCD-335?

A3: It does work together, in fact makes the use even more refreshing.

Q4: How large or small the device can be classified based on its dimensions?

A4: Size of the device is classified in terms of its dimension which are 430 mm in width, 290 mm depth and 100 mm height.

Q5: How much can the total harmonic distortion of the device increase up to?

A5: The total harmonic distortion of the device increases up to 0.002 percent to be exact.

Q6: Is there a presence of optical output in DCD-425 / DCD-335?

A6: Yes there is a presence for coaxial analogue and also optical digital outputs.

Q7: How much does the gadget weigh?

A7: The gadget weighs 3.5 kg.

Q8: What is the range of frequency response of the device?

A8: The device has a frequency response of 2 Hz to 20 kHz.

User Manual
Page 1
Denon DCD425, DCD-325 Service Manual - ManualMachine.com
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
