Denon AVR-S970H User guide

Download

Page 1

Contents Connections Playback Settings Tips Appendix

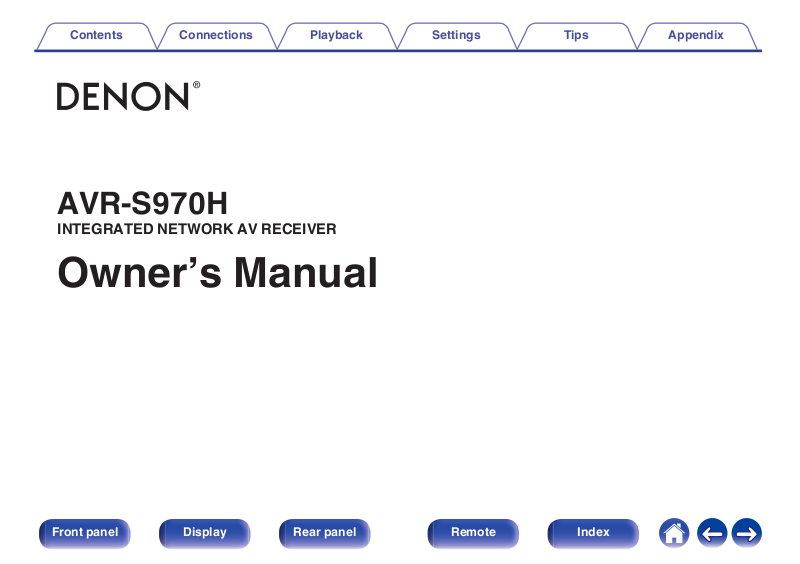

AVR-S970H

INTEGRATED NETWORK AV RECEIVER

Owner’s Manual

Front panel Display Rear panel Remote Index

Page 2

Contents Connections Playback Settings Tips Appendix

Accessories

Inserting the batteries Operating range of the remote control unit

Features

High quality sound High performance Easy operation

Part names and functions

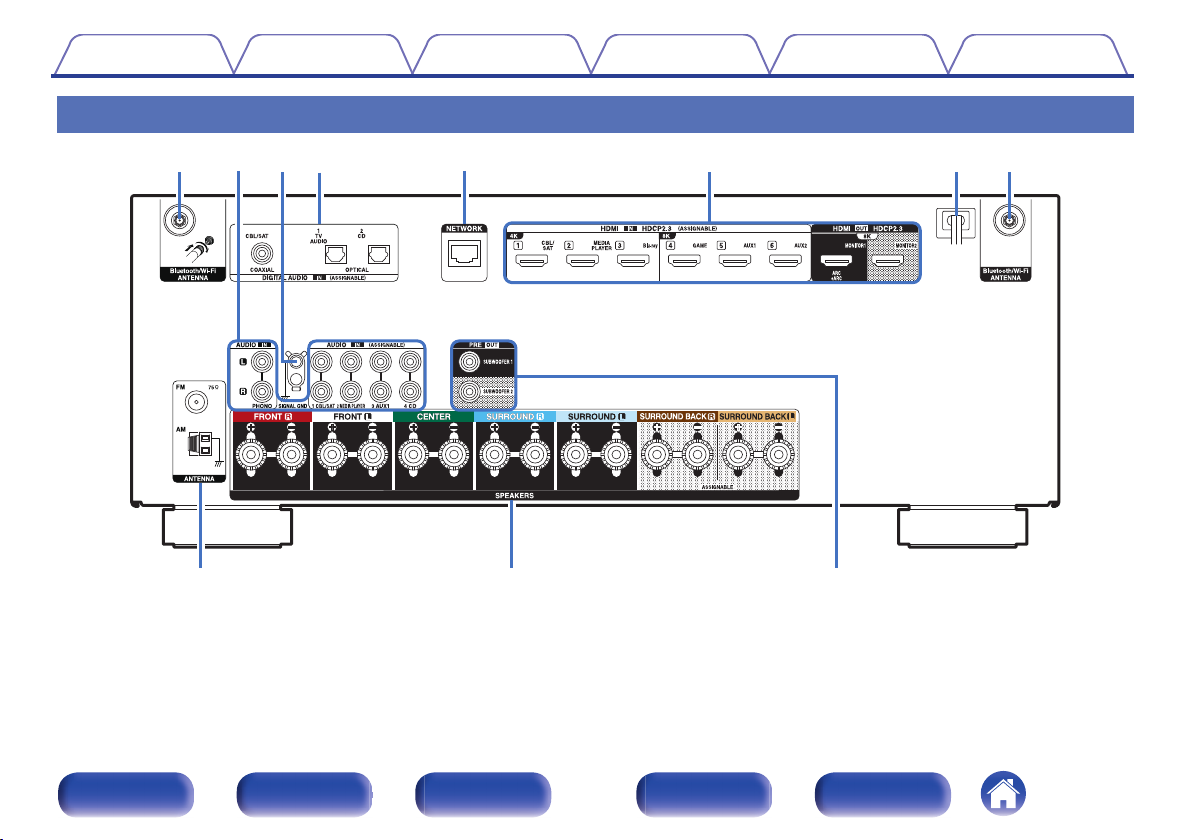

Front panel Display Rear panel Remote control unit

Connections

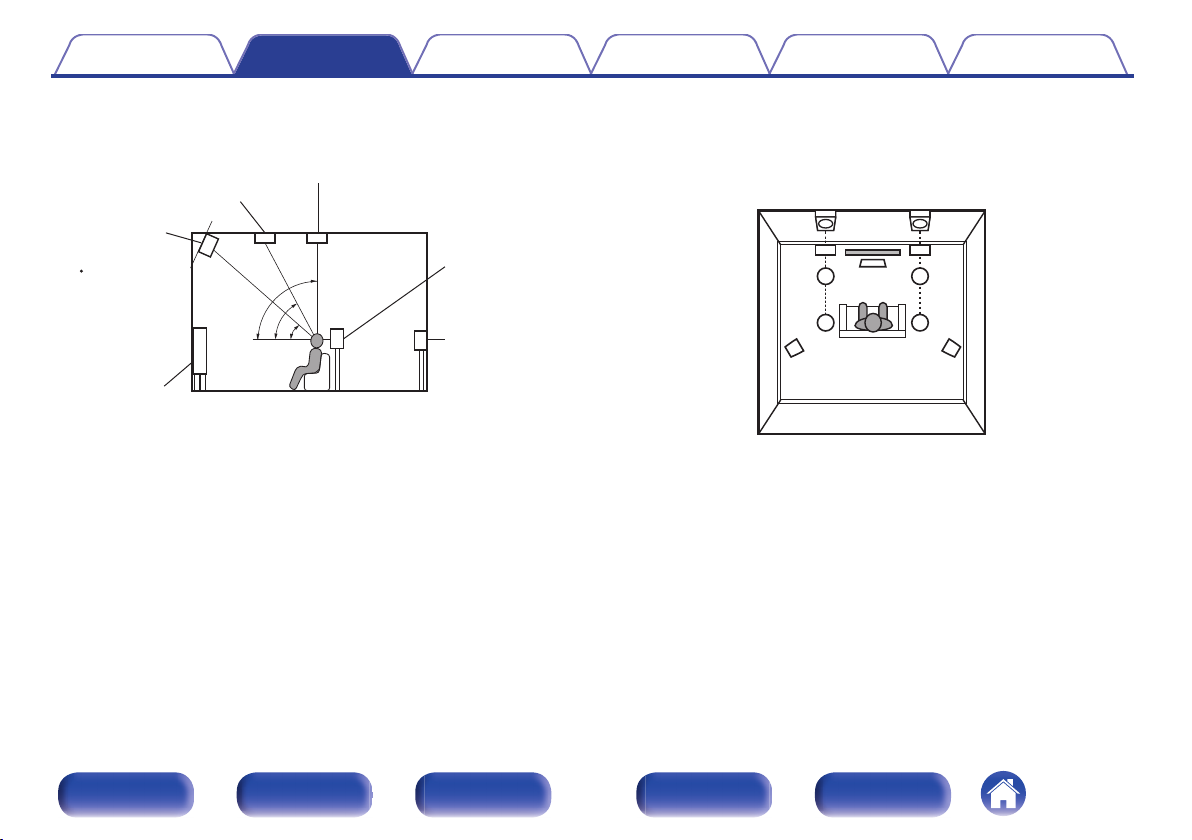

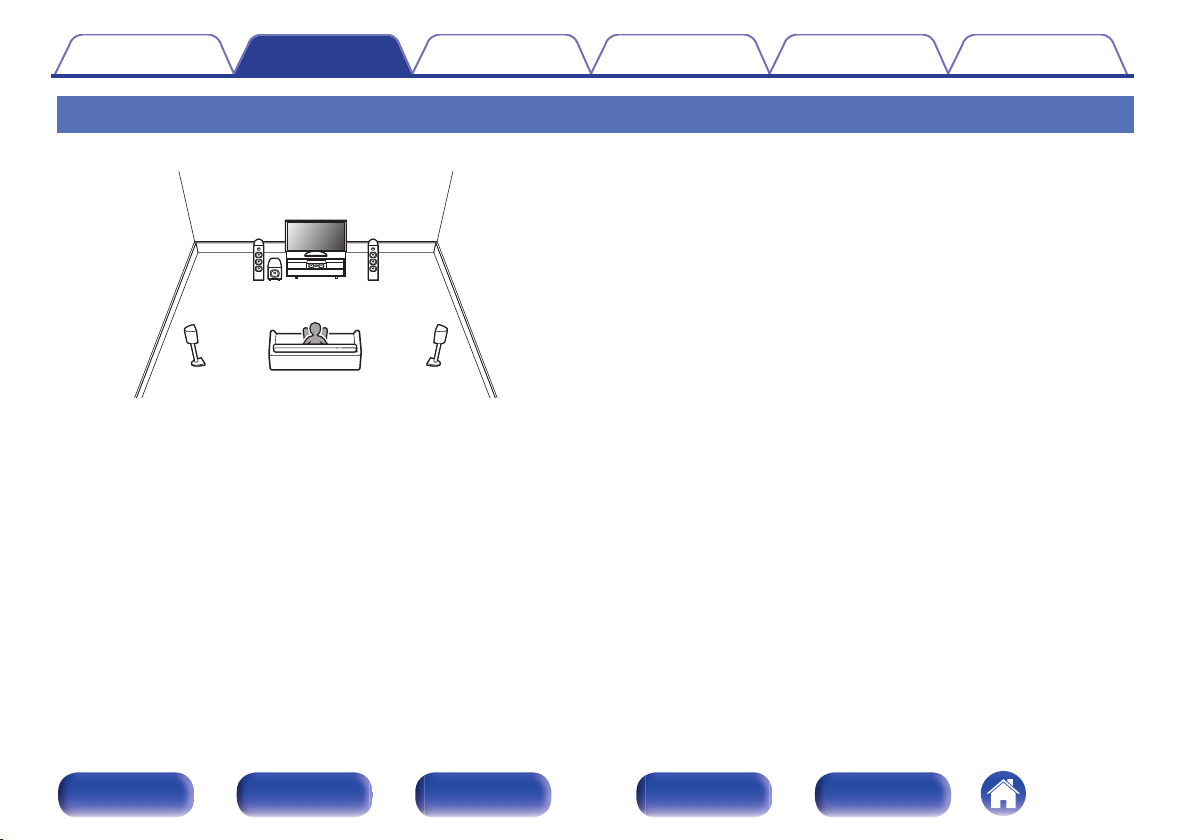

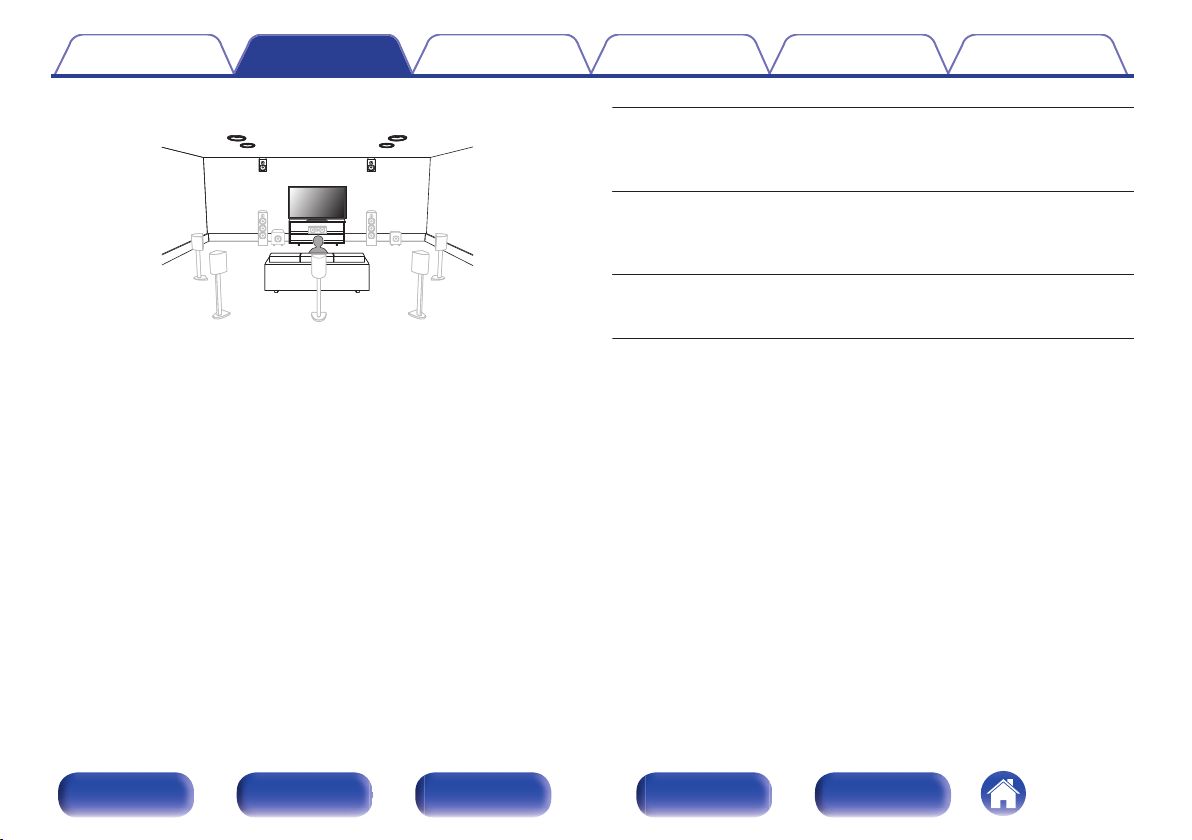

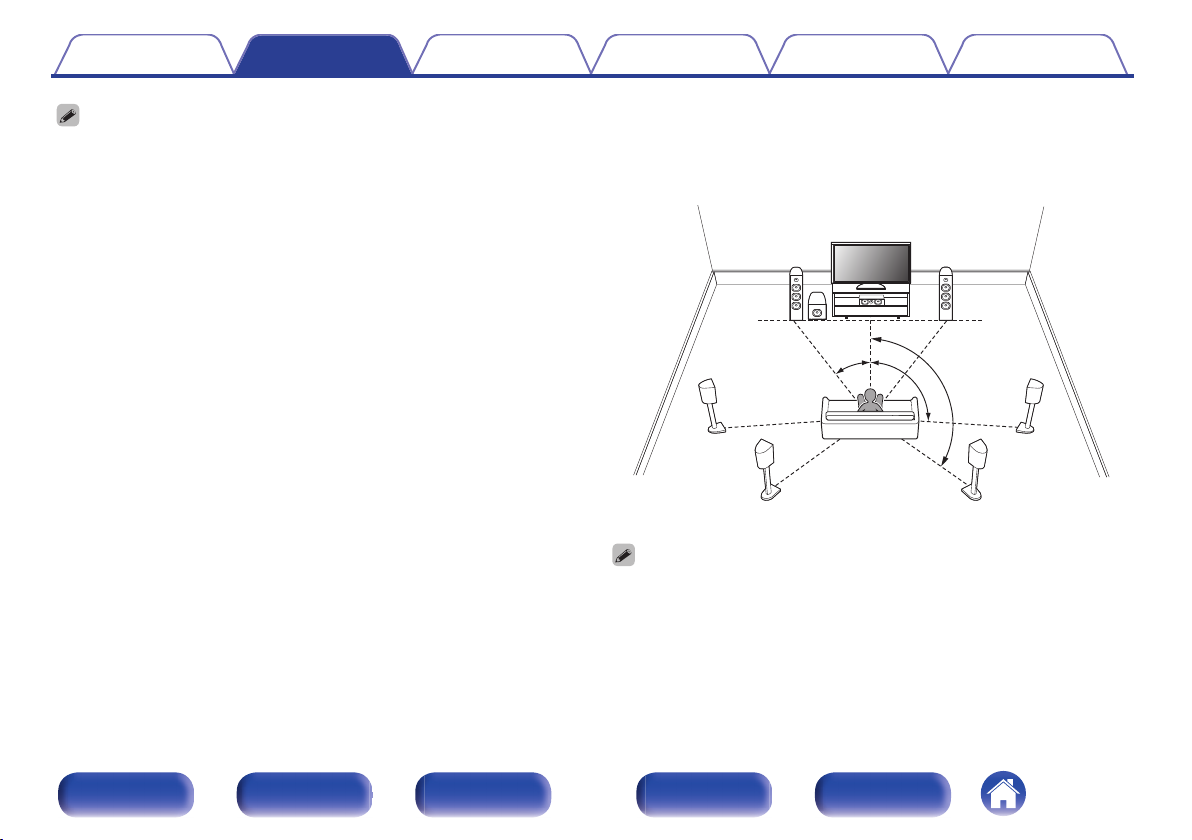

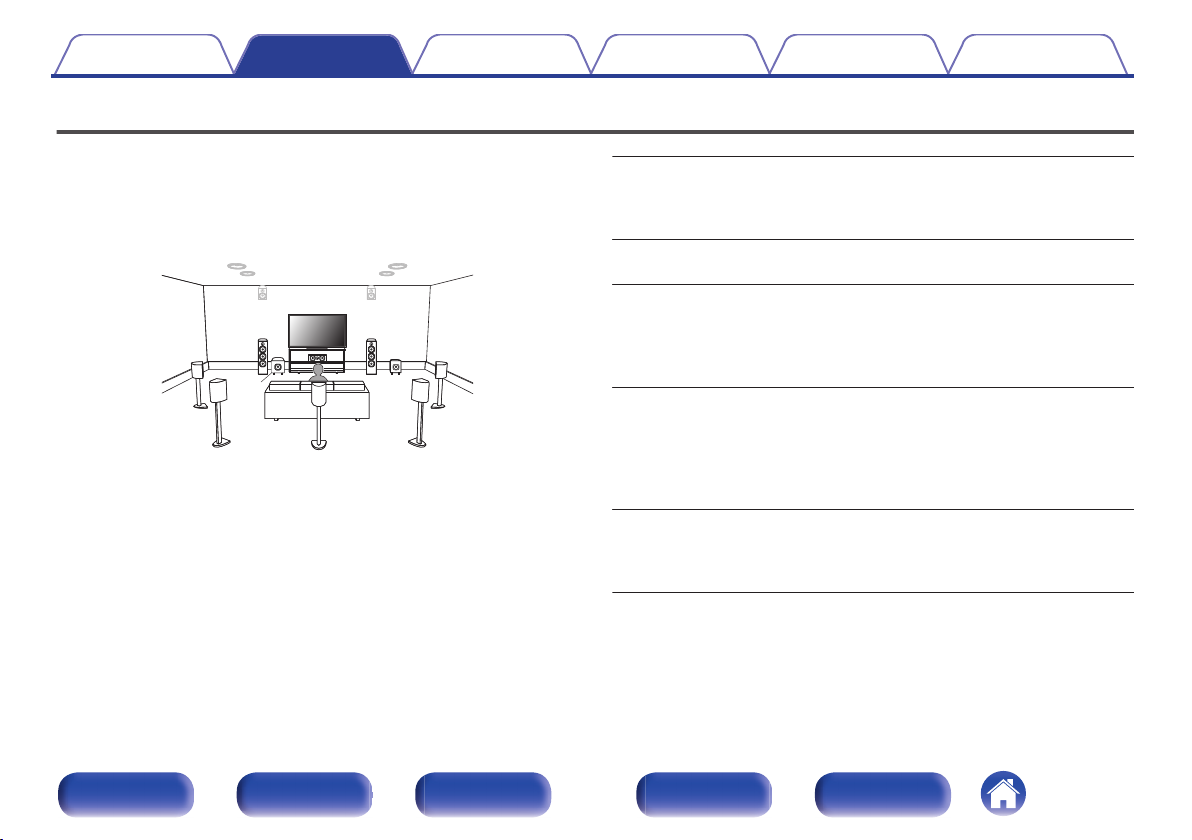

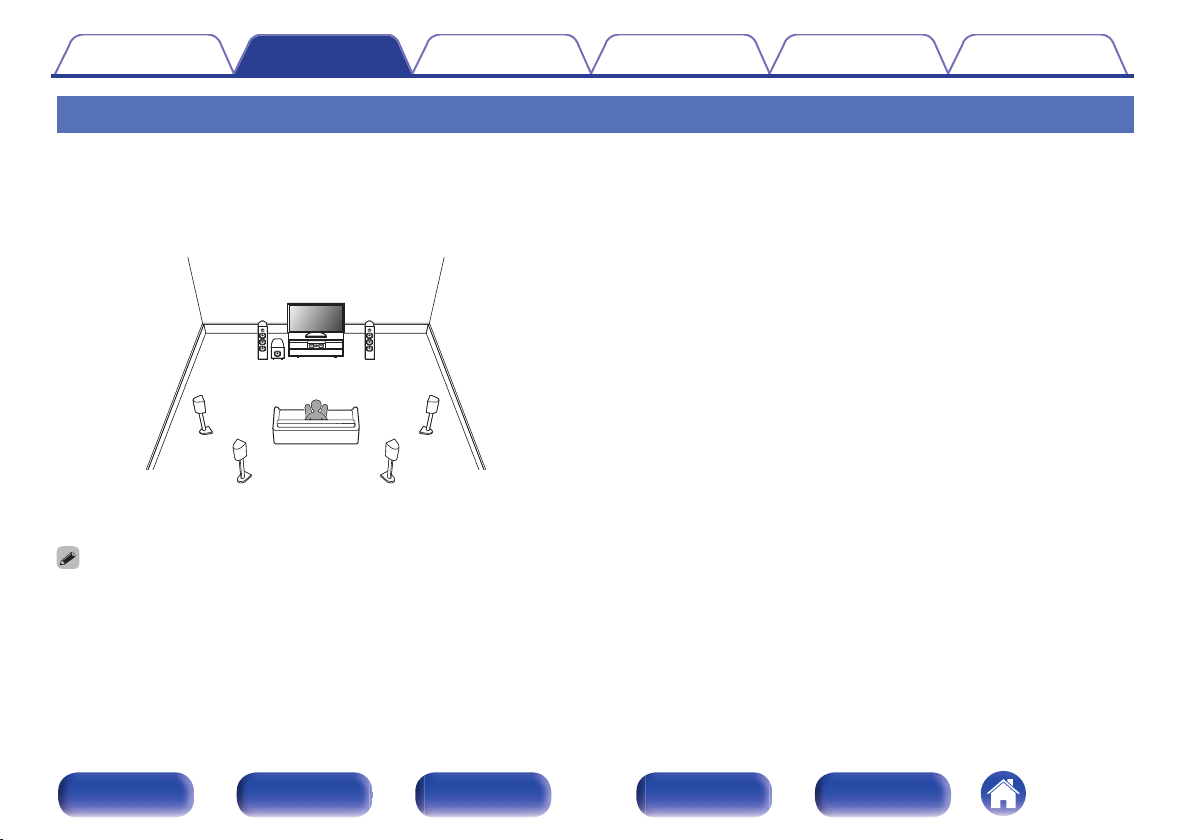

Speaker installation

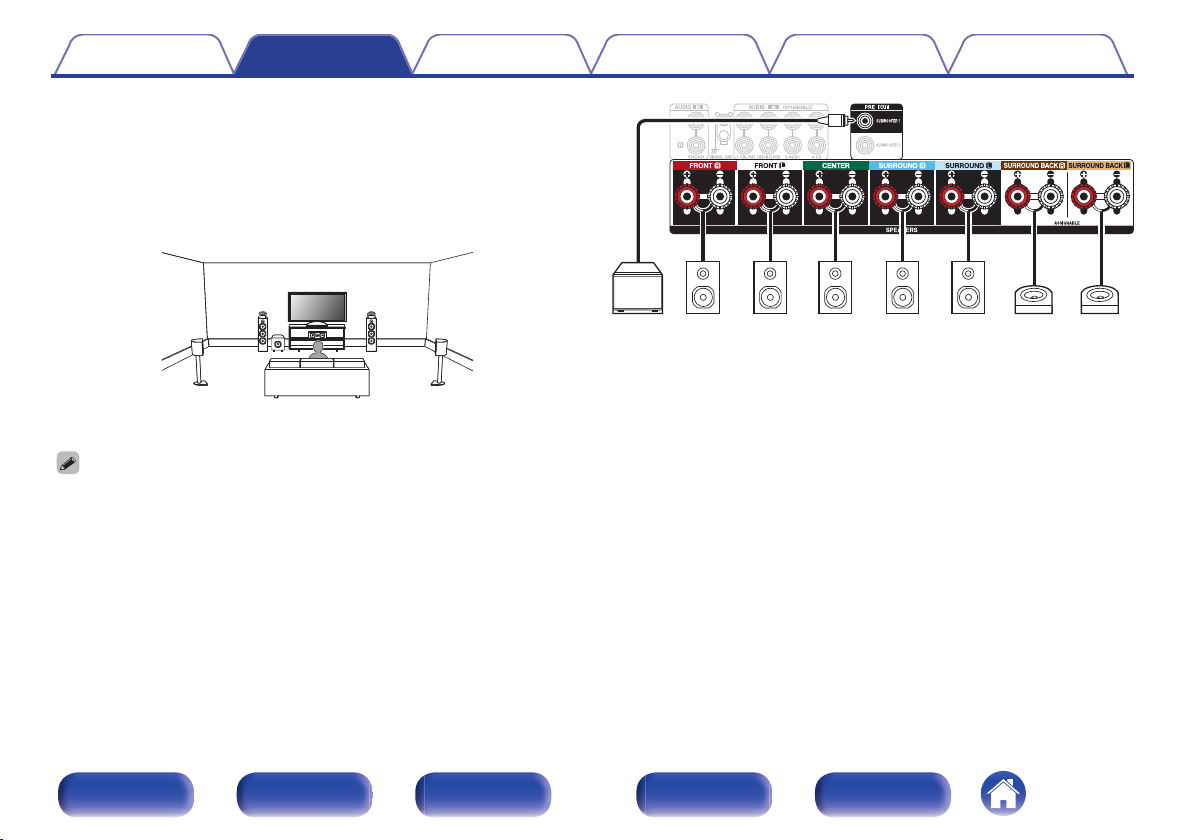

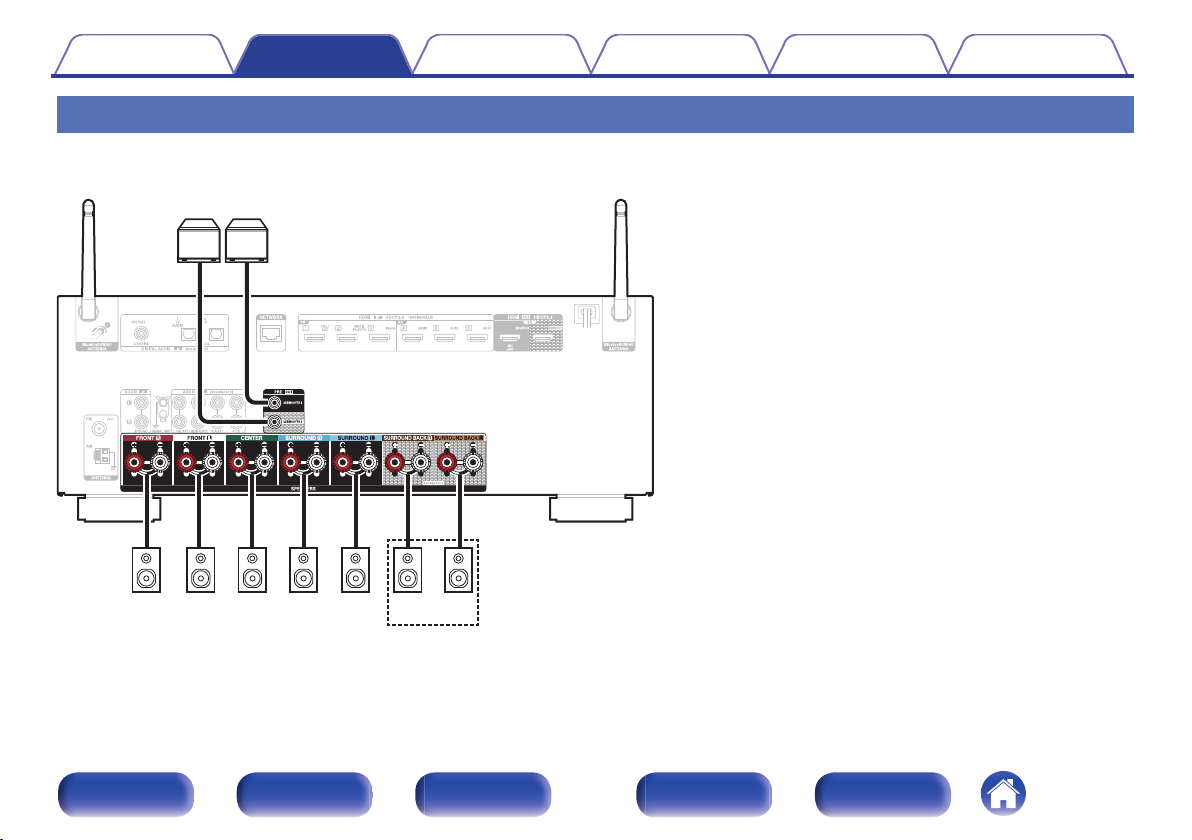

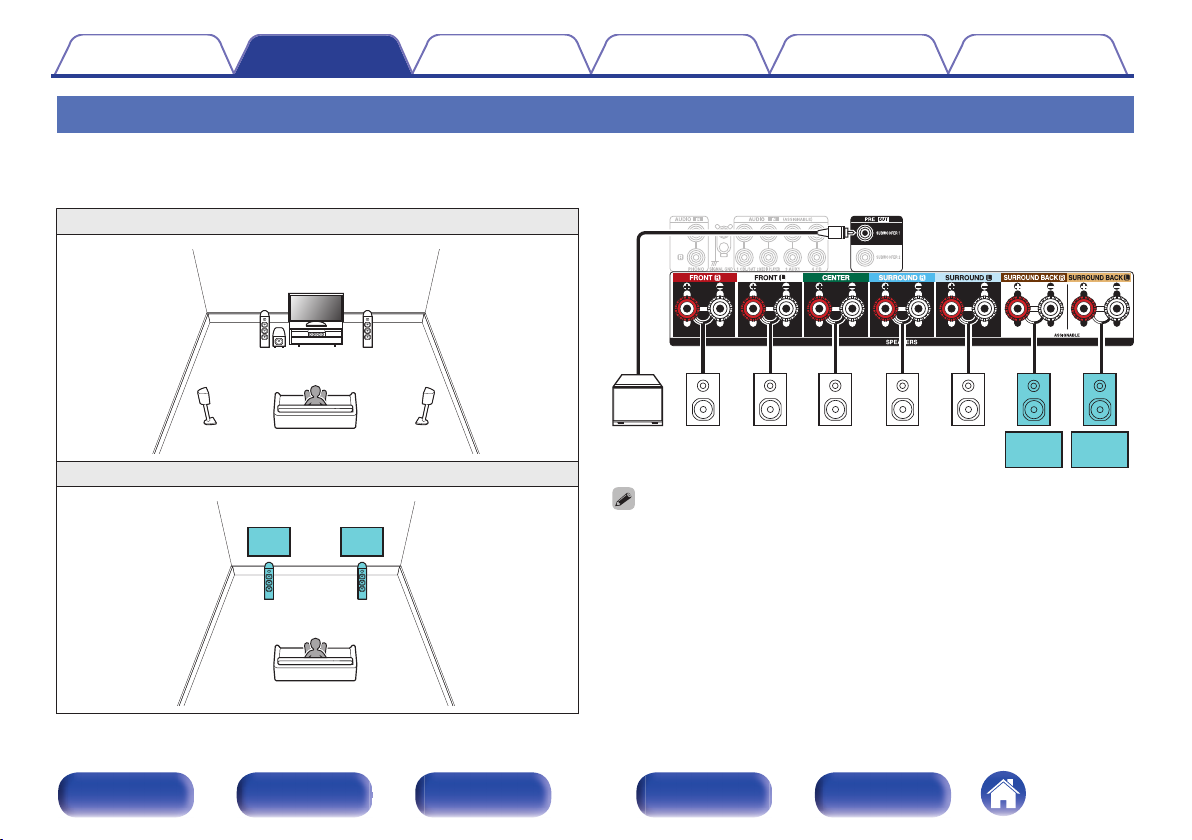

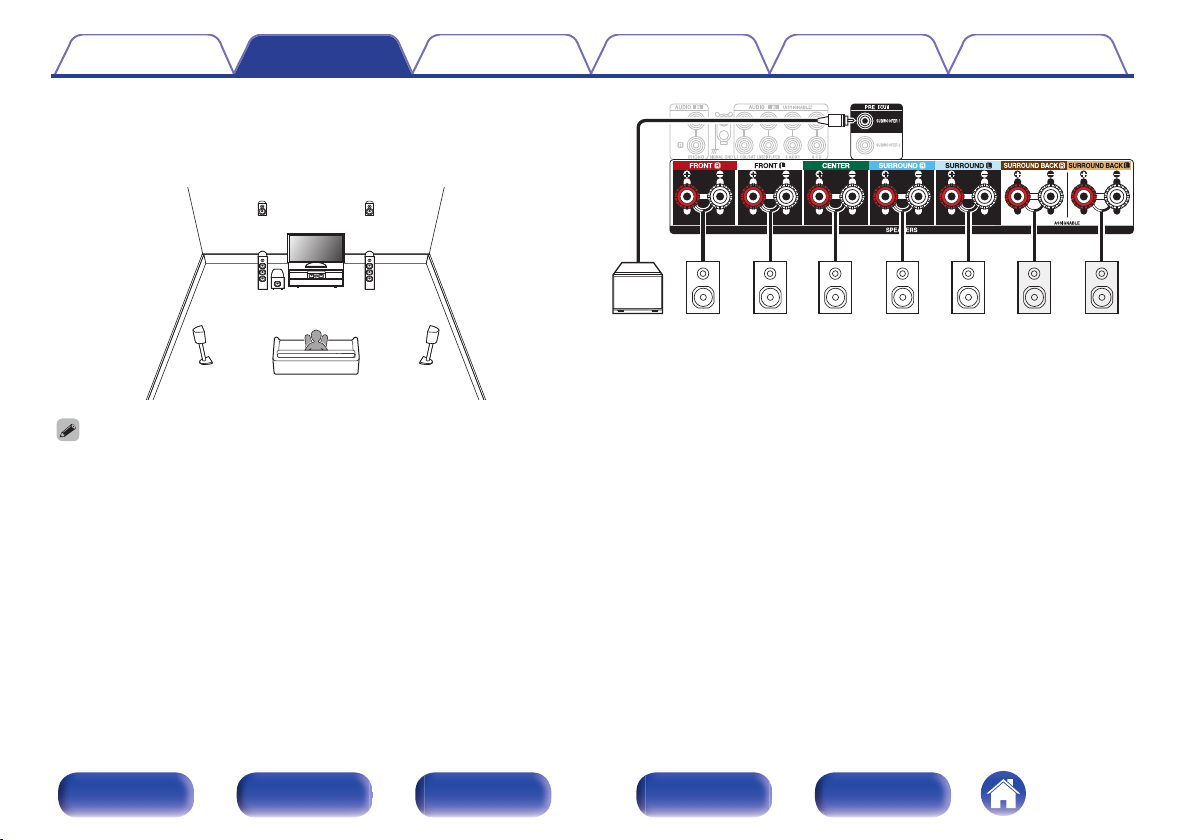

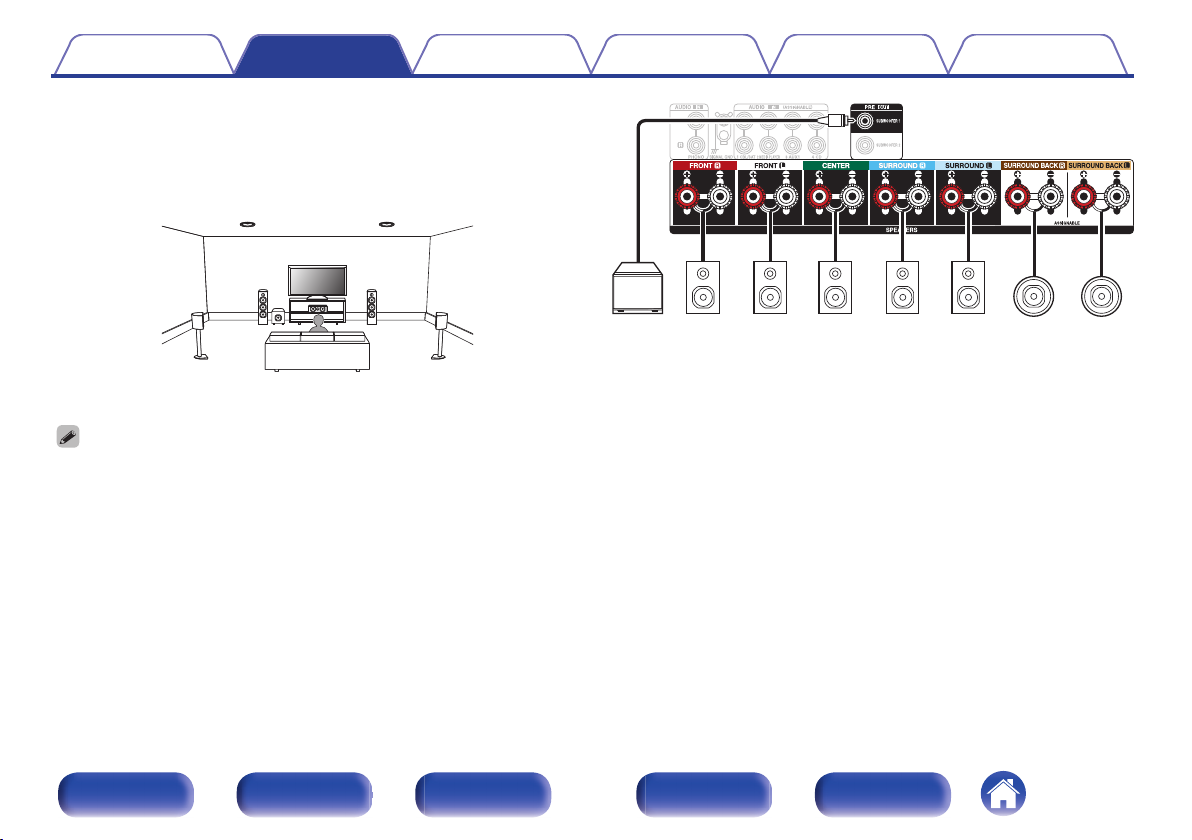

Connecting speakers

11 12 16

17 21 23 26

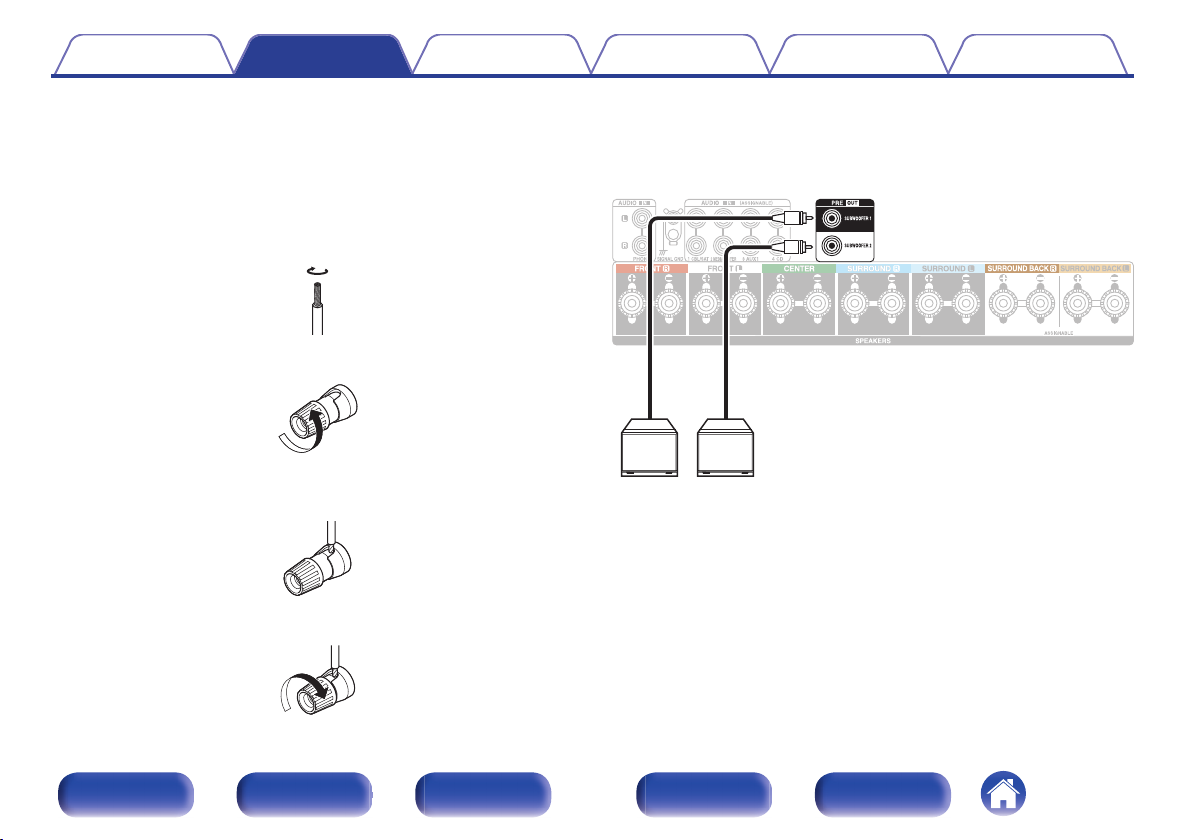

Before connecting speakers Connecting speakers to the speaker terminals Speaker configuration and “Amp Assign” settings Connecting 5.1-channel speakers Connecting 7.1-channel speakers Connecting multi-zone speakers

30 35

35 39 40 41 42 48

Front panel Display Rear panel Remote Index

Page 3

Contents Connections Playback Settings Tips Appendix

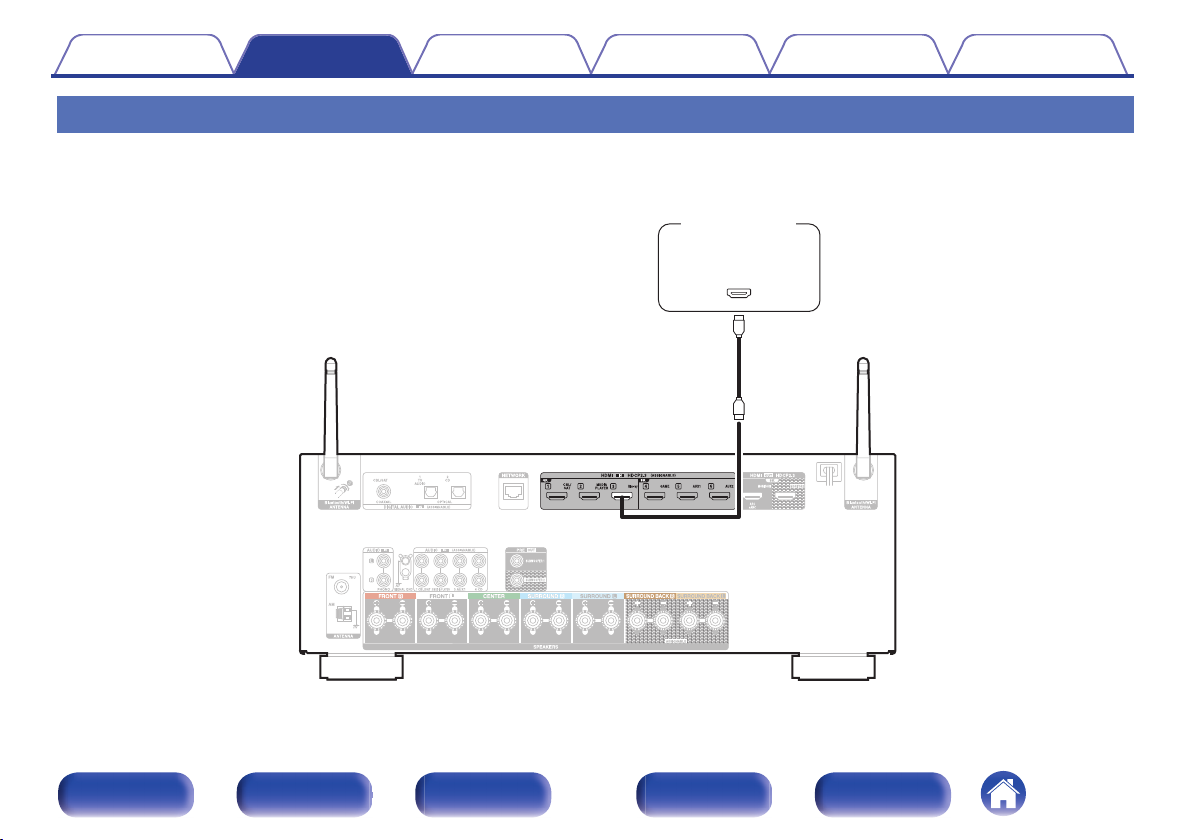

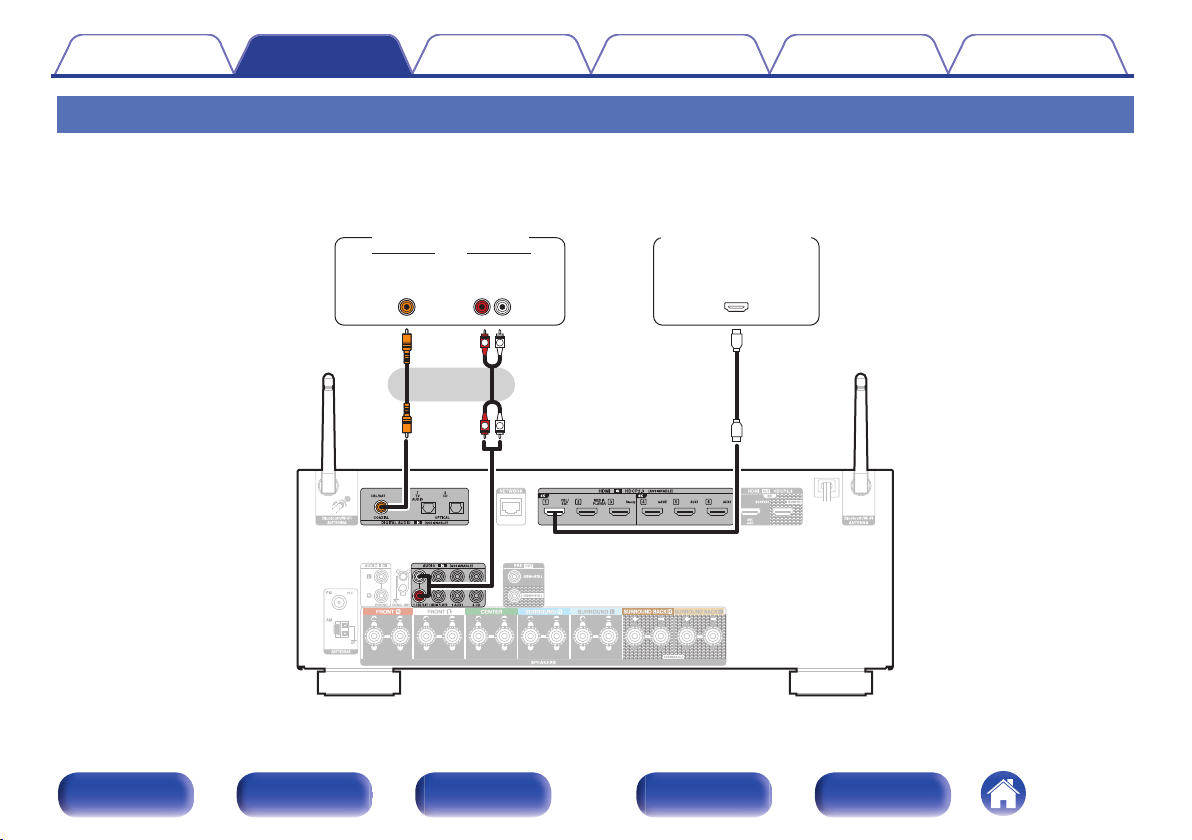

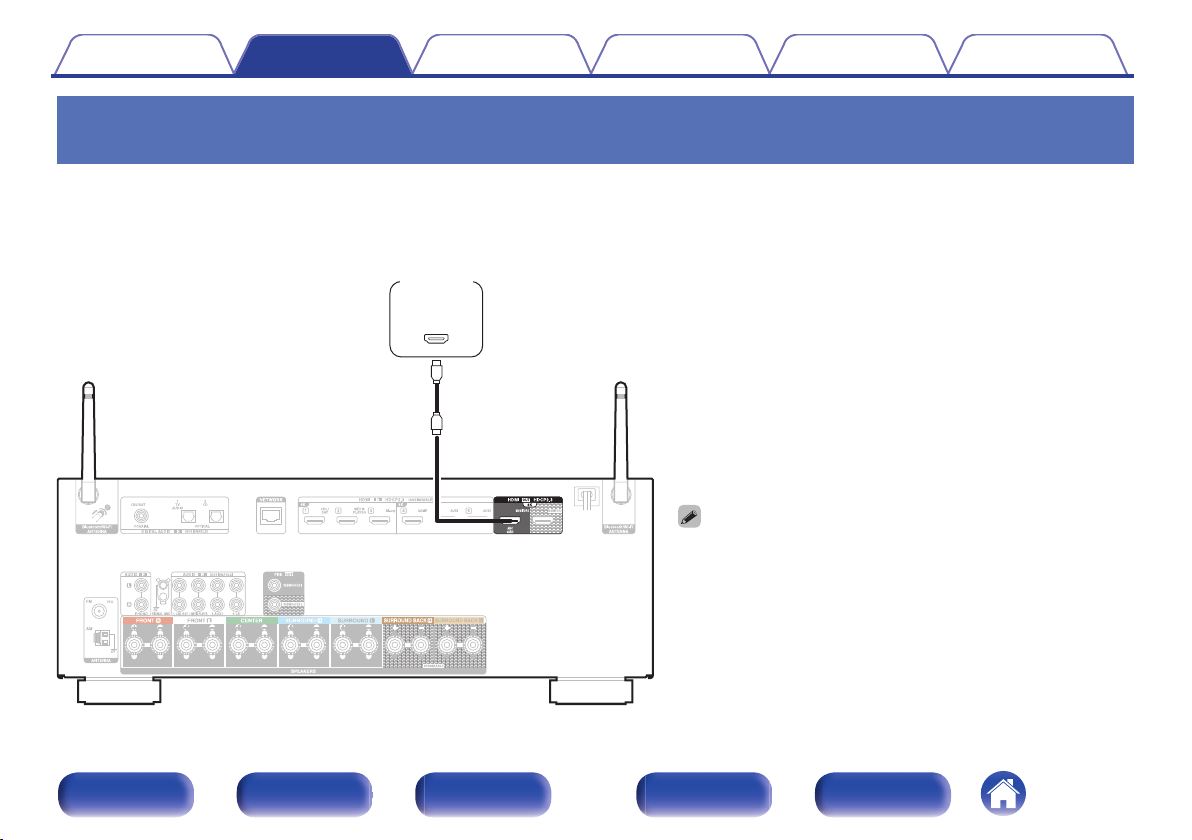

Connecting a TV

Connection 1 : TV equipped with an HDMI connector and compatible with the ARC / eARC

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC / eARC

Connecting a playback device

Connecting a set-top box (Satellite tuner/cable TV) Connecting a media player Connecting a Blu-ray Disc player or DVD player Connecting a game console or player device compatible with 8K Connecting a turntable

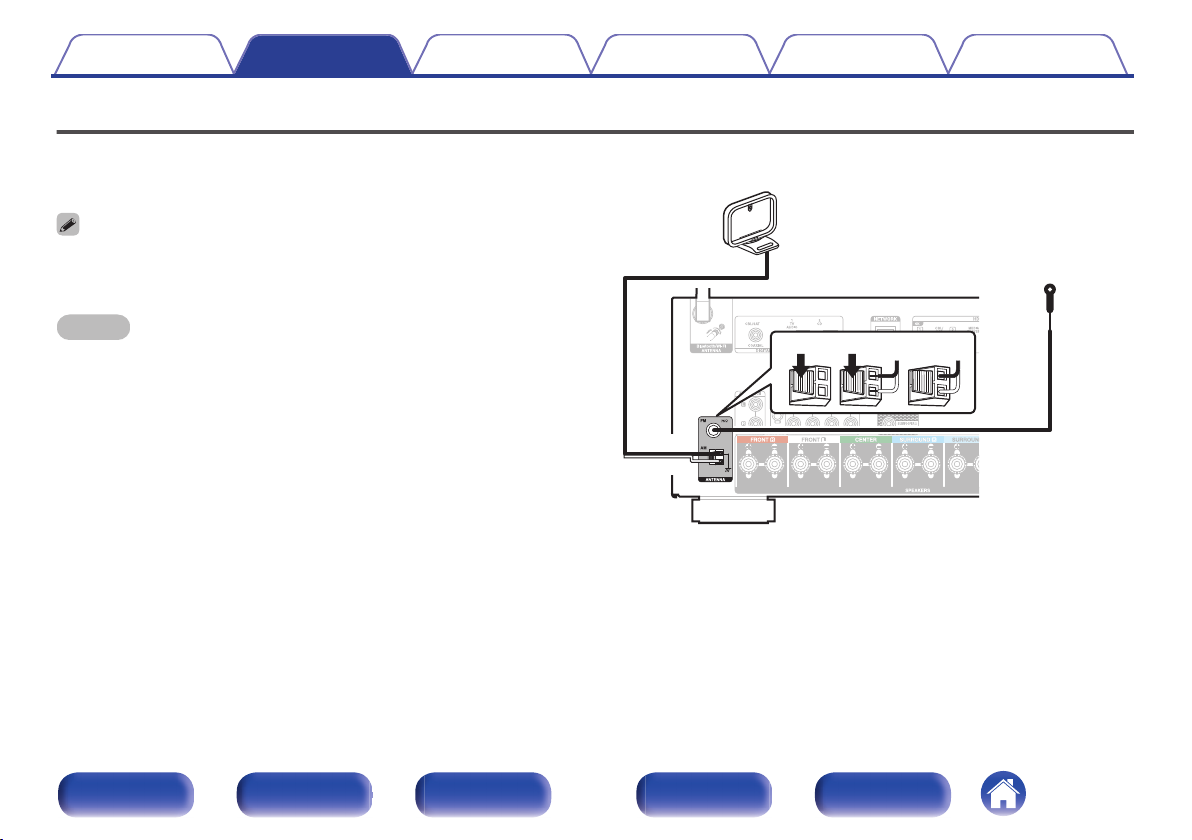

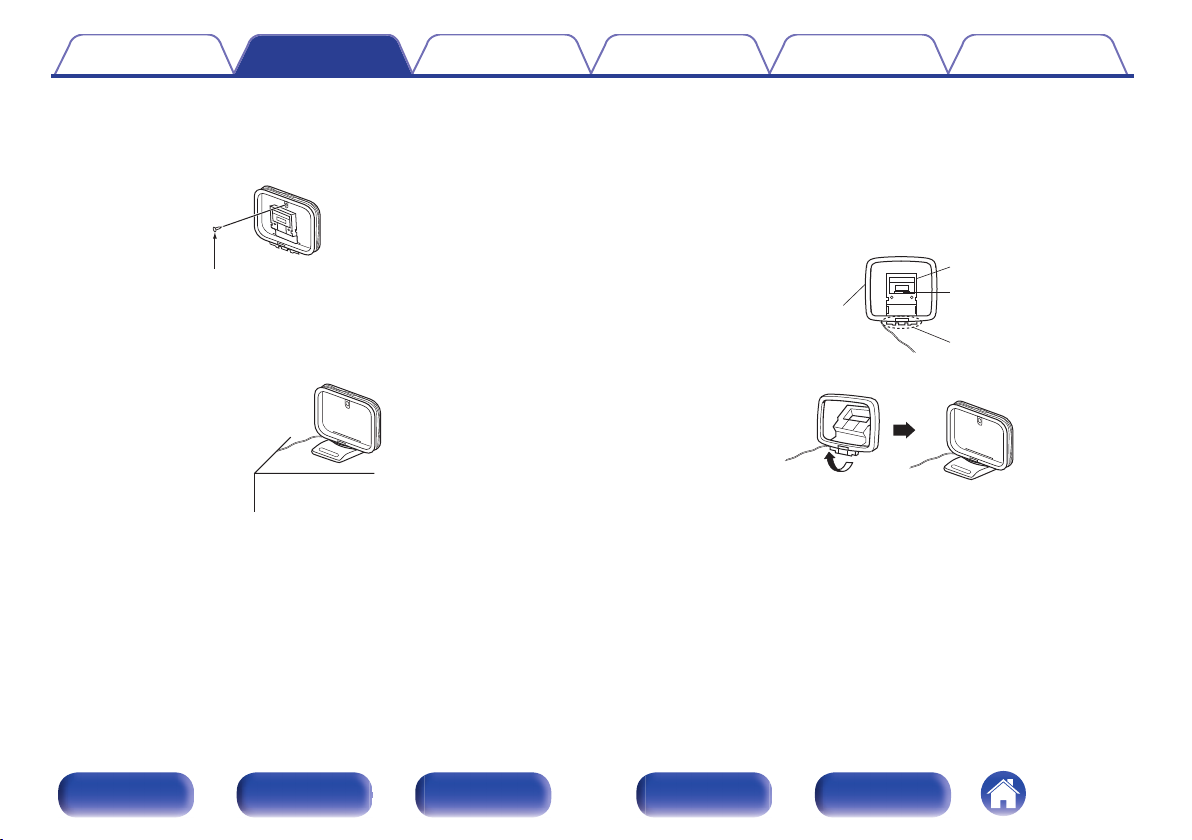

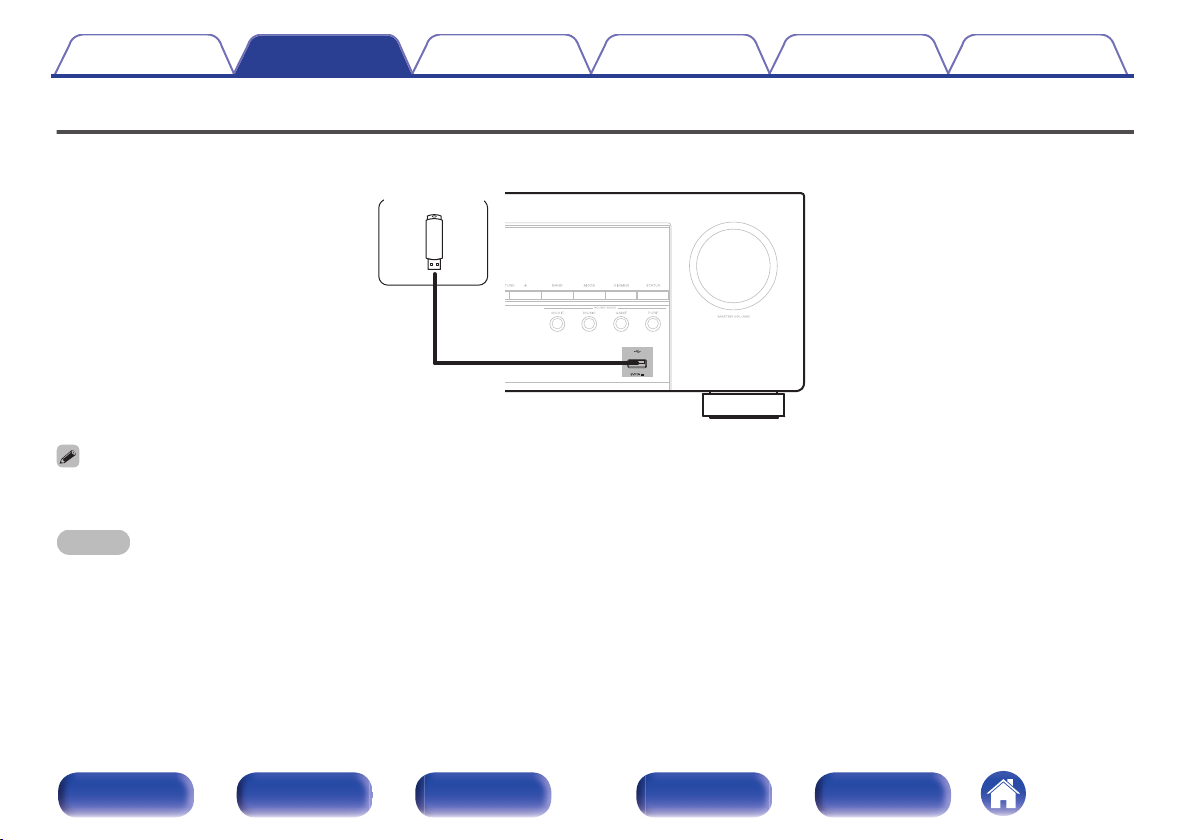

Connecting a USB memory device to the USB port Connecting FM/AM antennas Connecting to a home network (LAN)

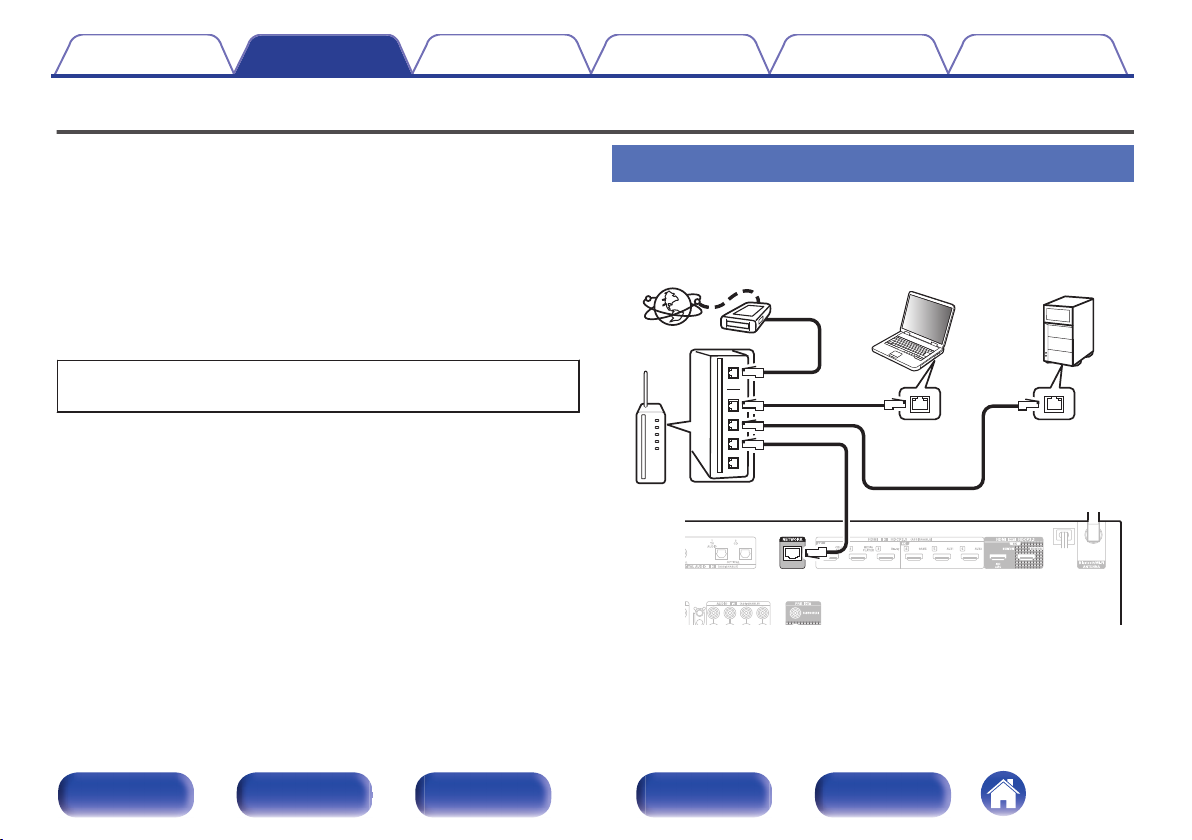

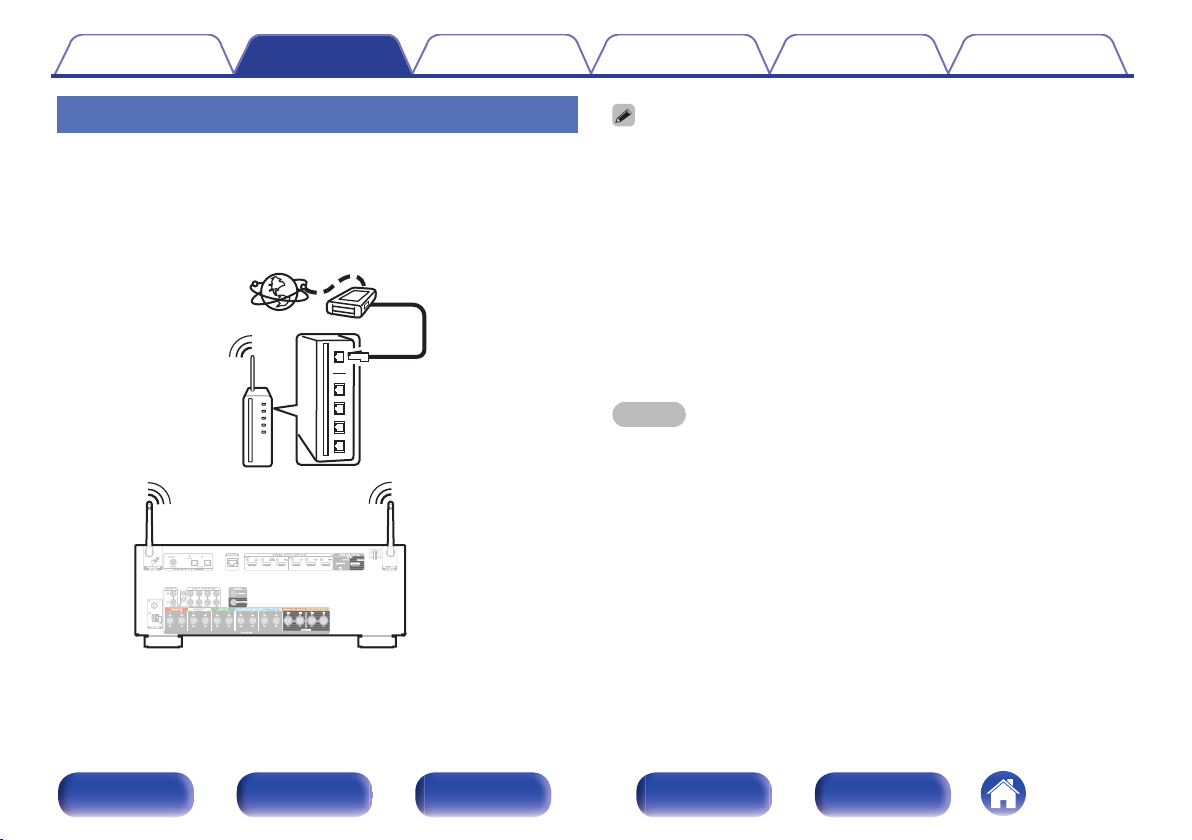

Wired LAN Wireless LAN

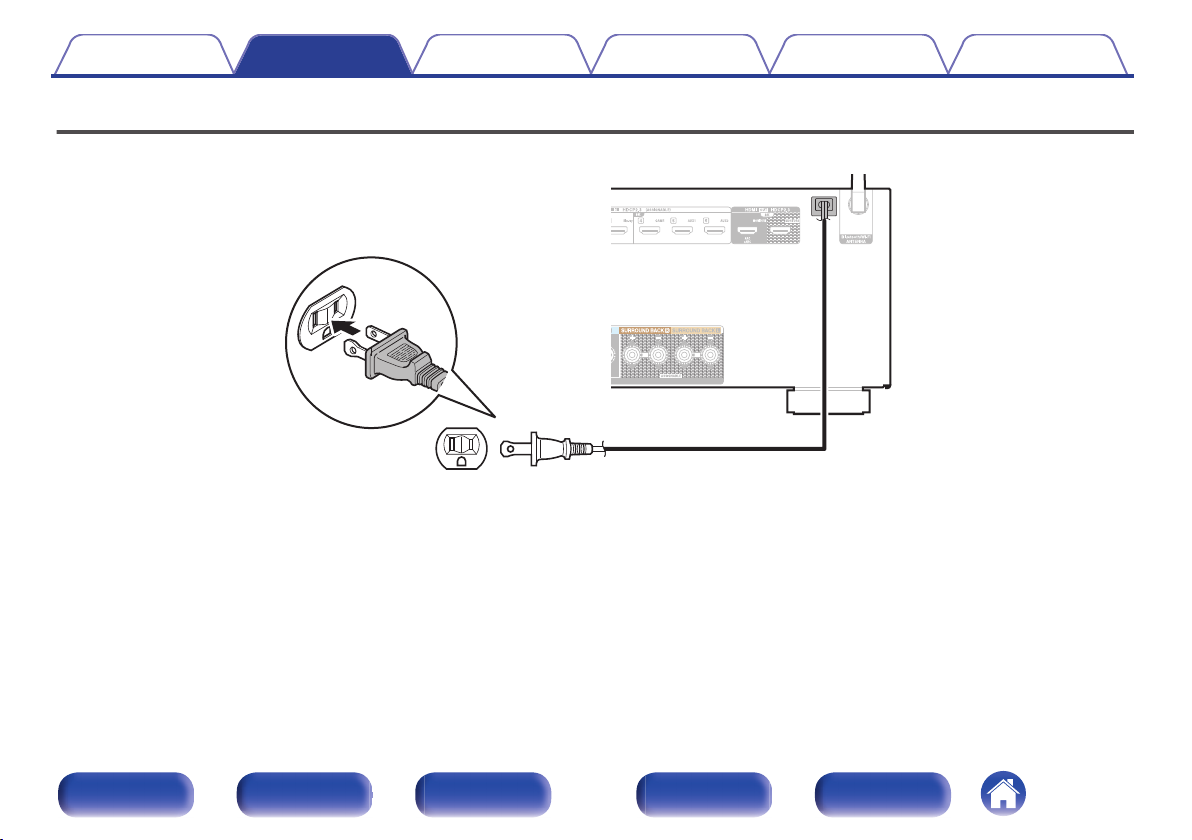

Connecting the power cord

Playback

Basic operation

53 54 55 56 57

58 59 61

61 62

Turning the power on Selecting the input source Adjusting the volume Turning off the sound temporarily (Muting) Playback a Blu-ray Disc player/DVD player

Playing a USB memory device

Playing files stored on USB memory devices

Listening to music on a Bluetooth device

Playing music from Bluetooth device Pairing with other Bluetooth devices Reconnecting to this unit from a Bluetooth device

Listening to audio on Bluetooth headphones

Listening to audio on Bluetooth headphones Reconnecting to a Bluetooth headphones Disconnecting Bluetooth headphones

65 65 66 66 66

72 73 74

76 77 77

Front panel Display Rear panel Remote Index

Page 4

Contents Connections Playback Settings Tips Appendix

Listening to FM/AM broadcasts

Listening to FM/AM broadcasts Tuning in by entering the frequency (Direct Tune) Changing the tune mode (Tune Mode) Tuning in to stations and presetting them automatically (Auto

Preset Memory) Presetting the current broadcast station (Preset Memory) Listening to preset stations Specify a name for the preset broadcast station (Preset Name) Skipping preset broadcast stations (Preset Skip) Cancelling Preset Skip

Listening to Internet Radio

Playing back files stored on a PC or NAS

Getting the HEOS App

HEOS Account Playing from streaming music services Listening to the same music in multiple rooms

AirPlay function

79 80 81

81 82 82 83 84 85

93 94 97

Playing songs from your iPhone, iPod touch or iPad Playing iTunes music with this unit Play a song from your iPhone, iPod touch or iPad on multiple

synced devices (AirPlay 2)

Spotify Connect function

Playing Spotify music with this unit

Convenience functions

Adding to HEOS Favorites Playing back HEOS Favorites Deleting a HEOS Favorites Adjusting the audibility of dialog and vocals (Dialog Enhancer) Adjusting the volume of each channel to match the input source

(Channel Level Adjust) Adjusting the tone (Tone) Adjusting audio delay (Audio Delay) Displaying your desired video during audio playback (Video

Select) Playing the same music in all zones (All Zone Stereo) Changing the speaker settings to match the listening environment

(Speaker Preset)

101

102 102

103

104

105

106 106 107 107

108 109 110

111 112

113

Front panel Display Rear panel Remote Index

Page 5

Contents Connections Playback Settings Tips Appendix

Selecting a sound mode

Selecting a sound mode Direct playback Pure Direct playback Auto surround playback Description of sound mode types Sound mode that can be selected for each input signal

HDMI Control function

Setting procedure

Sleep timer function

Using the sleep timer

Quick select plus function

Calling up the settings Changing the settings

Panel lock function

Disabling all key button operations Disabling all button operations except VOLUME Canceling the Panel lock function

114

115 116 117 117 118 122

126

127

128

129

130 131

133

133 133 134

Remote lock function

Disabling the sensor function of the remote control unit Enabling the remote sensor function

Web control function

Controlling the unit from a web control

Playback in ZONE2 (Another room)

Connecting ZONE2 Playback in ZONE2

Settings

Menu map

Menu operations

Audio

Subwoofer Level Adjust Surround Parameter Restorer Volume Audyssey Graphic EQ

135

135 135

136

139

139 140

142

147

148

148 148 153 154 155 157

Front panel Display Rear panel Remote Index

Page 6

Contents Connections Playback Settings Tips Appendix

Video

HDMI Setup Output Settings On-Screen Display Screensaver 4K/8K Signal Format HDCP Setup TV Format

Inputs

Input Assign Source Rename Hide Sources Source Level

Speakers Audyssey® Setup

Procedure for speaker settings (Audyssey® Setup) Error messages Retrieving Audyssey® Setup settings

159

159 164 165 166 167 168 169

170

170 173 173 173

174 174

176 182 183

Manual Setup

Amp Assign Speaker Configuration Distances Levels Crossovers Bass Speaker Preset

Network

Information Connection Wi-Fi Setup Settings Network Control Friendly Name Diagnostics AirPlay Spotify Connect Wi-Fi and Bluetooth

184

184 185 189 191 191 192 193

194

194 194 195 197 198 199 199 200 201 201

Front panel Display Rear panel Remote Index

Page 7

Contents Connections Playback Settings Tips Appendix

HEOS Account

You have not signed in You have already signed in

General

Language Owner's Manual ECO Bluetooth Transmitter ZONE2 Setup Zone Rename Quick Select Names Front Display Firmware Information Usage Data Save & Load Setup Lock Reset

Limiting the operating zone with the remote control

202

202 202

203

203 203 203 207 208 209 209 210 211 213 215 215 216 216

217

Tips

Tips Troubleshooting

Power does not turn on / Power is turned off Operations cannot be performed through the remote control unit Display on this unit shows nothing No sound comes out Desired sound does not come out Sound is interrupted or noise occurs No video is shown on the TV The menu screen is not displayed on the TV The color of the menu screen and operations content displayed

on the television is different from normal AirPlay cannot be played back USB memory devices cannot be played back Bluetooth cannot be played back The Internet radio cannot be played back Music files on PC or NAS cannot be played back Various online services cannot be played The HDMI Control function does not work Cannot connect to a wireless LAN network Update error messages

219 221

222 223 223 224 225 228 229 230

230 231 232 233 235 236 237 237 238 239

Front panel Display Rear panel Remote Index

Page 8

Contents Connections Playback Settings Tips Appendix

Resetting factory settings Resetting network settings Restoring the firmware to the factory defaults

Appendix

About HDMI Relationship between video signals and monitor output Playing back a USB memory devices Playing back a Bluetooth device Playing back a file saved on a PC or NAS Playing back Internet Radio Personal memory plus function Last function memory Sound modes and channel output Sound modes and surround parameters Types of input signals, and corresponding sound modes Explanation of terms Trademark information Specifications Index

240 241 242

243 247 249 250 251 252 252 252 253 255 258 260 269 271 276

Front panel Display Rear panel Remote Index

Page 9

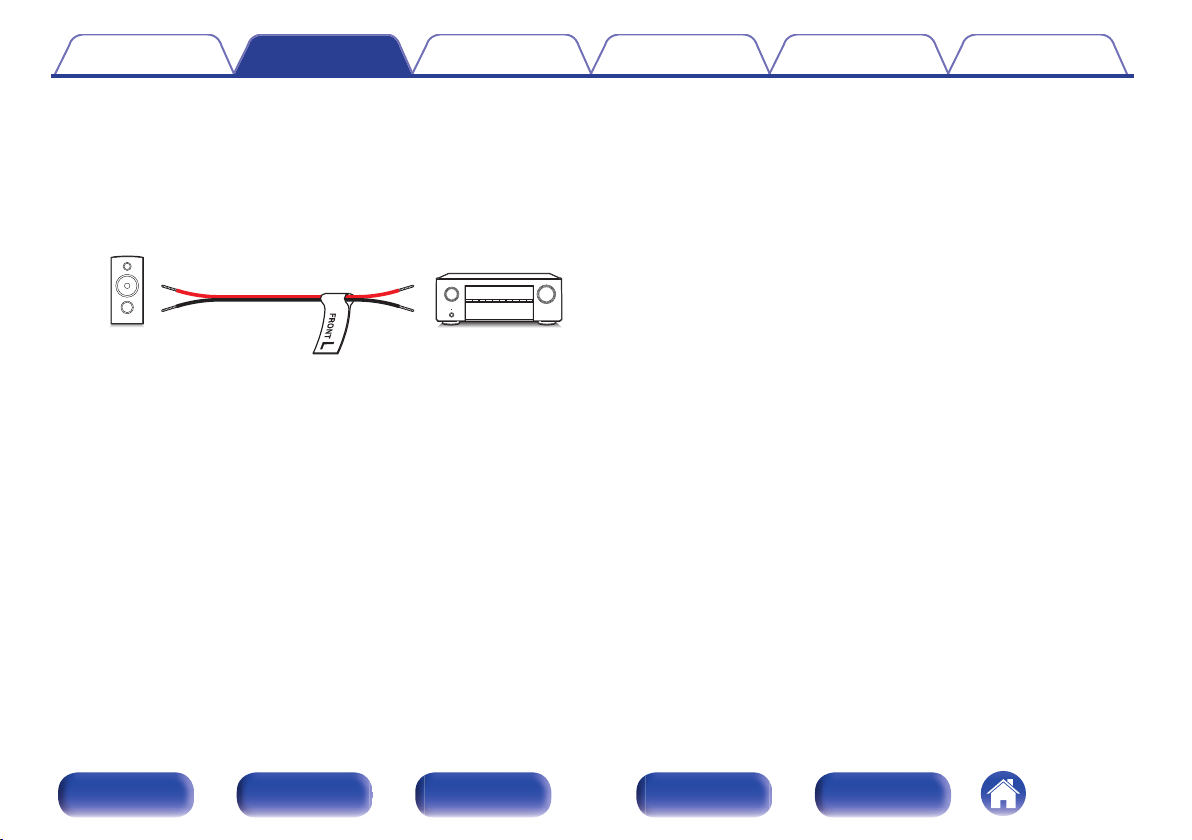

Cable labelsNotes on radioSafety InstructionsQuick Start Guide

Sound calibration

microphone stand

Sound calibration

microphone

AM loop antennaFM indoor antenna

External antennas for

Bluetooth/wireless

connectivity

Warranty

(for North America

model only)

R03/AAA batteries

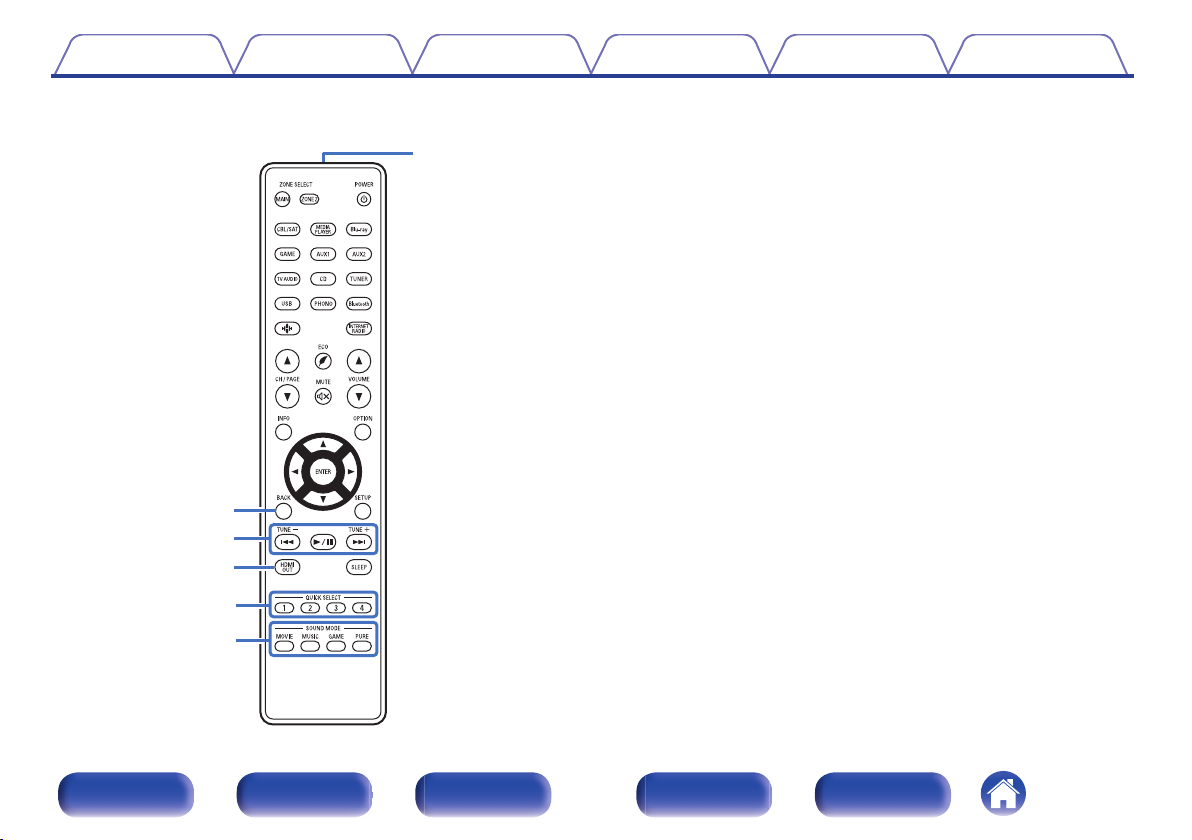

Remote control unit

(RC-1253)

Contents Connections Playback Settings Tips Appendix

Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading this manual, be sure to keep it for future reference.

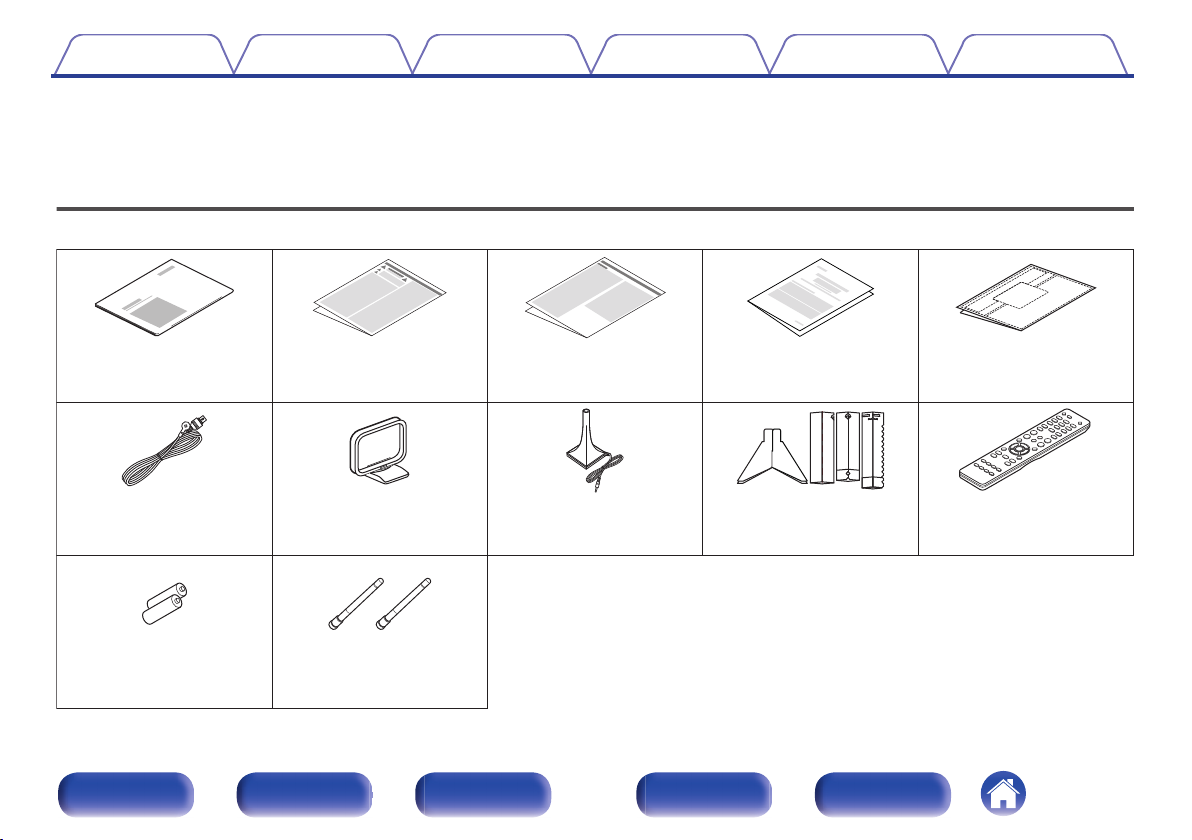

Accessories

Check that the following parts are supplied with the product.

Front panel Display Rear panel Remote Index

Page 10

Batteries

30° 30°

Approx. 23 ft/7 m

Contents

Connections Playback Settings Tips Appendix

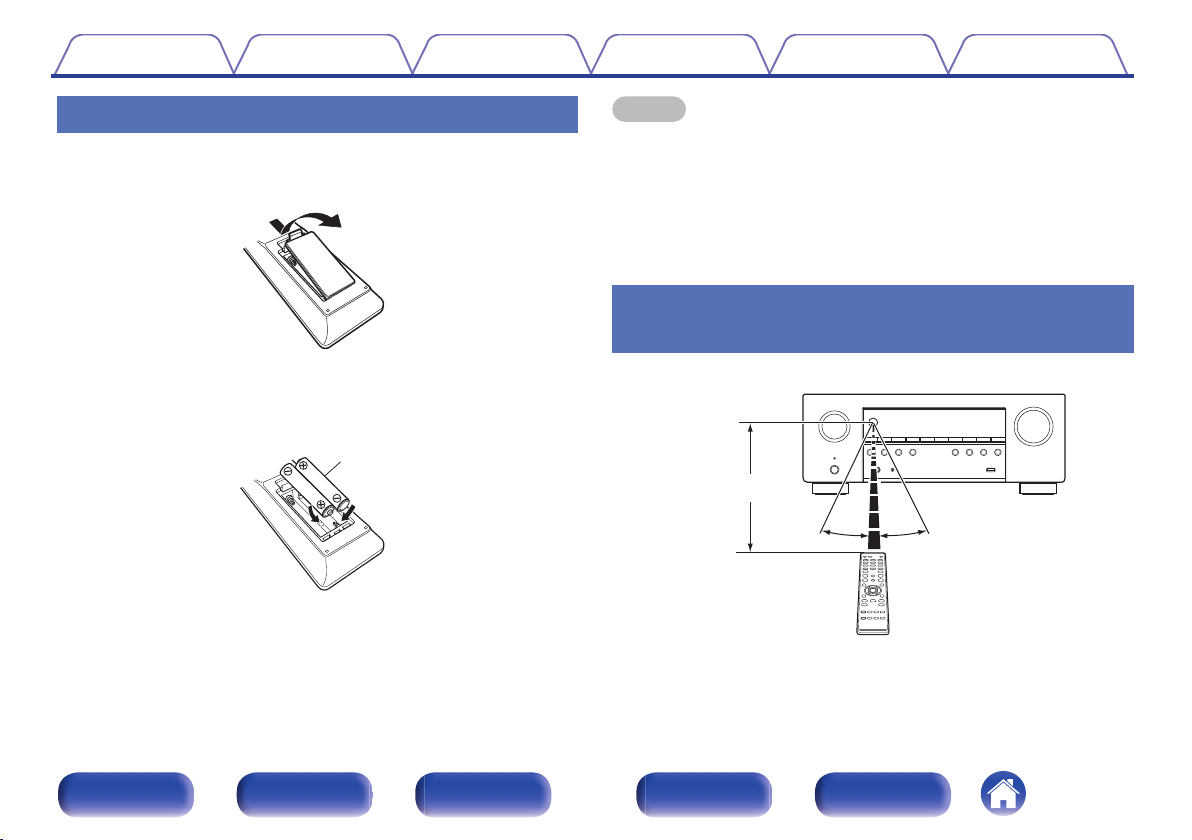

Inserting the batteries

Remove the rear lid in the direction of the arrow and

remove it.

Insert two batteries correctly into the battery

compartment as indicated.

Put the rear cover back on.

NOTE

To prevent damage or leakage of battery fluid:

Do not use a new battery together with an old one.

Do not use two different types of batteries.

Remove the batteries from the remote control unit if it will not be in use for long

periods. If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control unit

Point the remote control unit at the remote sensor when operating it.

Front panel Display Rear panel Remote Index

Page 11

Contents Connections Playback Settings Tips Appendix

Features

DTS:X (v p. 264)

High quality sound

High-Performance Discrete 7-channel Amplifier

Featuring discrete high-performance power amplifiers on all channels, this unit powers 90 W per channel (8 Ω/ohms, 20 Hz - 20 kHz, T.H.D.:

0.08 %, with 2 channels driven). With low impedance driver capability, it offers operational stability with a wide range of speakers for balanced, quality sound. Plus, Auto Eco Mode adjusts power output to speakers based on volume level and onscreen eco meter, providing power consumption reduction in real-time.

Dolby Atmos (v p. 261)

This unit is equipped with a decoder that supports Dolby Atmos audio format. The placement or movement of sound is accurately reproduced by the addition of overhead speakers, enabling you to experience an incredibly natural and realistic surround sound field.

Speaker Virtualizer (v p. 150)

Speaker Virtualizer enables you to access a more immersive entertainment experience from traditional channel based speaker layouts through digital signal processing including Dolby Atmos height virtualization and surround virtualization.

Speaker Virtualizer is not for use when both height speakers and surround

speakers are connected.

Height Virtualization may be applied when surround speakers are connected.

This unit is equipped with the DTS:X decoder technology. DTS:X brings the home theater experience to new heights with its immersive object based audio technology which removes the bounds of channels. The flexibility of objects allows for sound to be scaled large or small and moved around the room with greater accuracy than ever before leading to a richer immersive audio experience.

DTS Virtual:X (v p. 264)

DTS Virtual:X technology features DTS’s proprietary virtual height and virtual surround processing to deliver an immersive sound experience from any type of input source (stereo to 7.1.4 channel) and speaker configuration.

DTS Virtual:X is not for use when Height speakers are connected.

Front panel Display Rear panel Remote Index

Page 12

8K,

4K 120Hz

8K,

4K 120Hz

8K Ultra HD

8K 8K

Up to

1080p/4K 60Hz

up scaling

Contents

Connections Playback Settings Tips Appendix

High performance

8K 60Hz input/output supported

When 8K Ultra HD (High Definition) is used, an input/output speed of 60 frames per second (60p) is achieved for video signals. When connected to 8K Ultra HD and 60p video signal input compatible TV, you can enjoy the sense of realism only available from high-definition images, even when viewing fast-moving video.

This unit supports a wide range of HDR content, delivering even higher definition video.

HDCP 2.3

This unit is compatible with HDCP 2.3 copyright protection standard.

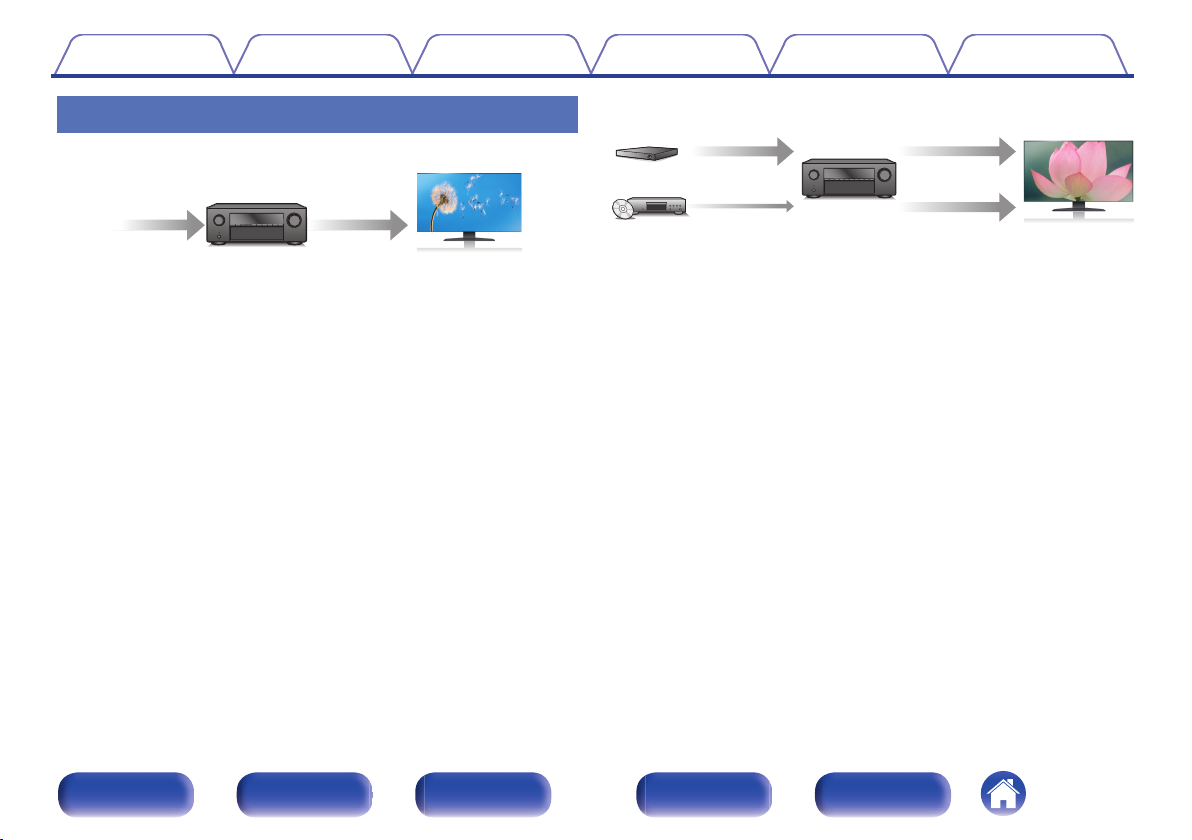

Digital video processor upscales 1080p / 4K to 8K

This unit is equipped with a 8K video upscaling function that allows 1080p/4K video to be output via HDMI at 8K (7680 × 4320 pixels) resolution. This function enables the device to be connected to a TV using a single HDMI cable, and produces high definition images for any video source.

eARC (Enhanced Audio Return Channel) function compatibility

The eARC function is compatible with conventional ARC functioncompatible audio formats in addition to multichannel linear PCM, Dolby TrueHD, Dolby Atmos, DTS-HD, DTS:X and other audio formats a conventional ARC function cannot transmit. Additionally, connecting to an eARC function-compatible television enables enjoyment of higher-quality surround playback of the audio content played from your television.

Front panel Display Rear panel Remote Index

Page 13

OutIn

Contents

Connections Playback Settings Tips Appendix

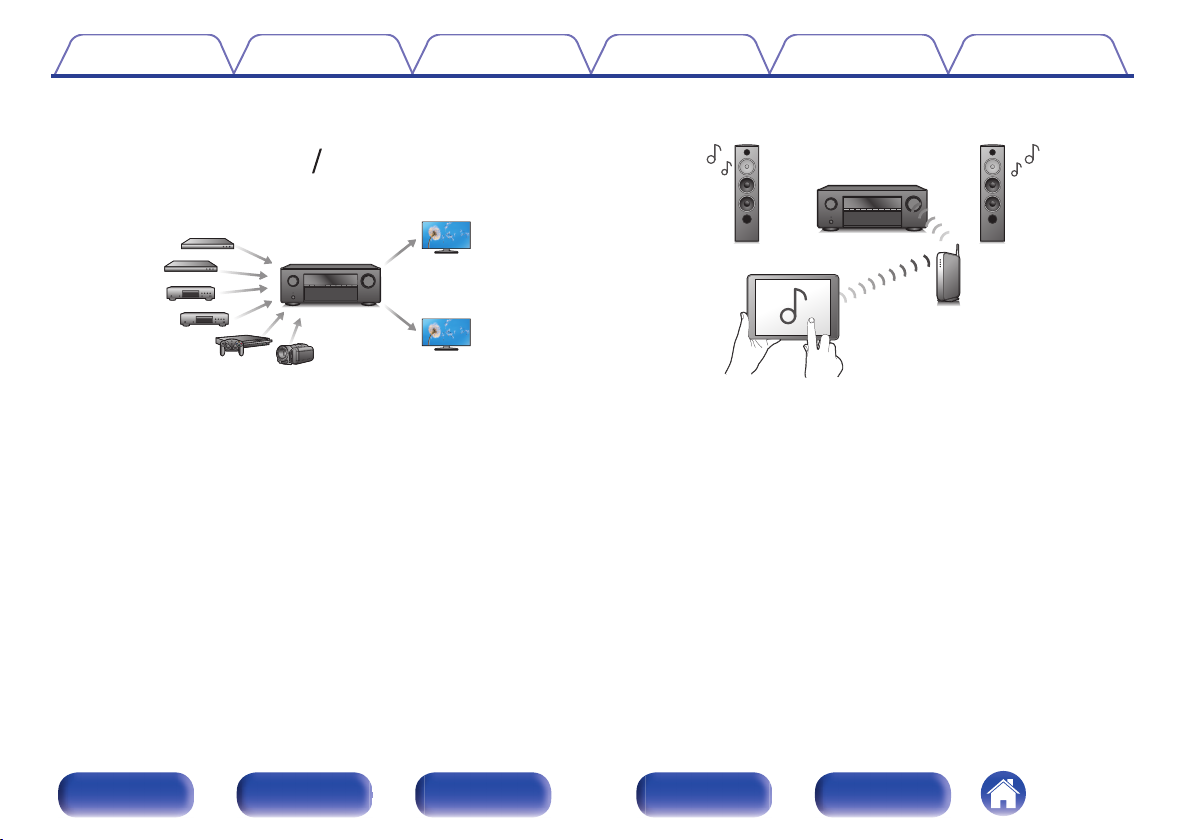

HDMI connections enable connection to various digital AV

devices (6 inputs, 2 outputs)

This unit is equipped with 6 HDMI inputs and 2 HDMI outputs enabling connection to various HDMI compatible devices such as Blu-ray Disc players, game consoles and HD video camcorders. This unit is equipped with 2 monitor outputs, enabling you to project the same image at the same time using this unit.

The device is equipped with a AirPlay® function in addition to network functions such as Internet radio etc. (v p. 101)

You can enjoy a wide variety of content, including listening to Internet Radio, playing audio files stored on your PC.

This unit also supports Apple AirPlay which lets you stream your music library from an iPhone®, iPad®, iPod touch® or iTunes®.

Supports AirPlay 2® wireless audio

Sync multiple AirPlay 2 compatible devices/speakers for simultaneous playback.

This unit supports AirPlay 2 and requires iOS 11.4 or later.

Front panel Display Rear panel Remote Index

Page 14

Contents Connections Playback Settings Tips Appendix

Playback of DSD and FLAC files via USB and networks

This unit supports the playback of high resolution audio formats such as DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality playback of high resolution files.

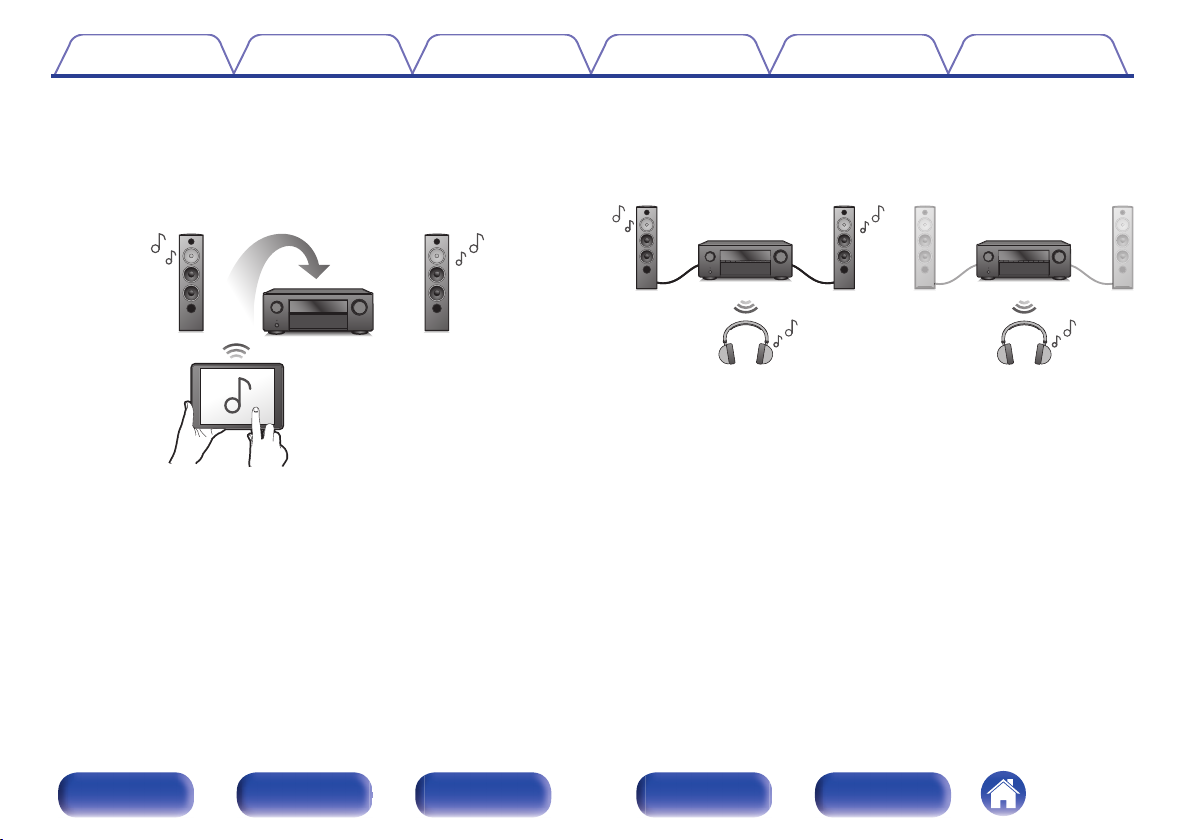

Wireless connection with Bluetooth devices can be carried out

easily (v p. 71)

You can enjoy music simply by connecting wirelessly with your smartphone, tablet, PC, etc.

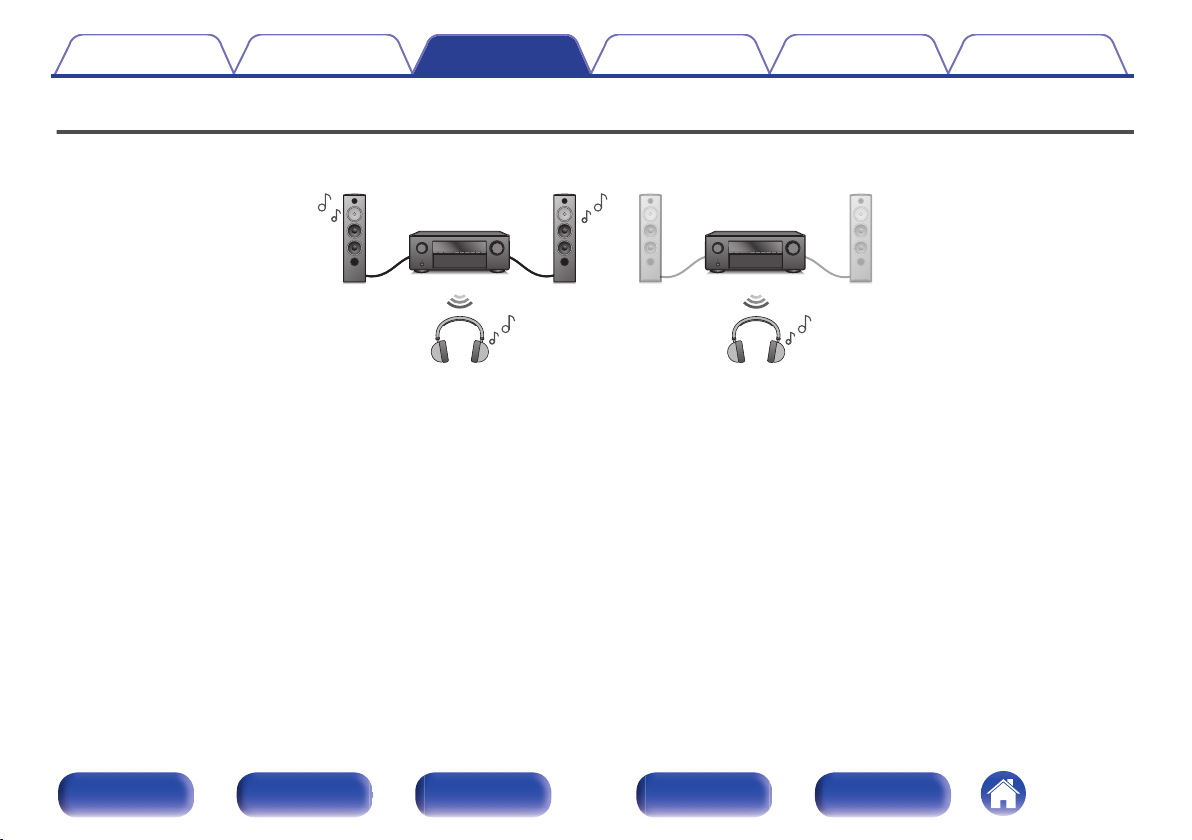

Connect Bluetooth headphones

This unit can transmit Bluetooth so you can enjoy audio wirelessly through your Bluetooth headphones.

Playback can be performed using connected speakers and Bluetooth headphones simultaneously, or only using Bluetooth headphones.

Front panel Display Rear panel Remote Index

Page 15

GMAIN ZONEHGZONE2H

Contents

Connections Playback Settings Tips Appendix

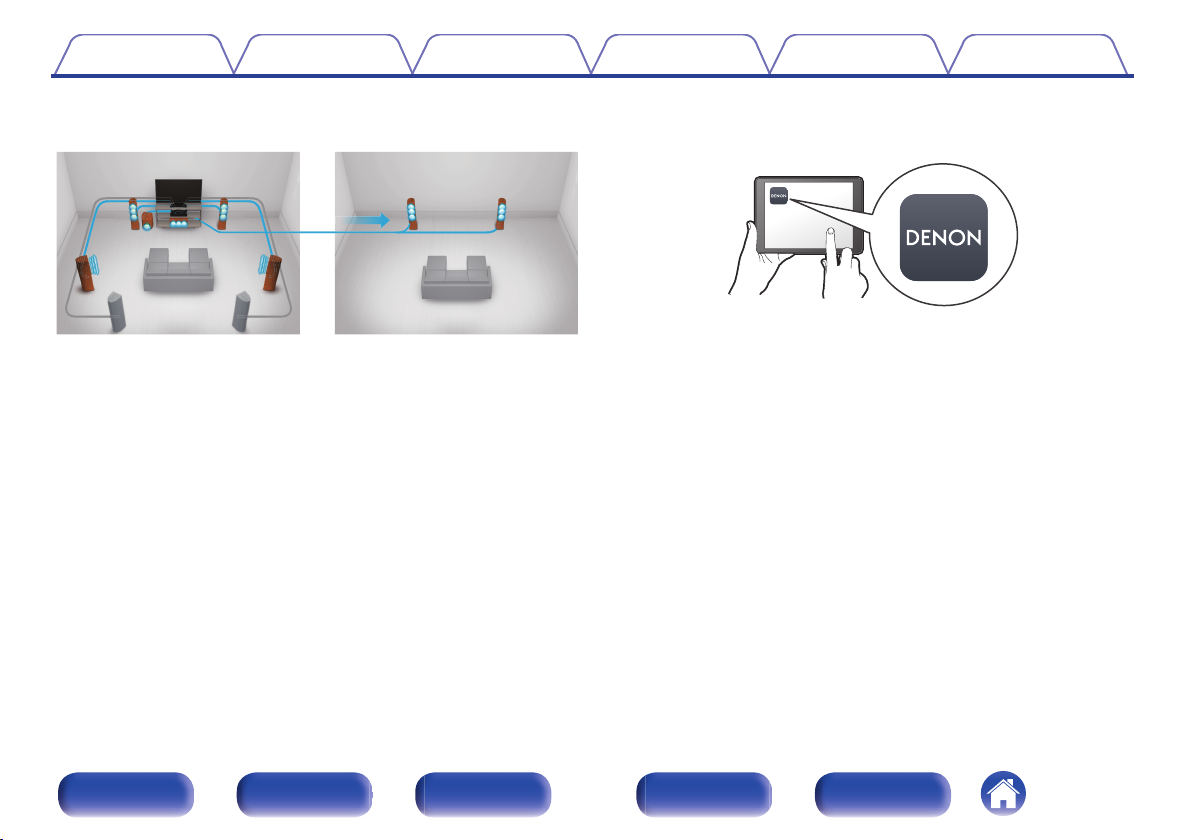

Multi-Room audio (v p. 112)

You can select and play back the respective inputs in MAIN ZONE and ZONE2. In addition, when the All Zone Stereo function is used, the music being played back in MAIN ZONE can be enjoyed in all the zones at the same time. This is useful when you want to let the background music propagate throughout the whole house.

Energy-saving design

This unit is equipped with an ECO Mode function that allows you to enjoy music and movies while reducing the power consumption during use, and also an auto-standby function that automatically turns off the power supply when the unit is not in use. This helps reduce unnecessary power use.

Compatible with the “Denon AVR Remote” Appz for performing basic operations of the unit with an iPad, iPhone or Android™ devices (Google, Amazon Kindle Fire)

The Denon AVR Remote app gives you full control of this unit as well as access to its setup menu for detailed adjustments from your phones or tablets. “Denon AVR Remote” App also gives you quick access to the receiver's status display, option menus, Denon Blu-ray Disc player control, and online owner's manual for your convenience.

Download the appropriate “Denon AVR Remote” App for your iOS or Android

devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless LAN) network that the iPad, iPhone or Android™ is connected to.

Front panel Display Rear panel Remote Index

Page 16

Contents Connections Playback Settings Tips Appendix

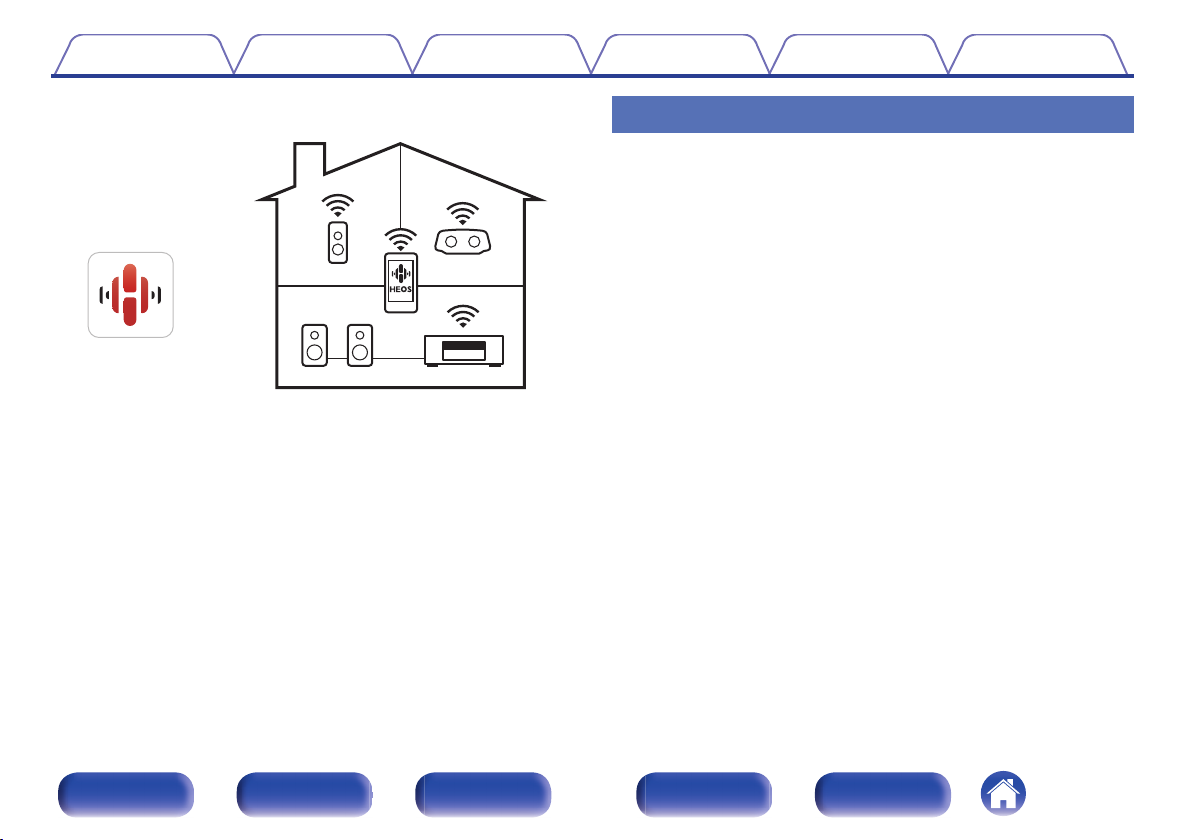

HEOS provides streaming music from your favorite online music

sources

HEOS wireless multi-room sound system that enables you to enjoy your favorite music anywhere and everywhere around your home. By utilizing your existing home network and the HEOS App (available for iOS, Android and Amazon devices), you can explore, browse, and play music from your own music library or from many online streaming music services.

When multiple products with HEOS Built-in are connected to the same network, they can be grouped to play the same music on all products simultaneously, or different music can be played on each one.

Easy operation

“Setup Assistant” provides easy-to-follow setup instructions

First select the language when prompted. Then simply follow the instructions displayed on the TV screen to set up the speakers, network, etc.

Easy to use Graphical User Interface

This unit is equipped with a Graphical User Interface for improved operability.

Front panel Display Rear panel Remote Index

Page 17

Q11 Q2 Q3 Q4Q0oiu

Q5Q

er t yqw

Contents

Connections Playback Settings Tips Appendix

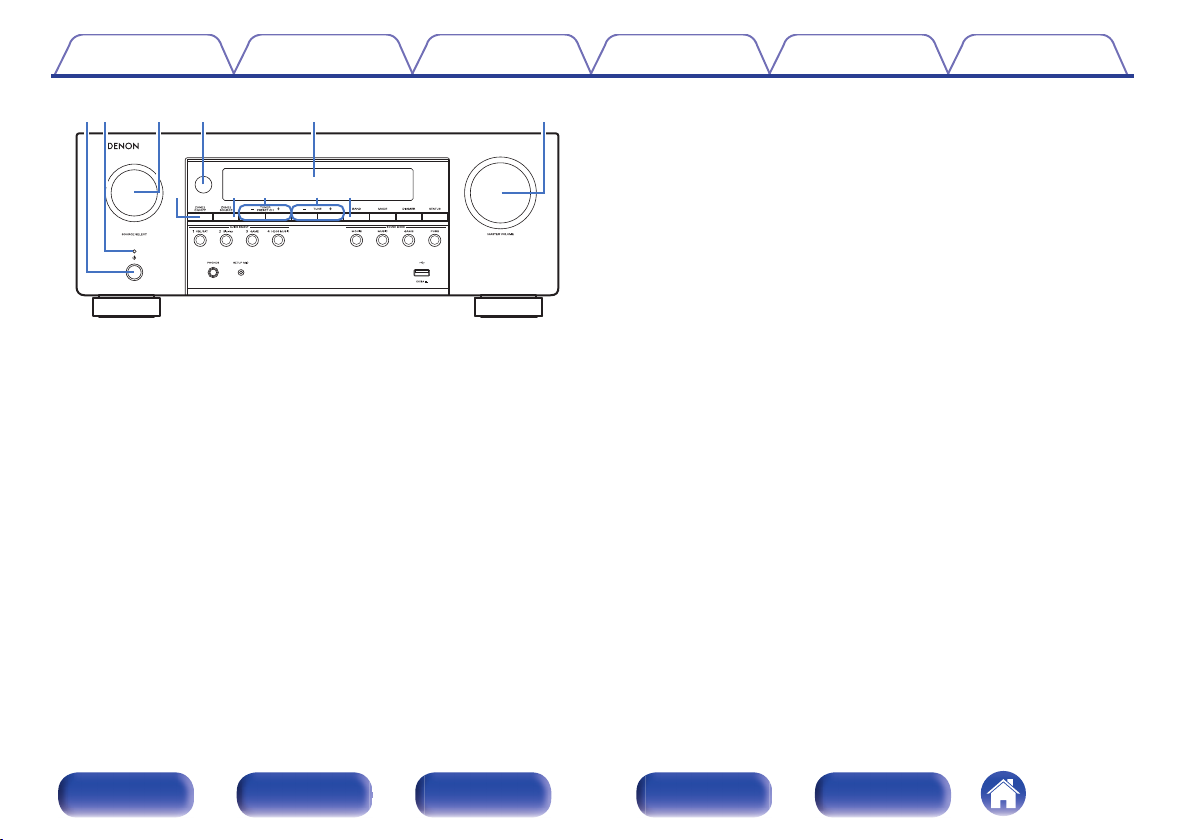

Part names and functions

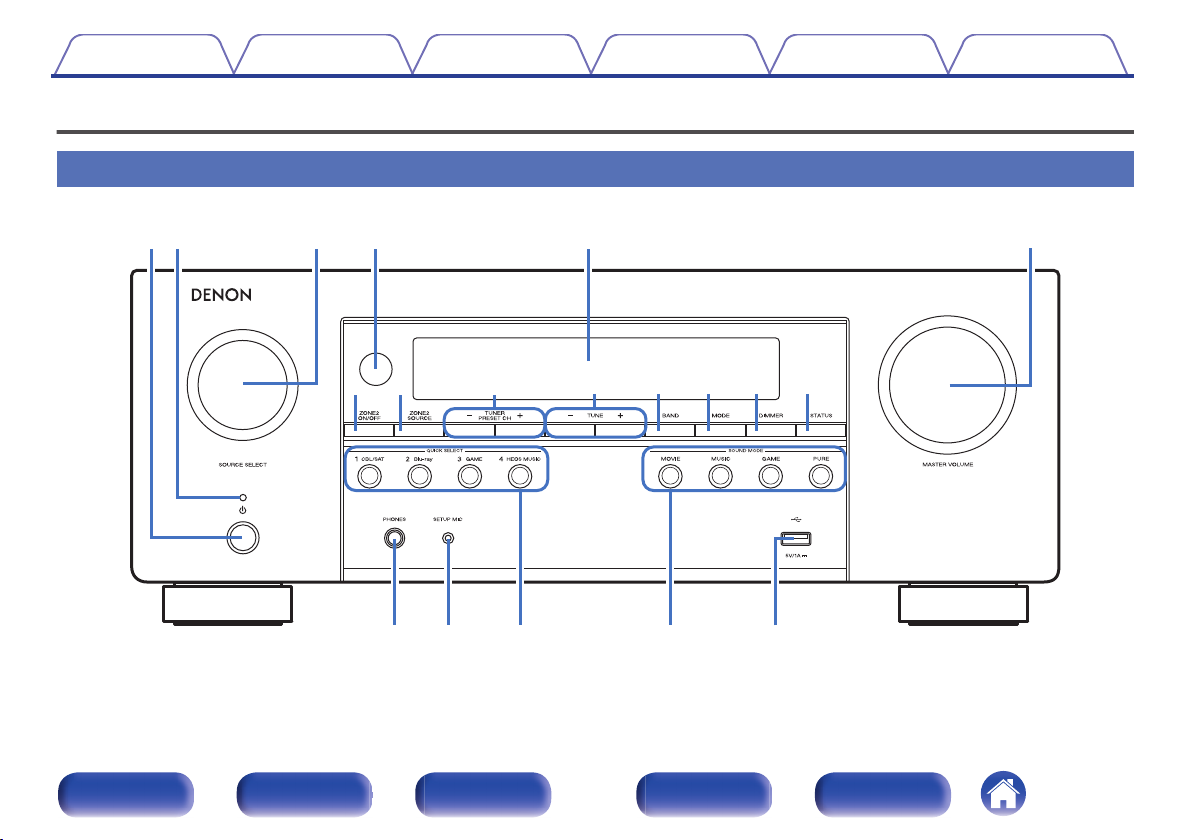

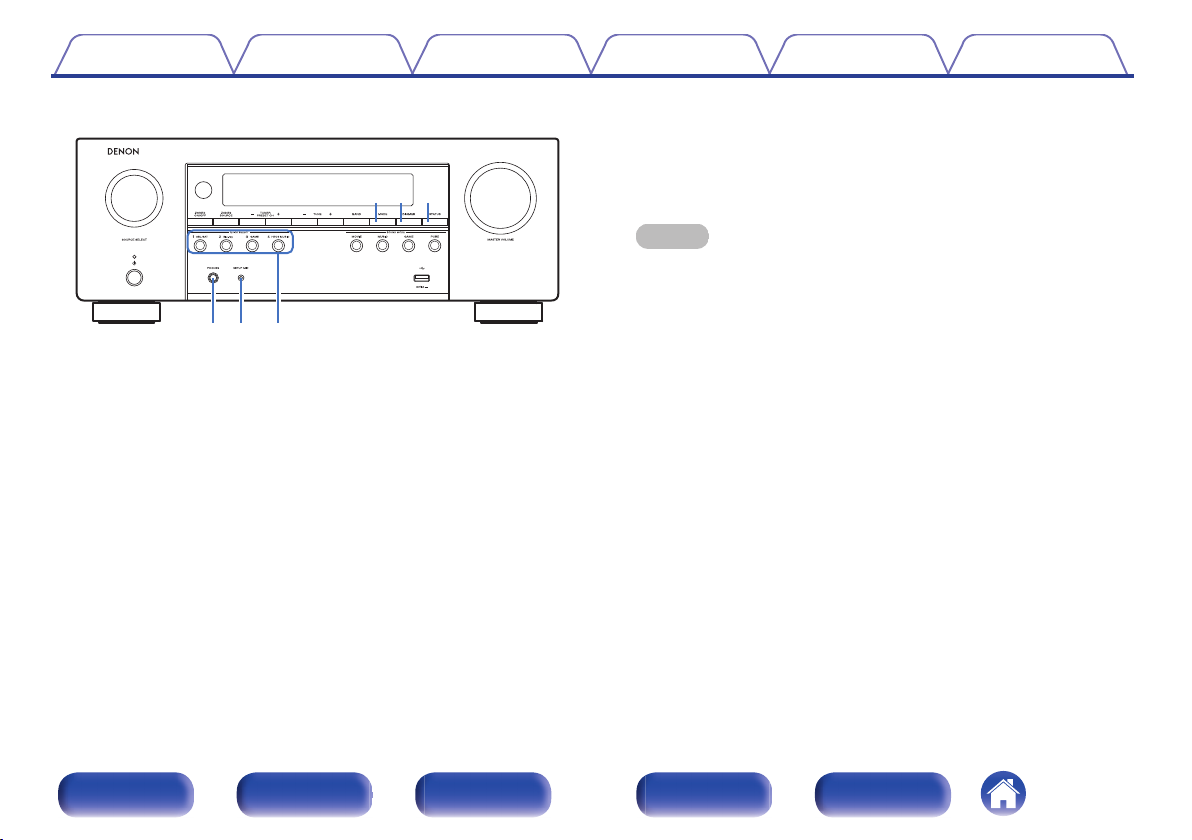

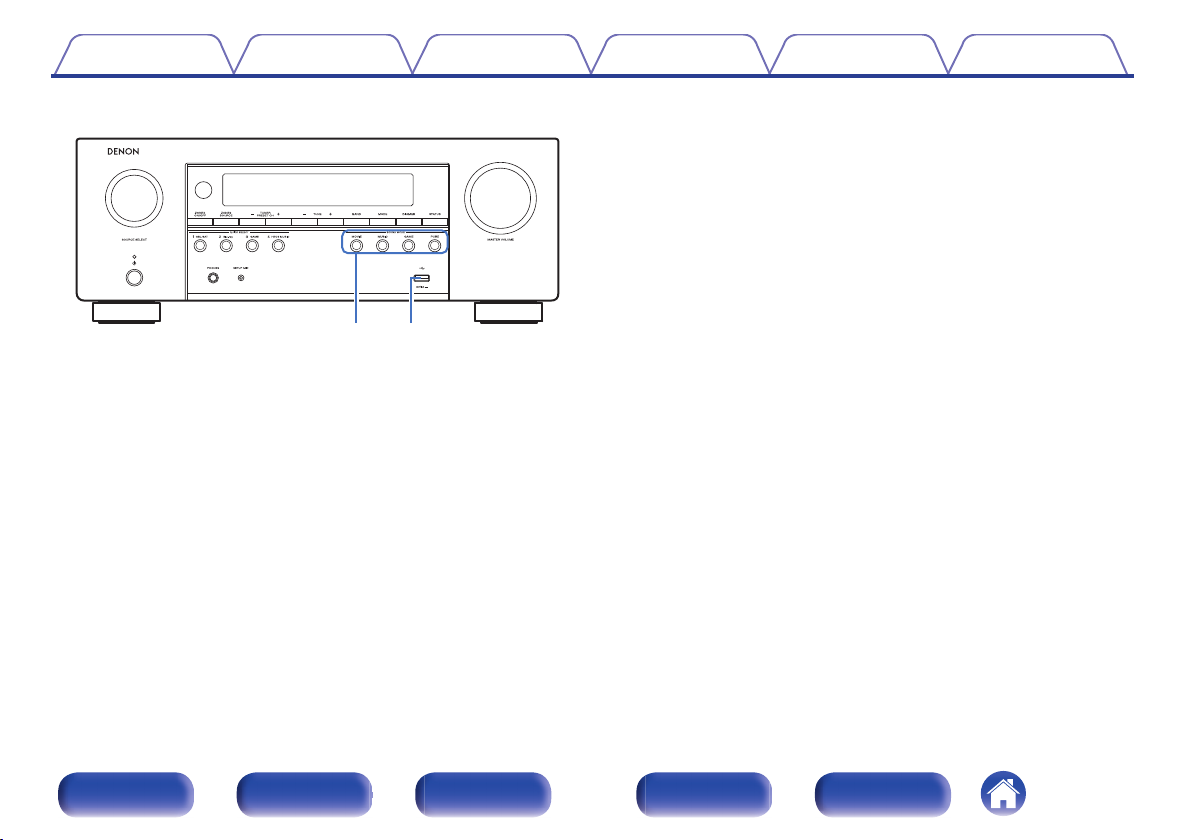

Front panel

For details, see the next page.

Front panel Display Rear panel Remote Index

Page 18

Q11Q0oiu

er t yqw

Contents

Power operation button (X)

Used to turn the power of the MAIN ZONE (room where this unit is located) on/off (standby). (v p. 65)

Power indicator

This is lit as follows according to the power status:

Green: Power on

Off: Normal standby

Red:

When “HDMI Pass Through” is set to “On” (v p. 159)

When “HDMI Control” is set to “On” (v p. 161)

When “Network Control” is set to “Always On” (v p. 198)

Connections Playback Settings Tips Appendix

SOURCE SELECT knob

This selects the input source. (v p. 65)

Remote control sensor

This receives signals from the remote control unit. (v p. 10)

Display

This displays various pieces of information. (v p. 21)

MASTER VOLUME knob

This adjusts the volume level. (v p. 66)

ZONE2 ON/OFF button

This turns the power of ZONE2 (another room) on/off. (v p. 140)

ZONE2 SOURCE button

This selects the input source for ZONE2. (v p. 140)

Tuner preset channel buttons

(TUNER PRESET CH +, –)

These select preset broadcast stations. (v p. 82)

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. (v p. 79)

Reception band select button (BAND)

This switches the reception band. (v p. 79)

Front panel Display Rear panel Remote Index

Page 19

Q2 Q3 Q4

Q5 Q6 Q7

Contents

Tune mode select button (MODE)

This switches the tuning mode. (v p. 81)

DIMMER button

Each press of this switches the brightness of the display. (v p. 210)

STATUS button

Each press of this switches the status information that is shown on the display.

Connections Playback Settings Tips Appendix

Headphones jack (PHONES)

This is used to connect headphones. When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the SUBWOOFER connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using

headphones.

SETUP MIC jack

This is used to connect the supplied Sound calibration microphone. (v p. 177)

QUICK SELECT buttons

With a single press of any of these buttons, you can call up various settings you’ve registered to each button such as the input source, volume level and sound mode settings. (v p. 129)

Front panel Display Rear panel Remote Index

Page 20

Q9Q8

Contents

SOUND MODE buttons

These select the sound mode. (v p. 114)

USB port (T)

This is used to connect USB storages (such as USB memory devices). (v p. 58)

Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Page 21

uiytrewq

0Q1

Contents Connections Playback Settings Tips Appendix

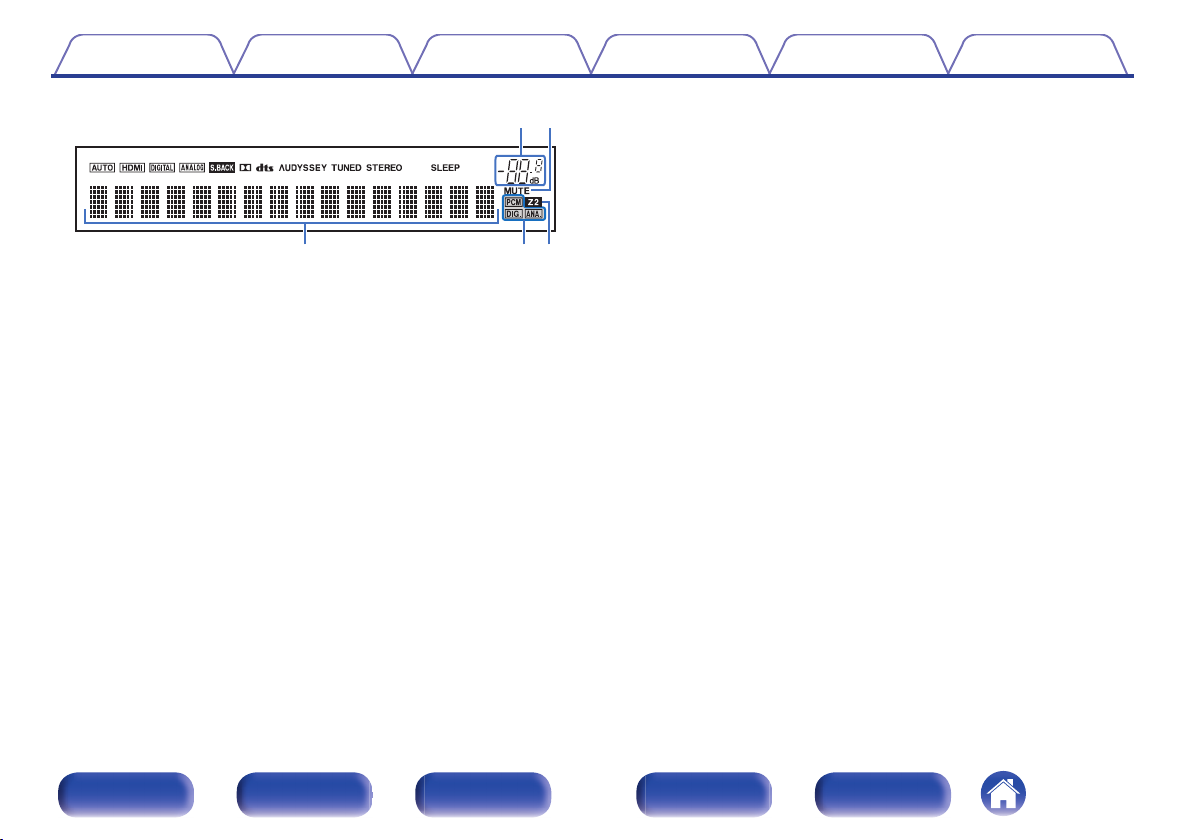

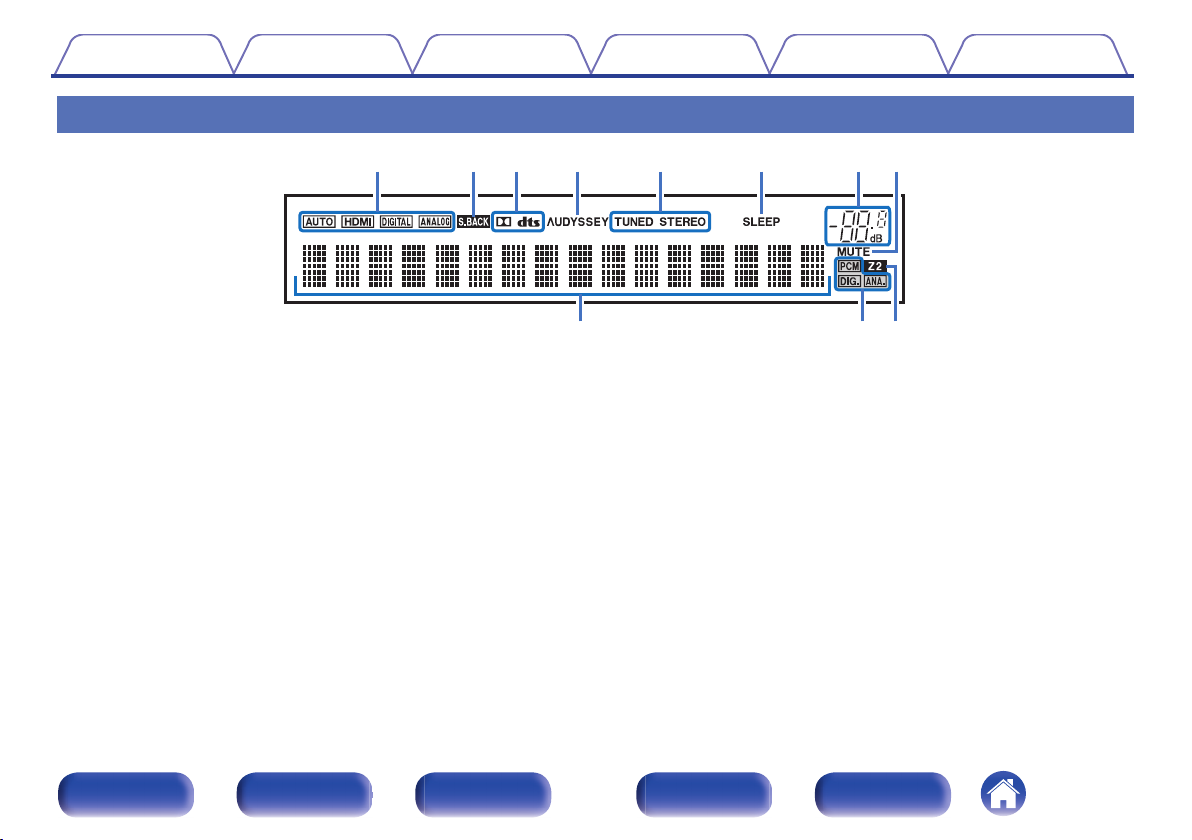

Display

Input mode indicators

These light according to the audio input mode settings of each input source. (v p. 172)

Surround back indicator

This lights when audio signals are being output from the surround back speakers. (v p. 186)

Decoder indicators

These light when Dolby or DTS signals are input or when the Dolby or DTS decoder is running.

Audyssey® indicator

This lights when “MultEQ®”, “Dynamic EQ” or “Dynamic Volume” has been set up. (v p. 155)

Tuner reception mode indicators

These light up according to the reception conditions when the input source is set to “Tuner”.

TUNED: Lights up when the broadcast is properly tuned in. STEREO: Lights up when receiving FM stereo broadcasts.

Sleep timer indicator

This lights when the sleep mode is selected. (v p. 127)

Front panel Display Rear panel Remote Index

Page 22

1Q0

Contents

Volume indicator

MUTE indicator

This blinks while the sound is muted. (v p. 66)

Information display

The input source name, sound mode, setting values and other information are displayed here.

Input signal indicators

The respective indicator will light corresponding to the input signal. (v p. 172)

ZONE2 indicator

This lights up when ZONE2 (another room) power is turned on. (v p. 140)

Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Page 23

wr t y u

io Q0

q qe

Contents

Connections Playback Settings Tips Appendix

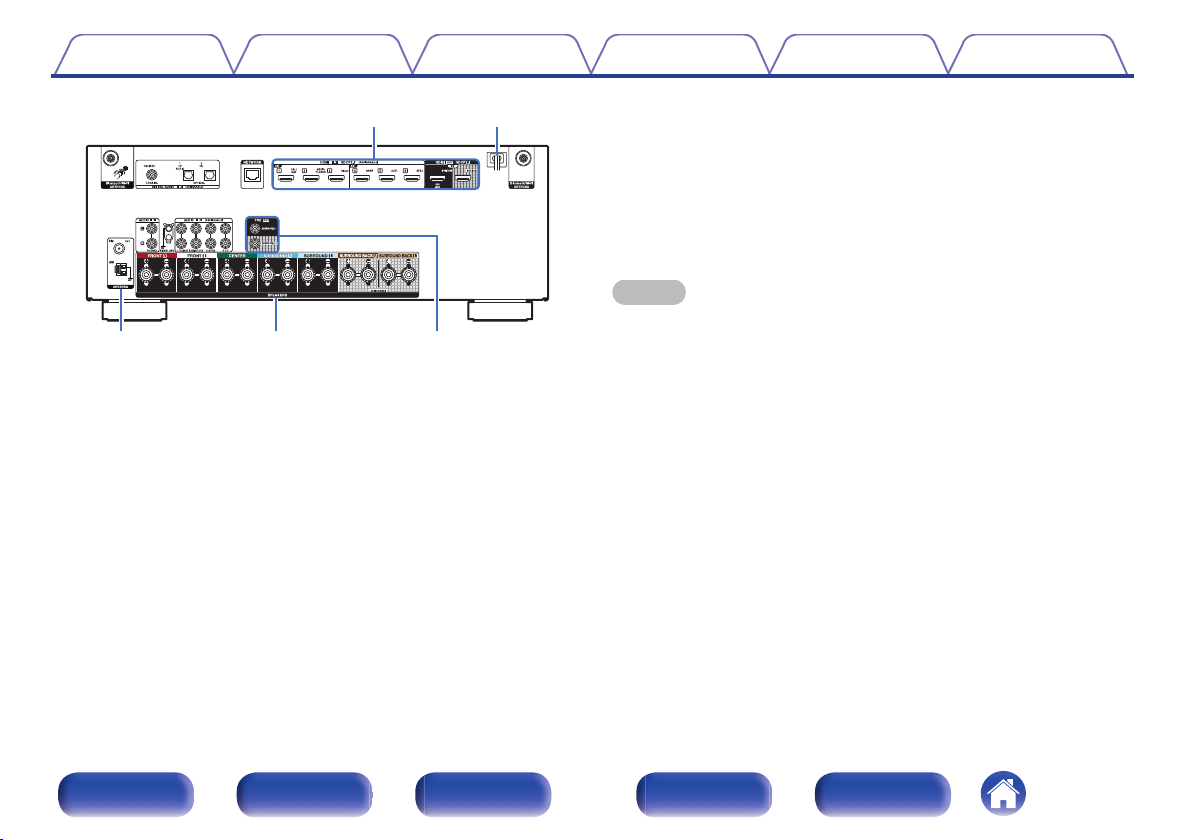

Rear panel

For details, see the next page.

Front panel Display Rear panel Remote Index

Page 24

wr tqqe

qwe

Contents

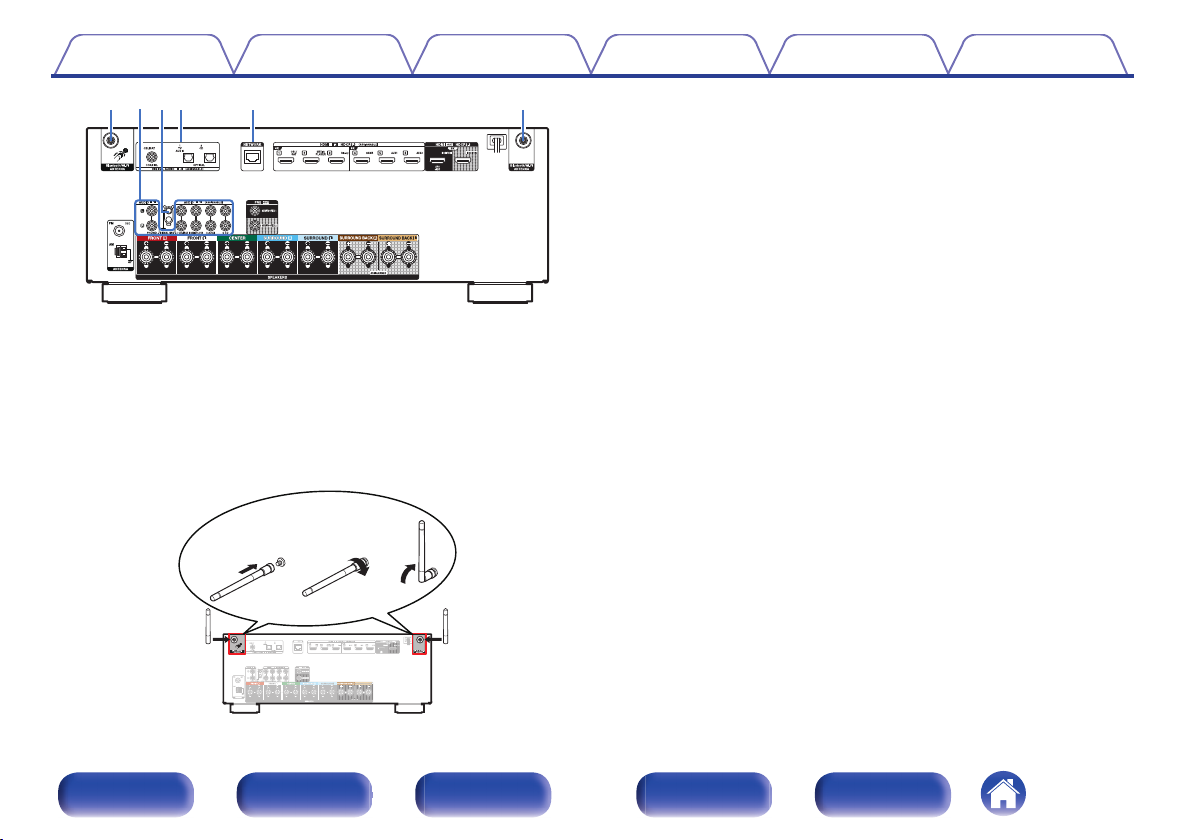

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. (v p. 62)

Place the external antennas for Bluetooth/wireless connectivity

evenly over the screw terminal of rear. Turn clockwise until the antennas is fully connected.

Rotate the antenna upwards for best reception.

Connections Playback Settings Tips Appendix

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 53)

“Connecting a media player” (v p. 54)

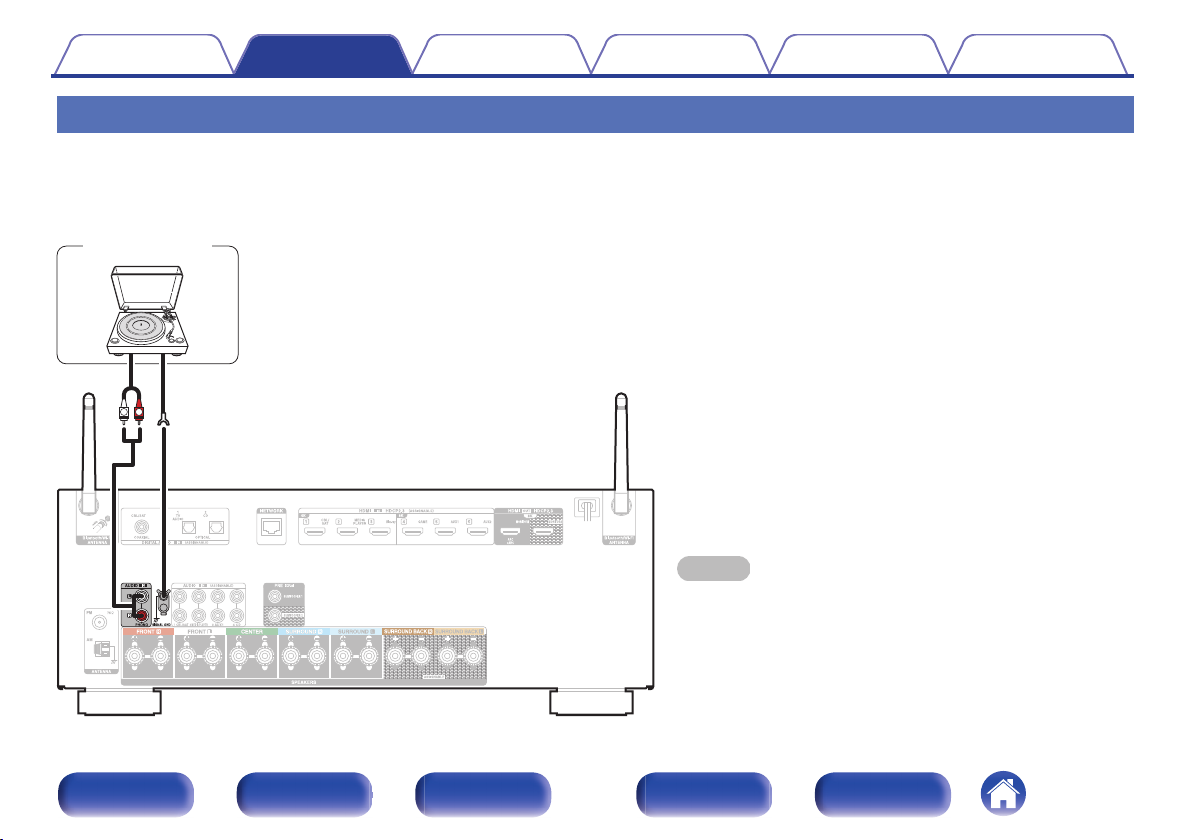

“Connecting a turntable” (v p. 57)

SIGNAL GND terminal

Used to connect a ground wire for the turntable. (v p. 57)

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

“Connection 2 : TV equipped with an HDMI connector and

incompatible with the ARC / eARC” (v p. 51) “Connecting a set-top box (Satellite tuner/cable TV)” (v p. 53)

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. (v p. 61)

Front panel Display Rear panel Remote Index

Page 25

Contents Connections Playback Settings Tips Appendix

Power cord (v p. 63)

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. (v p. 59)

Speaker terminals (SPEAKERS)

Used to connect speakers. (v p. 35)

PRE OUT connectors

Used to connect a subwoofer with a built-in amplifier. (v p. 36)

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic

discharge may cause permanent damage to the unit.

HDMI connectors

Used to connect devices equipped with HDMI connectors.

“Connection 1 : TV equipped with an HDMI connector and

compatible with the ARC / eARC” (v p. 50) “Connection 2 : TV equipped with an HDMI connector and

incompatible with the ARC / eARC” (v p. 51) “Connecting a set-top box (Satellite tuner/cable TV)” (v p. 53)

“Connecting a media player” (v p. 54)

“Connecting a Blu-ray Disc player or DVD player” (v p. 55)

“Connecting a game console or player device compatible with

8K” (v p. 56)

Front panel Display Rear panel Remote Index

Page 26

Contents

Connections Playback Settings Tips Appendix

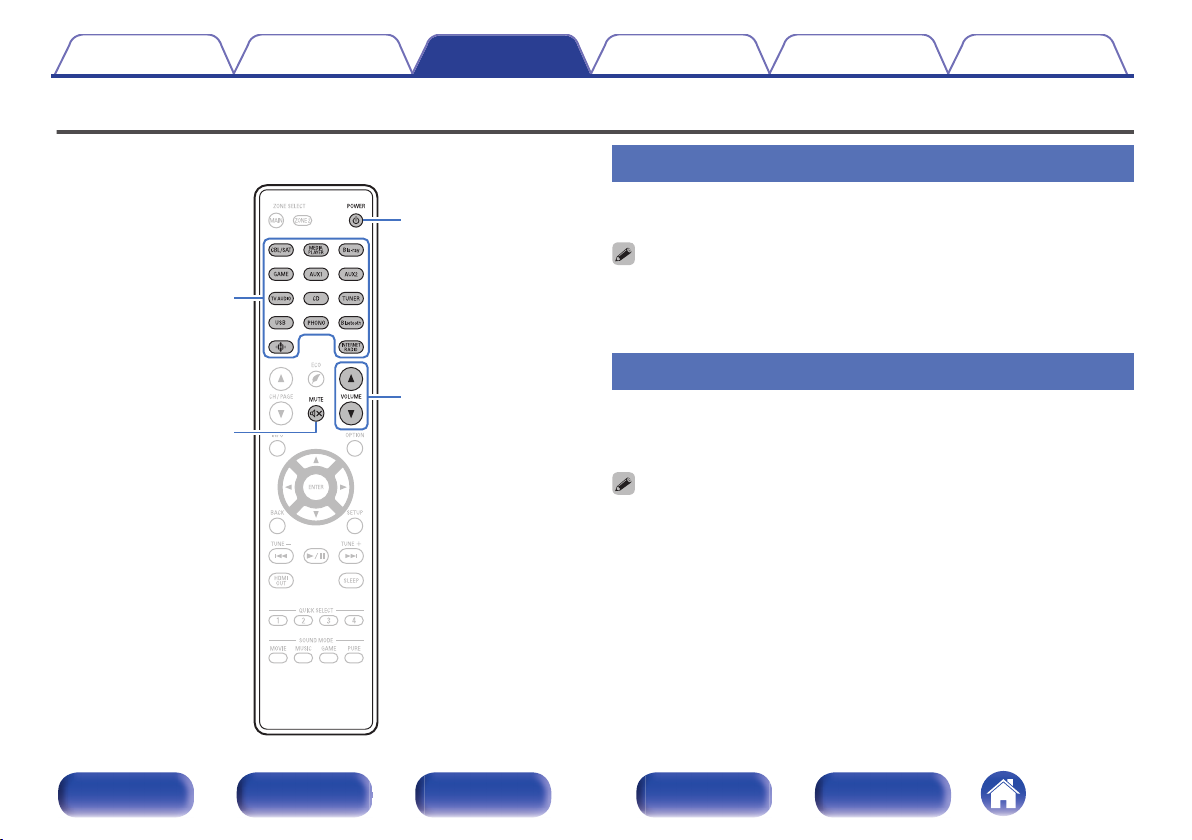

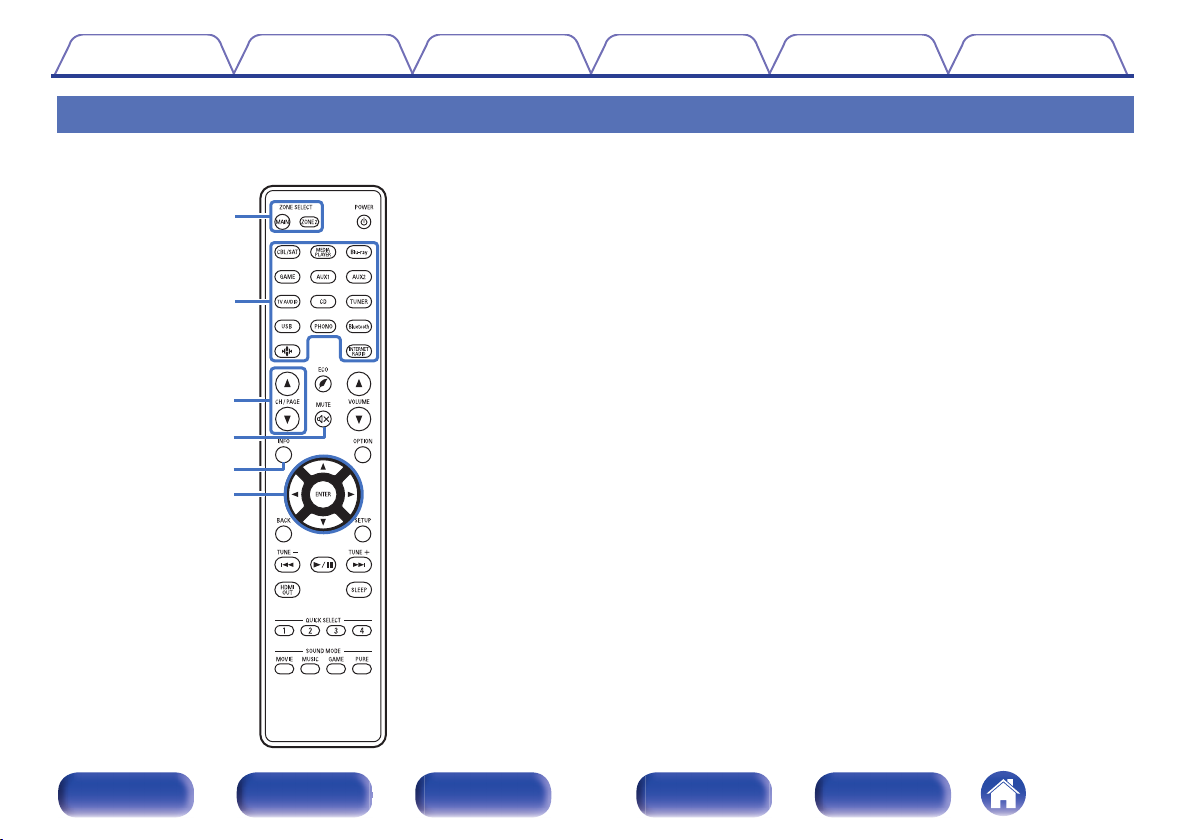

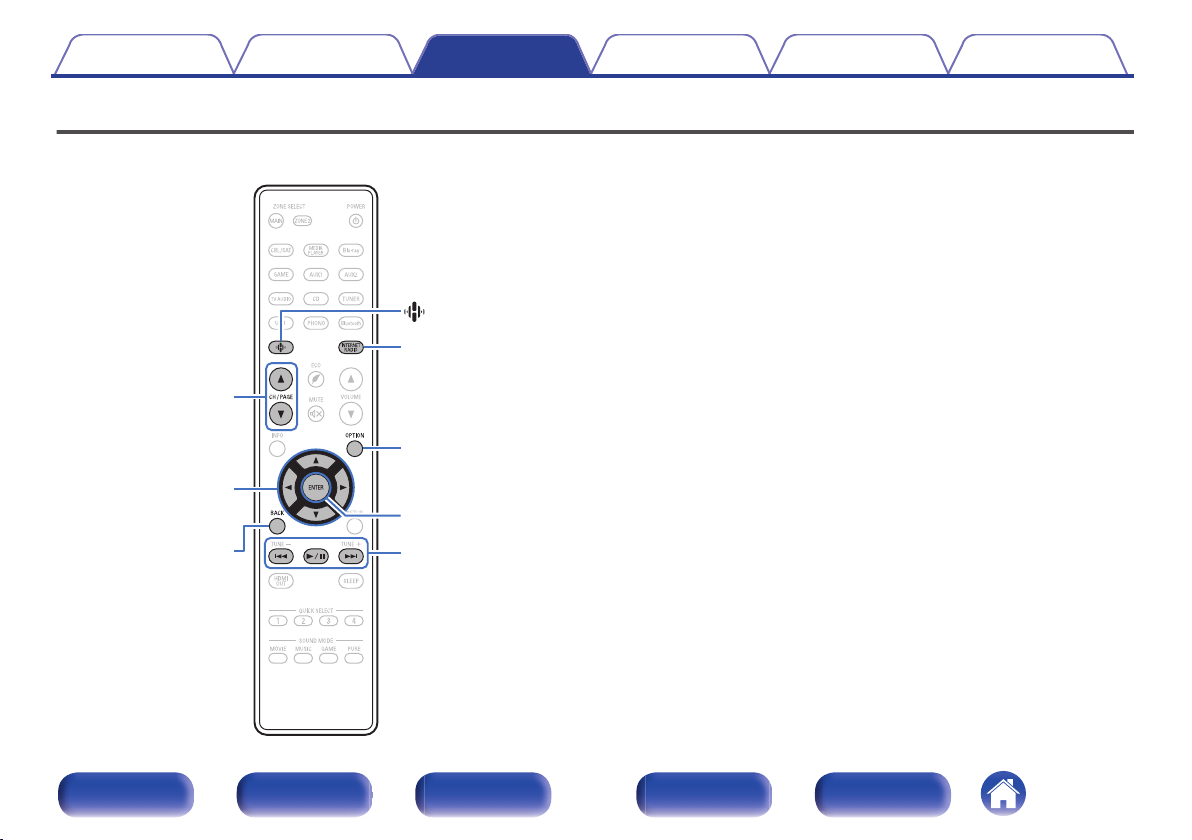

Remote control unit

ZONE SELECT buttons

These switch the zone (MAIN ZONE, ZONE2) that is operated through the remote control unit.

“Menu operations” (v p. 147)

“Playback in ZONE2” (v p. 140)

Input source select buttons

These selects the input source.

“Selecting the input source” (v p. 65)

“Playback in ZONE2” (v p. 140)

Channel/page search buttons (CH/PAGE df)

These select radio stations registered to presets or switch pages. (v p. 82)

MUTE button (:)

This mutes the output audio.

“Turning off the sound temporarily (Muting)” (v p. 66)

“Turning off the sound temporarily (Muting) (ZONE2)” (v p. 141)

Information button (INFO)

This displays the status information on the TV screen. (v p. 214)

Cursor buttons

These select items.

Front panel Display Rear panel Remote Index

Page 27

i o

Contents

Connections Playback Settings Tips Appendix

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. (v p. 79)

HDMI OUT button

This sets the HDMI monitor output. (v p. 164)

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. (v p. 129)

SOUND MODE buttons

These select the sound mode. (v p. 114)

Remote control signal transmitter

This transmits signals from the remote control unit. (v p. 10)

Front panel Display Rear panel Remote Index

Page 28

Q6 Q7

Contents

Connections Playback Settings Tips Appendix

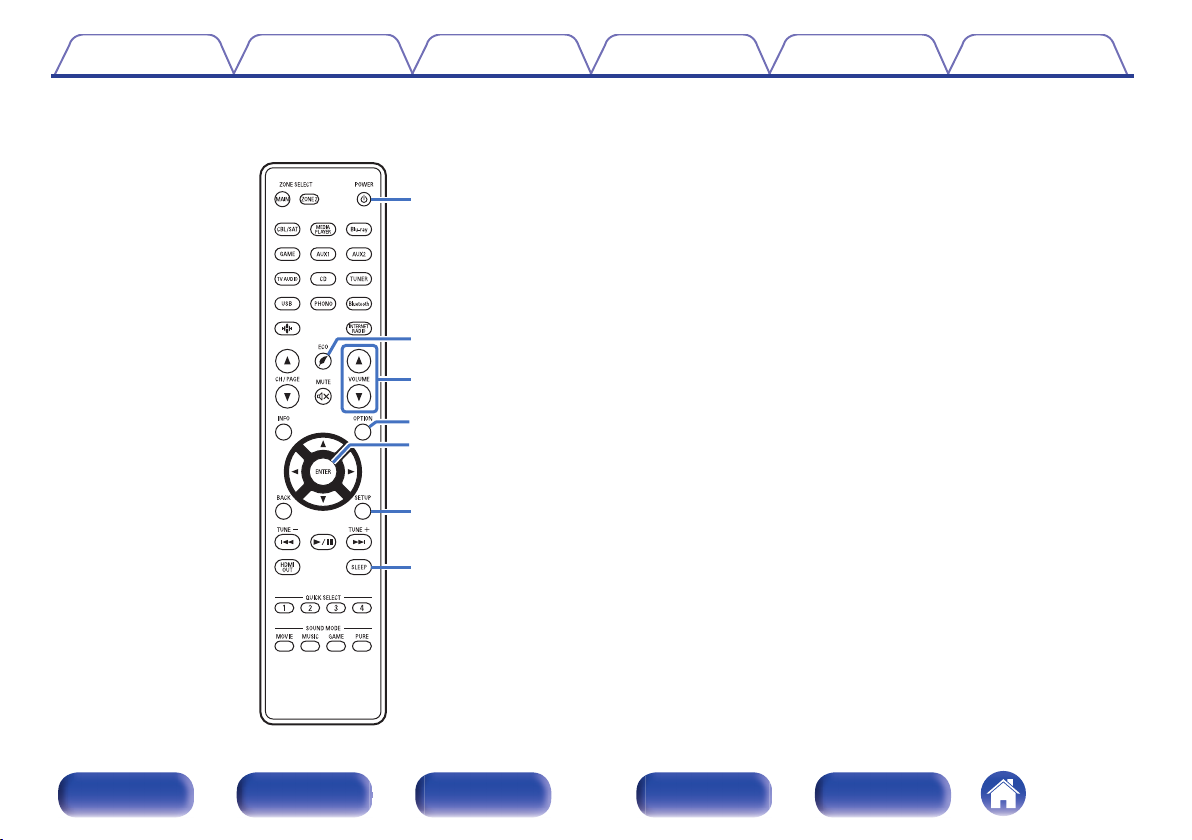

POWER button (X)

This turns the power on/off.

“Turning the power on” (v p. 65)

“Playback in ZONE2” (v p. 140)

ECO Mode button (G)

This switches to ECO Mode. (v p. 203)

VOLUME buttons (df)

These adjusts the volume level.

“Adjusting the volume” (v p. 66)

“Adjusting the volume (ZONE2)” (v p. 141)

OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

SETUP button

This displays the menu on the TV screen. (v p. 147)

SLEEP button

This sets the sleep timer. (v p. 127)

Front panel Display Rear panel Remote Index

Page 29

Contents Connections Playback Settings Tips Appendix

Contents

Speaker installation 30

Connecting speakers 35

Connecting a TV 49

Connecting a playback device 52

Connecting a USB memory device to the USB port 58

Connecting FM/AM antennas 59

Connecting to a home network (LAN) 61

Connecting the power cord 63

NOTE

Do not plug in the power cord until all connections have been completed.

However, when the “Setup Assistant” is running, follow the instructions in the “Setup Assistant” (page 9 in the separate “Quick Start Guide”) screen for making connections. (During “Setup Assistant” operation, the input/output connectors do not conduct current.)

Do not bundle power cords together with connection cables. Doing so can result in

noise.

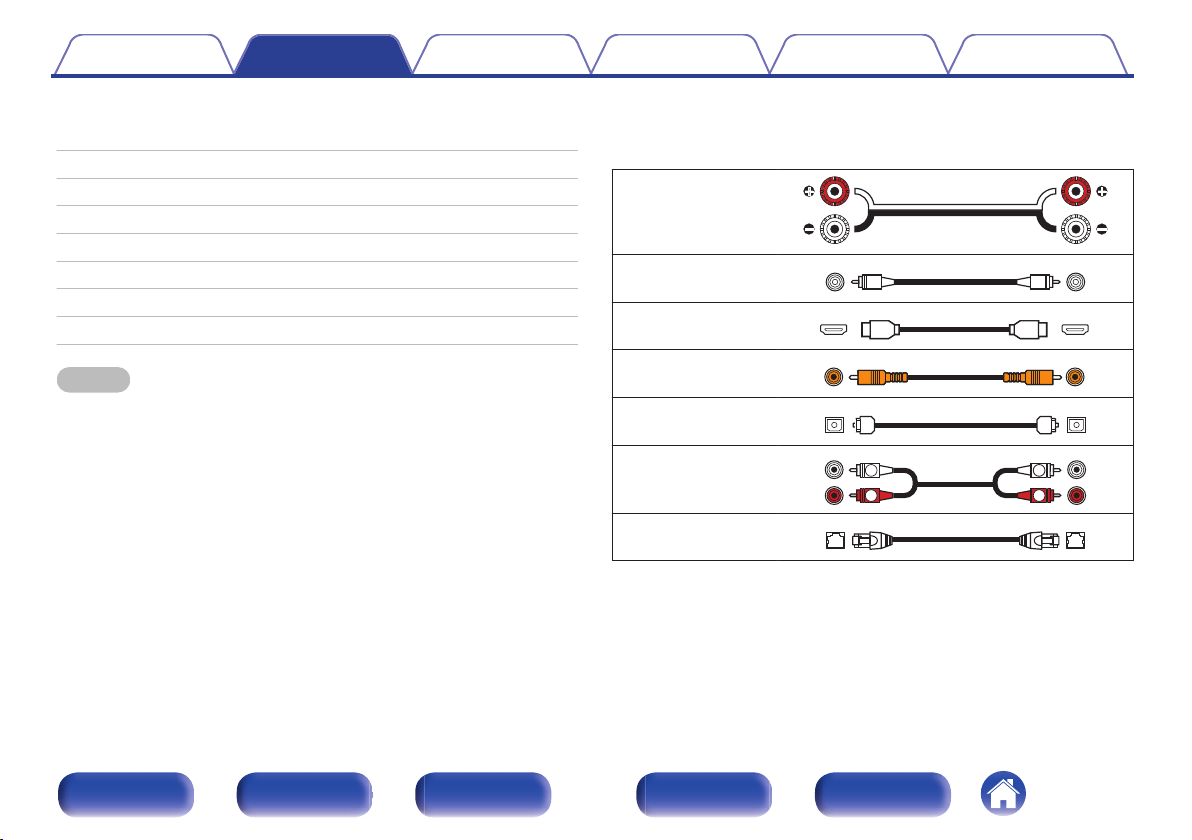

Cables used for connections

Provide necessary cables according to the devices you want to connect.

Speaker cable

Subwoofer cable

HDMI cable

Coaxial digital cable

Optical cable

Audio cable

LAN cable

Front panel Display Rear panel Remote Index

Page 30

FL FR

SBL

SBR

SW1

SW2

SL SR

Contents Connections Playback Settings Tips Appendix

Speaker installation

Determine the speaker system depending on the number of speakers you are using and install each speaker and subwoofer in the room. Speaker installation is explained using this example of a typical installation.

FL/FR

(Front speaker left/ right):

C (Center speaker):

SL/SR

(Surround speaker left/ right):

SBL/SBR

(Surround back speaker left/right):

SW 1/2 (Subwoofer):

Front panel Display Rear panel Remote Index

Place the FRONT left and right speakers an equal distance from the main listening position. The distance between each speaker and your TV should also be the same.

Place the CENTER speaker in between the front speakers and above or below your TV.

Place the SURROUND left and right speakers an equal distance to the left and right sides of the main listening position. If you don’t have surround back speakers, move the surround speakers slightly behind your listening position.

Place the SURROUND BACK left and right speakers an equal distance from the main listening position and directly behind the main listening position. When using a single surround back speaker (SB), place it directly behind the listening position.

Place the SUBWOOFER at a convenient location near the front speakers. If you have two subwoofers, place them asymmetrically across the front of your room.

Page 31

FHL FHR

TFR

TFL

TMR

TML

Contents Connections Playback Settings Tips Appendix

FHL/FHR

(Front height speaker left/right):

TFL/TFR

(Top front speaker left/right):

TML/TMR

(Top middle speaker left/right):

Place the FRONT HEIGHT left and right speakers directly above the front speakers. Mount them as close to the ceiling as possible and aim them towards the main listening position.

Mount the TOP FRONT left and right speakers on the ceiling slightly in front of your main listening position and aligned with the left and right front speakers.

Mount the TOP MIDDLE left and right speakers directly above the main listening position and aligned with the left and right front speakers.

Front panel Display Rear panel Remote Index

Page 32

FDL FDR

SDL SDR

Contents Connections Playback Settings Tips Appendix

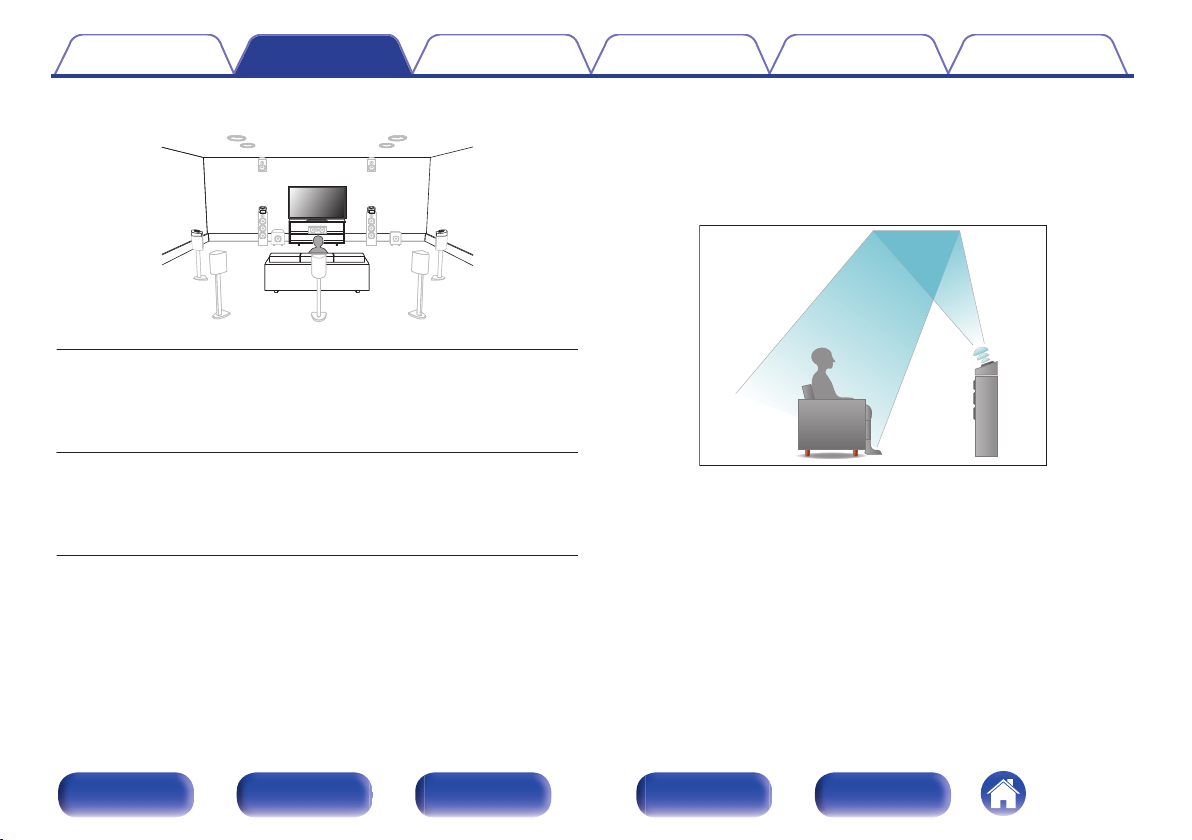

About Dolby Atmos Enabled speakers

Dolby Atmos Enabled speakers reflect the sound off the ceiling to allow the sound to come from over your head by using a special upwardpointing speaker that is placed on the floor.

You can enjoy the Dolby Atmos 3D sound even in an environment where speakers cannot be installed on the ceiling.

FDL/FDR

(Front Dolby speaker left/right):

SDL/SDR

(Surround Dolby speaker left/right):

Front panel Display Rear panel Remote Index

Place the FRONT Dolby Atmos Enabled speaker on the front speaker. For a Dolby Atmos Enabled integrated with a front speaker, place the Dolby Atmos Enabled speaker instead of the front speaker.

Place the SURROUND Dolby Atmos Enabled speaker on the surround speaker. For a Dolby Atmos Enabled speaker integrated with a surround speaker, place the Dolby Atmos Enabled speaker instead of the surround speaker.

Page 33

SBL

SBR

Contents

This unit is compatible with Dolby Atmos and DTS:X which offers an even wider

and deeper surround sensation. The “Speaker Virtualizer” must be set to “On” for Dolby Atmos playback with 5.1-

channel speaker configurations or less. (v p. 150) DTS:X can be selected regardless of the speaker configuration.

Connections Playback Settings Tips Appendix

Recommended placement of the speakers

Floor speakers Layout

Use the following illustration as a guide for the installation location of

each floor speaker. You do not have to match them exactly.

1 22° - 30° z2 90° - 110° z3 135° - 150°

If you are not using the surround back speakers, the recommended angle of the

surround sound speakers (z2) is 120°. When using a single surround back speaker, place it directly behind the listening

position.

Front panel Display Rear panel Remote Index

Page 34

Front height speaker

z1: 30° – 45° z2: 30° – 55°

z3: 65° – 100°

GViewed from the sideH

Top middle speaker

Top front speaker

Front speaker

Surround speaker

Surround back speaker

Point slightly downwards

FHL

TML

TFL

FHR

TMR

TFR

Height speakers layout

GViewed from the topH

Contents Connections Playback Settings Tips Appendix

Height speakers Layout

Use the following illustration as a guide for the installation location of each height speaker. You do not have to match them exactly.

Front panel Display Rear panel Remote Index

Page 35

Contents

Connections Playback Settings Tips Appendix

Connecting speakers

Here we connect the speakers in the room to this unit.

Before connecting speakers

NOTE

Disconnect this unit’s power plug from the power outlet before connecting the

speakers. Also, turn off the subwoofer. Connect so that the speaker cable core wires do not protrude from the speaker

terminal. The protection circuit may be activated if the core wires touch the rear panel or if the + and - sides touch each other. (“Protection circuit” (v p. 268))

Never touch the speaker terminals while the power cord is connected. Doing so

could result in electric shock. When the “Setup Assistant” (page 9 in the separate “Quick Start Guide”) is running, follow the instructions in the “Setup Assistant” screen for making connections. (Power is not supplied to the speaker terminals while the “Setup Assistant” is running.)

Use speakers with an impedance of 4 – 16 Ω/ohms.

Front panel Display Rear panel Remote Index

NOTE

Carry out the following settings when using a speaker with an impedance of 4 – 6

Ω/ohms.

1. Press and hold the main unit’s TUNER PRESET CH + and TUNE + at the same

time for at least 3 seconds.

“V.Format:< NTSC>” appears on the display.

2. Press DIMMER on the main unit three times.

“Sp.Imp.:<8ohms>” appears on the display.

3. Press TUNER PRESET CH + or TUNER PRESET CH － on the main unit to

select the impedance.

8ohms (Default):

6ohms:

4ohms:

4. Press the main unit’s STATUS to complete the setting.

Select when the impedance for all of the connected speakers is 8 Ω/ohms or over.

Select when the impedance for any of the connected speakers is 6 Ω/ohms.

Select when the impedance for any of the connected speakers is 4 Ω/ohms.

Page 36

SW1 SW2

Contents

Connections Playback Settings Tips Appendix

Connecting the speaker cables

Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to this unit, and be sure to connect the channels and polarities correctly.

Peel off about 3/8 inch (10 mm) of sheathing from the

tip of the speaker cable, then either twist the core wire tightly or terminate it.

Turn the speaker terminal counterclockwise to loosen it.

Insert the speaker cable’s core wire to the hilt into the

speaker terminal.

Turn the speaker terminal clockwise to tighten it.

Connecting the subwoofer

Use a subwoofer cable to connect the subwoofer. Two subwoofers can be connected to this unit.

The same signal is output from the respective subwoofer terminals.

Front panel Display Rear panel Remote Index

Page 37

Contents Connections Playback Settings Tips Appendix

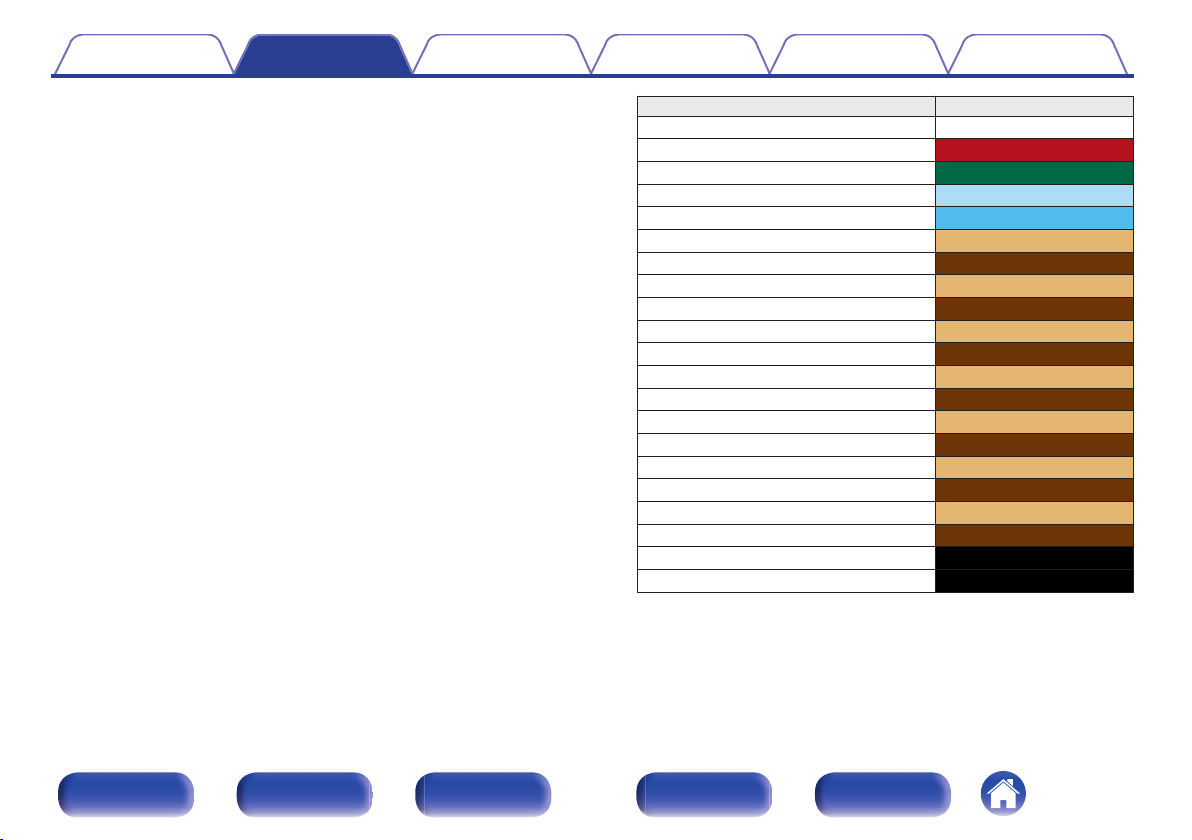

About the cable labels (supplied) for channel identification

The channel display section for speaker terminals on the rear panel is color-coded for each channel to be identifiable.

Attach the cable label corresponding to each speaker to each speaker cable. This makes it easy to connect the correct cable to the speaker terminals on the rear panel.

FRONT L White FRONT R Red CENTER Green SURROUND L Light Blue SURROUND R Blue SURROUND BACK L Beige SURROUND BACK R Brown FRONT HEIGHT L Beige FRONT HEIGHT R Brown ZONE2 L Beige ZONE2 R Brown TOP FRONT L Beige TOP FRONT R Brown TOP MIDDLE L Beige TOP MIDDLE R Brown FRONT DOLBY L Beige FRONT DOLBY R Brown SURROUND DOLBY L Beige SURROUND DOLBY R Brown SUBWOOFER 1 Black SUBWOOFER 2 Black

Speaker Color

Front panel Display Rear panel Remote Index

Page 38

Speaker

This unit

Contents

Attach the cable label for each channel to its speaker cable as shown in the diagram.

Refer to the table and attach the label to each speaker cable. Then, make connection so that the color of the speaker terminal

matches that of the cable label.

G How to attach the cable labels H

Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Page 39

SW2 SW1

SR SLFR FL C

SBLSBR

Contents

Connections Playback Settings Tips Appendix

Connecting speakers to the speaker terminals

You can connect 7.2 channel speakers to this unit. Connect each speaker according to the speakers you are using.

When using a single surround back speaker, connect it to the

SURROUND BACK L terminal. The Surround Back speaker terminal can be assigned to the Height/

Ceiling/Dolby Enabled speaker in some speaker systems. Refer to the section on “Amp Assign” in the menu for instructions on configuring the settings. (v p. 184)

Front panel Display Rear panel Remote Index

Page 40

Contents Connections Playback Settings Tips Appendix

Speaker configuration and “Amp Assign” settings

This unit has a built-in 7-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Amp Assign” settings to suit the application, such as 7.1-channel systems and 2-channel systems for multi-zone playback. (v p. 184)

Perform “Amp Assign” settings to suit the number of rooms and speaker configuration to be installed. (v p. 184)

Playback speaker and zone

MAIN ZONE ZONE2

5.1-channel Not used Can be set in all “Amp Assign” modes. 41

7.1-channel (surround back) Not used Surround Back 42

7.1-channel (front height) Not used Front Height 43

7.1-channel (top front) Not used Top Front 44

7.1-channel (top middle) Not used Top Middle 45

7.1-channel (front Dolby Atmos Enabled speaker) Not used Front Dolby 46

7.1-channel (surround Dolby Atmos Enabled speaker) Not used Surround Dolby 47

5.1-channel

The sound mode that can be selected varies according to the speaker configuration.

2-channel

(Speaker out)

“Amp Assign” settings

ZONE2 (Default) 48

Connection

page

Front panel Display Rear panel Remote Index

Page 41

SW C

Contents

Connections Playback Settings Tips Appendix

Connecting 5.1-channel speakers

This serves as a basic 5.1-channel surround system.

For each speaker connection, refer to “Connecting speakers to the speaker terminals” (v p. 39).

Front panel Display Rear panel Remote Index

Page 42

SBL SBR

Contents Connections Playback Settings Tips Appendix

Connecting 7.1-channel speakers

Example layout when using surround back speakers

This 7.1-channel surround system is basic 7.1-channel system. (Adding surround back speakers to basic 5.1-channel system)

For each speaker connection, refer to the following.

“Connecting speakers to the speaker terminals” (v p. 39)

Set “Assign Mode” to “Surround Back” in the menu. (v p. 184)

Front panel Display Rear panel Remote Index

Page 43

FHL FHR

FHR FHL

SW FLFR C SR SL

Contents Connections Playback Settings Tips Appendix

Example layout when using height speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.

Set “Assign Mode” to “Front Height” in the menu. (v p. 184)

Front panel Display Rear panel Remote Index

Page 44

FL FR

SL SR

TFL TFR

TFR TFL

SW FLFR C SR SL

Contents Connections Playback Settings Tips Appendix

Example layout when using top front speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with top front speakers.

Set “Assign Mode” to “Top Front” in the menu. (v p. 184)

Front panel Display Rear panel Remote Index

Page 45

FL FR

SL SR

TML TMR

TMR TML

SW FLFR C SR SL

Contents Connections Playback Settings Tips Appendix

Example layout when using top middle speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with top middle speakers.

Set “Assign Mode” to “Top Middle” in the menu. (v p. 184)

Front panel Display Rear panel Remote Index

Page 46

SWFL FR

SL SR

FDL FDR

FDR FDL

SW FLFR C SR SL

Contents Connections Playback Settings Tips Appendix

Example layout when using front Dolby Atmos Enabled speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby Atmos Enabled speakers.

Set “Assign Mode” to “Front Dolby” in the menu. (v p. 184)

Front panel Display Rear panel Remote Index

Page 47

FL FR

SL SR

SDL SDR

SDR SDL

SW FLFR C SR SL

Contents Connections Playback Settings Tips Appendix

Example layout when using surround Dolby Atmos Enabled speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround Dolby Atmos Enabled speakers.

Set “Assign Mode” to “Surround Dolby” in the menu. (v p. 184)

Front panel Display Rear panel Remote Index

Page 48

SW C

ZONE2

ZONE2RZONE2

SW FLFR C SR SL

Contents Connections Playback Settings Tips Appendix

Connecting multi-zone speakers

5.1-channel (MAIN ZONE) + 2-channel (ZONE2) speaker connection

This connection method constructs a 5.1-channel speaker system in the MAIN ZONE and a 2-channel system in ZONE2.

MAIN ZONE

ZONE2

Set “Assign Mode” to “ZONE2” in the menu. (v p. 184)

Front panel Display Rear panel Remote Index

Page 49

Yes

Is the TV equipped with an HDMI connector?

Yes No

Is the TV compatible with the ARC / eARC?

Contents Connections Playback Settings Tips Appendix

Connecting a TV

Connect a TV to this unit so that the input video is output to the TV. You can also enjoy audio from the TV on this unit. How to connect a TV depends on the connectors and functions equipped on the TV.

“Connection 1 : TV equipped with an HDMI connector and compatible with the ARC / eARC” (v p. 50)

What is ARC and eARC?

ARC (Audio Return Channel) sends audio back to this unit using the same HDMI cable that sends video from this unit to your TV. This allows this unit to process the sound from your TV’s built-in tuner and apps. TVs with eARC (Enhanced Audio Return Channel) port provide additional support for high bitrate multichannel audio (Dolby Atmos, Dolby TrueHD, DTS-HD and DTS:X). Please refer to your TV Owner’s Manual for details about eARC support for your particular model.

NOTE

Use a TV with a 2 prong power plug for this unit. Do not connect a TV with a 3 prong power plug, as this may cause noise.

“Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC / eARC” (v p. 51)

You cannot connect the TV to this unit.

Front panel Display Rear panel Remote Index

Page 50

(ARC / eARC)

HDMI

Contents Connections Playback Settings Tips Appendix

Connection 1 : TV equipped with an HDMI connector and compatible with the ARC / eARC

Using a high quality HDMI cablez, connect one end to the HDMI port labeled “eARC” or “ARC” on your TV. Connect the other end to the HDMI OUT MONITOR 1 port on this unit.

When a TV with eARC support is connected, the eARC function of this unit is enabled automatically and the television audio is played back. When a TV with ARC support is connected, set “ARC” in the menu to “On”. (v p. 161)

For 4K TVs we recommend using an HDMI cable labeled “High Speed”

and “with Ethernet” .

For 8K TVs we recommend using an HDMI cable labeled “Ultra High

Speed”.

eARC function settings may be required depending on the eARC

function-compatible television you are using. Make sure eARC is set to on if this setting exists on your television. For more information, check your television’s owner’s manual.

Set “4K/8K Signal Format” to “8K Enhanced” in the menu to enjoy 8K

video. (v p. 167)

Front panel Display Rear panel Remote Index

Page 51

OUT

OPTICAL

OUT IN

HDMI

Contents Connections Playback Settings Tips Appendix

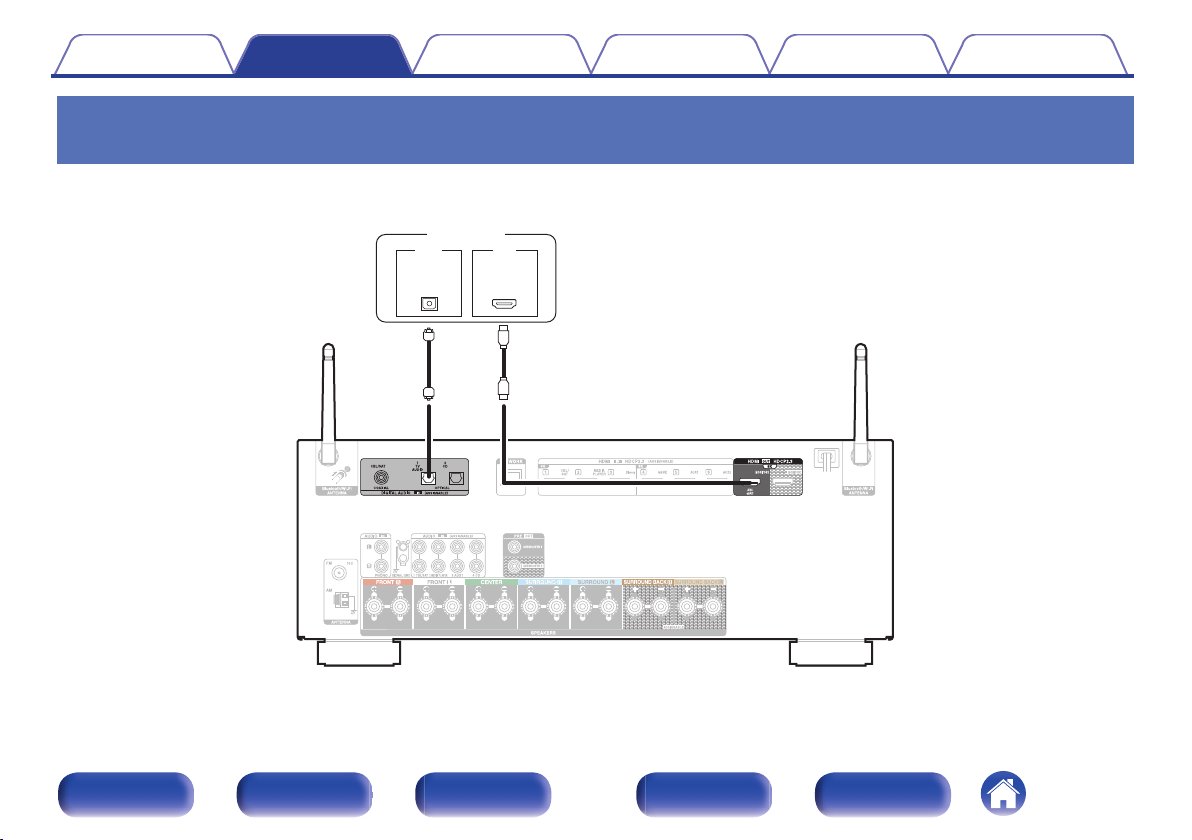

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC / eARC

Use an HDMI cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.

Front panel Display Rear panel Remote Index

Page 52

Contents Connections Playback Settings Tips Appendix

Connecting a playback device

This unit is equipped with HDMI video input connectors and three types of audio input connectors (HDMI, digital audio and audio). Select input connectors on this unit according to the connectors equipped on the device you want to connect. If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI connections. In the HDMI connection, audio and video signals can be transmitted through a single HDMI cable.

“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 53)

“Connecting a media player” (v p. 54)

“Connecting a Blu-ray Disc player or DVD player” (v p. 55)

“Connecting a game console or player device compatible with 8K” (v p. 56)

“Connecting a turntable” (v p. 57)

Connect devices to this unit as indicated by the input sources printed on the audio/video input connectors of this unit.

The source that is assigned to the HDMI IN, DIGITAL AUDIO IN and AUDIO IN connectors can be changed. See “Input Assign” on how to change the input source assigned

to the input connectors. (v p. 170) To play back audio signals that are input to this unit on a TV connected via HDMI, set in the menu “HDMI Audio Out” to “TV”. (v p. 159)

To enjoy content that is copyright protected by HDCP 2.2 or HDCP 2.3, use a playback device and TV compatible with HDCP 2.2 or HDCP 2.3.

Front panel Display Rear panel Remote Index

Page 53

OUT

HDMI

OUT

COAXIAL

AUDIO

OUT

Satellite tuner /

Cable TV

Satellite tuner /

Cable TV

(HDMI incompatible device)

Contents Connections Playback Settings Tips Appendix

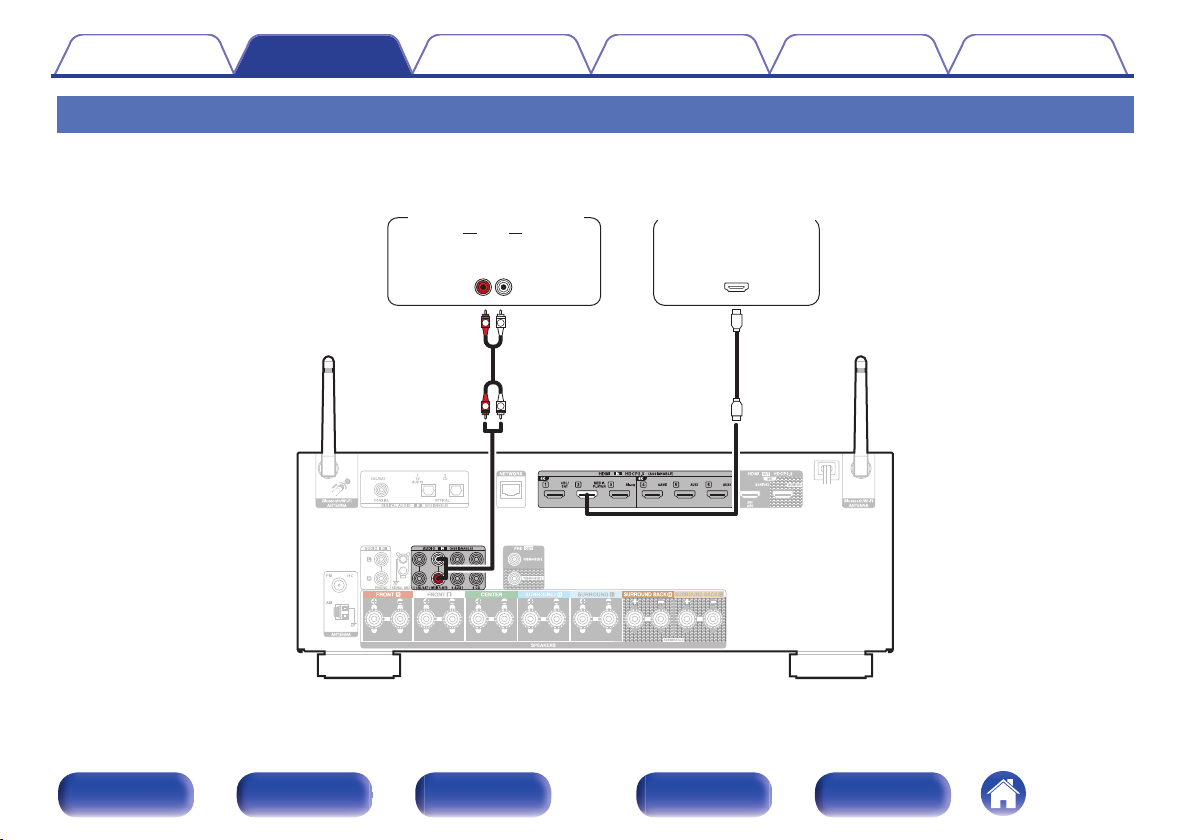

Connecting a set-top box (Satellite tuner/cable TV)

This explanation uses the connection with a satellite tuner/cable TV STB as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to.

Front panel Display Rear panel Remote Index

Page 54

OUT

HDMI

AUDIO

OUT

(HDMI incompatible device)

Media player Media player

Contents Connections Playback Settings Tips Appendix

Connecting a media player

This explanation uses the connection with a media player as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to.

Front panel Display Rear panel Remote Index

Page 55

OUT

HDMI

Blu-ray Disc player /

DVD player

Contents Connections Playback Settings Tips Appendix

Connecting a Blu-ray Disc player or DVD player

This explanation uses the connection with a Blu-ray Disc player or DVD player as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to.

Front panel Display Rear panel Remote Index

Page 56

OUT

HDMI

OUT

HDMI

Game console 8K player

Contents

Connections Playback Settings Tips Appendix

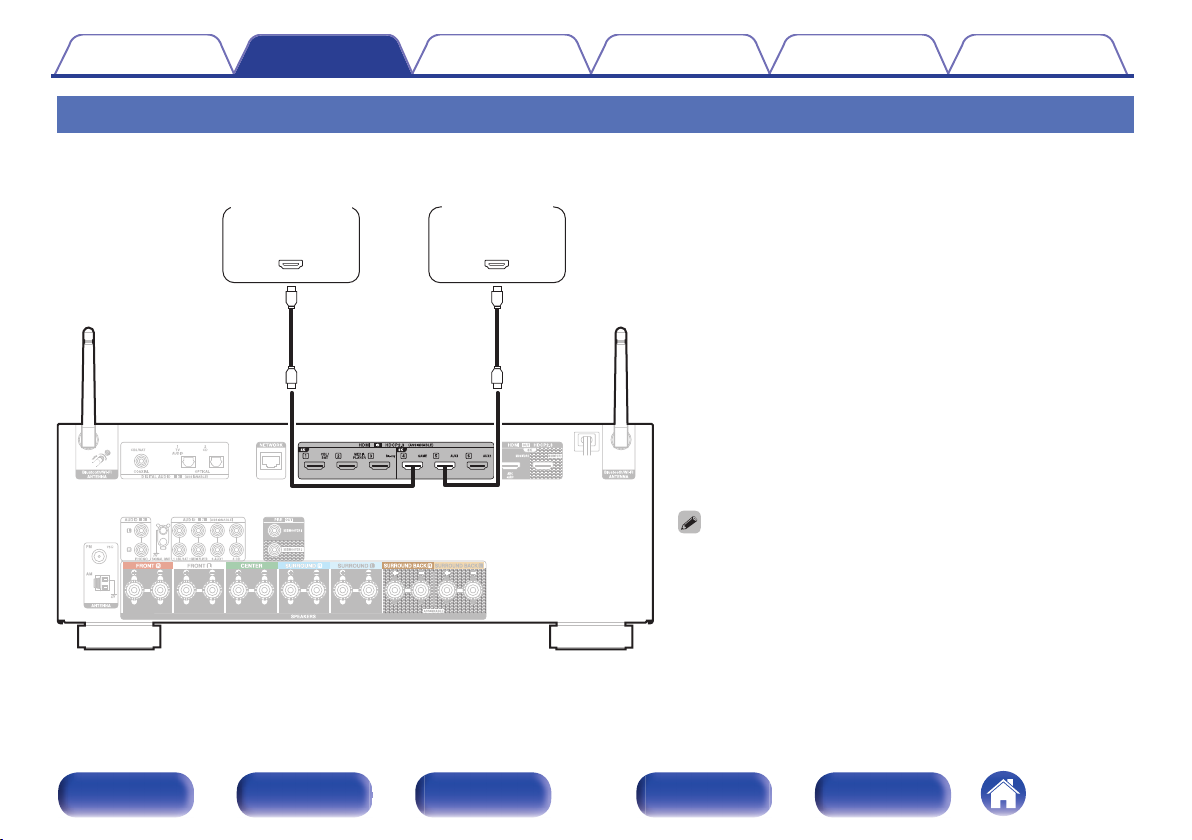

Connecting a game console or player device compatible with 8K

This unit supports 8K HDMI video signals. If your game console or player device supports 8K, connect it to the HDMI 4, HDMI 5 or HDMI 6 connector on your device.

Use a certified “Ultra High Speed HDMI cable” to enjoy 8K or 4K

120Hz video. Set “4K/8K Signal Format” to “8K Enhanced” in the menu to enjoy 8K

video. (v p. 167)

Front panel Display Rear panel Remote Index

Page 57

GND

AUDIO

OUT

(MM cartridge)

Turntable

Contents

Connections Playback Settings Tips Appendix

Connecting a turntable

This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer.

If you set this unit’s input source to “Phono” and you accidentally increase the volume without having a turntable connected, you may hear a hum noise from the speakers.

NOTE

The earth terminal (SIGNAL GND) of this unit is not for safety grounding

purposes. If this terminal is connected when there is a lot of noise, the noise can be reduced. Note that depending on the turntable, connecting the ground line may have the reverse effect of increasing noise. In this case, it is not necessary to connect the ground line.

Front panel Display Rear panel Remote Index

Page 58

USB memory

device

Contents Connections Playback Settings Tips Appendix

Connecting a USB memory device to the USB port

For operating instructions see “Playing a USB memory device” (v p. 67).

Denon does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter,

use that device’s supplied AC adapter.

NOTE

USB memory devices will not work via a USB hub.

It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable.

Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.

Front panel Display Rear panel Remote Index

Page 59

q we

Black

AM loop antenna

(supplied)

FM indoor antenna

(supplied)

White

Contents Connections Playback Settings Tips Appendix

Connecting FM/AM antennas

Connect the antenna, tune in to a broadcast and then move the antenna to the location where there is least noise. Then use tape, etc. to fix the antenna in this location. (“Listening to FM/AM broadcasts” (v p. 78))

If you are unable to receive a good broadcast signal, we recommend installing an

outdoor antenna. For details, inquire at the retail store where you purchased the unit.

NOTE

Make sure the AM loop antenna lead terminals do not touch metal parts of the

panel.

Front panel Display Rear panel Remote Index

Page 60

Nail, tack, etc.

Projecting part

Square hole

Stand

Loop antenna

Contents Connections Playback Settings Tips Appendix

Using the AM loop antenna

Suspending on a wall

Suspend directly on a wall without assembling.

Standing alone

Use the procedure shown above to assemble. When assembling, refer to “AM loop antenna assembly”.

AM loop antenna assembly

Put the stand section through the bottom of the loop

antenna from the rear and bend it forward.

Insert the projecting part into the square hole in the

stand.

Front panel Display Rear panel Remote Index

Page 61

Internet

Modem

Router

To WAN side

To LAN port

NAS

(Network Attached

Storage)

LAN port /

Ethernet

connector

LAN port /

Ethernet

connector

Contents Connections Playback Settings Tips Appendix

Connecting to a home network (LAN)

This unit can connect to a network using a wired LAN or wireless LAN. You can connect this unit to your home network (LAN) to enable various

types of playback and operations as described below.

Playback of network audio such as Internet Radio and from your media

server(s) Playback of streaming music services

Using the Apple AirPlay function

Operation on this unit via the network

Operation with the HEOS wireless multi-room sound system

Firmware Update

For connections to the Internet, contact an ISP (Internet Service Provider) or a computer shop.

Wired LAN

To make connections via wired LAN, use a LAN cable to connect the router to this unit as shown in the figure below.

Front panel Display Rear panel Remote Index

Page 62

Internet

Modem

Router with access point

To WAN side

Contents Connections Playback Settings Tips Appendix

Wireless LAN

When using this unit, we recommend you use a router equipped with the following

When connecting to the network via wireless LAN, connect the external antennas for Bluetooth/wireless connectivity connection to the rear panel and stand them upright.

See “Wi-Fi Setup” on how to connect to a wireless LAN router. (v p. 195)

functions:

Built-in DHCP server

This function automatically assigns IP addresses on the LAN. Built-in 100BASE-TX switch

When connecting multiple devices, we recommend a switching hub with a speed of 100 Mbps or greater.

Only use a shielded STP or ScTP LAN cable (readily available at electronics

stores). (CAT-5 or greater recommended) The normal shielded-type LAN cable is recommended.

If a flat-type cable or unshielded-type cable is used, other devices could be affected by noise.

When using this unit connected to a network with no DHCP function, configure the

IP address, etc. in “Network”. (v p. 194)

NOTE

The types of routers that can be used depend on the ISP. Contact your ISP or a

computer shop for details. This unit is not compatible with PPPoE. A PPPoE compatible router is required if

your contracted line is not set using PPPoE. Do not connect a NETWORK connector directly to the LAN port / Ethernet

connector on your computer. Various online services may be discontinued without prior notice.

Front panel Display Rear panel Remote Index

Page 63

(AC 120 V, 60 Hz)

To household power outlet

Power cord

Contents Connections Playback Settings Tips Appendix

Connecting the power cord

After completing all the connections, insert the power plug into the power outlet.

Front panel Display Rear panel Remote Index

Page 64

Contents Connections Playback Settings Tips Appendix

Contents

Basic operation

Turning the power on 65

Selecting the input source 65

Adjusting the volume 66

Turning off the sound temporarily (Muting) 66

Selecting a sound mode 114

Playback a device

Playing a Blu-ray Disc player/DVD player 66

Playing a USB memory device 67

Listening to music on a Bluetooth device 71

Listening to audio on Bluetooth headphones 75

Listening to FM/AM broadcasts 78

Playback network audio/service

Listening to Internet Radio 86

Playing back files stored on a PC or NAS 88

Getting the HEOS App 92

AirPlay function 101

Spotify Connect function 104

Convenience functions

Convenience functions 105

HDMI Control function 126

Sleep timer function 127

Quick select plus function 129

Panel lock function 133

Remote lock function 135

Other functions

Web control function 136

Playback in ZONE2 (Another room) 139

Front panel Display Rear panel Remote Index

Page 65

MUTE

VOLUME

POWER

Input source

select buttons

Contents Connections Playback Settings Tips Appendix

Basic operation

Turning the power on

Press POWER X to turn on power to the unit.

You can press the input source select button when the unit is in standby mode to

turn on the power. You can also switch the power to standby by pressing X on the main unit.

Selecting the input source

Press the input source select button to be played back.

The desired input source can be selected directly.

Front panel Display Rear panel Remote Index

You can also select the input source by turning SOURCE SELECT on the main

unit.

Page 66

Contents Connections Playback Settings Tips Appendix

Adjusting the volume

Use VOLUME df to adjust the volume.

The variable range differs according to the input signal and channel level setting.

You can also adjust the master volume by turning MASTER VOLUME on the main

unit.

Turning off the sound temporarily (Muting)

Press MUTE :.

MUTE indicator on the display flashes.

appears on the TV screen.

The sound is reduced to the level set at “Mute Level” in the menu. (v p. 154)

To cancel mute, either adjust the sound volume or press MUTE : again.

is displayed on the TV screen for more than 5 minutes when the “Screen

Saver” is set to “On”, the symbol moves randomly over the TV screen. (v p. 166)

Playback a Blu-ray Disc player/DVD player

The following describes the procedure for playing Blu-ray Disc player/DVD player.

Prepare for playback.

Turn on the power of the TV, subwoofer and player.

Change the TV input to the input of this unit.

Press POWER X to turn on power to the unit.

Press Blu-ray or DVD to switch an input source for a

player used for playback.

Play the Blu-ray Disc player or DVD player.

Surround playback (v p. 114)

Front panel Display Rear panel Remote Index

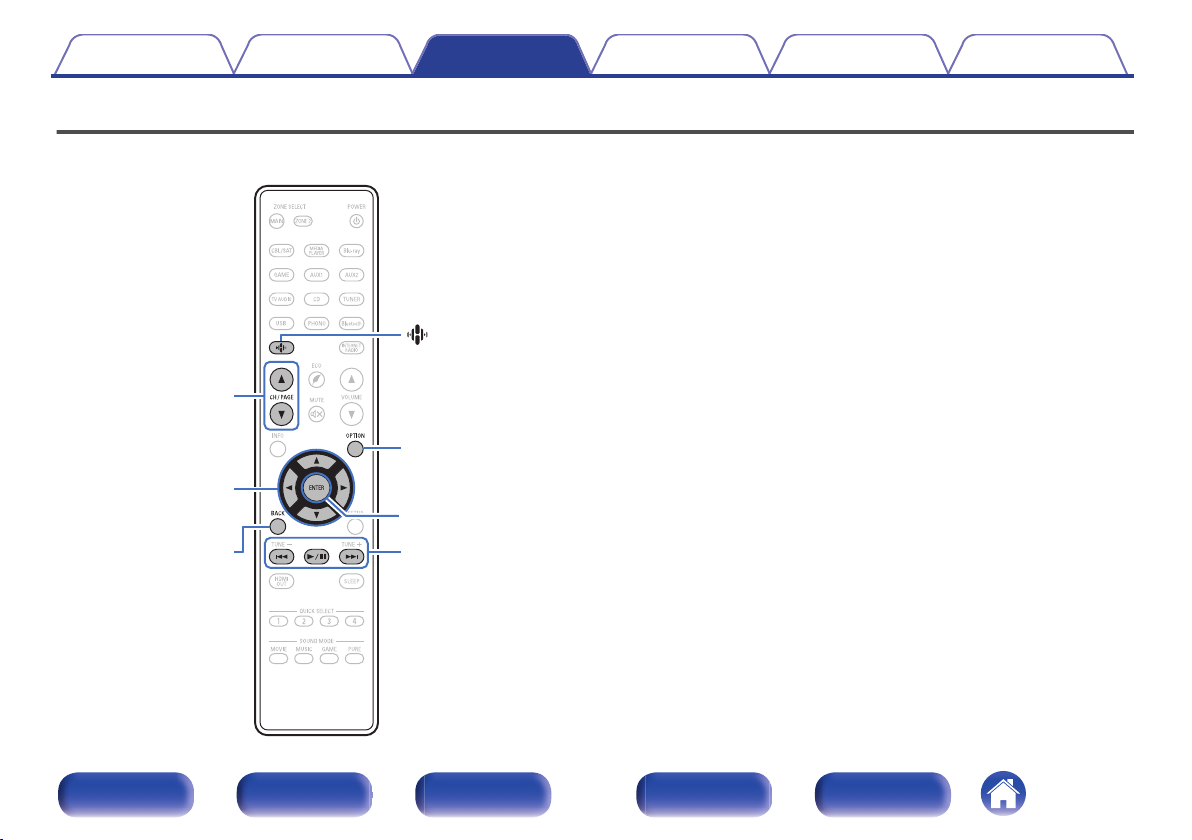

Page 67

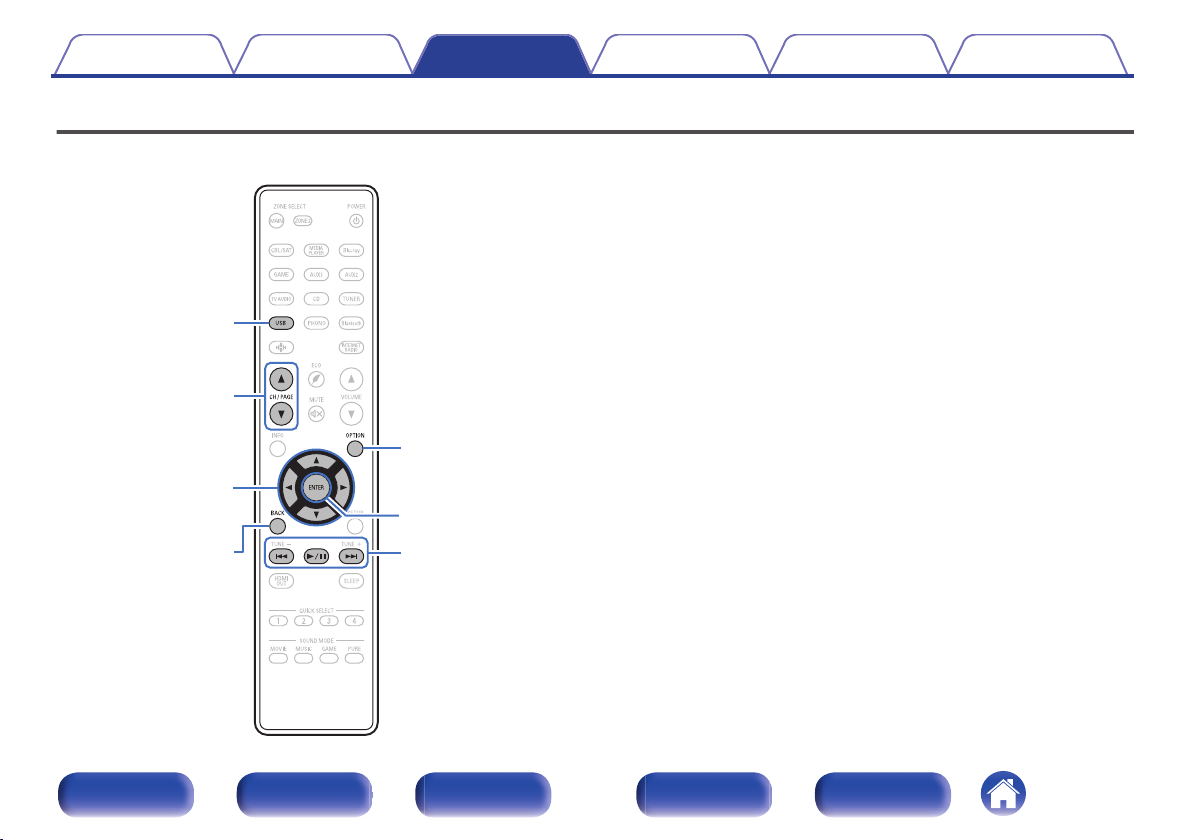

CH/PAGE

USB

BACK

OPTION

ENTER

1/3 8 9

Cursor Up/Down/

Left/Right

Contents

Connections Playback Settings Tips Appendix

Playing a USB memory device

Playing back music files stored on a USB memory device.

Only USB memory devices conforming to mass storage class standards

can be played on this unit. This unit is compatible with USB memory devices in “FAT32” or “NTFS”

format. The audio format types and specifications supported by this unit for

playback are as follows. See “Playing back a USB memory devices” (v p. 249) for details.

WMA

MP3

WAV

MPEG-4 AAC

FLAC

Apple Lossless

DSD

Front panel Display Rear panel Remote Index

Page 68

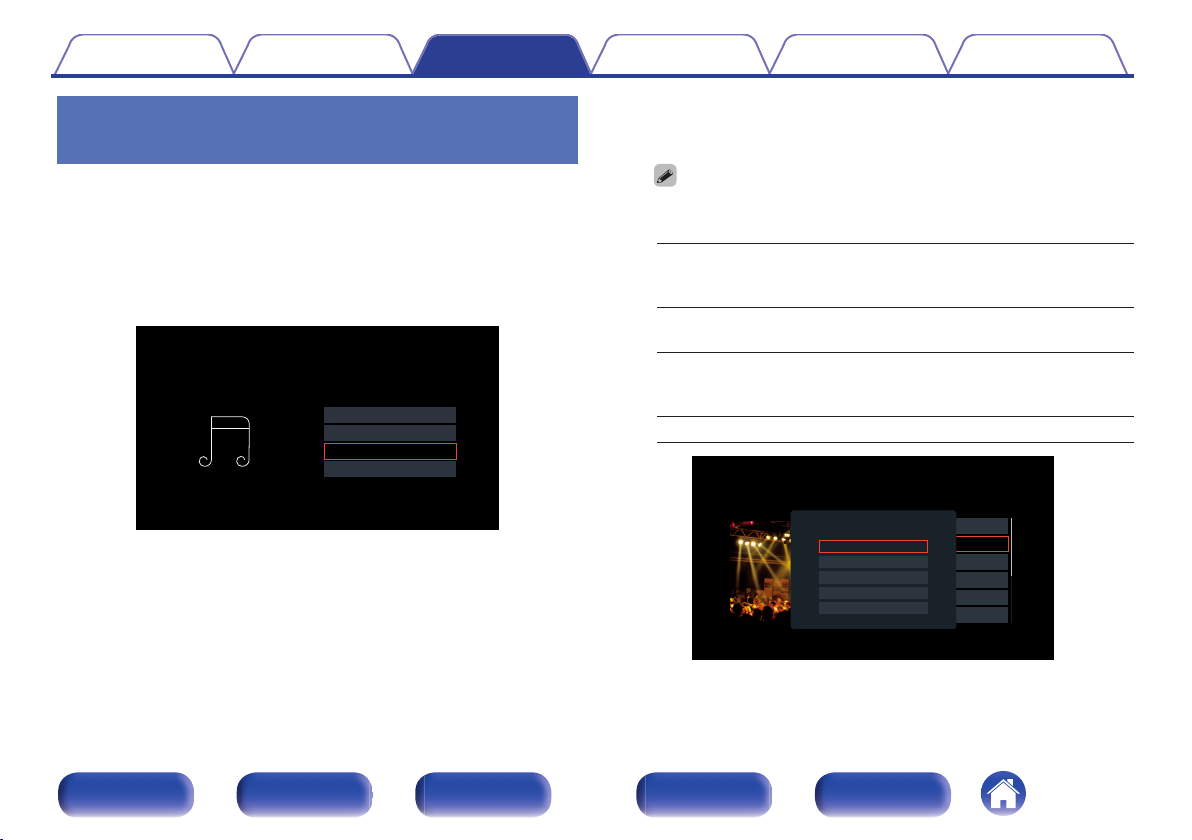

Nature 01

USB Music - Nature

Play Now

Play Now & Replace Queue

Play Next

Add to End of Queue

Cancel

Contents Connections Playback Settings Tips Appendix

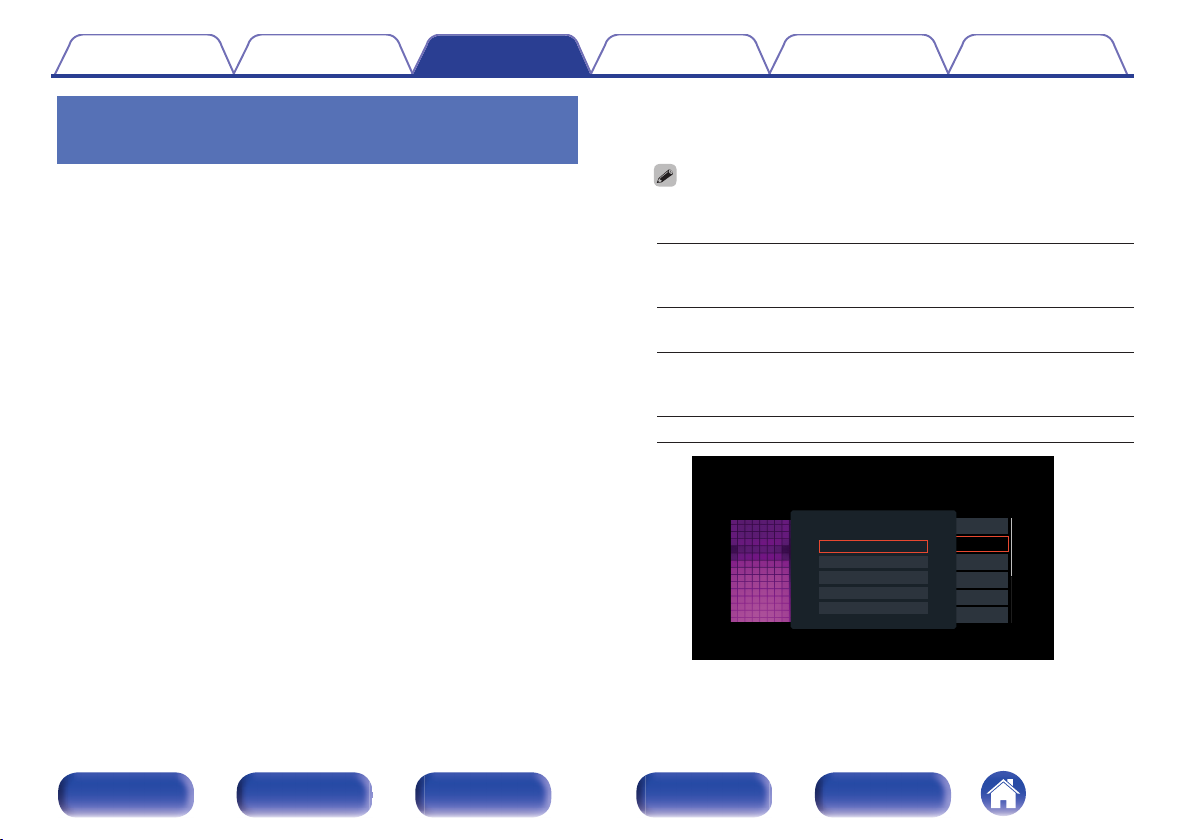

Playing files stored on USB memory devices

Insert a “FAT32” or “NTFS” formatted USB memory

device into the USB port.

Press USB to switch the input source to “USB”.

Select the name of this unit.

Front panel Display Rear panel Remote Index

Browse the music on your USB memory device and

select something to play.

When you select something to play you will be asked how you want to

queue up your music.

Play Now:

Play Now & Replace Queue:

Play Next:

Add to End of Queue: Adds the item to the end of the queue.

Inserts the item into the queue after the currently playing track and plays the selected item immediately.

Clears the queue and plays the selected item immediately.

Inserts the item into the queue after the current song and plays it when the current song ends.

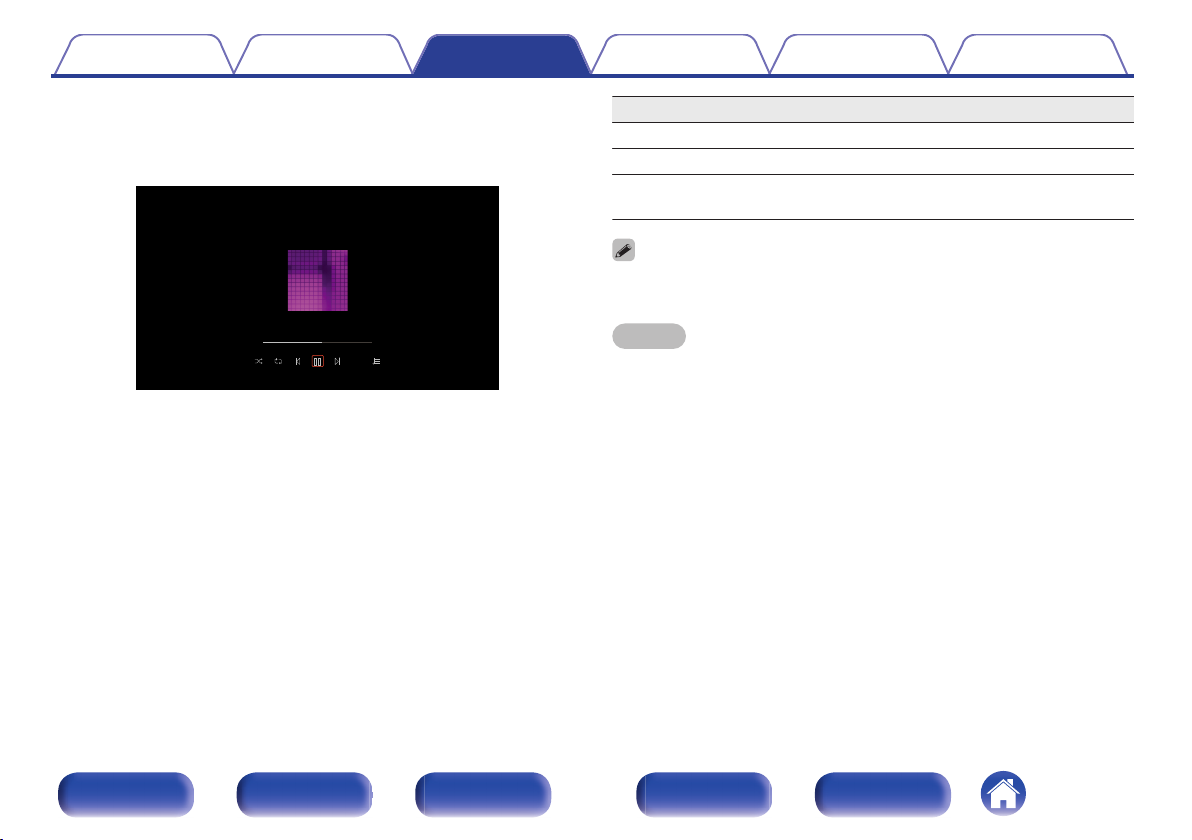

Page 69

2:45

-2:21

Nature

Nature 01

Various Artists

Now Playing

Contents Connections Playback Settings Tips Appendix

Use cursor Up/Down to select the “Play Now” or “Play Now & Replace Queue”, then press ENTER.

Playback starts.

Operation buttons Function

1/3 8 9

CH/PAGE d f

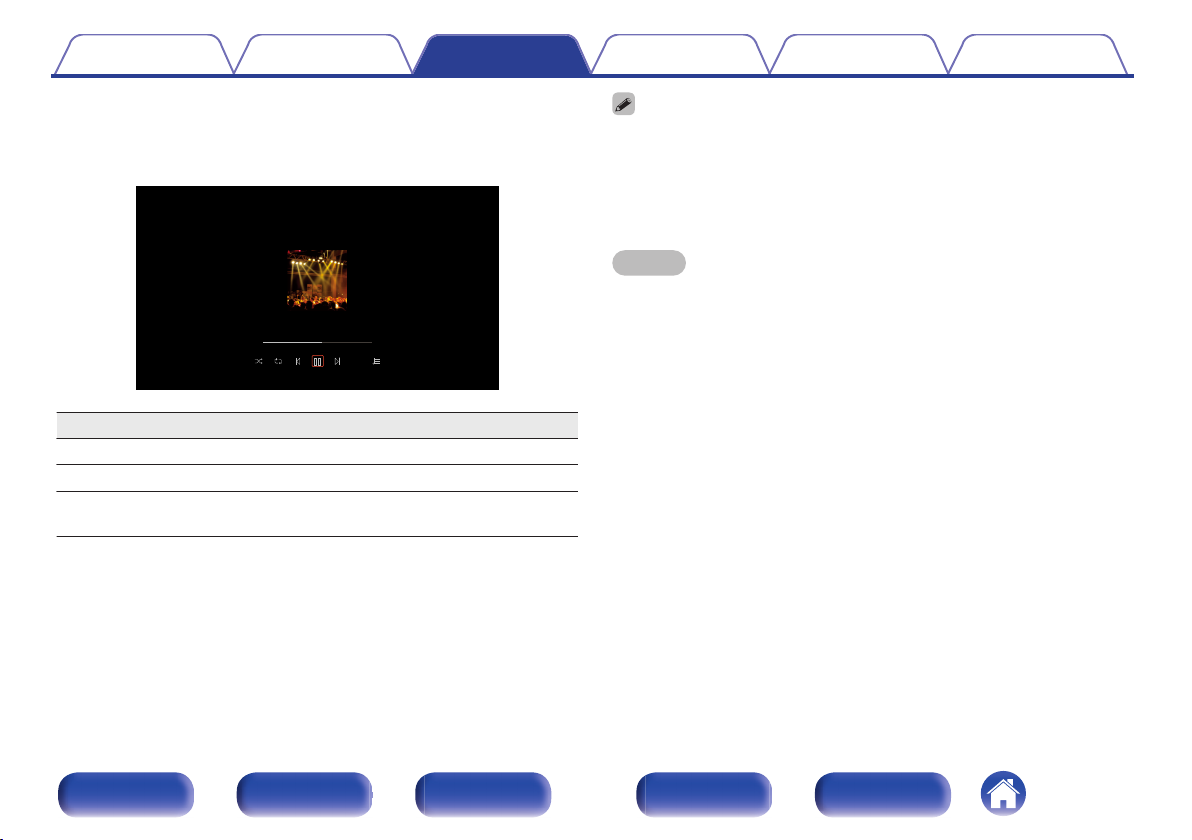

When an MP3 music file includes album art data, the album art can be displayed

while playing the file.

Playback / Pause

Skip to previous track / Skip to next track

Switch to the previous page/next page in the list display

NOTE

Note that Denon will accept no responsibility whatsoever for any problems arising with

the data on a USB memory device when using this unit in conjunction with the USB memory device.

When a USB memory device is connected to this unit, the unit loads all of the files

on the USB memory device. Loading may take a while if the USB memory device contains a large number of folders and/or files.

Front panel Display Rear panel Remote Index

Page 70

Contents

Operations accessible through the option

Connections Playback Settings Tips Appendix

“Adjusting the audibility of dialog and vocals (Dialog

Enhancer)” (v p. 107) “Adjusting the volume of each channel to match the input source

(Channel Level Adjust)” (v p. 108) “Adjusting the tone (Tone)” (v p. 109)

“Adjusting audio delay (Audio Delay)” (v p. 110)

“Displaying your desired video during audio playback (Video

Select)” (v p. 111) “Playing the same music in all zones (All Zone Stereo)” (v p. 112)

“Changing the speaker settings to match the listening environment

(Speaker Preset)” (v p. 113)

Front panel Display Rear panel Remote Index

Page 71

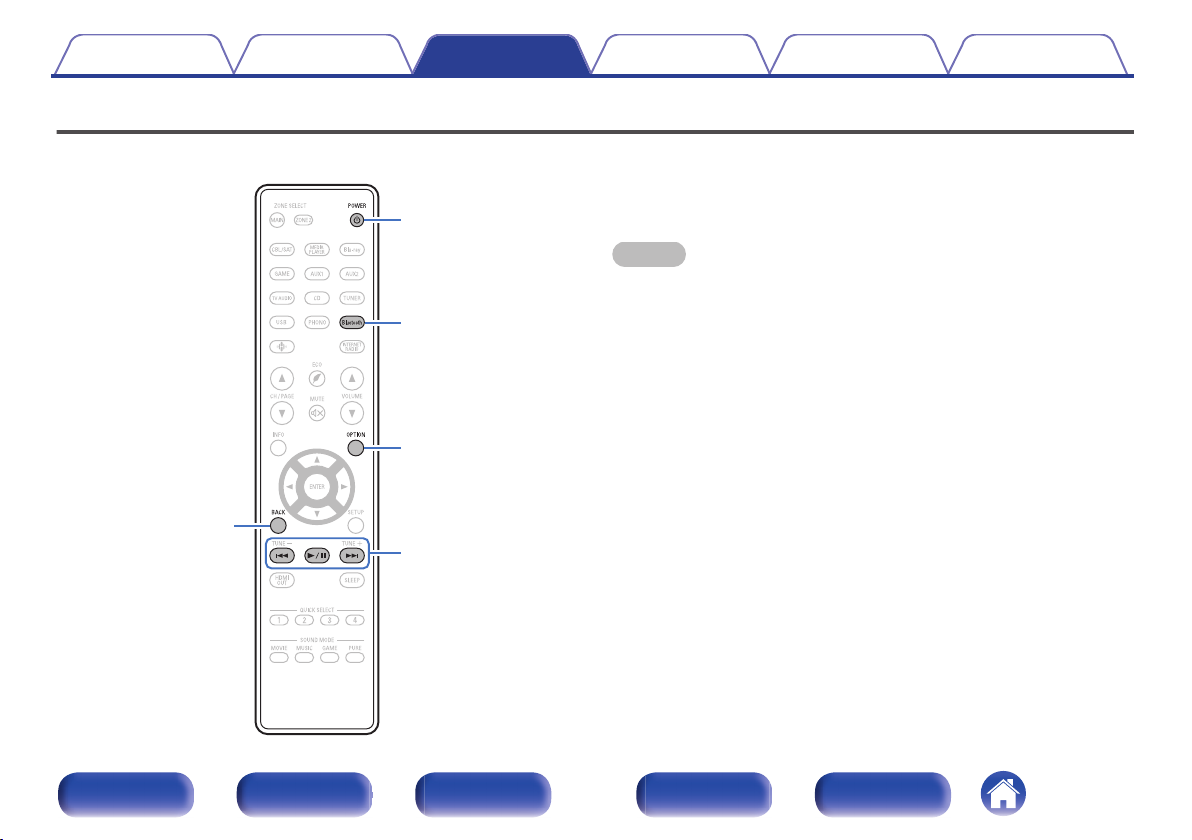

1/3 8 9

OPTION

Bluetooth

POWER

BACK

Contents Connections Playback Settings Tips Appendix

Listening to music on a Bluetooth device

Music files stored on Bluetooth devices such as smartphones, digital music players, etc. can be enjoyed on this unit by pairing and connecting this unit with the Bluetooth device.

Communication is possible up to a range of about 98.4 ft/30 m.

NOTE

To play back music from a Bluetooth device, the Bluetooth device needs to

support the A2DP profile.

Front panel Display Rear panel Remote Index

Page 72

Contents Connections Playback Settings Tips Appendix

Playing music from Bluetooth device

In order to enjoy music from a Bluetooth device on this unit, the Bluetooth device must first be paired with this unit.

Once the Bluetooth device has been paired, it does not need to be paired again.

Prepare for playback.

Connect the supplied external antennas for Bluetooth/wireless

connectivity to the Bluetooth/wireless LAN antenna connectors on the rear panel. (v p. 24) Press POWER X to turn on power to the unit.

Press Bluetooth.

When using for the first time, the unit will go into the pairing mode automatically and “Pairing...” will appear on the display of the unit.

Activate the Bluetooth settings on your mobile device.

Select this unit when its name appears in the list of

devices displayed on the screen of the Bluetooth device.

Connect to the Bluetooth device while “Pairing” is being displayed on the display of the unit. Perform the connection with the Bluetooth device close to the unit (about 3.3 ft/1 m).

Play music using any app on your Bluetooth device.

The Bluetooth device can also be operated with the remote

control of this unit. The next time the Bluetooth button is pressed on the remote

control unit, this unit automatically connects to the last Bluetooth device that was connected.

Operation buttons

1/3 8 9

Press STATUS on this unit during playback to switch the display between Title

name, Artist name, Album name, etc.

Playback / Pause

Skip to previous track / Skip to next track

Function

Front panel Display Rear panel Remote Index

Page 73

Contents

Connections Playback Settings Tips Appendix

Pairing with other Bluetooth devices

Pair a Bluetooth device with this unit.

Activate the Bluetooth settings on your mobile device.

Press and hold Bluetooth on the remote control unit for

at least 3 seconds.

This unit will go into the pairing mode.

Select this unit when its name appears in the list of

devices displayed on the screen of the Bluetooth device.

This unit can be paired with a maximum of 8 Bluetooth devices. When a 9th

Bluetooth device is paired, it will be registered in place of the oldest registered device.

You can also enter pairing mode by pressing the OPTION button when the

Bluetooth playback screen is displayed and selecting “Pairing Mode” from the displayed option menu.

NOTE

To operate the Bluetooth device with the remote control of this unit, the Bluetooth

device needs to support the AVRCP profile. The remote control of this unit is not guaranteed to work with all Bluetooth devices.

Depending on the type of Bluetooth device, this unit outputs audio that is coupled

to the volume setting on the Bluetooth device.

Operations accessible through the option menu

“Pairing with other Bluetooth devices” (v p. 73)

“Adjusting the audibility of dialog and vocals (Dialog

Enhancer)” (v p. 107) “Adjusting the volume of each channel to match the input source

(Channel Level Adjust)” (v p. 108) “Adjusting the tone (Tone)” (v p. 109)

“Adjusting audio delay (Audio Delay)” (v p. 110)

“Displaying your desired video during audio playback (Video

Select)” (v p. 111) “Playing the same music in all zones (All Zone Stereo)” (v p. 112)

“Changing the speaker settings to match the listening environment

(Speaker Preset)” (v p. 113)

Front panel Display Rear panel Remote Index

Page 74

Contents

Connections Playback Settings Tips Appendix

Reconnecting to this unit from a Bluetooth device

After pairing is completed, the Bluetooth device can be connected without performing any operations on this unit.

This operation also needs to be performed when switching the Bluetooth device for playback.

If a Bluetooth device is currently connected, deactivate

the Bluetooth setting of that device to disconnect it.

Activate the Bluetooth setting of the Bluetooth device

to be connected.

Select this unit from the Bluetooth device list on your

Bluetooth device.

Play music using any app on your Bluetooth device.

The screen automatically switches to the “Bluetooth” playback screen if a

Bluetooth device is connected while the power of this unit is on. When the “Network Control” setting of this unit is set to “Always On” and a

Bluetooth device is connected with the unit in the standby state, the power of the unit will be turned on automatically. (v p. 198)

Front panel Display Rear panel Remote Index

Page 75

(Output Mode: Bluetooth Only)(Output Mode: Bluetooth + Speakers)

Contents Connections Playback Settings Tips Appendix

Listening to audio on Bluetooth headphones

You can listen to audio playing through the MAIN ZONE of this unit on Bluetooth headphones. Output audio from connected speakers and Bluetooth headphones simultaneously, or only using Bluetooth headphones.

Front panel Display Rear panel Remote Index

Page 76

Contents Connections Playback Settings Tips Appendix

Listening to audio on Bluetooth

“Output Mode” can also be set from “Bluetooth Transmitter” in the option menu.

headphones

Set “Transmitter” to “On” from the “General” -

“Bluetooth Transmitter” setting in the menu. (v p. 207)

Select “Output Mode”, and set audio output method.

Audio is output to Bluetooth

Bluetooth + Speakers (Default):

Bluetooth Only:

headphones and main zone speakers. This simultaneous output is suitable for

family movie night and other group activities.

Audio is output to Bluetooth headphones only.

This is suitable for listening to music or watching movies by yourself at night when you need to keep quiet.

A2DP profile-compatible Bluetooth speakers can be connected following the same

steps used to connect Bluetooth headphones.

NOTE

Bluetooth headphones volume cannot be adjusted from this unit. Adjust volume of

your Bluetooth headphones. Stereo mode is fixed as the sound mode when using Bluetooth headphones. Any

sound modes and other audio settings are not reflected in audio output on Bluetooth headphones. Audio settings, sound modes and All Zone Stereo mode are not available while using Bluetooth headphones and “Output Mode” is set to “Bluetooth Only”.

Audio may be delayed when sent over Bluetooth.

Bluetooth headphones cannot be connected when use a Bluetooth input source in

any zone. Furthermore, selecting a Bluetooth input source in any zone will terminate the connection between this unit and Bluetooth headphones.

Bluetooth headphones cannot be connected when this unit is grouped in the

HEOS App.

Enter pairing mode on the Bluetooth headphones you

want to connect to this unit.

Select “Device List” and select the name of the

Bluetooth headphones from the device list.

Adjust the volume of connected Bluetooth headphones

after the connection is completed.

Front panel Display Rear panel Remote Index

CAUTION: Using Bluetooth headphones without a volume adjustment function

In order to avoid hearing loss, do not connect Bluetooth headphones

that lack volume adjustment functionality. Bluetooth headphone volume may be unexpectedly loud when this

unit connects to Bluetooth headphones. Bluetooth headphone volume cannot be adjusted from this unit.

Page 77

Contents Connections Playback Settings Tips Appendix

Reconnecting to a Bluetooth headphones

Follow any of the steps below to reconnect the most recently used Bluetooth headphones:

Reconnect to this unit with Bluetooth headphone's reconnect function.

Go to “Bluetooth Transmitter” and then select “Reconnect” within the

options menu. If “Output Mode” is set to “Bluetooth + Speakers”, this unit will

automatically connect to the most recently used Bluetooth headphones when power is turned on.

Select the device you wish to connect from the “Device List” under

“Bluetooth Transmitter” in the menu. (v p. 207)

Disconnecting Bluetooth headphones

Complete any of the following steps to disconnect your Bluetooth headphones:

Turn off your Bluetooth headphones.

Go to “Bluetooth Transmitter” and then select “Disconnect” within the

options menu. In the setup menu, go to “General” - “Bluetooth Transmitter”, and set

“Transmitter” to Off. (v p. 207)

Front panel Display Rear panel Remote Index

Page 78

CH/PAGE

BACK

OPTION

TUNE +, –

TUNER

ENTER

Cursor Up/Down/

Left/Right

Contents Connections Playback Settings Tips Appendix

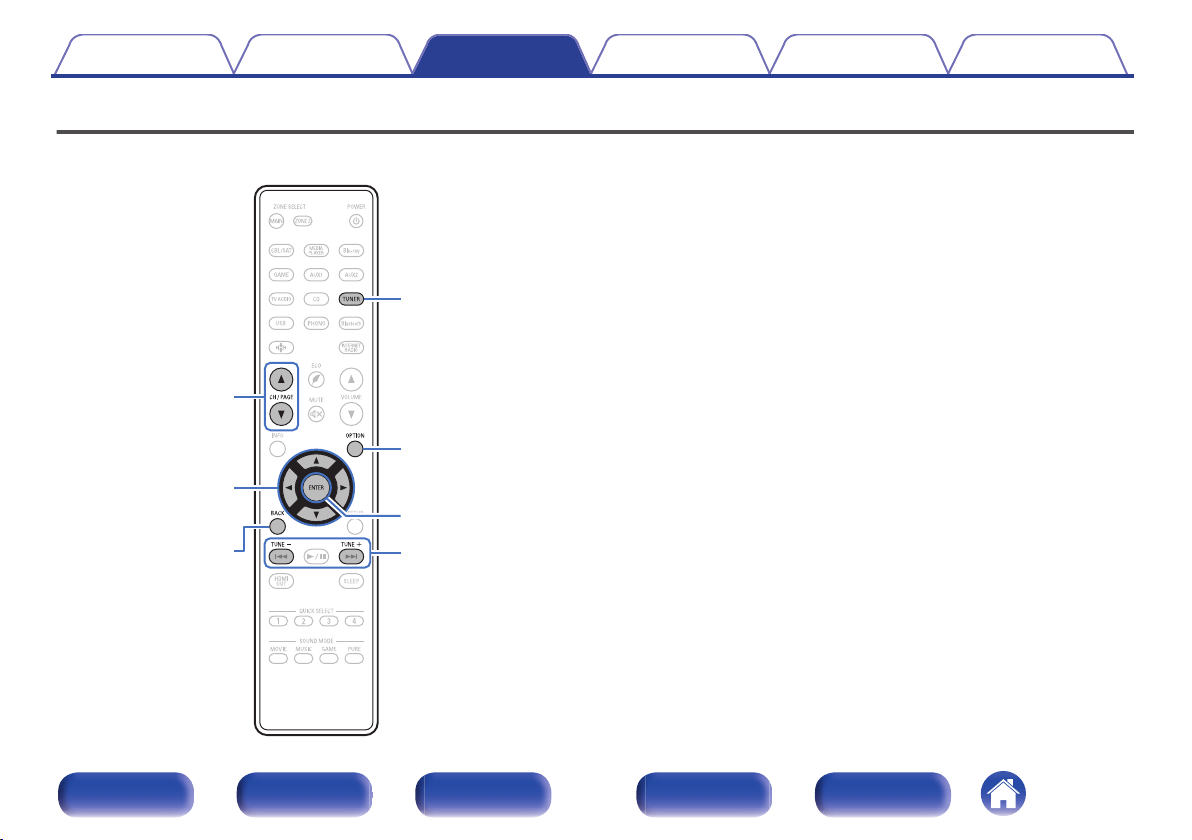

Listening to FM/AM broadcasts

You can use the built-in tuner of this unit to listen to FM broadcasts and AM broadcasts. Make sure the FM antenna and AM loop antenna are connected to this unit first.

Front panel Display Rear panel Remote Index

Page 79

OPTION

STEREO AUTO

CH 1

FM 92.10 MHz

Tuner

Tune Preset

Option

Now Playing

01 FM 92.10MHz

GDisplay of this unitH

Contents Connections Playback Settings Tips Appendix

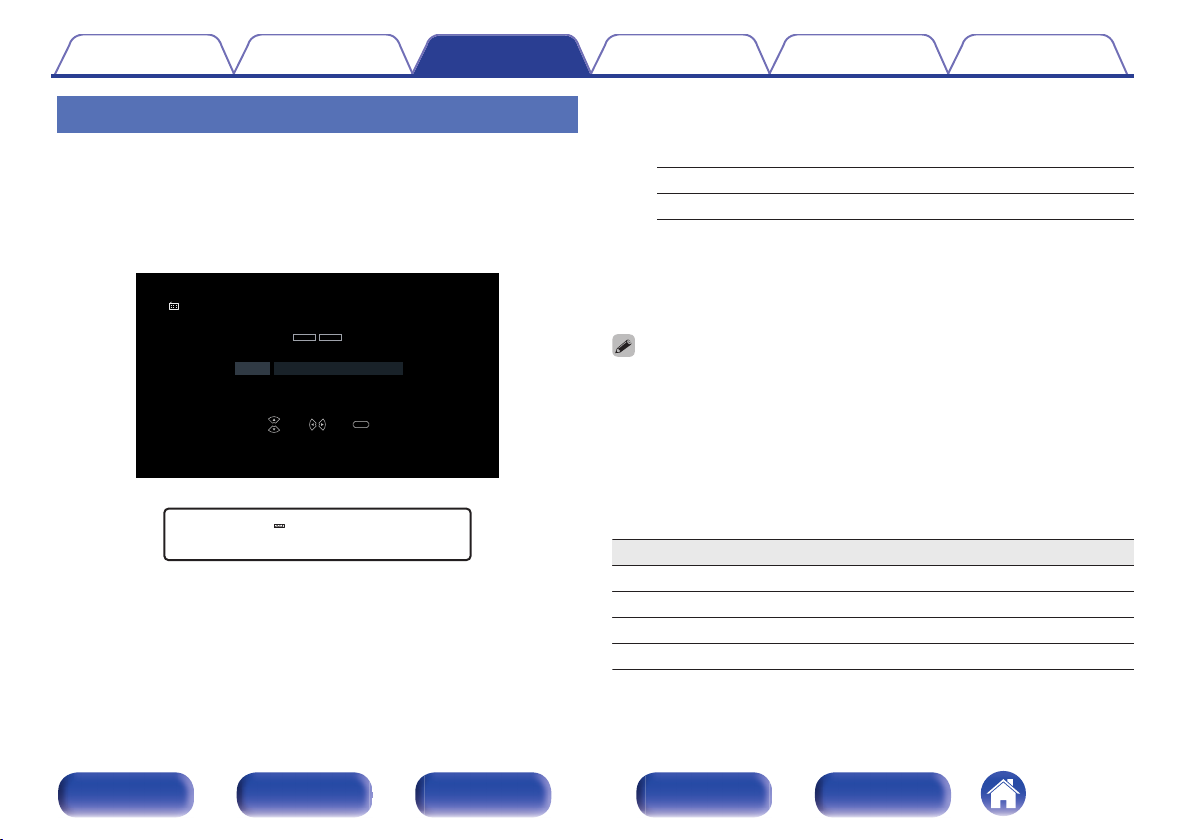

Listening to FM/AM broadcasts

Connect the antenna. (“Connecting FM/AM

antennas” (v p. 59))

Press TUNER to switch the input source to “Tuner”.

G TV screen H

Press OPTION.

The option menu screen is displayed.

Use cursor Up/Down to select “FM/AM”, then press

ENTER.

This displays the reception band input screen.

Use cursor Left/Right to select “FM” or “AM”, then

press ENTER.

FM: When listening to an FM broadcast.

AM: When listening to an AM broadcast.

Press TUNE + or TUNE – to select the station you want

listen to.

Scanning is performed until it finds an available radio station. When it finds a radio station, it stops the scan automatically and tunes in.

The modes for receiving FM broadcasts consists of “Auto” mode that automatically

searches available broadcast stations and “Manual” mode that lets you tune in using buttons to change the frequency. The default setting is “Auto”. You can also use “Direct Tune” to tune in by entering the frequency directly.

In “Auto” mode, you cannot tune in to radio stations if the reception is not good. If this is the case, then use the “Manual” mode or “Direct Tune” mode to tune in.

You can also switch the reception band by pressing BAND on the unit.

You can also scan the broadcast station by pressing TUNE + or TUNE – on the

unit.

Operation buttons Function

TUNE +, – Selects the radio station (up/down) CH/PAGE d f

Cursor Up/Down Selects the radio station (up/down)

Cursor Left/Right Selects preset radio stations

Selects preset radio stations

Front panel Display Rear panel Remote Index

Page 80

Contents

Operations accessible through the option

Connections Playback Settings Tips Appendix

“Tuning in by entering the frequency (Direct Tune)” (v p. 80)

“Changing the tune mode (Tune Mode)” (v p. 81)

“Tuning in to stations and presetting them automatically (Auto Preset

Memory)” (v p. 81) “Presetting the current broadcast station (Preset

Memory)” (v p. 82) “Specify a name for the preset broadcast station (Preset

Name)” (v p. 83) “Skipping preset broadcast stations (Preset Skip)” (v p. 84)

“Adjusting the audibility of dialog and vocals (Dialog

Enhancer)” (v p. 107) “Adjusting the volume of each channel to match the input source

(Channel Level Adjust)” (v p. 108) “Adjusting the tone (Tone)” (v p. 109)

“Adjusting audio delay (Audio Delay)” (v p. 110)

“Displaying your desired video during audio playback (Video

Select)” (v p. 111) “Playing the same music in all zones (All Zone Stereo)” (v p. 112)

“Changing the speaker settings to match the listening environment

(Speaker Preset)” (v p. 113)

Tuning in by entering the frequency (Direct Tune)

You can enter the receiving frequency directly to tune in.

Press OPTION when the input source is “Tuner”.

The option menu screen is displayed.

Use cursor Up/Down to select “Direct Tune”, then

press ENTER.

The screen that lets you enter the frequency is displayed.

Use cursor Up/Down to select a number, then press

cursor Right.

If cursor Left is pressed, the immediately preceding input is

cancelled.

Repeat step 3 and enter the frequency of the radio

station you want to hear.

When setting is completed, press ENTER.

The preset frequency is tuned in.

Front panel Display Rear panel Remote Index

Page 81

Contents Connections Playback Settings Tips Appendix

Changing the tune mode (Tune Mode)

You can change the mode for tuning into FM and AM broadcasts. If you cannot tune in automatically with “Auto” mode, change the mode to “Manual” and tune in manually.

Press OPTION when the input source is “Tuner”.

The option menu screen is displayed.

Use cursor Up/Down to select “Tune Mode”, then press

ENTER.

Use cursor Left/Right to select the tune mode, then

press ENTER.

Auto:

Manual:

You can also select the tuning mode by pressing MODE on the main unit.

Automatically search for and tune to a receivable radio station.

Manually change the frequency one step at a time each time the button is pressed.

Tuning in to stations and presetting them automatically (Auto Preset Memory)

A maximum of 56 radio stations can be automatically preset.

Press OPTION when the input source is “Tuner”.

The option menu screen is displayed.

Use cursor Up/Down to select “Auto Preset Memory”,

then press ENTER.

Press ENTER.

The unit starts to tune in to radio stations automatically and preset them.

When presetting is completed, “Completed” is displayed for about

5 seconds and the option menu screen turns off.

The preset memory is overwritten.

Front panel Display Rear panel Remote Index

Page 82

Contents Connections Playback Settings Tips Appendix

Presetting the current broadcast station (Preset Memory)

Your favorite broadcast stations can be preset so that you can tune them in easily.

Up to 56 stations can be preset.

Tune in the broadcast station you want to preset.

(“Listening to FM/AM broadcasts” (v p. 79))

Press OPTION.

The option menu screen is displayed.

Use cursor Up/Down to select “Preset Memory”, then

press ENTER.

The list of already preset channels is displayed.

Use cursor Up/Down to select the channel you want to

preset, then press ENTER.

The current broadcast station that is preset.

To preset other stations, repeat steps 1 to 4.

Channel Default settings

1 – 8

9 – 16

17 – 24

25 – 32

33 – 40

41 – 48

49 – 56

92.10 / 92.30 / 92.50 / 92.70 / 93.10 / 93.50 / 93.70 / 94.10 MHz

94.30 / 94.50 / 94.70 / 94.90 / 95.10 / 95.30 / 95.50 / 95.70 MHz

98.10 / 98.30 / 98.50 / 98.70 / 98.90 / 99.10 / 100.10 /

100.30 MHz

100.50 / 100.70 / 100.90 / 101.10 / 101.30 / 101.50 /

101.70 / 101.90 MHz

103.10 / 103.30 / 103.50 / 103.70 / 103.90 / 104.10 /

104.30 / 104.50 MHz

104.70 / 104.90 / 105.10 / 105.30 / 105.50 / 105.70 /

105.90 / 106.10 MHz

106.30 / 106.50 / 106.70 / 106.90 / 107.10 / 107.30 /

107.50 / 107.90 MHz

Listening to preset stations

Use CH/PAGE df to select the desired preset channel.

You can also select preset broadcast stations by pressing TUNER PRESET CH +

or TUNER PRESET CH – on the main unit.

Front panel Display Rear panel Remote Index

Page 83

Contents Connections Playback Settings Tips Appendix

Specify a name for the preset broadcast station (Preset Name)

You can set the name to the preset broadcast station or change it. Up to 8 characters can be input.

Press OPTION when the input source is “Tuner”.

The option menu screen is displayed.

Use cursor Up/Down to select “Preset Name”, then

press ENTER.

The “Preset Name” screen is displayed.

Use cursor Left/Right to select the group of the

broadcast station you want to name.

Use cursor Up/Down to select the broadcast station

you want to name, then press ENTER.

Use cursor Up/Down to select a name label, then press

ENTER.

The screen that lets you edit the Preset Name is displayed.

If you select “Set Defaults”, then the unit returns to displaying the

frequency.

Enter the characters, then press “OK”.

Press OPTION to return to the previous screen.

Front panel Display Rear panel Remote Index

Page 84

Contents Connections Playback Settings Tips Appendix

Skipping preset broadcast stations (Preset Skip)

Perform auto preset memory to save all the broadcasting stations that can be received in the memory. Selecting a broadcast station becomes easier by skipping unnecessary memories.

Press OPTION when the input source is “Tuner”.

The option menu screen is displayed.

Use cursor Up/Down to select “Preset Skip”, then press

ENTER.

The “Preset Skip” screen is displayed.

To set the stations you want to skip by groups

Use cursor Left/Right to select the group of broadcast stations

you want to skip. Press cursor Up to select “Set z – z to Skip”, then press

ENTER. Skip all the broadcast stations that are included in the

selected group “z-z”. (z is the selected group number.)

To set the stations you want to skip by stations

Use cursor Left/Right to select the group of broadcast

stations you want to skip. Use cursor Up/Down to select the broadcast station you

want to skip. Use cursor Left/Right to select “Skip”.

The station you selected is not displayed.

Press OPTION to return to the previous screen.

Front panel Display Rear panel Remote Index

Page 85

Contents Connections Playback Settings Tips Appendix

Cancelling Preset Skip

While the “Preset Skip” screen is displayed, use cursor

Left/Right to select a group containing a broadcast station to cancel the skip for.

Use cursor Up/Down to select a broadcast station to

cancel the skip for.

Use cursor Left/Right to select “On”.

The skip is cancelled.

NOTE

“Preset Skip” cannot be cancelled for groups.

Front panel Display Rear panel Remote Index

Page 86

CH/PAGE

BACK

OPTION

INTERNET RADIO

1/3 8 9

ENTER

(HEOS Music)

Cursor Up/Down/

Left/Right

Contents Connections Playback Settings Tips Appendix

Listening to Internet Radio

Internet Radio refers to radio broadcasts distributed over the Internet.

Internet Radio stations from around the world can be received. The Internet Radio station list on this unit the database service provided

by TuneIn Radio service. The audio format types and specifications supported by this unit for

playback are as follows. See “Playing back Internet Radio” (v p. 252) for details.

WMA

MP3

MPEG-4 AAC

Front panel Display Rear panel Remote Index

Page 87

Contents

Connections Playback Settings Tips Appendix

Listening to Internet Radio

Press INTERNET RADIO.

z Enabled when playing Podcasts.

You can also press R (HEOS Music). Use cursor Up/Down to

select “TuneIn Internet Radio”, then press ENTER.

Select the station you want to play.

Operation buttons Function

1/3 8 9

CH/PAGE d f

Playback / Pause

Skip to previous track / Skip to next track

Switch to the previous page/next page in the list display

The display switches between track title and radio station name etc. each time the

main unit’s STATUS is pressed.

NOTE

The radio station database service may be suspended or be otherwise unavailable

without notice.

Operations accessible through the option menu

“Adding to HEOS Favorites” (v p. 106) “Adjusting the audibility of dialog and vocals (Dialog

Enhancer)” (v p. 107) “Adjusting the volume of each channel to match the input source

(Channel Level Adjust)” (v p. 108) “Adjusting the tone (Tone)” (v p. 109)

“Adjusting audio delay (Audio Delay)” (v p. 110)

“Displaying your desired video during audio playback (Video

Select)” (v p. 111) “Playing the same music in all zones (All Zone Stereo)” (v p. 112)

“Changing the speaker settings to match the listening environment

(Speaker Preset)” (v p. 113)

Front panel Display Rear panel Remote Index

Page 88

CH/PAGE

BACK

OPTION

1/3 8 9

BACK

(HEOS Music)

ENTER

Cursor Up/Down/

Left/Right

Contents Connections Playback Settings Tips Appendix

Playing back files stored on a PC or NAS

This unit can play back music files and playlists (m3u, wpl) from DLNA

compatible servers including PCs and NAS devices on your network. Supported file formats:

For details, see “Playing back a file saved on a PC or NAS” (v p. 251).

WMA

MP3

WAV

MPEG-4 AAC

FLAC

Apple Lossless

DSD

Front panel Display Rear panel Remote Index

Page 89

USB Music

Music Servers

HEOS Favorites

TuneIn Internet Radio

Music

Nature 01

Play Now

Play Now & Replace Queue

Play Next

Add to End of Queue

Cancel

Music Servers - Live

Contents Connections Playback Settings Tips Appendix

Playing back files stored on a PC or NAS

Browse the music on your PC/NAS and select

something to play.

Use this procedure to play music files or playlists stored on DLNA files

When you select something to play you will be asked how you want to

servers on your local network.

Press R (HEOS Music).

Use cursor Up/Down to select “Music Servers”, then

press ENTER.

queue up your music.

Play Now:

Play Now & Replace Queue:

Play Next:

Add to End of Queue: Adds the item to the end of the queue.

Select the name of your networked PC or NAS

(Network Attached Storage) server.

Front panel Display Rear panel Remote Index

Inserts the item into the queue after the currently playing track and plays the selected item immediately.

Clears the queue and plays the selected item immediately.

Inserts the item into the queue after the current song and plays it when the current song ends.

Page 90

2:45

-2:21

Live

Live 01

Various Artists

Now Playing

Contents Connections Playback Settings Tips Appendix

Use cursor Up/Down to select the “Play Now” or “Play

Now & Replace Queue”, then press ENTER.

Playback starts.

Operation buttons Function

1/3 8 9

CH/PAGE d f

Playback / Pause

Skip to previous track / Skip to next track

Switch to the previous page/next page in the list display

The display switches between track title, artist name, and album title each time the

main unit’s STATUS is pressed. When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file includes album

art data, the album art can be displayed while the music files are playing. If you use Ver.11 or later of Windows Media Player, the album art for WMA files

can be displayed.

NOTE

When playing back music files with your PC or NAS connected through wireless

LAN, audio may be interrupted depending on your wireless LAN environment. In this case, connect using a wired LAN.

The order in which the tracks/files are displayed depends on the server

specifications. If the tracks/files are not displayed in alphabetical order due to the server specifications, searching by the first letter may not work properly.

Front panel Display Rear panel Remote Index

Page 91

Contents

Operations accessible through the option

Connections Playback Settings Tips Appendix

“Adjusting the audibility of dialog and vocals (Dialog

Enhancer)” (v p. 107) “Adjusting the volume of each channel to match the input source

(Channel Level Adjust)” (v p. 108) “Adjusting the tone (Tone)” (v p. 109)

“Adjusting audio delay (Audio Delay)” (v p. 110)

“Displaying your desired video during audio playback (Video

Select)” (v p. 111) “Playing the same music in all zones (All Zone Stereo)” (v p. 112)

“Changing the speaker settings to match the listening environment

(Speaker Preset)” (v p. 113)

Front panel Display Rear panel Remote Index

Page 92

Contents Connections Playback Settings Tips Appendix

Getting the HEOS App

You can use many online music streaming services from the HEOS App. Depending upon your geographical location, there are several options to choose from.

Download the HEOS App for iOS or Android by searching App Store, Google Play store or Amazon Appstore for “HEOS”.

Front panel Display Rear panel Remote Index

Page 93

Contents Connections Playback Settings Tips Appendix

HEOS Account

HEOS Accounts can be registered in “HEOS Account” (v p. 202) in the menu of this unit or by tapping “Music” tab - “Settings” icon in the HEOS App.

What is a HEOS Account?

A HEOS Account is master account or “keychain” for managing all of your HEOS music services with one single username and password.

Why do I need a HEOS Account?

With the HEOS Account you just have to enter your music services login names and passwords one time. This allows you to easily and quickly use multiple controller apps on different devices.

You just log into your HEOS Account on any device and you will have access to all of your associated music services, play history and custom playlists, even if you are at a friend’s house listening to music on their HEOS system.

Signing up for a HEOS Account

You will be instructed to signup for a HEOS Account the first time you try to access any music service from the main “Music” menu of the HEOS App.

Changing your HEOS Account

Tap the “Music” tab.

Select the Settings icon in the upper left corner of

the screen.

Select “HEOS Account”.

Change your location, change your password, delete

your account or sign out of your account.

Front panel Display Rear panel Remote Index

Page 94

Drag one room into another to group them

Song Name 1

Dining L + Dining R

Song Name 2

Kitchen

Rooms

Song Name 3

Denon AVR-S970H

Rooms Now PlayingMusic

Contents Connections Playback Settings Tips Appendix

Playing from streaming music services

A music service is an online music company that provides access to vast music collections via free and/or paid subscriptions. Depending upon your geographical location, there are several options to choose from.

NOTE

The HEOS App and brand is not affiliated with any manufacturer of any mobile

device. Availability of music services may vary by region. Not all services may be available at time of purchase. Some services may be added or discontinued from time to time based on decisions of the music service providers or others.

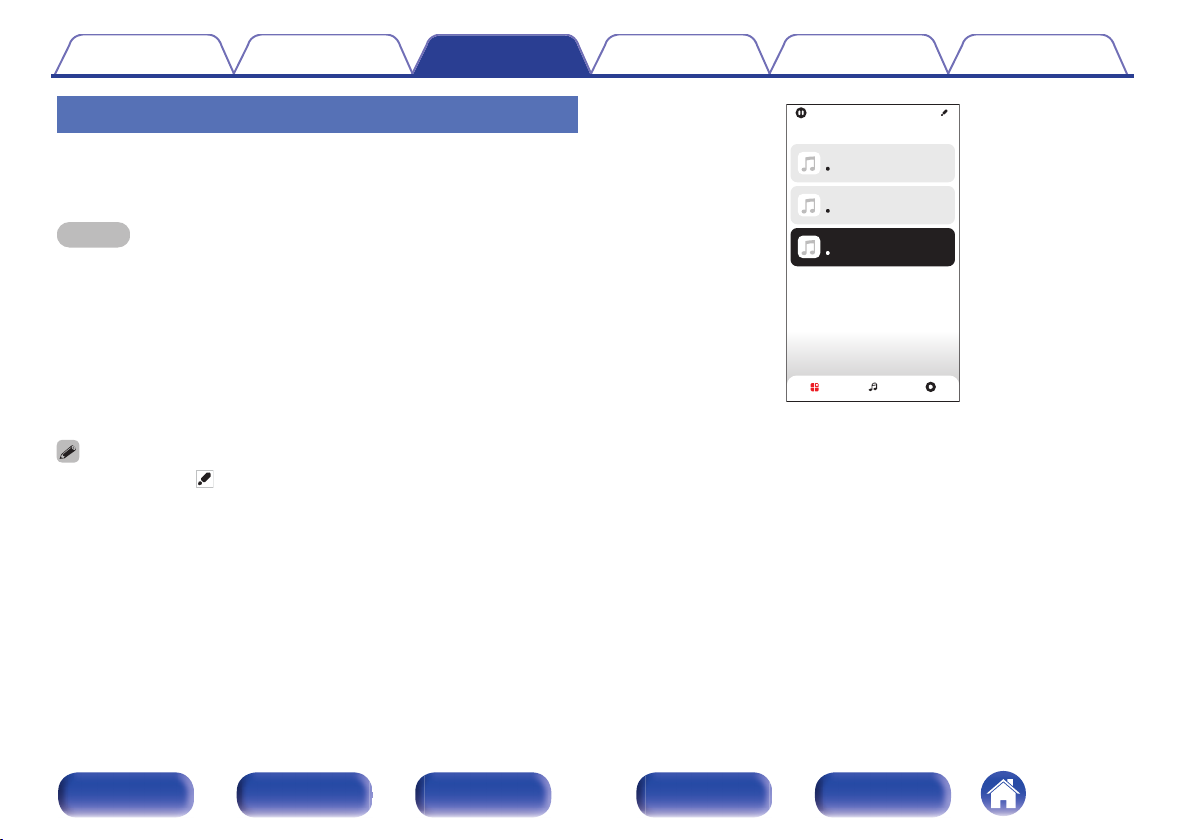

Selecting a room/device

Tap the “Rooms” tab, and select “Denon AVR-S970H” if

there are multiple products with HEOS Built-in.

Tap the Pencil icon at the top right to switch edit mode. You can change the displayed name.

Front panel Display Rear panel Remote Index

Page 95

Music

Rooms Now PlayingMusic

Contents Connections Playback Settings Tips Appendix

Selecting the music track or station from music sources

Tap the “Music” tab and select a music source.

All music services displayed may not be available in your location.

Front panel Display Rear panel Remote Index

Page 96

1 Track 1

2 Track 2

0:50

0:20

Now Playing

Track 01

Artist

2:51

1:40

Album

Play Now

HEOS 3 Now PlayingMusic

Cancel

Play Now & Replace Queue

Play Next

Add to End of Queue

Track 01

Rooms

Album

10 Tracks,60 Mins.,2014

Artist

Rooms Now PlayingMusic

Contents Connections Playback Settings Tips Appendix

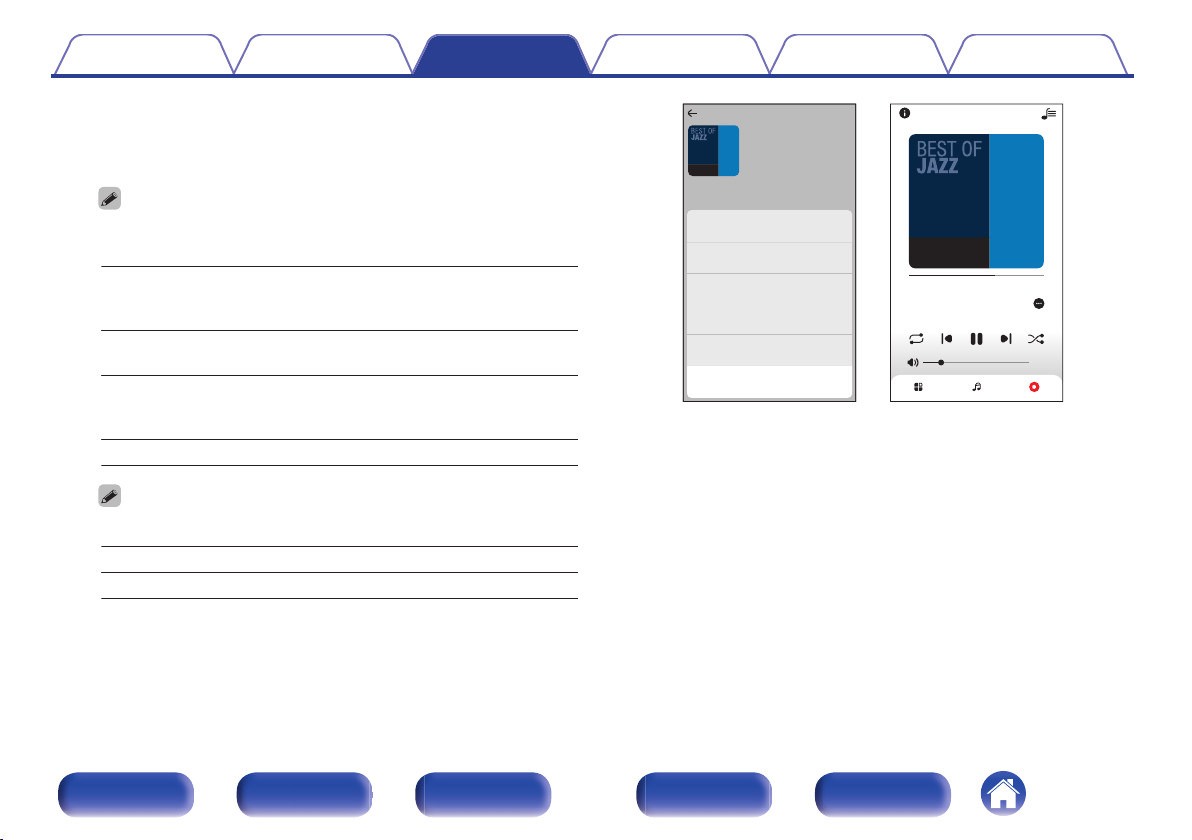

Browse the music to play.

After selecting a music track or radio station the app will automatically change to the “Now Playing” screen.

When you select a music track to play you will be asked how you want to

queue up your music.

Front panel Display Rear panel Remote Index

Play Now:

currently playing track and plays the selected item immediately.

Inserts the item into the queue after the

Play Now & Replace Queue:

Clears the queue and plays the selected item immediately.

Inserts the item into the queue after the

Play Next:

current song and plays it when the current song ends.

Add to End of Queue: Adds the item to the end of the queue.

When you select a radio station the following items are displayed.

Play Now: Plays the selected item immediately.

Add to HEOS Favorites: Adds to HEOS Favorites.

Page 97

Drag one room into another to group them

Song Name 1

Dining

Rooms

Drag one room into another to group them

Song Name 1

Dining

Rooms

Rooms Now PlayingMusic

Song Name 3

Bedroom

Living

Song Name 2

Kitchen

Song Name 3

Bedroom

Living+Kitchen

Living

Kitchen

Song Name 2

Drag a room out of this group to ungroup it

Contents Connections Playback Settings Tips Appendix

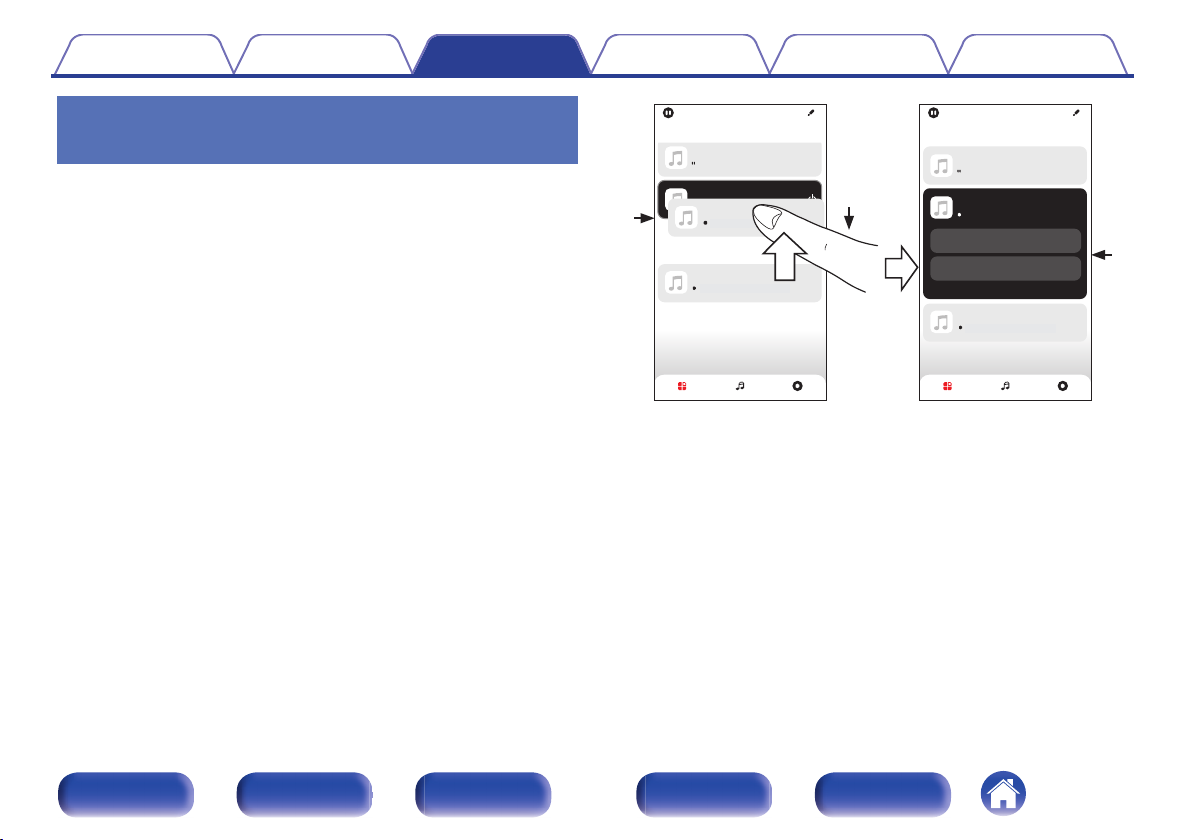

Listening to the same music in multiple rooms

This system is a true multi-room audio system. You can create one or more HEOS groups to automatically synchronize audio playback between multiple products with HEOS Built-in so that the music playing different rooms is perfectly in sync and always sounds amazing! You can easily add up to 32 products to your system in total. You can group up to 16 individual products to have them play the same song fully synchronized.

Grouping rooms

Press and hold your finger on room that is not playing

music.

Drag it into the room that is playing music (indicated by

the red outline) and lift your finger.

The two rooms will be grouped together into a single

device group and both rooms will be playing the same music in perfect sync.

Front panel Display Rear panel Remote Index

Page 98

Rooms

Song Name 4

Kitchen

Drag one room into another to group them

Song Name 1

Dining

Rooms

Song Name 3

Bedroom

Living

Song Name 2

Kitchen

Rooms Now PlayingMusic

Song Name 3

Bedroom

Song Name 2

Living

Song Name 1

Dining

Drag one room into another to group them

Living

Contents Connections Playback Settings Tips Appendix

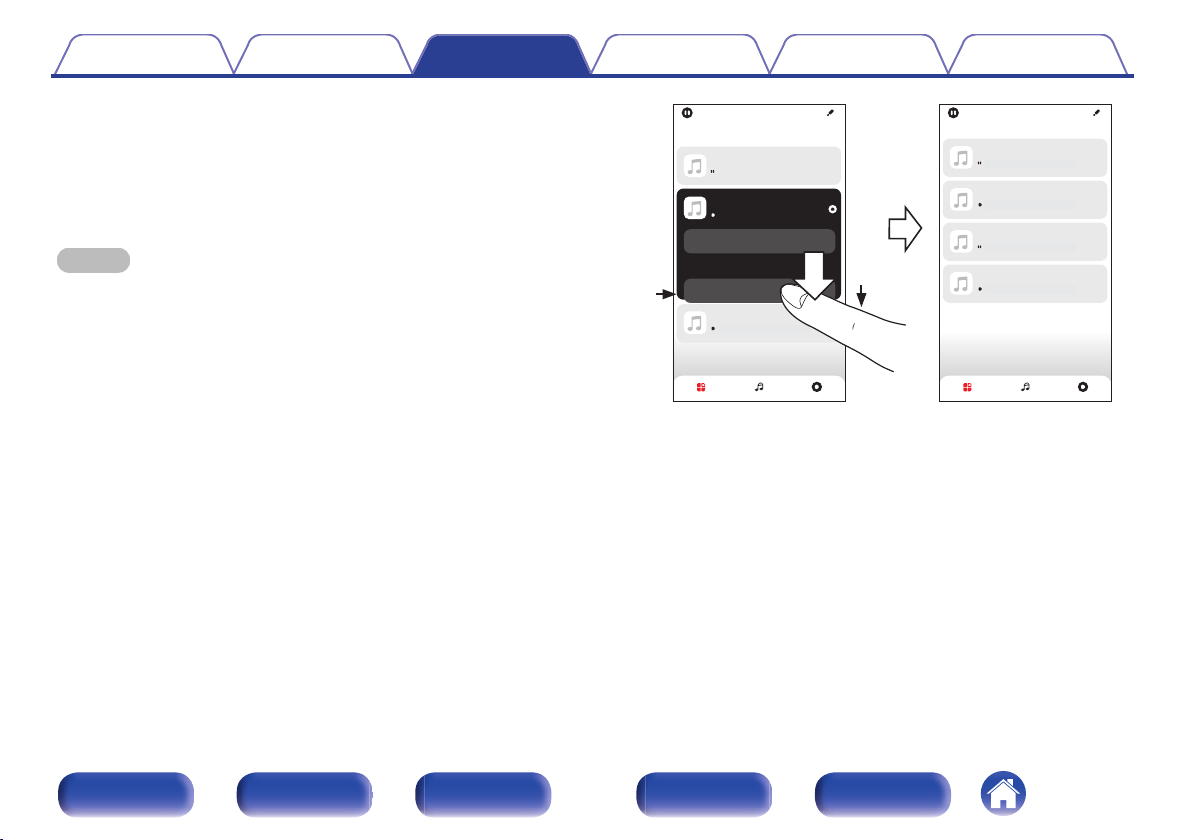

Ungrouping rooms

Press and hold your finger on room that you want to

remove from the group.

Drag it out of the group and lift your finger.

NOTE

You can not remove the first room that started playing the music before grouping.

Front panel Display Rear panel Remote Index

Page 99

Drag one room into another to group them

Rooms

Bedroom

Kitchen

Living

Dining

Drag a room out of this group to ungroup it

Song Name 1

Dining+Living+...

Drag one room into another to group them

Song Name 2

Living

Rooms

Song Name 3

Kitchen

Song Name 4

Bedroom

Rooms Now PlayingMusic

Song Name 1

Dining

Contents Connections Playback Settings Tips Appendix

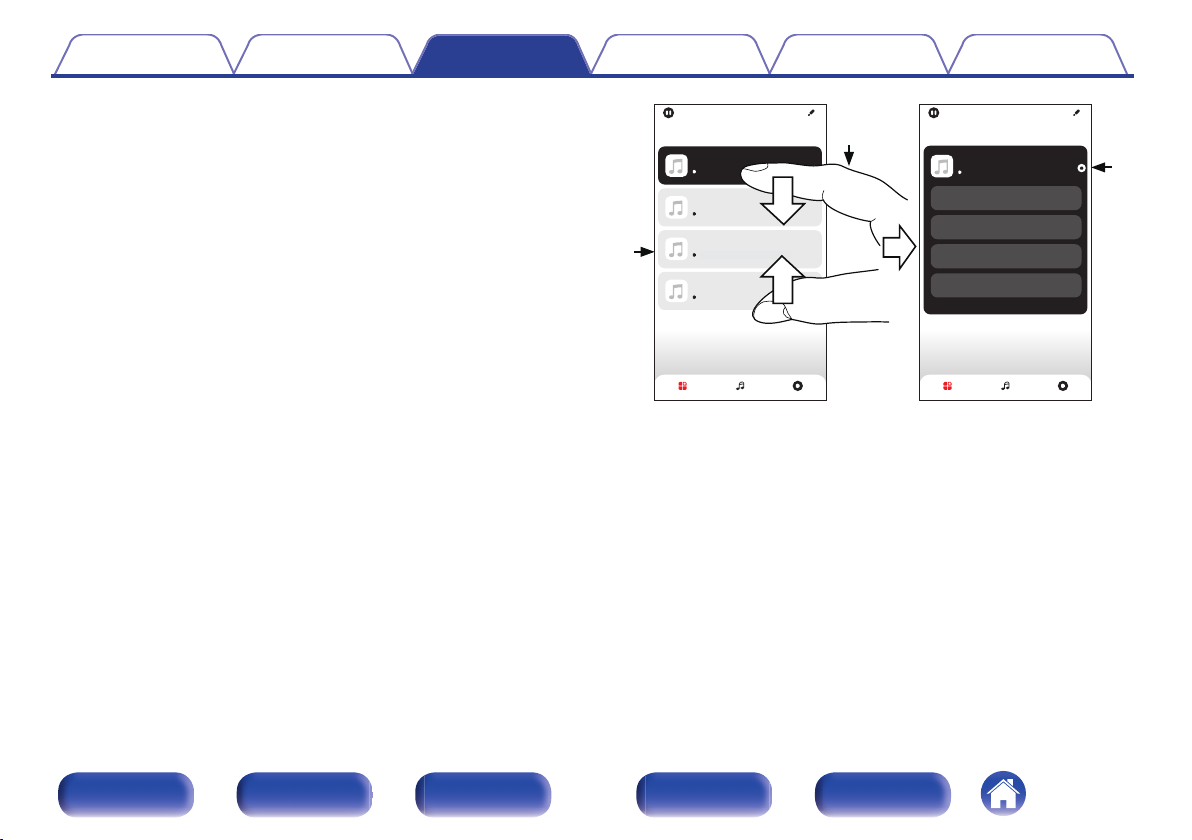

Grouping all rooms (party mode)

You can easily group 16 rooms together into Party Mode by using a "pinch" gesture.

Place two fingers on the screen over the list of rooms.

Quickly pinch your two fingers together and release.

All of your rooms will be joined together and begin

playing the same music in perfect sync.

Front panel Display Rear panel Remote Index

Page 100

Rooms

Drag one room into another to group them

Rooms

Bedroom

Kitchen

Living

Dining

Drag a room out of this group to ungroup it

Song Name 1

Dining

Rooms Now PlayingMusic Rooms Now PlayingMusic

Song Name 3

Kitchen

Song Name 4

Bedroom

Song Name 2

Living

Song Name 1

Dining

Drag one room into another to group them

Contents Connections Playback Settings Tips Appendix

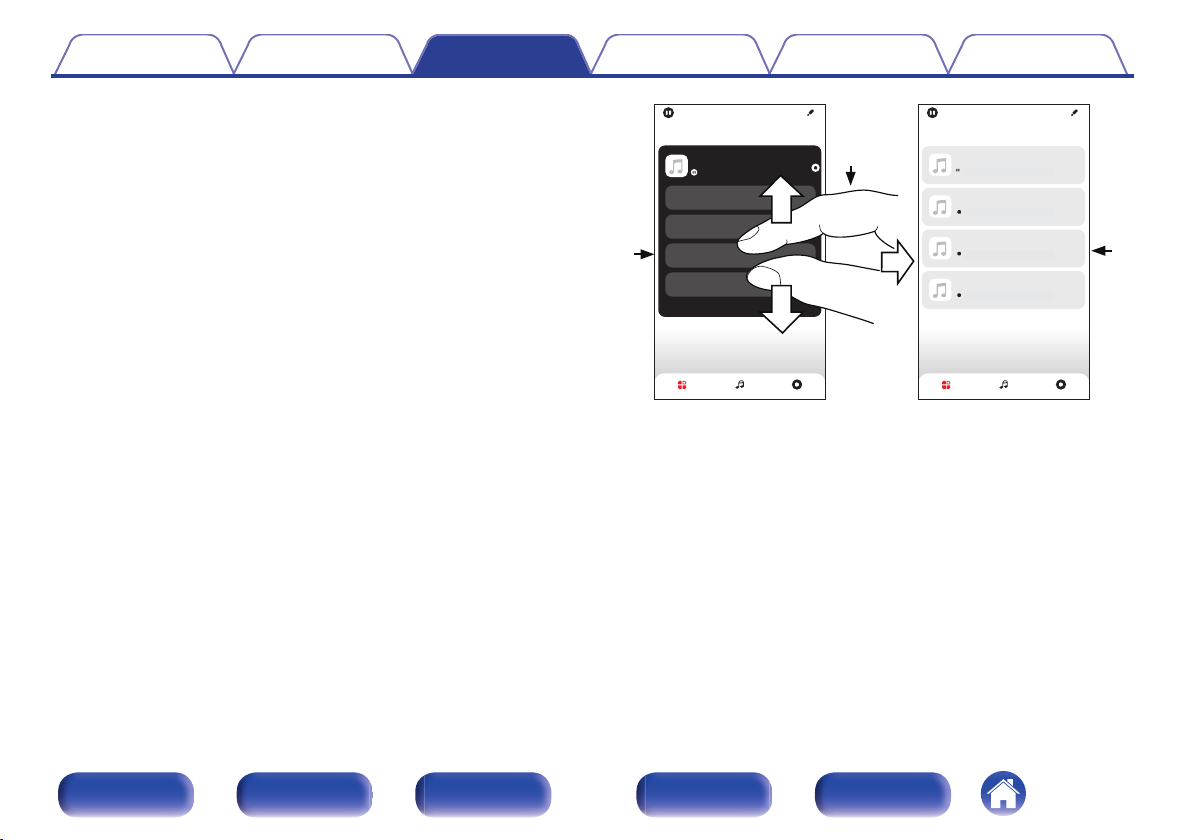

Ungrouping all rooms

You can easily ungroup all of your rooms and exit Party Mode by using a "spread" gesture.

Place two fingers close together on the screen over list

of rooms.

Quickly spread your two fingers apart from each other

and release.

All of your rooms will be ungrouped.

Front panel Display Rear panel Remote Index

100
