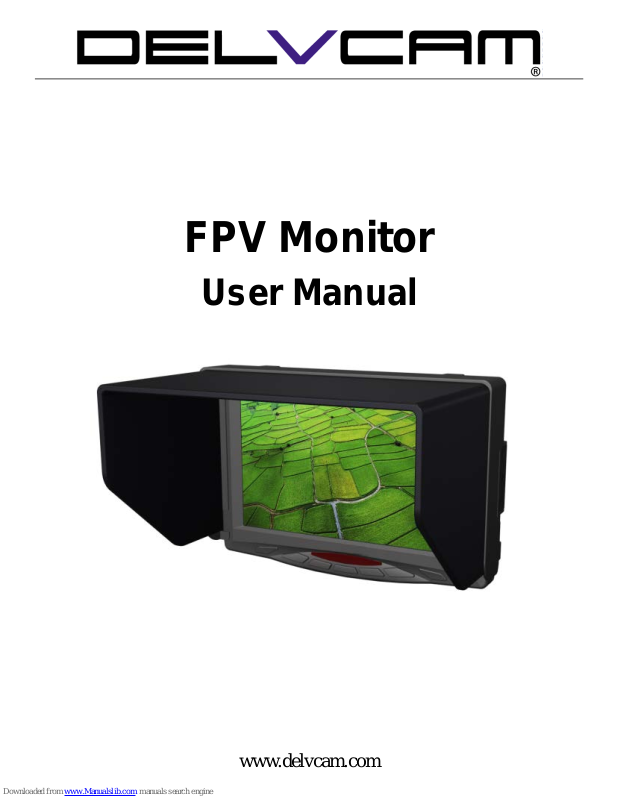

Page 1
FPV Monitor
User Manual
www.delvcam.com
Page 2
IMPORTANT SAFETY INSTRUCTIONS:
Please read User Guide before using this product.
Please keep User Guide for future reference.
Please read the cautions to prevent possible danger and loss of property.
FEATURES:
High resolution: 800×480;
High brightness: 400cd/㎡;
High contrast: 500:1;
Dual 5.8GHz receivers for optional.
CAUTIONS:
1. Please do not place the display screen towards the ground.
2. Please avoid heavy impact or drop onto the ground.
3. Please do NOT use chemical solutions to clean this product. Please wipe with a clean soft cloth to
maintain the brightness of the surface.
4. Please do not block any vent hole.
5. Please follow the instructions and trouble-shootings to adjust the product. Other improper adju stment
may result in damage. Any further adjustment must be performed or conducted by a qualified
technician.
Please unplug the power and remove the battery if long-term no-use, or thunder weather.
6.
1. PRODUCT DESCRIPTION ................................................................................... 2
2. REMOTE CONTROL............................................................................................. 3
3. AERIAL PHOTOGRAPHY SIGNAL RECEIVER .............................................. 4
4. WIRING INSTRUCTIONS .................................................................................... 0
5. MENU SETTING..................................................................................................... 0
6. VESA INSTALLATION INSTRUCTIONS FIGURE .......................................... 8
7. ACCESSORIES........................................................................................................ 8
8. PARAMETERS ...................................................................................................... 10
9. TROUBLE SHOOTING ....................................................................................... 10
1
www.delvcam.com
Page 3
1. PRODUCT DESCRIPTION
1. POWER: ON/OFF (Light turns to green when power on).
2. AV: Video & 5.8G switch.
3. VOL-: Volume down; value of menu option decrease.
4. VOL+: Volume up; value of menu option increase.
5. MENU: To activate OSD menu & main menu.
6. CH-: Item selection on menu.
7. CH+: Item selection on menu.
1. OUT: Video output interface
2. IN: Video input interface
3. Bracket mount
4. DC12V power input
5. NO USE
6. Frequency control (please refer to Part3)
2
www.delvcam.com
Page 4
1. Antenna port
2. Speaker
3. VESA Mounting interface
2. REMOTE CONTROL
1. MUTE
2. NO USE
3. Video & 5.8G switch
4. ◄: Volume down or to adjust the value of function
5. To switch display mode
6. Power on / off
7. NO USE
8. NO USE
3
www.delvcam.com
Page 5
9. ►: Volume up or to adjust the value of function
Frequency / L.O.
CS1
CS2
CS3
S1
S2
Band 1
Band 2
C1:5.733GHz/5.253GHz
0 0 0 1 0
C2:5.752GHz/5.272GHz
1 0 0 1 0
C3:5.771GHz/5.291GHz
0 1 0 1 0
C4:5.790GHz/5.310GHz
1 1 0 1 0
C5:5.809GHz/5.329GHz
0 0 1 1 0
C6:5.828GHz/5.348GHz
1 0 1 1 0
C7:5.847GHz/5.367GHz
0 1 1 1 0
C8:5.866GHz/5.386GHz
1 1 1 1 0
Band 3
D1:5.705GHz/5.225GHz
0 0 0 0 1
D2:5.685GHz/5.205GHz
1 0 0 0 1
D3:5.665GHz/5.185GHz
0 1 0 0 1
D4:5.645GHz/5.165GHz
1 1 0 0 1
D5:5.885GHz/5.405GHz
0 0 1 0 1
D6:5.905GHz/5.425GHz
1 0 1 0 1
D7:5.925GHz/5.445GHz
0 1 1 0 1
D8:5.945GHz/5.465GHz
1 1 1 0 1
Band 4
A1:5.740GHz/5.260GHz
0 0 0 1 1
* Note: Dual receivers frequency: Band 3&4
10. To activate OSD menu
11. NO USE
12. NO USE
3. AERIAL PHOTOGRAPHY SIGNAL RECEIVER
3-1 Frequency Chart
0: ON; 1:OFF
B1:5.865GHz/5.385GHz 1 1 1 0 0
B2:5.845GHz/5.365GHz 0 1 1 0 0
B3:5.825GHz/5.345GHz 1 0 1 0 0
B4:5.805GHz/5.325GHz 0 0 1 0 0
B5:5.785GHz/5.305GHz 1 1 0 0 0
B6:5.765GHz/5.285GHz 0 1 0 0 0
B7:5.745GHz/5.265GHz 1 0 0 0 0
B8:5.725GHz/5.245GHz 0 0 0 0 0
4
www.delvcam.com
Page 6
A2:5.760GHz/5.280GHz
1 0 0 1 1
A3:5.780GHz/5.300GHz
0 1 0 1 1
A4:5.800GHz/5.320GHz
1 1 0 1 1
A5:5.820GHz/5.340GHz
0 0 1 1 1
A6:5.840GHz/5.360GHz
1 0 1 1 1
A7:5.860GHz/5.380GHz
0 1 1 1 1
3-2 Frequency Control Demo
GENERAL transmitter setting with DELV-DUALFPV-7ss
DJI Transmitter setting with DELV-DUALFPV-7
3-3 Radio signal receiving antenna
5
www.delvcam.com
Page 7
1. Connected to the wireless receiving antenna port.
2. When a product with wireless module connected with antenna, and th e n connecting
with flying camera system, you can receive the sound and image signals.
4. WIRING INSTRUCTIONS
4-1 V ideo output cable
1. Video output interface.
2. Yellow: video 1 output plug.
3. White: video 2 output plug.
4-2 Video input cable
1. Video input interface.
2. Yellow: video 1 input plug.
3. White: video 2 input plug.
5. MENU SETTING
1. VIDEO & 5.8G Switch
Press “AV” button on device or video switch button on remote control to switch
video mode after power on.
2. Volume
Press “VOL- / VOL+” button on device or “◄/►” button on remote control to
decrease or increase volume after power on.
3. MENU Operation
Press “MENU” button on device or remote control to activate main menu options
（ 、 、 、 、 ）; And then press to select option needs to adjust, option
will be highlighted as yellow and operation tips displayed below.
Press “CH- / C H+” button on device or “▲/▼” b utton on remote control to select
menu option, and then press “VOL- / VOL+” button on device or “►/◄” on remote
www.delvcam.com
Page 8
control to adjust option values.

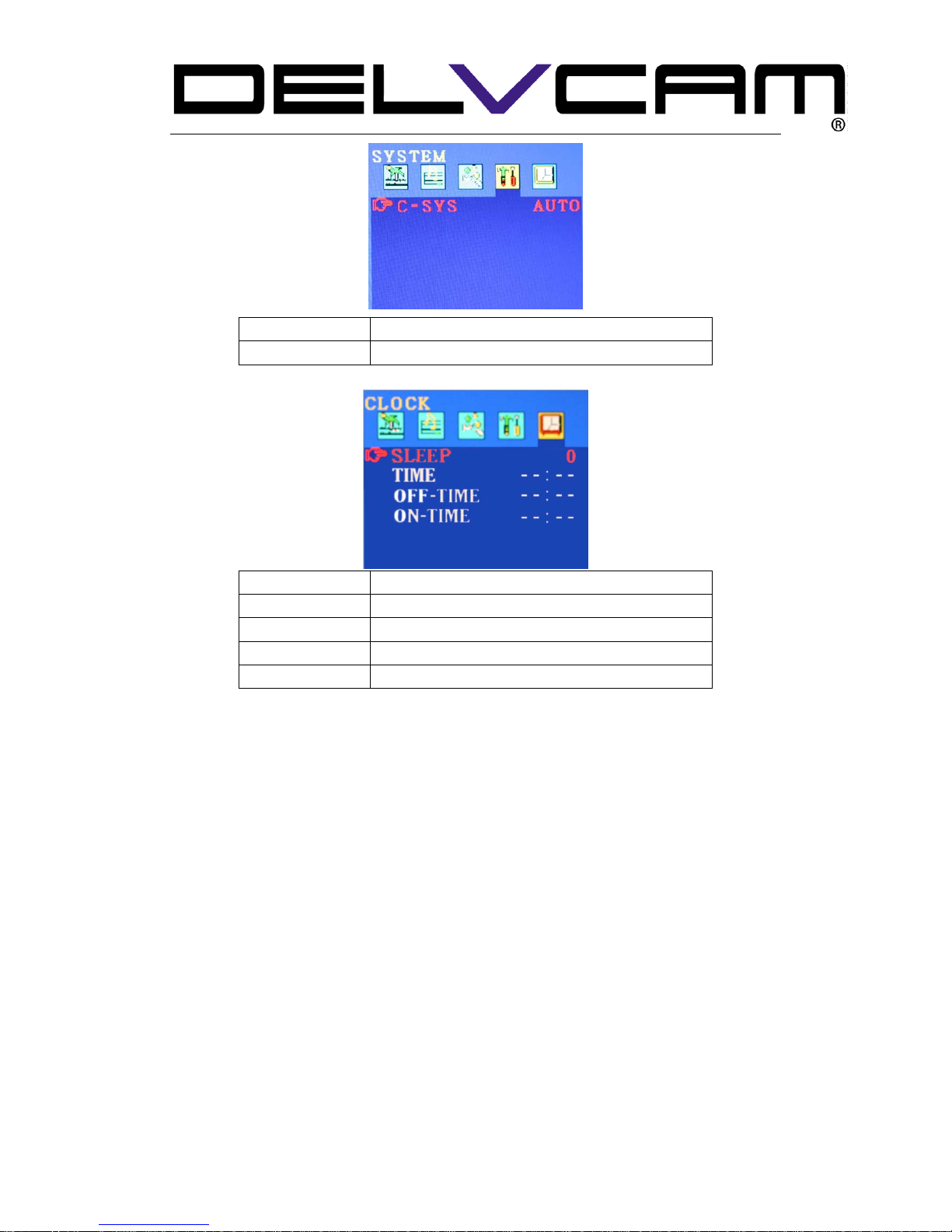

ITEMS
OPTIONS
Brightness
0 - 100
Contrast
0 - 100
Color
0 - 100
Language
English, Chinese
ITEMS
OPTIONS
Volume
0 - 100
ITEMS
OPTIONS
U/D
Normal, Down
(To reversal image up and down)
L/R
Normal, Right
(To reversal image left and right)
ZOOM
16:9、4:3
S AUTO
ON, OFF
www.delvcam.com
6
Page 9
ITEMS
OPTIONS
C-SYS
AUTO、PAL、NTSC、SECAM
ITEMS
OPTIONS
SLEEP
0 - 240
TIME
User-definable
OFF-TIME
User-definable
ON-TIME
User-definable
www.delvcam.com
7
Page 10
6. VESA INSTALLATION INSTRUCTIONS FIGURE
Screw ( Diameter 4mm×Length 20mm)
7. ACCESSORIES
Standard accessories:
www.delvcam.com
8
Page 11
1. Sun Shade 1 piece
2. 12V DC adapter 1 piece
3. AV input cable 1 piece
4. AV output cable 1 piece
5. VESA battery plate 1 piece
6. Battery plate 2 Pieces
7. Remote control 1 piece
8. 5.8GHz wireless AV receiver 1 piece
9. Manual 1 copy
Optional acce ssories
1. 5.8GHz wireless AV receiver 1 piece
2. 5.8GHz omnidirectional antenna 1 piece
3. Shoe Mount (for camera only) 1 piece
www.delvcam.com
9
Page 12
8. PARAMETERS
Panel
7” LED back light
Aspect Ratio
16:9
Resolution
800×480
Brightness
400cd/m²
Contrast
500:1
Viewing Angle
140°/120°
Input Voltage
DC 7~30V
Current
450mA
Power Consumption
≤6W
Dimension (LWD)
188×127.8×32 (mm)
Weight
415g
9. TROUBLE SHOOTING
Note: due to constant effort to improve products and product features,
specifications may change without notice.
CASE(condition) COUNTER MEASURE
Only black & white picture
Check the
contrast, brightness,
hue and color are proper or not,
and adjust
No picture
C
heck power input and
connection.
Remote control doesn’t work
Check if the battery installed
properly or
the battery is out.
Remote signal interfered by some
obstruction.
www.delvcam.com
10
