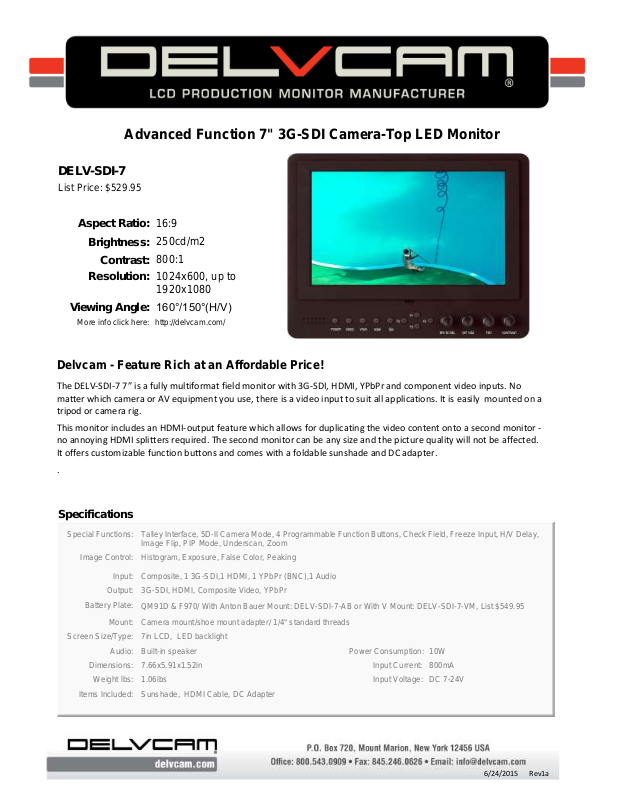

Delvcam DELV-SDI-7 Datasheet
DELV-SDI-7
Advanced Function 7" 3G-SDI Camera-Top LED Monitor
16:9
Built-in speaker
QM91D & F970/ With Anton Bauer Mount: DELV-SDI-7-AB or With V Mount: DELV-SDI-7-VM, List $549.95
250cd/m2
800:1
7.66x5.91x1.52in
Composite, 1 3G-SDI,1 HDMI, 1 YPbPr (BNC),1 Audio
800mA
DC 7-24V
Camera mount/shoe mount adapter/ 1/4" standard threads
3G-SDI, HDMI, Composite Video, YPbPr
10W
1024x600, up to
1920x1080
7in LCD, LED backlight
Talley Interface, 5D-II Camera Mode, 4 Programmable Function Buttons, Check Field, Freeze Input, H/V Delay,
Image Flip, PIP Mode, Underscan, Zoom
160°/150°(H/V)
1.06lbs
Aspect Ratio:
Brightness:
Contrast:
Resolution:
Screen Size/Type:
Dimensions:
Weight lbs:
Viewing Angle:
Input Current:
Input Voltage:
Power Consumption:
Battery Plate:
Audio:
Special Functions:
Input:
Mount:
Output:
Image Control:
Histogram, Exposure, False Color, Peaking
The DELV-SDI-7 7” is a fully multiformat field monitor with 3G-SDI, HDMI, YPbPr and component video inputs. No
matter which camera or AV equipment you use, there is a video input to suit all applications. It is easily mounted on a
tripod or camera rig.
Specifications
This monitor includes an HDMI-output feature which allows for duplicating the video content onto a second monitor no annoying HDMI splitters required. The second monitor can be any size and the picture quality will not be affected.
It offers customizable function buttons and comes with a foldable sunshade and DC adapter.
.
List Price:
$529.95
Delvcam - Feature Rich at an Affordable Price!
http://delvcam.com/
More info click here:
Items Included:
Sunshade, HDMI Cable, DC Adapter
6/24/2015
Rev1a
