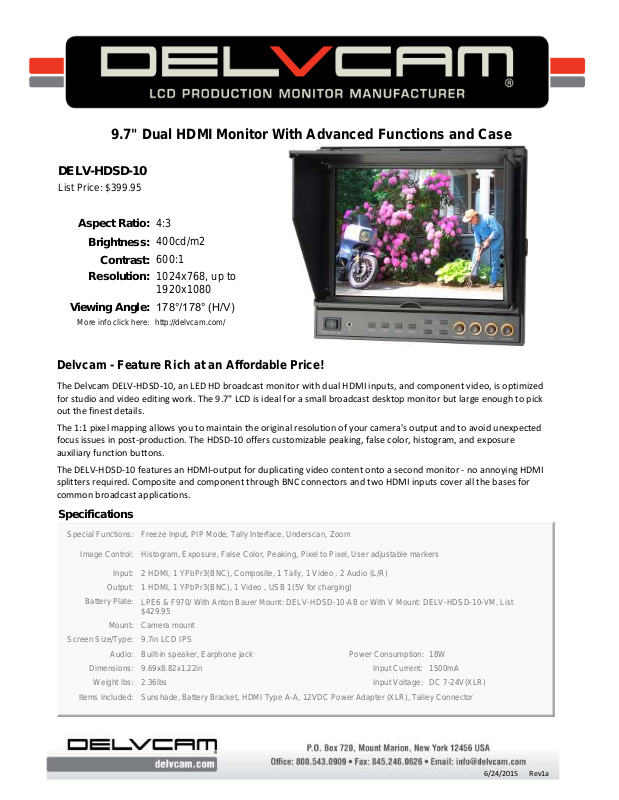

Delvcam DELV-HDSD-10 Data Sheet
DELV-HDSD-10
9.7" Dual HDMI Monitor With Advanced Functions and Case
4:3
Built-in speaker, Earphone jack
LPE6 & F970/ With Anton Bauer Mount: DELV-HDSD-10-AB or With V Mount: DELV-HDSD-10-VM, List
$429.95
400cd/m2
600:1
9.69x8.82x1.22in
2 HDMI, 1 YPbPr3(BNC), Composite, 1 Tally, 1 Video , 2 Audio (L/R)
1500mA
DC 7-24V(XLR)
Camera mount
1 HDMI, 1 YPbPr3(BNC), 1 Video , USB 1(5V for charging)
18W
1024x768, up to
1920x1080
9.7in LCD IPS
Freeze Input, PIP Mode, Tally Interface, Underscan, Zoom
178°/178° (H/V)
2.36lbs
Aspect Ratio:
Brightness:
Contrast:
Resolution:
Screen Size/Type:
Dimensions:
Weight lbs:
Viewing Angle:
Input Current:
Input Voltage:
Power Consumption:
Battery Plate:
Audio:
Special Functions:
Input:
Mount:
Output:
Image Control:
Histogram, Exposure, False Color, Peaking, Pixel to Pixel, User adjustable markers
The Delvcam DELV-HDSD-10, an LED HD broadcast monitor with dual HDMI inputs, and component video, is optimized
for studio and video editing work. The 9.7" LCD is ideal for a small broadcast desktop monitor but large enough to pick
out the finest details.
Specifications
The 1:1 pixel mapping allows you to maintain the original resolution of your camera's output and to avoid unexpected
focus issues in post-production. The HDSD-10 offers customizable peaking, false color, histogram, and exposure
auxiliary function buttons.
The DELV-HDSD-10 features an HDMI-output for duplicating video content onto a second monitor - no annoying HDMI
splitters required. Composite and component through BNC connectors and two HDMI inputs cover all the bases for
common broadcast applications.
List Price:
$399.95
Delvcam - Feature Rich at an Affordable Price!
http://delvcam.com/
More info click here:
Items Included:
Sunshade, Battery Bracket, HDMI Type A-A, 12VDC Power Adapter (XLR), Talley Connector
6/24/2015
Rev1a
