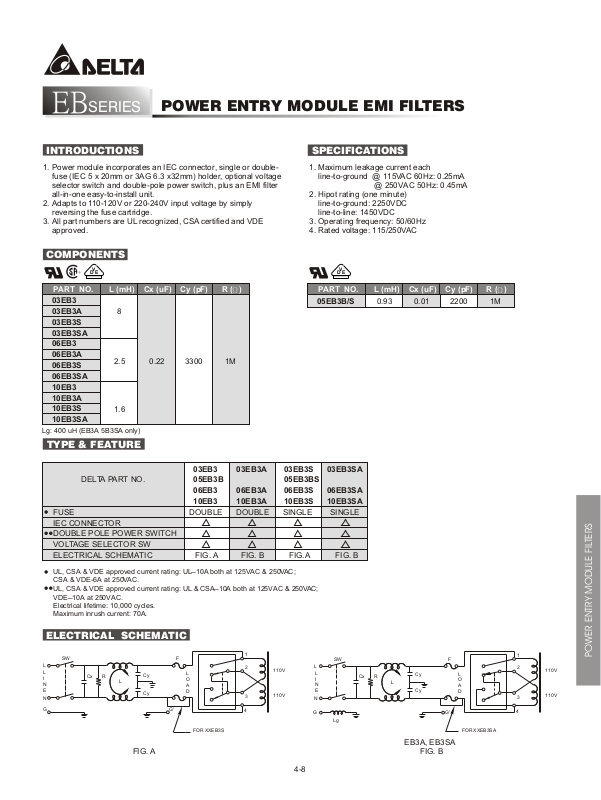

Delta Electronics EB User Manual

SERIES
POWER ENTRY MODULE EMI FILTERS
INTRODUCTIONS
1. Power module incorporates an IEC connector, single or doubleĀ­ fuse (IEC 5 x 20mm or 3AG 6.3 x32mm) holder, optional voltage selector switch and double-pole power switch, plus an EMI filter all-in-one easy-to-install unit.
2. Adapts to 110-120V or 220-240V input voltage by simply reversing the fuse cartridge.
3. All part numbers are UL recognized, CSA certified and VDE approved.
COMPONENTS
PART NO. L (mH) Cx (uF) Cy (pF) R ( )
03EB3 03EB3A
8
03EB3S 03EB3SA 06EB3 06EB3A 06EB3S
2.5
0.22
3300
1M
06EB3SA 10EB3 10EB3A 10EB3S
1.6
10EB3SA
Lg: 400 uH (EB3A 5B3SA only)
TYPE & FEATURE
SPECIFICATIONS
1. Maximum leakage current each line-to-ground @ 115VAC 60Hz: 0.25mA @ 250VAC 50Hz: 0.45mA
2. Hipot rating (one minute) line-to-ground: 2250VDC line-to-line: 1450VDC
3. Operating frequency: 50/60Hz
4. Rated voltage: 115/250VAC
DVEDVE
PART NO. L (mH) Cx (uF) Cy (pF) R ( )
05EB3B/S
0.93 1M0.01 2200
FUSE
DELTA PART NO.
03EB3 05EB3B 06EB3 10EB3
DOUBLE DOUBLE SINGLE SINGLE
03EB3A
06EB3A 10EB3A
03EB3S 05EB3BS 06EB3S 10EB3S
IEC CONNECTOR
DOUBLE POLE POWER SWITCH
VOLTAGE SELECTOR SW
ELECTRICAL SCHEMATIC
UL, CSA & VDE approved current rating: UL 10A both at 125VAC & 250VAC;
CSA & VDE-6A at 250VAC.
UL, CSA & VDE approved current rating: UL & CSA 10A both at 125VAC & 250VAC;
_
VDE 10A at 250VAC.
Electrical lifetime: 10,000 cycles.
Maximum inrush current: 70A.
FIG. A FIG. B FIG. A FIG. B
_
_
ELECTRICAL SCHEMATIC
SW
L
L I N E
N
G
Cx R
Cy
L
Cy
F
L O A D
G'
FOR XXEB3S
FIG. A
1
2
110V
110V
3
4
L L I N E
N
G
03EB3SA
06EB3SA 10EB3SA
SW
Lg
F
G'
L O A D
FOR XXEB3SA
RCx
Cy
L
Cy
1
2
110V
110V
3
4
POWER ENTRY MODULE FILTERS
EB3A, EB3SA FIG. B
4-8
INSERTION LOSS (TYPICAL)
03EB3 06EB3
COMMON MODE COMMON MODE
DIFF. MODE DIFF. MODE
80 dB
60 dB
40 dB
20 dB
0 dB
10K
100K
1M
MINIMUM INSERTION LOSS IN dB
COMMON MODE (L-G) IN 50 OHM SYSTEM
CURRENT FREQUENCY-MHz RATING 0.05 0.10 0.15 0.50 1.0 5.0 10 30 3A (S) 20 25 30 38 38 38 38 25 6A (S) 10 15 20 30 35 40 40 30 10A (S) 10 15 20 20 30 40 40 30 3A (A,SA) 20 25 30 40 40 40 45 30 6A (A,SA) 10 15 20 25 30 40 45 30 10A (A,SA) 10 15 20 25 30 45 50 30
DIFFERENTIAL MODE (L-L) IN 50 OHM SYSTEM
3A (S) 2 9 12 30 40 30 40 30 6A (S) 2 5 8 20 30 30 45 40 10A (S) 2 5 8 15 30 40 45 35 3A (A,SA) 2 8 12 30 40 35 40 30 6A (A,SA) 2 5 10 15 30 45 50 40 10A (A,SA) 2 5 8 20 30 50 50 40
CSA approved 6A at 125/250 VAC; VDE-6A/250VAC
MECHANICAL CONSTRUCTION
10M
80 dB
60 dB
40 dB
20 dB
0 dB
1.12 0.02
+0.02
+0.5
-
DIFF. MODE
-
+0.02
1.14 0
M3(2X)
10M
+0.5
29.0-0
DES FUSIBLES DE 250V
110-120V
100K
1.575 0.02
40.0 0.5
COMMON MODE
1M
SUGGESTED MOUNTING CUTOUT
(MOUNTING FROM FRONT)
1.99MAX.
50.5MAX.
R0.0984MAX.
R2.5MAX.
40.0 0.1
1.575 0.004
2.37-0
60.2 0
10EB3
10K
2.58MAX.
65.5MAX.
220-240V
28.4 0.5
UNIQUEMENT AVEC
FUSES/EMPLOYER
USE ONLY WITH 250V
POWER ENTRY MODULE FILTERS
3.28MAX.
83.3MAX.
3.51MAX.
89.2MAX.
INCH
UNIT:
mm
4-9
2.37MAX.
60.2MAX.
1.14MAX.
29.0MAX.
