Page 1
INSTRUCTION MANUAL
PART NO. 902122 - 02-20-04
Copyright © 2004 Delta Machinery
ESPAÑOL: PÁGINA 21
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call
1-800-223-7278 (In Canada call 1-800-463-3582).

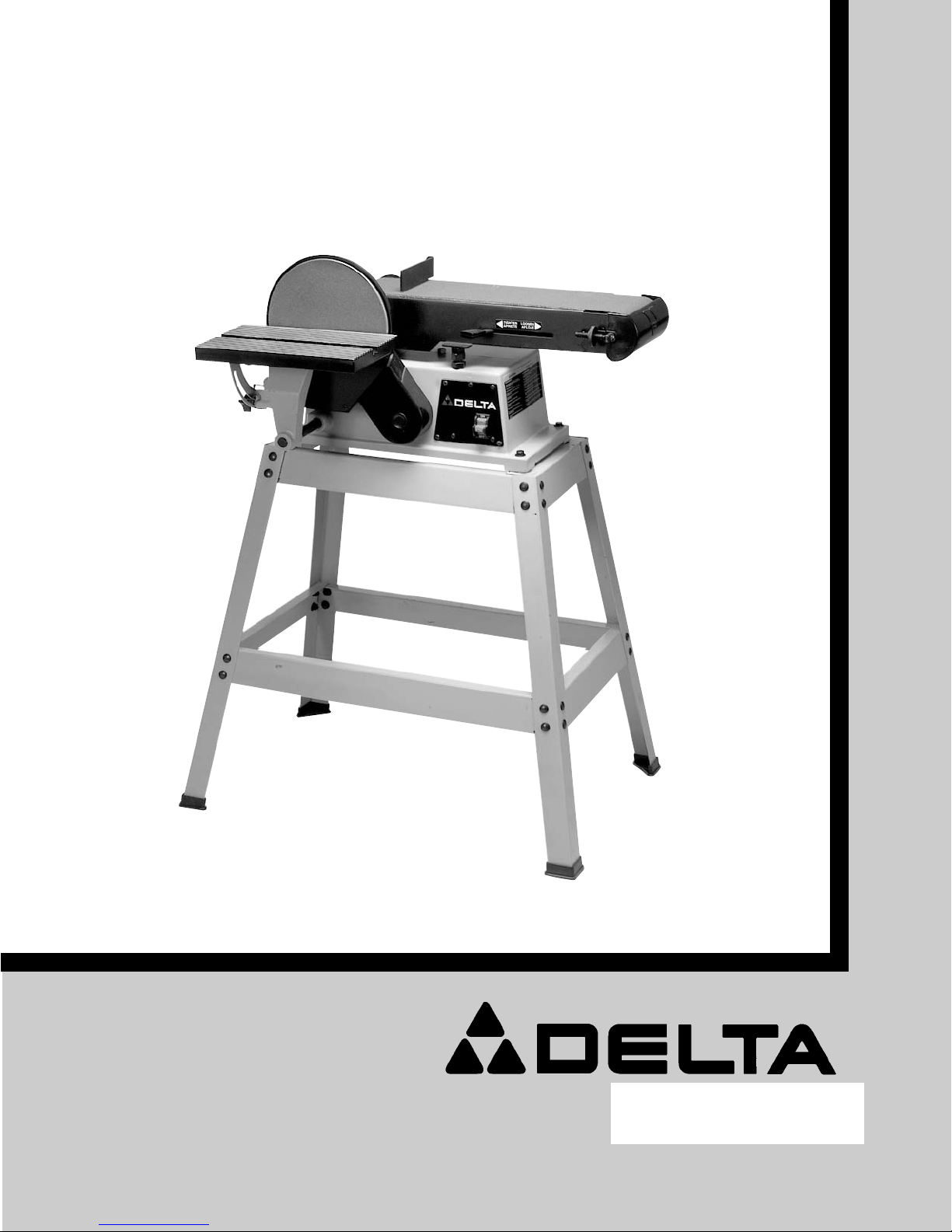

6" Belt / 9" Disc Sander
(Model 31-695)
11365
RTD10000116AA
Page 2
2
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may
result in property damage.
This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these sections.
SAFETY GUIDELINES - DEFINITIONS
SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER
CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, always wear MSHA/NIOSH
approved, properly fitting face mask or respirator when using such tools.
GENERAL SAFETY RULES
READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE
USING THIS EQUIPMENT. Failure to follow all instructions listed below, may result in electric shock,
fire, and/or serious personal injury or property damage.
IMPORTANT SAFETY INSTRUCTIONS
Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there
are certain hazards involved with the operation of the product. Using the machine with respect and caution will
considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored,
personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards,
goggles, dust masks and hearing protection can reduce your potential for injury. But even the best guard won’t make
up for poor judgment, carelessness or inattention. Always use common sense
and exercise caution in the workshop.
If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your
personal safety is your responsibility. For additional information please visit our website www
.deltamachinery.com.
This machine was designed for certain applications only. Delta Machinery strongly recommends that this
machine not be modified and/or used for any application other than that for which it was designed. If you have any
questions relative to a particular application, DO NOT use the machine until you have first contacted Delta to determine
if it can or should be performed on the product.
Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)
Page 3
3
GENERAL SAFETY RULES
1. FOR YOUR OWN SAFETY, READ THE INSTRUCTION
MANUAL BEFORE OPERATING THE MACHINE.
Learning the machine’s application, limitations, and
specific hazards will greatly minimize the possibility of
accidents and injury.
2. WEAR EYE PROTECTION. ALWAYS USE SAFETY
GLASSES. Also use face or dust mask if cutting
operation is dusty. Everyday eyeglasses are NOT safety
glasses. USE CERTIFIED SAFETY EQUIPMENT. Eye
protection equipment should comply with ANSI Z87.1
standards, hearing equipment should comply with
ANSI S3.19 standards, and dust mask protection
should comply with MSHA/NIOSH certified respirator
standards. Splinters, air-borne debris, and dust can
cause irritation, injury, and/or illness.
3. WEAR PROPER APPAREL. Do not wear loose
clothing, gloves, neckties, rings, bracelets, or other
jewelry which may get caught in moving parts. Nonslip
footwear is recommended. Wear protective hair
covering to contain long hair.
4. DO NOT USE THE MACHINE IN A DANGEROUS
ENVIRONMENT. The use of power tools in damp or
wet locations or in rain can cause shock or
electrocution. Keep your work area well-lit to prevent
tripping or placing arms, hands, and fingers in danger.
5. MAINTAIN ALL TOOLS AND MACHINES IN PEAK
CONDITION. Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and changing
accessories. Poorly maintained tools and machines can further
damage the tool or machine and/or cause injury.
6. CHECK FOR DAMAGED PARTS. Before using the
machine, check for any damaged parts. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, and any other conditions that may
affect its operation. A guard or any other part that is
damaged should be properly repaired or replaced.
Damaged parts can cause further damage to the
machine and/or injury.
7. KEEP THE WORK AREA CLEAN. Cluttered areas and
benches invite accidents.
8. KEEP CHILDREN AND VISITORS AWAY. Your shop is a
potentially dangerous environment. Children and visitors can
be injured.
9. REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure that the switch is in the “OFF” position
before plugging in the power cord. In the event of a
power failure, move the switch to the “OFF” position.
An accidental start-up can cause injury.
10. USE THE GUARDS. Check to see that all guards are in
place, secured, and working correctly to prevent injury.
11. REMOVE ADJUSTING KEYS AND WRENCHES
BEFORE STARTING THE MACHINE. Tools, scrap
pieces, and other debris can be thrown at high speed,
causing injury.
12. USE THE RIGHT MACHINE. Don’t force a machine or
an attachment to do a job for which it was not
designed. Damage to the machine and/or injury may
result.
13. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by
Delta may cause damage to the machine or injury to the
user.
14. USE THE PROPER EXTENSION CORD. Make sure
your extension cord is in good condition. When using
an extension cord, be sure to use one heavy enough to
carry the current your product will draw. An undersized
cord will cause a drop in line voltage, resulting in loss of
power and overheating. See the Extension Cord Chart
for the correct size depending on the cord length and
nameplate ampere rating. If in doubt, use the next
heavier gauge. The smaller the gauge number, the
heavier the cord.
15. SECURE THE WORKPIECE. Use clamps or a vise to hold
the workpiece when practical. Loss of control of a
workpiece can cause injury.
16. FEED THE WORKPIECE AGAINST THE DIRECTION OF
THE ROTATION OF THE BLADE, CUTTER, OR ABRASIVE
SURFACE. Feeding it from the other direction will cause
the workpiece to be thrown out at high speed.
17. DON’T FORCE THE WORKPIECE ON THE MACHINE.
Damage to the machine and/or injury may result.
18. DON’T OVERREACH. Loss of balance can make you
fall into a working machine, causing injury.
19. NEVER STAND ON THE MACHINE. Injury could occur if the
tool tips, or if you accidentally contact the cutting tool.
20. NEVER LEAVE THE MACHINE RUNNING UNATTENDED.
TURN THE POWER OFF. Don’t leave the machine until it
comes to a complete stop. A child or visitor could be injured.
21. TURN THE MACHINE “OFF”, AND DISCONNECT THE
MACHINE FROM THE POWER SOURCE before installing
or removing accessories, before adjusting or changing
set-ups, or when making repairs. An accidental start-up
can cause injury.
22. MAKE YOUR WORKSHOP CHILDPROOF WITH
PADLOCKS, MASTER SWITCHES, OR BY
REMOVING STARTER KEYS. The accidental start-up
of a machine by a child or visitor could cause injury.
23. STAY ALERT, WATCH WHAT YOU ARE DOING, AND
USE COMMON SENSE. DO NOT USE THE
MACHINE WHEN YOU ARE TIRED OR UNDER THE
INFLUENCE OF DRUGS, ALCOHOL, OR MEDICATION. A moment of inattention while operating power
tools may result in injury.
24. TAKE PRECAUTIONS AGAINST DUST INHALATION.
The dust generated by certain woods and wood
products can be injurious to your health. Always
operate machinery in well-ventilated areas, and provide
for proper dust removal. Use wood dust collection
systems whenever possible.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.
10-27-03
Page 4
4
ADDITIONAL SAFETY RULES
FOR ABRASIVE FINISHING MACHINES
1. DO NOT OPERATE THIS MACHINE until it is
completely assembled and installed according to
the instructions. A machine incorrectly assembled
can cause serious injury.
2. OBTAIN ADVICE from your supervisor, instructor, or
another qualified person if you are not thoroughly
familiar with the operation of this machine.
Knowledge is safety.
3. FOLLOW ALL WIRING CODES and recommended
electrical connections to prevent shock or electrocution.
4. NEVER TURN THE MACHINE “ON” before
clearing the table/work area of all objects (tools,
scraps of wood, etc.). Flying debris is dangerous.
5. NEVER TURN THE MACHINE “ON” with the work-
piece contacting the abrasive surface. Kickback can
occur.
6. SECURE THE MACHINE to a supporting surface. Vibra-
tion can cause the machine to slide, walk, or tip
over.
7. COVER THE POWER TAKE-OFF SHAFT when not
using accessories. Unguarded rotating shafts can
create an entanglement hazard which can result in
injury.
8. USE A DUST COLLECTION SYSTEM. Some types
of wood are known to cause disease or other health
problems.
9. CLEAN THE MACHINE and dust collector thoroughly
when processing different types of workpieces
(wood, steel, or aluminum). Combining wood and
metal dust can create an explosion or fire hazard.
DO NOT SAND OR POLISH MAGNESIUM. Fire will
result.
10. PREVENT THE WORKPIECE from contacting the
sanding belt before starting the tool. Loss of control
of the workpiece is dangerous.
11. AVOID AWKWARD OPERATIONS AND HAND
POSITIONS. A sudden slip could cause a hand to
move into the abrasive disc or belt.
12. MAINTAIN A MAXIMUM CLEARANCE OF 1/16" be-
tween the table and the abrasive disc. The
workpiece could be drawn into the space between
the abrasive disc and the table.
13. SUPPORT THE WORKPIECE firmly with a miter
gauge, backstop, or work table when sanding with a
belt. Hold the workpiece firmly. Loss of control of the
workpiece can result in injury.
14. AVOID KICKBACK by sanding in accordance with
the directional arrows. Feed the workpiece against
the downward rotation side of the disc or the
forward rotation of the belt. Loss of control of the
workpiece can result in injury.
15. DO NOT SAND very small or very thin workpieces
that cannot be safely controlled. Loss of control of
the workpiece can result in injury.
16. PROPERLY SUPPORT LONG OR WIDE WORK-
PIECES. Loss of control of the workpiece is dangerous.
17. NEVER PERFORM LAYOUT, ASSEMBLY, OR SET-UP
WORK on the table/work area when the machine is
running. A sudden slip could cause a hand to move
into the abrasive surface. Severe injury can result.
18. TURN THE MACHINE “OFF”, disconnect the
machine from the power source, and clean the
table/work area before leaving the machine. LOCK
THE SWITCH IN THE “OFF” POSITION to prevent
unauthorized use. Someone else might accidentally
start the machine and cause injury to themselves.
19. ADDITIONAL INFORMATION regarding the safe
and proper operation of power tools (i.e. a safety
video) is available from the Power Tool Institute,
1300 Sumner Avenue, Cleveland, OH 44115-2851
(www.powertoolinstitute.com). Information is also
available from the National Safety Council, 1121
Spring Lake Drive, Itasca, IL 60143-3201. Please
refer to the American National Standards Institute
ANSI 01.1 Safety Requirements for Woodworking
Machines and the U.S. Department of Labor OSHA
1910.213 Regulations.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.
SAVE THESE INSTRUCTIONS.
Refer to them often
and use them to instruct others.
04-24-03
Page 5
5
A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should
be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3prong grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the
machine to the power line, make sure the switch (s) is in the “OFF” position and be sure that the electric current is of
the same characteristics as indicated on the machine. All line connections should make good contact. Running on low
voltage will damage the machine.
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.
Fig. A Fig. B
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLET BOX
GROUNDING
MEANS
ADAPTER
2. Grounded, cord-connected machines intended for
use on a supply circuit having a nominal rating less
than 150 volts:
If the machine is intended for use on a circuit that has an
outlet that looks like the one illustrated in Fig. A, the
machine will have a grounding plug that looks like the plug
illustrated in Fig. A. A temporary adapter, which looks like
the adapter illustrated in Fig. B, may be used to connect
this plug to a matching 2-conductor receptacle as shown
in Fig. B if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician.
The green-colored rigid ear, lug, and the like, extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box. Whenever
the adapter is used, it must be held in place with a metal
screw.
NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electric Code.
IN ALL CASES, MAKE CERTAIN THAT THE
RECEPTACLE IN QUESTION IS PROPERLY
GROUNDED. IF YOU ARE NOT SURE
HAVE A QUALIFIED ELECTRICIAN CHECK
THE RECEPTACLE.
1. All grounded, cord-connected machines:
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This machine is
equipped with an electric cord having an equipmentgrounding conductor and a grounding plug. The plug must
be plugged into a matching outlet that is properly installed
and grounded in accordance with all local codes and
ordinances.
Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding
conductor can result in risk of electric shock. The
conductor with insulation having an outer surface that is
green with or without yellow stripes is the equipmentgrounding conductor. If repair or replacement of the
electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if
the grounding instructions are not completely
understood, or if in doubt as to whether the machine is
properly grounded.
Use only 3-wire extension cords that have 3-prong
grounding type plugs and matching 3-conductor
receptacles that accept the machine’s plug, as shown in
Fig. A.
Repair or replace damaged or worn cord immediately.
POWER CONNECTIONS
MOTOR SPECIFICATIONS
Your machine is wired for 120, 60 HZ alternating current. Before connecting the machine to the power source, make
sure the switch is in the “OFF” position.
GROUNDING INSTRUCTIONS
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.
Page 6
6
EXTENSION CORDS
Use proper extension cords. Make sure
your extension cord is in good condition
and is a 3-wire extension cord which has
a 3-prong grounding type plug and
matching receptacle which will accept
the machine’s plug. When using an
extension cord, be sure to use one heavy
enough to carry the current of the
machine. An undersized cord will cause
a drop in line voltage, resulting in loss of
power and overheating. Fig. D-1 shows
the correct gauge to use depending on
the cord length. If in doubt, use the next
heavier gauge. The smaller the gauge
number, the heavier the cord.
Fig. D-1
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 120
up to
25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120
up to
25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120
up to
25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120
up to
25 14 AWG
12-16 120 25-50 12 AWG
12-16 120
GREATER THAN 50 FEET NOT RECOMMENDED
FOREWORD
FUNCTIONAL DESCRIPTION
The Delta Model 31-695 features a large 9" diameter abrasive disc that is perfect for sanding large curves or rounding
out sharp corners. The Delta Model 31-695 also features an adjustable 6" belt unit that can be operated vertically or
horizontally or at any angle in between.
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
The photograph on the manual cover illustrates the current production model. All other illustrations
contained in the manual are representative only and may no depict the actual color, labeling, or
accessories, and are intended to illustrate technique only.
NOTICE:
CARTON CONTENTS
Your new Belt/Disc Sander and Stand is shipped complete in one container. Carefully unpack the sander, stand, and
all loose items from the shipping container.
Page 7
7
Fig. 2
1. Sander with 6" x 48" Sanding
Belt and Backstop
2. Sanding Disc Plate
3. Belt and Pulley Cover
4. 9" Sanding Disc
5. Plug
6. T-Wrench
7. Drive Belt
8. M6 x 55mm Hex Socket Head
Screws (2)
9. M6.4 Flat Washer (2
10. M6.4 Lockwasher (2)
11. Disc Cover
12. M4.2 x 13mm Panhead
Screws (3)
13. Support Rod
14. Table Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A Two Upper
Front and Rear Braces
11-1/2" long
B Two Lower
Front and Rear Braces
17-1/8" long
C Two Upper
Side Braces
21-5/16" long
D Two Lower
Side Braces
26-5/8" long
E Four Legs
27-1/2" long
Fig. 3
E
A
B
C D
F
G
H
J
K
F Plastic Feet (4)
G M8 Hex Nuts - (36)
H M8 x 45mm Hex Head
Screws (4)
J 3/8" Flat Washers - (40)
K M8 x 20mm Carriage Bolts -
(32)
Page 8
8
For your own safety, do not connect the machine to the power source until the machine is
completely assembled and you read and understand the entire instruction manual.
ASSEMBLY
STAND
Any letter designations that are
stamped on the braces of the stand
are for production purposes ONLY
and are not used for assembling the
stand. Follow the instructions in this
manual.
Fig. 4
IMPORTANT:
Assembling this stand (Fig. 4) requires, in each instance,
placing an M8x20mm carriage head bolt through a hole
in the front of the leg, then through the corresponding
hole in the brace. Place a 3/8" flat washer on the other
end of the bolt, and loosely secure that connection with
an M8 hex nut.
Attach the lower braces first.
When you attach the upper braces, place the short
upper braces (A) Fig. 4 on top of the long upper braces
(B).
Attach a plastic foot (C) Fig. 4 on the bottom of each leg.
MACHINE TO STAND
Carefully set the sander on the stand. Align the four holes
on the top of stand (A) Fig. 5 with the four mounting
holes on the base of sander (B). Place a 3/8" flat washer
on an M8 x 45mm hex head screw (C). Insert the screw
through the hole in the base of the machine (B) and stand
(A). Place a 3/8" flat washer on the other end of the
screw and thread an M8 hex nut on the screw. Tighten
securely. Repeat this process for the three remaining
holes.
Fig. 5
B
A
DRIVE BELT/ ADJUSTING BELT
TENSION
Use the supplied hex wrench (A) Fig. 6 to loosen the
screw (B). Move the sanding arm (C) to the vertical
position. Tighten the screw (B). Place the drive belt (D) on
the pulleys.
The drive belt (D) Fig. 7 should be firm, but
not too tight on the pulleys (E and F) and
should have approximately 1/4" to 1/2"
deflection in the belt at the center (E and F)
when using light finger pressure. The drive
belt does not require excessive tension to
function properly.
To adjust the belt tension, loosen the locknut (G) Fig. 7.
Use the wrench (A) to tighten or loosen the adjustment
screw (H). when the adjustment is correct, tighten the
locknut (G). After the drive belt (D) Fig. 7 has proper
tension, move the sanding arm to the horizontal position.
Fig. 6
NOTE:
Fig. 7
B
C
D
A
H
G
D
E
F
A
B
C
A
C
C
Page 9
9
BELT AND PULLEY GUARD
Place an M6.4 lockwasher and an M6.4 flat washer in
that order on two M6 x 55mm hex socket head screws
(B), and attach the belt and pulley guard (A) Fig. 8 to the
machine. NOTE: Install the plug (C) in the guard.
C
SANDING DISC PLATE
1. Place the key (C) Fig. 9 into the keyway of the
driveshaft and slide the sanding disc plate (A) Fig. 9
on the drive shaft until it is flush with the end of the
drive shaft (Fig. 10).
Do not allow the drive shaft (B) to extend past
the plate surface.
2. Insert a hex wrench (E) Fig. 11 through the slot (F) in
the back of belt and pulley guard (G). Tighten the set
screw that holds the disc plate on the drive shaft.
Fig. 8
Fig. 9
NOTE:
Fig. 11
Fig. 10
C
D
B
F
Fig. 12
SANDING DISC TO DISC PLATE
1. Clean the sanding disc plate (A) Fig. 12.
2. Peel the backing from the sanding disc (B) Fig. 12.
Press the disc firmly into position on the sanding
disc plate (A).
A
A
B
E
G
B
Page 10
10
Fig. 13
LOWER COVER FOR SANDING DISC
Use three M4.2 x 13mm pan head screws (C) to attach
the lower cover (A) Fig. 13 to the belt and pulley guard
(B).
Prevent the sanding disc from contacting
the lower cover. Rotate the sanding disc by
hand to ensure that no contact is made.
C
NOTE:
Fig. 14
Fig. 15
SANDER TABLE
1. Insert the support rod (A) Fig. 14 into the hole in the
side of the sander until the rod (A) extends
approximately 5-1/2". Align the flat on the rod (A)
with the screw (B). Tighten the screw with the hex
wrench (C).
2. Slide the table assembly (D) Fig. 15 on the rod (A).
Align the flat on the rod (A) with the set screws (E).
Tighten the screws to hold table assembly (D) in
position.
To avoid trapping the work or fingers
between sanding disc and table, the
table edge (F) Fig. 15 should be
positioned a maximum of 1/16" away
from sanding disc (G). Loosen screws
(E) and adjust table accordingly.
D
F
G
E
C
Fig. 16
STARTING AND STOPPING SANDER
The switch (A) Fig. 16 is located on the sander base. To
turn the sander “ON”, move the switch to the up
position. To turn the sander “OFF”, move the switch to
the down position.
OPERATING CONTROLS AND ADJUSTMENTS
A
5-1/2"
A
B
A
B
C
Page 11
11
Fig. 17
LOCKING SWITCH IN THE “OFF” POSITION
When the machine is not in use, the switch should be locked in the “OFF” position to prevent
unauthorized use.
This can be done by grasping the switch toggle (B) and pulling it out of the switch, as shown in Fig. 20. With the switch
toggle (B) removed, the switch will not operate. However, should the switch toggle be removed while the sander is
running, it can be turned “OFF” once, but cannot be restarted without inserting the switch toggle (B).
Fig. 18
TRACKING THE SANDING BELT
1. Turn the switch “ON” and “OFF” to see if the sanding belt tracks correctly. If the belt does not move to one side
or the other and rides on the center of the sanding drums, the belt is tracking properly.
2. If the sanding belt moves toward the disc, turn the tracking knob (A) Fig. 18 counterclockwise 1/4 turn.
3. If the sanding belt moves away from the disc, turn the tracking knob (A) Fig. 18 clockwise 1/4 turn.
4. Turn the switch “ON” and “OFF” again to check the tracking. Adjust again, if necessary.
CHANGING POSITION OF SANDING ARM
The sanding arm (A) Fig. 19 can be used in the horizontal position (Fig. 19), or in the vertical position (Fig. 20), or any
angle in between. To change the position, loosen the screw (B) Fig. 20 with the hex wrench (C), move the arm (A) Fig.
20, to the desired location and tighten the screw (B).
Fig. 19
Fig. 20
B
A
D
C
ADJUSTING SANDING ARM STOP
A positive stop is provided to position the sanding arm level with the workbench when the arm is in the horizontal
position.
1. Place the sanding arm in the horizontal position.
DISCONNECT MACHINE FROM POWER SOURCE.
A
A
B
Page 12
12
Fig. 21
Fig. 22
ADJUSTING BACKSTOP SQUARE
WITH SANDING BELT
1. Before making this adjustment, check to see that the
belt tension lever (A) Fig. 22 is all the way to the left
in the “tighten” position.
2. Place a square (B) Fig. 23 on the sanding belt with
the end of the square against the backstop.
3. If the backstop is not square with the sanding belt,
loosen the two screws (C) Fig. 23, and adjust the
backstop. After adjusting, tighten the screws (C).
2. Place a level (A) on the sanding belt.
3. To adjust, loosen the lock nut (B) Fig. 21, and turn
the sanding arm stop (C) in or out until the sanding
arm is level. After adjustment, tighten the lock nut
(B).
DISCONNECT MACHINE FROM POWER
SOURCE.
Fig. 23
A
B
C
A
B
C
Fig. 24
TILTING THE TABLE
You can tilt the table 45 degrees by loosening the table
lock knob (A) Fig. 24. Tighten the table lock knob after
tilting the table. A scale (H) is provided with a pointer (G)
to help you accurately tilt the table to the desired angle.
After tilting, the table assembly must
be repositioned on the support rod (B)
FIG. 24 to provide a maximum of 1/16"
distance between the sanding disc (C),
and the edge (D) of the table, to avoid
trapping the workpiece or fingers
between the disc and table. To
reposition the table assembly, loosen
two screws (E) and/or screw (F), move
table assembly on rod (B), and tighten
screws (E) and/or (F).
DISCONNECT MACHINE FROM POWER
SOURCE.
E
F
D
C
F
B
G
H
A
Page 13
13
SQUARING TABLE WITH
SANDING DISC
1. Place one end of a combination square (C) Fig. 25
on the table with the other end against the sanding
disc.
2. If the table surface is not 90 degrees to the disc,
loosen the table lock knob (A) Fig. 25, adjust the
table, and tighten lock knob (A).
3. Adjust the pointer (B) Fig. 25 to the “0” degree mark
on the angle scale.
ADJUSTING MITER GAUGE
SLOT PARALLEL WITH
SANDING DISC
1. Place a combination square with the 90 degree
angle side (A) in the miter gauge slot and the other
end (B) against the sanding disc. Check the distance
from the slot to each end of the sanding disc (Figs.
26 and 27). This distance should be the same.
2. To adjust, loosen the three screws (B) Fig. 28, adjust
the table, and tighten three screws (B).
Fig. 25
Fig. 26
Fig. 28
Fig. 27
DISCONNECT MACHINE FROM POWER
SOURCE.
A
B
DISCONNECT MACHINE FROM POWER
SOURCE.
AB
B
Fig. 29
ACCESSORY MITER GAUGE
An accessory miter gauge is available. The miter gauge
body (A) Fig. 32 can be turned the right or left for angle
or miter sanding. To change the angle, loosen the lock
knob (B), rotate the miter gauge body, and tighten the
lock knob (B).
C
A
B
Page 14
14
Fig. 30
Fig. 31
USING TABLE ASSEMBLY WITH
SANDING BELT
Use the table assembly with the
sanding belt in the vertical position ONLY.
To move the table assembly (B) Fig. 30 to the sanding
arm (A):
1. Remove the backstop (C) Fig. 30.
2. Loosen the screw (D) Fig. 30 and carefully remove
support bar (E) and table assembly (B) from the disc
unit.
3. Loosen the set screw (F) Fig. 31. insert the support
bar (E) (with the table assembly (B) attached) in the
hole (G) Figs. 30 & 31. Tighten the set screw (F).
The table edge must be positioned
a maximum of 1/16" away from the
sanding belt to avoid trapping the
workpiece or fingers between the
table and the sanding belt.
D
D
G
F
Fig. 32
DUST SPOUT
A dust spout (A) Fig. 32 is supplied with your sander and
can easily be connected to a standard shop vacuum
hose. The inside diameter opening of the dust spout (A)
is 2-1/4".
Fig. 33
ADJUSTING DUST SHIELD
This sander is equipped with a manually operated dust
shield (A) Fig. 33 for use with a dust collection system.
You must adjust the shield to suit your sanding
operation.
1. If you are sanding with the disc, push in on the dust
shield (A) Fig. 33.
A
C
G
B
B
E
A
A
Page 15
15
2. If you are sanding with the belt, pull the dust shield
(A) Fig. 34 outward.
Fig. 35
Fig. 36
WRENCH STORAGE
A hole is provided in the stand for storing the hex wrench
(A) Fig. 35, supplied with the sander.
REMOVING UPPER SANDING
DRUM GUARD
You can remove the upper sanding drum guard (A) Fig.
36 to sand inside curved work or to change the belt. To
remove:
1. Pull outward on the guard (A).
2. After the sanding operation is completed or the belt
is changed, replace the guard (A) Fig. 36 on the two
studs (B), one of which is shown.
Fig. 34
Fig. 37
Fig. 38
REPLACING SANDING BELT
1. Remove the upper sanding drum guard. Loosen the two screws (A) Fig. 37 and remove the backstop (B).
2. Loosen the two screws (C) Fig. 37, and remove support bracket (D). Fig. 38 illustrates backstop and support
bracket removed from the machine.
DISCONNECT MACHINE FROM POWER SOURCE.
B
A
D
C
A
A
A
B
Page 16
16
Fig. 39
Fig. 40
5. Place a new 6" x 48" sanding belt (F) Fig. 40 over
both sanding drums (G). Ensure that the belt will
travel in the direction of the arrows printed on the
inside of the belt.
6. Move the tension lever (E) Fig. 39 left to the
“TIGHTEN” position.
7. Replace the support bracket, backstop and upper
sanding drum guard, removed in STEPS 1 and 2.
8. Connect the electrical power to the sander. If the belt
is not tracking properly, refer to section “TRACKING
THE SANDING BELT.”
4. Move the tension lever (E) Fig. 39, to the right to the
“LOOSEN” position (F). Remove the sanding belt (F)
from both sanding drums.
F
E
G
G
F
REPLACING SANDING DISC
Fig. 41
1. Loosen the screw (A) Fig. 41, and remove the table
assembly (B).
2. Remove the three screws (C) Fig. 42 and lower the
cover (D).
3. Peel off the old disc (E) Fig. 43.
4. Make sure the disc plate (F) Fig. 43 is clean. Peel the
backing from a new sanding disc. Press the new
sanding disc firmly into position on the disc plate (F).
Replace the lower cover and table assembly,
removed in STEPS 1 and 2.
DISCONNECT MACHINE FROM POWER SOURCE.
Fig. 42
Fig. 43
A
B
C
D
E
F
Page 17
17
Fig. 45Fig. 44
SURFACING OR EDGE SANDING WITH SANDING BELT
When surfacing (Fig. 44) or edge sanding (Fig. 45), place the sanding arm in the horizontal position and use the
backstop (A) Fig. 44 and Fig. 45 to keep the workpiece in place. Hold the workpiece firmly and keep your fingers away
from the sanding belt. Place the end of the workpiece against the backstop and move the workpiece evenly across the
sanding belt. Apply only enough pressure to allow the sanding belt to remove material. Use extra caution when sanding
very thin pieces.
Position the edge of the backstop a maximum of 1/16" away from the sanding belt to avoid
trapping the workpiece or your fingers between the backstop and the sanding belt.
OPERATING CONTROLS AND ADJUSTMENTS
Fig. 46
SANDING INSIDE CURVES
You can sand inside curves on the top sanding drum
(Fig. 46).
Replace the sanding drum guard after
the sanding operation is completed.
Fig. 47
SANDING OUTSIDE CURVES
Sand outside curves on the sanding disc as illustrated in
Fig. 47.
Always sand on the left (downward)
side of the sanding disc. Sanding on
the right (upward) side of the sanding
disc could cause the workpiece to fly
up, which could be hazardous.
The edge of the table must be
positioned a maximum of 1/16" away
from the sanding disc to avoid
trapping the workpiece or fingers
between the table and sanding disc.
A
A
Page 18
18
Fig. 48
END SANDING WITH THE DISC
When sanding the ends of narrow workpieces, use the sanding disc and the accessory miter gauge (Fig. 48). Move the
work from the center to the left side of the sanding disc.
Always sand on the left (downward) side of the sanding disc. Sanding on the right (upward) side
of the sanding disc could cause the workpiece to fly up, which could be hazardous.
The edge of the table must be positioned a maximum of 1/16" away from the sanding disc to
avoid trapping the work or fingers between the table and the sanding disc.
Fig. 49
END SANDING WIDE
WORKPIECES WITH THE BELT
When sanding the ends of wide workpieces, move the table assembly to the the sanding belt and use the sanding arm
in the vertical position (Fig. 49). See sections titled “CHANGING POSITION OF SANDING ARM” and“USING TABLE
ASSEMBLY WITH SANDING BELT.”
For more accurate work use the accessory miter gauge and move the work evenly across the sanding belt (Fig. 52).
Always sand on the left (downward) side of the sanding disc. Sanding on the right (upward) side
of the sanding disc could cause the workpiece to fly up, which could be hazardous.
Page 19
19
MAINTENANCE
KEEP MACHINE CLEAN
Periodically blow out all air passages with dry compressed
air. All plastic parts should be cleaned with a soft damp
cloth. NEVER use solvents to clean plastic parts. They could
possibly dissolve or otherwise damage the material.
Wear ANSI Z87.1 safety glasses while
using compressed air.
FAILURE TO START
Should your machine fail to start, check to make sure the
prongs on the cord plug are making good contact in the
outlet. Also, check for blown fuses or open circuit breakers
in the line.
LUBRICATION
Apply household floor paste wax to the machine table and
extension table or other work surface weekly.
PROTECTING CAST IRON FROM RUST
To clean and protect cast iron tables from rust, you will
need the following materials: 1 pushblock from a jointer,
1 sheet of medium Scotch-Brite™ Blending Hand Pad, 1
can of WD-40®, 1 can of degreaser, 1 can of TopCote
®
Aerosol. Apply the WD-40 and polish the table surface
with the Scotch-Brite pad using the pushblock as a
holddown. Degrease the table, then apply the TopCote
®
accordingly.
Page 20
20
