LED MR16 Lamp
M6DT-03LB
2of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00
CONTENT
1. OUTLOOK
2. APPLICATION
3. FEATURES
4. OPERATION CONDITION
5. SPECIFICATION
6. PHOTOMETRY
7. CERTIFICATE
8. PRODUCT CODE DEFINITION
9. PACKAGING
10. INSTALLATION
11. WARRANTEE
12. ENVIRONMENTAL BENEFIT
13. ECONOMIC BENEFIT
3of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00
OUTLOOK
40°
4of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00
OUTLOOK
80°
5of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00
OUTLOOK
120°
6of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00
APPLICATIONS
SPECIFICATION
Optical
OPERATION CONDITION
Accent/ Spot Lighting
Store Lighting
Mood Lighting
FEATURES
High lumen output.
High efficiency.
GU5.3 base.
RoHS/WEEE Compliant.
Mercury free.
Long life.
85°C-40°CStorage Temperature
40°C-20°COperating Temperature
13V10VInput Voltage (AC/DC)
MaximumMinimumParameter
45°/80°/120
°
Beam Angle
Warm white
Neutral White
Cool White
Color
Warm white: 90 Lm
Neutral White: 100 Lm
Cool White: 130 Lm
luminous flux
7of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00
Electrical
Warm White : 30 lm/Watt
Neutral White : 35 lm/Watt
Cool White : 40 lm/Watt
Typical Luminous Efficacy
0.8 @ 12VAC/DCPower Factor
3 WattStabilized Power Consumption (typical)
12VAC/DCInput Voltage
This product is in conformity with all provisions of Annex I of Council Directive
2004/108/EC (electromagnetic compatibility) and 2006/95/EC (low voltage directive)
This product is also in conformity with waste electrical and electronic equipment
directive 2002/96/EC (WEEE)
CERTIFICATE
Mechanical and Dimension
50 g Weight
ψ
50 X 45 mm Dimension
8of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00
PHOTOMETRY
Polar intensity distribution of luminaire
40°
9of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00
80°
PHOTOMETRY
Polar intensity distribution of luminaire
10 of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00
120°
PHOTOMETRY
Polar intensity distribution of luminaire
11 of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00
1.SERIES CODE
M1DT ： MP/AR Lighting
1-1 TYPE
1 ：MR11
6 ：MR16
A ：AR 111
2.Input Power
05 ：5W
10 ：10W
15 ：15W
3.Input voltage
U ：100-240V AC
E ：200-240V AC
A ：100-120V AC
L ：12/24V AC/DC
4. Base Type
J ：E26/25
A ：E26/24
S ：E27/27
B ：Gx5.3
C ：GU10
D ：G53
5.Light Pattern
F ：Flood
S ：Spot (<20 degree)
N ：Narrow(20-29 degree)
M ：Medium(30-59)
W ：Wide (60-80 degree)
6.COLOR
W ：Warm white
N ：Neutral white
D ：Daylight
R ：Red
G ：Green
B ：Blue
7.Features
P ：Premium (PFC+TRAIC Dimming)
C ：Commercial (only PFC)
S ：Step dimming
D ：TRAIC Dimming
B ：Basic (not dimmable, no PFC)
8.LED supplier
9. Binning
1-1
1
M 1 D T 0 5 J FU W X XP
234 6 895 7
PRODUCT CODE DEFINITION
12 of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00

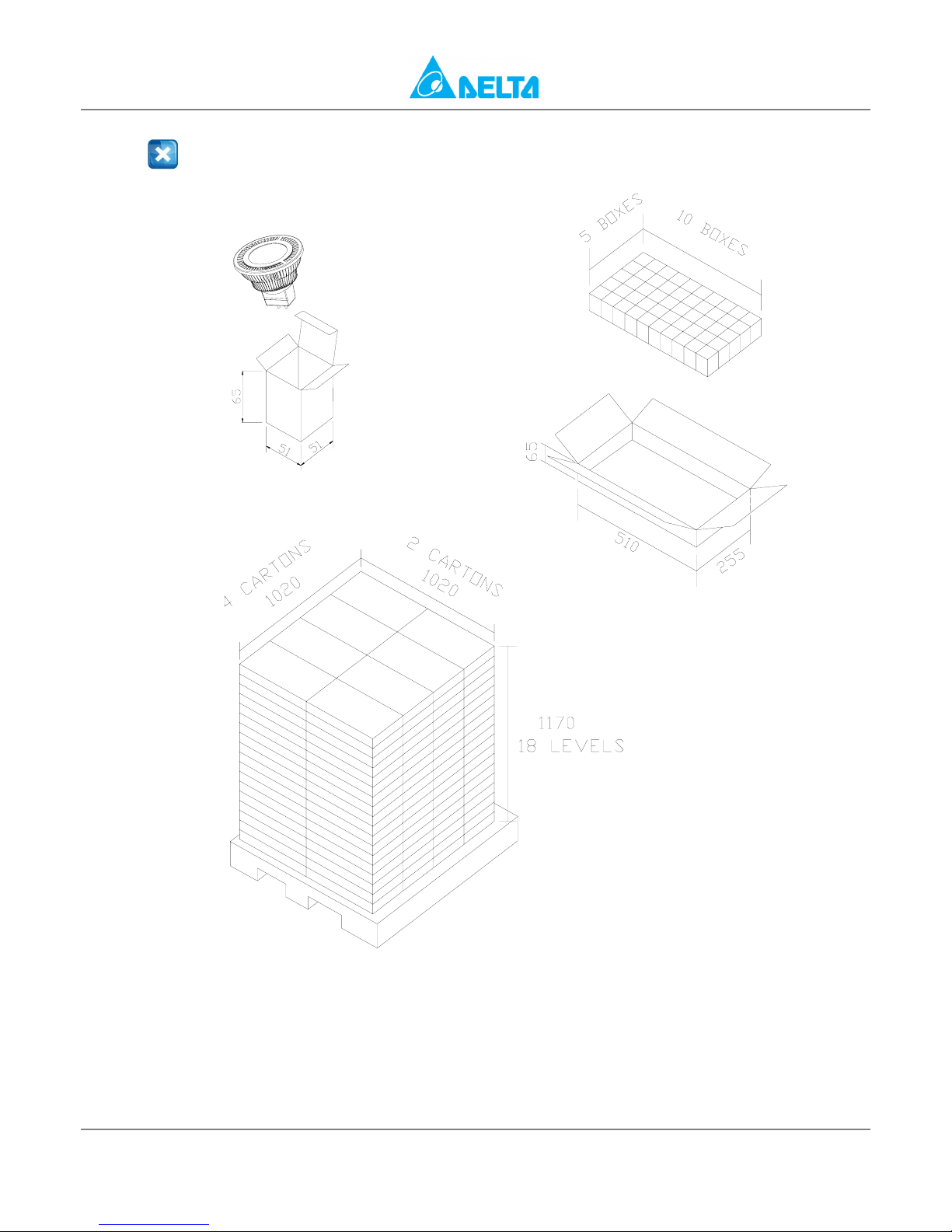

PACKAGE AND PACKAGING DIMENSION
1 Carton = 50 (5 * 10) Boxes
Carton Size = 510(W) * 255(H) * 65(D) mm
1 Pallete leve = 8 (4 * 2) Cartons
1 Pallete = 8 * 18 leves = 144 cartons
= 144 * 50 = 7200 sets lamp
13 of 13
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-MR0901001-EN00
INSTALLATION
This product is designed for indoor use only, not suitable for damp or wet locations
This product cannot be used with dimmers.
Install this product in a fully enclosed fixtures may shorten lamp life due to heat
buildup.
ENVIRONMENTAL BENEFIT
Delta Group is the world's largest provider of switching power supplies and brushless
fans, as well as a major source for power management solutions, components, visual
displays, industrial automation, networking products, and renewable energy solutions.
Established in 1971, Delta Group has sales offices worldwide and manufacturing
plants in Taiwan, Thailand, China, Mexico and Europe. As a global leader in power
electronics, Delta's mission is "To provide innovative energy-saving products for a
better quality of life." Delta is committed to environmental protection and has
implemented green, lead-free production and recycling and waste management
programs for many years. DELTA’s LED lamp is compliant to the European Union
directives on the restriction of hazardous substances in electronic equipment, namely
the RoHS directive. Besides, DELTA’s LED lamp is also is also compliant to the
European Waste Electrical and Electronic Equipment Directive (WEEE). WEEE
encourages the collection, treatment, recycling and recovery of waste electrical and
electronic equipment.
WARRANTY
3 years of the entire system (power, driver, LED light module) with no mechanical
damage under normal operation condition.
LED lumen degradation within 20% in 3 years (reference TW environment only).
ECONOMIC BENIFIT
End of Specification
20W 3W
MR16 M6DT-03LBWNB
Total Lumens (lm) 159 98
Power Consumption (W) 19.12 3.2
CRI 99 88
lm/W 8.32 30.625
Power (kW) 0.01912 0.0032
% 100% 17%
Power Consumption Per Year kWh, 12hr /day light on 84 14
Power S aving Per Year (kWh) 70
Mone y Saving Per Year (USD) $0.15/kWh 10
3-Year Saving (USD) 31
3-Year Maintain Fee 0
3-Ye ar Total Money Saving (US D) 31
3-Year Total CO2 Emission S aving (Kg) 0.736Kg CO2/kWh 154
Spec ificat ion
Ene r
g
y Savin
g
Energy Comparison
Loading...
