LC-1250xxxx Series
DELTA ELECTRONICS, INC.
1 Jan., 2008
Rev . 0H
www.deltaww.com
RoHS Compliant 2X5 SC Small Form Factor Transceiver for Gigabit
Ethernet
Features
Compliant with SFF transceiver MSA
specification
Compliant with Specifications for IEEE
802.3z/Gigabit Ethernet
LC-1250BxQxRx compliant with the
1.0625GBd Fiber Channel 100-SM-LC-L FC-PI
Rev.13
LC-1250AxFxRx compliant with the
1.0625GBd Fiber Channel FC-PI 100-M5-SN-I
Rev.13
Single +3.3V Power Supply
PECL or TTL Signal Detect level
Duplex LC connector interface
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
RoHS Compliant per Directive 2002/95/EC.
Description
The LC-1250xxxx series are high performance,
cost effective optical transceivers intended for
1250Mb/s. They are designed to provide Gigabit
Ethernet compliant link at 1250Mb/s for short,
intermediate and long reach links, respectively.
The LC-1250xxxx series provide with the LC
receptacle that are compatible with the industry
standard LC connector.
The LC-1250xxxx series are Class 1 eye safety
product. The optical power levels, under normal
operation, are at eye safe level.
Applications
Gigabit Ethernet/Fast Ethernet
Switched backplane applications
File server interface
Performance
LC-1250AxFxRx:
850nm VCSEL, up to 500m in 50/125μm MMF
850nm VCSEL, up to 220m in 62.5/125μm MMF
LC-1250BxQxRx:
1310nm FP laser, Data Link up to 10km in
9/125um SMF
1310nm FP laser, up to 550m in 50/125μm MMF
1310nm FP laser, up to 550m in 62.5/125μm
MMF
LC-1250xxxx Series
DELTA ELECTRONICS, INC.
2 Jan., 2008
Rev . 0H
www.deltaww.com
Absolute Maximum Ratings
Parameter Symbol Min. Typ. Max. Unit Note
Storage Temp erature Ts -40 85 ºC
Lead Soldering Temperature T
SOLD
260 ºC
Lead Soldering Time t
SOLD
10 sec.
Supply Voltage VCC 0 5 V
Recommended Operating Conditions
Parameter Symbol Min. Typ. Max. Unit Note
Ambient Operating Temperature TA 0 70 ºC 1
Supply Voltage VCC 3.135 3.465 V
Note:
1.See ordering information for detail
Electrical Characteristics
( V
CC
= 3.135 to 3.465V)
Parameter Symbol Min. Typ. Max. Unit Note
Transmitter
Transmitter Data Input Voltage-Low VIL-V
CC
-1.810 -1.475 V
Transmitter Data Input Voltage-High VIH-V
CC
-1.165 -0.880 V
Transmitter Disable Input-High V
DISH
2 VCC V
Transmitter Disable Input-Low V
DISL
0 0.8 V
Receiver
Data Output Voltage-Low VOL-V
CC
-1.95 -1.62 V
Data Output Voltage-High VOH-V
CC
-1.045 -0.74 V
PECL SD Output
LOW level output voltage
HIGH level output voltage
V
SDL-VCC
V
SDH-VCC
-1.95
-1.05
-1.62
-0.74
V
TTL SD Output
LOW level output voltage
HIGH level output voltage
V
SDL
V
SDH
0
2
0.8
VCC
V
LC-1250xxxx Series
DELTA ELECTRONICS, INC.
3 Jan., 2008
Rev . 0H
www.deltaww.com
Optical Performance Specification
( V
CC
= 3.135 to 3.465V )
Parameter Symbol Min. Typ. Max. Unit Note
Transmitter
Supply Current ICC 150 mA
Output Optical Power (Avg.)
LC-1250AxFxRx
LC-1250BxQxRx
P
O
-9.5
-9.5
-4
-3
dBm
Optical Extinction Ratio ER 9 dB
Center Wavelength
LC-1250AxFxRx
LC-1250BxQxRx
λ
C
830
1274
860
1355
nm
Spectral Width (RMS)
LC-1250AxFxRx
LC-1250BxQxRx
σ
0.85
4.5
nm
Optical Rise/Fall time
LC-1250AxFxRx
LC-1250BxQxRx
t
r/tf
0.26
0.4
ns 1
Relative Intensity Noise
RIN -116 dB/Hz
Output Eye
Complies with the IEEE 802.3z
/
D2 specification, and is class 1
laser eye safety
Receiver
Supply Current ICC 120 mA
Optical Input Sensitivity (Avg.)
LC-1250AxFxRx
LC-1250BxQxRx
P
IN
-17
-19
dBm 2
Optical Receiver saturation (Avg.) P
SAT
-3 dBm
Input Optical Wavelength
LC-1250AxFxRx
LC-1250BxQxRx
λ
830
1274
860
1355
nm
Optical Rise/Fall time
LC-1250AxFxRx
LC-1250BxQxRx
t
r/tf
0.36
0.5
ns 1
Signal Detect-Asserted (Avg.)
LC-1250AxFxRx
LC-1250BxQxRx
P
A
-17
-19
dBm
Signal Detect-De-ass erted (Avg.) PD -30 dBm
Signal Detect-Hysteresis PA-PD 0.5 dB
Notes:
1. These are unfiltered 20%~80% values
2. The sensitivity is provided at a BER of 1×10
-10
or better with an input signal consisting of
1250Mb/s, 2
7
-1 PRBS and ER=9dB.
LC-1250xxxx Series
DELTA ELECTRONICS, INC.
4 Jan., 2008
Rev . 0H
www.deltaww.com
Mask of the eye diagram for the optical transmit signal
Pin Definition
PIN Symbol
Functional description
1 GND Receiver Signal Ground
2 VccR Receiver Power Supply
3 SD Receiver Signal Detect (LVPECL or LVTTL)
4 RD(-) Receiver Data Out Inverted (LVPECL)
5 RD(+) Receiver Data Out Non-inverted (LVPECL)
6 VccT Transmitter Power Supply
7 GND Transmitter Signal Ground
8 TxDis Transmitter Disable
9 TD (+) Transmitter Data In Non-inverted (LVPECL)
10 TD (-) Transmitter Data In Inverted (LVPECL)
LC-1250xxxx Series
DELTA ELECTRONICS, INC.
5 Jan., 2008
Rev . 0H
www.deltaww.com
Pin Out Drawing
Recommended Circuit Schematic (LC-1250xxx1Rx)
R1=R3=82 ohm (3.3V),68 ohm(5V)
R2=R4=130 ohm (3.3V),191 ohm (5V)
R5=R6=150 ohm (3.3V),270 ohm (5V)
R7=130 ohm (3.3V PECL),82 ohm(5V),NC (TTL)
R8=82 ohm (3.3V PECL),130 ohm(5V),NC (TTL)
C1=C2=C3=C4=C5=C6=C7=100 nF
LC-1250xxxx Series
DELTA ELECTRONICS, INC.
6 Jan., 2008
Rev . 0H
www.deltaww.com
C8=C9=10uF
L1=L2=1uH

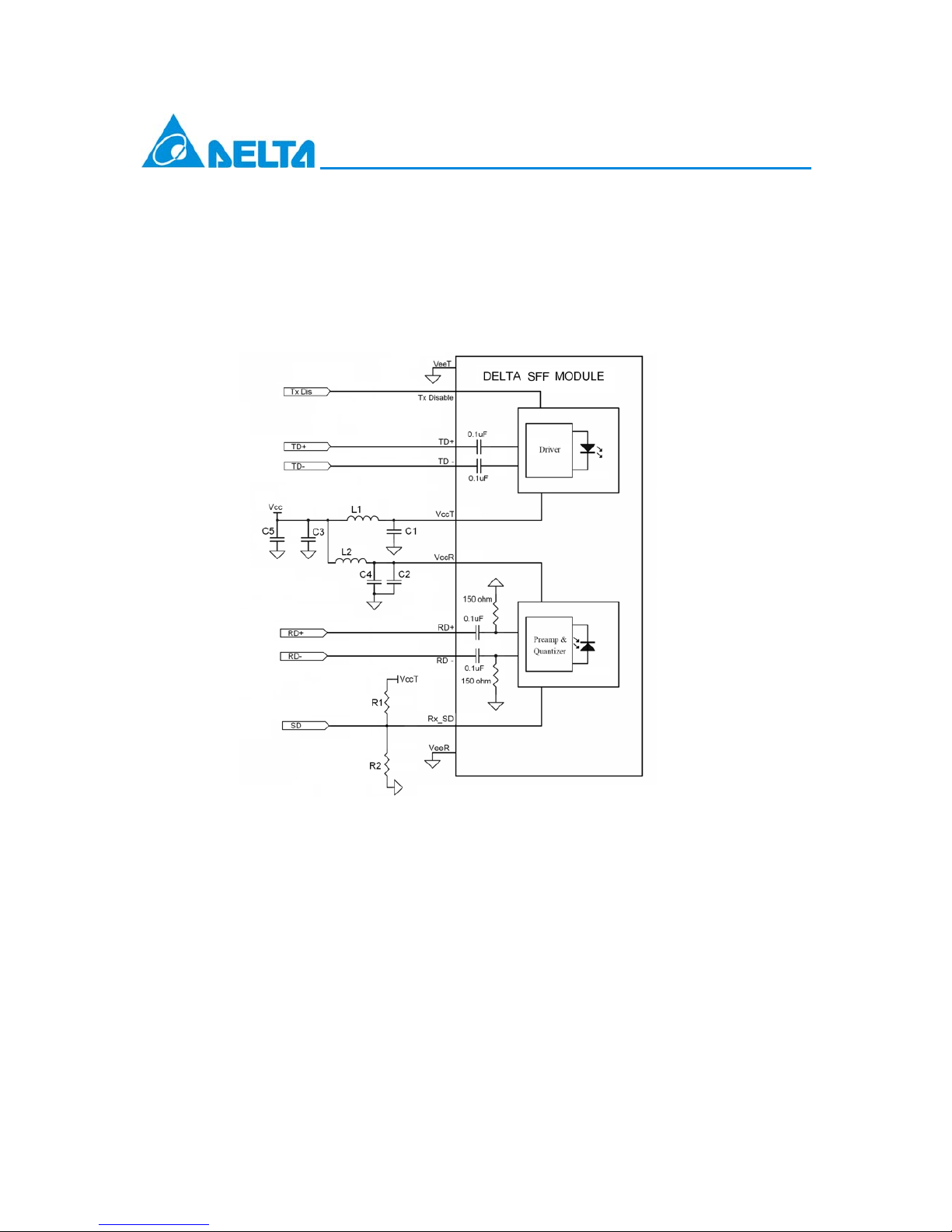

Recommended Circuit Schematic (LC-1250xxx2Rx)
R1=130 ohm (3.3V PECL),82 ohm(5V),NC (TTL)
R2=82 ohm (3.3V PECL),130 ohm(5V),NC (TTL)
C1=C2=C3 =100 nF
C4=C5=10uF
L1=L2=1uH
LC-1250xxxx Series
DELTA ELECTRONICS, INC.
7 Jan., 2008
Rev . 0H
www.deltaww.com
Package Outline (Plastic Housing)
LC-1250xxxx Series
DELTA ELECTRONICS, INC.
8 Jan., 2008
Rev . 0H
www.deltaww.com
Package Outline (Metal Housing)
LC-1250xxxx Series
DELTA ELECTRONICS, INC.
9 Jan., 2008
Rev . 0H
www.deltaww.com
Regulatory Compliance
Feature Reference Performance
Electromagnetic Interference
(EMI)
FCC Class B
EN 55022 Class B (CISPR 22A)
Radio Frequency
Electromagnetic Field
EN 61000-4-3
IEC 1000-4-3
Electrostatic Dis c ha rg e to the
Duplex LC Receptacle
EN 61000-4-2
IEC 1000-4-2
IEC 801.2
Electrostatic Dis c ha rg e to the
Electrical Pins
MIL-STD-883E Method 3015.7
(1) Satisfied with electrical
characteristics of product
spec.
(2) No physical damage
Eye Safety US FDA CDRH AEL Class 1
EN 60950: 2000
EN 60825-1: 1994+A11+A2
EN 60825-2: 2000
CDRH File # 0321539-00
TUV Certificate No. R50032471
Component Recognition Underwriters Laboratories and
Canadian Standards Association Joint
Component Recognition for Information
Technology Equipment Including
Electrical Business Equipment
UL File # E239394
LC-1250xxxx Series
DELTA ELECTRONICS, INC.
10 Jan., 2008
Rev . 0H
www.deltaww.com
Order Information
LC- 1250X1X2X3X4X5X6X7
X
1
: Light source types
A: Multi-mode 850nm
B: Single-mode 1310nm
X
5
: RoHS Compliant
Blank: Non-RoHS Compliant
R: RoHS Compliant
X
2
:
X
3
:
Power Supply Voltage and SD Level
2: 3.3V, PECL SD Level
4: 3.3V, TTL SD Level
Distance
F: 500m,
50/125μm
MMF
Q: 10km,
9/125μm
SMF
X
6
: Shielding Type & housing
A: New design
B: B type shielding
C
: C type shielding
D: A type shielding
M: Metal housing
P: Plastic housing
X
4
:
Data Coupling
1: SFF LC DC/DC
2: SFF LC AC/AC
X7: Temperature
Blank: 0 to +70 degree C
H: -10 to + 85 degree C
T: -40 to + 85 degree C
Appendix A. Document Revision
Version No. Date Description
0G 2006-11 Release
0H 2008-01
Correct “TTL SD Output”、 “PECL SD Output”、 Optical Rise
/
Fall
time、Spectral Width (RMS)、Package Outline、Circuit Schematic、
Order Information
