InsightPower SNMP IPv6 for UPS

iv

Chapter 1 Important Safety Instructions

Chapter 1 : Important Safety Instructions

Warnings

1-1

z

z

The InsightPower SNMP IPv6 for UPS, hereafter referred to as SNMP IPv6, is
designed to work with a UPS and needs to be installed inside the UPS’s SNMP
slot or inside an external SNMP box. Before installation, ensure that all power
sources and critical loads connected to the UPS are disconnected.

z

z

Do not place or use this unit in the presence of ammable substances.

z

z

Do not attempt to disassemble the unit.

z

z

Do not attempt to perform any internal modications on the unit.

z

z

Do not attempt to x/ replace internal components. When repair is needed,
refer all servicing to the nearest Delta service center or authorized distributor.

z

z

Do not allow any objects or liquids of any kind to penetrate the unit.

z

z

Always follow this User Manual to install and operate this unit.

z

z

Do not play the included CD on a conventional CD player. This could generate
loud noise at a level that could result in permanent hearing loss.

Standard Compliance

1-2

z

z

EN 55022: 2006 + A1: 2007, Class B

EN 61000-3-3: 1995+A1: 2001+A2: 2005

z

z

EN 55024: 1998 + A1: 2001 + A2: 2003

IEC 61000-4-2: 1995+A1: 1998+A2: 2000

IEC 61000-4-3: 2006

IEC 61000-4-4: 2004

IEC 61000-4-5: 2005

IEC 61000-4-6: 2007

IEC 61000-4-8: 1993+A1: 2000

IEC 61000-4-11: 2004

1

Chapter 2 : Introduction

Product Description

2-1

The InsightPower SNMP IPv6 for UPS, hereafter referred to as SNMP IPv6, is a device
that provides an interface between an UPS and a network. It communicates with
the UPS, acquires its information and remotely manages the UPS via a network sys­tem. The SNMP IPv6 supports public protocols including SNMP and HTTP. You can
eortlessly congure this SNMP IPv6 using a network system and easily obtain your
UPS’s status and manage your UPS via the SNMP IPv6.

Features

2-2

z

z

Network UPS management

Allows remote management of the UPS from any workstation through Internet
or Intranet.

z

z

Remote UPS monitoring via SNMP & HTTP

Allows remote monitoring of the UPS using SNMP NMS, Delta MIB (Management
Information Base) or a Web Browser.

z

z

UPS and system function conguration from any client
(password protected)

Set the UPS and system parameters through a Web Browser.

z

z

Event logs & metering data keeping

Provides a history data of the UPS’s power events, power quality, status and
battery conditions.

Other features and supported protocols include:

z

z

User notication via SNMP Traps and E-mail

z

z

Network Time Protocol

z

z

Telnet conguration

z

z

BOOTP/ DHCP

InsightPower SNMP IPv6 for UPS

2

Chapter 2 Introduction

z

z

HTTPS, SSH, SFTP and SNMPv3 security protocols

z

z

RADIUS (Remote Authentication Dial In User Service) login and local
authentication

z

z

Remote event log management through syslog

z

z

IPv4 protocol

z

z

IPv6 protocol (IPv6 Ready Logo Phase 2 (Core for Host, Logo ID 02-C-000624)

Package Contents

2-3

Please carefully verify the SNMP IPv6 and the included accessories. Contact your
dealer if any item is missing or damaged. Should you return the items for any rea­son, ensure that they are carefully repacked using the original packing materials
came with the unit.

3

1

2

No. Item Quantity

1

InsightPower SNMP IPv6 for UPS 1 PC

2

RJ45 to DB9 cable 1 PC

3

Software & User’s Manual CD 1 PC

4

Setting Guide for SNMP IPv6 Card’s DIP Switches 1 PC

5

Cover 3 PCS

3

4

5

Interface

2-4

The interface includes a NETWORK port, a COM port, LED indicators, a Reset button,
DIP switches shown below. For their functions and indications, please refer to the
table below.

Top view:

1

 Network Port

2

 LED Indicators

3

 Console (COM) 

Port

4

 Reset Button

5

 DIP Switches

Front view:

1

 Network Port

1 2
ON

No. Item Description

1

Network
Port

InsightPower SNMP IPv6 for UPS

Connects to the Ethernet Network.

2

 LED 

Indicators

3

 Console

(COM) Port

4

4

 Reset Button

5

 DIP Switches

No. Item Description

2

LED
Indicators

When the SNMP IPv6 is initializing or upgrading rmware, the
two LED indicators ash simultaneously to show its status. Refer
to the following:

z

z

Rapid simultaneous ashing (every 50ms) : Initialization
or rmware upgrade in progress.

z

z

Slow simultaneous ashing (every 500ms) : Initialization
failed.

WARNING : Do NOT remove the SNMP IPv6 or dis­connect the UPS’s input power during initialization
or rmware upgrade! This could result in data loss
or damage to the SNMP IPv6.

The green LED indicator shows the network connection status:

z

z

ON : Network connection established and the IPv4 address
is useable.

z

z

OFF : Not connected to a network.

z

z

Flashes slowly (every 500ms) : Faulty IP address.

Chapter 2 Introduction

3

4

Console
(COM)
Port

Reset
Button

The yellow LED indicator shows the linking status between the
SNMP IPv6 and the UPS:

z

z

Flashes rapidly (every 50ms): UPS linked.

z

z

Flashes slowly (every 500ms): UPS not linked.

1. Connects to a workstation with the provided RJ45 to DB9
cable to congure the system.

2. Connects to an EnviroProbe (optional) to monitor its con­nected environment monitoring devices.

Resets the SNMP IPv6. This does not aect the operation of the
UPS.

5

No. Item Description

5

DIP
Switches

Set up operation modes.

DIP

switches

1 2
ON

Operation

mode

Normal

Mode

Description

The SNMP IPv6 works with the UPS. It
provides the UPS’s status information
and parameters through a network sys­tem.

The SNMP IPv6 stops polling the UPS
but transfers the communication data
between the console port and the UPS.

1 2
ON

Pass

Through

Mode

The SNMP IPv6 works with the UPS and
an optiona l EnviroProbe. It prov ides
not only the UPS’s status information
and parameter readings, but also the
EnviroProbe’s status information and its
environmental parameters such as tem-

1 2
ON

Sensor

Mode

(with Envi-

roProbe

perature and humidity.

In this mode, the user can login through

1 2
ON

Congura-

tion Mode

th e con sole port an d con figu re th e
SNMP IPv6’s settings. Please refer to 4-4
Conguring through COM Port.

NOTE

For EnviroProbe information, please refer to the Installation Guide included
in the package of the EnviroProbe.

InsightPower SNMP IPv6 for UPS

6

Chapter 3 Installation

Chapter 3 : Installation

NOTE

Before installation, please disconnect all power sources and critical loads con­nected to the UPS. Otherwise, the SNMP IPv6 might have shorting issues to
cause UPS shutdown or damage.

Please install the SNMP IPv6 inside your UPS’s SNMP slot. If your UPS does not have
any SNMP slot, please install it in an optional external SNMP box.

z

z

Please follow the procedures below to install the SNMP IPv6 into your UPS’s
SNMP slot.

Step 1 Remove the cover and the two screws shown from the UPS’s SNMP

slot (see Figure 3-a).

Figure 3-a

UPS

SNMP slot

NOTE

Please note that, due to dierent design, the location of screws
for each UPS’s SNMP slot might be dierent.

Step 2 Find the two grooves inside the SNMP slot (see Figure 3-b).

Figure 3-b

Two grooves

7

Step 3 Insert the SNMP IPv6 into the grooves (see Figure 3-c).

Figure 3-c

Two grooves

Step 4 There are three covers provided in the SNMP IPv6’s package. Please

follow the location of screw holes on the SNMP slot to select the suit­able cover, and use the two screws that you just removed to x the
cover on the SNMP slot (see Figure 3-d).

Figure 3-d

z

z

Please follow the procedures below to install the SNMP IPv6 into an external
SNMP box.

Step 1 Remove the two screws shown from the external SNMP box (see Fig-

ure 3-e).

Figure 3-e

External SNMP box

SNMP slot

InsightPower SNMP IPv6 for UPS

8

Chapter 3 Installation

Step 2 Find the two grooves inside the external SNMP box (see Figure 3-f).

Figure 3-f

Two grooves

Step 3 Insert the SNMP IPv6 into the grooves (see Figure 3-g).

Figure 3-g

Two grooves

Step 4 There are three covers provided in the SNMP IPv6’s package. Please

follow the location of screw holes on the external SNMP box to select
the suitable cover, and use the two screws that you just removed to
x the cover on the external SNMP box (see Figure 3-h).

Figure 3-h

9

NOTE

The backside view of the external SNMP box is shown as follows.

1

 Power Jack 

2

 RS232 Port

3

 10-pin Connector

No. Item Description

1

Power Jack Connects your UPS’s output. The input power

should be 12Vdc.

2

RS232 Port Use the RS232 cable provided by your UPS to

connect your UPS’s RS232 port.

3

10-pin
Connector

Connects your UPS’s PC board. Please ask quali­fied service personnel to execute such connec­tion. Do not perform the connection yourself.

Please refer to the table below for the external SNMP box’s specications.

External SNMP Box Specications

Power Jack Input Power 12Vdc

RS232 Port D-Sub 9-Pin Male

10-pin Connector Male

Size (W×D×H) 92.4 x 208 x 42 mm

Weight 540 g

InsightPower SNMP IPv6 for UPS

10

Chapter 4 System Congurations

Chapter 4 : System Congurations

There are dierent ways you can congure your SNMP IPv6. If a network connection
is available at your location, the following methods can be used:

z

z

Web-based interface : The InsightPower SNMP IPv6 for UPS Web oers com­prehensive system management and monitoring. Please refer to Chapter 5:
InsightPower SNMP IPv6 for UPS Web.

z

z

EzSetting : Use the provided program EzSetting to quickly set up your SNMP
IPv6. Please refer to 4-2 Conguring with EzSetting.

z

z

Telnet mode : Congure your SNMP IPv6 in text mode. Please refer to 4-3 Con-
guring via Telnet.

The above-mentioned methods require network connection. If not available, you can
use direct COM port connection to set up your SNMP IPv6. Please see 4-4 Congur-
ing through COM Port.

NOTE

1. To ensure system security, it is highly recommended that you change your
account and password after the rst login.

2. If you have multiple SNMP IPv6 units installed in your network, we highly
suggest that you change the SNMP IPv6’s default Host Name to avoid con­icts. Also, it is recommended that you disable BOOTP/ DHCP and manu­ally assign a valid static IP address to the SNMP IPv6.

Conguring via InsightPower SNMP IPv6 for UPS Web

4-1

To set up the SNMP IPv6 via your web browser, please follow the instructions be­low:

Step 1 Use a CAT5 network cable to connect the SNMP IPv6’s Network port to

the network. Launch your web browser. In the address bar, enter the
SNMP IPv6’s default Host Name InsightPower, or default IP address

192.168.1.100. If you are unable to connect, please see Chapter 7 : Trou-
bleshooting Q6.

11

NOTE

If you have previously changed the SNMP IPv6’s Host Name or IP address,
connect with the new settings.

Step 2 Log in as Administrator (default account/ password: admin/ password,

case sensitive).

Step 3 Specify your preferred display language (default: English) from the drop-

down menu on the top right of the page. The SNMP IPv6 remembers your
language preference. In the following instructions, English is chosen as
the display language.

Step 4 Click System→Administration→User Manager. Manage your login

accounts and passwords under the “Local Authentication” subhead. The
access permission for the account types is shown as follows:

1) Administrator : Allowed to modify all settings.

2) Device Manager : Allowed to modify device-related settings.

3) Read Only User : Only allowed to view settings without the permis­sion to make changes.

You can manually specify whether users are allowed to log in from other LANs. If
you wish to block login attempts from external connections, select Only in This

LAN. Otherwise, select Allow Any.

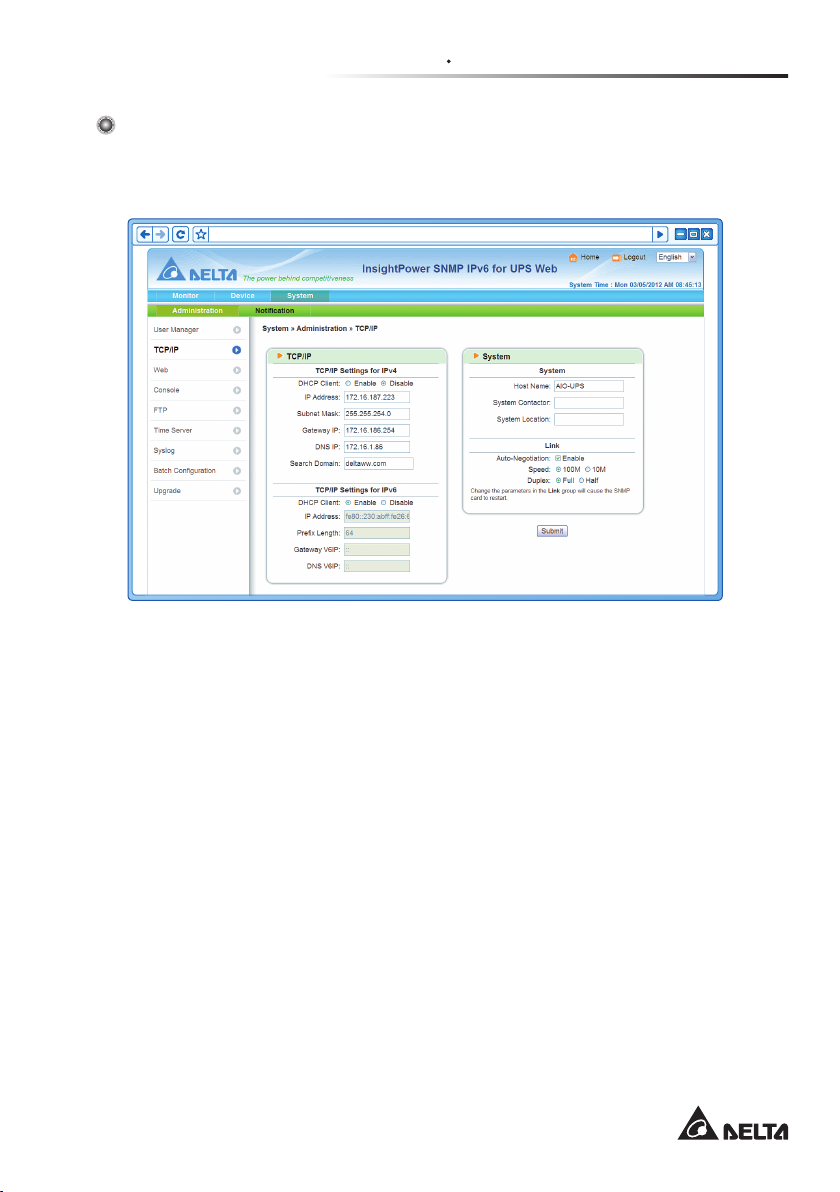

Step 5 Click System→Administration→TCP/ IP to set Host Name, IP address,

Subnet Mask and Gateway IP for the SNMP IPv6.

Step 6 Click Time Server to manually set time and date for the system, or enable

automatic time synchronization between the SNMP IPv6 and the time
servers.

NOTE

To completely set up your SNMP IPv6, please refer to Chapter 5: Insight­Power SNMP IPv6 for UPS Web.

InsightPower SNMP IPv6 for UPS

12

Chapter 4 System Congurations

Conguring with EzSetting

4-2

Included in the provided CD, the EzSetting (compatible with Windows 2000/ 2003/
2008/ XP/ Vista/ 7) allows you to easily congure your SNMP IPv6 and upgrade rm­ware on your SNMP devices. Follow the instructions below:

Step 1 Use a CAT5 cable to connect the SNMP IPv6’s Network port to the net-

work.

Step 2 Make sure the two DIP switches of the SNMP IPv6 are set to the OFF posi-

tion (Normal Mode) to enable network communication. Make sure the
workstation and the SNMP IPv6 are on the same LAN.

Step 3 Insert the provided CD in the CD-ROM drive. From the root directory,

launch EzSetting.

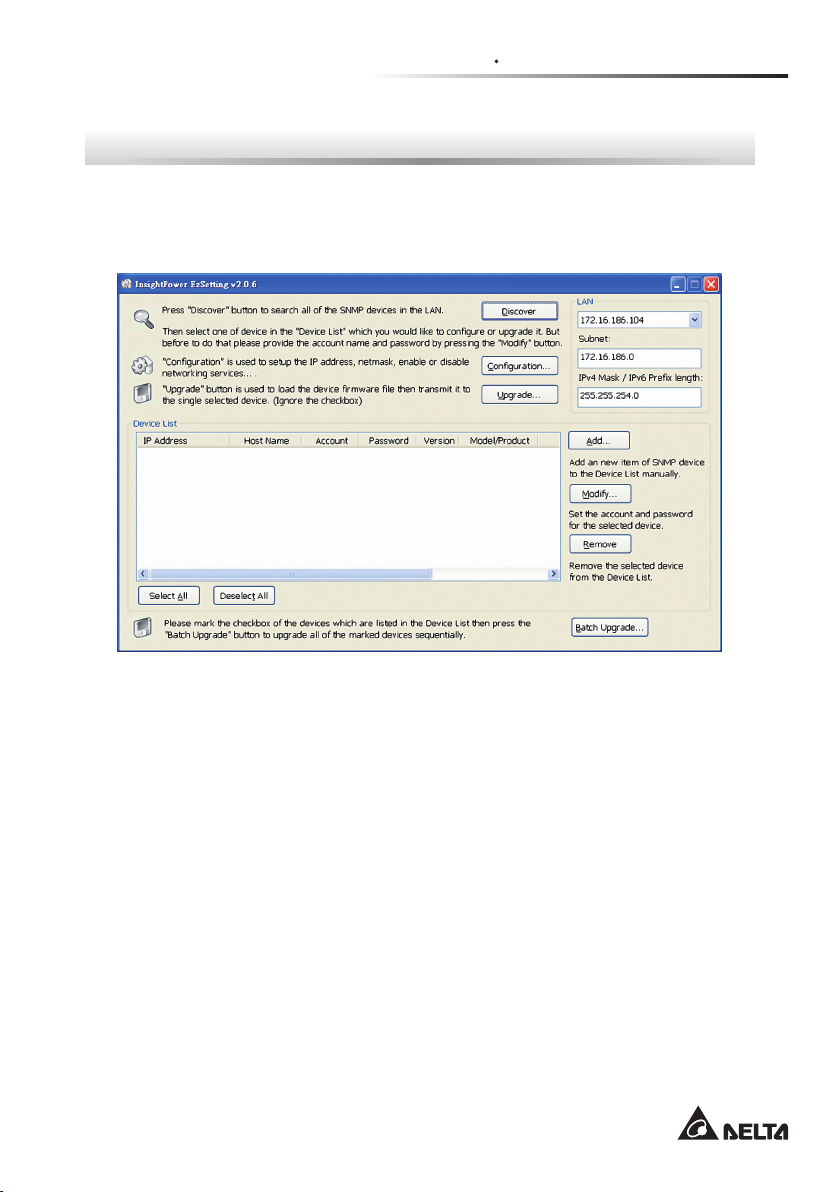

Step 4 Click Discover to search all available SNMP devices on the LAN. A list of

devices will be shown.

NOTE

1. If you want to search SNMP devices in a different domain, change the
Subnet and IPv4/ IPv6 Prex Length and click Discover.

2. If the SNMP IPv6 can not be found, check UDP port 3456 on the worksta­tion you are using. Make sure it is open.

13

Step 5 Select the SNMP IPv6 that you want to modify from the Device List. Click

Modify and enter Administrator’s account and password (default: admin/

password, case sensitive).

Step 6 Click Conguration to congure network settings.

NOTE

Refer to Chapter 5 : InsightPower SNMP IPv6 for UPS Web for complete
congurations.

InsightPower SNMP IPv6 for UPS

14

Chapter 4 System Congurations

Conguring via Telnet

4-3

Step 1 Use a CAT5 network cable to connect the SNMP IPv6’s Network port to

the network.

Step 2 Connect the workstation (Windows or Linux) to the LAN that the SNMP

IPv6 is connected to.

Step 3 For Windows, launch DOS prompt mode (Start→Run→key in cmd

and press Enter). For Linux, launch Shell.

Step 4 Enter the following command: telnet InsightPower or telnet IP address

to initiate telnet connection with the SNMP IPv6.

Step 5 When connection is established, enter Administrator’s account and

password (default: admin/ password, case sensitive). The Main Menu will
appear on the screen. Please refer to 4-5 Conguring via Text Mode for
more information.

NOTE

1. The SNMP IPv6 terminates idle connections after 60 seconds.

2. Refer to Chapter 5: InsightPower SNMP IPv6 for UPS Web for complete
congurations.

Conguring through COM Port

4-4

If a network connection is not available at your location, you can still set up the
SNMP IPv6 via COM port connection. Please follow the instructions below:

NOTE

If you are running a non-Windows system, refer to your system’s user manual
for Telnet clients.

Step 1 Use the provided RJ45 to DB9 cable to connect the SNMP IPv6’s COM port

to the workstations’ COM port.

Step 2 Make sure the two DIP switches of the SNMP IPv6 are set to the OFF posi-

tion (Normal Mode).

15

Step 3 For Windows 2000, 2003, 2008 and XP, go to Start→Programs→Accesso

ries→Communications and select HyperTerminal.

NOTE

Microsoft has removed HyperTerminal from Windows Vista and later ver­sions. If your operation system does not include the program, a free alterna­tive Telnet/SSH client PuTTY can be downloaded from http://www.putty.org.

Step 4 Enter a name, choose an icon for the connection and click OK. From the

drop-down menu Connect using, select the COM port that is connected
to the SNMP IPv6.

Step 5 Click Congure and set up COM port parameters as follows:

InsightPower SNMP IPv6 for UPS

16

Chapter 4 System Congurations

Step 6 Click OK to continue. Set the two DIP switches of the SNMP IPv6 to the

ON position (Conguration Mode), and HyperTerminal will automatically

connect to the SNMP IPv6). If it does not connect, click the telephone icon
from the tool bar. When connection is established, log in with Administra­tor’s account/ password (default: admin/ password, case sensitive). Once
you are logged in, the Main Menu appears on the screen. Please refer to 4-5
Conguring via Text Mode for more information.

Conguring via Text Mode

4-5

You can congure the SNMP IPv6 via text mode by using Telnet/ SSH clients such as
HyperTerminal and PuTTY. In this section, you can nd descriptions and default set­tings.

Main Menu

+========================+
| |
+========================+

Web Card Version 01.00.00
MAC Address 00-30-ab-25-e9-1e
[1].User Manager
[2].TCP/IP Setting
[3].Network Parameter
[4].Time Server
[5].Soft Restart
[6].Reset All To Default
[z].Exit Without Save
[0].Save And Exit

Please Enter Your Choice =>

Main Menu

17

User Manager

+========================+

User Manager

| |
+========================+

RADIUS
[1].RADIUS Auth: Disable
[2].Server:
[3].Secret:
[4].Port: 1812

---------------­Local Auth
Administrator
[5].Account: admin
[6].Password: ********
[7].Limitation: Only in This LAN
Device Manager
[8].Account: device
[9].Password: ********
[a].Limitation: Only in This LAN
Read Only User
[b].Account: user
[c].Password: ********
[d].Limitation: Allow Any
[0].Back To Previous Menu

Please Enter Your Choice =>

No. Item Description Default

[1] RADIUS Auth

[2] Server The RADIUS server name.

[3] Secret The RADIUS secret.

[4] Port The RADIUS port number. 1812

Administrator

[5]

Account

Administrator

[6]

Password

Administrator

[7]

Limitation

Device Manager

[8]

Account

Device Manager

[9]

Password

InsightPower SNMP IPv6 for UPS

Specify whether RADIUS login is al­lowed.

The default account/ password for the
Administrator (case sensitive).

Restrict Administrator login area.

The default account/ password (case
sensitive) for the Device Manager. This
account is only permitted to change
device-related settings.

18

Disable

admin

password

Only in
This LAN

device

password

Chapter 4 System Congurations

No. Item Description Default

Device Manager

[a]

Limitation

Read Only

[b]

User Account

Read Only

[c]

User Password

Read Only

[d]

User Limitation

TCP/IP Setting

+========================+

TCP/IP Setting

| |
+========================+

[1].IPv4 Address: 192.168.001.100
[2].IPv4 Subnet Mask: 255.255.255.000
[3].IPv4 Gateway IP: 192.168.001.254
[4].IPv4 DNS or WINS IP:192.168.001.001
[5].DHCPv4 Client: Enable
[6].IPv6 Address: fe80::230:abff:fe25:900
[7].IPv6 Prefix Length: 64
[8].IPv6 Gateway IP: ::
[9].IPv6 DNS IP: ::
[a].DHCPv6: Enable
[b].Host Name(NetBIOS): INSIGHTPOWER
[c].System Contactor:
[d].System Location:
[e].Auto-Negotiation: Enable
[f].Speed: 100M
[g].Duplex: Full
[h].Status Stable: 3
[i].Telnet Idle Time: 60 Seconds
[0].Back To Previous Menu

Please Enter Your Choice =>

Restrict Device Manager login area.

The default account/ password (case
sensitive) for Read Only User. This
account is only allowed to view set­tings without the permission to make
changes.

Restrict Read Only User login area. Allow Any

Only in
This LAN

user

password

19

No. Item Description Default

[1] IPv4 Address The IPv4 address. 192.168.001.100

[2] IPv4 Subnet

The IPv4 subnet mask setting. 255.255.255.000

Mask

[3] IPv4 Gateway IP The IPv4 gateway’s IP address. 192.168.001.254

[4] IPv4 DNS or

WINS IP

IPv4 Domain Name Server or
WINS IP.

192.168.001.001

[5] DHCPv4 Client Enable/ Disable DHCPv4 protocol. Enable

[6] IPv6 Address The IPv6 address.

[7] IPv6 Prex

The IPv6 prex length.

Length

[8] IPv6 Gateway IP The IPv6 gateway’s IP address.

[9] IPv6 DNS IP IPv6 Domain Name Server’s IP

address.

[a] DHCPv6 Enable/ Disable DHCPv6 protocol. Enable

[b] Host Name

(NetBIOS)

[c] System

The Host Name for the SNMP
IPv6.

The System Contact information.

INSIGHTPOWER

Contact

[d] System

The System Location information.

Location

[e] Auto-

Negotiation

[f] Speed If the Auto-Negotiation is dis-

Enable/disable automatic transfer
rate (10/ 100Mbps) negotiation.

Enable

100M
abled, you can specify the trans­fer rate.

[g] Duplex If the Auto-Negotiation is dis-

Full
abled, you can specify the duplex
mode.

[h] Status Stable Status change conrmation check

3
time.

[i] Telnet Idle Time Telnet connection time-out

60 Seconds
setting.

InsightPower SNMP IPv6 for UPS

20

Chapter 4 System Congurations

Network Parameter

+========================+

+========================+

Network Parameter

Network Parameter

| |

| |
+========================+

+========================+

[1].HTTP Server: Enable

[1].HTTP Server: Enable
[2].HTTPS Server: Enable

[2].HTTPS Server: Enable
[3].Telnet Server: Enable

[3].Telnet Server: Enable
[4].SSH/SFTP Server: Enable

[4].SSH/SFTP Server: Enable
[5].FTP Server: Disable

[5].FTP Server: Disable
[6].Syslog: Disable

[6].Syslog: Disable
[7].HTTP Server Port: 80

[7].HTTP Server Port: 80
[8].HTTPS Server Port: 443

[8].HTTPS Server Port: 443
[9].Telnet Server Port: 23

[9].Telnet Server Port: 23
[a].SSH Server Port: 22

[a].SSH Server Port: 22
[b].FTP Server Port: 21

[b].FTP Server Port: 21
[c].Syslog Server1:

[c].Syslog Server1:
[d].Syslog Server2:

[d].Syslog Server2:
[e].Syslog Server3:

[e].Syslog Server3:
[f].Syslog Server4:

[f].Syslog Server4:
[g].SNMP Get,Set Port: 161

[g].SNMP Get,Set Port: 161
[0].Back To Previous Menu

[0].Back To Previous Menu

Please Enter Your Choice =>

Please Enter Your Choice =>

No. Item Description Default

[1] HTTP Server Enable/ disable HTTP protocol. Enable

[2] HTTPS Server Enable/ disable HTTPS protocol. Enable

[3] Telnet Server Enable/ disable Telnet protocol. Enable

[4] SSH/ SFTP Server Enable/ disable SSH/ SFTP protocol. Enable

[5] FTP Server Enable/ disable FTP protocol. Disable

[6] Syslog Enable/ disable remote Syslog. Disable

[7] HTTP Server Port HTTP port. 80

[8] HTTPS Server Port HTTPS port. 443

[9] Telnet Server Port Telnet port. 23

[a] SSH Server Port SSH port. 22

[b] FTP Server Port FTP port. 21

[c] Syslog Server 1 The Host Name of remote Syslog

Server 1.

[d] Syslog Server 2 The Host Name of remote Syslog

Server 2.

21

No. Item Description Default

[e] Syslog Server 3 The Host Name of remote Syslog

Server 3.

[f] Syslog Server 4 The Host Name of remote Syslog

Server 4.

[g] SNMP Get, Set Port The SNMP port. 161

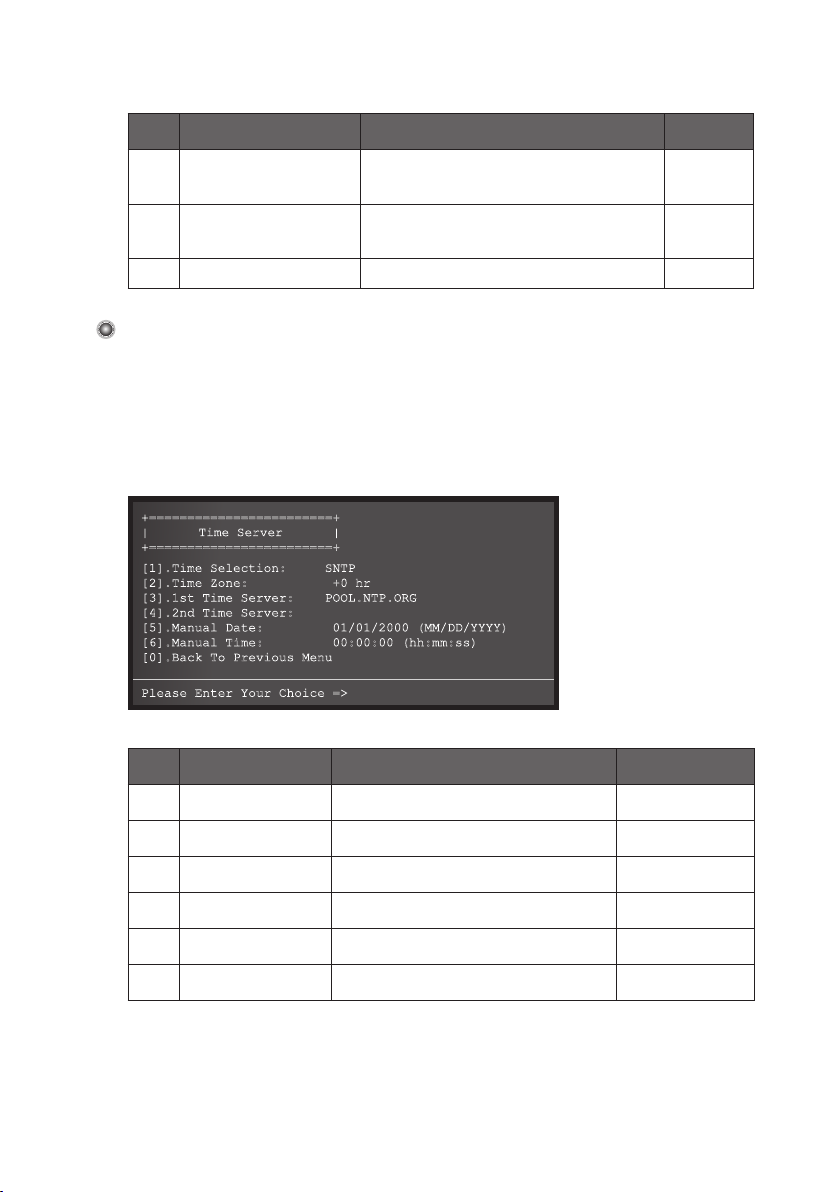

Time Server

You can manually adjust time and date for the SNMP IPv6 or set up automatic
time server synchronization. The SNMP IPv6, Windows XP and later versions
support SNTP (Simple Network Time Protocol). If you need to start up a time
server service on your workstation, please refer to Chapter 7: Troubleshooting
Q1.

+========================+

Time Server

| |
+========================+

[1].Time Selection: SNTP
[2].Time Zone: +0 hr
[3].1st Time Server: POOL.NTP.ORG
[4].2nd Time Server:
[5].Manual Date: 01/01/2000 (MM/DD/YYYY)
[6].Manual Time: 00:00:00 (hh:mm:ss)
[0].Back To Previous Menu

Please Enter Your Choice =>

No. Item Description Default

[1] Time Selection SNTP or manual. SNTP

[2] Time Zone Adjust your time zone. +0 hr

st

[3] 1

[4] 2

Time Server The rst time server for SNTP. POOL.NTP.ORG

nd

Time Server The second time server for SNTP.

[5] Manual Date Set the date manually. 01/01/2000

[6] Manual Time Set the time manually. 00:00:00

InsightPower SNMP IPv6 for UPS

22

Chapter 4 System Congurations

Soft Restart

Reset the SNMP IPv6. This will not aect the operation of the UPS.

Default Reset

Reset to manufacture default.

Exit Without Saving

Exit and ignore changes.

Save and Exit

Preserve your changes and exit.

23

Chapter 5 : InsightPower SNMP IPv6 for UPS Web

To congure the SNMP IPv6 via the InsightPower SNMP IPv6 for UPS Web, please fol­low the steps below:

Step 1 Make sure that your SNMP IPv6 is connected to the LAN. Use a CAT5 net-

work cable to connect the SNMP IPv6’s Network port to the network.

Step 2 Launch your web browser. In the address bar, enter the SNMP IPv6’s Host

Name http:/InsightPower/ or IP address. For encrypted connection, enter

https://InsightPower/ or https://192.168.1.100/.

Step 3 When connection is established, the login page appears. Enter your ac-

count and password (default: admin/ password).

http://192.168.1.100/

NOTE

1. If you have previously changed the SNMP IPv6’s Host Name or IP address,
please connect with new settings.

2. If the login page is accessible, but you are unable to log in with correct
account and password, additional network conguration may be needed.
The cause could be the IP subnet of the computer you are logging in to is
dierent from the SNMP IPv6’s. To solve this issue, please refer to Chapter
7: Troubleshooting Q3.

3. The SNMP IPv6 will automatically log o idle connections after 30 min­utes.

InsightPower SNMP IPv6 for UPS

24

Chapter 5 InsightPower SNMP IPv6 for UPS Web

The InsightPower SNMP IPv6 for UPS Web includes the information of Monitor,
Device and System. Please refer to the following sections 5-1~5-3 for more informa-

tion.

Monitor

5-1

Under the Monitor category, there are Information, History and Environment these
three items.

5-1-1 Information

This includes the information of UPS Properties, Battery Parameters, In/ Out Param­eters, Identication, Status Indication, and ShutdownAgent. Please note that since
dierent UPSs provide dierent information, the UPS that you have may not display

the same web page.

UPS Properties

Go to Monitor
the UPS’s major parameters. The values will be updated automatically.

http://192.168.1.100/

Information

 → 

→

UPS Properties to see a status overview of

25

Battery Parameters

Go to Monitor
of Battery Status, Battery Measurement, Battery Replacement Date.

In/ Out Parameters

Go to Monitor
of Input Measurement, Bypass Measurement, Output Measurement and Outlet
Bank.

 → 

http://192.168.1.100/

 → 

http://192.168.1.100/

Information

Information

Battery Parameters to view the information

 → 

In/ Out Parameters to view the information

 → 

Identication

Go to Monitor
Identication and UPS Rating.

InsightPower SNMP IPv6 for UPS

Information

 → 

Identification to view the information of

 → 

26

Chapter 5 InsightPower SNMP IPv6 for UPS Web

http://192.168.1.100/

Status Indication

Go to Monitor

Information

 → 

Status Indication to view the UPS’s event

 → 

list. When an event occurs, its according beacon lights green.

http://192.168.1.100/

ShutdownAgent

Go to Monitor

Information

 → 

ShutdownAgent to view your designated

 → 

PCs’ shutdown information, including IP Address, OS (operation system), Count­down, Reason and Last Touch.

Please note that the page only appears if:

z

z

Your PCs have connected to a UPS using this SNMP IPv6.

z

z

Your PCs have installed ShutdownAgent 2012 software.

27

z

z

You have went to System

Administration

 → 

SNMP Trap to specify your

 → 

PCs’ IP Addresses in the Target IP bar and selected “ShutdownAgent 2012”
from Event Level’s pull-down menu.

http://192.168.1.100/

5-1-2 History

Event Log

Go to Monitor
occur. The existing ones are overwritten when the maximum number of entries
(1,000) is reached. You can also download the entire event log archive (event_
log.xls) recorded during an assigned period of time on your computer.

 → 

History

Event Log

 → 

Page 1/ 2/ 3/ 4... to see events that

 → 

http://192.168.1.100/

InsightPower SNMP IPv6 for UPS

28

Chapter 5 InsightPower SNMP IPv6 for UPS Web

z

z

Date: The date when the event occurred.

z

z

Time: The time when the event occurred.

z

z

Level: The Event Level of the event occurred.

z

z

Event Log: The description of the event that occurred.

z

z

Download Event Log from UPS

The SNMP IPv6 sends a request to the UPS, collects the event logs saved in
the UPS, and replies to the user through network. Please note that this op­tion only appears when the UPS supports this function, and the event logs
saved in the UPS may be dierent from the event logs saved in the SNMP
IPv6.

Data Log

Go to Monitor

 → 

History

Data Log to see all saved device data. You can

 → 

also download the data archive (data_log.xls) recorded during an assigned pe­riod of time on your computer.

http://192.168.1.100/

z

z

Date: The date when the data entry is recorded.

z

z

Time: The time when the data entry is recorded.

29

Congure

Go to Monitor

 → 

History

Congure to clear the history data and event log.

 → 

You can also assign the Save Data Interval.

http://192.168.1.100/

z

z

Clear History Data: Empty the history data log only.

z

z

Clear Event Log: Empty the event log only.

z

z

Save Data Interval: The time interval after which an event/ data entry is

recorded.

5-1-3 Environment

Only when an EnviroProbe is used can the Environment page show up. Please note
that the SNMP IPv6’s DIP switch 1 should be set to the ON position and DIP switch 2
should be set to the OFF position when you use an EnviroProbe.

The Environment page includes Information and Configuration these two items.
You can monitor and set up your EnviroProbe via this Environment page. For Envi­roProbe information, please refer to the Installation Guide included in the package
of the EnviroProbe.

InsightPower SNMP IPv6 for UPS

30

Chapter 5 InsightPower SNMP IPv6 for UPS Web

Information

Go to Monitor

Environment

 → 

Information to see your EnviroProbe’s Sen-

 → 

sor Information, Input Contacts and Contact Setting.

http://192.168.1.100/

Conguration

Go to Monitor

Environment

 → 

Conguration to congure your EnviroP-

 → 

obe’s Warning Threshold, Alarm Threshold, Title and Type. Please see the table
below for detailed information.

http://192.168.1.100/

31

5-1-4 About

Under About category, there is only one item called Information. You can obtain
your SNMP IPv6’s other information via this channel.

Information

Go to Monitor
Power SNMP IPv6 for UPS and other information about OpenSSL toolkit and
licenses.

http://192.168.1.100/

Device

5-2

 → 

About

Information to see the version of your Insight-

 → 

5-2-1 Management

Since dierent UPSs have dierent functions, your UPS may not support the same
congurations or control items stated below.

Congure

Go to Device
figuration values are saved in the UPS or in the SNMP IPv6 and these values
change UPS operation. The configuration items include the following. Please
note that dierent UPSs may support dierent conguration options.

InsightPower SNMP IPv6 for UPS

Management

 → 

Configure to configure the UPS. The con-

 → 

32

Chapter 5 InsightPower SNMP IPv6 for UPS Web

http://192.168.1.100/

z

z

Auto Restart

After you click Submit to confirm your auto restart setup, the SNMP IPv6
will send the command to the UPS to enable auto restart.

z

z

UPS Buzzer

After you click Submit to confirm your buzzer setup, the SNMP IPv6 will
send the command to the UPS to enable buzzer.

z

z

Voltage Sensitivity

After you set up your voltage sensitivity (there are Normal, Reduced, and
Low selections) and click Submit, the SNMP IPv6 will send the command to
the UPS to enable the UPS’s voltage sensitivity function.

z

z

Transfer Voltage

After you click Submit to confirm your transfer voltage setup, the SNMP
IPv6 will send the command to the UPS to enable the relevant functions.

z

z

Low Battery

This conguration saves the setup values in the SNMP IPv6 and compares
with the values received from the UPS. If the received battery level is lower
than the assigned one, the SNMP IPv6 will trigger a low-battery alarm.

z

z

UPS Shutdown Action

This conguration saves your setup values in the SNMP IPv6 and compares
with the values received from the UPS. If an event like power failure or low
battery occurs, the SNMP IPv6 will send the assigned shutdown delay com­mand to the UPS.

33

z

z

Smart Shutdown

The Smart Shutdown configuration is used to safely shutdown all of the
connected computers and the UPS. First of all, you should estimate the lon­gest OS Shutdown Delay time for your operating systems that have been in­stalled shutdown software and connected to the SNMP IPv6. The SNMP IPv6
will delay the assigned OS Shutdown Delay time and wait for all operating
systems’ shutdown. After that, the SNMP IPv6 will send the assigned UPS
shutdown-delay command to the UPS and turn o the UPS.

z

z

Battery Replacement Date

After you set up battery replacement dates, the SNMP IPv6 will send the
command to the UPS and save the information in the UPS.

z

z

External Battery Pack

After you click Submit to confirm your external battery pack setup, the
SNMP IPv6 will send the command to the UPS and save the external battery
pack quantity in the UPS.

z

z

Bypass Transfer Frequency

After you set a tolerance of bypass transfer frequency and conrm your set­up, the SNMP IPv6 will send the command to the UPS. If the UPS transfers to
bypass mode and the bypass frequency is out of the tolerance, output will
be turned o and critical loads will be protected.

z

z

Bypass Transfer Voltage

After you set a tolerance of bypass transfer voltage and conrm your setup,
the SNMP IPv6 will send the command to the UPS. If the UPS transfers to
bypass mode and the bypass voltage is out of the tolerance, output will be
turned o and critical loads will be protected.

z

z

Periodic Auto Test

This conguration is used to set up battery test time. After you conrm your
setup, the SNMP IPv6 will send the command to the UPS and save the setup
in the UPS. When the test time is due, the UPS will automatically perform
the battery test.

z

z

Output Dry Contacts

After you click Submit to confirm your setup of output dry contacts, the
SNMP IPv6 will send the command to the UPS, save the values in the UPS,
and report the current UPS’s status.

InsightPower SNMP IPv6 for UPS

34

Chapter 5 InsightPower SNMP IPv6 for UPS Web

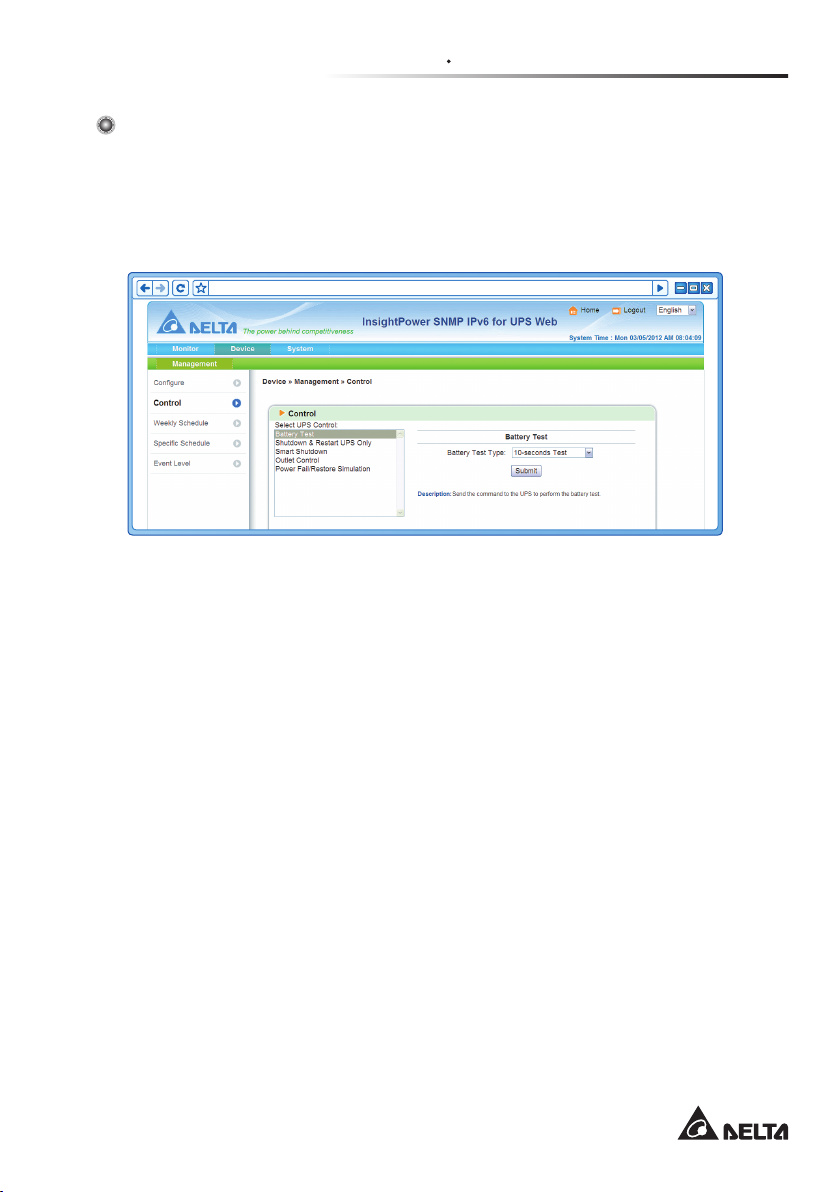

Control

Go to Device

Management

 → 

Control to congure relevant control com-

 → 

mands. After you click Submit, the SNMP IPv6 will send the according com­mands to the UPS to enable relevant functions. The control items include the
following.

http://192.168.1.100/

z

z

Battery Test

After you select the battery test type and click Submit, the SNMP IPv6 will
send the command to the UPS to enable the battery test accordingly.

z

z

Shutdown & Restart UPS Only

After you conrm your setup, the SNMP IPv6 will send the command to the
UPS to shut down or/ and restart the UPS.

If you want to shutdown the UPS, please check the UPS Shutdown Delay
box and key in delay time.

If you want to restart the UPS, please check the UPS Restart Delay box and
key in delay time.

If you want to shutdown and restart the UPS, please check both of the box­es and key in according delay time.

z

z

Smart Shutdown

The Smart Shutdown configuration is used to safely shutdown all of the
connected computers and the UPS. First of all, you should estimate the lon­gest OS Shutdown Delay time for your operating systems that have been in­stalled shutdown software and connected to the SNMP IPv6. The SNMP IPv6

35

will delay the assigned OS Shutdown Delay time and wait for all operating
systems’ shutdown. After that, the SNMP IPv6 will send the assigned UPS
shutdown-delay command to the UPS and turn o the UPS.

z

z

Outlet Control

Press the Switch Bank button to control the UPS output relay (on or o).

z

z

Power Fail/ Restore Simulation

Click Power Fail Test or Power Restore Test button to let the SNMP IPv6
simulate UPS power failure or power restore event. This function allows you
to test all of the connected software and verify whether they work properly
or not. Please note that the simulation won’t inuence UPS operation, the
UPS remains in its original operation mode and won’t transfer to battery
mode.

Weekly Schedule

Go to Device

Management

 → 

Weekly Schedule to arrange a weekly sched-

 → 

ule for the UPS. You can select No Action, Shutdown, Restart, 10-Second Test,
and set up what day and what time you want the action to be executed.

http://192.168.1.100/

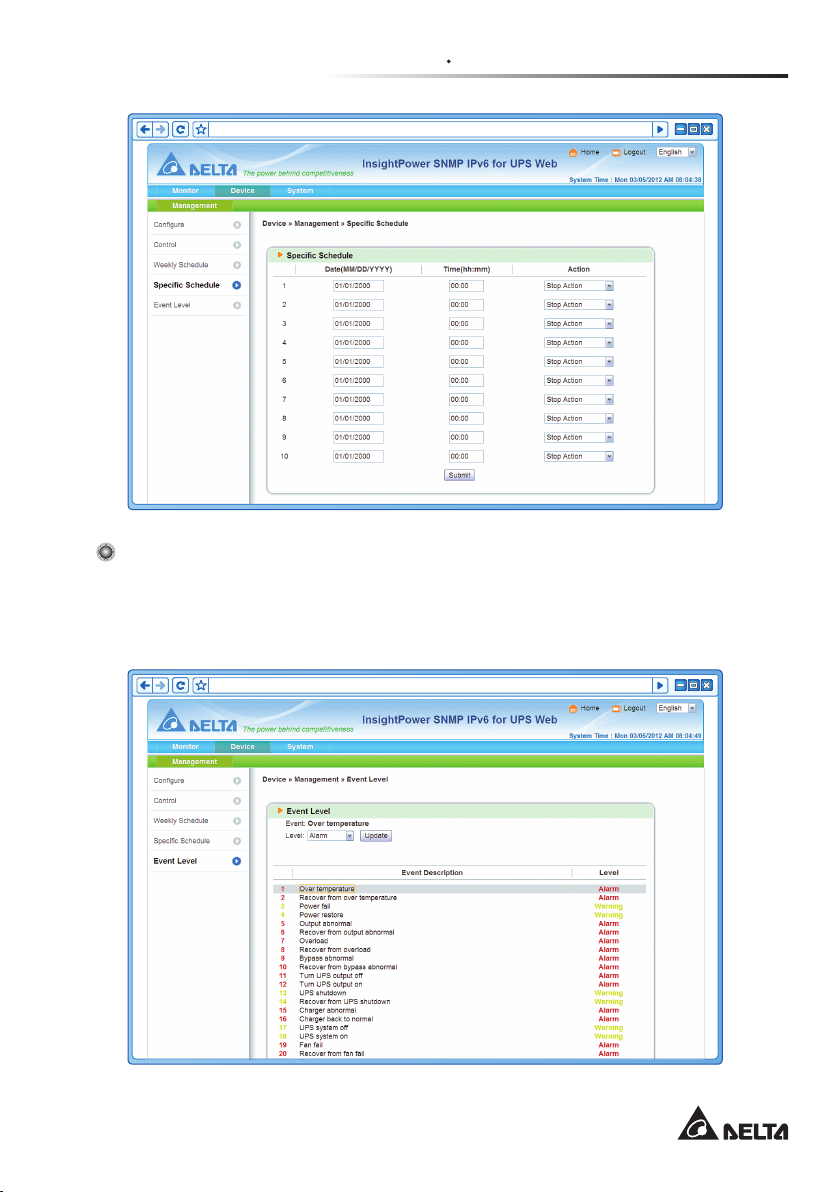

Specic Schedule

Go to Device

Management

 → 

ule for the UPS. You can set up a specic date (MM/ DD/ YYYY) and time (hh:mm)
for a specic action (Stop Action, Shutdown, Restart, 10-Second Test and Deep
Battery Test).

InsightPower SNMP IPv6 for UPS

Specic Schedule to arrange a specic sched-

 → 

36

Chapter 5 InsightPower SNMP IPv6 for UPS Web

http://192.168.1.100/

Event Level

Go to Device

Management

 → 

Event Level to set up a level for an event.

 → 

If you want to receive an event notication, please refer to 5-3-2 Notication -
SNMP Trap and 5-3-2 Notication - Mail Server.

http://192.168.1.100/

37

System

5-3

Only Administrator can see the System page. Under the System category, there are
Administration and Notication these two items. You can use them to change or
look up the system’s relevant settings or records. Please see below for more descrip­tions.

5-3-1 Administration

The Administration page includes User Manager, TCP/ IP, Web, Console, FTP, Time
Server, Syslog, Batch Conguration, and Upgrade these nine selections.

User Manager

The SNMP IPv6 supports RADIUS. Check the Use RADIUS box, key in required
information including Server, Secret and Port (default: 1812) and click Submit
to enable RADIUS. You can dene service types for Administrator, Device Man­ager and Read Only User. If RADIUS is disabled, you can still manage the Ac­count Name, Password and Login Limitation for Local Authentication.

http://192.168.1.100/

InsightPower SNMP IPv6 for UPS

38

Chapter 5 InsightPower SNMP IPv6 for UPS Web

TCP/ IP

This allows Administrator to congure local network parameters for the SNMP
IPv6.

http://192.168.1.100/

z

z

TCP/ IP Settings for IPv4

1) DHCP Client: Enable/ Disable DHCP. If enabled, DHCP server automati­cally assigns an IP address to the SNMP IPv6.

2) IP Address: The IP address in dotted format.

3) Subnet Mask: The Subnet Mask for your network.

4) Gateway IP: The IP address for network gateway in dotted format.

5) DNS IP: The IP address Domain Name Server in dotted format.

6) Search Domain: If the Host Name you provided cannot be found, the
system appends the search domain to your Host Name.

z

z

TCP/ IP Settings for IPv6

1) DHCP Client: Enable/ Disable DHCP. If enabled, DHCP server automati­cally assigns an IP address to the SNMP IPv6.

2) IP Address: The IPv6 address.

3) Prex Length: The prex length for the IPv6 address.

39

4) Gateway V6IP: The IP address for the IPv6 network gateway.

5) DNS V6IP: The IP address for the IPv6 domain name server.

z

z

System

1) Host Name: The SNMP IPv6 Host Name on the network.

2) System Contact: System contact information.

3) System Location: System location information.

z

z

Link

1) Auto-Negotiation: Enable/ Disable automatic transfer rate (10/ 100M
bps) negotiation.

2) Speed: If the Auto-Negotiation is disabled, you can specify the transfer
rate.

3) Duplex: If the Auto-Negotiation is disabled, you can specify the duplex
mode.

Web

This allows Administrator to enable/ disable HTTP/ HTTPS communication pro­tocols.

http://192.168.1.100/

z

z

Web

1) HTTP: Enable/ disable HTTP connection.

2) HTTPS: Enable/ disable HTTPS connection.

InsightPower SNMP IPv6 for UPS

40

Chapter 5 InsightPower SNMP IPv6 for UPS Web

3) HTTP Port: Assign an HTTP port number (default: 80).

4) HTTPS Port: Assign an HTTPS port number (default: 443).

5) Web Refresh Period: Web refresh interval.

z

z

SSL Certicate

1) To ensure connection security between the SNMP IPv6 and the con­necting workstation, SSL certicate can be used to encrypt and secure
the integrity of transmitting data.

2) Certicate File: This allows you to replace your own SSL certicate le.
The SNMP IPv6 supports PEM format which is generated by OpenSSL.
Click Choose File to upload a certicate le.

NOTE

For more information about generating a private SSL certificate file,
please refer to Chapter 7: Troubleshooting Q12, or visit http://www.
openssl.org/.

Console

This item allows the Administrator to enable or disable Telnet/ SSH communica­tion protocols.

http://192.168.1.100/

41

z

z

Telnet: Enable/ disable Telnet connection.

z

z

SSH/ SFTP: Enable/ disable SSH/ SFTP connection.

z

z

Telnet Port: Assign a Telnet port number (default: 23).

z

z

SSH Port: Assign an SSH protocol port number (default: 22).

z

z

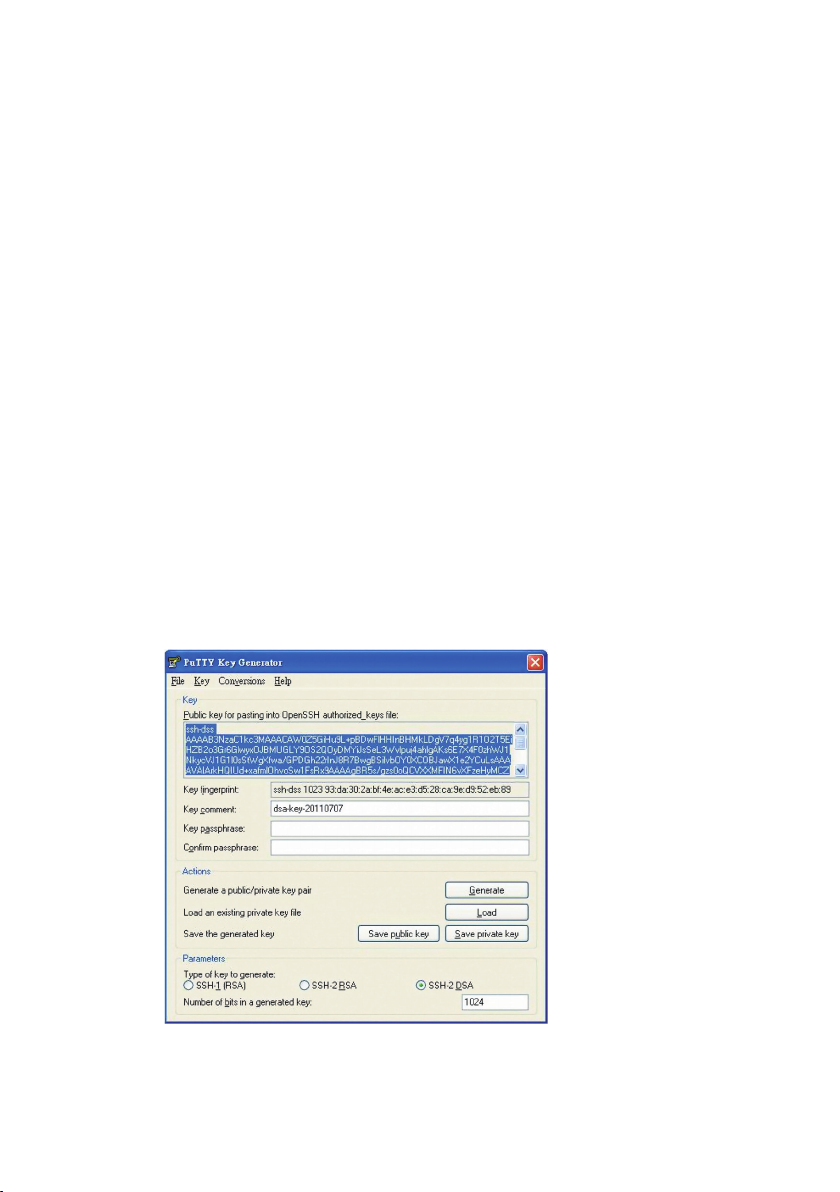

Host Key/ Authentication Public Key:

This allows you to replace your own SSH keys. The SNMP IPv6 supports key
les generated by OpenSSH, including DSA, RSA, and Authentication Public
Keys. How to generate DSA, RSA, and Authentication Public keys for SSH,
please refer to Chapter 7 : Troubleshooting Q13. You can use this page or
SFTP protocol to upload key les. For detailed information, please refer to
Chapter 7 : Troubleshooting Q14.

FTP

This allows Administrator to enable/ disable FTP communication protocol.

http://192.168.1.100/

z

z

FTP: Enable/ disable FTP connection.

z

z

FTP Port:

Time Server

Assign an FTP port number (default: 21).

You can manually set the time and date, or allow automatic time synchroniza­tion with SNTP servers. Please note that if the SNTP server is not responsive, the
event and data log will not register even when SNTP is enabled.

InsightPower SNMP IPv6 for UPS

42

Chapter 5 InsightPower SNMP IPv6 for UPS Web

http://192.168.1.100/

z

z

Simple Network Time Server

1) Time Zone: From the dropdown menu, select the time zone for the lo­cation where the SNMP IPv6 is located.

2) Primary/ Secondary Time Server: Two time servers can be added. Ev­ery 60 minutes, the SNMP IPv6 synchronizes with the rst responding
server.

3) Enable Daylight Saving: Check to enable daylight saving time. During
this period, the SNMP IPv6 adjusts time forward one hour.

z

z

Manual

If a time server is not accessible, you can still manually set time and date.
Please note that every time you restart the SNMP IPv6’s network module,
time and date is reinstated to previous assigned settings.

Syslog

Syslog is used to store the event log on remote Syslog servers. This will not af­fect the local event log. After enabling the Syslog, please set up a server IP ad­dress. You can set up at maximum four Syslog servers at a time.

43

http://192.168.1.100/

Batch Conguration

The SNMP IPv6 provides batch conguration to allow quick and eortless setup
on multiple SNMP devices. You can duplicate settings by exporting congura­tion les from the SNMP IPv6 that you have successfully congured, and import
the conguration les on other devices.

http://192.168.1.100/

z

z

System Conguration

The System Configuration includes settings saved in the Device and
System tabs. To download a conguration le, simply click Download. To

upload a conguration le, click Choose File, select the le you wish to up­load, and click Upload.

InsightPower SNMP IPv6 for UPS

44

Chapter 5 InsightPower SNMP IPv6 for UPS Web

NOTE

If the IP address is static and you wish to copy settings to other devices
on the same LAN, you must manually remove the following line IP=xxx.
xxx.xxx.xxx under the [System] section from the exported configura­tion file. You can open the configuration file with text editors such as
Notepad and WordPad. To modify/ assign IP address for the SNMP IPv6,
please see Chapter 4: System Congurations.

z

z

SNMP Conguration

The SNMP Configuration includes settings saved in the Notification tab.
To download a conguration le, simply click Download. To upload a con­guration le, click Choose File, select the le you wish to upload, and click
Upload.

NOTE

If you need to modify the command lines, please do not delete the un­modied ones. They should be left intact to assure the integrity of the
conguration le.

Upgrade

The Upgrade page shows the SNMP IPv6’s current firmware version. The Ad­ministrator can use this page to update the SNMP IPv6’s rmware. Click Choose
File, select the le you wish to upload, and click Upload. The upgrade process
should take about one minute.

http://192.168.1.100/

45

5-3-2 Notication

The Notication page includes SNMP Access, SNMPv3 USM, SNMP Trap, Mail Server,
Wake On LAN these ve items.

SNMP Access

http://192.168.1.100/

The SNMP IPv6 supports SNMP protocol and SNMP NMS (Network Manage­ment System), which are commonly used to monitor network devices for condi­tions that call for administrative attention. To prevent unauthorized access, you
can specify the NMS IP addresses that are allowed to access, their community
strings and access levels. The maximum number of IP entries is 256.

NOTE

If IP address 0.0.0.0 is enlisted, the NMS IP access restriction is ignored.
The SNMP IPv6 checks the community string to identify the access level
and permission according to your setting.

SNMPv3 USM

SNMPv3 oers features such as the encryption of packets and authentication to
improve security. The SNMPv3 USM (User Session Management) allows you to
assign eight User Names whose access is granted via SNMPv3 protocol. You can
also dene their respective Security Levels, Auth Passwords, Priv Passwords and
Access Levels.

InsightPower SNMP IPv6 for UPS

46

Chapter 5 InsightPower SNMP IPv6 for UPS Web

http://192.168.1.100/

SNMP Trap

SNMP Trap alerts users to event occurrences in your monitored environment. To
enable SNMP Trap, you must add Target IP addresses to the Target IP list. Specify
the Community String, Trap Type, MIB, SNMPv3 User Name, Trap port, Event
Level, SNMP Port for ShutdownAgent and click Add. If you wish to update or
delete a Target IP address, specify the IP address in the Target IP list, and click
Update or Delete.

http://192.168.1.100/

47

NOTE

The SNMP IPv6 supports SNMPv1, SNMPv2c and SNMPv3 traps to satisfy

most of customers’ environments. If you select the SNMPv3 trap, please

specify an SNMPv3 USM User Name.

You can use Event Level to determine what event notications should
be sent to which Target IP Address. Five event levels are listed as follows:

z

z

None: No event notications are sent to the target address.

z

z

Information: All event notications are sent to the target address.

z

z

Warning: Both Warning and Alarm event notifications are sent to
the target address.

z

z

Alarm: Only Alarm event notications are sent to the target address.

z

z

ShutdownAgent: All event notifications are sent to the target ad­dress, and you can go to Monitor

Information

 → 

ShutdownA-

 → 

gent to review your designated PCs’ shutdown information.

You can go to Device

Management

 → 

Event Level to change the

 → 

event level.

Mail Server

http://192.168.1.100/

InsightPower SNMP IPv6 for UPS

48

Chapter 5 InsightPower SNMP IPv6 for UPS Web

You can set up an SMTP Server and specify a list of E-mail recipients who will re­ceive notications when events occur. The maximum number of recipients is 256.

NOTE

If a DNS server is not available in the network, you need to manually as­sign an SMTP server address to enable the E-mail notication system.

z

z

SMTP Server Name or IP

If a Host Name is entered, a DNS IP should be added in TCP/ IP. Please see

5-3-1 Administration – TCP/ IP.

z

z

Account

The mail server login account.

z

z

Password

The mail server login password.

z

z

Receiver

The recipients’ E-mail addresses.

z

z

Event Level

Select the Event Level that when triggered, an E-mail notication is sent to
the corresponding recipient.

1) Information: All event notications are sent to the target address.

2) Warning: Warning and Alarm event notications are sent to the target
address.

3) Alarm: Only Alarm event notications are to the target address.

49

Wake On LAN

Wake On LAN function can start up clients’ PCs from network with MAC address,
and you can set up at maximum 256 MAC addresses. The conguration can wake
up clients’ PCs after power restores or the SNMP IPv6 starts up.

http://192.168.1.100/

InsightPower SNMP IPv6 for UPS

50

Chapter 6 SNMP Device Firmware Upgrade

Chapter 6 : SNMP Device Firmware Upgrade

With the provided program EzSetting, you can eortlessly perform a rmware up­grade on your SNMP devices via LAN. Please refer to the following instructions.

Step 1 The subnet mask allows you to dene the device discovery range in the

specied subnets. Make sure the SNMP device you wish to upgrade is in
the subnet that is specied. If it is not, please modify the subnet and sub­net mask.

51

Step 2 Click Discover. A list of SNMP devices is shown.

Step 3 Select a device from the Device List, click Modify, and enter Administra-

tor account and password.

InsightPower SNMP IPv6 for UPS

52

Chapter 6 SNMP Device Firmware Upgrade

Step 4 Click Upgrade. The upgrade dialog box pops up. Click Browse to select

a valid rmware binary le. Verify the rmware version shown under File
Information, and then click Upgrade Now to continue.

Step 5 The upgrade process should take about 20 seconds.

Step 6 When the upgrade is completed, the following dialog box appears. It

takes about 1 minute for the device to reboot.

53

Chapter 7 : Troubleshooting

Q1. How to set up an SNTP server on my workstation for the SNMP IPv6 to syn-

chronize?

To enable SNTP services in Windows XP, go to Start
Remove Programs
Services

check Simple TCP/ IP Services

 → 

Add/ Remove Windows Components

 → 

 → 

Control Panel

 → 

 → 

Add/

 → 

Networking

OK. To enable time synchroni-

zation, you need to set SNTP time server addresses in Time Server. Please refer
to Chapter 4: System Congurations.

Q2. How to make sure the linking between the SNMP IPv6’s and the UPS is es-

tablished?

If the linking between the SNMP IPv6 and the UPS is correctly established, the
yellow LED indicator should ash rapidly. If not, conrm that the device ID set­ting on the SNMP IPv6 and the UPS is consistent.

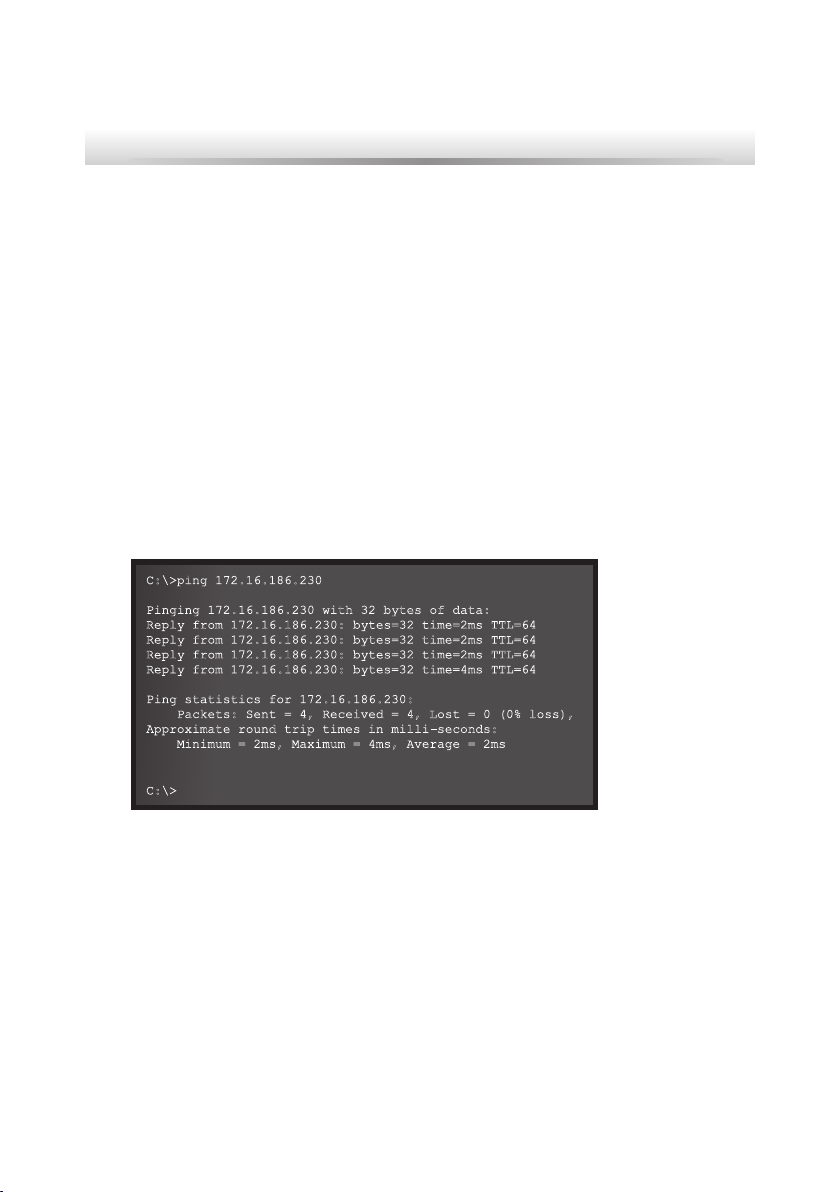

C:\>ping 172.16.186.230

Pinging 172.16.186.230 with 32 bytes of data:
Reply from 172.16.186.230: bytes=32 time=2ms TTL=64
Reply from 172.16.186.230: bytes=32 time=2ms TTL=64
Reply from 172.16.186.230: bytes=32 time=2ms TTL=64
Reply from 172.16.186.230: bytes=32 time=4ms TTL=64

Ping statistics for 172.16.186.230:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 2ms, Maximum = 4ms, Average = 2ms

C:\>

Q3. I can access the InsightPower SNMP IPv6 for UPS Web, but I cannot login

in.

Please check the IP addresses of the SNMP IPv6 and the workstation on which
you are trying to log in. By default, they must be within the same LAN so you
can connect via the web interface. You can enable external connections to
solve this issue. To do this, launch EzSetting and change User Limitation to Al­low Any, as shown below.

InsightPower SNMP IPv6 for UPS

54

Chapter 7 Troubleshooting

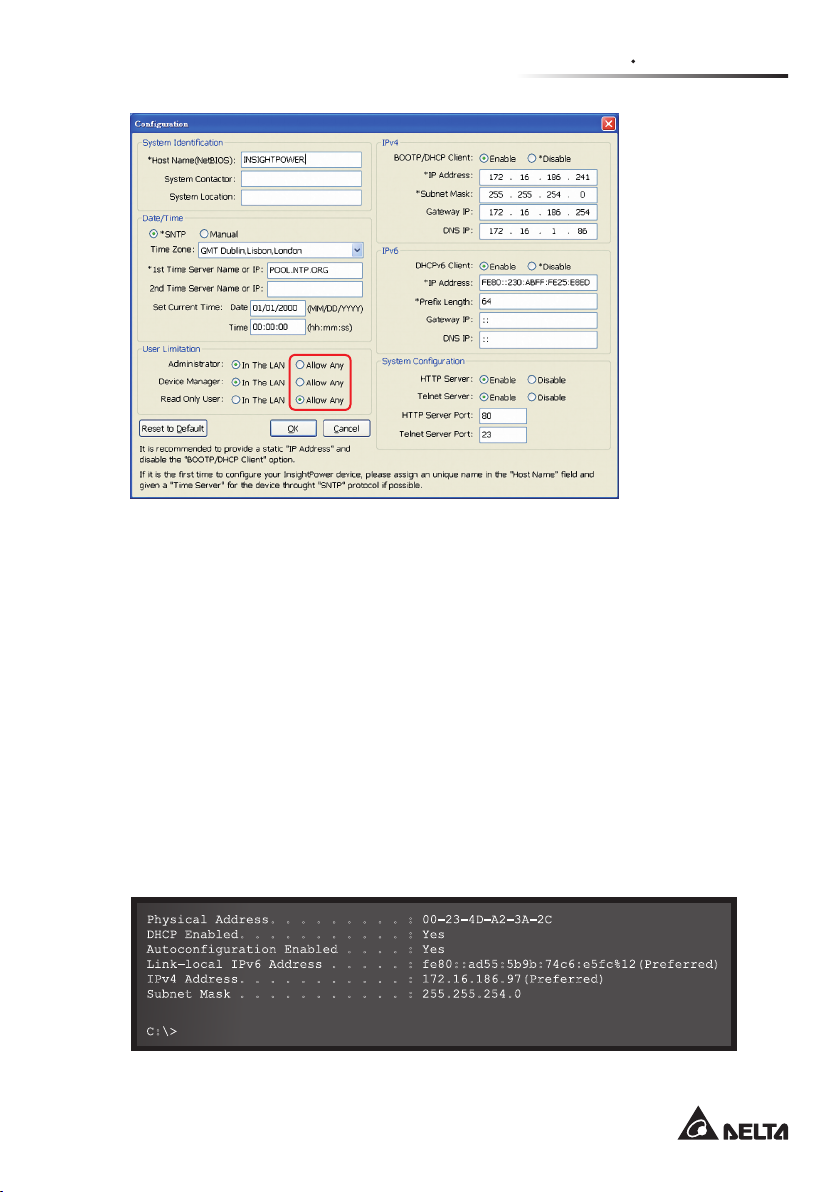

Q4. Unable to connect to the SNMP IPv6 via its Host Name?

If you just assign a new static IP address to the SNMP IPv6, you may need to
refresh the NetBIOS table so that it corresponds with the new setting. Although
Windows updates its NetBIOS table periodically, you can still manually force
it to refresh by entering the following command nbtstat –R in DOS prompt
mode. After that, you can now connect to the SNMP IPv6 by its Host Name.
Please also ensure that the Host Name assigned to the SNMP IPv6 does not ex­ceed 16 bytes.

Q5. How to check my workstation’s IP address?

For Windows, please enter ipcong /all in DOS prompt mode. For UNIX, please
enter ifcong in shell. You should be able to check your IP and MAC (Physical
Address) now.

Physical Address. . . . . . . . . : 00-23-4D-A2-3A-2C

DHCP Enabled. . . . . . . . . . . : Yes

Autoconfiguration Enabled . . . . : Yes

Link-local IPv6 Address . . . . . : fe80::ad55:5b9b:74c6:e5fc%12(Preferred)

IPv4 Address. . . . . . . . . . . : 172.16.186.97(Preferred)

Subnet Mask . . . . . . . . . . . : 255.255.254.0

C:\>

55

Q6. Unable to ping the SNMP IPv6 from my workstation?

If the SNMP IPv6 is non-responsive, check the following:

1) If the green LED indicator on the SNMP IPv6 is OFF, check if the network
cable is correctly connected from the SNMP IPv6 to the router or hub.

2) If the green LED indicator is ON, the current IP address could be unreach­able. Manually assign a valid IP address to the SNMP IPv6.

3) If the green LED indicator flashes and (1) your network configuration in­cludes a DHCP server, make sure the DHCP service is working properly; (2)
Otherwise, make sure the assigned IP is not already taken on the network.
Please note that if the current conguration is not useable, the SNMP IPv6
will reset to default IP settings (IPv4 address: 192.168.1.100/ net mask:

255.255.255.0/ gateway: 192.168.1.254).

4) If the problem persists, use a network cable to cross link your SNMP IPv6
and the workstation. Ping the SNMP IPv6’s default or static IP address, ac­cording to your congurations. If a ping response is successfully received,
indicating that the SNMP IPv6 is working properly, check your network
equipment. If not, contact your local dealer or service personnel for assis­tance.

Q7. Unable to perform an SNMP Get command?

Refer to 5-3-2 Notication to check SNMP settings. Make sure that the work­station’s IP address is added to the NMS IP list with Read or Read/ Write access.
The community string on the workstation and the SNMP IPv6 must match.

Q8. Unable to perform an SNMP Set command?

Refer to 5-3-2 Notication to check SNMP settings. Make sure that the work­station’s IP address is added to the NMS IP list, with Read/ Write permission. The
community string on the PC and the SNMP IPv6 must match.

Q9. Unable to receive SNMP trap?

Refer to 5-3-2 Notification to check SNMP Trap settings. Make sure that the
workstation’s IP address is added to the Target IP list.

InsightPower SNMP IPv6 for UPS

56

Chapter 7 Troubleshooting

Q10. Forgot Administrator’s account and password?

You can reset Administrator’s account and password via text mode. Refer to 4-4
Conguring via COM Port to establish a COM port connection with the SNMP

IPv6. When the login information is prompted, key in rstadmin within 30 sec­onds and press enter. The Administrator account and password are now reset
to default (admin/ password).

Q11. How to enable IPv6 in Windows XP?

If you are running Windows XP, please enable IPv6 first (click START

→

RUN, and enter ipv6 install). The SNMP IPv6 supports IPv6 with no additional
configurations required. However, please note that IPv6 is automatically dis­abled if an identical LLA (Local-link Address) already exists on the LAN. If the
SNMP IPv6 obtains both IPv4 and IPv6 records from DNS resolution, the IPv4 is
used as the primary IP address for the given Host Name.

To learn more information regarding IPv6 compatibility, please visit IETF (http://
tools.ietf.org/html), or IPv6 Ready Logo Program (http://www.ipv6ready.org).

Q12. How to generate a private SSL certificate file (in PEM format) for HTTPs

connection?

To ensure connection security between the SNMP IPv6 and your worksta­tion, you can create your own SSL certicate le. Please download and install
OpenSSL Toolkit from http://www.openssl.org. Launch Shell or DOS prompt
mode and enter the following command to create your own certicate le:

openssl req –x509 –nodes –days 3650 –newkey
rsa:1024 –keyout cert.pem –out cert.pem

1) Answer the prompted questions. Proceed with the given directions. Once
it is completed, a le named cert.pem is created in the current working di­rectory.

2) Upload cert.pem to the InsightPower SNMP IPv6 for UPS Web. Please refer
to 5-3-1 Administration – Web.

Q13. How to generate DSA, RSA and Public keys for SSH?

For Linux:

1) Please download and install OpenSSH from http://www.openssh.org.

2) Launch Shell and enter the following commands to create your own keys
(please ignore it when prompted to provide passphrase):

57

DSA Key:ssh-keygen –t dsa

RSA Key:ssh-keygen –t rsa

3) Upload DSA and RSA keys to the InsightPower SNMP IPv6 for UPS Web.
Please refer to 5-3-1 Administration – Console for more information.

For Windows:

1) Please download and install PuTTY from http://www.putty.org.

2) Run puttygen.exe from the installed directory.

3) Select SSH-2 RSA from the Parameters area and click Key

Generate

 → 

key pair to generate a RSA key.

4) Click Conversions

Export OpenSSH Key and assign a lename to the

 → 

RSA key. Please ignore it when prompted to provide key passphrase.

5) Select SSH-2 DSA from the Parameters, clickt Key

Generate key pair to

 → 

generate a DSA key.

6) Click Conversions

Export OpenSSH Key and assign a lename to the

 → 

DSA key. Please ignore it when prompted to provide key passphrase.

7) Copy the generated key from the text box, paste in a text editor and save
as a text le.

InsightPower SNMP IPv6 for UPS

58

Chapter 7 Troubleshooting

8) Upload the DSA/ RSA/ Public keys les to the InsightPower SNMP IPv6 for
UPS Web. Refer to 5-3-1 Administration – Console for more information.

Q14. How to upload conguration / rmware / key les via SSH/ SFTP?

To quickly congure your SNMP IPv6, you can upload the les via SSH/ SFTP.
The SNMP IPv6 automatically imports your settings after the les are uploaded
to the designated directories. Refer to the following table:

Directory Files

\cong_snmp snmp.ini

\cong_system congure.ini

\ssh_dsa DSA key

\ssh_rsa RSA key

\ssh_pubkey Public key

\upgrade_snmp SNMP IPv6’s rmware upgrade package (binary)

\upgrade_device* Device’s rmware upgrade package (binary)

*Appears on specic devices only.

Upload files to their respective directories. Make sure the filenames do not
contain non-English characters to avoid read error. Overwrite existing files if
prompted by your SFTP client.

Q15. How to test SNMPv3 in Linux?

Before you can access the SNMP OID (Object Identier) via SNMPv3 protocol,
the SNMPv3 USM table must be organized. Please refer to 5-2-2 Notication –
SNMPv3 USM for more information.

To test SNMPv3 in Linux, launch shell and key in the following command:

snmpwalk -v 3 -u <user> -l authPriv -A <pass­word> -X <password> -n <context name> -t 3 <ip>

1.3.6.1.2.1.1.1.0

-v: 1 for SNMPv1, 3 for SNMPv3.

-l: Follow the security levels. They are: noAuthNoPriv, authNoPriv and authPriv.

-u: The user name which is assigned from SNMPv3 USM table.

-A: The Auth Password which is assigned from SNMPv3 USM table.

59

-X: The Priv Password which is assigned from SNMPv3 USM table.

-n: The Context Name which is assigned from SNMPv3 USM table.

-t: Timeout in seconds.

<ip>: The IP address of the SNMP IPv6.

<oid>: The next available SNMP OID (for example: 1.3.6.1.2.1.1.1.0). Please refer

to the RFC1213 MIB.

InsightPower SNMP IPv6 for UPS

60

Appendix A Specications

Appendix A : Specications

Model Name InsightPower SNMP IPv6

Power Input 12 Vdc

Power Consumption 2 Watt (Max.)

Network Connection RJ-45 jack connector (10/ 100M)

Physical

Size (W x D ) 130 mm x 60 mm

Weight 75 g

Environmental

Operating Temperature 0 ~ 60

Storage Temperature -40 ~ 125

Operating Humidity 0 ~ 90 % (Non-condensing)

℃

℃

NOTE

Refer to the rating label for the safety rating.

*

All specications are subject to change without prior notice.

*

61

Appendix B : Warranty

No. 353413900910
Version : V 9.10
UM Date : 2013_02_06

Seller warrants this product, if used in accordance with all applicable instructions,
to be free from original defects in material and workmanship within the warranty
period. If the product has any failure problem within the warranty period, Seller will
repair or replace the product at its sole discretion according to the failure situation.

This warranty does not apply to normal wear or to damage resulting from improper
installation, operation, usage, maintenance or irresistible force (i.e. war, re, natural
disaster, etc.), and this warranty also expressly excludes all incidental and consequen­tial damages.

Maintenance service for a fee is provided for any damage out of the warranty period.
If any maintenance is required, please directly contact the supplier or Seller.

WARNING : The individual user should take care to determine prior to
use whether the environment and the load characteristic are suitable,
adequate or safe for the installation and the usage of this product. The
User Manual must be carefully followed. Seller makes no representa­tion or warranty as to the suitability or tness of this product for any
specic application.

InsightPower SNMP IPv6 for UPS

62
