T13022
Flow (U.S. Gallons Per Minute)
T13222
T13422
T13422-PD
T13422-SOS
T13422-PDSOS

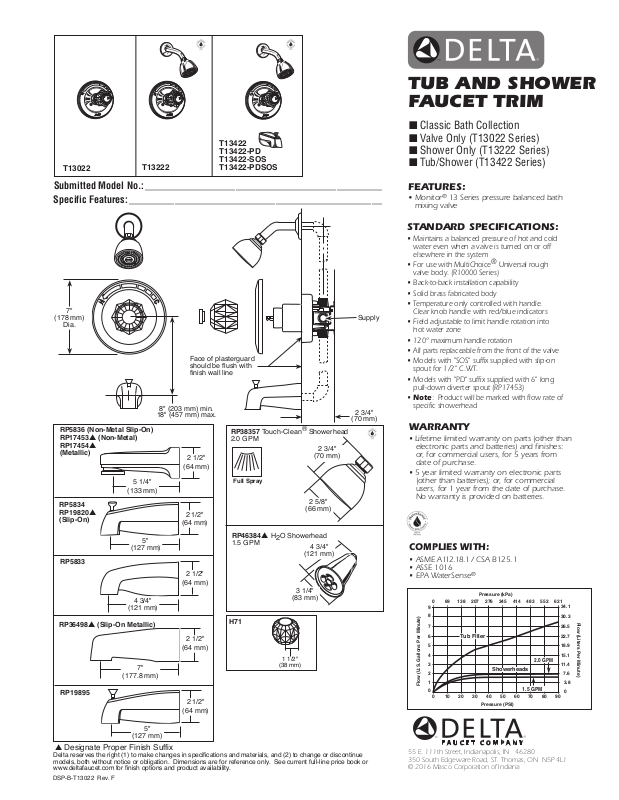

TUB AND SHOWER
FAUCET TRIM
■ Classic Bath Collection
■ Valve Only (T13022 Series)
■ Shower Only (T13222 Series)
■ Tub/Shower (T13422 Series)
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7"
(178 mm)
Dia.
RP5836 (Non-Metal Slip-On)
▲ (Non-Metal)
RP17453
▲
RP17454
(Metallic)
(133 mm)
RP5834
▲
RP19820
(Slip-On)
(127 mm)
RP5833
(121 mm)
RP36498
▲ (Slip-On Metallic)
(177.8 mm)
RP19895
8" (203 mm) min.
18" (457 mm) max.
5 1/4"
5"
4 3/4"
7"
Face of plasterguard
should be flush with
finish wall line
RP38357 Touch-Clean® Showerhead
2.0 GPM
2 1/2"
(64 mm)
2 1/2"
(64 mm)
RP46384
1.5 GPM
2 1/2"
(64 mm)
H71
2 1/2"
(64 mm)
2 1/2"
(64 mm)
Full Spray
▲ H
O Showerhead
2
(38 mm)
1 1/2"
2 5/8"
(66 mm)
4 3/4"
(121 mm)
3 1/4"
(83 mm)
2 3/4"
(70 mm)
Supply
2 3/4"
(70 mm)
FEATURES:
• Monitor® 13 Series pressure balanced bath
mixing valve
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system
• For use with MultiChoice® Universal rough
valve body. (R10000 Series)
• Back-to-back installation capability
• Solid brass fabricated body
• Temperature only controlled with handle.
Clear knob handle with red/blue indicators
• Field adjustable to limit handle rotation into
hot water zone
• 120° maximum handle rotation
• All parts replaceable from the front of the valve
• Models with "SOS" suffix supplied with slip-on
spout for 1/2" C.W.T.
• Models with "PD" suffix supplied with 6" long
pull-down diverter spout (RP17453)
• Note: Product will be marked with flow rate of
specific showerhead
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
•
EPA WaterSense
069 138 207 276 345 414 483 552 621
9
8
7
6
5
4
3
2
1
0
0102030405060708090
®
Tub Filler
Pressure (kPa)
Showerheads
Pressure (PSI)
2.0 GPM
1.5 GPM
34.1
30.3
Flow (Liters Per Minute)
26.5
22.7
18.9
15.1
11.4
7.6
3.8
0
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T13022 Rev. F
5"
(127 mm)
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, ST. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
