Page 1
51799▲ 55799▲
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= H
2
Okinetic™ Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
1 13/16”
(46 mm)
2 3/8”
(61 mm)
Square
26 15/16”
(684 mm)
1 3/16”
(30 mm)
10 1/2”
(267 mm)
10 1/2”
(267 mm)

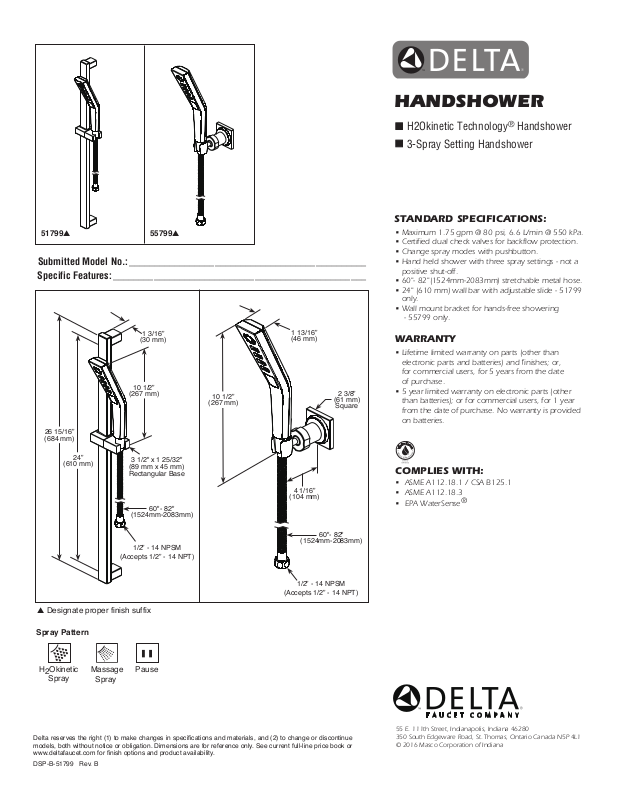

HANDSHOWER
H2Okinetic Technology® Handshower
3-Spray Setting Handshower
STANDARD SPECIFICATIONS:
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa.
• Certified dual check valves for backflow protection.
• Change spray modes with pushbutton.
• Hand held shower with three spray settings - not a
positive shut-off.
• 60"- 82"(1524mm-2083mm) stretchable metal hose.
• 24" (610 mm) wall bar with adjustable slide - 51799
only.
• Wall mount bracket for hands-free showering
- 55799 only.
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and inishes; or,
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
24”
(610 mm)
▲ Designate proper finish suffix
Spray Pattern
H2Okinetic
Spray
Massage
Spray
Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.
DSP-B-51799 Rev. B
3 1/2" x 1 25/32"
(89 mm x 45 mm)
Rectangular Base
60"- 82"
(1524mm-2083mm)
1/2” - 14 NPSM
(Accepts 1/2” - 14 NPT)
Pause
4 1/16”
(104 mm)
60"- 82"
(1524mm-2083mm)
1/2” - 14 NPSM
(Accepts 1/2” - 14 NPT)
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.3
• EPA WaterSense®
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2016 Masco Corporation of Indiana
